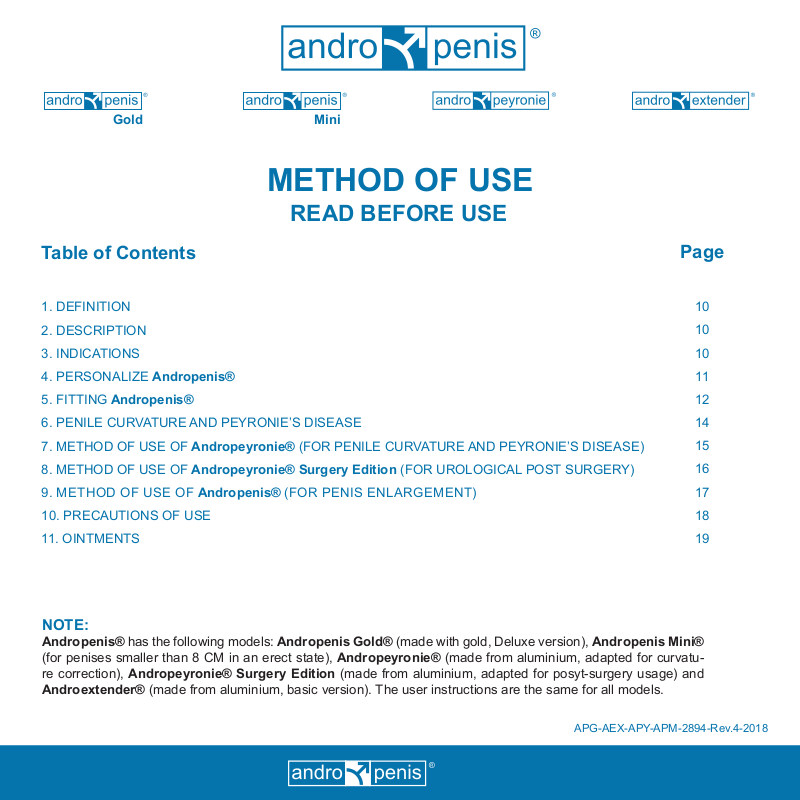

Gold Mini
METHOD OF USE
READ BEFORE USE
Table of Contents
1. DEFINITION
2. DESCRIPTION
3. INDICATIONS
4. PERSONALIZE Andropenis®
5. FITTING Andropenis®
6. PENILE CURVATURE AND PEYRONIE’S DISEASE
7. METHOD OF USE OF Andropeyronie® (FOR PENILE CURVATURE AND PEYRONIE’S DISEASE)
8. METHOD OF USE OF Andropeyronie® Surgery Edition (FOR UROLOGICAL POST SURGERY)
9. METHOD OF USE OF Andropenis® (FOR PENIS ENLARGEMENT)
10. PRECAUTIONS OF USE
11. OINTMENTS
Page
NOTE:
Andropenis® has the following models: Andropenis Gold® (made with gold, Deluxe version), Andropenis Mini®
(for penises smaller than 8 CM in an erect state), Andropeyronie® (made from aluminium, adapted for curvature correction), Andropeyronie® Surgery Edition (made from aluminium, adapted for posyt-surgery usage) and
Androextender® (made from aluminium, basic version). The user instructions are the same for all models.
APG-AEX-APY-APM-2894-Rev.4-2018
10
10
10
11
12
14
15
16
17
18
19
2 10
Page 2
ENG
1. DEFINITION
Andropenis® is a medical device which attaches externally to the penis. In combination with penile tissues, it produces a lightweight traction on the penis through
a progressive and adaptive force that is adapted to patient needs. It is indicated
for esthetical and medical uses. Note: Before its rst use, visit your Doctor and
follow his indications.
2. DESCRIPTION
Andropenis® is composed of a plastic base ring, two metal shafts with internal
springs, and an upper plastic support with a silicone band. The plastic pieces are
made of POM (a synthetic material that is not affected by combustible uids such as
alcohol). The band is of medical grade silicone. The metal shafts of Andropenis®
gold are made of brass covered with a layer of 24-carat gold. The springs are
made of stainless steel and the shafts of surgical grade aluminium.
Note: All materials and components of the device, are manufactured under quality management standards (ISO:13485:2003 and ISO 9001:2008), they are
biocompatible, and non cito-toxic (associated ISO 10993), its use does not involve any health risks.
COMPONENTS (g. 1): 1-plastic base ring, 2-rounded hinge nut, 3-threaded bar,
4-threaded adjustable shaft, 5-metal shaft, 6-screw, 7-spring, 8-screw to secure
the spring, 9-large 4 cm rod (1.6”), 10-medium 2 cm
(0.2”),12-smallest rod 0.3 cm (0.1”), 13-upper plastic support, 14-silicone band, 15protective cushion, 16-silicone rings.
NOTE: It is advisable to gently rub a small drop of oil, with the help of a cloth,
between pieces 4 and 5 to allow easier sliding (see OIL).
rod
(0.8”), 11-small 0.5 cm rod
3. INDICATIONS
Treatment of Peyronie’s disease and correction of other congenital penile curvatures.
Treatment of male hypogonadism with micropenis or small penis.
Aesthetic treatment for penile lengthening and thickening.
Post-surgical treatment of some urological surgeries (prostatectomy, penile surgery, trauma, penile fracture, etc.) to
Contraindications: Patients with uncontrolled diabetes, genital herpes, sexually transmitted diseases, urethritis and acute cystitis, acute prostatitis, abdominal hernia, dermatitis, testicular cancer, lymphatic cancer, lymphoma, paraplegics, quadriplegics and
patients taking anticoagulant treatment. The results will be less or non-existent if the levels of testosterone are low, or at the lower
end of the spectrum. We do not recommend this for the use of people under the age of 18.
Side effects: Andropenis® has been designed specically for a medical use and its utilization does not involve any secondary
effects, as long as it is correctly used under the indications that are exposed in the instructions manual.
avoid penile shortening due to scar retraction.
External penile rigidity device to create or maintain sufcient penile rigidity for sexual intercourse.
Page 3
4. PERSONALIZE Andropenis®
The initial size of Andropenis® is 8 cm (3.1”). The size of the device
is measured from the lower part of the plastic ring to the end of the
metal shaft (g.4, INITIAL).
Personalize your Andropenis® according to the size of your penis.
Using a tape measure, measure the length and circumference of the
penis in accid state and then erect (g. 2 and 3).
Calculate the personal size of Andropenis® by subtracting 4 cm
(1.6”) from the size of your penis in erection.
g. 4
INITIAL
PERSONAL
g. 2
Example: 14.7 cm. – 4 cm. = 10.7 cm. > Andropenis® personal size = 10.7 cm
Now, prepare the device so that it corresponds to your personal size.
First, detach the upper plastic support by lifting it upwards (g 5),
then add as many shafts as needed to reach the personal size of
Andropenis® (g. 4, PERSONAL).
Example: Personal size of 10.7 cm. = Andropenis® initial size (8 cm.) + piece 10 (2 cm.) + piece 11 (0.5 cm.).
Note: The initial size of Andropenis Mini is 7 cm. If you have this version start the period of adaptation at that
measurement (7 cm) and hold that measurement for 15 days: the rst day, use the device for 3 hours, as the
days pass gradually increase usage time. After the rst 15-days increase usage time as indicated in the tables
of use (see below).
g. 3
g. 5
11 12
Page 4
5. FITTING Andropenis®
Insert one of the silicone band models (Piece 14) that best ts within the appropriate protective pad according to
the size of the penis (Piece 15). The use of the protective cushion is COMPULSORY. Introduce the ends of the si-
licone band into the holes at the back side of the upper plastic support (piece 13), so that the band forms a loop.
With the penis accid, slide all the foreskin (uncircumcised
men), onto the shaft (g. 7) and place the silicone ring below
the crown of the glans where it meets the shaft of the penis
(g. 8).
g. 7
The glans should not come into direct contact with the device.
Next, stretch the penis away from the body so that it is length-
ened whilst accid.
Take the base ring (piece 1), maintaining the narrowest part
of the ring facing upwards. Fit the penis through the base ring
(piece 1), and rest it in the depression of the upper plastic support (piece 13). Place the left hand on the upper support (piece
13) and push the device against your body, compressing the
internal springs (g. 9).
While keeping the left hand in position, use the ngers of your
right hand to pull the glans through the loop formed by the
silicone band (g. 10).
Place the thumb of the left hand on top of the glans to maintain the penis in place while gradually shortening the silicone
loop by pulling on both ends of the band with the right hand
(g. 11).
g. 8
g. 9
g. 10
g. 11
Page 5
Slowly pull the skin on both sides of the penis towards your body to avoid pinching
the skin or leaving a fold over the groove of the glans (g 12).
The silicone loop should be tted on and in line with the groove of the glans without
hurting but tight enough to keep the glans from slipping out. Carefully secure the
silicone band in the fasteners on the underside of the upper support (piece 13) by,
stretching the tape each time you press within the recesses. Tighten but do not pull
downwards in order to avoid pinching the penis.
Double check there is no skin over the groove nor underneath the silicone band, if
there is, pull the skin towards the body to avoid it being pinched.
To remove Andropenis®, compress the springs by pushing down against the body,
release the silicone band (piece 14) from the fasteners in the upper support (piece
13), and increase the size of the silicone loop to release the penis.
Andropenis® has a fastening system of the glans by a band called Androcomfort®
band. There are two available models Androcomfort® band and Androsilicone® band. Androcomfort® band system allows even more convenient use of
Andropenis®. It is placed between the glans and shaft of the penis, the coronal
sulcus area-prepuce.
Andropenis® has a silicone ring that functions as a cushioning system called
Androring®. It lies between the glans and shaft of the penis, the coronal sulcus-
prepuce.
g. 12
g. 13
Andropeyronie® has a superior plastic part (Androsupport) adapted for the correction of penile curvatures (see the annexed “Androsupport Usage Guide”).
13 14
Page 6
6. PENILE CURVATURE AND PEYRONIE’S DISEASE
Basic Medical Information: The penis is formed of two columns of sponge-like tissue called the corpus cavernosa
and a conduit, called the urethra, where the urine exits the body. These corpa cavernosa are surrounded by a
sleeve of elastic tissue called the tunica albuginea.
There are 2 types of penile curvature:
Peyronie’s disease (can appear at any age).
Congenital penis curvature (usually detected in young men).
Peyronie’s disease, or penile hardening, is a process whose cause is unknown, and
characterized by a brous (hard) band on the tunica albuginea of the penis. These
bands tend to be unilateral (on one side of the penis) and as a result the penis acquires
a curve in erection.
The most common symptoms are deformation of the penis, pain during erection, and erectile dysfunction. Its
prevalence is approximately 1% of the male Caucasian population. 75% of cases occur in men aged 45 to 60.
Medical treatment options:
Verapamil: Injections into the brous plaque to block the production of collagen. (Studies are being
Andropeyronie®: non implantable prosthesis applied to the penis which exerts a traction force and
Vitamin E or Colchicine: Taken orally as an aid.
Combined Treatment: Andropenis® plus Verapamil plus vitamin E. The combination of these
Surgery: removal of the brous plaque. Shortening of the penis or external prosthesis implanta-
undertaken on Interferon injections)
creates a reduction in curvature of up to 50%.
methods has been proposed as a medical outpatient protocol for the treatment of Peyronie’s disease.
Always consult your urologist before commencing any treatment regime.
tion is always a side effect of this treatment, to avoid this, a penile extender should be employed
(Andropeyronie® Surgery Edition).
Congenital penile curvature detected in young men. This
condition originates because the corpus cavernosa grow more
than the urethra; causing the erection to curve downwards or to
one side. Treatment options are surgery and/or application of
Andropeyronie® for a period of 6 months.
≤
50%
Page 7
7. METHOD OF USE OF Andropeyronie® (FOR PENILE CURVATURE AND PEYRONIE’S DISEASE)
The common treatment, excepts for different medical prescription, consists of 2 periods:
An adaptation period, lasting 15 days.
An evolution period, consisting of 3 separate phases: Initial evolution phase (1st and 2nd month),
intermediate phase (3rd and 4th month) and nal evolution phase, which begins in the 5th month.
Any deviation from the treatment program could alter the results achieved (consult your doctor).
DEVICE SIZE Daily duration
Adaptation period
First 5 days Initial size 3 hours
Day 6 - 10 Add a small 0.5cm shaft (piece 11). 6 hours
Day 11 - 15 Add a small 0.5cm shaft (piece 11). 8 hours
Evolution period
1st and 2nd month Add a small 0.5cm shaft (piece 11) every 7 days 9 hours
3rd and 4th month Add a small 0.5cm shaft (piece 11) every 10 days 9 hours
From the 5th month Add a small 0.5cm shaft (piece 11) every 15 days 9 hours
Note: for your own comfort, from the 5th month onward, it is possible to rst add a 0.3 cm shaft (piece 12) and a few days later change it for
a 0.5cm shaft (piece 11) to make the traction more progressive.
The rst day, as practice, t and remove the device 10 times
in a row. In case of curvature, it is recommended tting the
device away from the curvature. Every 2 hours, the device
will need to be removed for a few minutes to allow the tissues
to relax. After the 5th month, this rest period should be observed every 1.5 hours. Use this rest period to lightly massage
the penis. Wash the device with PH neutral soap and water
every 4 days.
Be patient and consistent with the treatment, this is the key to
achieving your objectives. The rst results will be observed
1.5 months into the treatment (the 15 day adaptation period
followed by 1 the rst month of treatment).
15
Page 8
8. METHOD OF USE Andropeyronie® Surgery Edition (FOR UROLOGICAL POST SURGERY)
If the surgery is simple, it is recommended to begin use of Andropeyronie® Surgery Edition 15 days after
surgery.
If the surgery is very complex, it is recommended to begin use of Andropeyronie® Surgery Edition 1 month
after surgery.
Always consult your surgeon so he can advise how long after surgery to begin using Andropeyronie® Surgery
Edition and the duration of use.
The common treatment, excepts for different medical prescription, consists of 2 periods:
An adaptation period, lasting 15 days.
An evolution period, consisting of 2 separate phases: Initial evolution phase (1st and 2nd month), and
nal evolution phase, which begins in the 3rd month.
Any deviation from the treatment program should be rst discussed with your surgeon.
DEVICE SIZE Daily duration
Adaptation period
First 5 days Initial size 3 hours
Day 6 - 10 Add a small 0.5cm shaft (piece 11). 6 hours
Day 11 - 15 Add a small 0.5cm shaft (piece 11). 8 hours
Evolution period
1st and 2nd month Add a small 0.5cm shaft (piece 11) every 7 days 8 hours
From the 3rd month Add a small 0.5cm shaft (piece 11) each month 8 hours
Note: for your own comfort, from the 5th month onward, it is possible to rst add a 0.30 cm shaft (piece 12) and a few days later change
it for a 0.5cm shaft (piece 11) to make the traction more progressive.
The rst day, as practice, t and remove the device 10 times in a row. It is recommended locating the device in
the upwards position one day, to one side the following day, and to the other side the next day. Every 2 hours, the
device will need to be removed for a few minutes to allow the tissues to relax. After the 5th month, this rest period
should be observed every 1.5 hours. Use this rest period to lightly massage the penis. Wash the device with soap
and water every 4 days. Be patient and consistent with the treatment, this is the key to achieving your objectives.
The rst results will be observed 1.5 months into the treatment (the 15-day adaptation period followed by 1 the
rst month of treatment).
16
Page 9
9. METHOD OF USE OF Andropenis® (FOR PENIS ENLARGEMENT)
The common treatment, excepts for different medical prescription, consists of 2 periods:
An adaptation period, lasting 15 days.
An evolution period, consisting of 3 separate phases: Initial evolution phase (1st and 2nd month), intermedi-
ate phase (3rd and 4th month) and nal evolution phase, which begins in the 5th month.
Any deviation from the treatment program could alter the results achieved (consult your doctor).
The medical practice recommends electing among the two models in use:
STANDARD METHOD SPECIAL METHOD
DEVICE SIZE DAILY DURATION DEVICE SIZE DAILY DURATION
Adaptation period Adaptation period
First 5 days Initial size 3 hours First 5 days Initial size 4 hours
Day 6 - 10 Add a small 0.5cm shaft (piece 11) 6 hours Day 6 - 10 Add a small 0.5cm shaft (piece 11). 4 hours
Day 11 - 15 Add a small 0.5cm shaft (piece 11) 8 hours Day 11 - 15 Add a small 0.5cm shaft (piece 11). 4 hours
Evolution period Evolution period
1st and 2nd
month
From the
3rd month
From the
5th month
Note: for your own comfort, from the 5th month onward, it is possible to rst add a 0.30 cm shaft (piece 12) and a few days later change it for
a 0.5cm shaft (piece 11) to make the traction more progressive.
Add a small 0.5cm shaft (piece 11)
every 7 days
Add a small 0.5cm shaft (piece 11)
every 10 days
Add a small 0.5cm shaft (piece 11)
every 15 days
9 hours 1st and 2nd
9 hours From the
9 hours From the
month
3rd month
5th month
Add a small 0.5cm shaft (piece 11)
every 3 days
Add a small 0.5cm shaft (piece 11)
every 10 days
Add a small 0.5cm shaft (piece 11)
every 15 days
4 hours
4 hours
4 hours
The rst day, as practice, t and remove the device 10 times in a row.
It is recommended tting the device in the upwards position one day, to
one side the following day, and to the other side the next day. Every 2
hours, the device will need to be removed for a few minutes to allow the
tissues to relax. After the 5th month, this rest period should be observed
every 1.5 hours. Use this rest period to lightly massage the penis. Wash
the device with PH neutral soap and water every 4 days.
Be patient and consistent with the treatment, this is the key to achieving
your objectives. The rst results will be observed 1.5 months into the
treatment (the 15 day adaptation period followed by 1 the rst month of
treatment).
17
Page 10
10. PRECAUTIONS OF USE
Even though there is usually no discomfort, some days the device may feel uncomfortable. Do not worry, keep using
the device. However, if necessary, you may interrupt the treatment for one day.
If you experience pain or discomfort, bluish discoloration or numbness of the glans, remove the device and massage
the penis. By doing so penis colour will return to normal and the unpleasant sensations will disappear. If you feel
discomfort at the base of the glans, you should try wearing cotton or gauze to protect this sensitive area.
If you have not been able to wear the device for 15 to 30 days, start treatment at 1 cm (0.4”) less than the size of the
device at that time. After 5 days, increase of 0.5 cm (0.2”) and repeat the increment of 0.5 cm (0.2”) after again 5 more
days. After this 10 day adaptation period resume with the chosen mode.
When you take off the device you may notice a tingling sensation, for which you should not worry either. It is due to
the tissues relaxing after a period of tension.
Penile bruising, penile skin reaction in the distal part of the shaft (site of application of the silicone band) and at the
base of the penis (site of application of the plastic ring), pain, penile dyschromic changes, numbness of glands, tin-
gling sensation, edema or uid retention in the glands, wound, irritation, inammation and discomfort are identied as
residual risks. If any of these residual risks occur while using the device, we strongly recommend to discontinue using
it, and follow the recommendations for the corresponding case, exposed in Section 11 of present instruction manual.
Do not use Andropenis®: while sleeping, while partaking in strenuous physical activity or sport. While
under the effects of recreational drugs or alcohol. If you have an ulcer, sexually transmitted disease or
wound in the genital area. If you have decreased hand strength or difculty manipulating the device.
During sexual intercourse.
Maintain strict hygiene standards whilst using the device.
Remove the device to urinate or defecate.
If you have an erection whilst using the device, do not worry: it will simply feel a little tighter.
If you see white areas on the glans, do not worry: These are areas of edema or uid retention possibly due
to the loop being too tight. Massage the area and they will disappear.
If you develop white spots on your glans, it is necessary to see a doctor, since you may have developed a fungal
infection. Personal hygiene is very important. Keep the device clean.
IMPORTANT: The use of medication for stimulating hair growth or to make your hair stronger, medication to treat
depression, sleeping pills, tranquillizers and sedatives can signicantly diminish the effectiveness of Andropenis® .
Inability to achieve an erection that is sufcient for sexual intercourse may be a sign of a serious medical problem.
Consult your physician to avoid a potentially harmful delay in diagnosis.
Page 11
11. OINTMENTS
The fastening system of Andropenis® to the glans could lead, in rare cases, to irritation or discomfort in the area.
To prevent this it is recommended to use precaution´s and the component Androcomfort® band provided. If you
see any irritation, we recommend a series of ointments, you can buy pre-emptively, however, we recommend you
to visit your doctor.
ANTI-IRRITATION / ANTIBIOTIC OINTMENT
In case of minor irritation, penile bruising or penile skin reaction in the distal part of the shaft (site of application
of the silicone band) or at the base of the penis (site of application of the plastic ring): Apply ointment during the
evening and use the device during the day until the symptoms disappear, if these symptoms persist contact your
physician.
HEALING OINTMENT / ZINC OXIDE
If you develop a wound or ulcer:
Do not use the device for 4 days. Apply anti-irritation ointment twice daily, morning and afternoon, and
ANTI-INFLAMMATION OINTMENT
If any inammation or edema appears in the glans or at the base of the penis or in the pubic area, apply an antiinammation ointment such as “Cortaid”. The anti-inammation ointment will also be a valid treatment for uid
retention in the glans.
HYDRATING CREAM
If you feel discomfort in the shaft of the penis, massage the penis with a hydrating cream for 5 minutes each night
using gentle stretching motions
WARNING
If any of the above mentioned symptoms persist after three days, you feel any pain or perceive any redness,
swelling or fever, contact your doctor immediately.
Contraindications to the use of the apparatus with ointments or creams to the penis that contain topical anesthetics (lidocaine, xylocaine, ...).
The use of this product meets the specic needs of each patient for medical and surgical application´s, it is not
a general purpose machine requiring the concurrence of a specialist in your rst placement and supervision of a
physician for the remainder of the treatment. The device is commonly used in cosmetic application´s, in this case,
medical advice and supervision is only suggested as an option. Should the patient notice any abnormality during
use, they must consult a doctor.
the healing ointment at night. If the wound persists, stop using the device and contact your physician.
19
Loading...
