C46-5432 Rev. F

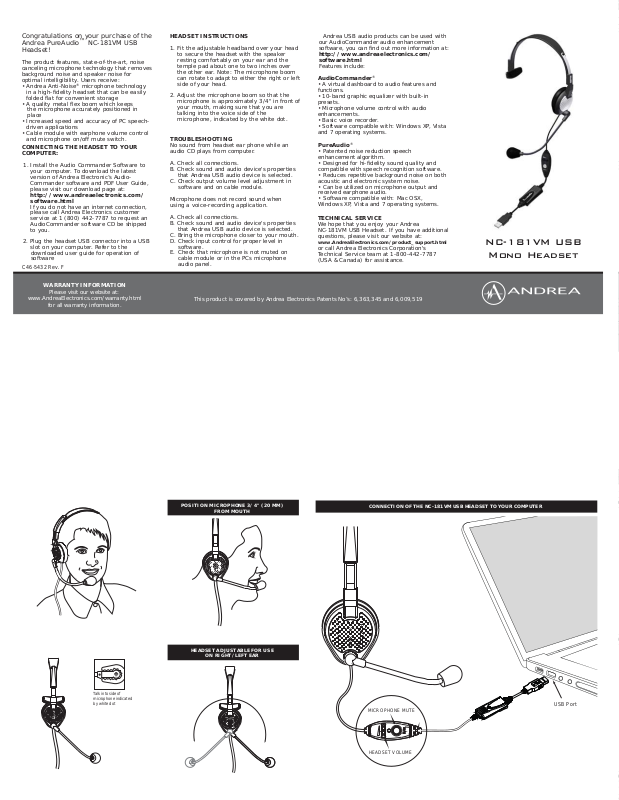

Congratulations on your purchase of the
Andrea PureAudio™ NC-181VM USB
Headset!
The product features, state-of-the-art, noise
canceling microphone technology that removes
background noise and speaker noise for
optimal intelligibility. Users receive:
• Andrea Anti-Noise
in a high-fidelity headset that can be easily
folded flat for convenient storage
• A quality metal flex boom which keeps
the microphone accurately positioned in
place
• Increased speed and accuracy of PC speech driven applications
• Cable module with earphone volume control
and microphone on/off mute switch.
CONNECTING THE HEADSET TO YOUR
COMPUTER:
1.
Install the Audio Commander Software to
your computer. To download the latest
version of Andrea Electronic’s AudioCommander software and PDF User Guide,
please visit our download page at:
http://www.andreaelectronics.com/
software.html
If you do not have an internet connection,
please call Andrea Electronics customer
service at 1 (800) 442-7787 to request an
AudioCommander software CD be shipped
to you.
2. Plug the headset USB connector into a USB
slot on your computer. Refer to the
downloaded user guide for operation of
software
®
microphone technology
C46-5432 Rev. F
WARRANTY INFORMATION
Please visit our website at:
www.AndreaElectronics.com/warranty.html
for all warranty information.
HEADSET INSTRUCTIONS
1. Fit the adjustable headband over your head
to secure the headset with the speaker
resting comfortably on your ear and the
temple pad about one to two inches over
the other ear. Note: The microphone boom
can rotate to adapt to either the right or left
side of your head.
2. Adjust the microphone boom so that the
microphone is approximately 3/4" in front of
your mouth, making sure that you are
talking into the voice side of the
microphone, indicated by the white dot.
TROUBLESHOOTING
No sound from headset ear phone while an
audio CD plays from computer.
A. Check all connections.
B. Check sound and audio device's properties
that Andrea USB audio device is selected.
C. Check output volume level adjustment in
software and on cable module.
Microphone does not record sound when
using a voice-recording application.
A. Check all connections.
B. Check sound and audio device's properties
that Andrea USB audio device is selected.
C. Bring the microphone closer to your mouth.
D. Check input control for proper level in
software.
E. Check that microphone is not muted on
cable module or in the PCs microphone
audio panel.
Andrea USB audio products can be used with
our AudioCommander audio enhancement
software, you can find out more information at:
http://www.andreaelectronics.com/
software.html
Features include:
AudioCommander
• A virtual dashboard to audio features and
functions.
• 10-band graphic equalizer with built-in
presets.
• Microphone volume control with audio
enhancements.
• Basic voice recorder.
• Software compatible with: Windows XP, Vista
and 7 operating systems.
PureAudio
• Patented noise reduction speech
enhancement algorithm.
• Designed for hi-fidelity sound quality and
compatible with speech recognition software.
• Reduces repetitive background noise on both
acoustic and electronic system noise.
• Can be utilized on microphone output and
received earphone audio.
• Software compatible with: Mac OSX,
Windows XP, Vista and 7 operating systems.
TECHNICAL SERVICE
We hope that you enjoy your Andrea
NC-181VM USB Headset. If you have additional
questions, please visit our website at:
www.AndreaElectronics.com/product_support.html
or call Andrea Electronics Corporation's
Technical Service team at 1-800-442-7787
(USA & Canada) for assistance.
®
This product is covered by Andrea Electronics Patents No’s: 6,363,345 and 6,009,519
®
NC-181VM USB
Mono Headset
C46-5432 Rev F
Talk into side of
microphone indica ted
by white dot
POSITION MICROPHONE 3/4" (20 MM)
FROM MOUTH
HEADSET ADJUSTABLE FOR USE
ON RIGHT/LEFT EAR
CONNECTION OF THE NC-181VM USB HEADSET TO YOUR COMPUTER
MICROPHONE MUTE
HEADSET VOLUME
USB Port
