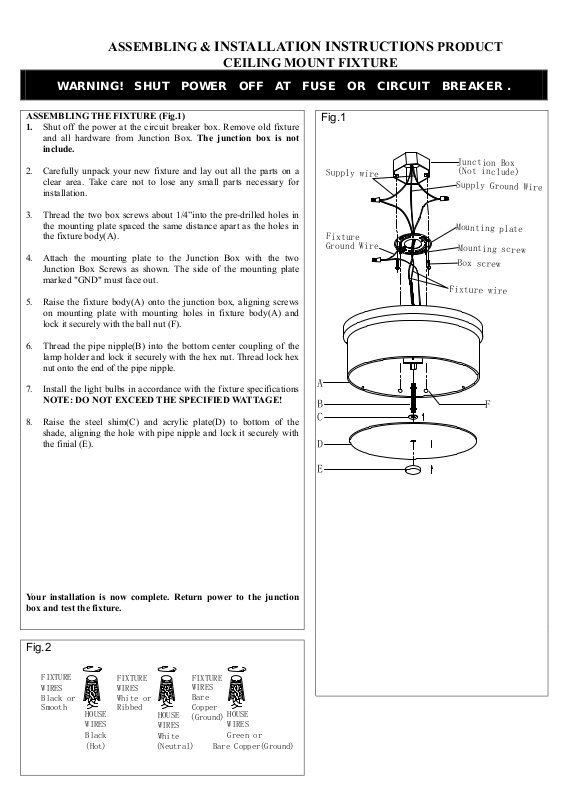

Page 1
ASSEMBLING &
INSTALLATION INSTRUCTIONS PRODUCT
CEILING MOUNT FIXTURE
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture
and all hardware from Junction Box. The junction box is not
include.
2. Carefully unpack your new fixture and lay out all the parts on a
clear area. Take care not to lose any small parts necessary for
installation.
3. Thread the two box screws about 1/4”into the pre-drilled holes in
the mounting plate spaced the same distance apart as the holes in
the fixture body(A).
4. Attach the mounting plate to the Junction Box with the two
Junction Box Screws as shown. The side of the mounting plate
marked "GND" must face out.
5. Raise the fixture body(A) onto the junction box, aligning screws
on mounting plate with mounting holes in fixture body(A) and
lock it securely with the ball nut (F).
6. Thread the pipe nipple(B) into the bottom center coupling of the
lamp holder and lock it securely with the hex nut. Thread lock hex
nut onto the end of the pipe nipple.
7. Install the light bulbs in accordance with the fixture specifications
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
8. Raise the steel shim(C) and acrylic plate(D) to bottom of the
shade, aligning the hole with pipe nipple and lock it securely with
the finial (E).
Your installation is now complete. Return power to the junction
box and test the fixture.

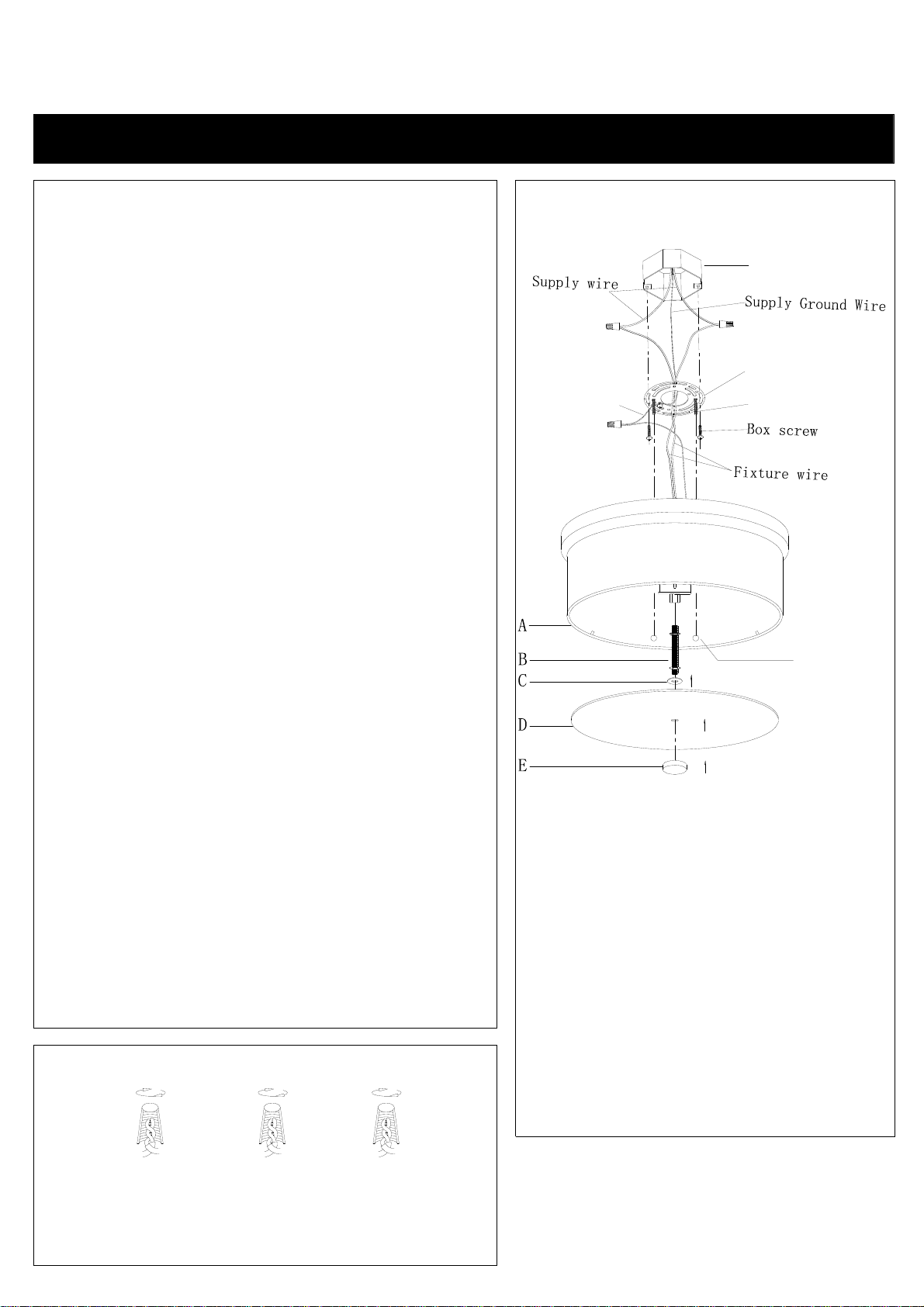

Fig.1
F
i
x
t
u
r
Ground Wire
u
J
n
t
c
o
i
n
B
o
N
o
(
t
i
M
o
u
n
t
i
e
M
o
u
n
t
x
n
c
l
u
e
d
)
n
g
p
l
a
t
e
i
n
g
s
c
r
e
w
F
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
