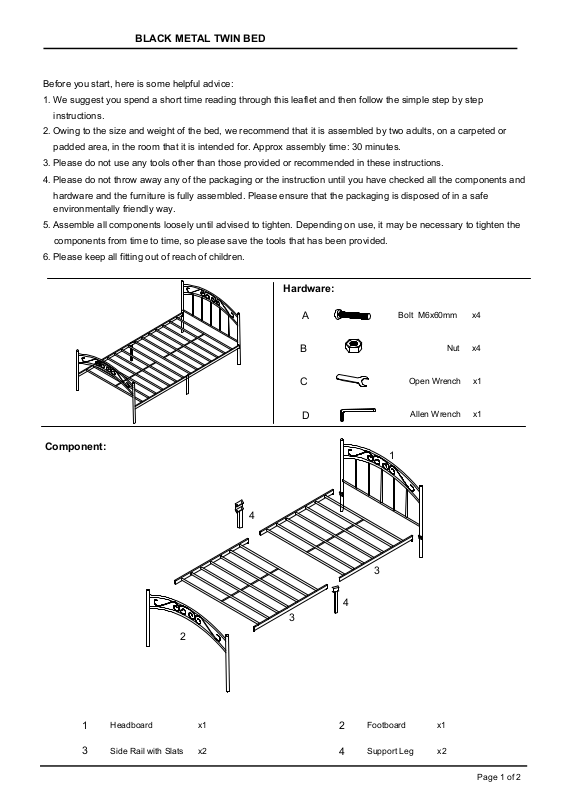

BLACK METAL TWIN BED
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friend
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
ly way.
Component:
Hardware:
A
B
C
D
Bolt M6x60mm x4
Nut x4
Open Wrench x1
Allen Wrench x1
1
4
Headboard x1
1
3
Side Rail with Slats x2
2
3
4
3
Footboard x1
2
Support Leg x2
4
Page 1 of 2
Page 2
BLACK METAL TWIN BED
STEP 1:
Place the 2pcs Side Rail with Slat (3) into 1pc Support Leg (4) as shown.
Insert 2pcs Bolt (A) into the pre-drilled Holes on the Support Leg (4) through the pre-drilled holes on the Side Rail.
Secure them by using 2pcs Nut (B) from the bottom of the Support Leg (4).
Tighten the Bolt (A) and Nuts (B) with Open Wrench (C) and Allen Wrench (D) as shown.
Repeat the same steps for the remaining Support Leg (4).
3
3
3
4
4
D
4
A
3
3
B
4
C
Ax4 Bx4 Dx1
STEP 2:
Place the Headboard (1) close to the assembled Side Rail with Slat (3) and Support Legs (4).
Insert the hooks on the Side Rail with Slats (3) into the hook holder on the Headboard (1) as shown.
Repeat the same steps for the Footboard (2).
Cx1
Har
dware & Tool required
A
3
B
3
Hooks on side rails
Hook Holder on
Headboard/Footboard
1
4
3
4
3
2
Assembly is completed. The bed is ready to enjoy now!
Page 2 of 2
