Andi AXC1200FWT User Manual

FREE STANDING RANGE
GAS AND ELECTRIC APPLIANCE

MODEL: AXC1200FWT

INSTRUCTION GUIDE
INSTALLATION
AND MAINTENANCE

IMPORTANT: SAVE THESE INSTRUCTIONS.

Please retain these instructions with the appliance for future reference

1

SAFETY

Read and follow all instructions before using this appliance to prevent

the potential risk of fire, electrical shock, personal injury or damage to the
appliance as a result of improper usage of the appliance.

Do not store or use flammable vapours and liquids in the vicinity of this
appliance.

What to do if you smell gas:

- Turn off all burners.

- Open all doors and windows.

- Do not touch any electrical switches.

- Call your gas supplier. Follow the gas supplier’s instructions.

To Prevent Fires:

- Never leave burners unattended whilst in use.

- Never use your appliance for warming or heating the room.

- Wear proper apparel. Do not wear loose clothing.

-

Do not store or use flammable vapours, liquids or items in the vicinity of this

or any other appliance.

- Do not spray aerosols in the vicinity of this appliance while it is in operation.

- Do not use water on grease fires. Smother fire with a fire blanket or use a
dry chemical or foam type extinguisher.

Safety when cooking:

- Do not store flammable materials in oven or near cooktop surface.

- Use only dry potholders. Moist or damp potholders on hot surfaces may
result in burns from steam.

- Do not let potholder touch heating elements.

- Do not use a towel or other bulky cloth.

- Do not use aluminium foil to line surface unit drip bowls or oven bottoms,
except as suggested in the manual. Improper installation of these liners
may result in a risk of electric shock, fire or damage to enamel surfaces.

2

Child safety:

- The handles of cooking utensils should be positioned so that they are
turned inward, and do not extend over adjacent heating areas.

- The appliance is not intended for use by young children or infirm persons
without supervision.

- Young children should be supervised to ensure that they do not play with
the appliance.

- Do not store items of interest to children near or above a range.

General safety:

- During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven or on the cooktop surface.

- Where this appliance is installed in marine craft or in caravans, it shall not
be used as a space heater.

- Do not obstruct the flow of combustion and ventilation air by blocking the
room vents or air intakes.

- Ensure that the appliance is switched off before replacing the lamp to avoid
the possibility of electric shock.

- Use care when opening door. Let hot air or steam escape before removing
or replacing food.

- Do not heat unopened food containers.

- Do not spray aerosols in the vicinity of this appliance while it is in operation.

- Warning: Do not store flammable materials in the cooker storage drawer.

- Place oven racks in desired location while oven is cool. If rack must be
moved while oven is hot, do not let potholder contact hot heating element
in oven.

- When a rangehood is installed above this appliance, clean filters frequently.

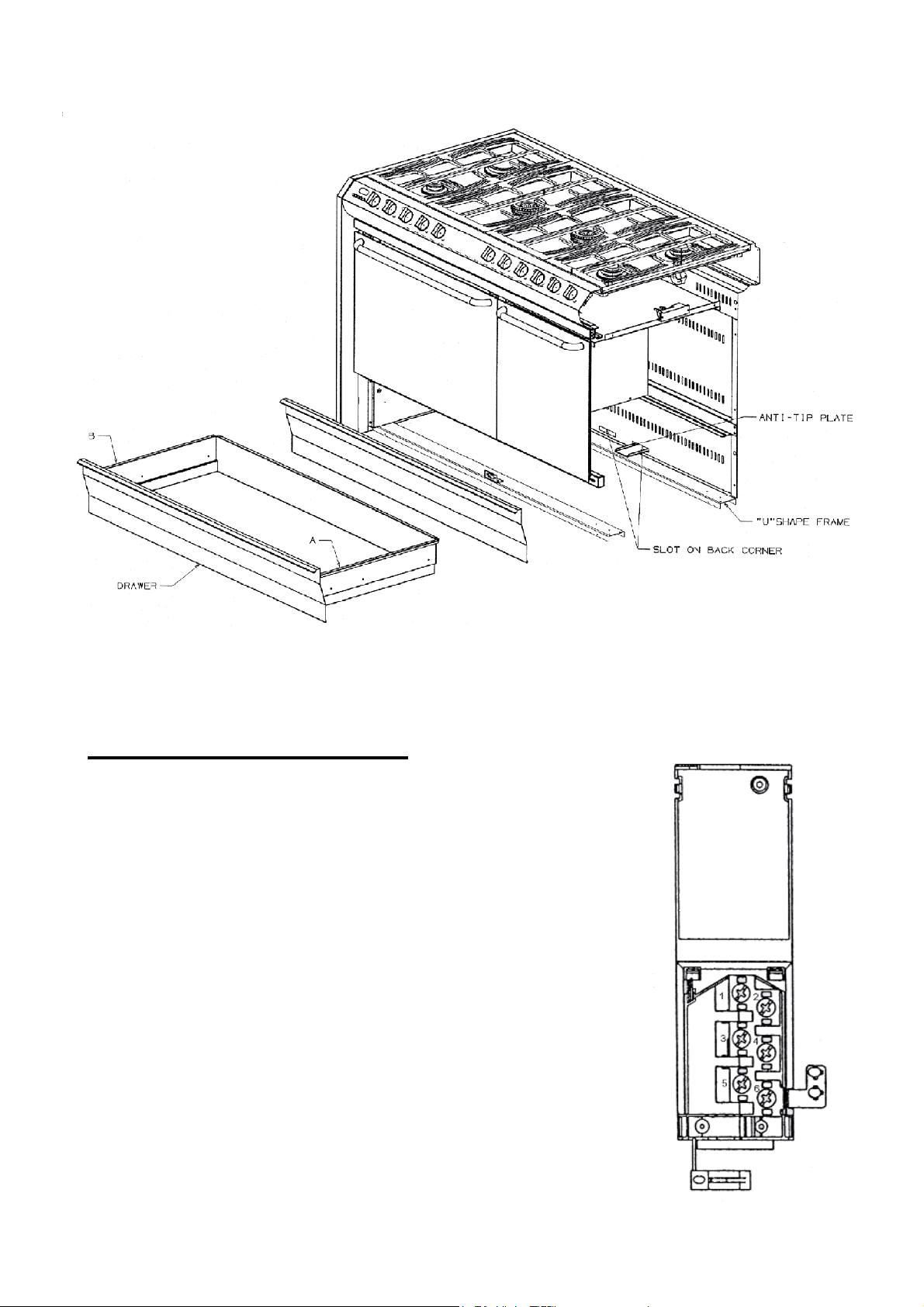

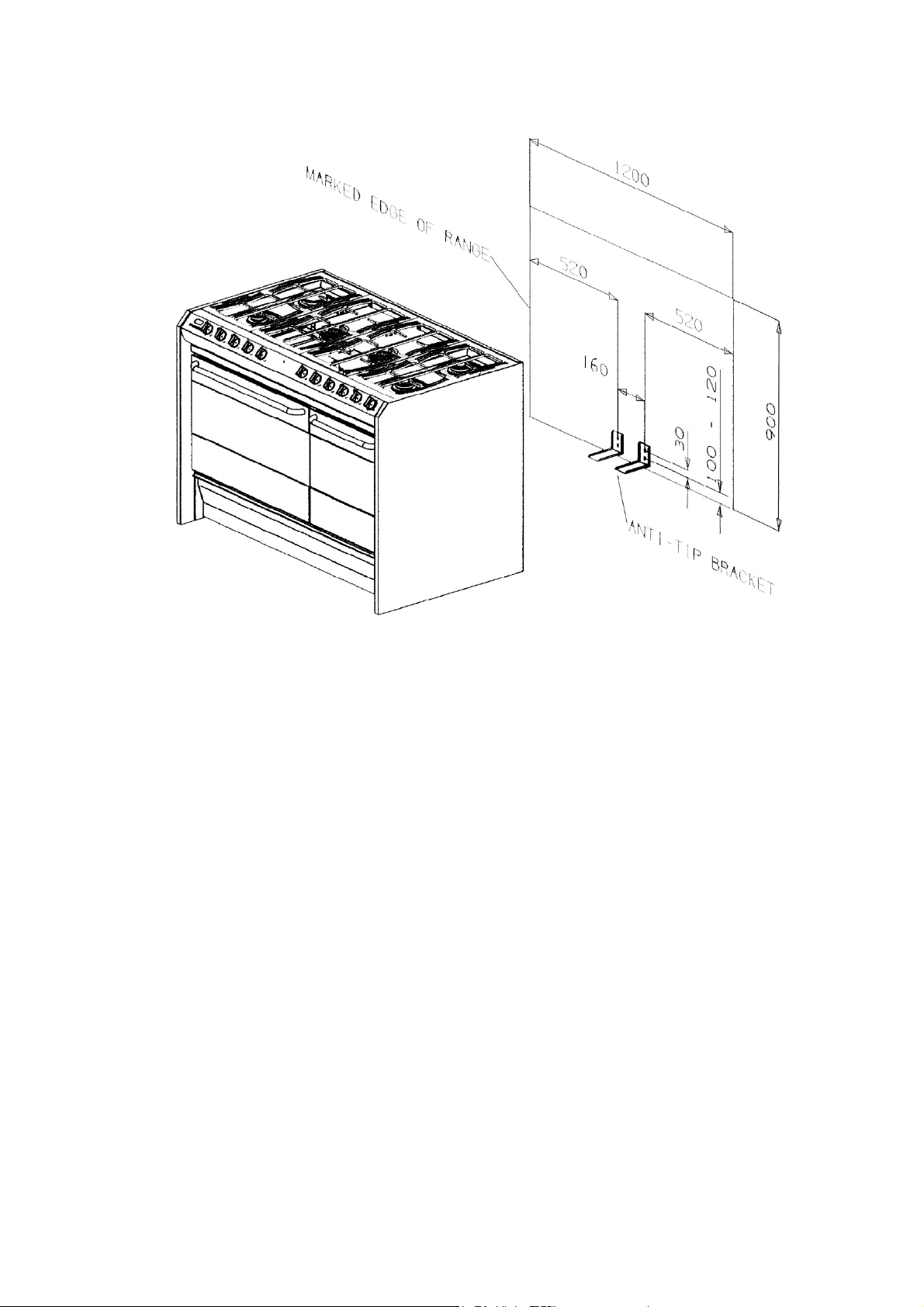

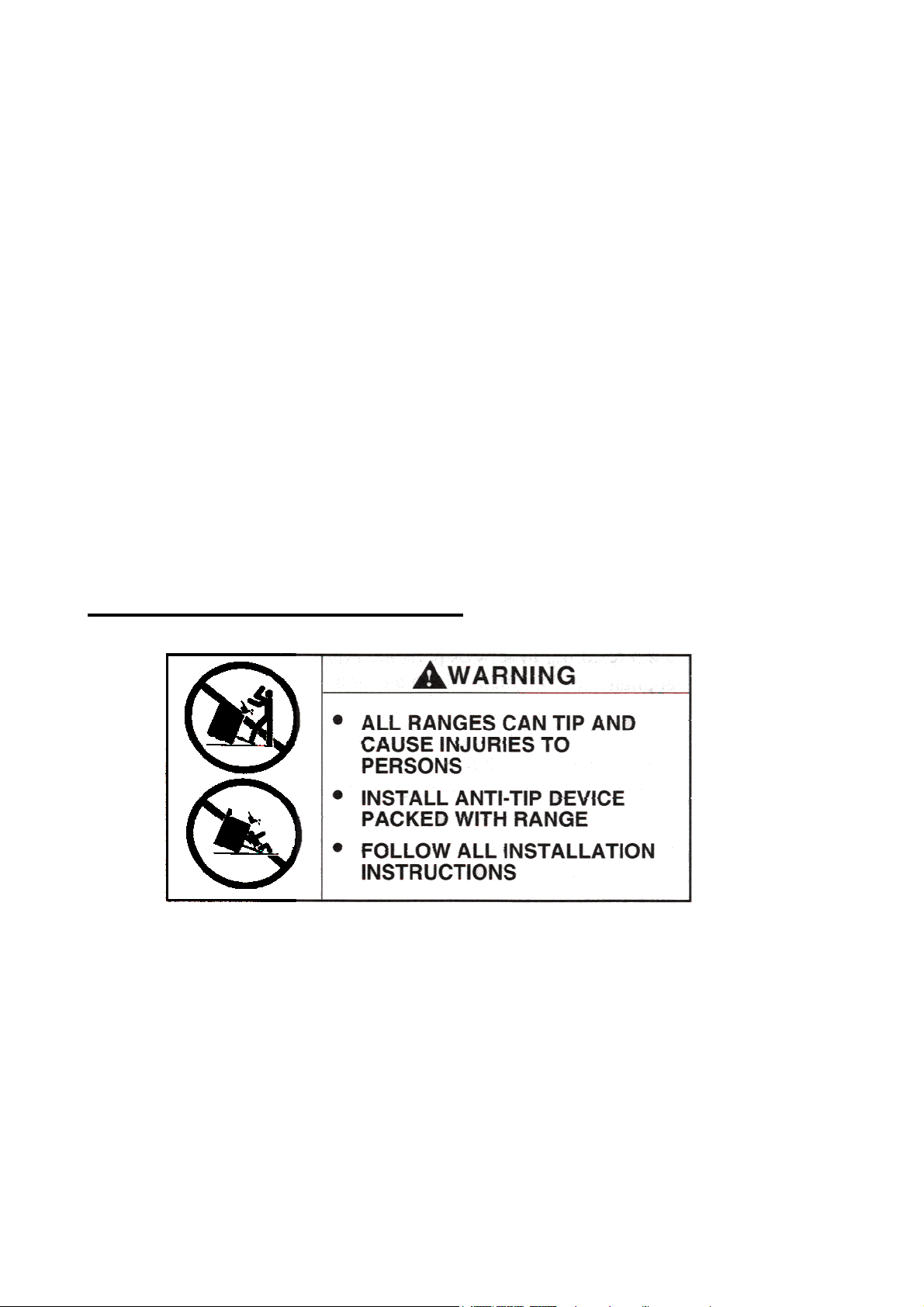

Warning: To reduce risk of tipping of the appliance from abnormal usage or
by excessive loading of the oven door, the appliance must be secured by a
properly installed anti-tip device. To check if the device is installed properly,
remove lower storage drawer or lower foot cover and look beneath the “U”
shape back frame and verify that the anti-tip device plate is properly engaged
in the rear cover slot just above the frame. You should check this anytime the
range has been moved.

User Servicing:

Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a
qualified technician.

Disconnect electrical supply before servicing the appliance.

3

INSTRUCTION GUIDE FOR GAS COOKTOP

GAS BURNER IGNITION AND REGULATION

For models with single action automatic ignition, place a pan on the burner
grate. Push in and turn the knob counterclockwise to the LIGHT-HIGH
setting. A clicking sound will be heard and the burner will light, fig. 2. (All
surface ignitors will spark when any control knob is turned to the LIGHT-HIGH
position), keep it pushed in till burner lights. After the burner lights, turn the
knob to the desired flame size, fig.1.

For models equipped with both electronic ignition and safety device, follow
the same procedure as for models with automatic ignition described above,
but you have to keep pushing in for at less 5 seconds till thermocouple is hot
enough. Then release the knob and the burner should remain on.

During a power failure, hold a lighted match to the desired burner head. Push
in and turn the knob counterclockwise to the LIGHT-HIGH setting. After the
burner lights, turn the knob to the desired flame size, fig.1.
Caution: When lighting the burner, be sure all of the controls are in the OFF
position. Strike the match first and hold it in position before turning to knob to
LIGHT-HIGH.

Fig. 2

Fig. 1

Light

High

Low

4

COOKWARE

To achieve optimum surface cooking performance, select heavy gauge, flat,
smooth bottom pans that conform to the diameter of the cooking area.

Proper pans will reduce cooking times, use less energy and cook food more
evenly.

Remember to use pans with flat bottoms and handles that are easily grasped
and stay cool. To minimise burns, ignition of flammable materials and spillage
due to unintentional contact with the utensil, do not extend handles over
adjacent surfaces burners. Always turn pan handles toward the side or back
of the appliance, not out into the room where they are easily hit or reached by
small children.

NOTES FOR COOKWARE ON GAS BURNERS

We recommend the following pan size per each type of burner, fig. 3:

BURNER TYPE COOKING PAN BOTTOM SIZE
Rapid – (Large) from 200 to 250 mm Ø
Semi-rapid (Medium) from 150 to 200 mm Ø
Simmer (Small)) from 75 to 150 mm Ø
Double ring (Wok) from 250 to 280 mm Ø

Fig. 3

Burner operational Notes:

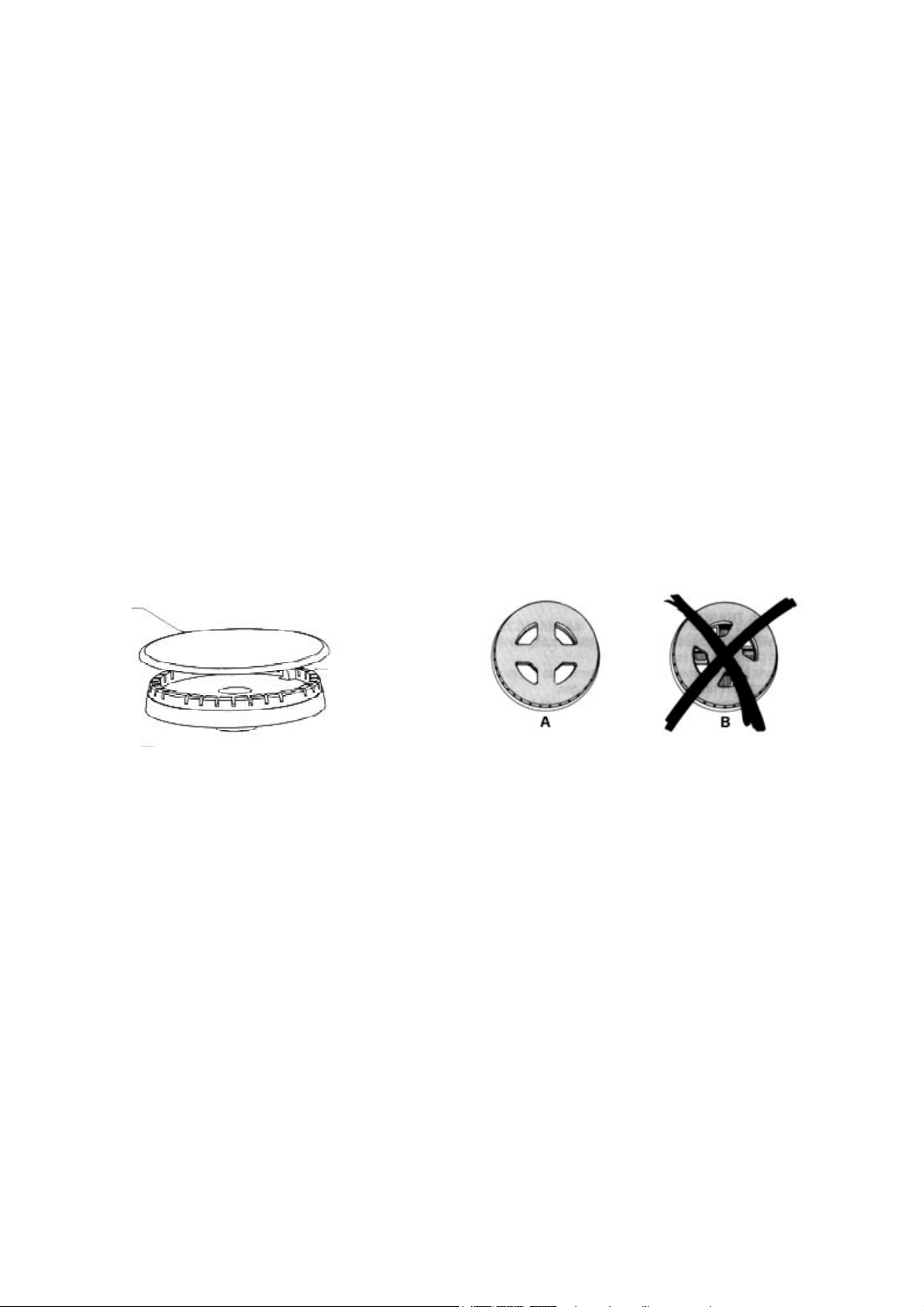

- A properly adjusted burner with clean ports will light within a few seconds.

If using natural gas the flame will be blue with a deeper blue inner cone.

- If sooting is noticed on pan bottom, contact a service technician to adjust.

- If the control knob is turned very quickly from HIGH to LOW, the flame may

go out, particularly if the burner is cold. If this occurs, turn the knob to the
OFF position, wait several seconds and relight the burner.

- The flame should not extend beyond the edge of the pan.

5

INSTRUCTION GUIDE FOR OVEN

OVEN CONTROL FEATURES

CONTROL MENU:

MODEL AXC1200FWT - The left hand 70cm oven is composed of an

electronic programmer, selector switch and a thermostat and the right hand
45cm oven is composed of a manual timer, selector switch and thermostat.

ON AND OFF NEON INDICATOR

When the Neon indicator is on the oven is
electrically powered and functioning, see fig. 4.

TEMPERATURE NEON INDICATOR

Temperature neon indicator turns on and off to
indicate the elements are turning on and off to
maintain the desired oven temperature, see fig. 5.

ELECTRONIC PROGRAMMER

The clock has a maximum setting of Time of day 11h 59 Min. or 23h 59 Min.,
Cooking end time 11h 59 Min. or 23h 59 Min., Minute minder 23h 59 Min.,
and Cooking duration 10h.

Functions:

Cooking duration, Cooking end time, Time of day, Minute minder “-“ , “+” ,
Manual selection.

Displays:

4-digit 7-segment display for time of day and switching times.
“Dialogue” display to identify condition of timer:

Duration and Manual mode = Cookpot symbol
Automatic programme = A
Minute minder = Bell symbol

Fig.4

o

C

fig.5

6

Setting:

Select a function by pressing the function button and set the required time
with +/- buttons.

+/- Buttons:

Pressing the “+” button increases the time set, pressing “-“ decreases it. The
count-up or count-down speed increases the longer the button is held in the
appropriate position.

Setting Time of Day:

Select Time of day function by keeping the duration and end time buttons
pressed together while setting time of day with +/- buttons. Any programme
which has been set is cancelled and the outputs switched on.

Manual Operation:

Press duration and end time button together. The relay contacts will switch
on. The “A” symbol will be erased, the pot symbol illuminated. Any
programme which has been set is cancelled.

Semi-Automatic Operation with cooking duration:

Select cooking duration function and set required end time with the +/- button.
The “A” and cookpot symbols appear. The relay output becomes active. If
time of day = cooking end time the relay output and the cookpot symbol are
switched off. The audible signal sounds and “A” blinks.

Fully Automatic Operation:

Select cooking duration function and set required duration with the +/- button.
The “A” symbol appears. The relay is switched on and the cookpot symbol
appears. Select cooking end time function and the earliest possible end time
is displayed. Set the required end time with the +/- button. The relay and the
cookpot symbol are switched off. The cookpot symbol appears again when
time of day = the calculated start time.
After the automatic programme has ended, the symbol “A” blinks. The audible
signal is heard and the cookpot symbol and the relay are switched off.

Minute Minder:

Select minute minder button and set required time with +/- button. As the time
set elapses the bell symbol is displayed. After the time set has elapsed, the
audible signal sounds.

7

Audible Signal:

The audible signal (1 Hz interval) sounds at the end of a minute minder cycle
or of a cooking programme for a period of 7 minutes. The signal can be
cancelled by pressing any function button.
Pressing the “-“ button without having previously selected a function the
frequency of the signal changes. A selection from 3 possibilities can be made.
The selected signal is audible as long as the “-“ button is pressed.

Programme Start and Verification:

A programme which has been set is carried out after setting the time
required. The “time-to-turn” can be verified at any time by selecting the
appropriate function.

Setting Error Identification:

The setting is incorrect if time of day is in between the calculated cooking
start and end times. If an error has been made, this will be indicated by the
audible signal and by the symbol “A” flashing. The faulty setting can be
corrected by changing one or both functions.

Cancelling a Programme:

A programme can be cancelled by selecting the manual function. After a
programme which has been set comes to an end, it is automatically
cancelled.

MANUAL TIMER

MANUAL MODE: Turn knob left, counterclockwise, up to Hand symbol.
ATTENTION, if knob is left on manual mode the oven will stay on
continuously.

PROGRAMMED COOKING MODE: Turn knob right, clockwise, and select
desired cooking time. At end of cooking time, oven will be automatically turn
off and a beep signal will be heard. Then, to stop the beeping signal just push
timer knob.

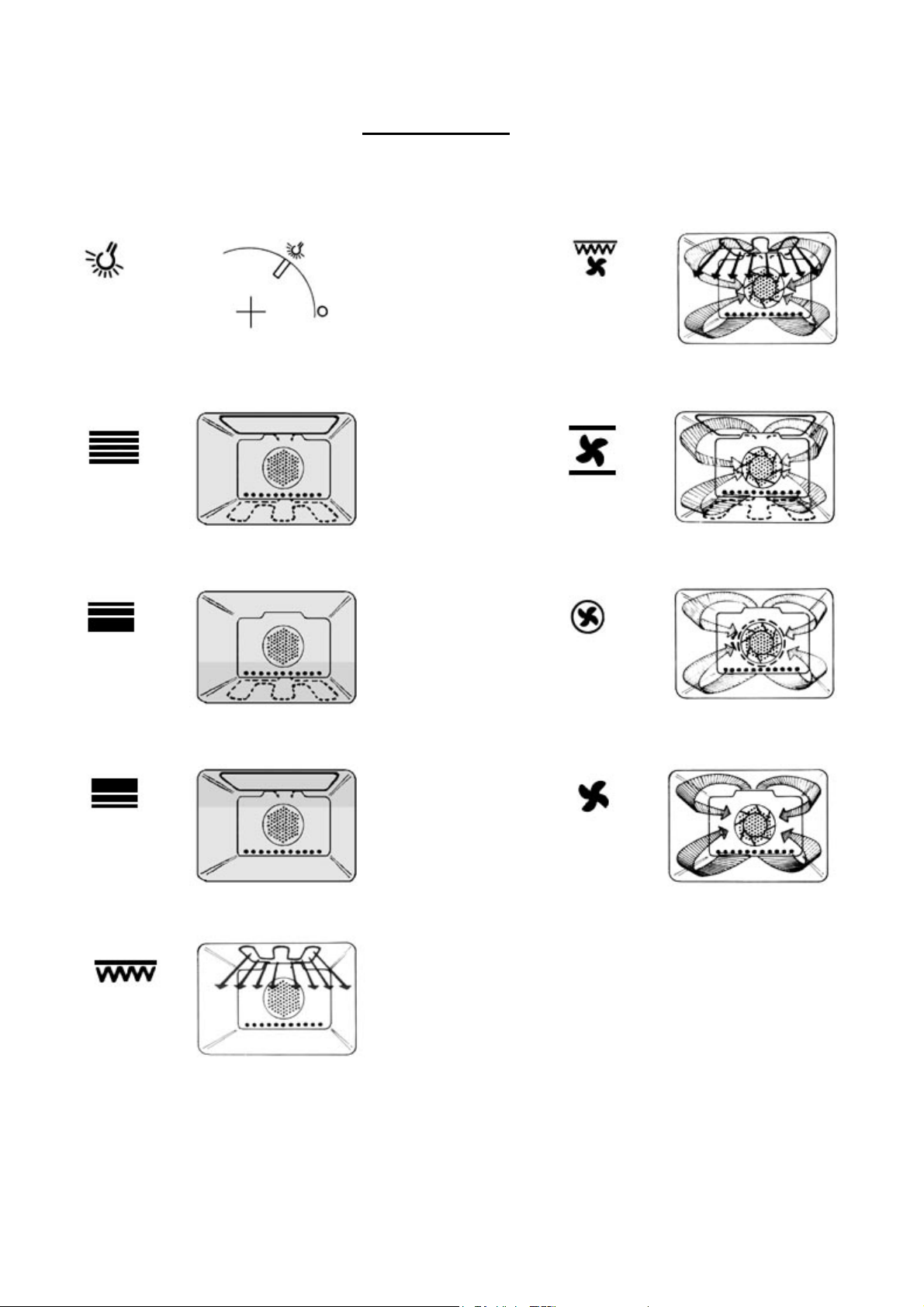

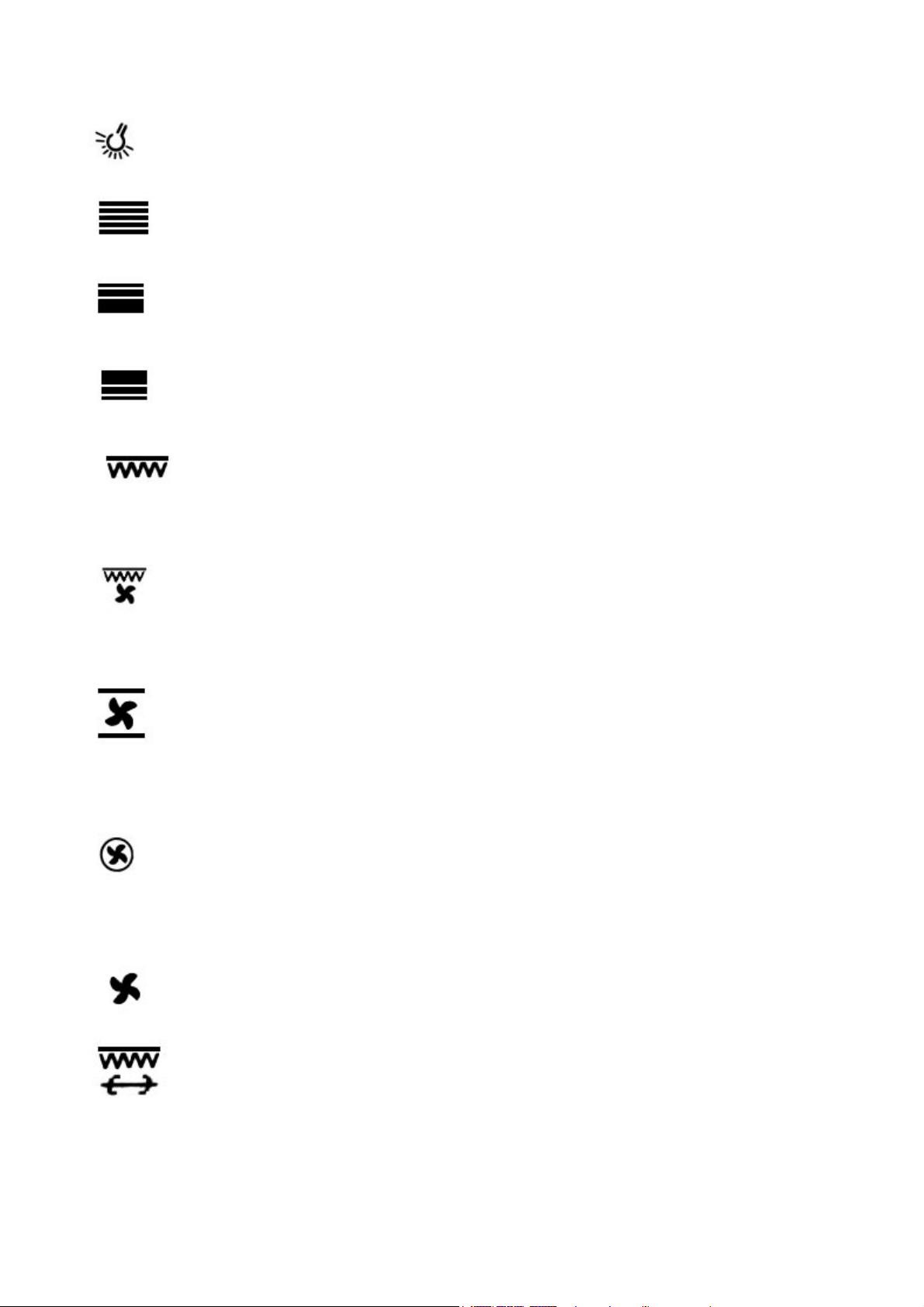

SELECTOR SWITCH

This control allows you to choose the desired Oven function mode. The
following illustration give an overview of what happens in the oven with each
mode setting. It also explains which elements heat up for each specific mode.
The lower and circular elements are concealed under the floor and behind
back wall of the oven respectively. The elements will turn on and off to
maintain the oven temperature.

8
