ASSEMBLY INSTRUCTION

CHD-2033

VICTORIA DINING ARMCHAIR

fig 1.

1

1

" wood

2

dowel

1

1

" wood

2

dowel

1

1

" wood

2

dowel

screw

(seat clamp)

fig 3. fig 4.

1

1

" wood

2

dowel

fig 2.

1

1

2

dowel

1

1

" wood

2

dowel

" wood

Parts : 2 psc legs, 1 pc back

support, 1 pc seat,

Hardware packs

• wood dowels for top & bottom of
back support + front leg

• wood screws to clamp seat

Tools requirment

• hammer ( not supplied )

• screws driver ( not supplied )

Assembling

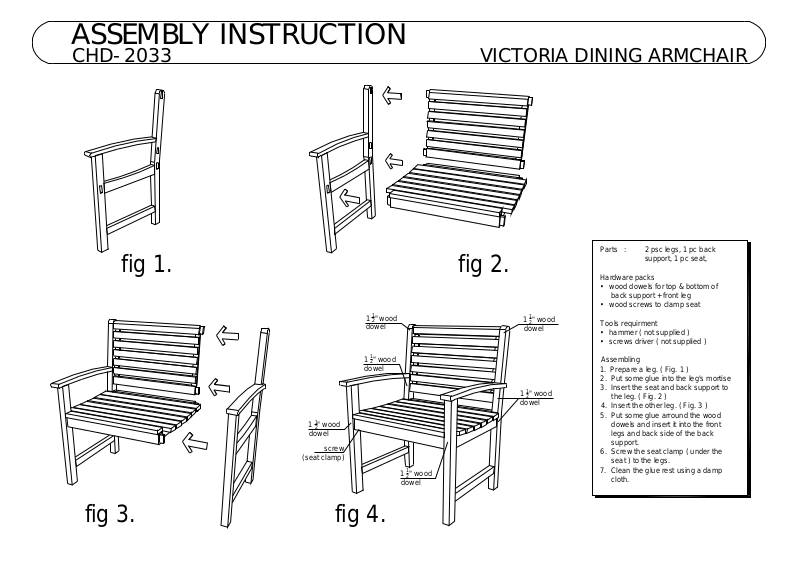

1. Prepare a leg. ( Fig. 1 )

2. Put some glue into the leg's mortise

3. Insert the seat and back support to
the leg. ( Fig. 2 )

4. Insert the other leg. ( Fig. 3 )

5. Put some glue arround the wood
dowels and insert it into the front
legs and back side of the back
support.

6. Screw the seat clamp ( under the
seat ) to the legs.

7. Clean the glue rest using a damp

cloth.
