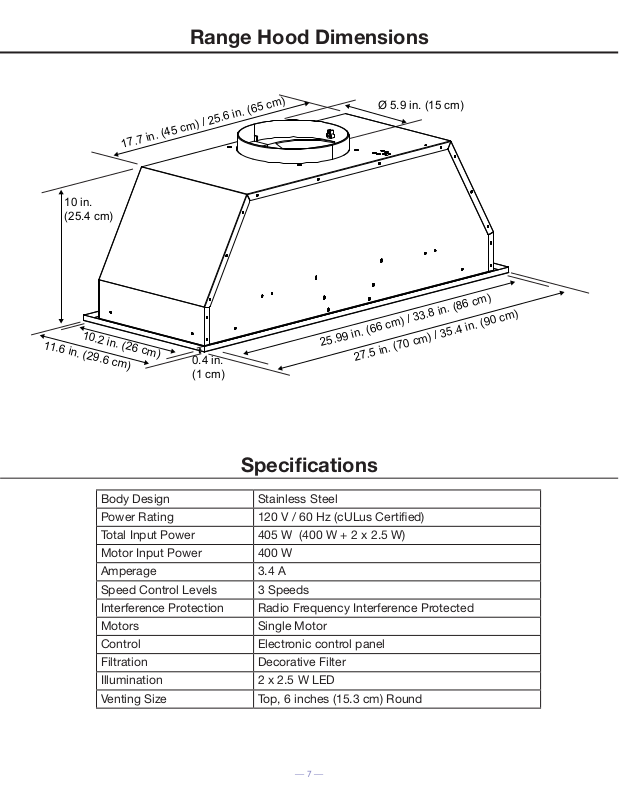

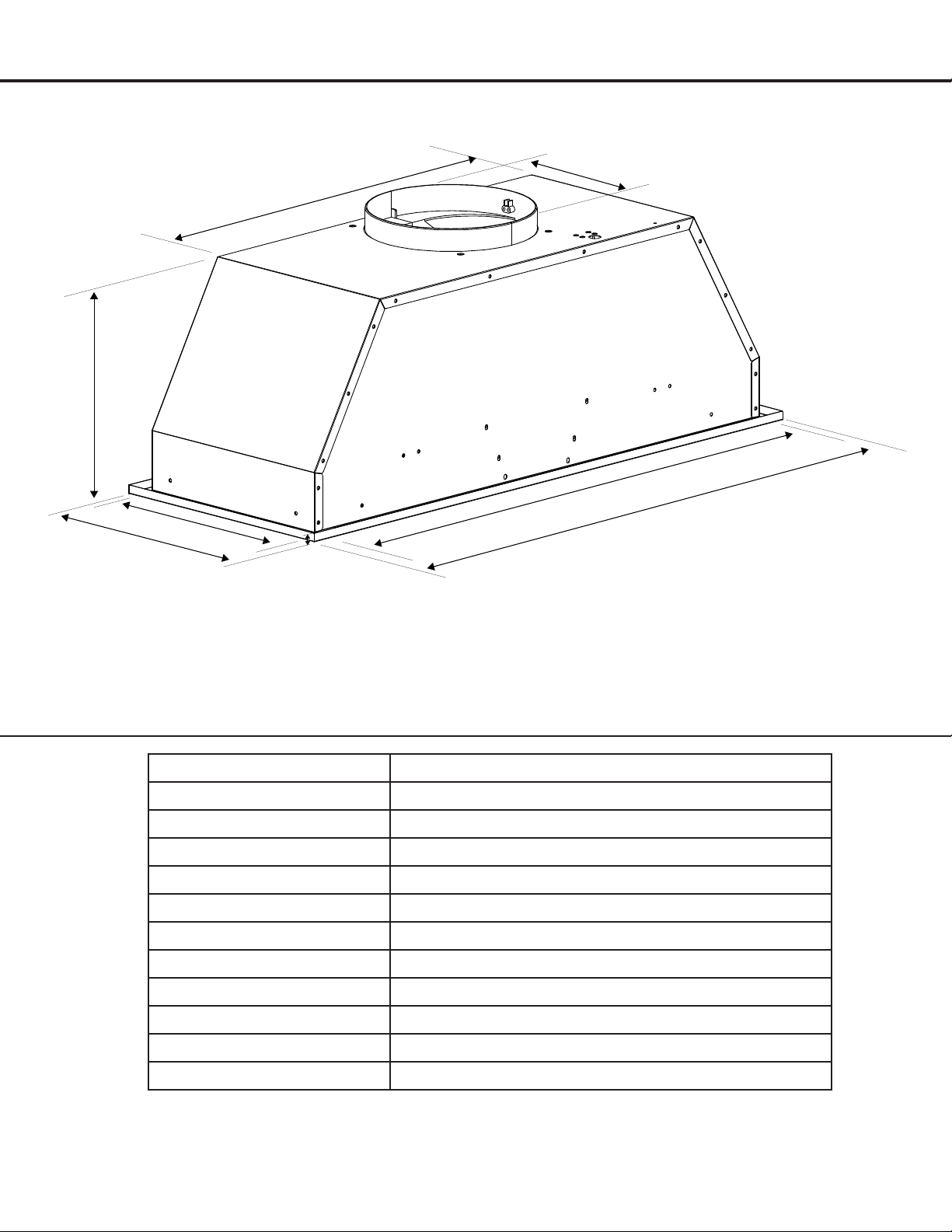

Range Hood Dimensions
10 in.
(25.4 cm)
27.5 in. (70 cm) / 35.4 in. (90 cm)
25.99 in. (66 cm) / 33.8 in. (86 cm)
Ø 5.9 in. (15 cm)
17.7 in. (45 cm) / 25.6 in. (65 cm)
10.2 in. (26 cm)
11.6 in. (29.6 cm)
0.4 in.
(1 cm)
Specications
Body Design Stainless Steel
Power Rating 120V/60Hz(cULusCertied)
Total Input Power 405 W (400 W + 2 x 2.5 W)
Motor Input Power 400 W
Amperage 3.4 A
Speed Control Levels 3 Speeds
Interference Protection Radio Frequency Interference Protected
Motors Single Motor
Control Electronic control panel
Filtration Decorative Filter
Illumination 2 x 2.5 W LED
VentingSize Top, 6 inches (15.3 cm) Round
— 7 —
Page 2

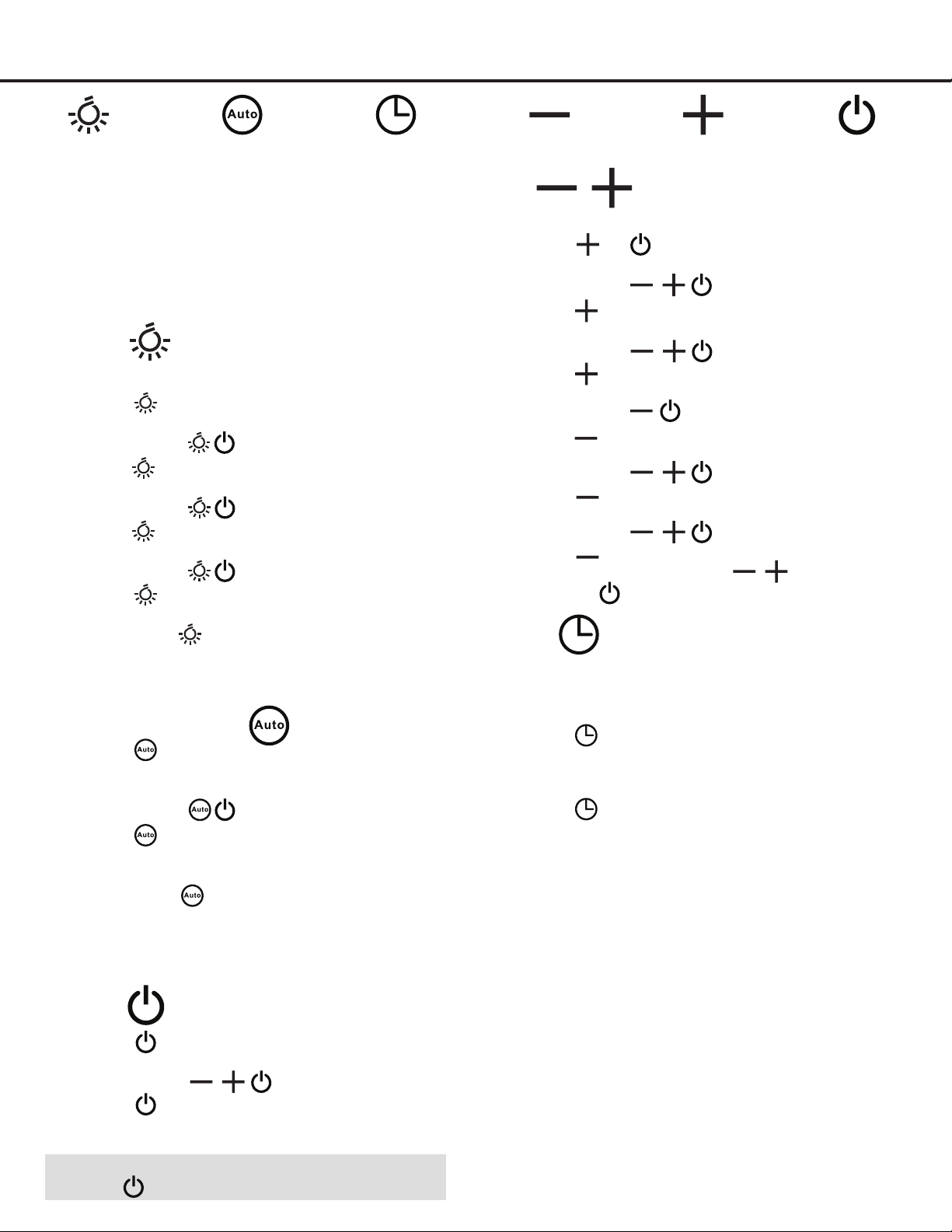

Operation
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
-
056B
-
013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
AYD-056B
AYD-013B
Lamp
NOTE: When the hood has been initially connected to the
Power or after a Power Failure, all indicators turn ON for 1
second then OFF, the hood is in Standby condition.
Once the hood is connected with electricity, if wires for the control
are not well connected or control board has poor connection or
malfunction,buzzerwillemitSix Beeps. You must then disconnect
the hood from the Power, x the problem and reconnect the hood.
Auto Timer
Lamps
(with 3 luminance setting + auto mode)
Press once:
u
Lamps turn ON with High luminance.
Press second time:
v
Lamps turn ON with Low luminance.
Press third time:
Lamps turn ON with Night-Light luminance.
w
Press fourth time:
Lamps will turn OFF.
x
Indicator for is OFF.
Cycle is: “High luminance - Low luminance Night-Light luminance - lamps OFF - High luminance …”
Indicators for are ON.
Indicators for are ON.
Indicators for are ON.
Auto Night-Light
Press once:
y
You will hear a "Long audible beep",
Lamps now work in Auto Night-Light mode.
Indicators for are ON.
Press second time:
U
You will hear a "Short audible beep",
Auto Night Light mode is disabled.
Indicator for is OFF.
NOTE: When light sensor detects the room is dark, lamps
will turn on to Night-Light luminance. When light sensor
detects the room is less dark, Night-Light will turn OFF
automatically. And cycle repeats again and again.
Decrease
Fan
(with 3 speed setting)
Press or once:
u
Fan starts to work at 1st-speed (minimum speed).
Indicators for are ON.
Press second time:
v
Fan will work at 2nd-speed (medium speed).
Indicators for are ON.
Press third time:
Fan will work at 3rd-speed (maximum speed).
w
Indicators for are ON.
Press once:
Fan will work at 2nd-speed.
x
Indicators for are ON.
Press second time:
Fan will work at 1st-speed (minimum speed).
y
Indicators for are ON.
Press third time:
Fan will turn OFF. Indicators are OFF.
U
Indicator is OFF (if lamps are OFF).
Timer
You can only activate the TIMER function when Fan is
working. TIMER will not function with only Lamps ON.
TIMER is xed for 3 minutes delay OFF.
Press once when Fan is working at any speed:
u
Fan will work continuously for 3 minutes, then Fan will
shut OFF automatically.
Press again before the end of 3 minutes, and
v
TIMER will be deactivated.
After activating the TIMER, if you change the FAN
w
speed, TIMER will be deactivated instantly.
Increase
Power
(On/off)
Power
Press once:
u
Fan starts to work at 1st-speed.
Indicators for are ON.
Press second time:
v
Fan will turn OFF, hood is in Standby condition.
All indicators are OFF.
IMPORTANT: When Lamps and/or Fan are working …
Pressing once will turn them OFF instantly!
