SPX PROCESS EQUIPMENT
WCB-FLOW PRODUCTS
Company Over view
From its conception, WCB-Flow Products has
maintained a strict adherence to the highest quality
manufacturing standards in the marketplace. This
standard has been propagated through efficient
implementation of lean manufacturing techniques,
allowing for quick deliveries of both standard and
specialty product orders.
The customer has always been the focus of our
continuous improvement efforts. A dedicated staff
is on hand through extended hours to ensure your
orders are accurately placed and expedited. In
addition, our state-of-the-ar t website allows our
customers the capability of accessing material test
results to trace the origins of the materials used in
our products.
US-based Manufacturing
Whether your requirements are
for sanitary fittings,
BPE fittings, specialty fittings, manual valves or
centrifugal pumps, WCB-Flow Products is your key
US-based single source supplier.
Dedicated Customer Service
Diversified Inventory
for Immediate Shipment
2:8
Material Test Results On-line Retrieval
Strict Quality Standards
WCBFP-901
Effective 12/04
Page 3
S-Line/Clamp Fittings

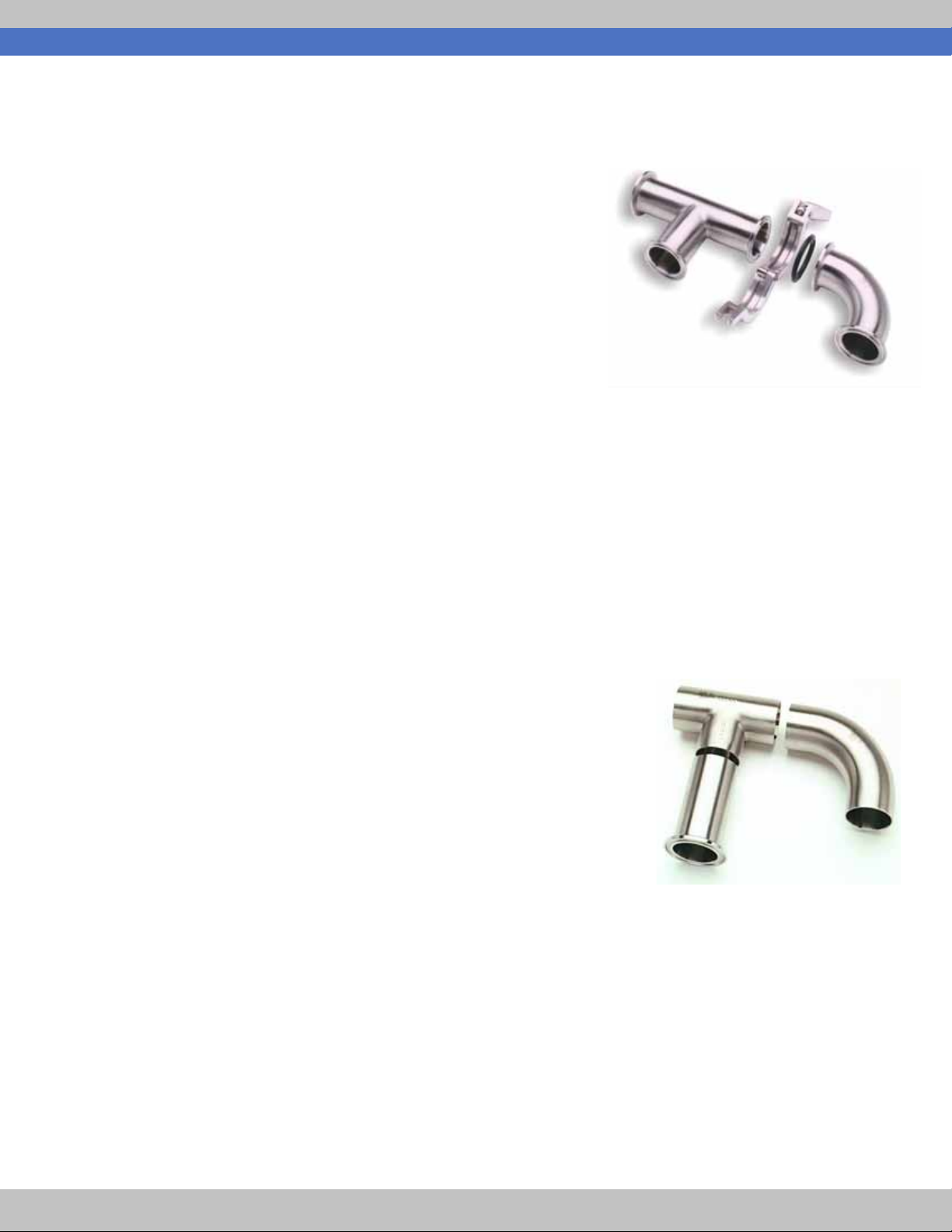

S-Line connections consist of two matching ferrules, a gasket, and a
clamp. Utilizing these unions into a process piping system will
ensure easy assembly and disassembly of process lines and
equipment. If a change to a system becomes necessary, this can be
accomplished quickly and easily with S-Line fittings. These versatile
fittings were originally designed for both COP (clean-out of-place)
and CIP (clean-in-place) applications.
!
Available in ½” through 12”
!
Fittings are made of T304 & T316L stainless steel.
!
Finishes are available in any standard combination.
#
ID polish is 180 Grit and Unpolished
#
OD polish is 150 Grit and Unpolished
!
Electropolished
!
Gaskets are available in Buna, EPDM, Teflon , FKM, and Silicone as a standard.
!
Meets 3A and FDA requirements.
S-Line Fittings are offered.
®
Sanitary Weld Fittings

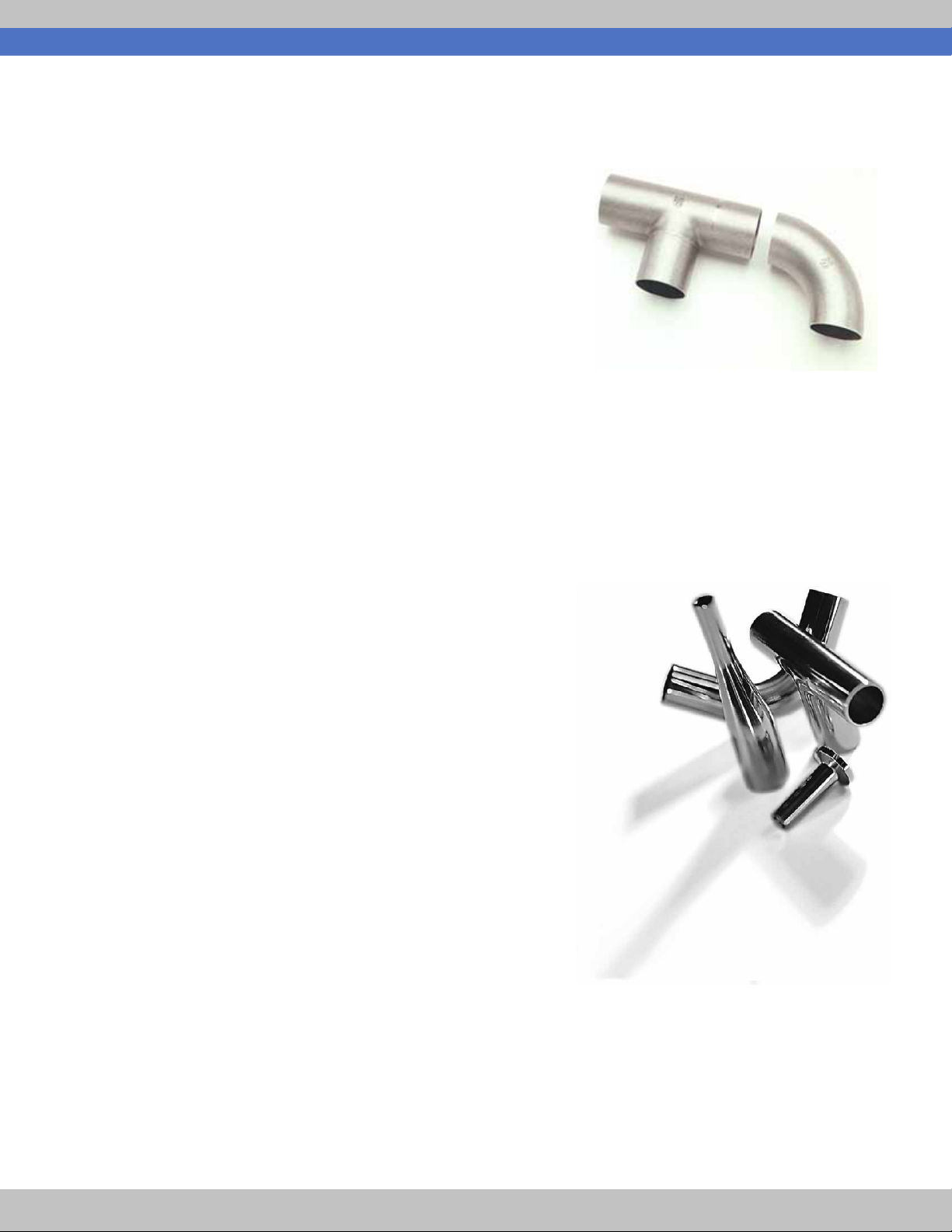

Weld fittings are utilized in process piping systems where COP is not
required or where CIP can be accomplished. These fittings can be welded
manually or with automatic machines. Weld fittings are utilized to eliminate
unnecessary joints and dead leg zones for product to become entrapped.
!
Available in ½” through
!
Fittings are made of T304 & T316L stainless steel.
!
Finishes are available in any standard combination.
#
ID polish is 180 Grit
#
OD polish is 150 Grit
!
Electropolished weld fittings are available upon request.
!
Meets 3A and FDA requirements.
12”
WCB-Flow Products offers the widest range of fittings with
several surface finishes available for use in a variety of industries.
3:8
Page 4
SPX PROCESS EQUIPMENT
WCB-FLOW PRODUCTS
Bevel Seat Fittings

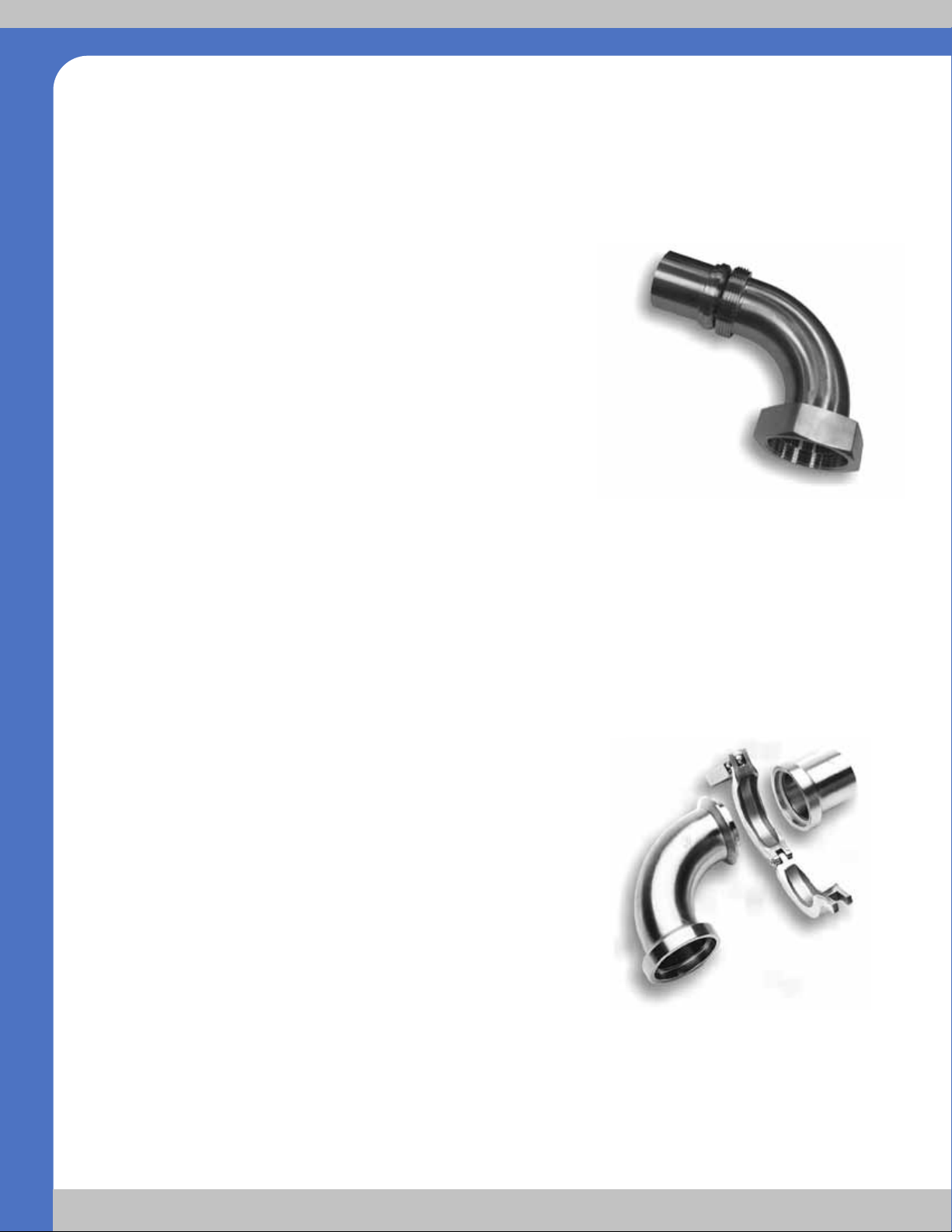

Bevel Seat connections are made up of a plain bevel ferrule mating to a threaded
bevel ferrule with a threaded hex nut. These fittings are designed and manufactured
to withstand daily disassembly, COP (clean-out-of-place), and reassembly of
process lines and equipment. A gasket can be used to ensure a
positive shutoff
in lower pressure applications.
!
Available in 1” through 4”
!
Fittings are made of T304 & T316L stainless steel.
!
Finishes are available in any standard combination.
!
Gaskets offered in Buna as a standard.
!
Meets 3A requirements
under higher pressures, however is not necessary
#
ID polish is 180 Grit
#
OD polish is 150 Grit
I-Line Fittings
These are the original Cherry Burrell I-Line fittings and are made up of interlocking flat face
ferrules, a flat gasket and a clamp. This interlocking, metal-to-metal design eliminates over
compression by the clamp not allowing the gasket to be extruded into the product zone.
I-Line fittings can withstand higher vibrations, temperatures and
pressures than other available connections available.
!
Available in 1” through 8”
!
Fittings are made of T304 & T316L stainless steel.
!
Finishes are available in any standard combination.
#
ID polish is 180 Grit
#
OD polish is 150 Grit
!
Electropolished I-Line Fittings are available.
!
Gaskets are available in Buna, EPDM, Teflon , FKM, and
Silicone as a standard.
!
Meets 3A requirements
®
4:8
WCB-Flow Products fittings and valves made of T316/T316L stainless steel are permanently
marked with original heat numbers allowing full traceability back to the original stainless steel supplier.
WCBFP-901
Effective 12/04
Page 5
Tube OD Weld Fittings
Tube OD weld fittings are utilized in a wide variety of industrial and
non-sanitary applications where corrosive environments are more
of a concern than sanitation. Utilizing these fittings ensures a
permanent, rigid, and chemical resistance process system.
!
Available in 1/2” through 12”
!
Fittings are made of T304 & T316L stainless steel.
!
Unpolished tumble finish
BPE Fittings
These fittings are manufactured in accordance with stringent guidelines set
forth by ASME BPE standards. These stringent guidelines ensure the safety
of products used throughout the pharmaceutical and biotech industries.
These fittings are offered in either weld or S-Line Clamp.
!
Available in ½” through 6”
!
Fittings are made of T316L stainless steel. Other alloys available.
!
Finishes are available in any standard combination.
#
ID polish 20 Ra (SSF1), 15 Ra EP (SSF4)
#
BPE dimensionally compliant with ID polish 10 Ra Max EP
or Unpolished
#
OD unpolished or polished to 32 Ra
!
Electropolished fittings are available.
!
MTR (Material Test Reports)
#
MTR provided with each shipment
#
Online retrieval available
!
Color-coded caps
!
Products packaged in resealable bags
!
Meets ASME BPE requirements where applicable.
WCB-Flow Products offers 10 Ra maximum finishing capabilities in
accordance with tolerances and dimensions set forth by ASME-BPE specifications.
5:8
Page 6
SPX PROCESS EQUIPMENT
WCB-FLOW PRODUCTS
Butterfly & Ball Valves
Butterfly & Ball Valves

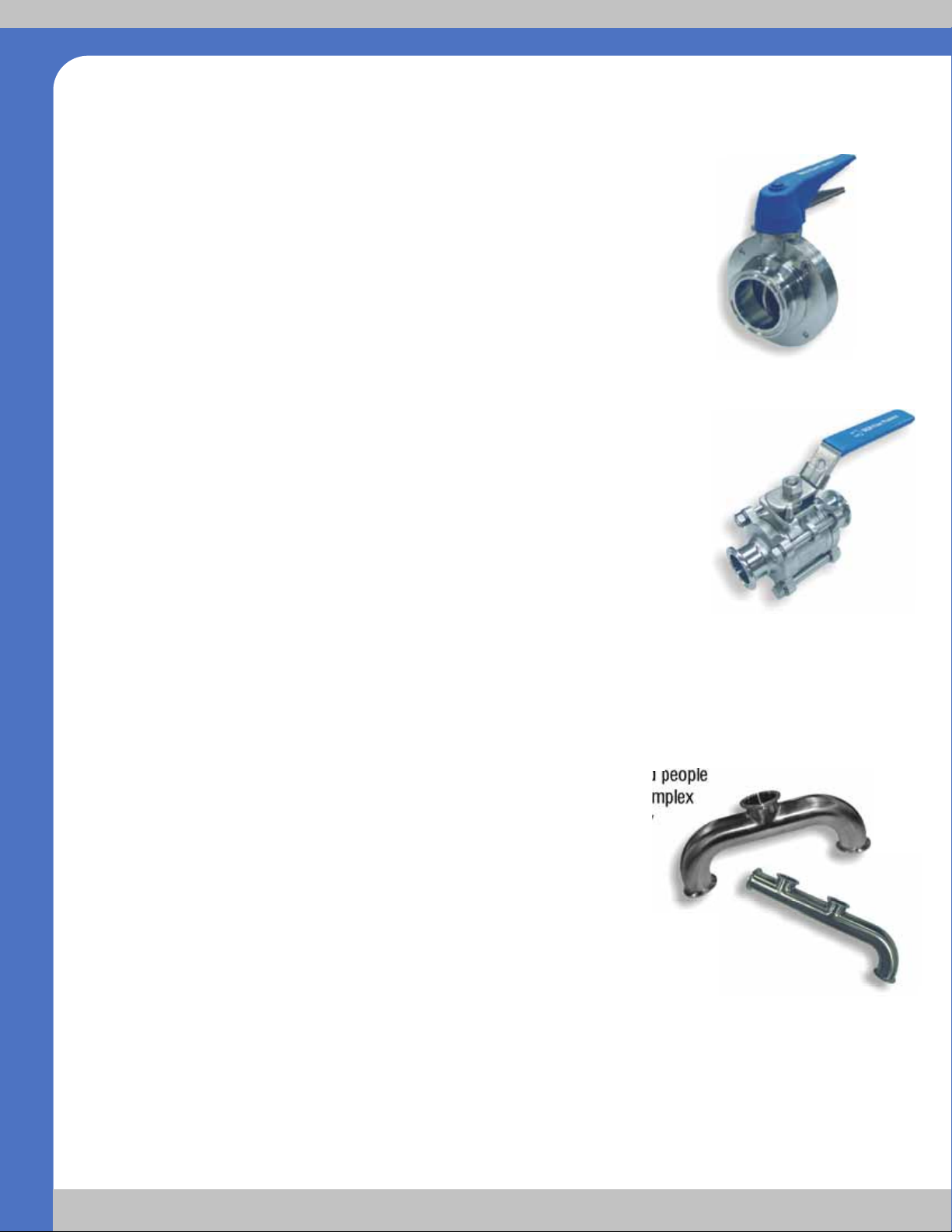

Butter fly and ball valves are used in a wide variety of sanitary, industrial and
Butter fly and ball valves are used in a wide variety of sanitary, industrial and
chemical applications. The versatility of these valves allows these to be used as an
chemical applications. The versatility of these valves allows them to be used as an
on/off valve, and /or to throttle the flow of product. This valve offering covers low
on/off valve, and/or to throttle the flow of product. This valve offering covers low
and higher-pressure applications and can handle viscous or
and higher-pressure applications and can handle viscous or non-viscous
depending on the valve selected.
depending on the valve selected.
!
!
Butter fly Valves
Butter fly Valves
#
#
Available in 1” through 4”
Available in 1” through 4”
#
#
T304 construction
T304 construction
#
#
Finishes are 32 Ra ID and OD
ID and OD finishes are 180 Grit or better.
#
#
Seat Material available in Silicone, EPDM, and FKM.
Seat material available in Silicone, EPDM, and FKM.
#
#
13 Position Handle
!
!
13 Position Handle
Ball Valves
Ball Valves
#
#
Available in ½” through 4”
Available in ½” through 4”
#
#
T316 construction
T316 construction
#
#
Finishes are 32 Ra ID
ID finishes are 180 Grit or better.
#
#
Encapsulated seat and material is Teflon
Encapsulated seat and material is Teflon
#
#
Meets 3A and FDA requirements
Meets 3A and FDA requirements
#
#
Locking handle is a standard
Locking handle is a standard
non-viscous products
®
®
products
Specialty Products
Specialty Products
WCB-Flow Products has extensive capabilities to manufacture products unique in design
WCB-Flow Products has extensive capabilities to manufacture products unique in design
and not standard to the marketplace. We have dedicated production cells and people
and not standard to the marketplace. We have dedicated production cells and people
with years of experience to ensure your specifications are met. In today’s complex
with years of experience to ensure your specifications are met. In today’s complex
marketplace, we have the versatility and knowledge to manufacture specialty
marketplace, we have the versatility and knowledge to manufacture specialty
markets ranging from industrial to high purity.
products for use in
products for use in
!! !
!! !
Drilling Bending (standard radius) Electropolishing
Drilling Bending (standard radius) Electropolishing
!!
!!
Milling Passivation
Milling Passivation
!!
!!
Extruding Nitron material identification
Extruding Niton material identification
!!
!!
Mitering Bar coding
Mitering Bar coding
!!
!!
Cutting Special labeling and packaging
Cutting Special labeling and packaging
All of these in-house capabilities sets us aside from others and gives us the total control
All of these in-house capabilities sets us aside from others and gives us the total control
to ensure a quality product and on-time deliveries whatever the demand may be.
to ensure a quality product and on-time deliveries whatever the demand may be.
markets ranging from industrial to high purity.
unique tangents and
unique tangents and
configurations
configurations
!
!
Welding
Welding
!
!
Polishing - Manual
Polishing - Manual
handcrafted or Automatic
handcrafted or Automatic
Internal acceptance criteria for the Off Angle characteristic is more than 60% tighter
Fittings produced by WCB-Flow Products are inspected during the manufacturing
than ASME published tolerances for improved fit and weldability of product.
process and again when completed to ensure all specifications are met.
