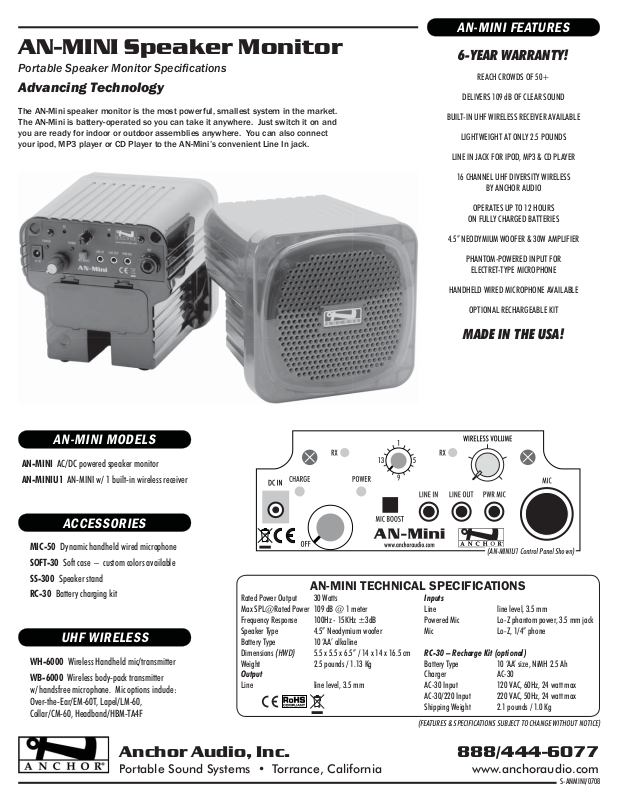

Anchor Audio AN-Mini User Manual

AN-MINI FEATURES

AN-MINI Speaker Monitor

Portable Speaker Monitor Specifi cations

Advancing Technology

The AN-Mini speaker monitor is the most powerful, smallest system in the market.
The AN-Mini is battery-operated so you can take it anywhere. Just switch it on and
you are ready for indoor or outdoor assemblies anywhere. You can also connect
your ipod, MP3 player or CD Player to the AN-Mini’s convenient Line In jack.

6-YEAR WARRANTY!

REACH CROWDS OF 50+

DELIVERS 109 dB OF CLEAR SOUND

BUILT-IN UHF WIRELESS RECEIVER AVAILABLE

LIGHTWEIGHT AT ONLY 2.5 POUNDS

LINE IN JACK FOR IPOD, MP3 & CD PLAYER

16 CHANNEL UHF DIVERSITY WIRELESS

BY ANCHOR AUDIO

OPERATES UP TO 12 HOURS

ON FULLY CHARGED BATTERIES

4.5” NEODYMIUM WOOFER & 30W AMPLIFIER

PHANTOM-POWERED INPUT FOR

ELECTRET-TYPE MICROPHONE

HANDHELD WIRED MICROPHONE AVAILABLE

OPTIONAL RECHARGEABLE KIT

MADE IN THE USA!

AN-MINI MODELS

AN-MINI AC/DC powered speaker monitor
AN-MINIU1 AN-MINI w/ 1 built-in wireless receiver

ACCESSORIES

MIC-50 Dynamic handheld wired microphone
SOFT-30 Soft case – custom colors available
SS-300 Speaker stand
RC-30 Battery charging kit

UHF WIRELESS

WH-6000 Wireless Handheld mic/transmitter
WB-6000 Wireless body-pack transmitter

w/ handsfree microphone. Mic options include:
Over-the-Ear/EM-60T, Lapel/LM-60,
Collar/CM-60, Headband/HBM-TA4F

AN-MINI TECHNICAL SPECIFICATIONS

Rated Power Output 30 Watts
Max SPL@Rated Power 109 dB @ 1 meter
Frequency Response 100Hz - 15KHz ±3dB
Speaker Type 4.5” Neodymium woofer
Battery Type 10 ‘AA’ alkaline
Dimensions
Weight 2.5 pounds / 1.13 Kg

Output

Line line level, 3.5 mm

(HWD)

5.5 x 5.5 x 6.5” / 14 x 14 x 16.5 cm

(AN-MINIU1 Control Panel Shown)

Inputs

Line line level, 3.5 mm
Powered Mic Lo-Z phantom power, 3.5 mm jack
Mic Lo-Z, 1/4” phone

RC-30 – Recharge Kit (optional)

Battery Type 10 ‘AA’ size, NiMH 2.5 Ah
Charger AC-30
AC-30 Input 120 VAC, 60Hz, 24 watt max
AC-30/220 Input 220 VAC, 50Hz, 24 watt max
Shipping Weight 2.1 pounds / 1.0 Kg

(FEATURES & SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

Anchor Audio, Inc. 888/444-6077

Portable Sound Systems • Torrance, California www.anchoraudio.com

S-ANMINI/0708
