Anchor SAFETY POOL COVER INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

ANCHOR

SOLID

SAFETY POOL COVERS

EC4734

1-800-255-5552

1100 Burch Dr. • P.O. Box 3477 • Evansville, IN 47733 U.S.A.

Ph. [phone]

Fax. [phone]

E-mail: [e-mail] • www.anchorinc.com

PCSO 1013

Contents

Warranty.....................................................................................................................3

Introduction, Safety Notes, and Warnings......................................................................4

Step-1 Tools and Hardware..........................................................................................5

Step 2-Prepare Pool for Installation..................................................................................6

Step 3-Placing Cover Over Pool....................................................................................6

Step 4-Aligning Pool Cover.............................................................................................7

Step 5-Attaching Rubber Ties.........................................................................................7

Step 6-Locating/Setting Brass Anchors and Rubber Ties..............................................8

Installation/Removal of Rubber Tie.................................................................................9

Installing Brass Anchors at Corners.............................................................................10

Step 7-Placement of Pump..........................................................................................10

Step 8-Inspection and Clean-up...................................................................................10

Step 9-Step Wedges...................................................................................................11

Step 9-Step Wedges Continued..................................................................................12

Important Note regarding pool covers with complicated areas.................................13

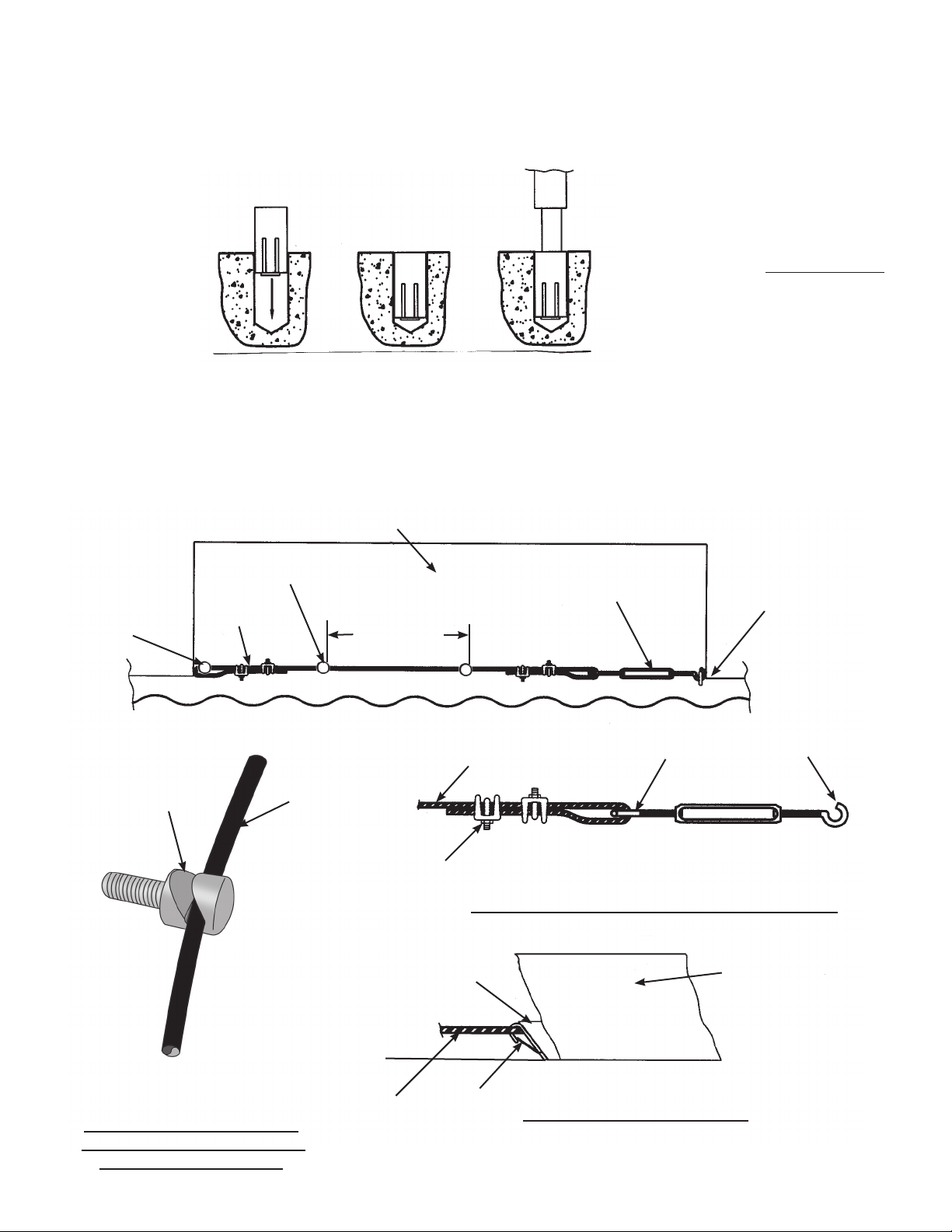

Optional Cable Assembly Installation........................................................................14

Optional Cable Assembly Installation Continued.........................................................15

ANCHOR SAFETY POOL COVER

,

WARRANTY

To whom does the Limited Warranty apply? This Limited Warranty is extended to the original consumer purchaser only,

and IS NOT transferable or assignable to any subsequent user of the pool cover.

What is covered by the Limited Warranty? Anchor warrants that the pool cover fabric will be free from defects in materials

and workmanship during the Limited Warranty coverage period.

What will Anchor Industries, Inc. do in the event of a product defect? Anchor will repair or replace, at Anchor’s sole
discretion, the pool cover at no charge at any time during the first twelve (12) months of the Limited Warranty coverage period.
After the first twelve (12) months of the Limited Warranty coverage period, Anchor will either, at Anchor’s sole discretion,
repair the pool cover, or give an allowance towards the replacement of the pool cover. The amount of the allowance will be
determined by dividing the number of months remaining in the Limited Warranty coverage period by the total warranty period,
and multiplying that percentage times the current dealer price.

How long is the Limited Warranty coverage period? For Mesh pool covers, the warranty period is one hundred and forty
four (144) months, beginning on the date of purchase. For Solid and Five-Star covers, the warranty period is one hundred
and twenty (120) months, beginning on the date of purchase.

What is not covered by the Limited Warranty? This Limited Warranty DOES NOT cover: (1) replacement of rubber ties,
stainless steel springs, or other hardware, (2) damage caused by wear or abrasion at the coping edge, (3) incidental damages
to the deck or surrounding surfaces of the pool [see additional limitations on incidental and consequential damages below], (4)
damage caused by fire, vandalism, animals or insects, abuse and neglect, improper installation, acts of God, or use for any
purpose other than covering a swimming pool, (5) premature deterioration from sun or chemical over-exposure, (6) damage
caused by water levels that drop more than 1’-3” below the coping, and/or (7) adjustments to the pool cover not made by the
dealer.

What you must do to receive service under the Limited Warranty: Contact your pool cover dealer if you believe there is
failure covered by this warranty. The dealer may arrange for inspection of the cover and assist in determining the nature of
the problem. You may contact Anchor directly for further instruction regarding the problem and possible resolution. During the
first twelve months of the warranty period, Anchor will reimburse for freight charges returning the cover to the factory. You, or
your dealer, must obtain Return Goods Authorization (RGA) prior to returning the cover to the factory. Covers returned without
prior authorization will be refused and returned at your expense. Anchor will not reimburse freight charges for warranty claims
after the first twelve (12) months of the Limited Warranty coverage period. Questions regarding warranty service should be
directed to 1-800-255-5552.

LIMITATION OF IMPLIED WARRANTIES

ALL IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IN ANY WAY CONNECTED WITH THE SALE OR FURNISHING OF GOODS,
THEIR DESIGN, SUITABILITY FOR USE, INSTALLATION AND/OR OPERATION SHALL BE LIMITED TO THE DURATION OF
THE COVERAGE PERIOD OF THE LIMITED WARRANTY DESCRIBED ABOVE.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

BUYER’S SOLE AND EXCLUSIVE REMEDY AGAINST ANCHOR FOR DEFECTIVE OR NONCONFORMING GOODS IS FOR
REPAIR OR REPLACEMENT OF DEFECTIVE PARTS OR, AT THE SOLE DISCRETION OF ANCHOR, FOR AN ALLOWANCE
TOWARDS THE PURCHASE OF A REPLACEMENT PRODUCT. THIS EXCLUSIVE REMEDY SHALL NOT FAIL FOR ITS
ESSENTIAL PURPOSE SO LONG AS ANCHOR IS WILLING AND ABLE TO REPAIR OR REPLACE DEFECTIVE PARTS OR, IN
THE SOLE DISCRETION OF ANCHOR, TO GIVE AN ALLOWANCE TOWARDS A REPLACEMENT PRODUCT IN ACCORDANCE
WITH THESE TERMS. BUYER AGREES THAT NO OTHER REMEDY, INCLUDING, BUT NOT LIMITED TO, THE RIGHT TO
REJECT OR REVOKE ACCEPTANCE OF GOODS, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR LOST PROFITS,
LOST SALES, LOSS OF PRODUCTION, INJURY TO PERSON, DAMAGE TO PROPERTY, OR ANY OTHER INCIDENTAL OR
CONSEQUENTIAL LOSS SHALL BE AVAILABLE TO IT AND ANCHOR SHALL NOT BE LIABLE FOR SUCH INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR LOST PROFITS, LOST SALES, LOSS OF PRODUCTION, PROPERTY DAMAGE, PERSONAL
INJURY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS ARISING OUT OF THE USE OF OR THE INABILITY TO
USE THE GOODS.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

1100 Burch Dr. - P.O. Box 3477

Evansville

IN 47733 [phone]

CP29.2 REV 6/11

3

INTRODUCTION:

Thank you for your recent purchase of an Anchor Industries Inc. quality Solid Safety Pool Cover. With proper
installation and care, your Solid pool cover will provide protection for years to come.

Every precaution has been taken to ensure that the cover has arrived at its destination without
damage. Thoroughly inspect the condition of the containers and note any damage to the freight company at
time of delivery.

READ ALL DIRECTIONS BEFORE STARTING

NOTE: The instructions are for a standard installation of shaped and rectangular pool covers. If you

have a custom cover, which is not covered in the Installation Instructions, PLEASE CALL YOUR ANCHOR
REPRESENTATIVE FOR ASSISTANCE.

IMPORTANT NOTE:

Installation of pool cover must begin at any areas with cut-outs or zero tolerance areas (such as at cable-con-

struction). When there are several areas like this, start at most complicated of these areas. See pages 12-14.

SHOULD WARNING LABEL(S) ON POOL COVER BECOME UNCLEAR, PLEASE CONTACT
ANCHOR INDUSTRIES FOR REPLACEMENT(S).

WARNING

AVOID DROWNING RISK

1. Remove cover(s) completely before entering the pool - entrapment possible.

2. Use the pool cover in accordance with manufacturer’s instructions.

3. Remove standing water on solid covers - child can drown on top of cover.

4. Pool covers are not play areas - supervise children at all times.

5. Keep all fasteners in good condition - Inspect regularly - repair or replace any fastener showing wear.

6. Do not walk on cover except in emergency, life-saving rescue situation.

7. Visually inspect condition of fabric for sun or chemical over-exposure resulting in discoloration, brittleness
of fabric or broken hardware. This is an indication that cover is no longer a safety cover.

8. Non-secured or improperly secured covers are a hazard.

9. Covers should be stored in an environment that prevents sun, chemical exposure, or access by insects
and rodents, and protects cover from tearing or physical damage.

4

STEP 1:

TOOLS & HARDWARE

It is recommended that at least (2) individuals install a cover.

Rotary Hammer Drill
3/4” Masonry Bit
Tape Measure
Chalk
Hammer

Standard Hardware

Tools Required For Installation

Several 5 Gallon Buckets
Chalk Line
Extension Cord (must be “GFCI rated.)

OPEN

HOOKLESS 10” RUBBER TIE

POOL COVER

STORAGE

BAG

Optional Hardware

SETTING TOOL

BRASS
ANCHOR

GROUND TUBE

SOLID

POOL

COVER

BRASS

ANCHOR

BRASS FLANGE

SAW BOLT

3/16” ALLEN

WRENCH

Pump

WOOD DECK

ANCHOR

Proper safety equipment should be used at all times to ensure a safe installation. We suggest a careful
examination be made to determine safety equipment needed, such as hard hats, steel toe shoes, safety
glasses and other as required.

STEP WEDGE

5

STEP 2:

PREPARE POOL FOR INSTALLATION

1) It is best to have water level so that there is approximately 15” from pool’s edge to where cover

rests on water.

2) Remove all handrails, ladders, etc.

3) Unfold cover onto deck. DO NOT DRAG THE COVER.

4) Position buckets (filled with water) around pool.

SPA

DECK

BUNDLE

PLACED AT

END OF POOL

BUCKET

(TYP.)

15”

WATER

POOL

COVER

15”

STEP 3:

PLACING COVER OVER POOL

1) Place bundled cover as shown.

2) Unroll pool cover at end of pool as illustrated below. (Black web/hem side down.)

3) Install a rubber tie (see Step 5). Position a water bucket on rubber tie at center location.

4) Once cover is unrolled, start unfolding cover towards opposite end and place water buckets on
rubber ties across from each other. Continue doing this until pool cover has completely

covered pool.

NOTE: Do not place water buckets on cover, damage may occur. Place water
buckets only on ties.

SPA

DECK

UNFOLD
LEFT

SPA

UNROLL TO

RIGHT

BUCKET

(TYP.)

COVER

DECK

UNFOLD
TOWARD THIS
END OF POOL

6

STEP 4:

ALIGNING POOL COVER

1) Once cover is unfolded across pool, line up cutouts for ladders, slide legs, etc. and/or cable

areas, be sure the cover aligns properly with these objects first. See important note page 12.

2) Reposition cover to equal the overlap all around pool edge.

3) If cable is needed, see Optional Cable Assembly Installation Instructions (pages 13 & 14).

Otherwise, proceed to STEP 5.

SPA

CABLE

STEP 5:

COVER

ATTACHING RUBBER TIES

POOL EDGE

RUBBER TIE

(TYP.)

DECK

1) Attach rubber ties around cover.

2) Take the split connection end of the rubber tie, align holes with grommet (around outer edge of

cover) and attach with saw bolt. See illustration below.

GROMMET

SOLID COVER

RUBBER TIE

SAW

BOLT

7

STEP 6:

1) Brass anchors are placed approximately 11” from pool cover edge.

1a) Rectangular Pool Covers: Start with center strap of pool’s length. See *NOTE below.
Mark for brass anchor location (use chalk). Drill hole and set anchor, see FIG. 1. Attach end of
rubber tie, see Fig. 2A. Repeat on opposite end. Go to center grommets of the pools width and
repeat the same procedure. Now work from center straps (width and length) toward corners alter­ nating side to side (do not begin with corner straps). Once you have set brass anchors and
fastened rubber ties, go to corners and set brass anchors. Brass anchors should be over 1” from
90º corner, see FIG. 3.

1b) Shaped Pool Covers: Start with center strap of pool’s length. See *NOTE below. Mark for
brass anchor location (use chalk). Drill hole and set brass anchor, see FIG. 1. Attach rubber tie
to brass anchor, see FIG. 2A. Repeat on opposite end with center strap. Go to center grommet
of the pool width and repeat the same procedure. Now start working around your cover.
Remember to set brass anchor and fasten strap across from each other as you work around the
cover.

LOCATING/SETTING BRASS ANCHORS & RUBBER TIES

*NOTE: Before setting any brass anchors, check to see if there are obstruc­tions such as diving boards, rocks, etc. at center web location. If there is
obstruction at center web, start with nearest web on either side.

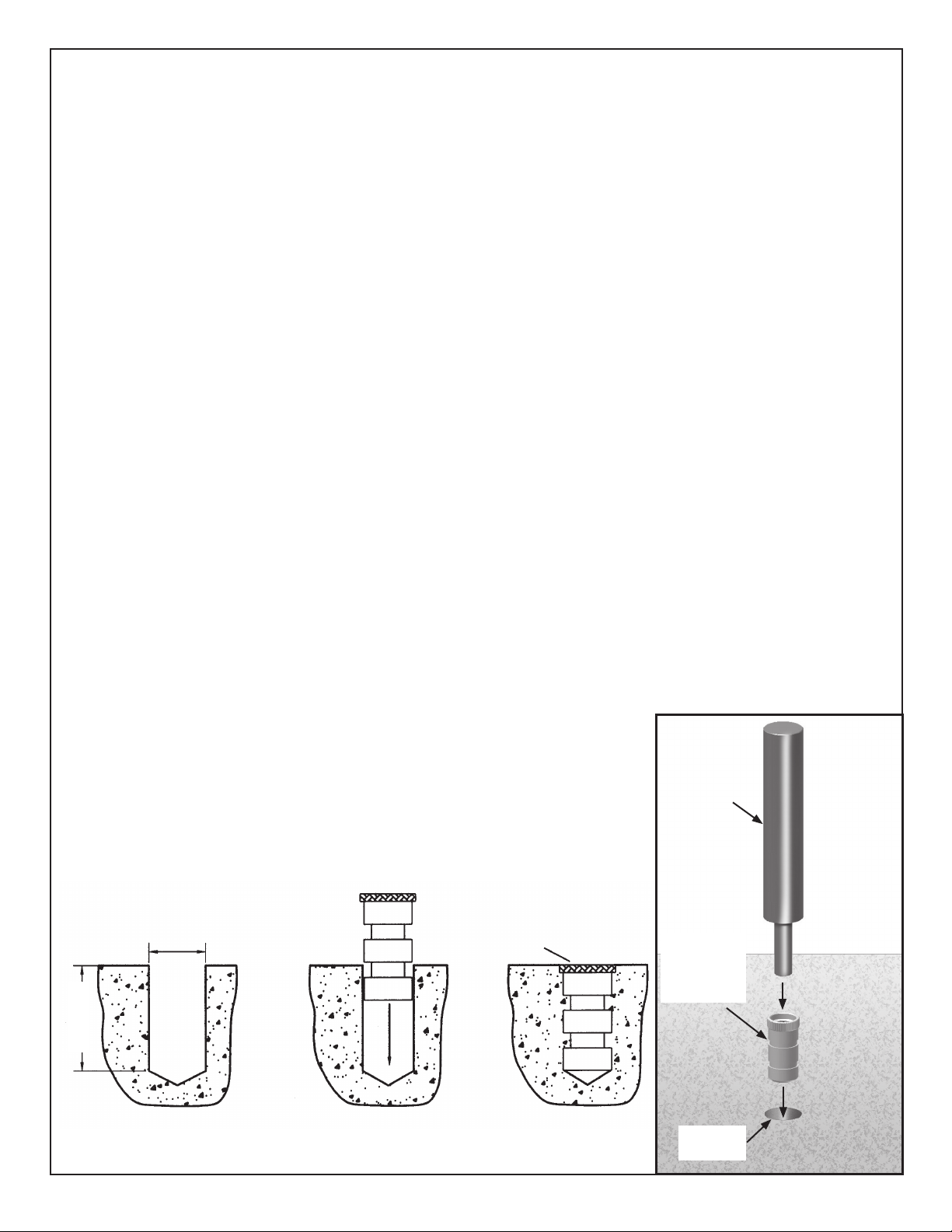

DRILLING HOLES FOR BRASS ANCHORS

1) Drill holes no more than the depth of the brass anchor (1 5/8”). **Do not over-ream the diameter of the

hole. If this does happen, apply a masonry anchor adhesive to the brass anchor before setting into hole.
(Note: clean hole out before setting brass anchor).

2) With screw removed, place brass anchor into hole. With a hammer and setting tool, firmly tap brass
anchor into hole.

3) Brass anchor should be flush with deck.

**NOTE: For best results, use a sharp masonry bit and a high­speed rotary hammer drill to reduce chipping. If chipping still
occurs, use flanges with brass anchors (available on request)
to cover these areas.

SCREW

3/4”

REMOVED

Setting

Tool

Brass
Anchor
(without
screw)

1 5/8”

FIG. 1

Drilled
hole

8

INSTALLATION/REMOVAL OF RUBBER TIE

INSTALLING

1) When fastening tie, brass anchor screw should be in open position (unscrewed
approximately 1/2”). Take end of tie and place onto brass anchor. Pull the rubber tie to
the anchor and slip the tie over the open anchor. Then let the tie slide onto the anchor
for secure fit.

SLIDE THIS
DIRECTION

SCREW

SCREW

FIG. 2A

REMOVAL

1) To remove, reverse operation of installing. Pull rubber tie until it slides out
of groove and lift up.

LIFT UP

SLIDE THIS
DIRECTION

SCREW

SCREW

FIG. 2B

9

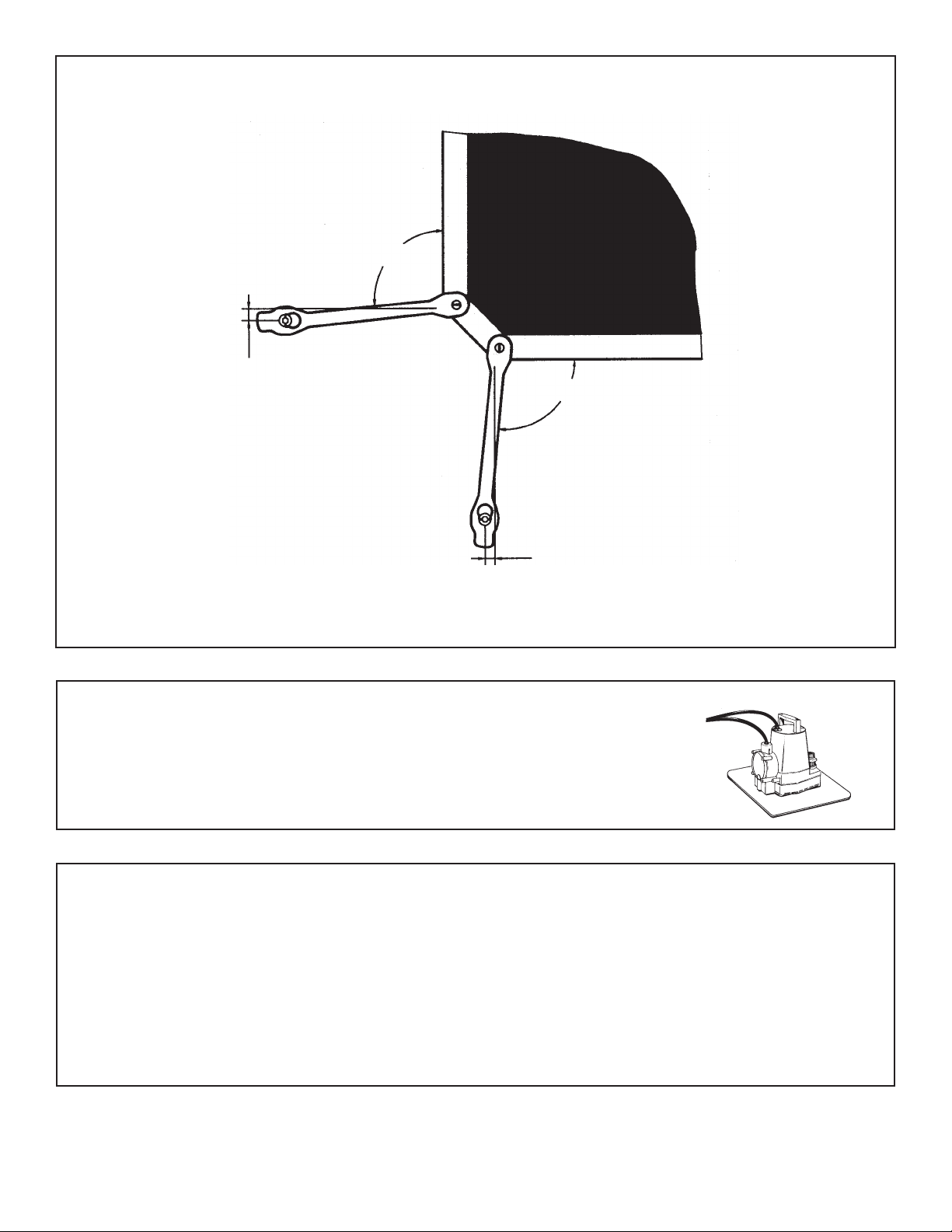

INSTALLING BRASS ANCHORS AT CORNERS

90º

1”

90º

1”

FIG. 3

STEP 7:

Place pump onto the cover at the geographical center of the cover. The
pump rating must be 1200 gph or more. The cover will present a hazard
and will not meet safety cover criteria without a pump.

STEP 8:

1) After the cover has been installed, look for any area (besides that reinforcement attached to

the cover during manufacturing) that may need protective padding on the underneath side of
cover. On site padding may consist of carpeting, vinyl liner remnants, etc.

PLACEMENT OF PUMP

INSPECTION AND CLEAN-UP

Complete the installation by sweeping any concrete dust.

Deliver the door knob pack with warranty and user information to the homeowner.

CALL ANCHOR POOL COVER SALES @ 1-800-255-5552

TO CLARIFY INSTALLATION INSTRUCTION QUESTIONS.

10

STEP 9: STEP WEDGES

POOL COVER
w/ OVERLAP

POOL COVER RUBBER
TIES SNUGGED CLOSE TO
BOTTOM STEP WEDGE.

WEDGES FOR
DESCENDING
SIDE.

RUBBER TIES
LOOSENED UNTIL
STEP WEDGES ARE IN
PLACE

STEP WEDGES TUCKED UNDER EDGE
OF POOL COVER OVERLAP AND
CLIPPED AT OUTER FLAP.

INSTALLING STEP WEDGES

1. Before tightening the pool cover anchors near the steps, tuck step wedges under the overlap edge of the
cover, as needed.

2. Pull the outer edge of the cover to the outside flap of the wedges and clip the flap to edge of the cover us­ing the clips for step wedges provided.

3. Install the rubber ties and anchors to tighten the cover.

4. Be sure that the last rubber ties near the top and bottom steps are snugged up close to the wedge to se­cure it firmly in place.

5. Step Wedges come in standard sizes of 14” and 28” (measured on the horizontal dimension along the
step). Custom sized wedges can be made upon request.

CLIP FOR

STEP

WEDGES

11

STEP 9B

COMPLETE STEP COVERING,
WITH WEDGES IN PLACE AND
RUBBER TIES INSTALLED TO
SECURE THE COVER.

WEDGES

RUBBER TIES
ATTACHED TO
BRASS ANCHORS.

CLIPS

TYE CLIP

STEP 9C

FLAPS FOR
CLIPPING
TO COVER

STEP WEDGE

TYE CLIP INSTALLATION

RUBBER TIE
ATTACHED
TO BRASS
ANCHOR

12

ZIPPER FOR
STUFFING
WITH
DUNNAGE

STEP
WEDGE CLIP

STEP
WEDGE

TYE CLIP

BRASS POOL
COVER ANCHOR

POOL
COVER

• Determine best
placement for Tye Clip
Assembly.

• Install Brass Anchor
butted up next to edge of
pool cover.

• Assemble the Tye Clip
as shown in drawing to
the left.

• Catch pool cover
beneath the black or
white Poly Strip. (See
drawing to the left)

IMPORTANT NOTE:

Installation of pool cover must begin at any areas with cut-outs or zero tolerance
areas (such as at cable-construction). When there are several areas like this,
start at most complicated of these areas.

Start installation at
cable area

Start installation at
laced cutout

13

OPTIONAL CABLE ASSEMBLY INSTALLATION

NOTE: This application of cable is for a standard straight wall installation. A
custom cable area may require special installation and hardware. If you have
any questions call your Anchor Representative to assist you.

Install cable hardware at the same level as the rest of the cover!

HARDWARE

3/16” STAINLESS

STEEL CABLE

CABLE CLAMP

SETTING TOOL

3/8” MACHINE THREADED

EYEBOLT AND DROP-IN

ANCHOR

TURNBUCKLE

3/8” SLOTTED CABLE

ANCHOR BOLT -DROP IN

ANCHOR

1) Install 3/8” drop-in anchor with 3/8” eyebolt on one end of cable area. Install 3/8” drop in anchors at the

opposite end of the cable area and approximately 18” apart for the 3/8” cable anchor bolts. See FIG. 4

2) When installing the cable anchor bolt to the cable area, align the hole in the anchor bolt in the direc­tion of the cable. see FIG. 5A. Run the cable through the in-line holes. see FIG. 5B. Run one end of
the cable through the cable anchor at one end of cable area and loop. Attach (2) cable clamps and tightly
secure cable, see FIG. 5A. Run other end of cable through eyebolt on turnbuckle, make loop and attach
(1) cable clamp for now. With turnbuckle fully extended out, attach hook end of turnbuckle to the eyebolt at
the end of the cable area. Loosen the (1) cable clamp and pull cable as taut as possible. Tighten (1) cable
clamp and add second cable clamp now. Be sure all cable clamps are tight to secure the cable. Rotate
mid-section of turnbuckle to tighten cable further, see FIG. 5C.

3) Attach the snaps located under pool cover in cable area onto cable. See FIG. 5D.

14

OPTIONAL CABLE ASSEMBLY INSTALLATION - cont’d

Drilling/Setting of 3/8” Drop-in Anchors

EMBEDMENT

3/8” Drop-in

Drill Diameter - 1/2”

Minimum Depth - 1 7/8”

1) Drill a hole into base material to the depth of embedment (see information above) required. Do

not over drill hole. Blow the hole clean of dust and other material. Insert the drop-in anchor into
the hole and tap flush with surface. Using setting tool, set drop-in anchor by driving the tool into
the drop-in anchor until the shoulder of the tool is seated against the drop-in anchor.

RAISED WALL

CABLE

ANCHOR

BOLT

SLOTTED

CABLE

ANCHOR BOLT

CABLE

CLAMPS

CABLE

ANCHOR BOLT

APPROX. 18”

CABLE

CABLE

CLAMPS

COVER

FIG. 5A

TURNBUCKLE

EYEBOLT

CABLE

FIG. 5C

ATTACH CABLE TO EYEBOLT ON TURNBUCKLE

EYEBOLT

END

TURNBUCKLE

EXTENDED

HOOK

END

WEATHER FLAP

FIG. 5B

RUNNING CABLE THROUGH

IN-LINE HOLES ON SLOTTED

CABLE ANCHOR BOLTS

CABLE

SNAP

FIG. 5D

ATTACHING SNAP TO CABLE

15

EVANSVILLE, INDIANA

Thank you for purchasing an Anchor product. In return, we pledge Quality, Service and
Craftsmanship and are available for any questions you may have or assistance you may need.

PHONE NUMBER

812-867-2421

FAX NUMBER

812-867-1429

Anchor products are of superior design and operate best within the parameters of these
instructions. It is IMPERATIVE that the instructions be carefully read and COMPLETELY
FOLLOWED. Please read installation instructions before the installation or removal of this
product. Installation instructions are also available at: www.anchorinc.com.

CAUTION

1. Anchor Products are of superior design and operate best within the parameters of these
instructions. It is imperative that the instructions be carefully read and completely followed.

2. For each installation, the installer is solely responsible for evaluating the site for the proper
securing methods and fasteners to be used. Standard fasteners furnished may be inadequate, site
unseen by Anchor, thus requiring additional or alternate method of fastening.

3. Inasmuch as the weather is unpredictable, good judgment and common sense must be
incorporated within installation guidelines. Proper safety equipment should be used at all times to
insure a safe installation and removal. We suggest a careful evaluation be made to determine safety
equipment needed, such as hard hats, steel-toe shoes, safety glasses and other as required.

4. Anchor stands behind its products in accordance with its standard Terms and Conditions of sale.
A copy of our Terms and Conditions of Sale can be obtained by contacting Anchor at the telephone
number and/or address on this document.

1-800-255-5552

1100 Burch Dr. • P.O. Box 3477 • Evansville, IN 47733 U.S.A. • Ph. [phone] •

Fax [phone]

E-mail: [e-mail] • www.anchorinc.com

29.0 7-31-02
