Description

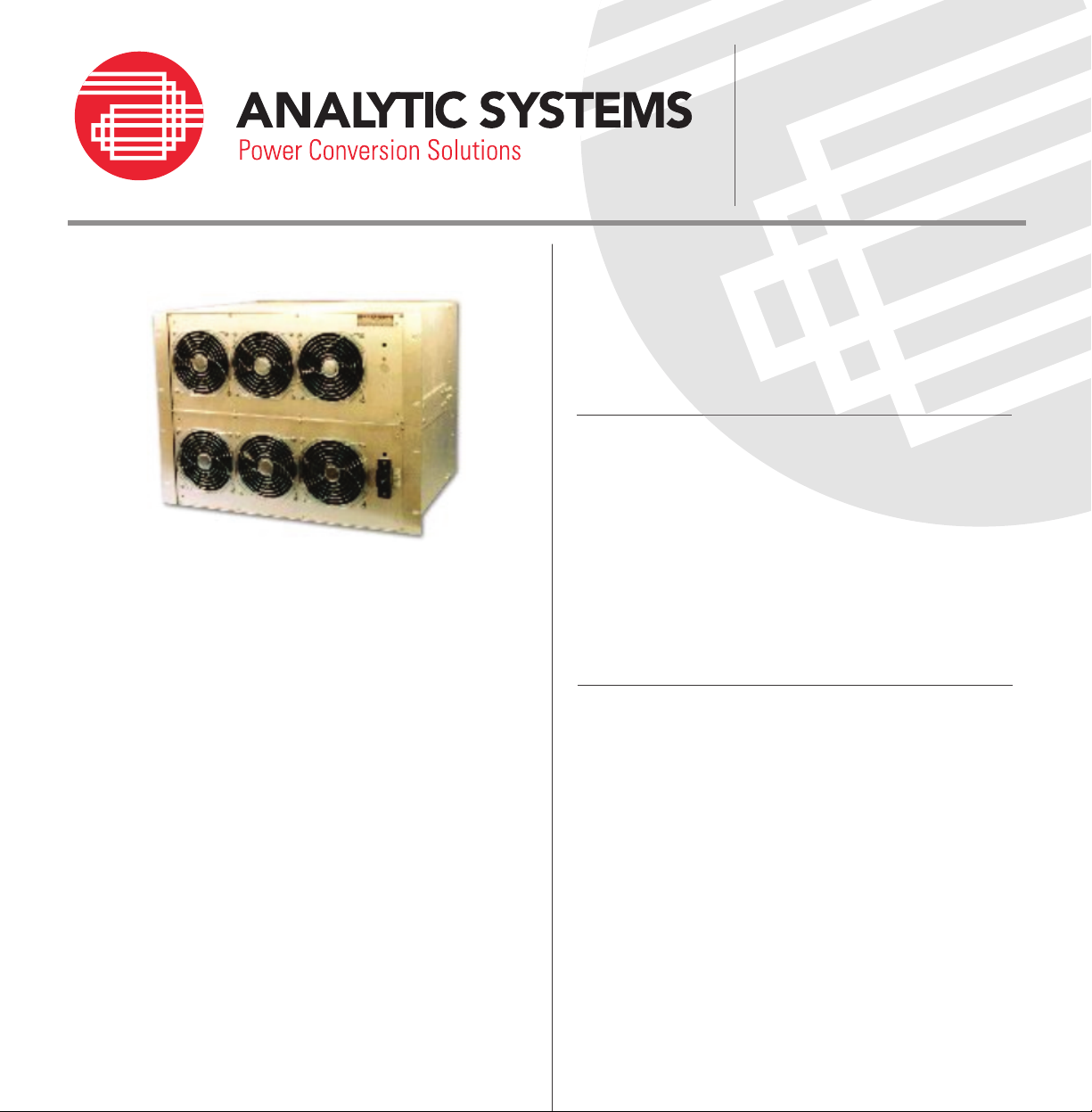

The IVS5000R Series is a compact 5000VA DC/AC pure sinewave
inverter that uses established design techniques to ensure high
reliability.
Suitable for a wide range of applications, the IVS5000R features full
electronic protection, high efficiency and low output noise.
The built-in fan provides sufficient airflow for operation without
de-rating up to 50oC ambient temperature.
The inverter can be loaded with a fluorescent lamp load up to the
full-specified output power.
DC/AC Pure Sine
Inverters
Model
IVS5000R
Benefits
◆ Ultra-Quiet
◆ Power sensitive electronics without interference
◆ Rugged & Reliable
◆ Ensure years of safe and trouble free operation
Design Features
◆ Input is filtered to EN 55022 Class A
◆ Very low 60Hz input ripple current
◆ Modular design
◆ Sinusoidal wave shape
◆ Multiple input and output voltages available
◆ 5000VA of output power
◆ Full electronic protection
◆ Field-proven design topology
Applications
◆ Marine / Automotive / RV
◆ Electric Utilities and Substations
◆ Telecom Power Plants
◆ Manufacturing Locations
◆ Steel Mills
◆ Military Applications (COTS)
◆ Industrial Controls
◆ OEM Applications
◆ Solar / Alternative Power Systems
◆ Fuel Cells
DC/AC Pure Sinewave Inverters
IVS5000R Series Pure Sinewave Inverters
Input Voltage
Input Protection ermal fuse, Inrush current limiting, Reverse polarity protection
Isolation
Output Voltage
Wav e F orm Sinusoidal
Total Harmonic Distortion Less than 5% at full load
Eciency Min 82% at full load
Line Regulation Maximum 0.5%
Load Regulation Maximum ± 6% from 10% load to full load ( ± 1% option available)
Output Noise High frequency ripple is better than 500mV rms (20MHz BW)
Output Protection
EMI / RFI Suppression Meets requirements of EN55022, Class A conducted emissions
24V, 36V, 48V, 125V, 250VDC+/-15% are standard
(Other inputs available - please consult factory)
Input to chassis: 500VDC for <60V input / 1500VDC for >60V input
Input to output : 2250VDC / Output to chassis : 2250VDC
115V rms / 43.5A rms continuous or 220VAC / 21.8A (50 or 60Hz standard)
with grounded neutral
Isolated oating output optional (Consult factory for other voltages and frequencies)
Current limiting with short circuit protection, thermal shutdown with automatic recovery in case of continuous
overload or insucient airow
Output Over-voltage Protection By internal supply voltage limiting at 140VAC on output
Output Over-load Protection: Hiccup at 6,000VA
Load Crest Factor Maximum 2.5 at 90% load
Operating Temperature Range 0o C to +50o C
Humidity 5 - 95% non-condensing
Temperature Dri 0.05% per o C over operating temperature range
Dimensions & Weight
Connections
Safety Compliance to C22.2 No. 107.1 - 01 and UL 458
Input Voltage
Note: Specifications are subject to change without notice.
Warranty: Twenty four months subject to application within good engineering practice
Enhancements to these general specifications can be accommodated upon request
Designed to meet common approval requirements. Specifications Subject to Change Without Notice
Designed and Manufactured in Canada
6U x 19” rack-mount enclosure. Depth is 17” maximum
70 lb (31.8 kg)
Input: Compression-type terminal
Output: Standard AC receptacles or terminal block
24V, 36V, 48V, 125V, 250VDC+/-15% are standard
(Other inputs available - please consult factory)
