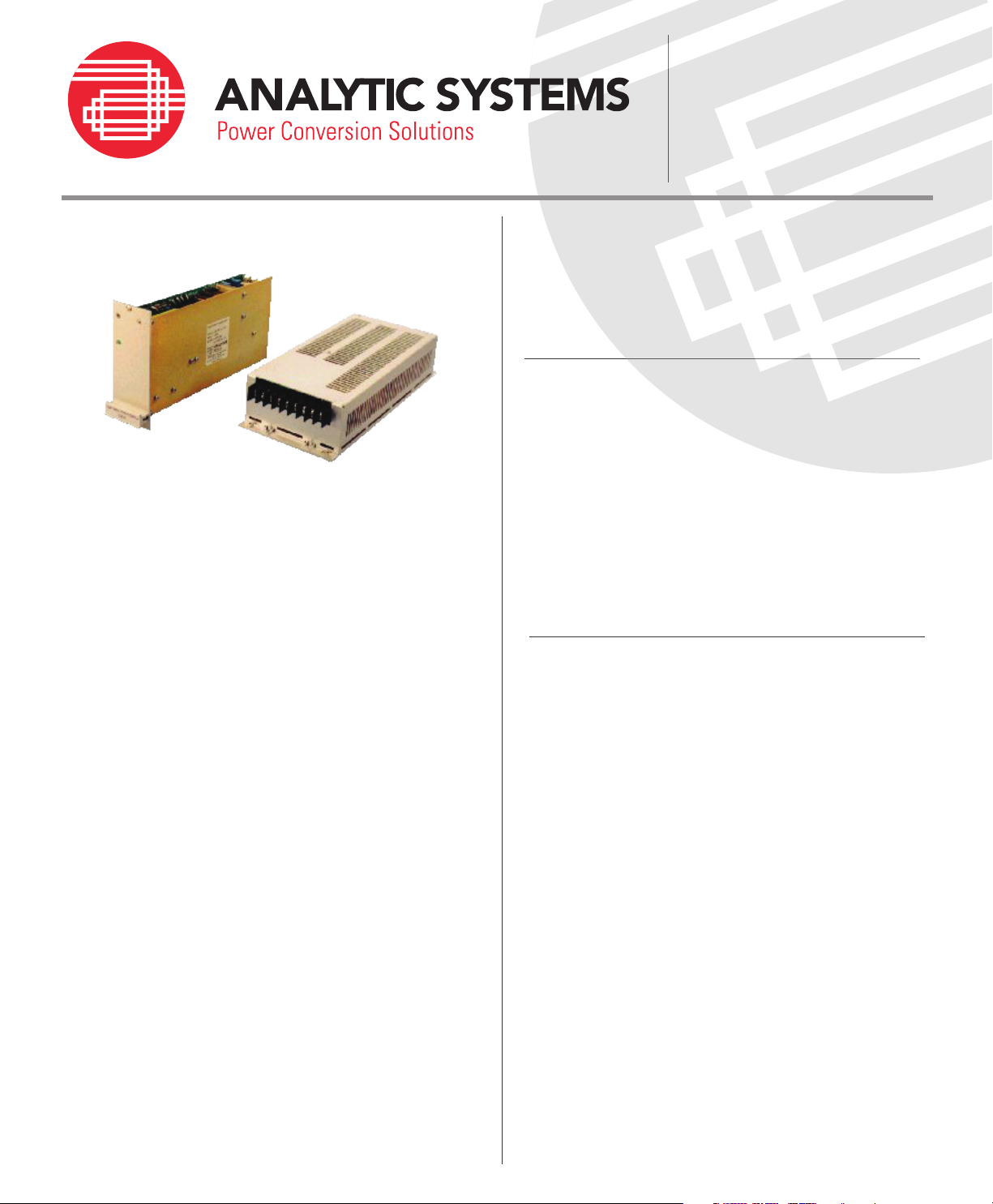

Description
The IVS100 Series is a compact 100VA DC/AC inverter that
utilizes the same established conversion topologies as Analytic
Systems’ higher power inverters.
The DC/DC input stage boosts the input voltage to a higher
DC voltage, which feeds the DC/AC converter to generate the
required AC output. This use of high frequency transformers
ensures a lightweight design.
Suitable for a wide range of applications, the IVS100 features full
electronic protection, high efficiency and low output noise.
DC/AC Pure Sinewave
Inverters
Model
IVS100
Benefits
◆ Ultra-Quiet
◆ Power sensitive electronics without interference
◆ Rugged & Reliable
◆ Ensure years of safe and operation
Design Features
◆ Input is filtered to EN 55022 Class B
◆ Compact size
◆ Modular design, light weight
◆ Sinusoidal wave shape
◆ Multiple input and output voltages available
◆ 100VA of output power
◆ Full electronic protection
◆ Field-proven design topology
◆ Plug-in or stand-alone package
Applications
◆ Marine / Automotive / RV
◆ Electric Utilities and Substations
◆ Telecom Power Plants
◆ Manufacturing Locations
◆ Steel Mills
◆ Military Applications (COTS)
◆ Industrial Controls
◆ OEM Applications
◆ Solar / Alternative Power Systems
◆ Fuel Cells
DC/AC Pure Sinewave Inverters
IVS100
Input Voltage
Input Protection ermal fuse, Inrush current limiting, Reverse polarity protection
Isolation
Output Voltage
Wav e F orm Sinusoidal
Total Harmonic Distortion Less than 5% at full load
Eciency Min 78% at full load
Line Regulation ± 0.5% max.
Load Regulation Max. ± 6% from 10% load to full load (± 1% option available)
Output Protection Current limiting with short circuit protection
EMI Meets EN 55022 Class B
Load Crest Factor Maximum 3.0 at 90% load
Operating Temperature Range 0o C to +50o C
Humidity 5 - 95% non-condensing
Temperature Dri 0.05% per o C over operating temperature range
Dimensions
Connections
Weight 2.0 lb (0.9kg)
Safety Compliance to C22.2 No. 107.1 - 01 and UL 458
24V, 36V, 48V, 125VDC +/-20% are standard
Other inputs available, please consult factory
Input to chassis 500VDC
Input to output 2250VDC
Output to chassis 2250VDC
115VAC/60Hz @0.87A continuous
Consult factory for other voltages and frequencies
Plug-in: 3U x 160mm x 10HP (2”)
Stand alone: 4.2” x 7.8” x 2.0”
Plug-in module: H15
Stand-alone: screw-type terminal block for input and output
Consult factory for other connectors
Note: Specifications are subject to change without notice.
Warranty: Twenty four months subject to application within good engineering practice
Enhancements to these general specifications can be accommodated upon request
Designed to meet common approval requirements. Specifications Subject to Change Without Notice
Designed and Manufactured in Canada
