BCD1505 Series Battery Charger
• Ultra-Quiet
•
without interference
• Rugged & Reliable
•
trouble free operation
• Fast & Accurate Charging
The BCD1505 battery charger provides up to 1350 watts to charge 12,
24, 32 or 48 Volt battery systems from a 110, 250, 300 or 360 Volt DC
source. The batteries must share a common ground.
This all-new single board design incorporates state of the art switchmode
technology for unmatched efficiency and ultra-quiet operation. Multiple
stages of filtering reduce radiated or conducted noise to very low levels.
Extra features include audible and visual indicators for low input voltage,
low output voltage and over-temperature.
Safety features include both charger and battery over-temperature
shutdown, current limiting, s hort circ uit protec t ion wit h automatic
recovery, input under voltage shutdown and output over-voltage crowbar.
Optional features include a 3-Bank Load Splitter. We are confident that
you will get many years of reliable service from this DC Battery Charger.
•
• Automotive / RV
• E
•
(Radio & Telecommunications)
• OEM Applications
• Field Work / Constr uction Sites
• Solar Power Systems
• Emergency Power Backup (UPS)
• Security Systems
• Charge any 12, 24, 32 or 48 Volt
Battery System
• Ideal as a Trade Show Power
• Military-Grade extrusion ensures
• Ultra-quiet low EMI operation
• Can be left permanently
• Can function as a power supply
• Dry contact output fail relay
• 2 stage charging profile
• Over-temperature shutdown
Supply for Auto Shows
a high tolerance for shock and
vibration
connected
• 3 Bank Load Splitter
Available
• Audible & visual in d ic at or s
for low output voltage &
over-temperature
• Short circuit protection
• Output over-voltage
crowbar
• Inrush Current Limiting with
solid state bypass
• Thermostatically controlled
fan
• 3 year parts and labour
warranty
(Optional -40°C to +50C extra wide temp. operation avail.)
0 - 95°C Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise
NONE Ødb @ 3 ft (34.5 dB when fan operating)
Typical Service Life
> 10 yrs. (87,600 hrs)
Nominal DC (ip)
Actual (Vac)
100-140 230-280 280-360 330-415
Input Amps
(max)
21 9 7.5 6.5
Input Fuse (MDA)
25 15 10 8
Noise on Input
< 50 mV

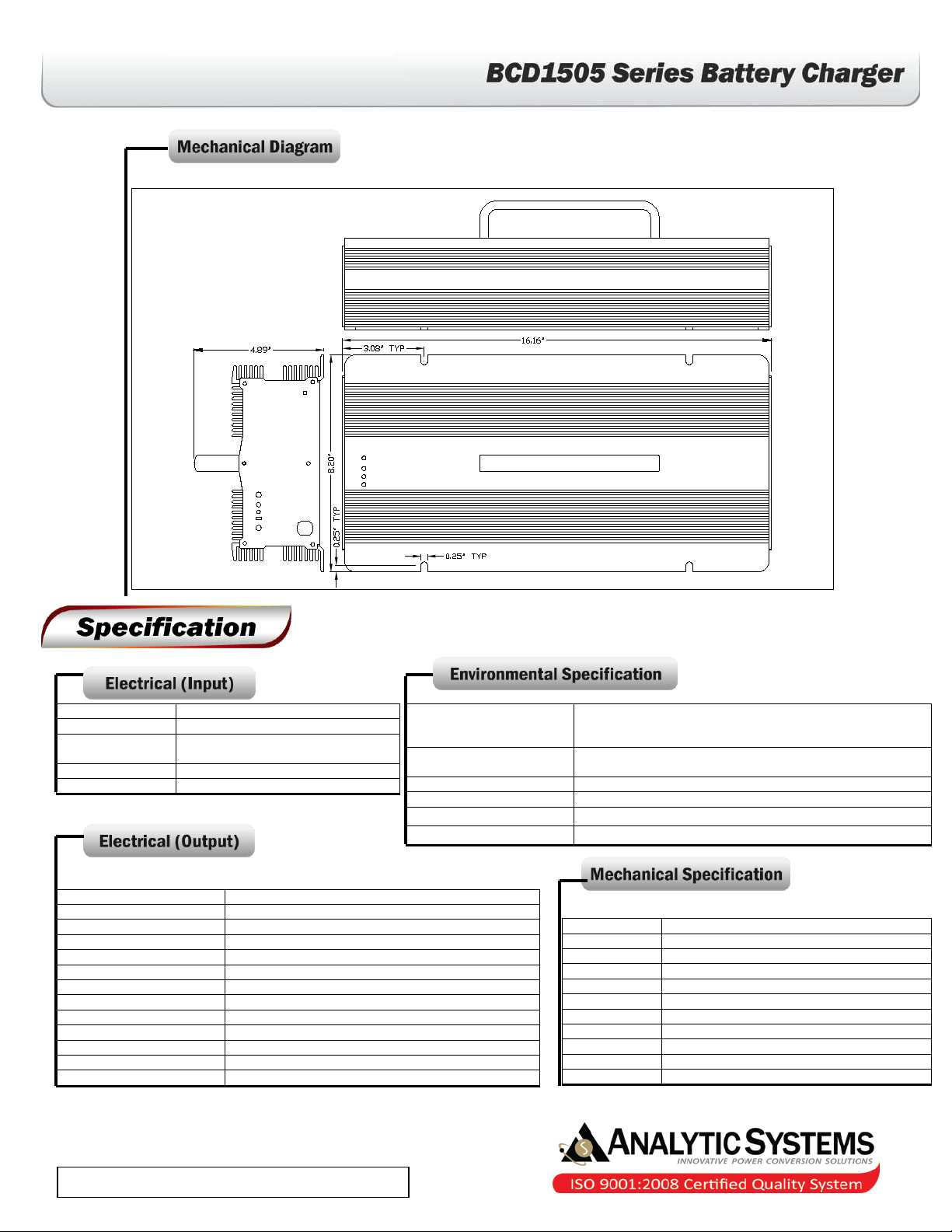

Length
17.0 in / 43.2 cm
Width
8.2 in / 20.8 cm
Height
3.5 in / 8.9 cm (without c arrying handle)
Clearance
1 inch (2.5 cm) all around
Material
Finish
Black Anodized
Fastenings
All 18-8 Stainless Steel
Weight
14.4 lb / 6.6 kg
Connections
4ft #6awg input, blk/red #6awg output wires
Warranty
3 years
Safety
Design to meet UL1012 & CSA 22.2
Output Nominal (op)
12 24 32 48
Output Volts (DC)
13.6 ± 0.05 27.2 ± 0.05 36.6 ± 0.05 54.4 ± 0.05
Charging Amps
100A 50A 35.5A 25A
Output Fuses (ATC)
40 x 3 40 x 2 40 x 1 40 x 1
Battery Banks
1 (3 Bank Load Splitter Available)
Output Crowbar
16.0 ± 0.5V 32.0 ± 1.0V 43.7 ± 1.3V 63.9 ± 2.0V
Battery Size (Amp Hrs.)
400 – 600 200 – 300
Output Ripple & Noise
< 50 mV
Regulation (Line & Load)
Duty Cycle
Continuous 100% for 24 hours per day
Efficiency
> 80% @ Maximum Output
Stages
2 stage – Constant Current / Constant Voltage
Available From:
110 250 300 360
Operating Temp. Range
Humidity
Isolation
-25° to +40°C @ maximum output
Derate Linearly 2.5% per °C from 40°C
Input-Case & Input-Output 1500VDC / Output-Case 500VDC
Marine Grade Aluminium
< +/- 0.5%
