Analytical Industries GPR-2500 A User Manual

GPR-2500A

Oxygen Transmitter

Owner’s Manual

2855 Metropolitan Place, Pomona, CA 91767 USA ♦ Tel: [phone], Fax: [phone], e-mail: [e-mail], www.aii2.com

2

Table of Contents

Introduction

1

Quality Control Certification

2

Safety

3

Features & Specifications

4

Operation

5

Maintenance

6

Spare Parts

7

Troubleshooting

8

Warranty

9

Material Safety Data Sheets

10

Drawings

A/R

3

1 Introduction

Your new oxygen transmitter incorporated an advanced electrochemical sensor specific to oxygen along with state­of-the-art digital electronics designed to give you years of reliable precise oxygen measurements in variety of
industrial oxygen applications.

To obtain maximum performance from your new oxygen transmitter, please read and follow the guidelines
provided in this Owner’s Manual.

Every effort has been made to select the most reliable state of the art materials and components, to design the
transmitter for superior performance and minimal cost of ownership. This transmitter was tested thoroughly by the
manufacturer prior to shipment for best performance.

However, modern electronic devices do require service from time to time. The warranty included herein plus a staff
of trained professional technicians to quickly service your transmitter is your assurance that we stand behind every
transmitter sold.

The serial number of this transmitter may be found on the inside the transmitter. You should note the serial
number in the space provided and retains this Owner’s Manual as a permanent record of your purchase, for future
reference and for warranty considerations.

Serial Number: _______________________

Advanced Instruments Inc. appreciates your business and pledges to make every effort to maintain the highest
possible quality standards with respect to product design, manufacturing and service.

4

2 Quality Control Certification

Date:

Customer: Order No.: Pass

Model:

GPR-2500A Oxygen Transmitter

Sensor:

( ) GPR-11-32-4 Oxygen Sensor
( ) XLT-11-24-4 oxygen Sensor

Serial Nos.:

Transmitter ______________________ Sensor ______________________

Accessories:

Owner’s Manual
ENCL-1071-KIT Y-Fitting Packing Fiber, Sealing Cement, Stick Stirrer

Configuration:

A-1151-E-A2 PCB Assembly Main Processing
A-1153-A2 PCB Assembly Alarms/Power Connection
Software rev:
Ranges: 0-1%, 0-5%, 0-10%, 0-25%
Power: 12-36V DC two wire loop power
Barometric pressure and temperature compensation
NEMA 4X rated wall mount enclosure

Test: Pass Pass

Set default zero
Set default span @ 40uA Alarm delay
Zero calibration Alarm bypass
Span Calibration Alarm configurations; ALARM 1, ALARM 2
Analog signal output 4-20mA full scale Alarm function; ALARM 1, ALARM 2
Calibrates with adequate span adjustment within 10-50% FS Alarm relays; ALARM 1, ALARM 2
Baseline drift on zero gas < ± 2% FS over 24 hour period Alarm system fail, dry contact
Noise level < ± 1.0% FS Overall inspection for physical defects

Options:
Notes:

5

3 Safety

General

This section summarizes the essential precautions applicable to the GPR-2500A Oxygen Transmitter. Additional
precautions specific to individual transmitter are contained in the following sections of this manual. To operate the
transmitter safely and obtain maximum performance follow the basic guidelines outlined in this Owner’s Manual.

Caution: This symbol is used throughout the Owner’s Manual to Caution and alert the user to recommended
safety and/or operating guidelines.

Danger: This symbol is used throughout the Owner’s Manual to identify sources of immediate Danger such as
the presence of hazardous voltages.

Read Instructions: Before operating the transmitter read the instructions.
Retain Instructions: The safety precautions and operating instructions found in the Owner’s Manual should be

retained for future reference.

Heed Warnings: Follow all warnings on the transmitter, accessories (if any) and in this Owner’s Manual.
Follow Instructions: Observe all precautions and operating instructions. Failure to do so may result in personal

injury or damage to the transmitter.

Pressure and Flow

Inlet Pressure: GPR-2500A Oxygen Transmitters are designed for flowing samples, equipped with 1/8” bulkhead
tube fitting connections on the side of the unit (unless otherwise indicated, either fitting can serve as inlet or vent)
and are intended to operate at positive pressure regulated to between 5-30 psig.

Caution: If equipped with a H2S scrubber as part of an optional sample conditioning system, inlet pressure must
not exceed 30 psig.

Outlet Pressure: The sample gas vent pressure should be atmospheric.

Installation

Oxygen Sensor: DO NOT open the sensor. The sensor contains a corrosive liquid electrolyte that could be
harmful if touched or ingested, refer to the Material Safety Data Sheet contained in the Owner’s Manual appendix.
Avoid contact with any liquid or crystal type powder in or around the sensor or sensor housing, as either could be a
form of electrolyte. Leaking sensors should be disposed of in accordance with local regulations.

Mounting: The transmitter is approved for indoor or outdoor use. Mount as recommended by the manufacturer.
Power: Supply power to the transmitter only as rated by the specification or markings on the transmitter

enclosure. The wiring that connects the transmitter to the power source should be installed in accordance with
recognized electrical standards and so they are not pinched particularly near the power source and the point where
they attach to the transmitter. Never yank wiring to remove it from an outlet or from the transmitter.

Operating Temperature: The maximum operating temperature is 45º C.
Heat: Situate and store the transmitter away from sources of heat.
Liquid and Object Entry: The transmitter should not be immersed in any liquid. Care should be taken so that

liquids are not spilled into and objects do not fall into the inside of the transmitter.
Handling: Do not use force when using the switches and knobs. Before moving your transmitter be sure to

disconnect the wiring/power cord and any cables connected to the output terminals located on the transmitter.

6

Maintenance

Serviceability: Except for replacing the oxygen sensor, there are no parts inside the transmitter for the operator
to service.

Only trained personnel with the authorization of their supervisor should conduct maintenance.
Oxygen Sensor: DO NOT open the sensor. The sensor contains a corrosive liquid electrolyte that could be

harmful if touched or ingested, refer to the Material Safety Data Sheet contained in the Owner’s Manual appendix.
Avoid contact with any liquid or crystal type powder in or around the sensor or sensor housing, as either could be a
form of electrolyte. Leaking sensors should be disposed of in accordance with local regulations.

Troubleshooting: Consult the guidelines in Section 8 for advice on the common operating errors before
concluding that your transmitter is faulty.

Do not attempt to service the transmitter beyond those means described in this Owner’s Manual. Do not attempt to
make repairs by yourself as this will void the warranty as per Section 10 and may result in electrical shock, injury or
damage. All other servicing should be referred to qualified service personnel.

Cleaning: The transmitter should be cleaned only as recommended by the manufacturer. Wipe off dust and dirt
from the outside of the unit with a soft damp cloth then dry immediately. Do not use solvents or chemicals.

Nonuse Periods: If the transmitter is equipped with a range switch advance the switch to the OFF position and
disconnect the power when the transmitter is left unused for a long period of time.

4 Features & Specifications

See last page, this page left blank intentionally.

7

5 Operation

Principle of Operation

The GPR-2500A oxygen transmitter incorporates a variety of advanced galvanic fuel cell type sensors. The
transmitter is a compact efficient package configured with the oxygen sensor and separate circuits boards for
signal processing and terminals for incoming power, power supply, signal output and alarm relay contacts housed
in a general purpose NEMA 4X rated enclosure.

Advanced Galvanic Sensor Technology:

The sensors function on the same principle and are specific for oxygen. They measure the partial pressure of
oxygen from low ppm to 100% levels in inert gases, gaseous hydrocarbons, helium, hydrogen, mixed gases, acid
gas streams and ambient air. Oxygen, the fuel for this electrochemical transducer, diffusing into the sensor reacts
chemically at the sensing electrode to produce an electrical current output proportional to the oxygen concentration
in the gas phase. The sensor’s signal output is linear over all ranges and remains virtually constant over its useful
life. The sensor requires no maintenance and is easily and safely replaced at the end of its useful life.

Proprietary advancements in design and chemistry add significant advantages to an extremely versatile oxygen
sensing technology. Sensors for low ppm analysis recover from air to levels in minutes, exhibit longer life and
reliable quality. The expected life of our new generation of percentage range sensors now range to five and ten
years with faster response times and greater stability. Another significant development involves expanding the
operating temperature range for percentage range sensors from -30°C to 50°C.

Electronics:

The signal generated by the sensor is processed by state of the art low power micro-processor based digital
circuitry. The first stage amplifies the signal. The second stage eliminates the low frequency noise. The third stage
employs a high frequency filter and compensates for signal output variations caused by ambient temperature
changes. The result is a very stable signal. Sample oxygen is analyzed very accurately. Response time of 90% of
full scale is less than 10 seconds (actual experience may vary due to the integrity of sample line connections, dead
volume and flow rate selected) on all ranges under ambient monitoring conditions. Sensitivity is typically 0.5% of
full scale low range. Oxygen readings may be recorded by an external device via the 0-1V signal output jack.

The circuit for the 4-20mA signal output and two adjustable alarms is powered by a DC/DC transformer that
requires a 12-36VDC power source and separate wiring for the outputs. A loop power source is not sufficient to
power to the circuit. The 4-20mA output is also represented on full scale oxygen readings to an external device.

Sample System:

The GPR-2500A is supplied without a sample conditioning system thereby giving users the option of adding their
own or purchasing a factory designed sample conditioning system. Whatever the choice, the sample must be
properly presented to the sensor to ensure an accurate measurement. Users interested in adding their own sample
conditioning system should consult the factory. Advanced Instruments Inc. offers a full line of sample handling,
conditioning and expertise to meet your application requirements. Contact us at 909-392-6900 or e-mail us at

[e-mail]

8

Pressure & Flow

All electrochemical oxygen sensors respond to partial pressure changes in oxygen. The inlet pressure must always
be higher than the pressure at the outlet vent which is normally at atmospheric pressure.

Flow Through Configuration:

The sensor is exposed to sample gas that must flow or be drawn through
metal or Tygon tubing inside the transmitter. The GPR-2500A internal
sample system includes 1/8” compression tube inlet and vent fittings, a
stainless steel sensor housing with an o-ring seal to prevent the leakage
of air and stainless steel tubing.

Flow rates of 1-5 SCFH cause no appreciable change in the oxygen
reading. However, flow rates above 5 SCFH generate backpressure and
erroneous oxygen readings because the diameter of the integral tubing
cannot evacuate the sample gas at the higher flow rate. The direction
the sample gas flows is not important, thus either tube fitting can serve
as the inlet or vent – just not simultaneously.

A flow indicator with an integral metering valve upstream of the sensor is
recommended as a means of controlling the flow rate of the sample gas.
A flow rate of 2 SCFH or 1 liter per minute is recommended for optimum
performance.

Caution: Do not place your finger over the vent (it pressurizes the
sensor) to test the flow indicator when gas is flowing to the sensor.
Removing your finger (the restriction) generates a vacuum on the sensor
and may damage the sensor (voiding the sensor warranty).

To avoid generating a vacuum on the sensor (as described above) during
operation, always select and install the vent fitting first and remove the vent fitting last.

Application Pressure - Positive:

A flow indicator with integral metering valve positioned upstream of the sensor is recommended
for controlling the sample flow rate between 1-5 SCFH. If necessary, a pressure regulator (with a
metallic diaphragm is recommended for optimum accuracy, the use of diaphragms of more
permeable materials may result in erroneous readings) upstream of the flow control valve should
be used to regulate the inlet pressure between 5-30 psig.

Caution: If equipped with a H2S scrubber as part of an optional sample conditioning system, inlet
pressure must not exceed 30 psig.

Application Pressure - Atmospheric or Slightly Negative:

For accurate oxygen measurements, an optional external sampling pump should be positioned upstream of the
sensor to draw the sample from the process and push the sample by the sensor and out to atmosphere. A flow
meter is not necessary if the discharge of the sampling pump approximates the recommended 2SCFH flow rate.

If pump loading is a consideration, a second throttle valve on the pump’s inlet side may be necessary to provide a
bypass path so the sample flow rate is within the above parameters.

9

To avoid erroneous oxygen readings and damaging the sensor:

¾ Do not place your finger over the vent (it pressurizes the sensor) to test the flow indicator when gas is flowing

to the sensor. Removing your finger (the restriction) generates a vacuum on the sensor and may damage the
sensor (voiding the sensor warranty).

¾ Assure there are no restrictions in the sample or vent lines
¾ Avoid drawing a vacuum that exceeds 14” of water column pressure – unless done gradually
¾ Avoid excessive flow rates above 5 SCFH which generate backpressure on the sensor.
¾ Avoid sudden releases of backpressure that can severely damage the sensor.
¾ Avoid the collection of particulates, liquids or condensation collect on the sensor that could block the diffusion

of oxygen into the sensor.

¾ If the transmitter is equipped with an optional integral sampling pump (positioned downstream of the sensor)

and a flow control metering valve (positioned upstream of the sensor), completely open the flow control
metering valve to avoid drawing a vacuum on the sensor and placing an undue burden on the pump.

10

Calibration & Accuracy

Single Point Calibration: As previously described the galvanic oxygen sensor generates an electrical current
sensor exhibiting an absolute zero, e.g. the sensor does not generate a current output in the absence of oxygen.
Given these linearity and absolute zero properties, single point calibration is possible.

Pressure: Because sensors are sensitive to the partial pressure of oxygen in the sample gas their output is a
function of the number of molecules of oxygen 'per unit volume'. Readouts in percent are permissible only when
the total pressure of the sample gas being analyzed remains constant. The pressure of the sample gas and that of
the calibration gas(es) must be the same (reality < 1-2 psi).

Temperature: The rate oxygen molecules diffuse into the sensor is controlled by a Teflon membrane otherwise
known as an 'oxygen diffusion limiting barrier' and all diffusion processes are temperature sensitive, the fact the
sensor's electrical output will vary with temperature is normal. This variation is relatively constant 2.5% per ºC. A
temperature compensation circuit employing a thermistor offsets this effect with an accuracy of +5% or better and
generates an output function that is independent of temperature. There is no error if the calibration and sampling
are performed at the same temperature or if the measurement is made immediately after calibration. Lastly, small
temperature variations of 10-15º produce < +1% error.

Accuracy:

In light of the above parameters, the overall accuracy of an transmitter is affected by two types of

errors: 1) those producing 'percent of reading errors', illustrated by Graph A below, such as +

5% temperature

compensation

circuit, tolerances of range resistors and the 'play' in the potentiometer used to make span

adjustments and 2) those producing 'percent of full scale errors', illustrated by Graph B, such as +1-2% linearity
errors in readout devices, which are really minimal due to today's technology and the fact that other errors are
'spanned out' during calibration.

Graph C illustrates these 'worse case' specifications that are typically used to develop an transmitter's overall
accuracy statement of +2% of full scale at constant temperature or +5% over the operating temperature range.
QC testing is typically <+0.5% prior to shipment.

11

Example: As illustrated by Graph A any error, play in the multi-turn span pot or the temperature compensation
circuit, during a span adjustment at 20.9% (air) of full scale range would be multiplied by a factor of 4.78
(100/20.9) if used for measurements of 95-100% oxygen concentrations. Conversely, an error during a span
adjustment at 100% of full scale range is reduced proportionately for measurements of lower oxygen
concentrations.

Recommendation: Calibrating with a span gas approximating 80% of the full scale range one or two ranges
higher than the full scale range of interest is recommended for 'optimum calibration accuracy'. Always calibrate at
the same temperature and pressure of the sample gas stream.

Start-up

The GPR-2500A Oxygen Transmitter has been tested, calibrated at the factory prior to shipment with the sensor
installed and is fully operational from the shipping container. Allow the transmitters to stabilize for 30 minutes and
then recalibrate the device as instructed below.

Installation Considerations:

The GPR-2500A consists of a two circuit boards, sensor housing and sample 1/8” sample inlet and vent connections
housed in a NEMA 4X rated enclosure. The complete transmitter package measures 9Hx4Wx3.5”D and is suitable
for mounting on any vertical flat surface.

For optimum accuracy zero and calibrate a transmitter after it has been allowed to stabilize, typically 24-36 hours
after installation. Assuming the initial zero is performed according to the procedure described herein, the analyzer
should not require zeroing again until the either the sensor is replaced or a change is made to the sample system
or gas lines. Following the initial zero and calibration, the analyzer should not require span calibration again for up
to 3 months under “normal” application conditions as described in the published specifications.

Note: As described below, zeroing the transmitter is recommended only for measurements below 1% and not
practical for measurement ranges above 1%. The low end sensitivity (zero capability) has been verified at the
factory; however, no ZERO OFFSET adjustment has been made. A factory adjustment would be meaningless
because of the difference in sample systems and leakage factors between the factory set-up and the actual
application conditions.

¾ Assemble the necessary hardware for mounting the transmitter and optional components - such as coalescing

or particulate filters and pumps, 1/8” metal or plastic tubing for interconnecting the transmitter and optional
components.

¾ Temperature: The sample must be sufficiently cooled before it enters the transmitter and any optional

components. A coiled 10 foot length of ¼” stainless steel tubing is sufficient for cooling sample gases as high
as 1,800ºF to ambient.

12

¾ Pressure & Flow: As described above.
¾ Moisture & Particulates: Prevent water and/or particulates from entering the sample system. They can clog the

tubing and damage the optional components such as pumps, scrubbers or sensors. Installation of a suitable
coalescing or particulate filter is required to remove condensation, moisture and/or particulates from the
sample gas to prevent erroneous analysis readings and damage to the sensor or optional components. Consult
the factory for recommendations concerning the proper selection and installation of components.

¾ Contaminants: A gas scrubber and flow indicator with integral metering valve are required upstream of the

transmitter to remove interfering gases such as oxides of sulfur and nitrogen or hydrogen sulfide that can
produce false readings and reduce the expected life of the sensor. Installation of a suitable scrubber is required
to remove the contaminant from the sample gas to prevent erroneous analysis readings and damage to the
sensor or optional components. Consult the factory for recommendations concerning the proper selection and
installation of components.

¾ Gas connections: Inlet and outlet vent gas lines require 1/8” diameter tubing preferably metal.
¾ Power connection: Locate a source of AC power to meet area classification and to plug in the charging adapter.
¾ Zero calibration (required only for very low percentage range measurements).
¾ Span calibration – Users are responsible for certified span gas cylinder, regulator and flow control valve.

Mounting the Transmitter:

The GPR-2500A is housed in a 9Hx4Wx3.5”D NEMA4X rated
enclosure. This configuration is designed to be mounted
directly to any flat vertical surface, wall or bulkhead plate with
four (4) of the appropriate size screws. To facilitate servicing
the interior of the transmitters, position it approximately 5 feet
off ground level.

1. Remove the four (4) screws securing the top section of the
enclosure, set them aside for reinstallation and raise the
hinged top section 180º until it locks in place.

2. Locate the mounting hole s cast into the enclosure.

3. Secure the enclosure to a vertical surface approximately 5
feet from the floor or a level accessible to service
personnel. This requires the user to supply four (4)
additional proper size screws and anchors.

4. Caution: Do not remove or discard the gaskets from
either the enclosure or junction box. Failure to reinstall
either gasket will void the NEMA 4 rating and RFI
protection.

5. The transmitters design provides protection from RFI that
is maintained by leaving specific mating areas of the
enclosure unpainted to maintain conductivity the gasket, top and bottom sections of the enclosure. These
unpainted areas are protected by gaskets and contribute to maintaining the NEMA 4 rating. Do not paint these
areas. Painting will negate the RFI protection.

13

Gas Connections:

The GPR-2500A with its standard flow through configuration is designed for positive pressure samples and requires
connections for incoming sample and outgoing vent lines. The user is responsible for calibration gases and the
required components, see below.

Flow rates of 1-5 SCFH cause no appreciable change in the oxygen reading. However, flow rates above 5 SCFH
generate backpressure and erroneous oxygen readings because the diameter of the integral tubing cannot
evacuate the sample gas at the higher flow rate. A flow indicator with an integral metering valve upstream of the
sensor is recommended as a means of controlling the flow rate of the sample gas. A flow rate of 2 SCFH or 1 liter
per minute is recommended for optimum performance.

Caution: Do not place your finger over the vent (it pressurizes the sensor) to test the flow indicator when gas is
flowing to the sensor. Removing your finger (the restriction) generates a vacuum on the sensor and may damage
the sensor (voiding the sensor warranty).

Procedure:

1. Caution: Do not change the factory setting until instructed to do in this manual.

2. Designate one of the bulkhead tube fittings as the VENT and the other SAMPL E.

3. Regulate the pressure as described in Pressure and Flow above.

4. Connect a 1/8” vent line to the compression fitting to be used for venting the sample.

5. Connect a 1/8” ZERO, SPAN or SAMPLE line to the fitting designated SAMPLE.

6. If equipped with optional fittings and/or sample system, connect the ZERO and SPAN gas lines.

7. Allow gas to flow through the transmitters and set the flow rate to 2 SCFH.

Integral Oxygen Sensor:

1. Remove the four (4) screws securing the top section of the
enclosure, set them aside for reinstallation and raise the hinged
top section 180º until it locks in place.

2. Caution: Do not remove or discard the gaskets from either the
enclosure or junction box. Failure to reinstall either gasket will
void the NEMA 4 rating and RFI protection.

3. The transmitters design provides protection from RFI that is
maintained by leaving specific mating areas of the enclosure
unpainted to maintain conductivity the gasket, top and bottom
sections of the enclosure. These unpainted areas are protected
by gaskets and contribute to maintaining the NEMA 4 rating. Do
not paint these areas. Painting will negate the RFI protection.

4. Remove the oxygen sensor from the bag.

5. Screw the oxygen sensor into the sensor flow housing,
equipped with elbows and tubing, finger tighten plus one half
(1/2) turn to ensure a good seal from the o-ring affixed to the
sensor.

6. Remove the shorting device (looped wire) from the receptacle
located at the rear of the sensor. Minimize the time the sensor
is exposed to ambient air.

14

7. Assure the keyway registration of the female plug on the cable and male receptacle on the sensor match up.

8. Push the female plug (including the knurled lock nut) molded to the cable into the male receptacle attached to
the new sensor.

9. Screw the knurled lock nut attached the cable onto to the male connector attached to the sensor, tighten
finger tight plus ¼ turn.

10. Replace the front cover of the transmitter and ensure that the gasket is replaced as well to maintain CE
approval and NEMA 4 rating.

11. Tighten the four (4) screws to secure the front cover.

12. Connect the gas lines, vent line first, as previously described.

13. Proceed to calibration.

Remote Oxygen Sensor:

Applications requiring the sensor to be located remotely from the electronics dictate the
separate packaging and shipment of the electronics enclosure, oxygen sensor and sensor flow
housing. The appropriate length of cable to connect the sensor to the electronics is supplied
and connected to the electronics. To install the remote sensor:

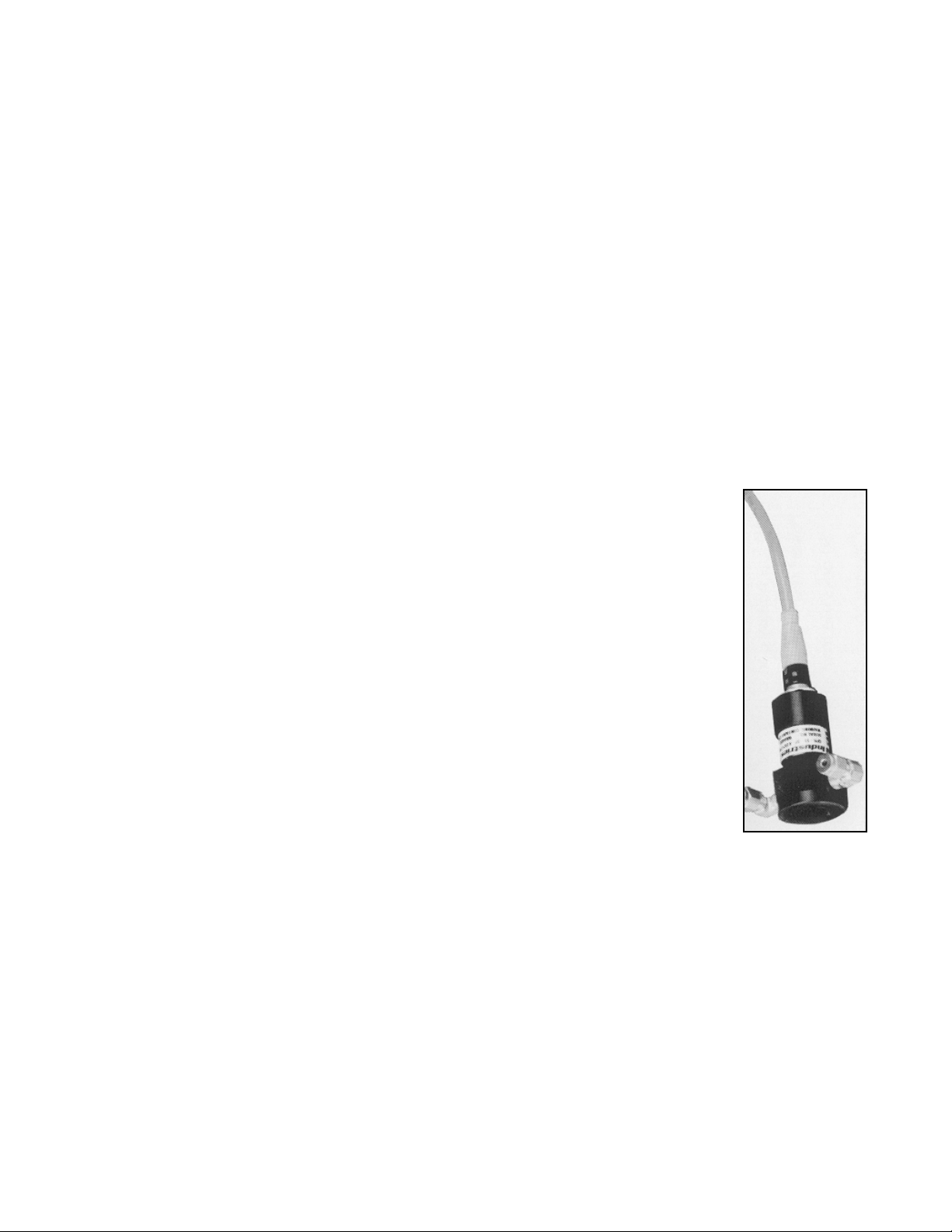

1. Locate the sensor flow housing and note the through holes in the flanged sections.

2. Identify the spot for installation.

3. Using two (2) 6/32 screws of the appropriate type and length secure the sensor flow
housing to a flat surface, the position illustrated at the right is recommended for optimum
performance.

4. Remove the oxygen sensor from the bag.

5. Screw the oxygen sensor into the sensor flow housing, equipped with elbows and tubing,
finger tighten plus one half (1/2) turn to ensure a good seal from the o-ring affixed to the
sensor.

6. Remove the shorting device (looped wire) from the receptacle located at the rear of the
sensor. Minimize the time the sensor is exposed to ambient air.

7. Assure the keyway registration of the female plug on the cable and male receptacle on the sensor match up.

8. Push the female plug (including the knurled lock nut) molded to the cable into the male receptacle attached to
the new sensor.

9. Screw the knurled lock nut attached the cable onto to the male connector attached to the sensor, tighten
finger tight plus ¼ turn.

10. Connect the 1/8” diameter gas lines, vent line first, as previously described.

11. Proceed to calibration.

15

Electrical Connections:

Electrical connections to the GPR-2500A are made at two different
locations within the transmitters.

Power requirements consist of a two wire shielded cable and a 12-36V
DC with negative ground power supply. Incoming power is connected
via a terminal strip found in the junction box on the left side of the
GPR-2500A enclosure.

Caution: The integral 4-20mA converter is internally powered and
does not require external power. DO NOT supply any voltage to either
of the two terminals of the 4-20mA output or the 4-20mA converter
will be damaged.

To assure proper grounding, connect the 4-20mA signal output to the
external device (PLC, DCS, etc.) before attempting any zero or span
adjustments.

Procedure:

1. Remove the front cover of the junction box located on left side of
the transmitters by removing the four (4) screws securing the
cover and set them aside for reinstallation.

2. Loosen the n u t on the cable gland.

3. Separate the shielding from the wires of the cable.

4. Thread the wires through the cable gland into the inside of the junction box.

5. Connect the two wires to the two (2) screw type terminals of the barrier strip inside the junction box.

6. Ensure the positive and negative terminals of the power supply are connected to the appropriate terminals of
the barrier strip as marked.

7. Connect the shielding of the cable to the copper ground screw inside the junction box.

8. Replace the junction box cover ensuring the gaskets are in place and tighten the four (4) screws.

9. Tighten the cable gland to maintain NEMA 4 rating.

The incoming power from the external junction box is interconnected internally to the 24VDC terminal of the PCB
with the alarm and 4-20mA output terminals as illustrations below.

16

The 4-20mA signal output, power fail, alarm relay contacts, and, output connections are made to a terminal block
mounted on a PCB located in the bottom half of the front cover of the enclosure and appear upside when the
hinged enclosure is open and front cover swings up as illustrated below. The PCB also includes a transformer to
power the alarm relays. The main processing display PCB is located in the upper half of the front cover of the
enclosure.

To assure proper grounding, connect the 4-20mA signal output to the external device (PLC, DCS, etc.) before
attempting any zero or span adjustments.

Procedure:

1. Remove the four (4) screws secur ing the
protection Plexiglas guard.

2. Separate the shielding from the wires of
the cable.

3. Ensure the positive and negative
terminals of the incoming 24VDC power
supply are connected to the appropriate
terminals of the barrier strip as marked.

4. The output connections enter the GPR­2500A from the hole provided in the right
side of the enclosure. Note: The user is
responsible for providing the appropriate
conduit and fittings.

5. Connect the shielding of the cable to the
ground screw. Note: The terminals snap
together, making it possible to detach the
section with the ground, install the
shielded cable and reinstall.

6. The 4-20mA current output is obtained
by connecting the current measuring
device between the positive and negative
terminals of the OUTPUT 4-20mA.

7. To check the signal output of the 4-20mA
E/I integrated circuit connect an ammeter
as the measuring device and confirm the
output is within +

8. Replace the protective Plexiglas guard
and secure.

Caution: To assure proper grounding,
connect the 4-20mA signal output to the
external device (PLC, DCS, etc.) before
attempting any zero or span adjustments.

0.1mA of 4mA.

17

18

Installing the Oxygen Sensor

The GPR-2500/2500MO ppm Oxygen Transmitter is normally equipped with an integral oxygen sensor. It has been
tested and calibrated by the manufacturer prior to shipment and are fully operational from the shipping container.
However, when the application requires a remote sensor (external to the electronics enclosure) or other special
circumstances, the oxygen sensor will be packaged separately and must be installed prior to operating the
transmitter. If the sensor has not been installed at the factory, it will be necessary to install the sensor in the field.

Note: All transmitters must be calibrated once the installation has been completed and periodically thereafter as
described below. Following the initial installation and calibration, allow the transmitters to stabilize for 24 hours and
calibrate with certified span gas.

Caution: DO NOT open the oxygen sensor. The sensor contains a corrosive liquid electrolyte that could be harmful
if touched or ingested, refer to the Material Safety Data Sheet contained in the Owner’s Manual appendix. Avoid
contact with any liquid or crystal type powder in or around the sensor or sensor housing, as either could be a form
of electrolyte. Leaking sensors should be disposed of in manner similar to that of a common battery in accordance
with local regulations.

Caution: Do not change the factory settings until instructed to do in this manual.

Integral Oxygen Sensor:

1. Remove the four (4) screws securing the top section of the enclosure, set them aside for reinstallation and
raise the hinged top section 180º
until it locks in place.

2. Caution: Do not remove or discard
the gaskets from either the enclosure
or junction box. Failure to reinstall
either gasket will void the NEMA 4
rating and RFI protection.

3. The transmitters design provides
protection from RFI that is
maintained by leaving specific mating
areas of the enclosure unpainted to
maintain conductivity the gasket, top
and bottom sections of the enclosure.
These unpainted areas are protected
by gaskets and contribute to
maintaining the NEMA 4 rating. Do
not paint these areas. Painting will
negate the RFI protection.

4. Remove the oxygen sensor from the
bag.

5. Screw the oxygen sensor into the
sensor flow housing, equipped with
elbows and tubing, finger tighten
plus one half (1/2) turn to ensure a
good seal from the o-ring affixed to
the sensor.

19

6. Remove the shorting device (looped wire) from the receptacle located at the rear of the sensor. Minimize the
time the sensor is exposed to ambient air.

7. Assure the keyway registration of the female plug on the cable and male receptacle on the sensor match up.

8. Push the female plug (including the knurled lock nut) molded to the cable into the male receptacle attached to
the new sensor.

9. Screw the knurled lock nut attached the cable onto to the male connector attached to the sensor, tighten
finger tight plus ¼ turn.

10. Replace the front cover of the transmitter and ensure that the gasket is replaced as well to maintain CE
approval and NEMA 4 rating.

11. Tighten the four (4) screws to secure the front cover.

12. Connect the gas lines, vent line first, as previously described.

13. Proceed to calibration.

Remote Oxygen Sensor:

Applications requiring the sensor to be located remotely from the electronics dictate the
separate packaging and shipment of the electronics enclosure, oxygen sensor and
sensor flow housing. The appropriate length of cable to connect the sensor to the
electronics is supplied and connected to the electronics. To install the remote sensor:

1. Locate the sensor flow housing and note the through holes in the flanged sections.

2. Identify the spot for installation.

3. Using two (2) 6/32 screws of the appropriate type and length secure the sensor flow
housing to a flat surface, the position illustrated at the right is recommended for
optimum performance.

4. Remove the oxygen sensor from the bag.

5. Screw the oxygen sensor into the sensor flow housing, equipped with elbows and
tubing, finger tighten plus one half (1/2) turn to ensure a good seal from the o-ring
affixed to the sensor.

6. Remove the shorting device (looped wire) from the receptacle located at the rear of
the sensor. Minimize the time the sensor is exposed to ambient air.

7. Assure the keyway registration of the female plug on the cable and male receptacle
on the sensor match up.

8. Push the female plug (including the knurled lock nut) molded to the cable into the
male receptacle attached to the new sensor.

9. Screw the knurled lock nut attached the cable onto to the male connector attached
to the sensor, tighten finger tight plus ¼ turn.

10. Connect the 1/8” diameter gas lines, vent line first, as previously described.

11. Proceed to calibration.

20

Span Gas Preparation

One of the most accurate, reliable and inexpensive means of calibrating the GPR-2500A is to expose the sensor to
the 20.9% oxygen content found in ambient air. However, exposing the sensor to ambient air with the GPR-2500A
flow through configuration requires opening the enclosure and unscrewing the sensor from its flow housing.
However, many users opt to calibrate with a certified span gas which requires additional components and time.

Caution: Do not contaminate the span gas cylinder when connecting the regulator. Bleed the air filled regulator
(faster and more reliable than simply flowing the span gas) before attempting the initial calibration of the
instrument.

Required components:
¾ Certified span gas cylinder with an oxygen concentration, balance nitrogen, approximating 80% of the full scale

range above the intended measuring range.

¾ Regulator to reduce pressure to between 5 and 30 psig.
¾ Flow meter to set the flow between 1-5 SCFH,
¾ 2 lengths of 1/8” dia. Tygon tubing measuring 4-6 ft. in length.
¾ Suitable fittings and 1/8” dia. Tygon tubing to connect the regulator to the flow meter inlet
¾ Suitable fitting and 1/8” dia. Tygon tubing to connect from the flow meter vent to tube fitting designated

SAMPLE IN on the GPR-2500A.

Procedure:

1. With the span gas cylinder valve closed, install the regulator on the cylinder.

2. Open the regulator’s exit valve and partially open the pressure regulator’s control knob.

3. Open slightly the cylinder valve.

4. Loosen the nut connecting the regulator to the cylinder and bleed the pressure regulator.

5. Retighten the nut connecting the regulator to the cylinder

6. Adjust the regulator exit valve and slowly bleed the pressure regulator.

7. Open the cylinder valve completely.

8. Set the pressure between 5-30 psig using the pressure regulator’s control knob.

Caution: Do not exceed the recommended flow rate. Excessive flow rate could cause the backpressure on the
sensor and may result in erroneous readings and permanent damage to the sensor.

21

Establishing Power to the Electronics:

Once the two wires of the shielded cable are properly connected to the
terminals inside the junction box as described above, connect the other
end of the two wires to a suitable 12-36V DC power supply with
negative ground such as a PLC, DCS, etc.

The digital display responds instantaneously. When power is applied,
the transmitter performs several diagnostic system status checks termed
“START-UP TEST” as illustrated below:

START-UP TEST

ELECTRONICS – PASS
TEMP SENSOR – PASS
BAROMETRIC SENSOR – PASS

REV. 1.61

Note: The transmitter display defaults to the sampling mode when 30

seconds elapses without user interface.

3.3%

AUTO SAMPLING

10% RANGE

24.5 C 100 KPA

Menu Navigation:

The four (4) pushbuttons located on the front of the transmitter operate the micro-processor:

1. green ENTER (select)

2. yellow UP ARROW

3. yellow DOWN ARRO W

4. blue MENU (escape)

22

Main Menu:

Access the MAIN MENU by pressing the MENU key:

MAIN MENU

AUTO SAMPLE

MANUAL SAMPLE
CALIBRATE

24.5 C 100 KPA

Range Selection:

The GPR-2500A transmitter is equipped with four (4) standard measuring ranges (see specification) and provides
users with a choice of sampling modes. By accessing the MAIN MENU, users may select either the AUTO SAMPLING
(ranging) or MANUAL SAMPLING (to lock on a single range) mode.

Note: For calibration purposes, use of the AUTO SAMPLE mode is recommended. However, the user can select the
full scale MANUAL SAMPLE RANGE for calibration as dictated by the accuracy of the analysis required – for
example, a span gas with an 8% oxygen concentration with the balance nitrogen would dictate the use of the 0­10% full scale range for calibration and a 0-10% measuring range.

Procedure - Auto Sampling:

1. Access the MAIN MENU by pressing the MENU key.

2. Advance the reverse shade cursor using the ARROW keys to highlight AUTO SAMPLE.

3. Press the EN TER key to select the highlighted menu option.

4. The display returns to the sampling mode:

MAIN MENU

AUTO SAMPLE

MANUAL SAMPLE
CALIBRATE

24.5 C 100 KPA

The display will shift to the next higher range when the oxygen reading (actually the sensor’s signal output)
exceeds 99.9% of the upper limit of the current range. The display will shift to the next lower range when the
oxygen reading drops to 85% of the upper limit of the next lower range.

3.3%

AUTO SAMPLING

10% RANGE

24.5 C 100 KPA

For example, if the transmitter is reading 1% on the 0-10% range and an upset occurs, the display will shift to the
0-25% range when the oxygen reading exceeds 9.9%. Conversely, once the upset condition is corrected, the
display will shift back to the 0-10% range when the oxygen reading drops to 8.5%.

23

Procedure - Manual Sampling:

1. Access the MAIN MENU by pressing the MENU key.

2. Advance the reverse shade cursor using the ARROW keys to highlight MANUAL SAMPLE.

3. Press the EN TER key to select the highlighted menu option.

4. The following displays appears:

MAIN MENU

AUTO SAMPLE

MANUAL SAMPLE

CALIBRATE

24.5 C 100 KPA

>>>

MANUAL RANGE

25%

10%

5%
1%

5. Advance the reverse shade cursor using the ARROW keys to highlight the desired RANGE.

6. Press the EN TER key to select the highlighted menu option.

7. The following display appears with the range selected and oxygen concentration of the sample gas:

3.3%

MANUAL SAMPLING

10% RANGE

24.5 C 100 KPA

8. The display will not shift automatically. Instead, when the oxygen reading (actually the sensor’s signal
output) exceeds 110% of the upper limit of the current range an OVER RANGE warning will be displayed.

13.00%

OVERRANGE

MANUAL SAMPLING

10% RANGE

24.5 C 100 KPA

Once the OVER RANGE warning appears the user must advance the transmitter to the next higher range via the
menu and keypad Press MENU, select MANUAL SAMPLING, press ENTER, select the appropriate MANUAL RANGE
and press ENTER again.

Start-Up is complete . . . proceed to Calibration

24

Zero Calibration

In theory, the oxygen sensor produces no signal output when exposed to an oxygen free sample gas. However, the
transmitter will generate an oxygen reading when sampling oxygen free sample gas due to:

¾ Contamination or quality of the zero gas
¾ Minor leakage in the sample line connections
¾ Residual oxygen dissolved in the sensor’s electrolyte
¾ Tolerances of the electronic components

Recommendation: Zero calibration is recommended for measurements below 1% on the 0-1% range only, as it
is not practical on higher ranges as described below.

Procedure:

Zero calibration should precede the span calibration and once performed should not have to be repeated with
subsequent span calibrations. Normally, zero calibrations are performed when a new sensor is installed or changes
are made in the sample system connections.

Refer to Span Calibration below for the detailed procedure. Differences include the displays illustrated below,
substituting a suitable zero gas for the span gas and allowing the transmitter 24 hours with flowing zero gas to
determine the true zero offset (a stable reading evidenced by a horizontal trend on an external recording device) of
the system before conducting the zero calibration. Note: 24 hours is required for the sensor to consume the
oxygen that has dissolved into the electrolyte inside the sensor (while exposed to air or percentage levels of
oxygen).

Thus, for this reasons above, it is not practical to zero a portable transmitter every time it is moved from one
sample point to another. Finding the true zero offset is not always necessary particularly in the case of applications
requiring higher level oxygen measurements because of the low offset value, normally < 0.1%, is not material to
the accuracy of higher level measurements.

Note: Prematurely zeroing the transmitter can cause a negative reading in both the ZERO and SAMPLE modes.

1. Access the MAIN MENU by pressing the MENU key.

2. Advance the reverse shade cursor using the ARROW keys to highlight CALIBRATE.

3. Press the EN TER key to select the highlighted menu option.

4. Repeat to select ZERO CALIBRATE.

5. The following displays appear:

MAIN MENU

AUTO SAMPLE
MANUAL SAMPLE

CALIBRATE

24.5 C 100 KPA

>>>

CALIBRATION

SPAN CALIBRATE

ZERO CALIBRATE

DEFAULT SPAN
DEFAULT ZERO

24.5 C 100 KPA

25

6. Press the ENTER key to calibrate or MENU key to abort and return to SAMPLING mode.

0.000

ZERO
CALIBRTION
ENTER TO CALIBRATE
MENU TO ABORT

7. Allow approximately 60 seconds for the calibration process while the processor determines whether the signal
output or reading has stabilized within 60% of the full scale low range.

8. Both the Zero Calibrate and Span Calibrate functions result in the following displays:

PASSED

CALIBRATION

OR

FAILED

CALIBRATION

Satisfying users that the zero offset is reasonably acceptable for their application can be accomplished much
quicker. Unless the zero gas is contaminated or there is a significant leak in the sample connections, the
transmitter should read less than 100 oxygen within 5 minutes after being placed on zero gas.

The maximum zero calibration adjustment permitted is 60% of the lowest full scale range available, which normally
is 1%. Thus the maximum zero calibration adjustment or zero offset is 0.6% oxygen. Accordingly, the transmitter’s
ZERO has not been adjusted prior to shipment because the factory conditions are different from the application
condition at the user’s installation.

Factory Default Zero:

The software will eliminate any previous zero calibration adjustment and display the actual the signal output of the
sensor at a specified oxygen concentration. For example, assuming a zero gas is introduced, the display will reflect
an oxygen reading representing basically the zero calibration adjustment as described above. This feature allows
the user to test the sensor’s signal output without removing it from the sensor housing.

MAIN MENU

AUTO SAMPLE
MANUAL SAMPLE

CALIBRATE

24.5 C 100 KPA

>>>

CALIBRATION

SPAN CALIBRATE
ZERO CALIBRATE
DEFAULT SPAN

DEFAULT ZERO

24.5 C 100 KPA

26

Span Calibration

Maximum drift from calibration temperature is approximately 0.11% of reading per °C. The transmitter has been
calibrated at the factory. However, in order to obtain reliable data, the transmitter must be calibrated at the initial
start-up and periodically thereafter. The maximum calibration interval recommended is approximately 3 months, or
as determined by the user’s application.

Calibration involves adjusting the transmitter electronics to the sensor’s signal output at a given oxygen standard,
e.g. a certified span gas with an oxygen content (balance nitrogen) approximating 80% of the next higher full scale
range above the intended measuring range is recommended for optimum accuracy, see Calibration and Accuracy.
Calibration with ambient or instrument air (20.9% or 209,000 ) is recommended when installing a new sensor or
when a certified gas is not available.

Factory Default Span

The software will set the SPAN adjustment based on the average oxygen reading (actually the sensor’s signal
output) at a specified oxygen concentration. For example, when a span gas is introduced, the micro-processor will
display an oxygen reading within +

50% of the span gas value. This feature allows the user to test the sensor’s

signal output without removing it from the sensor housing.

1. Access the MAIN MENU by pressing the MENU key.

2. Advance the reverse shade cursor using the ARROW keys to highlight MANUAL SAMPLE.

3. Press the EN TER key to select the highlighted menu option.

4. The following displays appears:

MAIN MENU

AUTO SAMPLE
MANUAL SAMPLE

CALIBRATE

24.5 C 100 KPA

>>>

CALIBRATION

SPAN CALIBRATE
ZERO CALIBRATE

DEFAULT SPAN

DEFAULT ZERO

24.5 C 100 KPA

Manual Span

The user must ascertain that the oxygen reading (actually the sensor’s signal output) has reached a stable value
within the limits entered below before entering the span adjustment. Failure to do so will result in an error.
Entering the span value – follow the menu layout in Appendix A.

Preparation - Required components: Refer to Installing Span Gas section above.

1. Certified span gas cylinder with an oxygen concentration, balance nitrogen, approximating 80% of the full scale
range above the intended measuring range.

2. Regulator to reduce pressure to between 5 and 30 psig.

3. Flow meter to set the flow between 1-5 SCFH,

4. 2 lengths of 1/8” dia. metal tubing measuring 4-6 ft. in length.

5. Suitable fittings and 1/8” dia. metal tubing to connect the regulator to the flow meter inlet

6. Suitable fitting and 1/8” dia. me tal tubing to connect to the flow meter vent

27

7. 1/8” male NPT to tube adapter fitting to connect the 1/8” dia. metal tubing from the flow meter vent to the
mating male quick disconnect fitting supplied with the GPR-2500A.

Procedure:

This procedure assumes a span gas under positive pressure and is recommended for an transmitter without an
optional sampling pump, which if installed downstream of the sensor should be placed in the OFF position and
disconnected so the vent is not restricted during calibration.

To assure an accurate calibration, the temperature and pressure of the span gas must closely approximate the
sample conditions.

For calibration purposes, use of the AUTO SAMPLE mode is recommended. However, the user can select the full
scale MANUAL SAMPLE RANGE for calibration as dictated by the accuracy of the analysis required – for example, a
span gas with an 80 oxygen concentration with the balance nitrogen would dictate the use of the 0-100 full scale
range for calibration and a 0-10 measuring range. Select as described above.

1. Access the MAIN MENU by pressing the MENU key.

2. Advance the reverse shade cursor using the ARROW keys to highlight AUTO SAMPLE.

3. Press the EN TER key to select the highlighted menu option.

4. The following displays appear:

MAIN MENU

AUTO SAMPLE

MANUAL SAMPLE
CALIBRATE

24.5 C 100 KPA

3.3%

AUTO SAMPLING

10% RANGE

24.5 C 100 KPA

5. Return to the MAIN MENU by pressing the MENU key.

6. Advance the reverse shade cursor using the ARROW keys to highlight CALIBRATE.

7. Press the EN TER key to select the highlighted menu option.

8. Repeat to select SPAN CALIBRATE

9. The following displays appear:

MAIN MENU

AUTO SAMPLE
MANUAL SAMPLE

CALIBRATE

24.5 C 100 KPA

>>>

CALIBRATION

SPAN CALIBRATE

ZERO CALIBRATE
DEFAULT SPAN
DEFAULT ZERO

24.5 C 100 KPA

10. Assure there are no restrictions in vent line.

28

11. Regulate the pressure and control the flow rate as described above at 5-30 psig and a 2 SCFH flow rate.

12. Allow the span gas to flow for 1-2 minutes to purge the air trapped in the span gas line.

13. Disconnect the sample gas line and install the purged span gas line.

14. Caution: Allow the span gas to flow and wait until the reading is stable before proceeding with
calibration. The wait time will vary depending on the amount oxygen introduced to the sensor when the gas
lines were switched.

15. Press the ENTER key to select the SPAN CALIBRATE option.

16. Note: A span gas concentration above 1000 dictates the selection of the PERCENT option.

17. Advance the reverse shade cursor using the ARROW keys to highlight the desired GAS CONCENTRATION.

18. Press the ENTER key to select the highlighted menu option.

GAS CONCENTRATION

PERCENT

PPM

19. The following displays appear:

000.0

PRESS UP OR DOWN
TO CHANGE VALUE
SELECT TO SAVE
ESC TO RETURN

>>>

80.00

SPAN
CALIBRATION
ENTER TO CALIBRATE
MENU TO ABORT

20. Press the ARROW keys to enter the first digit of the span value.

21. Press the ENTER key to advance the underline cursor right or press the MENU key to advance the
underline cursor left to the next digit of the span value.

22. Repeat steps 20 and 21 until the complete span value has been entered.

23. Allow approximately 60 seconds for the calibration process while the processor determines whether the signal
output or reading has stabilized within 60% of the full scale low range.

24. Both the Zero Calibrate and Span Calibrate functions result in the following displays:

29

PASSED

CALIBRATION

OR

FAILED

CALIBRATION

25. If the calibration is successful, the transmitter returns to the SAMPLING mode after 30 seconds.

3.3%

AUTO SAMPLING

10% RANGE

24.5 C 100 KPA

26. If the calibration is unsuccessful, return to the SAMPLING mode with span gas flowing through the transmitter,
make sure the reading stabilizes and repeat the calibration before concluding the equipment is defective.

27. Before disconnecting the span gas line and connecting the sample gas line, restart if necessary the flow of
sample gas and allow it to flow for 1-2 minutes to purge the air inside the line.

28. Disconnect the span gas line and replace it with the purged sample gas line.

29. Wait 10-15 minutes to ensure the reading is stable and proceed to sampling.

Sampling

GPR-2500A Oxygen Transmitter requires positive pressure to flow the sample gas by the sensor to measure the
oxygen concentration in a sample gas. If not available see Pressure and Flow section.

Note: Prematurely zeroing the transmitter can cause the transmitter to display a negative reading in both the
ZERO and SAMPLE modes.

Procedure:

Following calibration the transmitter returns to the SAMPLE mode after 30 seconds.

1. Select the desired sampling mode - auto or if manual, the range that provides maximum resolution – as
described above.

2. Use metal tubing to transport the sample gas to the transmitter.

3. The main consideration is to eliminate air leaks which can affect oxygen measurements above or below the

20.9% oxygen concentration in ambient air - ensure the sample gas tubing connections fit tightly into the 1/8”
male NPT to tube adapter, and, the NPT end is taped and securely tightened into the mating male quick
disconnect fittings which mate with the female fittings on the transmitter

4. Assure there are no restrictions in the sample line.

30

5. For sample gases under positive pressure the user must provide a means of controlling the inlet pressure
between 5-30 psig and the flow of the sample gas between 1-5 SCFH, a flow rate of 2 SCHF is recommended

6. For sample gases under atmospheric or slightly negative pressure an optional sampling pump is recommended
to draw the sample into the transmitter. Generally, no pressure regulation or flow control device is involved.

7. Caution: If the transmitter is equipped with an optional sampling pump and is intended for use in both
positive and atmospheric/slightly negative pressure applications where a flow meter valve is involved – ensure
the valve is completely open when operating the sampling pump. Refer to the Pressure & Flow section above.

8. Assure the sample is adequately vented for optimum response and recovery – and safety.

9. Allow the oxygen reading to stabilize for approximately 10 minutes at each sample point.

To avoid erroneous oxygen readings and damaging the sensor:

¾ Do not place your finger over the vent (it pressurizes the sensor) to test the flow indicator when gas is flowing

to the sensor. Removing your finger (the restriction) generates a vacuum on the sensor and may damage the
sensor (voiding the sensor warranty).

¾ Assure there are no restrictions in the sample or vent lines
¾ Avoid drawing a vacuum that exceeds 14” of water column pressure – unless done gradually
¾ Avoid excessive flow rates above 5 SCFH which generate backpressure on the sensor.
¾ Avoid sudden releases of backpressure that can severely damage the sensor.
¾ Avoid the collection of particulates, liquids or condensation collect on the sensor that could block the diffusion

of oxygen into the sensor.

¾ If the transmitter is equipped with an optional integral sampling pump (positioned downstream of the sensor)

and a flow control metering valve (positioned upstream of the sensor), completely open the flow control
metering valve to avoid drawing a vacuum on the sensor and placing an undue burden on the pump.

Standby

¾ The transmitter has no special storage requirements.
¾ The sensor should remain connected during storage periods.
¾ Store the transmitter with the power OFF.
¾ If storing for an extended period of time, charge before operating.

31

6 Maintenance

Generally, cleaning the electrical contacts or replacing filter elements is the extent of the maintenance
requirements of this transmitter.

Sensor Replacement

Periodically, the oxygen sensor will require replacement. The operating life is determined by a number of factors
that are influenced by the user and therefore difficult to predict. The Features & Specifications define the normal
operating conditions and expected life of the standard sensor utilized by the GPR-2500A transmitter. Expected
sensor life is inversely proportional to changes in oxygen concentration, pressure and temperature.

Serviceability: Except for replacing the oxygen sensor, there are no parts inside the transmitter for the operator
to service. Only trained personnel with the authorization of their supervisor should conduct mainten ance.

Caution: DO NOT open the oxygen sensor. The sensor contains a corrosive liquid electrolyte that could be harmful
if touched or ingested, refer to the Material Safety Data Sheet contained in the Owner’s Manual. Avoid contact with
any liquid or crystal type powder in or around the sensor or sensor housing, as either could be a form of
electrolyte. Leaking sensors should be disposed of in accordance with local regulations.

Integral Oxygen Sensor:

1. Remove the four (4) screws
securing the top section of the
enclosure, set them aside for
reinstallation and raise the hinged
top section 180º until it locks in
place.

2. Caution: Do not remove or discard
the gaskets from either the
enclosure or junction box. Failure to
reinstall either gasket will void the
NEMA 4 rating and RFI protection.

3. The transmitters design provides
protection from RFI that is
maintained by leaving specific
mating areas of the enclosure
unpainted to maintain conductivity
the gasket, top and bottom sections
of the enclosure. These unpainted
areas are protected by gaskets and
contribute to maintaining the NEMA
4 rating. Do not paint these areas.
Painting will negate the RFI
protection.

4. Unscrew the knurled lock nut
attached to the female plug/cable
from the connector attached to the sensor.

5. Grasp the female plug/cable and pull it from the male connector on the sensor on the sensor to disconnect.

32

6. Unscrew the old sensor from the sensor flow housing and dispose of it according to local regulations for
batteries.

7. Remove the oxygen sensor from the bag.

8. Screw the oxygen sensor into the sensor flow housing, equipped with elbows and tubing, finger tighten plus
one half (1/2) turn to ensure a good seal from the o-ring affixed to the sensor.

9. Remove the shorting device (looped wire) from the receptacle located at the rear of the sensor. Minimize the
time the sensor is exposed to ambient air.

10. Assure the keyway registration of the female plug on the cable and male receptacle on the sensor match up.

11. Push the female plug (including the knurled lock nut) molded to the cable into the male receptacle attached to
the new sensor.

12. Screw the knurled lock nut attached the cable onto to the male connector attached to the sensor, tighten
finger tight plus ¼ turn.

13. Replace the front cover of the transmitter and ensure that the gasket is replaced as well to maintain CE
approval and NEMA 4 rating.

14. Tighten the four (4) screws to secure the front cover.

15. Connect the gas lines, vent line first, as previously described.

16. Proceed to calibration.

Remote Oxygen Sensor:

Applications requiring the sensor to be located remotely from the electronics dictate the
separate packaging and shipment of the electronics enclosure, oxygen sensor and sensor
flow housing. The appropriate length of cable to connect the sensor to the electronics is
supplied and connected to the electronics. To install the remote sensor:

1. Unscrew the knurled lock nut attached to the female plug/cable from the connector
attached to the sensor.

2. Grasp the female plug/cable and pull it from the male connector on the sensor on the
sensor to disconnect.

3. Unscrew the old sensor from the sensor flow housing and dispose of it according to
local regulations for batteries.

4. Remove the oxygen sensor from the bag.

5. Screw the oxygen sensor into the sensor flow housing, equipped with elbows and
tubing, finger tighten plus one half (1/2) turn to ensure a good seal from the o-ring
affixed to the sensor.

6. Remove the shorting device (looped wire) from the receptacle located at the rear of
the sensor. Minimize the time the sensor is exposed to ambient air.

7. Assure the keyway registration of the female plug on the cable and male receptacle
on the sensor match up.

8. Push the female plug (including the knurled lock nut) molded to the cable into the
male receptacle attached to the new sensor.

33

9. Screw the knurled lock nut attached the cable onto to the male connector attached to the sensor, tighten
finger tight plus ¼ turn.

10. Connect the 1/8” diameter gas lines, vent line first, as previously described.

11. Proceed to calibration.

7 Spare Parts

Recommended spare parts for the GPR-2500A Oxygen Transmitter:

Item No. Description

GPR-11-32-4 Oxygen Sensor (GPR-2500A)
XLT-11-24-4 Oxygen Sensor (GPR-2500A)

Other spare parts:

Item No. Description

A-2079 Bracket Sensor Mounting
CONN-1014 Cable Sensor with Female Socket
FITN-1018 Connector SS 1/8” MNPT to 1/8” Tube
FITN-1039 Elbow SS 1/8”
A-3051 Housing Flow Adaptor
MTR-1011 Meter Digital Panel LCD Backlight
A-2781 Nut Sensor Retaining
A-1151-E-A2 PCB Assembly Main / Display
A-1153-A-A2 PCB Assembly Power Supply / Interconnections

34

8 Troubleshooting

Symptom Possible Cause Recommended Action

Reading does not reflect
expected values

Sensor was not calibrated at the
pressure, flow rate and temperature
anticipated in the sample gas stream

Recalibrate the analyzer

Oxygen reading drifts toward
zero or significant number of
turns of the span control
adjustment is required to
calibrate the analyzer.

Indication sensor is nearing the end of
its useful life

Replace sensor, see Section 6 ­Maintenance.

Slow response time

Erratic oxygen reading

No oxygen reading

Liquid covering sensing membrane

Presence of interference gases.

Unauthorized maintenance

Defective electrical connection

Sensor failure

Gently remove with alcohol and lint
free towel.

Consult factory, replace sensor, and
see Section 6 - Maintenance.

Use voltmeter and determine uA or mV
output and contact factory.

High oxygen reading Inadequate control of pressure and

flow rate

Abnormality in span gas

See Section 5 - Operation,
Getting Started,
Control of Pressure and Flow

Qualify source

35

9 Warranty Policy

What is covered:

Any defect in material and workmanship from normal use in accordance with the Owner’s Manual.
This warranty applies to all transmitter purchased worldwide. Advanced Instruments Inc. reserves the

right in its sole discretion to invalidate this warranty if the serial number does not appear on the
transmitter.

For how long:

One year from shipment by manufacturer or purchase from a distributor with proof of purchase.

Who is warranted:

This warranty is limited to the first customer who submits a claim. Under no circumstances will the
warranty extend to more than one customer.

What we will do:

If your Advanced Instruments Inc. transmitter is defective with respect to material and workmanship, we
will repair it or, at our option, replace it at no charge to you.

If we choose to replace your Advanced Instruments Inc. transmitter, we may use new or reconditioned
replacement parts.

If we choose to replace your Advanced Instruments Inc. transmitter, we may replace it with a new or
reconditioned one of the same or upgraded design.

Limitations:

Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten
warranty that the product is fit for ordinary use), are limited to one year from the date of shipment by
manufacturer or purchase from a distributor with proof of purchase.

Advanced Instruments Inc. will not pay for: loss of time; inconvenience; loss of use of your Advanced
Instruments Inc. transmitter or property damage caused by your Advanced Instruments Inc. transmitter
or its failure to work; any special, incidental or consequential damages; or any damage resulting from
alterations, misuse or abuse; lack of proper maintenance; unauthorized repair or modification of the
transmitter; affixing of any attachment not provided with the transmitter or other failure to follow the
Owner’s Manual.

Some states and provinces do not allow limitations on how an implied warranty lasts or the exclusion of
incidental or consequential damages, so the above exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state and province

36

to province.

What is not covered:

This warranty does not cover installation; defects resulting from accidents; damage while in transit to our
service location; damage resulting from alterations, misuse or abuse; lack of proper maintenance;
unauthorized repair or modification of the transmitter; affixing of any attachment not provided with the
transmitter; fire, flood, or acts of God; or other failure to follow the Owner’s Manual.

Sole Warranty

This warranty is the only one we will give on your Advanced Instruments Inc. transmitter, and it sets
forth all our responsibilities regarding your Advanced Instruments Inc. transmitter.

There are no other express warranties.

How to obtain warranty service:

Do-It-Yourself-Service:
Call Advanced Instruments Inc. at 909-392-6900 between 8:00am and 5:00pm Pacific Time weekdays.

Trained technicians will assist you in diagnosing the problem and arrange to supply you with the required
parts.

Service from Distributors:
If warranty service is provided by a distributor, Advanced Instruments Inc. will provide all required parts

under warranty at no charge to you, but the distributor is an independent business and may render a
service charge for their services. Advanced Instruments Inc. will not reimburse you or otherwise be
responsible for those charges.

Return to Advanced Instruments Inc.:
You may obtain warranty service by returning you transmitter, postage prepaid to:

Advanced Instruments Inc.

2855 Metropolitan Place

Pomona, Ca 91767 USA

Be sure to pack the transmitter securely. Include your name, address, telephone number, proof of date
of purchase and a description of the operating problem. After repairing or, at our option, replacing your
Advanced Instruments Inc. transmitter, we will ship it to you at no cost for parts and labor.

Your choice of any one of the service options described above is your exclusive remedy under this
warranty.

37

10 Material Safety Data Sheet ( MSDS )

Product Identification

Product Name Oxygen Sensor Models CAD, GPR, PSR, SAF, 67013
Synonyms Galvanic Fuel Cell, Electrochemical Transducer
Manufacturer Analytical Industries Inc.
2855 Metropolitan Place, Pomona, CA 91767 USA
Emergency Phone Number 909-392-6900
Preparation / Revision Date January 1, 1995

Notes Oxygen sensors are sealed, contain protective coverings and in normal

conditions do not present a health hazard. Information applies to
electrolyte unless otherwise noted.

Specific Generic Ingredients

Carcinogens at levels > 0.1% None
Others at levels > 1.0% Potassium Hydroxide, Lead
CAS Number Potassium Hydroxide = KOH 1310-58-3, Lead = Pb 7439-92-1
Chemical (Synonym) and

Family

Physical Properties

Boiling Point Range
Melting Point Range
Freezing Point
Molecular Weight KOH = 56, Lead = 207
Specific Gravity
Vapor Pressure Not applicable
Vapor Density Not applicable
pH > 14
Solubility in H
% Volatiles by Volume None

O Complete

2

Potassium Hydroxide (KOH) - Base, Lead (Pb) - Metal

100 to 115° C
KOH -10 to 0° C, Lead 327° C

-40 to 0° C

1.09 @ 20° C

Evaporation Rate Similar to water
Appearance and Odor Colorless, odorless aqueous solution

38

General Requirements

Use Potassium Hydroxide - electrolyte, Lead - anode
Handling Rubber or latex gloves and safety glasses
Storage Indefinitely

Fire and Explosion Data

Flash and Fire Points Not applicable
Flammable Limits Not flammable
Extinguishing Method Not applicable
Special Fire Fighting Procedures Not applicable
Unusual Fire and Explosion

Hazards

Not applicable

Reactivity Data

Stability Stable
Conditions Contributing to

Instability

None

Incompatibility Avoid contact with strong acids
Hazardous Decomposition

Products

None

Conditions to Avoid None

Spill or Leak

Steps if material is released Sensor is packaged in a sealed protective plastic bag, check the sensor

inside for electrolyte leakage.
If the sensor leaks inside the protective plastic bag or inside a

transmitter sensor housing do not remove it without rubber or latex
gloves and safety glasses and a source of water.

Flush or wipe all surfaces repeatedly with water or wet paper towel.
Use a fresh towel each time.

Waste Disposal Method In accordance with federal, state and local regulations for battery

disposal

Health Hazard Information

Primary Route(s) of Entry Ingestion, eye and skin contact
Exposure Limits Potassium Hydroxide - ACGIH TLV 2 mg/cubic meter; Lead - OSHA PEL

.05 mg/cubic meter
Effects of Exposure -
Ingestion Electrolyte could be harmful or fatal if swallowed. Oral LD50 (RAT) =

2433 mg/kg

39

Eye Electrolyte is corrosive and eye contact could result in permanent loss

of vision.
Skin Electrolyte is corrosive and skin contact could result in a chemical

burn.
Inhalation Liquid inhalation is unlikely.
Symptoms Eye contact - burning sensation; Skin contact - soapy slick feeling.
Medical Conditions Aggravated None
Carcinogenic Reference Data NTP Annual Report on Carcinogens - not listed; LARC Monographs -

not listed; OSHA - not listed
Other Lead is listed as a chemical known to the State of California to cause

birth defects or other reproductive harm.

Emergency First Aid

Ingestion Do not induce vomiting; Give plenty of cold water; Seek medical

attention immediately.

Skin Contact Wash affected area repeatedly with plenty of water; Remove

contaminated clothing; If burning persists, seek medical attention.

Eye Contact Flush repeatedly with plenty of water for at least 15 minutes; Seek

medical attention immediately.

Inhalation Liquid inhalation is unlikely.

Special Protection Information

Ventilation Requirements None
Eye Safety glasses
Hand Rubber or latex gloves
Respirator Type Not applicable
Other Protective Equipment None

Special Precautions

Precautions Do not remove the sensor’s protective Teflon and PCB coverings; Do

not probe the sensor with sharp objects; Wash hands thoroughly after
handling; Avoid contact with eyes, skin and clothing; Empty sensor
body may contain hazardous residue.

Transportation Not applicable

40

Product Identification

Product Name Oxygen Sensor Models XLT
Synonyms Galvanic Fuel Cell, Electrochemical Transducer
Manufacturer Analytical Industries Inc.
2855 Metropolitan Place, Pomona, CA 91767 USA
Emergency Phone Number 909-392-6900
Preparation / Revision Date January 1, 1995

Notes Oxygen sensors are sealed, contain protective coverings and in normal

conditions do not present a health hazard.

Information applies to electrolyte unless otherwise noted.

Specific Generic Ingredients

Carcinogens at levels > 0.1% None
Others at levels > 1.0% Acetic Acid, Lead
CAS Number Acetic Acid = 64-19-7, Lead = Pb 7439-92-1
Chemical (Synonym) and

Family

Physical Properties

Boiling Point Range
Melting Point Range
Freezing Point
Molecular Weight Acetic Acid = not applicable, Lead = 207
Specific Gravity
Vapor Pressure
Vapor Density (air = 1) 2.07
pH 2-3
Solubility in H
% Volatiles by Volume None
Evaporation Rate Similar to water

O Complete

2

Acetic Acid (CH3CO2H) - Acid, Lead (Pb) - Metal

100 to 117° C

Acetic Acid = not applicable, Lead 327° C

-40 to -10° C

1.05 @ 20° C

11.4 @ 20° C

Appearance and Odor Colorless, vinegar-like odor aqueous solution

General Requirements

Use Acetic Acid - electrolyte, Lead - anode
Handling Rubber or latex gloves; Safety glasses
Storage Indefinitely

41

Fire and Explosion Data

Flash and Fire Points Not applicable
Flammable Limits Not flammable
Extinguishing Method Not applicable
Special Fire Fighting Procedures Not applicable
Unusual Fire and Explosion

Hazards

Not applicable

Reactivity Data

Stability Stable
Conditions Contributing to

Instability

None

Incompatibility Avoid contact with strong bases
Hazardous Decomposition

Products

Emits toxic fumes when heated

Conditions to Avoid Heat

Spill or Leak

Steps if material is released Sensor is packaged in a sealed protective plastic bag, check the sensor

inside for electrolyte leakage. If the sensor leaks inside the protective

plastic bag or inside an transmitter sensor housing do not remove it

without rubber or latex gloves, safety glasses and a source of water.

Flush or wipe all surfaces repeatedly with water or wet paper towel.

Use a fresh towel each time.
Waste Disposal Method In accordance with federal, state and local regulations for battery

disposal.

Health Hazard Information

Primary Route(s) of Entry Ingestion, eye and skin contact
Exposure Limits Acetic Acid - ACGIH TLV / OSHA PEL 10 (TWA); Lead - OSHA PEL .05

mg/cubic meter
Effects of Exposure -
Ingestion Electrolyte could be harmful or fatal if swallowed; Oral LD50 (RAT) =

6620 mg/kg
Eye Electrolyte is corrosive and eye contact could result in permanent loss

of vision.
Skin Electrolyte is corrosive and skin contact could result in a chemical

burn.
Inhalation Liquid inhalation is unlikely.
Symptoms Eye contact - burning sensation; Skin contact - burning sensation.

42

Medical Conditions Aggravated None
Carcinogenic Reference Data NTP Annual Report on Carcinogens - not listed; LARC Monographs -

not listed; OSHA - not listed
Other Lead is listed as a chemical known to the State of California to cause

birth defects or other reproductive harm. Lead acetate formed as the

sensor is used is listed as a chemical known to the State of California

to cause cancer.

Emergency First Aid

Ingestion Do not induce vomiting; Give plenty of cold water or if available milk;

Seek medical attention immediately.

Skin Contact Wash affected area repeatedly with plenty of water; Remove

contaminated clothing; If burning persists, seek medical attention.

Eye Contact Flush repeatedly with plenty of water for at least 15 minutes; Seek

medical attention immediately.

Inhalation Liquid inhalation is unlikely.

Special Protection Information

Ventilation Requirements None
Eye Safety glasses
Hand Rubber or latex gloves
Respirator Type Not applicable
Other Protective Equipment None

Special Precautions

Precautions Do not remove the sensor’s protective Teflon and PCB coverings; Do

not probe the sensor with sharp objects; Wash hands thoroughly after
handling; Avoid contact with eyes, skin and clothing; Empty sensor
body may contain hazardous residue.

Transportation Not applicable
