ADN2850 Evaluation Kit User Manual

By Alan Li

7 STEPS TO EVALUATION KIT SETUP

The ADN2850 evaluation kit (EVAL-ADN2850-25) con­sists of a demonstration board and software for
evaluating the ADN2850. It is a user-friendly tool that

1.

INSTALL THE ADN2850 SOFTWARE

2. INSTALL THE DRIVER

3. CONNECT THE PARALLEL
PORT CABLE

4. CONFIGURE THE
EVALUATION BOARD

you can control with your personal computer through
the printer port. The driving program is self-contained,
so no programming languages or skills are needed.
Figure 1 provides an overview of how to set up the kit.

6. OPEN THE ADN2850 SOFTWARE AND
PROGRAM THE RESISTANCE SETTINGS

REV. 0

+5V

5. APPLY THE POWER SUPPLY

GND

Figure 1. Evaluation Kit Setup

W1

B1

7. MEASURE THE RESULT

AN-628

SETTING UP THE ADN2850 EVALUATION BOARD

Step 1—Installing the ADN2850 Software

To install the ADN2850 software from the Revision G
CD, run setup.exe under D:\ADN2850 Evaluation Soft­ware Package. During the installation, select Ignore or
Yes to bypass error messages if they occur. You may
need to install the software a few times to get a success­ful installation.

Step 2—Installing the Driver for PC Parallel Port Communications

In addition to installing the ADN2850 software, you need
to install a third-party driver, NTPORT from Upper
Canada Technologies (UCT), for access to the PC parallel
port. UCT offers a free trial with a nominal license fee
after 30 days.

1. Download the driver from www.uct.on.ca. From the
UCT website, download NTPORT.OCX. Save
ntport.zip in the default or specified directory. Unzip
and extract all the files to the directory.

2. Run setup.exe. If the setup procedure indicates
file violations during installation, select Ignore to
bypass them.

3. Ensure that the driver file, dlportio.sys, is in the
correct system directory.

Note: If Windows® displays an error message, such as
“Can’t connect to service control manager,” contact the
IS department for authority to continue installation.

b.Change the pathname of the driver according to

the operating system.

• On a Windows 2000 or Window NT

enter c:\winnt\system32\drivers\dlportio.sys.

®

system,

• On a Windows XP system, enter

c:\windows\system32\drivers\dlportio.sys.

c. Click the Install button, then the Start button. If

the status message indicates success, the driver is
installed and operating. Click OK.

4. Set up the driver for automatic startup. Use the
following steps that apply to your operating system.

For Windows 2000 and XP Systems

a. Go to the Device Manager.

• On a Windows 2000 system, click

Start → Settings → Control Panel → System →
Hardware → Device Manager.

• On a Windows XP system, click

Start → Control Panel → System → Hardware →
Device Manager.

a. Run loaddrv.exe under c:\program files\project1

or the specified directory. A dialog box appears.

–2–

REV. 0

AN-628

b.Locate Non-Plug and Play Drivers and dlportio in the Device Manager.

If the Non-Plug and Play Drivers entry is not visible, click the View menu in Device Manager and select Show

Hidden Devices to make sure that hidden driver files are listed. If you do not see dlportio, reboot Windows, or rerun
loaddrv.exe and then reboot Windows.

c. Double-click dlportio in the Non-Plug and Play Drivers list. The dlportio Properties page appears.

d.At the Driver tab, select Startup Type as Automatic, click Current status to Start, and click OK.

Note: If Startup is not active and you cannot change Type, your computer may be administered by your IS department.
You may need to consult them to change your PC administrative setting.

REV. 0

–3–

AN-628

For Windows NT Systems

a. From the Windows NT Control Panel, select the

Devices icon. The Devices dialog box appears.

b.Select dlportio and click the Startup button. The

device Startup Type dialog box appears. From the
option buttons, select Automatic, and then click OK.

• For dual supplies, connect JP15 and JP12 to connect

the –5V pin to V

of U1 and U3.

SS

Warning: Apply +2.5 V to Pin +5V and –2.5 V to
Pin –5V instead.

• Select the states of PR and WP from the DIP switches

on the evaluation board.

• SDO can be monitored at TPSDO.

Step 5—Applying the Power Supply

Provide a power supply to the ADN2850 evaluation
board according to Step 4 for a single supply or for
dual supplies.

Step 6—Using the Evaluation Board

To open the ADN2850 software program, from Windows
click Start → Programs → ADN2850 Rev G.

Figure 2 shows the graphical interface. In the Direct Con­trol pane, on the right, you can move the scroll bars or
click the buttons to control the device. In the top pane,
you can adjust the bit pattern and then click Run to pro­gram the device. In the bottom pane, you can
approximate R
R

after power is applied.

AB

and RWB by first entering the measured

WA

Step 7—Measuring the Result

Use a multimeter to measure the result of your program
applications on the ADN2850 evaluation board.

Step 3—Connecting the Parallel Port Cable

Connect the parallel port cable from LPT1 on your PC to
the ADN2850 evaluation board.

Step 4—Configuring the Evaluation Board

Follow these requirements to configure the ADN2850
evaluation board:

• For a single supply, connect JP14 and JP13 to

ground V

of U1 and U3. Apply 5 V to Pin +5V.

SS

Note: Some boards do not come with jumper
caps. You should supply suitable caps or simply
short the jumpers for proper operation.

UNINSTALLING SOFTWARE

To uninstall the ADN2850 software and NTPORT driver,
use Add/Remove Programs in the Control Panel.

TECHNICAL SUPPORT

Due to the variations in computer platforms and con­figurations, Analog Devices, Inc., cannot guarantee the
software described in this application note to work on all
systems. If you encounter problems, send email to
[e-mail] or call 1-408-382-3082 for
applications support. If you are interested in the
ADN2850 source code, send email to [e-mail]
for more information.

–4–

REV. 0

AN-628

Figure 2. ADN2850 Software Graphical Interface

REV. 0

–5–

AN-628

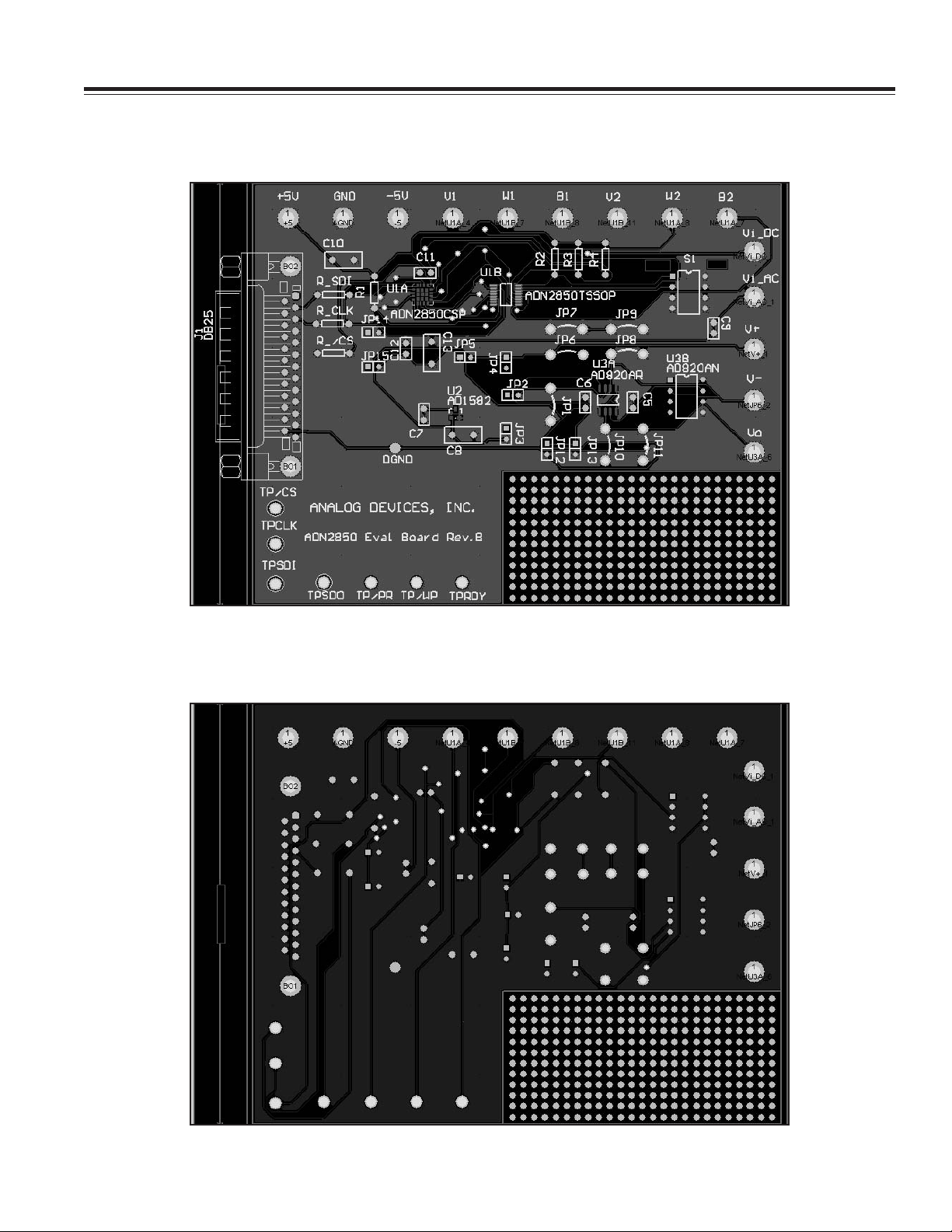

EVALUATION BOARD SCHEMATIC

The general-purpose op amp AD820, U3A can be configured
as various building block circuits in conjunction with the
ADN2850 for various circuit evaluations (see the Applications

ADN2850 MAIN CIRCUIT

J1

DB25

NOTES
SIGNAL GROUND WITH NET DGND
POWER GROUND WITH NET AGND

DGND

13
25
12
24
11
23
10
22

9

21

8

20

7

19

6

18

5

17

R_CS 100

4

16

R_CLK 100

3

15

R_SDI 100

2

14

1

TP/CS

TPCLK

TPSDI

ADN2850CSP

TPSDO

+5

HEADER

HEADER

U1A

SDI16CLK15RDY14CS

1

SDO

2

GND

3

VSS

4

A1

R1
1k

JP14

JP15

W15B16B2

1

CLK

2

SDI

3

SDO

4

GND

5

VSS

6

A1

7

W1

8

B1

ADN2850TSSOP

C12

0.1F

(LOWER TO –2.5V IF DUAL SUPPLIES)

U1B

7

RDY

CS
PR

WP

VDD

A2
W2
B2

C13

4.7F

section). Other op amps in PDIP can replace the AD820. For a
single-supply, 2.5 V voltage reference, AD1582 can be
used to offset the op amp bias point for ac operation.

+5

+5V

VDD

W2

PR

WP

A2

8

16

15

14

13

12

11

10

9

–5

(LOWER TO +2.5V IF DUAL SUPPLIES)

R2

R3

10k

10kR410k

13

12

11

10

9

GND

–5V

C10

4.7F

C11

0.1F

TP/WPTP/PRTPRDY

HIGH LOW

A1

W1

B1

A2

W2

B2

S1

18

27

36

45

SW-DIP4

VI_DC

V

_AC

I

0.1F

C7

ADDITIONAL OP AMP FOR GENERAL-PURPOSE APPLICATIONS

V+ V– V

JP7

JP5

HEADER

JP4

HEADER

JP3

HEADER

C9

U2

AD1582

+5

3

V

IN

GND

VOUT

2

1

2.5 VREF

JP6 JP8

JP2

HEADER

C8

0.1F

2

–

AD820AR

3

+

JP1

JP9

U3A

4

+5

7

–5

C5

0.1F

1, 5, 8

JP12
HEADER

C6

0.1F

6

Figure 3. Evaluation Board Schematic

–6–

O

JP10 JP11

JP13
HEADER

2

–

AD820AN

3

+

1

+5

7

U3B

REPLACEABLE

4

OP AMP IN PDIP

V

O

8

6

5

REV. 0

AN-628

Table I. ADN2850 24-Bit Serial Data-Word

MSB Instruction Byte 0 Data Byte 1 Data Byte 0 LSB

RDAC C3 C2 C1 C0 0 0 0 A0 X X XXXX D9D8D7D6D5D4D3D2D1D0

EEMEM C3 C2 C1 C0 A3 A2 A1 A0 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

Command bits are C0–C3. Addresses bits are A3–A0. Data bits D0–D9 are applicable to the RDAC wiper register, whereas D0–D15 are applicable to the
EEMEM register. Command instruction codes are defined in Table II.

Table II. ADN2850 Instruction/Operation Truth Table

1, 2, 3

Instruction Byte 0 Data Byte 1 Data Byte 0
Instruction B23 • • • • • • • • • • • • • • • • • B16 B15 • • • B8 B7 • • • B0
No. C3 C2 C1 C0 A3 A2 A1 A0 X • • • D9 D8 D7 • • • D0 Operation

0 0000XXXX X • • • XX X • • •X NOP: Do nothing. See Table V.

1 0001000A0 X • • • XX X • • •X Write the contents of EEMEM(A0) to RDAC(A0). This

command leaves the device in the read program
power state. To return the device to the idle state,
perform NOP instruction 0. See Table V.

2 0010000A0 X • • • XX X • • •X Save wiper setting: Write the contents of RDAC(A0)

to EEMEM(A0). See Table IV.

4

3

0011A3A2A1A0 D15 • • • D8 D7• • • D0 Write the contents of serial register data bytes 0 and

1 (total 16-bit) to EEMEM(ADDR). See Table VII.

5

4

0100000A0 X • • • XX X • • •X Decrement 6 dB: Right-shift contents of RDAC(A0),

stops at all ”zeros.”

5

5

0101XXXX X • • • XX X • • •X Decrement all 6 dB: Right-shift contents of all RDAC

registers, stops at all ”zeros.”

5

6

0110000A0 X • • • XX X • • •X Decrement contents of RDAC(A0) by ”one,” stops at

all ”zeros.”

5

7

0111XXXX X • • • XX X • • •X Decrement contents of all RDAC registers by “one,”

stops at all “zeros.”

8 10000000 X • • • XX X • • •X Reset: Load all RDACs with their corresponding

EEMEM previously saved values.

9 1001A3A2A1A0 X • • • XX X • • •X Write contents of EEMEM(ADDR) to serial register

data bytes 0 and 1. SDO activated. See Table VIII.

10 1010000A0 X • • • XX X • • •X Write contents of RDAC(A0) to serial register data

bytes 0 and 1. SDO activated. See Table IX.

11 1011000A0 X • • • D9D8D7 • • •D0Write contents of serial register data bytes 0 and 1

(total 10-bit) to RDAC(A0). See Table III.

5

12

1100000A0 X • • • XX X • • •X Increment 6 dB: Left-shift contents of RDAC(A0),

stops at all “ones.” See Table VI.

5

13

1101XXXX X • • • XX X • • •X Increment all 6 dB: Left-shift contents of all RDAC

registers, stops at all “Ones.”

5

14

1110000A0 X • • • XX X • • •X Increment contents of RDAC(A0) by “one,” stops at

all “ones.” See Table IV.

5

15

1111XXXX X • • • XX X • • •X Increment contents of all RDAC registers by “one,”

stops at all “ones.”

NOTES

1. The SDO output shifts out the last 24 bits of data clocked into the serial register for daisy-chain operation. Exception: For any instruction following

instruction 9 or 10, the selected internal register data will be present in data byte 0 and 1. The instructions following 9 and 10 must also be a full 24-bit
data-word to completely clock out the contents of the serial register.

2. The RDAC register is a volatile scratchpad register that is refreshed at power-on from the corresponding nonvolatile EEMEM register.

3. Execution of the above operations takes place when the CS strobe returns to logic high.

4. Instruction 3 writes two data bytes (total 16-bit) to EEMEM. However, in the cases of addresses 0 and 1, only the last 10 bits are valid for wiper position setting.

5. The increment, decrement, and shift commands ignore the contents of the shift register data bytes 0 and 1.

REV. 0

–7–

AN-628

PROGRAMMING EXAMPLES

The following programming examples illustrate the
typical sequence of events for various features of the
ADN2850. Refer to Table II for the instructions and data­word format. The instruction numbers, addresses, and
data appearing at the SDI and SDO pins are displayed in
hexadecimal format in the tables.

Table III. Scratchpad Programming

SDI SDO Action

B00100HXXXXXXHLoads data 100H into the RDAC1

register. Wiper 1 moves to the
1/4 full-scale position.

B10200

B00100HLoads data 200H into the RDAC2

H

register. Wiper 2 moves to the
1/2 full-scale position.

Table IV. Incrementing RDAC Followed

by Storing the Wiper Setting to EEMEM

SDI SDO Action

B00100HXXXXXXHLoads data 100H into the RDAC1

register. Wiper 1 moves to the
1/4 full-scale position.

E0XXXX

B00100HIncrements the RDAC1 register

H

by one to 101H.

E0XXXX

E0XXXXHIncrements the RDAC1 register

H

by one to 102H.
Continue until the desired wiper
position is reached.

20XXXXHXXXXXXHSaves RDAC1 register data into

EEMEM1.
Optionally tie WP to GND to
protect EEMEM values.

Table V. Restoring EEMEM Values to RDAC Registers

SDI SDO Action

10XXXXHXXXXXXHRestores EEMEM1 value to

RDAC1 register.

00XXXXH10XXXXXHNOP. Recommended step to

minimize power consumption.

8XXXXXH00XXXXHResets EEMEM1 and EEMEM2

values to RDAC1 and RDAC2
registers, respectively.

EEMEM values for RDACs can be restored by power-on, strobing the
PR pin or programming as shown above.

Table VI. Using Left Shift by One to Increment 6 dB Steps

SDI SDO Action

C0XXXXHXXXXXXHMoves wiper 1 to double the

present data contained in the
RDAC1 register.

C1XXXX

C0XXXXHMoves wiper 2 to double the

H

present data contained in the
RDAC2 register.

Table VII. Storing Additional User Data in EEMEM

SDI SDO Action

32AAAAHXXXXXXHStores data AAAAH into spare

EEMEM location USER1. Allow­able to address in 13 locations
with maximum 16 bits of data.

335555

32AAAAHStores data 5555H into spare

H

EEMEM location USER2. Allow­able to address 13 locations
with maximum 16 bits of data.

Table VIII. Reading Back Data from

Various Memory Locations

SDI SDO Action

92XXXXHXXXXXXHPrepares data read from USER1

location.

00XXXXH92AAAAHNOP instruction 0 sends 24-bit

word out of SDO where the last
16 bits contain the contents of
USER1 location. NOP command
ensures device returns to idle
power dissipation state.

Table IX. Reading Back Wiper Setting

SDI SDO Action

B00200HXXXXXXHSets RDAC1 to midscale.

C0XXXX

B00200HDoubles RDAC1 from midscale

H

to full scale.

A0XXXX

C0XXXXHPrepares reading wiper setting

H

from RDAC1 register.

XXXXXXHA003FFHReads back full-scale value

from RDAC1 register.

–8–

REV. 0

APPLICATIONS

V

R1 RDAC

I

G =

VO =

–RWB

R1

 (D  RAB)

–V

I

(2

BA

n

 R1)

AN-628

U1

ADN2850

1

CLK

2

SDI

3

SDO

4

GND

5

VSS

6

A1*

7

W1

8

V

O

B1

JP15

–5 (–2.5V)

VI_DC

Figure 4. Inverting Linear Gain and Attenuator

16

RDY

15

CS

14

PR

13

WP

12

A2*

W2

B2

11

10

9

JP6

JP4

R1

–INPUT

1

+5 (+2.5V)

2

–

AD820AR

3

+

7

U3

4

VDD

1

JP1

JP12

1, 5, 8

V

O

1

6

V

O

0V

–200mV

0 0.5

V(VO)

= 0.1V

V

I

R1 = 5k, RAB = 10k

POTSETTING

1.0

–5 (–2.5V)

RDY

WP

VDD

A2*

W2

CS
PR

B2

FB

1

16

15

14

13

–INPUT

12

11

10

9

C9

JP4

JP3

1

+5 (+2.5V)

2

–

AD820AR

3

+

R2

JP8

7

U3

4

JP1

JP12

1, 5, 8

V

O

1

–10V

V

= 0.1V

I

RAB = 10k, R2 = 10k

LOG

–100mV

6

V

O

00.5

V(VO)

POTSETTING

1.0

U1

ADN2850

1

CLK

2

SDI

3

SDO

4

GND

5

VSS

–5 (–2.5V)

JP15

6

A1*

7

W1

8

B1

VI_DC

1

VI_AC

1

RDAC

V

I

R2

BA

V

O

–R2

G =

RWA

 (2n  R2)

–V

I

VO =

n

–D)  RAB

(2

–5 (–2.5V)

Figure 5. Inverting Exponential Gain and Attenuator

REV. 0

–9–

AN-628

R1 RDAC

V

I

G = 1 +

VO = VI  1+

RWB

R1

BA

V

O

D  RAB

n

 R1

2

U1

ADN2850

1

2

3

4

5

6

7

8

JP14

CLK
SDI
SDO
GND
VSS
A1*
W1
B1

VI_DC

1

JP5

RDY

CS
PR

WP

VDD

A2*

W2
B2

JP2

16

15

14

13

12

11

10

9

R1

JP6

–INPUT

1

2

–

AD820AR

3

+

+5

7

U3

4

JP13

Figure 6. Noninverting Linear Gain

1, 5, 8

V

O

1

6

300mV

= 0.1V

V

I

R1 = 5k, RAB = 10k

0V

0 0.5

V

O

V(VO)

POTSETTING

1.0

RDAC

BA

V

I

G = 1 +

VO = VI  1 +

U1

ADN2850

1

CLK

2

SDI

3

SDO

4

GND

5

VSS

R2

V

O

6

A1*

7

W1

8

B1

RDY

CS
PR

WP

VDD

A2*

W2

16

15

14

13

12

11

10

9

B2

JP14

R2

RWA

n

 R2

2

n

–D)  RAB

(2

VI_DC

1

VI_AC

1

JP3

C9

Figure 7. Noninverting Exponential Gain

1

JP2

–INPUT

1

2

–

AD820AR

3

+

V

O

1

R2

JP8

+5

1, 5, 8

7

U3

6

V

O

4

JP13

–10–

REV. 0

PCB LAYOUT

AN-628

Figure 8. Top Layer

REV. 0

Figure 9. Bottom Layer

–11–

AN-628

Figure 10. Top Overlay Silkscreen

–12–

REV. 0

AN-628

PCB LAYOUT CONSIDERATIONS

To stabilize voltage supplies, bypass Pin +5V and Pin –5V
with a 4.7 mF or 10 m F capacitor with proper polari­ties. Adding 0.1 mF decoupling capacitors, very close to
the supply pins of the active component, can minimize
high frequency noise as well.

Table X. PCB Parts List

Designator Footprint Comment

TPSDO Test point 0.09
TPCLK Test point 0.09
TPSDI Test point 0.09
TP/CS Test point 0.09
+5V Post pin 0.125
GND Post pin 0.125
B1 Post pin 0.125
W1 Post pin 0.125
A1 Post pin 0.125

_DC Post pin 0.125

V

I

VI_AC Post pin 0.125
C9 RAD 0.1
A2 Post pin 0.125
W2 Post pin 0.125
B2 Post pin 0.125
–5V Post pin 0.125
VO Post pin 0.125
V– Post pin 0.125
V+ Post pin 0.125
JP8 Jumper 0.3
JP9 Jumper 0.3
JP7 Jumper 0.3
JP6 Jumper 0.3
JP1 Jumper 0.3
JP11 Jumper 0.3
JP10 Jumper 0.3

Designator Footprint Comment

TPRDY Test point 0.09
TP/WP Test point 0.09
TP/PR Test point 0.09
DGND DGNDPAD
C12 RAD 0.1 0.1 mF
C7 RAD 0.1 0.1 mF
C11 RAD 0.1 0.1 mF
C6 RAD 0.1 0.1 mF
C5 RAD 0.1 0.1 mF
R_/CS Axial 0.3 100 W
R_CLK Axial 0.3 100 W
R_SDI Axial 0.3 100 W
R4 Axial 0.3 10 kW
R3 Axial 0.3 10 kW
R2 Axial 0.3 10 kW
R1 Axial 0.3 1 kW
C8 RAD 0.2 1 mF
C13 RAD 0.2 4.7 mF
C10 RAD 0.2 4.7 mF
U2 SOT-23 AD1582
U1B TSSOP-16 ADN2850TSSOP
U1A LFCSP-16 ADN2850CSP

5 mm ¥ 5 mm
U3B DIP8 AD820AN
U3A SO-8 AD820AR
J1 DB25SL DB25
JP15 SIP2 Header
JP14 SIP2 Header
JP5 SIP2 Header
JP3 SIP2 Header
JP2 SIP2 Header
JP4 SIP2 Header
JP12 SIP2 Header
JP13 SIP2 Header
S1 DIP8 SW-DIP4

REV. 0

–13–

AN-628

ADN2850 PARALLEL PORT CONNECTION

(For Visual Basic Program Developers Only)

PR CS CLK SDI

GND

13 12 11 10

25

S7 S6 S5 S4 S3

NOTE
8 OUTPUT PINS ACCESSED VIA THE DATA PORT
5 INPUT PINS (1 INVERTED) ACCESSED VIA THE STATUS PORT
4 OUTPUT PINS (3 INVERTED) ACCED VIA THE CONTROL PORT
REMAINING 8 PINS ARE GROUNDED

Figure 11. Parallel Port Connector Configuration (For VB Program Developers Only)

TIMING DEFINITION

(In Visual Basic Source Code cmdRUN)

BIT 3

(PIN 5)

BIT 2

(PIN 4)

BIT 1

(PIN 3)

D7 D6 D5 D4 D3 D2 D1 D0

24

23 22921820719618

PR

CS

CLK

4 321

5

17 16 14

15

C3 C2 C1 C0

SDO

(NTPORT1.ADDRESS = 888)
(NTPORT1.ADDRESS = 889)
(NTPORT1.ADDRESS = 890)

SDI

BIT 0

(PIN 2)

BINARY CODE

DECIMAL CODE

11001210019101111100081010

10

SEND OUT

NO ACTIVITY LATCH DATA

BIT_TOGO = 1

SEND OUT

BIT_TOGO = 0

1100

12

Figure 12. Timing Definition (For VB Program Developers Only)

–14–

REV. 0

AN-628

REV. 0

–15–

E03555–0–3/03(0)

© 2003 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective companies.

–16–
