Analog Devices ADP1823 Specifications

Dual, Interleaved, Step-Down

FEATURES

Fixed-frequency operation: 300 kHz, 600 kHz, or

synchronized operation up to 1 MHz
Supply input range: 2.9 V to 20 V
Interleaved operation results in smaller, low cost input

capacitor
All-N-channel MOSFET design for low cost
±0.85% accuracy at 0°C to 70°C
Soft start, thermal overload, current-limit protection
10 μA shutdown supply current
Internal linear regulator
Lossless R
Reverse current protection during soft start for handling

precharged outputs
Independent Power OK outputs
Voltage tracking for sequencing or DDR termination
Available in 5 mm × 5 mm, 32-lead LFCSP

APPLICATIONS

Telecommunications and networking systems
Medical imaging systems
Base station power
Set-top boxes
Printers
DDR termination

current-limit sensing

DSON

DC-to-DC Controller with Tracking

ADP1823

TYPICAL APPLICATION CIRCUIT

IN = 12V

390pF

4.53kΩ

180µF

IRLR7807Z

2kΩ

1kΩ

1.8V,
8A

560µF

1.2V,
6A

560µF

180µF

IRLR7807Z

2kΩ

2kΩ

1µF

EN1

PV IN

TRK1

EN2

TRK2

VREG

BST2

0.47µF

2.2µH 2.2µH

IRFR3709Z

3900pF

4.53kΩ

BST1

DH2

DH1

ADP1823

SW2

SW1

2kΩ 2kΩ

390pF

CSL1

DL1

PGND1

FB1

COMP1

GND

CSL2

DL2

PGND2

FB2

COMP2

FREQ

LDOSD

SYNC

0.47µF

IRFR3709Z

3900pF

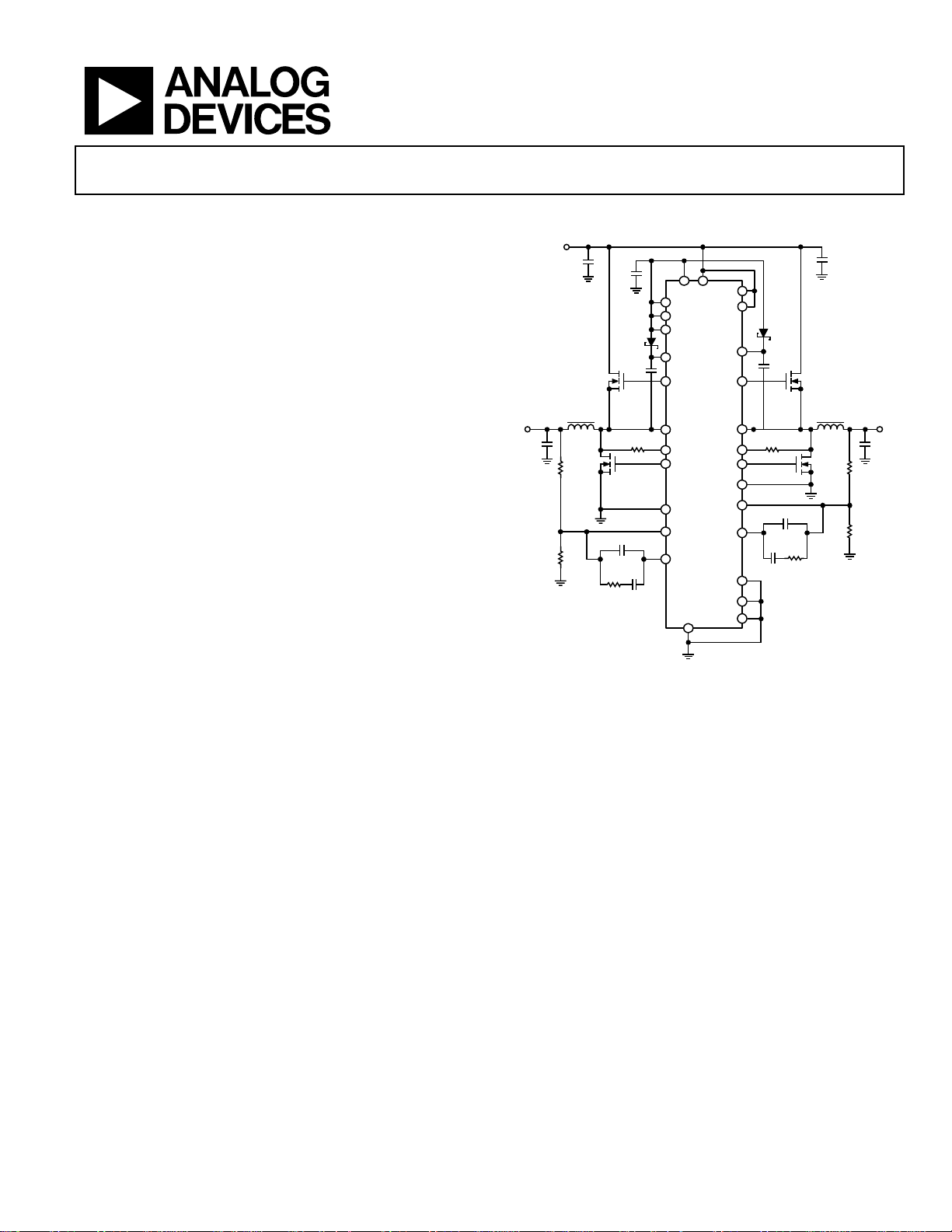

Figure 1. Typical Application Circuit

05936-001

GENERAL DESCRIPTION

The ADP1823 is a versatile, dual, interleaved, synchronous
PWM buck controller that generates two independent output
rails from an input of 2.9 V to 20 V. Each controller can be con­figured to provide output voltages from 0.6 V to 85% of the
input voltage and is sized to handle large MOSFETs for point­of-load regulators. The two channels operate 180° out of phase,
reducing stress on the input capacitor and allowing smaller, low
cost components. The ADP1823 is ideal for a wide range of
high power applications, such as DSP and processor core I/O
power, and general-purpose power in telecommunications,
medical imaging, PC, gaming, and industrial applications.

The ADP1823 operates at a pin-selectable, fixed switching
frequency of either 300 kHz or 600 kHz, minimizing external
component size and cost. For noise-sensitive applications, it can
also be synchronized to an external clock to achieve switching

Rev. A

Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.

frequencies between 300 kHz and 1 MHz. The ADP1823
includes soft start protection to prevent inrush current from the
input supply during startup, reverse current protection during
soft start for precharged outputs, as well as a unique adjustable
lossless current-limit scheme utilizing external MOSFET
sensing.

For applications requiring power supply sequencing, the
ADP1823 also provides tracking inputs that allow the output
voltages to track during startup, shutdown, and faults. This
feature can also be used to implement DDR memory bus
termination.

The ADP1823 is specified over the −40°C to +85°C ambient
temperature range, and is available in a 32-lead LFCSP package.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] ©2006 Analog Devices, Inc. All rights reserved.

ADP1823

TABLE OF CONTENTS

Features.............................................................................................. 1

Applications....................................................................................... 1

Typical Application Circuit ............................................................. 1

General Description ......................................................................... 1

Revision History ............................................................................... 2

Specifications..................................................................................... 3

Absolute Maximum Ratings............................................................ 5

ESD Caution.................................................................................. 5

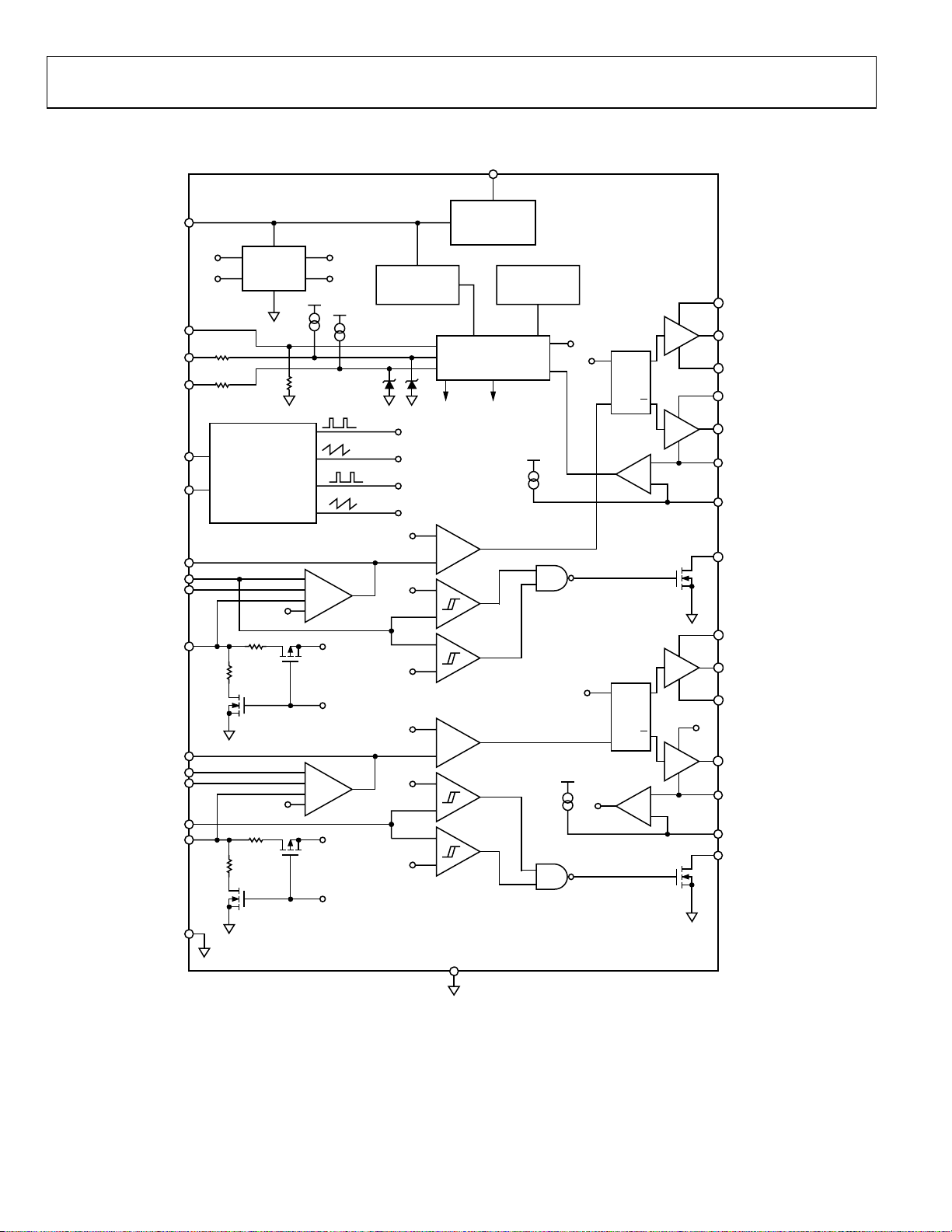

Functional Block Diagram .............................................................. 6

Pin Configuration and Function Descriptions............................. 7

Typical Performance Characteristics ............................................. 9

Theory of Operation ...................................................................... 13

Input Power .................................................................................13

Start-Up Logic............................................................................. 13

Internal Linear Regulator.......................................................... 13

Oscillator and Synchronization ................................................ 13

Error Amplifier........................................................................... 14

Soft Start ...................................................................................... 14

Power OK Indicator ...................................................................14

Tracking ....................................................................................... 14

MOSFET Drivers........................................................................ 15

Current Limit.............................................................................. 15

Applications Information.............................................................. 16

Selecting the Input Capacitor................................................... 16

Selecting the MOSFETS ............................................................ 17

Setting the Current Limit.......................................................... 18

Feedback Voltage Divider ......................................................... 18

Compensating the Voltage Mode Buck Regulator................. 18

Soft Start ...................................................................................... 22

Voltage Tracking......................................................................... 22

Coincident Tracking .................................................................. 22

Ratiometric Tracking................................................................. 23

Thermal Considerations............................................................ 24

PCB Layout Guidelines.................................................................. 25

LFCSP Package Considerations................................................ 26

Application Circuits ....................................................................... 29

Outline Dimensions....................................................................... 31

Ordering Guide .......................................................................... 31

REVISION HISTORY

11/06—Rev. 0 to Rev. A

Changes to Features and Applications Sections ........................... 1

Changes to Specifications Section.................................................. 3

Changes to Absolute Maximum Ratings Section......................... 5

Replaced Theory of Operation Section ....................................... 13

Added Feedback Voltage Divider Section ................................... 18

Changes to Ratiometric Tracking Section................................... 23

Replaced PCB Layout Guidelines Section................................... 25

Added Application Circuits Section............................................. 29

Changes to Ordering Guide.......................................................... 31

4/06—Revision 0: Initial Version

Rev. A | Page 2 of 32

ADP1823

SPECIFICATIONS

VIN = 12 V, EN = FREQ = PV = VREG = 5 V, SYNC = GND, TJ = −40°C to +125°C, unless otherwise specified. All limits at temperature
extremes are guaranteed via correlation using standard Statistical Quality Control (SQC). Typical values are at T

Table 1.

Parameter Conditions Min Typ Max Unit

POWER SUPPLY

IN Input Voltage PV = VREG (using internal regulator) 5.5 20 V
IN = PV = VREG (not using internal regulator) 2.9 5.5 V
IN Quiescent Current Not switching, I

= 0 mA 1.5 3 mA

VREG

IN Shutdown Current EN1 = EN2 = GND 10 20 μA
VREG Undervoltage Lockout Threshold VREG rising 2.4 2.7 2.9 V
VREG Undervoltage Lockout Hysteresis 0.125 V

ERROR AMPLIFER

FB1, FB2 Regulation Voltage

= 25°C, TRK1, TRK2 > 700 mV

T

A

= 0°C to 85°C, TRK1, TRK2 > 700 mV

T

J

= −40°C to +125°C, TRK1, TRK2 > 700 mV

T

J

= 0°C to 70°C, TRK1, TRK2 > 700 mV

T

J

FB1, FB2 Input Bias Current 100 nA
Open-Loop Voltage Gain 70 dB
Gain-Bandwidth Product 20 MHz
COMP1, COMP2 Sink Current 600 μA
COMP1, COMP2 Source Current 120 μA
COMP1, COMP2 Clamp High Voltage 2.4 V
COMP1, COMP2 Clamp Low Voltage 0.75 V

LINEAR REGULATOR

VREG Output Voltage

VREG Load Regulation I
VREG Line Regulation VIN = 7 V to 20 V, I

= 25°C, I

T

A

VIN = 7 V to 20 V, I

= −40°C to +85°C

T

A

= 0 mA to 100 mA, VIN = 12 V −40 mV

VREG

= 20 mA

VREG

= 0 mA to 100 mA,

VREG

= 20 mA 1 mV

VREG

VREG Current Limit VREG = 4 V 220 mA
VREG Short-Circuit Current VREG < 0.5 V 100 140 200 mA
IN to VREG Dropout Voltage I

= 100 mA 0.7 1.4 V

VREG

VREG Minimum Output Capacitance 1 μF

PWM CONTROLLER

PWM Ramp Voltage Peak SYNC = GND 1.3 V
DH1, DH2 Maximum Duty Cycle FREQ = GND (300 kHz) 85 90 %
DH1, DH2 Minimum Duty Cycle FREQ = GND (300 kHz) 1 3 %

SOFT START

SS1, SS2 Pull-Up Resistance SS1, SS2 = GND 90 kΩ
SS1, SS2 Pull-Down Resistance SS1, SS2 = 0.6 V 6 kΩ
SS1, SS2 to FB1, FB2 Offset Voltage SS1, SS2 = 0 mV to 500 mV −45 mV
SS1, SS2 Pull-Up Voltage 0.8 V

TRACKING

TRK1, TRK2 Common-Mode Input

0 600 mV

Voltage Range
TRK1, TRK2 to FB1, FB2 Offset Voltage TRK1, TRK2 = 0 mV to 500 mV −5 +5 mV
TRK1, TRK2 Input Bias Current 100 nA

= 25°C.

A

597 600 603 mV
591 609 mV
588 612 mV
595 605 mV

4.85 5.0 5.15 V

4.75 5.0 5.25 V

Rev. A | Page 3 of 32

ADP1823

Parameter Conditions Min Typ Max Unit

OSCILLATOR

Oscillator Frequency SYNC = FREQ = GND (fSW = f
SYNC = GND, FREQ = VREG (fSW = f
SYNC Synchronization Range FREQ = GND, SYNC = 600 kHz to 1.2 MHz1 (fSW = f
FREQ = VREG, SYNC = 1.2 MHz to 2 MHz1 (fSW = f
SYNC Minimum Input Pulse Width 200 ns

CURRENT SENSE

CSL1, CSL2 Threshold Voltage Relative to PGND −30 0 +30 mV
CSL1, CSL2 Output Current CSL1, CSL2 = PGND 44 50 56 μA
Current Sense Blanking Period 100 ns

GATE DRIVERS

DH1, DH2 Rise Time CDH = 3 nF, V
DH1, DH2 Fall Time CDH = 3 nF, V

− VSW = 5 V 15 ns

BST

− VSW = 5 V 10 ns

BST

DL1, DL2 Rise Time CDL = 3 nF 15 ns
DL1, DL2 Fall Time CDL = 3 nF 10 ns
DH to DL, DL to DH Dead Time 40 ns

LOGIC THRESHOLDS

SYNC, FREQ, LDOSD Input High Voltage 2.2 V
SYNC, FREQ, LDOSD Input Low Voltage 0.4 V
SYNC, FREQ Input Leakage Current SYNC, FREQ = 0 V to 5.5 V 1 μA
LDOSD Pull-Down Resistance 100 kΩ
EN1, EN2 Input High Voltage IN = 2.9 V to 20 V 2.0 V
EN1, EN2 Input Low Voltage IN = 2.9 V to 20 V 0.8 V
EN1, EN2 Current Source EN1, EN2 = 0 V to 3.0 V −0.3 −0.6 −1.5 μA
EN1, EN2 Input Impedance to 5 V Zener EN1, EN2 = 5.5 V to 20 V 100 kΩ

THERMAL SHUTDOWN

Thermal Shutdown Threshold
Thermal Shutdown Hysteresis

2

2

145
15

POWER GOOD

FB1, UV2 Overvoltage Threshold V

rising 750 mV

FB1, VUV2

FB1, UV2 Overvoltage Hysteresis 50 mV
FB1, UV2 Undervoltage Threshold V

rising 550 mV

FB1, VUV2

FB1, UV2 Undervoltage Hysteresis 50 mV
POK1, POK2 Propagation Delay 8 μs
POK1, POK2 Off Leakage Current V
POK1, POK2 Output Low Voltage I

POK1, VPOK2

POK1, IPOK2

= 5.5 V 1 μA

= 10 mA 150 500 mV

UV2 Input Bias Current 10 100 nA

1

SYNC input frequency is 2× single channel switching frequency. The SYNC frequency is divided by 2 and the separate phases were used to clock the controllers.

2

Guaranteed by design and not subject to production test.

) 240 300 370 kHz

OSC

) 480 600 720 kHz

OSC

/2) 300 600 kHz

SYNC

/2) 600 1000 kHz

SYNC

°C
°C

Rev. A | Page 4 of 32

ADP1823

ABSOLUTE MAXIMUM RATINGS

Table 2.

Parameter Rating

IN, EN1, EN2 −0.3 V to +20 V
BST1, BST2 −0.3 V to +30 V
BST1, BST2 to SW1, SW2 −0.3 V to +6 V
CSL1, CSL2 −1 V to +30 V
SW1, SW2 −2 V to +30 V
DH1 SW1 − 0.3 V to BST1 + 0.3 V
DH2 SW2 − 0.3 V to BST2 + 0.3 V
DL1, DL2 to PGND −0.3 V to PV + 0.3 V
PGND to GND ±2 V
LDOSD, SYNC, FREQ, COMP1,

−0.3 V to +6 V
COMP2, SS1, SS2, FB1, FB2, VREG,
PV, POK1, POK2, TRK1, TRK2

θJA 4-Layer

(JEDEC Standard Board)

1, 2

Operating Ambient Temperature

45°C/W

3

−40°C < TA< +85°C

Operating Junction Temperature3 −40°C < TJ < +125°C
Storage Temperature −65°C to +150°C

1

Measured with exposed pad attached to PCB.

2

Junction-to-ambient thermal resistance (θJA) of the package is based on

modeling and calculation using a 4-layer board. The junction-to-ambient
thermal resistance is application and board-layout dependent. In
applications where high maximum power dissipation exists, attention to
thermal dissipation issues in board design is required. For more information,
please refer to Application Note AN-772, A Design and Manufacturing Guide
for the Lead Frame Chip Scale Package (LFCSP).

3

In applications where high power dissipation and poor package thermal

resistance are present, the maximum ambient temperature may have to be
derated. Maximum ambient temperature (T
maximum operating junction temperature (T
power dissipation of the device in the application (P
to-ambient thermal resistance of the part/package in the application (θJA), is
given by the following equation: T

A_MAX

) is dependent on the

A_MAX

J_MAX_OP

= T

J_MAX_OP

= 125oC), the maximum

), and the junction-

D_MAX

– (θJA x P

D_MAX

).

Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.

ESD CAUTION

Rev. A | Page 5 of 32

ADP1823

FUNCTIONAL BLOCK DIAGRAM

IN

ADP1823

VREG

LINEAR REG

LDOSD

EN1

EN2

FREQ

SYNC

COMP1

FB1

TRK1

SS1

COMP2

FB2

TRK2

UV2

SS2

0.6V

0.8V

OSCILLATOR
PHASE 1 = 0°
PHASE 2 = 180°

REF

0.6V

0.6V

0.75V

0.55V

VREG

–
+
+
+

0.8V

FAULT1

–
+
+
+

0.8V

FAULT2

VREG

CK1

RAMP1

CK2

RAMP2

RAMP1

RAMP2

0.75V

0.55V

0.75V

0.55V

UVLO

THERMAL

SHUTDOWN

ILIM2

50µA

CK2

VREG

ILIM1

CK1

ILIM2

R

R

QS

PWM

Q

+

–

QS

PWM

Q

+

–

LOGIC

FAULT2FAULT1

VREG

50µA

+

–

+

–

+

–

+

–

+

–

+

–

BST1

DH1

SW1

PV

DL1

PGND1

CSL1

POK1

BST2

DH2

SW2

PV

DL2

PGND2

CSL2

POK2

GND

BOTTOM PADDLE

OF LFCSP

05936-002

Figure 2. Functional Block Diagram

Rev. A | Page 6 of 32

ADP1823

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

OMP1

S1

C

TRK1

S

VREG

LDOSD

EN2

IN

EN1

29

27

26

28

31

30

32

25

1FB1
2SYNC
3FREQ
4GND
5UV2
6FB2
7COMP2
8TRK2

PIN 1
INDICATOR

ADP1823

TOP VIEW

(Not to Scale)

1

9

1

10

12

SS2

DH2

BST2

POK2

13
2

SW

24 POK1
23 BST1
22 DH1
21 SW1
20 CSL1
19 PGND1
18 DL1
17 PV

14

15

16

DL2

CSL2

PGND2

05936-003

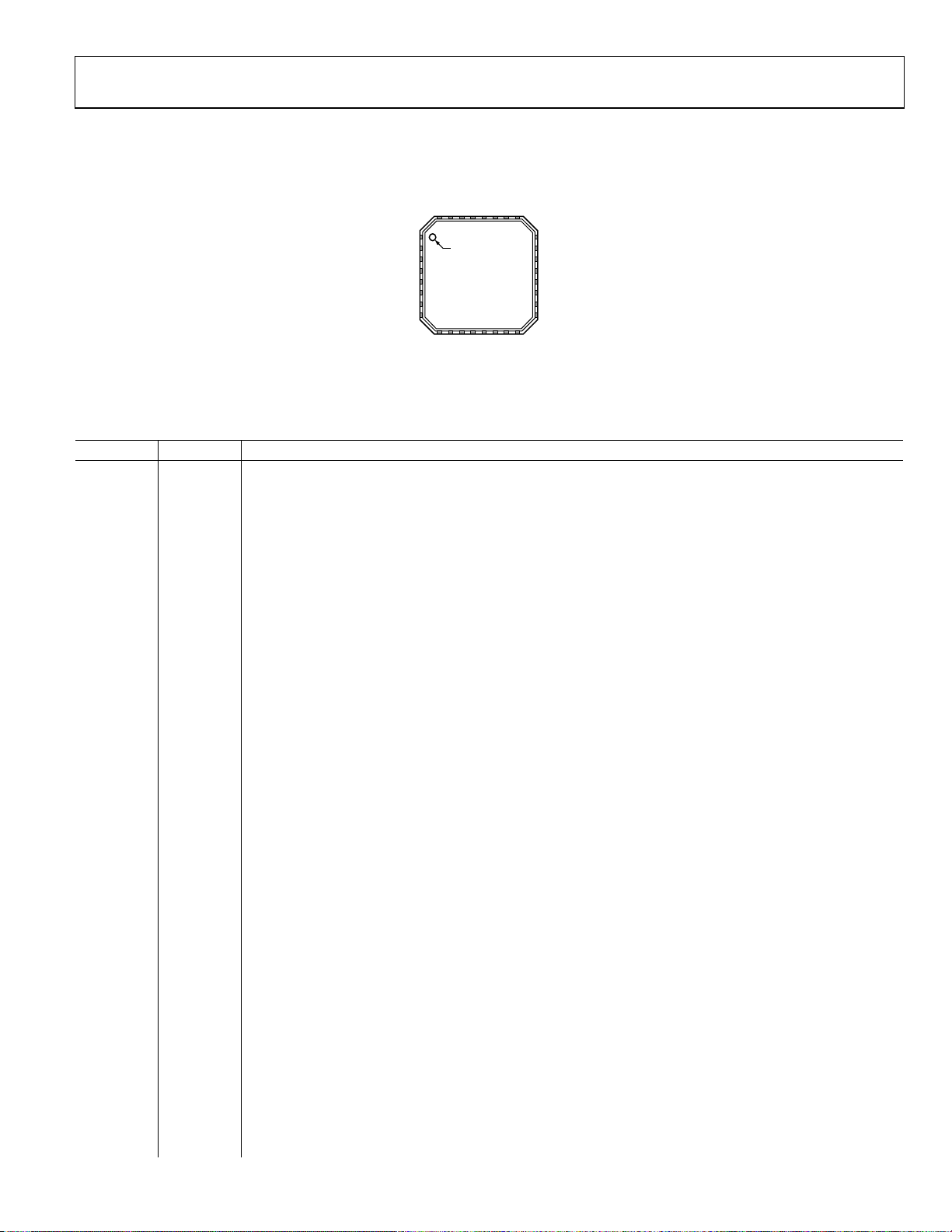

Figure 3. Pin Configuration

Table 3. Pin Function Descriptions

Pin No. Mnemonic Description

1 FB1

Feedback Voltage Input for Channel 1. Connect a resistor divider from the buck regulator output to GND and tie
the tap to FB1 to set the output voltage.

2 SYNC

Frequency Synchronization Input. Accepts external signal between 600 kHz and 1.2 MHz or between 1.2 MHz

and 2 MHz depending on whether FREQ is low or high, respectively. Connect SYNC to ground if not used.
3 FREQ Frequency Select Input. Low for 300 kHz or high for 600 kHz.
4 GND

Ground. Connect to a ground plane directly beneath the ADP1823. Tie the bottom of the feedback dividers to

this GND.
5 UV2

Input to the POK2 Undervoltage and Overvoltage Comparators. For the default thresholds, connect UV2

directly to FB2. For some tracking applications, connect UV2 to an extra tap on the FB2 voltage divider string.
6 FB2

Voltage Feedback Input for Channel 2. Connect a resistor divider from the buck regulator output to GND and

tie the tap to FB2 to set the output voltage.
7 COMP2 Error Amplifier Output for Channel 2. Connect an RC network from COMP2 to FB2 to compensate Channel 2.
8 TRK2

Tracking Input for Channel 2. To track a master voltage, drive TRK2 from a voltage divider from the master

voltage. If the tracking function is not used, connect TRK2 to VREG.
9 SS2 Soft Start Control Input. Connect a capacitor from SS2 to GND to set the soft start period.
10 POK2

Open-Drain Power OK Output for Channel 2. Sinks current when UV2 is out of regulation. Connect a pull-up

resistor from POK2 to VREG.
11 BST2

Boost Capacitor Input for Channel 2. Powers the high-side gate driver DH2. Connect a 0.22 μF to 0.47 μF

ceramic capacitor from BST2 to SW2 and a Schottky diode from PV to BST2.
12 DH2 High-Side (Switch) Gate Driver Output for Channel 2.
13 SW2 Switch Node Connection for Channel 2.
14 CSL2

Current Sense Comparator Inverting Input for Channel 2. Connect a resistor between CSL2 and SW2 to set the

current-limit offset.
15 PGND2 Ground for Channel 2 Gate Driver. Connect to a ground plane directly beneath the ADP1823.
16 DL2 Low-Side (Synchronous Rectifier) Gate Driver Output for Channel 2.
17 PV

Positive Input Voltage for Gate Drivers DL1 and DL2. Connect PV to VREG and bypass to ground with a 1 μF

capacitor.
18 DL1 Low-Side (Synchronous Rectifier) Gate Driver Output for Channel 1.
19 PGND1 Ground for Channel 1 Gate Driver. Connect to a ground plane directly beneath the ADP1823.
20 CSL1

Current Sense Comparator Inverting Input for Channel 1. Connect a resistor between CSL1 and SW1 to set the

current-limit offset.
21 SW1 Switch Node Connection for Channel 1.
22 DH1 High-Side (Switch) Gate Driver Output for Channel 1.
23 BST1

Boost Capacitor Input for Channel 1. Powers the high-side gate driver DH1. Connect a 0.22 μF to 0.47 μF

ceramic capacitor from BST1 to SW1 and a Schottky diode from PV to BST1.
24 POK1

Open-Drain Power OK Output for Channel 1. Sinks current when FB1 is out of regulation. Connect a pull-up

resistor from POK1 to VREG.
25 EN1

Enable Input for Channel 1. Drive EN1 high to turn on the Channel 1 controller, and drive it low to turn off.

Enabling starts the internal LDO. Tie to IN for automatic startup.

Rev. A | Page 7 of 32

ADP1823

Pin No. Mnemonic Description

26 EN2

27 LDOSD

28 IN

29 VREG

30 SS1 Soft Start Control Input. Connect a capacitor from SS1 to GND to set the soft start period.
31 TRK1

32 COMP1 Error Amplifier Output for Channel 1. Connect an RC network from COMP1 to FB1 to compensate Channel 1.

Enable Input for Channel 2. Drive EN2 high to turn on the Channel 2 controller, and drive it low to turn off.
Enabling starts the internal LDO. Tie to IN for automatic startup.

LDO Shut-Down Input. Only used to shut down the LDO in those applications where IN is tied directly to VREG.
Otherwise connect LDOSD to GND or leave it open, as it has an internal 100 kΩ pull-down resistor.

Input Supply to the Internal Linear Regulator. Drive IN with 5.5 V to 20 V to power the ADP1823 from the LDO.
For input voltages between 2.9 V and 5.5 V, tie IN to VREG and PV.

Output of the Internal Linear Regulator (LDO). The internal circuitry and gate drivers are powered from VREG.
Bypass VREG to ground plane with 1 μF ceramic capacitor.

Tracking Input for Channel 1. To track a master voltage, drive TRK1 from a voltage divider to the master voltage.
If the tracking function is not used, connect TRK1 to VREG.

Rev. A | Page 8 of 32

ADP1823

TYPICAL PERFORMANCE CHARACTERISTICS

95

90

85

80

EFFICIENCY (%)

75

70

02

Figure 4. Efficiency vs. Load Current, V

95

90

85

80

EFFICIENCY (%)

75

VIN = 5V

VIN = 12V

VIN = 20V

51015

VIN = 15V

LOAD CURRENT (A)

= 1.8 V, 300 kHz Switching

OUT

V

= 3.3V

OUT

V

= 1.8V

OUT

V

= 1.2V

OUT

0

05936-004

92

90

88

86

84

EFFICIENCY (%)

82

80

78

020

Figure 7. Efficiency vs. Load Current, VIN = 12 V, V

4.980

4.975

4.970

VREG VOLTAGE (V)

4.965

SWITCHING FREQUENCY = 300kHz

SWITCHI NG FREQUENCY = 600kHz

51015

LOAD CURRENT (A)

= 1.8 V

OUT

05936-007

70

02

Figure 5. Efficiency vs. Load Current, V

94

92

90

88

SWITCHING FREQUENCY = 600kHz

86

84

EFFICIENCY (%)

82

80

78

02

Figure 6. Efficiency vs. Load Current, V

51015

LOAD CURRENT (A)

= 12 V, 300 kHz Switching

IN

SWITCHING FREQUENCY = 300kHz

51015

LOAD CURRENT (A)

= 5 V, V

IN

OUT

0

05936-005

0

05936-006

= 1.8 V

4.960
–40 85

Figure 8. VREG Voltage vs. Temperature

4.970

4.968

4.966

4.964

4.962

4.960

VREG (V)

4.958

4.956

4.954

4.952

4.950

520

Figure 9. VREG vs. Input Voltage, 10 mA Load

Rev. A | Page 9 of 32

–15103560

TEMPERATURE ( °C)

8 111417

INPUT VOLTAGE (V)

05936-008

05936-009

ADP1823

4.960

0.6010

4.956

4.952

VREG (V)

4.948

4.944

4.940
0 100

20 40 60 80

LOAD CURRENT (mA)

Figure 10. VREG vs. Load Current, V

5

4

3

2

VREG OUTPUT (V)

1

= 12 V

IN

0.6005

0.6000

0.5995

0.5990

FEEDBACK VOLT AGE (V)

0.5985

0.5980
–40 85

05936-010

–15 10 35 60

TEMPERATURE ( °C)

05936-013

Figure 13. Feedback Voltage vs. Temperature, V

330

320

310

300

290

FREQUENCY (Hz)

280

270

= 12 V

IN

0

0 50 100 150 200 250

LOAD CURRENT (mA)

Figure 11. VREG Current-Limit Foldback

T

VREG, AC-COUP LED, 1V/DIV

SW2 PIN, V

= 1.2V, 10V/DIV

OUT

SW1 PIN, V

200ns/DIV

= 1.8V, 10V/DIV

OUT

Figure 12. VREG Output During Normal Operation

260

–40 85

05936-011

–15103560

TEMPERATURE ( °C)

05936-014

Figure 14. Switching Frequency vs. Temperature, V

5

4

3

2

SUPPLY CURRENT (mA)

1

05936-012

0

22

5 8 11 14 17

SUPPLY VOLTAGE (V)

= 12 V

IN

0

05936-015

Figure 15. Supply Current vs. Input Voltage

Rev. A | Page 10 of 32

ADP1823

T

V

, AC-COUPLED,

OUT1

100mV/DIV

LOAD ON

LOAD OFF LOAD OFF

T

EXTERNAL CLOCK, FREQUENCY = 1MHz

SW PIN, CHANNEL 1

SW PIN, CHANNEL 2

100µs/DIV

Figure 16. 1.5 A to 15 A Load Transient Response, V

T

SS1, 500mV/DIV

V

, 1V/DIV

OUT1

SHORT CIRCUIT APPLIED

SHORT CIRCUIT REMOVED

4ms/DIV

Figure 17. Output Short-Circuit Response

T

= 12 V

IN

5936-016

400ns/DIV

05936-019

Figure 19. Out-of-Phase Switching, External 1 MHz Clock

T

EXTERNAL CLO CK, FREQUENCY = 2MHz

SW PIN, CHANNEL 1

SW PIN, CHANNEL 2

05936-017

200ns/DIV

05936-020

Figure 20. Out-of-Phase Switching, External 2 MHz Clock

VIN = 12V

T

V

, 2V/DIV

OUT1

SWIT CH NODE

CHANNEL 1

SWITCH NODE CHANNEL 2

400ns/DIV

Figure 18. Out-of-Phase Switching, Internal Oscillator

05936-018

Rev. A | Page 11 of 32

10ms/DIV

Figure 21. Enable Pin Response, V

EN1, 5V/DIV

= 12 V

IN

05936-021

ADP1823

T

SOFT START, 1V/DIV

4ms/DIV

Figure 22. Power-On Response, EN Tied to V

TRACK PIN VOL TAGE,

200mV/DIV

FEEDBACK PIN

VOLTAG E, 200mV/DI V

T

VIN, 5V/DIV

V

, 2V/DIV

OUT

EN2 PIN, 5V /DIV

V

, 2V/DIV

OUT2

V

, 2V/DIV

OUT1

05936-022

IN

EN1 = 5V

Figure 24. Coincident Voltage Tracking Response

40ms/DIV

05936-024

20ms/DIV

05936-023

Figure 23. Output Voltage Tracking Response

Rev. A | Page 12 of 32

ADP1823

THEORY OF OPERATION

The ADP1823 is a dual, synchronous, PWM buck controller
capable of generating output voltages down to 0.6 V and output
currents in the tens of amps. The switching of the regulators is
interleaved for reduced current ripple. It is ideal for a wide
range of applications, such as DSP and processor core I/O
supplies, general-purpose power in telecommunications,
medical imaging, gaming, PCs, set-top boxes, and industrial
controls. The ADP1823 controller operates directly from 2.9 V
to 20 V. It includes fully integrated MOSFET gate drivers and a
linear regulator for internal and gate drive bias.

The ADP1823 operates at a fixed 300 kHz or 600 kHz switching
frequency. The ADP1823 can also be synchronized to an
external clock to switch at up to 1 MHz per channel. The
ADP1823 includes soft start to prevent inrush current during
startup, as well as a unique adjustable lossless current limit.

The ADP1823 offers flexible tracking for startup and shutdown
sequencing. It is specified over the −40°C to +85°C temperature
range and is available in a space-saving, 5 mm × 5 mm,
32-lead LFCSP.

INPUT POWER

The ADP1823 is powered from the IN pin up to 20 V. The
internal low dropout linear regulator, VREG, regulates the IN
voltage down to 5 V. The control circuits, gate drivers, and
external boost capacitors operate from the LDO output. Tie the
PV pin to VREG and bypass VREG with a 1 μF or greater
capacitor.

The ADP1823 phase shifts the switching of the two step-down
converters by 180°, thereby reducing the input ripple current.
This reduces the size and cost of the input capacitors. The input
voltage should be bypassed with a capacitor close to the high­side switch MOSFETs (see the
section). In addition, a minimum 0.1 F ceramic capacitor
should be placed as close as possible to the IN pin.

The VREG output is sensed by the undervoltage lockout
(UVLO) circuit to be certain that enough voltage headroom
is available to run the controllers and gate drivers. As VREG
rises above about 2.7 V, the controllers are enabled. The IN
voltage is not directly monitored by UVLO. If the IN voltage is
insufficient to allow VREG to be above the UVLO threshold,
the controllers are disabled but the LDO continues to operate.
The LDO is enabled whenever either EN1 or EN2 is high, even
if VREG is below the UVLO threshold.

If the desired input voltage is between 2.9 V and 5.5 V, connect
the IN directly to the VREG and PV pins, and drive LDOSD
high to disable the internal regulator. The ADP1823 requires
that the voltage at VREG and PV be limited to no more than

5.5 V. This is the only application where the LDOSD pin is used,
and it should otherwise be grounded or left open. LDOSD has
an internal 100 k pull-down resistor.

Selecting the Input Capacitor

While IN is limited to 20 V, the switching stage can run from up
to 24 V and the BST pins can go to 30 V to support the gate drive.
This can provide an advantage, for example, in the case of high
frequency operation from a high input voltage. Dissipation on the
ADP1823 can be limited by running IN from a low voltage rail
while operating the switches from the high voltage rail.

START-UP LOGIC

The ADP1823 features independent enable inputs for each
channel. Drive EN1 or EN2 high to enable their respective
controllers. The LDO starts when either channel is enabled.
When both controllers are disabled, the LDO is disabled and
the IN quiescent current drops to about 10 μA. For automatic
startup, connect EN1 and/or EN2 to IN. The enable pins are
20 V compliant, but they sink current through an internal
100 k resistor once the EN pin voltage exceeds about 5 V.

INTERNAL LINEAR REGULATOR

The internal linear regulator, VREG, is low dropout, meaning it
can regulate its output voltage close to the input voltage. It
powers up the internal control and provides bias for the gate
drivers. It is guaranteed to have more than 100 mA of output
current capability, which is sufficient to handle the gate drive
requirements of typical logic threshold MOSFETs driven at up
to 1 MHz. Bypass VREG with a 1 μF or greater capacitor.

Because the LDO supplies the gate drive current, the output of
VREG is subjected to sharp transient currents as the drivers
switch and the boost capacitors recharge during each switching
cycle. The LDO has been optimized to handle these transients
without overload faults. Due to the gate drive loading, using the
VREG output for other auxiliary system loads is not
recommended.

The LDO includes a current limit well above the expected
maximum gate drive load. This current limit also includes a
short-circuit foldback to further limit the VREG current in the
event of a fault.

OSCILLATOR AND SYNCHRONIZATION

The ADP1823 internal oscillator can be set to either 300 kHz or
600 kHz. Drive the FREQ pin low for 300 kHz; drive it high for
600 kHz. The oscillator generates a start clock for each
switching phase and also generates the internal ramp voltages
for the PWM modulation.

The SYNC input is used to synchronize the converter switching
frequency to an external signal. The SYNC input should be
driven with twice the desired switching frequency, as the SYNC
input is divided by 2 and the resulting phases were used to clock
the two channels alternately.

Rev. A | Page 13 of 32

ADP1823

If FREQ is driven low, the recommended SYNC input
frequency is between 600 kHz and 1.2 MHz. If FREQ is driven
high, the recommended SYNC frequency is between 1.2 MHz
and 2 MHz. The FREQ setting should be carefully observed for
these SYNC frequency ranges, as the PWM voltage ramp scales
down from about 1.3 V based on the percentage of frequency
overdrive. Driving SYNC faster than recommended for the
FREQ setting results in a small ramp signal, which could affect
the signal-to-noise ratio and the modulator gain and stability.

When an external clock is detected at the first SYNC edge, the
internal oscillator is reset and clock control shifts to SYNC. The
SYNC edges then trigger subsequent clocking of the PWM
outputs. The DH rising edges appear about 400 ns after the
corresponding SYNC edge, and the frequency is locked to the
external signal. Depending on the startup conditions of
Channel 1 and Channel 2, either Channel 1 or Channel 2 can be
the first channel synchronized to the rising edge of the SYNC
clock. If the external SYNC signal disappears during operation,
the ADP1823 reverts back to its internal oscillator and
experiences a delay of no more than a single cycle of the
internal oscillator.

ERROR AMPLIFIER

The ADP1823 error amplifiers are operational amplifiers. The
ADP1823 senses the output voltages through external resistor
dividers at the FB1 and FB2 pins. The FB pins are the inverting
inputs to the error amplifiers. The error amplifiers compare
these feedback voltages to the internal 0.6 V reference, and the
outputs of the error amplifiers appear at the COMP1 and
COMP2 pins. The COMP pin voltages then directly control the
duty cycle of each respective switching converter.

A series/parallel RC network is tied between the FB pins and
their respective COMP pins to provide the compensation for
the buck converter control loops. A detailed design procedure
for compensating the system is provided in the
the Voltage Mode Buck Regulator

The error amplifier outputs are clamped between a lower limit
of about 0.7 V and a higher limit of about 2.4 V. When the
COMP pins are low, the switching duty cycle goes to 0%, and
when the COMP pins are high, the switching duty cycle goes to
the maximum.

The SS and TRK pins are auxiliary positive inputs to the error
amplifiers. Whichever has the lowest voltage, SS, TRK, or the
internal 0.6 V reference, controls the FB pin voltage and thus
the output. Therefore, if two or more of these inputs are close to
each other, a small offset is imposed on the error amplifier. For
example, if TRK approaches the 0.6 V reference, the FB sees
about 18 mV of negative offset at room temperature. For this
reason, the soft start pins have a built-in negative offset and
they charge to 0.8 V. If the TRK pins are not used, they should
be tied high to VREG.

section.

Compensating

SOFT START

The ADP1823 employs a programmable soft start that reduces
input current transients and prevents output overshoot. The SS1
and SS2 pins drive auxiliary positive inputs to their respective
error amplifiers, thus the voltage at these pins regulate the
voltage at their respective feedback control pins.

Program soft start by connecting capacitors from SS1 and SS2
to GND. On startup, the capacitor charges from an internal
90 kΩ resistor to 0.8 V. The regulator output voltage rises with
the voltage at its respective soft start pin, allowing the output
voltage to rise slowly, reducing inrush current. See the informa­tion about

When a controller is disabled or experiences a current fault, the
soft start capacitor is discharged through an internal 6 k
resistor, so that at restart or recovery from fault the output
voltage soft starts again.

Soft Start in the Applications Information section.

POWER OK INDICATOR

The ADP1823 features open-drain, Power OK outputs, POK1
and POK2, which sink current when their respective output
voltages drop, typically 8% below the nominal regulation
voltage. The POK pins also go low for overvoltage of typically
25%. Use this output as a logical power-good signal by
connecting pull-up resistors from POK1 and POK2 to VREG.

The POK1 comparator directly monitors FB1, and the threshold
is fixed at 550 mV for undervoltage and 750 mV for over­voltage. However, the POK2 undervoltage and overvoltage
comparator input is connected to UV2 rather than FB2. For the
default thresholds at FB2, connect UV2 directly to FB2.

In a ratiometric tracking configuration, however, Channel 2 can
be configured to be a fraction of a master voltage, and thus FB2
regulated to a voltage lower than the 0.6 V internal reference. In
this configuration, UV2 can be tied to a different tap on the
feedback divider, allowing a POK2 indication at an appropriate
output voltage threshold. See the
Undervoltage Threshold for Ratiometric Tracking

Setting the Channel 2

section.

TRACKING

The ADP1823 features tracking inputs, TRK1 and TRK2, which
make the output voltages track another, master voltage. This is
especially useful in core and I/O voltage sequencing
applications where one output of the ADP1823 can be set to
track and not exceed the other, or in other multiple output
systems where specific sequencing is required.

The internal error amplifiers include three positive inputs, the
internal 0.6 V reference voltage and their respective SS and TRK
pins. The error amplifiers regulate the FB pins to the lowest of
the three inputs. To track a supply voltage, tie the TRK pin to a
resistor divider from the voltage to be tracked. See the
Tr ac ki n g

section.

Vo lt a ge

Rev. A | Page 14 of 32

ADP1823

MOSFET DRIVERS

The DH1 and DH2 pins drive the high-side switch MOSFETs.
These are boosted 5 V gate drivers that are powered by
bootstrap capacitor circuits. This configuration allows the high­side, n-channel MOSFET gate to be driven above the input
voltage, allowing full enhancement and a low voltage drop
across the MOSFET. The bootstrap capacitors are connected
from the SW pins to their respective BST pins. The bootstrap
Schottky diodes from the PV pins to the BST pins recharge the
bootstrap capacitors every time the SW nodes go low. Use a
bootstrap capacitor value greater than 100× the high-side
MOSFET input capacitance.

In practice, the switch node can run up to 24 V of input voltage,
and the boost nodes can operate more than 5 V above this to
allow full gate drive. The IN pin can be run from 2.9 V to 20 V.
This can provide an advantage, for example, in the case of high
frequency operation from very high input voltage. Dissipation on
the ADP1823 can be limited by running IN from a lower voltage
rail while operating the switches from the high voltage rail.

The switching cycle is initiated by the internal clock signal. The
high-side MOSFET is turned on by the DH driver, and the SW
node goes high, pulling up on the inductor. When the internally
generated ramp signal crosses the COMP pin voltage, the switch
MOSFET is turned off and the low-side synchronous rectifier
MOSFET is turned on by the DL driver. Active break-before­make circuitry, as well as a supplemental fixed dead time, are
used to prevent cross-conduction in the switches.

The DL1 and DL2 pins provide gate drive for the low-side
MOSFET synchronous rectifiers. Internal circuitry monitors the
external MOSFETs to ensure break-before-make switching to
prevent cross-conduction. An active dead time reduction circuit
reduces the break-before-make time of the switching to limit
the losses due to current flowing through the synchronous
rectifier body diode.

The PV pin provides power to the low-side drivers. It is limited
to 5.5 V maximum input and should have a local decoupling
capacitor.

The synchronous rectifiers are turned on for a minimum time
of about 200 ns on every switching cycle in order to sense the
current. This and the nonoverlap dead times put a limit on the
maximum high-side switch duty cycle based on the selected
switching frequency. Typically, this is about 90% at 300 kHz
switching, and at 1 MHz switching, it reduces to about 70%
maximum duty cycle.

Because the two channels are 180° out of phase, if one is
operating around 50% duty cycle, it is common for it to jitter
when the other channel starts switching. The magnitude of the

jitter depends somewhat on layout, but it is difficult to avoid in
practice.

When the ADP1823 is disabled, the drivers shut off the external
MOSFETs, so that the SW node becomes three-stated or
changes to high impedance.

CURRENT LIMIT

The ADP1823 employs a unique, programmable, cycle-by-cycle
lossless current-limit circuit that uses a small, ordinary,
inexpensive resistor to set the threshold. Every switching cycle,
the synchronous rectifier turns on for a minimum time and the
voltage drop across the MOSFET R
determine if the current is too high.

This measurement is done by an internal current-limit
comparator and an external current-limit set resistor. The
resistor is connected between the switch node (that is the drain
of the rectifier MOSFET) and the CSL pin. The CSL pin, which
is the inverting input of the comparator, forces 50 A through
the resistor to create an offset voltage drop across it.

When the inductor current is flowing in the MOSFET rectifier,
its drain is forced below PGND by the voltage drop across its
R

DSON

. If the R

voltage drop exceeds the preset drop on the

DSON

external resistor, the inverting comparator input is similarly
forced below PGND and an overcurrent fault is flagged.

The normal transient ringing on the switch node is ignored for
100 ns after the synchronous rectifier turns on, so the overcur­rent condition must also persist for 100 ns in order for a fault to
be flagged.

When an overcurrent event occurs, the overcurrent comparator
prevents switching cycles until the rectifier current has decayed
below the threshold. The overcurrent comparator is blanked for
the first 100 ns of the synchronous rectifier cycle to prevent
switch node ringing from falsely tripping the current limit. The
ADP1823 senses the current limit during the off cycle. When
the current-limit condition occurs, the ADP1823 resets the
internal clock until the overcurrent condition disappears. This
suppresses the start clock cycles until the overload condition is
removed. At the same time, the SS cap is discharged through a
6 k resistor. The SS input is an auxiliary positive input of the
error amplifier, so it behaves like another voltage reference. The
lowest reference voltage wins. Discharging the SS voltage causes
the converter to use a lower voltage reference when switching is
allowed again. Therefore, as switching cycles continue around
the current limit, the output looks roughly like a constant
current source due to the rectifier limit, and the output voltage
droops as the load resistance decreases. When the overcurrent
condition is removed, operation resumes in soft start mode.

Setting the Current Limit section for more information.

See the

is measured to

DSON

Rev. A | Page 15 of 32

ADP1823

APPLICATIONS INFORMATION

SELECTING THE INPUT CAPACITOR

The input current to a buck converter is a pulse waveform. It is
zero when the high-side switch is off and approximately equal
to the load current when it is on. The input capacitor carries the
input ripple current, allowing the input power source to supply
only the dc current. The input capacitor needs sufficient ripple
current rating to handle the input ripple and also ESR that is
low enough to mitigate input voltage ripple. For the usual current
ranges for these converters, good practice is to use two parallel
capacitors placed close to the drains of the high-side switch
MOSFETs, one bulk capacitor of sufficiently high current rating
as calculated in Equation 1, along with 10 F of ceramic capacitor.

Select an input bulk capacitor based on its ripple current rating.
If both Channel 1 and Channel 2 maximum output load
currents are about the same, the input ripple current is less than
half of the higher of the output load currents. In this case, use
an input capacitor with a ripple current rating greater than half
of the highest load current.

I

I >

RIPPLE

If the Output 1 and Output 2 load currents are significantly
different (if the smaller is less than 50% of the larger), then the
procedure in Equation 1 yields a larger input capacitor than
required. In this case, the input capacitor can be chosen as in
the case of a single phase converter with only the higher load
current, so first determine the duty cycle of the output with the
larger load current:

D =

In this case, the input capacitor ripple current is approximately

where I

L

channel and D is the duty cycle. Use this method to determine
the input capacitor ripple current rating for duty cycles between
20% and 80%.

For duty cycles less than 20% or greater than 80%, use an input
capacitor with ripple current rating I

Selecting the Output LC Filter

The output LC filter attenuates the switching voltage, making
the output an almost dc voltage. The output LC filter
characteristics determine the residual output ripple voltage.

Choose an inductor value such that the inductor ripple current
is approximately 1/3 of the maximum dc output load current.
Using a larger value inductor results in a physical size larger
than is required, and using a smaller value results in increased
losses in the inductor and MOSFETs.

L

(1)

2

V

OUT

(2)

V

IN

)1( DDII

−≈

LRIPPLE

(3)

is the maximum inductor or load current for the

> 0.4 IL.

RIPPLE

Choose the inductor value by the equation

−

VV

⎛

⎞

IN

=

L



L

V

OUT

OUT

⎜

⎟

⎜

fI

SW

⎝

(4)

⎟

V

IN

⎠

where:

L is the inductor value.
f

is the switching frequency.

SW

V

is the output voltage.

OUT

is the input voltage.

V

IN

ΔI

is the inductor ripple current, typically 1/3 of the maximum

L

dc load current.

Choose the output bulk capacitor to set the desired output voltage
ripple. The impedance of the output capacitor at the switching
frequency multiplied by the ripple current gives the output
voltage ripple. The impedance is made up of the capacitive
impedance plus the nonideal parasitic characteristics, the
equivalent series resistance (ESR) and the equivalent series
inductance (ESL). The output voltage ripple can be
approximated with

OUT

⎛
⎜

ESRIV

L

⎜
⎝

1

8

Cf

SW

OUT

4

++Δ=Δ ESLf

SW

⎞
⎟

(5)

⎟
⎠

where:

ΔV

is the output ripple voltage.

OUT

is the inductor ripple current.

ΔI

L

ESR is the equivalent series resistance of the output capacitor

(or the parallel combination of ESR of all output capacitors).
ESL is the equivalent series inductance of the output capacitor
(or the parallel combination of ESL of all capacitors).

Note that the factors of 8 and 4 in Equation 5 would normally
be 2π for sinusoidal waveforms, but the ripple current
waveform in this application is triangular. Parallel combinations
of different types of capacitors, for example, a large aluminum
electrolytic in parallel with MLCCs, may give different results.

Usually, the impedance is dominated by ESR at the switching
frequency, as stated in the maximum ESR rating on the
capacitor data sheet, so this equation reduces to

(6)

ESRIV

Δ≅Δ

OUT

L

Electrolytic capacitors have significant ESL also, on the order of
5 nH to 20 nH, depending on type, size, and geometry, and PCB
traces contribute some ESR and ESL as well. However, using the
maximum ESR rating from the capacitor data sheet usually
provides some margin such that measuring the ESL is not
usually required.

Rev. A | Page 16 of 32

ADP1823

V

(

)

+

++=

θ+=

−+°=

In the case of output capacitors where the impedance of the ESR
and ESL are small at the switching frequency, for instance,
where the output cap is a bank of parallel MLCC capacitors, the
capacitive impedance dominates and the ripple equation
reduces to

I



V

 ≅

OUT

L

(7)

fC

8

OUT

SW

Make sure that the ripple current rating of the output capacitors
is greater than the maximum inductor ripple current.

During a load step transient on the output, the output capacitor
supplies the load until the control loop has a chance to ramp the
inductor current. This initial output voltage deviation due to a
change in load is dependent on the output capacitor characteristics.
Again, usually the capacitor ESR dominates this response, and
the V
value for I

in Equation 6 can be used with the load step current

OUT

.

L

SELECTING THE MOSFETS

The choice of MOSFET directly affects the dc-to-dc converter
performance. The MOSFET must have low on resistance
(R

) to reduce I2R losses and low gate-charge to reduce

DSON

switching losses. In addition, the MOSFET must have low
thermal resistance to ensure that the power dissipated in the
MOSFET does not result in overheating.

The power switch, or high-side MOSFET, carries the load
current during the PWM on-time, carries the transition loss of
the switching behavior, and requires gate charge drive to switch.
Typically, the smaller the MOSFET R
charge and vice versa. Therefore, it is important to choose a
high-side MOSFET that balances those two losses. The conduction
loss of the high-side MOSFET is determined by the equation

DSON

OUT

(8)

V

IN

RIP2≅

L

C

where:

P

= conduction power loss.

C

R

= MOSFET on resistance.

DSON

The gate charge losses are dissipated by the ADP1823 regulator
and gate drivers and affect the efficiency of the system. The gate
charge loss is approximated by the equation

(9)

fQVP ≅

IN

G

SWG

where:

= gate charge power.

P

G

Q

= MOSFET total gate charge.

G

f

= converter switching frequency.

SW

Making the conduction losses balance the gate charge losses
usually yields the most efficient choice.

, the higher the gate

DSON

Furthermore, the high-side MOSFET transition loss is
approximated by the equation

fttIV

FRLIN

SW

P

where t

≅

T

and tF are the rise and fall times of the selected

R

2

(10)

MOSFET as stated in the MOSFET data sheet.

The total power dissipation of the high-side MOSFET is the
sum of the previous losses:

(11)

PPPP

GC

T

where P

D

is the total high-side MOSFET power loss. This

D

dissipation heats the high-side MOSFET.

The conduction losses may need an adjustment to account for
the MOSFET R
MOSFET R

variation with temperature. Note that

DSON

increases with increasing temperature. The

DSON

MOSFET data sheet should list the thermal resistance of the
package, θ
coefficient of the R

, along with a normalized curve of the temperature

JA

. For the power dissipation estimated

DSON

above, calculate the MOSFET junction temperature rise over
the ambient temperature of interest:

PTT

(12)

J

Then calculate the new R
curve and the R
temperature coefficient (TC) of the R
alternate method to calculate the MOSFET R
temperature, T

DSON

D

JAA

from the temperature coefficient

DSON

spec at 25°C. A typical value of the

DSON

is 0.004/°C, so an

DSON

, is

J

J

DSON

TTCRTR (13)

DSON

J

at a second

)]C25(1[C25@@ °

Then the conduction losses can be recalculated and the
procedure iterated once or twice until the junction temperature
calculations are relatively consistent.

The synchronous rectifier, or low-side MOSFET, carries the
inductor current when the high-side MOSFET is off. For high
input voltage and low output voltage, the low-side MOSFET
carries the current most of the time, and therefore, to achieve
high efficiency it is critical to optimize the low-side MOSFET
for small on resistance. In cases where the power loss exceeds
the MOSFET rating, or lower resistance is required than is
available in a single MOSFET, connect multiple low-side
MOSFETs in parallel. The equation for low-side MOSFET
power loss is

⎛

2

⎜

RIP 1

L

LS

DSON

⎜
⎝

⎞

V

OUT

⎟

−≅

(14)

⎟

V

IN

⎠

where:

is the low-side MOSFET on resistance.

P

LS

is the parallel combination of the resistances of the low-

R

DSON

side MOSFETs.

Check the gate charge losses of the synchronous rectifier(s)
using the P

equation (Equation 9) to be sure they are

G

reasonable.

Rev. A | Page 17 of 32

ADP1823

SETTING THE CURRENT LIMIT

The current-limit comparator measures the voltage across the
low-side MOSFET to determine the load current.

The current limit is set through the current-limit resistor, RCL.
The current sense pins, CSL1 and CSL2, source 50 A through
their respective R

. This creates an offset voltage of RCL multiplied

CL

by the 50 A CSL current. When the drop across the low-side
MOSFET R

is equal to or greater than this offset voltage, the

DSON

ADP1823 flags a current-limit event.

Because the CSL current and the MOSFET R

vary over

DSON

process and temperature, the minimum current limit should be
set to ensure that the system can handle the maximum desired
load current. To do this, use the peak current in the inductor,
which is the desired current-limit level plus the ripple current,
the maximum R

of the MOSFET at its highest expected

DSON

temperature, and the minimum CSL current:

R =

where I

CL

is the peak inductor current.

LPK

DSON

)( MAX

(15)

A44

RI

LPK

Because the buck converters are usually running fairly high
current, PCB layout and component placement may affect the
current-limit setting. An iteration of the R

values may be

CL

required for a particular board layout and MOSFET selection. If
alternate MOSFETs are substituted at some point in production,
the values of the R

resistor may also need an iteration.

CL

FEEDBACK VOLTAGE DIVIDER

The output regulation voltage is set through the feedback
voltage divider. The output voltage is reduced through the
voltage divider and drives the FB feedback input. The regulation
threshold at FB is 0.6 V. The maximum input bias current into
FB is 100 nA. For a 0.15% degradation in regulation voltage and
with 100 nA bias current, the low-side resistor, R
less than 9 kΩ, which results in 67 µA of divider current. For

, use 1 k to 10 k. A larger value resistor can be used, but

R

BOT

results in a reduction in output voltage accuracy due to the
input bias current at the FB pin, while lower values cause
increased quiescent current consumption. Choose R
the output voltage by using the following equation:

⎛

OUT

⎜

RR

=

BOTTOP

⎜

V

⎝

⎞

VV

−

FB

⎟

(16)

⎟

FB

⎠

where:

is the high-side voltage divider resistance.

R

TOP

R

is the low-side voltage divider resistance.

BOT

is the regulated output voltage.

V

OUT

V

is the feedback regulation threshold, 0.6 V.

FB

, needs to be

BOT

to set

TOP

COMPENSATING THE VOLTAGE MODE BUCK REGULATOR

Assuming the LC filter design is complete, the feedback control
system can then be compensated. Good compensation is critical
to proper operation of the regulator. Calculate the quantities in
Equation 17 through Equation 58 to derive the compensation
values. For convenience,
design equations and space for calculations. The information
can then be added to a spread-sheet for automated calculation.

The goal is to guarantee that the voltage gain of the buck
converter crosses unity at a slope that provides adequate phase
margin for stable operation. Additionally, at frequencies above
the crossover frequency, f
margin and attenuation of switching noise are important
secondary goals. For initial practical designs, a good choice for
the crossover frequency is one tenth of the switching frequency,
so first calculate

f

SW

f =

CO

(17)

10

This gives sufficient frequency range to design a compensation
that attenuates switching artifacts, while also giving sufficient
control loop bandwidth to provide good transient response.

The output LC filter is a resonant network that inflicts two poles
upon the response at a frequency f

f

LC

1

=

LCπ

2

Generally speaking, the LC corner frequency is about two
orders of magnitude below the switching frequency, and
therefore about one order of magnitude below crossover. To
achieve sufficient phase margin at crossover to guarantee
stability, the design must compensate for the two poles at the
LC corner frequency with two zeros to boost the system phase
prior to crossover. The two zeros require an additional pole or
two above the crossover frequency to guarantee adequate gain
margin and attenuation of switching noise at high frequencies.

Depending on component selection, one zero might already be
generated by the equivalent series resistance (ESR) of the output
capacitor. Calculate this zero corner frequency, f

=

f

ESR

2

ESR

This zero is often near or below crossover and is useful in
bringing back some of the phase lost at the LC corner.

Table 4 provides a summary of the

, guaranteeing sufficient gain

CO

, so next calculate

LC

(18)

, as

ESR

1

(19)

CRπ

OUT

Rev. A | Page 18 of 32

ADP1823

Figure 25 shows a typical Bode plot of the LC filter by itself.

LC FILTER BODE PLOT

GAIN

0dB

PHASE

0°

–90°

–180°

f

LCfESRfCO

–40dB/dec

–20dB/dec

Figure 25. LC Filter Bode Plot

A

Φ

FILTER

FILTER

f

SW

FREQUENCY

The gain of the LC filter at crossover can be linearly
approximated from

FILTER

A logdB20logdB40

FILTER

If f

≈ fCO, then add another 3 dB to account for the local

ESR

Figure 25 as

AAA +=

ESRLC

⎛

f

⎜

×−=

⎜

f

⎝

ESR

LC

⎞
⎟

⎟
⎠

⎛

⎞

f

CO

⎜

×−

⎟

f

ESR

(20)

⎟
⎠

⎜
⎝

difference between the exact solution and the linear
approximation above.

To compensate the control loop, the gain of the system must be
brought back up so that it is 0 dB at the desired crossover
frequency. Some gain is provided by the PWM modulation
itself, so next calculate

=

A log20

MOD

⎛
⎜

⎜
⎝

V

⎞

V

IN

⎟

(21)

⎟

RAMP

⎠

For systems using the internal oscillator, this becomes

⎛

⎞

V

IN

⎜

⎟

=

A

MOD

log20

⎜
⎝

(22)

⎟

V

3.1

⎠

05936-025

Note that if the converter is being synchronized, the ramp
voltage, V

, is lower than 1.3 V by the percentage of

RAMP

frequency increase over the nominal setting of the FREQ pin:

RAMP

=

⎜
⎝

⎛
⎜

V3.1

f

⎞

fV2

FREQ

⎟

(23)

⎟

SYNC

⎠

The factor of 2 in the numerator takes into account that the
SYNC frequency is divided by 2 to generate the switching
frequency. For example, if the FREQ pin is set high for the
600 kHz range and a 2 MHz SYNC signal is applied, the ramp
voltage is 0.78 V. This increases the gain of the modulator by

4.4 dB in this example.

The rest of the system gain needed to reach 0 dB at crossover is
provided by the error amplifier and is covered in the compensation
design information that follows. The total gain of the system,
therefore, is given by

A

= A

MOD

+ A

T

FILTER

+ A

(24)

COMP

where:

A

is the gain of the PWM modulator

MOD

is the gain of the LC filter including the effects of

A

FILTER

the ESR zero

is the gain of the compensated error amplifier.

A

COMP

Additionally, the phase of the system must be brought back up
to guarantee stability. Note from the bode plot of the filter that
the LC contributes −180° of phase shift. Additionally, because
the error amplifier is an integrator at low frequency, it
contributes an initial −90°. Therefore, before adding
compensation or accounting for the ESR zero, the system is
already down −270°. To avoid loop inversion at crossover, or

−180° phase shift, a good initial practical design is to require a
phase margin of 60°, which is therefore an overall phase loss of

−120° from the initial low frequency dc phase. The goal of the
compensation is to boost the phase back up from −270° to

−120° at crossover.

Two common compensation schemes are used, which are
sometimes referred to as Type II or Type III compensation,
depending on whether the compensation design includes two
or three poles. (Dominant pole compensations, or single pole
compensation, is referred to as Type I compensation, but
unfortunately, it is not very useful for dealing successfully with
switching regulators.)

If the zero produced by the ESR of the output capacitor provides
sufficient phase boost at crossover, Type II compensation is
adequate. If the phase boost produced by the ESR of the output
capacitor is not sufficient, another zero is added to the
compensation network, and thus Type III is used. A general rule
to determine the scheme is whether the phase contribution of
the ESR zero is greater than 70° at crossover.

Rev. A | Page 19 of 32

ADP1823

=

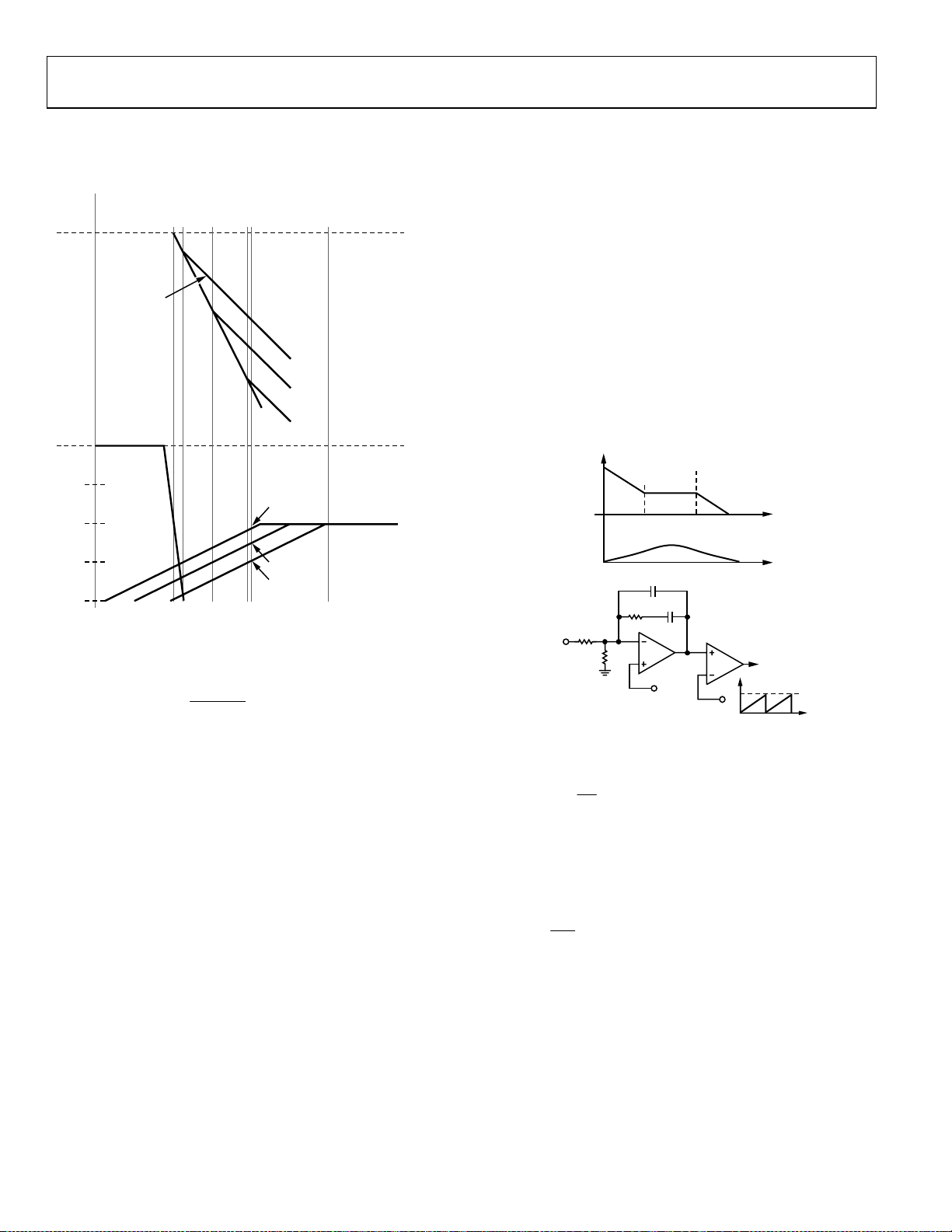

In Figure 26, the location of the ESR zero corner frequency
gives significantly different net phase at the crossover frequency.

LC FILTER BODE PLOT

PHASE CON TRIBUT ION AT CROSSO VER

GAIN

PHASE

OF VARIOUS ESR Z ERO CORNERS

f

f

0dB

0°

–90°

–180°

f

–40dB/dec

–20dB/dec

ESR2

ESR1

LC

ESR3

fCOf

Φ

1

Φ

Φ

f

SW

FREQUENCY

2

3

05936-026

Figure 26. LC Filter Bode Plot

Using a linear approximation from Figure 26, the phase
contribution of the ESR zero at crossover can be estimated by

f×

10

CO

×°=φ

ESR

≥ 70°, then Type II compensation is adequate.

If φ

ESR

< 70°, use Type III, as an additional zero is needed.

If φ

ESR

log45

(25)

f

ESR

The total phase of the system at crossover is the sum of the
contributing elements, namely:

= φLC + φ

φ

T

ESR

+ φ

(26)

COMP

where:

= −180°

φ

LC

is as calculated in Equation 25

φ

ESR

φ

= −90° + φP + φ

COMP

Z

(27)

Note in the compensator phase expression shown in Equation 27,
the −90° term is the phase contributed by the initial integrator
pole. The φ
frequency compensation poles placed above crossover, and φ

is the additional phase contributed by the high

P

is

Z

the phase contributed by the compensation zeros placed below
crossover. For the system to be stable at crossover, phase boost
is required from the compensator.

1

D. Venable, “The K Factor: A New Mathematical Tool for Stability Analysis and Synthesis,” 1983.

Rev. A | Page 20 of 32

For stability, the total phase at crossover is designed to be equal
to −120°:

φ

= φLC + φ

T

−120° = −180° + φ

ESR

+ φ

COMP

+ −90° + φP + φZ (29)

ESR

(28)

Define phase boost, φB, to be the portion of the phase at cross­over contributed by the compensator’s higher order poles and
zeros:

φ

= φP + φZ (30)

B

φ

Ve na b l e

= 150° − φ

B

1

showed that an optimum compensation solution was

(31)

ESR

to place the zeros and poles symmetrically around the crossover
frequency. He derived a factor known as K with which the
frequencies of the compensation zeros and poles may be calculated.
K is calculated for the type of compensation selected in

Figure 27.

Type II Compensator

–

1

S

L

O

G

P

E

f

Z

C

R

Z

EA

HF

VREF

–

1

S

L

O

P

E

f

P

C

I

COMP

TO PWM

VRAMP

0V

5936-027

FROM

V

OUT

(dB)

PHASE

–180°

–270°

R

TOP

R

BOT

Figure 27. Type II Compensation

To calculate K for Type II compensation, use

K

⎜

2

⎝

φ

⎛

= 45

tan

B

⎞

(32)

°+

⎟
⎠

Values of K between 4 and 15 are practical for implementation;
if the selected type of compensation does not yield a reasonable
value of K, try the other type.

From K, the frequency of the added zeros, f

f

CO

f

Z

for Type II (33)

=

K

, is below crossover by

Z

Similarly, the frequency of the added poles, fP, should be above
crossover:

for Type II (34)

P

Kff

CO

ADP1823

V

K

f

V

×

Select R

between 1 k and 10 k. A good starting value is

TOP

2 k.

Next, calculate R

R−=

BOT

=

R

BOT

V

OUT

OUT

as

BOT

R

FB

TOP

(35)

VV

FB

V6.0−×

R

TOP

(36)

V6.0

Note that if ratiometric tracking is used, substitute the actual FB
voltage for the 0.6 V term used in Equation 36.

Calculate the compensator gain needed at crossover to achieve
0 dB total system gain:

(37)

AAAA ++=

MOD

T

dB0

FILTER

MOD

Calculate the value of R

A log20

COMP

×=

A

⎛
⎜
⎝

×=

10

RR

TOPZ

FILTER

MODCOMP

⎛
⎜
⎜
⎝

COMP

20

COMP

AAA ++=

(38)

COMP

(39)

AAA −−= dB0

FILTER

to achieve that gain:

Z

⎞

R

Z

⎟

(40)

⎟

R

TOP

⎠

⎞
⎟
⎠

(41)

Calculate the integrator cap value to place the compensation
zero at the desired frequency:

1

=

C

I

2

(42)

fRπ

ZZ

Calculate the capacitor value for the high frequency pole:

1

=

C

HF

2

(43)

fRπ

P

Z

Type III Compensator

–

FROM

V

OUT

1

G

S

L

(dB)

–90°

PHASE

–270°

R

FF

R

TOP

R

BOT

O

P

E

R

C

Z

FF

Figure 28. Type III Compensation

E

P

O

L

–

S

1

1

+

f

Z

C

HF

EA

VREF

S

L

O

P

E

f

P

C

I

COMP

TO PWM

VRAMP

0V

5936-028

K (44)

⎜

⎜

2

⎝

⎝

φ

⎛

⎛

B

⎜

=

tan

2

⎞

⎞

⎟

+

45

⎟

⎟

⎠

⎠

and

CO

f

=

Z

(45)

and

= fCO √K (46)

f

P

Select R

between 1 k and 10 k. A good starting point is

TOP

2 k.

Next, calculate R

R−=

BOT

=

R

BOT

V

OUT

OUT

FB

BOT

as

R

TOP

(47)

VV

FB

V6.0

R

TOP

(48)

V6.0

−

Note that if ratiometric tracking is used, substitute the actual FB
voltage for the 0.6 V term in Equation 48.

Calculate the feedforward capacitor to produce the first
compensator zero:

1

=

C

FF

2

(49)

fRπ

ZTOP

Calculate the resistor of the feedforward network to provide the
first high frequency compensator pole:

1

=

R

FF

2

(50)

fCπ

PFF

Calculate the impedance of the feedforward network at the
crossover frequency, as this is required to set the gain of the
compensator:

Z +=

FF

1

2

fCπ

FF

CO

(51)

R

FF

Calculate the compensator gain needed at crossover to achieve
0 dB total system gain:

= A

A

T

0 dB = A
A

COMP

+ A

MOD

MOD

= 0 dB − A

Calculate the value of R

A

COMP

()

TOPZ

+ A

×=

log20

ZRR

FILTER

FILTER

FF

MOD

⎛
⎜
⎜
⎝

×=

+ A

Z

(52)

COMP

+ A

COMP

− A

FILTER

to achieve that gain:

R

Z

ZR

||

FF

TOP

A

⎛

COMP

⎜

20

⎝

10||

(53)

(54)

⎞
⎟

(55)

⎟
⎠

⎞
⎟
⎠

(56)

Calculate the integrator cap value to place the compensation
zero at the desired frequency:

1

=

I

(57)

fRπC2

ZZ

Rev. A | Page 21 of 32

ADP1823

V

Calculate the capacitor value for the high frequency pole:

1

=

HF

(58)

fRπC2

P

Z

Check that the calculated component values are reasonable. For
instance, capacitors smaller than about 10 pF should be avoided.
In addition, the ADP1823 error amplifier has finite output
current drive, so R

values less than a few k and CI values

Z

greater than 10 nF should be avoided. If necessary, recalculate
the compensation network with a different starting value of
R

. If CHF is too small, start with a smaller value R

TOP

too small and C

is too big, start with a larger value of R

I

. If RZ is

TOP

TOP

.

This compensation technique should yield a good working
solution. For a more exact method or to optimize for other
system characteristics, a number of references and tools are
available from your Analog Devices, Inc., application
support team.

SOFT START

The ADP1823 uses an adjustable soft start to limit the output
voltage ramp-up period, thus limiting the input inrush current.
The soft start is set by selecting the capacitor, C
SS2 to GND. The ADP1823 charges C

to 0.8 V through an

SS

, from SS1 and

SS

internal 90 k resistor. The voltage on the soft start capacitor
while it is charging is

t

⎞

RC

⎟

SS

(59)

eV 1V8.0

−=
⎟

⎠

CSS

⎛
⎜

⎜
⎝

The soft start period ends when the voltage on the soft start pin
reaches 0.6 V. Substituting 0.6 V for V

and solving for the

SS

number of RC time constants:

t

SS

⎞

)(k90

C

⎟

SS

(60)

⎟
⎠

(62)

RCt 386.1=

Because R = 90 k

tC

SSSS

⎛
⎜

1V8.0V6.0

e

−=

⎜
⎝

(61)

SSSS

:

secF/8×=

where tSS is the desired soft start time in seconds.

VOLTAGE TRACKING

The ADP1823 includes a tracking feature that prevents an
output voltage from exceeding a master voltage. This is
especially important when the ADP1823 is powering separate
power supply voltages on a single integrated circuit, such as the
core and I/O voltages of a DSP or microcontroller. In these
cases, improper sequencing can cause damage to the load.

The ADP1823 tracking input is an additional positive input to
the error amplifier. The feedback voltage is regulated to the
lower of the 0.6 V reference or the voltage at TRK, so a lower
voltage on TRK limits the output voltage. This feature allows
implementation of two different types of tracking, coincident

tracking where the output voltage is the same as the master
voltage until the master voltage reaches regulation, or
ratiometric tracking, where the output voltage is limited to a
fraction of the master voltage.

In all tracking configurations, the master voltage should be
higher than the slave voltage.

Note that the soft start time setting of the master voltage should
be longer than the soft start of the slave voltage. This forces the
rise time of the master voltage to be imposed on the slave voltage.
If the soft start setting of the slave voltage is longer, the slave
comes up more slowly and the tracking relationship is not seen
at the output. The slave channel should still have a soft start
capacitor to give a small but reasonable soft start time to protect
in case of restart after a current-limit event.

OUT

R

ERROR

AMPLIFIER

COMP

FB

TRK

0.6V

SS

DETAIL VIEW OF

ADP1823

Figure 29. Voltage Tracking

R

R

TRKT

TRKB

TOP

R

BOT

MASTER
VOLTAGE

05936-029

COINCIDENT TRACKING

The most common application is coincident tracking, used in
core vs. I/O voltage sequencing and similar applications.
Coincident tracking limits the slave output voltage to be the
same as the master voltage until it reaches regulation. Connect
the slave TRK input to a resistor divider from the master voltage
that is the same as the divider used on the slave FB pin. This
forces the slave voltage to be the same as the master voltage.

For coincident tracking, use R
where R

TOP

and R

are the values chosen in the Compensating

BOT

the Voltage Mode Buck Regulator

VOLTAGE

Figure 30. Coincident Tracking

As the master voltage rises, the slave voltage rises identically.
Eventually, the slave voltage reaches its regulation voltage,
where the internal reference takes over the regulation while the
TRK input continues to increase and thus removes itself from
influencing the output voltage.

= R

TRKT

TOP

and R

section.

MASTER VOLTAGE

SLAVE VOLTAGE

TIME

TRKB

05936-030

= R

BOT

,

Rev. A | Page 22 of 32

ADP1823

+

=

(

)

−

(

)

−

To ensure that the output voltage accuracy is not compromised
by the TRK pin being too close in voltage to the 0.6 V reference,
make sure that the final value of the master voltage is greater
than the slave regulation voltage by at least 10%, or 60 mV as
seen at the FB node, and the higher, the better. A difference of
60 mV between TRK and the 0.6 V reference produces about
3 mV of offset in the error amplifier, or 0.5%, at room
temperature, while 100 mV between them produces only

0.6 mV or 0.1% offset.

RATIOMETRIC TRACKING

Ratiometric tracking limits the output voltage to a fraction of
the master voltage. For example, the termination voltage for
DDR memories, VTT, is set to half the VDD voltage.

MASTER VOLTAGE

SLAVE VOLTAGE

VOLTAGE

TIME

Figure 31. Ratiometric Tracking

For ratiometric tracking, the simplest configuration is to tie the
TRK pin of the slave channel to the FB pin of the master channel.
This has the advantage of having the fewest components, but
the accuracy suffers as the TRK pin voltage becomes equal to
the internal reference voltage and an offset is imposed on the
error amplifier of about −18 mV at room temperature.

A more accurate solution is to provide a divider from the
master voltage that sets the TRK pin voltage to be something
lower than 0.6 V at regulation, for example, 0.5 V. The slave
channel can be viewed as having a 0.5 V external reference
supplied by the master voltage.

Once this is complete, then the FB divider for the slave voltage
is designed as in the
Regulator
the V

section, except to substitute the 0.5 V reference for

voltage. The ratio of the slave output voltage to the

FB

Compensating the Voltage Mode Buck

master voltage is a function of the two dividers:

V

V

MASTER

OUT

⎛
⎜

+

1

⎜
⎝

=

⎛
⎜

+

1

⎜
⎝

R

R
R

⎞

R

TOP

⎟
⎟

BOT

⎠

(63)

⎞

TRKT

⎟
⎟

TRKB

⎠

Another option is to add another tap to the divider for the
master voltage. Split the R

resistor of the master voltage into

BOT

two pieces, with the new tap at 0.5 V when the master voltage is
in regulation. This saves one resistor, but be aware that Type III
compensation on the master voltage causes the feedforward
signal of the master voltage to appear at the TRK input of the
slave channel.

5936-031

By selecting the resistor values in the divider carefully, Equation 63
shows that the slave voltage output can be made to have a faster
ramp rate than that of the master voltage by setting the TRK
voltage at the slave larger than 0.6 V and R

. Make sure that the master SS period is long enough (that

R

TRKT

greater than

TRKB

is, sufficiently large SS capacitor) such that the input inrush
current does not run into the current limit of the power supply
during startup.

Setting the Channel 2 Undervoltage Threshold for Ratiometric Tracking

If FB2 is regulated to a voltage lower than 0.6 V by configuring
TRK2 for ratiometric tracking, the Channel 2 undervoltage
threshold can be set appropriately by splitting the top resistor in
the voltage divider, as shown in

Figure 32. R

is the same as

BOT

calculated for the compensation in Equation 63, and

(64)

RRR

B

TOP

POK2

A

CHANNEL 2

OUTPUT

VOLTAGE

R

A

UV2

550mV

R

B

750mV

TO ERROR
AMPLIFIER

Figure 32. Setting the Channel 2 Undervoltage Threshold

FB2

R

BOT

05936-032

The current in all the resistors is the same:

VV

V

FB

2

=

R

BOT

−

22

FBUV

R

=

B

OUT

VV

−

2

UV

2

R

(65)

A

where:

is 600 mV.

V

UV2

is the feedback voltage value set during the ratiometric

V

FB2

tracking calculations.

is the Channel 2 output voltage.

V

OUT2

Solving for R

and RB:

A

VV

UV

=

A

=

B

OUTA

RR

BOT

RR

BOT

V

V

FB

2

2

FB

VV

2

(66)

2

FBUV

22

(67)

Rev. A | Page 23 of 32

ADP1823

+

=

THERMAL CONSIDERATIONS

The current required to drive the external MOSFETs comprises
the vast majority of the power dissipation of the ADP1823. The
on-chip LDO regulates down to 5 V, and this 5 V supplies the
drivers. Because the full gate drive current passes through the
LDO and then is dissipated in the gate drive, effectively the full
gate charge comes from the input voltage and dissipated on the
ADP1823 is

(68)

)(

QQQQfVP +++=

IND

SW

where:

is the voltage applied to IN.

V

IN

is the switching frequency.

f

SW

Q numbers are the total gate charge specifications from the

selected MOSFET data sheets.

2DL2DH1DL1DH

The power dissipation heats the ADP1823. As the switching
frequency, the input voltage, and the MOSFET size increase, the
power dissipation on the ADP1823 increases. Care must be taken
not to exceed the maximum junction temperature. To calculate
the junction temperature from the ambient temperature and
power dissipation:

θPTT

(69)

J

The thermal resistance, θ

D

A

JA

, of the package is typically 40°C/W

JA

depending on board layout, and the maximum specified
junction temperature is 125°C, which means that at maximum
ambient of 85°C without airflow, the maximum dissipation
allowed is about 1 W.

A thermal shutdown protection circuit on the ADP1823 shuts
off the LDO and the controllers if the die temperature exceeds
approximately 145°C, but this is a gross fault protection only
and should not be relied upon for system reliability.

Rev. A | Page 24 of 32

ADP1823

PCB LAYOUT GUIDELINES

In any switching converter, some circuit paths carry high dI/dt,
which can create spikes and noise. Other circuit paths are
sensitive to noise. Still others carry high dc current and can
produce significant IR voltage drops. The key to proper PCB
layout of a switching converter is to identify these critical paths
and arrange the components and copper area accordingly.
When designing PCB layouts, be sure to keep high current
loops small. In addition, keep compensation and feedback
components away from the switch nodes and their associated
components.

The following is a list of recommended layout practices for the
ADP1823, arranged in approximately decreasing order of
importance.

The current waveform in the top and bottom FETs is a pulse

•

with very high dI/dt, so the path to, through, and from each
individual FET should be as short as possible and the two
paths should be commoned as much as possible. In designs
that use a pair of D-Pak or SO-8 FETs on one side of the
PCB, it is best to counter-rotate the two so that the switch
node is on one side of the pair and the high side drain can
be bypassed to the low side source with a suitable ceramic
bypass capacitor, placed as close as possible to the FETs in
order to minimize inductance around this loop through the
FETs and capacitor. The recommended bypass ceramic
capacitor values range from 1 F to 22 F depending upon
the output current. This bypass capacitor is usually
connected to a larger value bulk filter capacitor and should
be grounded to the PGND plane.

GND, PV bypass, VREG bypass, soft start capacitor, and the

•

bottom end of the output feedback divider resistors should
be tied to an (almost isolated) small AGND plane. All of
these connections should have connections from the pin to
the AGND plane that are as short as possible. No high
current or high dI/dt signals should be connected to this
AGND plane. The AGND area should be connected
through one wide trace to the negative terminal of the
output filter capacitors.

The PGND pin handles high dI/dt gate drive current

•

returning from the source of the low side MOSFET. The
voltage at this pin also establishes the 0 V reference for the
overcurrent limit protection (OCP) function and the CSL
pin. A small PGND plane should connect the PGND pin
and the PVCC bypass capacitor through a wide and direct
path to the source of the low side MOSFET. The placement

is critical for controlling ground bounce. The negative

of C

IN

terminal of C
the low-side MOSFET.

needs to be placed very close to the source of

IN

•

Avoid long traces or large copper areas at the FB and CSL

pins, which are low signal level inputs that are sensitive to
capacitive and inductive noise pickup. It is best to position
any series resistors and capacitors as closely as possible to
these pins. Avoid running these traces close and parallel to
high dI/dt traces.

The switch node is the noisiest place in the switcher circuit

•

with large ac and dc voltage and current. This node should
be wide to keep resistive voltage drop down. However, to
minimize the generation of capacitively coupled noise, the
total area should be small. Place the FETs and inductor all
close together on a small copper plane in order to minimize
series resistance and keep the copper area small.

Gate drive traces (DH and DL) handle high dI/dt so tend to

•

produce noise and ringing. They should be as short and
direct as possible. If possible, avoid using feedthrough vias
in the gate drive traces. If vias are needed, it is best to use
two relatively large ones in parallel to reduce the peak
current density and the current in each via. If the overall
PCB layout is less than optimal, slowing down the gate drive
slightly can be very helpful to reduce noise and ringing. It is
occasionally helpful to place small value resistors (such as
5  or 10 Ω) in series with the gate leads, mainly DH traces
to the high side FET gates. These can be populated with 0 
resistors if resistance is not needed. Note that the added gate
resistance increases the switching rise and fall times, and
that also increases the switching power loss in the MOSFET.

The negative terminal of output filter capacitors should be

•

tied closely to the source of the low side FET. Doing this
helps to minimize voltage difference between GND and
PGND at the ADP1823.

Generally, be sure that all traces are sized according to the

•

current that will be handled as well as their sensitivity in the
circuit. Standard PCB layout guidelines mainly address
heating effects of current in a copper conductor. While
these are completely valid, they do not fully cover other
concerns such as stray inductance or dc voltage drop. Any
dc voltage differential in connections between ADP1823
GND and the converter power output ground can cause a
significant output voltage error, as it affects converter output
voltage according to the ratio with the 600 mV feedback
reference. For example, a 6 mV offset between ground on
the ADP1823 and the converter power output will cause a
1% error in the converter output voltage.

Rev. A | Page 25 of 32

ADP1823

•

LFCSP PACKAGE CONSIDERATIONS

The CSP package has an exposed die paddle on the bottom that
efficiently conducts heat to the PCB. To achieve the optimum
performance from the CSP package, give special consideration
to the layout of the PCB. Use the following layout guidelines for
the LFCSP package.

The pad pattern is given in Figure 35. The pad dimension

•

should be followed closely for reliable solder joints while
maintaining reasonable clearances to prevent solder
bridging.

The thermal pad of the CSP package provides a low thermal

•

impedance path to the PCB. Therefore, the PCB must be
properly designed to effectively conduct the heat away from
the package. This is achieved by adding thermal vias to the
PCB, which provide a thermal path to the inner or bottom
layers. See
that the via diameter is small. This prevents the solder from
flowing through the via and leaving voids in the thermal
pad solder joint.

Note that the thermal pad is attached to the die substrate, so
the planes that the thermal pad is connected to must be
electrically isolated or connected to GND.

The solder mask opening should be about 120 microns

•

(4.7 mils) larger than the pad size, resulting in a minimum
60 microns (2.4 mils) clearance between the pad and the
solder mask.

Figure 35 for the recommended via pattern. Note

The paste mask for the thermal pad needs to be designed for

the maximum coverage to effectively remove the heat from
the package. However, due to the presence of thermal vias
and the large size of the thermal pad, eliminating voids may
not be possible. In addition, if the solder paste coverage is
too large, solder joint defects may occur. Therefore, it is
recommended to use multiple small openings over a single
big opening in designing the paste mask. The recommended
paste mask pattern is given in
in about 80% coverage, which should not degrade the
thermal performance of the package significantly.

The recommended paste mask stencil thickness is

•

0.125 mm. A laser cut stainless steel stencil with trapezoidal
walls should be used.

A no clean, Type 3 solder paste should be used for

•

mounting the LFCSP package. In addition, a nitrogen purge
during the reflow process is recommended.

The package manufacturer recommends that the reflow

•

temperature should not exceed 220°C and the time above
liquid is less than 75 seconds. The preheat ramp should be
3°C/second or lower. The actual temperature profile
depends on the board density; the assembly house must
determine what works best.

Figure 35. This pattern results

The paste mask opening is typically designed to match the

•

pad size used on the peripheral pads of the LFCSP package.
This should provide a reliable solder joint as long as the
stencil thickness is about 0.125 mm.

Rev. A | Page 26 of 32

ADP1823

Table 4. Compensation Equations

Equations Calculations

f

SW

f =

CO

f

LC

ESR

A logdB20logdB40

FILTER

A log20

MOD

ESR

B

If , use Type II compensation.

If , use Type III compensation.

Type II Compensation Calculations

K

f

Z

P

10

1

=

2

=

=

ESR

ESR

tan

f

CO

=

LCπ

1

×°=ϕ

CRπf2

OUTESR

⎞

×−=

⎛

V

IN

⎜
⎜

V

RAMP

⎝

10

log45

ϕ−°=ϕ 150

ESR

⎟

⎜

f

LC

⎠

⎝

⎞
⎟
⎟
⎠

f×

CO

f

ESR

⎞

⎛

f

ESR

⎟

⎜

⎛

f

CO

⎟

⎜

×−

⎟

⎜

f

ESR

⎠

⎝

°≥ϕ 70
°<ϕ 70

φ

⎛

B

⎜

2

⎝

45

⎞

°+=

⎟
⎠

K

Kff

=

CO

(70)

(71)

(72)

(73)

(74)

(75)

(76)

(77)

(78)

(79)

Select R

R−=

BOT

Z

=

I

=

HF

between 1 kΩ and 10 kΩ. A good starting value is 2 kΩ.

TOP

RV

FB

TOP

VV

FB

OUT

AAA −−= dB0

FILTER

MODCOMP

A

⎞

⎛

COMP

⎟

⎜

20

⎠

⎝

×=

10

RR

TOP

1

fRπC2

ZZ

1

fRπC2

PZ

(80)

(81)

(82)

(83)

(84)

Rev. A | Page 27 of 32

ADP1823

Type III Compensation Calculations

φ

⎛

⎛

⎜

K

⎜
⎝

f

=

Z

=

P

Select R

R

BOT

=

FF

=

FF

Z +=

FF

Z

=

I

=

HF

B

tan

⎜

2

⎝

f

CO

K

Kff

CO

between 1 kΩ and 10 kΩ. A good starting value is 2 kΩ.

TOP

V0.6

=

×

−

V

OUT

1

fRCπ2

Z

TOP

1

fCRπ2

PFF

1

fC

π2

FF

CO

()

Z||RR

TOP

1

fRCπ2

ZZ

1

fRCπ2

PZ

2

⎞

⎞

⎟

°+= 45

⎟

⎟

⎠

⎠

(85)

(86)

(87)

R

TOP

V0.6

(88)

(89)

(90)

R

FF

(91)

AAA −−= dB0

FILTER

MODCOMP

A

⎞

⎛

COMP

⎟

⎜

20

⎠

⎝

×=

10

FF

(92)

(93)

(94)

(95)

Rev. A | Page 28 of 32

ADP1823

V

APPLICATION CIRCUITS

The ADP1823 controller can be configured to regulate outputs
with loads of more than 20 A if the power components, such as
the inductor, MOSFETs and the bulk capacitors, are chosen
carefully to meet the power requirement. The maximum load
and power dissipation are limited by the powertrain components.
Figure 1 shows a typical application circuit that can drive an
output load of 8 A.

Figure 33 shows an application circuit that can drive 20 A loads.
Note that two low-side MOSFETs are needed to deliver the 20 A
load. The bulk input and output capacitors used in this example
are Sanyo’s OSCON™ capacitors, which have low ESR and high
current ripple rating. An alternative to the OSCON capacitors

IN = 5.5

TO 20V

are the polymer aluminum capacitors that are available from
other manufacturers such as United Chemi-con. Aluminum
electrolytic capacitors, such as Rubycon’s ZLG low-ESR series,
can also be paralleled up at the input or output to meet the
ripple current requirement. Since the aluminum electrolytic
capacitors have higher ESR and much larger variation in
capacitance over the operating temperature range, a larger bulk
input and output capacitance is needed to reduce the effective
ESR and suppress the current ripple.

Figure 33 shows that the
polymer aluminum or the aluminum electrolytic capacitors can
be used at the outputs.

1.2V, 20A

C

OUT2

820µF

25V

1µF

C

IN2

1µF

180µF

20V

L2

1µH

1µF

5600pF

×2

390Ω

2kΩ

M6

M5

2kΩ

f

OSC

M1, M4: IRL R7807Z
L1, L2: TOKO , FDA1254-1RO M
C

OUT1

D2

0.47µF

M4

2kΩ

120nF

10kΩ

4.7nF

= 300kHz

: SANYO, 2R5SEPC820M

PV IN
TRK1
TRK2
VREG

BST1

DH1

ADP1823

SW1
CSL1

DL1

PGND1

FB1

COMP1

GND

AGND

EN1

EN2

BST2

DH2

SW2

CSL2

DL2

PGND2

FB2

COMP2

FREQ

LDOSD

SYNC

D1, D2: VISH AY, BAT54
M2, M3, M5, M6: IRFR3709Z
C

C

D1

0.47µF

2kΩ

1.5nF

47kΩ

6.8nF

, C

: SANYO, 20SP180M

IN1

IN2

: RUBYCON, 6.3Z LG1200M10×16

OUT2

M1

M2

1µF

PGND

C

IN1

180µF
20V

L1

1µH

M3

2kΩ

1kΩ

10nF

200Ω

1µF

1.8V, 20A

C

OUT1

1200µF

6.3V
×3

05936-033

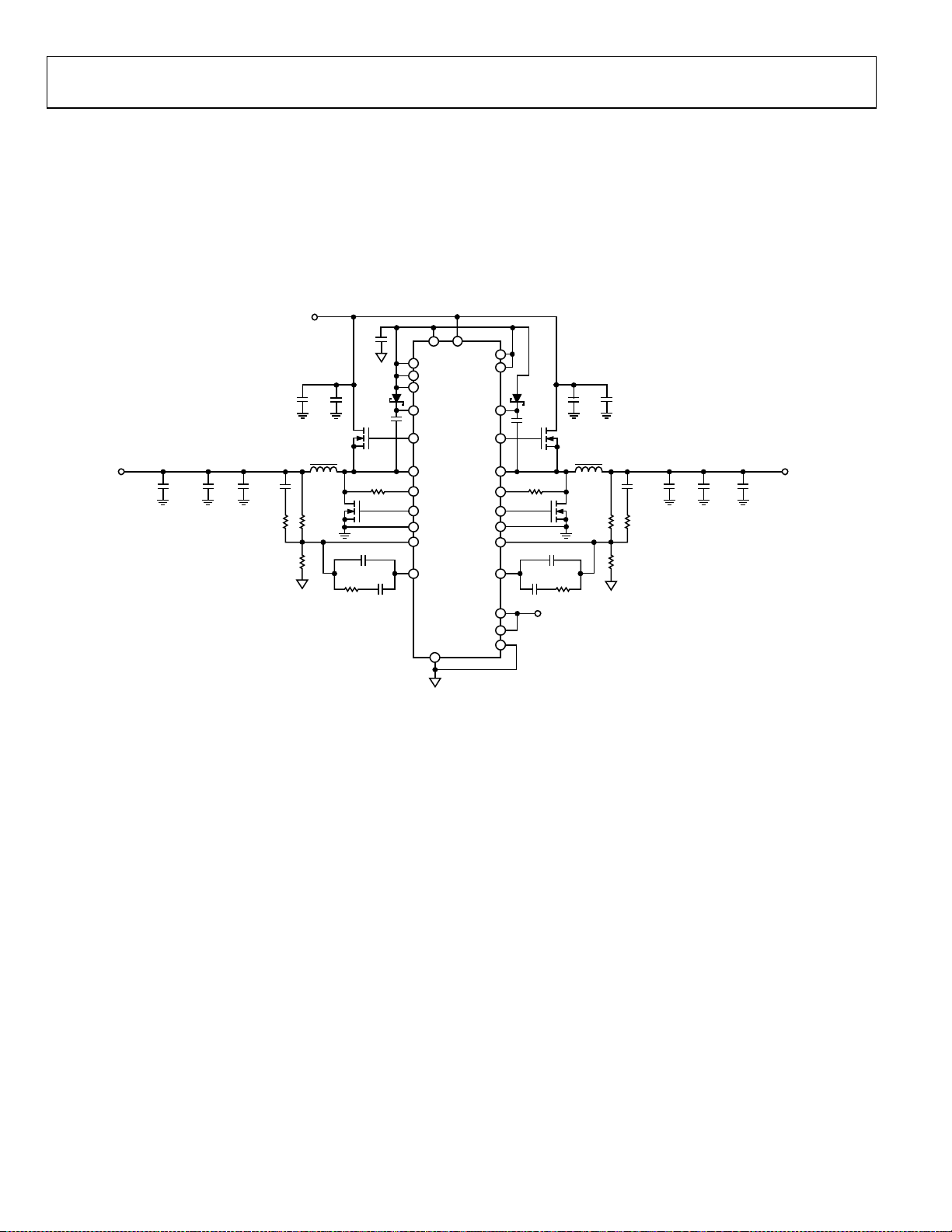

Figure 33. Application Circuit with 20 A Output Loads

Rev. A | Page 29 of 32

ADP1823

V

The ADP1823 can also be configured to drive an output load of
less than 1 A.

Figure 34 shows a typical application circuit that
drives a 1.5 A and a 3 A loads in an all multilayer ceramic
capacitor (MLCC) solutions. Notice that the two MOSFETs
used in this example are dual-channel MOSFETs in a
PowerPAK® SO-8 package, which reduces cost and saves layout
space. An alternative to using the dual-channel SO-8 package is
using two single MOSFETs in SOT-23 or TSOP-6 packages,

TO 4V

IN = 3

which are low cost and small in size. For input voltages less than

3.7 V, it is recommended to use MOSFETs that are fully turned
on at V

less than 3 V. Because there is a forward voltage (VF)

GS

drop across the Schottky diode D1 or D2, for input voltages less
than 3.3 V, the effective voltage to the internal gate drivers may
not be enough to drive a large load at the output. A Schottky
diode with V

less than 0.5 V at IF of 100 mA is recommended

F

for input voltages less than 3.3 V.

1.0V, 3A

C

OUT3

100µF

C

OUT2

47µF

1µF

10µF

1µF

×2

2.2µH

8.2nF

1µF

84.5Ω

f

OSC

M1 TO M4: DUAL-CHANNE L SO-8 I RF7331
L2: TOKO, FDV0602-2R2M
C

OUT2

1.33kΩ

2kΩ

= 600kHz

: MURATA, GRM31CR60J476M

0.22µF

M3

L2

M4

6.65kΩ

D2

4.12kΩ

1.5nF

PV IN
TRK1
TRK2
VREG

BST1

DH1

EN1

EN2

BST2

DH2

D1

0.22µF

ADP1823

SW1

CSL1

DL1

PGND1

FB1

COMP1

GND

SW2

CSL2

DL2

PGND2

FB2

COMP2

FREQ

LDOSD

SYNC

AGND

L1: SUMIDA, CDRH5D28-2R5NC
C

OUT1

D1, D2: CENTRA L SEMI, CMDSH2-4L

1.4kΩ

1.5nF

, C

: MURATA, GRM31CR60J107M

OUT3

120nF120nF

6.65kΩ

IN

M1

2.5µH

M2

1µF

L1

PGND

2kΩ

10µF
×2

1kΩ

8.2nF

84.5Ω

1µF 10µF

1.8V, 1.5A

C

OUT1

100µF

05936-034

Figure 34. Application Circuit with all Multilayer Ceramic Capacitors (MLCC)

Rev. A | Page 30 of 32

ADP1823

OUTLINE DIMENSIONS

0.08

0.60 MAX

25

24

EXPOSED

PAD

(BOTTOM VIEW)

17

16

32

1

8

9

3.50 REF

PIN 1
INDICATOR

3.25

3.10 SQ

2.95

0.25 MIN

5.00

PIN 1

INDICATOR

1.00

0.85

0.80

12° MAX

SEATING
PLANE

BSC SQ

TOP

VIEW

0.80 MAX

0.65 TYP

0.30

0.23

0.18

COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2

4.75

BSC SQ

0.20 REF

0.05 MAX

0.02 NOM

0.60 MAX

0.50

BSC

0.50

0.40

0.30

COPLANARITY

Figure 35. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

5 mm × 5 mm Body, Very Thin Quad

(CP-32-2)

Dimensions shown in millimeters

ORDERING GUIDE

Model Temperature Range Package Description Package Option

ADP1823ACPZ-R7
ADP1823-EVAL Evaluation Board

1

Z = Pb-free part.

1

−40°C to +125°C 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-32-2

Rev. A | Page 31 of 32

ADP1823

NOTES

©2006 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D05936-0-11/06(A)

Rev. A | Page 32 of 32
