ANALOG DEVICES ADG736L Service Manual

S1A9S

S2A7S

CMOS Low Voltage

FEATURES

1.8 V to 5.5 V single supply

2.5 Ω (typical) on resistance
Low on-resistance flatness
Guaranteed leakage performance over −40°C to +85°C

−3 dB bandwidth > 200 MHz
Rail-to-rail operation
10-lead MSOP package
Fast switching times
t

16 ns

ON

t

8 ns

OFF

Typical power consumption (<0.01 μW)
TTL/CMOS compatible

APPLICATIONS

USB 1.1 signal switching circuits
Cell phones
PDAs
Battery-powered systems
Communication systems
Sample-and-hold systems
Audio signal routing
Audio and video switching
Mechanical reed relay replacement

2.5 Ω Dual SPDT Switch
ADG736L

FUNCTIONAL BLOCK DIAGRAM

ADG736L

2

10

1B

1

IN1

4

2B

5

IN2

SWITCHES SHOWN

FOR A LOGIC 1 INPUT

Figure 1.

D1

6

D2

05485-001

GENERAL DESCRIPTION

The ADG736L is a monolithic device comprising two independ­ently selectable CMOS single pole, double throw (SPDT) switches.
The switches are designed using a submicron process that
provides low power dissipation, yet gives high switching speed,
low on resistance, low leakage currents, and wide input signal
bandwidth.

The on resistance profile is very flat over the full analog signal
range. This ensures excellent linearity and low distortion when
switching audio signals. Fast switching speed also makes the
part suitable for video signal switching.

The ADG736L operates from a single 1.8 V to 5.5 V supply,
making it ideally suited to portable and battery-powered
instruments.

Each switch conducts equally well in both directions when on;
each has an input signal range that extends to the power supplies.
The ADG736L exhibits break-before-make switching action.

The ADG736L is available in a 10-lead MSOP.

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.

PRODUCT HIGHLIGHTS

1. 1.8 V to 5.5 V Single-Supply Operation.

2. Guaranteed Leakage Performance.

3. Ver y L o w R

8 Ω Maximum at 3 V).

4. Low On Resistance Flatness.

5. −3 dB Bandwidth > 200 MHz.

6. Low Power Dissipation.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] ©2007 Analog Devices, Inc. All rights reserved.

(4.5 Ω Maximum at 5 V,

ON

ADG736L

TABLE OF CONTENTS

Features.............................................................................................. 1

Applications....................................................................................... 1

General Description ......................................................................... 1

Functional Block Diagram .............................................................. 1

Product Highlights ........................................................................... 1

Revision History ............................................................................... 2

Specifications..................................................................................... 3

Absolute Maximum Ratings............................................................ 5

ESD Caution.................................................................................. 5

REVISION HISTORY

1/07—Revision 0: Initial Version

Pin Configuration and Function Descriptions..............................6

Typical Performance Characteristics..............................................7

Test Circuits........................................................................................9

Terminology.................................................................................... 10

Applications Information.............................................................. 11

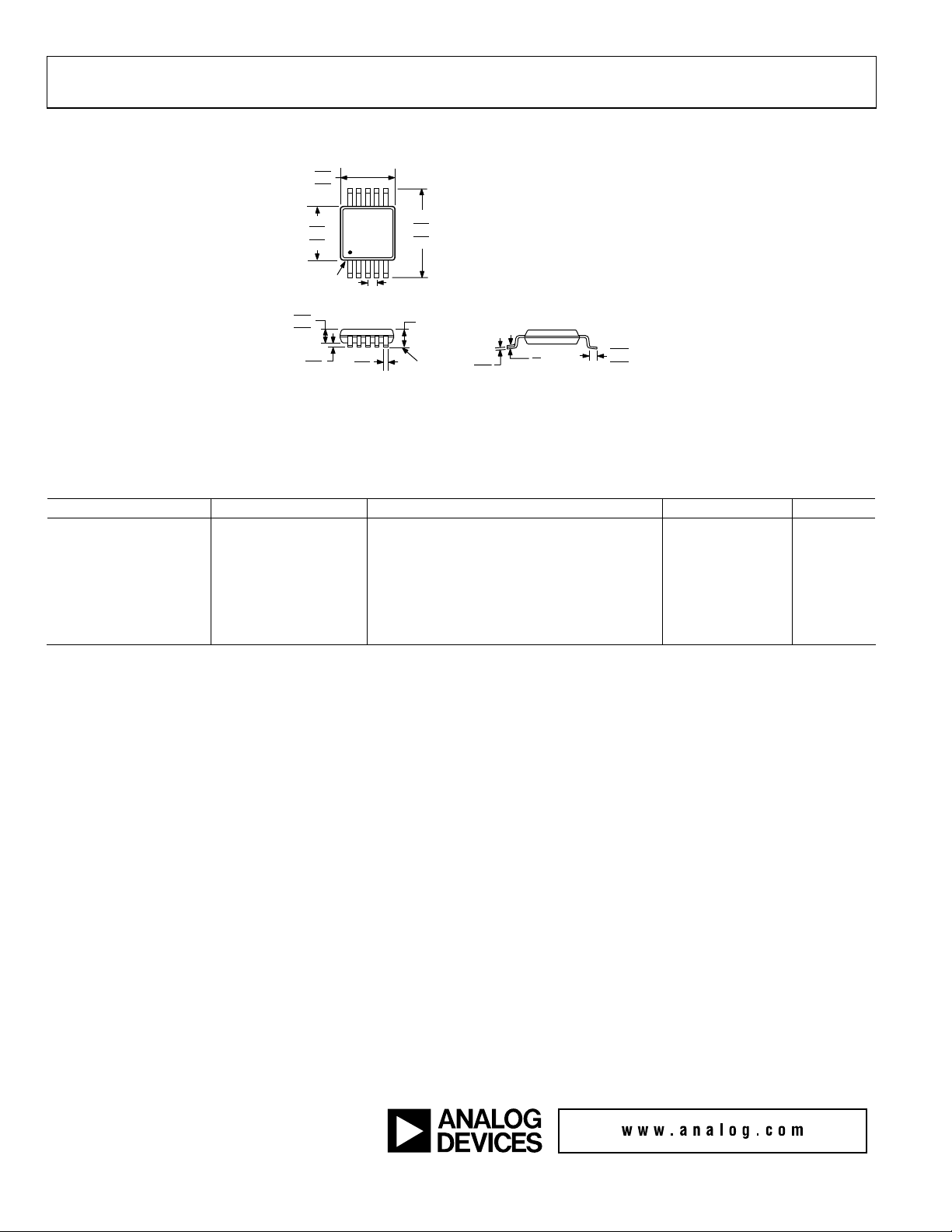

Outline Dimensions....................................................................... 12

Ordering Guide .......................................................................... 12

Rev. 0 | Page 2 of 12

ADG736L

SPECIFICATIONS

VDD = 5 V ± 10%, GND = 0 V; all specifications −40°C to +85°C, unless otherwise noted.

Table 1.

B Version

1

−40°C to

Parameter 25°C

+85°C

Unit Test Conditions/Comments

ANALOG SWITCH

Analog Signal Range 0 V to VDD V
On Resistance (RON) 2.5

4 4.5 Ω max

On Resistance Match Between Channels (∆RON) 0.1 Ω typ

On Resistance Flatness (R

) 0.5

FLAT (ON)

0.4 Ω max

Ω typ

Ω typ

VS = 0 V to VDD, IDS = −10 mA; see Figure 10

VS = 0 V to VDD, IDS = −10 mA

= 0 V to VDD, IDS = −10 mA

V

S

1.2 Ω max

LEAKAGE CURRENTS

Source Off Leakage IS (OFF) ±0.01

Channel On Leakage ID, IS (ON) ±0.01

nA typ VS = 4.5 V/1 V, VD = 1 V/4.5 V; see Figure 11

±0.1 ±0.3 nA max

nA typ VS = VD = 1 V or 4.5 V; see Figure 12

±0.1 ±0.3 nA max

VDD = 5.5 V

DIGITAL INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I

INL

0.005

2.4 V min

INH

0.8 V max

INL

or I

INH

μA typ VIN = V

INL

or V

INH

±0.1 μA max

DYNAMIC CHARACTERISTICS2

tON 12

t

5

OFF

Break-Before-Make Time Delay, tD 7

Off Isolation

−62

16 ns max VS = 3 V; see Figure 13

8 ns max VS = 3 V; see Figure 13

1 ns min V

−82
Channel-to-Channel Crosstalk

−62

−82

Bandwidth (–3 dB) 200

ns typ RL = 300 Ω, CL = 35 pF

ns typ RL = 300 Ω, CL = 35 pF

ns typ RL = 300 Ω, CL = 35 pF

= VS2 = 3 V; see Figure 14

S1

dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz

dB typ R

= 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 15

L

dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz
dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 16

MHz typ RL = 50 Ω, CL = 5 pF; see Figure 17

CS (OFF) 9 pF typ
CD, CS (ON) 32 pF typ

POWER REQUIREMENTS

VDD = 5.5 V

IDD 0.001 μA typ Digital inputs = 0 V or 5 V

1.0 μA max

1

Temperature range is −40°C to +85°C for the B version.

2

Guaranteed by design; not subject to production test.

Rev. 0 | Page 3 of 12

ADG736L

VDD = 3 V ± 10%, GND = 0 V. All specifications −40°C to +85°C, unless otherwise noted.

Table 2.

B Version

1

−40°C to

Parameter 25°C

Unit Test Conditions/Comments

+85°C

ANALOG SWITCH

Analog Signal Range 0 V to V

V

DD

On Resistance (RON) 5 5.5 Ω typ VS = 0 V to VDD, IDS = −10 mA; see Figure 10

On Resistance Match Between Channels (∆RON) 0.1

On Resistance Flatness (R

LEAKAGE CURRENTS

FLAT (ON)

)

0.4 Ω max

Source Off Leakage IS (OFF) ±0.01

±0.1 ±0.3 nA max

Channel On Leakage ID, IS (ON) ±0.01

±0.1 ±0.3 nA max

8 Ω max

Ω typ VS = 0 V to VDD, IDS = −10 mA

2.5 Ω typ VS = 0 V to VDD, IDS = −10 mA

VDD = 3.3 V

nA typ VS = 3 V/1 V, VD = 1 V/3 V; see Figure 11

nA typ VS = VD = 1 V or 3 V; see Figure 12

DIGITAL INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I

INL

2.0 V min

INH

0.4 V max

INL

or I

INH

0.005

μA typ VIN = V

INL

or V

INH

±0.1 μA max

DYNAMIC CHARACTERISTICS2

t

14

ON

t

6

OFF

Break-Before-Make Time Delay, tD 7

Off Isolation −62

−82

Channel-to-Channel Crosstalk −62

−82

Bandwidth (−3 dB) 200

20 ns max VS = 2 V; see Figure 13

10 ns max VS = 2 V; see Figure 13

1 ns min VS1 = VS2 = 2 V; see Figure 14

ns typ RL = 300 Ω, CL = 35 pF

ns typ RL = 300 Ω, CL = 35 pF

ns typ RL = 300 Ω, CL = 35 pF

dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz

dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 15

dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz

dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 16

MHz typ RL = 50 Ω, CL = 5 pF; see Figure 17

CS (OFF) 9 pF typ
CD, CS (ON) 32 pF typ

POWER REQUIREMENTS

VDD = 3.3 V

IDD 0.001 μA typ Digital inputs = 0 V or 3 V

1.0 μA max

1

Temperature range is −40°C to +85°C for the B version.

2

Guaranteed by design; not subject to production test.

Rev. 0 | Page 4 of 12

ADG736L

ABSOLUTE MAXIMUM RATINGS

TA = 25°C, unless otherwise noted.

Table 3.

Parameter Rating

VDD to GND

Analog, Digital Inputs

Continuous Current, S or D 30 mA
Peak Current, S or D

Operating Temperature Range

Industrial (B Version) −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Junction Temperature 150°C
MSOP Package, Power Dissipation 315 mW

θJA Thermal Impedance

Lead Temperature (Soldering,

10 sec)
IR Reflow (Peak Temperature,

<20 sec)
Lead-Free Reflow

Peak Temperature 260(+0/−5)°C

Time at Peak Temperature 10 sec to 40 sec
ESD 2 kV

1

Overvoltages at IN, S, or D are clamped by internal diodes. Current should be

limited to the maximum ratings given.

1

−0.3 V to +6 V

−0.3 V to VDD + 0.3 V or 30 mA,

whichever occurs first

100 mA (Pulsed at 1 ms,
10% duty cycle maximum)

205°C/W
300°C

235°C

Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those listed in the operational sections
of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.

Only one absolute maximum rating may be applied at any one time.

ESD CAUTION

Rev. 0 | Page 5 of 12

ADG736L

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

1

IN1

S1A

2

ADG736L

3

GND

S2A

IN2

TOP VIEW

(Not to Scale)

4
5

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No. Mnemonic Description

1 IN1 Logic Control Input.
2 S1A Source Terminal. May be an input or an output.
3 GND Ground (0 V) Reference.
4 S2A Source Terminal. May be an input or an output.
5 IN2 Logic Control Input.
6 D2 Drain Terminal. May be an input or an output.
7 S2B Source Terminal. May be an input or an output.
8 VDD Most Positive Power Supply Potential.
9 S1B Source Terminal. May be an input or an output.
10 D1 Drain Terminal. May be an input or an output.

D1

10

S1B

9
8

V

DD

7

S2B

6

D2

05485-002

Table 5. Truth Table

Logic Switch A Switch B

0 Off On
1 On Off

Rev. 0 | Page 6 of 12

ADG736L

TYPICAL PERFORMANCE CHARACTERISTICS

6.0

5.5

5.0

4.5

4.0

3.5

(Ω)

3.0

ON

R

2.5

2.0

1.5

1.0

0.5
0

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0

VD OR VS (DRAIN OR SOURCE VOLTAGE (V))

VDD = 2.7V

V

DD

= 3.0V

Figure 3. On Resistance as a Function of VD (VS) Single Supplies

6.0

5.5

5.0

4.5

4.0

+25°C

3.5

(Ω)

3.0

ON

R

2.5

2.0

1.5

1.0

0.5
0

0 0.5 1.0 1.5 2.0 2.5 3.0

VD OR VS (DRAIN OR SOURCE VOLTAGE (V))

+85°C

–40°C

Figure 4. On Resistance as a Function of VD (VS) for Different Temperatures

V

= 3 V

DD

6.0

5.5

5.0

4.5

4.0

3.5

(Ω)

3.0

ON

R

2.5

2.0

1.5

1.0

0.5
0

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0

VD OR VS (DRAIN OR SOURCE VOLTAGE (V))

–40°C

+85°C

+25°C

Figure 5. On Resistance as a Function of VD (VS) for Different Temperatures

V

= 5 V

DD

TA = 25°C

= 4.5V

V

DD

= 5.0V

V

DD

05485-003

10m

1m

100μ

10μ

(A)

1μ

SUPPLY

I

100n

10n

1n

100 10M1M100k10k1k

VDD = 5V
T

= 25°C

A

FREQUENCY (Hz)

05485-006

Figure 6. Supply Current vs. Input Switching Frequency

VDD = 3V

05485-004

0

VDD = 5V
T

–2

–4

ON RESPONSE (dB)

–8

10k 100M1M 10M100k

= 25°C

A

FREQUENCY (Hz)

05485-007

Figure 7. Bandwidth

VDD = 5V

05485-005

–30

VDD = 5V, 3V

–40

T
–50

–60

–70

–80

–90

OFF ISOLATION (dB)

–100

–110

–120

–130

10k 100M1M 10M100k

= 25°C

A

FREQUENCY (Hz)

05485-008

Figure 8. Off Isolation vs. Frequency

Rev. 0 | Page 7 of 12

ADG736L

–30

VDD = 5V, 3V

–40

T
–50

–60

–70

–80

–90

CROSSTALK (dB)

–100

–110

–120

–130

10k 100M1M 10M100k

= 25°C

A

FREQUENCY (Hz)

Figure 9. Crosstalk vs. Frequency

05485-009

Rev. 0 | Page 8 of 12

ADG736L

V

V

V

V

V

TEST CIRCUITS

I

DS

V1

SD

IS(OFF)

SD

A

SD

NC

ID (ON)

A

V

S

RON = V1/I

DS

Figure 10. On Resistance

S

05485-011

V

DD

0.1μF

V

DD

SD

IN

S

Figure 11. Off Leakage

R

L

300Ω

V

C

L

35pF

OUT

V

D

05485-012

V

D

05485-013

Figure 12. On Leakage

V

IN

V

OUT

50% 50%

V

S

90% 90%

t

ON

t

OFF

GND

05485-014

Figure 13. Switching Times

V

DD

0.1μF

V

SA

SB

GND

DD

D

C

R

L

300Ω

L

35pF

V

S

V

IN

V

IN

V

OUT

0V

V

S

V

OUT

0V

50% 50%

50%

t

D

50% 90%

t

D

05485-015

Figure 14. Break-Before-Make Time Delay, t

D

DD

0.1μF

V

DD

SB
SA

IN

V

V

IN

S

D

GND

R
50Ω

V

OUT

L

S

NC

05485-016

V

IN1

V

DD

0.1μF

V

DD

SD

SD

GND

50Ω

V

V

IN2

V

OUT

R

L

50Ω

IN

S

Figure 15. Off Isolation

CHANNEL-TO-CHANNEL CROSSTALK = 20 × LOG |V

S/VOUT

|

05485-017

Figure 16. Channel-to-Channel Crosstalk

V

DD

0.1μF

V

DD

SD

IN

GND

Figure 17. Bandwidth

R
50Ω

V

OUT

L

05485-018

Rev. 0 | Page 9 of 12

ADG736L

TERMINOLOGY

t

RON
Ohmic resistance between D and S.

ΔR

ON

On resistance match between any two channels, such as R
maximum − R

FLAT (ON)

R

minimum.

ON

ON

Flatness is defined as the difference between the maximum and
minimum value of on resistance as measured over the specified
analog signal range.

(OFF)

I

S

Source leakage current with the switch off.

I

, IS (ON)

D

Channel leakage current with the switch on.

(VS)

V

D

Analog voltage on Terminal D and Terminal S.

C

(OFF)

S

Off switch source capacitance.

, CS (ON)

C

D

On switch capacitance.

t

ON

Delay between applying the digital control input and the output
switching on (see

Figure 13).

OFF

Delay between applying the digital control input and the output
switching off.

t

D

Off time or on time measured between the 90% points of both
switches, when switching from one address state to another (see
Figure 14).

Crosstalk

A measure of unwanted signal that is coupled through from one
channel to another as a result of parasitic capacitance.

Off Isolation

A measure of unwanted signal coupling through an off switch.

Bandwidth

The frequency at which the output is attenuated by −3 dB.

On Response

The frequency response of the on switch.

On Loss

The voltage drop across the on switch, seen on the On Response
vs. Frequency plot (see

Figure 7) as how many decibels the

signal is away from 0 dB at very low frequencies.

Rev. 0 | Page 10 of 12

ADG736L

APPLICATIONS INFORMATION

V

DD

V+

S1A

S1B

ADG736L

D

A = 2

250Ω

75Ω

250Ω

V

OUT

R

L

75Ω

05485-010

75Ω

CH

1

CH

2

75Ω

IN1

Figure 18. Using the ADG736L to Select Between Two Video Signals

Rev. 0 | Page 11 of 12

ADG736L

OUTLINE DIMENSIONS

3.10

3.00

2.90

6

10

3.10

3.00

2.90

1

PIN 1

0.50 BSC

0.95

0.85

0.75

0.15

0.05

0.33

0.17

COPLANARITY

0.10

COMPLIANT TO JEDEC STANDARDS MO-187-BA

Figure 19. 10-Lead Mini Small Outline Package [MSOP]

ORDERING GUIDE

Model Temperature Range Package Description Package Option Branding

ADG736LBRM

ADG736LBRM-REEL

ADG736LBRM-REEL7

ADG736LBRMZ

1

ADG736LBRMZ-REEL

ADG736LBRMZ-REEL7

1

Z = Pb-free part.

1

1

−40°C to +85°C

−40°C to +85°C

−40°C to +85°C

−40°C to +85°C

−40°C to +85°C

−40°C to +85°C

5.15

4.90

4.65

5

1.10 MAX

SEATING
PLANE

0.23

0.08

8°
0°

0.80

0.60

0.40

(RM-10)

Dimensions shown in millimeters

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Y

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Y

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Y

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Z

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Z

10-Lead Mini Small Outline Package (MSOP) RM-10 S0Z

©2007 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D05485-0-1/07(0)

T

Rev. 0 | Page 12 of 12

TTT
