High Performance, Low Power, ISM Band

http://www.BDTIC.com/ADI

FSK/GFSK/OOK/MSK/GMSK Transceiver IC

FEATURES

Ultralow power, high performance transceiver Frequency bands

862 MHz to 928 MHz 431 MHz to 464 MHz

Data rates supported

1 kbps to 300 kbps

1.8 V to 3.6 V power supply Single-ended and differential PAs Low IF receiver with programmable IF bandwidths

100 kHz, 150 kHz, 200 kHz, 300 kHz

Receiver sensitivity (BER)

−116 dBm at 1.0 kbps, 2FSK, GFSK

−107.5 dBm at 38.4 kbps, 2FSK, GFSK

−102.5 dBm at 150 kbps, GFSK, GMSK

−100 dBm at 300 kbps, GFSK, GMS

−104 dBm at 19.2 kbps, OOK

Very low power consumption

12.8 mA in PHY_RX mode (maximum front-end gain)

24.1 mA in PHY_TX mode (10 dBm output, single-ended PA)

0.75 μA in PHY_SLEEP mode (32 kHz RC oscillator active)

1.28 μA in PHY_SLEEP mode (32 kHz XTAL oscillator active)

0.33 μA in PHY_SLEEP mode (Deep Sleep Mode 1) RF output power of −20 dBm to +13.5 dBm (single-ended PA) RF output power of −20 dBm to +10 dBm (differential PA) Patented fast settling automatic frequency control (AFC) Digital received signal strength indication (RSSI) Integrated PLL loop filter and Tx/Rx switch Fast automatic VCO calibration Automatic synthesizer bandwidth optimization On-chip, low-power, custom 8-bit processor

Radio control

ADF7023

Packet management Smart wake mode

Packet management support

Highly flexible for a wide range of packet formats Insertion/detection of preamble/sync word/CRC/address Manchester and 8b/10b data encoding and decoding Data whitening

Smart wake mode

Current saving low power mode with autonomous receiver

wake up, carrier sense, and packet reception

Downloadable firmware modules

Image rejection calibration, fully automated (patent

pending)

128-bit AES encryption/decryption with hardware

acceleration and key sizes of 128 bits, 192 bits, and 256 bits

Reed Solomon error correction with hardware acceleration 240-byte packet buffer for TX/RX data Efficient SPI control interface with block read/write access Integrated battery alarm and temperature sensor Integrated RC and 32.768 kHz crystal oscillator On-chip, 8-bit ADC 5 mm × 5 mm, 32-pin, LFCSP package

APPLICATIONS

Smart metering IEEE 802.15.4g Wireless MBUS Home automation Process and building control Wireless sensor networks (WSNs) Wireless healthcare

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners.

ADF7023

http://www.BDTIC.com/ADI

Features .............................................................................................. 1

Applications ....................................................................................... 1 

Revision History ............................................................................... 3

Functional Block Diagram .............................................................. 4

General Description ......................................................................... 4

Specifications ..................................................................................... 6

RF and Synthesizer Specifications .............................................. 6

Transmitter Specifications ........................................................... 7

Receiver Specifications ................................................................ 9

Timing and Digital Specifications ............................................ 13

Auxilary Block Specifications ................................................... 14

General Specifications ............................................................... 15

Timing Specifications ................................................................ 16

Absolute Maximum Ratings .......................................................... 17

ESD Caution ................................................................................ 17

Pin Configuration and Function Descriptions ........................... 18

Typical Performance Characteristics ........................................... 20

Terminology .................................................................................... 32

Radio Control .................................................................................. 33

Radio States ................................................................................. 33

Initialization ................................................................................ 35

Commands .................................................................................. 35

Automatic State Transitions ...................................................... 37

State Transition and Command Timing .................................. 38

Packet Mode .................................................................................... 41

Preamble ...................................................................................... 41

Sync Word ................................................................................... 42

Payload ......................................................................................... 43

CRC .............................................................................................. 44

Postamble..................................................................................... 45

Transmit Packet Timing ............................................................ 45

Data Whitening .......................................................................... 46

Manchester Encoding ................................................................ 46

8b/10b Encoding ........................................................................ 46

Sport Mode ...................................................................................... 47

Packet Structure in Sport Mode ............................................... 47

Sport Mode in Transmit ............................................................ 47

Sport Mode in Receive ............................................................... 47

Transmit Bit Latencies in Sport Mode ..................................... 47

Interrupt Generation ...................................................................... 50

Interrupts in Sport Mode .......................................................... 51

ADF7023 Memory Map ................................................................ 52

BBRAM ........................................................................................ 52

Modem Configuration RAM (MCR) ...................................... 52

Program ROM ............................................................................ 52

Program RAM ............................................................................ 52

Packet RAM ................................................................................ 53

SPI Interface .................................................................................... 54

General Characteristics ............................................................. 54

Command Access ....................................................................... 54

Status Word ................................................................................. 54

Command Queuing ................................................................... 55

Memory Access ........................................................................... 56

Low Power Modes .......................................................................... 59

Example Low Power Modes ...................................................... 62

Low Power Mode Timing Diagrams ........................................ 64

WUC Setup ................................................................................. 65

Firmware Timer Setup ............................................................... 66

Downloadable Firmware Modules ............................................... 67

Writing a Module to Program RAM ........................................ 67

Image Rejection Calibration Module ...................................... 67

Reed Solomon Coding Module ................................................ 67

AES Encryption and Decryption Module............................... 67

Radio Blocks .................................................................................... 69

Frequency Synthesizer ............................................................... 69

Crystal Oscillator ........................................................................ 70

Modulation .................................................................................. 70

RF Output Stage.......................................................................... 70

PA/LNA Interface ....................................................................... 71

Receive Channel Filter ............................................................... 71

Image Channel Rejection .......................................................... 71

Automatic Gain Control (AGC) ............................................... 71

RSSI .............................................................................................. 72

2FSK/GFSK/MSK/GMSK Demodulation ............................... 74

Clock Recovery ........................................................................... 76

OOK Demodulation .................................................................. 76

Recommended Receiver Settings for

2FSK/GFSK/MSK/GMSK ......................................................... 77

Recommended Receiver Settings for OOK ............................ 78

Peripheral Features ......................................................................... 79



Rev. 0 | Page 2 of 108

ADF7023

http://www.BDTIC.com/ADI

Analog-to-Digital Converter ..................................................... 79

Temperature Sensor .................................................................... 79

Test DAC ...................................................................................... 79

Transmit Test Modes .................................................................. 79

Silicon Revision Readback ......................................................... 79

Applications Information ............................................................... 80

Application Circuit ..................................................................... 80

Host Processor Interface ............................................................ 81

REVISION HISTORY

8/10—Revision 0: Initial Version

PA/LNA Matching ...................................................................... 81

Command Reference ...................................................................... 83

BBRAM Register Description ................................................... 86

MCR Register Description ......................................................... 98

Outline Dimensions ...................................................................... 106

Ordering Guide ......................................................................... 106

Rev. 0 | Page 3 of 108

ADF7023

http://www.BDTIC.com/ADI

FUNCTIONAL BLOCK DIAGRAM

ADCIN_ATB3

RFIO_1P RFIO_1N

RFO2

GPIO RE FERS TO PINS 17, 18, 1 9, 20, 25, AND 27.

LNA

PA RAMP PROFILE

LDO1

CREGVCO CREGSYNTH

CREGRFx

DIVIDER

ADF7023

LDO2

LDO3

RSSI/

LOGAMP

LOOP

FILTER

CREGDIGx

CHARGE

PUMP

DIVIDER

Σ-Δ

MODULATOR

BIAS

LDO4

8-BIT

ADC

MUX

PFD

ANALOG

TEST

GENERAL DESCRIPTION

The ADF7023 is a very low power, high performance, highly integrated 2FSK/GFSK/OOK/MSK/GMSK transceiver designed for operation in the 862 MHz to 928 MHz and 431 MHz to 464 MHz frequency bands, which cover the worldwide licensefree ISM bands at 433 MHz, 868 MHz, and 915 MHz. It is suitable for circuit applications that operate under the European ETSI EN300-220, the North American FCC (Part 15), the Chinese short-range wireless regulatory standards, or other similar regional standards. Data rates from 1 kbps to 300 kbps are supported.

The transmit RF synthesizer contains a VCO and a low noise fractional-N PLL with an output channel frequency resolution of 400 Hz. The VCO operates at 2× or 4×, the fundamental frequency to reduce spurious emissions. The receive and transmit synthesizer bandwidths are automatically, and independently, configured to achieve optimum phase noise, modulation quality, and settling time. The transmitter output power is programmable from −20 dBm to +13.5 dBm, with automatic PA ramping to meet transient spurious specifications. The part possesses both single-ended and differential PAs, which allows for Tx antenna diversity.

The receiver is exceptionally linear, achieving an IP3 specification of −12.2 dBm and −11.5 dBm at maximum gain and minimum gain, respectively, and an IP2 specification of 18.5 dBm and 27 dBm at maximum gain and minimum gain, respectively. The receiver achieves an interference blocking specification of 66 dB at ±2 MHz offset and 74 dB at ±10 MHz offset. Thus, the part is extremely resilient to the presence of interferers in spectrally noisy environments. The receiver features a novel, high speed, automatic frequency control (AFC) loop, allowing the PLL to

DEV

Figure 1.

FSK ASK

DEMOD

CDR AFC AGC

26MHz OSC

GAUSSIAN

FILTER

TEMP

SENSOR

8-BIT RISC

PROCESSOR

BATTERY MONITOR

4kB ROM

MAC

2kB RAM

256 BYTE

PACKET

RAM

64 BYTE

BBRAM

256 BYTE

MCR RAM

WAKE-UP CONT ROL

TIMER UNIT

32kHz

OSC

32kHz

RCOSC

IRQ

CTRL

SPI

GPIO

TEST

DAC

CLOCK

DIVIDER

26MHz

OSC

XOSC26N XOSC26PXOSC32KP_GP5_ATB1XOSC32KN_ATB2RBIAS

IRQ_GP3

CS MISO SCLK MOSI

GPIO

find and correct any RF frequency errors in the recovered packet. A patent pending, image rejection calibration scheme is available through a program download. The algorithm does not require the use of an external RF source nor does it require any user intervention once initiated. The results of the calibration can be stored in nonvolatile memory for use on subsequent power-ups of the transceiver.

The ADF7023 operates with a power supply range of 1.8 V to

3.6 V and has very low power consumption in both Tx and Rx modes, enabling long lifetimes in battery-operated systems while maintaining excellent RF performance. The device can enter a low power sleep mode in which the configuration settings are retained in BBRAM.

The ADF7023 features an ultralow power, on-chip, communications processor. The communications processor, which is an 8-bit RISC processor, performs the radio control, packet management, and smart wake mode (SWM) functionality. The communications processor eases the processing burden of the companion processor by integrating the lower layers of a typical communication protocol stack. The communications processor also permits the download and execution of a set of firmware modules that include image rejection (IR) calibration, AES encryption, and Reed Solomon coding.

The communications processor provides a simple commandbased radio control interface for the host processor. A singlebyte command transitions the radio between states or performs a radio function.

The communications processor provides support for generic packet formats. The packet format is highly flexible and fully programmable, thereby ensuring its compatibility with

08291-001

Rev. 0 | Page 4 of 108

ADF7023

http://www.BDTIC.com/ADI

proprietary packet profiles. In transmit mode, the communications processor can be configured to add preamble, sync word, and CRC to the payload data stored in packet RAM. In receive mode, the communications processor can detect and interrupt the host processor on reception of preamble, sync word, address, and CRC and store the received payload to packet RAM. The ADF7023 uses an efficient interrupt system comprising MAC level interrupts and PHY level interrupts that can be individually set. The payload data plus the 16-bit CRC can be encoded/decoded using Manchester or 8b/10b encoding. Alternatively, data whitening and dewhitening can be applied.

The smart wake mode (SWM) allows the ADF7023 to wake up autonomously from sleep using the internal wake-up timer without intervention from the host processor. After wake-up, the ADF7023 is controlled by the communications processor. This functionality allows carrier sense, packet sniffing, and packet reception while the host processor is in sleep, thereby reducing overall system current consumption. The smart wake mode can wake the host processor on an interrupt condition. These interrupt conditions can be configured to include the reception of valid preamble, sync word, CRC, or address match.

Wake-up from sleep mode can also be triggered by the host processor. For systems requiring very accurate wake-up timing, a 32 kHz oscillator can be used to drive the wake-up timer. Alternatively, the internal RC oscillator can be used, which gives lower current consumption in sleep.

The ADF7023 features an advanced encryption standard (AES) engine with hardware acceleration that provides 128-bit block encryption and decryption with key sizes of 128 bits, 192 bits, and 256 bits. Both electronic code book (ECB) and Cipher Block Chaining Mode 1 (CBC Mode 1) are supported. The AES engine can be used to encrypt/decrypt packet data and can be used as a standalone engine for encryption/decryption by the host processor. The AES engine is enabled on the ADF7023 by downloading the AES software module to program RAM. The AES software module is available from Analog Devices, Inc.

An on-chip, 8-bit ADC provides readback of an external analog input, the RSSI signal, or an integrated temperature sensor. An integrated battery voltage monitor raises an interrupt flag to the host processor whenever the battery voltage drops below a userdefined threshold.

Rev. 0 | Page 5 of 108

ADF7023

http://www.BDTIC.com/ADI

SPECIFICATIONS

VDD = VDDBAT1 = VDDBAT2= 1.8 V to 3.6 V, GND = 0 V, TA = T V

= 3 V, TA = 25°C.

RF AND SYNTHESIZER SPECIFICATIONS

Table 1.

Parameter Min Typ Max Unit Test Conditions

RF CHARACTERISTICS

Frequency Ranges 862 928 MHz 431 464 MHz

PHASE-LOCKED LOOP

Channel Frequency Resolution 396.7 Hz Phase Noise (In-Band) −88 dBc/Hz

Phase Noise at Offset of

1 MHz −126 dBc/Hz PA output power = 10 dBm, RF frequency = 868 MHz 2 MHz −131 dBc/Hz PA output power = 10 dBm, RF frequency = 868 MHz

10 MHz −142 dBc/Hz PA output power = 10 dBm, RF frequency = 868 MHz VCO Calibration Time 142 µs Synthesizer Settling Time 56 µs

CRYSTAL OSCILLATOR

Crystal Frequency 26 MHz Parallel load resonant crystal Recommended Load Capacitance 7 18 pF Maximum Crystal ESR 1800 Ω 26 MHz crystal with 18 pF load capacitance Pin Capacitance 2.1 pF Capacitance for XOSC26P and XOSC26N Start-Up Time 310 µs 26 MHz crystal with 7 pF load capacitance 388 µs 26 MHz crystal with 18 pF load capacitance

SPURIOUS EMISSIONS

Integer Boundary Spurious

910.1 MHz −39 dBc

911.0 MHz −79 dBc

Reference Spurious

868 MHz/915 MHz −80 dBc

Clock-Related Spur Level −60 dBc

MIN

to T

, unless otherwise noted. Typical specifications are at

MAX

10 kHz offset, PA output power = 10 dBm, RF = 868 MHz

Frequency synthesizer settles to within ±5 ppm of the target frequency within this time following the VCO calibration, transmit, and receive, 2FSK/GFSK/ MSK/GMSK

Using 130 kHz synthesizer bandwidth, integer boundary spur at 910 MHz (26 MHz × 35), inside synthesizer loop bandwidth

Using 130 kHz synthesizer bandwidth, integer boundary spur at 910 MHz (26 MHz × 35), outside synthesizer loop bandwidth

Using 130 kHz synthesizer bandwidth and using 92 kHz synthesizer bandwidth (default for PHY_RX)

Measured in a span of ±350 MHz for synthesizer bandwidth = 92 kHz, RF frequency = 868.95 MHz, PA output power = 10 dBm, V used

= 3.6 V, single-ended PA

Rev. 0 | Page 6 of 108

ADF7023

http://www.BDTIC.com/ADI

TRANSMITTER SPECIFICATIONS

Table 2.

Parameter Min Typ Max Unit Test Conditions

DATA RATE

2FSK/GFSK/MSK/GMSK 1 300 kbps OOK 2.4 19.2 kbps

Data Rate Resolution 100 bps

MODULATION ERROR RATE (MER) RF frequency = 928 MHz, GFSK

10 kbps to 49.5 kbps 25.4 dB Modulation index = 1

49.6 kbps to 129.5 kbps 25.3 dB Modulation index = 1

129.6 kbps to 179.1 kbps 23.9 dB Modulation index = 0.5

179.2 kbps to 239.9 kbps 23.3 dB Modulation index = 0.5 240 kbps to 300 kbps 23 dB Modulation index = 0.5

MODULATION

2FSK/GFSK/MSK/GMSK Frequency

Deviation Deviation Frequency Resolution 100 Hz Gaussian Filter BT 0.5 Nonprogrammable

OOK

PA Off Feedthrough −94 dBm VCO Frequency Pulling 30

SINGLE-ENDED PA

Maximum Power Minimum Power −20 dBm Transmit Power Variation vs.

Temperature Transmit Power Variation vs. VDD ±1 dB From 1.8 V to 3.6 V, RF frequency = 868 MHz Transmit Power Flatness ±1 dB

Programmable Step Size

−20 dBm to +13.5 dBm 0.5 dB Programmable in 63 steps

DIFFERENTIAL PA

Maximum Power1 10 dBm Programmable Minimum Power −20 dBm Transmit Power Variation vs.

Temperature Transmit Power Variation vs. VDD ±2 dB From 1.8 V to 3.6 V, RF frequency = 868 MHz Transmit Power Flatness ±1 dB From 863 MHz to 870 MHz Programmable Step Size

−20 dBm to +10 dBm 0.5 dB Programmable in 63 steps

HARMONICS

Single-Ended PA

Second Harmonic −15.1 dBc

Third Harmonic −29.3 dBc

All Other Harmonics −47.6 dBc Differential PA

Second Harmonic −23.2 dBc

Third Harmonic −25.2 dBc

All Other Harmonics −24.2 dBc

13.5 dBm Programmable, separate PA and LNA match

0.1 409.5 kHz

kHz rms

±0.5 dB From −40°C to +85°C, RF frequency = 868 MHz

±1 dB From −40°C to +85°C, RF frequency = 868 MHz

Manchester encoding enabled (Manchester chip rate = 2 × data rate)

Data rate = 19.2 kbps (38.4 kcps Manchester encoded), PA output = 10 dBm, PA ramp rate = 64 codes/bit

From 902 MHz to 928 MHz and 863 MHz to 870 MHz

868 MHz, unfiltered conductive, PA output power = 10 dBm

Rev. 0 | Page 7 of 108

ADF7023

http://www.BDTIC.com/ADI

Parameter Min Typ Max Unit Test Conditions

OPTIMUM PA LOAD IMPEDANCE

Single-Ended PA, in Transmit

Mode

fRF = 915 MHz 50.8 + j10.2 Ω fRF = 868 MHz 45.5 + j12.1 Ω fRF = 433 MHz 46.8 + j19.9 Ω

Single-Ended PA, in Receive Mode

fRF = 915 MHz 9.4 − j124 Ω fRF = 868 MHz 9.5 − j130.6 Ω fRF = 433 MHz 11.9 − j260.1 Ω

Differential PA, in Transmit Mode

fRF = 915 MHz 20.5 + j36.4 Ω fRF = 868 MHz 24.7 + j36.5 Ω fRF = 433 MHz 55.6 + j81.5 Ω

Measured as the maximum unmodulated power.

A combined single-ended PA and LNA match can reduce the maximum achievable output power by up to 1 dB.

Load impedance between RFIO_1P and RFIO_1N to ensure maximum output power

Rev. 0 | Page 8 of 108

ADF7023

http://www.BDTIC.com/ADI

RECEIVER SPECIFICATIONS

Table 3.

Parameter Min Typ Max Unit Test Conditions

2FSK/GFSK/MSK/GMSK INPUT

SENSITIVITY, BIT ERROR RATE (BER)

1.0 kbps −116 dBm

10 kbps −111 dBm

38.4 kbps −107.5 dBm

50 kbps −106.5 dBm

100 kbps −105 dBm

150 kbps −104 dBm

200 kbps −103 dBm

300 kbps −100.5 dBm

2FSK/GFSK/MSK/GMSK INPUT

SENSITIVITY, PACKET ERROR RATE (PER)

1.0 kbps −115.5 dBm

9.6 kbps −110.6 dBm

38.4 kbps −106 dBm

50 kbps −104.3 dBm

100 kbps −102.6 dBm

150 kbps −101 dBm

200 kbps −99.1 dBm

300 kbps −97.9 dBm

OOK INPUT SENSITIVITY, PACKET ERROR

RATE (PER)

19.2 kbps (38.4 kcps, Manchester

Encoded)

2.4 kbps (4.8 kcps, Manchester

Encoded)

LNA AND MIXER, INPUT IP3

Minimum LNA Gain −11.5 dBm Maximum LNA Gain −12.2 dBm

LNA AND MIXER, INPUT IP2

Max LNA Gain, Max Mixer Gain 18.5 dBm Min LNA Gain, Min Mixer Gain 27 dBm

At BER = 1E − 3, RF frequency = 868 MHz, 915 MHz LNA and PA matched separately

Frequency deviation = 4.8 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 9.6 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 20 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 12.5 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 25 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 37.5 kHz, IF filter bandwidth = 150 kHz

Frequency deviation = 50 kHz, IF filter bandwidth = 200 kHz

Frequency deviation = 75 kHz, IF filter bandwidth = 300 kHz

At PER = 1%, RF frequency = 868 MHz, 915 MHz LNA and PA matched separately 128 bits, packet mode

Frequency deviation = 4.8 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 9.6 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 20 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 12.5 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 25 kHz, IF filter bandwidth = 100 kHz

Frequency deviation = 37.5 kHz, IF filter bandwidth = 150 kHz

Frequency deviation = 50 kHz, IF filter bandwidth = 200 kHz

Frequency deviation = 75 kHz, IF filter bandwidth = 300 kHz

At PER = 1%, RF frequency = 868 MHz, 915 MHz, 433 MHz, LNA and PA matched separately = 128 bits, packet mode, IF filter bandwidth = 100 kHz

−104.7 dBm

−109.7 dBm

Receiver LO frequency (f

0.4 MHz, f

Receiver LO frequency (f

1.1 MHz, f

= fLO + 0.7 MHz

SOURCE2

= fLO + 1.3 MHz

SOURCE2

, packet length =

) = 914.8 MHz, f

) = 920.8 MHz, f

, packet length

= fLO +

SOURCE1

= fLO +

SOURCE1

Rev. 0 | Page 9 of 108

ADF7023

http://www.BDTIC.com/ADI

Parameter Min Typ Max Unit Test Conditions

LNA AND MIXER, 1 dB COMPRESSION

POINT Max LNA Gain, Max Mixer Gain −21.9 dBm Min LNA Gain, Min Mixer Gain −21 dBm

ADJACENT CHANNEL REJECTION

CW Interferer

200 kHz Channel Spacing 38 dB

300 kHz Channel Spacing 39 dB

38 dB

400 kHz Channel Spacing 40 dB

600 kHz Channel Spacing 41 dB

Modulated Interferer

200 kHz Channel Spacing 38 dB

300 kHz Channel Spacing 36 dB

400 kHz Channel Spacing 34 dB

600 kHz Channel Spacing 35 dB

CO-CHANNEL REJECTION −4 dB

BLOCKING

RF Frequency = 433 MHz

±2 MHz 68 dB ±10 MHz 76 dB

RF Frequency = 868 MHz

±2 MHz 66 dB ±10 MHz 74 dB

RF Frequency = 915 MHz

±2 MHz 66 dB ±10 MHz 74 dB

RF frequency = 915 MHz

Wanted signal 3 dB above the input sensitivity level (BER = 10 BER = 10

−3

), CW interferer power level increased until

−3

, image calibrated

IF BW = 100 kHz, wanted signal: F DR = 50 kbps

IF BW = 100 kHz, wanted signal: F DR = 100 kbps

IF BW = 150 kHz, wanted signal: F DR = 150 kbps

IF BW = 200 kHz, wanted signal: F DR = 200 kbps

IF BW = 300 kHz, wanted signal: F DR = 300 kbps

Wanted signal 3 dB above the input sensitivity level (BER = 10−3), modulated interferer with the same modulation as the wanted signal; interferer power level increased until BER = 10−3, image calibrated

IF BW = 100 kHz, wanted signal: F DR = 50 kbps

IF BW = 100 kHz, wanted signal: F DR = 100 kbps

IF BW = 150 kHz, wanted signal: F DR = 150 kbps

IF BW = 200 kHz, wanted signal: F DR = 200 kbps

IF BW = 300 kHz, wanted signal: F DR = 300 kbps

Desired signal 10 dB above the input sensitivity level (BER = 10

−3

), data rate = 38.4 kbps, frequency deviation

= 20 kHz, RF frequency = 868 MHz Desired signal 3 dB above the input sensitivity level

(BER = 10−3) of −107.5 dBm (data rate = 38.4 kbps), modulated interferer power level increased until BER = 10−3 (see the Typical Performance Characteristics section for blocking at other offsets and IF bandwidths)

= 12.5 kHz,

DEV

= 25 kHz,

DEV

= 37.5 kHz,

DEV

= 50 kHz,

DEV

= 75 kHz,

DEV

= 12.5 kHz,

DEV

= 25 kHz,

DEV

= 37.5 kHz,

DEV

= 50 kHz,

DEV

= 75 kHz,

DEV

Rev. 0 | Page 10 of 108

ADF7023

http://www.BDTIC.com/ADI

Parameter Min Typ Max Unit Test Conditions

BLOCKING, ETSI EN 300 220

±2 MHz −28 dBm ±10 MHz −20.5 dBm

WIDEBAND INTERFERENCE REJECTION 75 dB

IMAGE CHANNEL ATTENUATION

868 MHz, 915 MHz 36/45 dB 433 MHz 40/54 dB Uncalibrated/calibrated

AFC

Accuracy 1 kHz Maximum Pull-In Range

300 kHz IF Filter Bandwidth ±150 kHz 200 kHz IF Filter Bandwidth ±100 kHz 150 kHz IF Filter Bandwidth ±75 kHz 100 kHz IF Filter Bandwidth ±50 kHz

PREAMBLE LENGTH

AFC Off, AGC Lock on Sync Word Detection

38.4 kbps 8 Bits 300 kbps 24 Bits

AFC On, AFC and AGC Lock on Preamble Detection

9.6 kbps 44 Bits

38.4 kbps 44 Bits 50 kbps 50 Bits 100 kbps 52 Bits 150 kbps 54 Bits 200 kbps 58 Bits 300 kbps 64 Bits

AFC On, AFC and AGC Lock on Sync Word Detection

38.4 kbps 14 Bits 300 kbps 32 Bits

RSSI

Range at Input −97 to −26 dBm Linearity ±2 dB Absolute Accuracy ±3 dB

SATURATION (MAXIMUM INPUT LEVEL)

2FSK/GFSK/MSK/GMSK 12 dBm OOK −13 dBm OOK modulation depth = 20 dB

10 dBm OOK modulation depth = 60 dB

Measurement procedure as per ETSI EN 300 220-1 V2.3.1; desired signal 3 dB above the ETSI EN 300 220 reference sensitivity level of −99 dBm, IF bandwidth =100 kHz, data rate = 38.4 kbps, unmodulated interferer; see the Typical Performance Characteristics section for blocking at other offsets and IF bandwidths, RF frequency = 868 MHz

RF frequency = 868 MHz, swept from 10 MHz to 100 MHz either side of the RF frequency

Measured as image attenuation at the IF filter output, carrier wave interferer at 400 kHz below the channel frequency, 100 kHz IF filter bandwidth

Uncalibrated/calibrated

Achievable pull-in range dependent on discriminator bandwidth and modulation

Minimum number of preamble bits to ensure the minimum packet error rate across the full input power range

Rev. 0 | Page 11 of 108

ADF7023

http://www.BDTIC.com/ADI

Parameter Min Typ Max Unit Test Conditions

LNA INPUT IMPEDANCE

Receive Mode

fRF = 915 MHz 75.9 − j32.3 Ω fRF = 868 MHz 78.0 − j32.4 Ω fRF = 433 MHz 95.5 − j23.9 Ω

Transmit Mode

fRF = 915 MHz 7.6 + j9.2 Ω fRF = 868 MHz 7.7 + j8.6 Ω fRF = 433 MHz 7.9 + j4.6 Ω

RX SPURIOUS EMISSIONS

Maximum <1 GHz −66 dBm

Maximum >1 GHz −62 dBm At antenna input, unfiltered conductive

Sensitivity for combined matching network case is typically 1 dB less than separate matching networks.

Follow the matching and layout guidelines to achieve the relevant FCC/ETSI specifications.

At antenna input, unfiltered conductive

Rev. 0 | Page 12 of 108

ADF7023

http://www.BDTIC.com/ADI

TIMING AND DIGITAL SPECIFICATIONS

Table 4.

Parameter Min Typ Max Unit Test Conditions

RX AND TX TIMING PARAMETERS

PHY_ON to PHY_RX (on CMD_PHY_RX) 300 s Includes VCO calibration and synthesizer settling PHY_ON to PHY_TX (on CMD_PHY_TX) 296 s

LOGIC INPUTS

Input High Voltage, V Input Low Voltage, V Input Current, I

INH/IINL

0.7 × VDD V

INH

0.2 × V

INL

±1 µA

Input Capacitance, CIN 10 pF

LOGIC OUTPUTS

Output High Voltage, VOH V

− 0.4 V IOH = 500 µA

Output Low Voltage, VOL 0.4 V IOL = 500 µA GPIO Rise/Fall 5 ns GPIO Load 10 pF Maximum Output Current 5 mA

ATB OUTPUTS Used for external PA and LNA control

ADCIN_ATB3 and ATB4

Output High Voltage, VOH 1.8 V Output Low Voltage, VOL 0.1 V Maximum Output Current 0.5 mA

XOSC32KP_GP5_ATB1 and

XOSC32KN_ATB2

Output High Voltage, VOH V

Output Low Voltage, VOL 0.1 V Maximum Output Current 5 mA

See the State Transition and Command Timing section for more details

Includes VCO calibration and synthesizer settling, does not include PA ramp-up

Rev. 0 | Page 13 of 108

ADF7023

http://www.BDTIC.com/ADI

AUXILARY BLOCK SPECIFICATIONS

Table 5.

Parameter Min Typ Max Unit Test Conditions

32 kHz RC OSCILLATOR

Frequency 32.768 kHz After calibration

Frequency Accuracy 1.5 % After calibration at 25°C

Frequency Drift

Temperature Coefficient 0.14 %/°C Voltage Coefficient 4 %/V

Calibration Time 1 ms

32 kHz XTAL OSCILLATOR

Frequency 32.768 kHz

Start-Up Time 630 ms 32.768 kHz crystal with 7 pF load capacitance

WAKE UP CONTROLLER (WUC)

Hardware Timer

Wake-Up Period 61 × 10−6 1.31 × 105 sec

Firmware Timer

Wake-Up Period 1 216 Hardware

periods

ADC

Resolution 8 Bits

DNL ±1 LSB From 1.8 V to 3.6 V, TA = 25°C

INL ±1 LSB From 1.8 V to 3.6 V, TA = 25°C

Conversion Time 1

Input Capacitance 12.4 pF

BATTERY MONITOR

Absolute Accuracy ±45 mV

Alarm Voltage Set Point 1.7 2.7 V

Alarm Voltage Step Size 62 mV 5-bit resolution

Start-Up Time 100 µs

Current Consumption 30 µA When enabled

TEMPERATURE SENSOR

Range −40 +85 °C

Resolution 0.3 °C With averaging

Accuracy of Temperature Readback

Single Readback ±14 °C Average of 10 Readbacks ±4.4 °C Average of 50 Readbacks ±2 °C

µs

Firmware counter counts of the number of hardware wake-ups, resolution of 16 bits

With a temperature correction value (determined at a known temperature) applied, from −40°C to +85°C

Rev. 0 | Page 14 of 108

ADF7023

http://www.BDTIC.com/ADI

GENERAL SPECIFICATIONS

Table 6.

Parameter Min Typ Max Unit Test Conditions

TEMPERATURE RANGE, TA −40 +85 °C VOLTAGE SUPPLY

VDD 1.8 3.6 V Applied to VDDBAT1 and VDDBAT2

TRANSMIT CURRENT CONSUMPTION

Single-Ended PA, 433 MHz

−10 dBm 8.7 mA 0 dBm 12.2 mA 10 dBm 23.3 mA

13.5 dBm 32.1 mA

Differential PA, 433 MHz

−10 dBm 7.9 mA 0 dBm 11 mA 5 dBm 15 mA 10 dBm 22.6 mA

Single-Ended PA, 868 MHz/915 MHz

−10 dBm 10.3 mA 0 dBm 13.3 mA 10 dBm 24.1 mA

13.5 dBm 32.1 mA

Differential PA, 868 MHz/915 MHz

−10 dBm 9.3 mA 0 dBm 12 mA 5 dBm 16.7 mA 10 dBm 28 mA

POWER MODES

PHY_SLEEP (Deep Sleep Mode 2) 0.18 µA

PHY_SLEEP (Deep Sleep Mode 1) 0.33 µA

PHY_SLEEP (RCO Wake Mode)

PHY_SLEEP (XTO Wake Mode) 1.28 µA

PHY_OFF 1 mA

PHY_ON 1 mA

PHY_RX 12.8 mA Device in PHY_RX state

SMART WAKE MODE Average current consumption

21.78 µA

11.75 µA

0.75 µA

In the PHY_TX state, single-ended PA matched to 50 Ω, differential PA matched to 100 Ω, separate single-ended PA and LNA match, combined differential PA and LNA match

Sleep mode, wake-up configuration values (BBRAM) not retained

Sleep mode, wake-up configuration values (BBRAM) retained

WUC active, RC oscillator running, wake-up configuration values retained (BBRAM)

WUC active, 32 kHz crystal running, wake-up configuration values retained (BBRAM)

Device in PHY_OFF state, 26 MHz oscillator running, digital and synthesizer regulators active, all register values retained

Device in PHY_ON state, 26 MHz oscillator running, digital, synthesizer, VCO, and RF regulators active, baseband filter calibration performed, all register values retained

Autonomous reception every 1 sec, with receive dwell time of 1.25 ms, using RC oscillator, data rate = 38.4 kbps

Autonomous reception every 1 sec, with receive dwell time of 0.5 ms, using RC oscillator, data rate = 300 kbps

Rev. 0 | Page 15 of 108

ADF7023

http://www.BDTIC.com/ADI

TIMING SPECIFICATIONS

VDD = VDDBAT1 = VDDBAT2 = 3 V ± 10%, V

Table 7. SPI Interface Timing

Parameter Limit Unit Test Conditions/Comments

t1 15 ns max t2 85 ns min t3 85 ns min SCLK high time t4 85 ns min SCLK low time t5 170 ns min SCLK period t6 10 ns max SCLK falling edge to MISO delay t7 5 ns min MOSI to SCLK rising edge setup time t8 5 ns min MOSI to SCLK rising edge hold time t9 85 ns min t11 270 ns min t12 310 µs typ t13 20 ns max SCLK rise time t14 20 ns max SCLK fall time

Timing Diagrams

= GND = 0 V, TA = T

GND

falling edge to MISO setup time (TRX active)

low to SCLK setup time

SCLK falling edge to CS

high time

low to MISO high wake-up time, 26 MHz crystal with 7 pF load capacitance, T

to T

MIN

hold time

MAX

, unless otherwise noted.

= 25°C

SCLK

MISO

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 BIT 7 BIT 0 X BIT 7

7 765432107

t4t

08291-002

Figure 2. SPI Interface timing

SCLK

MISO

SPI STATE

SLEEP WAKE UP SPI READY

Figure 3. PHY_SLEEP to SPI Ready State Timing (SPI Ready T12 After Falling Edge of

012345

08291-003

)

Rev. 0 | Page 16 of 108

ADF7023

http://www.BDTIC.com/ADI

ABSOLUTE MAXIMUM RATINGS

TA = 25°C, unless otherwise noted.

Table 8.

Parameter Rating

VDDBAT1, VDDBAT2 to GND −0.3 V to +3.96 V Operating Temperature Range

Industrial −40°C to +85°C Storage Temperature Range −65°C to +125°C Maximum Junction Temperature 150°C LFCSP θJA Thermal Impedance 26°C/W Reflow Soldering

Peak Temperature 260°C

Time at Peak Temperature 40 sec

ESD CAUTION

The exposed paddle of the LFCSP package should be connected to ground.

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

This device is a high performance, RF integrated circuit with an ESD rating of <2 kV; it is ESD sensitive. Proper precautions should be taken for handling and assembly.

Rev. 0 | Page 17 of 108

ADF7023

http://www.BDTIC.com/ADI

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

ADCVREF

ATB4

ADCIN_ATB3

VDDBAT1

XOSC32KN_ATB2

XOSC32KP_GP5_ATB1

CREGDIG2

32313029282726

CREGRF1

CREGRF2

RFIO_1P RFIO_1N

VDDBAT2

NOTES

1. NC = NO CONNEC T.

2. CONNECT EXPOSED PAD TO GND.

RBIAS

RFO2

1 2 3 4 5 6 7 8

ADF7023

TOP VIEW

(Not to S cale)

EPAD

10111213141516

CREGVCO

CWAKEUP

VCOGUARD

CREGSYNTH

Figure 4. Pin Configuration

GP4 25

24 CS 23

MOSI SCLK

MISO

21 20

IRQ_GP3

GP2

GP1

17 GP0

DGUARD

XOSC26P

XOSC26N

CREGDIG1

08291-004

Table 9. Pin Function Descriptions

Pin No. Mnemonic Function

1 CREGRF1

Regulator Voltage for RF. A 220 nF capacitor should be placed between this pin and ground for

regulator stability and noise rejection. 2 RBIAS External Bias Resistor. A 36 kΩ resistor with 2% tolerance should be used. 3 CREGRF2

Regulator Voltage for RF. A 220 nF capacitor should be placed between this pin and ground for

regulator stability and noise rejection. 4 RFIO_1P LNA Positive Input in Receive Mode. PA positive output in transmit mode with differential PA. 5 RFIO_1N LNA Negative Input in Receive Mode. PA negative output in transmit mode with differential PA. 6 RFO2 Single-Ended PA Output. 7 VDDBAT2

Power Supply Pin Two. Decoupling capacitors to the ground plane should be placed as close as

possible to this pin. 8 NC No Connect. 9 CREGVCO

Regulator Voltage for the VCO. A 220 nF capacitor should be placed between this pin and ground for

regulator stability and noise rejection. 10 VCOGUARD Guard/Screen for VCO. This pin should be connected to Pin 9. 11 CREGSYNTH

Regulator Voltage for the Synthesizer. A 220 nF capacitor should be placed between this pin and

ground for regulator stability and noise rejection. 12 CWAKEUP

External Capacitor for Wake-Up Control. A 150 nF capacitor should be placed between this pin and

ground. 13 XOSC26P The 26 MHz reference crystal should be connected between this pin and XOSC26N. 14 XOSC26N The 26 MHz reference crystal should be connected between this pin and XOSC26P. 15 DGUARD

Internal Guard/Screen for the Digital Circuitry. A 220 nF capacitor should be placed between this pin

and ground. 16 CREGDIG1

Regulator Voltage for Digital Section of the Chip. A 220 nF capacitor should be placed between this

pin and ground for regulator stability and noise rejection. 17 GP0 Digital GPIO Pin 0. 18 GP1 Digital GPIO Pin 1. 19 GP2 Digital GPIO Pin 2. 20 IRQ_GP3

Interrupt Request, Digital GPIO Test Pin 3. An RC filter should be placed between this pin and the

host processor. Recommended values are R = 1.1 kΩ and C = 1.5 nF. 21 MISO Serial Port Master In/Slave Out.

Rev. 0 | Page 18 of 108

ADF7023

http://www.BDTIC.com/ADI

Pin No. Mnemonic Function

22 SCLK Serial Port Clock. 23 MOSI Serial Port Master Out/Slave In. 24

25 GP4 Digital GPIO Test Pin 4. 26 CREGDIG2

27 XOSC32KP_GP5_ATB1

28 XOSC32KN_ATB2

29 VDDBAT1

30 ADCIN_ATB3

31 ATB4 Analog Test Pin 4. Can be configured as an external LNA enable signal. 32 ADCVREF

EPAD GND Exposed Package Paddle. Connect to GND.

Chip Select (Active Low). A pull-up resistor of 100 kΩ to VDD is recommended to prevent the host processor from inadvertently waking the ADF7023 from sleep.

Regulator Voltage for Digital Section of the Chip. A 220 nF capacitor should be placed between this pin and ground for regulator stability and noise rejection.

Digital GPIO Test Pin 5. A 32 kHz watch crystal can be connected between this pin and XOSC32KN_ATB2. Analog Test Pin 1.

A 32 kHz watch crystal can be connected between this pin and XOSC32KP_GP5_ATB1. Analog Test Pin 2.

Digital Power Supply Pin One. Decoupling capacitors to the ground plane should be placed as close as possible to this pin.

Analog-to-Digital Converter Input. Can be configured as an external PA enable signal. Analog Test Pin 3.

ADC Reference Output. A 220 nF capacitor should be placed between this pin and ground for adequate noise rejection.

Rev. 0 | Page 19 of 108

ADF7023

http://www.BDTIC.com/ADI

TYPICAL PERFORMANCE CHARACTERISTICS

14 12 10

8 6 4 2

0 –2 –4 –6 –8

–10

OUTPUT POWER (dBm)

–12 –14 –16 –18 –20

0 4 8 1216202428323640444852566064

PA SETTING

Figure 5. Single-Ended PA at 433 MHz: Output Power vs. PA_LEVEL_MCR

Setting, Temperature, and V

36 34

32 30 28 26 24 22 20 18 16

SUPPLY CURRENT (mA)

14 12 10

–18

–16

–14

–8–6–4

–12

–10

OUTPUT POWER (dBm)

–40°C, 3.6V –40°C, 1.8V +85°C, 3.6V +85°C, 1.8V

02468

–2

Figure 6. Single-Ended PA at 433 MHz: Supply Current vs. Output Power,

Temperature, and V

15 10

5 0

–5

–10 –15 –20

OUTPUT POWER (dBm)

–25 –30 –35 –40

0 10203040

PA SETTING

Figure 7. Single-Ended PA at 868 MHz: Output Power vs. PA_LEVEL_MCR

Setting, Temperature, and V

–40°C, 3.6V –40°C, 3.0V –40°C, 2.4V –40°C, 1.8V +85°C, 3.6V +85°C, 3.0V +85°C, 2.4V +85°C, 1.8V +25°C, 3.6V +25°C, 3.0V +25°C, 2.4V +25°C, 1.8V

3.6V, +25°C

3.0V, +25°C

2.4V, +25°C

1.8V, +25°C

3.6V, +85°C

3.0V, +85°C

2.4V, +85°C

1.8V, +85°C

3.6V, –40°C

3.0V, –40°C

2.4V, –40°C

1.8V, –40°C

50 60 70

101214

08291-201

08291-202

08291-043

3.0V, 25°C

3.6V, 25°C

1.8V, 25°C

SUPPLY CURRENT (mA)

–30 –25 –20 –15 –10 –5 0 5 10 15 20

PA OUTPUT POWER (d Bm)

08291-044

Figure 8. Single-Ended PA at 868 MHz: Supply Current vs. Output Power,

Temperature, and V

14 12 10

8 6 4 2

0 –2 –4 –6 –8

–10

OUTPUT POWER (dBm)

–12 –14 –16 –18 –20

0 4 8 1216202428323640444852566064

PA SETTING

–40°C, 3.6V –40°C, 3.0V –40°C, 2.4V –40°C, 1.8V +85°C, 3.6V +85°C, 3.0V +85°C, 2.4V +85°C, 1.8V +25°C, 3.6V +25°C, 3.0V +25°C, 2.4V +25°C, 1.8V

08291-205

Figure 9. Single-Ended PA at 915 MHz: Output Power vs. PA_LEVEL_MCR

Setting, Temperature, and V

36 34 32 30 28 26 24 22 20 18 16

SUPPLY CURRENT (mA)

14 12 10

–18

–16

–14

–8–6–4

–12

–10

OUTPUT POWER (dBm)

–40°C, 3.6V –40°C, 1.8V +85°C, 3.6V +85°C, 1.8V

02468

–2

101214

08291-206

Figure 10. Single-Ended PA at 915 MHz: Supply Current vs. Output Power,

Temperature, and V

Rev. 0 | Page 20 of 108

ADF7023

http://www.BDTIC.com/ADI

14 12 10

8 6 4 2

0 –2 –4 –6 –8

–10

OUTPUT POWER (dBm)

–12 –14 –16 –18 –20

0 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64

PA SETTI NG

–40°C, 3.6V –40°C, 3.0V –40°C, 2.4V

–40°C, 1.8V +85°C, 3.6V +85°C, 3.0V +85°C, 2.4V +85°C, 1.8V +25°C, 3.6V +25°C, 3.0V +25°C, 2.4V +25°C, 1.8V

Figure 11. Differential PA at 433 MHz: Output Power vs. PA_LEVEL_MCR

Setting, Temperature, and V

28 26 24 22 20 18 16 14 12

SUPPLY CURRENT (mA)

8 6

–18

–16

–40°C, 3.6V –40°C, 1.8V +85°C, 3. 6V +85°C, 1. 8V

–14

–12

–10

OUTPUT POWER (dBm)

–8–6–4

–2

08291-208

Figure 12. Differential PA at 433 MHz: Supply Current vs. Output Power,

Temperature, and V

08291-207

32 30 28 26 24 22 20 18 16 14

SUPPLY CURRENT (mA)

12 10

8 6

–18

–16

–14

–12

–40°C, 3.6V –40°C, 1.8V +85°C, 3.6V +85°C, 1.8V

–8–6–4

–10

OUTPUT PO WER (dBm)

–2

468

08291-210

Figure 14. Differential PA at 915 MHz: Supply Current vs. Output Power,

Temperature, and V

–10

–20

PA RAMP = 1

–30

–40

PA OUTPUT POWER (dBm)

–50

–60

0 50 100 150 200 250 300 350 400 450 500

PA RAMP = 2 PA RAMP = 3 PA RAMP = 4 PA RAMP = 5 PA RAMP = 6 PA RAMP = 7

TIME (µs)

08291-211

Figure 15. PA Ramp-Up at Data Rate =38.4 kbps for Each PA_RAMP Setting,

Differential PA

12 10

8 6 4 2

0 –2 –4 –6 –8

–10

OUTPUT PO WER (dBm)

–12 –14 –16 –18 –20

0 4 8 1216202428323640444852566064

PA LEVEL SETTING

–40°C, 3.6V –40°C, 3.0V –40°C, 2.4V –40°C, 1.8V +85°C, 3.6V +85°C, 3.0V +85°C, 2.4V +85°C, 1.8V +25°C, 3.6V +25°C, 3.0V +25°C, 2.4V +25°C, 1.8V

Figure 13. Differential PA at 915 MHz: Output Power vs. PA_LEVEL_MCR

Setting, Temperature, and V

08291-209

Figure 16. PA Ramp-Down at Data Rate =38.4 kbps for Each PA_RAMP

Rev. 0 | Page 21 of 108

–10

–20

–30

–40

PA OUTPUT POWER (dBm)

–50

–60

PA RAMP = 1 PA RAMP = 2 PA RAMP = 3 PA RAMP = 4 PA RAMP = 5 PA RAMP = 6 PA RAMP = 7

0 50 100 150 200 250 300 350 400 450 500

TIME (µs)

Setting, Differential PA

08291-212

ADF7023

http://www.BDTIC.com/ADI

–10

–20

–30

–40

PA OUTPUT POWER (dBm)

–50

–60

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75

Figure 17. PA Ramp-Up at Data Rate =300 kbps for Each PA_RAMP Setting,

–10

–20

–30

–40

PA OUTPUT POWER (dBm)

–50

–60

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75

Figure 18. PA Ramp-Down at Data Rate =300 kbps for Each PA_RAMP

–10

–20

–30

POWER (d Bm)

–40

PA RAMP = 4 PA RAMP = 5 PA RAMP = 6 PA RAMP = 7

TIME (µs)

Differential PA

PA RAMP = 4 PA RAMP = 5 PA RAMP = 6 PA RAMP = 7

TIME (µs)

Setting, Differential PA

3.6V, –40°C

1.8V, –40°C

3.6V, +85°C

1.8V, +85°C

–10

–20

–30

POWER (d Bm)

–40

–50

–60

08291-213

–250 –200 –150 –100 –50 0 50 100 150 200 250

FREQUENCY OFFSET (kHz)

3.6V, –40°C

1.8V, –40°C

3.6V, +85°C

1.8V, +85°C

08291-041

Figure 20. Transmit Spectrum at 868 MHz, GFSK, Data Rate = 38.4 kbps,

Frequency Deviation = 20 kHz

15 10

3.6V, +25°C

1.8V, +25°C

3.6V, +85°C

–5

1.8V, +85°C

–1000

3.6V, –40°C

1.8V, –40°C

–900

–800

–700

–600

–500

–400

–300

–200

FREQUENCY OF FSET (kHz)

–100

100

200

300

400

500

600

700

800

900

1000

08291-217

–10 –15 –20

POWER (dBm)

–25 –30 –35 –40 –45

08291-214

Figure 21. Transmit Spectrum at 928 MHz, GFSK, Data Rate = 300 kbps,

Frequency Deviation = 75 kHz

–10

–50

–60

–250 –200 –150 –100 –50 0 50 100 150 200 250

FREQUENCY OFFSET (kHz)

Figure 19. Transmit Spectrum at 868 MHz, FSK, Data Rate = 38.4 kbps,

Frequency Deviation = 20 kHz

08291-040

Figure 22. Transmit Eye at 868 MHz, GFSK, Data Rate = 38.4 kbps, Frequency

Rev. 0 | Page 22 of 108

–20

TRANSMIT F REQUENCY DEVIAT ION (kHz)

–30

0 0.25 0.75 1.25 2.00

0.50 1.00 1.50 1.75 TRANSMIT SY MBOL (Bits)

Deviation = 21 kHz

08291-218

ADF7023

http://www.BDTIC.com/ADI

100

–25

–50

–75

TRANSMIT F REQUENCY DEVIAT ION (kHz)

–100

0 0.25 0.75 1.25 2.00

0.50 1.00 1.50 1.75 TRANSMIT SY MBOL (Bits)

08291-219

Figure 23. Transmit Eye at 868 MHz, GFSK, Data Rate = 300 kbps, Frequency

Deviation = 75 kHz

–10

–20

–30

OUTPUT POWER (dBm)

–40

–50

–60

–2.5 –2.0 –1.5 –1.0 –0.5 0 0.5 1.0 1.5 2.0 2.5

FREQUENCY OF FSET (MHz)

08291-221

Figure 24. OOK Transmit Spectrum, Max Hold for 100 Sweeps, Single-Ended

PA, 868.95 MHz, Data Rate = 16.4 kbps (32.8 kcps, Manchester Encoded),

PA_RAMP = 1

RF FREQUENCY = 868MHz

RF FREQUENCY = 928MHz

32 31 30 29 28 27 26 25

130kHz SYNTH

MODUL ATION ERROR RATIO (dB)

BANDWIDTH

174kHz SYNTH

BANDWIDTH

223kHz SYNTH

BANDWIDTH

304kHz SYNTH

BANDWIDTH

381kHz SYNTH

BANDWIDTH

23 22

10.0 49.5 49.6 129.5 129.6 179.1 179.2 239.9 240.0 300.0 DATA RATE (kbps)

08291-220

Figure 25. Modulation Error Ratio (MER) vs. Data Rate, Synthesizer Loop

Bandwidth, and RF Frequency at Modulation Index = 1

+25°C, 1.8V +85°C, 1.8V

–40°C, 1.8V +25°C, 3.6V +85°C, 3.6V

–40°C, 3.6V

MODULATION ERROR RATIO (dB)

860 870 880 890 900 910 920 930 940

RF TRANSMIT FREQUENCY (M Hz )

08291-222

Figure 26. Modulation Error Ratio (MER) vs. RF Frequency, Temperature, and

at Modulation Index = 1 and Data Rate = 10 kbps

RF FREQUENCY = 868MHz

RF FREQUENCY = 928MHz

28 27 26 25 24 23 22 21 20 19

130kHz

MODULATION ERROR RATIO (dB)

SYNTH

BANDWIDTH

17 16

10.0 49.5 49.6 129.5 129.6 179.1 179.2 239.9 240.0 300.0

174kHz SYNTH

BANDWIDTH

223kHz SYNTH

BANDWIDTH

304kHz SYNTH

BANDWIDTH

DATA RATE (kbps)

381kHz SYNTH

BANDWIDTH

08291-223

Figure 27. Modulation Error Ratio (MER) vs. Data Rate, Synthesizer Loop

Bandwidth, and RF Frequency at Modulation Index = 0.5

+25°C, 1. 8V +85°C, 1. 8V –40°C, 1.8V +25°C, 3. 6V +85°C, 3. 6V –40°C, 3.6V

MODULATION ERROR RATIO (dB)

860 870 880 890 900 910 920 930 940

RF TRANSMIT FREQUENCY (M Hz )

08291-224

Figure 28. Modulation Error Ratio (MER) vs. RF Frequency, Temperature, and

at Modulation Index = 0.5 and Data Rate = 10 kbps

Rev. 0 | Page 23 of 108

ADF7023

http://www.BDTIC.com/ADI

–5

–10

–15

–20

–25

–30

MIXER OUTP UT POWER (dBm)

–35

–40

–40 –35 –30 –25 –20 –15

Figure 29. LNA/Mixer 1 dB Compression Point, VDD = 3.0 V, Temperature =

25°C, RF Frequency = 915 MHz, LNA Gain = Low, Mixer Gain = Low

MIXER OUTP UT POWER (dBm)

–5

–10

–40 –35 –30 –25 –20 –15

Figure 30. LNA/Mixer 1 dB Compression Point, V

25°C, RF Frequency = 915 MHz, LNA Gain = High, Mixer Gain = High

–10 –20 –30 –40 –50 –60 –70 –80 –90

–100

MIXER OUTPUT POWER (dBm)

–110 –120 –130

Figure 31. LNA/Mixer IIP3, VDD = 3.0 V, Temperature = 25°C, RF Frequency =

915 MHz, LNA Gain = Low, Mixer Gain = Low, Source 1 Frequency =

OUTPUT PO WER (FUNDAMENTAL) OUTPUT POWER IDEAL P1dB

P1dB = –21dBm

LNA INPUT POWER (dBm)

OUTPUT PO WER (FUNDAMENTAL) OUTPUT POWER IDEAL P1dB

P1dB = –21.9dBm

LNA INPUT POWER (dBm)

= 3.0 V, Temperature =

IIP3 = –11.5dBm

FUNDAMENTAL TONE IM3 TONE FUNDAMENTAL 1/1 SLOPE FIT IM3 3/1 SLOPE FIT

–50 –45 –40 –35 –30 –25 –20 –15 –10

LNA INPUT POWER (dBm)

(915 + 0.4) MHz, Source 2 Frequency = (915+ 0.7) MHz

20 10

0 –10 –20 –30 –40 –50 –60

MIXER OUTPUT POWER (dBm)

–70 –80 –90

–50 –45 –40 –35 –30 –25 –20 –15 –10

08291-225

Figure 32. LNA/Mixer IIP3, V

FUNDAMENTAL TONE IM3 TONE FUNDAMENTAL 1/1 SL OPE FIT IM3 3/1 SL OPE FIT

LNA INPUT POWER (dBm)

= 3.0 V, Temperature = 25°C, RF Frequency =

IIP3 = –12.2dBm

08291-228

915 MHz, LNA Gain = High, Mixer Gain = High, Source 1 Frequency = (915 +

0.4) MHz, Source 2 Frequency = (915+ 0.7) MHz

–10

–20

–30

–40

–50

ATTENUATION (dB)

–60

–70

–80

–90

08291-226

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

FREQUENCY OFFSET ( MHz)

100kHz 150kHz 200kHz 300kHz

08291-229

Figure 33. IF Filter Profile vs. IF Bandwidth, VDD = 3.0 V, Temperature = 25°C

–10

–20

–30

–40

–50

ATTENUATION (dB)

–60

–70

–80

–90

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

08291-227

Figure 34. IF Filter Profile vs. V

FREQUENCY OFFSET (MHz)

and Temperature, 100 kHz IF Filter

1.8V, –40°C

2.4V, –40°C

3.0V, –40°C

3.6V, –40°C

1.8V, +25°C

2.4V, +25°C

3.0V, +25°C

3.6V, +25°C

1.8V, +85°C

2.4V, +85°C

3.0V, +85°C

3.6V, +85°C

08291-230

Bandwidth

Rev. 0 | Page 24 of 108

ADF7023

http://www.BDTIC.com/ADI

BLOCKING (d B)

–10

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–14

–12

–10

–8–6–4

–20

–18

–16

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

02468

–2

1012141618

Figure 35. Receiver Wideband Blocking at 433 MHz, Data Rate = 38.4 kbps

BLOCKING ( dB)

–10

–20

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–20

–18

–16

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

–8–6–4

–14

–12

–10

02468

–2

1012141618

Figure 36. Receiver Wideband Blocking at 433 MHz, Data Rate = 100 kbps

BLOCKING ( d B)

–10

–20

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–14

–12

–10

–8–6–4

–20

–18

–16

INTERFERE R OFFSET FROM RECEIVER LO F RE QUENCY (MHz)

02468

–2

1012141618

Figure 37. Receiver Wideband Blocking at 433 MHz, Data Rate = 300 kbps

BLOCKING (dB)

–10

–60 –50 –40 –30 –20 –10 0 10 20 30 40 50 60

08291-231

BLOCKER FREQUENCY OF FSET (MHz)

08291-234

Figure 38. Receiver Wideband Blocking to ±60 MHz, at 868 MHz, Data Rate =

38.4 kbps, Carrier Wave Interferer

BLOCKING ( dB)

–10

08291-232

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–9–8–7–6–5–4–3–2–1

–11

–10

012345678

BLOCKER FREQ UENCY OFFS ET ( MHz )

08291-235

Figure 39. Receiver Wideband Blocking at 868 MHz, Data Rate = 100 kbps

BLOCKING (dB)

–10

–20

08291-233

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–9–8–7–6–5–4–3–2–1

–11

–10

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

012345678

08291-236

Figure 40. Receiver Wideband Blocking at 868 MHz, Data Rate = 300 kbps

Rev. 0 | Page 25 of 108

ADF7023

http://www.BDTIC.com/ADI

BLOCKING (dB)

–10

Figure 41. Receiver Wideband Blocking at 915 MHz, Data Rate = 38.4 kbps

BLOCKING (dB)

–10

–20

Figure 42. Receiver Wideband Blocking at 915 MHz, Data Rate = 100 kbps

BLOCKING (d B)

–10

–20

Figure 43. Receiver Wideband Blocking at 915 MHz, Data Rate = 300 kbps

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–9–8–7–6–5–4–3–2–1

–11

–10

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–9–8–7–6–5–4–3–2–1

–10

–11

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

BLOCKER FREQ UENCY OFFS ET ( MHz )

MODULATED INTERFERER

CARRIER WAVE INTERFERER

–9–8–7–6–5–4–3–2–1

–10

012345678

BLOCKING (dB)

08291-237

+25°C 1.8V +25°C 3.0V

+25°C 3.6V +85°C 1.8V

+85°C 3.0V +85°C 3.6V –40°C 1.8V

–10

–40°C 3.0V –40°C 3.6V

–20

–60 –50 –40 –30 –20 –10 0 10 20 30 40 50 60

INTERFERE R FREQUENCY O FFSET ( MHz )

Figure 44. Receiver Wideband Blocking vs. V

and Temperature,

08291-240

915 MHz, Data Rate = 300 kbps

–10

–20

–30

–40

–50

–60

–70

–80

INTERFERER P OWER (dBm)

–90

–100

–110

–60 –50 –40 –30 –20 –10 0 10 20 30 40 50 60

08291-238

INTERFERE R OFFSET FROM RECEIVER LO FREQUENCY (MHz)

GFSK, 100kHz IF BANDWIDTH GFSK, 200kHz IF BANDWIDTH 2FSK, 100kHz IF BANDWIDTH

08291-241

Figure 45. Receiver Wideband Blocking at 868 MHz, Data Rate = 38.4 kbps,

Measured as per ETSI EN 300 220

65 60 55 50 45 40 35 30 25 20 15

BLOCKING ( d B)

–5

–10

CW INTERFERER

–15

MODULATED I NTERFERER

–20

–2.0 –1.6 –1.2 –0.8 –0.4 0 0.4 0.8 1.2 1.6 2.0

08291-239

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

08291-242

Figure 46. Receiver Close-In Blocking at 915 MHz, Data Rate = 50 kbps,

IF Filter Bandwidth = 100 kHz, Image Calibrated

Rev. 0 | Page 26 of 108

ADF7023

http://www.BDTIC.com/ADI

60 55 50 45 40 35 30 25 20 15 10

BLOCKING (dB)

5 0

–5

–10

CW INTERFERER

–15

MODULATED I NTERFERER

–20

–2.0 –1.6 –1.2 –0.8 –0.4 0 0.4 0.8 1.2 1.6 2.0

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

Figure 47. Receiver Close-In Blocking at 915 MHz, Data Rate = 100 kbps,

IF Filter Bandwidth = 100 kHz, Image Calibrated

60 55 50 45 40 35 30 25 20 15 10

BLOCKING ( d B)

5 0

–5

–10

CW INTERFERER

–15

MODULATED INTERFERER

–20

–2.0 –1.6 –1.2 0 0.4 0.8 1.2 1.6 2.0

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

–0.8 –0.4

Figure 48. Receiver Close-In Blocking at 915 MHz, Data Rate = 150 kbps,

IF Filter Bandwidth = 150 kHz, Image Calibrated

60 55 50 45 40 35 30 25 20 15 10

BLOCKING ( d B)

5 0

–5

–10

CW INTERFE RER

–15

MODULATED I NTERFERER

–20

–2.0 –1.6 –1.2 0 0.4 0.8 1.2 1.6 2.0

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

–0.8 –0.4

Figure 49. Receiver Close-In Blocking at 915 MHz, Data Rate = 200 kbps,

IF Filter Bandwidth = 200 kHz, Image Calibrated

08291-243

08291-244

08291-245

60 55 50 45 40 35 30 25 20 15 10

BLOCKING ( d B)

5 0

–5

–10

CW INTERF E RE R

–15

MODULATED INTERFERER

–20

–2.0 –1.6 –1.2 0 0.4 0.8 1.2 1.6 2.0

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

–0.8 –0.4

Figure 50. Receiver Close-In Blocking at 915 MHz, Data Rate = 300 kbps,

IF Filter Bandwidth = 300 kHz, Image Calibrated

CALIBRATED UNCALIBRATED

–10

–20

–30

–40

–50

–60

ATTENUATION (dB)

–70

–80

–90

–1.0 –0.8 –0.6 –0.4 –0.2 0 0.2 0.4 0.6 0.8 1.0

INTERFERER OFFSET FROM RECEIVER LO FREQUENCY (MHz)

Figure 51. Image Attenuation with Calibrated and Uncalibrated Images, 915 MHz, IF Filter Bandwidth = 100 kHz, V

CALIBRATED UNCALIBRATED

–10

–20

–30

–40

–50

–60

ATTENUATION (dB)

–70

–80

–90

–100

–1.0 –0.8 –0.6 –0.4 –0.2 0 0.2 0.4 0.6 0.8 1.0

INTERFERE R OFFSET FROM RECEIVER LO F RE QUENCY (MHz)

= 3.0 V, Temperature = 25°C

Figure 52. Image Attenuation with Calibrated and Uncalibrated Images,

433 MHz, IF Filter Bandwidth =100 kHz, V

= 3.0 V, Temperature = 25°C

08291-246

08291-247

08291-248

Rev. 0 | Page 27 of 108

ADF7023

http://www.BDTIC.com/ADI

100kHz BW 150kHz BW

–10

200kHz BW 300kHz BW

–20

–30

–40

–50

–60

ATTENUATION (dB)

–70

–80

–90

–1.0 –0.8 –0.6 –0.4 –0.2 0 0.2 0.4 0.6 0.8 1.0

OFFSET FROM LO FREQUENCY (MHz)

Figure 53. IF Filter Profile with Calibrated Image vs. IF Filter Bandwidth,

921 MHz, V

–98

–99

–100

–101

= 3.0 V, Temperature = 25°C

915MHz, –40°C 915MHz, +25° C 915MHz, +85° C 868MHz, –40°C 868MHz, +25° C 868MHz, +85° C

100

PACKET ERROR RATE (%)

–120 –110 –100 –90 –80 –70 –60 –50 0–10–40 –30 –20

08291-249

APPLIED RECEIVER POWE R ( dBm)

1kbps 10kbps

38.4kbps 50kbps 100kbps 200kbps 300kbps

08291-252

Figure 56. Packet Error Rate vs. RF Input Power and Data Rate, FSK/GFSK,

928 MHz, Preamble Length = 64 Bits, V

–96.0

–96.5

–97.0

–97.5

–98.0

+25°C

–40°C

= 3.0 V, Temperature = 25°C

+85°C

–102

SENSITIVITY (dBm)

–103

–104

1.8 3.0 3.6 VDD (V)

08291-250

Figure 54. Receiver Sensitivity (Bit Error Rate at 1E − 3) vs. VDD, Temperature,

and RF Frequency, Data Rate = 300 kbps, GFSK, Frequency Deviation =

75 kHz, IF Bandwidth = 300 kHz

–95

BIT ERROR RATE (1E-3) PACKET ERROR RATE (1%)

–100

–105

–110

SENSITIVITY (dBm)

–115

–120

0 50 100 150 200 250 300

DATA RATE (kbps)

08291-251

Figure 55. Bit Error Rate Sensitivity (at BER = 1E − 3) and Packet Error Rate

Sensitivity (at PER = 1%) vs. Data Rate, GFSK, V

= 3.0 V,

Temperature = 25°C

–98.5

SENSITIVITY (dBm)

–99.0

–99.5

–100.0

1.8 3.6

VDD (V)

08291-254

Figure 57. Receiver Sensitivity (Packet Error Rate at 1%) vs. VDD,

Temperature, and RF Frequency, Data Rate = 300 kbps, GFSK, Frequency

Deviation = 75 kHz, IF Bandwidth = 300 kHz

PER (%)

–104 –103 –102 –101 –100 –99 –98 –97 –96 –95 –94

RECEIVER INPUT POWER (dBm)

RS CODED DATA, SYNC_ERROR_TOL = 0, PREAMBLE_MATCH = 0xA

RS CODED DATA, SYNC_ERROR_TOL = 1, PREAMBLE_MATCH = 0x0A

UNCODED DATA, SYNC_ERROR_TOL = 0

3.4dB

2dB

08291-253

Figure 58. Receiver PER Using Reed Solomon (RS) Coding; RF Frequency =

915 MHz, GFSK, Data Rate = 300 kbps, Frequency Deviation =75 kHz, Packet

Length = 28 Bytes (Uncoded); Reed Solomon Configuration: n = 38,

k = 28, t =5

Rev. 0 | Page 28 of 108

ADF7023

http://www.BDTIC.com/ADI

100

PACKET ERROR RATE ( %)

0 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 10

APPLIED POWER (dBm)

08291-255

Figu re 59. OOK Packet Error Rate vs. RF Input Power, Data Rate = 19.2 kbps (Chip

Rate = 38.4 kcps, Manchester Encoded), IF Bandwidth = 100 kHz, V

= 3.6 V,

Temperature = 25°C, RF Frequency = 902 MHz, Preamble Length = 100 Bits

100

PACKET ERROR RATE ( %)

–110 –100 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 10

APPLIED POWER (dB m )

08291-256

Figu re 60. OOK Packet Error Rate vs. RF Input Power, Data Rate = 2.4 kbps (Chip

Rate = 4.8 kcps, Manchester Encoded), IF Bandwidth = 100 kHz, V

= 3.6 V,

Temperature = 25°C, RF Frequency = 902 MHz, Preamble Length = 100 Bits

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

PACKET ERROR RATE ( %)

1.0

0.5

–106 –105 –104 –103 –102 –101

APPLIED POWER (dBm)

Figu re 61. OOK Packet Error Rate vs. RF Input Power, V

TA = –40°C, VDD = 1.8V TA = –40°C, VDD = 3.6V TA = +25°C, VDD = 1.8V TA = +25°C, VDD = 3.6V TA = +85°C, VDD = 1.8V TA = +85°C, VDD = 3.6V

, and Temperature, Data

08291-257

Rate = 19.2 kbps (Chip Rate = 38.4 kcps, Manchester Encoded), IF Bandwidth =

100 kHz, V

= 3.6 V, Temperature = 25°C, RF Frequency =

902 MHz, Preamble Length = 100 Bits

100

PACKET ERROR RATE ( %)

–110 –100 –90 –80 –70 –60 –50 –40 –30 –20 –10 0 10

OOK MODUL ATION DEPTH = 60dB

OOK MODUL ATION DEPTH = 40dB

OOK MODUL ATION DEPTH = 30dB

OOK MODUL ATION DEPTH = 20dB

APPLIED POWER (dBm)

08291-258

Figure 62. OOK Packet Error Rate vs. RF Input Power and OOK Modulation

Depth, Data Rate = 19.2 kbps (Chip Rate = 38.4 kcps, Manchester Encoded),

IF Bandwidth = 100 kHz, V

= 3.6 V, Temperature = 25°C, RF Frequency =

902 MHz, Preamble Length = 100 Bits

SENSITIVITY (dBm)

–10 –20 –30 –40 –50 –60 –70 –80

–90 –100 –110

–60

–70

–80

–140

–130

–90

–100

–110

–120

RF FREQUENCY E RROR (kHz)

–150

–50

–40

–30

100kbps 150kbps 200kbps 300kbps

–10

–20

908070605040302010

100

110

120

130

140

150

08291-259

Figure 63. AFC On: Receiver Sensitivity (at PER = 1%) vs. RF Frequency Error,

GFSK, 915 MHz, AFC Enabled (Ki = 7, Kp = 3), AFC Mode = Lock After

Preamble, IF Bandwidth = 100 kHz (at 100 kbps), 150 kHz (at 150 kbps),

200 kHz (at 200 kbps), and 300 kHz (at 300 kbps), Preamble Length = 64 Bits

2.00

1.75

1.50

1.25

1.00

0.75

0.50

0.25 0

–0.25 –0.50 –0.75

DATA RATE ERROR (%)

–1.00 –1.25 –1.50 –1.75 –2.00

–40 –30 –20 –10 0 10 20 30–35 –25 –15 –5 5 15 25 35 40

>1% <1%

RF FREQUENCY E RROR (kHz)

08291-260

Figure 64. AFC Off: Packet Error Rate vs. RF Frequency Error and Data Rate

Error, AFC Off, Data Rate=300 kbps, Frequency Deviation = 75 kHz, GFSK,

AGC_LOCK_MODE = Lock After Preamble

Rev. 0 | Page 29 of 108

ADF7023

http://www.BDTIC.com/ADI

2.00

1.75

1.50

1.25

1.00

0.75

0.50

0.25 0

–0.25 –0.50 –0.75

DATA RATE ERROR (%)

–1.00 –1.25 –1.50 –1.75 –2.00

–140–120–100 –80 –60 –40 –20 0 20 40 60 80 100 120 140

>1% <1%

RF FREQUENCY E RROR (kHz)

08291-261

Figure 65. AFC On: Packet Error Rate vs. RF Frequency Error and Data Rate Error, AFC Off, Data Rate = 300 kbps, Frequency Deviation = 75 kHz, GFSK,

AGC_LOCK_MODE = Lock After Preamble

–20

–30

–40

–50

–60

–70

–80

RSSI (dBm)

–90

–100

–110

–120

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

IDEAL RSSI MEAN RSSI MEAN RSSI ERROR MAX POSITIVE RSSI ERROR MAX NEGATIVE RSSI ERROR

INPUT POWER (dBm)

–2

–4

–6

–8

–10

RSSI ERROR (dB)

Figure 66. RSSI (via CMD_GET_RSSI) vs. RF Input Power, 868 MHz, GFSK, Data

Rate = 38.4 kbps, Frequency Deviation = 20 kHz, IF Bandwidth = 100 kHz,

100 RSSI Measurements at Each Input Power Level

–20

–30

–40

–50

–60

–70

–80

RSSI (dBm)

–90

–100

–110

–120

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

IDEAL RSSI MEAN RSSI MEAN RSSI ERROR MAX POSITIVE RSSI ERROR MAX NEGATIVE RSSI ERROR

INPUT POWER (dBm)

–2

–4

–6

–8

–10

RSSI ERROR (dB)

Figure 67. RSSI (via Automatic End of Packet RSSI Measurement) vs. RF Input

Power, 868 MHz, GFSK, Data Rate = 300 kbps, Frequency Deviation = 75 kHz,

IF Bandwidth = 300 kHz, AGC_CLOCK_DIVIDE = 15, 100 RSSI Measurements

at Each Input Power Level

RSSI ERROR (dB)

–2

–4

–6

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

INPUT POWER (dBm)

300kbps 200kbps 150kbps 100kbps 50kbps

38.4kbps

9.6kbps

08291-264

Figure 68. Mean RSSI Error (via Automatic End of Packet RSSI Measurement)

vs. RF Input Power vs. Data Rate; RF Frequency = 868 MHz, GFSK, 100 RSSI

Measurements at Each Input Power Level

–20

–30

–40

–50

–60

–70

–80

RSSI (dBm)

–90

–100

–110

–120

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

08291-262

IDEAL RSSI MEAN RSSI MEAN RSSI

(WITH POLYNOMIAL CORRECTI O N)

MEAN RSSI ERROR MEAN RSSI ERROR

(WITH POLYNOMIAL CORRECTI O N)

INPUT POWER (dBm)

–2

–4

–6

–8

–10

RSSI ERROR (dB)

08291-265

Figure 69. RSSI With and Without Cosine Polynomial Correction (via

Automatic End of Packet RSSI Measurement), 100 RSSI Measurements at

Each Input Power Level

–20

–30

–40

–50

–60

–70

–80

RSSI (dBm)

–90

–100

–110

–120

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

08291-263

IDEAL RSSI MEAN RSSI MEAN RSSI ERROR MAX POSITIVE RSSI ERROR MAX NEGATIVE RSSI ERROR

INPUT POWER (dBm)

–2

–4

–6

–8

–10

RSSI ERROR (dB)

08291-266

Figure 70. OOK RSSI and OOK RSSI Error vs. RF Input Power. 915 MHz, Data

Rate = 19.2 kbps (38.4 kcps), 200 RSSI Measurements per Input Power Level

Rev. 0 | Page 30 of 108

ADF7023

http://www.BDTIC.com/ADI

–20

–30

–40

–50

–60

–70

–80

RSSI (dBm)

–90

–100

–110

–120

Figure 71. OOK RSSI vs. RF Input Power, V

RF Frequency = 915 MHz, Data Rate = 19.2 kbps (38.4 kcps Manchester

ADC READING (°C)

–10 –20

TEMPERATURE CALCULATED FROM

–30 –40 –50

IDEAL RSSI

1.8V @ 25°C

3.6V @ 25°C

1.8V @ 85°C

3.6V @ 85°C

–120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20

INPUT POWER (dBm)

, and Temperature,

Encoded)

90 80 70 60 50 40 30 20 10

–50 –40 –30 –20 –10 0 10 20 30 40 50 60 70 80 90

APPLIED TEMPERATURE (°C)

READING (°C)

ERROR + 3 σ (°C)

RECEIVER SYMBOL LEVEL

–1

0123456789

08291-267

SAMPLE NUMBER

08291-269

Figure 73. Receiver Eye Diagram Measured Using the Test DAC.,

RF Frequency = 915 MHz, RF Input Power = −80 dBm, Data Rate = 100 kbps,

Frequency Deviation = 50 kHz

RECEIVER SYMBOL LEVEL

–1

0123456789

08291-055

SAMPLE NUMBER

08291-270

Figure 72. Average of 1000 Temperature Sensor Readbacks and 3 σ Error vs.

Temperature, 3 σ Error Determined to Be ±14°C, V

= 3 V, Average of

10 Readbacks Accurate to ±4.4°C

Rev. 0 | Page 31 of 108

Figure 74. Receiver Eye Diagram Measured Using the Test DAC,

RF Frequency = 915 MHz, RF Input Power = −105 dBm, Data Rate = 100 kbps,

Frequency Deviation = 50 kHz

ADF7023

http://www.BDTIC.com/ADI

TERMINOLOGY

ADC

Analog to digital converter

AGC

Automatic gain control

AFC

Automatic frequency control

Battmon

Battery monitor

BBRAM

Battery backup random access memory

CBC

Cipher block chaining

CRC

Cyclic redundancy check

Data rate

ECB

Electronic code book

ECC

Error checking code

2FSK

Two-level f re q u e n c y shift k e y in g

GFSK

Two-level Gaussian frequency shift keying

GMSK

Gaussian minimum shift keying

Local oscillator

MAC

Media access control

MCR

Modem configuration random access memory

MER

Modulation error rate

MSK

Minimum shift keying

NOP

No operation

OOK

On-off keying

Power amplifier

PFD

Phase frequency detector

PHY

Physical layer

RCO

RC oscillator

RISC

Reduced instruction set computer

RSSI

Receive signal strength indicator

Receive

SAR

Successive approximation register

SWM

Smart wake mode

Tr an sm it

VCO

Voltage controlled oscillator

WUC

Wak e -u p co nt ro l le r

XOSC

Crystal oscillator

Rev. 0 | Page 32 of 108

ADF7023

http://www.BDTIC.com/ADI

RADIO CONTROL

The ADF7023 has five radio states designated PHY_SLEEP, PHY_OFF, PHY_ON, PHY_RX, and PHY_TX. The host processor can transition the ADF7023 between states by issuing single byte commands over the SPI interface. The various commands and states are illustrated in Figure 75. The communications processor handles the sequencing of various radio circuits and critical timing functions, thereby simplifying radio operation and easing the burden on the host processor.

RADIO STATES

PHY_SLEEP

In this state, the device is in a low power sleep mode. To enter the state, issue the CMD_PHY_SLEEP command, either from the PHY_OFF or PHY_ON state. To wake the radio from the state, set the RC or 32.768 kHz crystal) to wake the radio from this state. The wake-up timer should be set up before entering the PHY_SLEEP state. If retention of BBRAM contents is not required, Deep Sleep Mode 2 can be used to further reduce the PHY_SLEEP state current consumption. Deep Sleep Mode 2 is entered by issuing the CMD_HW_RESET command. The options for the PHY_SLEEP state are detailed in . Ta ble 1 0

PHY_OFF

In the PHY_OFF state, the 26 MHz crystal, the digital regulator, and the synthesizer regulator are powered up. All memories are fully accessible. The BBRAM registers must be valid before exiting this state.

PHY_ON

In the PHY_ON state, along with the crystal, the digital regulator and the synthesizer regulator, VCO, and RF regulators are powered up. A baseband filter calibration is performed when this state is entered from the PHY_OFF state if the BB_CAL bit in the MODE_CONTROL register (Address 0x11A) is set. The device is ready to operate, and the PHY_TX and PHY_RX states can be entered.

PHY_TX

In the PHY_TX state, the synthesizer is enabled and calibrated. The power amplifier is enabled, and the device transmits at the channel frequency defined by the CHANNEL_FREQ[23:0] setting (Address 0x109 to Address 0x10B). The state is entered by issuing the CMD_PHY_TX command. The device

pin low, or use the wake-up controller (32.768 kHz

automatically transmits the transmit packet stored in the packet RAM. After transmission of the packet, the PA is disabled and the device automatically returns to the PHY_ON state and can, optionally, generate an interrupt.

In sport mode, the device transmits the data present on the GP2 pin as described in the Sport section. The host processor must issue the CMD_PHY_ON command to exit the PHY_TX state when in sport mode.

PHY_RX

In the PHY_RX state, the synthesizer is enabled and calibrated. The ADC, RSSI, IF filter, mixer, and LNA are enabled. The radio is in receive mode on the channel frequency defined by the CHANNEL_FREQ[23:0] setting (Address 0x109 to Address 0x10B).

After reception of a valid packet, the device returns to the PHY_ON state and can, optionally, generate an interrupt. In sport mode, the device remains in the PHY_RX state until the CMD_PHY_ON command is issued.

Current Consumption

The typical current consumption in each state is detailed in Tabl e 10 .

Table 10. Current Consumption in ADF7023 Radio States

Current

State

PHY_SLEEP (Deep Sleep Mode 2)

PHY_SLEEP (Deep Sleep Mode 1)

PHY_SLEEP (RCO Mode )

PHY_SLEEP (XTO Mode )

PHY_OFF 1.0 mA PHY_ON 1.0 mA PHY_TX 24.1 mA 10 dBm, single-ended PA, 868 MHz PHY_RX 12.8 mA

(Typical)

0.18 A

0.33 A

0.75 A

1.28 A

Conditions

Wake-up timer off, BBRAM contents not retained, entered by issuing CMD_HW_RESET

Wake-up timer off, BBRAM contents retained

Wake-up timer on using a 32 kHz RC oscillator, BBRAM contents retained

Wake-up timer on using a 32 kHz XTAL oscillator, BBRAM contents retained

Rev. 0 | Page 33 of 108

ADF7023

http://www.BDTIC.com/ADI

CONFIGURE

PROGRAM RAM

CONFIG

COLD START

(BATTERY APPLIED)

CMD_CONFIG_DEV

CMD_RAM_LOAD_INIT

CMD_RAM_LOAD_DONE

PROGRAM RAM

IR CALIBRATION

REED-SOLOMON

AES

WUC TIMEOUT

CS LOW

PHY_OFF PHY_SLEEP

CMD_AES CMD_IR_CAL

CMD_RS

CMD_PHY_SLEEP

PHY_ON

CMD_CONFIG_DEV

CMD_BB_CAL

CMD_GET_RSSI

CMD_HW_RESET (FROM ANY STATE)

IF FILTER CAL

CONFIGURE

MEASURE RSSI

TX_EOF

PHY_TX PHY_RX

TRANSMIT AND RECEIVE AUTOM AT IC TURNAROUND MUST BE ENABLED BY BIT S RX_ TO_TX_AUTO _TURNAROUND AND

TX_TO_RX _AUTO_TURNAROUND (0x11A: M ODE_CONTRO L).

AES ENCRYPTION/DECRYPTION, IMAGE REJECTIO N CALIBRATIO N, AND REED SOLO M ON CODING ARE AV AILABLE ONL Y IF THE NECESS ARY

FIRMWARE M ODULE HAS BEEN DOWNLOADED TO THE PROGRAM RAM.

THE END OF FRAME (EOF) AUTOMATI C TRANSITIONS ARE DISABLED IN SPORT MODE.

CMD_AES REFERS T O THE THREE AV AILABLE AES COMMANDS: CMD_AES_ENCRYP T, CMD_AES_DECRYP T , AND CMD_AES_DECRYPT_INIT.

CMD_RS REFERS T O THE THREE AV AILABLE REED S OLOMO N COMMANDS: CMD_RS_ENCO DE _INIT, CMD_RS _E NCODE,

AND CMD_RS_DECODE.

KEY

TRANSITION INITIATED BY HOST PROCESSOR AUTOMATIC TRANSITION BY COMMUNICAT IONS PROCES S OR COMMUNICATI ONS PROCESSOR FUNCTION

DOWNLOADABL E FIRMWARE MODULE STO RE D ON PROGRAM RAM

RADIO STAT E

RX_TO_TX_AUTO_TURNAROUND TX_TO_RX_AUTO_TURNAROUND

CMD_PHY_TX

CMD_PHY_RX

RX_EOF

CMD_PHY_RXCMD_PHY_TX

08291-121

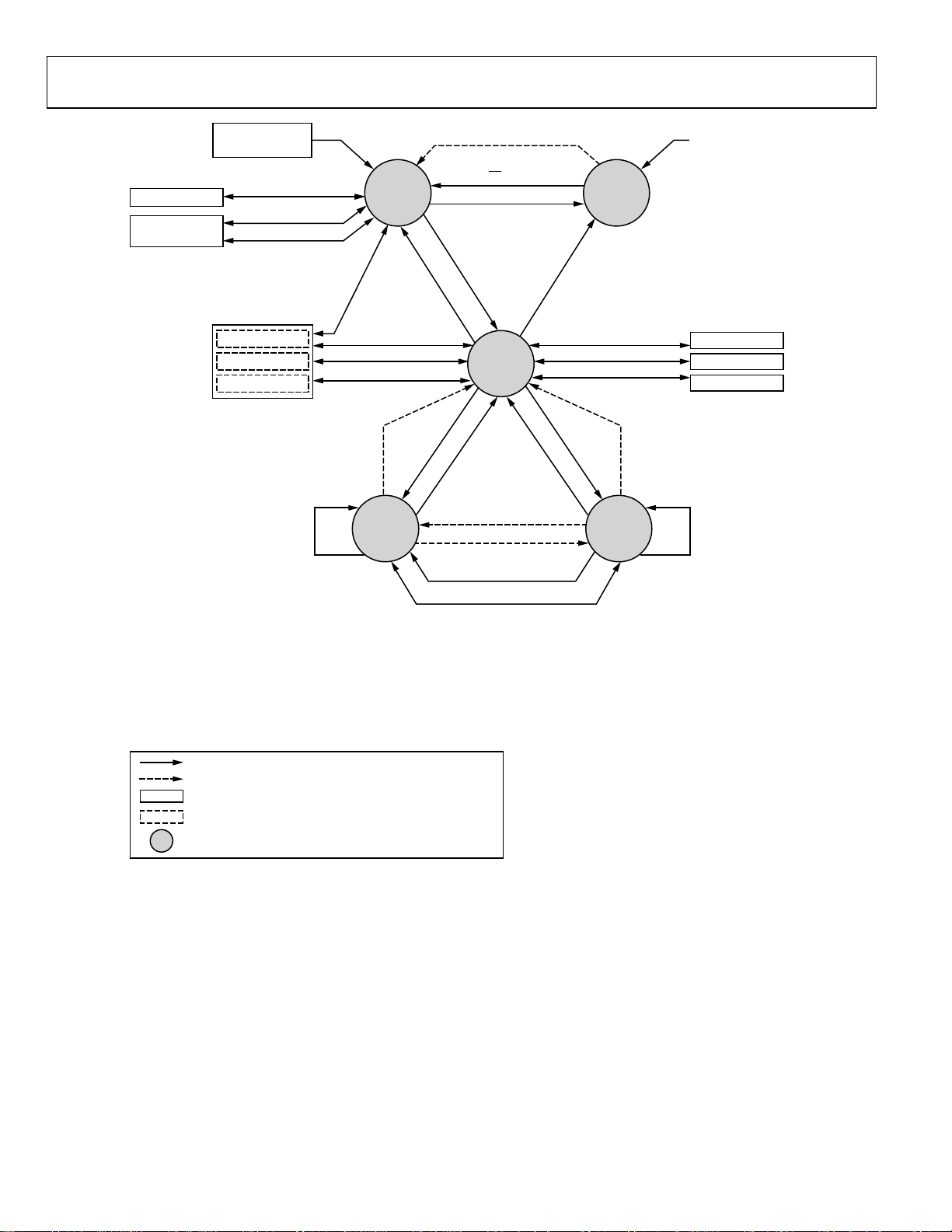

Figure 75. Radio State Diagram

Rev. 0 | Page 34 of 108

ADF7023

http://www.BDTIC.com/ADI

INITIALIZATION

Initialization After Application of Power

When power is applied to the ADF7023 (through the VDDBAT1/VDDBAT2 pins), it registers a power-on reset event (POR) and transitions to the PHY_OFF state. The BBRAM memory is unknown, the packet RAM memory is cleared to 0x00, and the MCR memory is reset to its default values. The host processor should use the following procedure to complete the initialization sequence:

1. Bring the

output goes high.

2. Issue the CMD_SYNC command.

3. Wait for the CMD_READY bit in the status word to go

high.

4. Configure the part by writing to all 64 of the BBRAM

registers.

5. Issue the CMD_CONFIG_DEV command so that the

radio settings are updated using the BBRAM values.

The ADF7023 is now configured in the PHY_OFF state.

Initialization After Issuing the CMD_HW_RESET Command

The CMD_HW_RESET command performs a full power-down of all hardware, and the device enters the PHY_SLEEP state. To complete the hardware reset, the host processor should complete the following procedure:

1. Wa i t fo r 1 m s.

2. Bring the

output goes high. The ADF7023 registers a POR and enters the PHY_OFF state.

3. Issue the CMD_SYNC command.

4. Wait for the CMD_READY bit in the status word to go high.

5. Configure the part by writing to all 64 of the BBRAM

registers.

6. Issue the CMD_CONFIG_DEV command so that the

radio settings are updated using the BBRAM values.

The ADF7023 is now configured in the PHY_OFF state.

Initialization on Transitioning from PHY_SLEEP (After CS Is Brought Low)

The host processor can bring CS low at any time to wake the ADF7023 from the PHY_SLEEP state. This event is not registered as a POR event because the BBRAM contents are valid. The following is the procedure that the host processor is required to follow:

1. Bring the

output goes high. The ADF7023 enters the PHY_OFF state.

2. Issue the CMD_SYNC command.

3. Wait for the CMD_READY bit in the status word to go high.

4. Issue the CMD_CONFIG_DEV command so that the

radio settings are updated using the BBRAM values.

pin of the SPI low and wait until the MISO

line of the SPI low and wait until the MISO

The ADF7023 is now configured and ready to transition to the PHY_ON state.

Initialization After a WUC Timeout

The ADF7023 can autonomously wake from the PHY_SLEEP state using the wake-up controller. If the ADF7023 wakes after a WUC timeout in smart wake mode (SWM), it follows the SWM routine based on the smart wake mode configuration in BBRAM (see the Low Power Modes section). If the ADF7023 wakes after a WUC timeout with SWM disabled and the firmware timer disabled, it wakes in the PHY_OFF state, and the following is the procedure that the host processor is required to follow:

1. Issue the CMD_SYNC command.

2. Wait for the CMD_READY bit in the status word to go high.

3. Issue the CMD_CONFIG_DEV command so that the

radio settings are updated using the BBRAM values.

The ADF7023 is now configured in the PHY_OFF state.

COMMANDS

The commands that are supported by the radio controller are detailed in this section. They initiate transitions between radio states or perform tasks as indicated in Figure 75.

CMD_PHY_OFF (0xB0)

This command transitions the ADF7023 to the PHY_OFF state. It can be issued in the PHY_ON state. It powers down the RF and VCO regulators.

CMD_PHY_ON (0xB1)

This command transitions the ADF7023 to the PHY_ON state.

If the command is issued in the PHY_OFF state, it powers up the RF and VCO regulators and performs an IF filter calibration if the BB_CAL bit is set in the MODE_CONTROL register (Address 0x11A).

If the command is issued from the PHY_TX state, the host processor performs the following procedure:

1. Ramp down the PA.

2. Set the external PA signal low (if enabled).

3. Turn off the digital transmit clocks.

4. Power down the synthesizer.

5. Set FW_STATE = PHY_ON.

If the command is issued from the PHY_RX state, the communications processor performs the following procedure:

1. Copy the measured RSSI to the RSSI_READBACK register.

2. Set the external LNA signal low (if enabled).

3. Turn off the digital receiver clocks.

4. Power down the synthesizer and the receiver circuitry

(ADC, RSSI, IF filter, mixer, and LNA).

5. Set FW_STATE = PHY_ON.

Rev. 0 | Page 35 of 108

ADF7023

http://www.BDTIC.com/ADI

CMD_PHY_SLEEP (0xBA)

This command transitions the ADF7023 to the very low power PHY_SLEEP state in which the WUC is operational (if enabled), and the BBRAM contents are retained. It can be issued from the PHY_OFF or PHY_ON state.

CMD_PHY_RX (0xB2)

This command can be issued in the PHY_ON, PHY_RX, or PHY_TX state. If the command is issued in the PHY_ON state, the communications processor performs the following procedure:

1. Power up the synthesizer.

2. Power up the receiver circuitry (ADC, RSSI, IF filter,

mixer, and LNA).

3. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

4. Set the synthesizer bandwidth.

5. Do VCO calibration.

6. Delay for synthesizer settling.

7. Enable the digital receiver blocks.

8. Set the external LNA enable signal high (if enabled).

9. Set FW_STATE = PHY_RX.

If the command is issued in the PHY_RX state, the communications processor performs the following procedure:

1. Set the external LNA signal low (if enabled).

2. Unlock the AFC and AGC.

3. Turn off the receive blocks.

4. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

5. Set the synthesizer bandwidth.

6. Do VCO calibration.

7. Delay for synthesizer settling.

8. Enable the digital receiver blocks.

9. Set the external LNA enable signal high (if enabled).

10. Set FW_STATE = PHY_RX.

If the command is issued in the PHY_TX state, the communications processor performs the following procedure:

1. Ramp down the PA.

2. Set the external PA signal low (if enabled).

3. Turn off the digital transmit blocks.

4. Power up the receiver circuitry (ADC, RSSI, IF filter,

mixer, and LNA).

5. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

6. Set the synthesizer bandwidth.

7. Do VCO calibration.

8. Delay for synthesizer settling.

9. Enable the digital receiver blocks.

10. Set the external LNA enable signal high (if enabled). Set FW_STATE = PHY_RX

11.

CMD_PHY_TX (0xB5)

This command can be issued in the PHY_ON, PHY_TX, or PHY_RX state. If the command is issued in the PHY_ON state, the communications processor performs the following procedure:

1. Power up the synthesizer.

2. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

3. Set the synthesizer bandwidth.

4. Do VCO calibration.

5. Delay for synthesizer settling.

6. Enable the digital transmit blocks.

7. Set the external PA enable signal high (if enabled).

8. Ramp up the PA.

9. Set FW_STATE = PHY_TX.

10. Tra n s m it da t a.

If the command is issued in the PHY_TX state, the communications processor performs the following procedure:

1. Ramp down the PA.

2. Set the external PA enable signal low (if enabled).

3. Turn off the digital transmit blocks.

4. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

5. Set the synthesizer bandwidth.

6. Do VCO calibration.

7. Delay for synthesizer settling.

8. Enable the digital transmit blocks.

9. Set the external PA enable signal high (if enabled).

10. Ramp up the PA.

11. Set FW_STATE = PHY_TX.

12. Tra n s m it da t a.

If the command is issued in the PHY_RX state, the communications processor performs the following procedure:

1. Set the external LNA signal low (if enabled).

2. Unlock the AFC and AGC.

3. Turn off the receive blocks.

4. Power down the receiver circuitry (ADC, RSSI, IF filter,

mixer, and LNA).

5. Set the RF channel based on the CHANNEL_FREQ[23:0]

setting in BBRAM.

6. Set the synthesizer bandwidth.

7. Delay for synthesizer settling.

Enable the digital transmit blocks.

9. Set the external PA enable signal high (if enabled).

10. Ramp up the PA.

11. Set FW_STATE = PHY_TX.

12. Tra n s m it da t a.

Rev. 0 | Page 36 of 108

ADF7023

http://www.BDTIC.com/ADI

CMD_CONFIG_DEV (0xBB)

This command interprets the BBRAM contents and configures each of the radio parameters based on these contents. It can be issued from the PHY_OFF or PHY_ON state. The only radio parameter that isn’t configured on this command is the CHANNEL_FREQ[23:0] setting, which instead is configured as part of a CMD_PHY_TX or CMD_PHY_RX command.

The user should write to the entire 64 bytes of the BBRAM and then issue the CMD_CONFIG_DEV command, which can be issued in the PHY_OFF or PHY_ON state.

CMD_GET_RSSI (0xBC)

This command turns on the receiver, performs an RSSI measurement on the current channel, and returns the ADF7023 to the PHY_ON state. The command can be issued from the PHY_ON state. The RSSI result is saved to the RSSI_READBACK register (Address 0x312). This command can be issued from the PHY_ON state only.

CMD_BB_CAL (0xBE)

This command performs an IF filter calibration. It can be issued only in the PHY_ON state. In many cases, it may not be necessary to use this command because an IF filter calibration is automatically performed on the PHY_OFF to PHY_ON transition if BB_CAL = 1 in the MODE_CONTROL register (Address 0x11A).

CMD_SYNC (0xA2)

This command is used to allow the host processor and communications processor to establish communications. It is required to issue a CMD_SYNC command during each of the following scenarios:

• Initialization after application of power

• On a WUC wake-up

• Initialization after a CMD_HW_RESET

• After a CMD_RAM_LOAD_DONE command has been

issued

After issuing a CMD_SYNC command, the host processor should wait until the CMD_READY status bit is high (see the Initialization section). This process ensures that the next command issued by the host processor is processed by the communications processor. See the Initialization section for further details on using a CMD_SYNC command.

CMD_HW_RESET (0xC8)

The command performs a full power-down of all hardware, and the device enters the PHY_SLEEP state. This command can be issued in any state and is independent of the state of the communications processor. The procedure for initialization of the device after a CMD_HW_RESET command is described in detail in the Initialization section.

CMD_RAM_LOAD_INIT (0xBF)

This command prepares the communications processor for a subsequent download of a software module to program RAM. This command should be issued only prior to the program RAM being written to by the host processor.

CMD_RAM_LOAD_DONE (0xC7)

This command is required only after download of a software module to program RAM. It indicates to the communications processor that a software module is loaded to program RAM. The CMD_RAM_LOAD_DONE command can be issued only in the PHY_OFF state. The command resets the communications processor and the packet RAM. This command should be followed by a CMD_SYNC command.

CMD_IR_CAL (0xBD)

This command performs a fully automatic image rejection calibration on the ADF7023 receiver.

This command requires that the IR calibration firmware module has been loaded to the ADF7023 program RAM. The firmware module is available from Analog Devices. For more information, see the Downloadable Firmware Modules section.

CMD_AES_ENCRYPT (0xD0), CMD_AES_DECRYPT (0xD2), and CMD_AES_DECRYPT_INIT (0xD1)

These commands allow AES, 128-bit block encryption and decryption of transmit and receive data using key sizes of 128 bits, 192 bits, or 256 bits.

The AES commands require that the AES firmware module has been loaded to the ADF7023 program RAM. The AES firmware module is available from Analog Devices. See the Downloadable Firmware Modules section for details on the AES encryption and decryption module.

CMD_RS_ENCODE_INIT (0xD1), CMD_RS_ENCODE (0xD0), and CMD_RS_DECODE (0xD2)

These commands perform Reed Solomon encoding and decoding of transmit and receive data, thereby allowing detection and correction of errors in the received packet.

These commands require that the Reed Solomon firmware module has been loaded to the ADF7023 program RAM. The Reed Solomon firmware module is available from Analog Devices. See the Downloadable Firmware Modules section for details on this module.

AUTOMATIC STATE TRANSITIONS

On certain events, the communications processor can automatically transition the ADF7023 between states. These automatic transitions are illustrated as dashed lines in Figure 75 and are explained in this section.

Rev. 0 | Page 37 of 108

ADF7023

http://www.BDTIC.com/ADI

TX_EOF

The communications processor automatically transitions the device from the PHY_TX state to the PHY_ON state at the end of a packet transmission. On the transition, the communications processor performs the following actions:

1. Ramps down the PA.

2. Sets the external PA signal low.

3. Disables the digital transmitter blocks.

4. Powers down the synthesizer.

5. Sets FW_STATE = PHY_ON.

RX_EOF

The communications processor automatically transitions the device from the PHY_RX state to the PHY_ON state at the end of a packet reception. On the transition, the communications processor performs the following actions:

1. Copies the measured RSSI to the RSSI_READBACK

2. Sets the external LNA signal low.

3. Disables the digital receiver blocks.

4. Powers down the synthesizer and the receiver circuitry

(ADC, RSSI, IF filter, mixer, and LNA).

5. Sets FW_STATE = PHY_ON.

RX_TO_TX_AUTO_TURNAROUND

If the RX_TO_TX_AUTO_TURNAROUND bit in the MODE_ CONTROL register (Address 0x11A) is enabled, the device automatically transitions to the PHY_TX state at the end of a valid packet reception, on the same RF channel frequency. On the transition, the communications processor performs the following actions:

1. Sets the external LNA signal low.

2. Unlocks the AGC and AFC (if enabled).

3. Disables the digital receiver blocks.

4. Powers down the receiver circuitry (ADC, RSSI, IF filter,

mixer, and LNA).

5. Sets RF channel frequency (same as the previous receive

channel frequency).

6. Sets the synthesizer bandwidth.

7. Does VCO calibration.

8. Delays for synthesizer settling.

9. Enables the digital transmitter blocks.

10. Sets the external PA signal high (if enabled).

11. Ramps up the PA.

12. Sets FW_STATE = PHY_TX.

13. Transmits data.

In sport mode, the RX_TO_TX_AUTO_TURNAROUND transition is disabled.

TX_TO_RX_AUTO_TURNAROUND

If the TX_TO_RX_AUTO_TURNAROUND bit in the MODE_ CONTROL register (Address 0x11A) is enabled, the device automatically transitions to the PHY_RX state at the end of a packet transmission, on the same RF channel frequency. On the transition, the communications processor performs the following actions:

1. Ramps down the PA.

2. Sets the external PA signal low.

3. Disables the digital transmitter blocks.

4. Powers up the receiver circuitry (ADC, RSSI, IF filter,

mixer, and LNA).

5. Sets the RF channel (same as the previous transmit channel

frequency).

6. Sets the synthesizer bandwidth.

7. Does VCO calibration.

8. Delays for synthesizer settling.

9. Turns on AGC and AFC (if enabled).

10. Enables the digital receiver blocks.

11. Sets the external LNA signal high (if enabled).

12. Sets FW_STATE = PHY_RX.

In sport mode, the TX_TO_RX_AUTO_TURNAROUND transition is disabled.

WUC Timeout

The ADF7023 can use the WUC to wake from sleep on a timeout of the hardware timer. The device wakes into the PHY_OFF state. See the WUC Mode section for further details.

STATE TRANSITION AND COMMAND TIMING

The execution times for all radio state transitions are detailed in Tab l e 11 and Ta ble 1 2. Note that these times are typical and can vary, depending on the BBRAM configuration.

Rev. 0 | Page 38 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 11. ADF7023 Command Execution Times and State Transition Times That Are Not Related to PHY_TX or PHY_RX

Next State

Command/Bit

Command Initiated By

Present State

CMD_HW_RESET Host Any PHY_SLEEP 1 CMD_PHY_SLEEP Host PHY_OFF PHY_SLEEP 22.3 CMD_PHY_SLEEP Host PHY_ON PHY_SLEEP 24.1 CMD_PHY_OFF Host PHY_ON PHY_OFF 19 CMD_PHY_ON Host PHY_OFF PHY_ON 248 Including IF filter calibration CMD_GET_RSSI Host PHY_ON PHY_ON 612.5 CMD_CONFIG_DEV Host PHY_OFF PHY_OFF 66.8 CMD_CONFIG_DEV Host PHY_ON PHY_ON 66.8 CMD_BB_CAL Host PHY_ON PHY_ON 211 Wake-Up from PHY_SLEEP,

Automatic PHY_SLEEP PHY_OFF 310 + 252.8

(WUC Timeout) Wake-Up from PHY_SLEEP,

Low)

(CS

Cold Start

Host PHY_SLEEP PHY_OFF 310 + 252.8

Application

N/A PHY_OFF 310 + 252.8

of power

Table 12. ADF7023 State Transition Times Related to PHY_TX and PHY_RX

Command/Bit/

Next State

Transition Time (μs) Typical Condition

+ 10.8 + T

EOP

+ 38.2

BYTE

Mode

Automatic Transition

Present State

Packet CMD_PHY_ON PHY_TX PHY_ON T Packet CMD_PHY_ON PHY_RX PHY_ON 5 + T

41.7

41.2

+ 31.7

EOP

Packet CMD_PHY_TX PHY_ON PHY_TX 293 + T Packet CMD_PHY_TX PHY_RX PHY_TX 5 + T

Packet CMD_PHY_TX PHY_TX PHY_TX

Packet

RX_TO_TX_AUTO

PHY_RX PHY_TX 287.3 + T

BYTE

308.5 + T

308 + T

298.5 + T

+ 10.8 + T

EOP

+ T

PARAMP_UP

PAR A MP _U P

+ 305.3 + T

PAR A MP _U P

+ T

EOP

+ 3

PAR A MP _U P

_TURNAROUND Packet CMD_PHY_RX PHY_ON PHY_RX 300 Packet CMD_PHY_RX PHY_TX PHY_RX T

+ 10.8 + T

EOP

Transition Time (μs), Typical Condition

The 310 μs is for startup of the 26 MHz crystal (7 pF load capacitance, T

1, 2

PARAMP_DOWN

+ 36

CMD_PHY_ON issued during search for preamble

CMD_PHY_ON issued during preamble qualification

CMD_PHY_ON issued during sync word qualification

CMD_PHY_ON issued during Rx data (after a sync word)

+ 3

PAR A M P_ U P

CMD_PHY_TX issued during search for preamble

+ 3

CMD_PHY_TX issued during preamble qualification

+ 3

CMD_PHY_TX issued during sync word qualification

PARAMP_UP

+ 3

CMD_PHY_TX issued during Rx data (after a sync word)

PARAMP_DOWN

+ 297

CMD_PHY_TX issued during packet transmission

+ 3

PARAMP_DOWN

+ 317

CMD_PHY_RX issued during packet transmission

= 25°C).

= 25°C)

Rev. 0 | Page 39 of 108

ADF7023

http://www.BDTIC.com/ADI

Command/Bit/

Present State

Mode

Automatic Transition

Packet CMD_PHY_RX PHY_RX PHY_RX 5 + T

Next State

Transition Time (μs) Typical Condition

+ 305.2

BYTE

308.4

307.9

+ 298.4

EOP

Packet

TX_TO_RX_AUTO

PHY_TX PHY_RX 10.8 + T

PARAMP_DOWN

_TURNAROUND

Packet TX_EOF PHY_TX PHY_ON 10.8 + T

PARAMP_DOWN

Packet RX_EOF PHY_RX PHY_ON 17.2 Sport CMD_PHY_ON PHY_TX PHY_ON 10.8 + T Sport CMD_PHY_ON PHY_RX PHY_ON 5 + T

PARAMP_DOWN

+ 38.2

BYTE

41.7

41.2

31.7

Sport CMD_PHY_TX PHY_ON PHY_TX 293 + T Sport CMD_PHY_TX PHY_RX PHY_TX 5 + T

Sport CMD_PHY_TX PHY_TX PHY_TX

Sport

RX_TO_TX_AUTO

PHY_RX PHY_TX 287.3 + T

BYTE

308.5 + T

308 + T

298.5 + T

10.8 + T T

PARAMP_UP

PAR A MP _U P

+ 305.3 + T

PAR A MP _U P

PARAMP_DOWN

+ 3

PAR A MP _U P

_TURNAROUND

Sport CMD_PHY_RX PHY_ON PHY_RX 300

Sport CMD_PHY_RX PHY_TX PHY_RX 10.8 + T

Sport CMD_PHY_RX PHY_RX PHY_RX 5 + T

PARAMP_DOWN

+ 305.2

BYTE

308.4

307.9

298.4

Sport

TX_TO_RX_AUTO

PHY_TX PHY_RX 10.8 + T

PARAMP_DOWN

_TURNAROUND

= T

PARAMP_UP

PA_RAMP sets the PA ramp rate (RADIO_CFG_8 register, Address 0x114), and DATA_RATE sets the transmit data rate (RADIO_CFG_0 register, Address 0x10C and RADIO_CFG_1 register, Address 0x10D).

BYTE

PARAMP_DOWN

= one byte period (μs), T

PA_RAMP

2 DATA_RATE

= time to end of packet (μs).

EOP

CRPA_LEVEL_M

)(9

, where PA_LEVEL_MCR sets the maximum PA output power (PA_LEVEL_MCR register, Address 0x307),

100

1, 2

+ 306

+ 36

+ 3

PAR A M P_ U P

+ 3

+ 297 +

+ 3

+ 317

+ 306

CMD_PHY_RX issued during search for preamble

CMD_PHY_RX issued during preamble qualification

CMD_PHY_RX issued during sync word qualification

CMD_PHY_RX issued during Rx data (after a sync word)

CMD_PHY_ON issued during search for a preamble

CMD_PHY_ON issued during preamble qualification

CMD_PHY_ON issued during sync word qualification

CMD_PHY_ON issued during Rx data (after a sync word)

CMD_PHY_TX issued during search for a preamble

CMD_PHY_TX issued during preamble qualification

CMD_PHY_TX issued during sync word qualification

CMD_PHY_TX issued during Rx data (after a sync word)

CMD_PHY_RX issued during search for a preamble

CMD_PHY_RX issued during preamble qualification

CMD_PHY_RX issued during sync word qualification

CMD_PHY_RX issued during Rx data (after a sync word)

Rev. 0 | Page 40 of 108

ADF7023

http://www.BDTIC.com/ADI

PACKET MODE

The on-chip communications processor can be configured for use with a wide variety of packet-based radio protocols using 2FSK/GFSK/MSK/GMSK/OOK modulation. The general packet format, when using the packet management features of the communications processor, is illustrated in Tab l e 1 4 . To use the packet management features, the DATA_MODE setting in the PACKET_LENGTH_CONTROL register (Address 0x126) should be set to packet mode; 240 bytes of dedicated packet RAM are available to store, transmit, and receive packets. In transmit mode, preamble, sync word, and CRC can be added by the communications processor to the data stored in the packet RAM for transmission. In addition, all packet data after the sync word can be optionally whitened, Manchester encoded, or 8b/10b encoded on transmission and decoded on reception.

In receive mode, the communications processor can be used to qualify received packets based on the preamble detection, sync word detection, CRC detection, or address match and generate an interrupt on the IRQ_GP3 pin. On reception of a valid packet, the received payload data is loaded to packet RAM memory. More information on interrupts is contained in the Interrupt Generation section.

PREAMBLE

The preamble is a mandatory part of the packet that is automatically added by the communications processor when transmitting a packet and removed after receiving a packet. The preamble is a 0x55 sequence, with a programmable length between 1 byte and 256 bytes, that is set in the

Table 14. ADF7023 Packet Structure Description

Packet Format Options

Field Length

Optional Field in Packet Structure X X Yes Yes Yes Yes X Comms Processor Adds in Tx, Removes in Rx Yes Yes X X X Yes Yes Host Writes These Fields to Packet RAM X X Yes Yes Yes X X Whitening/Dewhitening (Optional) X X Yes Yes Yes Yes X Manchester Encoding/Decoding (Optional) X X Yes Yes Yes Yes X 8b/10b Encoding/Decoding (Optional) X X Yes Yes Yes Yes X Configurable Parameter Yes Yes Yes Yes Yes Yes X Receive Interrupt on Valid Field Detection Yes Yes X Yes X Yes X Programmable Field Error Tolerance Yes Yes X X X X X Programmable Field Offset (See Figure 78) X X X Yes X X X

Yes indicates that the packet format option is supported; X indicates that the packet format option is not supported.

Preamble Sync Payload CRC Postamble

1 byte to 256 bytes

1 bit to 24 bits

PREAMBLE_LEN register (Address 0x11D). It is necessary to have preamble at the beginning of the packet to allow time for the receiver AGC, AFC, and clock and data recovery circuitry to settle before the start of the sync word. The required preamble length depends on the radio configuration. See the Radio Blocks section for more details.

In receive mode, the ADF7023 can use a preamble qualification circuit to detect preamble and interrupt the host processor. The preamble qualification circuit tracks the received frame as a sliding window. The window is three bytes in length, and the preamble pattern is fixed at 0x55. The preamble bits are examined in 01pairs. If either bit or both bits are in error, the pair is deemed erroneous. The possible erroneous pairs are 00, 11, and 10. The number of erroneous pairs tolerated in the preamble can be set using the PREAMBLE_MATCH register value (Address 0x11B) according to Tabl e 13 .

Table 13. Preamble Detection Tolerance (PREAMBLE_ MATCH, Address 0x11B)

Value Description

0x0C No errors allowed. 0x0B One erroneous bit-pair allowed in 12 bit-pairs. 0x0A Two erroneous bit-pairs allowed in 12 bit-pairs. 0x09 Three erroneous bit-pairs allowed in 12 bit-pairs. 0x08 Four erroneous bit-pairs allowed in 12 bit-pairs. 0x00 Preamble detection disabled.

Packet Structure

Length Address Payload Data

1 byte

1 byte to 9 bytes

0 bytes to 240 bytes

2 bytes 2 bytes

Rev. 0 | Page 41 of 108

ADF7023

http://www.BDTIC.com/ADI

If PREAMBLE_MATCH is set to 0x0C, the ADF7023 must receive 12 consecutive 01 pairs (three bytes) to confirm that valid preamble has been detected. The user can select the option to automatically lock the AFC and/or AGC once the qualified preamble is detected. The AFC lock on preamble detection can be enabled by setting AFC_LOCK_MODE = 3 in the RADIO_CFG_10 register (Address 0x116:). The AGC lock on preamble detection can be enabled by setting AGC_LOCK_ MODE = 3 in the RADIO_CFG_7 register (Address 0x113).

After the preamble is detected and the end of preamble has been reached, the communications processor searches for the sync word. The search for the sync word lasts for a duration equal to the sum of the number of programmed sync word bits, plus the preamble matching tolerance (in bits) plus 16 bits. If the sync word routine is detected during this duration, the communications processor loads the received payload to packet RAM and computes the CRC (if enabled). If the sync word routine is not detected during this duration, the communications processor continues searching for the preamble.

Preamble detection can be disabled by setting the PREAMBLE_ MATCH register to 0x00. To enable an interrupt upon preamble detection, the user must set INTERRUPT_PREAMBLE_DETECT =1 in the INTERRUPT_MASK_0 register (Address 0x100).

SYNC WORD

Sync word is the synchronization word used by the receiver for byte level synchronization, while also providing an optional interrupt on detection. It is automatically added to the packet by the communications processor in transmit mode and removed during reception of a packet.

FIRST BIT SENT

The value of the sync word is set in the SYNC_BYTE_0, SYNC_BYTE_1, and SYNC_BYTE_2 registers (Address 0x121, Address 0x122, and Address 0x123, respectively). The sync word is transmitted most significant bit first starting with SYNC_BYTE_0. The sync word matching length at the receiver is set using SYNC_WORD_LENGTH in the SYNC_CONTROL register (Address 0x120) and can be one bit to 24 bits long; the transmitted sync word is a multiple of eight bits. Therefore, for nonbyte length sync words, the transmitted sync pattern should be appended with the preamble pattern as described in Figure 76 and Tabl e 16 .

In receive mode, the ADF7023 can provide an interrupt on reception of the sync word sequence programmed in the SYNC_BYTE_0, SYNC_BYTE_1, and SYNC_BYTE_2 registers. This feature can be used to alert the host processor that a qualified sync word has been received. An error tolerance parameter can also be programmed that accepts a valid match when up to three bits of the sync word sequence are incorrect. The error tolerance value is set using the SYNC_ERROR_TOL setting in the SYNC_CONTROL register (Address 0x120), as described in Ta ble 1 5.

Table 15. Sync Word Detection Tolerance (SYNC_ERROR_ TOL, Address 0x120)

Value Description

00 No bit errors allowed. 01 One bit error allowed. 10 Two bit errors allowed. 11 Three bit errors allowed.

MSB LSB

APPEND UNUSED BITS WITH P RE AMBLE (0101..)

MSB LSB

SYNC_BYTE_2SYNC_BYTE_116 BITS ≥ SYNC_W ORD_LENGTH > 8 BITS

APPEND UNUSED BITS WITH P RE AMBLE (0101..)

MSB LSB

SYNC_BYTE_2SYNC_WORD_LENGTH ≤ 8 BITS

APPEND UNUSED BITS WITH P RE AMBLE (0101..)

Figure 76. Transmit Sync Word Configuration

Rev. 0 | Page 42 of 108

SYNC_BYTE_2SYNC_BYTE_1SYNC_BYTE_024 BITS ≥ SYNC_WORD_L E NGTH > 16 BITS

08291-068

ADF7023

http://www.BDTIC.com/ADI

Table 16. Sync Word Programming Examples

SYNC_WORD_ LENGTH Bits in

Required Sync Word (Binary, First Bit Being First in Time)

SYNC_CONTROL REGISTER (0x120)

SYNC_ BYTE _

000100100011010001010110 24 0x12 0x34 0x56 0001_0010_0011_0100_0101_0110 24 111010011100101000100 21 0x5D 0x39 0x44 0101_1101_0011_1001_0100_0100 21 0001001000110100 16 0xXX 0x12 0x34 0001_0010_0011_0100 011100001110 12 0xXX 0x57 0x0E 0101_0111_0000_1110 00010010 8 0xXX 0xXX 0x12 0001_0010 011100

X = don’t care.

6

0xXX 0xXX 0x5C 0101_1100 6

Choice of Sync Word

The sync word should be chosen to have low correlation with the preamble and have good autocorrelation properties. When the AFC is set to lock on detection of sync word (AFC_LOCK_ MODE = 3 and PREAMBLE_MATCH = 0), the sync word should be chosen to be dc free, and it should have a run length limit not greater than four bits.

PAYLOAD

The host processor writes the transmit data payload to the packet RAM. The location of the transmit data in the packet RAM is defined by the TX_BASE_ADR value register (Address 0x124). The TX_BASE_ADR value is the location of the first byte of the transmit payload data in the packet RAM. On reception of a valid sync word, the communications processor automatically loads the receive payload to the packet RAM. The RX_BASE_ADR register value (Address 0x125) sets the location in the packet RAM of the first byte of the received payload. For more details on packet RAM memory, see the ADF7023 Memory Map section.

Byte Orientation

The over-the-air arrangement of each transmitted packet RAM byte can be set to MSB first or LSB first using the DATA_BYTE setting in the PACKET_LENGTH_CONTROL register (Address 0x126). The same orientation setting should be used on the transmit and receive sides of the RF link.

Packet Length Modes

The ADF7023 can be used in both fixed and variable length packet systems. Fixed or variable length packet mode is set using the PACKET_LEN variable setting in the PACKET_ LENGTH_CONTROL register (Address 0x126).

For a fixed packet length system, the length of the transmit and received payload is set by the PACKET_LENGTH_MAX register (Address 0x127). The payload length is defined as the number of bytes from the end of the sync word to the start of the CRC.

In variable packet length mode, the communications processor extracts the length field from the received payload data. In

SYNC _BYTE

Receiver Sync SYNC_ BYTE _2

Transmitted Sync Word (Binary, First Bit Being First in Time)

Word Match

Length (Bits)

transmit mode, the length field must be the first byte in the transmit payload.

The communications processor calculates the actual received payload length as

RxPayload Length = Length + LENGTH_OFFSET − 4

where:

Length is the length field (the first byte in the received payload). LENGTH_OFFSET is a programmable offset (set in the

PACKET_LENGTH_CONTROL register (Address 0x126).

The LENGTH_OFFSET value allows compatibility with systems where the length field in the proprietary packet may also include the length of the CRC and/or the sync word. The ADF7023 defines the payload length as the number of bytes from the end of the sync word to the start of the CRC. In variable packet length mode, the PACKET_LENGTH_MAX value defines the maximum packet length that can be received, as described in Figure 77.

TX PAYLOAD LENGTH = PACKET_LENGTH_MAX RX PAYL

OAD LENGTH = PACKET_LENGTH_MAX

PREAMBLE

FIXED

PREAMBLE

Figure 77. Payload Length in Fixed and Variable Length Packet Modes

SYNC

WORD

RX PAYLOAD LENGTH = LENGTH + LENGTH_OFFSET – 4

TX PAYLOAD LENGTH = LENGTH

SYNC

LENGTHVARIABLE PAYLOAD CRC

WORD

PAYLOAD

CRC

Addressing

The ADF7023 provides a very flexible address matching scheme, allowing matching of a single address, multiple addresses, and broadcast addresses. The address information can be included at any section of the transmit payload. The location of the starting byte of the address data in the received payload is set in the ADDRESS_MATCH_OFFSET register (Address 0x129), as illustrated in Figure 78. The number of bytes in the first address field is set in the ADDRESS_LENGTH register (Address 0x12A). These settings allow the communications processor to extract the address information from the received packet.

The address data is then compared against a list of known addresses that are stored in BBRAM (Address 0x12A to Address

08291-125

Rev. 0 | Page 43 of 108

ADF7023

http://www.BDTIC.com/ADI

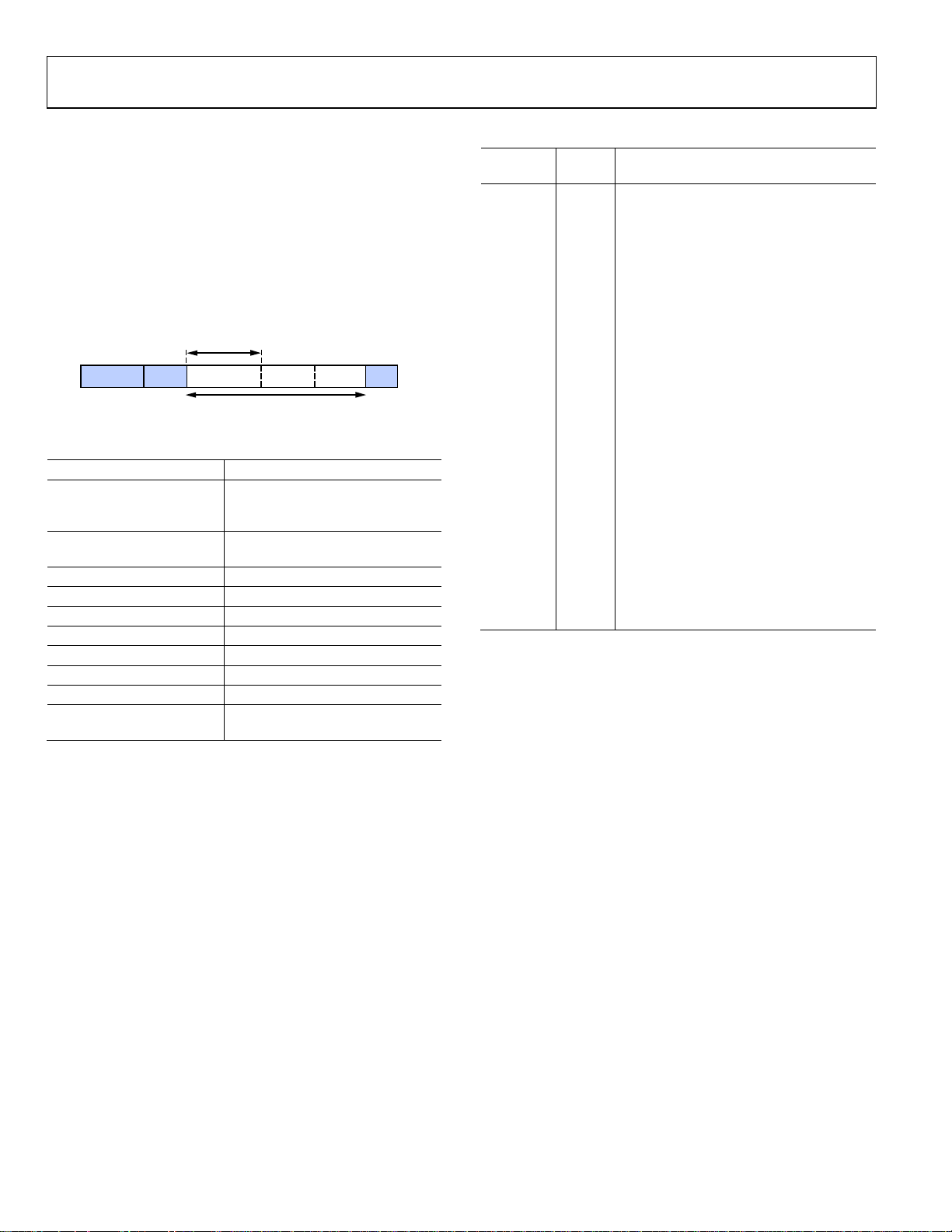

0x13D). Each stored address byte has an associated mask byte, thereby allowing matching of partial sections of the address bytes, which is useful for checking broadcast addresses or a family of addresses that have a unique identifier in the address sequence. The format and placement of the address information in the payload data should match the address check settings at the receiver to ensure exact address detection and qualification. Tabl e 17 shows the register locations in the BBRAM that are used for setup of the address checking. When Register 0x12A (number of bytes in the first address field) is set to 0x00, address checking is disabled.

ADDRESS_MATCH_OFFSET

PREAMBLE

SYNC

WORD

Figure 78. Address Match Offset

Table 17. Address Check Register Setup

Address (BBRAM) Description1

0x129, ADDRESS_MATCH_ OFFSET

0x12A, ADDRESS_LENGTH

0x12B Address Match Byte 0 0x12C Address Mask Byte 0 0x12D Address Match Byte 1 0x12E Address Mask Byte 1 … … Address Match Byte N Address Mask Byte N

= the number of bytes in the first address field; N

ADR_1

bytes in the second address field.

The host processor should set the INTERRUPT_ADDRESS_ MATCH bit in the INTERRUPT_SOURCE_0 register (Address 0x336) if an interrupt is required on the IRG_GP3 pin. Additional information on interrupts is contained in the Interrupt Generation section.

Example Address Check

Consider a system with 32-bit address lengths, in which the first byte is located in the 10

byte of the received payload data. The system also uses broadcast addresses in which the first byte is always 0xAA. To match the exact address, 0xABCDEF01 or any broadcast address in the form 0xAAXXXXXX, the ADF7023 must be configured as shown in Tabl e 18 .

ADDRESS

DATA

PAYLOAD

CRC

08291-126

Position of first address byte in the received packet (first byte after sync word = 0)

Number of bytes in the first address field (N

0x00 to end or N

ADR_1

ADR_2

)

− 1

ADR_1

− 1

ADR_1

for another

address check sequence

= the number of

ADR_2

Table 18. Example Address Check Configuration

BBRAM Address Value Description

0x129 0x09

Location in payload of the first address byte

0x12A 0x04

0x12B 0xAB 0x12C 0xFF 0x12D 0xCD 0x12E 0xFF 0x12F 0xEF 0x130 0xFF 0x131 0x01 0x132 0xFF 0x133 0x04

0x134 0xAA 0x135 0xFF 0x136 0x00 0x137 0x00 0x138 0x00 0x139 0x00 0x13A 0x00 0x13B 0x00 0x13C 0x00

Number of bytes in the first address field, N

= 4

ADR_1

Address Match Byte 0 Address Mask Byte 0 Address Match Byte 1 Address Mask Byte 1 Address Match Byte 2 Address Mask Byte 2 Address Match Byte 3 Address Mask Byte 3 Number of bytes in the second address

ADR_2

= 4

field, N Address Match Byte 0 Address Mask Byte 0 Address Match Byte 1 Address Mask Byte 1 Address Match Byte 2 Address Mask Byte 2 Address Match Byte 3 Address Mask Byte 3 End of addresses (indicated by 0x00)

0x13D 0xXX Don’t care

CRC

An optional CRC-16 can be appended to the packet by setting CRC_EN =1 in the PACKET_LENGTH_CONTROL register (Address 0x126). In receive mode, this bit enables CRC detection on the received packet. A default polynomial is used if PROG_CRC_EN = 0 in the SYMBOL_MODE register (Address 0x11C). The default CRC polynomial is

51216

1)(

+++= xxxxg

Any other 16-bit polynomial can be used if PROG_CRC_EN = 1, and the polynomial is set in CRC_POLY_0 and CRC_POLY_1 (Address 0x11E and Address 0x11F, respectively). The setup of the CRC is described in Ta bl e 1 9 .

Rev. 0 | Page 44 of 108

ADF7023

http://www.BDTIC.com/ADI

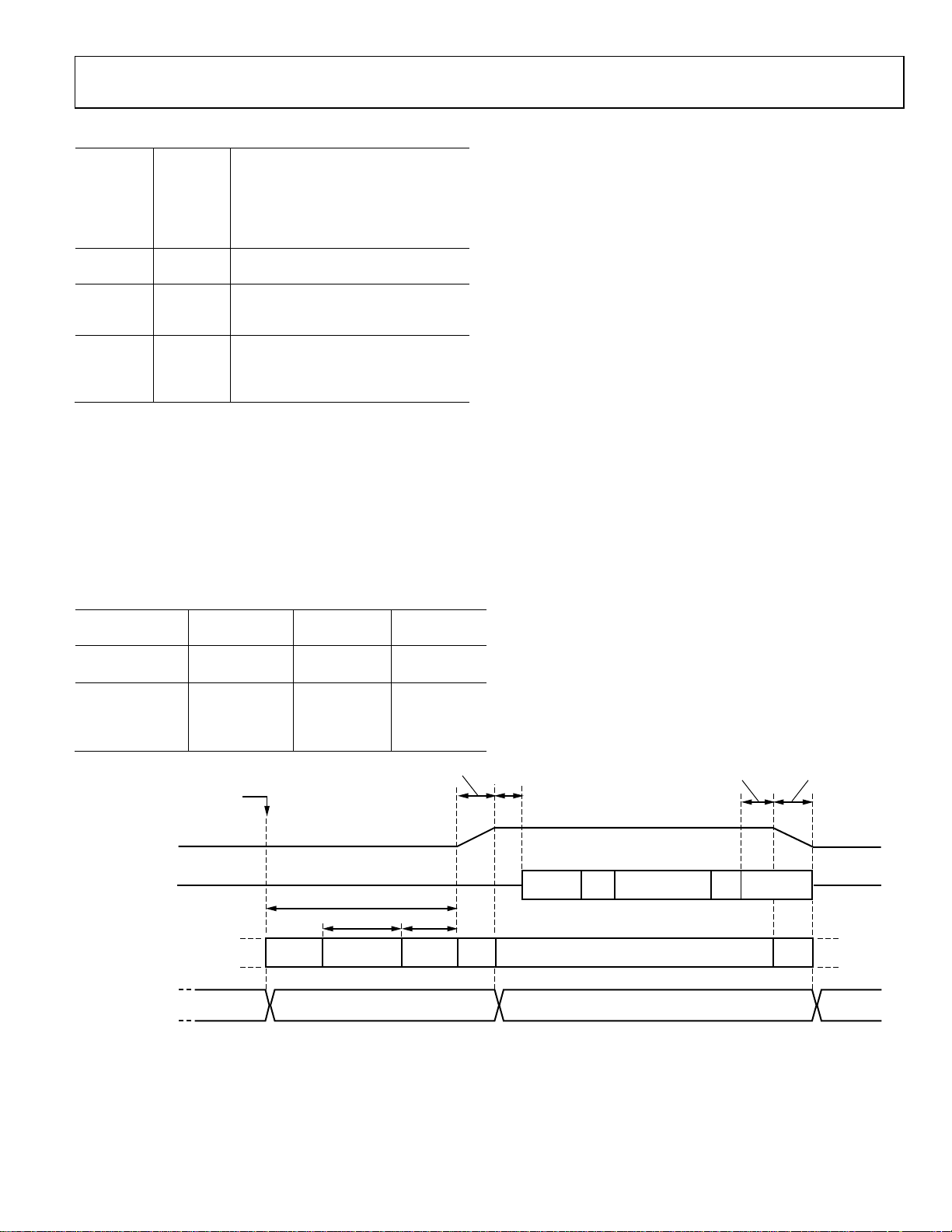

Table 19.CRC Setup

CRC_EN Bit in the PAC KE T_ LENGTH CONT ROL Register

0 X1

PROG_ CRC_EN Bit in the SYMBOL_ MODE Register

Description

CRC is disabled in transmit, and CRC detection is disabled in receive.

1 0

CRC is enabled in transmit, and CRC detection is enabled in receive, with the default CRC polynomial.

1 1

CRC is enabled in transmit, and CRC detection is enabled in receive, with the CRC polynomial defined by CRC_POLY_0 and CRC_POLY_1.

X = don’t care.

To convert a user-defined polynomial to the 2-byte value, the

polynomial should be written in binary format. The x coefficient is assumed equal to 1 and is, therefore, discarded. The remaining 16 bits then make up CRC_POLY_0 (most significant byte) and CRC_POLY_1 (least significant byte). Two examples of setting common 16-bit CRCs are shown in Tabl e 20 .

Table 20. Example: Programming of CRC_POLY_0 and CRC_POLY_1

Binary

Polynomial

x16 + x15 + x2 + 1 (CRC-16-IBM)

x16 + x13 + x12 +

11 x10

+ x8 + x6 +

+ x2 + 1

Format

1_1000_0000_ 0000_0101

1_0011_1101_ 0110_0101

CRC_POLY_0 CRC_POLY_1

0x80 0x05

0x3D 0x65

(CRC-16-DNP)

To enable CRC detection on the receiver, with the default CRC or user-defined 16-bit CRC, CRC_EN in the PACKET_ LENGTH_CONTROL register (Address 0x126) should be set to

1. An interrupt can be generated on reception of a CRC verified packet (see the Interrupt Generation section).

POSTAMBLE

The communications processor automatically appends two bytes of postamble to the end of the transmitted packet. Each byte of the postamble is 0x55. The first byte is transmitted immediately after the CRC. The PA ramp-down begins immediately after the first postamble byte. The second byte is transmitted while the PA is ramping down.

On the receiver, if the received packet is valid, the RSSI is automatically measured during the first postamble byte, and the result is stored in the RSSI_READBACK register (Address 0x312). The RSSI is measured by the communications processor 17 μs after the last CRC bit.

TRANSMIT PACKET TIMING

The PA ramp timing in relation to the transmit packet data is described in Figure 79. After the CMD_PHY_TX command is issued, a VCO calibration is carried out, followed by a delay for synthesizer settling. The PA ramp follows the synthesizer settling. After the PA is ramped up to the programmed rate, there is 1-byte delay before the start of modulation (preamble). At the beginning of the second byte of postamble, the PA ramps down. The communications processor then transitions to the PHY_ON state or the PHY_RX state (if the TX_AUTO_TURN_ AROUND bit is enabled or the CMD_PHY_RX command is issued).

PA OUTPUT

TX DATA

COMMUNICATIONS

PROCESSOR

FW_STATE

CMD_PHY_TX

300µs

142µs 55µs

VCO CAL SYNTH

Figure 79. Transmit Packet Timing

RAMP TIME

Rev. 0 | Page 45 of 108

RAMP

~19µs

PREAMBLE

SYNC

WORD

PHY_TX

= 0x14 (PHY_TX)= 0x00 (BUSY)

1 BYTE RAMP TIME

CRC POSTAMBLEPAYLOAD

RAMP

08291-127

ADF7023

http://www.BDTIC.com/ADI

DATA WHITENING

Data whitening can be employed to avoid long runs of 1s or 0s in the transmitted data stream. This ensures sufficient bit transitions in the packet, which aids in receiver clock and data recovery because the encoding breaks up long runs of 1s or 0s in the transmit packet. The data, excluding the preamble and sync word, is automatically whitened before transmission by XOR’ing the data with an 8-bit pseudorandom sequence. At the receiver, the data is XOR’ed with the same pseudorandom sequence, thereby reversing the whitening. The linear feedback shift register polynomial used is x dewhitening are enabled by setting the SYMBOL_MODE register (Address 0x11C).

MANCHESTER ENCODING

Manchester encoding can be used to ensure a dc-free (zero mean) transmission. The encoded over-the-air bit rate (chip rate) is double the rate set by the DATA_RATE variable (Address 0x10C and Address 0x10D). A Binary 0 is mapped to 10, and a Binary 1 is mapped to 01. Manchester encoding and decoding are applied to the payload data and the CRC. It is recommended to use Manchester encoding for OOK modulation. Manchester encoding and decoding are enabled by setting MANCHESTER_ENC = 1 in the SYMBOL_MODE register (Address 0x11C).

+ x1 + 1. Data whitening and

DATA_WHITENING = 1 in

8B/10B ENCODING

8b/10b encoding is a byte-orientated encoding scheme that maps an 8-bit byte to a 10-bit data block. It ensures that the maximum number of consecutive 1s or 0s (that is, run length) in any 10-bit transmitted symbol is five. The advantage of this encoding scheme is that dc balancing is employed without the efficiency loss of Manchester encoding. The rate loss for 8b/10b encoding is 0.8, whereas for Manchester encoding, it is 0.5. Encoding and decoding are applied to the payload data and the CRC. The 8b/10b encoding and decoding are enabled by setting EIGHT_TEN_ENC =1 in the SYMBOL_MODE register (Address 0x11C).

Rev. 0 | Page 46 of 108

ADF7023

http://www.BDTIC.com/ADI

SPORT MODE

It is possible to bypass all of the packet management features of the ADF7023 and use the sport interface for transmit and receive data. The sport interface is a high speed synchronous serial interface allowing direct interfacing to processors and DSPs. Sport mode is enabled using the DATA_MODE setting in the PACKET_LENGTH_CONTROL register (Address 0x126), as described in Ta bl e 2 1 . The sport mode interface is on the GPIO pins (GP0, GP1, GP2, GP4, and XOSC32KP_GP5_ATB1). These GPIO pins can be configured using the GPIO_CONFIGURE setting (Address 0x3FA), as described in Tabl e 22 .

Sport mode provides a receive interrupt source on GP4. This interrupt source can be configured to provide an interrupt, or strobe signal, on either preamble detection or sync word detection. The type of interrupt is configured using the GPIO_CONFIGURE setting.

PACKET STRUCTURE IN SPORT MODE

In sport mode, the host processor has full control over the packet structure. However, the preamble frame is still required to allow sufficient bits for receiver settling (AGC, AFC, and CDR). In sport mode, sync word detection is not mandatory in the ADF7023 but can be enabled to provide byte level synchronization for the host processor via the sync word detect interrupt or strobe on GP4. The general format of a sport mode packet is shown in Figure 80.

PREAMBLE

SYNC

WORD

Figure 80. General Sport Mode Packet

PAYLOAD

08291-128

SPORT MODE IN TRANSMIT

Figure 81 illustrates the operation of the sport interface in transmit. Once in the PHY_TX state with sport mode enabled, the data input of the transmitter is fully controlled by the sport

interface (pin GP1). The transmit clock appears on the GP2 pin. The transmit data from the host processor should be synchronized with this clock. The FW_STATE variable in the status word or the CMD_FINISHED interrupt can be used to indicate when the ADF7023 has reached the PHY_TX state and, therefore, is ready to begin transmitting data. The ADF7023 keeps transmitting the serial data presented at the GP1 input until the host processor issues a command to exit the PHY_TX state.

SPORT MODE IN RECEIVE

The sport interface supports the receive operation with a number of modes to suit particular signaling requirements. The receive data appears on the GP0 pin, whereas the receive synchronized clock appears on the GP1 pin. The GP4 pin provides an interrupt or strobe signal on either preamble or sync word detection, as described in Ta ble 2 1 and Tab l e 22 . Once enabled, the interrupt signal and strobe signals remain operational while in the PHY_RX state. The strobe signal gives a single high pulse of 1-bit duration every eight bits. The strobe signal is most useful when used with sync word detection because it is synchronized to the sync word and strobes the first bit in every byte.

TRANSMIT BIT LATENCIES IN SPORT MODE

The transmit bit latency is the time from the sampling of a bit by the transmit data clock on GP2 to when that bit appears at the RF output. There is no transmit bit latency when using 2FSK/MSK modulation. The latency when using GFSK/GMSK modulation is two bits. It is important that the host processor keep the ADF7023 in the PHY_TX state for two bit periods after the last data bit is sampled by the data clock to account for this latency when using GMSK/GFSK modulation.

Table 21. SPORT Mode Setup

DATA_MODE Bits in PACKET_LENGTH_ CONTROL Register

DATA_MODE = 0

DATA_MODE = 1

DATA_MODE = 2

Description GPIO Configuration

Packet mode enabled. Packet management is controlled by the communications processor.

Sport mode enabled. The Rx data and Rx clock are enabled in the PHY_RX state (GPIO_CONFIGURE = 0xA0, 0xA3, 0xA6). The Rx clock is enabled in the PHY_RX state, and Rx data is enabled on the preamble detect (GPIO_CONFIGURE = 0xA1, 0xA2, 0xA4, 0xA5, 0xA7, 0xA8).

Sport mode enabled. The Rx data and Rx clock are enabled in the PHY_RX state if GPIO_CONFIGURE = 0xA0, 0xA3, 0xA6. The Rx clock is enabled in the PHY_RX state, and Rx data is enabled on the preamble detect if GPIO_CONFIGURE = 0xA1, 0xA2, 0xA4, 0xA5, 0xA7, 0xA8.

GP0: Rx data GP1: Tx data GP2: Tx/Rx clock GP4: interrupt or strobe enabled on preamble detect

(depends on GPIO_CONFIGURE) XOSC32KP_GP5_ATB1: depends on GPIO_CONFIGURE

GP0: Rx data GP1: Tx data GP2: Tx/Rx clock GP4: interrupt or strobe enabled on sync word detect

(depends on GPIO_CONFIGURE) XOSC32KP_GP5_ATB1: depends on GPIO_CONFIGURE

Rev. 0 | Page 47 of 108

ADF7023

http://www.BDTIC.com/ADI

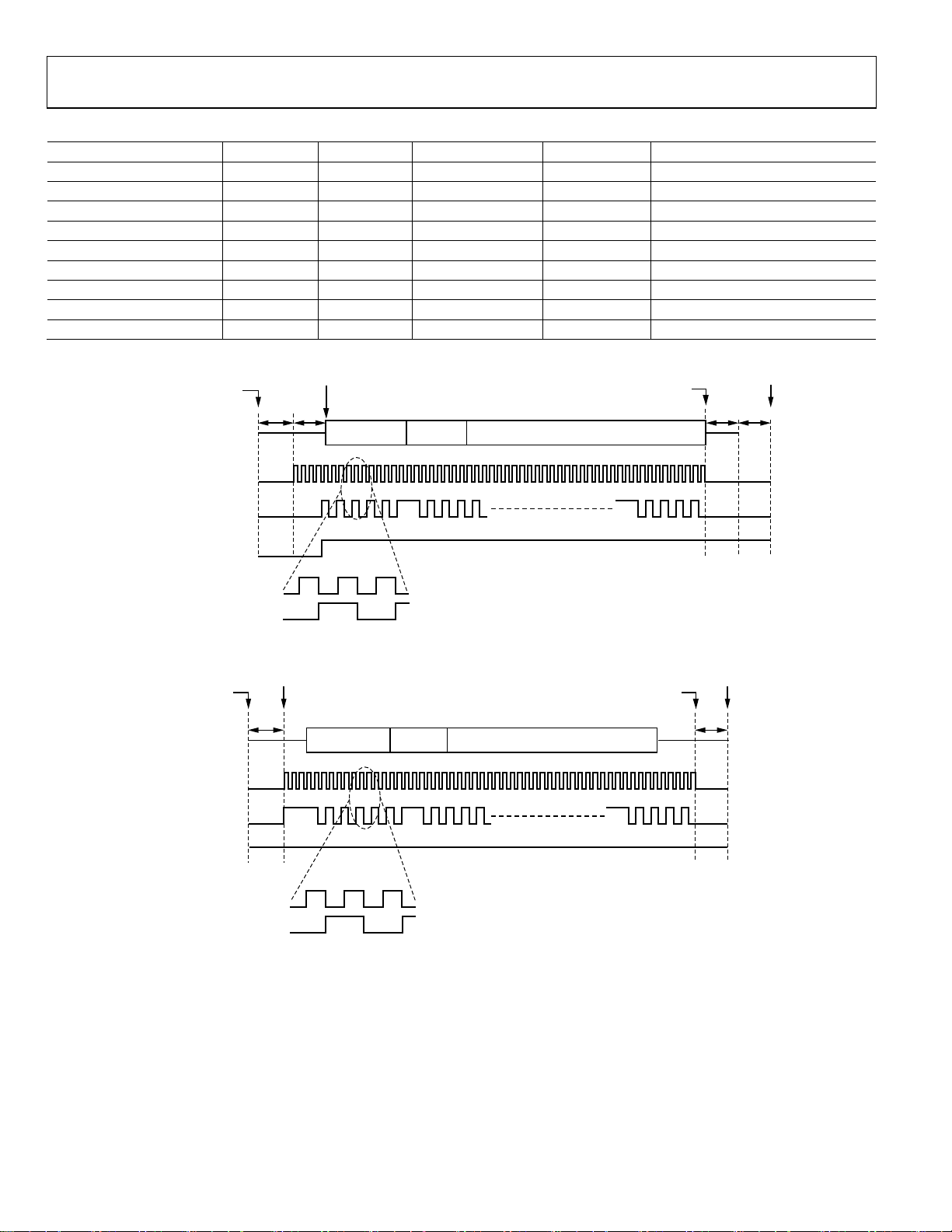

Table 22. GPIO Functionality in Sport Mode

GPIO_CONFIGURE GP0 GP1 GP2 GP4 XOSC32KP_GP5_ATB1

0xA0 Rx data Tx data Tx/Rx clock Not used Not used 0xA1 Rx data Tx data Tx/Rx clock Interrupt Not used 0xA2 Rx data Tx data Tx/Rx clock Strobe Not used 0xA3 Rx data Tx data Tx/Rx clock Not used 32.768 kHz XTAL input 0xA4 Rx data Tx data Tx/Rx clock Interrupt 32.768 kHz XTAL input 0xA5 Rx data Tx data Tx/Rx clock Strobe 32.768 kHz XTAL input 0xA6 Rx data Tx data Tx/Rx clock Not used EXT_UC_CLK output 0xA7 Rx data Tx data Tx/Rx clock Interrupt EXT_UC_CLK output 0xA8 Rx data Tx data Tx/Rx clock Strobe EXT_UC_CLK output

CMD_PHY_TX

PACKET

GP2 (TX CLK)

GP1 (TX DATA)

300µs

RAMP

PREAMBLE

SYNC

WORD

CMD_PHY_ON

PAYLOAD

RAMP

PHY_ONPHY_TX

55.4µs

(CMD_FINI SHED INTERRUPT)

IRQ_GP3

GP2 (TX CLK)

GP0 (TX DATA)

08291-129

Figure 81. Sport Mode Transmit

CMD_PHY_RX

PACKET

GP2 (RX CLK)

GP0 (RX DATA)

CMD_PHY_ON

SYNC WORD

PAYLOAD

GP4

GP2

PREAMBLE

(RX CLK)

Figure 82. Sport Mode Receive, DATA_MODE = 1, 2 and GPIO_CONFIGURE = 0xA0, 0xA3, 0xA6

PHY_ONPHY_RX

55.4µs309µs

08291-130

Rev. 0 | Page 48 of 108

ADF7023

http://www.BDTIC.com/ADI

CMD_PHY_RX

PACKET

GP2 (RX CLK)

GP0 (RX DATA)

GP4 (GPIO_CONFIGURE = 0xA1)

GP4 (GPIO_CONFIGURE = 0xA2)

GP2 (RX CLK)

GP0 (RX DATA)

GP4 (GPI O_CONFIGURE = 0xA1)

GP4 (GPI O_CONFIGURE = 0xA2)

PREAMBLE

DETECTED

SYNC

WORD

8/(DATA RATE)

PAYLOAD

CMD_PHY_ON

PHY_ONPHY_RX

55.4µs309µs

08291-131

Figure 83. Sport Mode Receive, DATA_MODE = 1, GPIO_CONFIGURE = 0xA1, 0xA2, 0xA4, 0xA5, 0xA7, 0xA8

CMD_PHY_RX

CMD_PHY_ON

PHY_ONPHY_RX

PACKET

GP2 (RX CLK)

GP0 (RX DATA)

GP4 (GPIO_CONFIGURE = 0xA1)

GP4 (GPIO_CONFIGURE = 0xA2)

GP2 (RX CLK)

GP0 (RX DATA)

GP4 (GPI O_CONFIGURE = 0xA1)

GP4 (GPI O_CONFIGURE = 0xA2)

Figure 84. Sport Mode Receive, DATA_MODE = 2, GPIO_CONFIGURE = 0xA1, 0xA2, 0xA4, 0xA5, 0xA7, 0xA8

SWD

BIT N-9

PREAMBLE

SWD

BIT N-8

SWD

BIT N-7

SWD

BIT N-6

SYNC

WORD

SWD

BIT N-5

SWD

BIT N-4

SWD

BIT N-3

PAYLOAD

SWD

BIT N-2

SWD

BIT N-1

SWD

BIT N

PAYLOAD

BIT 1

55.4µs309µs

PAYLOAD

BIT 2

08291-132

Rev. 0 | Page 49 of 108

ADF7023

http://www.BDTIC.com/ADI

INTERRUPT GENERATION

The ADF7023 uses a highly flexible, powerful interrupt system with support for MAC level interrupts and PHY level interrupts. To enable an interrupt source, the corresponding mask bit must be set. When an enabled interrupt occurs, the IRQ_GP3 pin goes high, and the interrupt bit of the status word is set to Logic

1. The host processor can use either the IRQ_GP3 pin or the status word to check for an interrupt. After an interrupt is asserted, the ADF7023 continues operations unaffected, unless it is directed to do otherwise by the host processor. An outline of the interrupt source and mask system is shown in Tabl e 23.

MAC interrupts can be enabled by writing a Logic 1 to the relevant bits of the INTERRUPT_MASK_0 register (Address 0x100) and PHY level interrupts by writing a Logic 1 to the relevant bits of the INTERRUPT_MASK_1 register (Address 0x101). The structure of these memory locations is described in Tabl e 23 .

In the case of an interrupt condition, the interrupt source can be determined by reading the INTERRUPT_SOURCE_0 register (Address 0x336) and the INTERRUPT_SOURCE_1 register (Address 0x337). The bit that corresponds to the

relevant interrupt condition is high. The structure of these two registers is shown in Tab le 2 4 .

Following an interrupt condition, the host processor should clear the relevant interrupt flag so that further interrupts assert the IRQ_GP3 pin. This is performed by writing a Logic 1 to the bit that is high in either the INTERRUPT_SOURCE_0 or INTERRUPT_SOURCE_1 register. If multiple bits in the interrupt source registers are high, they can be cleared individually or altogether by writing Logic 1 to them. The IRQ_GP3 pin goes low when all the interrupt source bits are cleared.

As an example, take the case where a battery alarm (in the INTERRUPT_SOURCE_1 register) interrupt occurs. The host processor should

1. Read the interrupt source registers. In this example, if none

of the interrupt flags in INTERRUPT_SOURCE_0 is enabled, only INTERRUPT_SOURCE_1 must be read.

2. Clear the interrupt by writing 0x80 (or 0xFF) to

INTERRUPT_SOURCE_1.

3. Respond to the interrupt condition.

Table 23. Structure of the Interrupt Mask Registers

INTERRUPT_MASK_0, Address 0x100

7 INTERRUPT_NUM_WAKEUPS

6 INTERRUPT_SWM_RSSI_DET

5 INTERRUPT_AES_DONE

4 INTERRUPT_TX_EOF Interrupt when a packet has finished transmitting

3 INTERRUPT_ADDRESS_MATCH Interrupt when a received packet has a valid address match

2 INTERRUPT_CRC_CORRECT Interrupt when a received packet has the correct CRC

1 INTERRUPT_SYNC_DETECT

0 INTERRUPT_PREAMBLE_DETECT

Interrupt when the number of WUC wake-ups (NUMBER_OF_WAKEUPS[15:0]) has reached the threshold (NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[15:0])

1: interrupt enabled; 0: interrupt disabled Interrupt when the measured RSSI during smart wake mode has

exceeded the RSSI threshold value (SWM_RSSI_THRESH, Address 0x108) 1: interrupt enabled; 0: interrupt disabled

Interrupt when an AES encryption or decryption command is complete; available only when the AES firmware module has been loaded to the ADF7023 program RAM

1: interrupt enabled; 0: interrupt disabled

1: interrupt enabled; 0: interrupt disabled Interrupt when a qualified sync word has been detected in the

received packet 1: interrupt enabled; 0: interrupt disabled

Interrupt when a qualified preamble has been detected in the received packet

1: interrupt enabled; 0: interrupt disabled

Rev. 0 | Page 50 of 108

ADF7023

http://www.BDTIC.com/ADI

INTERRUPT_MASK_1, Address 0x101

Table 24. Structure of the Interrupt Source Registers

INTERRUPT_SOURCE_0, Address: 0x336

INTERRUPT_SOURCE_1, Address: 0x337

INTERRUPTS IN SPORT MODE

In sport mode, the interrupts from INTERRUPT_SOURCE_1 are all available. However, only INTERRUPT_PREAMBLE_ DETECT and INTERRUPT_SYNC_DETECT are available from INTERRUPT_SOURCE_0. A second interrupt pin is

7 BATTERY_ALARM

6 CMD_READY

5 Reserved

4 WUC_TIMEOUT Interrupt when the WUC has timed out

3 Reserved 2 Reserved 1 SPI_READY Interrupt when the SPI is ready for access

0 CMD_FINISHED

7 INTERRUPT_NUM_WAKEUPS

6 INTERRUPT_SWM_RSSI_DET

5 INTERRUPT_AES_DONE

4 INTERRUPT_TX_EOF Asserted when a packet has finished transmitting (packet mode only) 3 INTERRUPT_ADDRESS_MATCH

2 INTERRUPT_CRC_CORRECT

1 INTERRUPT_SYNC_DETECT

0 INTERRUPT_PREAMBLE_DETECT

7 BATTERY_ALARM

6 CMD_READY

5 Reserved 4 WUC_TIMEOUT Asserted when the WUC has timed out 3 Reserved 2 Reserved 1 SPI_READY Asserted when the SPI is ready for access 0 CMD_FINISHED

Interrupt when the battery voltage has dropped below the threshold value (BATTERY_MONITOR_THRESHOLD_VOLTAGE, Address 0x32D)

1: interrupt enabled; 0: interrupt disabled Interrupt when the communications processor is ready to load a new

command; mirrors the CMD_READY bit of the status word 1: interrupt enabled; 0: interrupt disabled

1: interrupt enabled; 0: interrupt disabled

1: interrupt enabled; 0: interrupt disabled Interrupt when the communications processor has finished

performing a command 1: interrupt enabled; 0: interrupt disabled

Asserted when the number of WUC wake-ups (NUMBER_OF_WAKEUPS[15:0]) has reached the threshold (NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[15:0])

Asserted when the measured RSSI during smart wake mode has exceeded the RSSI threshold value (SWM_RSSI_THRESH, Address 0x108)

Asserted when an AES encryption or decryption command is complete; available only when the AES firmware module has been loaded to the ADF7023 program RAM

Asserted when a received packet has a valid address match (packet mode only)

Asserted when a received packet has the correct CRC (packet mode only)

Asserted when a qualified sync word has been detected in the received packet

Asserted when a qualified preamble has been detected in the received packet

Asserted when the battery voltage has dropped below the threshold value (BATTERY_MONITOR_THRESHOLD_VOLTAGE, Address 0x32D)

Asserted when the communications processor is ready to load a new command; mirrors the CMD_READY bit of the status word

Asserted when the communications processor has finished performing a command

provided on GP4, which gives a dedicated sport mode interrupt on either preamble or sync word detection. For more details, see the Sport Mode section.

Rev. 0 | Page 51 of 108

ADF7023

http://www.BDTIC.com/ADI

ADF7023 MEMORY MAP

CS MISO MOSI SCLK

COMMS

PROCESSOR

CLOCK

PROCESSOR

This section describes the various memory locations used by the ADF7023. The radio control, packet management, and smart wake mode capabilities of the part are realized through the use of an integrated RISC processor, which executes instructions stored in the embedded program ROM. There is also a local RAM, subdivided into three sections, that is used as a data packet buffer, both for transmitted and received data (packet RAM), and for storing the radio and packet management configuration (BBRAM and MCR). The RAM addresses of these memory banks are 11 bits long.

BBRAM

The battery backup RAM (BBRAM) contains the main radio and packet management registers used to configure the radio. On application of battery power to the ADF7023 for the first time, the entire BBRAM should be initialized by the host processor with the appropriate settings. After the BBRAM has been written to, the CMD_CONFIG_DEV command should be issued to update the radio and communications processor with the current BBRAM settings. The CMD_CONFIG_DEV command can be issued in the PHY_OFF state or the PHY_ON state only.

COMMS

8-BIT

RISC

ENGINE

SPI

SPI/CP

MEMORY

ARBITRATION

ADDRESS/

DATA

MUX

Figure 85. ADF7023 Memory Map

ADDRESS

[12:0]

11-BIT

ADDRESSES

PROGRAM

RAM

2kB

PROGRAM

ROM

4kB

INSTRUCTION/DATA [7:0]

ADDRESS[10:0]

DATA[7:0]

0x3FF

MCR

256 BYTES

0x300

NOT USED

0x13F

BBRAM

64 BYTES 0x100 0x0FF

PACKET

RAM

256 BYTES

0x000 0x00F

RESERVED

0x000

08291-070

The BBRAM is used to maintain settings needed at wake-up from sleep mode by the wake-up controller. Upon wake-up from sleep, in smart wake mode, the BBRAM contents are read by the on-chip processor to recover the packet management and radio parameters.

MODEM CONFIGURATION RAM (MCR)

The 256-byte modem configuration RAM (MCR) contains the various registers used for direct control or observation of the physical layer radio blocks of the ADF7023. The contents of the MCR are not retained in the PHY_SLEEP state.

PROGRAM ROM

The program ROM consists of 4 kB of nonvolatile memory. It contains the firmware code for radio control, packet management, and smart wake mode.

PROGRAM RAM

The program RAM consists of 2 kB of volatile memory. This memory space is used for software modules, such as AES encryption, IR calibration, and Reed Solomon coding, which are available from Analog Devices. The software modules are downloaded to the program RAM memory space over the SPI by the host processor. See the Downloadable Firmware Modules section for details on loading a firmware module to program RAM.

Rev. 0 | Page 52 of 108

ADF7023

http://www.BDTIC.com/ADI

PACKET RAM

The packet RAM consists of 256 bytes of memory space. The first 16 bytes of this memory space are allocated for use by the on-chip processor. The remaining 240 bytes of this memory space are allocated for storage of data from valid received packets and packet data to be transmitted. The communications processor stores received payload data at the memory location indicated by the value of the RX_BASE_ADR register (Address 0x125), the receive address pointer. The value of the

TRA

NSMIT

AND RECEIVE

TX_BASE_ADR

RX_BASE_ADR

PACKET

TRANSMIT

PAYLOAD

RECEIVE PAYLOAD

0x010

TX_BASE_ADR RX_BASE_ADR

240 BYTE TRANSMI

TX_BASE_ADR register (Address 0x124), the transmit address pointer, determines the start address of data to be transmitted by the communications processor. This memory can be arbitrarily assigned to store single or multiple transmit or receive packets, with and without overlap. The RX_BASE_ADR value should be chosen to ensure that there is enough allocated packet RAM space for the maximum receiver payload length.

OR RECEIVE

PACKET

TRANSMIT OR

RECEIVE PAYLOAD

0x010

TX_BASE_ADR

(PACKET 1)

TX_BASE_ADR

(PACKET 2)

RX_BASE_ADR

(PACKET 1)

RX_BASE_ADR

(PACKET 2)

MULTIPLE TRANSMIT

AND RECEIVE

PACKETS

TRANSMIT

PAYLOAD

TRANSMIT

PAYLOAD 2

RECEIVE

PAYLOAD

RECEIVE

PAYLOAD 2

0x010

0x0FF

08291-071

Figure 86. Example Packet RAM Configurations Using the Tx Packet and Rx Packet Address Pointers

Rev. 0 | Page 53 of 108

ADF7023

http://www.BDTIC.com/ADI

SPI INTERFACE

GENERAL CHARACTERISTICS

The ADF7023 is equipped with a 4-wire SPI interface, using the

SCLK, MISO, MOSI, and a slave to the host processor. shows an example connection diagram between the processor and the ADF7023. The diagram also shows the direction of the signal flow for each pin. The SPI interface is active, and the MISO outputs enabled, only while the

input is low. The interface uses a word length of eight bits, which is compatible with the SPI hardware of most processors. The data transfer through the SPI interface occurs with the most significant bit first. The MOSI input is sampled at the rising edge of SCLK. As commands or data are shifted in from the MOSI input at the SCLK rising edge, the status word or data is shifted out at the MISO pin synchronous with the SCLK clock falling edge. If significant bit of the status word appears on the MISO output without the need for a rising clock edge on the SCLK input.

ADF7023

IRQ_GP3

Figure 87. SPI Interface Connections

COMMAND ACCESS

The ADF7023 is controlled through commands. Command words are single octet instructions that control the state transitions of the communications processor and access to the registers and packet RAM. The complete list of valid commands is given in the Command Reference section. Commands that have a CMD prefix are handled by the communications processor. Memory access commands have an SPI prefix and are handled by an independent controller. Thus, SPI commands can be issued independent of the state of the communications processor.

A command is initiated by bringing command word over the SPI, as shown in . All commands are executed after edge of the SCLK input. The latter condition occurs in the case of a memory access command, in which case the command is executed on the positive SCLK clock edge corresponding to the most significant bit of the first parameter word. The must be brought high again after a command has been shifted into the ADF7023 to enable the recognition of successive command words. This is because a single command can be issued only during a double NOP command).

pins. The ADF7023 always acts as

Figure 87

is brought low, the most

SCLK

MOSI MISO

GPIO

SCLK

MOSI MISO

IRQ

low and shifting in the

HOST

PROCESSOR

Figure 88

goes high again or at the next positive

input

low period (with the exception of a

08291-026

MOSI

MISO

Figure 88. Command Write (No Parameters)

CMD

IGNORE

08291-027

STATUS WORD

The status word of the ADF7023 is automatically returned over the MISO each time a byte is transferred over the MOSI. Shifting in double SPI_NOP commands (see Tab l e 2 7 ) causes the status word to be shifted out as shown in Figure 89. The meaning of the various bit fields is illustrated in Ta b l e 2 5 . The FW_STATE variable can be used to read the current state of the communications processor and is described in Tab l e 26 . If it is busy performing an action or state transition, FW_STATE is busy. The FW_STATE variable also indicates the current state of the radio.

The SPI_READY variable is used to indicate when the SPI is ready for access. The CMD_READY variable is used to indicate when the communications processor is ready to accept a new command. The status word should be polled and the CMD_ READY bit examined before issuing a command to ensure that the communications processor is ready to accept a new command. It is not necessary to check the CMD_READY bit before issuing a SPI memory access command. It is possible to queue one command while the communications processor is busy. This is discussed in the Command Queuing section.

The ADF7023 interrupt handler can be also be configured to generate an interrupt signal on IRQ_GP3 when the communications processor is ready to accept a new command (CMD_ READY in the INTERRUPT_SOURCE_1 register (Address 0x337)) or when it has finished processing a command (CMD_FINISHED in the INTERRUPT_SOURCE_1 register (Address 0x337)).

MOSI

MISO

Figure 89. Reading the Status Word Using a Double SPI_NOP Command

SPI_NOP SPI_NOP

IGNORE STATUS

08291-028

Rev. 0 | Page 54 of 108

ADF7023

http://www.BDTIC.com/ADI

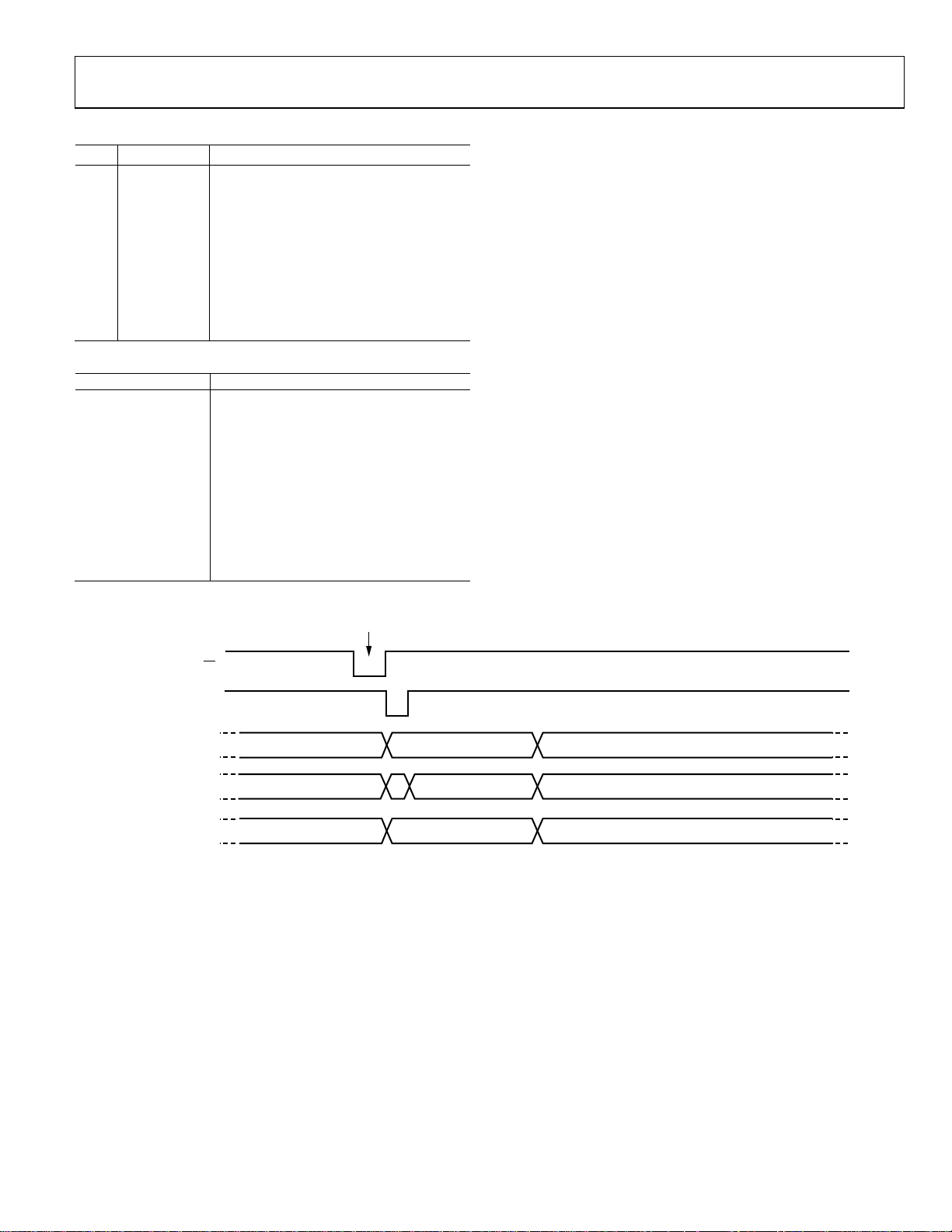

Table 25. Status Word

Bit Name Description

[7] SPI_READY 0: SPI is not ready for access.

1: SPI is ready for access.

[6] IRQ_STATUS 0: no pending interrupt condition.

1: pending interrupt condition (mirrors the IRQ_GP3 pin).

[5] CMD_READY

0: the radio controller is not ready to receive a radio controller command.

1: the radio controller is ready to receive a radio controller command.

[4:0] FW_STATE Indicates the ADF7023 state (in Table 26 ).

Table 26. FW_STATE Description

Value State

0x0F Initializing 0x00 Busy, performing a state transition 0x11 PHY_OFF 0x12 PHY_ON 0x13 PHY_RX 0x14 PHY_TX 0x06 PHY_SLEEP 0x05 Performing CMD_GET_RSSI 0x07 Performing CMD_IR_CAL 0x08 Performing CMD_AES_DECRYPT_INIT 0x09 Performing CMD_AES_DECRYPT 0x0A Performing CMD_AES_ENCRYPT

ISSUE

CMD_PHY_ON

COMMAND QUEUING

The CMD_READY status bit is used to indicate that the command queue used by the communications processor is empty. The queue is one command deep. The FW_STATE bit is used to indicate the state of the communications processor. The operation of the status word and these bits is illustrated in Figure 90 when a CMD_PHY_ON command is issued in the PHY_OFF state.

Operation of the status word when a command is being queued is illustrated in Figure 91 when a CMD_PHY_ON command is issued in the PHY_OFF state followed quickly by a CMD_ PHY_RX command. The CMD_PHY_RX command is issued while FW_STATE is busy (that is, transitioning between the PHY_OFF and PHY_ON states) but the CMD_READY bit is high, indicating that the command queue is empty. After the CMD_PHY_RX command is issued, the CMD_READY bit transitions to a logic low, indicating that the command queue is full. After the PHY_OFF to PHY_ON transition is finished, the PHY_RX command is processed immediately by the communications processor, and the CMD_READY bit goes high, indicating that the command queue is empty and another command can be issued.

COMMUNICATIONS

PROCESSOR ACTION

CMD_READY

FW_STATE

STATUS WORD

Figure 90. Operation of the CMD_READY and FW_STATE Bits in Transitioning the ADF7023 from the PHY_OFF State to the PHY_ON State

= 0x11 (PHY_OFF) = 0x00 (BUS Y)

0x80

WAITING FOR COMMAND WAITING FO R COMMAND

TRANSITION RADIO FROM

PHY_OFFTO PHY_ON

0xA00xB1

= 0x12 (PHY_ON)

0xB2

08291-138

Rev. 0 | Page 55 of 108

ADF7023

http://www.BDTIC.com/ADI

COMMUNICATIONS

PROCESSOR ACTION

CMD_READY

FW_STATE

STATUS WORD

= 0x11 (PHY_OFF) = 0x00 (BUSY) = 0x13 (PHY_RX)= 0x00 (BUSY)

WAITING FOR COMMAND WAITING FOR COMMAND

Figure 91. Command Queuing and Operation of the CMD_READY and FW_STATE Bits in Transitioning the ADF7023

from the PHY_OFF State to the PHY_ON State and Then to the PHY_RX State

ISSUE

CMD_PHY_ON

ISSUE

CMD_PHY_RX

0x80

0xA00xB1

TRANSITION RADIO FROM

PHY_OFF TO PHY_ON

MEMORY ACCESS

Memory locations are accessed by invoking the relevant SPI command. locations in the memory space. The most significant three bits of the address are incorporated into the SPI command by appending them as the LSBs of the command word. Figure 92 illustrates command, address, and data partitioning. The various SPI memory access commands are different, depending on the memory location being accessed (see Ta ble 2 7).

An SPI command should be issued only if the SPI_READY bit in the INTERRUPT_SOURCE_1 register (Address 0x337) of the status word bit is high. The ADF7023 interrupt handler can be also be configured to generate an interrupt signal on IRQ_GP3 when the SPI_READY bit is high.

An SPI command should not be issued while the communications processor is initializing (FW_STATE = 0x0F). SPI commands can be issued in any other communications processor state, including the busy state (FW_STATE = 0x00). This allows the ADF7023 memory to be accessed while the radio is transitioning between states.

Block Write

MCR, BBRAM, and packet RAM memory locations can be written to in block format using the SPI_MEM_WR command.

An 11-bit address is used to identify registers or

0x12

0xB2

TRANSITION RADIO FROM

PHY_ON TO PHY_RX

IN PHY_ON, READING

NEW COMMAND

0xB30xA00x80

The SPI_MEM_WR command code is 00011xxxb, where xxxb represent Bits[10:8] of the first 11-bit address. If more than one data byte is written, the write address is automatically incremented for every byte sent until memory access command (see for more details). The

is set high, which terminates the

Figure 93 maximum block write for the MCR, packet RAM, and BBRAM memories is 256 bytes, 256 bytes, and 64 bytes, respectively. These maximum block-write lengths should not be exceeded.

Example

Write 0x00 to the ADC_CONFIG_HIGH register (Address 0x35A).

• The first five bits of the SPI_MEM_WR command are

00011.

• The 11-bit address of ADC_CONFIG_HIGH is

01101011010.

• The first byte sent is 00011011 or 0x1B.

• The second byte sent is 01011010 or 0x5A.

• The third byte sent is 0x00.

Thus, 0x1B, 0x5A, 0x00 is written to the part.

08291-139

Rev. 0 | Page 56 of 108

ADF7023

http://www.BDTIC.com/ADI

SPI MEMORY ACCESS COMMAND MEMORY ADDRESS

MOSI

5 BITS MEMORY ADDRESS

Figure 92. SPI Memory Access Command/Address Format

BITS[7:0] DATA BYTE

BITS[10:0]

Table 27. Summary of SPI Memory Access Commands

SPI Command Command Value Description

SPI_MEM_WR 0x18 (packet RAM)

0x19 (BBRAM) 0x1B (MCR) 0x1E (program RAM)

SPI_MEM_RD 0x38 (packet RAM)

0x39 (BBRAM) 0x3B (MCR)

SPI_MEMR_WR 0x08 (packet RAM)

0x09 (BBRAM) 0x0B (MCR)

SPI_MEMR_RD 0x28 (packet RAM)

0x29 (BBRAM) 0x2B (MCR)

SPI_NOP 0xFF

Write data to BBRAM, MCR, or packet RAM sequentially. An 11-bit address is used to identify memory locations. The most significant three bits of the address are incorporated into the command (xxxb). This command is followed by the remaining eight bits of the address.

Read data from BBRAM, MCR, or packet RAM sequentially. An 11-bit address is used to identify memory locations. The most significant three bits of the address are incorporated into the command (xxxb). This command is followed by the remaining eight bits of the address, which is subsequently followed by the appropriate number of SPI_NOP commands.

Write data to BBRAM, MCR, or packet RAM nonsequentially.

Read data from BBRAM, MCR, or packet RAM nonsequentially.

No operation. Use for dummy writes when polling the status word. Also used as dummy data on the MOSI line when performing a memory read.

Random Address Write

MCR, BBRAM, and packet RAM memory locations can be written to in a nonsequential manner using the SPI_MEMR_WR command. The SPI_MEMR_WR command code is 00001xxxb, where xxxb represent Bits[10:8] of the 11-bit address. The lower eight bits of the address should follow this command and then the data byte to be written to the address. The lower eight bits of the next address are entered, followed by the data for that address until all required addresses within that block are written, as shown in Figure 94.

Program RAM Write

The program RAM can be written to only by using the memory block write, as illustrated in Figure 93. SPI_MEM_WR should be set to 0x1E. See the Downloadable Firmware Modules section for details on loading a firmware module to program RAM.

Block Read

MCR, BBRAM, and packet RAM memory locations can be read from in block format using the SPI_MEM_RD command. The SPI_MEM_RD command code is 00111xxxb, where xxxb represent Bits[10:8] of the first 11-bit address. This command is followed by the remaining eight bits of the address to be read and then two SPI_NOP commands (dummy byte). The first byte available after writing the address should be ignored, with

DATA

n × 8 BITS

08291-029

the second byte constituting valid data. If more than one data byte is to be read, the write address is automatically incremented for subsequent SPI_NOP commands sent. See Figure 95 for more details.

Random Address Read

MCR, BBRAM, and packet RAM memory locations can be read from memory in a nonsequential manner using the SPI_MEMR_RD command. The SPI_MEMR_RD command code is 00101xxxb, where xxxb represent Bits[10:8] of the 11-bit address. This command is followed by the remaining eight bits of the address to be written. Each subsequent address byte is then written. The last address byte to be written should be followed by two SPI_NOP commands, as shown in Figure 96. The data bytes from memory, starting at the first address location, are available after the second status byte.

Example

Read the value stored in the ADC_CONFIG_HIGH register.

• The first five bits of the SPI_MEM_RD command are

00111.

• The 11-bit address of ADC_CONFIG_HIGH is

01101011010.

• The first byte sent is 00111011 or 0x3B.

• The second byte sent is 01011010 or 0x5A.

Rev. 0 | Page 57 of 108

ADF7023

http://www.BDTIC.com/ADI

• The third byte sent is 0xFF (SPI_NOP).

• The fourth byte sent is 0xFF.

Thus, 0x3B5AFFFF is written to the part.

The value shifted out on the MISO line while the fourth byte is sent is the value stored in the ADC_CONFIG_HIGH register.

MOSI

MISO

SPI_MEM_WR

IGNORE

ADDRESS

STATUS

DATA FOR

[ADDRESS]

STATUS

DATA FOR

[ADDRESS + 1]

STATUS

DATA FOR

[ADDRESS + 2]

STATUS

DATA FOR

[ADDRESS + N]

STATUS

08291-030

Figure 93. Memory(MCR, BBRAM, or Packet RAM) Block Write

MOSI

MISO

SPI_MEMR_WR

IGNORE STATUS STATUS

DATA FOR

[ADDRESS 1]

ADDRESS 2ADDRESS 1

STATUS

DATA FOR

[ADDRESS 2]

STATUS

DATA FOR

[ADDRESS N]

STATUS

08291-142

Figure 94. Memory (MCR, BBRAM, or Packet RAM) Random Address Write

MOSI

MISO

SPI_MEM_RD ADDRESS SPI_NOP SPI_NOP SPI_NOP

IGNORE

STATUS STATUS

DATA FROM

ADDRESS

DATA FROM

ADDRESS + 1

MAX N = (256-INIT I AL ADDRESS )

SPI_NOP

DATA FROM

ADDRESS + N

08291-143

Figure 95. Memory(MCR, BBRAM, or Packet RAM) Block Read

MOSI

MISO

SPI_MEMR_WR

IGNORE STATUS STATUS

ADDRESS 1 ADDRESS 2 ADDRESS 3 ADDRESS 4 ADDRESS N SPI_NOP SPI _NO P

Figure 96. Memory (MCR, BBRAM, or Packet RAM) Random Address Read

DATA FROM ADDRESS 1

Rev. 0 | Page 58 of 108

DATA FROM ADDRESS 2

DATA FROM

ADDRESS N – 2

DATA FROM

ADDRESS N –1

DATA FROM ADDRESS N

08291-144

ADF7023

http://www.BDTIC.com/ADI

LOW POWER MODES

The ADF7023 can be configured to operate in a broad range of energy sensitive applications where battery lifetime is critical. This includes support for applications where the ADF7023 is required to operate in a fully autonomous mode or applications where the host processor controls the transceiver during low power mode operation. These low power modes are implemented using a hardware wake-up controller (WUC), a firmware timer, and the smart wake mode functionality of the on-chip communications processor. The hardware WUC is a low power wake-up controller (WUC) that comprises a 16-bit wake-up timer with a programmable prescaler. The 32.768 kHz RCOSC or XOSC provides the clock source for the timer.

The firmware timer is a software timer residing on the ADF7023. The firmware timer is used to count the number of WUC timeouts and so can be used to count the number of ADF7023

Table 28. Settings for Low Power Modes

Low Power Mode

Deep Sleep

Memory Address

0x30D

WUC_CONFIG_LOW WUC_BBRAM_EN

Modes

WUC 0x30C WUC 0x30D WUC 0x30D WUC 0x30D

WUC 0x30D

WUC 0x30E2,

WUC_CONFIG_HIGH WUC_PRESCALER[2:0] Sets the prescaler value of the WUC.

WUC_CONFIG_LOW WUC_RCOSC_EN Enables the 32.768 kHz RC OSC.

WUC_CONFIG_LOW WUC_XOSC32K_EN Enables the 32.768 kHz external OSC.

WUC_CONFIG_LOW WUC_CLKSEL Sets the WUC clock source.

WUC_CONFIG_LOW WUC_ARM

0x30F

WUC_VALUE_HIGH WUC_VALUE_LOW

WUC_TIMER_VALUE[15:0] The WUC timer value.

WUC 0x101 INTERRUPT_MASK_1 WUC_TIMEOUT Enables the interrupt on a WUC timeout. Firmware

0x100 INTERRUPT_MASK_0 INTERRUPT_NUM_WAKEUPS

Timer

Firmware Timer

0x102, 0x103

0x104, 0x105

NUMBER_OF_WAKEUPS_0 NUMBER_OF_WAKEUPS_1

NUMBER_OF_WAKEUPS_IRQ _THRESHOLD_0

NUMBER_OF_WAKEUPS[15:0] Number of ADF7023 wake-ups.

NUMBER_OF_WAKEUPS_IRQ_

THRESHOLD[15:0] NUMBER_OF_WAKEUPS_IRQ _THRESHOLD_1

SWM 0x11A MODE_CONTROL SWM_EN Enables smart wake mode. SWM 0x11A MODE_CONTROL SWM_RSSI_QUAL

wake-ups. The WUC and the firmware timer, therefore, provide a real-time clock capability.

Using the low power WUC and the firmware timer, the SWM firmware allows the ADF7023 to wake up autonomously from sleep without intervention from the host processor. During this wake-up period, the ADF7023 is controlled by the communications processor. This functionality allows carrier sense, packet sniffing, and packet reception while the host processor is in sleep, thereby dramatically reducing overall system current consumption. The smart wake mode can then wake the host processor on an interrupt condition. An overview of the low power mode configuration is shown in Figure 97, and the register settings that are used for the various low power modes are described in Ta b le 2 8 .

0: BBRAM contents are not retained during PHY_SLEEP. 1: BBRAM contents are retained during PHY_SLEEP.

1: RC OSC selected. 2: XOSC selected.

Enable to ensure that the device wakes from the PHY_SLEEP state on a WUC timeout.

)Interval(sWUC

LERWUC_PRESCA

1)(

VALUEWUC_TIMER_

32,768

Enabling this interrupt enables the firmware timer. Interrupt is set when the NUMBER_OF WAKEUPS count exceeds the threshold.

Threshold for the number of ADF7023 wake-ups. When exceeded, the ADF7023 exits low power mode.

Enables RSSI prequalification in smart wake mode.

Rev. 0 | Page 59 of 108

ADF7023

http://www.BDTIC.com/ADI

Low Power Memory Mode Address Register Name Bit Description

SWM 0x108 SWM_RSSI_THRESH SWM_RSSI_THRESH[7:0] RSSI threshold for RSSI prequalification.

RSSI threshold (dBm) =

SWM_RSSI_THRESH − 107. SWM 0x107 PA RM T IM E _D I VI D ER PARMTIME_DIVIDER[7:0] Tick rate for the Rx dwell timer. SWM 0x106 RX_DWELL_TIME RX_DWELL_TIME[7:0]

Time that the ADF7023 remains awake

during SWM.

Receive Dwell Time = RX_DWELL_TIME ×

MHz6.5

IVIDERPARMTIME_D×128

SWM 0x100 INTERRUPT_MASK_0 INTERRUPT_SWM_RSSI_DET

INTERRUPT_PREAMBLE_DETECT

Various interrupts that can be used in

SWM.

INTERRUPT_SYNC_DETECT INTERRUPT_ADDRESS_MATCH

It is necessary to write to the 0x30C and 0x30D registers in the following order: WUC_CONFIG_HIGH (Address 0x30C), directly followed by writing to WUC_CONFIG_LOW

(Address 0x30D).

It is necessary to write to the 0x30E and 0x30F registers in the following order: WUC_VALUE_HIGH(Address 0x30E), directly followed by writing to WUC_VALUE_LOW

(Address 0x30F).

Rev. 0 | Page 60 of 108

ADF7023

http://www.BDTIC.com/ADI

ADF7023

PHY_SLEEP

DEEP

SLEEP

DEEP

SMART WAKE MODE

MODE 2

SLEEP

MODE 1

WUC AND RTC MODES

MEASURE RSSI

RSSI > THRESHOLD

(SWM_RSSI_THRESH)

(CARRIER SENSE O NLY)

RSSI INT E NABL ED?

YES

(INTERRUPT_

SWM_RSSI_DET)

YES

BBRAM RETAINED?

WUC CONF IGURED?

INCREMENT

NUMBER_OF_WAKEUPS

> THRESHOLD?

SWM ENABLED?

YES

(SWM_EN = 1)

RSSI QUAL ENABLED?

(SWM_RSSI_QUAL)

YES

INTERRUPT

(IF ENABLED)

SET WUC_TIMEOUT

INTERRUPT

SET

INTERRUPT_NUM_

WAKEUPS

SET INTERRUPT_

SWM_RSSI_DET

HOST

WAIT FOR HOST

COMMAND

WAIT FOR HOST

COMMAND

WAIT FOR HOST

COMMAND

WAIT FOR HOST

COMMAND

SMART WAKE MODE

NO AND

RX_DWELL_TIME

EXCEEDED

PREAMBLE

DETECTED?

YES

SYNC WORD

DETECTED?

YES

CRC

CORRECT?

YES

ADDRESS

MATCH?

YES

ANY INTERRUPT

SET?

TIME IN RX >

RX_DWELL_TIME?

YES

SET INTERRUPT_

NUM_WAKEUPS

SET INTERRUPT_

SYNC_DETECT

SET INTERRUPT_

CRC_CORRECT

SET INTERRUPT_

ADDRESS_MATCH

WAIT FOR HOST

COMMAND

08291-145

Figure 97. Low Power Mode Operation

Rev. 0 | Page 61 of 108

ADF7023

http://www.BDTIC.com/ADI

EXAMPLE LOW POWER MODES

Deep Sleep Mode 2

Deep Sleep Mode 2 is suitable for applications where the host processor controls the low power mode timing and the lowest possible ADF7023 sleep current is required.

In this low power mode, the ADF7023 is in the PHY_SLEEP state. The BBRAM contents are not retained. This low power mode is entered by issuing the CMD_HW_RESET command from any radio state.

state, the after a CMD_HW_RESET command should be followed as detailed in the section. Radio Control

pin should be set low. The initialization routine

Deep Sleep Mode 1

Deep Sleep Mode 1 is suitable for applications where the host processor controls the low power mode timing and the ADF7023 configuration is retained during the PHY_SLEEP state.

In this low power mode, the ADF7023 is in the PHY_SLEEP state with the BBRAM contents retained. Before entering the PHY_SLEEP state, WUC_BBRAM_EN (Address 0x30D) should be set to 1 to ensure that the BBRAM is retained. This low power mode is entered by issuing the CMD_PHY_SLEEP command from either the PHY_OFF or PHY_ON state. To exit the PHY_SLEEP state, the initialization routine should then be followed, as detailed in the

WUC Mode

In this low power mode, the hardware WUC is used to wake the ADF7023 from the PHY_SLEEP state after a user-defined duration. At the end of this duration, the ADF7023 can provide an interrupt to the host processor. While the ADF7023 is in the PHY_SLEEP state, the host processor can optionally be in a deep sleep state to save power.

Before issuing the CMD_PHY_SLEEP command, the host processor should configure the WUC and set the firmware timer threshold to zero (NUMBER_OF_WAKEUPS_ IRQ_THRESHOLD = 0, Address 0x104 and Address 0x105). The WUC_BBRAM_EN (Address 0x30D) should be set to 1 to ensure that the BBRAM is retained. On issuing the CMD_PHY_ SLEEP command, the device goes to sleep for a period until the hardware timer times out. At this point, the device wakes up, and, if WUC_TIMEOUT or INTERRUPT_NUM_WAKEUPS interrupts are enabled (Address 0x100), the device asserts the IRQ_GP3 pin.

The operation of this low power mode is illustrated in Figure 98.

To wake the part from the PHY_SLEEP

pin can be set low. The CS low

section. Radio Control

WUC Mode with Firmware Timer

In this low power mode, the WUC is used to periodically wake the ADF7023 from the PHY_SLEEP state, and the firmware timer is used to count the number of WUC timeouts. The combination of the WUC and the firmware timer provides a real-time clock (RTC) capability.

The host processor should set up the WUC and the firmware timer before entering the PHY_SLEEP state. The WUC_ BBRAM_EN (Address 0x30D) should be set to 1 to ensure that the BBRAM is retained. The WUC can be configured to time out at some standard time interval (for example, 1 sec, 60 sec). On issuing the CMD_PHY_SLEEP command, the device enters the PHY_SLEEP state for a period until the hardware timer times out. At this point, the device wakes up, increments the 16-bit firmware timer (NUMBER_OF_WAKEUPS, Address 0x102 and Address 0x103) and, if WUC_TIMEOUT is enabled (Address 0x101), the device asserts the IRQ_GP3 pin. If the16-bit firmware count is less than or equal to the user set threshold (NUMBER_OF_WAKEUPS_IRQ_THRESHOLD, Address 0x104 and Address 0x105), the device returns to the PHY_SLEEP state. With this method, the firmware count (NUMBER_OF_WAKEUPS) equates to a real time interval.

When the firmware count exceeds the user-set threshold (NUMBER_OF_WAKEUPS_IRQ_THRESHOLD), the ADF7023 asserts the IRQ_GP3 pin, if the INTERRUPT_NUM_ WAKEUPS bit (Address 0x100) is set, and enters the PHY_OFF state. The operation of this low power mode is illustrated in Figure 99.

Smart Wake Mode (Carrier Sense Only)

In this low power mode, the WUC, firmware timer, and smart wake mode are used to implement periodic RSSI measurements on a particular channel (that is, carrier sense). To enable this mode, the WUC and firmware timer should be configured before entering the PHY_SLEEP state. The WUC_BBRAM_EN (Address 0x30D) should be set to 1 to ensure that the BBRAM is retained. The RSSI measurement is enabled by setting SWM_RSSI_QUAL = 1 and SWM_EN = 1 (Address 0x11A). INTERRUPT_SWM_RSSI_DET (Address 0x100) should also be enabled. If the measured RSSI value is below the user-defined threshold set in the SWM_RSSI_THRESH register (Address 0x108), the device returns to the PHY_SLEEP state. If the RSSI measurement is greater than the SWM_RSSI_THRESH value, the device sets the INTERRUPT_SWM_RSSI_DET interrupt to alert the host processor and waits in the PHY_ON state for a host command. The operation of this low power mode is illustrated in Figure 100.

Rev. 0 | Page 62 of 108

ADF7023

http://www.BDTIC.com/ADI

Smart Wake Mode

In this low power mode the WUC, firmware timer, and smart wake mode are employed to periodically listen for packets. To enable this mode, the WUC and firmware timer should be configured and smart wake mode (SWM) enabled (SWM_EN, Address 0x11A) before entering the PHY_SLEEP state. The WUC_BBRAM_EN (Address 0x30D) should be set to 1 to ensure that the BBRAM is retained. RSSI prequalification can be optionally enabled (SWM_RSSI_QUAL = 1, Address 0x11A). When RSSI prequalification is enabled, the ADF7023 begins searching for the preamble only if the RSSI measurement is greater than the user-defined threshold.

The ADF7023 is in the PHY_RX state for a duration determined by the RX_DWELL_TIME setting (Address 0x106). If the ADF7023 detects the preamble during the receive dwell time, it searches for the sync word. If the sync word routine is detected, the ADF7023 loads the received data to packet RAM and checks for a CRC and address match, if enabled. If any of the receive packet interrupts has been set, the ADF7023 returns to the PHY_ON state and waits for a host command.

If the ADF7023 receives preamble detection during the receive dwell time but the remainder of the received packet extends beyond the dwell time, the ADF7023 extends the dwell time

until all of the packet is received or the packet is recognized as invalid (for example, there is an incorrect sync word).

This low power mode terminates when a valid packet interrupt is received. Alternatively, this low power mode can be terminated via a firmware timer timeout. This can be useful if certain radio tasks (for example, IR calibration) or processor tasks must be run periodically while in the low power mode.

The operation of this low power mode is illustrated in

Figure 101.

Exiting Low Power Mode

As described in Figure 97, the ADF7023 waits for a host command on any of the termination conditions of the low power mode. It is also possible to perform an asynchronous exit from low power mode using the following procedure:

1. Bring the

output goes high.

2. Issue a CMD_HW_RESET command.

The host processor should then follow the initialization procedure after a CMD_HW_RESET command, as described in the Initialization section.

pin of the SPI low and wait until the MISO

Rev. 0 | Page 63 of 108

ADF7023

http://www.BDTIC.com/ADI

LOW POWER MODE TIMING DIAGRAMS

HOST: CMD_PHY_SLEEP

HOST: START WUC

INTERRUPT_NUM_WAKEUPS

NUMBER_OF_WAKEUPS_IRQ_THRESHO LD = 0)

HOST: CMD_PHY_SLEEP

HOST: START WUC

ADF7023

OPERATION

INTERRUPT_

NUM_WAKEUPS

PHY_OFF OR

PHY_ON

HOST: CMD_PHY_SLE EP

HOST: START WUC

ADF7023

OPERATION

INTERRUPT

WUC_TIMEOUT

(IF ENABLE D)

INTERRUPT

(IF ENABLED AND

PHY_OFF OR PHY_ON

PHY_SLEEP

WUC TIMEO UT PERIOD

Figure 98. Low Power Mode Timing When Using the WUC

INCREMENT

FIRMWARE TIMER

PHY_SLEEP PHY_SLEEP PHY_SLEEP PHY_OFF

WUC TIMEOUT PERIO D

WUC TIME OUT PERIO D × NUM BE R_OF_WAKEUPS_IRQ_THRESHOLD

REAL TIME INTERNAL

INCREMENT

FIRMWARE TIMER

Figure 99. Low Power Mode Timing When Using the WUC and the Firmware Timer

RESHOLD RSSI ≤ THRESHOLD RSSI > THRESHOLD

RSSI ≤ TH

PHY_OFF

FIRMWARE TIMER

> THRESHOLD

08291-146

08291-147

ADF7023

OPERATION

INTERRUPT_

SWM_RSSI_DET

ADF7023

OPERATION

INTERRUPT_

SWM_RSSI_DET

INTERRUPT_

PREAMBLE_DETECT

INTERRUPT_

SYNC_DETECT

INTERRUPT_

CRC_CORRECT

INTERRUPT_

ADDRESS_MATCH

PHY_OFF OR

PHY_ON

Figure 100. Low Power Mode Timing When Using the WUC, Firmware Timer, and SWM with Carrier Sense

HOST: CMD_PHY_SLEEP

HOST: START WUC

PHY_OFF OR

PHY_ON

PHY_SLEEP

WUC TIMEOUT PERIOD

PHY_SLEEP

WUC TIMEOUT PERIOD

RSSI RSSI

WUC TIMEOUT PERIOD

NO PACKET

DETECTED

RX RXPHY_SLEEP PHY_SLEEP PHY_ON

WUC TIMEOUT PERIOD

INIT PHY_RX

NO PACKET

DETECTED

RECEIVE DWELL TIME

(RX_DWELL_TIME)

Figure 101. Low Power Mode Timing When Using the WUC, Firmware Timer, and SWM

RSSIPHY_SLEEP PHY_SLEEP PHY_ON

PACKET

DETECTED

08291-148

08291-149

Rev. 0 | Page 64 of 108

ADF7023

http://www.BDTIC.com/ADI

WUC SETUP

Circuit Description

The ADF7023 features a low power wake-up controller comprising a 16-bit wake-up timer with a 3-bit programmable prescaler, as illustrated in Figure 102. The prescaler clock source can be configured to use either the 32.76 kHz internal RC oscillator (RCOSC) or the 32.76 kHz external oscillator (XOSC). This combination of programmable prescaler and 16-bit down counter gives a total hardware timer range of

30.52 s to 36.4 hours.

Configuration and Operation

The hardware WUC is configured via the following registers:

• WUC_CONFIG_HIGH (Address 0x30C)

• WUC_CONFIG_LOW (Address 0x30D)

• WUC_VALUE_HIGH (Address 0x30E)

• WUC_VALUE_LOW (Address 0x30F)

WUC

WUC_VALUE_HIGH WUC_VALUE_LOW

WUC_CONFIG_LOW[4]

WUC_CONFIG_HIGH[2:0]

RC OSCI LLATOR

32kHz XTAL

32.768kHz PRESCALER

TICK RATE

The relevant fields of each register are detailed in Tab le 2 9 . All four of these registers are write only.

The WUC should be configured as follows:

1. Clear all interrupts.

2. Set required interrupts.

3. Write to WUC_CONFIG_HIGH and WUC_CONFIG_

LOW. Ensure that WUC_ARM =1. Ensure that WUC_ CONFIG_BBRAM_EN =1 (retain BBRAM during PHY_SLEEP). It is necessary to write to both registers together in the following order: WUC_CONFIG_HIGH directly followed by writing to WUC_CONFIG_LOW.

4. Write to WUC_VALUE_HIGH and WUC_VALUE_LOW.

This configures the WUC_TIMER_VALUE[15:0] and, thus, the WUC timeout period. The timer begins counting from the configured value after these registers have been written to. It is necessary to write to both registers together in the following order: WUC_TIIMER_VALUE_HIGH directly followed by writing to WUC_VALUE_LOW.

16-BIT RELOAD VALUE

16-BIT DOWN

COUNTER

ADF7023

WAKE-UP CIRCUIT

WUC_TIMEOUT INTERRUPT

Figure 102. Hardware Wake-Up Controller (WUC)

TO FIRMWARE TIMER

08291-150

Rev. 0 | Page 65 of 108

ADF7023



http://www.BDTIC.com/ADI

Table 29. WUC Register Settings

WUC Setting Name Description

WUC_VALUE_HIGH [7:0] WUC_TIMER_VALUE[15:8] WUC timer value.

 

WUC_VALUE_LOW[7:0] WUC_TIMER_VALUE[7:0] WUC timer value. WUC_CONFIG_HIGH[7:3] Reserved Set to 0. WUC_CONFIG_HIGH[2:0] WUC_PRESCALER

WUC_CONFIG_LOW[7] Reserved Set to 0.

WUC_CONFIG_LOW[6] WUC_RCOSC_EN 1: enable.

WUC_CONFIG_LOW[5] WUC_XOSC32K_EN 1: enable.

WUC_CONFIG_LOW[4] WUC_CLKSEL 1: RC 32.768 kHz oscillator.

WUC_CONFIG_LOW [3] WUC_BBRAM_EN 1: enable power to BBRAM during the PHY_SLEEP state.

WUC_CONFIG_LOW[2:1] Reserved Set to 0.

WUC_CONFIG_LOW[0] WUC_ARM 1: enable wake-up on WUC timeout event.

WUC_PRESCALER 32.768 kHz Divider Tick Period

000 1 30.52 μs 001 4 122.1 μs 010 8 244.1 μs 011 16 488.3 μs 100 128 3.91 ms 101 1034 31.25 ms 110 8192 250 ms 111 65,536 2000 ms

0: disable RCOSC32K.

0: disable XOSC32K.

0: external crystal oscillator.

0: disable power to BBRAM during the PHY_SLEEP state.

0: disable wake-up on WUC timeout event.

VALUEWUC_TIMER_)Interval(sWUC

32,768

LERWUC_PRESCA

1)(

FIRMWARE TIMER SETUP

The ADF7023 wakes up from the PHY_SLEEP state at the rate set by the WUC. A firmware timer, implemented by the on-chip processor, can be used to count the number of hardware wake-ups and generate an interrupt to the host processor. Thus, the ADF7023 can be used to handle the wake-up timing of the host processor, reducing overall system power consumption.

Rev. 0 | Page 66 of 108

To set up the firmware timer, the host processor must set a value in the NUMBER_OF_WAKEUPS_IRQ_THRESHOLD [15:0] registers (Address 0x104 and Address 0x105). This 16-bit value represents the number of times the device wakes up before it interrupts the host processor. At each wake-up, the ADF7023 increments the NUMBER_OF_WAKEUPS[15:0] register (Address 0x103). If this value exceeds the value set by the NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[15:0] register, the NUMBER_OF_WAKEUPS[15:0] value is cleared to 0. At this time, if the INTERRUPT_NUM_WAKEUPS bit in the INTERRUPT_MASK_0 register (Address 0x100) is set, the device asserts the IRQ_GP3 pin and enters the PHY_OFF state.

ADF7023

http://www.BDTIC.com/ADI

DOWNLOADABLE FIRMWARE MODULES

The program RAM memory of the ADF7023 can be used to store firmware modules for the communications processor that provide the ADF7023 with extra functionality. The binary code for these firmware modules and detail on their functionality are available from Analog Devices. Three modules are briefly described in this section, namely, image rejection calibration, AES encryption and decryption, and Reed Solomon coding.

WRITING A MODULE TO PROGRAM RAM

The sequence to write a firmware module to program RAM is as follows:

1. Ensure that the ADF7023 is in PHY_OFF.

2. Issue the CMD_RAM_LOAD_INIT command.

3. Write the module to program RAM using an SPI memory

block write (see the SPI Interface section).

4. Issue the CMD_RAM_LOAD_DONE command.

5. Issue the CMD_SYNC command.

The firmware module is now stored on program RAM.

IMAGE REJECTION CALIBRATION MODULE

The calibration system initially disables the ADF7023 receiver, and an internal RF source is applied to the RF input at the image frequency. The algorithm then maximizes the receiver image rejection performance by iteratively minimizing the quadrature gain and phase errors in the polyphase filter.

The calibration algorithm takes its initial estimates for quadrature phase correction (Address 0x118) and quadrature gain correction (Address 0x119) from BBRAM. After calibration, new optimum values of phase and gain are loaded back into these locations. These calibration values are maintained in BBRAM during sleep mode and are automatically reapplied from a wake-up event, which keeps the number of calibrations required to a minimum.

Depending on the initial values of quadrature gain and phase correction, the calibration algorithm can take approximately 20 ms to find the optimum image rejection performance. However, the calibration time can be significantly less than this when the seed values used for gain and phase correction are close to optimum.

The image rejection performance is also dependent on temperature. To maintain optimum image rejection performance, a calibration should be activated whenever a temperature change of more than 10°C occurs. The ADF7023 on-chip temperature sensor can be used to determine when the temperature exceeds this limit.

REED SOLOMON CODING MODULE

This coding module uses Reed Solomon block coding to detect and correct errors in the received packet. A transmit message of k bytes in length, is appended with an error checking code

(ECC) of length n − k bytes to give a total message length of n bytes, as shown in Figure 103.

n BYTES

PREAMBLE

Figure 103. Packet Structure with Appended Reed Solomon

SYNC

WORD

Error Check Code (ECC)

PAYLOAD

k BYTES (n – k) BYTES

ECC

08291-151

The receiver decodes the ECC to detect and correct up to t bytes in error, where t = (n − k)/2. The firmware supports correction of up to five bytes in the n byte field. To correct t bytes in error, an ECC length of 2t bytes is required, and the byte errors can be randomly distributed throughout the payload and ECC fields.

Reed Solomon coding exhibits excellent burst error correction capability and is commonly used to improve the robustness of a radio link in the presence of transient interference or due to rapid signal fading conditions that can corrupt sections of the message payload.

Reed Solomon coding is also capable of improving the receiver’s sensitivity performance by several dB, where random errors tend to dominate under low SNR conditions and the receiver’s packet error rate performance is limited by thermal noise.

The number of consecutive bit errors that can be 100% corrected is {(t − 1) × 8 + 1}. Longer, random bit-error patterns, up to t bytes, can also be corrected if the error patterns start and end at byte boundaries.

The firmware also takes advantage of an on-chip hardware accelerator module to enhance throughput and minimize the latency of the Reed Solomon processing.

AES ENCRYPTION AND DECRYPTION MODULE

The downloadable AES firmware module supports 128-bit block encryption and decryption with key sizes of 128 bits, 192 bits, and 256 bits. Two modes are supported: ECB mode and CBC Mode 1. ECB mode simply encrypts/decrypts on a 128-bit block by block with a single secret key as illustrated in Figure 104. CBC Mode 1 encrypts after first adding (Modulo 2), a 128-bit user supplied initialization vector. The resulting cipher text is then used as the initialization vector for the next block and so forth, as illustrated in Figure 105. Decryption provides the inverse functionality. The firmware also takes advantage of an on-chip hardware accelerator module to enhance throughput and minimize the latency of the AES processing.

Rev. 0 | Page 67 of 108

ADF7023

http://www.BDTIC.com/ADI

PLAIN TEX T

128 BITS

KEY

AES

ENCRYPT

CYPHER TEXT

128 BITS

KEY

ECB MODE

128 BITS

AES

ENCRYPT

128 BITS

KEY

128 BITS

AES

ENCRYPT

128 BITS

08291-152

Figure 104. ECB Mode.

INITIAL VECTOR

PLAIN TEXT

KEY

128 BITS

AES

ENCRYPT

128 BITS

KEY

ENCRYPT

AES

CBC MODE 1

KEY

128 BITS

AES

ENCRYPT

KEY

128 BITS

AES

ENCRYPT

CYPHER TEXT

128 BITS

08291-153

Figure 105. CBC Mode 1

Rev. 0 | Page 68 of 108

ADF7023

http://www.BDTIC.com/ADI

RADIO BLOCKS

FREQUENCY SYNTHESIZER

A fully integrated RF frequency synthesizer is used to generate both the transmit signal and the receiver’s local oscillator (LO) signal. The architecture of the frequency synthesizer is shown in Figure 106.

The receiver uses a fractional-N frequency synthesizer to generate the mixer’s LO for down conversion to the intermediate frequency (IF) of 200 kHz or 300 kHz. In transmit mode, a high resolution sigma-delta (Σ-) modulator is used to generate the required frequency deviations at the RF output when FSK data is transmitted. To reduce the occupied FSK bandwidth, the transmitted bit stream can be filtered using a digital Gaussian filter, which is enabled via the RADIO_CFG_9 register (Address 0x115). The Gaussian filter uses a bandwidth time (BT) of 0.5.

The VCO and the PLL loop filter of the ADF7023 are fully integrated. To reduce the effect of pulling of the VCO by the power-up of the PA and to minimize spurious emissions, the VCO operates at twice or four times the RF frequency. The VCO signal is then divided by 2 or 4, giving the required frequency for the transmitter and the required LO frequency for the receiver.

A high speed, fully automatic calibration scheme is used to ensure that the frequency and amplitude characteristic of the VCO are maintained over temperature, supply voltage, and process variations.

The calibration is automatically performed when the CMD_PHY_RX or CMD_PHY_TX command is issued. The calibration duration is 142 s, and if required, the CALIBRATION_STATUS register (Address 0x339) can be polled to indicate the completion of the VCO self-calibration. After the VCO is calibrated, the frequency synthesizer settles to within ±5 ppm of the target frequency in 56 s.

VCO

CALIBRATION

26MH

DATA

REF

PFD

GAUSSIAN

FILTER

Figure 106. RF Frequency Synthesizer Architecture

CHARGE

FRAC-N

F_DEVIATION

PUMP

LOOP

LTER

Σ-Δ DIVIDER

VCO

N DIVIDE R

INTEGER

÷2

-N

Synthesizer Bandwidth

The synthesizer loop filter is fully integrated on chip and has a programmable bandwidth. The communications processor automatically sets the bandwidth of the synthesizer when the device enters PHY_TX or PHY_RX state. On entering the

RF FRE

÷2 OR

÷4

Rev. 0 | Page 69 of 108

08291-035

PHY_TX state, the communications processor chooses the bandwidth based on the programmed modulation scheme (2FSK, GFSK, or OOK) and the data rate. This ensures optimum modulation quality for each data rate. On entering the PHY_RX state, the communications processor sets a narrow bandwidth to ensure best receiver rejection. In all, there are eight bandwidth configurations. Each synthesizer bandwidth setting is described in Ta b le 30 .

Table 30. Automatic Synthesizer Bandwidth Selections

Closed Loop

Description

Data Rate (kbps)

Synthesizer Bandwidth (kHz)

Rx 2FSK/GFSK/MSK/GMSK All 92 Tx 2FSK/GFSK/MSK/GMSK 1 to 49.5 130 Tx 2FSK/GFSK/MSK/GMSK 49.6 to 99.1 Tx 2FSK/GFSK/MSK/GMSK 99.2 to 129.5 Tx 2FSK/GFSK/MSK/GMSK 129.6 to 179.1 Tx 2FSK/GFSK/MSK/GMSK 179.2 to 239.9 Tx 2FSK/GFSK/MSK/GMSK 240 to 300

174 174 226 305 382

Tx OOK All 185

Synthesizer Settling

After the VCO calibration, a 56 s delay is allowed for synthesizer settling. This delay is fixed at 56 s by default and ensures that the synthesizer has fully settled when using any of the default synthesizer bandwidths.

However, in some cases, it may be necessary to use a custom synthesizer settling delay. To use a custom delay, set the CUSTOM_TRX_SYNTH_LOCK_TIME EN bit to 1 in the MODE_CONTROL register (Address 0x11A). The synthesizer settling delays for the PHY_RX and PHY_TX state transitions can be set independently in RX_SYNTH_LOCK_TIME register (Address 0x13E) and the TX_SYNTH_LOCK_TIME register (Address 0x13F). The settling time can be set in the range 2 s to 512 s in steps of 2 s.

Bypassing VCO Calibration

It is possible to bypass the VCO calibration for ultrafast frequency hopping in transmit or receive. The calibration data for each RF channel should be stored in the host processor memory. The calibration data comprises two values: the VCO band select value and the VCO amplitude level.

Read and Store Calibration Data

1. Go to the PHY_TX or PHY_RX state without bypassing

the VCO calibration.

2. Read the following MCR registers and store the calibrated

data in memory on the host processor:

a. VCO_BAND_READBACK (Address 0x3DA) b. VCO_AMPL_READBACK (Address 0x3DB)

ADF7023

http://www.BDTIC.com/ADI

Bypassing VCO Calibration on CMD_PHY_TX or CMD_PHY_RX

1. Ensure that the BBRAM is configured.

2. Set VCO_OVRW_EN (Address 0x3CD) = 0x3.

3. Set VCO_CAL_CFG (Address 0x3D0) = 0x0F.

4. Set VCO_BAND_OVRW_VAL (Address 0x3CB) = stored

VCO_BAND_READBACK (Address 0x3DA) for that channel.

5. Set VCO_AMPL_OVRW_VAL (Address 0x3CC)= stored

VCO_AMPL_READBACK (Address 0x3DB) for that channel.

6. Set SYNTH_CAL_EN = 0 (in the CALIBRATION_

CONTROL register, Address 0x338).

7. Set SYNTH_CAL_EN = 1 (in the CALIBRATION_

CONTROL register, Address 0x338).

8. Issue CMD_PHY_TX or CMD_PHY_RX to go to the

PHY_TX or PHY_RX state without the VCO calibration.

CRYSTAL OSCILLATOR

A 26 MHz crystal oscillator operating in parallel mode must be connected between the XOSC26P and XOSC26N pins. Two parallel loading capacitors are required for oscillation at the correct frequency. Their values are dependent upon the crystal specification. They should be chosen to ensure that the shunt value of capacitance added to the PCB track capacitance and the input pin capacitance of the ADF7023 equals the specified load capacitance of the crystal, usually 10 pF to 20 pF. Track capacitance values vary from 2 pF to 5 pF, depending on board layout. The total load capacitance is described by

PCB

Rev. 0 | Page 70 of 108

LOAD

where:

is the total load capacitance.

LOAD

C1 and C2 are the external crystal load capacitors. C

is the ADF7023 input capacitance of the XOSC26P and

XOSC26N pins and is equal to 2.1pF.

is the PCB track capacitance.

PCB

When possible, choose capacitors that have a very low temperature coefficient to ensure stable frequency operation over all conditions.

The crystal frequency error can be corrected by means of an integrated digital tuning varactor. For a typical crystal load capacitance of 10 pF, a tuning range of −15 ppm to +11.25 ppm is available via programming of a 3-bit DAC, according to Table 31 . The 3-bit value should be written to XOSC_CAP_DAC in the OSC_CONFIG register (Address 0x3D2).

Alternatively, any error in the RF frequency due to crystal error can be adjusted for by offsetting the RF channel frequency using the RF channel frequency setting in BBRAM memory.

Table 31. Crystal Frequency Pulling Programming

XOSC_CAP_DAC Pulling (ppm)

000 −15 001 −11.25 010 011 100 101 110 111 +11.25

−7.5

−3.75 0 +3.75 +7.5

MODULATION

The ADF7023 supports binary frequency shift keying (2FSK), minimum shift keying (MSK), binary level Gaussian filtered 2FSK (GFSK), Gaussian filtered MSK (GMSK), and on-off keying (OOK). The desired transmit and receive modulation formats are set in the RADIO_CFG_9 register (Address 0x115).

When using 2FSK/GFSK/MSK/GMSK modulation, the frequency deviation can be set using the FREQ_DEVIATION[11:0] parameter in the RADIO_CFG_1 register (Address 0x10D) and RADIO_CFG_1 register (Address 0x10E). The data rate can be set in the 1 kbps to 300 kbps range using the DATA_RATE[11:0] parameter in the RADIO_CFG_0 register (Address 0x10C) and RADIO_CFG_1 register (Address 0x10D). For GFSK/GMSK modulation, the Gaussian filter uses a fixed bandwidth time (BT) product of 0.5.

When using OOK modulation, it is recommended to enable Manchester encoding (MANCHESTER_ENC = 1, Address 0x11C). The data rate can be set in the 2.4 kbps to 19.2 kbps range (4.8 kcps to 38.4 kcps Manchester encoded) using the DATA_RATE[11:0] parameter in the RADIO_CFG_0 register (Address 0x10C) and RADIO_CFG_1 register (Address 0x10D).

RF OUTPUT STAGE

Power Amplifier (PA)

The ADF7023 PA can be configured for single-ended or differential output operation using the PA_SINGLE_DIFF_SEL bit in the RADIO_CFG_8 register (Address 0x114). The PA level is set by the PA_LEVEL bit in the RADIO_CFG_8 register and has a range of 0 to 15. For finer control of the output power level, the PA_LEVEL_MCR register (Address 0x307) can be used. It offers more resolution with a setting range of 0 to 63. The relationship between the PA_LEVEL and PA_LEVEL_MCR settings is given by

PA_LEVEL_MCR = 4 × PA_LEVEL + 3

The single-ended configuration can deliver 13.5 dBm output power. The differential PA can deliver 10 dBm output power and allows a straightforward interface to dipole antennae. The two PA configurations offer a Tx antenna diversity capability. Note that the two PAs cannot be enabled at the same time.

ADF7023

http://www.BDTIC.com/ADI

Automatic PA Ramp

The ADF7023 has built-in up and down PA ramping for both single-ended and differential PAs. There are eight ramp rate settings, with the ramp rate defined as a certain number of PA power level settings per data bit period. The PA_RAMP variable in the RADIO_CFG_8 register (Address 0x114) sets this PA ramp rate, as illustrated in Figure 107.

1 2 3 4 ... 8 ... 16

DATA BITS

PA RAMP 0

(NO RAMP)

PA RAMP 1

(256 CODES PER BIT)

PA RAMP 2

(128 CODES PER BIT)

PA RAMP 3

(64 CODES PER BIT)

PA RAMP 4

(32 CODES PER BIT)

PA RAMP 5

(16 CODES PER BIT)

PA RAMP 6

(8 CODES PER BI T )

PA RAMP 7

(4 CODES PER BI T )

Figure 107. PA Ramp for Different PA_RAMP Settings

08291-036

The PA ramps to the level set by the PA_LEVEL or PA_LEVEL_ MCR settings. Enabling the PA ramp reduces spectral splatter and helps meet radio regulations (for example, the ETSI EN 300 220 standard), which limit PA transient spurious emissions. To ensure optimum performance, an adequately long PA ramp rate is required based on the data rate and the PA output power setting. The PA_RAMP setting should, therefore, be set such that

BitCodesRateRamp ×2500<)/(

CR[5:0]PA_LEVEL_M

11:0]DATA_RATE[

where PA_MCR_LEVEL is related to the PA_LEVEL setting by PA_LEVEL_MCR = 4 × PA_LEVEL + 3.

PA/LNA INTERFACE

The ADF7023 supports both single-ended and differential PA outputs. Only one PA can be active at one time. The differential PA and LNA share the same pins, RFIO_1P and RFIO_1N, which facilitate a simpler antenna interface. The single-ended PA output is available on the RFO2 pin. A number of PA/LNA antenna matching options are possible and are described in the PA /L NA section.

RECEIVE CHANNEL FILTER

The receiver’s channel filter is a fourth order, active polyphase Butterworth filter with programmable bandwidths of 100 kHz, 150 kHz, 200 kHz, and 300 kHz. The fourth order filter gives very good interference suppression of adjacent and neighboring channels and also suppresses the image channel by approximately 36 dB at a 100 kHz IF bandwidth and an RF frequency of 868 MHz or 915 MHz.

For channel bandwidths of 100 kHz to 200 kHz, an IF frequency of 200 kHz is used, which results in an image frequency located 400 kHz below the wanted RF frequency. When the 300 kHz bandwidth is selected, an IF frequency of 300 kHz is used, and the image frequency is located at 600 kHz below the wanted frequency.

The bandwidth and center frequency of the IF filter are calibrated automatically after entering the PHY_ON state if the BB_CAL bit is set in the MODE_CONTROL register (Address 0x11A). The filter calibration time takes 100 µs.

The IF bandwidth is programmed by setting the IFBW field in the RADIO_CFG_9 register (Address 0x115). The filter’s pass band is centered at an IF frequency of 200 kHz when bandwidths of 100 kHz to 200 kHz are used and centered at 300 kHz when an IF bandwidth of 300 kHz is used.

IMAGE CHANNEL REJECTION

The ADF7023 is capable of providing improved receiver image rejection performance by the use of a fully integrated image rejection calibration system under the control of the on-chip communications processor. To operate the calibration system, a firmware module is downloaded to the on-chip program RAM. The firmware download is supplied by Analog Devices and described in the Downloadable Firmware Modules section.

AUTOMATIC GAIN CONTROL (AGC)

AGC is enabled by default, and keeps the receiver gain at the correct level by selecting the LNA, mixer, and filter gain settings based on the measured RSSI level. The LNA has three gain levels, the mixer has gain two levels, and the filter has three gain levels. In all, there are six AGC stages, which are defined in Tabl e 32 .

Table 32. AGC Gain Modes

Gain Mode LNA Gain Mixer Gain Filter Gain

1 High High High 2 High Low High 3 Medium Low 4 Low Low 5 Low Low 6 Low Low Low

The AGC remains at each gain stage for a time defined by the AGC_CLK_DIVIDE register (Address 0x32F). The default value of AGC_CLK_DIVIDE = 0x28 gives an AGC delay of 25 s. When the RSSI is above AGC_HIGH_THRESHOLD (Address 0x35F), the gain is reduced. When the RSSI is below AGC_LOW_THRESHOLD (Address 0x35E), the gain is increased.

The AGC can be configured to remain active while in the PHY_RX state or can be locked on preamble detection. The AGC can also be set to manual mode, in which case the host processor must set the LNA, filter, and mixer gains by writing to the AGC_MODE register (Address 0x35D). The AGC operation

High High Medium

Rev. 0 | Page 71 of 108

ADF7023

http://www.BDTIC.com/ADI

is set by the AGC_LOCK_MODE setting in the RADIO_CFG_7 register (Address 0x113) and is described in Tab l e 3 3 .

The LNA, filter and mixer gains can be read back through the AGC_GAIN_STATUS register (Address 0x360).

Table 33. AGC Operation

AGC_LOCK_MODE Bits in RADIO_ CFG_7 Register Description

0 AGC is free running. 1

2 AGC is held at the current gain level. 3 AGC is locked on preamble detection.

RSSI

The RSSI is based on a successive compression, log-amp architecture following the analog channel filter. The analog RSSI level is digitized by an 8-bit SAR ADC for user readback and for use by the digital AGC controller.

The ADF7023 has a total of four RSSI measurement functions that support a wide range of applications. These functions can be used to implement carrier sense (CS) or clear channel assessment (CCA). In packet mode, the RSSI is automatically recorded in MCR memory and is available for user readback after receipt of a packet.

Tabl e 36 details the four RSSI measurement methods.

RSSI Method 1

When a valid packet is received in packet mode, the RSSI level during postamble is automatically loaded to the RSSI_READBACK register (Address 0x312) by the communications processor. The RSSI_READBACK register contains a twos complement value and can be converted to input power in dBm using the following formula:

RSSI(dBm) = RSSI_READBACK − 107

To extend the linear range of RSSI measurement down to an input power of −110dBm (see Figure 69), a cosine adjustment can be applied using the following formula:

RSSI(dBm) =

⎛

COS

⎜

⎜ ⎝

where COS(X) is the cosine of Angle X (radians).

RSSI Method 2

The CMD_GET_RSSI command can be used from the PHY_ON state to read the RSSI. This RSSI measurement method uses additional low pass filtering, resulting in a more accurate RSSI reading. The RSSI result is loaded to the RSSI_READBACK register (Address 0x312) by the communications processor. The RSSI_READBACK register contains a twos complement value and can be converted to input power in dBm using the following formula:

AGC is disabled. Gains must be set manually.

READBACKRSSI _

⎞

× RSSI_READBACK − 106

⎟

⎟ ⎠

RSSI(dBm) = RSSI_READBACK − 107

RSSI Method 3

This method supports the measurement of RSSI by the host processor at any time while in the PHY_RX state. The receiver input power can be calculated using the following procedure:

1. Set AGC to hold by setting the AGC_MODE register

(Address 0x35D) = 0x40 (only necessary if AGC has not been locked on the preamble or sync word).

2. Read back the AGC gain settings (AGC_GAIN_STATUS

3. Read the ADC_READBACK[7:0] value (Address 0x327

and Address 0x328; see the Analog-to-Digital Converter section).

4. Re-enable the AGC by setting the AGC_MODE register

(Address 0x35D) = 0x00 (only necessary if AGC has not already been locked on the preamble or sync word).

5. Calculate the RSSI in dBm as follows:

RSSI(dBm) =

⎛

_ −

⎜ ⎝

+× CorrectionGain:0]READBACK[7ADC

⎞

119_

⎟ ⎠

where Gain_Correction is determined by the value of the AGC_GAIN_STATUS register (Address 0x360) as shown in Table 34.

Table 34. Gain Mode Correction for 2FSK/GFSK/MSK/GMSK RSSI

AGC_GAIN_STATUS (Address 0x360) GAIN_CORRECTION

0x00 44 0x01 35 0x02 0x0A 0x12 0x16 0

26 17 10

To simplify the RSSI calculation, the following approximation can be used by the host processor:

⎛

≈

⎜

⎝

⎞

⎟

⎠

RSSI Method 4

This method is used to provide RSSI readback when using OOK demodulation in the PHY_RX state. The receiver input power can be calculated using the following procedure:

1. Set AGC to hold by setting the AGC_MODE register

(Address 0x35D) = 0x40 (only necessary if AGC has not been locked on the preamble or sync word).

2. Read back the AGC gain settings (AGC_GAIN_STATUS

3. Read the ADC_READBACK[7:0] value (Address 0x327

and Address 0x328, see the Analog-to-Digital Converter section).

Rev. 0 | Page 72 of 108

ADF7023

http://www.BDTIC.com/ADI

4. Re-enable the AGC by setting the AGC_MODE register

(Address 0x35D) = 0x00 (only necessary if AGC has not already been locked on the preamble or sync word).

5. Calculate the RSSI in dBm as follows:

RSSI(dBm) =



_ 

 

 CorrectionGain:0]READBACK[7ADC



110_

 

where Gain_Correction is determined by the value of the AGC_GAIN_STATUS register (Address 0x360) as shown in Table 35.

Table 36. Summary of RSSI Measurement Methods

RSSI Method

2 CMD_GET_RSSI

RSSI Type Modulation

Automatic end of packet RSSI

command from PHY_ON

RSSI via ADC and AGC readback, FSK

RSSI via ADC and AGC readback, OOK

2FSK/GFSK/ MSK/GMSK

OOK Yes Yes

Available in Packet Mode

Yes N o

Yes Ye s

Table 35. Gain Mode Correction for OOK RSSI

AGC_GAIN_STATUS (Address 0x360) GAIN_CORRECTION

0x00 47 0x01 37 0x02 28 0x0A 19 0x12 10 0x16 0

To simplify the RSSI calculation, the following approximation can be used by the host processor:















Available in Sport Mode

Description

Automatic RSSI measurement during reception of the postamble in packet mode. The RSSI result is available in the RSSI_READBACK register (Address 0x312).

Automatic RSSI measurement from PHY_ON using CMD_GET_RSSI. The RSSI result is available in the RSSI_READBACK register (Address 0x312).

RSSI measurement based on the ADC and AGC gain readbacks. The host processor calculates RSSI in dBm.

Rev. 0 | Page 73 of 108

ADF7023

http://www.BDTIC.com/ADI

2FSK/GFSK/MSK/GMSK DEMODULATION

A correlator demodulator is used for 2FSK, GFSK, MSK, and GMSK demodulation. The quadrature outputs of the IF filter are first limited and then fed to a digital frequency correlator that performs filtering and frequency discrimination of the 2FSK/GFSK/MSK/GMSK spectrum. Data is recovered by comparing the output levels from two correlators. The performance of this frequency discriminator approximates that of a matched filter detector, which is known to provide optimum detection in the presence of additive white Gaussian noise (AWGN). This method of 2FSK/GFSK/MSK/GMSK demodulation provides approximately 3 dB to 4 dB better sensitivity than a linear frequency discriminator. The 2FSK/GFSK/MSK/GMSK demodulator architecture is shown in Figure 108. The ADF7023 is configured for 2FSK/GFSK/MSK/ GMSK demodulation by setting DEMOD_SCHEME = 0 in the RADIO_CFG_9 register (Address 0x115).

To optimize receiver sensitivity, the correlator bandwidth and phase must be optimized for the specific deviation frequency, data rate, and maximum expected frequency error between the transmitter and receiver. The bandwidth and phase of the discriminator must be set using the DISCRIM_BW bit in the RADIO_CFG_3 register (Address 0x10F) and the DISCRIM_ PHASE[1:0] bit in the RADIO_CFG_6 register (Address 0x112). The discriminator setup is performed in three steps.

Step 1: Calculate the Discriminator Bandwidth Coefficient K

The Discriminator Bandwidth Coefficient K depends on the modulation index (MI), which is determined by

DevFSKMI_2 ×

Datarate

where FSK_Dev is the 2FSK/GFSK/MSK/GMSK frequency deviation in hertz (Hz), measured from the carrier to the +1 symbol frequency (positive frequency deviation) or to the −1 symbol frequency (negative frequency deviation), and Datarate is the data rate in bits per second (bps).

The value of K is then determined by

MI ≥ 1, AFC off: K = Floor

⎡ ⎢

⎣

⎤

FreqIF__

⎥

DevFSK

⎦

MI < 1, AFC off: K = Floor

MI ≥ 1, AFC on: K = Floor

MI < 1, AFC on: K = Floor

⎡ ⎢ ⎢

Datarate

⎢ ⎣

⎡ ⎢

⎣

⎡ ⎢ ⎢

Datarate

⎢ ⎣

⎤ ⎥

FreqIF

⎥ ⎥

⎦

FreqIF

+ MaxErrorFreqDevFSK

FreqIF

+ MaxErrorFreq

⎤ ⎥

___

⎦

⎤ ⎥ ⎥ ⎥

⎦

where:

MI is the modulation index. K is the discriminator coefficient. Floor[] is a function to round down to the nearest integer. IF_Freq is the IF frequency in hertz (200 kHz or 300 kHz). FSK_Dev is the 2FSK/GFSK/MSK/GMSK frequency deviation

in hertz. Freq_Error_Max is the maximum expected frequency error, in hertz, between Tx and Rx.

Step 2: Calculate the DISCRIM_BW Setting

The bandwidth setting of the discriminator is calculated based on the Discriminator Coefficient K and the IF frequency. The bandwidth is set using the DISCRIM_BW setting (Address 0x10F), which is calculated according to

DISCRIM_BW[7:0] = Round

⎡

25.3

⎢

⎣

⎤

MHzK

⎥

FreqIF

⎦

Step 3: Calculate the DISCRIM_PHASE Setting

The phase setting of the discriminator is calculated based on the Discriminator Coefficient K, as described in Ta b l e 37 . The phase is set using the DISCRIM_PHASE[1:0] value in the RADIO_CFG_6 register (Address 0x112).

Table 37. Setting the DISCRIM_PHASE[1:0] Value Based on K

K K/2 (K + 1)/2 DISCRIM_PHASE[1:0]

Even Odd 0 Odd Even 1 Even Even Odd Odd 3

Rev. 0 | Page 74 of 108

ADF7023

http://www.BDTIC.com/ADI

FREQUENCY

CORRELATOR

CONTROL

DISCRIM_BW[7:0]

AFC_KP[3:0]

RFIO_1P

RFIO_1N

LNA

MIXER

SYNTHESIZER

(LO)

IF FILTER

(ADDRESS RADIO_CFG_9[7:6])

IFBW[1:0]

AFC SYSTE M

MAX_AFC_RANGE[7:0]

LIMITERS

RANGE

AFC_LOCK_MODE[1:0]

Figure 108. 2FSK/GFSK/MSK/GMSK Demodulation and AFC Architecture

DISCRIM_PHASE[1:0]

AFC_KI[3:0] ( ADDRE S S RADIO_CFG_11[ 7: 4] )

AFC

The ADF7023 features an internal real-time automatic frequency control loop. In receive, the control loop automatically monitors the frequency error during the packet preamble sequence and adjusts the receiver synthesizer local oscillator using proportional integral (PI) control. The AFC frequency error measurement bandwidth is targeted specifically at the packet preamble sequence (dc free). AFC is supported during 2FSK/GFSK/MSK/GMSK demodulation.

AFC can be configured to lock on detection of the qualified preamble or on detection of the qualified sync word. To lock AFC on detection of the qualified preamble, set AFC_LOCK_ MODE = 3 (Address 0x116) and ensure that preamble detection is enabled in the PREAMBLE_MATCH register (Address 0x11B). AFC lock is released if the sync word is not detected immediately after the end of the preamble. In packet mode, if the qualified preamble is followed by a qualified sync word, the AFC lock is maintained for the duration of the packet. In sport mode, the AFC lock is released on transitioning back to the PHY_ON state or when a CMD_PHY_RX is issued while in the PHY_RX state.

To lock AFC on detection of the qualified sync word, set AFC_LOCK_MODE = 3 and ensure that preamble detection is disabled in the PREAMBLE_MATCH register (Address 0x11B). If this mode is selected, consideration must be given to the selection of the sync word. The sync word should be dc free and have short run lengths yet low correlation with the preamble sequence. See the sync word description in the Packet Mode section for further details. After lock on detection of the qualified sync word, the AFC lock is maintained for the duration of the packet. In sport mode, the AFC lock is released on transitioning back to the PHY_ON state or when CMD_ PHY_RX is issued while in the PHY_RX state.

SPORT MODE GPIOS

POST-DEMOD

FILTER

POST_DEMOD_BW[7:0]

AVERAGING

FILTER

CLOCK AND

DATA

RECOVERY

DATA_RATE[11:0]

AFC LOCK

RxDATA/ RxCLK

COMMUNICATIONS P ROCESSOR

PREAMBLE

DETECT

SYNC WO RD

DETECT

PREAMBLE_MATCH = 0

AFC is enabled by setting AFC_LOCK_MODE in the RADIO_CFG_10 register (Address 0x116), as described in Tabl e 38 .

Table 38. AFC Mode

AFC_LOCK_MODE [1:0]

Mode

0 Free running: AFC is free running. 1 Disabled: AFC is disabled. 2 Hold: AFC is paused. 3

Lock: AFC locks after the preamble or sync word.

The bandwidth of the AFC loop can be controlled by the AFC_KI and AFC_KP parameters in the RADIO_CFG_11 register (Address 0x117).

The maximum AFC pull-in range is automatically set based on the programmed IF filter bandwidth (IFBW in the RADIO_ CFG_9 register (Address 0x115).

Table 39. Maximum AFC Pull-In Range

IF Bandwidth Max AFC Pull-In Range

100 kHz ±50 kHz 150 kHz ±75 kHz 200 kHz ±100 kHz 300 kHz ±150 kHz

AFC and Preamble Length

The AFC requires a certain number of the received preamble bits to correct the frequency error between the transmitter and the receiver. The number of preamble bits required depends on the data rate and whether the AFC is locked on detection of the qualified preamble or locked on detection of the qualified sync word. This is discussed in more detail in the Recommended Receiver Settings for 2FSK/GFSK/MSK/GMSK section.

08291-156

Rev. 0 | Page 75 of 108

ADF7023

http://www.BDTIC.com/ADI

AFC Readback

The frequency error between the received carrier and the receiver local oscillator can be measured when AFC is enabled. The error value can be read from the FREQUENCY_ERROR_ READBACK register (Address 0x372), where each LSB equates to 1 kHz. The value is a twos complement number. The FREQUENCY_ERROR_READBACK value is valid in the PHY_RX state after the AFC has been locked. The value is retained in the FREQUENCY_ERROR_READBACK register after recovering a packet and transitioning back to the PHY_ON state.

Post-Demodulator Filter

A second order, digital low-pass filter removes excess noise from the demodulated bit stream at the output of the discriminator. The bandwidth of this post-demodulator filter is programmable and must be optimized for the user’s data rate and received modulation type. If the bandwidth is set too narrow, performance degrades due to intersymbol interference (ISI). If the bandwidth is set too wide, excess noise degrades the performance of the receiver. For optimum performance, the post-demodulator filter bandwidth should be set close to 0.75 times the data rate (when using FSK/GFSK/MSK/GMSK modulation). The actual bandwidth of the post-demodulator filter is given by

Post-Demodulator Filter Bandwidth (kHz) = POST_DEMOD_BW × 2

where POST_DEMOD_BW is set in the RADIO_CFG_4 register (Address 0x110).

CLOCK RECOVERY

An oversampled digital clock and data recovery (CDR) PLL is used to resynchronize the received bit stream to a local clock in all modulation modes. The maximum symbol rate tolerance of the CDR PLL is determined by the number of bit transitions in the transmitted bit stream. For example, during reception of a 010101 preamble, the CDR achieves a maximum data rate tolerance of ±3.0%. However, this tolerance is reduced during recovery of the remainder of the packet where symbol transitions may not be guaranteed to occur at regular intervals during the payload data. To maximize data rate tolerance of the receiver’s CDR, 8b/10b encoding or Manchester encoding should be enabled, which guarantees a maximum number of contiguous bits in the transmitted bit stream. Data whitening can also be enabled on the ADF7023 to break up long sequences of contiguous data bit patterns.

Using 2FSK/GFSK/MSK/GMSK modulation, it is also possible to tolerate uncoded payload data fields and payload data fields with long run length coding constraints if the data rate tolerance and packet length are both constrained. More details of CDR operation using uncoded packet formats are discussed in the AN-915 Application Note.

The ADF7023’s CDR PLL is optimized for fast acquisition of the recovered symbols during preamble and typically achieves bit synchronization within five symbol transitions of preamble.

OOK DEMODULATION

The ADF7023 can be configured for OOK demodulation by setting DEMOD_SCHEME = 2 in the RADIO_CFG_9 register (Address 0x115). Manchester encoding should be used with OOK modulation to ensure optimum performance. OOK demodulation is performed using the receiver’s RSSI signal in conjunction with a fully automatic threshold detection circuit, which extracts the optimum OOK threshold during preamble and maintains robust packet error performance over the full input power range. The bandwidth of the threshold detection circuit is set by the AFC_KI and AFC_KP parameters in the RADIO_CFG_11 register (Address 0x117). The AGC loop bandwidth can be independently optimized for acquisition and tracking modes during OOK reception by setting OOK_AGC_CLK_ACQ and OOK_AGC_CLK_TRK (Address 0x35B), respectively. This demodulation scheme delivers high receiver saturation performance in OOK mode. The receiver also supports OOK modulation depths of up to 20 dB.

For optimum performance, the AGC and threshold detection circuit should be set to lock after preamble detection by setting AGC_LOCK_MODE = 3 in the RADIO_CFG_7 register (Address 0x113) and AFC_LOCK_MODE = 3 in the RADIO_ CFG_10 register (Address 0x116).

The recommended post-demodulator filter bandwidth is 1.6 times the chip rate when using OOK demodulation. This can be configured via the POST_DEMOD_BW setting in the RADIO_CFG_4 register (Address 0x110).

Rev. 0 | Page 76 of 108

ADF7023

http://www.BDTIC.com/ADI

RECOMMENDED RECEIVER SETTINGS FOR 2FSK/GFSK/MSK/GMSK

To optimize the ADF7023 receiver performance and to ensure the lowest possible packet error rate, it is recommended to use the following configurations:

• Set the recommended AGC low and high thresholds and

the AGC clock divide.

• Set the recommended AFC Ki and Kp parameters.

• Use a preamble length ≥ the minimum recommended

preamble length.

• When the AGC is configured to lock on the sync word at

data rates greater than 200 kbps, it is recommended to set the sync word error tolerance to one bit.

The recommended settings for AGC, AFC, preamble length, and sync word are summarized in Tabl e 41 .

Recommended AGC Settings

To optimize the receiver for robust packet error rate performance, when using minimum preamble length over the full input power range, it is recommended to overwrite the default AGC settings in the MCR memory. The recommended settings are as follows:

• AGC_HIGH_THRESHOLD (Address 0x35F) = 0x78

• AGC_LOW_THRESHOLD (Address 0x35E) = 0x46

• AGC_CLOCK_DIVIDE (Address 0x32F) = 0x0F or 0x19

(depends on the data rate; see Tab l e 41 )

MCR memory is not retained in PHY_SLEEP; therefore, to allow the use of these optimized AGC settings in low power mode applications, a static register fix can be used. An example static register fix to write to the AGC settings in MCR memory is shown in Tabl e 40 .

Table 40. Example Static Register Fix for AGC Settings

BBRAM Register Data Description

0x128 (STATIC_REG_FIX)

0x12B 0x5E MCR Address 0x35E 0x12C 0x46

0x12D 0x5F 0x12E 0x78

0x12F 0x2F MCR Address 0x32F 0x130 0x0F

0x131 0x00 Ends static MCR register fixes

0x2B Pointer to BBRAM Address 0x12B

Data to write to MCR Address 0x35E (sets AGC low threshold)

MCR Address 0x35F Data to write to MCR Address

0x35F (sets AGC high threshold)

Data to write to MCR Address 0x32F (sets AGC clock divide)

Recommended AFC Settings

The bandwidth of the AFC loop is controlled by the AFC_KI and AFC_KP parameters in the RADIO_CFG_11 register (Address 0x117). To ensure optimum AFC accuracy while minimizing the AFC settling time (and thus the required preamble length), the AFC_KI and AFC_KP parameters should be set as outlined in Tab l e 4 1 .

Recommended Preamble Length

When AFC is locked on preamble detection, the minimum preamble length is between 40 and 60 bits depending on the data rate. When AFC is set to lock on sync word detection, the minimum preamble length is between 14 and 32 bits, depending on the data rate. When AFC and preamble detection are disabled, the minimum preamble length is dependent on the AGC settling time and the CDR acquisition time and is between 8 and 24 bits, depending on the data rate. The required preamble length for various data rates and receiver configurations is summarized in Tab l e 41 .

Recommended Sync Word Tolerance

At data rates greater than 200 kbps and when the AGC is configured to lock on the sync word, it is recommended to set the sync word error tolerance to one bit (SYNC_ERROR_TOL = 1). This prevents an AGC gain change during sync word reception causing a packet loss by allowing one bit error in the received sync word.

Rev. 0 | Page 77 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 41. Summary of Recommended AGC, AFC, Preamble Length, and Sync Word Error Tolerance for 2FSK/GFSK/MSK/GMSK

Data Rate (kbps)

Freq Deviation (kHz)

IF BW (kHz)

Setup

High Threshold

300 75 300 1 0x78 0x46 0x0F On 7 3 64 0

2 0x78 0x46 0x19 On 8 3 32 1

3 0x78 0x46 0x19 Off 24 1 200 50 200 1 0x78 0x46 0x19 On 7 3 58 0 150 37.5 150 1 0x78 0x46 0x19 On 7 3 54 0 100 25 100 1 0x78 0x46 0x19 On 7 3 52 0 50 12.5 100 1 0x78 0x46 0x19 On 7 3 50 0

38.4 20 100 1 0x78 0x46 0x19 On 7 3 44 0

2 0x78 0x46 0x19 On 7 3 14 0

3 0x78 0x46 0x19 Off 8 0

9.6 10 100 1 0x78 0x46 0x19 Off 8 0

1 0x78 0x46 0x19 On 7 3 46 0 1 10 100 1 0x78 0x46 0x19 Off 8 0

1 0x78 0x46 0x19 On 7 3 40 0

Setup 1: AFC and AGC are configured to lock on preamble detection by setting AFC_LOCK_MODE = 3 and AGC_LOCK_MODE = 3.

Setup 2: AFC and AGC are configured to lock on sync word detection by setting AFC_LOCK_MODE = 3, AGC_LOCK_MODE = 3, and PREAMBLE_MATCH = 0. Setup 3: AFC is disabled and AGC is configured to lock on sync word detection by setting AFC_LOCK_MODE = 1, AGC_LOCK_MODE = 3, and PREAMBLE_MATCH = 0.

The AGC high threshold is configured by writing to the AGC_HIGH_THRESHOLD register (Address 0x35F). The AGC low threshold is configured by writing to the

AGC_LOW_THRESHOLD register (Address 0x35E). The AGC clock divide is configured by writing to the AGC_CLOCK_DIVIDE register (Address 0x32F).

The AFC is enabled or disabled by writing to the AFC_LOCK_MODE setting in register RADIO_CFG_10 (Address 0x116). The AFC Ki and Kp parameters are configured

by writing to the AFC_KP and AFC_KI settings in the RADIO_CFG_11 register (Address 0x117).

The transmit preamble length (in bytes) is set by writing to the PREAMBLE_LEN register (Address 0x11D).

The sync word error tolerance (in bits) is set by writing to the SYNC_ERROR_TOL setting in the SYNC_CONTROL register (Address 0x120).

AGC

Low Threshold

Clock Divide

AFC

On/Off Ki Kp

Minimum Preamble Length

(Bits)

Sync Word Error To le ra n ce

(Bits)

RECOMMENDED RECEIVER SETTINGS FOR OOK

To ensure robust OOK reception, the AGC threshold detection, preamble length, and post-demodulator filter bandwidth are recommended to be set as detailed in Ta bl e 4 2 .

Table 42. Summary of Recommended Settings for AGC, AFC, and Preamble Length in OOK Demodulation

Data Rate (kbps)

2.4 to

19.2

The recommended values for the AGC high threshold (AGC_HIGH_THRESHOLD), OOK_AGC_CLK_ACQ, and OOK_AGC_CLK_TRK are the same as the default values

and, therefore, do not need to be set by the host processor. The AGC low threshold is configured by writing to the AGC_LOW_THRESHOLD register (Address 0x35E). The AGC lock on preamble detection is configured by setting AGC_LOCK_MODE = 3 (in register RADIO_CFG_7, Address 0x113).

The AFC_KI and AFC_KP parameters control the bandwidth of the threshold detection loop in OOK demodulation. They are configured by writing to the

RADIO_CFG_11 register (Address 0x117). Setting AFC_LOCK_MODE = 3 configures the OOK threshold detection to lock on preamble detection.

Chip Rate (kcps)

4.8 to

38.4

IF BW (kHz)

High Threshold

Low Threshold

100 0x69 0x2D 3 1 2 6 3 3 64 1.6 × chip rate

AGC

AGC_ LOCK_ MODE

OOK_ AGC_

CLK_ ACQ

OOK_ AGC_

CLK_ TRK

Threshold Detection

AFC_

AFC _KP

LOCK_ MODE

AFC _KI

Minimum Preamble Length (Bits)

PostDemodulator Bandwidth

Rev. 0 | Page 78 of 108

ADF7023

http://www.BDTIC.com/ADI

PERIPHERAL FEATURES

ANALOG-TO-DIGITAL CONVERTER

The ADF7023 supports an integrated SAR ADC for digitization of analog signals that include the analog temperature sensor, the analog RSSI level, and an external analog input signal (Pin 30). The conversion time is typically 1 s. The result of the conversion can be read from the ADC_READBACK_HIGH register (Address 0x327), and the ADC_READBACK_LOW register (Address 0x328). The ADC readback is an 8-bit value.

The signal source for the ADC input is selected via the ADC_CONFIG_LOW register (Address 0x359). In the PHY_RX state, the source is automatically set to the analog RSSI. The ADC is automatically enabled in PHY_RX. In other radio states, the host processor must enable the ADC by setting POWERDOWN_RX (Address 0x324) = 0x10.

To perform an ADC readback, the following procedure should be completed:

1. Read ADC_READBACK_HIGH. This initializes an ADC

readback.

2. Read ADC_READBACK_LOW. This returns

ADC_READBACK[2:0] of the ADC sample.

3. Read ADC_READBACK_HIGH. This returns

ADC_READBACK[7:3] of the ADC sample.

TEMPERATURE SENSOR

The integrated temperature sensor has an operating range between −40°C and +85°C. To enable readback of the temperature sensor in PHY_OFF, PHY_ON, or PHY_TX, the following registers must be set:

1. Set POWERDOWN_RX (Address 0x324) = 0x10 = 0x10.

This enables the ADC.

2. Set POWERDOWN_AUX (Address 0x325) = 0x02. This

enables the temperature sensor.

3. Set ADC_CONFIG_LOW (Address 0x359) = 0x08. This

sets the ADC input to the temperature sensor.

The temperature is determined from the ADC readback value using the following formula:

Temperature (°C) = (ADC_READBACK[7:0]/1.83) −

118.43 + Correction Value

The correction value can be determined by performing a readback at a single known temperature. When this correction is applied, the temperature sensor is accurate to ±14°C over the full operating temperature range. Averaging a number of ADC readbacks can improve the accuracy of the temperature measurement. If an average of 10 readbacks is taken, the accuracy improves to ±4.4°C.

TEST DAC

The test DAC allows the output of the post-demodulator filter to be viewed externally. It takes the 16-bit filter output and converts it to a high frequency, single-bit output using a second order Σ- converter. The output can be viewed on the GP0 pin. This signal, when filtered appropriately, can be used to

• Monitor the signal at the post-demodulator filter output

•

Measure the demodulator output SNR

•

Construct an eye diagram of the received bit stream to measure the received signal quality

•

Implement analog FM demodulation

To enable the test DAC, the GPIO_CONFIGURE setting (Address 0x3FA) should be set to 0xC9. The TEST_DAC_ GAIN setting (Address 0x3FD) should be set to 0x00. The test DAC signal at the GP0 pin can be filtered with a three-stage, low-pass RC filter to reconstruct the demodulated signal. For more information, see the AN-852 Application Note.

TRANSMIT TEST MODES

There are two transmit test modes that are enabled by setting the VAR_TX_MODE parameter (Address 0x00D in packet RAM memory), as described in Tab l e 43 . VAR_TX_MODE should be set before entering the PHY_TX state.

Table 43. Transmit Test Modes

VAR_TX_MODE Mode

0 Default; no transmit test mode 1 Reserved 2 Transmit the preamble continuously 3 Transmit the carrier continuously 4 to 255 Reserved

SILICON REVISION READBACK

The product code and silicon revision code can be read from the packet RAM memory as described in Tabl e 44. The values of the product code and silicon revision code are valid only on power-up or wake-up from the PHY_SLEEP state because the communications processor overwrites these values on transitioning from the PHY_ON state.

Table 44. Product Code and Silicon Revision Code

Packet Ram Location Description

0x001 Product code, most significant byte = 0x70 0x002 Product code, least significant byte = 0x23 0x003 Silicon revision code, most significant byte 0x004 Silicon revision code least significant byte

Rev. 0 | Page 79 of 108

ADF7023

http://www.BDTIC.com/ADI

APPLICATIONS INFORMATION

APPLICATION CIRCUIT

A typical application circuit for the ADF7023 is shown in Figure 109. All external components required for operation of the device, excluding supply decoupling capacitors, are shown.

This example circuit uses a combined single-ended PA and LNA match. Further details on matching topologies and different host processor interfaces are given in the following sections.

ANTENNA

CONNECTION

HARMONIC

FILTER

PA/LNA

MATCH

VDD

ADCVREF

282726

ATB4

VDDBAT1

ADCIN_ATB3

XOSC32KN_ATB2

ADF7023

GND PAD

SYNTH

VCO

CREG

VCOGUARD

10111213141516

CWAKEUP

XOSC26P

VDD

CREGRF1

RBIAS

CREGRF2

RFIO_1P

RFIO_1N

RFO2

VDDBAT2

Figure 109. Typical ADF7023 Application Circuit Diagram

32kHz XTAL (OPTIONAL)

4 P G

DIG2

CREG

XOSC32KP_GP5_ATB1

DGUARD

XOSC26N

26MHz XTAL

IRQ_GP3

MOSI

SCLK

MISO

20 19

GP2

GP1

GP0

DIG1

CREG

GPIO MOSI SCLK MISO

IRQ

CONTROLLER

08291-039

Rev. 0 | Page 80 of 108

ADF7023

http://www.BDTIC.com/ADI

HOST PROCESSOR INTERFACE

The interface, when using packet mode, between the ADF7023 and the host processor is shown in Figure 110. In packet mode, all communication between the host processor and the ADF7023 occurs on the SPI interface and the IRQ_GP3 pin. The interface between the ADF7023 and the host processor in sport mode is shown in Figure 111. In sport mode, the transmit and receive data interface consists of the GP0, GP1, and GP2 pins and a separate interrupt is available on GP4, while the SPI interface is used for memory access and issuing of commands.

ADF7023

MOSI SCLK MISO

IRQ_GP3

Figure 110. Processor Interface in Packet Mode

ADF7023

MOSI

SCLK

MISO

IRQ_GP3

Figure 111. Processor Interface in Sport Mode

GP2 GP1 GP0

24 23 22

21 20 19

18 17

24 23 22

21 20 19

18 17

GPIO MOSI SCLK MISO

IRQ

GPIO MOSI SCLK MISO

IRQ

TxRxCLK TxDATA RxDATA

CONTROLLER

08291-158

CONTROLLER

08291-159

PA/LNA MATCHING

The AD7023 has a differential LNA and both a single-ended PA and differential PA. This flexibility allows numerous possibilities in interfacing the ADF7023 to the antenna.

Combined Single-Ended PA and LNA Match

The combined single-ended PA and LNA match allows the transmit and receive paths to be combined without the use of an external transmit/receive switch. The matching network design is shown in Figure 112. The differential LNA match is a fiveelement discrete balun giving a single-ended input. The singleended PA output is a three-element match consisting of the choke inductor to the CREGRF2 regulated supply and an inductor and capacitor series.

The LNA and PA paths are combined, and a T-stage harmonic filter provides attenuation of the transmit harmonics. In a combined match, the off impedances of the PA and LNA must be considered. This can lead to a small loss in transmit power and degradation in receiver sensitivity in comparison with a separate single-ended PA and LNA match. However, with optimum matching, the typical loss in transmit power is <1dB, and the degradation in sensitivity is < 1dB when compared with a separate PA and LNA matching topology.

ADF7023

MATCH

ANTENNA

CONNECTION

HARMONIC

FILTER

CREGRF2

RFIO_1P

RFIO_1N

RFO2

Figure 112. Combined Single-Ended PA and LNA Match

Separate Single-Ended PA/LNA Match

The separate single-ended PA and LNA matching configuration is illustrated in Figure 113. The network is the same as the combined matching network shown in Figure 112 except that the transmit and receive paths are separate. An external transmit/receive antenna switch can be used to combine the transmit and receive paths to allow connection to an antenna. In designing this matching network, it is not necessary to consider the off impedances of the PA and LNA, and, thus, achieving an optimum match is less complex than with the combined single-ended PA and LNA match.

LNA MATCH

HARMONIC FILTER

PA MATCH

Figure 113. Separate Single-Ended PA and LNA Match

CREGRF2

RFIO_1P

RFIO_1N

RFO2

ADF7023

08291-161

08291-160

Rev. 0 | Page 81 of 108

ADF7023

http://www.BDTIC.com/ADI

Combined Differential PA/LNA Match Support for External PA and LNA Control

In this matching topology, the single-ended PA is not used. The differential PA and LNA match comprises a five-element discrete balun giving a single-ended input/output as illustrated in Figure 114. The harmonic filter is used to minimize the RF harmonics from the differential PA.

ADF7023

ANTENNA

CONNECTION

HARMONIC FILTER

CREGRF2

RFIO_1P

RFIO_1N

RFO2

Figure 114. Combined Differential PA and LNA Match

Transmit Antenna Diversity

Transmit antenna diversity is possible using the differential PA and single-ended PA. The required matching network is shown in Figure 115.

DIFFERENTIAL PA AND

(DIFFERENTIAL

PA) AND RX

(SINGLE-

ENDED PA)

HARMONIC

FILTER

HARMONIC

FILTER

LNA MATCH

SINGLE-ENDED

PA MATCH

ADF7023

CREGRF2

RFIO_1P

RFIO_1N

RFO2

Figure 115. Matching Topology for Transmit Antenna Diversity

08291-162

08291-163

The ADF7023 provides independent control signals for an external PA or LNA. If the EXT_PA_EN bit is set to 1 in the MODE_CONTROL register (Address 0x11A), the external PA control signal is logic high while the ADF7023 is in the PHY_TX state and logic low while in any other state. If the EXT_LNA_EN bit is set to 1 in the MODE_CONTROL register (Address 0x11A), the external LNA control signal is logic high while the ADF7023 is in the PHY_RX state and logic low while in any other state.

The external PA and LNA control signals can be configured using the EXT_PA_LNA_CONFIG setting (Address 0x11B) as described in Ta ble 4 5.

Table 45. Configuration of the External PA and LNA Control Signals

EXT_PA_LNA_ CONF IG

Configuration

External PA signal on ADCIN_ATB3 and external LNA signal on ATB4 (1.8 V logic outputs)

External PA signal on XOSC32KP_GP5_ATB1 and external LNA signal on XOSC32KN_ATB2

logic outputs)

Rev. 0 | Page 82 of 108

ADF7023

http://www.BDTIC.com/ADI

COMMAND REFERENCE

Table 46. Radio Controller Commands

Command Code Description

CMD_SYNC 0xA2 Synchronizes the communications processor to the host processor after reset. CMD_PHY_OFF 0xB0 Performs a transition of the device into the PHY_OFF state. CMD_PHY_ON 0xB1 Performs a transition of the device into the PHY_ON state. CMD_PHY_RX 0xB2 Performs a transition of the device into the PHY_RX state. CMD_PHY_TX 0xB5 Performs a transition of the device into the PHY_TX state. CMD_PHY_SLEEP 0xBA Performs a transition of the device into the PHY_SLEEP state. CMD_CONFIG_DEV 0xBB Configures the radio parameters based on the BBRAM values. CMD_GET_RSSI 0xBC Performs an RSSI measurement. CMD_BB_CAL 0xBE Performs a calibration of the IF filter. CMD_HW_RESET 0xC8 Performs a full hardware reset. The device enters the PHY_SLEEP state. CMD_RAM_LOAD_INIT 0xBF Prepares the program RAM for a firmware module download. CMD_RAM_LOAD_DONE 0xC7

CMD_IR_CAL CMD_AES_ENCRYPT

0xBD Initiates an image rejection calibration routine.

0xD0 Performs an AES encryption on the transmit payload data stored in packet RAM. CMD_AES_DECRYPT2 0xD2 Performs an AES decryption on the received payload data stored in packet RAM. CMD_AES_DECRYPT_INIT2 0xD1 Initializes the internal variables required for AES decryption. CMD_RS_ENCODE_INIT

0xD1 Initializes the internal variables required for the Reed Solomon encoding. CMD_RS_ENCODE3 0xD0

CMD_RS_DECODE3 0xD2 Performs a Reed Solomon error correction on the received payload data stored in packet RAM.

The image rejection calibration firmware module must be loaded to program RAM for this command to be functional.

The AES firmware module must be loaded to program RAM for this command to be functional.

The Reed Solomon Coding firmware module must be loaded to program RAM for this command to be functional.

Performs a reset of the communications processor after download of a firmware module to program RAM.

Calculates and appends the Reed Solomon check bytes to the transmit payload data stored in packet RAM.

Table 47. SPI Commands

Command Code Description

SPI_MEM_WR 00011xxxb =

0x18 (packet RAM)

0x19 (BBRAM)

0x1B (MCR)

0x1E (program RAM) SPI_MEM_RD 00111xxxb =

0x38 (packet RAM)

0x39 (BBRAM)

0x3B (MCR)

SPI_MEMR_WR 00001xxxb =

Writes data to BBRAM, MCR, or packet RAM memory sequentially. An 11-bit address is used to identify memory locations. The most significant three bits of the address are incorporated into the command (xxxb). This command is followed by the remaining eight bits of the address, which are subsequently followed by the data bytes to be written.

Reads data from BBRAM, MCR, or packet RAM memory sequentially. An 11-bit address is used to identify memory locations. The most significant three bits of the address are incorporated into the command (xxxb). This command is followed by the remaining eight bits of the address, which are subsequently followed by the appropriate number of SPI_NOP commands.

Writes data to BBRAM, MCR, or packet RAM memory nonsequentially. 0x08 (packet RAM) 0x09 (BBRAM) 0x0B (MCR)

SPI_MEMR_RD 00101xxxb =

Reads data from BBRAM, MCR, or packet RAM memory nonsequentially. 0x28 (packet RAM) 0x29 (BBRAM) 0x2B (MCR)

SPI_NOP 0xFF

No operation. Use for dummy writes when polling the status word; used also as

dummy data when performing a memory read.

Rev. 0 | Page 83 of 108

ADF7023

http://www.BDTIC.com/ADI

REGISTER MAPS

Table 48. Battery Backup Memory (BBRAM)

Address (Hex) Register Retained in PHY_SLEEP R/W Group

0x100 INTERRUPT_MASK_0 Yes R/W MAC 0x101 INTERRUPT_MASK_1 Yes R/W MAC 0x102 NUMBER_OF_WAKEUPS_0 Yes R/W MAC 0x103 NUMBER_OF_WAKEUPS_1 Yes R/W MAC 0x104 NUMBER_OF_WAKEUPS_IRQ_THRESHOLD_0 Yes R/W MAC 0x105 NUMBER_OF_WAKEUPS_IRQ_THRESHOLD_1 Yes R/W MAC 0x106 RX_DWELL_TIME Yes R/W MAC 0x107 PARMTIME_DIVIDER Yes R/W MAC 0x108 SWM_RSSI_THRESH Yes R/W PHY 0x109 CHANNEL_FREQ_0 Yes R/W PHY 0x10A CHANNEL_FREQ_1 Yes R/W PHY 0x10B CHANNEL_FREQ_2 Yes R/W PHY 0x10C RADIO_CFG_0 Yes R/W PHY 0x10D RADIO_CFG_1 Yes R/W PHY 0x10E RADIO_CFG_2 Yes R/W PHY 0x10F RADIO_CFG_3 Yes R/W PHY 0x110 RADIO_CFG_4 Yes R/W PHY 0x111 RADIO_CFG_5 Yes R/W PHY 0x112 RADIO_CFG_6 Yes R/W PHY 0x113 RADIO_CFG_7 Yes R/W PHY 0x114 RADIO_CFG_8 Yes R/W PHY 0x115 RADIO_CFG_9 Yes R/W PHY 0x116 RADIO_CFG_10 Yes R/W PHY 0x117 RADIO_CFG_11 Yes R/W PHY 0x118 IMAGE_REJECT_CAL_PHASE Yes R/W PHY 0x119 IMAGE_REJECT_CAL_AMPLITUDE Yes R/W PHY 0x11A MODE_CONTROL Yes R/W PHY 0x11B PREAMBLE_MATCH Yes R/W Packet 0x11C SYMBOL_MODE Yes R/W Packet 0x11D PREAMBLE_LEN Yes R/W Packet 0x11E CRC_POLY_0 Yes R/W Packet 0x11F CRC_POLY_1 Yes R/W Packet 0x120 SYNC_CONTROL Yes R/W Packet 0x121 SYNC_BYTE_0 Yes R/W Packet 0x122 SYNC_BYTE_1 Yes R/W Packet 0x123 SYNC_BYTE_2 Yes R/W Packet 0x124 TX_BASE_ADR Yes R/W Packet 0x125 RX_BASE_ADR Yes R/W Packet 0x126 PACKET_LENGTH_CONTROL Yes R/W Packet 0x127 PACKET_LENGTH_MAX Yes R/W Packet 0x128 STATIC_REG_FIX Yes R/W PHY 0x129 ADDRESS_MATCH_OFFSET Yes R/W Packet 0x12A to 0x13D Address filtering Yes R/W Packet 0x13E RX_SYNTH_LOCK_TIME Yes R/W PHY 0x13F TX_SYNTH_LOCK_TIME Yes R/W PHY

Rev. 0 | Page 84 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 49. Modem Configuration Memory (MCR)

Address (Hex) Register Retained in PHY_SLEEP R/W

0x307 PA_LEVEL_MCR No R/W 0x30C WUC_CONFIG_HIGH No W 0x30D WUC_CONFIG_LOW No W 0x30E WUC_VAL UE_HIGH No W 0x30F WUC_VAL UE_LOW No W 0x310 WUC_FLAG_RESET No R/W 0x311 WUC_STATUS No R 0x312 RSSI_READBACK No R 0x315 MAX_AFC_RANGE No R/W 0x319 IMAGE_REJECT_CAL_CONFIG No R/W 0x322 CHIP_SHUTDOWN No R/W 0x324 POWERDOWN_RX No R/W 0x325 POWERDOWN_AUX No R/W 0x327 ADC_READBACK_HIGH No R 0x328 ADC_READBACK_LOW No R 0x32D BATTERY_MONITOR_THRESHOLD_VOLTAGE No R/W 0x32E EXT_UC_CLK_DIVIDE No R/W 0x32F AGC_CLK_DIVIDE No R/W 0x336 INTERRUPT_SOURCE_0 No R/W 0x337 INTERRUPT_SOURCE_1 No R/W 0x338 CALIBRATION_CONTROL No R/W 0x339 CALIBRATION_STATUS No R 0x345 RXBB_CAL_CALWRD_READBACK No R 0x346 RXBB_CAL_CALWRD_OVERWRITE No RW 0x359 ADC_CONFIG_LOW No R/W 0x35A ADC_CONFIG_HIGH No R/W 0x35B AGC_OOK_CONTROL No R/W 0x35C AGC_CONFIG No R/W

0x35D AGC_MODE No R/W 0x35E AGC_LOW_THRESHOLD No R/W 0x35F AGC_HIGH_THRESHOLD No R/W 0x360 AGC_GAIN_STATUS No R 0x372 FREQUENCY_ERROR_READBACK No R 0x3CB VCO_BAND_OVRW_VAL No R/W 0x3CC VCO_AMPL_OVRW_VAL No R/W 0x3CD VCO_OVRW_EN No R/W 0x3D0 VCO_CAL_CFG No R/W 0x3D2 OSC_CONFIG No R/W 0x3DA VCO_BAND_READBACK No R 0x3DB VCO_AMPL_READBACK No R 0x3F8 ANALOG_TEST_BUS No R/W 0x3F9 RSSI_TSTMUX_SEL No R/W 0x3FA GPIO_CONFIGURE No R/W 0x3FD TEST_DAC_GAIN No R/W

Rev. 0 | Page 85 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 50. Packet RAM Memory

Address Register R/W

0x000 VAR_COMMAND R/W 0x0011 Product code, most significant byte = 0x70 R 0x0021 Product code, least significant byte = 0x23 R 0x0031 Silicon revision code, most significant byte R 0x0041 Silicon revision code, least significant byte R 0x005 to 0x00B Reserved R 0x00D VAR_TX_MODE R/W 0x00E to 0x00F Reserved R

Only valid on power-up or wake-up from the PHY_SLEEP state because the communications processor overwrites these values on exit from the PHY_ON state.

BBRAM REGISTER DESCRIPTION

Table 51. 0x100: INTERRUPT_MASK_0

Bit Name R/W Description

[7] INTERRUPT_NUM_WAKEUPS R/W Interrupt when the number of WUC wake-ups (NUMBER_OF_WAKEUPS[15:0])

has reached the threshold (NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[15:0]) 1: interrupt enabled; 0: interrupt disabled

[6] INTERRUPT_SWM_RSSI_DET R/W

[5] INTERRUPT_AES_DONE R/W

[4] INTERRUPT_TX_EOF R/W Interrupt when a packet has finished transmitting

[3] INTERRUPT_ADDRESS_MATCH R/W Interrupt when a received packet has a valid address match

[2] INTERRUPT_CRC_CORRECT R/W Interrupt when a received packet has the correct CRC

[1] INTERRUPT_SYNC_DETECT R/W Interrupt when a qualified sync word has been detected in the received packet

[0] INTERRUPT_PREMABLE_DETECT R/W Interrupt when a qualified preamble has been detected in the received packet

Interrupt when the measured RSSI during smart wake mode has exceeded the RSSI threshold value (SWM_RSSI_THRESH, Address 0x108) 1: interrupt enabled; 0: interrupt disabled

Interrupt when an AES encryption or decryption command is complete; available only when the AES firmware module has been loaded to the ADF7023 program RAM

1: interrupt enabled; 0: interrupt disabled

Table 52. 0x101: INTERRUPT_MASK_1

Bit Name R/W Description

[7] BATTERY_ALARM R/W

[6] CMD_READY R/W

[5] Reserved R/W [4] WUC_TIMEOUT R/W Interrupt when the WUC has timed out

[3] Reserved R/W [2] Reserved R/W [1] SPI_READY R/W Interrupt when the SPI is ready for access

[0] CMD_FINISHED R/W

Interrupt when the battery voltage has dropped below the threshold value (BATTERY_MONITOR_THRESHOLD_VOLTAGE, Address 0x32D) 1: interrupt enabled; 0: interrupt disabled

Interrupt when the communications processor is ready to load a new command; mirrors the CMD_READY bit of the status word

1: interrupt enabled; 0: interrupt disabled

1: interrupt enabled; 0: interrupt disabled Interrupt when the communications processor has finished performing a

command 1: interrupt enabled; 0: interrupt disabled

Rev. 0 | Page 86 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 53. 0x102: NUMBER_OF_WAKEUPS_0

Bit Name R/W Description

[7:0] NUMBER_OF_WAKEUPS[7:0] R/W

Table 54. 0x103: NUMBER_OF_WAKEUPS_1

Bit Name R/W Description

[7:0] NUMBER_OF_WAKEUPS[15:8] R/W

Table 55. 0x104: NUMBER_OF_WAKEUPS_IRQ_THRESHOLD_0

Bit Name R/W Description

[7:0] NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[7:0] R/W

Table 56. 0x105: NUMBER_OF_WAKEUPS_IRQ_THRESHOLD_1

Bit Name R/W Description

[7:0] NUMBER_OF_WAKEUPS_IRQ_THRESHOLD[15:8] R/W Bits[15:8] of [15:0] (see Table 55).

Table 57. 0x106: RX_DWELL_TIME

Bit Name R/W Description

[7:0] RX_DWELL_TIME R/W

Bits[7:0] of [15:0] of an internal 16-bit count of the number of wake-ups (WUC timeouts) the device has gone through. It can be initialized to 0x0000.

Bits[15:8] of [15:0] of an internal 16-bit count of the number of WUC wakeups the device has gone through. It can be initialized to 0x0000.

Bits[7:0] of [15:0] (see Table 56). The threshold for the number of wake-ups (WUC timeouts). It is a 16-bit count threshold that is compared against the NUMBER_OF_WAKEUPS parameter. When this threshold is exceeded, the device wakes up in the PHY_OFF state and optionally generates INTERRUPT_NUM_WAKEUPS.

When the WUC is used and SWM is enabled, the radio powers up and enables the receiver on the channel defined in the BBRAM and listens for this period of time. If no preamble pattern is detected in this period, the device goes back to sleep.

Receive Dwell Time (s) = RX_DWELL_TIME ×

MHz6.5

IVIDERPARMTIME_D128

Table 58. 0x107: PARMTIME_DIVIDER

Bit Name R/W Description

[7:0] PARMTIME_DIVIDER R/W Units of time used to define the RX_DWELL_TIME time period.

Timer Tick Rate =

A value of 0x33 gives a clock of 995.7 Hz or a period of 1.004 ms.

128 IVIDERPARMTIME_D

MHz6.5

Table 59. 0x108: SWM_RSSI_THRESH

Bit Name R/W Description

[7:0] SWM_RSSI_THRESH R/W

This sets the RSSI threshold when in smart wake mode with RSSI detection enabled.

Threshold (dBm) = SWM_RSSI_THRESH − 107

Table 60. 0x109: CHANNEL_FREQ_0

Bit Name R/W Description

[7:0] CHANNEL_FREQ[7:0] R/W The RF channel frequency in hertz is set according to

)( 0]:EQ[23CHANNEL_FR

where F

Rev. 0 | Page 87 of 108

is the PFD frequency and is equal to 26 MHz.

PFD

F(Hz)Frequency 

PFD

ADF7023

http://www.BDTIC.com/ADI

Table 61. 0x10A: CHANNEL_FREQ_1

Bit Name R/W Description

[7:0] CHANNEL_FREQ[15:8] R/W See the CHANNEL_FREQ_0 description in Table 60.

Table 62. 0x10B: CHANNEL_FREQ_2

Bit Name R/W Description

[7:0] CHANNEL_FREQ[23:16] R/W See the CHANNEL_FREQ_0 description in Table 60.

Table 63. 0x10C: RADIO_CFG_0

Bit Name R/W Description

[7:0] DATA_RATE[7:0] R/W The data rate in bps is set according to

100[11:0]  DATA_RATE(bps)RateData

Table 64. 0x10D: RADIO_CFG_1

Bit Name R/W Description

[7:4] FREQ_DEVIATION[11:8] R/W See the FREQ_DEVIATION description in RADIO_CFG_2 (Table 65). [3:0] DATA_RATE[11:8] R/W See the DATA_RATE description in RADIO_CFG_0 (Table 63).

Table 65. 0x10E: RADIO_CFG_2

Bit Name R/W Description

[7:0] FREQ_DEVIATION[7:0] R/W

The binary level 2FSK/GFSK/MSK/GMSK frequency deviation in hertz (defined as the frequency difference between carrier frequency and 1/0 tones) is set according to

100 0]:[11TIONFREQ_DEVIA(Hz)DeviationFrequency

Table 66. 0x10F: RADIO_CFG_3

Bit Name R/W Description

[7:0] DISCRIM_BW[7:0] R/W

The DISCRIM_BW value sets the bandwidth of the correlator demodulator. See the 2FSK/GFSK/MSK/GMSK Demodulation section for the steps required to set the DISCRIM_BW value.

Table 67. 0x110: RADIO_CFG_4

Bit Name R/W Description

[7:0] POST_DEMOD_BW[7:0] R/W

For optimum performance, the post-demodulator filter bandwidth should be set close to 0.75 times the data rate. The actual bandwidth of the post-demodulator filter is given by

Post-Demodulator Filter Bandwidth (kHz) = POST_DEMOD_BW × 2

The range of POST_DEMOD_BW is 1 to 255.

Table 68. 0x111: RADIO_CFG_5

Bit Name R/W Description

[7:0] Reserved R/W Set to zero.

Table 69. 0x112: RADIO_CFG_6

Bit Name R/W Description

[7:2] SYNTH_LUT_CONFIG_0 R/W

[1:0] DISCRIM_PHASE[1:0] R/W

If SYNTH_LUT_CONTROL (Address 0x113, Table 70) = 0 or 2, set SYNTH_LUT_CONFIG_0 = 0. If SYNTH_LUT_CONTROL = 1 or 3, this setting allows the receiver PLL loop bandwidth to be changed to optimize the receiver local oscillator phase noise.

The DISCRIM_PHASE value sets the phase of the correlator demodulator. See the 2FSK/GFSK/MSK/GMSK Demodulation section for the steps required to set the DISCRIM_PHASE value.

Rev. 0 | Page 88 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 70. 0x113: RADIO_CFG_7

Bit Name R/W Description

[7:6] AGC_LOCK_MODE R/W Set to

0: free running 1: manual 2: hold 3: lock after preamble/sync word (only locks on a sync word if PREAMBLE_ MATCH = 0)

[5:4] SYNTH_LUT_CONTROL R/W

[3:0] SYNTH_LUT_CONFIG_1 R/W

By default, the synthesizer loop bandwidth is automatically selected from lookup tables (LUT) in ROM memory. A narrow bandwidth is selected in receive to ensure optimum interference rejection, whereas in transmit, the bandwidth is selected based on the data rate and modulation settings. For the majority of applications, these automatically selected PLL loop bandwidths are optimum. However, in some applications, it may be necessary to use custom transmit or receive bandwidths, in which case, various options exist, as follows.

SYNTH_LUT_CONTROL Description

Because packet RAM memory is lost in the PHY_SLEEP state, the custom LUT for transmit must be reloaded to packet RAM after waking from the PHY_SLEEP state.

If SYNTH_LUT_CONTROL = 0 or 2, set SYNTH_LUT_CONFIG_0 to 0. If SYNTH_LUT_CONTROL = 1 or 3, this setting allows the receiver PLL loop bandwidth to be changed to optimize the receiver local oscillator phase noise.

Use predefined transmit and receive LUTs. The LUTs are automatically selected from ROM memory on transitioning into the PHY_TX or PHY_RX state.

Use custom receive LUT based on SYNTH_ LUT_CONFIG_0 and SYNTH_LUT_CONFIG_1. In transmit, the predefined LUT in ROM is used.

Use a custom transmit LUT. The custom transmit LUT must be written to the 0x10 to 0x18 packet RAM locations. In receive, the predefined LUT in ROM is used.

Use a custom receive LUT based on SYNTH_ LUT_CONFIG_0 and SYNTH_LUT_CONFIG_1, and use a custom transmit LUT. The custom transmit LUT must be written to the 0x10 to 0x18 packet RAM locations.

Rev. 0 | Page 89 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 71. 0x114: RADIO_CFG_8

Bit Name R/W Description

[7] PA_SINGLE_DIFF_SEL R/W

[6:3] PA_LEVEL R/W

[2:0] PA_RAMP R/W

PA_SINGLE_DIFF_SEL PA

0 Single-ended PA enabled 1 Differential PA enabled

Sets the PA output power. A value of zero sets the minimum RF output power, and a value of 15 sets the maximum PA output power. The PA level can also be set with finer resolution using the PA_LEVEL_MCR setting (Address 0x307). The PA_LEVEL setting is related to the PA_LEVEL_MCR setting by

PA_LEVEL_MCR = 4 × PA_LEVEL + 3

PA_ LEVEL PA Level (PA_L E VEL_M CR)

0 Setting 3 1 Setting 7 2 Setting 11 … … 15 Setting 63

Sets the PA ramp rate. The PA ramps at the programmed rate until it reaches the level indicated by the PA_LEVEL_MCR (Address 0x307) setting. The ramp rate is dependent on the programmed data rate.

PA_RAMP Ramp Rate

0 Reserved 1 256 codes per data bit 2 128 codes per data bit 3 64 codes per data bit 4 32 codes per data bit 5 16 codes per data bit 6 Eight codes per data bit 7 Four codes per data bit

To ensure the correct PA ramp-up and -down timing, the PA ramp rate has a minimum value based on the data rate and the PA_LEVEL or PA_LEVEL_MCR settings. This minimum value is described by

where PA_LEVEL_MCR is related to the PA_LEVEL setting by PA_LEVEL_MCR = 4 × PA_LEVEL + 3.

0]:CR[5PA_LEVEL_M



2500</Bit)Rate(CodesRamp

0]:11DATA_RATE[

Rev. 0 | Page 90 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 72. 0x115: RADIO_CFG_9

Bit Name R/W Description

[7:6] IFBW R/W

[5:3] MOD_SCHEME R/W Sets the transmitter modulation scheme.

[2:0] DEMOD_SCHEME R/W Sets the receiver demodulation scheme.

Sets the receiver IF filter bandwidth. Note that setting an IF filter bandwidth of 300 kHz automatically changes the receiver IF frequency from 200 kHz to 300 kHz.

IFBW IF Bandwidth

0 100 kHz 1 150 kHz 2 200 kHz 3 300 kHz

MOD_SCHEME Modulation Scheme

0 Two-level 2FSK/MSK 1 Two-level GFSK/GSMK 2 OOK 3 Carrier only 4 to 7 Reserved

DEMOD_SCHEME Demodulation Scheme

0 2FSK/GFSK/MSK/GMSK 1 Reserved 2 OOK 3 to 7 Reserved

Table 73. 0x116: RADIO_CFG_10

Bit Name R/W Description

[7:5] Reserved R/W Set to 0. [4] AFC_POLARITY R/W Set to 0. [3:2] AFC_SCHEME R/W Set to 2. [1:0] AFC_LOCK_MODE R/W Sets the AFC mode.

AFC_LOCK_MODE Mode

0 Free running: AFC is free running. 1 Disabled: AFC is disabled. 2 Hold AFC: AFC is paused. 3

Lock: AFC locks after the preamble or sync word (only locks on a sync word if PREAMBLE_MATCH = 0).

Rev. 0 | Page 91 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 74. 0x117: RADIO_CFG_11

Bit Name R/W Description

[7:4] AFC_KP R/W

[3:0] AFC_KI R/W

Table 75. 0x118: IMAGE_REJECT_CAL_PHASE

Bit Name R/W Description

[7] Reserved R/W Set to 0 [6:0] IMAGE_REJECT_CAL_PHASE R/W Sets the I/Q phase adjustment

Sets the AFC PI controller proportional gain in 2FSK/GFSK/MSK/GMSK; the recommended value is 0x3. In OOK demodulation, this setting is used to control the OOK threshold loop; the recommended value is 0x3.

AFC_KP Proportional Gain

0 2 1 2 2 2

… … 15 2

Sets the AFC PI controller integral gain in 2FSK/GFSK/MSK/GMSK; the recommended value is 0x7. In OOK modulation, this setting is used to control the OOK threshold loop; the recommended value is 0x6.

AFC_KI Integral Gain

0 2 1 2 2 2

… … 15 2

Table 76. 0x119: IMAGE_REJECT_CAL_AMPLITUDE

Bit Name R/W Description

[7]

Reser ved

R/W Set to 0

[6:0] IMAGE_REJECT_CAL_AMPLITUDE R/W Sets the I/Q amplitude adjustment

Rev. 0 | Page 92 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 77. 0x11A: MODE_CONTROL

Bit Name R/W Description

[7] SWM_EN R/W 1: smart wake mode enabled.

0: smart wake mode disabled.

[6] BB_CAL R/W 1: IF filter calibration enabled.

0: IF filter calibration disabled. IF filter calibration is automatically performed on the transition from the PHY_OFF state to the PHY_ON state if this bit is set.

[5] SWM_RSSI_QUAL R/W 1: RSSI qualify in low power mode enabled.

0: RSSI qualify in low power mode disabled.

[4] TX_TO_RX_AUTO_TURNAROUND R/W

[3] RX_TO_TX_AUTO_TURNAROUND R/W

[2] CUSTOM_TRX_SYNTH_LOCK_TIME_EN R/W

[1] EXT_LNA_EN R/W

[0] EXT_PA_EN R/W

If TX_TO_RX_AUTO_TURNAROUND = 1, the device automatically transitions to the PHY_RX state at the end of a packet transmission, on the same RF channel frequency.

If TX_TO_RX_AUTO_TURNAROUND = 0, this operation is disabled. TX_TO_RX_AUTO_TURNAROUND is only available in packet mode.

If RX_TO_TX_AUTO_TURNAROUND = 1, the device automatically transitions to the PHY_TX state at the end of a valid packet reception, on the same RF channel frequency.

If RX_TO_TX_AUTO_TURNAROUND = 0, this operation is disabled. RX_TO_TX_AUTO_TURNAROUND is only available in packet mode.

1: use the custom synthesizer lock time defined in Register 0x13E and Register 0x13F.

0: default synthesizer lock time. 1: external LNA enable signal on ATB4 is enabled. The signal is logic high while the

ADF7023 is in the PHY_RX state and logic low while in any other nonsleep state. 0: external LNA enable signal on ATB4 is disabled.

1: external PA enable signal on ATB3 is enabled. The signal is logic high while the ADF7023 is in the PHY_TX state and logic low while in any other nonsleep state. 0: external PA enable signal on ADCIN_ATB3 is disabled.

Table 78. 0x11B: PREAMBLE_MATCH

Bit Name R/W Description

[7] EXT_PA_LNA_CONFIG R/W

EXT_PA_LNA_CONFIG Description

[6:4] Reserved R/W Set to 0 [3:0] PREAMBLE_MATCH R/W

PREAMBLE_MATCH Description

12 0 errors allowed. 11 One erroneous bit-pair allowed in 12 bit-pairs. 10 Two erroneous bit-pairs allowed in 12 bit-pairs. 9 Three erroneous bit-pairs allowed in 12 bit-pairs. 8 Four erroneous bit-pairs allowed in 12 bit-pairs. 0 Preamble detection disabled. 1 to 7 Not recommended. 13 to 15 Reserved.

External PA signal on ADCIN_ATB3 and external LNA signal on ATB4 (1.8 V logic outputs)

External PA signal on XOSC32KP_GP5_ATB1 and external LNA signal on XOSC32KN_ATB2 (V

logic

outputs)

Rev. 0 | Page 93 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 79. 0x11C: SYMBOL_MODE

Bit Name R/W Description

[7] Reserved R/W Set to 0. [6] MANCHESTER_ENC R/W 1: Manchester encoding and decoding enabled.

0: Manchester encoding and decoding disabled.

[5] PROG_CRC_EN R/W 1: programmable CRC enabled.

0: programmable CRC disabled.

[4] EIGHT_TEN_ENC R/W 1: 8b/10b encoding and decoding enabled.

0: 8b/10b encoding and decoding disabled.

[3] DATA_WHITENING R/W 1: data whitening and dewhitening enabled.

0: data whitening and dewhitening disabled.

[2:0] SYMBOL_LENGTH R/W

Table 80. 0x11D: PREAMBLE_LEN

Bit Name R/W Description

[7:0] PREAMBLE_LEN R/W

SYMBOL_LENGTH Description

1 10-bit (for 8b/10b encoding). 2 to 7 Reserved.

Length of preamble in bytes. Example: a value of decimal 3 results in a preamble of 24 bits.

8-bit (recommended except when 8b/10b is being used).

Table 81. 0x11E: CRC_POLY_0

Bit Name R/W Description

[7:0] CRC_POLY[7:0] R/W Lower byte of CRC_POLY[15:0], which sets the CRC polynomial.

Table 82. 0x11F: CRC_POLY_1

Bit Name R/W Description

[7:0] CRC_POLY[15:8] R/W

Upper byte of CRC_POLY[15:0], which sets the CRC polynomial. See the Packet Mode section for more details on how to configure a CRC polynomial.

Table 83. 0x120: SYNC_CONTROL

Bit Name R/W Description

[7:6] SYNC_ERROR_TOL R/W Sets the sync word error tolerance in bits.

SYNC_ERROR_TOL Bit Error Tolerance

0 0 bit errors allowed. 1 One bit error allowed. 2 Two bit errors allowed.

3 Three bit errors allowed. [5] Reserved R/W Set to 0. [4:0] SYNC_WORD_LENGTH R/W

Sets the sync word length in bits; 24 bits is the maximum. Note that the sync word matching length can be any value up to 24 bits, but the transmitted sync word pattern is a multiple of eight bits. Therefore, for nonbyte-length sync words, the transmitted sync pattern should be filled out with the preamble pattern.

SYNC_WORD_LENGTH Length in Bits

0 0

1 1

… …

24 24

Rev. 0 | Page 94 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 84. 0x121: SYNC_BYTE_0

Bit Name R/W Description

[7:0] SYNC_BYTE[7:0] R/W

Table 85. 0x122: SYNC_BYTE_1

Bit Name R/W Description

[7:0] SYNC_BYTE[15:8] R/W Middle byte of the sync word pattern.

Table 86. 0x123: SYNC_BYTE_2

Bit Name R/W Description

[7:0] SYNC_BYTE[23:16] R/W Upper byte of the sync word pattern.

Table 87. 0x124: TX_BASE_ADR

Bit Name R/W Description

[7:0] TX_BASE_ADR R/W

Lower byte of the sync word pattern. The sync word pattern is transmitted most significant bit first starting with SYNC_BYTE_0. For nonbyte length sync words, the reminder of the least significant byte should be stuffed with the preamble. If SYNC_WORD_LENGTH length is >16 bits, SYNC_BYTE_0, SYNC_BYTE_1, and SYNC_BYTE_2 are all transmitted for a total of 24 bits. If SYNC_WORD_LENGTH is between 8 and 15, SYNC_BYTE_1 and SYNC_ BYTE_2 are transmitted. If SYNC_WORD_LENGTH is between 1 and 7, SYNC_BYTE_2 is transmitted for a total of eight bits. If the SYNC WORD LENGTH is 0, no sync bytes are transmitted.

Address in packet RAM of the transmit packet. This address indicates to the communications processor the location of the first byte of the transmit packet.

Table 88. 0x125: RX_BASE_ADR

Bit Name R/W Description

[7:0] RX_BASE_ADR R/W

Address in packet RAM of the receive packet. The communications processor writes any qualified received packet to packet RAM, starting at this memory location.

Rev. 0 | Page 95 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 89. 0x126: PACKET_LENGTH_CONTROL

Bit Name R/W Description

[7] DATA_BYTE R/W

[6] PACKET_LEN R/W

[5] CRC_EN R/W 1: append CRC in transmit mode. Check CRC in receive mode.

[4:3] DATA_MODE R/W

[2:0] LENGTH_OFFSET R/W

Over-the-air arrangement of each transmitted packet RAM byte. A byte is transmitted either MSB or LSB first. The same setting should be used on the Tx and Rx sides of the link.

1: data byte MSB first. 0: data byte LSB first.

1: fixed packet length mode. Fixed packet length in Tx and Rx modes, given by PACKET_LENGTH_MAX.

0: variable packet length mode. In Rx mode, packet length is given by the first byte in packet RAM. In Tx mode, the packet length is given by PACKET_LENGTH_MAX.

0: no CRC addition in transmit mode. No CRC check in receive mode. Sets the ADF7023 to packet mode or sport mode for transmit and receive

data.

DATA_MODE Description

0 Packet mode enabled. 1

3 Unused.

Offset value in bytes that is added to the received packet length field value (in variable length packet mode) so that the communications processor knows the correct number of bytes to read.

The communications processor calculates the actual received payload length as

Rx Payload Length = Lengt h + LENGTH_OFFSET − 4

Sport mode enabled. GP4 interrupt enabled on preamble detection. Rx data enabled on preamble detection.

Sport mode enabled. GP4 interrupt enabled on sync word detection. Rx data enabled on preamble detection.

where Length is the length field (the first byte in the received payload).

Table 90. 0x127: PACKET_LENGTH_MAX

Bit Name R/W Description

[7:0] PACKET_LENGTH_MAX R/W

If variable packet length mode is used (PACKET_LENGTH_CONTROL = 0), PACKET_LENGTH_MAX sets the maximum receive packet length in bytes. If fixed packet length mode is used (PACKET_LENGTH_CONTROL = 1), PACKET_LENGTH_MAX sets the length of the fixed transmit and receive packet in bytes. Note that the packet length is defined as the number of bytes from the end of the sync word to the start of the CRC. It also does not include the LENGTH_OFFSET value.

Rev. 0 | Page 96 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 91. 0x128: STATIC_REG_FIX

Bit Name R/W Description

[7:0] STATIC_REG_FIX R/W

The ADF7023 has the ability to implement automatic static register fixes from BBRAM memory to MCR memory. This feature allows a maximum of nine MCR registers to be programmed via BBRAM memory. This feature is useful if MCR registers must be configured for optimum receiver performance in low power mode. The STATIC_REG_FIX value is an address pointer to any BBRAM memory address between 0x12A and 0x13D. For example, to point to BBRAM Address 0x12B, set STATIC_REG_FIX= 0x2B.

 If STATIC_REG_FIX = 0x00, then static register fixes are disabled.  If STATIC_REG_FIX is nonzero, the communications processor looks for

the MCR address and corresponding data at the BBRAM address beginning at STATIC_REG_FIX.

Example: write 0x46 to MCR Register 0x35E and write 0x78 to MCR Register 0x35F. Set STATIC_REG_FIX = 0x2B.

BBRAM Register Data Description

0x128 (STATIC_REG_FIX) 0x2B Pointer to BBRAM Address 0x12B 0x12B 0x5E MCR Address 1 0x12C 0x46 Data to write to MCR Address 1 0x12D 0x5F

MCR Address 2 0x12E 0x78 Data to write to MCR Address 2 0x12F 0x00 Ends static MCR register fixes

Table 92. 0x129: ADDRESS_MATCH_OFFSET

Bit Name R/W Description

[7:0] ADDRESS_MATCH_OFFSET R/W Location of first byte of address information in packet RAM

Table 93. 0x12A: ADDRESS_LENGTH

Bit Name R/W Description

[7:0] ADDRESS_LENGTH R/W

Number of bytes in the first address field (N

). Set to zero if address

ADR_1

filtering is not being used.

Table 94. 0x12B to 0x13D: Address Filtering (or Static Register Fix)

Address Bit R/W Description

0x12B [7:0] R/W Address 1 Match Byte 0. 0x12C [7:0] R/W Address 1 Mask Byte 0. 0x12D [7:0] R/W Address 1 Match Byte 1. 0x12E [7:0] R/W Address 1 Mask Byte 1. … … [7:0] R/W Address 1 Match Byte N [7:0] R/W Address 1 Mask Byte N

ADR_1

[7:0] R/W 0x00 to end or number of bytes in the second address field (N

Table 95. 0x13E: RX_SYNTH_LOCK_TIME

Bit Name R/W Description

[7:0] RX_SYNTH_LOCK_TIME R/W

Allows the use of a custom synthesizer lock time counter in receive mode in conjunction with the CUSTOM_TRX_SYNTH_LOCK_TIME_EN setting in the MODE_CONTROL register. Applies after VCO calibration is complete. Each bit equates to a 2 μs increment.

ADR_2

)

Rev. 0 | Page 97 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 96. 0x13F: TX_SYNTH_LOCK_TIME

Bit Name R/W Description

[7:0] TX_SYNTH_LOCK_TIME R/W

MCR REGISTER DESCRIPTION

The MCR register settings are not retained when the device enters the PHY_SLEEP state.

Table 97. 0x307: PA_LEVEL_MCR

Bit Name R/W Reset Description

[5:0] PA_LEVEL_MCR R/W 0

Table 98. 0x30C: WUC_CONFIG_HIGH

Bit Name R/W Reset Description

[7] Reserved W 0 Set to 0. [6] WUC_BGAP W 0 Set to 0. [5] WUC_LDO_SYNTH W 0 Set to 0. [4] WUC_LDO_DIG W 0 Set to 0. [3] WUC_XTO26M_EN W 0 Set to 0. [2:0] WUC_PRESCALER W 0

Allows the use of a custom synthesizer lock time counter in transmit mode in conjunction with the CUSTOM_TRX_SYNTH_LOCK_TIME_EN setting in the MODE_CONTROL register. Applies after VCO calibration is complete. Each bit equates to a 2 μs increment.

Power amplifier level. If PA ramp is enabled, the PA ramps to this target level. The PA level can be set in the 0 to 63 range. The PA level (with less resolution) can also be set via the BBRAM; therefore, the MCR setting should be used only if more resolution is required.

WUC_PRESCALER 32.768 kHz Divider Tick Period

0 1 30.52 μs 1 4 122.1 μs 2 8 244.1 μs 3 16 488.3 μs 4 128 3.91 ms 5 1034 31.25 ms 6 8192 250 ms 7 65,536 2000 ms

Table 99. 0x30D: WUC_CONFIG_LOW

Bit Name R/W Reset Description

[7] Reserved W 0 Set to 0. [6] WUC_RCOSC_EN W 0 1: enable RCOSC32K.

0: disable RCOSC32K.

[5] WUC_XOSC32K_EN W 0 1: enable XOSC32K.

0: disable XOSC32K.

[4] WUC_CLKSEL W 0 Select the WUC timer clock source.

1: RC 32.768 kHz oscillator. 0: external crystal oscillator.

[3] WUC_BBRAM_EN W 0 1: enable power to the BBRAM during the PHY_SLEEP state.

0: disable power to the BBRAM during the PHY_SLEEP state. [2:1] Reserved W 0 Set to 0. [0] WUC_ARM W 0 1: enable wake-up on a WUC timeout event.

0: disable wake-up on a WUC timeout event.

Updates to Register WUC_VALUE_HIGH become effective only after Register WUC_VALUE_LOW is written to.

Rev. 0 | Page 98 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 100. 0x30E: WUC_VALUE_HIGH

Bit Name R/W Reset Description

[7:0] WUC_TIMER_VALUE[15:8] W 0

Table 101. 0x30F: WUC_VALUE_LOW

Bit Name R/W Reset Description

[7:0] WUC_TIMER_VALUE[7:0] W 0

Table 102. 0x310: WUC_FLAG_RESET

Bit Name R/W Reset Description

[1] WUC_RCOSC_CAL_EN R/W 0 1: enable.

[0] WUC_FLAG_RESET R/W

WUC timer reload value, Bits[15:8] of [15:0]. A wake-up event is triggered when the WUC unit is enabled and the timer has counted down to 0. The timer is clocked with the prescaler output rate. An update to this register becomes effective only after WUC_VALUE_LOW is written.

WUC timer reload value, Bits[7:0] of [15:0]. A wake-up event is triggered when the WUC unit is enabled and the timer has counted down to 0. The timer is clocked with the prescaler output rate.

0: disable RCOSC32K calibration. 1: reset the WUC_TMR_PRIM_TOFLAG and WUC_PORFLAG bits (Address

0x311, Table 103). 0: normal operation.

Table 103. 0x311: WUC_STATUS

Bit Name R/W Reset Description

[7] Reserved R 0 Reserved. [6] WUC_RCOSC_CAL_ERROR R 0 1: RCOSC32K calibration exited with error

0: without error (only valid if WUC_RCOSC_CAL_EN = 1).

[5] WUC_RCOSC_CAL_READY R 0 1: RCOSC32K calibration finished

0: in progress (only valid if WUC_RCOSC_CAL_EN = 1).

[4] XOSC32K_RDY R 0 1: XOSC32K oscillator has settled

0: not settled (only valid if WUC_XOSC32K_EN = 1). [3] XOSC32K_OUT R 0 Output signal of the XOSC32K oscillator (instantaneous). [2] WUC_PORFLAG R 0 1: chip cold start event has been registered.

0: not registered. [1] WUC_TMR_PRIM_TOFLAG R 0 1: WUC timeout event has been registered.

0: not registered (the output of a latch triggered by a timeout event). [0] WUC_TMR_PRIM_TOEVENT R 0 1: WUC timeout event is present.

0: not present (this bit is set when the counter reaches 0; it is not latched).

Table 104. 0x312: RSSI_READBACK

Bit Name R/W Reset Description

[7:0] RSSI_READBACK R 0

Receive input power. After reception of a packet, the RSSI_READBACK value

is valid.

RSSI (dBm) = RSSI_READBACK – 107

Table 105. 0x315: MAX_AFC_RANGE

Bit Name R/W Reset Description

[7:0] MAX_AFC_RANGE R/W 50

Limits the AFC pull-in range. Automatically set by the communications

processor on transitioning into the PHY_RX state. The range is set equal to

half the IF bandwidth. Example: IF bandwidth = 200 kHz, AFC pull-in range

= ±100 kHz (MAX_AFC_RANGE = 100).

Rev. 0 | Page 99 of 108

ADF7023

http://www.BDTIC.com/ADI

Table 106. 0x319: IMAGE_REJECT_CAL_CONFIG

Bit Name R/W Reset Description

[7:6] Reserved R/W 0 [5] IMAGE_REJECT_CAL_OVWRT_EN R/W 0 Overwrite control for image reject calibration results. [4:3] IMAGE_REJECT_FREQUENCY R/W 0

[2:0] IMAGE_REJECT_POWER R/W 0

Table 107. 0x322: CHIP_SHUTDOWN

Bit Name R/W Reset Description

[7:1] Reserved R/W 0 [0] CHIP_SHTDN_REQ R/W 0 WUC chip-state control flag.

Set the fundamental frequency of the IR calibration signal source. A harmonic of this frequency can be used as an internal RF signal source for the image rejection calibration.

0: IR calibration source disabled in XTAL divider 1: IR calibration source fundamental frequency = XTAL/4 2: IR calibration source fundamental frequency = XTAL/8 3: IR calibration source fundamental frequency = XTAL/16

Set power level of IR calibration source. 0: IR calibration source disabled at mixer input 1: power level = min 2: power level = min 3: power level = min × 2 4: power level = min × 2 5: power level = min × 3 6: power level = min × 3 7: power level = min × 4

0: remain in active state. 1: invoke chip shutdown. CS

must also be high to initiate a shutdown.

Table 108. 0x324: POWERDOWN_RX

Bit Name R/W Reset Description

[7:5] Reserved R/W 0 [4] ADC_PD_N R/W 0 1: LNA enabled

0: LNA disabled

[3] RSSI_PD_N R/W 0 1: RSSI enabled

0: RSSI disabled

[2] RXBBFILT_PD_N R/W 0 1: IF filter enabled

0: IF filter disabled

[1] RXMIXER_PD_N R/W 0 1: mixer enabled

0: mixer disabled

[0] LNA_PD_N R/W 0 1: LNA enabled

0: LNA disabled

Table 109. 0x325: POWERDOWN_AUX

Bit Name R/W Reset Description

[7:2] Reserved R/W 0 [1] TEMPMON_PD_EN R/W 0 1: enable

0: disable temperature monitor

[0] BATTMON_PD_EN R/W 0 1: enable

0: disable battery monitor

Rev. 0 | Page 100 of 108

ANALOG DEVICES ADF7023 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

APPLICATIONS

TABLE OF CONTENTS

REVISION HISTORY

FUNCTIONAL BLOCK DIAGRAM

GENERAL DESCRIPTION

SPECIFICATIONS

RF AND SYNTHESIZER SPECIFICATIONS

TRANSMITTER SPECIFICATIONS

RECEIVER SPECIFICATIONS

TIMING AND DIGITAL SPECIFICATIONS

AUXILARY BLOCK SPECIFICATIONS

GENERAL SPECIFICATIONS

TIMING SPECIFICATIONS

Timing Diagrams

ABSOLUTE MAXIMUM RATINGS

ESD CAUTION

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

TYPICAL PERFORMANCE CHARACTERISTICS

TERMINOLOGY

RADIO CONTROL

RADIO STATES

PHY_SLEEP

PHY_OFF

PHY_ON

PHY_TX

PHY_RX

Current Consumption

INITIALIZATION

Initialization After Application of Power

Initialization After Issuing the CMD_HW_RESET Command

Initialization on Transitioning from PHY_SLEEP (After CS Is Brought Low)

Initialization After a WUC Timeout

COMMANDS

CMD_PHY_OFF (0xB0)

CMD_PHY_ON (0xB1)

CMD_PHY_SLEEP (0xBA)

CMD_PHY_RX (0xB2)

CMD_PHY_TX (0xB5)

CMD_CONFIG_DEV (0xBB)

CMD_GET_RSSI (0xBC)

CMD_BB_CAL (0xBE)

CMD_SYNC (0xA2)

CMD_HW_RESET (0xC8)

CMD_RAM_LOAD_INIT (0xBF)

CMD_RAM_LOAD_DONE (0xC7)

CMD_IR_CAL (0xBD)

CMD_AES_ENCRYPT (0xD0), CMD_AES_DECRYPT (0xD2), and CMD_AES_DECRYPT_INIT (0xD1)

CMD_RS_ENCODE_INIT (0xD1), CMD_RS_ENCODE (0xD0), and CMD_RS_DECODE (0xD2)

AUTOMATIC STATE TRANSITIONS

TX_EOF

RX_EOF

RX_TO_TX_AUTO_TURNAROUND

TX_TO_RX_AUTO_TURNAROUND

WUC Timeout

STATE TRANSITION AND COMMAND TIMING

PACKET MODE

PREAMBLE

SYNC WORD

Choice of Sync Word

PAYLOAD

Byte Orientation

Packet Length Modes

Addressing

Example Address Check

POSTAMBLE

TRANSMIT PACKET TIMING

DATA WHITENING

MANCHESTER ENCODING

8B/10B ENCODING

SPORT MODE

PACKET STRUCTURE IN SPORT MODE

SPORT MODE IN TRANSMIT

SPORT MODE IN RECEIVE

TRANSMIT BIT LATENCIES IN SPORT MODE

INTERRUPT GENERATION
