Active and Apparent Energy Metering IC

with di/dt sensor interface

Preliminary Technical Data

FEATURES High Accuracy, supports IEC 61036 and IEC61268 On-Chip Digital Integrator enables direct interface with

current sensors with di/dt output

The ADE7753 supplies Active, Reactive and Apparent

Energy, Sampled Waveform, Current and Voltage RMS Less than 0.1% error over a dynamic range of 1000 to 1 Positive only energy accumulation mode available An On-Chip user Programmable threshold for line

voltage surge and SAG, and PSU supervisory Digital Power, Phase & Input Offset Calibration An On-Chip temperature sensor (±3°C typical) A SPI compatible Serial Interface A pulse output with programmable frequency An Interrupt Request pin (IRQ) and Status register Proprietary ADCs and DSP provide high accuracy data over

large variations in environmental conditions and time Reference 2.4V±8% (20 ppm/°C typical)

with external overdrive capability Single 5V Supply, Low power (25mW typical)

GENERAL DESCRIPTIONGENERAL DESCRIPTION

GENERAL DESCRIPTION

GENERAL DESCRIPTIONGENERAL DESCRIPTION

The ADE7753 is an accurate active and apparent energy measurements IC with a serial interface and a pulse output. The ADE7753 incorporates two second order sigma delta ADCs, a digital integrator (on CH1), reference circuitry, temperature sensor, and all the signal processing required to perform RMS calculation on the voltage and current, active, reactive, and apparent energy measurement.

An on-chip digital integrator provides direct interface to di/ dt current sensors such as Rogowski coils. The digital integrator eliminates the need for external analog integrator, and this solution provides excellent long-term stability and

FUNCTIONAL BLOCK DIAGRAMFUNCTIONAL BLOCK DIAGRAM

FUNCTIONAL BLOCK DIAGRAM

FUNCTIONAL BLOCK DIAGRAMFUNCTIONAL BLOCK DIAGRAM

HPF

PHCAL[5:0]

RESET

INTEGRATOR

冮

LPF1

MULTIPLIER

IRMSOS[11:0]

VRMSOS[11:0]

V1P

V1N

V2P

V2N

PGA

TEMP

SENSOR

PGA

2.4V

REFERENCE

AVDD

ADC

4kΩ

ADE7753*

precise phase matching between the current and voltage channels. The integrator can be switched on and off based on the current sensor selected. The ADE7753 contains an Active Energy register, an Apparent Energy register capable of holding at least TBD seconds of accumulated power at full load and rms calculation for both inputs. Data is read from the ADE7753 via the serial interface. The ADE7753 also provides a pulse output (CF) with output frequency is proportional to the active power. In addition to rms calculation and active and apparent power information, the ADE7753 also accumulates the signed reactive energy. The ADE7753 also provides various system calibration features, i.e., channel offset correction, phase calibration and power calibration. The part also incorporates a detection circuit for short duration low or high voltage variations. The ADE7753 has a positive only accumulation mode which gives the option to accumulate energy only when positive power is detected. An internal no-load threshold ensures that the part does not exhibit any creep when there is no load. A zero crossing output (ZX) produces an output which is synchronized to the zero crossing point of the line voltage. This information is used in the ADE7753 to measure the line's period. The signal is also used internally to the chip in the line cycle Active and Apparent energy accumulation mode. This enables a faster and more precise energy accumulation and is useful during calibration. This signal is also useful for synchronization of relay switching with a voltage zero crossing. The interrupt request output is an open drain, active low logic output. The Interrupt Status Register indicates the nature of the interrupt, and the Interrupt Enable Register controls which event produces an output on the The ADE7753 is available in 20-lead SSOP package.

DVDD

DGND

ADE7753

CFNUM[11:0]

DFC

CFDEN[11:0]

WDIV[7:0]

SAG

LPF2

WGAIN[11:0]

APOS[15:0]

VAGAIN[11:0]

VADIV[7:0]

ADE7753 REGISTERS & SERIAL INTERFACE

IRQ pin.

REF

AGND

*U.S. Patents 5,745,323; 5,760,617; 5,862,069; 5,872,469; others Pending.

IN/OUT

CLKIN

CLKOUT

REV. PrC 1/02

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

DIN DOUT SCLK CS

One Technology Way, P.O. Box 9106, Norwood. MA 02062-9106, U.S.A. Tel: 781/329-4700 www.analog.com Fax: 781/326-8703 © Analog Devices, Inc., 2002

IRQ

PRELIMINARY TECHNICAL DA TA

ADE7753–SPECIFICA TIONS

1,3

Parameter Spec Units Test Conditions/Comments

ENERGY MEASUREMENT ACCURACY

Measurement Bandwidth 14 kHz CLKIN = 3.579545 MHz Measurement Error

Channel 1 Range = 0.5V full-scale

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1

Gain = 2 0.1 % typ Over a dynamic range 1000 to 1

Gain = 4 0.1 % typ Over a dynamic range 1000 to 1

Gain = 8 0.1 % typ Over a dynamic range 1000 to 1

Gain = 16 0.2 % typ Over a dynamic range 1000 to 1

Channel 1 Range = 0.25V full-scale

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1

Gain = 2 0.1 % typ Over a dynamic range 1000 to 1

Gain = 4 0.1 % typ Over a dynamic range 1000 to 1

Gain = 8 0.2 % typ Over a dynamic range 1000 to 1

Gain = 16 0.2 % typ Over a dynamic range 1000 to 1

Channel 1 Range = 0.125V full-scale

Gain = 1 0.1 % typ Over a dynamic range 1000 to 1

Gain = 2 0.1 % typ Over a dynamic range 1000 to 1

Gain = 4 0.2 % typ Over a dynamic range 1000 to 1

Gain = 8 0.2 % typ Over a dynamic range 1000 to 1

Gain = 16 0.4 % typ Over a dynamic range 1000 to 1

Phase Error

AC Power Supply Rejection

Output Frequency Variation (CF) 0.2 % typ Channel 1 = 20mV rms, Gain = 16, Range = 0.5V

DC Power Supply Rejection

Output Frequency Variation (CF) ±0.3 % typ Channel 1 = 20mV rms/60Hz, Gain = 16, Range = 0.5V

ANALOG INPUTS See Analog Inputs Section

Maximum Signal Levels ±0.5 V max V1P, V1N, V2N and V2P to AGND Input Impedance (dc) 390 kΩ min Bandwidth 14 kHz CLKIN/256, CLKIN = 3.579545MHz Gain Error

Channel 1

Channel 2 ±4 % typ V2 = 0.5V dc

Gain Error Match

Channel 1

Channel 2 ±0.3 % typ Gain = 1, 2, 4, 8, 16

Offset Error

Channel 1 ±10 mV max Channel 1 Range = 0.5V Channel 2 ±10 mV max Channel 2 Range = 0.5V

WAVEFORM SAMPLING Sampling CLKIN/128, 3.579545MHz/128 = 27.9kSPS

Channel 1 See Channel 1 Sampling

Signal-to-Noise plus distortion 62 dB typ 150mV rms/60Hz, Range = 0.5V, Gain = 2 Bandwidth (-3dB) 14 kHz CLKIN = 3.579545MHz

Channel 2 See Channel 2 Sampling

Signal-to-Noise plus distortion 52 dB typ 150mV rms/60Hz, Gain = 2 Bandwidth (-3dB) 140 Hz CLKIN = 3.579545MHz

1,4

Range = 0.5V full-scale ±4 % typ V1 = 0.5V dc

Range = 0.25V full-scale ±4 % typ V1 = 0.25V dc

Range = 0.125V full-scale ±4 % typ V1 = 0.125V dc

Range = 0.5V full-scale ±0.3 % typ Gain = 1, 2, 4, 8, 16

Range = 0.25V full-scale ±0.3 % typ Gain = 1, 2, 4, 8, 16

Range = 0.125V full-scale ±0.3 % typ Gain = 1, 2, 4, 8, 16

on Channel 1 Channel 2 = 300mV rms/60Hz, Gain = 2

Between Channels ±0.05 ° max Line Frequency = 45Hz to 65Hz, HPF on

(AVDD = DVDD = 5V ± 5%, AGND = DGND = 0V, On-Chip Reference, CLKIN = 3.579545MHz XTAL, TMIN to TMAX = -40°C to +85°C)

AVDD = DVDD = 5V+175mV rms/ 120Hz Channel 2 = 300mV rms/60Hz, Gain = 1

AVDD = DVDD = 5V ± 250mV dc Channel 2 = 300mV rms/60Hz, Gain = 1

External 2.5V reference, Gain = 1 on Channel 1 & 2

External 2.5V reference

-2-

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

Parameter Spec Units Test Conditions/Comments

REFERENCE INPUT

REF

Input Capacitance 10 pF max

ON-CHIP REFERENCE Nominal 2.4V at REF

Reference Error ±200 mV max

Current source 10 µA max

Output Impedance 4 kΩ min

Temperature Coefficient 20 ppm/°C typ

CLKIN Note all specifications CLKIN of 3.579545MHz

Input Clock Frequency 4 MHz max

LOGIC INPUTS

RESET, DIN, SCLK, CLKIN and CS

Input High Voltage, V Input Low Voltage, V Input Current, I Input Capacitance, C

LOGIC OUTPUTS

SAG & IRQ Open Drain outputs, 10kΩ pull up resistor

Output High Voltage, V Output Low Voltage, V

ZX & DOUT

Output High Voltage, V Output Low Voltage, V

POWER SUPPLY For specified Performance

NOTES:

See Terminology Section for explanation of Specifications

See Plots in Typical Performance Graphs

Specifications subject to change without notice

See Analog Inputs Section

Input Voltage Range 2.6 V max 2.4 V +8%

IN/OUT

2.2 V min 2.4V -8%

1 MHz min

INH

INL

2.4 V min DVDD = 5 V ± 10%

0.8 V max DVDD = 5 V ± 10% ±3 µA max Typically 10nA, VIN = 0V to DV 10 pF max

4 V min I

0.4 V max I 4 V min I

1 V max I

4.75 V min 5V - 5 %

5.25 V max 5V +5%

4.75 V min 5V - 5 %

5.25 V max 5V + 5% 3 mA max Typically 2.0 mA 4 mA max Typically 3.0 mA

SOURCE

= 0.8mA

SINK

SOURCE

= 0.8mA

SINK

SOURCE

= 7mA

SINK

= 5mA

IN/OUT

TO OUTPUT PIN

Load Circuit for Timing Specifications

REV. PrC 01/02

50pF

ORDERING GUIDEORDERING GUIDE

ORDERING GUIDE

ORDERING GUIDEORDERING GUIDE

MODEL Package Option* ADE7753ARS RS-20

200 µA

ADE7753ARSRL RS-20

+2.1V

1.6 mA

EVAL-ADE7753EB ADE7753 evaluation board

* RS = Shrink Small Outline Package in tubes; RSRL = Shrink Small Outline Package in reel.

–3–

PRELIMINARY TECHNICAL DA TA

ADE7753 ADE7753 TIMING CHARACTERISTICS

1,2

Parameter A,B Versions Units Test Conditions/Comments

Write timing

20 ns (min) CS falling edge to first SCLK falling edge 150 ns (min) SCLK logic high pulse width 150 ns (min) SCLK logic low pulse width 10 ns (min) Valid Data Set up time before falling edge of SCLK 5 ns (min) Data Hold time after SCLK falling edge TBD ns (min) Minimum time between the end of data byte transfers. TBD ns (min) Minimum time between byte transfers during a serial write. 100 ns (min) CS Hold time after SCLK falling edge.

Read timing

TBD ns (min) Minimum time between read command (i.e. a write to Communication

Reigster) and data read.

TBD ns (min) Minimum time between data byte transfers during a multibyte read. 30 ns (min) Data access time after SCLK rising edge following a write to the

Communications Register 100 ns (max) Bus relinquish time after falling edge of SCLK. 10 ns (min) 100 ns (max) Bus relinquish time after rising edge of CS. 10 ns (min)

(AVDD = DVDD = 5V ± 5%, AGND = DGND = 0V, On-Chip Reference, CLKIN = 3.579545MHz XTAL, TMIN to TMAX = -40°C to +85°C)

NOTES

Sample tested during initial release and after any redesign or process change that may affect this parameter. All input signals are specified with tr = tf = 5ns (10% to 90%) and timed from a voltage level of 1.6V.

See timing diagram below and Serial Interface section of this data sheet.

Measured with the load circuit in Figure 1 and defined as the time required for the output to cross 0.8V or 2.4V.

Derived from the measured time taken by the data outputs to change 0.5V when loaded with the circuit in Figure 1. The measured number is then extrapolated back to remove the effects of charging or discharging the 50pF capacitor. This means that the time quoted in the timing characteristics is the true bus relinquish time of the part and is independent of the bus loading.

Serial Write TimingSerial Write Timing

Serial Write Timing

Serial Write TimingSerial Write Timing

SCLK

DIN

t2t

Command Byte

A4 A3 A2 A1 A0

Serial Read TimingSerial Read Timing

Serial Read Timing

Serial Read TimingSerial Read Timing

DB7

Most Significant Byte

DB0 DB7

Least Significant Byte

DB0

SCLK

DIN

DOUT

000

A4 A3 A2

Command Byte

–4–

DB7

Most Significant Byte

DB0

DB7

Least Significant Byte

DB0

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ABSOLUTE MAXIMUM RATINGS*ABSOLUTE MAXIMUM RATINGS*

ABSOLUTE MAXIMUM RATINGS*

ABSOLUTE MAXIMUM RATINGS*ABSOLUTE MAXIMUM RATINGS*

(TA = +25°C unless otherwise noted)

AVDD to AGND . . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V

to DGND . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V

toAVDD . . . . . . . . . . . . . . . . . . . . . –0.3 V to +0.3 V

Analog Input Voltage to AGND

V1P, V1N, V

Reference Input Voltage to AGND . . . . –0.3 V to AV

and V

. . . . . . . . . . . . . . . . . .

-6V to +6V

0.3 V Digital Input Voltage to DGND –0.3 V to DV Digital Output Voltage to DGND –0.3 V to DV

+ 0.3 V

Operating Temperature Range

Industrial . . . . . . . . . . . . . . . . . . . . . . . . –40°C to +85°C

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the ADE7753 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.

Storage Temperature Range . . . . . . . . –65°C to +150°C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . +150°C

20 Pin SSOP, Power Dissipation . . . . . . . . . . . . 450 mW

Thermal Impedance . . . . . . . . . . . . . . . . . . . 112°C/W

Lead Temperature, Soldering

Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . +215°C

Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . +220°C

Stresses above those listed under “Absolute Maximum Ratings” may cause permanent

damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ADE7753

WARNING!

ESD SENSITIVE DEVICE

T erminology

MEASUREMENT ERRORMEASUREMENT ERROR

MEASUREMENT ERROR

MEASUREMENT ERRORMEASUREMENT ERROR

The error associated with the energy measurement made by the ADE7753 is defined by the following formula:

ErrorPercentage

æ ç

ç è

PHASE ERROR BETWEEN CHANNELSPHASE ERROR BETWEEN CHANNELS

PHASE ERROR BETWEEN CHANNELS

PHASE ERROR BETWEEN CHANNELSPHASE ERROR BETWEEN CHANNELS

7753

EnergyTrue

The digital integrator and the HPF (High Pass Filter) in Channel 1 have non-ideal phase response. To offset this phase response and equalize the phase response between channels, two phase correction network is placed in Channel 1: one for the digital integrator and the other for the HPF. Each phase correction network corrects the phase response of the corresponding component and ensures a phase match between Channel 1 (current) and Channel 2 (voltage) to within ±0.1° over a range of 45Hz to 65Hz and ±0.2° over a range 40Hz to 1kHz.

POWER SUPPLY REJECTIONPOWER SUPPLY REJECTION

POWER SUPPLY REJECTION

POWER SUPPLY REJECTIONPOWER SUPPLY REJECTION

This quantifies the ADE7753 measurement error as a percentage of reading when the power supplies are varied. For the AC PSR measurement a reading at nominal supplies (5V) is taken. A second reading is obtained with the same input signal levels when an ac (175mV rms/120Hz) signal is introduced onto the supplies. Any error introduced by this AC signal is expressed as a percentage of reading—see Measurement Error definition above. For the DC PSR measurement a reading at nominal supplies (5V) is taken. A second reading is obtained with the same

EnergyTrueADEbyregisteredEnergy

100

÷ ø

input signal levels when the supplies are varied ±5%. Any error introduced is again expressed as a percentage of reading.

ADC OFFSET ERRORADC OFFSET ERROR

ADC OFFSET ERROR

ADC OFFSET ERRORADC OFFSET ERROR

This refers to the DC offset associated with the analog inputs to the ADCs. It means that with the analog inputs connected to AGND the ADCs still see a dc analog input signal. The magnitude of the offset depends on the gain and input range selection - see characteristic curves. However, when HPF1 is switched on the offset is removed from Channel 1 (current) and the power calculation is not affected by this offset. The offsets may be removed by performing an offset calibration see Analog Inputs.

GAIN ERRORGAIN ERROR

GAIN ERROR

GAIN ERRORGAIN ERROR

The gain error in the ADE7753 ADCs is defined as the difference between the measured ADC output code (minus the offset) and the ideal output code - see Channel 1 ADC & Channel 2 ADC. It is measured for each of the input ranges on Channel 1 (0.5V, 0.25V and 0.125V). The difference is expressed as a percentage of the ideal code.

GAIN ERROR MATCHGAIN ERROR MATCH

GAIN ERROR MATCH

GAIN ERROR MATCHGAIN ERROR MATCH

The Gain Error Match is defined as the gain error (minus the offset) obtained when switching between a gain of 1 (for each of the input ranges) and a gain of 2, 4, 8, or 16. It is expressed as a percentage of the output ADC code obtained under a gain of 1. This gives the gain error observed when the gain selection is changed from 1 to 2, 4, 8 or 16.

REV. PrC 01/02

–5–

ADE7753

PRELIMINARY TECHNICAL DA TA

PIN FUNCTION DESCRIPTIONPIN FUNCTION DESCRIPTION

PIN FUNCTION DESCRIPTION

PIN FUNCTION DESCRIPTIONPIN FUNCTION DESCRIPTION

Pin No.Pin No.

Pin No.

Pin No.Pin No.

2DV

3AV

4,5 V1P, V1N Analog inputs for Channel 1. This channel is intended for use with the di/dt current

6,7 V2N, V2P Analog inputs for Channel 2. This channel is intended for use with the voltage trans-

8 AGND This pin provides the ground reference for the analog circuitry in the ADE7753, i.e.

9 REF

10 DGND This provides the ground reference for the digital circuitry in the ADE7753, i.e. multi-

11 CF Calibration Frequency logic output. The CF logic output gives Active Power informa-

12 ZX Voltage waveform (Channel 2) zero crossing output. This output toggles logic high and

MNEMONICMNEMONIC

MNEMONIC

MNEMONICMNEMONIC

RESET Reset pin for the ADE7753. A logic low on this pin will hold the ADCs and digital

circuitry (including the Serial Interface) in a reset condition.

IN/OUT

SAG This open drain logic output goes active low when either no zero crossings are detected

IRQ Interrupt Request Output. This is an active low open drain logic output. Maskable

Digital power supply. This pin provides the supply voltage for the digital circuitry in the ADE7753. The supply voltage should be maintained at 5V ± 5% for specified operation. This pin should be decoupled to DGND with a 10µF capacitor in parallel with a ceramic 100nF capacitor.

Analog power supply. This pin provides the supply voltage for the analog circuitry in the ADE7753. The supply should be maintained at 5V ± 5% for specified operation. Every effort should be made to minimize power supply ripple and noise at this pin by the use of proper decoupling. The typical performance graphs in this data sheet show the power supply rejection performance. This pin should be decoupled to AGND with a 10µF capacitor in parallel with a ceramic 100nF capacitor.

transducer such as Rogowski coil or other current sensor such as shunt or current transformer (CT). These inputs are fully differential voltage inputs with maximum differential input signal levels of ±0.5V, ±0.25V and ±0.125V, depending on the full scale selection - See Analog Inputs. Channel 1 also has a PGA with gain selections of 1, 2, 4, 8 or 16. The maximum signal level at these pins with respect to AGND is ±0.5V. Both inputs have internal ESD protection circuitry and in addition an overvoltage of ±6V can be sustained on these inputs without risk of permanent damage.

ducer. These inputs are fully differential voltage inputs with a maximum differential signal level of ±0.5V. Channel 2 also has a PGA with gain selections of 1, 2, 4, 8 or

16. The maximum signal level at these pins with respect to AGND is ±0.5V. Both inputs have internal ESD protection circuitry, and an overvoltage of ±6V can be sustained on these inputs without risk of permanent damage.

ADCs and reference. This pin should be tied to the analog ground plane or the quietest ground reference in the system. This quiet ground reference should be used for all analog circuitry, e.g. anti-aliasing filters, current and voltage transducers etc. In order to keep ground noise around the ADE7753 to a minimum, the quiet ground plane should only connected to the digital ground plane at one point. It is acceptable to place the entire device on the analog ground plane - see Applications Information.

This pin provides access to the on-chip voltage reference. The on-chip reference has a nominal value of 2.4V ± 8% and a typical temperature coefficient of 20ppm/°C. An external reference source may also be connected at this pin. In either case this pin should be decoupled to AGND with a 1µF ceramic capacitor.

plier, filters and digital-to-frequency converter. Because the digital return currents in the ADE7753 are small, it is acceptable to connect this pin to the analog ground plane of the system - see Applications Information. However, high bus capacitance on the DOUT pin may result in noisy digital current which could affect performance.

tion. This output is intended to be used for operational and calibration purposes. The full-scale output frequency can be adjusted by writing to the CFDEN and CFNUM Register—see Energy To Frequency Conversion.

low at the zero crossing of the differential signal on Channel 2—see Zero Crossing Detection.

or a low voltage threshold (Channel 2) is crossed for a specified duration. See Line Volt-

age Sag Detection.

interrupts include: Active Energy Register roll-over, Active Energy Register at half level, and arrivals of new waveform samples. See ADE7753 Interrupts.

DESCRIPTIONDESCRIPTION

DESCRIPTION

DESCRIPTIONDESCRIPTION

–6–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

Pin No.Pin No.

Pin No.

Pin No.Pin No.

MNEMONICMNEMONIC

MNEMONIC

MNEMONICMNEMONIC

DESCRIPTIONDESCRIPTION

DESCRIPTION

DESCRIPTIONDESCRIPTION

15 CLKIN Master clock for ADCs and digital signal processing. An external clock can be pro-

vided at this logic input. Alternatively, a parallel resonant AT crystal can be connected across CLKIN and CLKOUT to provide a clock source for the ADE7753. The clock frequency for specified operation is 3.579545MHz. Ceramic load capacitors of between 22pF and 33pF should be used with the gate oscillator circuit. Refer to crystal manufacturers data sheet for load capacitance requirements.

16 CLKOUT A crystal can be connected across this pin and CLKIN as described above to provide a

clock source for the ADE7753. The CLKOUT pin can drive one CMOS load when either an external clock is supplied at CLKIN or a crystal is being used.

CS Chip Select. Part of the four wire SPI Serial Interface. This active low logic input al-

lows the ADE7753 to share the serial bus with several other devices. See ADE7753 Serial Interface.

18 SCLK Serial Clock Input for the synchronous serial interface. All Serial data transfers are

synchronized to this clock—see ADE7753 Serial Interface. The SCLK has a schmitt-trigger input for use with a clock source which has a slow edge transition time, e.g., optoisolator outputs.

19 DOUT Data Output for the Serial Interface. Data is shifted out at this pin on the rising edge of

SCLK. This logic output is normally in a high impedance state unless it is driving data onto the serial data bus—see ADE7753 Serial Interface..

20 DIN Data Input for the Serial Interface. Data is shifted in at this pin on the falling edge of

SCLK—see ADE7753 Serial Interface..

REF

RESET

DVDD AVDD

V1P

V1N

V2N V2P

AGND

IN/OUT

DGND

PIN CONFIGURATIONPIN CONFIGURATION

PIN CONFIGURATION

PIN CONFIGURATIONPIN CONFIGURATION

SSOP Packages

20 19 18 17

15 14 13 12

DIN DOUT SCLK CS CLKOU CLKIN IRQ

SAG ZX CF

1 2 3 4 5 6 7 8 9

ADE7753

TOP VIEW

(Not to Scale)

REV. PrC 01/02

–7–

PRELIMINARY TECHNICAL DA TA

ADE7753

Typical Performance Characteristics-ADE7753

–8–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

V.I

frequency (rad/s)

ω 2ω

VOS.I

IOS.V

DC component (including error term) is extracted by the LPF for real power calculation

ANALOG INPUTSANALOG INPUTS

ANALOG INPUTS

ANALOG INPUTSANALOG INPUTS

The ADE7753 has two fully differential voltage input channels. The maximum differential input voltage for input pairs V1P/V1N and V2P/V2N are ±0.5V. In addition, the maximum signal level on analog inputs for V1P/V1N and V2P/ V2N are ±0.5V with respect to AGND. Each analog input channel has a PGA (Programmable Gain Amplifier) with possible gain selections of 1, 2, 4, 8 and 16. The gain selections are made by writing to the Gain register—see Figure 2. Bits 0 to 2 select the gain for the PGA in Channel 1 and the gain selection for the PGA in Channel 2 is made via bits 5 to 7. Figure 1 shows how a gain selection for Channel 1 is made using the Gain register.

GAIN[7:0]

Gain (k)

k.V

selection

Offset Adjust (±50mV)

V1P

V1N

CH1OS[7:0] Bit 0 to 5: Sign magnitude coded offset correction Bit 6: Not used Bit 7: Digital Integrator (On=1, Off=0; default ON)

Figure 1— PGA in Channel 1

In addition to the PGA, Channel 1 also has a full scale input range selection for the ADC. The ADC analog input range selection is also made using the Gain register—see Figure 2. As mentioned previously the maximum differential input voltage is 1V. However, by using bits 3 and 4 in the Gain register, the maximum ADC input voltage can be set to 0.5V,

0.25V or 0.125V. This is achieved by adjusting the ADC reference—see ADE7753 Reference Circuit. Table I below sum- marizes the maximum differential input signal level on Channel 1 for the various ADC range and gain selections.

ADE7753

GAIN REGISTER*

Channel 1 and Channel 2 PGA Control

PGA 2 Gain Select 000 = x1 001 = x2 010 = x4 011 = x8 100 = x16

*Register contents show power on defaults

Figure 2— ADE7753 Analog Gain register

It is also possible to adjust offset errors on Channel 1 and Channel 2 by writing to the Offset Correction Registers (CH1OS and CH2OS respectively). These registers allow channel offsets in the range ±20mV to ±50mV (depending on the gain setting) to be removed. Note that it is not necessary to perform an offset correction in an Energy measurement application if HPF in Channel 1 is switched on. Figure 3 shows the effect of offsets on the real power calculation. As can be seen from Figure 3, an offset on Channel 1 and Channel 2 will contribute a dc component after multiplication. Since this dc component is extracted by LPF2 to generate the Active (Real) Power information, the offsets will have contributed an error to the Active Power calculation. This problem is easily avoided by enabling HPF in Channel

1. By removing the offset from at least one channel, no error component is generated at dc by the multiplication. Error terms at Cos(w.t) are removed by LPF2 and by integration of the Active Power signal in the Active Energy register (AENERGY[23:0]) – see Energy Calculation.

01234

ADDR: 0FH

00000000

PGA 1 Gain Select 000 = x1 001 = x2 010 = x4 011 = x8 100 = x16

Channel 1 Full Scale Select 00 = 0.5V 01 = 0.25V 10 = 0.125V

Table ITable I

Table I

Table ITable I

Maximum input signal levels for Channel 1

Max SignalMax Signal

Max Signal

Max SignalMax Signal Channel 1Channel 1

Channel 1

Channel 1Channel 1

0.5V Gain = 1 ——

0.25V Gain = 2 Gain = 1 —

0.125V Gain = 4 Gain = 2 Gain = 1

ADC Input Range SelectionADC Input Range Selection

ADC Input Range Selection

ADC Input Range SelectionADC Input Range Selection

0.5V0.5V

0.5V

0.5V0.5V

0.25V0.25V

0.25V

0.25V0.25V

0.125V0.125V

0.125V

0.125V0.125V

0.0625V Gain = 8 Gain = 4 Gain = 2

0.0313V Gain = 16 Gain = 8 Gain = 4

0.0156V — Gain = 16 Gain = 8

0.00781V ——Gain = 16

REV. PrC 01/02

Figure 3— Effect of channel offsets on the real power cal-

culation

The contents of the Offset Correction registers are 6-Bit, sign and magnitude coded. The weighting of the LSB size depends on the gain setting, i.e., 1, 2, 4, 8 or 16. Table II below shows the correctable offset span for each of the gain settings and the LSB weight (mV) for the Offset Correction registers. The maximum value which can be written to the offset correction registers is ±31 decimal —see Figure 4. Figure 4 shows the relationship between the Offset Correction register contents and the offset (mV) on the analog inputs for a gain setting of one. In order to perform an offset adjustment, The analog inputs should be first connected to AGND, and there should be no signal on either Channel 1 or Channel 2. A read from Channel 1 or Channel 2 using the

–9–

ADE7753

PRELIMINARY TECHNICAL DA TA

Table IITable II

Table II

Table IITable II

Offset Correction range

GainGain

Gain

GainGain

Correctable SpanCorrectable Span

Correctable Span

Correctable SpanCorrectable Span

LSB SizeLSB Size

LSB Size

LSB SizeLSB Size

1 ±50mV 1.61mV/LSB 2 ±37mV 1.19mV/LSB 4 ±30mV 0.97mV/LSB 8 ±26mV 0.84mV/LSB 16 ±24mV 0.77mV/LSB

Waveform register will give an indication of the offset in the channel. This offset can be canceled by writing an equal and opposite offset value to the relevant offset register. The offset correction can be confirmed by performing another read. Note when adjusting the offset of Channel 1, one should disable the digital integrator and the HPF.

CH1OS[5:0]

Sign + 5 Bits

01, 1111b

1Fh

00h

3Fh

0mV

11, 1111b

+50mV

Offset Adjust

Sign + 5 Bits

-50mV

Figure 4– Channel Offset Correction Range (Gain = 1)

di/dtdi/dt

CURRENT SENSOR AND DIGITAL INTEGRATOR CURRENT SENSOR AND DIGITAL INTEGRATOR

di/dt

CURRENT SENSOR AND DIGITAL INTEGRATOR

di/dtdi/dt

CURRENT SENSOR AND DIGITAL INTEGRATOR CURRENT SENSOR AND DIGITAL INTEGRATOR

di/dt sensor detects changes in magetic field caused by ac current. Figure 5 shows the principle of a di/dt current sensor.

The current signal needs to be recovered from the di/dt signal before it can be used. An integrator is therefore necessary to restore the signal to its original form. The ADE7753 has a built-in digital integrator to recover the current signal from the di/dt sensor. The digital integrator on Channel 1 is switched on by default when the ADE7753 is powered up. Setting the MSB of CH1OS register will turn on the integrator. Figures 6 to 9 show the magnitude and phase response of the digital integrator.

-10

GAIN-dB

-20

-30

-40

-50

-60

FREQUENCY-Hz

Figure 6– Combined gain response of the digital integrator

and phase compensator

-88

-88.5

-89

-89.5

-90

PHASE-DEGREES

-90.5

-91

-91.5

-92

FREQUENCY-Hz

Magnetic field created by current (directly proportional to current)

EMF (electromotive force) induced by changes in

magnetic flux density (d/dt)

Figure 5– Principle of a di/dt current sensor

The flux density of a magnetic field induced by a current is directly proportional to the magnitude of the current. The changes in the magnetic flux density passing through a conductor loop generates an electromotive force (EMF) between the two ends of the loop. The EMF is a voltage signal which is proportional to the di/dt of the current. The voltage output from the di/dt current sensor is determined by the mutual inductance between the current carrying conductor and the di/dt sensor.

–10–

Figure 7– Combined phase response of the digital integra-

tor and phase compensator

-1

-2

-3

GAIN-dB

-4

-5

-6 40 45 50 55 60 65 70

FREQUENCY-Hz

Figure 8– Combined gain response of the digital integrator

and phase compensator (40Hz to 70Hz)

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

-89.985

-89.99

-89.995

-90

PHASE-DEGREES

-90.005

-90.01

-90.015

-90.02 40 45 50 55 60 65 70

Figure 9– Combined phase response of the digital integra-

tor and phase compensator (40Hz to 70Hz)

Note that the integrator has a -20dB/dec attenuation and approximately -90° phase shift. When combined with a di/dt sensor, the resulting magnitude and phase response should be a flat gain over the frequency band of interest. However, the di/dt sensor has a 20dB/dec gain associated with it, and generates significant high frequency noise, a more effective anti-aliasing filter is needed to avoid noise due to aliasing— see Antialias Filter.

When the digital integrator is switched off, the ADE7753 can be used directly with a conventional current sensor such as current transformer (CT) or a low resistance current shunt.

ZERO CROSSING DETECTIONZERO CROSSING DETECTION

ZERO CROSSING DETECTION

ZERO CROSSING DETECTIONZERO CROSSING DETECTION

The ADE7753 has a zero crossing detection circuit on Channel 2. This zero crossing is used to produce an external zero cross signal (ZX) and it is also used in the calibration mode - see Energy Calibration. The zero crossing signal is also used to initiate a temperature measurement on the ADE7753

- see Temperature Measurement. Figure 10 shows how the zero cross signal is generated from the output of LPF1.

FREQUENCY-Hz

ADE7753

The phase response of this filter is shown in the Channel 2 Sampling section of this data sheet. The phase lag response of

LPF1 results in a time delay of approximately 0.97ms (@ 60Hz) between the zero crossing on the analog inputs of Channel 2 and the rising or falling edge of ZX. The zero-crossing detection also drives one flag bit in the interrupt status register. An active low in the IRQ output will also appear if the corresponding bit in the Interrupt Enable register is set to logic one. The flag in the Interrupt status register as well as the IRQ output are reset to their default value when the Interrupt Status register with reset (RSTSTATUS) is read.

Zero crossing Time outZero crossing Time out

Zero crossing Time out

Zero crossing Time outZero crossing Time out

The zero crossing detection also has an associated time-out register ZXTOUT. This unsigned, 12-bit register is decremented (1 LSB) every 128/CLKIN seconds. The register is reset to its user programmed full scale value every time a zero crossing on Channel 2 is detected. The default power on value in this register is FFFh. If the register decrements to zero before a zero crossing is detected and the DISSAG bit in the Mode register is logic zero, the 5)/ pin will go active low. The absence of a zero crossing is also indicated on the 143 pin if the SAG enable bit in the Interrupt Enable register is set to logic one. Irrespective of the enable bit setting, the SAG flag in the Interrupt Status register is always set when the ZXTOUT register is decremented to zero - see ADE7753 Interrupts.

The Zerocross Time-out register can be written/read by the user and has an address of 1Dh - see Serial Interface section. The resolution of the register is 128/CLKIN seconds per LSB. Thus the maximum delay for an interrupt is 0.15 second (128/CLKIN × 2

Figure 11 shows the mechanism of the zero crossing time out detection when the line voltage stays at a fixed DC level for more than CLKIN/128 x ZXTOUT seconds.

16-bit internal register value

ZXTOUT

LPF1

REFERENCE

ADC 2

LPF1

= 140Hz

-3dB

MULTIPLIER

-63% to + 63% FS

ZERO

CROSS

0.92

x1, x2, x4, x8, x16

V2P

GAIN[7:5]

PGA2

V2N

1.0

23.2 ⬚ @ 60Hz

Figure 10– Zero cross detection on Channel 2

The ZX signal will go logic high on a positive going zero crossing and logic low on a negative going zero crossing on Channel 2. The zero crossing signal ZX is generated from the output of LPF1. LPF1 has a single pole at 156Hz (at CLKIN = 3.579545MHz). As a result there will be a phase lag between the analog input signal V2 and the output of LPF1.

REV. PrC 01/02

–11–

Channel 2

ZXTO detection bit

Figure 11 - Zero crossing Time out detection

PERIOD MEASUREMENTPERIOD MEASUREMENT

PERIOD MEASUREMENT

PERIOD MEASUREMENTPERIOD MEASUREMENT

The ADE7753 provides also the period measurement of the line. The period register is an unsigned 15-bit register and is updated every period of the selected phase.

The resolution of this register is 2.2ms/LSB when CLKIN=3.579545MHz, which represents 0.013% when the line frequency is 60Hz. When the line frequency is 60Hz, the value of the Period register is approximately 7576d. The length of the register enables the measurement of line frequencies as low as 13.9Hz.

PRELIMINARY TECHNICAL DA TA

ADE7753

POWER SUPPLY MONITORPOWER SUPPLY MONITOR

POWER SUPPLY MONITOR

POWER SUPPLY MONITORPOWER SUPPLY MONITOR

The ADE7753 also contains an on-chip power supply monitor. The Analog Supply (AV by the ADE7753. If the supply is less than 4V ± 5% then the ADE7753 will go into an inactive state, i.e. no energy will be accumulated when the supply voltage is below 4V. This is useful to ensure correct device operation at power up and during power down. The power supply monitor has built-in hysteresis and filtering. This gives a high degree of immunity to false triggering due to noisy supplies.

5V 4V

ADE7753

Power-on

Reset

SAG

Inactive

) is continuously monitored

Time

Active

Inactive

half cycle for which the line voltage falls below the threshold, if the DISSAG bit in the Mode register is logic zero. As is the case when zero-crossings are no longer detected, the sag event is also recorded by setting the SAG flag in the Interrupt Status register. If the SAG enable bit is set to logic one, the

IRQ logic output will go active low - see ADE7753 Interrupts.

SAG pin will go logic high again when the absolute value

The of the signal on Channel 2 exceeds the sag level set in the Sag Level register. This is shown in Figure 13 when the

SAG pin goes high during the tenth half cycle from the time when the signal on Channel 2 first dropped below the threshold level.

Sag Level SetSag Level Set

Sag Level Set

Sag Level SetSag Level Set

The contents of the Sag Level register (1 byte) are compared to the absolute value of the most significant byte output from LPF1, after it is shifted left by one bit. Thus for example the nominal maximum code from LPF1 with a full scale signal on Channel 2 is 1C396h or (0001, 1100, 0011, 1001, 0110b)—see Channel 2 sampling. Shifting one bit left will give 0011,1000,0111,0010,1100b or 3872Ch. Therefore writing 38h to the Sag Level register will put the sag detection level at full scale. Writing 00h will put the sag detection level at zero. The Sag Level register is compared to the most significant byte of a waveform sample after the shift left and detection is made when the contents of the sag level register are greater.

Figure 12 - On-Chip power supply monitor

As can be seen from Figure 12 the trigger level is nominally set at 4V. The tolerance on this trigger level is about ±5%. The

SAG pin can also be used as a power supply monitor

input to the MCU. The

SAG pin will go logic low when the ADE7753 is reset. The power supply and decoupling for the part should be such that the ripple at AV

does not exceed

5V±5% as specified for normal operation.

LINE VOLTAGE SAG DETECTIONLINE VOLTAGE SAG DETECTION

LINE VOLTAGE SAG DETECTION

LINE VOLTAGE SAG DETECTIONLINE VOLTAGE SAG DETECTION

In addition to the detection of the loss of the line voltage signal (zero crossing), the ADE7753 can also be programmed to detect when the absolute value of the line voltage drops below a certain peak value, for a number of half cycles. This condition is illustrated in Figure 13 below.

Full Scale

SAGLVL[7:0]

SAG

Channel 2

SAGCYC[7:0] = 06H

6 half cycles

SAG reset high when Channel 2 exceeds SAGLVL[7:0]

Figure 13– ADE7753 Sag detection

Figure 13 shows the line voltage fall below a threshold which is set in the Sag Level register (SAGLVL[7:0]) for nine half cycles. Since the Sag Cycle register (SAGCYC[7:0]) contains 06h the

SAG pin will go active low at the end of the sixth

–12–

PEAK DETECTIONPEAK DETECTION

PEAK DETECTION

PEAK DETECTIONPEAK DETECTION

The ADE7753 can also be programmed to detect when the absolute value of the voltage or the current channel of one phase exceeds a certain peak value. Figure 14 illustrates the behavior of the peak detection for the voltage channel.

VPKLVL[7:0]

PKV reset low when RSTSTATUS register is read

PKV Interrupt Flag

(Bit C of STATUS register)

Read RSTSTATUS register

Figure 14 - ADE7753 Peak detection

Both channel 1 and channel 2 can be monitored at the same time. Figure 14 shows a line voltage exceeding a threshold which is set in the Voltage peak register (VPKLVL[7:0]). The Voltage Peak event is recorded by setting the PKV flag in the Interrupt Status register. If the PKV enable bit is set to logic one in the Interrupt Mask register, the

IRQ logic output

will go active low - see ADE7753 Interrupts.

Peak Level SetPeak Level Set

Peak Level Set

Peak Level SetPeak Level Set

The contents of the VPKLVL and IPKLVL registers are respectively compared to the absolute value of channel 1 and channel 2, after they are multiplied by 2. Thus, for example, the nominal maximum code from the channel 1 ADC with a full scale signal is 1C396h —see Channel 1 Sampling. Multiplying by 2 will give 3872Ch.

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

Therefore, writing 38h to the IPKLVL register will put the channel 1 peak detection level at full scale and set the current peak detection to its least sensitive value. Writing 00h will put the channel 1 detection level at zero. The detection is done when the content of the IPKLVL register is smaller than the incoming channel 1 sample.

Peak Level RecordPeak Level Record

Peak Level Record

Peak Level RecordPeak Level Record

The ADE7753 records the maximum absolute value reached by channel 1 and channel 2 in two different registers - IPEAK and VPEAK respectively. VPEAK and IPEAK are 24-bit unsigned registers. These registers are updated each time the absolute value of the respective Waveform sample is above the value stored in the VPEAK or IPEAK register. The updated value corresponds to the last maximum absolute value observed on the channel input. The RSTVPEAK and RSTIPEAK registers also recorded the maximum absolute value reached by channel 1 and channel 2 . RSTVPEAK and RSTIPEAK registers value are respectively reset to zero when the register is read.

ADE7753 INTERRUPTSADE7753 INTERRUPTS

ADE7753 INTERRUPTS

ADE7753 INTERRUPTSADE7753 INTERRUPTS

ADE7753 Interrupts are managed through the Interrupt Status register (STATUS[15:0]) and the Interrupt Enable register (IRQEN[15:0]). When an interrupt event occurs in the ADE7753, the corresponding flag in the Status register is set to a logic one - see Interrupt Status register. If the enable bit for this interrupt in the Interrupt Enable register is logic one, then the

IRQ logic output goes active low. The flag bits in the Status register are set irrespective of the state of the enable bits. In order to determine the source of the interrupt, the system master (MCU) should perform a read from the Status register with reset (RSTSTATUS[15:0]). This is achieved by carrying out a read from address 0Ch. The

IRQ output will go logic high on completion of the Interrupt Status register read command—see Interrupt timing. When carrying out a read

with reset, the ADE7753 is designed to ensure that no interrupt events are missed. If an interrupt event occurs just as the Status register is being read, the event will not be lost and the

IRQ logic output is guaranteed to go high for the duration of the Interrupt Status register data transfer before going logic low again to indicate the pending interrupt. See the next section for a more detailed description.

Using the ADE7753 Interrupts with an MCUUsing the ADE7753 Interrupts with an MCU

Using the ADE7753 Interrupts with an MCU

Using the ADE7753 Interrupts with an MCUUsing the ADE7753 Interrupts with an MCU

Shown in Figure 15 is a timing diagram which shows a suggested implementation of ADE7753 interrupt management using an MCU. At time t1 the IRQ line will go active low indicating that one or more interrupt events have occurred in the ADE7753. The

IRQ logic output should be tied to a negative edge triggered external interrupt on the MCU. On detection of the negative edge, the MCU should be configured to start executing its Interrupt Service Routine (ISR). On entering the ISR, all interrupts should be disabled using the global interrupt enable bit. At this point the MCU external interrupt flag can be cleared in order to capture interrupt events which occur during the current ISR. When the MCU interrupt flag is cleared a read from the Status register with reset is carried out. This will cause the to be reset logic high (t

)—see Interrupt timing. The Status

IRQ line

register contents are used to determine the source of the interrupt(s) and hence the appropriate action to be taken. If a subsequent interrupt event occurs during the ISR, that event will be recorded by the MCU external interrupt flag being set again (t

). On returning from the ISR, the global interrupt

mask will be cleared (same instruction cycle) and the external interrupt flag will cause the MCU to jump to its ISR once again. This will ensure that the MCU does not miss any external interrupts.

Interrupt timingInterrupt timing

Interrupt timing

Interrupt timingInterrupt timing

The ADE7753 Serial Interface section should be reviewed first before reviewing the interrupt timing. As previously de-

MCU Program

Sequence

REV. PrC 01/02

IRQ

SCLK

DIN

DOUT

IRQ

Jump to

ISR

Global int.

Mask Set

Clear MCU

int. flag

Figure 15– ADE7753 interrupt management

000

Read Status Register Command

010

Figure 16– ADE7753 interrupt timing

Read Status with Reset (05h)

–13–

ISR Action

(Based on Status contents)

DB7

Status Register Contents

int. flag set

DB0

MCU

ISR Return

Global int. Mask

Reset

DB7

DB0

Jump to

ISR

ADE7753

)

PRELIMINARY TECHNICAL DA TA

scribed, when the IRQ output goes low the MCU ISR must read the Interrupt Status register in order to determine the source of the interrupt. When reading the Status register contents, the

IRQ output is set high on the last falling edge of SCLK of the first byte transfer (read Interrupt Status register command). The

IRQ output is held high until the last bit of the next 15-bit transfer is shifted out (Interrupt Status register contents)— see Figure 16. If an interrupt is pending at this time, the is pending the

TEMPERATURE MEASUREMENTTEMPERATURE MEASUREMENT

TEMPERATURE MEASUREMENT

TEMPERATURE MEASUREMENTTEMPERATURE MEASUREMENT

IRQ output will go low again. If no interrupt

IRQ output will stay high.

ADE7753 also includes an on-chip temperature sensor. A temperature measurement can be made by setting bit 5 in the Mode register. When bit 5 is set logic high in the Mode register, the ADE7753 will initiate a temperature measurement on the next zero crossing. When the zero crossing on Channel 2 is detected the voltage output from the temperature sensing circuit is connected to ADC1 (Channel 1) for digitizing. The resultant code is processed and placed in the Temperature register (TEMP[7:0]) approximately 26µs later (24 CLKIN cycles). If enabled in the Interrupt Enable register (bit 5), the

IRQ output will go active low when the temperature conversion is finished. Please note that temperature conversion will introduce a small amount of noise in the energy calculation. If temperature conversion is performed frequently (e.g. multiple times per second), a noticeable error will accumulate in the resulting energy calculation over time. The contents of the Temperature register are signed (2's complement) with a resolution of approximately 1 LSB/°C. The temperature register will produce a code of 00h when the ambient temperature is approximately 70°C. The temperature measurement is uncalibrated in the ADE7753 and has an offset tolerance that could be as high as ±20°C.

ADE7753 ANALOG TO DIGITAL CONVERSIONADE7753 ANALOG TO DIGITAL CONVERSION

ADE7753 ANALOG TO DIGITAL CONVERSION

ADE7753 ANALOG TO DIGITAL CONVERSIONADE7753 ANALOG TO DIGITAL CONVERSION

The analog-to-digital conversion in the ADE7753 is carried out using two second order sigma-delta ADCs. For simplicity reason, the block diagram in Figure 17 shows a first order sigma-delta ADC. The converter is made up of two parts: the sigma-delta modulator and the digital low pass filter.

the 1-bit ADC is virtually meaningless. Only when a large number of samples are averaged will a meaningful result be obtained. This averaging is carried out in the second part of the ADC, the digital low pass filter. By averaging a large number of bits from the modulator the low pass filter can produce 24-bit data words which are proportional to the input signal level.

The sigma-delta converter uses two techniques to achieve high resolution from what is essentially a 1-bit conversion technique. The first is over-sampling. By over sampling we mean that the signal is sampled at a rate (frequency) which is many times higher than the bandwidth of interest. For example the sampling rate in the ADE7753 is CLKIN/4 (894kHz) and the band of interest is 40Hz to 2kHz. Oversampling has the effect of spreading the quantization noise (noise due to sampling) over a wider bandwidth. With the noise spread more thinly over a wider bandwidth, the quantization noise in the band of interest is lowered—see Figure 18. However, oversampling alone is not an efficient enough method to improve the signal to noise ratio (SNR) in the band of interest. For example, an oversampling ratio of 4 is required just to increase the SNR by only 6dB (1-Bit). To keep the oversampling ratio at a reasonable level, it is possible to shape the quantization noise so that the majority of the noise lies at the higher frequencies. This is what happens in the sigma-delta modulator, the noise is shaped by the integrator which has a high pass type response for the quantization noise. The result is that most of the noise is at the higher frequencies where it can be removed by the digital low pass filter. This noise shaping is also shown in Figure 18.

Signal

Noise

Antialias filter (RC)

Digital filter

2kHz

Frequency (Hz)

Shaped Noise

447kHz

Sampling Frequency

894kHz

MCLK/4

Analog Low Pass Filter

INTEGRATOR

兰

REF

1-Bit DAC

Figure 17– First Order Sigma-Delta (

LATCHED COMPARATOR

....10100101......

Digital Low Pass Filter

Σ−∆

) ADC

A sigma-delta modulator converts the input signal into a continuous serial stream of 1's and 0's at a rate determined by the sampling clock. In the ADE7753 the sampling clock is equal to CLKIN/4. The 1-bit DAC in the feedback loop is driven by the serial data stream. The DAC output is subtracted from the input signal. If the loop gain is high enough the average value of the DAC output (and therefore the bit stream) will approach that of the input signal level. For any given input value in a single sampling interval, the data from

–14–

Signal

Noise

High resolution

output from Digital

2kHz

LPF

447kHz

Frequency (Hz

894kHz

Figure 18– Noise reduction due to Oversampling & Noise

shaping in the analog modulator

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

)

ADE7753

Antialias FilterAntialias Filter

Antialias Filter

Antialias FilterAntialias Filter

Figure 17 also shows an analog low pass filter (RC) on the input to the modulator. This filter is present to prevent aliasing. Aliasing is an artifact of all sampled systems. Basically it means that frequency components in the input signal to the ADC which are higher than half the sampling rate of the ADC will appear in the sampled signal at a frequency below half the sampling rate. Figure 19 illustrates the effect. Frequency components (arrows shown in black) above half the sampling frequency (also know as the Nyquist frequency, i.e., 447kHz) get imaged or folded back down below 447kHz (arrows shown in grey). This will happen with all ADCs regardless of the architecture. In the example shown, only frequencies near the sampling frequency, i.e., 894kHz, will move into the band of interest for metering, i.e, 40Hz - 2kHz. This allows the usage of very simple LPF (Low Pass Filter) to attenuate high frequency (near 900kHz) noise and prevents distortion in the band of interest. For conventional current sensor, a simple RC filter (single pole LPF) with a corner frequency of 10kHz will produce an attenuation of approximately 40dBs at 894kHz—see Figure 18. The 20dB per decade attenuation is usually sufficient to eliminate the effects of aliasing for conventional current sensor. For di/dt sensor such as Rogowski coil, however, the sensor has 20dB per decade gain. This will neutralize the -20dB per decade attenuation produced by the simple LPF. Therefore, when using a di/dt sensor, care should be taken to offset the 20dB per decade gain coming from the di/dt sensor. One simple approach is to cascade two RC filters to produce the

-40dB per decade attenuation needed.

Aliasing Effects


frequencies

2kHz

447kHz

Frequency (Hz

Sampling Frequency

894kHz

Figure 19 —ADC and signal processing in Channel 1

ADC transfer functionADC transfer function

ADC transfer function

ADC transfer functionADC transfer function

Below is an expression which relates the output of the LPF in the sigma-delta ADC to the analog input signal level. Both ADCs in the ADE7753 are designed to produce the same output code for the same input signal level.

ADCCode

out

144,2620492.3)( ××=

Therefore with a full scale signal on the input of 0.5V and an internal reference of 2.42V, the ADC output code is nominally 165,151 or 2851Fh. The maximum code from the ADC is ±262,144, this is equivalent to an input signal level of ±0.794V. However for specified performance it is not recommended that the full-scale input signal level of 0.5V be exceeded.

ADE7753 Reference circuitADE7753 Reference circuit

ADE7753 Reference circuit

ADE7753 Reference circuitADE7753 Reference circuit

Shown below in Figure 20 is a simplified version of the reference output circuitry. The nominal reference voltage at the REF

pin is 2.42V. This is the reference voltage used

IN/OUT

for the ADCs in the ADE7753. However, Channel 1 has

three input range selections which are selected by dividing down the reference value used for the ADC in Channel 1. The reference value used for Channel 1 is divided down to ½ and ¼ of the nominal value by using an internal resistor divider as shown in Figure 20.

Output

REF

2.42V

IN/OUT

Impedance 6kΩ

Reference input to ADC Channel 1 (Range Select)

2.42V, 1.21V, 0.6V

PTAT

60µA

2.5V

Maximum Load = 10µA

1.7kΩ

12.5kΩ

Figure 20 —ADE7753 Reference Circuit Ouput

The REF

pin can be overdriven by an external source,

IN/OUT

e.g., an external 2.5V reference. Note that the nominal reference value supplied to the ADCs is now 2.5V not 2.42V. This has the effect of increasing the nominal analog input signal range by 2.5/2.42×100% = 3% or from 0.5V to

0.5165V. The voltage of ADE7753 reference drifts slightly with

temperature—see ADE7753 Specifications for the temperature coefficient specification (in ppm/°C) . The value of the temperature drift varies from part to part. Since the reference is used for the ADCs in both Channel 1 and 2, any x% drift in the reference will result in 2x% deviation of the meter accuracy. The reference drift resulting from temperature changes is usually very small and it is typically much smaller than the drift of other components on a meter. However, if guaranteed temperature performance is needed, one needs to use an external voltage reference. Alternatively, the meter can be calibrated at multiple temperatures. Real time compensation can be easily achieved using the on the on-chip temperature sensor.

REV. PrC 01/02

–15–

ADE7753

PRELIMINARY TECHNICAL DA TA

CHANNEL 1 ADCCHANNEL 1 ADC

CHANNEL 1 ADC

CHANNEL 1 ADCCHANNEL 1 ADC

Figure 21 shows the ADC and signal processing chain for Channel 1. In waveform sampling mode the ADC outputs a signed 2’s Complement 24-bit data word at a maximum of

27.9kSPS (CLKIN/128). The output of the ADC can be scaled by ±50% to perform an overall power calibration or to calibrate the ADC output. While the ADC outputs a 24bit 2's complement value the maximum full-scale positive value from the ADC is limited to 400000h (+4,194,304 Decimal). The maximum full-scale negative value is limited to C00000h (-4,194,304 Decimal). If the analog inputs are over-ranged, the ADC output code will clamp at these values. With the specified full scale analog input signal of 0.5V (or

0.25V or 0.125V – see Analog Inputs section) the ADC will produce an output code which is approximately 63% of its full-scale value. This is illustrated in Figure 21. The diagram in Figure 21 shows a full-scale voltage signal being applied to the differential inputs V1P and V1N. The ADC output swings between D7AE14h (-2,642,412 Decimal) and 2851ECh (+2,642,412 Decimal). This is approximately 63% of the full-scale value 400000h. Over-ranging the analog inputs with more than 0.5V differential (0.25 or

0.125, depending on Channel 1 full scale selection) will cause the ADC output to increase towards its full scale value. However, for specified operation the differential signal on the analog inputs should not exceed the recommended value of

0.5V.

Channel 1 SamplingChannel 1 Sampling

Channel 1 Sampling

Channel 1 SamplingChannel 1 Sampling

The waveform samples may also be routed to the WAVEFORM register (MODE[14:13] = 1,0) to be read by the system master (MCU). In waveform sampling mode the WSMP bit (bit 3) in the Interrupt Enable register must also be set to logic one. The Active, Apparent Power and Energy calculation will remain uninterrupted during waveform sampling. When in waveform sample mode, one of four output sample rates may be chosen by using bits 11 and 12 of the Mode register (WAVSEL1,0). The output sample rate may be

27.9kSPS, 14kSPS, 7kSPS or 3.5kSPS—see Mode Register. The interrupt request output

IRQ signals a new sample availability by going active low. The timing is shown in Figure 22. The 24-bit waveform samples are transferred from the ADE7753 one byte (8-bits) at a time, with the most significant byte shifted out first. The 24-bit data word is right justified - see ADE7753 Serial Interface.

IRQ

SCLK

DOUT

DIN

Read from WAVEFORM

0 0 0 01 Hex

Sign

Channel 1 DATA - 24 bits

Figure 22 – Waveform sampling Channel 1

The interrupt request output IRQ stays low until the interrupt routine reads the Reset Status register - see ADE7753 Interrupt.

x1, x2, x4, x8, x16

V1P

0.5V, 0.25V,

0.125V, 62.5mV,

31.3mV, 15.6mV,

Analog Input Range

*WHEN DIGITAL INTEGRATOR IS ENABLED, FULL-SCALE OUTPUT DATA IS ATTENUATED DEPENDING ON THE SIGNAL FREQUENCY BECAUSE THE INTEGRATOR HAS A -20dB/DECADE FREQUENCY RESPONSE. WHEN DISABLED, THE OUTPUT WILL NOT BE FURTHER ATTENUATED.

GAIN[2:0]

PGA1

V1N

2.42V, 1.21V, 0.6V

400000h

2851ECh

000000h

D7AE14h

C00000h

REFERENCE

ADC 1

ADC Output word Range

+ FS + 63% FS

- 63% FS

- FS

Figure 21 —ADC and signal processing in Channel 1

GAIN[4:3]

Digital LPF

Sinc

2851ECh

000000h

D7AE14h

DIGITAL

INTEGRATOR*

Channel 1 (Current Waveform) Data Range

∫

+ 63% FS

- 63% FS

HPF

50Hz

60Hz

1EF73Ch

000000h

E108C4h

19CE08h

000000h

E631F8h

CURRENT RMS (IRMS) CALCULATION

WAVEFORM SAMPLE REGISTER

ACTIVE AND REACTIVE POWER CALCULATION

Channel 1 (Current Waveform) Data Range After integrator (50Hz)

+ 48% FS

- 48% FS

Channel 1 (Current Waveform) Data Range After Integrator (60Hz)

+ 40% FS

- 40% FS

–16–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

-90

-80

-70

-60

-50

-40

-30

-20

-10

-18

-16

-14

-12

-10

-8

-6

-4

-2

Gain (dBs)

Phase (°)

Frequency (Hz)

60 Hz, -0.73dB

50 Hz, -0.52dB

60 Hz, -23.2°

50 Hz, -19.7°





ADE7753

Channel 1 RMS calculationChannel 1 RMS calculation

Channel 1 RMS calculation

Channel 1 RMS calculationChannel 1 RMS calculation

Root Mean Square (RMS) value of a continuous signal V(t) is defined as:

()

rms

⋅=

dttV

∫

(1)

For time sampling signals, rms calculation involves squaring the signal, taking the average and obtaining the square root:

rms

⋅=

∑

)(

(2)

ADE7753 calculates simultaneously the RMS values for Channel 1 and Channel 2 in different register. Figure 23 shows the detail of the signal processing chain for the RMS calculation on channel 1. The channel 1 RMS value is processed from the samples used in the channel 1 waveform sampling mode. The channel 1 RMS value is stored in an unsigned 24-bit register (IRMS). One LSB of the channel 1 RMS register is equivalent to one LSB of a channel 1 waveform sample. The update rate of the channel 1 RMS measurement is CLKIN/4.

Current Signal - i(t)

2851ECh

00h

D7AE14h

Channel 1

-63% to +63% FS

HPF

IRMSOS[11:0]

1029

2822212

SIGN

LPF3

(t)

rms

~45% FS

1C82B3h

00h

IRMS

CHANNEL 2 ADCCHANNEL 2 ADC

CHANNEL 2 ADC

CHANNEL 2 ADCCHANNEL 2 ADC Channel 2 SamplingChannel 2 Sampling

Channel 2 Sampling

Channel 2 SamplingChannel 2 Sampling

In Channel 2 waveform sampling mode (MODE[14:13] = 1,1 and WSMP = 1) the ADC output code scaling for Channel 2 is not the same as Channel 1. The LSB weight of the Channel 2 samples is 16 times that of the Channel 1. Channel 2 waveform sample is a 16-bit word and sign extended to 24 bits. The absolute full-scale value of the ADC swings between 4000h (16,384 Decimal) and C000h (16,384 Decimal) – see ADC Channel 1. For normal operation, the differential voltage signal between V2P and V2N should not exceed 0.5V. The outputs from the ADC should be within 63% of the maximum, i.e. swings between 2852h (10,322 Decimal) and D7AEh (-10,322 Decimal). However, before being passed to the Waveform register, the ADC output is passed through a single pole, low pass filter with a cutoff frequency of 140Hz. The plots in Figure 24 shows the magnitude and phase response of this filter.

Figure 23 - Channel 1 RMS signal processing

With the specified full scale analog input signal of 0.5V, the ADC will produce an output code which is approximately 63% of its full-scale value (i.e. ±2,642,412d) - see Channel 1 ADC. The equivalent RMS values of a full-scale AC signal is 1,868,467d (1C82B3h).

Channel 1 RMS offset compensationChannel 1 RMS offset compensation

Channel 1 RMS offset compensation

Channel 1 RMS offset compensationChannel 1 RMS offset compensation

The ADE7753 incorporates a channel 1 RMS offset compensation register (IRMSOS). This is 12-bit signed registers which can be used to remove offset in the channel 1 RMS calculation. An offset may exist in the RMS calculation due to input noises that are integrated in the DC component of

(t). The offset calibration will allow the content of the IRMS register to be maintained at zero when no input is present on channel 1. 1 LSB of the Channel 1 RMS offset are equivalent to 32,768 LSB of the square of the Channel 1 RMS register. Assuming that the maximum value from the Channel 1 RMS calculation is 1,868,467d with full scale AC inputs, then 1 LSB of the channel 1 RMS offset represents 0.46% of measurement error at -60dB down of full scale.

where I

rmsrms

is the RMS measurement without offset correc-

rmso

×+= IRMSOSII

32768

tion.

REV. PrC 01/02

–17–

Figure 24 – Magnitude & Phase response of LPF1

The LPF1 has the effect of attenuating the signal. For example if the line frequency is 60Hz, then the signal at the output of LPF1 will be attenuated by about 8%.

140

7309190

-==

..)f(H

Note LPF1 does not affect the power calculation. The signal processing chain in Channel 2 is illustrated in Figure 25. Unlike Channel 1, Channel 2 has only one analog input range (1V differential). However like Channel 1, Channel 2 does have a PGA with gain selections of 1, 2, 4, 8 and 16. For energy measurement, the output of the ADC is passed directly to the multiplier and is not filtered. A HPF is not required to remove any DC offset since it is only required to remove the offset from one channel to eliminate errors due to offsets in the power calculation. When in waveform sample mode, one of four output sample rates can be chosen by using bits 11 and 12 of the Mode register. The available output sample rates are 27.9kSPS, 14kSPS, 7kSPS or 3.5kSPS— see Mode Register. The interrupt request output

IRQ signals a sample availability by going active low. The timing is the same as that for Channel 1 and is shown in Figure 22.

ADE7753

PRELIMINARY TECHNICAL DA TA

2.42V

REFERENCE

ADC 2

DAE8h D7AEh

C000h

4000h 2852h

2518h

0000h

-63% to + 63% FS

LPF Output word Range

LPF1

+ FS + 63% FS

+ 59% FS

- 59% FS

- 63% FS

- FS

MULTIPLIER

WAVEFORM

0.5V, 0.25V, 0.125V,

62.5mV, 31.25mV

V2P

V2N

Analog Input Range

x1, x2, x4, x8, x16

GAIN[7:5]

PGA2

Figure 25 – ADC and Signal Processing in Channel 2

Channel 2 RMS calculationChannel 2 RMS calculation

Channel 2 RMS calculation

Channel 2 RMS calculationChannel 2 RMS calculation

Figure 26 shows the details of the signal processing chain for the RMS calculation on Channel 2. The channel 2 RMS value is processed from the samples used in the channel 2 waveform sampling mode. The channel 2 RMS value is stored in unsigned 24-bit registers (VRMS). 256 LSB of the channel 2 RMS register is approximately equivalent to one LSB of a channel 2 waveform sample. The update rate of the channel 2 RMS measurement is CLKIN/4. With the specified full scale AC analog input signal of 0.5V, the LPF1 produces an output code which is approximately 62% of its full-scale value (i.e. ±10,212d) at 60 Hz- see Channel 2 ADC. The equivalent RMS value of a full-scale AC signal is approximately 7,221d (1C35h), which gives a channel 2 RMS value of 1,848,772 (1C35C4h) in the VRMS register.

Voltage Signal - V(t)

Channel 2

-63% to +63% FS

2852h

D7AEh

LPF1

LPF3

SGN

VRMSOS[11:0]

2822212

VRMS[23:0]

175964h

00h

Figure 26 - Channel 2 RMS signal processing

Channel 2 RMS offset compensationChannel 2 RMS offset compensation

Channel 2 RMS offset compensation

Channel 2 RMS offset compensationChannel 2 RMS offset compensation

The ADE7753 incorporates a channel 2 RMS offset compensation register (VRMSOS). This is a 12-bit signed registers which can be used to remove offset in the channel 2 RMS calculation. An offset may exist in the RMS calculation due to input noises and dc offset in the input samples. The offset calibration allows the contents of the VRMS register to be maintained at zero when no voltage is applied. 1 LSB of the channel 2 RMS offset are equivalent to 3,600 LSB of the square of the channel 2 RMS register. Assuming that the maximum value from the channel 2 RMS calculation is 1,898,124d with full scale AC inputs, then 1 LSB of the channel 2 RMS offset represents 0.05% of measurement error at -60dB down of full scale.

rms

where V

rmso

is the RMS measurement without offset correc-

rmso

VRMSOS

´+=

3600

tion.

PHASE COMPENSATIONPHASE COMPENSATION

PHASE COMPENSATION

PHASE COMPENSATIONPHASE COMPENSATION

When the HPF is disabled the phase error between Channel 1 and Channel 2 is zero from DC to 3.5kHz. When HPF is enabled, Channel 1 has a phase response illustrated in Figures 28 & 29. Also shown in Figure 30 is the magnitude response of the filter. As can be seen from the plots, the phase response is almost zero from 45Hz to 1kHz, This is all that is required in typical energy measurement applications. However, despite being internally phase compensated the ADE7753 must work with transducers which may have inherent phase errors. For example a phase error of 0.1° to

0.3° is not uncommon for a CT (Current Transformer). These phase errors can vary from part to part and they must be corrected in order to perform accurate power calculations. The errors associated with phase mismatch are particularly noticeable at low power factors. The ADE7753 provides a means of digitally calibrating these small phase errors. The ADE7753 allows a small time delay or time advance to be introduced into the signal processing chain in order to compensate for small phase errors. Because the compensation is in time, this technique should only be used for small phase errors in the range of 0.1° to 0.5°. Correcting large phase errors using a time shift technique can introduce significant phase errors at higher harmonics. The Phase Calibration register (PHCAL[5:0]) is a 2’s complement signed signal byte register which has values ranging from 21h (-31 in Decimal) to 1Fh (31 in Decimal). By changing the PHCAL register, the time delay in the Channel 2 signal path can change from –34.7µs to +34.7µs (CLKIN = 3.579545MHz). One LSB is equivalent to

1.12µs time delay or advance. With a line frequency of 60Hz this gives a phase resolution of 0.024° at the fundamental (i.e., 360° × 1.12µs × 60Hz). Figure 27 illustrates how the phase compensation is used to remove a 0.1° phase lead in Channel 1 due to the external transducer. In order to cancel the lead (0.1°) in Channel 1, a phase lead must also be introduced into Channel 2. The resolution of the phase adjustment allows the introduction of a phase lead in increment of 0.024°. The phase lead is achieved by introducing a time advance into Channel 2. A time advance of 4.48µs is made by writing -4 (3Ch) to the time delay block, thus reducing the amount of time delay by 4.48µs, or equivalently, a phase lead of approximately 0.1° at line frequency of 60Hz.

–18–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

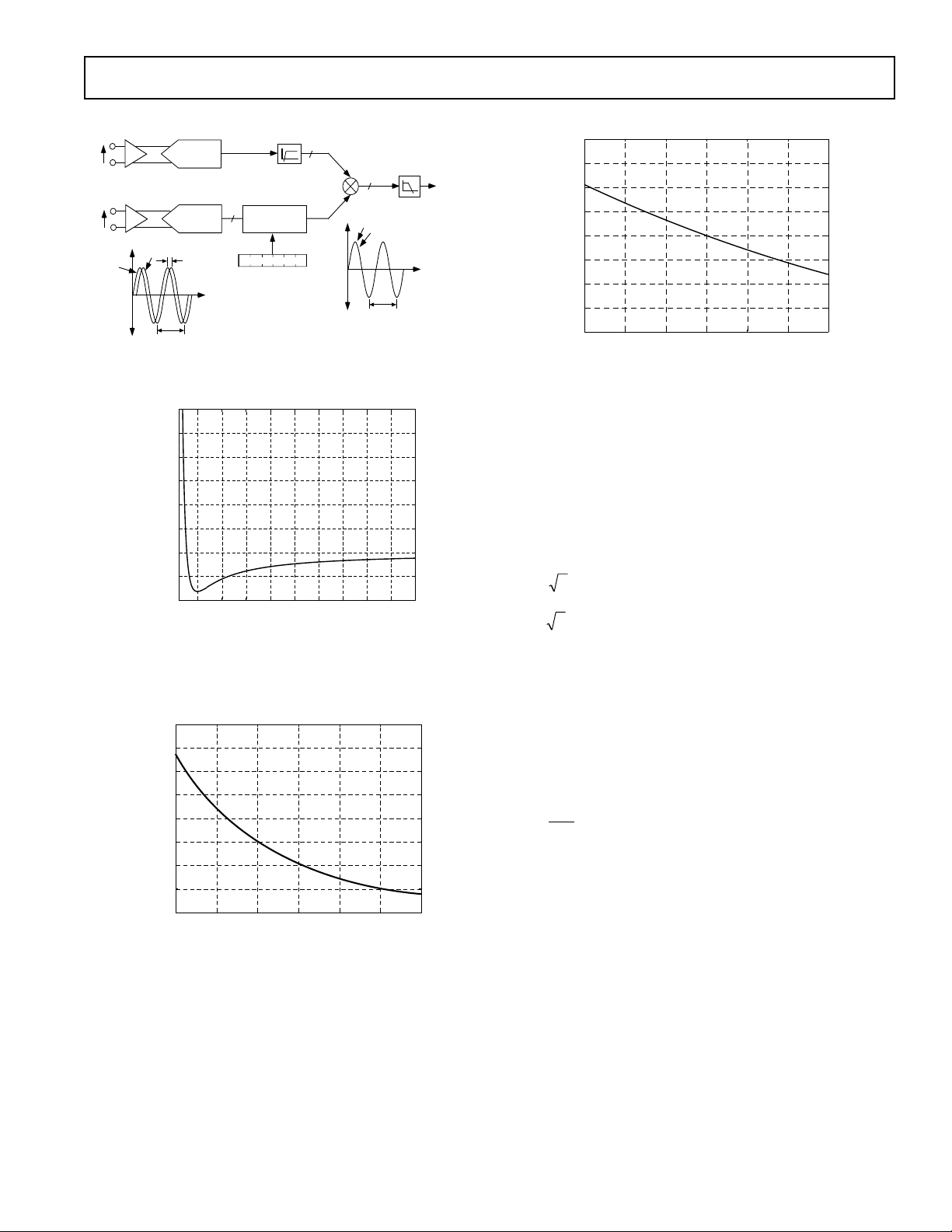

V1P

PGA1

V1N

V2P

PGA2

V2N

ADC 1

ADC 2

0.1⬚

60Hz

Figure 27

0.3

0.25

0.2

0.15

0.1

Phase

[Degrees]

0.05

-0.05

-0.1 100 200 300 400 500 600 700 800 900

HPF

Delay Block

1.12µs / LSB

111 010

PHCAL[5:0]

-35µs to +35µs

– Phase Calibration

Frequency

[Hz]

60Hz

LPF2

Channel 2 delay reduced by 4.48 (0.1⬚ lead at 60Hz)

FCh in PHCAL[5:0]

1000

Figure 28 – Combined Phase Response of the HPF & Phase

Compensation (10Hz to 1kHz)

0.3

0.25

0.2

0.15

0.1

Phase

[Degrees]

0.05

-0.05

-0.1

40 45

Frequency

[Hz]

60 65 70

Figure 29 – Combined Phase Response of the HPF & Phase

Compensation (40Hz to 70Hz)

0.4

0.3

0.2

0.1

Error [percent]

–0.1

–0.2

–0.3

–0.4

54 56 58 60 62 64 66

Figure 30 – Combined Gain Response of the HPF & Phase

Compensation (Deviation of Gain in % from Gain at 60Hz)

ACTIVE POWER CALCULATIONACTIVE POWER CALCULATION

ACTIVE POWER CALCULATION

ACTIVE POWER CALCULATIONACTIVE POWER CALCULATION Power is defined as the rate of energy flow from source to load. It is defined as the product of the voltage and current waveforms. The resulting waveform is called the instantaneous power signal and it is equal to the rate of energy flow at every instant of time. The unit of power is the watt or joules/ sec. Equation 3 gives an expression for the instantaneous power signal in an ac system.

() ()

sin2

J8JL

sin2

J1JE

(1)

(2)

where V = rms voltage,

I = rms current.

() () () () ( )

JEJLJF

×=

(3)

McosVIVI

−=

JJF

The average power over an integral number of line cycles (n) is given by the expression in Equation 4.

p(t)

dt = VI (4)

P =

here T is the line cycle period. P is referred to as the Active or Real Power. Note that the active power is equal to the dc component of the instantaneous power signal p(t) in Equation 3 , i.e., VI. This is the relationship used to calculate active power in the ADE7753. The instantaneous power signal p(t) is generated by multiplying the current and voltage signals. The dc component of the instantaneous power signal is then extracted by LPF2 (Low Pass Filter) to obtain the active power information. This process is illustrated graphically in Figure 31.

REV. PrC 01/02

–19–

ADE7753

PRELIMINARY TECHNICAL DA TA

19999Ah

V. I.

CCCCDh

00000h

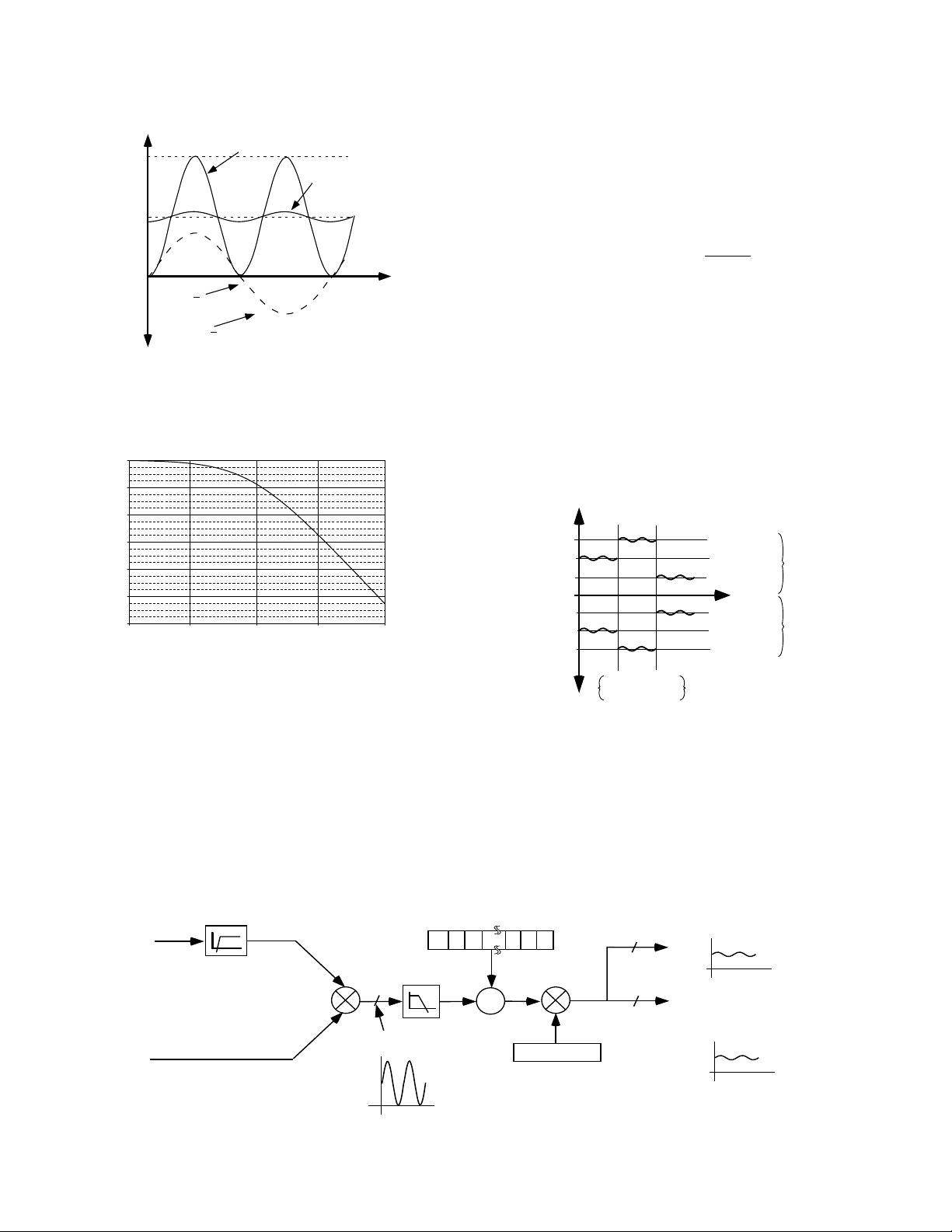

Instantaneous Power Signal

Current

i(t) = √2×I×sin(ωt)

Voltage

v(t) = √2×V×sin(ωt)

p(t) = V×I-V×I×cos(2ωt)

Active Real Power Signal = V x I

Figure 31– Active Power Calculation

Since LPF2 does not have an ideal “brick wall” frequency response—see Figure 32, the Active Power signal will have some ripple due to the instantaneous power signal.

-4

-8

-12

dBs

-16

-20

-24

1.0Hz

3.0Hz

10Hz 30Hz

Frequency

100Hz

Figure 32 —Frequency Response of LPF2

This ripple is sinusoidal and has a frequency equal to twice the line frequency. Since the ripple is sinusoidal in nature it will be removed when the Active Power signal is integrated to calculate Energy – see Energy Calculation. Figure 33 shows the signal processing chain for the ActivePower calculation in the ADE7753. As explained, the Active Power is calculated by low pass filtering the instantaneous power signal. Note that for when reading the waveform samples from the output of LPF2,

The gain of the Active Energy can be adjusted by using the multiplier and Watt Gain register (WGAIN[11:0]). The gain is adjusted by writing a 2’s complement 12-bit word to the Watt Gain register. Below is the expression that shows how the gain adjustment is related to the contents of the Watt Gain register.

  

PowerActiveWGAINOutput



 

WGAIN

+×=













For example when 7FFh is written to the Watt Gain register the Power output is scaled up by 50%. 7FFh = 2047d,

2047/2

= 0.5. Similarly, 800h = -2048 Dec (signed 2’s Complement) and power output is scaled by –50%. Shown in Figure 34 is the maximum code (Hexadecimal) output range for the Active Power signal (LPF2). Note that the output range changes depending on the contents of the Watt Gain register. The minimum output range is given when the Watt Gain register contents are equal to 800h, and the maximum range is given by writing 7FFh to the Watt Gain register. This can be used to calibrate the Active Power (or Energy) calculation in the ADE7753.

133333h CCCCDh 66666h 00000h F9999Ah F33333h

ECCCCDh

Active Power Output

000h

7FFh

WGAIN[11:0]

Active Power Calibration Range

800h

+ 60% FS + 40% FS + 20% FS

- 20% FS

- 40% FS

- 60% FS

Positive Power

Negative Power

Figure 34 – Active Power Calculation Output Range

Current Signal - i(t)

Voltage Signal - v(t)

HPF

MULTIPLIER

Instantaneous Power Signal - p(t)

19999Ah

000000h

Figure 33

– Active Power Signal Processing

LPF2

sgn

262

–20–

APOS[15:0]

-7

-8

2-62

WGAIN[11:0]

For Waveform Sampling

19999h

For Energy Accumulation

Active Power Signal - P

CCCCDh

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ENERGY CALCULATIONENERGY CALCULATION

ENERGY CALCULATION

ENERGY CALCULATIONENERGY CALCULATION

As stated earlier, power is defined as the rate of energy flow. This relationship can be expressed mathematically as Equation 5.

Where P = Power and E = Energy. Conversely Energy is given as the integral of Power.

E= Pdt

The ADE7753 achieves the integration of the Active Power signal by continuously accumulating the Active Power signal in an internal non-readable 56-bit Energy register. The Active Energy register (AENERGY[23:0]) represents the upper 24 bits of this internal register. This discrete time accumulation or summation is equivalent to integration in continuous time. Equation 7 below expresses the relationship

∞

p(t)

E= dt Lim

| S |

∑

pnT T

()

=×

→

Where n is the discrete time sample number and T is the sample period. The discrete time sample period (T) for the accumulation register in the ADE7753 is 1.1µs (4/CLKIN). As well as calculating the Energy this integration removes any sinusoidal components which may be in the Active Power signal. Figure 35 shows a graphical representation of this discrete time integration or accumulation. The Active Power signal in the Waveform register is continuously added to the internal Active Energy register. This addition is a signed addition, therefore negative energy will be subtracted from the Active Energy contents.

Current Channel

Voltage Channel

Figure 35

OUTPUT

LPF2

sgn

252

LPF2

Active Power Signal - P*

WAVEFORM

CLKIN

time (nT)

– ADE7753 Active Energy Calculation

The output of the multiplier is divided by WDIV. If the value in the WDIV register is equal to 0 then the internal Active Energy register is divided by 1. WDIV is an 8-bit unsigned register. After dividing by WDIV, the active energy is accumulated in a 53-bit internal energy accumulation register. The upper 24 bit of this register is accessible through a read to the Active Energy register (AENERGY[23:0]). A read to the RAENERGY register will return the content of the AENERGY register and the upper 24-bit of the internal register is clear after a read to AENERGY register. As shown in Figure 35, the Active Power signal is accumulated in an internal 53-bit signed register.

REV. PrC 01/02

APOS [15:0]

VALUES

(5)

(6)

| V

(7)

AENERGY[23:0]

-6

2-82-72

WDIV[0:7]

OUTPUTS FROM THE LPF2 ARE ACCUMULATED (INTEGRATED) IN THE INTERNAL ACTIVE ENERGY REGISTER

UPPER 24 BITS ARE ACCESSIBLE THROUGH

AENERGY[23:0] REGISTER

–21–

ADE7753

The Active Power signal can be read from the Waveform register by setting MODE[14:13] = 0,0 and setting the WSMP bit (bit 3) in the Interrupt Enable register to 1. Like the Channel 1 and Channel 2 waveform sampling modes the waveform date is available at sample rates of 27.9kSPS, 14kSPS, 7kSPS or 3.5kSPS—see Figure 22. Figure 36 shows this energy accumulation for full scale signals (sinusoidal) on the analog inputs. The three curves displayed, illustrate the minimum period of time it takes the energy register to roll-over when the Active Power Gain register contents are 7FFh, 000h and 800h. The Watt Gain register is used to carry out power calibration in the ADE7753. As shown, the fastest integration time will occur when the Watt Gain register is set to maximum full scale, i.e., 7FFh.

AENERGY[23:0]

7F,FFFFh

3F,FFFFh

00,0000h

40,0000h

80,0000h

133

100 20067

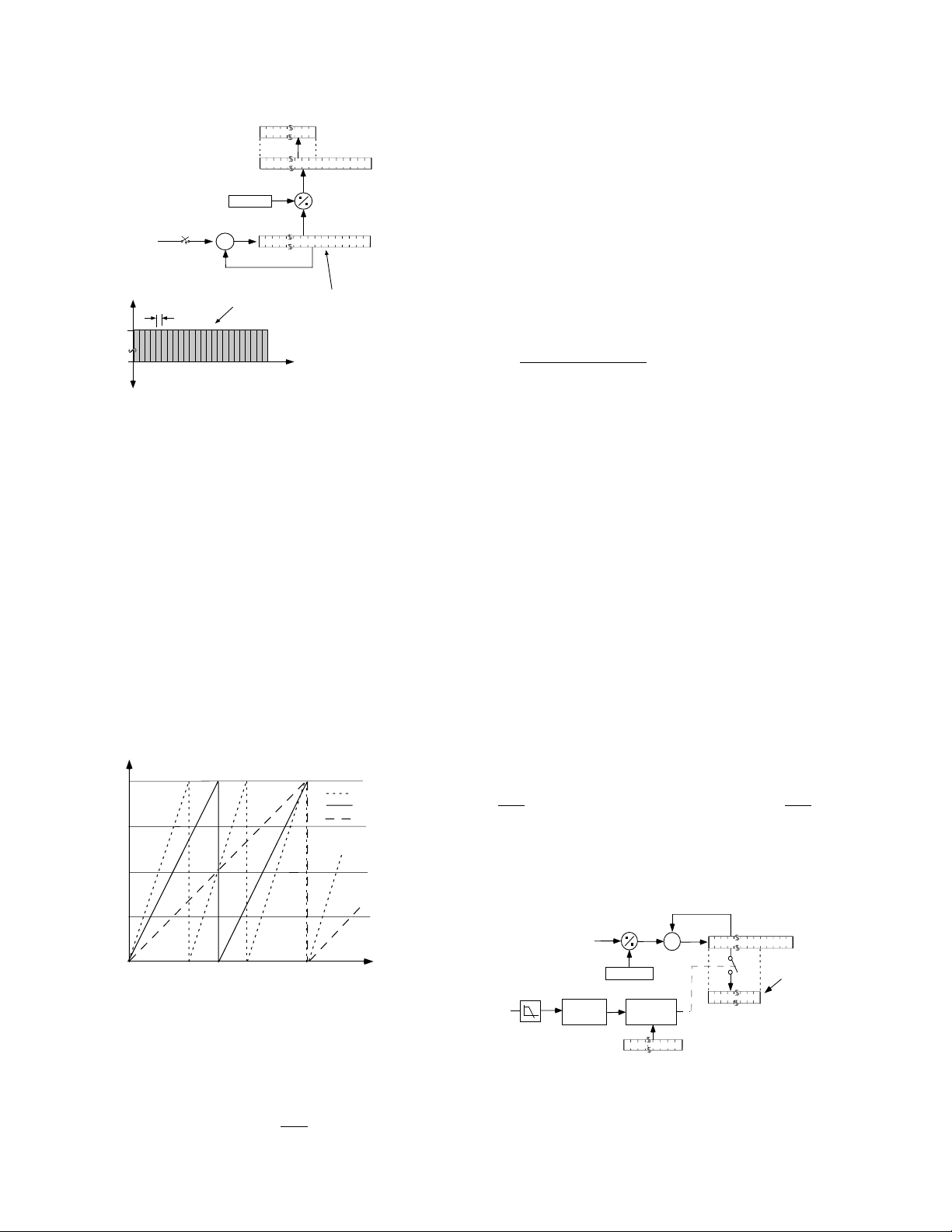

Figure 36 - Energy register roll-over time for full-scale

power (Minimum & Maximum Power Gain)

Note that the energy register contents will roll over to fullscale negative (800000h) and continue increasing in value when the power or energy flow is positive - see Figure 36. Conversely if the power is negative the energy register would under flow to full scale positive (7FFFFFh) and continue decreasing in value. By using the Interrupt Enable register, the ADE7753 can be configured to issue an interrupt ( Energy register is half-full (positive or negative) or when an over/under flow occurs.

Integration time under steady loadIntegration time under steady load

Integration time under steady load

Integration time under steady loadIntegration time under steady load

As mentioned in the last section, the discrete time sample period (T) for the accumulation register is 1.1µs (4/CLKIN). With full-scale sinusoidal signals on the analog inputs and the WGAIN register set to 000h, the average word value from each LPF2 is CCCCDh - see Figure 31. The maximum positive value which can be stored in the internal 53-bit register is 2

- 1 or F,FFFF,FFFF,FFFFh before it overflows, the integration time under these conditions with WDIV=0 is calculated as follows:

Time

CCCCDh

FFFFh,FFFF,FFFF,F

When WDIV is set to a value different from 0, the integration time varies as shown on Equation 8.

Time = Time

x WDIV (8)

WDIV=0

WGAIN = 7FFh WGAIN = 000h WGAIN = 800h

Time (minutes)

IRQ) when the Active

´=

1006000121

sminss.

PRELIMINARY TECHNICAL DA TA

)

(

ADE7753

POWER OFFSET CALIBRATIONPOWER OFFSET CALIBRATION

POWER OFFSET CALIBRATION

POWER OFFSET CALIBRATIONPOWER OFFSET CALIBRATION

The ADE7753 also incorporates an Active Power Offset register (APOS[15:0]). This is a signed 2’s complement 16bit register which can be used to remove offsets in the active power calculation—see Figure 33. An offset may exist in the power calculation due to cross talk between channels on the PCB or in the IC itself. The offset calibration will allow the contents of the Active Power register to be maintained at zero when no power is being consumed. Two hundred fifty six LSBs (APOS=0100h) written to the Active Power Offset register are equivalent to 1 LSB in the Waveform Sample register. Assuming the average value outputs from LPF2 is CCCCDh (838,861 in Decimal) when inputs on Channels 1 and 2 are both at full-scale. At -60dB down on Channel 1 (1/1000 of the Channel 1 full-scale input), the average word value outputs from LPF2 is 838.861 (838,861/1,000). 1 LSB in the LPF2 output has a measurement error of 1/838.861 × 100% = 0.119% of the average value. The Active Power Offset register has a resolution equal to 1/256 LSB of the Waveform register, hence the power offset correction resolution is 0.00047%/LSB (0.119%/

256) at -60dB.

ENERGY TO FREQUENCY CONVERSIONENERGY TO FREQUENCY CONVERSION

ENERGY TO FREQUENCY CONVERSION

ENERGY TO FREQUENCY CONVERSIONENERGY TO FREQUENCY CONVERSION

ADE7753 also provides energy to frequency conversion for calibration purposes. After initial calibration at manufacturing, the manufacturer or end customer will often verify the energy meter calibration. One convenient way to verify the meter calibration is for the manufacturer to provide an output frequency which is proportional to the energy or active power under steady load conditions. This output frequency can provide a simple, single wire, optically isolated interface to external calibration equipment. Figure 37 illustrates the Energy-to-Frequency conversion in the ADE7753.

CFNUM[11:0]

Energy

AENERGY[23:0]

DFC

023

If the value zero is written to any of these registers, the value one would be applied to the register. The ratio (CFNUM+1)/ (CFDEN+1) should be smaller than one to assure proper operation. If the ratio of the registers (CFNUM+1)/ (CFDEN+1) is greater than one, the register values would be adjust to a ratio (CFNUM+1)/(CFDEN+1) of one. For example if the output frequency is 1.562kHz while the contents of CFDIV are zero (000h), then the output frequency can be set to 6.1Hz by writing FFh to the CFDEN register.

The output frequency will have a slight ripple at a frequency equal to twice the line frequency. This is due to imperfect filtering of the instantaneous power signal to generate the Active Power signal – see Active Power Calculation. Equation 3 gives an expression for the instantaneous power signal. This is filtered by LPF2 which has a magnitude response given by Equation 9.

9.8

(9)

The Active Power signal (output of LPF2) can be rewritten as.

  

()

4cos

⋅



















9.8



(10)

  

VItp

)(

−=

 

 

where fl is the line frequency (e.g., 60Hz)

From Equation 6

  

VIttE

)(

−=

  



  

()

4sin

⋅



















9.8



(11)

CFDEN[11:0]

Figure 37– ADE7753 Energy to Frequency Conversion

A Digital to Frequency Converter (DFC) is used to generate the CF pulsed output. The DFC generates a pulse each time one LSB in the Active Energy register is accumulated. An output pulse is generated when (CFDEN+1)/(CFNUM+1) number of pulses are generated at the DFC output. Under steady load conditions the output frequency is proportional to the Active Power. The maximum output frequency, with AC input signals at full-scale and CFNUM=00h & CFDEN=00h, is approximately 5.8 kHz. The ADE7753 incorporates two registers, CFNUM[11:0] and CFDEN[11:0], to set the CF frequency. These are unsigned 12-bit registers which can be used to adjust the CF frequency to a wide range of values. These frequency scaling registers are 12-bit registers which can scale the output frequency by 1/2

to 1 with a step of 1/212.

From Equation 11 it can be seen that there is a small ripple in the energy calculation due to a sin(2ωt) component. This is shown graphically in Figure 38. The Active Energy calculation is shown by the dashed straight line and is equal to V x I x t. The sinusoidal ripple in the Active Energy calculation is also shown. Since the average value of a sinusoid is zero, this ripple will not contribute to the energy calculation over time. However, the ripple can be observed in the frequency output, especially at higher output frequencies. The ripple will get larger as a percentage of the frequency at larger loads and higher output frequencies. The reason is simply that at higher output frequencies the integration or averaging time in the Energy-to-Frequency conversion process is shorter. As a consequence some of the sinusoidal ripple is observable in the frequency output. Choosing a lower output frequency at CF for calibration can significantly reduce the ripple. Also averaging the output frequency by using a longer gate time for the counter will achieve the same results.

–22–

REV. PrC 01/02

E(t)

[

]

PRELIMINARY TECHNICAL DA TA

Therefore:

VIt

E(t) VI dt

ADE7753

(13)

−

4. (1+ 2. / 8.9Hz)

sin(4.

V W

..)

Figure 38 – Output frequency ripple

LINE CYCLE ENERGY ACCUMULATION MODELINE CYCLE ENERGY ACCUMULATION MODE

LINE CYCLE ENERGY ACCUMULATION MODE

LINE CYCLE ENERGY ACCUMULATION MODELINE CYCLE ENERGY ACCUMULATION MODE

In Line Cycle Energy Accumulation mode, the energy accumulation of the ADE7753 can be synchronized to the Channel 2 zero crossing so that active energy can be accumulated over an integral number of half line cycles. The advantage of summing the active energy over an integer number of half line cycles is that the sinusoidal component in the active energy is reduced to zero. This eliminates any ripple in the energy calculation. Energy is calculated more accurately and in a shorter time because integration period can be shortened. By using the line cycle energy accumulation mode, the energy calibration can be greatly simplified and the time required to calibrate the meter can be significantly reduced. The ADE7753 is placed in line cycle energy accumulation mode by setting bit 7 (CYCMODE) in the Mode register. In Line Cycle Energy Accumulation Mode the ADE7753 accumulates the active power signal in the LAENERGY register (Address 04h) for an integral number of half cycles, as shown in Figure 39. The number of half line cycles is specified in the LINECYC register (Address 1Ch). The ADE7753 can accumulate active power for up to 65,535 half cycles. Because the active power is integrated on an integral number of half line cycles, at the end of an line cycle energy accumulation cycle the CYCEND flag in the Interrupt Status register is set (bit 2). If the CYCEND enable bit in the Interrupt Enable register is enabled, the will also go active low. Thus the

IRQ line can also be used

IRQ output

to signal the completion of the line cycle energy accumulation. Another calibration cycle will start as long as the CYCMODE bit in the Mode register is set. Note that the result of the first calibration is invalid and should be ignored. The result of all subsequent line cycle accumulation is correct.

E(t) VInT=

FROM

CHANNEL 2

ADC

ACCUMULATE ACTIVE POWER DURING LINCYC ZERO-CROSSINGS

Power Phase B

LPF1

ZEROCROSS

DETECT

CALIBRATION

CONTROL

LINCYC

15:0

(14)

WDIV

LAENERGY[23:0]

Figure 39 – Energy Calculation in Line Cycle Energy Accu-

mulation Mode

Note that in this mode, the 16-bit LINECYC register can hold a maximum value of 65,535. In other words, the line energy accumulation mode can be used to accumulate active energy for a maximum duration over 65,535 half line cycles. At 60Hz line frequency, it translates to a total duration of 65,535 / 120Hz = 546 seconds.

POSITIVE ONLY ACCUMULATION MODEPOSITIVE ONLY ACCUMULATION MODE

POSITIVE ONLY ACCUMULATION MODE

POSITIVE ONLY ACCUMULATION MODEPOSITIVE ONLY ACCUMULATION MODE

In Positive Only Accumulation mode, the energy accumulation is done only for positive power, ignoring any occurrence of negative power above or below the no load threshold as shown in Figure 40. The ADE7753 is placed in positive only accumulation mode by setting the MSB of the MODE register (MODE[15]). The default setting for this mode is off. Transitions in power going negative to positive or positive to negative set the IRQ pin to active low if the Interrupt Enable register is enabled. The Interrupt Status Registers, PPOS and PNEG, show which transition has occurred. See ADE7753 Register Descriptions.

From Equations 6 and 10.

 

nTnT



()

dttf

2cos

⋅



















9.8



∫∫

(12)

  

)(

dtVItE

−=

 

 

where n is a integer and T is the line cycle period. Since the sinusoidal component is integrated over a integer number of line cycles its value is always zero.

REV. PrC 01/02

–23–

Active Energy

No-load threshold

Active Power

No-load threshold

IRQ

PNEGPPOS PPOS

Interrupt Status Registers

PNEG PPOS

PNEG

Figure 40 – Energy Accumulation in Positive Only

Accumulation Mode

PRELIMINARY TECHNICAL DA TA

ADE7753

NO LOAD THRESHOLDNO LOAD THRESHOLD

NO LOAD THRESHOLD

NO LOAD THRESHOLDNO LOAD THRESHOLD

The ADE7753 includes a "no load threshold" feature that will eliminate any creep effects in the meter. The ADE7753 accomplishes this by not accumulating energy if the multiplier output is below the "no load threshold". This threshold is 0.001% of the full-scale output frequency of the multiplier. Compare this value to the IEC1036 specification which states that the meter must start up with a load equal to or less than

0.4% Ib. This standard translates to .0167% of the full-scale output frequency of the multiplier.

REACTIVE POWER CALCULATIONREACTIVE POWER CALCULATION

REACTIVE POWER CALCULATION

REACTIVE POWER CALCULATIONREACTIVE POWER CALCULATION Reactive power is defined as the product of the voltage and

current waveforms when one of this signal is phase shifted by 90º. The resulting waveform is called the instantaneous reactive power signal. Equation 17 gives an expression for the instantaneous reactive power signal in an ac system when the phase of the current channel is shifted by +90º.

)sin(2)(

θω

+= tVtv

+w=w=

)tsin(I)t('i)tsin(I)t(i

Where θ is the phase difference between the voltage and current channel, V = rms voltage and I = rms current.

)(')()( titvtRp ×=

)2sin()sin()(

θωθ

++= tVIVItRp

The average power over an integral number of line cycles (n) is given by the expression in Equation 18.

∫

VIdttRp

)sin()(

where T is the line cycle period. RP is referred to as the Reactive Power. Note that the reactive

power is equal to the DC component of the instantaneous reactive power signal Rp(t) in Equation 17. This is the relationship used to calculate reactive power in the ADE7753. The instantaneous reactive power signal Rp(t) is generated by multiplying the channel 1 and channel 2. In this case, the phase of the channel 1 is shifted by +90º. The DC component of the instantaneous reactive power signal is then extracted by a low pass filter to obtain the reactive power information. Figure 41 shows the signal processing in the Reactive Power calculation in the ADE7753.

(15)

(16)

(17)

(18)

Instantaneous Reactive Power Signal - Rp(t)

MULTIPLIER

CALIBRATION

CONTROL

LINECYC[15:0]

LVARENERGY[23:0]

ACCUMULATE ACTIVE ENERGY IN INTERNAL REGISTER AND UPDATE THE LVARENERGY REGISTER AT THE END OF LINECYC HALF-CYCLES

FROM

CHANNEL 2

ADC

LPF1

90 DEGREE PHASE SHIFT

ZERO CROSS

DETECTION

Figure 41 - Reactive Power Signal Processing

The features of the Reactive Energy accumulation are the same as the Line Active Energy accumulation. The number of half line cycles is specified in the LINECYC register. LINECYC is an unsigned 16-bit register. The ADE7754 can accumulate Reactive Power for up to 65535 combined half cycles. At the end of an energy calibration cycle the LINCYC flag in the Interrupt Status register is set. If the LINCYC mask bit in the Interrupt Mask register is enabled, the output will also go active low. Thus the

IRQ line can also be

IRQ

used to signal the end of a calibration. The ADE7753 accumulates the Reactive Power signal in the LVARENERGY register for an integer number of half cycles, as shown in Figure 41.

The Reactive Energy accumulation in the ADE7753 not only provides the reactive energy calculated using the phase shift method, it is also useful to provide the sign of the reactive power if it is desirable to use triangular method to calculate reactive power. The ADE7753 also provides an accurate measurement of the apparent power. The user can choose to determine reactive energy through the mathematical relationship between apparent, active and reactive power. The sign of the reactive energy can be found by reading the result from the LVARENERGY register at the end of a reactive energy accumulation cycle.

APPARENT POWER CALCULATIONAPPARENT POWER CALCULATION

APPARENT POWER CALCULATION

APPARENT POWER CALCULATIONAPPARENT POWER CALCULATION

Energyactive

)(Re

−×=

EnergyActiveEnergyApparentEnergyactivesign

Apparent power is defined as the amplitude of the vector sum of the Active and Reactive powers -see Figure 42. The angle θ between the Active Power and the Apparent Power generally represents the phase shift due to non-resistive loads. For single phase applications, θ represents the angle between the voltage and the current signals. Equation 20 gives an expression of the instantaneous power signal in an ac system with a phase shift.

–24–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

Apparent

Power

Reactive

Power

Active Power

Figure 42 - Power triangle

()

ttv

sinV2)(

rms

×=

The Apparent Power (AP) is defined as V

rms

()

tti

sinI2)(

θω

titvtp

)()()(

(19)

rms

(20)

. This

θωθ

+−=

tIVIVtp

rms

)2cos()cos()(

x I

rmsrmsrmsrms

expression is independent from the phase angle between the current and the voltage.

Figure 43 illustrates graphically the signal processing in each phase for the calculation of the Apparent Power in the ADE7753.

Current RMS Signal - i(t)

0.5V / GAIN1

00h

Voltage RMS Signal - v(t)

0.5V / GAIN2

00h

MULTIPLIER

Apparent Power Signal - P

D1B71h

VAGAIN

rms

1CF68Ch

rms

1CF68Ch

Figure 43 - Apparent Power Signal P rocessing

The gain of the Apparent Energy can be adjusted by using the multiplier and VA Gain register (VAGAIN[11:0]). The gain is adjusted by writing a 2’s complement, 12-bit word to the VAGAIN register. Below is the expression that shows how the gain adjustment is related to the contents of the VA Gain register.

  

PowerApparentVAGAINOutput



 

VAGAIN

+×=













For example when 7FFh is written to the VA Gain register the Power output is scaled up by 50%. 7FFh = 2047d,

2047/2

= 0.5. Similarly, 800h = -2047 Dec (signed 2’s Complement) and power output is scaled by –50%. The Apparent Power is calculated with the Current and Voltage RMS values obtained in the RMS blocks of the ADE7753. Shown in Figure 44 is the maximum code (Hexadecimal) output range of the Apparent Power signal. Note that the output range changes depending on the contents of the Apparent Power Gain registers. The minimum output range is given when the Apparent Power Gain register content is equal to 800h and the maximum range is given by

writing 7FFh to the Apparent Power Gain register. This can be used to calibrate the Apparent Power (or Energy) calculation in the ADE7753 -see Apparent Power calculation.

Apparent Power ± 100% FS

13A929h

D1B71h 68DB9h

00000h

Voltage and Current channel inputs: 0.5V / GAIN

Apparent Power ± 150% FS

000h

VAGAIN[11:0] Apparent Power

Calibration Range

7FFh

800h

Apparent Power ± 50% FS

+ 75% FS

+ 50% FS + 25% FS

Figure 44- Apparent Power Calculation Output range

Apparent Power Offset CalibrationApparent Power Offset Calibration

Apparent Power Offset Calibration

Apparent Power Offset CalibrationApparent Power Offset Calibration

Each RMS measurement includes an offset compensation register to calibrate and eliminate the DC component in the RMS value -see Channel 1 RMS calculation and Channel 2 RMS calculation. The channel 1 and channel 2 RMS values are then multiplied together in the Apparent Power signal processing. As no additional offsets are created in the multiplication of the RMS values, there is no specific offset compensation in the Apparent Power signal processing. The offset compensation of the Apparent Power measurement is done by calibrating each individual RMS measurements.

APPARENT ENERGY CALCULATIONAPPARENT ENERGY CALCULATION

APPARENT ENERGY CALCULATION

APPARENT ENERGY CALCULATIONAPPARENT ENERGY CALCULATION

The Apparent Energy is given as the integral of the Apparent Power.

dttPowerApparentEnergyApparent

∫

)(

(21)

The ADE7753 achieves the integration of the Apparent Power signal by continuously accumulating the Apparent Power signal in an internal 52-bit register. The Apparent Energy register (VAENERGY[23:0]) represents the upper 24 bits of this internal register. This discrete time accumulation or summation is equivalent to integration in continuous time. Equation 23 below expresses the relationship

∞

 

∑

=→0





)(

×=

TnTPowerApparentLimEnergyApparent



(22)



Where n is the discrete time sample number and T is the sample period.

The discrete time sample period (T) for the accumulation register in the ADE7753 is 1.1µs (4/CLKIN). Figure 44 shows a graphical representation of this discrete time integration or accumulation. The Apparent Power signal is continuously added to the internal register. This addition is a signed addition even if the Apparent Energy remains theoretically always positive.

REV. PrC 01/02

–25–

ADE7753

PRELIMINARY TECHNICAL DA TA

VAENERGY[23:0]

APPARENT POWER

D1B71h

00000h

VADIV

time (nT)

Apparent Power Signal - P

APPARENT POWER ARE ACCUMULATED (INTEGRATED) IN THE APPARENT ENERGY REGISTER

Figure 45- ADE7753 Apparent Energy calculation

The upper 52-bit of the internal register are divided by VADIV. If the value in the VADIV register is equal to 0 then the internal active Energy register is divided by 1. VADIV is an 8-bit unsigned register. The upper 24-bit are then written in the 24-bit Apparent Energy register (VAENERGY[23:0]). RVAENERGY register (24 bits long) is provided to read the Apparent Energy. This register is reset to zero after a read operation. Figure 45 shows this Apparent Energy accumulation for full scale signals (sinusoidal) on the analog inputs. The three curves displayed, illustrate the minimum time it takes the energy register to roll-over when the VA Gain registers content is equal to 7FFh, 000h and 800h. The VA Gain register is used to carry out an apparent power calibration in the ADE7753. As shown, the fastest integration time will occur when the VA Gain register is set to maximum full scale, i.e., 7FFh.

VAENERGY[23:0]

FF,FFFFh

80,0000h

40,0000h

VAGAIN = 7FFh VAGAIN = 000h VAGAIN = 800h

Integration times under steady loadIntegration times under steady load

Integration times under steady load

Integration times under steady loadIntegration times under steady load

As mentioned in the last section, the discrete time sample period (T) for the accumulation register is 1.1µs (4/CLKIN). With full-scale sinusoidal signals on the analog inputs and the VAGAIN register set to 000h, the average word value from Apparent Power stage is D1B71h - see Apparent Power output range. The maximum value which can be stored in the Apparent Energy register before it over-flows is 2 FF,FFFFh. As the average word value is added to the internal register which can store 2

- 1 or

-1

7,FFFF,FFFF,FFFFh before it overflows, the integration time under these conditions with VADIV=0 is calculated as follows:

FFFFhFFFFFFFF

Time 24min5231442.1

,,,7

hBD

711

==×=

sss

When VADIV is set to a value different from 0, the integration time varies as shown on Equation 23.

Time = Time

LINE APPARENT ENERGY ACCUMULATIONLINE APPARENT ENERGY ACCUMULATION

LINE APPARENT ENERGY ACCUMULATION

LINE APPARENT ENERGY ACCUMULATIONLINE APPARENT ENERGY ACCUMULATION

x VADIV (23)

WDIV=0

The ADE7753 is designed with a special Apparent Energy accumulation mode which simplifies the calibration process. By using the on-chip zero-crossing detection, the ADE7753 accumulates the Apparent Power signal in the LVAENERGY register for an integral number of half cycles, as shown in Figure 47. The line Apparent energy accumulation mode is always active. The number of half line cycles is specified in the LINCYC register. LINCYC is an unsigned 16-bit register. The ADE7753 can accumulate Apparent Power for up to 65535 combined half cycles. Because the Apparent Power is integrated on the same integral number of line cycles as the Line Active Energy register, these two values can be compared easily. The active and apparent Energy are calculated more accurately because of this precise timing control and provide all the information needed for Reactive Power and Power Factor calculation. At the end of an energy calibration cycle the LINCYC flag in the Interrupt Status register is set. If the LINCYC mask bit in the Interrupt Mask register is enabled, the

IRQ output will also go active low. Thus the IRQ line can

also be used to signal the end of a calibration. The Line Apparent Energy accumulation uses the same

signal path as the Apparent Energy accumulation. The LSB size of these two registers is equivalent.

20,0000h

00,0000h

133 200

267

300

Time (minutes)

Figure 46- Energy register roll-over time for full-scale

power (Minimum & Maximum Power Gain)

Note that the Apparent Energy register contents roll-over to full-scale negative (80,0000h) and continue increasing in value when the power or energy flow is positive - see Figure

46. By using the Interrupt Enable register, the ADE7754 can be configured to issue an interrupt (

IRQ) when the Apparent Energy register is half full (positive or negative) or when an over/under flow occurs.

–26–

LVAENERGY[23:0]

FROM

CHANNEL 2

ADC

LPF1

Apparent Power

ZERO

CROSSING

DETECTION

VADIV[7:0]

CALIBRATION

CONTROL

LINECYC[15:0]

Figure 47 - ADE7753 Apparent Energy Calibration

REV. PrC 01/02

LVAENERGY REGISTER IS UPDATED EVERY LINECYC ZERO-CROSSINGS WITH THE TOTAL APPARENT ENERGY DURING THAT DURATION

PRELIMINARY TECHNICAL DA TA

CALIBRATING THE ENERGY METERCALIBRATING THE ENERGY METER

CALIBRATING THE ENERGY METER

CALIBRATING THE ENERGY METERCALIBRATING THE ENERGY METER Calculating the Average Active PowerCalculating the Average Active Power

Calculating the Average Active Power

Calculating the Average Active PowerCalculating the Average Active Power

When calibrating the ADE7753, the first step is to calibrate the frequency on CF to some required meter constant, e.g., 3200 imp/kWh.

In order to determine the output frequency on CF, the average value of the Active Power signal (output of LPF2) must first be determined. One convenient way to do this is to use the line cycle energy accumulation mode. When the CYCMODE (bit 7) bit in the Mode register is set to a logic one, energy is accumulated over an integer number of half line cycles as described in the last section. Since the line frequency is fixed at, say 60Hz, and the number of half cycles of integration is specified, the total integration time is given as :

ADE7753

57954538152428

)CF(Frequency

This is the frequency with the contents of the CFNUM and CFDEN registers equal to 000h. The desired frequency out is 3.9111Hz. Therefore, the CF frequency must be divided by 349.566/3.9111Hz or 89.3779 decimal. This is achieved by loading the pair of CF Divider registers with the closest rational number. In this case, the closest rational number is found to be 25/2234 (or 19h/8BAh). Therefore, 18h and 8B9h should be written to the CFNUM and CFDEN registers respectively. Note that the CF frequency is divided by the contents of (CFNUM + 1) / (CFDEN + 1). With the CF Divide registers contents equal to 18h/8B9h, the output frequency is given as 349.566Hz / 89.36 = 3.91188Hz. This setting has an error of +0.02%.

MHz..

566349

Hz.

602

cycleshalfofnoHz.

For 255 half cycles this would give a total integration time of

2.125 seconds. This would mean the energy register was updated 2.125 / 1.1175µs (4/CLKIN) times. The average output value of LPF2 is given as :

endtheatLAENERGYofContent

updatedwasLEAENERGYtimesofNumber

Or equivalently, in terms of contents of various ADE7753 registers and CLKIN and line frequencies (fl):

flLAENERGY

××

LPFWordAverage

where f

Calibrating the Frequency at CFCalibrating the Frequency at CF

Calibrating the Frequency at CF

Calibrating the Frequency at CFCalibrating the Frequency at CF

is the line frequency.

)2(

]0:15[

(24)

CLKINLINECYC

Once the average Active Power signal is calculated it can be used to determine the frequency at CF before calibration. When the frequency before calibration is known, the pair of CF Frequency Divider registers (CFNUM and CFDEN) can be adjusted so as to produce the required frequency on CF. In this example a meter constant of 3200 imp/kWh is chosen as an appropriate constant. This means that under a steady load of 1kW, the output frequency on CF would be,

kWhimp

CFFrequency

)(

/3200

3200

3600

sec60min60

8888.0

Assuming the meter is set up with a test current (basic current) of 20A and a line voltage of 220V for calibration, the load is calculated as 220V × 20A = 4.4kW. Therefore the expected output frequency on CF under this steady load condition would be 4.4 × 0.8888Hz = 3.9111Hz. Under these load conditions the transducers on Channel 1 and Channel 2 should be selected such that the signal on the voltage channel should see approximately half scale and the signal on the current channel about 1/8 of full scale (assuming a maximum current of 80A). The average value from LPF2 is calculated as 52,428.81 decimal using the calibration mode as described above. Then using Digital to Frequency Conversion, the frequency under this load is calculated as:

Calibrating CF is made easy by using the Calibration mode on the ADE7753. The only critical part of the set up is that the line frequency be exactly known. If this is not possible if could be measured by using the ZX output of the ADE7753.

Note that changing WGAIN[11:0] register will also affect the output frequency from CF. The WGAIN register has a gain adjustment of 0.0244% / LSB.

Energy Meter DisplayEnergy Meter Display

Energy Meter Display

Energy Meter DisplayEnergy Meter Display

Besides the pulse output which is used to verify calibration, a solid state energy meter will very often require some form of display. The display should display the amount of energy consumed in kWh (Kilo-Watt Hours). One convenient and simple way to interface the ADE7753 to a display or energy register (e.g., MCU with nonvolatile memory) is to use CF. For example the CF frequency could be calibrated to 1,000 imp/kWhr. The MCU would count pulses from CF. Every pulse would be equivalent to 1 watt-hour. If more resolution is required the CF frequency could be set to, say 10,000 imp/ kWh. If more flexibility is required when monitoring energy usage the Active Energy register (AENERGY) can be used to calculate energy. A full description of this register can be found in the Energy Calculation section. The AENERGY register gives the user both sign and magnitude information regarding energy consumption. On completion of the CF frequency output calibration, i.e., after the Active Power Gain (APGAIN) register has been adjusted a second calibration sequence can be initiated. The purpose of this second calibration routine is to determine a kWh/LSB coefficient for the AENERGY register. Once the coefficient has been calculated the MCU can determine the energy consumption at any time by reading the AENERGY contents and multiplying by the coefficient to calculate kWh.

REV. PrC 01/02

–27–

PRELIMINARY TECHNICAL DA TA

ADE7753

CLKIN FREQUENCYCLKIN FREQUENCY

CLKIN FREQUENCY

CLKIN FREQUENCYCLKIN FREQUENCY

In this datasheet, the characteristics of the ADE7753 is shown with CLKIN frequency equals 3.579545 MHz. However, the ADE7753 is designed to have the same accuracy at any CLKIN frequency within the specified range. If the CLKIN frequency is not 3.579545MHz, various timing and filter characteristics will need to be redefined with the new CLKIN frequency. For example, the cut-off frequencies of all digital filters (LPF1, LPF2, HPF1, etc.) will shift in proportion to the change in CLKIN frequency according to the following equation:

FrequencyOriginalFrequencyNew

×=

FrequencyCLKIN

579545.3

MHz

(25)

CHECKSUM REGISTERCHECKSUM REGISTER

CHECKSUM REGISTER

CHECKSUM REGISTERCHECKSUM REGISTER

The ADE7753 has a Checksum register (CHECKSUM[5:0]) to ensure the data bits received in the last serial read operation are not corrupted. The 6-bit Checksum register is reset before the first bit (MSB of the register to be read) is put on the DOUT pin. During a serial read operation, when each data bit becomes available on the rising edge of SCLK, the bit will be added to the Checksum register. In the end of the serial read operation, the content of the Checksum register will equal to the sum of all ones in the register previously read. Using the Checksum register, the user can determine if an error has occured during the last read operation. Note that a read to the Checksum register will also generate a checksum of the Checksum register itself.

The change of CLKIN frequency does not affect the timing characteristics of the serial interface because the data transfer is synchronized with serial clock signal (SCLK). But one needs to observe the read/write timing of the serial data transfer-see ADE7753 Timing Characteristics. Table III lists various timing changes that are affected by CLKIN frequency.

Table III

Frequency dependencies of the ADE7753 parameters

ParameterParameter

Parameter

ParameterParameter

CLKIN dependencyCLKIN dependency

CLKIN dependency

CLKIN dependencyCLKIN dependency

Nyquist frequency for CH 1&2 ADCs CLKIN/8 PHCAL resolution (seconds per LSB) 4/CLKIN Active Energy register update rate (Hz) CLKIN/4 Waveform sampling rate (Number of samples per second)

WAVSEL 1,0 = 0 0 CLKIN/128

0 1 CLKIN/256 1 0 CLKIN/512 1 1 CLKIN/1024

Maximum ZXTOUT period 524,288/CLKIN

DOUT

Figure 48– Checksum register for Serial Interface Read

CONTENT OF REGISTER (n-bytes)

CHECKSUM REGISTER

ADDR: 3Eh

SUSPENDING THE ADE7753 FUNCTIONALITYSUSPENDING THE ADE7753 FUNCTIONALITY

SUSPENDING THE ADE7753 FUNCTIONALITY

SUSPENDING THE ADE7753 FUNCTIONALITYSUSPENDING THE ADE7753 FUNCTIONALITY

The analog and the digital circuit can be suspended separately. The analog portion of the ADE7753 can be suspended by setting the ASUSPEND bit (bit 4) of the Mode register to logic high

See Mode Register. In suspend mode, all waveform samples from the ADCs will be set to zeros. The digital circuitry can be halted by stopping the CLKIN input and maintaining a logic high or low on CLKIN pin. The ADE7753 can be reactivated by restoring the CLKIN input and setting the ASUSPEND bit to logic low.

–28–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

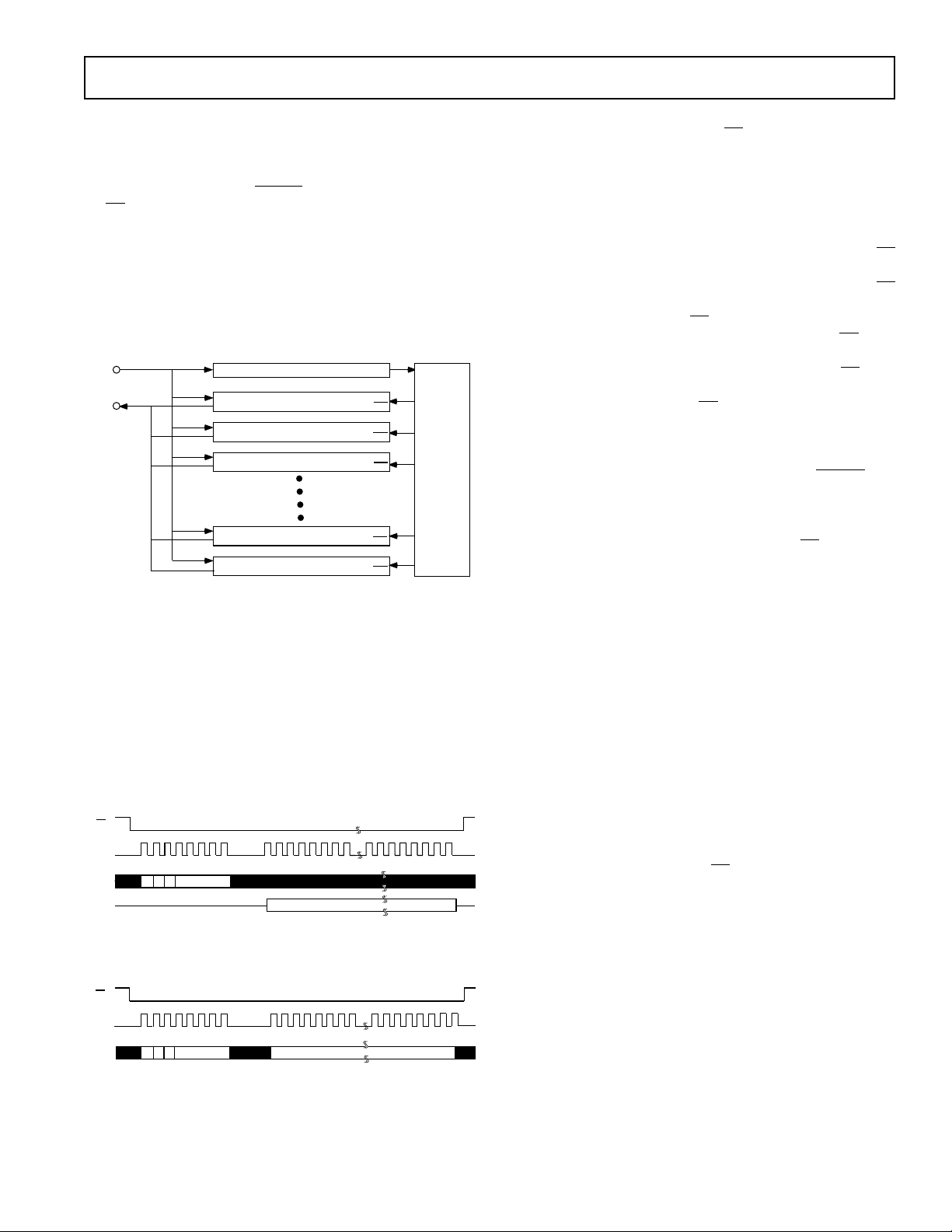

ADE7753 SERIAL INTERFACEADE7753 SERIAL INTERFACE

ADE7753 SERIAL INTERFACE

ADE7753 SERIAL INTERFACEADE7753 SERIAL INTERFACE

All ADE7753 functionality is accessible via several on-chip registers – see Figure 49. The contents of these registers can be updated or read using the on-chip serial interface. After power-on or toggling the on

CS, the ADE7753 is placed in communications mode. In

RESET pin low or a falling edge

communications mode the ADE7753 expects a write to its Communications register. The data written to the communications register determines whether the next data transfer operation will be read or a write and also which register is accessed. Therefore all data transfer operations with the ADE7753, whether a read or a write, must begin with a write to the Communications register.

DIN

DOUT

COMMUNICATIONS REGISTER

OUT

DECODE

Figure 49– Addressing ADE7753 Registers via the

Communications Register

The Communications register is an eight bit wide register. The MSB determines whether the next data transfer operation is a read or a write. The 5 LSBs contain the address of the register to be accessed. See ADE7753 Communications Register for a more detailed description. Figure 50 and 51 show the data transfer sequences for a read and write operation respectively. On completion of a data transfer (read or write) the ADE7753 once again enters communications mode.

SCLK

COMMUNICATIONS REGISTER WRITE

DIN

DOUT

0 00

ADDRESS

MULTIBYTE READ DATA

Figure 50– Reading data from the ADE7753 via the serial

interface

SCLK

COMMUNICATIONS REGISTER WRITE

DIN

1 00

ADDRESS

MULTIBYTE WRITE DATA

Figure 51– Writing data to the ADE7753 via the serial inter-

face

A data transfer is complete when the LSB of the ADE7753 register being addressed (for a write or a read) is transferred to or from the ADE7753.

The Serial Interface of the ADE7753 is made up of four signals SCLK, DIN, DOUT and

CS. The serial clock for a data transfer is applied at the SCLK logic input. This logic input has a schmitt-trigger input structure, which allows slow rising (and falling) clock edges to be used. All data transfer operations are synchronized to the serial clock. Data is shifted into the ADE7753 at the DIN logic input on the falling edge of SCLK. Data is shifted out of the ADE7753 at the DOUT logic output on a rising edge of SCLK. The

logic input is the chip select input. This input is used when multiple devices share the serial bus. A falling edge on

also resets the serial interface and places the ADE7753 in communications mode. The CS input should be driven low for the entire data transfer operation. Bringing

CS high during a data transfer operation will abort the transfer and place the serial bus in a high impedance state. The CS logic input may be tied low if the ADE7753 is the only device on the serial bus. However with

CS tied low, all initiated data transfer operations must be fully completed, i.e., the LSB of each register must be transferred as there is no other way of bringing the ADE7753 back into communications mode without resetting the entire device, i.e., using

ADE7753 Serial Write OperationADE7753 Serial Write Operation

ADE7753 Serial Write Operation

ADE7753 Serial Write OperationADE7753 Serial Write Operation

RESET.

The serial write sequence takes place as follows. With the ADE7753 in communications mode (i.e. the

CS input logic low), a write to the communications register first takes place. The MSB of this byte transfer is a 1, indicating that the data transfer operation is a write. The LSBs of this byte contain the address of the register to be written to. The ADE7753 starts shifting in the register data on the next falling edge of SCLK. All remaining bits of register data are shifted in on the falling edge of subsequent SCLK pulses – see Figure 51. As explained earlier the data write is initiated by a write to the communications register followed by the data. During a data write operation to the ADE7753, data is transferred to all onchip registers one byte at a time. After a byte is transferred into the serial port, there is a finite time before it is transferred to one of the ADE7753 on-chip registers. Although another byte transfer to the serial port can start while the previous byte is being transferred to an on-chip register, this second byte transfer should not finish until at least 4µs after the end of the previous byte transfer. This functionality is expressed in the timing specification t aborted during a byte transfer (

- see Figure 51. If a write operation is

CS brought high), then that byte will not be written to the destination register. Destination registers may be up to 3 bytes wide – see ADE7753 Register Descriptions. Hence the first byte shifted into the serial port at DIN is transferred to the MSB (Most significant Byte) of the destination register. If the addressed register is 12 bits wide, for example, a two-byte data transfer must take place. The data is always assumed to be right justified, therefore in this case, the four MSBs of the first byte would be ignored and the 4 LSBs of the first byte written to the ADE7753 would be the 4MSBs of the 12-bit word. Figure 52 illustrates this example.

REV. PrC 01/02

–29–

ADE7753

SCLK

DIN

SCLK

PRELIMINARY TECHNICAL DA TA

Command Byte

A4 A3 A2

DB7

Most Significant Byte

Figure 52 – Serial Interface Write Timing Diagram

DB0 DB7

Least Significant Byte

DB0

DIN

XXXX

Most Significant Byte

DB11

DB10

DB9

DB8

Figure 53—12 bit Serial Write Operation

ADE7753 Serial Read OperationADE7753 Serial Read Operation

ADE7753 Serial Read Operation

ADE7753 Serial Read OperationADE7753 Serial Read Operation

During a data read operation from the ADE7753 data is shifted out at the DOUT logic output on the rising edge of SCLK. As was the case with the data write operation, a data read must be preceded with a write to the Communications register. With the ADE7753 in communications mode (i.e.

CS logic low) an eight bit write to the Communications register first takes place. The MSB of this byte transfer is a 0, indicating that the next data transfer operation is a read. The LSBs of this byte contain the address of the register which is to be read. The ADE7753 starts shifting out of the register data on the next rising edge of SCLK – see Figure 54. At this point the DOUT logic output leaves its high impedance state and starts driving the data bus. All remaining bits of register data are shifted out on subsequent SCLK rising edges. The serial interface also enters communications mode again as soon as the read has been completed. At this point the DOUT logic

DB4

DB5

DB6

DB7

Least Significant Byte

DB3

DB2

DB1

DB0

output enters a high impedance state on the falling edge of the last SCLK pulse. The read operation may be aborted by bringing the

CS logic input high before the data transfer is complete. The DOUT output enters a high impedance state on the rising edge of

CS. When an ADE7753 register is addressed for a read operation, the entire contents of that register are transferred to the serial port. This allows the ADE7753 to modify its on-chip registers without the risk of corrupting data during a multi byte transfer. Note when a read operation follows a write operation, the read command (i.e., write to communications register) should not happen for at least 4µs after the end of the write operation. If the read command is sent within 4µs of the write operation, the last byte of the write operation may be lost. The is given as timing specification t

SCLK

DIN

DOUT

000

A4 A3 A2

Command Byte

DB7

Most Significant Byte

Figure 54– Serial Interface Read Timing Diagram

–30–

DB0

DB7

Least Significant Byte

DB0

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753 REGISTER LISTADE7753 REGISTER LIST

ADE7753 REGISTER LIST

ADE7753 REGISTER LISTADE7753 REGISTER LIST

AddressAddress

Address

AddressAddress

01h WAVEFORM R 24 bits 0h The Waveform register is a read-only register. This register

02h AENERGY R 24 bits 0h The Active Energy register. Active Power is accumulated

03h RAENERGY R 24 bits 0h Same as the Active Energy register except that the register is

04h LAENERGY R 24 bits 0h Line Accumulation Active Energy register. The instantaneous

05h VAENERGY R 24 bits 0h Apparent Energy register. Apparent power is accumulated over

06h RVAENERGY R 24 bits 0h Same as the VAENERGY register except that the register is reset

07h LVAENERGY R 24 bits 0h Apparent Energy register. The instantaneous real power is

08h LVARENERGY R 24 bits 0h Reactive Energy register. The instantaneous reactive power is

09h MODE R/W 16 bits 000Ch The Mode register. This is a 16-bit register through which most

0Ah IRQEN R/W 16 bits 0h Interrupt Enable register. ADE7753 interrupts may be

0Bh STATUS R 16 bits 0h The Interrupt Status register. This is an 8-bit read-only register.

0Ch RSTSTATUS R 16 bits 0h Same as the Interrupt Status register except that the register

0Dh CH1OS R/W 8 bits 00h Channel 1 Offset Adjust. Bit 6 is not used. Writing to bits 0 to 5

0Eh CH2OS R/W 8 bits 0h Channel 2 Offset Adjust. Bit 6 and 7 not used. Writing to bits 0

0Fh GAIN R/W 8 bits 0h PGA Gain Adjust. This 8-bit register is used to adjust the gain

NameName

Name

NameName

R/WR/W

R/W

R/WR/W

# of Bits# of Bits

# of Bits

# of Bits# of Bits

DefaultDefault

Default

DefaultDefault

DescriptionDescription

Description

DescriptionDescription

contains the sampled waveform data from either Channel 1, Channel 2 or the Active Power signal. The data source and the length of the waveform registers are selected by data bits 14 and 13 in the Mode Register - see Channel 1 & 2 Sampling.

(Integrated) over time in this 24-bit, read-only register. The energy register can hold a minimum of 6 seconds of Active Energy information with full scale analog inputs before it overflows - see Energy Calculation.

reset to zero following a read operation

active power is accumulated in this read-only register over the LINCYC number of half line cycles.

time in this read-only register.

to zero following a read operation.

accumulated in this read-only register over the LINECYC number of half line cycles

accumulated in this read-only register over the LINECYC number of half line cycles.

of the ADE7753 functionality is accessed. Signal sample rates, filter enabling and calibration modes are selected by writing to this register. The contents may be read at any time—see Mode Register.

deactivated at any time by setting the corresponding bit in this 8bit Enable register to logic zero. The Status register will continue to register an interrupt event even if disabled. However, the

IRQ output will not be activated—see ADE7753 Interrupts.

The Status Register contains information regarding the source of ADE7753 interrupts - see ADE7753 Interrupts.

contents are reset to zero (all flags cleared) after a read operation.

allows offsets on Channel 1 to be removed – see Analog Inputs and CH1OS Register. Writing a logic one to the MSB of this register enables the digital integrator on Channel 1, a zero disables the integrator. The default value of this bit is zero.

to 5 of this register allows any offsets on Channel 2 to be removed - see Analog Inputs.

selection for the PGA in Channel 1 and 2 - see Analog Inputs.

ADE7753

REV. PrC 01/02

–31–

ADE7753

PRELIMINARY TECHNICAL DA TA

AddressAddress

Address

AddressAddress

10h PHCAL R/W 6 bits 0h Phase Calibration register. The phase relationship between

11h APOS R/W 16 bits 0h Active Power Offset Correction. This 16-bit register allows small

12h WGAIN R/W 12 bits 0h Power Gain Adjust. This is a 12-bit register. The Active Power

13h WDIV R/W 8 bits 0h Active Energy divider register. The internal active energy register

14h CFNUM R/W 12 bits 3Fh CF Frequency Divider Numerator register. The output frequency

15h CFDEN R/W 12 bits 3Fh CF Frequency Divider Denominator register. The output

16h IRMS R 24 bits 0h Channel 1 RMS value (current channel). 17h VRMS R 24 bits 0h Channel 2 RMS value (voltage channel). 18h IRMSOS R/W 12 bits 0h Channel 1 RMS offset correction register 19h VRMSOS R/W 12 bits 0h Channel 2 RMS offset correction register 1Ah VAGAIN R/W 12 bits 0h Apparent Gain register. Apparent power calculation can be

1Bh VADIV R/ W 8 bits 0h Apparent Energy divider register. The internal apparent energy

1Ch LINECYC R/W 16 bits FFFFh Line Cycle Energy Accumulation Mode Half-Cycle register.

1Dh ZXTOUT R/W 12 bits FFFh Zero-cross Time Out. If no zero crossings are detected on

1Eh SAGCYC R/W 8 bits FFh Sag line Cycle register. This 8-bit register specifies the number

1Fh SAGLVL R/W 8 bits 0h Sag Voltage Level. An 8-bit write to this register determines at

20h IPKLVL R/W 8 bits FFh Channel 1 Peak Level threshold (current channel). This register

NameName

Name

NameName

R/WR/W

R/W

R/WR/W

# of Bits# of Bits

# of Bits

# of Bits# of Bits

DefaultDefault

Default

DefaultDefault

DescriptionDescription

Description

DescriptionDescription

Channel 1 and 2 can be adjusted by writing to this 6-bit register. The valid content of this 2's compliment register is between 1Fh to 20h, which a phase difference of -0.748° to +0.748° at 60Hz in 0.0241° steps—see Phase Compensation.

offsets in the Active Power Calculation to be removed – see Active Power Calculation.

calculation can be calibrated by writing to this register. The calibration range is ±50% of the nominal full scale active power. The resolution of the gain adjust is 0.0244% / LSB—see Channel 1 ADC Gain Adjust.

is divided by the value of this register before being stored in the AENERGY register.

on the CF pin is adjusted by writing to this 12-bit read/write register – see Energy to Frequency Conversion.

frequency on the CF pin is adjusted by writing to this 12-bit read/write register – see Energy to Frequency Conversion.

calibrated by writing this register. The calibration range is 50% of the nominal full scale real power. The resolution of the gain adjust is 0.02444% / LSB.

This 16-bit register is used during line cycle energy accumulation mode to set the number of half line cycles active energy is accumulated-see Line Cycle Energy Accumulation Mode.

Channel 2 within a time period specified by this 12-bit register, the interrupt request line ( time-out period is 0.15 second - see Zero Crossing Detection.

of consecutive half line cycles the signal on Channel 2 must be below SAGLVL before the

Sag Detection

what peak signal level on Channel 2 the SAG pin will become active. The signal must remain low for the number of cycles specified in the SAGCYC register before the SAG pin is activated—see Line Voltage Sag Detection.

sets the level of the current peak detection. If the channel 1 input exceeds this level, the PKI flag in the status register is set.

IRQ) will be activated. The maximum

SAG output is activated - see Voltage

–32–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

AddressAddress

Address

AddressAddress

21h VPKLVL R/W 8 bits FFh Channel 2 Peak Level threshold (voltage channel). This register

22h IPEAK R 24 bits 0h Channel 1 peak register. The maximum input value of the

23h RSTIPEAK R 24 bits 0h Same as Channel 1 peak register except that the register contents

24h VPEAK R 24 bits 0h Channel 2 peak register. The maximum input value of the

25h RSTVPEAK R 24 bits 0h Same as Channel 2 peak register except that the register contents

26h TEMP R 8 bits 0h Temperature register. This is an 8-bit register which contains the

27h PERIOD R 15 bits 0h Period of the channel 2 (volatge channel) input estimated by

28h3Ch Reserved 3Dh TMODE R/W 8 bits Test mode register 3Eh CHKSUM R 6 bits 0h Checksum Register. This 6-bit read only register is equal to the

3Fh DIEREV R 8 bits 01h Die Revision Register. This 8-bit read only register contains the

NameName

Name

NameName

R/WR/W

R/W

R/WR/W

# of Bits# of Bits

# of Bits

# of Bits# of Bits

DefaultDefault

Default

DefaultDefault

DescriptionDescription

Description

DescriptionDescription

sets the level of the voltage peak detection. If the channel 2 input exceeds this level, the PKV flag in the status register is set.

Voltage channel since the last read of this register is stored in this register.

are reset to 0 after read.

Current channel since the last read of this register is stored in this register.

are reset to 0 after a read.

result of the latest temperature conversion – see Temperature Measurement.

Zero-crossing processing.

sum of all the ones in the previous read – see ADE7753 Serial Read

Operation.

revision number of the silicon.

ADE7753 REGISTER DESCRIPTIONSADE7753 REGISTER DESCRIPTIONS

ADE7753 REGISTER DESCRIPTIONS

ADE7753 REGISTER DESCRIPTIONSADE7753 REGISTER DESCRIPTIONS

All ADE7753 functionality is accessed via the on-chip registers. Each register is accessed by first writing to the communications register and then transferring the register data. A full description of the serial interface protocol is given in the Serial Interface section of this data sheet.

Communications RegisterCommunications Register

Communications Register

Communications RegisterCommunications Register

The Communications register is an 8-bit, write-only register which controls the serial data transfer between the ADE7753 and the host processor. All data transfer operations must begin with a write to the communications register. The data written to the communications register determines whether the next operation is a read or a write and which register is being accessed. Table IV below outlines the bit designations for the Communications register.

Table V. Communications RegisterTable V. Communications Register

Table V. Communications Register

Table V. Communications RegisterTable V. Communications Register

DB7

W/R

BitBit

Bit

BitBit LocationLocation

Location

LocationLocation 0 to 5 A0 to A5 The six LSBs of the Communications register specify the register for the data transfer

6 RESERVED This bit is unused and should be set to zero. 7W/

BitBit

Bit

BitBit MnemonicMnemonic

Mnemonic

MnemonicMnemonic

R When this bit is a logic one the data transfer operation immediately following the write to

DescriptionDescription

Description

DescriptionDescription

operation. Table III lists the address of each ADE7753 on-chip register.

the Communications register will be interpreted as a write to the ADE7753. When this bit is a logic zero the data transfer operation immediately following the write to the Communications register will be interpreted as a read operation.

DB4DB5DB6

A4 A3 A2 A1 A00A5

DB2DB3

DB1

DB0

REV. PrC 01/02

–33–

PRELIMINARY TECHNICAL DA TA

ADE7753

Mode Register (09H)Mode Register (09H)

Mode Register (09H)

Mode Register (09H)Mode Register (09H)

The ADE7753 functionality is configured by writing to the MODE register. Table VI below summarizes the functionality of each bit in the MODE register .

Table VI : Mode RegisterTable VI : Mode Register

Table VI : Mode Register

Table VI : Mode RegisterTable VI : Mode Register

BitBit

Bit

BitBit LocationLocation

Location

LocationLocation 0 DISHPF 0 The HPF (High Pass Filter) in Channel 1 is disabled when this bit is set.

1 DISLPF2 0 The LPF (Low Pass Filter) after the multiplier (LPF2) is disabled when this bit is set. 2 DISCF 1 The Frequency output CF is disabled when this bit is set 3 DISSAG 1 The line voltage Sag detection is disabled when this bit is set 4 ASUSPEND 0 By setting this bit to logic one, both ADE7753's A/D converters can be turned off. In

5 TEMPSEL 0 The Temperature conversion starts when this bit is set to one. This bit is automatically

6 SWRST 0 Software chip reset. A data transfer should not take place to the ADE7753 for at least 18µs

7 CYCMODE 0 Setting this bit to a logic one places the chip in line cycle energy accumulation mode. 8 DISCH1 0 ADC 1 (Channel 1) inputs are internally shorted together. 9 DISCH2 0 ADC 2 (Channel 2) inputs are internally shorted together. 10 SWAP 0 By setting this bit to logic 1 the analog inputs V2P and V2N are connected to ADC 1 and

12, 11 DTRT1,0 00 These bits are used to select the Waveform Register update rate

14, 13 WAVSEL1,0 00 These bits are used to select the source of the sampled data for the Waveform Register

15 POAM 0 Writing a logic one to this bit will allow only positive power to be accumulated in the

BitBit

Bit

BitBit MnemonicMnemonic

Mnemonic

MnemonicMnemonic

DefaultDefault

Default

DefaultDefault ValueValue

Value

ValueValue

DescriptionDescription

Description

DescriptionDescription

normal operation, this bit should be left at logic zero. All digital functionality can be stopped by suspending the clock signal at CLKIN pin.

reset to zero when the Temperature conversion is finished.

after a software reset.

the analog inputs V1P and V1N are connected to ADC 2.

DTRT 1 DTRT0 Update Rate 0 0 27.9kSPS (CLKIN/128) 0 1 14kSPS (CLKIN/256) 1 0 7kSPS (CLKIN/512) 1 1 3.5kSPS (CLKIN/1024)

WAVSEL1,0 Length Source 0 0 24 bits Active Power signal (output of LPF2) 0 1 Reserved 1 0 24 bits Channel 1 1 1 24 bits Channel 2

ADE7753. The default value of this bit is 0.

MODE REGISTER*

1415

89101112

00000000

01234

ADDR: 09H

00110000

(Positive Only Accumulation)

(Wave form selection for sample mode)

(Waveform samples output data rate)

00 = 27.9kSPS (CLKIN/128) 01 = 14.4 kSPS (CLKIN/256) 10 = 7.2 kSPS (CLKIN/512) 11 = 3.6 kSPS (CLKIN/1024)

(Swap CH1 & CH2 ADCs)

(Short the analog inputs on Channel 2)

(Short the analog inputs on Channel 1)

WAVSEL

00 = LPF2

01= Reserved

10 = CH1 11 = CH2

DISCH2

DISCH1

POAM

DTRT

SWAP

*Register contents show power on defaults

–34–

DISHPF (Disable HPF in Channel 1)

DISLPF2 (Disable LPF2 after multiplier)

DISCF (Disable Frequency output CF)

DISSAG (Disable SAG output)

ASUSPEND (Suspend CH1&CH2 ADC’s)

STEMP (Start temperature sensing)

SWRST (Software chip reset)

CYCMODE (Line Cycle Energy Accumulation Mode)

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753

Interrupt Status Register (0BH) / Reset Interrupt Status Register (0CH) /Interrupt Enable Register (0Ah)Interrupt Status Register (0BH) / Reset Interrupt Status Register (0CH) /Interrupt Enable Register (0Ah)

Interrupt Status Register (0BH) / Reset Interrupt Status Register (0CH) /Interrupt Enable Register (0Ah)

The Status Register is used by the MCU to determine the source of an interrupt request (IRQ). When an interrupt event occurs in the ADE7753, the corresponding flag in the Interrupt Status register is set logic high. If the enable bit for this flag is logic one in the Interrupt Enable register, the carry out a read from the Interrupt Status Register to determine the source of the interrupt.

Table VII: Interrupt Status Register, Reset Interrupt Status Register & Interrupt Enable RegisterTable VII: Interrupt Status Register, Reset Interrupt Status Register & Interrupt Enable Register

Table VII: Interrupt Status Register, Reset Interrupt Status Register & Interrupt Enable Register

Table VII: Interrupt Status Register, Reset Interrupt Status Register & Interrupt Enable RegisterTable VII: Interrupt Status Register, Reset Interrupt Status Register & Interrupt Enable Register

BitBit

Bit

BitBit LocationLocation

Location

LocationLocation 0h AEHF Indicates that an interrupt was caused by the 0 to 1 transition of the MSB of the Active

1 h S A G Indicates that an interrupt was caused by a SAG on the line voltage or no zero crossings were

2h CYCEND Indicates the end of energy accumulation over an integer number of half line cycles as

3h WSMP Indicates that new data is present in the Waveform Register. 4h Z X This status bit reflects the status of the ZX logic ouput—see Zero Crossing Detection 5h TEMP Indicates that a temperature conversion result is available in the Temperature Register. 6h RESET Indicates the end of a reset (for both software or hardware reset). The corresponding

7h AEOF Indicates that the Active Energy register has overflowed. 8h PKV Indicates that waveform sample from Channel2 has exceeded the VPKLVL value. 9h PKI Indicates that waveform sample from Channel1 has exceeded the IPKLVL value. Ah VAEHF Indicates that an interrupt was caused by the 0 to 1 transition of the MSB of the Apparent

Bh VAEOF Indicates that the Apparent Enrgy register has overflowed. Ch ZXTO Indicates that an interrupt was caused by a missing zero crossing on the line voltage for the

Dh PPOS Indicates that the power has gone from negative to positive. Eh PNEG Indicates that the power has gone from positive to negative. Fh RESERVED Reserved

InterruptInterrupt

Interrupt

InterruptInterrupt FlagFlag

Flag

FlagFlag

IRQ logic output goes active low. When the MCU services the interrupt it must first

DescriptionDescription

Description

DescriptionDescription

Energy register (i.e. the AENERGY register is half full)

detected.

defined by the content of the LINECYC Register—see Line Cycle Energy Accumulation Mode

enable bit has no function in the Interrupt Enable Register, i.e. this status bit is set at the end of a reset, but it cannot be enabled to cause an interrupt.

Energy register (i.e. the VAENERGY register is half full)

specified number of line cycles—see Zero Crossing Time Out

REV. PrC 01/02

–35–

ADE7753

PRELIMINARY TECHNICAL DA TA

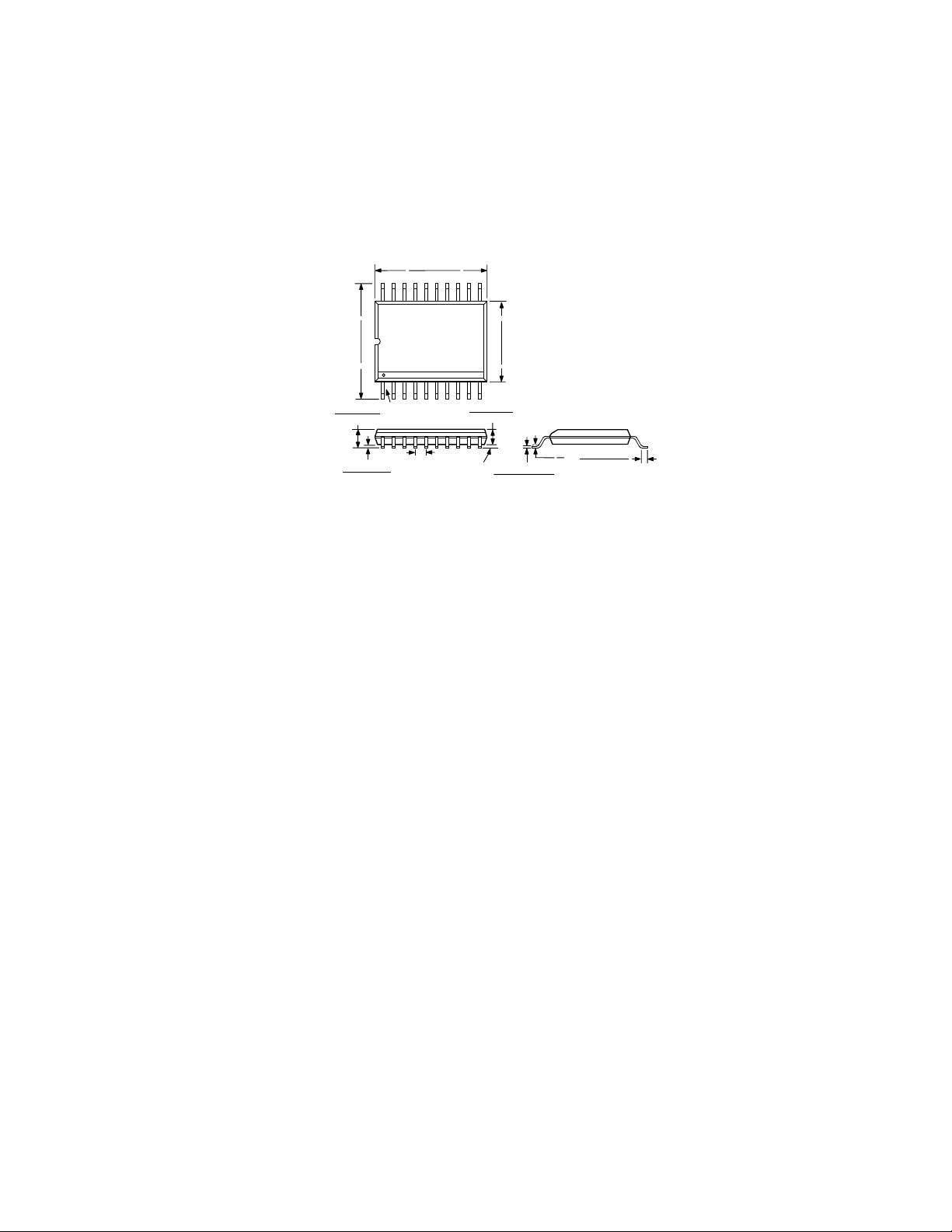

OUTLINE DIMENSIONSOUTLINE DIMENSIONS

OUTLINE DIMENSIONS

OUTLINE DIMENSIONSOUTLINE DIMENSIONS

Dimensions shown in inches and (mm)

20-S20-S

hrink Smallhrink Small

20-S

hrink Small

20-S20-S

hrink Smallhrink Small

20 11

0.311 (7.9)

0.301 (7.64)

0.295 (7.50)

0.271 (6.90)

Outline PackageOutline Package

Outline Package

Outline PackageOutline Package

(RS-20)

0.212 (5.38)

0.205 (5.21)

0.078 (1.98)

0.068 (1.73)

0.008 (0.203)

0.002 (0.050)

PIN 1

0.0256 (0.65)

BSC

0.07 (1.78)

0.066 (1.67)

SEATING

PLANE

0.009 (0.229)

0.005 (0.127)

0.037 (0.94)

8° 0°

0.022 (0.559)

–36–

REV. PrC 01/02

PRELIMINARY TECHNICAL DA TA

ADE7753 ERRATA (REV 1.0)ADE7753 ERRATA (REV 1.0)

ADE7753 ERRATA (REV 1.0)

ADE7753 ERRATA (REV 1.0)ADE7753 ERRATA (REV 1.0)

The following is a list of known issues with the first revision of the ADE7753 silicon (rev 1.0). These issues will be solved in the next version. Samples of this version of the silicon can be identified from the branding on the top face of the package. The branding is shown below:

ADE7753

AD7753 XRS 0150 J81046

ERRATAERRATA

ERRATA

ERRATAERRATA

1. On-Chip Voltage Reference1. On-Chip Voltage Reference

1. On-Chip Voltage Reference

1. On-Chip Voltage Reference1. On-Chip Voltage Reference Currently the on-chip voltage reference has a nominal volt-

age of 2.2V. The temperature drift has a large drift at approximately 900ppm/°C.

2. VAEHF and VAEOF of the Interrupt Status Register2. VAEHF and VAEOF of the Interrupt Status Register

2. VAEHF and VAEOF of the Interrupt Status Register

2. VAEHF and VAEOF of the Interrupt Status Register2. VAEHF and VAEOF of the Interrupt Status Register The VAEHF and VAEOF bits are set when the content of the

VAENERGY register reaches a quarter and half of its maximum value. VAENERGY is an unsigned, 24-bit register.

3. IRMS3. IRMS

3. IRMS

3. IRMS3. IRMS At low current, if the value of IRMSOS is set to a large

negative value, the output of the IRMS register can become unstable.

REV. PrC 01/02

–37–

Analog Devices ADE7753 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
