Analog Devices AD9807JS, AD9805JS Datasheet

Complete 12-Bit/10-Bit 6 MSPS

a

FEATURES
Pin Compatible 12-Bit and 10-Bit Versions
12-Bit/10-Bit 6 MSPS A/D Converter
Integrated Triple Correlated Double Sampler
3-Channel, 2 MSPS Color Mode
13 – 43 Analog Programmable Gain Amplifier
Pixel-Rate Digital Gain Adjustment
Pixel-Rate Digital Offset Adjustment
Internal Voltage Reference
No Missing Codes Guaranteed
Microprocessor-Compatible Control Interface
+3.3 V/+5 V Digital I/O Compatibility
Low Power CMOS: 500 mW

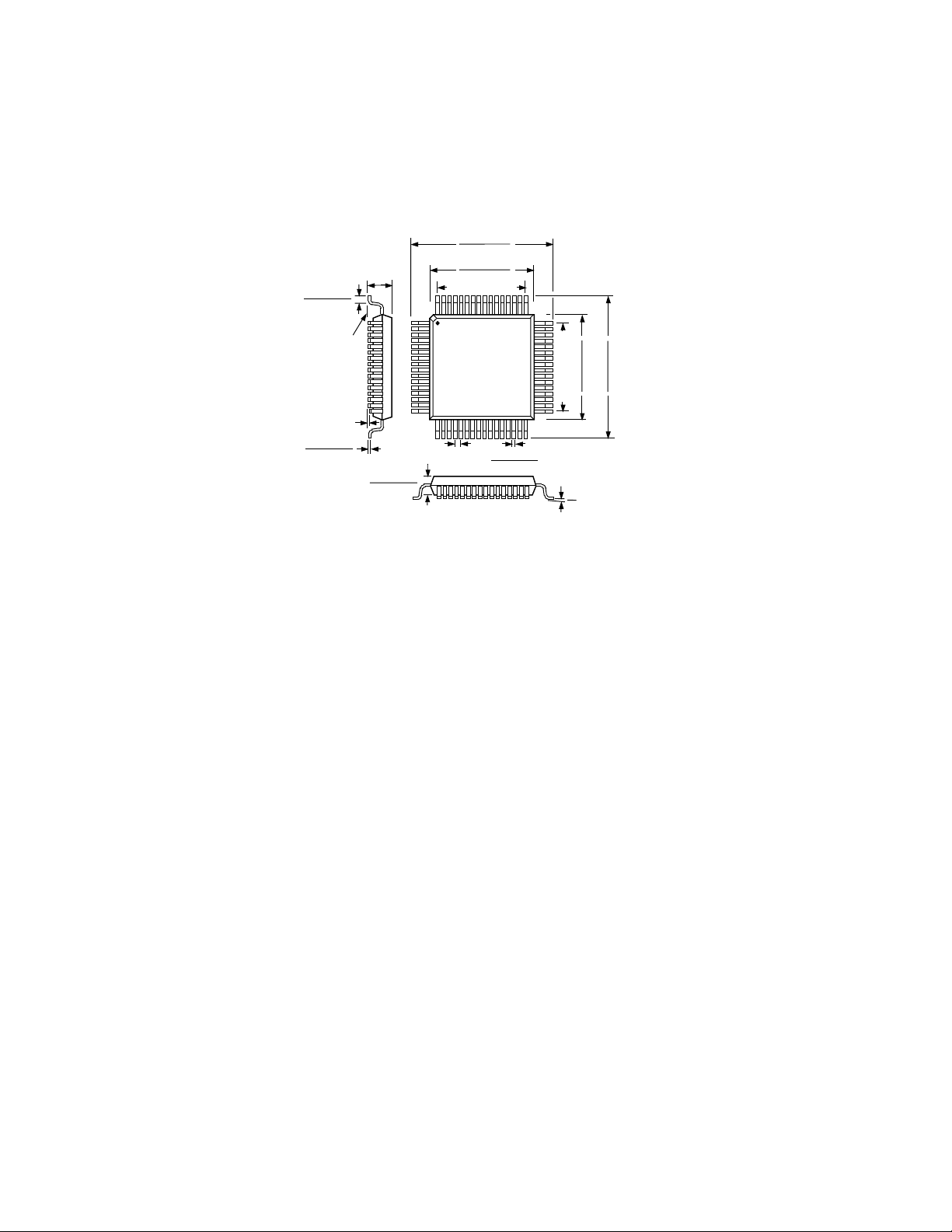

64-Pin PQFP Surface Mount Package

PRODUCTION DESCRIPTION

The AD9807 and AD9805 are complete CCD/CIS imaging
decoders and signal processors on a single monolithic integrated
circuit. The input of the AD9807/AD9805 allows direct ac
coupling of the charge-coupled device (CCD) or contact image
sensor (CIS) output(s). The AD9807/AD9805 includes all the
circuitry to perform three-channel correlated double sampling
(CDS) and programmable gain adjustment of the CCD output;
a 12-bit or 10-bit analog-to-digital converter (ADC) quantizes
the analog signal. After digitization, the on-board digital signal
processor (DSP) circuitry allows pixel rate offset and gain correc­tion. The DSP also corrects odd/even CCD register imbalance
errors. A parallel control bus provides a simple interface to
8-bit microcontrollers. The AD9807/AD9805 comes in a
space saving 64-pin plastic quad flatpack (PQFP) and is specified
over the commercial (0°C to +70°C) temperature range. By
disabling the CDS, the AD9807/AD9805 are also suitable for
non-CCD applications, or applications that do not require
CDS, such as CIS signal processing.

PRODUCT HIGHLIGHTS

The AD9807/AD9805 offers a complete, single chip CCD
imaging front end in a 64-pin plastic quad flatpack (PQFP).

On-Chip PGA—The AD9807/AD9805 includes a 3-channel
analog programmable gain amplifier; it is programmable from
1× to 4× in 16 increments.

CCD/CIS Signal Processors

AD9807/AD9805

FUNCTIONAL BLOCK DIAGRAM

PIXEL

OFFSET

8-10 12-10

–

MPU
MPU

PORT
PORT

PIXEL

GAIN

X

12-10

DOUT

CSB
RD
WR
A2
A1
A0

VREF

AD9807/AD9805

RED

VINR

GREEN

VING

BLUE

VINB

PGA

CDS

PGA

PGA

CDS

PGA

PGA

CDS

CDSCLK1 CDSCLK2 ADCCLK

GAIN

GAIN

REGISTERS

REGISTERS

MUX ADC

MUX

INPUT

INPUT

OFFSET

OFFSET

CONFIG

CONFIG

REGS

REGS

REF

REF

ODD

ODD

EVEN

EVEN

On-Chip CDS—An integrated 3-channel correlated double
sampler allows easy ac coupling directly from the CCD sensor
outputs. Additionally, the CDS reduces low frequency noise
and reset feedthrough.

On-Chip Voltage Reference—The AD9807/AD9805 includes a
2 V bandgap reference that allows the input range of the device to
be configured for input spans up to 4 V.

6 MSPS A/D Converter—A highly linear 12-bit or 10-bit A/D
converter sequentially digitizes the red, green and blue CDS
outputs ensuring no missing code performance. The user may also
configure the AD9807/AD9805 for single channel operation.

Digital Gain & Offset Correction—Pixel rate digital gain and
offset correction blocks allow precise repeatable correction of
imaging system error sources.

Digital I/O Compatibility—The AD9807/AD9805 offers
+3.3 V/+5 V logic level compatibility.

Pin-Compatible 12-Bit and 10-Bit Versions—The AD9807 is
also offered in a pin-compatible 10-bit version, the AD9805,
allowing upgrade-ability and simplifying design issues across
different scanner models.

REV. 0

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] World Wide Web Site: http://www.analog.com
Fax: [phone] © Analog Devices, Inc., 1997

AD9807–SPECIFICA TIONS

(T

to T

with AVDD = +5.0 V, DVDD = +5.0 V, f

MAX

ANALOG SPECIFICATIONS

MIN

PGA Gain = 1 unless otherwise noted)

Parameter Min Typ Max Units

RESOLUTION 12 Bits
CONVERSION RATE

3-Channel Mode With CDS 6 MSPS
1-Channel Mode With CDS

DC ACCURACY

Integral Nonlinearity (INL)
Differential Nonlinearity (DNL)

1

2

2

6 MSPS

1.5 LSB

0.4 0.75 LSB
No Missing Codes 12 Bits Guaranteed
Unipolar Offset Error (@ +25°C) 0.4 % FSR
Gain Error (@ +25°C) 1.2 % FSR

ANALOG INPUTS

Full-Scale Input Span 0.0625 4 V p-p
Input Limits

3

AVSS – 0.3 V AVDD + 0.3 V
Input Capacitance 10 pF
Input Bias Current 0.01 µA
Input Referred Noise 0.3 LSB rms

PSRR (AVDD = +5 V ± 0.25 V) 0.06 % FSR
INTERNAL VOLTAGE REFERENCE

1 V Output Tolerance (@+25°C) ±15 mV
2 V Output Tolerance (@+25°C) ±30 mV

POWER SUPPLIES

Operating Voltages

AV
DV

DD

DD

+4.75 +5.25 V

+4.75 +5.25 V
Operating Current

AV
DV

DD

DD

73 86 mA

16.6 20 mA
POWER CONSUMPTION 450 530 mW
TEMPERATURE RANGE

Operating 0 +70 °C

NOTES

1

Blue and green channels. Red channel conversion rate for 1-channel mode is 5 MSPS.

2

Measured with 4 V p-p input range.

3

Input signals exceeding these limits are subject to excessive overvoltage recovery times.

Specifications subject to change without notice.

ADCCLK

= 6 MSPS, f

CDSCLK1

= 2 MSPS, f

CDSCLK2

= 2 MSPS,

(T

to T

DIGITAL SPECIFICATIONS

MIN

with AVDD = +5.0 V, DVDD = +5.0 V, f

MAX

CL = 20 pF, unless otherwise noted)

ADCCLK

= 6 MSPS, f

CDSCLK1

= 2 MSPS, f

CDSCLK2

= 2 MSPS,

Parameter Symbol Min Typ Max Units

LOGIC INPUTS

High Level Input Voltage V
Low Level Input Voltage V
High Level Input Current I
Low Level Input Current I
Input Capacitance C

IH

IL
IH
IL

IN

2.0 V

0.8 V
10 µA
10 µA
10 pF

LOGIC OUTPUTS

High Level Output Voltage (I
High Level Output Voltage (I
Low Level Output Voltage (I
Low Level Output Voltage (I
Output Capacitance C

Specifications subject to change without notice.

= 50 µA) V

OH

= 0.5 mA) V

OH

= 50 µA) V

OL

= –0.6 mA) V

OL

OH
OH
OL
OL
OUT

–2–

4.5 4.9 V

2.4 V

0.1 V

0.4 V
5pF

REV. 0

AD9805–SPECIFICA TIONS

(T

to T

MIN

MAX

ANALOG SPECIFICATIONS

PGA Gain = 1 unless otherwise noted)

with AVDD = +5.0 V, DVDD = +5.0 V, f

ADCCLK

= 6 MSPS, f

CDSCLK1

AD9807/AD9805

= 2 MSPS, f

CDSCLK2

= 2 MSPS,

Parameter Min Typ Max Units

RESOLUTION 10 Bits
CONVERSION RATE

3-Channel Mode With CDS 6 MSPS
1-Channel Mode With CDS

DC ACCURACY

Integral Nonlinearity (INL)
Differential Nonlinearity (DNL)

1

2

2

6 MSPS

1.0 LSB

0.5 LSB
No Missing Codes 10 Bits Guaranteed
Unipolar Offset Error (@ +25°C) 0.6 % FSR
Gain Error (@ +25°C) 1.2 % FSR

ANALOG INPUTS

Full-Scale Input Span 0.0625 4 V p-p
Input Limits

3

AVSS – 0.3 V AVDD + 0.3 V
Input Capacitance 10 pF
Input Bias Current 0.01 µA
Input Referred Noise 0.1 LSB rms

PSRR (AVDD = +5 V ± 0.25 V) 0.06 % FSR
INTERNAL VOLTAGE REFERENCE

1 V Output Tolerance (@ +25°C) ±15 mV
2 V Output Tolerance (@ +25°C) ±30 mV

POWER SUPPLIES

Operating Voltages

AV
DV

DD

DD

+4.75 +5.25 V

+4.75 +5.25 V
Operating Current

AV
DV

DD

DD

73 86 mA

16.6 20 mA
POWER CONSUMPTION 450 530 mW
TEMPERATURE RANGE

Operating 0 +70 °C

NOTES

1

Blue and green channels. Red channel conversion rate for 1-channel mode is 5 MSPS.

2

Measured with 4 V p-p input range.

3

Input signals exceeding these limits are subject to excessive overvoltage recovery times.

Specifications subject to change without notice.

(T

to T

DIGITAL SPECIFICATIONS

MIN

with AVDD = +5.0 V, DVDD = +5.0 V, f

MAX

CL = 20 pF, unless otherwise noted)

ADCCLK

= 6 MSPS, f

CDSCLK1

= 2 MSPS, f

CDSCLK2

= 2 MSPS,

Parameter Symbol Min Typ Max Units

LOGIC INPUTS

High Level Input Voltage V
Low Level Input Voltage V
High Level Input Current I
Low Level Input Current I
Input Capacitance C

IH

IL
IH
IL

IN

2.0 V

0.8 V
10 µA
10 µA
10 pF

LOGIC OUTPUTS

High Level Output Voltage (I
High Level Output Voltage (I
Low Level Output Voltage (I
Low Level Output Voltage (I
Output Capacitance C

Specifications subject to change without notice.

REV. 0

= 50 µA) V

OH

= 0.5 mA) V

OH

= 50 µA) V

OL

= –0.6 mA) V

OL

OH
OH
OL
OL
OUT

4.5 4.9 V

2.4 V

0.1 V

0.4 V
5pF

–3–

AD9807/AD9805

(T

to T

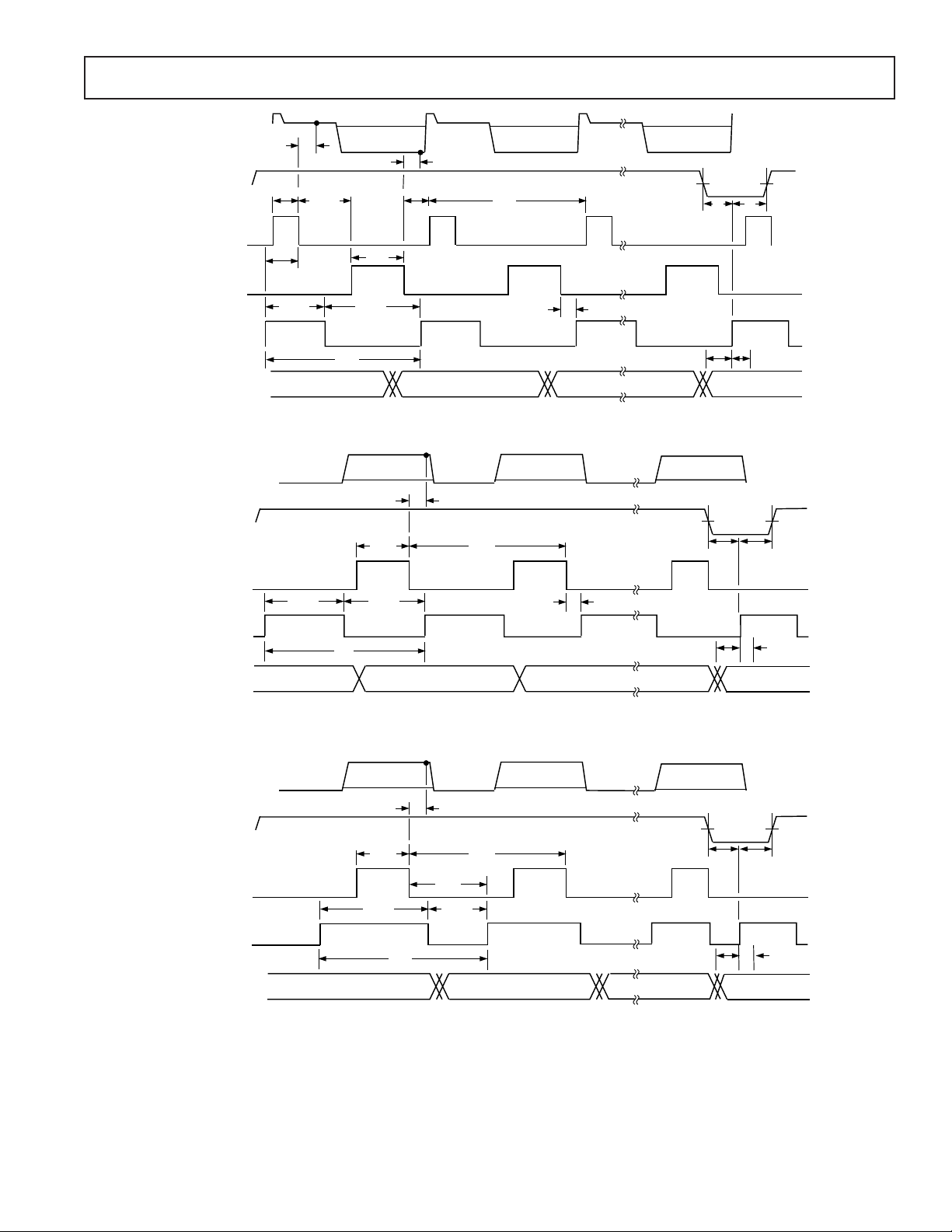

TIMING SPECIFICATIONS

MIN

Parameter Symbol Min Typ Max Units

CLOCK PARAMETERS

3-Channel Conversion Rate t
1-Channel Conversion Rate t
CDSCK1 Pulse Width t
CDSCK1 Pulse Width t
CDSCK2 Pulse Width t
CDSCK2 Pulse Width t
CDS Clocks Digital Quiet Time t
CDSCK2 Falling to CDSCK1 Rising t
CDSCK2 Falling to CDSCK1 Rising t
CDSCK1 Falling to CDSCK2 Rising t
CDSCK1 Falling to CDSCK2 Rising t
ADCCLK Rising to CDSCK1 Falling t
ADCCLK Pulse Width t
ADCCLK Period t
ADCCLK Period (Red Single Channel Mode) t
3-Channel Settling Time t
1-Channel Settling Time (B and G Only) t
ADCCLK Rising to Control Data Setup t
ADCCLK Rising to Control Data Hold t
STRTLN Rising, Falling Setup t
STRTLN Rising, Falling Hold t
Aperture Delay t

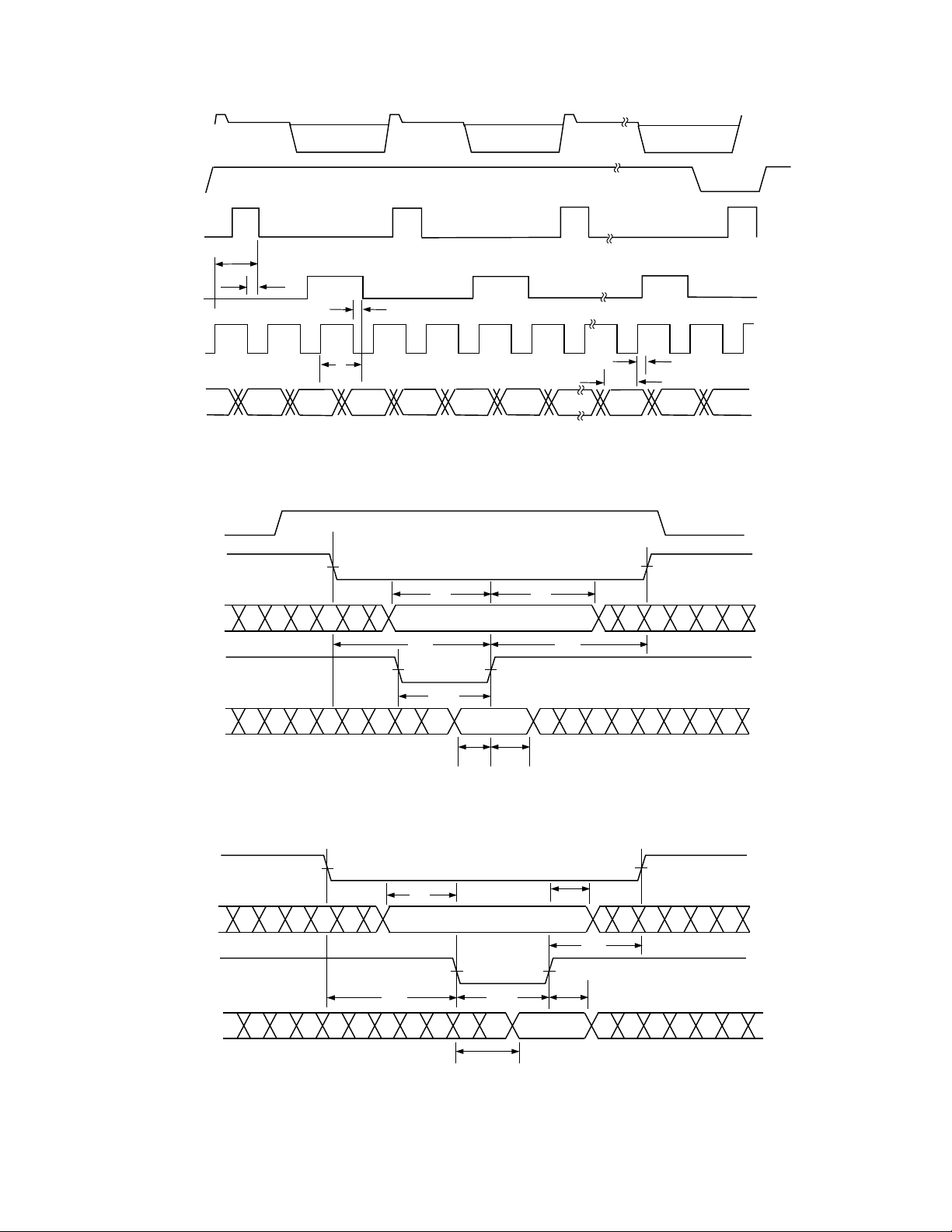

REGISTER WRITE/READ

Address Setup Time t
Address Hold Time t
Data Setup Time t
Data Hold Time t
Chip Select Setup Time t
Chip Select Hold Time t
Write Pulse Width t
Read Pulse Width t
Read To Data Valid t

DATA OUTPUT

Output Delay t
3-State to Data Valid t
Output Enable High to 3-State t
Latency 6 ADCCLK Cycles

with AVDD = +5.0 V, DVDD = +5.0 V, unless otherwise noted)

MAX

CRA
CRB
C1A
C1B
C2A
C2B
Q
C2C1A
C2C1B
C1C2A
C1C2B
C1AD
ACLK
CP
CP2
STL1
STL2
GOS
GOH
S
H
AD

AS
AH
DS
DH
CSS
CSH
PWW
PWR
DD

OD
EDV
HZ

500 ns
166 ns
30 ns
30 ns
30 ns
30 ns
20 ns
80 ns
40 ns
20 ns
20 ns
35 ns
50 ns
166 ns
200 ns
60 ns
30 ns
15 ns
15 ns
15 ns
15 ns
10 ns

15 ns
15 ns
15 ns
15 ns
15 ns
15 ns
25 ns
50 ns
40 ns

15 ns
15 ns
5ns

Table I. Output Controls

CSB 00000011
RDB 001111xx
WRB 010011xx
OEB xx010101

DOUT XQXDXZQZ

MPU MPU ADC

LEGEND:

x = Don't Care
X = Unknown (Not Recommended)
Q = Outputs
D = Inputs
Z = 3-State

–4–

REV. 0

AVDD
AVSS
CAPT
CAPT
CAPB
CAPB
VREF

CML

VINR

AVSS

VING

AVSS

VINB
AVSS
AVDD

STRTLN

PIN CONFIGURATION

GAIN<8>

GAIN<6>

GAIN<7>

GAIN<5>

AD9807

TOP VIEW

(Not to Scale)

OFFSET<5>

OFFSET<6>

OFFSET<4>

GAIN<4>

GAIN<3>

GAIN<2>

OFFSET<2>

OFFSET<3>

OFFSET<1>

GAIN<0>

GAIN<1>

DVSS

OFFSET<0>

GAIN<9>

GAIN<10>

GAIN<11>

64 63 62 61 60 55 54 53 52 51 50 4959 58 57 56

1

PIN 1

2

IDENTIFIER

3

4

5
6
7
8

9
10
11
12
13
14
15
16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

ADCCLK

CDSCLK1

CDSCLK2

OFFSET<7>

DVSS

DVDD

A2

DVDD

CSB

RDB

A1

48

A0
DOUT<11>

47

DOUT<10>

46

DOUT<9>

45

DOUT<8>

44

DOUT<7>/MPU<7>

43

DOUT<6>/MPU<6>

42

DRVDD

41
40

DRVSS
DOUT<5>/MPU<5>

39
38

DOUT<4>/MPU<4>

37

DOUT<3>/MPU<3>

36

DOUT<2>/MPU<2>
DOUT<1>/MPU<1>

35
34

DOUT<0>/MPU<0>
OEB

33

WRB

AD9807/AD9805

PIN DESCRIPTIONS

Pin No. Pin Name Type Description

1, 15 AVDD P +5 V Analog Supply.
2, 10, 12, 14 AVSS P Analog Ground.
3, 4 CAPT AO Reference Decoupling. See Figure 22.
5, 6 CAPB AO Reference Decoupling.
7 VREF AO Internal Reference Output. Decouple with 10 µF + 0.1 µF.
8 CML AO Internal Bias Voltage. Decouple with 0.1 µF.
9 VINR AI Analog Input, Red.
11 VING AI Analog Input, Green.
13 VINB AI Analog Input, Blue.
16 STRTLN DI STRTLN. Indicates beginning of scan line.
17 CDSCLK1 DI CDS Reset Clock Pulse Input.
18 CDSCLK2 DI CDS Data Clock Pulse Input.
19 ADCCLK DI A/D Sample Clock Input.
28, 52 DVSS P Digital Ground.
29, 51 DVDD P +5 V Digital Supply.
20 OFFSET<7> DI Pixel Rate Offset Coefficient Inputs. Most Significant Bit.
21–26 OFFSET<6:1> DI Pixel Rate Offset Coefficient Inputs.
27 OFFSET<0> DI Pixel Rate Offset Coefficient Inputs. Least Significant Bit.
30 CSB DI Chip Select. Active Low.
31 RDB DI Read Strobe. Active Low.
32 WRB DI Write Strobe. Active Low.
33 OEB DI Output Enable. Active Low.
34 DOUT<0>/MPU<0> DIO Data Output LSB/Register Input LSB
35–39, 42 DOUT<1:6>/MPU<1:6> DIO Data Outputs/Register Inputs.
40 DRVSS P Digital Driver Ground
41 DRVDD P Digital Driver Supply
43 DOUT<7>/MPU<7> DIO Data Output/Register Input MSB.
44–46 DOUT<8:10> DO Data Outputs.
47 DOUT<11> DO Data Output MSB.
48, 49, 50 A0, A1, A2 DI Register Select Pins.
53 GAIN<0> DI Pixel Rate Gain Coefficient Input. LSB.
54–63 GAIN<1:10> DI Pixel Rate Gain Coefficient Inputs.
64 GAIN<11> DI Pixel Rate Gain Coefficient Input. MSB.

TYPE: AI = Analog Input; AO = Analog Output; DI = Digital Input; DO = Digital Output; DIO = Digital Input/Output; P = Power.

REV. 0

–5–

AD9807/AD9805

AVDD
AVSS
CAPT
CAPT
CAPB
CAPB

VREF

CML

VINR

AVSS

VING

AVSS

VINB
AVSS
AVDD

STRTLN

NC = NO CONNECT

PIN CONFIGURATION

GAIN<8>

GAIN<6>

GAIN<7>

ADCCLK

OFFSET<7>

GAIN<4>

GAIN<5>

GAIN<3>

AD9805

TOP VIEW

(Not to Scale)

OFFSET<5>

OFFSET<6>

OFFSET<4>

GAIN<2>

GAIN<0>

GAIN<1>

OFFSET<2>

OFFSET<3>

OFFSET<1>

NC

DVSS

OFFSET<0>

GAIN<9>

64 63 62 61 60 55 54 53 52 51 50 4959 58 57 56

1

PIN 1

2

IDENTIFIER

3

4

5
6
7
8

9
10
11
12
13
14
15
16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

CDSCLK1

CDSCLK2

PIN DESCRIPTIONS

NC

DVSS

DVDD

A2

DVDD

CSB

RDB

A1

48

A0
DOUT<9>

47

DOUT<8>

46

DOUT<7>

45

DOUT<6>

44

DOUT<5>/MPU<7>

43

DOUT<4>/MPU<6>

42

DRVDD

41
40

DRVSS
DOUT<3>/MPU<5>

39
38

DOUT<2>/MPU<4>

37

DOUT<1>/MPU<3>

36

DOUT<0>/MPU<2>
MPU<1>

35
34

MPU<0>
OEB

33

WRB

Pin No. Pin Name Type Description

1, 15 AVDD P +5 V Analog Supply.
2, 10, 12, 14 AVSS P Analog Ground.
3, 4 CAPT AO Reference Decoupling. See Figure 22.
5, 6 CAPB AO Reference Decoupling.
7 VREF AO Internal Reference Output. Decouple with 10 µF + 0.1 µF.
8 CML AO Internal Bias Voltage. Decouple with 0.1 µF.
9 VINR AI Analog Input, Red.
11 VING AI Analog Input, Green.
13 VINB AI Analog Input, Blue.
16 STRTLN DI STRTLN. Indicates beginning of scan line.
17 CDSCLK1 DI CDS Reset Clock Pulse Input.
18 CDSCLK2 DI CDS Data Clock Pulse Input.
19 ADCCLK DI A/D Sample Clock Input.
28, 52 DVSS P Digital Ground.
29, 51 DVDD P +5 V Digital Supply.
20 OFFSET<7> DI Pixel Rate Offset Coefficient Inputs. Most Significant Bit.
21–26 OFFSET<6:1> DI Pixel Rate Offset Coefficient Inputs.
27 OFFSET<0> DI Pixel Rate Offset Coefficient Inputs. Least Significant Bit.
30 CSB DI Chip Select. Active Low.
31 RDB DI Read Strobe. Active Low.
32 WRB DI Write Strobe. Active Low.
33 OEB DI Output Enable. Active Low.
34 MPU<0> DIO Register Input-Output LSB.
35 MPU<1> DIO Register Input-Output.
36 DOUT<0>/MPU<2> DIO Data Output LSB/Register Input-Output.
37–39, 42 DOUT<1:4>/MPU<3:6> DIO Data Output/Register Input-Output.
40 DRVSS P Digital Driver Ground.
41 DRVDD P Digital Driver Supply.
43 DOUT<5>/MPU<7> DIO Data Output/Register Input-Output MSB.
44–46 DOUT<6:8> DO Data Outputs.
47 DOUT<9> DO Data Output MSB.
48, 49, 50 A0, A1, A2 DI Register Select Pins.
53, 54 NC No Connection.
55 GAIN<0> DI Pixel Rate Gain Coefficient Input LSB.
56–63 GAIN<1:8> DI Pixel Rate Gain Coefficient Inputs.
64 GAIN<9> DI Pixel Rate Gain Coefficient Input MSB.

TYPE: AI = Analog Input; AO = Analog Output; DI = Digital Input; DO = Digital Output; DIO = Digital Input/Output; P = Power.

–6–

REV. 0

AD9807/AD9805

ABSOLUTE MAXIMUM RATINGS*

With
Respect

Parameter to Min Max Units

AVDD AVSS –0.5 +6.5 Volts
AVSS AVDD –6.5 +0.5 Volts
DVDD DVSS –0.5 +6.5 Volts
AGND DVSS –0.3 +0.3 Volts
AVDD DVDD –6.5 +6.5 Volts
Clock Input DVSS –0.5 DVDD + 0.5 Volts
Digital Outputs DVSS –0.5 AVDD + 0.3 Volts
AIN, VREF AVSS –0.3 AVDD + 0.3 Volts
Junction Temperature +150 °C
Storage Temperature –65 +150 °C
Lead Temperature (10 sec) +300 °C

*Stresses above those listed under “Absolute Maximum Ratings” may cause

permanent damage to the device. This is a stress rating only; functional operation
of the device at these or any other conditions above those indicated in the
operational sections of this specification is not implied. Exposure to absolute
maximum ratings for extended periods may affect device reliability.

ORDERING GUIDE

Temperature Package Package

Model Range Description Option*

AD9807JS 0°C to +70°C PQFP S-64
AD9805JS 0°C to +70°C PQFP S-64

*S = Plastic Quad Flatpack.

DEFINITIONS OF SPECIFICATIONS
INTEGRAL NONLINEARITY

Linearity error refers to the deviation of each individual code
from a line drawn from “negative full scale” through “positive
full scale.” The point used as “negative full scale” occurs

before the first code transition. “Positive full scale” is defined as a
level 1 1/2 LSB beyond the last code transition. The deviation is
measured from the middle of each particular code to the true
straight line.

DIFFERENTIAL LINEARITY ERROR (DNL, NO MISSING
CODES)

1/2 LSB

An ideal ADC exhibits code transitions that are exactly 1 LSB
apart. DNL is the deviation from this ideal value. Thus every
code must have a finite width. Guaranteed no missing codes
to 12-bit resolution indicates that all 4096 codes, respectively,
must be present over all operating ranges.

UNIPOLAR OFFSET ERROR

In the unipolar mode, the first transition should occur at a level
1/2 LSB above analog common. Unipolar offset is defined as
the deviation of the actual from that point. The unipolar offset
temperature coefficient specifies the maximum change of the
transition point over temperature, with or without external
adjustments.

GAIN ERROR

The last transition should occur for an analog value 1 1/2 LSB
below the nominal full scale. Gain error is the deviation of the
actual difference between first and last code transitions and the
ideal difference between first and last code transitions.

POWER SUPPLY REJECTION

Power Supply Rejection specifies the maximum full-scale change
from the initial value with the supplies at the various limits.

APERTURE DELAY

Aperture delay is a timing measurement between the sampling
clocks and the CDS. It is measured from the falling edge of the
CDSCLK2 input to when the input signal is held for conversion
in CDS mode. In non-CDS mode, it is the falling edge of
CDSCLK1.

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD9807/AD9805 feature proprietary ESD protection circuitry, permanent damage
may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.

WARNING!

ESD SENSITIVE DEVICE

REV. 0

–7–

AD9807/AD9805

ANALOG

INPUTS

STRTLN

CDSCLK1

CDSCLK2

ADCCLK

GAIN<n:0>
OFFSET<m:0>

ANALOG

INPUTS

STRTLN

CDSCLK1

t

AD

t

t

C1A

t

C1AD

t

RGBRGBRGB

R0 G0 B0 R1 G1 B1

R0, G0, B0 R1, G1, B1 Rn, Gn, Bn

t

AD

t

C1C2A

ACLK

t

C2C1A

t

C2A

t

t

ACLK

t

CP2

STL1

CRA

t

GOS

Figure 1a. 3-Channel CDS-Mode Clock Timing

(0V)

R0, G0, B0 R1, G1, B1 Rn, Gn, Bn

t

AD

t

t

C2A

CRA

t

t

t

S

GOH

S

t

H

t

H

ADCCLK

GAIN<n:0>
OFFSET<m:0>

ANALOG

INPUTS

STRTLN

CDSCLK1

CDSCLK2

ADCCLK

GAIN<n:0>
OFFSET<m:0>

t

ACLK

t

ACLK

t

CP

t

STL1

t

GOS

t

GOH

Figure 1b. 3-Channel SHA-Mode Clock Timing

t

AD

t

C1B

t

C1C2B

t

ACLK

G0

PIXEL 0

t

AD

t

C2C1B

t

C2B

t

ACLK

t

CP

G1

PIXEL 1 PIXEL n

t

CRB

t

STL2

G2

t

GOS

tSt

H

t

GOH

Figure 1c. 1-Channel CDS-Mode Clock Timing (for B and G Only)

–8–

REV. 0

AD9807/AD9805

ANALOG

INPUTS

STRTLN

CDSCLK1

CDSCLK2

ADCCLK

GAIN<n:0>
OFFSET<m:0>

ANALOG

INPUTS

STRTLN

CDSCLK1

ADCCLK

GAIN<n:0>
OFFSET<m:0>

t

t

C1AD

C1B

t

ACLK

t

AD

t

C1C2B

G0

PIXEL 0

t

AD

t

C2C1B

t

C2B

t

ACLK

t

CP2

G1

PIXEL 1 PIXEL n

t

CRB

t

STL1

G2

Figure 1d. 1-Channel CDS-Mode Clock Timing (Red Channel)

R0, G0, B0 R1, G1, B1

(0V)

t

AD

t

ACLK

t

C2B

t

ACLK

t

CP

t

CRB

t

STL2

G1G0

G2

t

GOS

Rn, Gn, Bn

tSt

tSt

t

GOS

H

t

GOH

H

t

GOH

ANALOG

INPUTS

STRTLN

CDSCLK1

ADCCLK

GAIN<n:0>
OFFSET<m:0>

Figure 1e. 1-Channel SHA-Mode Clock Timing (for Blue and Green Channels)

(0V)

R0, G0, B0 R1, G1, B1

t

AD

t

ACLK

t

C2B

t

CP2

t

STL1

t

ACLK

t

CRB

G1G0

Rn, Gn, Bn

tSt

t

GOS

Figure 1f. 1-Channel SHA-Mode Clock Timing (Red Channel)

H

t

GOH

REV. 0

–9–

AD9807/AD9805

ANALOG

INPUTS

STRTLN

CDSCLK1

CDSCLK2

ADCCLK

GAIN<n:0>
OFFSET<m:0>

OEB

R0, G0, B0 R1, G1, B1

t

Q

t

Q

t

Q

Rn, Gn, Bn

RGBRGBRGB

t

Q

B1R0 G0 B0 R1 G1

t

GOS

t

GOH

Figure 1g. CDS Clocks Digital Quiet Time

CSB

A0, A1, A2

WRB

MPU<7:0>

CSB

A0, A1, A2

RDB

MPU<7:0>

t

AS

t

CSS

t

PWW

t

DStDH

Figure 2. Write Timing

t

AS

t

CSS

t

PWR

t

AH

t

CSH

t

AH

t

CSH

t

DH

t

DD

Figure 3. Read Timing

–10–

REV. 0

AD9807/AD9805

VREF

RED

VINR

GREEN

VING

BLUE

VINB

CDSCLK1 CDSCLK2

CDS

CDS

CDS

PGA

PGA

PGA

STRTLN ADCCLK

AD9807/AD9805

MUX

3

CONFIGURATION

R
G
B

REGISTER

CONFIGURATION

REGISTER

2

BANDGAP

REFERENCE

12-BIT/10-BIT

A/D

INPUT OFFSET

REGISTER

12

R
G
B

Figure 4. Block Diagram

REGISTER OVERVIEW

MPU Port Map

Table II shows the MPU Port Map. The MPU Port Map is
accessed through pins A0, A1 and A2 of the AD9807/AD9805,
and provides the decoding scheme for the various registers of
the AD9807/AD9805. When writing or reading from any of the
registers, the appropriate bits must be applied to A0–A2.

Table II. MPU Port Map Format

A2 A1 A0 Register

0 0 0 Configuration Register
0 0 1 Configuration Register 2
0 1 0 PGA Gain Register
0 1 1 Odd Offset Register
1 0 0 Even Offset Register
1 0 1 Input Offset Register
1 1 0 RESERVED
1 1 1 Bayer Mode

Configuration Register/AD9807

The Configuration Register controls three functions: a color
pointer, gain and offset pin configurations, and digital gain
scaling. Figure 5 shows the AD9807 Configuration Register.
Bits 0–2 control the digital scaling function. Setting a bit makes
the corresponding condition true. Resetting Bits 0–2 disables
and bypasses the digital multiplier. Bits 3–5 control the gain
and offset pin distribution. Resetting Bits 3–5 disables and
bypasses the digital subtracter and sets the gain word width to

12. Setting any bit makes the corresponding condition true. For
example, if Bit 3 is set, the 2 LSBs of the gain word become the
2 MSBs of the offset word. If Bit 4 is set, the LSB of the gain
word becomes MSB of the offset word. Bits 6 and 7 direct
register data written to the MPU<7:0> bus to the appropriate
red, green or blue register.

OFFSET<M:0> GAIN<N:0>

8-10

DIGITAL

–

SUBTRACTOR

R

R
G
B

ODD
ODD
ODD

G
B

EVEN
EVEN
EVEN

12

76543210

12-10/10-8

DIGITAL

X

MULTIPLIER

MPU

PORT

I/O

8

OEB

1212

DOUT<11:0>/MPU<7:0>

CSB
RDB
WRB
A2
A1
A0

8X FULL SCALE
4X FULL SCALE
2X FULL SCALE
10-BIT GAIN, 10-BIT OFFSET
11-BIT GAIN, 9-BIT OFFSET
12-BIT GAIN, 8-BIT OFFSET
COLOR0
COLOR1

Figure 5. AD9807 Configuration Register Format

Configuration Register/AD9805

The Configuration Register controls three functions: a color
pointer, gain and offset pin configurations, and digital gain
scaling. Figure 6 shows the AD9805 Configuration Register.
Bits 0–2 control the digital scaling function. Setting a Bit
makes the corresponding condition true. Resetting Bits 0–2
disables and bypasses the digital multiplier. Bits 3–5 control
the gain and offset pin distribution. Resetting Bits 3–5 disables
and bypasses the digital subtracter and sets the gain word width
to 10. Setting any bit makes the corresponding condition true.
If Bit 3 is set, the 2 LSBs of the gain word become the 2 MSBs
of the offset word. If Bit 4 is set, the LSB of the gain word
becomes MSB of the offset word. Bits 6 and 7 direct register
data written to the MPU<7:0> bus to the appropriate red,
green or blue register.

76543210

8X FULL SCALE
4X FULL SCALE
2X FULL SCALE
8-BIT GAIN, 10-BIT OFFSET
9-BIT GAIN, 9-BIT OFFSET
10-BIT GAIN, 8-BIT OFFSET
COLOR0
COLOR1

REV. 0

Figure 6. AD9805 Configuration Register Format

–11–

AD9807/AD9805

Color Pointer

Both the AD9807 and the AD9805 use Bits 6 and 7 in the
Configuration Register to direct data to the corresponding
internal registers. Table III shows the mapping of Bits 6 and 7
to their corresponding color.

Table III. Color Pointer Map

Bit 7 Bit 6 Color Register

0 0 Red
0 1 Green
1 0 Blue
1 1 RESERVED

Configuration Register 2

Configuration Register 2 controls several functions: color/black
and white selection, CDS enabling, A/D Reference Control
and Input Clamp Mode. Figure 7 shows the AD9807 and
AD9805 Configuration Register 2 format. Setting Bit 0 enables
the three internal CDS blocks of the AD9807/AD9805. Reset­ting Bit 0 disables the internal CDS blocks, configuring the part
for SHA operation. Setting Bit 1 places the AD9807/AD9805 in
single-channel (black & white) mode. In this mode, only one of
the three input channels is used. The color bits in the configu­ration register at the time of the last write indicate the particular
channel used. Resetting Bit 1 places the AD9807/AD9805 in
color mode and all three input channels are enabled. Bits 2-4
control the full-scale input span of the A/D. Setting Bit 2 results in
a 4 V p-p input span. Setting Bit 3 results in a 2 V p-p full-scale
input span. Setting Bit 4 results in a full-scale span set by an
external reference connected to the VREF pin of the AD9807/
AD9805 (Full Scale = 2 × VREF). Resetting Bits 2, 3 or 4
disables that particular mode. Bits 6 and 7 select the desired
clamp mode (see Figure 17). Table IV shows the truth table
for clamp mode functionality. Line clamp mode allows control
of the input switch (S1) via CDSCLK1 only while STRTLN is
reset. Pixel clamp mode allows control of the input switch (S1)
via CDSCLK1 regardless of the state of STRTLN. No clamp
mode disables the input switch (S1) regardless of the selected
mode of CDS operation.

Table IV. Clamp Mode Truth Table

Input Offset Registers

The Input Offset Registers control the amount of analog offset
applied to the analog inputs prior to the PGA portion of the
AD9807/AD9805; there is one Input Offset Register for each
color. Figure 8 shows the Input Offset Register format. The
offset range may be varied between –80 mV and 20 mV. The
data format for the Input Offset Registers is straight binary
coding. An all “zeros” data word corresponds to –80 mV. An
all “ones” data word corresponds to 20 mV. The offset is
variable in 256 steps. The contents of the color pointer in the
Configuration Register at the time an Input Offset Register is
written indicates the color for which that offset setting applies.

76543210

ANALOG OFFSET (LSB)
ANALOG OFFSET
ANALOG OFFSET
ANALOG OFFSET
ANALOG OFFSET
ANALOG OFFSET
ANALOG OFFSET
ANALOG OFFSET (MSB)

Figure 8. Input Offset Registers Format

PGA Gain Registers

Bits 0–3 of the PGA Gain Registers control the amount of gain
applied to the analog inputs prior to the A/D conversion
portion of the AD9807/AD9805; there is one PGA Gain
Register for each channel. Figure 9 shows the PGA Gain Register
format. The gain range may be varied between 1 and 4. The
data format for the PGA Gain Registers is straight binary
coding. An all “zeros” data word corresponds to an analog
gain of 1. An all “ones” data word corresponds to an analog
gain of 4. The gain is variable in 16 steps (see Figure 16).
The contents of the color pointer in the Configuration
Register at the time a PGA Gain Register is written indicates
the color for which that gain setting applies. Bits 4–7 of the PGA
Gain Registers are reserved.

76543210

Bit 7 Bit 6 Clamp Mode

0 0 Line Clamp
0 1 Pixel Clamp
1 0 No Clamp
1 1 RESERVED

76543210

CDSEN
BLACK & WHITE
ADC FULL SCALE = 4V
ADC FULL SCALE = 2V
EXTERNAL REFERENCE
SET TO 0
CLAMP MODE SELECT
CLAMP MODE SELECT

Figure 7. AD9807/AD9805 Configuration Register 2 Format

PGA0
PGA1
PGA2
PGA3
RESERVED
RESERVED
RESERVED
RESERVED

Figure 9. PGA Gain Registers Format

Odd, Even Offset Registers

The Odd and Even Offset Registers provide a means of digitally
compensating the odd and even offset error (Register Imbal­ance) typical of multiplexed CCD imagers; there is one Odd
and one Even Offset Register for each color. Figure 10 shows
the AD9807/AD9805 Odd and Even Offset Register Formats.
The data format for the Odd and Even Offset Registers is twos
complement. The offsets may be varied between positive

–12–

REV. 0

AD9807/AD9805

127 LSBs and negative 128 LSBs. The offset is variable in
1 LSB increments (see Table V). The contents of the color
pointer in the Configuration Register at the time an Odd or
Even Register is written indicates the color for which that offset
setting applies.

76543210

O/E OFFSET (LSB)
O/E OFFSET
O/E OFFSET
O/E OFFSET
O/E OFFSET
O/E OFFSET
O/E OFFSET
O/E OFFSET (MSB)

Figure 10. Odd and Even Offset Registers Format

Table V. Odd/Even Offset Register Coding

Odd/Even Register Contents Offset Value

0111 1111 +127 LSB

..
..

..
0000 0001 +1 LSB
0000 0000 0 LSB
1111 1111 –1 LSB

..

..

..
1000 0000 –128 LSB

DATA BUSES

GAIN<n:0>—The GAIN data bus gives the user access to the

internal digital multiplier. Data from the GAIN bus is latched
into the appropriate internal registers in accordance with the
timing shown in Figure 1. Note that the GAIN data must be
valid on the rising edges of ADCCLK. The contents of the
register become one multiplicand of the digital multiplier; the
output data from the digital subtracter is the other multiplicand.
The AD9807/AD9805 provide a variable word length for the
GAIN data word. Based on the setting in the Configuration
Register, the GAIN data word may be 10, 11 or 12 bits wide
(8, 9 or 10 bits wide for the AD9805). The data format for the
GAIN data bus is straight binary coding. An all “zeros” data
word always corresponds to a gain setting of 1×. An all “ones”
data word corresponds to a gain setting dependent on Bits 0–2
of the Configuration Register. The gain is variable in 1024,
2048, or 4096 (256, 512 or 1024 for the AD9805) increments
depending on the width of GAIN data word.

OFFSET<m:0>

The OFFSET data bus gives the user access to the internal
digital subtracter. Data from the OFFSET bus is latched into
the appropriate internal registers in accordance with the timing
shown in Figure 1. Note that the OFFSET data must be valid
on the rising edges of ADCCLK. The contents of the register
become the subtrahend; the output data from the A/D converter

(after odd/even correction) is the other input. The AD9807/
AD9805 provide a variable word length for the OFFSET data
word. Based on the setting in the Configuration Register, the
OFFSET data word may be 8, 9 or 10 bits wide. The data
format for the OFFSET data bus is straight binary coding. An
all “zeros” data word corresponds to an offset value of 0 LSBs.
An all “ones” data word subtracts an offset value of 256, 512 or
1024 LSBs, depending on the width of OFFSET data word.
The offset is variable in 256, 512 or 1024 increments.

DOUT<n:0>—The DOUT data bus is bidirectional. CMOS
compatible digital data is available as an output on the DOUT
bus. Data is coded in straight binary format. When CSB and
either WRB or RDB are applied to the AD9807/AD9805, the
DOUT data bus becomes an input/output port for the register
data, shown as MPU<7:0>. The timing and latency for the
DOUT data bus are given in Figures 11 through 15.

FUNCTIONAL OVERVIEW

It is possible to operate the AD9807/AD9805 in one of five
modes: 3-Channel Operation with CDS, 3-Channel SHA
Operation, 1-Channel Operation with CDS, 1-Channel SHA
Operation and 2-Channel Bayer Mode. A description of each of
the five modes follows.

3-Channel Operation with CDS

This mode of the AD9807/AD9805 enables simultaneous
sampling of a triple output CCD. The CCD waveforms are ac
coupled to the VINR, VING and VINB pins of the AD9807/
AD9805 where they are automatically biased at an appropriate
voltage level using the on-chip clamp; the inputs may alterna­tively be dc coupled if they have already been appropriately level
shifted. The internal CDSs take two samples of the incoming
pixel data: the first samples (CDSCLK1) are taken during the
reset time while the second samples (CDSCLK2) are taken
during the video, or data, portion of the input pixels. The offsets
of the three input channels are modified by the values stored in
the input offset registers. The voltage differences of the reset
levels and video levels are inverted and amplified by the PGAs;
the settings in the corresponding PGA Gain Registers determine
the gains of the PGAs. These outputs from the PGAs are then
routed through a high speed multiplexer to a 12-bit A/D
converter (10-bit for AD9805) for digitization; the multiplexer
cycles between the red, green and then blue channels. After
digitization, the data is modified by the amount indicated in the
Odd and Even Offset Registers. A digital subtracter allows
additional pixel rate offset modification of each color based on
the values written to the OFFSET data bus. Finally, a digital
multiplier allows pixel rate gain modification of each color based
on the values written to the GAIN data bus. Latency for the red,
green and blue channels is 6 ADCCLK cycles (9 cycles for the
gain and offset bus; see Figure 12).

The STRTLN signal indicates the first red, green and blue
pixels in a scan line, and the red channel is always the first pixel
digitized. The state of STRTLN is evaluated on the rising
edges of ADCCLK. When STRTLN is low, the internal
circuitry is reset on the next rising edge of ADCCLK; the
multiplexer is switched to the red channel and the odd/even
circuitry is configured to expect even pixels. After STRTLN
goes high, the first set of pixels is assumed to be even. Consecu­tive sets of pixels (red, green and blue) are assumed to alternate
between odd and even pixel sets.

REV. 0

–13–

AD9807/AD9805

3-Channel SHA Operation

This mode of the AD9807/AD9805 enables 3-channel simulta­neous sampling; it differs from the CDS sampling mode in that
the CDS functions are replaced with sample-and-hold amplifiers
(SHAs). CDSCLK1 becomes the sample-and-hold clock;
CDSCLK2 is tied to ground. The input is sampled on the
falling edge of CDSCLK1. The input signals must be either dc
coupled and level shifted, or dc restored prior to driving the
VINR, VING, and VINB pins of the AD9807/AD9805 (clamp
mode must be disabled). The input signal in this mode is
ground-referenced. The offsets of the three input channels are
modified by the values stored in the input offset registers. The
part does not invert the input signals prior to amplification by
the PGAs; the settings in the corresponding PGA Gain Registers
determine the gains of the PGAs. These outputs from the
PGAs are then routed through a high speed multiplexer to a
12-bit A/D converter (10-bit for AD9805) for digitization; the
multiplexer cycles between the red, green and then blue
channels. After digitization, the data is modified by the amount
indicated in the Odd and Even Offset Registers. A digital
subtracter allows additional pixel rate offset modification of
each color based on the values written to the OFFSET data bus.
Finally, a digital multiplier allows pixel rate gain modification
of each color based on the values written to the GAIN data bus.
Latency for the red, green and blue channels is 6 ADCCLK
cycles (9 cycles for the gain and offset bus; see Figure 13).

The STRTLN signal indicates the first red, green and blue
pixels in a scan line and the red channel is always the first pixel
digitized. The state of STRTLN is evaluated on the rising
edges of ADCCLK. When STRTLN is low, the internal
circuitry is reset on the next rising edge of ADCCLK; the
multiplexer is switched to the red channel and the odd/even
circuitry is configured to expect even pixels. After STRTLN
goes high, the first set of pixels is assumed to be even. Consecu­tive sets of pixels (red, green and blue) are assumed to alternate
between odd and even pixel sets.

1-Channel Operation with CDS

This mode of the AD9807/AD9805 enables single-channel, or
monochrome, sampling. The CCD waveform is ac coupled to
either the VINR, VING, and VINB pin of the AD9807/AD9805
where it is biased at an appropriate voltage level using the on­chip clamp; the input may alternatively be dc coupled if it has
already been appropriately level shifted. Bits 6 and 7 in the
Configuration Register select the desired input. The internal
CDS takes two samples of the incoming pixel data: the first
sample (CDSCLK1) is taken during the reset time while the
second sample (CDSCLK2) is taken during the video, or data,
portion of the input pixel. The offset of the input signal is
modified by the value stored in the input offset register. The
voltage difference of the reset level and video level is inverted and
amplified by the PGA; the setting in the corresponding PGA
Gain Register determines the gain of the PGA. The output
from the PGA is then routed through a high-speed multiplexer
to a 12-bit A/D converter (10-bit for AD9805) for digitization;
the multiplexer does not cycle in this mode. After digitization,
the data is modified by the amount indicated in the Odd and
Even Offset Registers. A digital subtracter allows additional
pixel rate offset modification of the signal based on the values
written to the OFFSET data bus. Finally, a digital multiplier
allows pixel rate gain modification of the signal based on the

values written to the GAIN data bus. Latency is 6 ADCCLK
cycles (7 cycles for the gain and offset bus; see Figure 14).

The state of STRTLN is evaluated on the rising edges of
ADCCLK. When STRTLN is low, the internal circuitry is
reset on the next rising edge of ADCCLK; the odd/even
circuitry is configured to expect an even pixel. After STRTLN
goes high, the first pixel is assumed to be even. Consecutive
pixels (red, green or blue) are assumed to alternate between odd
and even. The blue and green channels are recommended for
single channel operation to achieve the maximum sampling rate;
if using red, invert ADCCLK as shown in Figure 1d.

1-Channel SHA Operation

This mode of the AD9807/AD9805 enables single-channel, or
monochrome sampling; it differs from the CDS monochrome
sampling mode in that the CDS function is replaced with a
sample-and-hold amplifier (SHA). CDSCLK1 becomes the
sample-and-hold clock; CDSCLK2 is tied to ground. The
input is sampled on the falling edge of CDSCLK1. The input
waveform would typically be either dc coupled and level shifted,
or dc restored prior to driving either the VINR, VING and
VINB pins of the AD9807/AD9805 (clamp mode must be
disabled).

Bits 6 and 7 in the Configuration Register select the desired
input. The input signal in this mode is ground referenced. The
input signal is not inverted prior to amplification by the PGA;
the setting in the corresponding PGA Gain Register determines
the gain of the PGA. The offset of the input signal is modified
by the value stored in the input offset register. This signal is
then routed through a high speed multiplexer to a 12-bit A/D
converter (10-bit for AD9805) for digitization; the multiplexer
does not cycle in this mode. After digitization, the data is
modified by the amount indicated in the Odd and Even Offset
Registers. A digital subtracter allows additional pixel rate offset
modification of the signal based on the values written to the
OFFSET data bus. Finally, a digital multiplier allows pixel rate
gain modification of the signal based on the values written to the
GAIN data bus. Latency is 6 ADCCLK cycles (7 cycles for
gain and offset; see Figure 15).

The state of STRTLN is evaluated on the rising edges of
ADCCLK. When STRTLN is low, the internal circuitry is
reset on the next rising edge of ADCCLK; the odd/even
circuitry is configured to expect an even pixel. After STRTLN
goes high, the first pixel is assumed to be even. Consecutive
pixels (red, green or blue) are assumed to alternate between odd
and even. The blue and green channels are recommended for
single channel operation to achieve the maximum sampling rate;
if using red, invert ADCCLK as shown in Figure 1f.

2-Channel Bayer Mode Operation with CDS

This mode of the AD9807/AD9805 enables Bayer Mode. The
CCD waveform is ac coupled to both the VING and VINB pins
of the AD9807/AD9805 where it is biased at an appropriate
voltage level using the on-chip clamp; the input may alterna­tively be dc coupled if it has already been appropriately level
shifted. The internal CDS takes two samples of the incoming
pixel data: the first sample (CDSCLK1) is taken during the
reset time while the second sample (CDSCLK2) is taken during
the video, or data, portion of the input pixel. The offset of the
input signal is modified by the value stored in the input offset
register. The voltage difference of the reset level and video level

–14–

REV. 0

AD9807/AD9805

is inverted and amplified by the PGA; the setting in the corre­sponding PGA Gain Register determines the gain of the PGA.
The output from the PGA is then routed through a high speed
multiplexer to a 12-bit A/D converter (10-bit for AD9805) for
digitization; the multiplexer does cycle in this mode. After
digitization, the data is modified by the amount indicated in
the Even Offset Registers. A digital subtracter allows additional
pixel rate offset modification of the signal based on the values
written to the OFFSET data bus. Finally, a digital multiplier
allows pixel rate gain modification of the signal based on the
values written to the GAIN data bus. Latency is 6 ADCCLK
cycles (7 cycles for the gain and offset bus; see Figure 14).

The state of STRTLN is evaluated on the rising edges of
ADCCLK. When STRTLN is low, the internal circuitry is
reset on the next rising edge of ADCCLK; the odd/even
circuitry is configured to expect even pixels.

ADCCLK

t

OD

DATA<11:0>

This feature has been included to accommodate the use of the
part with an area CCD (Bayer Mode). The mode is initiated by
writing a one to the LSB of the register at Address 7 (see Figure

21). The write to enable the mode should be performed when
the STRTLN input is inactive (low) and the ADCCLK is running.
The first pixel after an active edge on STRTLN will be a green
pixel. All pixels in Bayer Mode are even and use the even offset
registers. The line will continue alternating GRGRGR pixels
until STRTLN goes inactive. The next line will be BGBGBG
pixels (the first pixel after the active STRTLN edge being blue).
Line type will then alternate between GRGRGR and BGBGBG
type. To reset the next line to GRGRGR type at the start of the
next frame/image, rewrite the Bayer mode enable bit to a one
during the inactive STRTLN period. All red and blue pixels
pass through the blue channel of the part and use the blue PGA
and offset registers. To use a different offset/PGA gain value the
register must be written to between lines. Green pixels on either
line type pass through the green channel.

t

HZ

t

EDV

OEB

RIN, GIN, BIN

CDSCLK1

CDSCLK2

ADCCLK

DATA<11:0>

GAIN<n:0>
GAIN<m:0>

Figure 11. Digital Output Timing

PIXEL n PIXEL n+1 PIXEL n+2

R, G, BR, G, BR, G, B

RGBRGBRGB

R (n–2) G (n–2) B (n–2) R (n–1) G (n–1) B (n–1) R (n)

R (n) G (n) B (n) R (n+1)

G (n+1) B (n+1) R (n+2) G (n+2) B (n+2) R (n+3)

Figure 12. DOUT Latency, 3-Channel CDS Mode

REV. 0

–15–

AD9807/AD9805

PIXEL n PIXEL n+1 PIXEL n+2

RIN, GIN, BIN

CDSCLK1

CDSCLK2

ADCCLK

RIN, GIN, BIN

CDSCLK1

ADCCLK

DATA<11:0>

GAIN<n:0>

GAIN<m:0>

R, G, BR, G, BR, G, B

RGBRGBRGB

R (n–2) G (n–2) B (n–2) R (n–1) G (n–1) B (n–1)

R (n) G (n) B (n) R (n+1)

G (n+1) B (n+1) R (n+2) G (n+2) B (n+2) R (n+3)

Figure 13. DOUT Latency, 3-Channel SHA Mode

PIXEL n PIXEL n+1 PIXEL n+2

R (n)

DATA<11:0>

GAIN<n:0>

OFFSET<m:0>

RIN, GIN, BIN

CDSCLK1

ADCCLK

DATA<11:0>

GAIN<n:0>

OFFSET<m:0>

D (n–8)

G (n)

D (n–7) D (n–6)

G (n+1) G (n+2)

Figure 14. DOUT Latency, 1-Channel CDS Mode

PIXEL n PIXEL n+1 PIXEL n+2

D (n–7) D (n–6) D (n–5) D (n–4)

G (n)

G (n+1) G (n+2) G (n+3)

Figure 15. DOUT Latency, 1-Channel SHA Mode

D (n–5)

D (n–4)

G (n+3)

–16–

REV. 0

AD9807/AD9805

Calculating Overall Gain

The overall gain for the AD9807/AD9805 can accommodate a
wide range of input voltage spans. The total gain is a composite
of analog gain (from the PGAs), digital gain (from the digital
multiplier) and the input span setting for the A/D (2 V or 4 V). To
determine the overall gain setting for the AD9807/AD9805, always
multiply the PGA gain setting by the digital gain setting. In
addition, the 2 V/4 V reference option can effectively provide
analog gain for input signals less than 2 V p-p.

Overall Gain = Analog Gain × Digital Gain

For example, with the PGA gain equal to 1 (gain setting equals
all “zeros”) and the digital multiplier equal to 1, the minimum
gain equals 1. With these settings, input signals can be as large
as 2 V or 4 V depending on the reference setting. Alternatively,
with the PGA gain equal to 4 (gain setting equals all “ones”)
and the digital multiplier equal to 8, the maximum gain equals

32. With the A/D reference span set to 2 V, an input signal span
as small as 62.5 mV p-p will produce a digital output spanning
from all “zeros” to all “ones.” For ranges between 62.5 mV and
4 V, see the Digital Gain and Analog Gain sections of the data
sheet.

Analog Gain

The transfer function of the PGA is:

1+ 3 ×

4



15− x



15








Analog Input =

where x is the decimal representation of the settings in the PGA
gain register. Figure 16 shows the graph of this transfer
function on both a linear and logarithmic scale. The transfer
function is approximately linear in dB.

4.0

3.5

3.0

12

10

8

where GAIN<n:0> is the decimal representation of the GAIN
bus data bits, Y = 4096 for the AD9807, Y = 1024 for the
AD9805, and X equals 1, 3 or 7 depending on Bits 0–2 in the
Configuration Register.

Overall Transfer Function

The overall transfer function for the AD9807 can be calculated
as follows:

D

OUT

ADC

OUT

= [ADC

± InputOffset

V

()

IN

[]

=

+ Offset Register – Offset Bus][Digital Gain]

OUT

×PGAGain

2×V

REF

×4096

Choosing the Input Coupling Capacitors

Because of the dc offset present at the output of CCDs, it is likely
that these outputs will require some form of dc restoration to be
compatible with the input requirements of the AD9807/AD9805.
To simplify input level shifting, a dc blocking capacitor may be
used in conjunction with the internal biasing circuits of the
AD9807/AD9805 to accomplish the necessary dc restoration.

Figure 17 shows the equivalent analog input for the VINR,
VING and VINB inputs.

C

V

IN

CDSCLK1

STRTLN

CDSCLK2

AD9807/AD9805

CONFIG
REG 2<7>

CONFIG
REG 2<0>

CONFIG
REG 2<6>

I

BIAS

5kΩ

V

S1

BIAS

4pF

CDS

4pF

2.5

GAIN

2.0

1.5

1.0
013123456789101112 1415

GAIN (dB)

GAIN

PGA GAIN SETTING

6

GAIN – dB

4

2

0

Figure 16. PGA Transfer Function

Digital Gain

The digital multiplier section of the AD9807/AD9805 allows the
user to apply gain in addition to that afforded by the analog
PGA. The minimum gain of the digital multiplier is always 1.
The user sets the maximum gain of the digital multiplier to be 8,
4, or 2 with Bits 0–2 in the Configuration Register. (The max
gain is the same for all three channels.) The digital gain
applied to the output from the digital subtracter is calculated
using the equation:

REV. 0

Digital Gain = 1+







Gain <n:0>



Y








×X





–17–

Figure 17. Equivalent Analog Inputs (VINR, VING, and
VINB)

Enabling CDS functionality and Line Clamp Mode with Bits 0,
6 and 7 in Configuration Register 2 allows switch S1 to turn on
when STRTLN is low and CDSCLK1 goes high. This connects
a 5 kΩ biasing resistor to the inputs. This arrangement acts to
bias the average level of the input signal at voltage, V
voltage, V
ting. Specifically, for gain settings from 0 to 5, V
for gain settings from 10 to 15, V
tings between 5 and 10, V

, changes depending on the selected PGA gain set-

BIAS

equals 3 V. For gain set-

BIAS

decreases linearly from 4 V to 3 V.

BIAS

BIAS

. The

BIAS

equals 4 V;

The size of the coupling capacitor is dependent on several
factors including signal swing, allowable droop, and acquisition
time. The following procedure shows how to determine the
recommended range of capacitors.

Calculating C

MAX

The maximum capacitor value is largely dependent on the
degree of accuracy and how quickly the input signal must be
level-shifted into the valid input range of the degree of accuracy.
Other factors affecting the speed of the capacitor charging or

AD9807/AD9805

discharging include the amount of time that input switch S1 is
turned on, the input impedance of the AD9807/AD9805 and
the output impedance of the circuit driving the coupling
capacitor. The impedance of the drive circuit, R
impedance of the AD9807/AD9805, R
charging time, t

, are all known quantities. Note that t

ACQ

, and the desired

IN

, the input

OUT

ACQ

may not necessarily occur over a continuous period of time; it may
actually be an accumulation of discrete charging periods. This
is typical where CDSCLK1 is asserted only during the reset
levels of the pixels. In this case, the quantity, m × T, may be
substituted for t

, where m is the number of periods

ACQ

CDSCLK1 is asserted and T is the period of the assertion.
Given these quantities, the maximum value for the input
coupling capacitor is computed from the equation:

t

≅

RIN+R

ACQ

OUT

C

MAX

/ln





V

C





V





E

where VC is the required voltage change across the coupling
capacitor and V

is the maximum tolerable error voltage. VC is

E

calculated by taking the difference between the CCD’s reset
level and the internal bias level of the AD9807/AD9805. V

is

E

the level of accuracy to which the input capacitor must be charged
and is system dependent. Usually the allowable droop of the
capacitor voltage is taken into account. This is discussed below.
For example, if the CCD output can droop up to 1 volt without
affecting the accuracy of the CDS, then clamping to within
about one tenth of the allowable droop (100 mV) should be
sufficient in most cases.

Calculating C

Determining C

MIN

is a function of the amount of allowable

MIN

voltage droop. It is important that the signals at the inputs of
the AD9807/AD9805 remain within the supply voltage limits so
the CDSs are able to accurately digitize the difference between
the reset level and the video level. Assuming the input voltages
are initially biased at the correct levels, the input bias current of
the AD9807/AD9805 inputs will discharge the input coupling
capacitors resulting in voltage droop. After taking into account
any droop, the peaks of the input signal must remain within the
required voltage limits of AD9807/AD9805 inputs.

Specifically, C

is a function of the maximum allowable

MIN

droop, dV, in one scan line, the number of pixels across one scan
line, n, the period of one pixel, t, and the input bias current of
the AD9807/AD9805, I

. C

BIAS

C

MIN

is calculated from the equation:

MIN





I

BIAS

=





dV

×n× t





Some examples are given below showing the typical range of
capacitor values.

Example 1

A 5000 pixel CCD running at a 2 MHz (t = 500 ns) has a reset
level of 4.5 volts and an output voltage of 1.8 volts. The number
of optical black pixels available at the start of a line is 18. Using
the AD9807/AD9805 with an input span of 4 volts and a PGA
gain of 2 gives a V

of 3 volts. If the input signal is clamped

BIAS

to 3 volts during the optical black pixels, the required voltage
change on the input capacitor, V

, equals (4.5 – 3) or 1.5 volts

C

and the maximum droop allowable during one line, dV, will be
(3 – 1.8) or 1.2 volts before the signal droops below 0 volts.

With dV = 1.2 volts, a clamp accuracy of 100 mV should be
sufficient (V

=100 mV), but this value can be adjusted. The

E

amount of time available to charge up the input capacitor,
T

, will equal the period of CDSCLK1 (when the clamp

ACQ

switch is closed) times the number of optical black pixels. With
a pixel rate of 2 MHz, CDSCLK1 would typically be around
100 ns wide, giving T

=1800 ns or

ACQ

1.8 µs. The input impedance of the AD9807 is 5K, and the
input bias current is 10 nA. Assume the source impedance
driving the AD9807 is low (R

= (1.8 µs/5K) × (1/ln (1.5/0.1)) = 133 pF

C

MAX

= (10 nA/1.2) × 5000 × 500 ns = 21 pF

C

MIN

OUT

= 0).

Note that a capacitor larger than 133 pF would still work, it
would just take several lines to charge the input capacitor up
to the full V

level. Another option to lengthen T

C

ACQ

is by
clocking the CCD and CDSCLK1 while the transport motor
moves the scanner carriage. This would extend T

ACQ

to
several hundred µs or more, meaning that only very fine
adjustment would be needed during the limited number of
optical black pixels.

Example 2

A 7926 pixel CCD running at 2 MHz has a reset level of 6 volts,
an output voltage of 2.9 volts and 80 optical black pixels. Using
the AD9807 with an input span of 4 volts and a PGA gain of

1.25, V
on the capacitor, V
droop dV for one line is 1.1 volts. T
µs, and V
R

OUT

= 4 volts. The maximum required voltage change

BIAS

= 100 mV should be sufficient. Again, RIN = 5K,

E

= 0, and I

C

MAX

= (10 nA/1.1) × (7926) × (500 ns) = 36 pF

C

MIN

, is 2 volts and the maximum amount of

C

= 10 nA.

BIAS

will be 80 × 100 ns or 8

ACQ

= (8 µs/5K) × (1/ln (2/0.1)) ≅ 534 pF

Again, a larger capacitor may be used if several lines are allowed
for to initially charge up the cap, or if the CCD and CDSCLK1
are clocked during the moving of the scanner carriage.

Generating 3-Channel Timing from a 16 3 Master Clock

Generating the required signals for CDSCLK1, CDSCLK2 and
ADCCLK is easily accomplished with a master clock running
16 × the desired per channel pixel rate (i.e., 2 MSPS pixel rate
requires 32 MHz master clock). The timing diagram shown
in Figure 18 meets all the minimum and maximum timing
specifications. Note that a 16 × master clock using only rising
edges was chosen instead of using both edges of an 8 × rate
clock to ensure immunity to duty cycle variations.

500ns

MASTER

(32MHz)

CDSCLK1

CDSCLK2

ADCCLK

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Figure 18. Timing Scheme Using 16 × Master Clock

–18–

REV. 0

AD9807/AD9805

Power-On Initialization and Calibration Sequence

When the AD9807/AD9805 is powered on, the following
sequence should be used to initialize the part to a known state.
The digital gain and offset buses are disabled until the calibra­tion sequence. The Bayer mode register must be written to and
set to zero if this mode is not going to be used.

CHANGE
POINTER

WRITE TO CONFIGURATION REGISTER

SET DIGITAL GAIN RANGE TO 000

SET GAIN/OFFSET BUS SIZE TO 000

SET COLOR POINTER

WRITE TO PGA GAIN REGISTER

SET TO GAIN OF ONE (0000)

WRITE TO INPUT OFFSET REGISTER

SET TO 0mV (11001100)

YES

WRITE TO CONFIGURATION 2 REGISTER

SET CDS OR SHA OPERATION

SET 3-CHANNEL OR 1-CHANNEL MODE

SET ADC FULL-SCALE RANGE

SET

ANOTHER

COLOR

?

NO

SET CLAMP MODE

To calibrate the AD9807/AD9805 for a particular scan, use the
following sequence.

SET PGA GAIN(S)

(INPUT OFFSET = 0mV)

SCAN DARK LINE

COMPUTE PIXEL OFFSETS

SET INPUT OFFSET

SET ODD/EVEN OFFSET

YES

SET GAIN/OFFSET BUS SIZE

SET EXTERNAL PIXEL OFFSET VECTORS

SET

ANOTHER

COLOR

?

NO

WRITE TO BAYER MODE REGISTER

SET MODE ON OR OFF

OPTIONAL READBACK

FROM REGISTERS

Figure 19. Initialization

SCAN WHITE LINE

COMPUTE PIXEL GAINS

YES

ADJUST

PGA GAIN(S)

?

NO

SET DIGITAL GAIN RANGE

Figure 20. Calibration

REV. 0

–19–

AD9807/AD9805

SET PGA AND INPUT OFFSET FOR GREEN

PIXELS USING THE GREEN REGISTERS

SET PGA AND INPUT OFFSET FOR RED

PIXELS USING THE BLUE REGISTERS

BRING STRTLN LOW

WRITE A "1" TO THE LSB OF THE BAYER REGISTER

APPLY AT LEAST ONE ADCCLK CYCLE

BRING STRTLN HIGH

THE FIRST PIXEL IS GREEN

THE SECOND PIXEL IS RED, ALTERNATING GRGR...

BRING STRTLN LOW AT THE END OF THE LINE

NEXT LINE

YES

GRGR AGAIN

(NEW FRAME)

?

NO

CHANGE THE PGA AND INPUT OFFSET OF BLUE

REGISTERS FOR BLUE PIXELS

BRING STRTLN HIGH

THE FIRST PIXEL IS BLUE

THE SECOND PIXEL IS GREEN, ALTERNATING BGBG...

BRING STRTLN LOW AT THE END OF THE LINE

CHANGE GAIN
AND OFFSET
FOR RED PIXELS
WITH BLUE
REGISTERS

Grounding and Decoupling

Figure 22 shows the recommended decoupling capacitors and
ground connections for the AD9807/AD9805. Notice that all of
the power and ground connections are common for the analog
and digital portions of the chip. This would be the best way to
connect the device on a board containing a large number of
digital components. By treating the AD9807/AD9805 as an
analog component, the on-board digital circuitry is considered
“quiet digital” and the digital supply pins are connected to the
clean analog supply and analog ground plane. For this tech­nique to work well, it is important that the digital supply pins be
well decoupled to the analog ground plane and that the digital
outputs of the AD9807/AD9805 are buffered to minimize the
digital drive current. The buffers would be referred to the digital
supply and ground. This scheme is preferable to tying the digital
portion of the AD9807/AD9805 to a noisy digital ground and
power plane, capacitively coupling noise to the analog circuitry
within the device. The AD9807/AD9805 evaluation boards use
this grounding method, shown in Figures 26 and 27. If a
minimum amount of digital circuitry exists on the board, it is
possible that the power and ground connections of the AD9807
can be separated; be sure to maintain a single point connection
between the two ground planes at the AD9807/AD9805.

+5

0.1µF

51

52
DVSS

DVSS DVDD

DVSS DVDD

28

29

0.1µF

+5

DRVDD

DRVSS

+5

41

0.1µF

40

10µF

0.1µF

0.1µF

0.1µF

+

+5

0.1µF

+

0.1µF

0.1µF

0.1µF

+5

10µF

1

AVDD

2

AVSS

3

CAPT

4

CAPT

5

CAPB

6

CAPB

7

REF

8

CML

10

AVSS

12

AVSS

14

AVSS

15

AVDD

AD9807/AD9805

(PINS OMITTED FOR CLARITY)

Figure 21. Bayer Mode Operation

–20–

Figure 22.

REV. 0

CIS Application

CIS START PULSE

CIS CLOCK

CIS OUTPUT

STRTLN

ADCCLK

CDSCLK1

Unlike many other integrated circuit CCD signal processors, the
AD9807/AD9805 can easily be implemented in imaging systems
that do not use a CCD. By disabling the input clamp and the
CDS blocks, any dc coupled signal within the input limits of the
part can be digitized. Figure 23 shows a typical block diagram of
the AD9807 used with a color CIS module, in this case Dyna
Image Corporation’s DL100*. The three color output signals
are dc coupled into the AD9807. The Dyna CIS module’s
output levels are around 70 mV to 500 mV dark to bright, well
within the input range of the AD9807. The AD9807 is config­ured for 3-channel SHA operation through the MPU registers.
Timing used with the Dyna DL100 is shown in Figure 24; the
CIS output levels are sampled on the falling edge of CDSCLK1.
The digital ASIC shown can be implemented in a variety of
ways: it could include the MPU interface and timing generator,
as well as memory for the output data and pixel gain and offset
correction vectors.

PIXEL

12

GAIN

CORRECTION

CIS

CIS

CLOCKS

RED

GREEN

BLUE

VINR
VING
VINB

STRTLN,
CDSCLK1,
ADCCLK

TIMING

GENERATOR

GAIN<11:0>

AD9807

OFFSET<7:0>

83

DOUT<11:0>

MPU<7:0>

A2, A1, A0

OEB, WRB

RDB, CSB

PIXEL

OFFSET

CORRECTION

12

7

8

MPU

INTERFACE

DIGITAL

ASIC

OUTPUT

DATA

AD9807/AD9805

Figure 24. CIS Application Timing Signals

EVALUATION BOARDS

The AD9807 and AD9805 evaluation boards are designed to
provide an easy interface to a standard PC, simplifying the task
of evaluating the performance of the AD9807/AD9805 with an
existing imaging system. The system level block diagram shown
in Figure 25 illustrates the basic evaluation setup for the
AD9807 (the AD9805 is the same). The user needs to supply
the analog input signals (such as outputs from a CCD), the
AD9807/AD9805’s clock signals, a power supply and a printer
cable to connect the evaluation board to the PC’s parallel port.
Software is included to allow the user to easily accomplish three
major tasks: first, configure the AD9807/AD9805 in one of several
operating modes (1 Channel, 3 Channel, CDS or SHA mode,
etc.), second, acquire output data from the part and third, down­load pixel gain and offset correction data to the evaluation board
and enable pixel rate shading and offset correction.

Figures 26 and 27 show the signal routing and decoupling for
the AD9807 evaluation board.

The evaluation boards are designated with the part numbers
AD9807-EB and AD9805-EB.

Figure 23. CIS Application Diagram (Power, Ground, and
Decoupling Omitted)

+5V VOLT

AD9807 EVALUATION BOARD

ANALOG INPUTS

RED

GREEN

BLUE

CLOCK INPUTS

STRTLN
CDSCLK1
CDSCLK2

ADCCLK

VINR
VING
VINB

CLOCKS

4

OFFSET

AD9807

MPU I/O

MPU CONTROL

GAIN

DOUT

Figure 25. Evaluation System Block Diagram

*All trademarks are properties of their respective holders.

REV. 0

POWER

SUPPLY

8

–21–

12

8

12

7

FIFO
BUFFERS,
LATCHES,

AND
CONTROL

LOGIC

PRINTER

8

CABLE

PC
PARALLEL
PORT

AD9807/AD9805

AVDD

DVDD

+

C21

0.1µF

C18
10µF

AVSS

TP14TP13 TP16TP15

+

C28

10µF

STARTLINE
B1

CDS1

B2

CDS2

B3

ADC

B4

50Ω

50Ω

50Ω

50Ω

R4

R3

R2

R1

C27

0.1µF

TP5

C26

0.1µF

B5

B6

B7

PL

PL

PL

PL

50Ω

50Ω

50Ω

+5VD

+

C25
10µF

AVDD

C8

0.1µF

C10

0.1µF

C1

0.01µF

R7

PL

JP1

C2

0.01µF

R6

JP2

PL

C3

0.01µF

R5

PL

JP3

TP5

AVDD

STARTLINE

+

C7

0.1µFC610µF

0.1µF

TP6

TP7

C11

0.1µF

TP9

TP10

TP11

TP12

ADCCLK

C12

0.1µF

C4

G(9)

G(8)

G(7)

G(6)

G(5)

G(4)

G(3)

G(2)

OFF(3)

OFF(2)

G(1)

OFF(1)

OFF(0)

G(11)

G(10)

1

AVDD

2

AVSS

3

CAPT

4

CAPT

5

CAPB

6

CAPB

7

REF

8

CML

9

VINR

10

AVSS

11

VING

12

AVSS

13

VINB

14

AVSS

15

AVDD

16

ST_LIN

CDS1

CDS2

ADCLK

OFF(7)

OFF(6)

AD9807

OFF(5)

OFF(4)

G(0)

DVSS

C14

DVSS

DVDD

0.1µF

DVDD

DVDD

CSB

C15

0.1µF

A2

D(11)
D(10)

D(9)
D(8)
D(7)
D(6)

DRVDD

DRVSS

D(5)
D(4)
D(3)
D(2)
D(1)
D(0)

OEB

RDB

49505152535455565758596061626364

A1

A0

WRB

32313029282726252423222120191817

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

DVDD

GAIN12

A2
A1

AD9807 DATABUS

D11
D10

D9
D8
D7
D6

DVDD

C13

0.1µ

OEB

8

D5
D4
D3
D2
D1
D0

OFFSET

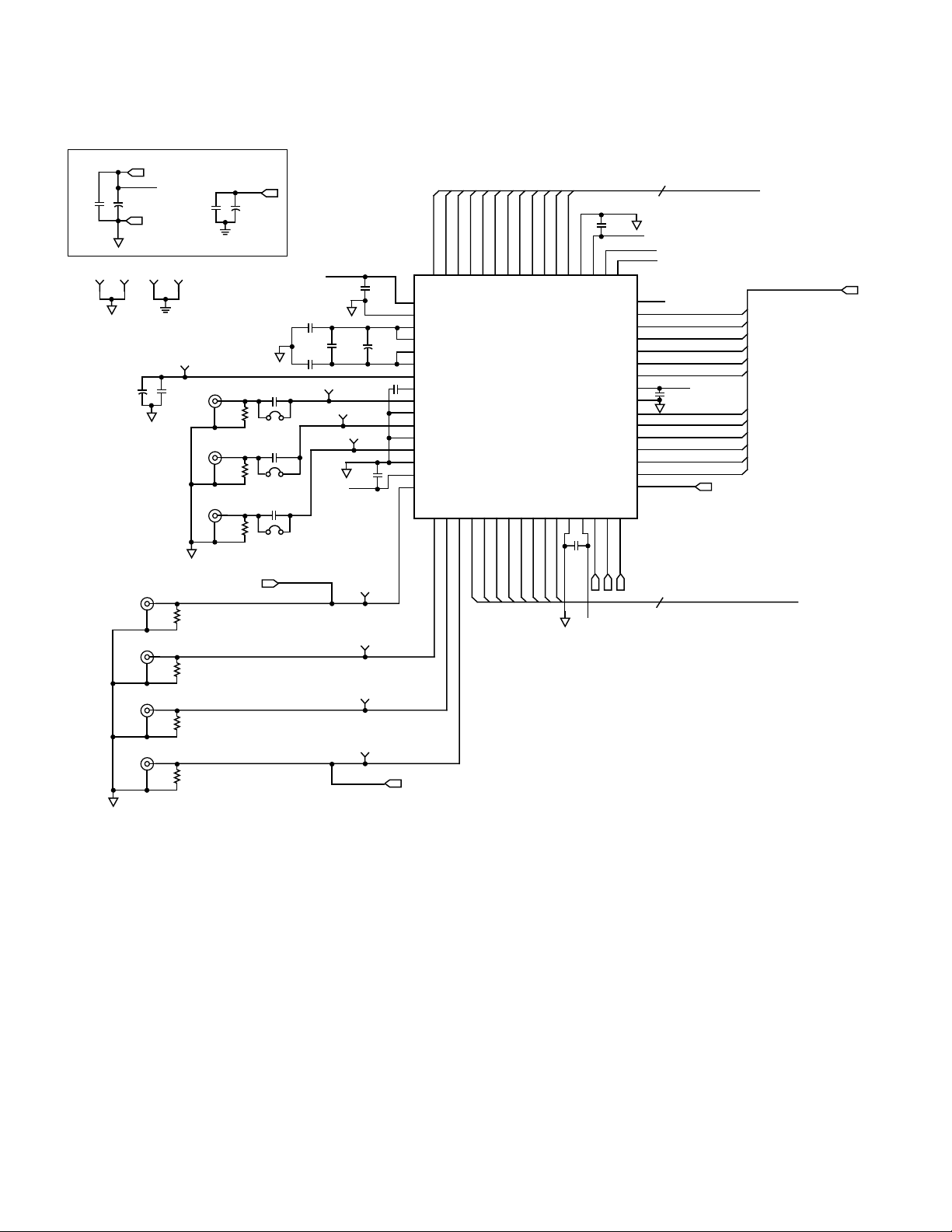

Figure 26. AD9807 Evaluation Board (Digital Circuitry Omitted)

–22–

REV. 0

AD9807/AD9805

+C6

+C28

C8
C10

C27

C12

C7

C4
C11

C15

C13

C14

Figure 27. Suggested Capacitor Placement for Single-Side Component Layout

REV. 0

–23–

AD9807/AD9805

0.041 (1.03)

0.029 (0.73)

SEATING

PLANE

STANDOFF

0.010 (0.25)

0.009 (0.23)

0.005 (0.13)

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

64-Terminal PQFP

(S-64)

0.687 (17.45)

0.667 (16.95)

64

1

16

17

0.031 (0.80)

PIN 1

0.555 (14.10)

0.547 (13.90)

0.472 ( 12. 0) BSC

TOP VIEW

(PINS DOWN)

0.018 (0.45)

BSC

0.012 (0.30)

49

48

33

32

0.093 (2.35)
MAX

0.083 (2.10)

0.077 (1.95)

0.555 (14.10)

0.547 (13.90)

0.472 (12. 0) BSC

7°
0°

0.687 (17.45)

0.667 (16.95)

C2196–12–1/97

–24–

PRINTED IN U.S.A.

REV. 0
