12 LVDS/24 CMOS Output Clock Generator

FEATURES

Low phase noise, phase-locked loop (PLL)

with Integrated 2.4 GHz VCO

AD9522-1

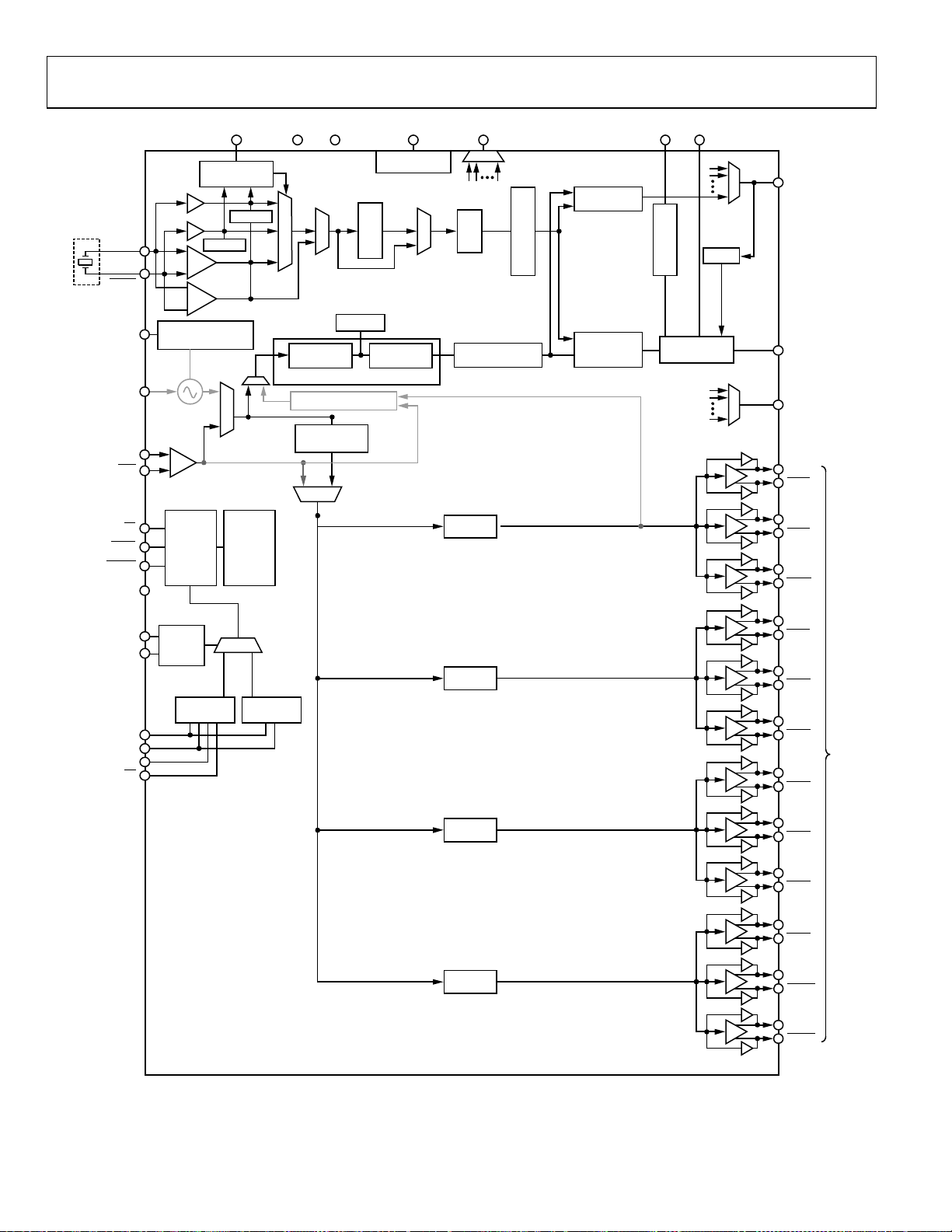

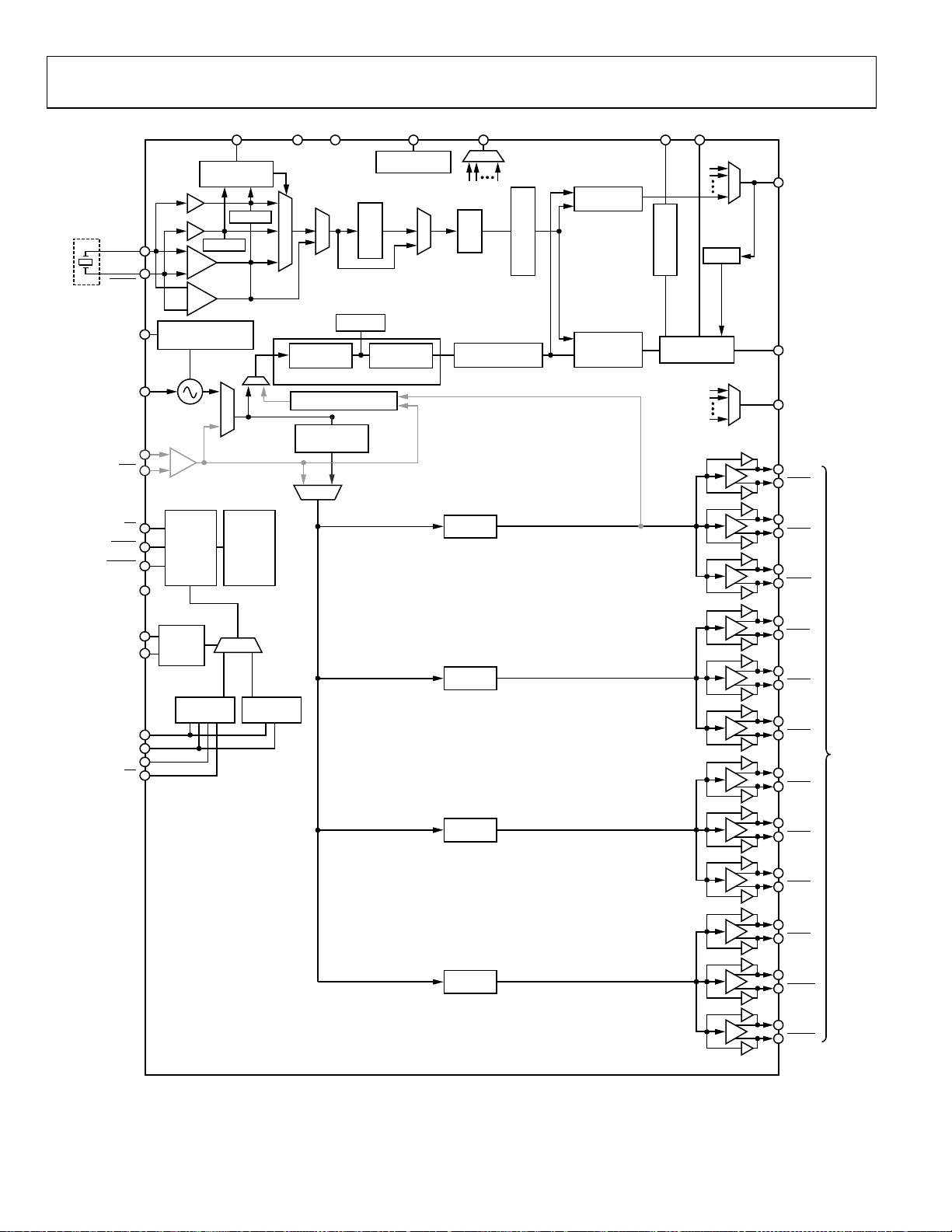

FUNCTIONAL BLOCK DIAGRAM

On-chip VCO tunes from 2.27 GHz to 2.65 GHz

VCO

LVDS/ CMOS

STATUS

MONITOR

ZERO

DELAY

Supports external 3.3 V/5 V VCO/VCXO to 2.4 GHz 1 differential or 2 single-ended reference inputs Accepts CMOS, LVPECL, or LVDS references to 250 MHz Accepts 16.62 MHz to 33.3 MHz crystal for reference input Optional reference clock doubler Reference monitoring capability Auto and manual reference switchover/holdover modes,

with selectable revertive/nonrevertive switching Glitch-free switchover between references Automatic recovery from holdover Digital or analog lock detect, selectable Optional zero delay operation

Twelve 800 MHz LVDS outputs divided into 4 groups

Each group of 3 has a 1-to-32 divider with phase delay Additive broadband jitter as low as 242 fs rms

OPTIONAL

REFIN

CLK

REF1

REF2

SWITCHOVER

AND MONITOR

DIVIDER

AND MUXES

DIV/Φ

PLL

Channel-to-channel skew grouped outputs < 60 ps Each LVDS output can be configured as 2 CMOS outputs

(for f

≤ 250 MHz)

OUT

Automatic synchronization of all outputs on power-up Manual synchronization of outputs as needed SPI- and I²C-compatible serial control port 64-lead LFCSP Nonvolatile EEPROM stores configuration settings

APPLICATIONS

Low jitter, low phase noise clock distribution Clock generation and translation for SONET, 10Ge, 10G FC,

and other 10 Gbps protocols

Forward error correction (G.710) Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs High performance wireless transceivers ATE and high performance instrumentation Broadband infrastructures

GENERAL DESCRIPTION

The AD9522-11 provides a multioutput clock distribution function with subpicosecond jitter performance, along with an

The AD9522 serial interface supports both SPI and IC® ports. An in-package EEPROM can be programmed through the serial interface and store user-defined register settings for power-up and chip reset.

The AD9522 features 12 LVDS outputs in four groups. Any of the 800 MHz LVDS outputs can be reconfigured as two 250 MHz CMOS outputs.

Each group of outputs has a divider that allows both the divide ratio (from 1 to 32) and the phase (coarse delay) to be set.

The AD9522 is available in a 64-lead LFCSP and can be operated from a single 3.3 V supply. The external VCO can have an operating voltage up to 5.5 V.

The AD9522 is specified for operation over the standard industrial range of −40°C to +85°C.

The AD9520-1 is an equivalent part to the AD9522-1 featuring LVPECL/CMOS drivers instead of LVDS/CMOS drivers.

SPI/I2C CONTROL

PORT AND

DIGITAL LOGIC

EEPROM

Figure 1.

AD9522

on-chip PLL and VCO. The on-chip VCO tunes from 2.27 GHz to 2.65 GHz. An external 3.3 V/5 V VCO/VCXO of up to 2.4 GHz can also be used.

The AD9522 is used throughout this data sheet to refer to all the members of the AD9522 family. However, when AD9522-1 is used, it is referring to that specific

member of the AD9522 family.

OUT0 OUT1 OUT2

OUT3 OUT4 OUT5

OUT6 OUT7 OUT8

OUT9 OUT10 OUT11

07220-001

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners.

AD9522-1

Features .............................................................................................. 1

Applications ....................................................................................... 1 

General Description ......................................................................... 1

Functional Block Diagram .............................................................. 1

Revision History ............................................................................... 3

Specifications ..................................................................................... 4

Power Supply Requirements ....................................................... 4

PLL Characteristics ...................................................................... 4

Clock Inputs .................................................................................. 7

Clock Outputs ............................................................................... 7

Timing Characteristics ................................................................ 8

Timing Diagrams ..................................................................... 8

Clock Output Additive Phase Noise (Distribution Only;

VCO Divider Not Used) .............................................................. 9

Clock Output Absolute Phase Noise (Internal VCO Used) .. 10

Clock Output Absolute Time Jitter (Clock Generation

Using Internal VCO) .................................................................. 10

Clock Output Absolute Time Jitter (Clock Cleanup

Using Internal VCO) .................................................................. 10

Clock Output Absolute Time Jitter (Clock Generation

Using External VCXO) .............................................................. 11

Clock Output Additive Time Jitter (VCO

Divider Not Used) ...................................................................... 11

Clock Output Additive Time Jitter (VCO Divider Used) ..... 12

Serial Control Port—SPI Mode ................................................ 12

Serial Control Port—IC Mode ................................................ 13

SYNC

Serial Port Setup Pins: SP1, SP0 ............................................... 14

LD, STATUS, and REFMON Pins ............................................ 14

Power Dissipation ....................................................................... 15

Absolute Maximum Ratings .......................................................... 16

Thermal Resistance .................................................................... 16

ESD Caution ................................................................................ 16

Pin Configuration and Function Descriptions ........................... 17

Typical Performance Characteristics ........................................... 20

Terminology .................................................................................... 25

Detailed Block Diagram ................................................................ 26

Theory of Operation ...................................................................... 27

, and

RESET

Pins ..................................................... 14



Operational Configurations ...................................................... 27

Mode 0: Internal VCO and Clock Distribution ................. 27

Mode 1: Clock Distribution or

External VCO < 1600 MHz .................................................. 29

Mode 2: High Frequency Clock Distribution—

CLK or External VCO > 1600 MHz .................................... 31

Phase-Locked Loop (PLL) .................................................... 33

Configuration of the PLL ...................................................... 33

Phase Frequency Detector (PFD) ........................................ 33

Charge Pump (CP) ................................................................. 34

On-Chip VCO ........................................................................ 34

PLL External Loop Filter ....................................................... 34

PLL Reference Inputs ............................................................. 34

Reference Switchover ............................................................. 35

Reference Divider R ............................................................... 35

VCO/VCXO Feedback Divider N: P, A, B, R ..................... 35

Digital Lock Detect (DLD) ................................................... 37

Analog Lock Detect (ALD) ................................................... 37

Current Source Digital Lock Detect (CSDLD) .................. 37

External VCXO/VCO Clock Input (CLK/

Holdover .................................................................................. 38

External/Manual Holdover Mode ........................................ 38

Automatic/Internal Holdover Mode .................................... 38

Frequency Status Monitors ................................................... 40

VCO Calibration .................................................................... 41

Zero Delay Operation ................................................................ 42

Internal Zero Delay Mode ..................................................... 42

External Zero Delay Mode .................................................... 42

Clock Distribution ..................................................................... 43

Operation Modes ................................................................... 43

Clock Frequency Division ..................................................... 44

VCO Divider ........................................................................... 44

Channel Dividers ................................................................... 44

Synchronizing the Outputs—

LVDS Output Drivers ............................................................ 47

CMOS Output Drivers .......................................................... 48

SYNC

CLK

) ................ 38

Function ................... 46



Rev. 0 | Page 2 of 84

AD9522-1

Reset Modes ................................................................................. 48

Power-On Reset ....................................................................... 48

Hardware Reset via the

Soft Reset via the Serial Port.................................................. 48

Soft Reset to Settings in EEPROM when EEPROM Pin = 0 via

the Serial Port .......................................................................... 48

Power-Down Modes ................................................................... 48

Chip Power-Down via PD ..................................................... 48

PLL Power-Down .................................................................... 49

Distribution Power-Down ..................................................... 49

Individual Clock Output Power-Down ................................ 49

Individual Clock Channel Power-Down ............................. 49

Serial Control Port .......................................................................... 50

SPI/IC Port Selection ................................................................ 50

IC Serial Port Operation ........................................................... 50

I2C Bus Characteristics ........................................................... 50

Data Transfer Process ............................................................. 51

Data Transfer Format ............................................................. 52

IC Serial Port Timing ............................................................ 52

SPI Serial Port Operation ........................................................... 53

Pin Descriptions ...................................................................... 53

SPI Mode Operation ............................................................... 53

Communication Cycle—Instruction Plus Data .................. 53

Write ......................................................................................... 53

Read .......................................................................................... 53

SPI Instruction Word (16 Bits) .................................................. 54

SPI MSB/LSB First Transfers ..................................................... 54

RESET

Pin ...................................... 48



EEPROM Operations ..................................................................... 57

Writing to the EEPROM ............................................................ 57

Reading from the EEPROM ...................................................... 57

Programming the EEPROM Buffer Segment.......................... 58

IO_UPDATE (Operational Code 0x80) .............................. 58

End-of-Data (Operational Code 0xFF) ............................... 58

Pseudo-End-of-Data (Operational Code 0xFE) ................. 58

Thermal Performance ..................................................................... 60

Applications Information ............................................................... 80

Frequency Planning Using the AD9522 .................................. 80

Using the AD9522 Outputs for ADC Clock Applications .... 80

LVDS Clock Distribution ........................................................... 80

CMOS Clock Distribution ......................................................... 81

Outline Dimensions ........................................................................ 82

Ordering Guide ........................................................................... 82

REVISION HISTORY

11/08—Revision 0: Initial Version

Rev. 0 | Page 3 of 84

AD9522-1

SPECIFICATIONS

Typical (typ) is given for VS = 3.3 V ± 5%; VS ≤ VCP ≤ 5.25 V; TA = 25°C; RSET = 4.12 kΩ; CPRSET = 5.1 kΩ, unless otherwise noted. Minimum (min) and maximum (max) values are given over full VS and T

POWER SUPPLY REQUIREMENTS

Table 1.

Parameter Min Typ Max Unit Test Conditions/Comments

VS 3.135 3.3 3.465 V 3.3 V ± 5% VCP VS 5.25 V This is nominally 3.3 V to 5.0 V ± 5% RSET Pin Resistor 4.12 kΩ Sets internal biasing currents; connect to ground CPRSET Pin Resistor 5.1 kΩ

BYPASS Pin Capacitor 220 nF Bypass for internal LDO regulator; necessary for LDO stability; connect to ground

PLL CHARACTERISTICS

Table 2.

Parameter Min Typ Max Unit Test Conditions/Comments

VCO (ON-CHIP)

Frequency Range 2270 2650 MHz See Figure 13 VCO Gain (K Tunin g Volt age (VT) 0.5

Frequency Pushing (Open-Loop) 1 MHz/V Phase Noise @ 1 kHz Offset −62 dBc/Hz LVDS output; f Phase Noise @ 100 kHz Offset −118 dBc/Hz LVDS output; f Phase Noise @ 1 MHz Offset −136 dBc/Hz LVDS output; f

REFERENCE INPUTS

Differential Mode (REFIN, REFIN)

Input Frequency 0 250 MHz

Input Sensitivity 280 mV p-p Self-Bias Voltage, REFIN 1.35 1.60 1.75 V Self-bias voltage of REFIN1 Self-Bias Voltage, REFIN Input Resistance, REFIN 4.0 4.8 5.9 kΩ Self-biased1 Input Resistance, REFIN

Dual Single-Ended Mode (REF1, REF2) Two single-ended CMOS-compatible inputs

Input Frequency (AC-Coupled)

with DC Offset Off)

Input Frequency (AC-Coupled

with DC Offset On)

Input Frequency (DC-Coupled) 0 250 MHz Slew rate > 50 V/μs; CMOS levels Input Sensitivity (AC-Coupled

with DC Offset Off)

Input Sensitivity (AC-Coupled

with DC Offset On)

Input Logic High, DC Offset Off 2.0 V Input Logic Low, DC Offset Off 0.8 V Input Current −100 +100 μA Input Capacitance 2 pF

) 50 MHz/V See Figure 8

VCO

1.30 1.50 1.60 V

4.4 5.3 6.4 kΩ Self-biased

10 250 MHz Slew rate must be > 50 V/μs

250 MHz

0.55 3.28 V p-p VIH should not exceed VS

1.5 2.78 V p-p VIH should not exceed VS

(−40°C to +85°C) variation.

Sets internal CP current range, nominally 4.8 mA (CP_lsb = 600 μA); actual current can be calculated by CP_lsb = 3.06/CPRSET; connect to ground

VCP −

V VCP ≤ VS when using internal VCO

0.5

= 2460 MHz; f

VCO

= 2460 MHz; f

VCO

= 2460 MHz; f

VCO

= 615 MHz

OUT

= 615 MHz

OUT

= 615 MHz

OUT

Differential mode (can accommodate single-ended input by ac grounding undriven input)

Frequencies below about 1 MHz should be dc-coupled; be careful to match V

(self-bias voltage)

Self-bias voltage of REFIN1

Slew rate must be > 50 V/μs, and input amplitude sensitivity specification must be met; see input sensitivity

Each pin, REFIN (REF1)/REFIN

(REF2)

Rev. 0 | Page 4 of 84

AD9522-1

Parameter Min Typ Max Unit Test Conditions/Comments

Crystal Oscillator

Crystal Resonator Frequency Range 16.62 33.33 MHz

Maximum Crystal Motional Resistance 30 Ω

PHASE/FREQUENCY DETECTOR (PFD)

PFD Input Frequency 100 MHz Antibacklash pulse width = 1.3 ns, 2.9 ns 45 MHz Antibacklash pulse width = 6.0 ns Reference Input Clock Doubler Frequency 0.004 50 MHz Antibacklash pulse width = 1.3 ns, 2.9 ns Antibacklash Pulse Width 1.3 ns 0x017[1:0] = 01b

2.9 ns 0x017[1:0] = 00b; 0x017[1:0] = 11b

6.0 ns 0x017[1:0] = 10b

CHARGE PUMP (CP)

ICP Sink/Source Programmable

High Value 4.8 mA

With CPRSET = 5.1 kΩ; higher I changing CPRSET

Low Value 0.6 mA

With CPRSET = 5.1 kΩ; lower I

changing CPRSET Absolute Accuracy 2.5 % Charge pump voltage set to VCP/2 CPRSET Range 2.7 10 kΩ

ICP High Impedance Mode Leakage 1 nA Sink-and-Source Current Matching 1 %

0.5 V < V

< VCP − 0.5 V; VCP is the voltage on the CP (charge

pump) pin; VCP is the voltage on the VCP power supply pin

ICP vs. VCP 1.5 % 0.5 V < VCP < VCP − 0.5 V ICP vs. Temperature 2 % VCP = VCP/2 V

PRESCALER (PART OF N DIVIDER)

Prescaler Input Frequency

P = 1 FD 300 MHz P = 2 FD 600 MHz P = 3 FD 900 MHz P = 2 DM (2/3) 600 MHz P = 4 DM (4/5) 1000 MHz P = 8 DM (8/9) 2400 MHz P = 16 DM (16/17) 3000 MHz P = 32 DM (32/33) 3000 MHz

Prescaler Output Frequency 300 MHz

A, B counter input frequency (prescaler input frequency

divided by P)

PLL N DIVIDER DELAY Register 0x019[2:0]; see Table 52

000 Off 001 385 ps 010 504 ps 011 623 ps 100 743 ps 101 866 ps 110 989 ps 111 1112 ps

PLL R DIVIDER DELAY Register 0x019[5:3]; see Table 52

000 Off 001 365 ps 010 486 ps 011 608 ps 100 730 ps 101 852 ps 110 976 ps 111 1101 ps

is possible by

Rev. 0 | Page 5 of 84

AD9522-1

Parameter Min Typ Max Unit Test Conditions/Comments

PHASE OFFSET IN ZERO DELAY

Phase Offset (REF-to-LVDS Clock Output

1890 2348 3026 ps When N delay and R delay are bypassed

REF refers to REFIN (REF1)/REFIN

Pins) in Internal Zero Delay Mode

Phase Offset (REF-to-LVDS Clock Output

900 1217 1695 ps When N delay = Setting 111 and R delay is bypassed

Pins) in Internal Zero Delay Mode

Phase Offset (REF-to-CLK Input Pins) in

318 677 1085 ps When N delay and R delay are bypassed

External Zero Delay Mode

Phase Offset (REF-to-CLK Input Pins) in

−329 +33 +360 ps When N delay = Setting 011 and R delay is bypassed

External Zero Delay Mode

NOISE CHARACTERISTICS

In-Band Phase Noise of the Charge Pump/

Phase Frequency Detector (In-Band Means Within the LBW of the PLL)

The PLL in-band phase noise floor is estimated by measuring the in-band phase noise at the output of the VCO and subtracting 20 log(N) (where N is the value

of the N divider) @ 500 kHz PFD Frequency −165 dBc/Hz @ 1 MHz PFD Frequency −162 dBc/Hz @ 10 MHz PFD Frequency −152 dBc/Hz @ 50 MHz PFD Frequency −144 dBc/Hz

PLL Figure of Merit (FOM) −222 dBc/Hz

Reference slew rate > 0.5 V/ns; FOM + 10 log(f

approximation of the PFD/CP in-band phase noise (in

the flat region) inside the PLL loop bandwidth; when

running closed-loop, the phase noise, as observed at

the VCO output, is increased by 20 log(N); PLL figure of

merit decreases with decreasing slew rate; see Figure 12

PLL DIGITAL LOCK DETECT WINDOW2

Signal available at the LD, STATUS, and REFMON pins

when selected by appropriate register settings; lock

detect window settings can be varied by changing the

CPRSET resistor

Lock Threshold (Coincidence of Edges)

Selected by 0x017[1:0] and 0x018[4] (this is the threshold

to go from unlock to lock) Low Range (ABP 1.3 ns, 2.9 ns) 3.5 ns 0x017[1:0] = 00b, 01b, 11b; 0x018[4] = 1b High Range (ABP 1.3 ns, 2.9 ns) 7.5 ns 0x017[1:0] = 00b, 01b, 11b; 0x018[4] = 0b High Range (ABP 6.0 ns) 3.5 ns 0x017[1:0] = 10b; 0x018[4] = 0b

Unlock Threshold (Hysteresis)2

Selected by 0x017[1:0] and 0x018[4] (this is the threshold

to go from lock to unlock) Low Range (ABP 1.3 ns, 2.9 ns) 7 ns 0x017[1:0] = 00b, 01b, 11b; 0x018[4] = 1b High Range (ABP 1.3 ns, 2.9 ns) 15 ns 0x017[1:0] = 00b, 01b, 11b; 0x018[4] = 0b High Range (ABP 6.0 ns) 11 ns 0x017[1:0] = 10b; 0x018[4] = 0b

The REFIN and

For reliable operation of the digital lock detect, the period of the PFD frequency must be greater than the unlock-after-lock time.

REFIN

self-bias points are offset slightly to avoid chatter on an open input condition.

(REF2)

PFD

) is an

Rev. 0 | Page 6 of 84

AD9522-1

CLOCK INPUTS

Table 3.

Parameter Min Typ Max Unit Test Conditions/Comments

CLOCK INPUTS (CLK, CLK)

Input Frequency 01 2.4 GHz High frequency distribution (VCO divider) 0

Input Sensitivity, Differential 150 mV p-p

Input Level, Differential 2 V p-p

Input Common-Mode Voltage, VCM 1.3 1.57 1.8 V Self-biased; enables ac coupling Input Common-Mode Range, V

CMR

Input Sensitivity, Single-Ended 150 mV p-p Input Resistance 3.9 4.7 5.7 kΩ Self-biased

Input Capacitance 2 pF

Below about 1 MHz, the input should be dc-coupled. Care should be taken to match VCM.

CLOCK OUTPUTS

Table 4.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS CLOCK OUTPUTS Termination = 100 Ω across differential pair

OUT0, OUT1, OUT2, OUT3, OUT4, OUT5,

OUT6, OUT7, OUT8, OUT9, OUT10, OUT11 Output Frequency, Maximum 800 MHz

Output Differential Voltage, VOD 247 360 454 mV

Delta VOD 25 mV

Output Offset Voltage, VOS 1.125 1.25 1.375 V (VOH + VOL)/2 across a differential pair Delta VOS 25 mV

Short-Circuit Current, ISA, ISB 14 24 mA Output shorted to GND

CMOS CLOCK OUTPUTS

OUT0A, OUT0B, OUT1A, OUT1B, OUT2A,

OUT2B, OUT3A, OUT3B, OUT4A, OUT4B, OUT5A, OUT5B, OUT6A, OUT6B, OUT7A, OUT7B, OUT8A, OUT8B, OUT9A, OUT9B, OUT10A, OUT10B, OUT11A, OUT11B

Output Frequency 250 MHz See Figure 22 Output Voltage High, VOH VS − 0.1 V @ 1 mA load Output Voltage Low, VOL 0.1 V @ 1 mA load Output Voltage High, VOH 2.7 V @ 10 mA load Output Voltage Low, VOL 0.5 V @ 10 mA load

Differential input

1.6 GHz

Distribution only (VCO divider bypassed); this is the frequency range supported by the channel divider

Measured at 2.4 GHz; jitter performance is improved with slew rates > 1 V/ns

Larger voltage swings can turn on the protection diodes and can degrade jitter performance

1.3 1.8 V With 200 mV p-p signal applied; dc-coupled CLK ac-coupled; CLK

Differential (OUT, OUT

ac-bypassed to RF ground

)

The AD9522 outputs toggle at higher frequencies, but the output amplitude may not meet the V specification

− VOL measurement across a differential pair

at the default amplitude setting with output driver not toggling; see Figure 21 for variation over frequency

This is the absolute value of the difference between VOD when the normal output is high vs. when the complementary output is high

This is the absolute value of the difference between V

when the normal output is high vs.

when the complementary output is high

Single-ended; termination = 10 pF

Rev. 0 | Page 7 of 84

AD9522-1

TIMING CHARACTERISTICS

Table 5.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT RISE/FALL TIMES Termination = 100 Ω across differential pair

Output Rise Time, tRP 150 350 ps 20% to 80%, measured differentially Output Fall Time, tFP 150 350 ps 80% to 20%, measured differentially

PROPAGATION DELAY, t

For All Divide Values 1866 2313 2812 ps High frequency clock distribution configuration 1808 2245 2740 ps Clock distribution configuration Variation with Temperature 1 ps/°C

OUTPUT SKEW, LVDS OUTPUTS1 Termination = 100 Ω across differential pair

LVDS Outputs That Share the Same Divider 7 60 ps LVDS Outputs on Different Dividers 19 162 ps All LVDS Outputs Across Multiple Parts 432 ps

CMOS OUTPUT RISE/FALL TIMES Termination = open

Output Rise Time, tRC 625 835 ps 20% to 80%; C Output Fall Time, tFC 625 800 ps 80% to 20%; C

PROPAGATION DELAY, t

For All Divide Values 1913 2400 2950 ps Variation with Temperature 2 ps/°C

OUTPUT SKEW, CMOS OUTPUTS1

CMOS Outputs That Share the Same Divider 10 55 ps All CMOS Outputs on Different Dividers 27 230 ps All CMOS Outputs Across Multiple Parts 500 ps

OUTPUT SKEW, LVDS-TO-CMOS OUTPUT1 All settings identical; different logic type

Outputs That Share the Same Divider −31 +152 +495 ps LVDS to CMOS on the same part Outputs That Are on Different Dividers −193 +160 +495 ps LVDS to CMOS on the same part

The output skew is the difference between any two similar delay paths while operating at the same voltage and temperature.

Timing Diagrams

, CLK-TO-LVDS OUTPUT

LVDS

= 10 pF

LOAD

= 10 pF

LOAD

, CLK-TO-CMOS OUTPUT Clock distribution configuration

CMOS

CLK

CMOS

Figure 2. CLK/

DIFFERENTIAL

80%

20%

LVDS

CLK

to Clock Output Timing, DIV = 1

LVDS

07220-060

07220-061

SINGL E-ENDE D

80%

CMOS

10pF LOAD

20%

Figure 4. CMOS Timing, Single-Ended, 10 pF Load

07220-063

Figure 3. LVDS Timing, Differential

Rev. 0 | Page 8 of 84

AD9522-1

CLOCK OUTPUT ADDITIVE PHASE NOISE (DISTRIBUTION ONLY; VCO DIVIDER NOT USED)

Table 6.

Parameter Min Typ Max Unit Test Conditions/Comments

CLK-TO-LVDS ADDITIVE PHASE NOISE Distribution section only; does not include PLL and VCO

CLK = 1.6 GHz, Output = 800 MHz Input slew rate > 1 V/ns Divider = 2

@ 10 Hz Offset −100 dBc/Hz @ 100 Hz Offset −110 dBc/Hz @ 1 kHz Offset −117 dBc/Hz @ 10 kHz Offset −126 dBc/Hz @ 100 kHz Offset −134 dBc/Hz @ 1 MHz Offset −137 dBc/Hz

@ 10 MHz Offset −147 dBc/Hz

@ 100 MHz Offset −148 dBc/Hz CLK = 1 GHz, Output = 200 MHz Input slew rate > 1 V/ns Divider = 5

@ 10 Hz Offset −111 dBc/Hz @ 100 Hz Offset −123 dBc/Hz @ 1 kHz Offset −132 dBc/Hz @ 10 kHz Offset −141 dBc/Hz @ 100 kHz Offset −146 dBc/Hz @ 1 MHz Offset −150 dBc/Hz

>10 MHz Offset −156 dBc/Hz

CLK-TO-CMOS ADDITIVE PHASE NOISE Distribution section only; does not include PLL and VCO

CLK = 1 GHz, Output = 500 MHz Input slew rate > 1 V/ns Divider = 2

@ 10 Hz Offset −102 dBc/Hz @ 100 Hz Offset −114 dBc/Hz @ 1 kHz Offset −122 dBc/Hz @ 10 kHz Offset −129 dBc/Hz @ 100 kHz Offset −135 dBc/Hz @ 1 MHz Offset −140 dBc/Hz

>10 MHz Offset −150 dBc/Hz CLK = 1 GHz, Output = 50 MHz Input slew rate > 1 V/ns Divider = 20

@ 10 Hz Offset −125 dBc/Hz

@ 100 Hz Offset −136 dBc/Hz

@ 1 kHz Offset −144 dBc/Hz

@ 10 kHz Offset −152 dBc/Hz

@ 100 kHz Offset −157 dBc/Hz

@ 1 MHz Offset −160 dBc/Hz

>10 MHz Offset −164 dBc/Hz

Rev. 0 | Page 9 of 84

AD9522-1

CLOCK OUTPUT ABSOLUTE PHASE NOISE (INTERNAL VCO USED)

Table 7.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS ABSOLUTE PHASE NOISE

VCO = 2650 MHz; Output = 662.5 MHz

@ 1 kHz Offset −59 dBc/Hz @ 10 kHz Offset −90 dBc/Hz @ 100 kHz Offset −116 dBc/Hz @ 1 MHz Offset −134 dBc/Hz @ 10 MHz Offset −147 dBc/Hz @ 40 MHz Offset −150 dBc/Hz

VCO = 2460 MHz; Output = 615 MHz

@ 1 kHz Offset −62 dBc/Hz @ 10 kHz Offset −92 dBc/Hz @ 100 kHz Offset −118 dBc/Hz @ 1 MHz Offset −136 dBc/Hz @ 10 MHz Offset −149 dBc/Hz @ 40 MHz Offset −151 dBc/Hz

VCO = 2270 MHz; Output = 567.5 MHz

@ 1 kHz Offset −65 dBc/Hz @ 10 kHz Offset −95 dBc/Hz @ 100 kHz Offset −121 dBc/Hz @ 1 MHz Offset −138 dBc/Hz @ 10 MHz Offset −149 dBc/Hz @ 40 MHz Offset −151 dBc/Hz

Internal VCO; VCO divider = 4; LVDS output and for loop bandwidths < 1 kHz

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK GENERATION USING INTERNAL VCO)

Table 8.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT ABSOLUTE TIME JITTER

VCO = 2458 MHz; LVDS = 245.76 MHz; PLL LBW = 55 kHz 158 fs rms Integration BW = 200 kHz to 10 MHz 323 fs rms Integration BW = 12 kHz to 20 MHz VCO = 2458 MHz; LVDS = 122.88 MHz; PLL LBW = 55 kHz 162 fs rms Integration BW = 200 kHz to 10 MHz 323 fs rms Integration BW = 12 kHz to 20 MHz VCO = 2458 MHz; LVDS = 61.44 MHz; PLL LBW = 55 kHz 210 fs rms Integration BW = 200 kHz to 10 MHz 371 fs rms Integration BW = 12 kHz to 20 MHz

Application example based on a typical setup where the reference source is clean, so a wider PLL loop bandwidth is used; reference = 15.36 MHz; R DIV = 1

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK CLEANUP USING INTERNAL VCO)

Table 9.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT ABSOLUTE TIME JITTER

VCO = 2333 MHz; LVDS = 155.52 MHz; PLL LBW = 1.8 kHz 491 fs rms Integration BW = 12 kHz to 20 MHz VCO = 2458 MHz; LVDS = 122.88 MHz; PLL LBW = 1.8 kHz 554 fs rms Integration BW = 12 kHz to 20 MHz

Application example based on a typical setup where the reference source is jittery, so a narrower PLL loop bandwidth is used; reference = 19.44 MHz; R DIV = 162

Rev. 0 | Page 10 of 84

AD9522-1

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK GENERATION USING EXTERNAL VCXO)

Table 10.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT ABSOLUTE TIME JITTER

LVDS = 245.76 MHz; PLL LBW = 125 Hz 87 fs rms Integration BW = 200 kHz to 5 MHz 108 fs rms Integration BW = 200 kHz to 10 MHz 146 fs rms Integration BW = 12 kHz to 20 MHz LVDS = 122.88 MHz; PLL LBW = 125 Hz 120 fs rms Integration BW = 200 kHz to 5 MHz 151 fs rms Integration BW = 200 kHz to 10 MHz 207 fs rms Integration BW = 12 kHz to 20 MHz LVDS = 61.44 MHz; PLL LBW = 125 Hz 157 fs rms Integration BW = 200 kHz to 5 MHz 210 fs rms Integration BW = 200 kHz to 10 MHz 295 fs rms Integration BW = 12 kHz to 20 MHz

CLOCK OUTPUT ADDITIVE TIME JITTER (VCO DIVIDER NOT USED)

Table 11.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT ADDITIVE TIME JITTER

CLK = 622.08 MHz 69 fs rms Integration bandwidth = 12 kHz to 20 MHz

Any LVDS Output = 622.08 MHz

Divide Ratio = 1 CLK = 622.08 MHz 116 fs rms Integration bandwidth = 12 kHz to 20 MHz

Any LVDS Output = 155.52 MHz

Divide Ratio = 4 CLK = 100 MHz 263 fs rms Calculated from SNR of ADC method

Any LVDS Output = 100 MHz Broadband jitter

Divide Ratio = 1 CLK = 500 MHz 242 fs rms Calculated from SNR of ADC method

Any LVDS Output = 100 MHz Broadband jitter

Divide Ratio = 5

CMOS OUTPUT ADDITIVE TIME JITTER

CLK = 200 MHz 289 fs rms Calculated from SNR of ADC method

Any CMOS Output Pair = 100 MHz Broadband jitter

Divide Ratio = 2

Application example based on a typical setup using an external 245.76 MHz VCXO (Toyocom TCO-2112); reference = 15.36 MHz; R DIV = 1

Distribution section only; does not include PLL and VCO; measured at rising edge of clock signal

Distribution section only; does not include PLL and VCO

Rev. 0 | Page 11 of 84

AD9522-1

CLOCK OUTPUT ADDITIVE TIME JITTER (VCO DIVIDER USED)

Table 12.

Parameter Min Typ Max Unit Test Conditions/Comments

LVDS OUTPUT ADDITIVE TIME JITTER

CLK = 500 MHz; VCO DIV = 5; LVDS = 100 MHz;

248 fs rms

Bypass Channel Divider; Duty-Cycle Correction = On

CMOS OUTPUT ADDITIVE TIME JITTER

CLK = 200 MHz; VCO DIV = 2; CMOS = 100 MHz;

290 fs rms

Bypass Channel Divider; Duty-Cycle Correction = Off

CLK = 200 MHz; VCO DIV = 1; CMOS = 100 MHz;

288 fs rms

Bypass Channel Divider; Duty-Cycle Correction = Off

SERIAL CONTROL PORT—SPI MODE

Table 13.

Parameter Min Typ Max Unit Test Conditions/Comments

CS (INPUT)

Input Logic 1 Voltage 2.0 V Input Logic 0 Voltage 0.8 V Input Logic 1 Current 3 μA Input Logic 0 Current −110 μA

Input Capacitance 2 pF

SCLK (INPUT) IN SPI MODE

Input Logic 1 Voltage 2.0 V Input Logic 0 Voltage 0.8 V Input Logic 1 Current 110 μA Input Logic 0 Current 1 μA Input Capacitance 2 pF

SDIO (WHEN AN INPUT IN BIDIRECTIONAL MODE)

Input Logic 1 Voltage 2.0 V Input Logic 0 Voltage 0.8 V Input Logic 1 Current 1 μA Input Logic 0 Current 1 μA Input Capacitance 2 pF

SDIO, SDO (OUTPUTS)

Output Logic 1 Voltage 2.7 V Output Logic 0 Voltage 0.4 V

TIMING

Clock Rate (SCLK, 1/t Pulse Width High, t Pulse Width Low, t

) 25 MHz

SCLK

16 ns

HIGH

16 ns

LOW

SDIO to SCLK Setup, tDS 4 ns SCLK to SDIO Hold, tDH 0 ns SCLK to Valid SDIO and SDO, tDV 11 ns CS to SCLK Setup and Hold, tS, tC

CS Minimum Pulse Width High, t

PWH

CS has an internal 30 kΩ pull-up resistor

The minus sign indicates that current is flowing out of the AD9522, which is due to the internal pull-up resistor

SCLK has an internal 30 kΩ pull-down resistor in SPI mode, but not in I

2 ns 3 ns

Distribution section only; does not include PLL and VCO; uses rising edge of clock signal

Calculated from SNR of ADC method (broadband jitter)

Distribution section only; does not include PLL and VCO; uses rising edge of clock signal

Calculated from SNR of ADC method (broadband jitter)

C mode

Rev. 0 | Page 12 of 84

AD9522-1

SERIAL CONTROL PORT—I²C MODE

Table 14.

Parameter Min Typ Max Unit Test Conditions/Comments

SDA, SCL (WHEN INPUTTING DATA)

Input Logic 1 Voltage 0.7 × VS V Input Logic 0 Voltage 0.3 × VS V Input Current with an Input Voltage Between

0.1 × VS and 0.9 × VS Hysteresis of Schmitt Trigger Inputs 0.015 × VS V Pulse Width of Spikes That Must Be Suppressed by

the Input Filter, t

SPIKE

SDA (WHEN OUTPUTTING DATA)

Output Logic 0 Voltage at 3 mA Sink Current 0.4 V Output Fall Time from VIH

MIN

to VIL

with a Bus

MAX

Capacitance from 10 pF to 400 pF

TIMING

Clock Rate (SCL, f Bus Free Time Between a Stop and Start Condition, t Setup Time for a Repeated Start Condition, t

) 400 kHz

I2C

IDLE

0.6 μs

SET; STR

Hold Time (Repeated) Start Condition (After This Period,

the First Clock Pulse Is Generated), t Setup Time for Stop Condition, t Low Period of the SCL Clock, t High Period of the SCL Clock, t SCL, SDA Rise Time, t SCL, SDA Fall Time, t Data Setup Time, t

Data Hold Time, t

RISE

FAL L

SET; DAT

HLD; DAT

LOW

HIGH

20 + 0.1 Cb 300 ns Cb = capacitance of one bus line in pF

120 ns

140 880 ns

SET; STP

1.3 μs

0.6 μs

HLD; STR

0.6 μs

Capacitive Load for Each Bus Line, Cb 400 pF

According to the original I2C specification, an I2C master must also provide a minimum hold time of 300 ns for the SDA signal to bridge the undefined region of the SCL

falling edge.

−10 +10 μA

50 ns

20 + 0.1 C

250 ns Cb = capacitance of one bus line in pF

Note that all I to VIH (0.7 × VS)

1.3 μs

0.6 μs

This is a minor deviation from the original I²C specification of 100 ns minimum

This is a minor deviation from the original I²C specification of 0 ns minimum

C timing values refer

(0.3 × VS) and VIL

MIN

MAX

levels

Rev. 0 | Page 13 of 84

AD9522-1

PD, SYNC, AND RESET PINS

Table 15.

Parameter Min Typ Max Unit Test Conditions/Comments

INPUT CHARACTERISTICS Each of these pins has an internal 30 kΩ pull-up resistor

Logic 1 Voltage 2.0 V Logic 0 Voltage 0.8 V Logic 1 Current 1 μA Logic 0 Current −110 μA

Capacitance 2 pF

RESET TIMING

Pulse Width Low 50 ns RESET Inactive to Start of Register Programming

SYNC TIMING

Pulse Width Low 1.3 ns High speed clock is CLK input signal

100 ns

SERIAL PORT SETUP PINS: SP1, SP0

Table 16.

Parameter Min Typ Max Unit Test Conditions/Comments

SP1, SP0 These pins do not have internal pull-up/pull-down resistors

Logic Level 0 0.25 × VS V VS is the voltage on the VS pin Logic Level ½ 0.4 × VS 0.65 × VS V

Logic Level 1 0.8 × VS V

User can float these pins to obtain Logic Level ½; if floating this pin, user should connect a capacitor to ground

The minus sign indicates that current is flowing out of the AD9522, which is due to the internal pull-up resistor

LD, STATUS, AND REFMON PINS

Table 17.

Parameter Min Typ Max Unit Test Conditions/Comments

OUTPUT CHARACTERISTICS

Output Voltage High, VOH 2.7 V Output Voltage Low, VOL 0.4 V

MAXIMUM TOGGLE RATE 100 MHz

ANALOG LOCK DETECT

Capacitance 3 pF

REF1, REF2, AND VCO FREQUENCY STATUS MONITOR

Normal Range 1.02 MHz

Extended Range 8 kHz

LD PIN COMPARATOR

Trip Point 1.6 V Hysteresis 260 mV

When selected as a digital output (CMOS); there are other modes in which these pins are not CMOS digital outputs; see Table 52, 0x017, 0x01A, and 0x01B

Applies when mux is set to any divider or counter output, or PFD up/down pulse; also applies in analog lock detect mode; usually debug mode only; note that spurs can couple to output when any of these pins are toggling

On-chip capacitance; used to calculate RC time constant for analog lock detect readback; use a pull-up resistor

Frequency above which the monitor indicates the presence of the reference

Rev. 0 | Page 14 of 84

AD9522-1

POWER DISSIPATION

Table 18.

Parameter Min Typ Max Unit Test Conditions/Comments

POWER DISSIPATION, CHIP

Power-On Default 0.88 1.0 W No clock; no programming; default register values PLL Locked; One LVDS Output Enabled 0.54 0.63 W

PLL Locked; One CMOS Output Enabled 0.55 0.66 W

Distribution Only Mode; VCO Divider On;

0.36 0.43 W

One LVDS Output Enabled

Distribution Only Mode; VCO Divider Off;

0.33 0.4 W

One LVDS Output Enabled

Maximum Power, Full Operation 1.1 1.3 W

PD Power-Down

PD Power-Down, Maximum Sleep

35 50 mW

27 43 mW

VCP Supply 8 2.3 mW PLL operating; typical closed-loop configuration

POWER DELTAS, INDIVIDUAL FUNCTIONS Power delta when a function is enabled/disabled

VCO Divider On/Off 33 43 mW VCO divider not used REFIN (Differential) Off 25 31 mW

REF1, REF2 (Single-Ended) On/Off 16 22 mW

VCO On/Off 60 95 mW Internal VCO disabled; CLK input selected PLL Dividers and Phase Detector On/Off 54 67 mW PLL off to PLL on, normal operation; no reference enabled LVDS Channel 118 146 mW No LVDS output on to one LVDS output on; channel divider set to 1 LVDS Driver 11 15 mW Second LVDS output turned on, same channel CMOS Channel 120 154 mW

CMOS Driver On/Off 16 30 mW Additional CMOS outputs within the same channel turned on Channel Divider Enabled 33 40 mW

Zero Delay Block On/Off 30 35 mW

Does not include power dissipated in external resistors; all LVDS outputs terminated with 100 Ω across differential pair; all CMOS outputs have 10 pF capacitive loading

= 25 MHz; f

REF

= 250 MHz; VCO = 2500 MHz; VCO divider = 2;

OUT

one LVDS output and output divider enabled; zero delay off; ICP = 4.8 mA

= 25 MHz; f

REF

= 62.5 MHz; VCO = 2500 MHz; VCO divider = 2;

OUT

one CMOS output and output divider enabled; zero delay off; ICP = 4.8 mA

= 2.4 GHz; f

CLK

= 200 MHz; VCO divider = 2; one LVDS output

OUT

and output divider enabled; zero delay off

= 2.4 GHz; f

CLK

= 200 MHz; VCO divider bypassed; one LVDS

OUT

output and output divider enabled; zero delay off PLL on; internal VCO = 2500 MHz; VCO divider = 2; all channel

dividers on; 12 LVDS outputs @ 125 MHz; zero delay on PD pin pulled low; does not include power dissipated in

termination resistors PD pin pulled low; PLL power-down, 0x010[1:0] = 01b; power-

down SYNC, 0x230[2] = 1b; power-down distribution reference, 0x230[1] = 1b

Delta between reference input off and differential reference input mode

Delta between reference inputs off and one single-ended reference enabled; double this number if both REF1 and REF2 are powered up

No CMOS output on to one CMOS output on; channel divider set to 1; f

= 62.5 MHz and 10 pF of capacitive loading

OUT

Delta between divider bypassed (divide-by-1) and divide-by-2 to divide-by-32

Rev. 0 | Page 15 of 84

AD9522-1

ABSOLUTE MAXIMUM RATINGS

Table 19.

With

Parameter or Pin

VS GND −0.3 V to +3.6 V VCP, CP GND −0.3 V to +5.8 V REFIN, REFIN RSET, LF, BYPASS GND −0.3 V to VS + 0.3 V CPRSET GND −0.3 V to VS + 0.3 V CLK, CLK CLK

SCLK/SCL, SDIO/SDA, SDO, CS OUT0, OUT0, OUT1, OUT1,

OUT2, OUT2 OUT4, OUT4 OUT6, OUT6, OUT7, OUT7, OUT8, OUT8, OUT9, OUT9, OUT10, OUT10, OUT11, OUT11

SYNC, RESET, PD REFMON, STATUS, LD GND −0.3 V to VS + 0.3 V SP0, SP1, EEPROM GND −0.3 V to VS + 0.3 V Junction Temperature1 150°C Storage Temperature Range −65°C to +150°C Lead Temperature (10 sec) 300°C

See Table 20 for θJA.

, OUT3, OUT3, , OUT5, OUT5,

Respect to Rating

GND −0.3 V to VS + 0.3 V

GND −0.3 V to VS + 0.3 V CLK GND −0.3 V to VS + 0.3 V GND −0.3 V to VS + 0.3 V

GND −0.3 V to VS + 0.3 V

−1.2 V to +1.2 V

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

THERMAL RESISTANCE

Thermal impedance measurements were taken on a JEDEC JESD51-5 2S2P test board in still air in accordance with JEDEC JESD51-2. See the Thermal Performance section for more details.

Table 20.

Package Type θJA Unit

64-Lead LFCSP (CP-64-4) 22 °C/W

ESD CAUTION

Rev. 0 | Page 16 of 84

AD9522-1

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

REFIN (REF 1)

REFIN (REF 2)

CPRSETVSVS

GND

RSETVSOUT0 (OUT0A)

OUT0 (OUT0B)VSOUT1 (OUT1A)

OUT1 (OUT1B)

OUT2 (OUT2A)

OUT2 (OUT2B)

646362616059585756555453525150

OUT3 (OUT3A)

OUT3 (OUT3B)

OUT4 (OUT4A)

OUT4 (OUT4B)

OUT5 (OUT5A)

OUT5 (OUT5B)

OUT8 (OUT8B)

OUT8 (OUT8A)

OUT7 (OUT7B)

OUT7 (OUT7A)

OUT6 (OUT6B)

OUT6 (OUT6A)

07220-003

PIN 1

REFMON

VCP

STATUS

REF_SEL

SYNC

BYPASS

CLK

15 16

CLK/SCL

NOTES

1. EXPOSED DIE PAD MUST BE CO NNECTED TO GND.

INDICATO R

2 3 4 5 6 7 8 9

171819202122232425262728293031

SDIO/SDA

SDO

SP1

GND

AD9522

TOP VIEW

(Not to Scale)

SP0

RESET

EEPROM

T9 (OUT9A)

T9 (OUT9B)

OUT10A)

OUT10 (

OUT10B)

OUT10 (

OUT11A)

OUT11 (

OUT11B)

OUT11 (

Figure 5. Pin Configuration

Table 21. Pin Function Descriptions

Pin No.

1, 11, 12, 27,

Input/ Output

I Power VS 3.3 V Power Pins.

Pin Type Mnemonic Description

32, 35, 40, 41, 46, 49, 54, 57, 60, 61

2 O 3.3 V CMOS REFMON Reference Monitor (Output). This pin has multiple selectable outputs. 3 O 3.3 V CMOS LD 4 I Power VCP

Lock Detect (Output). This pin has multiple selectable outputs. Power Supply for Charge Pump (CP); VS ≤ VCP ≤ 5.25 V. VCP must still be connected

to 3.3 V if the PLL is not used.

5 O Loop filter CP

Charge Pump (Output). This pin connects to an external loop filter. This pin can

be left unconnected if the PLL is not used. 6 O 3.3 V CMOS STATUS 7 I 3.3 V CMOS REF_SEL

Programmable Status Output.

Reference Select. It selects REF1 (low) or REF2 (high). This pin has an internal

30 kΩ pull-down resistor. 8 I 3.3 V CMOS

SYNC

Manual Synchronizations and Manual Holdover. This pin initiates a manual

synchronization and is used for manual holdover. Active low. This pin has an

internal 30 kΩ pull-up resistor. 9 I Loop filter LF 10 O Loop filter BYPASS

Loop Filter (Input). It connects internally to the VCO control voltage node.

This pin is for bypassing the LDO to ground with a 220 nF capacitor.

This pin can be left unconnected if the PLL is not used. 13 I

Differential

CLK

Along with CLK

, this pin is the differential input for the clock distribution section.

clock input

14 I

Differential clock input

Along with CLK, this pin is the differential input for the clock distribution section. If a

CLK

single-ended input is connected to the CLK pin, connect a 0.1 μF bypass capacitor

from this pin to ground.

Rev. 0 | Page 17 of 84

AD9522-1

Input/

Pin No.

15 I 3.3 V CMOS

16 I 3.3 V CMOS SCLK/SCL

17 I/O 3.3 V CMOS SDIO/SDA Serial Control Port Bidirectional Serial Data In/Out. 18 O 3.3 V CMOS SDO Serial Control Port Unidirectional Serial Data Out. 19, 59 I GND GND Ground Pins. 20 I

21 I

22 I 3.3 V CMOS EEPROM

23 I 3.3 V CMOS 24 I 3.3 V CMOS 25 O

26 O

28 O

29 O

30 O

31 O

33 O

34 O

36 O

37 O

38 O

39 O

42 O

43 O

44 O

45 O

Output

Pin Type Mnemonic Description

Serial Control Port Chip Select; Active Low. This pin has an internal 30 kΩ

pull-up resistor. Serial Control Port Clock Signal. This pin has an internal 30 kΩ pull-down resistor

in SPI mode but is high impedance in I²C mode.

Three-level logic

LVDS or CMOS

SP1

SP0

RESET PD OUT9 (OUT9A)

(OUT9B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT9

OUT10 (OUT10A)

(OUT10B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT10

OUT11 (OUT11A)

(OUT11B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT11

OUT6 (OUT6A)

(OUT6B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT6

OUT7 (OUT7A)

(OUT7B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT7

OUT8 (OUT8A)

(OUT8B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT8

(OUT5B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT5

OUT5 (OUT5A)

(OUT4B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT4

OUT4 (OUT4A)

Select SPI or I²C as the serial interface port and select the I²C slave address in I²C mode. Three-level logic. This pin is internally biased for the open logic level.

Setting this pin high selects the register values stored in the internal EEPROM to be loaded at reset and/or power-up. Setting this pin low causes the AD9522 to load the hard-coded default register values at power-up/reset. This pin has an internal 30 kΩ pull-down resistor.

Chip Reset, Active Low. This pin has an internal 30 kΩ pull-up resistor. Chip Power-Down, Active Low. This pin has an internal 30 kΩ pull-up resistor. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

or as a single-ended CMOS output. Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

Rev. 0 | Page 18 of 84

AD9522-1

Input/

Pin No.

47 O

48 O

50 O

51 O

52 O

53 O

55 O

56 O

58 O

62 O

63 I

64 I

EPAD GND GND The exposed die pad must be connected to GND.

Output

Pin Type Mnemonic Description

LVDS or CMOS

Current set resistor

Reference input

(OUT3B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT3

or as a single-ended CMOS output.

OUT3 (OUT3A)

(OUT2B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT2

OUT2 (OUT2A)

(OUT1B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT1

OUT1 (OUT1A)

(OUT0B) Clock Output. This pin can be configured as one side of a differential LVDS output

OUT0

OUT0 (OUT0A)

RSET

CPRSET

(REF2) Along with REFIN, this is the differential input for the PLL reference. Alternatively,

REFIN

REFIN (REF1)

Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

Clock Output. This pin can be configured as one side of a differential LVDS output

or as a single-ended CMOS output.

Clock Distribution Current Set Resistor. Connect a 4.12 kΩ resistor from this pin

to GND.

Charge Pump Current Set Resistor. Connect a 5.1 kΩ resistor from this pin to GND.

This resistor can be omitted if the PLL is not used.

this pin is a single-ended input for REF2.

Along with REFIN

this pin is a single-ended input for REF1.

, this is the differential input for the PLL reference. Alternatively,

Rev. 0 | Page 19 of 84

AD9522-1

–

TYPICAL PERFORMANCE CHARACTERISTICS

275

250

225

200

175

150

CURRENT (mA)

125

100

3 CHANNELS—6 LVDS

3 CHANNELS—3 LVDS

2 CHANNELS—2 LVDS

1 CHANNEL—1 LVDS

PUMP UPPUMP DOWN

CURRENT FROM CP P IN (mA)

0 200 400 600 800 1000

FREQUENCY (MHz )

07220-108

Figure 6. Total Current vs. Frequency, CLK-to-Output (PLL Off), Channel and VCO Divide r Bypa ssed, LVDS Outputs Terminated 100 Ω A cross Differential Pair

240

220

200

180

160

140

CURRENT (mA)

120

100

0 50 100 150 200 250

2 CHANNELS—8 CMOS

2 CHANNELS—2 CMOS

1 CHANNEL—2 CMOS

1 CHANNEL—1 CMOS

FREQUENCY (MHz)

07220-109

Figure 7. Total Current vs. Frequency, CLK-to-Output (PLL Off), Channel and

VCO Divider Bypassed, CMOS Outputs with 10 pF Load

033.02.52.01.51.00.5

VOLTAGE ON CP PIN (V)

Figure 9. Charge Pump Characteristics @ VCP = 3.3 V

PUMP DOWN PUMP UP

CURRENT FROM CP P IN (mA)

054.03.0 4.53.52.52. 01.51.00.5

VOLTAGE ON CP PIN (V)

Figure 10. Charge Pump Characteristics @ VCP = 5.0 V

140

–145

07220-111

07220-112

(MHz/V)

VCO

2.3 2.72.62.52.4

VCO FREQUENCY (GHz)

Figure 8. K

VCO

07220-010

vs. VCO Frequency

–150

–155

(dBc/Hz)

–160

–165

PFD PHASE NOI SE REFERRED TO PFD INPUT

–170

0.1 1 10010

PFD FREQUENCY (MHz)

Figure 11. PFD Phase Noise Referred to PFD Input vs. PFD Frequency

07220-013

Rev. 0 | Page 20 of 84

AD9522-1

–

208

–210

–212

–214

–216

–218

–220

PLL FIGURE OF MERIT (dBc/ Hz)

–222

–224

DIFFERENTIAL INPUT

SINGLE- ENDED INPUT

0 0.4 0.8 1.20.2 0.6 1.0 1.4

INPUT SLEW RATE (V/ns)

Figure 12. PLL Figure of Merit (FOM) vs. Slew Rate at REFIN/

1.9

1.8

1.7

1.6

1.5

REFIN

07220-114

–10

–20

–30

–40

–50

–60

POWER (dBm)

–70

–80

–90

–100

122.38 122.58 122.78 122. 98 123. 18 123. 38

FREQUENCY (MHz )

Figure 15. Output Spectrum, LVDS; 122.88 MHz; PFD = 15.36 MHz;

LBW = 127 kHz; I

3.5

3.0 VS_DRV = 3.135V

2.5

VS_DRV = 2.35V

2.0

(V)

1.5

= 3.0 mA; f

= 2458 MHz

VCO

VS_DRV = 3.3V

VS_DRV = 2.5V

07220-117

1.4

VCO TUNING V OLTAGE (V)

1.3

1.2

2.3 2.4 2.5 2. 6 2.7

FREQUENCY (GHz)

Figure 13. VCO Tuning Voltage vs. Frequency

–10

–20

–30

–40

–50

–60

POWER (dBm)

–70

–80

–90

–100

–110

100 145140135130125120115110105

FREQUENCY (MHz)

Figure 14. PFD/CP Spurs; 122.88 MHz; PFD = 15.36 MHz;

LBW = 127 kHz; I

= 3.0 mA; f

= 2458 MHz

VCO

1.0

0.5

10k 1k 100

07220-115

Figure 16. CMOS Output VOH (Static) vs. R

RESISTIVE LOAD (Ω)

(to Ground)

LOAD

07220-118

0.4

0.3

0.2

0.1

–0.1

–0.2

DIFFERENTIAL OUTPUT (V)

–0.3

–0.4

011413121110987654321

07220-116

TIME (ns)

07220-014

Figure 17. LVDS Output (Differential) @ 100 MHz, Output Terminated 100 Ω Across Differential Pair

Rev. 0 | Page 21 of 84

AD9522-1

–

0.4

1600

0.3

0.2

0.1

–0.1

–0.2

DIFFERENTIAL SWING (V p-p)

–0.3

–0.4

032.52.01.51. 00.5

TIME (ns)

Figure 18. LVDS Differential Voltage Swing @ 800 MHz,

Output Terminated 100 Ω Across Differential Pair

3.2

2.8

2.4

2.0

1.6

AMPLITUDE ( V)

1.2

0.8

0.4

0860 1004020 7050 903010

TIME (ns)

Figure 19. CMOS Output with 10 pF Load @ 25 MHz

3.2

2.8

2.4

2.0

1.6

AMPLITUDE (V)

1.2

0.8

0.4

010987654321

2pF LOAD

TIME (ns)

10pF

LOAD

Figure 20. CMOS Output with 2 pF and 10 pF Load @ 250 MHz

1400

1200

1000

800

600

400

DIFFERENTIAL SWING (mV p-p)

200

07220-015

0 1000600 800400200

7mA SETTING

DEFAULT 3.5mA SETTING

FREQUENCY (GHz)

Figure 21. LVDS Differential Voltage Swing vs. Frequency,

Output Terminated 100 Ω Across Differential Pair

4.0

3.5

3.0

2.5

2.0

1.5

AMPLITUDE (V)

1.0

0.5

07220-018

FREQUENCY (MHz )

Figure 22. CMOS Output Swing vs. Frequency and Capacitive Load

–60

–70

–80

–90

–100

–110

–120

PHASE NOISE (dBc/Hz)

–130

–140

–150

–160

07220-019

1k 100M1M 10M100k10k

FREQUENCY (Hz)

Figu re 23. Intern al VC O Phase Noise (Absolute), LVDS Output @ 567.5 MHz

07220-123

2pF

10pF

20pF

600500400300200100

07220-124

07220-023

Rev. 0 | Page 22 of 84

AD9522-1

–

–60

–70

–80

–90

–100

–110

–120

PHASE NOISE (dBc/Hz)

–130

–140

–150

–160

1k 100M1M 10M100k10k

FREQUENCY (Hz)

Figu re 24. Internal VCO Phas e Noise (Absolute), LVDS Output @ 615 MHz

–60

–70

–80

–90

–100

–110

–120

PHASE NOISE (dBc/Hz)

–130

–140

–150

–160

1k 100M1M 10M100k10k

FREQUENCY (Hz)

Figu re 25. Internal VCO Phas e Noise ( Absolute), LVDS Output @ 662.5 MHz

100

07220-024

07220-025

100

–110

–120

–130

–140

PHASE NOISE (dBc/Hz)

–150

–160

10 1k100 100M1M 10M100k10k

Figure 27. Additive (Residual) Phase Noise,

CLK-to-LVDS @ 200 MHz, Divide-by-5

100

–110

–120

–130

PHASE NOISE (dBc/Hz)

–140

–150

10 1k100 100M1M 10M100k10k

Figure 28. Additive (Residual) Phase Noise,

CLK-to-LVDS @ 800 MHz, Divide-by-1

110

FREQUENCY (Hz)

07220-129

07220-130

–110

–120

–130

–140

PHASE NOISE (dBc/Hz)

–150

–160

10 1k100 100M1M 10M100k10k

Figure 26. Additive (Residual) Phase Noise,

CLK-to-LVDS @ 245.76 MHz, Divide-by-1

FREQUENCY (Hz)

07220-128

–120

–130

–140

–150

PHASE NOISE (dBc/Hz)

–160

–170

10 1k100 100M1M 10M100k10k

Figure 29. Additive (Residual) Phase Noise,

CLK-to-CMOS @ 50 MHz, Divide-by-20

FREQUENCY (Hz)

07220-131

Rev. 0 | Page 23 of 84

AD9522-1

–

100

–110

–120

–90

–100

–110

INTEGRAT ED RMS JITTER (12kHz TO 20MHz): 146fs

–130

–140

PHASE NOISE (dBc/Hz)

–150

–160

10 1k100 100M1M 10M100k10k

FREQUENCY (Hz)

Figure 30. Additive (Residual) Phase Noise,

CLK-to-CMOS @ 250 MHz, Divide-by-4

100

–110

–120

–130

–140

PHASE NOISE (dBc/Hz)

–150

–160

1k 100M1M 10M100k10k

FREQUENCY (Hz)

Figure 31. Phase Noise (Absolute) Clock Generation; Internal VCO @

2458 MHz; PFD = 15.36 MHz; LBW = 40 kHz; LVDS Output = 122.88 MHz

INTEGRATED RMS JITTER (12kHz TO 20MHz): 491fs INTEGRATED RMS JITTER (20kHz TO 80MHz): 368fs (EXTRAPOLATED)

–90

–100

–120

–130

PHASE NOISE (dBc/Hz)

–140

–150

–160

1k 100M1M 10M100k10k

07220-132

FREQUENCY (Hz)

07220-135

Figure 33. Phase Noise (Absolute), External VCXO (Toyocom TCO-2112)

@ 245.76 MHz; PFD = 15.36 MHz; LBW = 250 Hz; LVDS Output = 245.76 MHz

C2 62pF

BYPASS

CAPACITOR

FOR LDO

C1 240nF

R1 820Ω

390Ω

C12 220nF

C3 33pF

LFCP

BYPASS

07220-234

Figure 34. PLL Loop Filter Used for Clock Generation Plot (See Figure 31)

3kΩ

BYPASS

FOR LDO

4.7µF

2.1kΩ

C12 220nF

1.5nF

07220-033

CAPACITOR

2.2nF

LFCP

BYPASS

07220-235

Figure 35. PLL Loop Filter Used for Clock Cleanup Plot (See Figure 32)

–110

–120

–130

PHASE NOISE (dBc/Hz)

–140

–150

–160

1k 100M1M 10M100k10k

FREQUENCY (Hz)

07220-034

Figure 32. Phase Noise (Absolute) Clock Cleanup; Internal VCO @ 2333 MHz;

PFD = 120 kHz; LBW = 1.92 kHz; LVDS Output = 155.52 MHz

Rev. 0 | Page 24 of 84

AD9522-1

TERMINOLOGY

Phase Jitter and Phase Noise

An ideal sine wave can be thought of as having a continuous and even progression of phase with time from 0° to 360° for each cycle. Actual signals, however, display a certain amount of variation from ideal phase progression over time. This phenomenon is called phase jitter. Although many causes can contribute to phase jitter, one major cause is random noise, which is characterized statistically as Gaussian (normal) in distribution.

This phase jitter leads to a spreading out of the energy of the sine wave in the frequency domain, producing a continuous power spectrum. This power spectrum is usually reported as a series of values whose units are dBc/Hz at a given offset in frequency from the sine wave (carrier). The value is a ratio (expressed in decibels) of the power contained within a 1 Hz bandwidth with respect to the power at the carrier frequency. For each measurement, the offset from the carrier frequency is also given.

It is meaningful to integrate the total power contained within some interval of offset frequencies (for example, 10 kHz to 10 MHz). This is called the integrated phase noise over that frequency offset interval and can be readily related to the time jitter due to the phase noise within that offset frequency interval.

Phase noise has a detrimental effect on the performance of ADCs, DACs, and RF mixers. It lowers the achievable dynamic range of the converters and mixers, although they are affected in somewhat different ways.

Time Jitter

Phase noise is a frequency domain phenomenon. In the time domain, the same effect is exhibited as time jitter. When observing a sine wave, the time of successive zero crossings varies. In a square wave, the time jitter is a displacement of the edges from their ideal (regular) times of occurrence. In both cases, the variations in timing from the ideal are the time jitter. Because these variations are random in nature, the time jitter is specified in seconds root mean square (rms) or 1 sigma of the Gaussian distribution.

Time jitter that occurs on a sampling clock for a DAC or an ADC decreases the signal-to-noise ratio (SNR) and dynamic range of the converter. A sampling clock with the lowest possible jitter provides the highest performance from a given converter.

Additive Phase Noise

Additive phase noise is the amount of phase noise that is attributable to the device or subsystem being measured. The phase noise of any external oscillators or clock sources is subtracted. This makes it possible to predict the degree to which the device impacts the total system phase noise when used in conjunction with the various oscillators and clock sources, each of which contributes its own phase noise to the total. In many cases, the phase noise of one element dominates the system phase noise. When there are multiple contributors to phase noise, the total is the square root of the sum of squares of the individual contributors.

Additive Time Jitter

Additive time jitter is the amount of time jitter that is attributable to the device or subsystem being measured. The time jitter of any external oscillators or clock sources is subtracted. This makes it possible to predict the degree to which the device impacts the total system time jitter when used in conjunction with the various oscillators and clock sources, each of which contributes its own time jitter to the total. In many cases, the time jitter of the external oscillators and clock sources dominates the system time jitter.

Rev. 0 | Page 25 of 84

AD9522-1

DETAILED BLOCK DIAGRAM

OPTIONAL

BYPASS

EEPROM

REFIN

CLK

SYNC

RESET

REF1

REF2

REF_SEL CPRSETVCP

REFERENCE

SWITCHOVER

STATUS

BUF

AMP

LOW DROPOUT

REGULATOR (LDO)

DIGITAL

LOGIC

EEPROM

S GND RSET

DISTRIBUTION

REFERENCE

CLOCK

DOUBLER

STATUS

P, P + 1

PRESCALER

N DIVIDER

ZERO DELAY BL OCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTERS

REFMON

DIVIDE R

PROGRAMMABLE

N DELAY

DIVIDE BY

1 TO 32

R DELAY

LOCK

DETECT

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

PUMP

HOLD

STATUS

OUT0

OUT1

OUT2

SP1

SP0

SCLK/SCL

SDIO/SDA

SDO

SERIAL

PORT

DECODE

INTERFACE

SPI

INTERFACE

AD9522

I2C

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

Figure 36.

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

LVDS/CMOS OUTPUTS

07220-028

Rev. 0 | Page 26 of 84

AD9522-1

THEORY OF OPERATION

OPERATIONAL CONFIGURATIONS

The AD9522 can be configured in several ways. These configurations must be set up by loading the control registers (see Tabl e 48 to Ta ble 59). Each section or function must be individually programmed by setting the appropriate bits in the corresponding control register or registers. When the desired configuration is programmed, the user can store these values in the on-board EEPROM to allow the part to power up in the desired configuration without user intervention.

Mode 0: Internal VCO and Clock Distribution

When using the internal VCO and PLL, the VCO divider must be used to ensure that the frequency presented to the channel dividers does not exceed its specified maximum frequency (see Tabl e 3). The internal PLL uses an external loop filter to set the loop bandwidth. The external loop filter is also crucial to the loop stability.

When using the internal VCO, it is necessary to calibrate the VCO (0x018[0]) to ensure optimal performance.

For internal VCO and clock distribution applications, the register settings shown in Ta b le 2 2 should be used.

Table 22. Settings When Using Internal VCO

0x010[1:0] = 00b PLL normal operation (PLL on) 0x010 to 0x01E

0x1E1[1] = 1b VCO selected as the source 0x01C[2:0] Enable reference inputs 0x1E0[2:0] Set VCO divider 0x1E1[0] = 0b

0x018[0] = 0b 0x232[0] = 1b

0x018[0] = 1b 0x232[0] = 1b

PLL settings; select and enable a reference input; set R, N (P, A, B), PFD polarity, and I according to the intended loop configuration

Use the VCO divider as the source for the distribution section

Reset VCO calibration and issue IO_UPDATE (not necessary for the first time after power-up but must be done subsequently)

Initiate VCO calibration, issue IO_UPDATE

Rev. 0 | Page 27 of 84

AD9522-1

PTIONAL

REFIN

BYPASS

CLK

SYNC

RESET

EEPROM

REF1

REF2

REF_SEL CPRSETVCP

REFERENCE

SWITCHOVER

STATUS

BUF

AMP

LOW DROPOUT

REGULATOR (LDO)

DIGITAL

LOGIC

EEPROM

S GND RSET

DISTRIBUTION

REFERENCE

CLOCK

DOUBLER

STATUS

P, P + 1

PRESCALER

N DIVIDER

ZERO DELAY BLOCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTERS

REFMON

DIVIDER

PROGRAMMABLE

N DELAY

DIVIDE BY

1 TO 32

LOCK

DETECT

R DELAY

PROGRAMMABLE

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

PUMP

HOLD

STATUS

OUT0

OUT1

OUT2

SP1

SP0

SCLK/SCL

SDIO/SDA

SDO

SERIAL

PORT

DECODE

INTERFACE

SPI

INTERFACE

AD9522

I2C

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

OUT3

OUT4

OUT5

OUT6

LVDS/CMOS OUTPUTS

OUT7

OUT8

OUT9

OUT10

OUT11

07220-030

Figure 37. Internal VCO and Clock Distribution (Mode 0)

Rev. 0 | Page 28 of 84

AD9522-1

Mode 1: Clock Distribution or External VCO < 1600 MHz

When the external clock source to be distributed or the external VCO/VCXO is <1600 MHz, a configuration that bypasses the VCO divider can be used. This is the only difference from Mode 2. Bypassing the VCO divider limits the frequency of the clock source to <1600 MHz (due to the maximum input frequency allowed at the channel dividers).

For clock distribution applications where the external clock is <1600 MHz, the register settings shown in Tab le 2 3 should be used.

Table 23. Settings for Clock Distribution < 1600 MHz

0x010[1:0] = 01b PLL asynchronous power-down (PLL off ) 0x1E1[0] = 1b

0x1E1[1] = 0b CLK selected as the source

Bypass the VCO divider as the source for the distribution section

When using the internal PLL with an external VCO < 1600 MHz, the PLL must be turned on.

Table 24. Settings for Using Internal PLL with External VCO < 1600 MHz

0x1E1[0] = 1b

0x010[1:0] = 00b

Bypass the VCO divider as the source for the distribution section

PLL normal operation (PLL on) along with other appropriate PLL settings in 0x010 to 0x01E

An external VCO/VCXO requires an external loop filter that must be connected between CP and the tuning pin of the VCO/ VCXO. This loop filter determines the loop bandwidth and stability of the PLL. Make sure to select the proper PFD polarity for the VCO/VCXO being used.

Table 25. Setting the PFD Polarity

0x010[7] = 0b

0x010[7] = 1b

PFD polarity positive (higher control voltage produces higher frequency)

PFD polarity negative (higher control voltage produces lower frequency)

Rev. 0 | Page 29 of 84

AD9522-1

OPTIONAL

REFIN

BYPASS

CLK

SYNC

RESET

EEPROM

REF1

REF2

REF_SEL CPRSETVCP

REFERENCE

SWITCHOVER

STATUS

BUF

AMP

LOW DROPOUT

REGULATOR (LDO)

DIGITAL

LOGIC

EEPROM

S GND RSET

DISTRIBUTION

REFERENCE

CLOCK

DOUBLER

STATUS

P, P + 1

PRESCALER

N DIVIDER

ZERO DELAY BL OCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTERS

REFMON

DIVIDER

PROGRAMMABLE

N DELAY

DIVIDE BY

1 TO 32

LOCK

DETECT

R DELAY

PROGRAMMABLE

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

PUMP

HOLD

STATUS

OUT0

OUT1

OUT2

SP1

SP0

SCLK/SCL

SDIO/SDA

SDO

SERIAL

PORT

DECODE

INTERFACE

SPI

INTERFACE

AD9522

DIVIDE BY

1 TO 32

I2C

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

Figure 38. Clock Distribution or External VCO < 1600 MHz (Mode 1)

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

LVDS/CMOS OUTPUTS

07220-031

Rev. 0 | Page 30 of 84

AD9522-1

Mode 2: High Frequency Clock Distribution—CLK or External VCO > 1600 MHz

The AD9522 power-up default configuration has the PLL powered off and the routing of the input set so that the CLK/ CLK

input is connected to the distribution section through the VCO divider (divide-by-1/divide-by-2/divide-by-3/divide-by-4/ divide-by-5/divide-by-6). This is a distribution-only mode that allows for an external input up to 2400 MHz (see ). The

Table 3 maximum frequency that can be applied to the channel dividers is 1600 MHz; therefore, higher input frequencies must be divided down before reaching the channel dividers.

When the PLL is enabled, this routing also allows the use of the PLL with an external VCO or VCXO with a frequency <2400 MHz. In this configuration, the internal VCO is not used and is powered off. The external VCO/VCXO feeds directly into the prescaler.

The register settings shown in Table 2 6 are the default values of these registers at power-up or after a reset operation.

Table 26. Default Register Settings for Clock Distribution Mode

0x010[1:0] = 01b PLL asynchronous power-down (PLL off ) 0x1E0[2:0] = 000b Set VCO divider = 2 0x1E1[0] = 0b Use the VCO divider 0x1E1[1] = 0b CLK selected as the source

When using the internal PLL with an external VCO, the PLL must be turned on.

Table 27. Settings When Using an External VCO

0x010[1:0] = 00b PLL normal operation (PLL on) 0x010 to 0x01E

0x1E1[1] = 0b CLK selected as the source

PLL settings; select and enable a reference input; set R, N (P, A, B), PFD polarity, and I loop configuration

according to the intended

An external VCO requires an external loop filter that must be connected between CP and the tuning pin of the VCO. This loop filter determines the loop bandwidth and stability of the PLL. Make sure to select the proper PFD polarity for the VCO being used.

Table 28. Setting the PFD Polarity

0x010[7] = 0b

0x010[7] = 1b

PFD polarity positive (higher control voltage produces higher frequency)

PFD polarity negative (higher control voltage produces lower frequency)

Rev. 0 | Page 31 of 84

AD9522-1

PTIONAL

REFIN

BYPASS

CLK

SYNC

RESET

EEPROM

REF1

REF2

REF_SEL CPRSETVCP

REFERENCE

SWITCHOVER

STATUS

BUF

AMP

LOW DROPOUT

REGULATOR ( LDO)

DIGITAL

LOGIC

EEPROM

S GND RSET

DISTRIBUTI ON

REFERENCE

CLOCK

DOUBLER

STATUS

P, P + 1

PRESCALER

N DIVIDER

ZERO DELAY BLOCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTER S

REFMON

DIVIDER

PROGRAMMABLE

N DELAY

DIVIDE BY

1 TO 32

LOCK

DETECT

R DELAY

PROGRAMMABLE

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

PUMP

HOLD

STATUS

OUT0

OUT1

OUT2

SP1

SP0

SCLK/SCL

SDIO/SDA

SDO

SERIAL

PORT

DECODE

INTERFACE

SPI

INTERFACE

AD9522

I2C

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

DIVIDE BY

1 TO 32

OUT3

OUT4

OUT5

OUT6

LVDS/CMOS OUTPUTS

OUT7

OUT8

OUT9

OUT10

OUT11

07220-029

Figure 39. High Frequency Clock Distribution—CLK or External VCO > 1600 MHz (Mode 2)

Rev. 0 | Page 32 of 84

AD9522-1

Phase-Locked Loop (PLL)

REF_SEL CPRSETVCP

REFERENCE

SWITCHOVER

REF1

OPTIONAL

BYPASS

REFIN

CLK

REF2

LOW DROPOUT

REGULATOR (LDO)

STATUS

BUF

The AD9522 includes an on-chip PLL with an on-chip VCO. The PLL blocks can be used either with the on-chip VCO to create a complete phase-locked loop or with an external VCO or VCXO. The PLL requires an external loop filter, which usually consists of a small number of capacitors and resistors. The configuration and components of the loop filter help to establish the loop bandwidth and stability of the operating PLL.

The AD9522 PLL is useful for generating clock frequencies from a supplied reference frequency. This includes conversion of reference frequencies to much higher frequencies for subsequent division and distribution. In addition, the PLL can be used to clean up jitter and phase noise on a noisy reference. The exact choice of PLL parameters and loop dynamics is application specific. The flexibility and depth of the AD9522 PLL allow the part to be tailored to function in many different applications and signal environments.

Configuration of the PLL

The AD9522 allows flexible configuration of the PLL, accommodating various reference frequencies, PFD comparison frequencies, VCO frequencies, internal or external VCO/VCXO, and loop dynamics. This is accomplished by the various settings for the R divider, the N divider, the PFD polarity (only applicable to external VCO/VCXO), the antibacklash pulse width, the charge pump current, the selection of internal VCO or external VCO/ VCXO, and the loop bandwidth. These are managed through programmable register settings (see Tabl e 48 and Ta ble 5 2) and by the design of the external loop filter.

S GND RSET

DISTRIBUTI ON

REFERENCE

CLOCK

DOUBLER

STATUS

P, P + 1

PRESCALER

N DIVIDER

ZERO DELAY BL OCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTERS

Figure 40. PLL Functional Block Diagram

REFMON

STATUS

DIVIDE R

PROGRAMMABLE

N DELAY

FROM CHANNEL

DIVIDER 0

LOCK

DETECT

R DELAY

PROGRAMMABLE

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

HOLD

PUMP

Successful PLL operation and satisfactory PLL loop performance are highly dependent upon proper configuration of the PLL settings, and the design of the external loop filter is crucial to the proper operation of the PLL.

ADIsimCLK™ is a free program that can help with the design and exploration of the capabilities and features of the AD9522, including the design of the PLL loop filter. The AD9516 model found in ADIsimCLK Version 1.2 can also be used for modeling the AD9522 loop filter. It is available at www.analog.com/clocks.

Phase Frequency Detector (PFD)

The PFD takes inputs from the R divider and the N divider and produces an output proportional to the phase and frequency difference between them. The PFD includes a programmable delay element that controls the width of the antibacklash pulse. This pulse ensures that there is no dead zone in the PFD transfer function and minimizes phase noise and reference spurs. The antibacklash pulse width is set by 0x017[1:0].

An important limit to keep in mind is the maximum frequency allowed into the PFD. The maximum input frequency into the PFD is a function of the antibacklash pulse setting, as specified in the phase/frequency detector (PFD) parameter in Tabl e 2.

7220-064

Rev. 0 | Page 33 of 84

AD9522-1

Charge Pump (CP)

The charge pump is controlled by the PFD. The PFD monitors the phase and frequency relationship between its two inputs and tells the CP to pump up or pump down to charge or discharge the integrating node (part of the loop filter). The integrated and filtered CP current is transformed into a voltage that drives the tuning node of the internal VCO through the LF pin (or the tuning pin of an external VCO) to move the VCO frequency up or down. The CP can be set (0x010[3:2]) for high impedance (allows holdover operation), for normal operation (attempts to lock the PLL loop), for pump-up, or for pump-down (test modes). The CP current is programmable in eight steps from (nominally)

0.6 mA to 4.8 mA. The exact value of the CP current LSB is set by the CPRSET resistor, which is nominally 5.1 kΩ.

On-Chip VCO

The AD9522 includes an on-chip VCO covering the frequency range shown in Tab le 2 . Achieving low VCO phase noise was a priority in the design of the VCO.

To tune over the wide range of frequencies covered by this VCO, tuning ranges are used. The calibration procedure selects the correct range for the desired VCO frequency. See the VCO Calibration section for additional information.

The on-chip VCO is powered by an on-chip, low dropout (LDO), linear voltage regulator. The LDO provides some isolation of the VCO from variations in the power supply voltage level. The BYPASS pin should be connected to ground by a 220 nF capacitor to ensure stability. This LDO employs the same technology used in the anyCAP® line of regulators from Analog Devices, Inc., making it insensitive to the type of capacitor used. Driving an external load from the BYPASS pin is not supported.

When using an external VCO/VCXO, the BYPASS and LF pins should be left floating. This configuration is shown in Figure 42.

PLL External Loop Filter

When using the internal VCO, the external loop filter should be referenced to the BYPASS pin for optimal noise and spurious performance. An example of an external loop filter for a PLL that uses the internal VCO is shown in Figure 41. A loop filter must be calculated for each desired PLL configuration. The values of the components depend upon the VCO frequency, the K

VCO

, the PFD frequency, the CP current, the desired loop bandwidth, and the desired phase margin. The loop filter affects the phase noise, the loop settling time, and the loop stability. A basic knowledge of PLL theory is helpful for understanding loop filter design. ADIsimCLK can help with the calculation of a loop filter according to the application requirements.

When using an external VCO, the external loop filter should be referenced to ground. An example of an external loop filter for a PLL using an external VCO is shown in Figure 42.

Figure 41. Example of External Loop Filter for a PLL Using the Internal VCO

Figure 42. Example of External Loop Filter for a PLL Using an External VCO

PLL Reference Inputs

The AD9522 features a flexible PLL reference input circuit that allows a fully differential input, two separate single-ended inputs, or a 16.62 MHz to 33.33 MHz crystal oscillator with an on-chip maintaining amplifier. An optional reference clock doubler can be used to double the PLL reference frequency. The input frequency range for the reference inputs is specified in Table 2 . Both the differential and the single-ended inputs are self-biased, allowing for easy ac coupling of input signals. To increase isolation and reduce power, each single-ended input can be independently powered down.

Either a differential or a single-ended reference must be specifically enabled. All PLL reference inputs are off by default.

The differential input and the single-ended inputs share two pins, REFIN (REF1) and type is selected and controlled by 0x01C (see and ). Tabl e 48 Tab le 52

In single-ended mode, the AD9522 features a dc offset option. Setting 0x018[7] to 1b shifts the dc offset bias point down 140 mV. This option eliminates the risk of the reference inputs chattering when they are ac-coupled, and the reference clock disappears. When using the reference switchover, the single-ended reference inputs should be dc-coupled CMOS levels (with the AD9522 dc offset feature disabled). Alternatively, the inputs can be ac-coupled, and the dc offset feature can be enabled. The user should keep in mind, however, that the minimum input amplitude for the reference inputs is greater when the dc offset is turned on.

When the differential reference input is selected, the self-bias level of the two sides is offset slightly to prevent chattering of the input buffer when the reference is slow or missing. The specification for this voltage level can be found in Ta b le 2 . The input hysteresis increases the voltage swing required of the driver to overcome the offset.

AD9522

VCO

CHARGE

PUMP

AD9522

CHARGE

PUMP

REFIN

BYPASS

CLK/CLK

= 220nF

C1 C2 C3

EXTERNAL

VCO/VCXO

C1 C2 C3

7220-065

07220-265

(REF2). The desired reference input

Rev. 0 | Page 34 of 84

AD9522-1

The differential reference input receiver is powered down when it is not selected or when the PLL is powered down. The singleended buffers power down when the PLL is powered down or when their respective individual power-down registers are set. When the differential mode is selected, the single-ended inputs are powered down.

In differential mode, the reference input pins are internally selfbiased so that they can be ac-coupled via capacitors. It is possible to dc couple to these inputs. If the differential REFIN is driven by a single-ended signal, the unused side ( decoupled via a suitable capacitor to a quiet ground.

REFIN

) should be

Figure 43

shows the equivalent circuit of REFIN.

There are several configurable modes of reference switchover. The switchover can be performed manually or automatically. Manual switchover is performed either through Register 0x01C or by using the REF_SEL pin. The automatic switchover occurs when REF1 disappears. A switchover deglitch feature ensures which the PLL does not receive rising edges that are far out of alignment with the newly selected reference.

There are two automatic reference switchover modes (0x01C):

• Prefer REF1. Switch from REF1 to REF2 when REF1

disappears. Return to REF1 from REF2 when REF1 returns.

• Stay on REF2. Automatically switch to REF2 if REF1

disappears but do not switch back to REF1 if it reappears. The reference can be set back to REF1 manually at an appropriate time.

85kΩ

REF1

REFIN

REF2

Figure 43. REFIN Equivalent Circuit for Non-XTAL Mode

10kΩ 12kΩ

150Ω

10kΩ 10kΩ

85kΩ

Crystal mode is nearly identical to differential mode. The user enables a maintaining amplifier by setting the enable XTAL OSC bit, and putting a series resonant, AT fundamental cut crystal across the REFIN/

REFIN

pins.

Reference Switchover

The AD9522 supports dual single-ended CMOS inputs, as well as a single differential reference input. In the dual single-ended reference mode, the AD9522 supports automatic and manual PLL reference clock switching between REF1 (on Pin REFIN) and REF2 (on Pin

REFIN

). This feature supports networking and other applications that require hitless switching of redundant references. When used in conjunction with the automatic holdover function, the AD9522 can achieve a worstcase reference input switchover with an output frequency disturbance as low as 10 ppm.

Rev. 0 | Page 35 of 84

In automatic mode, REF1 is monitored by REF2. If REF1 disappears (two consecutive falling edges of REF2 without an edge transition on REF1), REF1 is considered missing. On the next subsequent rising edge of REF2, REF2 is used as the reference clock to the PLL. If 0x01C[3] = 0b (default), when REF1 returns (four rising edges of REF1 without two falling edges of REF2 between the REF1 edges), the PLL reference switches back to REF1. If 0x01C[3] = 1b, the user can control when to switch back to REF1. This is done by programming the part to manual reference select mode (0x01C[4] = 0b) and by ensuring that the registers and/or the REF_SEL pin are set to select the desired reference. Automatic mode can be reenabled when REF1 is reselected.

Manual switchover requires the presence of a clock on the reference input being switched to or that the deglitching feature be disabled (0x01C[7]).

Reference Divider R

07220-066

The reference inputs are routed to the reference divider, R. R (a 14-bit counter) can be set to any value from 0 to 16,383 by writing to 0x011 and 0x012. (Both R = 0 and R = 1 give divide-by-1.) The output of the R divider goes to one of the PFD inputs to be compared with the VCO frequency divided by the N divider. The frequency applied to the PFD must not exceed the maximum allowable frequency, which depends on the antibacklash pulse setting (see Tab l e 2 ).

The R divider has its own reset. The R divider can be reset using the shared reset bit of the R, A, and B counters. It can also be reset by a

SYNC

operation.

VCO/VCXO Feedback Divider N: P, A, B, R

The N divider is a combination of a prescaler (P) and two counters, A and B. The total divider value is

N = (P × B) + A

where P can be 2, 4, 8, 16, or 32.

AD9522-1

Prescaler

The prescaler of the AD9522 allows for two modes of operation: a fixed divide (FD) mode of 1, 2, or 3, and a dual modulus (DM) mode where the prescaler divides by P and (P + 1) {2 and 3, 4 and 5, 8 and 9, 16 and 17, or 32 and 33}. The prescaler modes of operation are given in Tabl e 52 , 0x016[2:0]. Not all modes are available at all frequencies (see Ta ble 2).

When operating the AD9522 in dual modulus mode, P/(P + 1), the equation used to relate the input reference frequency to the VCO output frequency is

= (f

VCO

/R) × (P × B + A) = f

REF

× N/R

REF

However, when operating the prescaler in FD Mode 1, FD Mode 2, or FD Mode 3, the A counter is not used (A = 0) and the equation simplifies to

= (f

VCO

/R) × (P × B) = f

REF

× N/R

When A = 0, the divide is a fixed divide of P = 2, 4, 8, 16, or 32.

By using combinations of DM and FD modes, the AD9522 can achieve values of N from 1 to 262,175. Tabl e 2 9 shows how a 10 MHz reference input can be locked to any integer multiple of N.

Note that the same value of N can be derived in different ways, as illustrated by the case of N = 12. The user can choose a fixed divide mode P = 2 with B = 6, use the dual modulus mode 2/3 with A = 0, B = 6, or use the dual modulus mode 4/5 with A = 0, B = 3.

A and B Counters

The B counter must be ≥3 or bypassed, and unlike the R counter, A = 0 is actually zero.

When the prescaler is in dual-modulus mode, the A counter must be less than the B counter.

The maximum input frequency to the A/B counter is reflected in the maximum prescaler output frequency (~300 MHz) specified in Tabl e 2. This is the prescaler input frequency (VCO or CLK) divided by P. For example, dual modulus P = 8/9 mode is not allowed if the VCO frequency is greater than 2400 MHz because the frequency going to the A/B counter is too high.

When the AD9522 B counter is bypassed (B = 1), the A counter should be set to zero, and the overall resulting divide is equal to the prescaler setting, P. The possible divide ratios in this mode are 1, 2, 3, 4, 8, 16, and 32. This mode is useful only when an external VCO/VCXO is used because the frequency range of the internal VCO requires an overall feedback divider greater than 32.

Although manual reset is not normally required, the A/B counters have their own reset bit. Alternatively, the A and B counters can be reset using the shared reset bit of the R, A, and B counters. Note that these reset bits are not self-clearing.

R, A, and B Counters:

SYNC

Pin Reset

The R, A, and B counters can be reset simultaneously through the SYNC

pin. This function is controlled by 0x019[7:6] (see ).

SYNC

The

pin reset is disabled by default.

Tabl e 52

R and N Divider Delays

Both the R and N dividers feature a programmable delay cell. These delays can be enabled to allow adjustment of the phase relationship between the PLL reference clock and the VCO or CLK. Each delay is controlled by three bits. The total delay range is about 1 ns. See 0x019 in Tab le 2 and Table 5 2.

Table 29. How a 10 MHz Reference Input Can Be Locked to Any Integer Multiple of N

(MHz) R P A B N f

REF

(MHz) Mode Notes

VCO

10 1 1 X1 1 1 10 FD P = 1, B = 1 (bypassed) 10 1 2 X1 1 2 20 FD P = 2, B = 1 (bypassed) 10 1 1 X1 3 3 30 FD P = 1, B = 3 10 1 1 X1 4 4 40 FD P = 1, B = 4 10 1 1 X1 5 5 50 FD P = 1, B = 5 10 1 2 X1 3 6 60 FD P = 2, B = 3 10 1 2 0 3 6 60 DM P and P + 1 = 2 and 3, A = 0, B = 3 10 1 2 1 3 7 70 DM P and P + 1 = 2 and 3, A = 1, B = 3 10 1 2 2 3 8 80 DM P and P + 1 = 2 and 3, A = 2, B = 3 10 1 2 1 4 9 90 DM P and P + 1 = 2 and 3, A = 1, B = 4 10 1 2 X1 5 10 100 FD P = 2, B = 5 10 1 2 0 5 10 100 DM P and P + 1 = 2 and 3, A = 0, B = 5 10 1 2 1 5 11 110 DM P and P + 1 = 2 and 3, A = 1, B = 5 10 1 2 X1 6 12 120 FD P = 2, B = 6 10 1 2 0 6 12 120 DM P and P + 1 = 2 and 3, A = 0, B = 6 10 1 4 0 3 12 120 DM P and P + 1 = 4 and 5, A = 0, B = 3 10 1 4 1 3 13 130 DM P and P + 1 = 4 and 5, A = 1, B = 3

X = don’t care.

Rev. 0 | Page 36 of 84

AD9522-1

Digital Lock Detect (DLD)

By selecting the proper output through the mux on each pin, the DLD function is available at the LD, STATUS, and REFMON pins. The digital lock detect circuit indicates a lock when the time difference of the rising edges at the PFD inputs is less than a specified value (the lock threshold). The loss of a lock is indicated when the time difference exceeds a specified value (the unlock threshold). Note that the unlock threshold is wider than the lock threshold, which allows some phase error in excess of the lock window to occur without chattering on the lock indicator.

The lock detect window timing depends on the value of the CPRSET resistor, as well as three settings: the digital lock detect window bit (0x018[4]), the antibacklash pulse width bit (0x017[1:0], see Tabl e 2), and the lock detect counter (0x018[6:5]). The lock and unlock detection values in Table 2 are for the nominal value of CPRSET = 5.11 k. Doubling the CPRSET value to 10 k doubles the values in Tab le 2.

A lock is not indicated until there is a programmable number of consecutive PFD cycles with a time difference less than the lock detect threshold. The lock detect circuit continues to indicate a lock until a time difference greater than the unlock threshold occurs on a single subsequent cycle. For the lock detect to work properly, the period of the PFD frequency must be greater than the unlock threshold. The number of consecutive PFD cycles required for lock is programmable (0x018[6:5]).

Note that it is possible in certain low (<500 Hz) loop bandwidth, high phase margin cases that the DLD can chatter during acquisition, which can cause the AD9522 to automatically enter and exit holdover. To avoid this problem, it is recommended that the user make provisions for a capacitor to ground on the LD pin so that current source digital lock detect (CSDLD) mode can be used.

Analog Lock Detect (ALD)

The AD9522 provides an ALD function that can be selected for use at the LD pin. There are two operating modes for ALD.

• N-channel open-drain lock detect. This signal requires a

pull-up resistor to the positive supply, VS. The output is normally high with short, low going pulses. Lock is indicated by the minimum duty cycle of the low going pulses.

• P-channel open-drain lock detect. This signal requires a

pull-down resistor to GND. The output is normally low with short, high going pulses. Lock is indicated by the minimum duty cycle of the high going pulses.

S = 3.3V

AD9522

ALD

Figure 44. Example of Analog Lock Detect Filter Using

N-Channel Open-Drain Driver

OUT

07220-067

Current Source Digital Lock Detect (CSDLD)

During the PLL locking sequence, it is normal for the DLD signal to toggle a number of times before remaining steady when the PLL is completely locked and stable. There may be applications where it is desirable to have DLD asserted only after the PLL is solidly locked. This is possible by using the current source digital lock detect function.

The current source lock detect provides a current of 110 µA when DLD is true and shorts to ground when DLD is false. If a capacitor is connected to the LD pin, it charges at a rate determined by the current source during the DLD true time but is discharged nearly instantly when DLD is false. By monitoring the voltage at the LD pin (top of the capacitor), LD = high happens only after the DLD is true for a sufficiently long time. Any momentary DLD false resets the charging. By selecting a properly sized capacitor, it is possible to delay a lock detect indication until the PLL is stably locked and the lock detect does not chatter.

To use current source digital lock detect, do the following:

• Place a capacitor to ground on the LD pin

• Set 0x01A[5:0] = 0x04

• Enable the LD pin comparator (0x01D[3] = 1)

The LD pin comparator senses the voltage on the LD pin, and the comparator output can be made available at the REFMON pin control (0x01B[4:0]) or the STATUS pin control (0x017[7:2]). The internal LD pin comparator trip point and hysteresis are given in Tabl e 17 . The voltage on the capacitor can also be sensed by an external comparator connected to the LD pin. In this case, enabling the on-board LD pin comparator is not necessary.

The user can asynchronously enable individual clock outputs only when CSDLD is high. To enable this feature, set the appropriate bits in the enable output on the CSDLD registers (0x0FC and 0x0FD).

AD9522

110µA

The analog lock detect function requires an RC filter to provide a

DLD

logic level indicating lock/unlock. The ADIsimCLK tool can be used to help the user select the right passive component values for ALD to ensure its correct operation.

Rev. 0 | Page 37 of 84

LD PIN

COMPARAT OR

Figure 45. Current Source Digital Lock Detect

REFMON OR STATUS

OUT

07220-068

AD9522-1

CLKC

External VCXO/VCO Clock Input (CLK/

CLK

)

This differential input is used to drive the AD9522 clock distribution section. This input can receive up to 2.4 GHz. The pins are internally self-biased, and the input signal should be ac-coupled via capacitors.

CLOCK INPUT

STAGE

07220-032

The CLK/

2.5kΩ 2.5kΩ

5kΩ

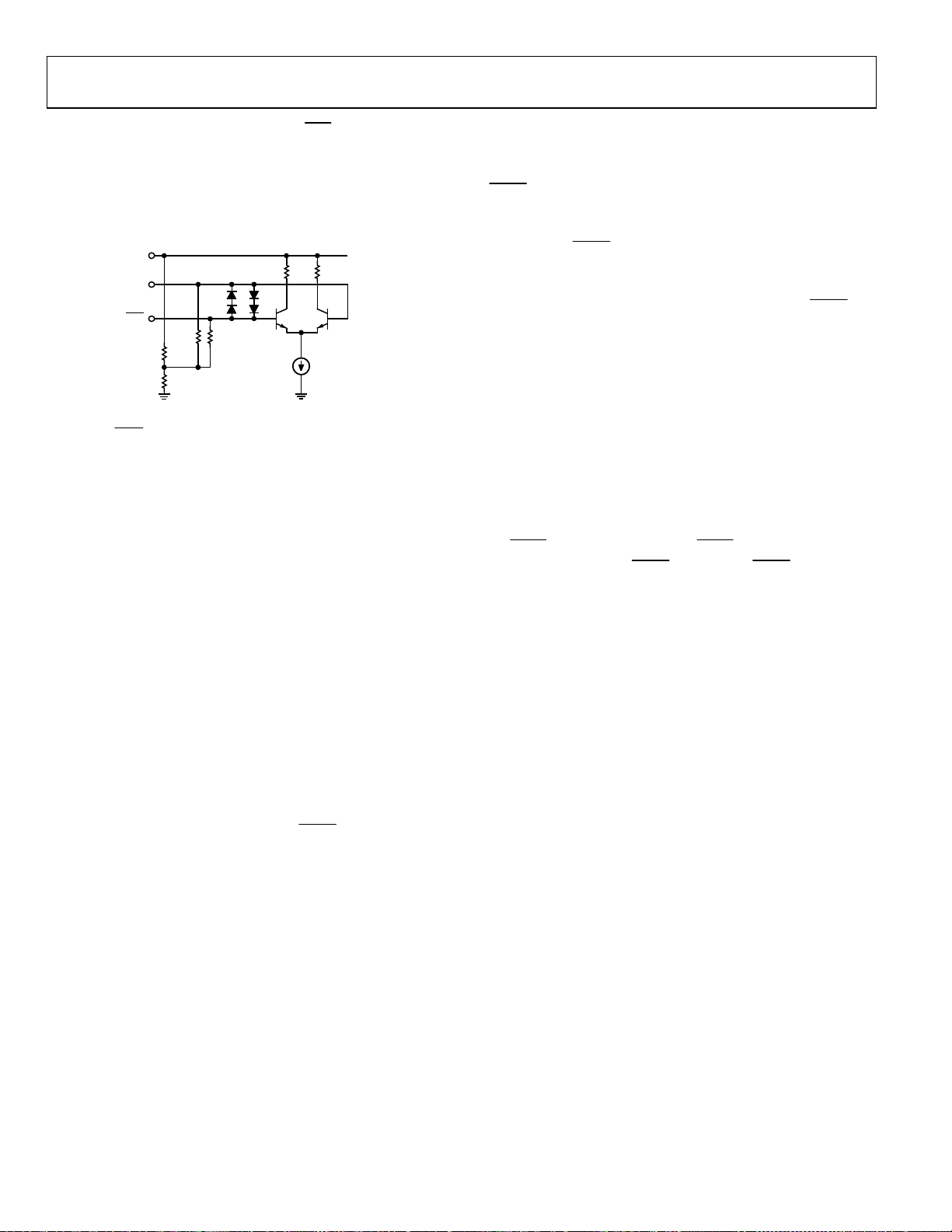

Figure 46. CLK Equivalent Input Circuit

CLK

input can be used either as a distribution only input (with the PLL off ), or as a feedback input for an external VCO/VCXO using the internal PLL when the internal VCO is not used. These inputs are also used as a feedback path for the external zero delay mode.

Holdover

The AD9522 PLL has a holdover function. Holdover is implemented by placing the charge pump in a high impedance state. This function is useful when the PLL reference clock is lost. Holdover mode allows the VCO to maintain a relatively constant frequency even though there is no reference clock. Without this function, the charge pump is placed into a constant pump-up or pump-down state, resulting in a massive VCO frequency shift. Because the charge pump is placed in a high impedance state, any leakage that occurs at the charge pump output or the VCO tuning node causes a drift of the VCO frequency. This can be mitigated by using a loop filter that contains a large capacitive component because this drift is limited by the current leakage induced slew rate (I

LEAK

/C) of

the VCO control voltage.

Both a manual holdover mode, using the

SYNC

pin, and an automatic holdover mode are provided. To use either function, the holdover function must be enabled (0x01D[0]).

External/Manual Holdover Mode

A manual holdover mode can be enabled that allows the user to place the charge pump into a high impedance state when the SYNC

pin is asserted low. This operation is edge sensitive, not level sensitive. The charge pump enters a high impedance state immediately. To take the charge pump out of a high impedance state, take the

SYNC

pin high. The charge pump then leaves the high impedance state synchronously with the next PFD rising edge from the reference clock. This prevents extraneous charge pump events from occurring during the time between

SYNC

going high and the next PFD event. This also means that the charge pump stays in a high impedance state if there is no reference clock present.

The B counter (in the N divider) is reset synchronously with the charge pump leaving the high impedance state on the reference path PFD event. This helps align the edges out of the R and N dividers for faster settling of the PLL. Because the prescaler is not reset, this feature works best when the B and R numbers are close because this results in a smaller phase difference for the loop to settle out.

When using this mode, the channel dividers should be set to ignore

SYNC

the

pin (at least after an initial

are not set to ignore the

SYNC

event). If the dividers

pin, any time

SYNC

is taken low to put the part into holdover, the distribution outputs turn off. The channel divider ignore SYNC function is found in 0x191[6], 0x194[6], 0x197[6], and 0x19A[6] for Channel Divider 0, Channel Divider 1, Channel Divider 2, and Channel Divider 3, respectively.

Automatic/Internal Holdover Mode

When enabled, this function automatically puts the charge pump into a high impedance state when the loop loses lock. The assumption is that the only reason the loop loses lock is due to the PLL losing the reference clock; therefore, the holdover function puts the charge pump into a high impedance state to maintain the VCO frequency as close as possible to the original frequency before the reference clock disappeared.

A flowchart of the automatic/internal holdover function operation is shown in Figure 47.

Rev. 0 | Page 38 of 84

AD9522-1

PLL ENABLED

DLD == LOW

YES

WAS

LD PIN == HIGH

WHEN DLD WENT

LOW?

YES

HIGH IMPEDANCE

CHARGE PUMP

REFERENCE

EDGE AT PFD?

YES

LOOP OUT OF LOCK. DIGITAL LOCK DETECT SIGNAL GOES LOW WHEN THE LOOP LEAVES LOCK AS DETERMINED BY THE PHASE DIFFERENCE AT THE INPUT OF THE PFD.

ANALOG LO CK DETECT PI N INDICATES LOCK WAS PREV IOUSLY ACHI EVED. (0x01D[3] = 1; USE L D PIN VOLTAGE WITH HOLDOVER. 0x01D[3] = 0; IGNORE LD PIN VOLTAG E, TREAT LD PIN AS ALWAYS HIGH.)

CHARGE PUMP IS MADE HIGH IMPEDANCE. PLL COUNTERS CONTINUE OPERATING NORMALLY.

CHARGE PUMP REMAINS HIGH IMPEDANCE UNTI L THE REFERENCE RETURNS.

YES

RELEASE

CHARGE PUMP

HIGH IMPEDANCE

DLD == HIGH

Figure 47. Flowchart of Automatic/Internal Holdover Mode

The holdover function senses the logic level of the LD pin as a condition to enter holdover. The signal at LD can be from the DLD, ALD, or current source LD (CSDLD) mode. It is possible to disable the LD comparator (0x01D[3]), which causes the holdover function to always sense LD as high. If DLD is used, it is possible for the DLD signal to chatter while the PLL is reacquiring lock. The holdover function may retrigger, thereby preventing the holdover mode from terminating. Use of the current source lock detect mode is recommended to avoid this situation (see the Current Source Digital Lock Detect (CSDLD) section).

TAKE CHARGE PUMP OUT OF HIGH IMPEDANCE. PLL CAN NOW RESET TLE.

WAIT FO R DLD TO G O HIGH. T HIS TAKES 5 TO 255 CYCLE S (PROGRAMMING OF T HE DLD DELAY COUNTER) WITH THE REFERENCE AND FEEDBACK CLOCKS I NSIDE THE L OCK WINDOW AT THE PFD. THIS ENSURES THAT THE HOLDOVER FUNCTION WAITS FOR THE PLL TO SETTLE AND LOCK BEFORE THE HO LDOVER FUNCTION CAN BE RETRIGG ERED.

When in holdover mode, the charge pump stays in a high impedance state as long as there is no reference clock present.

As in the external holdover mode, the B counter (in the N divider) is reset synchronously with the charge pump leaving the high impedance state on the reference path PFD event. This helps align the edges out of the R and N dividers for faster settling of the PLL and reduces frequency errors during settling. Because the prescaler is not reset, this feature works best when the B and R numbers are close because this results in a smaller phase difference for the loop to settle out.

7220-069

Rev. 0 | Page 39 of 84

AD9522-1

After leaving holdover, the loop then reacquires lock and the LD pin must go high (if 0x01D[3] = 1) before it can reenter holdover.

The holdover function always responds to the state of the currently selected reference (0x01C). If the loop loses lock during a reference switchover (see the Reference Switchover section), holdover is triggered briefly until the next reference clock edge at the PFD.

The following registers affect the automatic/internal holdover function:

• 0x018[6:5]—lock detect counter. This changes how many

consecutive PFD cycles with edges inside the lock detect window are required for the DLD indicator to indicate lock. This impacts the time required before the LD pin can begin to charge as well as the delay from the end of a holdover event until the holdover function can be reengaged.

• 0x018[3]—disable digital lock detect. This bit must be set

to 0 to enable the DLD circuit. Internal/automatic holdover does not operate correctly without the DLD function enabled.

• 0x01A[5:0]—lock detect pin control. Set this to 000100b to

put it in the current source lock detect mode if using the LD pin comparator. Load the LD pin with a capacitor of an appropriate value.

• 0x01D[3]—enable LD pin comparator. 1 = enable; 0 =

disable. When disabled, the holdover function always senses the LD pin as high.

• 0x01D[1]—external holdover control.

• 0x01D[0]—enable holdover. If holdover is disabled, both

external and automatic/internal holdover are disabled.

REF_SEL CPRSETVCP

S GND RSET

In the following example, automatic holdover is configured with

• Automatic reference switchover, prefer REF1.

• Digital lock detect: five PFD cycles, high range window.

• Automatic holdover using the LD pin comparator.

The following registers are set (in addition to the normal PLL registers):

• 0x018[6:5] = 00b; lock detect counter = five cycles.

• 0x018[4] = 0b; digital lock detect window = high range.

• 0x018[3] = 1b; disable DLD normal operation.

• 0x01A[5:0] = 000100b; program LD pin control to current

source lock detect mode.

• 0x01C[4] = 1b; enable automatic switchover.

• 0x01C[3] = 0b; prefer REF1.

• 0x01C[2:1] = 11b; enable REF1 and REF2 input buffers.

• 0x01D[3] = 1b; enable LD pin comparator.

• 0x01D[1] = 0b; disable external holdover mode and use

automatic/internal holdover mode.

• 0x01D[0] = 1b; enable holdover.

Frequency Status Monitors

The AD9522 contains three frequency status monitors that are used to indicate if the PLL reference (or references in the case of single-ended mode) and the VCO have fallen below a threshold frequency. A diagram showing their location in the PLL is shown in Figure 48.

The PLL reference monitors have two threshold frequencies: normal and extended (see Tab le 1 7 ). The reference frequency monitor thresholds are selected in 0x01F.

REFMO N

OPTIONAL

BYPASS

REFIN

CLK

REF1

REF2

REGULATOR ( LDO)

REFERENCE

SWITCHOVER

STATUS

BUF

LOW DROPOUT

STATUS

DISTRIBUTI ON

REFERENCE

CLOCK

DOUBLER

VCO STATUS

P, P + 1

PRESCALER

N DIVIDE R

ZERO DELAY BL OCK

DIVIDE BY 1,

2, 3, 4, 5, OR 6

A/B

COUNTERS

PROGRAMMABLE

FROM CHANNEL

DIVIDER 0

Figure 48. Reference and VCO Status Monitors

Rev. 0 | Page 40 of 84

DIVIDER

N DELAY

LOCK

DETECT

R DELAY

PROGRAMMABLE

PHASE

FREQUENCY

DETECTOR

PLL

REFERENCE

CHARGE

HOLD

PUMP

STATUS

07220-070

AD9522-1

VCO Calibration

The AD9522 on-chip VCO must be calibrated to ensure proper operation over process and temperature. The VCO calibration is controlled by a calibration controller running off a divided REFIN clock. The calibration requires that the PLL be set up properly to lock the PLL loop and that the REFIN clock be present. The REFIN clock must come from a stable source external to the AD9522.

VCO calibration can be performed in two ways: automatically at power-up and manually. Automatic VCO calibration occurs when the EEPROM is set to automatically load the preprogrammed values in the EEPROM, and then automatically calibrate the VCO. A valid reference must be provided at power-up in order for the automatic calibration to complete. If this is not the case, the user must calibrate the VCO manually.

During the first initialization after a power-up or a reset of the AD9522, a manual VCO calibration sequence is initiated by setting 0x018[0] = 1b. This can be done as part of the initial setup before executing update registers (0x232[0] = 1b). Subsequent to the initial setup, a VCO calibration sequence is initiated by resetting 0x018[0] = 0b, executing an update registers operation, setting 0x018[0] = 1b, and executing another update registers operation. A readback bit (0x01F[6]) indicates when a VCO calibration is finished by returning a logic true (that is, 1b).

The sequence of operations for the VCO calibration follows:

1. Program the PLL registers to the proper values for the PLL

loop. Note that the VCO divider (0x1E0[2:0]) must not be set to static during VCO calibration.

2. For the initial setting of the registers after a power-up or

reset, initiate a VCO calibration by setting 0x018[0] = 1b. Subsequently, whenever a calibration is desired, the user must first clear 0x018[0] and update registers (0x232[0] = 1b) prior to initiating another VCO calibration.

3. A SYNC operation is initiated internally, causing the

outputs to go to a static state determined by normal SYNC function operation.

4. VCO is calibrated to the desired setting for the requested

VCO frequency.

5. Internally, the SYNC signal is released, allowing outputs to

continue clocking.

6. The PLL loop is closed.

7. PLL locks.

A SYNC is executed during the VCO calibration; therefore, the outputs of the AD9522 are held static during the calibration, which prevents unwanted frequencies from being produced. However, at the end of a VCO calibration, the outputs may resume clocking before the PLL loop is completely settled.

The VCO calibration clock divider is set as shown in

Tabl e 52

(0x018[2:1]).

Rev. 0 | Page 41 of 84

The calibration divider divides the PFD frequency (reference frequency divided by R) down to the calibration clock. The calibration occurs at the PFD frequency divided by the calibration divider setting. Lower VCO calibration clock frequencies result in longer times for a calibration to be completed.

The VCO calibration clock frequency is given by

CAL_CLOCK

= f

REFIN

/(R × cal_div)

where:

is the frequency of the REFIN signal.

REFIN

R is the value of the R counter. cal_div is the division set for the VCO calibration divider

(0x018[2:1]).

The user should choose a calibration divider such that the calibration frequency is less than 6.25 MHz. Tab le 3 0 shows the appropriate value for the calibration divider.

Table 30. VCO Calibration Divider Values for Different Phase Detector Frequencies

PFD Rate (MHz) Recommended VCO Calibration Divider

<12 Any 12 to 25 4, 8, 16 25 to 50 8, 16 50 to 100 16

The VCO calibration takes 4400 calibration clock cycles. Therefore, the VCO calibration time in PLL reference clock cycles is given by

Time to Calibrate VCO =

4400 × R × cal_div PLL Reference Clock Cycles

The AD9522 does not automatically recalibrate its VCO when the PLL settings change. This allows for flexibility in deciding that order to program registers and when to initiate a calibration, instead of having it happen every time certain PLL registers have their values change. For example, this allows for the VCO frequency to be changed by small amounts without having an automatic calibration occur each time; this should be done with caution and only when the user knows the VCO control voltage will not exceed the nominal best performance limits. For example, a few 100 kHz steps are fine, but a few MHz steps may not be. Additionally, because the calibration procedure results in rapid changes in the VCO frequency, the distribution section is automatically placed in SYNC until the calibration is finished. Therefore, this temporary loss of outputs must be expected.

Initiate a VCO calibration under the following conditions:

• After changing any of the PLL R, P, B, and A divider settings,

or after a change in the PLL reference clock frequency. This, in effect, means any time a PLL register or reference clock is changed such that a different VCO frequency results.

• Whenever system calibration is desired. The VCO is designed

to operate properly over extremes of temperature even when it is first calibrated at the opposite extreme. However, a VCO calibration can be initiated at any time, if desired.

AD9522-1

REFIN/

REFIN

CLK/CLK

MUX1

2, 3, 4, 5, OR 6

DIVIDERRDELAY

DIVIDERNDELAY

REG 0x01E[1] = 1

ZERO DELAY F EEDBACK CLOCK

DIVIDE BY 1,

PFD CP

Figure 49. Zero Delay Function

ZERO DELAY OPERATION

Zero delay operation aligns the phase of the output clocks with the phase of the external PLL reference input. There are two zero delay modes on the AD9522: internal and external.

Internal Zero Delay Mode

The internal zero delay function of the AD9522 is achieved by feeding the output of Channel Divider 0 back to the PLL N divider. In Figure 49, the change in signal routing for internal zero delay mode is shown in blue.

Set Register 0x01E[2:1] = 01b to select thr internal zero delay mode. In the internal zero delay mode, the output of Channel Divider 0 is routed back to the PLL (N divider) through MUX3 and MUX1 (feedback path shown in blue in Figure 49). The PLL synchronizes the phase/edge of the output of Channel Divider 0 with the phase/edge of the reference input.

Because the channel dividers are synchronized to each other, the outputs of the channel dividers are synchronous with the reference input. Both the R delay and the N delay inside the PLL can be programmed to compensate for the propagation delay from the output drivers and PLL components to minimize the phase offset between the clock output and the reference input to achieve zero delay.

Rev. 0 | Page 42 of 84

AD9522

LOOP

FILTER

INTERNAL FEEDBACK PATH

EXTERNAL FE EDBACK PATH

MUX3

REG 0x01E[2]

ZERO DELAY

CHANNEL DIVIDER 0

CHANNEL DIVIDER 1

CHANNEL DIVIDER 2

CHANNEL DIVIDER 3

OUT0 TO OUT2

OUT3 TO OUT5

OUT6 TO OUT8

OUT9 TO OUT11

7220-053

External Zero Delay Mode

The external zero delay function of the AD9522 is achieved by feeding one clock output back to the CLK input and ultimately back to the PLL N divider. In Figure 49, the change in signal routing for external zero delay mode is shown in red.

Set 0x01E[2:1] = 11b to select the external zero delay mode. In external zero delay mode, one of the twelve output clocks (OUT0 to OUT11) can be routed back to the PLL (N divider) through the CLK/

CLK

pins and through MUX3 and MUX1.

This feedback path is shown in red in . Figure 49

The user must specify which channel divider will be used for external zero delay mode in order for VCO calibration to work correctly. Channel Divider 0 is the default. Channel Divider 1, Channel Divider 2, or Channel Divider 3 can be selected for zero delay feedback by changing the value in Register 0x01E[4:3].

The PLL synchronizes the phase/edge of the feedback output clock with the phase/edge of the reference input. Because the channel dividers are synchronized to each other, the clock outputs are synchronous with the reference input. Both the R delay and the N delay inside the PLL can be programmed to compensate for the propagation delay from the PLL components to minimize the phase offset between the feedback clock and the reference input.

AD9522-1

CLK

DISTRIBUTION

MODE 0 (INTERNAL VCO MODE)

PLL

DIVIDE BY 1,

2, 3, 4, 5, OR 6

CLOCK

CLK

CLOCK DISTRIBUTION

MODE 1 (CLOCK DISTRIBUTION MODE)

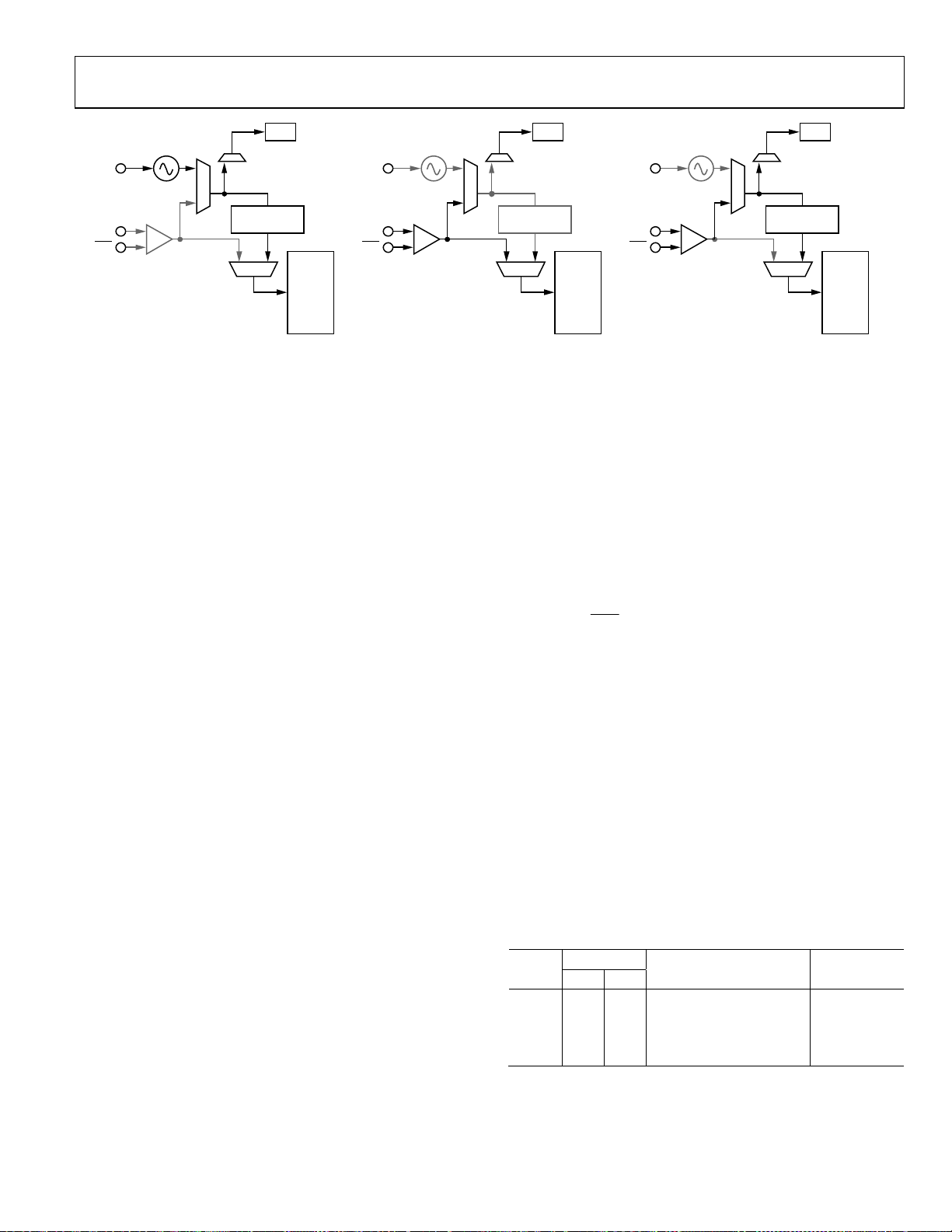

Figure 50. Simplified Diagram of the Three Clock Distribution Operation Modes

CLOCK DISTRIBUTION

A clock channel consists of three LVDS clock outputs or six CMOS clock outputs that share a common divider. A clock output consists of the drivers that connect to the output pins. The clock outputs have either LVDS or CMOS at the pins.

The AD9522 has four clock channels. Each channel has its own programmable divider that divides the clock frequency applied to its input. The channel dividers can divide by any integer from 1 to 32.

The AD9522 features a VCO divider that divides the VCO output by 1, 2, 3, 4, 5, or 6 before going to the individual channel dividers. The VCO divider has two purposes. The first is to limit the maximum input frequency of the channel dividers to 1.6 GHz. The other is to allow the AD9522 to generate even lower frequencies than would be possible with only a simple post divider. External clock signals connected to the CLK input can also use the VCO divider.

The channel dividers allow for a selection of various duty cycles, depending on the currently set division. That is, for any specific division, D, the output of the divider can be set to high for N + 1 input clock cycles and low for M + 1 input clock cycles (where D = N + M + 2). For example, a divide-by-5 can be high for one divider input cycle and low for four cycles, or a divide-by-5 can be high for three divider input cycles and low for two cycles. Other combinations are also possible.

The channel dividers include a duty-cycle correction function that can be disabled. In contrast to the selectable duty cycle just described, this function can correct a non-50% duty cycle caused by an odd division. However, this requires that the division be set by M = N + 1.

DIVIDE BY 1,

2, 3, 4, 5, OR 6

DISTRIBUTI ON

CLOCK

PLL

CLOCK DISTRI -

BUTION

CLK

DISTRIBUTION

MODE 2 (HF CLOCK DISTRIBUTION MODE)

PLL

DIVIDE BY 1,

2, 3, 4, 5, OR 6

CLOCK

CLOCK DISTRIBUTION

In addition, the channel dividers allow a coarse phase offset or delay to be set. Depending on the division selected, the output can be delayed by up to 15 input clock cycles. For example, if the frequency at the input of the channel divider is 1 GHz, the channel divider output can be delayed by up to 15 ns. The divider outputs can also be set to start high or to start low.

Operation Modes

There are three clock distribution operating modes, see Figure 50. One of these modes uses the internal VCO, whereas the other two modes bypass the internal VCO and use the signal provided on the CLK/

CLK

pins.

In Mode 0 (internal VCO mode), there are two signal paths available. In the first path, the VCO signal is sent to the VCO divider and then to the individual channel dividers. In the second path, the user bypasses the VCO and channel dividers and sends the VCO signal directly to the drivers.

When CLK is selected as the source, it is not necessary to use the VCO divider if the CLK frequency is less than the maximum channel divider input frequency (1600 MHz); otherwise, the VCO divider must be used to reduce the frequency going to the channel dividers.

Tabl e 31 shows how the VCO, CLK, and VCO divider are selected. 0x1E1[1:0] selects the channel divider source and determines whether the VCO divider is used. It is not possible to select the VCO without using the VCO divider.

Table 31. Operation Modes

0x1E1 Mode [1] [0] Channel Divider Source VCO Divider

2 0 0 CLK Used 1 0 1 CLK Not used 0 1 0 VCO Used 1 1 Not allowed Not allowed

07220-054

Rev. 0 | Page 43 of 84

AD9522-1

Clock Frequency Division

The total frequency division is a combination of the VCO divider (when used) and the channel divider. When the VCO divider is used, the total division from the VCO or CLK to the output is the product of the VCO divider (1, 2, 3, 4, 5, or 6) and the division of the channel divider. Table 3 2 indicates how the frequency division for a channel is set.

Table 32. Frequency Division

Channel CLK or VCO Selected

CLK or VCO input 1 to 6 2 to 32

CLK or VCO input 2 to 6 Bypass (2 to 6) × (1) CLK or VCO input 1 Bypass

CLK (internal VCO off)

The bypass VCO divider (0x1E1[0] = 1) is not the same as VCO divider = 1.

VCO Divider

Setting

VCO divider bypassed

Divider

Setting

Bypass 1

2 to 32 2 to 32

Resulting Frequency Division

(1 to 6) × (2 to

32)

Output static (illegal state)

The channel dividers feeding the output drivers contain one 2-to-32 frequency divider. This divider provides for division-by-1 to division-by-32. Division-by-1 is accomplished by bypassing the divider. The dividers also provide for a programmable duty cycle, with optional duty-cycle correction when the divide ratio is odd. A phase offset or delay in increments of the input clock cycle is selectable. The channel dividers operate with a signal at their inputs up to 1600 MHz. The features and settings of the dividers are selected by programming the appropriate setup and control registers (see Tabl e 48 through Tab le 5 9 ).

VCO Divider

The VCO divider provides frequency division between the internal VCO or the external CLK input and the clock distribution channel dividers. The VCO divider can be set to divide by 1, 2, 3, 4, 5, or 6 (see Tabl e 55 , 0x1E0[2:0]). However, when the VCO divider is set to 1, none of the channel output dividers can be bypassed.

The VCO divider can also be set to static, which is useful for applications where the only desired output frequency is the VCO frequency. Making the VCO divider static increases the wideband spurious-free dynamic range (SFDR). If the VCO divider is static during VCO calibration, there is no output signal. Therefore, it is recommended that the user calibrate the VCO with the VCO divider set to a nonstatic value during VCO calibration, and then set the VCO divider to static after VCO calibration is complete.

The same improvement in SFDR performance can also be achieved by setting the VCO divider to 1. This allows the user to program the EEPROM with the desired values and does not require further action after the VCO calibration is complete.

Channel Dividers

A channel divider drives each group of three LVDS outputs. There are four channel dividers (0, 1, 2, and 3) driving 12 LVDS outputs (OUT0 to OUT11). Tabl e 33 gives the register locations used for setting the division and other functions of these dividers. The division is set by the values of M and N. The divider can be bypassed (equivalent to divide-by-1, divider circuit is powered down) by setting the bypass bit. The duty-cycle correction can be enabled or disabled according to the setting of the disable divider DCC bits.

Table 33. Setting D

Di vider Low Cycles M High Cycles N B ypass

0 0x190[7:4] 0x190[3:0] 0x191[7] 0x192[0] 1 0x193[7:4] 0x193[3:0] 0x194[7] 0x195[0] 2 0x196[7:4] 0x196[3:0] 0x197[7] 0x198[0] 3 0x199[7:4] 0x199[3:0] 0x19A[7] 0x19B[0]

for the Output Dividers

Disable Div DCC

Channel Frequency Division (0, 1, 2, and 3)

For each channel (where the channel number x is 0, 1, 2, or 3), the frequency division, D

, is set by the values of M and N

(four bits each, representing Decimal 0 to Decimal 15), where

Number of Low Cycles = M + 1 Number of High Cycles = N + 1

The high and low cycles are cycles of the clock signal currently routed to the input of the channel dividers (VCO divider out or CLK).

When a divider is bypassed, D

Otherwise, D

= (N + 1) + (M + 1) = N + M + 2. This allows

= 1.

each channel divider to divide by any integer from 1 to 32.

Duty Cycle and Duty-Cycle Correction

The duty cycle of the clock signal at the output of a channel is a result of some or all of the following conditions:

• The M and N values for the channel

• DCC enabled/disabled

• VCO divider enabled/bypassed

• The CLK input duty cycle (note that the internal VCO has

a 50% duty cycle)

The DCC function is enabled by default for each channel divider. However, the DCC function can be disabled individually for each channel divider by setting the disable divider DCC bit for that channel.

Certain M and N values for a channel divider result in a non50% duty cycle. A non-50% duty cycle can also result with an even division, if M ≠ N. The duty-cycle correction function automatically corrects non-50% duty cycles at the channel divider output to 50% duty cycle.

Rev. 0 | Page 44 of 84

AD9522-1

Duty-cycle correction requires the following channel divider conditions:

• An even division must be set as M = N.

• An odd division must be set as M = N + 1.

When not bypassed or corrected by the DCC function, the duty cycle of each channel divider output is the numerical value of (N + 1)/(N + M + 2) expressed as a percent.

The duty cycle at the output of the channel divider for various configurations is shown in Tabl e 34 to Ta bl e 37.

Table 34. Channel Divider Output Duty Cycle with VCO Divider ≠ 1, Input Duty Cycle Is 50%

Output Duty Cycle

VCO Divider

Even

Odd = 3

Odd = 5

Even, odd Even (N + 1)/(N + M + 2)

Even, odd Odd (N + 1)/(N + M + 2)

N + M + 2

Channel divider bypassed

Disable Div DCC = 1

50% 50%

33.3% 50%

40% 50%

Disable Div DCC = 0

50%, requires M = N

50%, requires M = N + 1

Table 35. Channel Divider Output Duty Cycle with VCO Divider ≠ 1, Input Duty Cycle Is X%

DX Output Duty Cycle

VCO Divider

Even

Odd = 3

Odd = 5

Even Even

Even Odd

Odd = 3 Even

Odd = 3 Odd

Odd = 5 Even

Odd = 5 Odd

N + M + 2

Channel divider bypassed

Disable Div DCC = 1 Disable Div DCC = 0

50% 50%

33.3% (1 + X%)/3

40% (2 + X%)/5

(N + 1)/ (N + M + 2)

50%, requires M = N

50%, requires M = N + 1

50%, requires M = N

(3N + 4 + X%)/(6N + 9), requires M = N + 1

50%, requires M = N

(5N + 7 + X%)/(10N + 15), requires M = N + 1

Rev. 0 | Page 45 of 84

Table 36. Channel Divider Output Duty Cycle When the VCO Divider Is Enabled and Set to 1

Output Duty Cycle

Input Clock Duty Cycle

Any Even

50% Odd

X% Odd

N + M + 2

Disable Div DCC = 1 Disable Div DCC = 0

(N + 1)/ (M + N + 2)

50%, requires M = N

50%, requires M = N + 1

(N + 1 + X%)/(2 × N + 3), requires M = N + 1

Note that the channel divider must be enabled when the VCO divider = 1.

Table 37. Channel Divider Output Duty Cycle When the VCO Divider Is Bypassed

Output Duty Cycle

Input Clock Duty Cycle

Any

Any Even

50% Odd

X% Odd

N + M + 2

Channel divider bypassed

Disable Div DCC = 1 Disable Div DCC = 0

Same as input duty cycle

(N + 1)/ (M + N + 2)

Same as input duty cycle

50%, requires M = N

50%, requires M = N + 1

(N + 1 + X%)/(2 × N + 3), requires M = N + 1

The internal VCO has a duty cycle of 50%. Therefore, when the VCO divider equals 1, the duty cycle is 50%. If the CLK input is routed directly to the output, the duty cycle of the output is the same as the CLK input.

Phase Offset or Coarse Time Delay

Each channel divider allows for a phase offset, or a coarse time delay, to be programmed by setting register bits (see Ta b le 3 8 ). These settings determine the number of cycles (successive rising edges) of the channel divider input frequency by which to offset, or delay, the rising edge of the output of the divider. This delay is with respect to a nondelayed output (that is, with a phase offset of zero). The amount of the delay is set by five bits loaded into the phase offset (PO) register plus the start high (SH) bit for each channel divider. When the start high bit is set, the delay is also affected by the number of low cycles (M) programmed for the divider.

It is necessary to use the SYNC function to make phase offsets effective (see the Synchronizing the Outputs—SYNC Function section).

Table 38. Setting Phase Offset and Division

Start

Divider

0 0x191[4] 0x191[3:0] 0x190[7:4] 0x190[3:0] 1 0x194[4] 0x194[3:0] 0x193[7:4] 0x193[3:0] 2 0x197[4] 0x197[3:0] 0x196[7:4] 0x196[3:0] 3 0x19A[4] 0x19A[3:0] 0x199[7:4] 0x199[3:0]

High (SH)

Phase Offset (PO)

Low CyclesM High Cycles

AD9522-1

Let 

= delay (in seconds).



= delay (in cycles of clock signal at input to DX).

= period of the clock signal at the input of the divider, DX (in

seconds). Φ = 16 × SH[4] + 8 × PO[3] + 4 × PO[2] + 2 × PO[1] + 1 × PO[0]

The channel divide-by is set as N = high cycles and M = low cycles.

Case 1

For Φ ≤ 15, 

= Φ × TX



= t/TX = Φ

Case 2

For Φ ≥ 16, 

= (Φ − 16 + M + 1) × T

c = t/TX

By giving each divider a different phase offset, output-to-output delays can be set in increments of the channel divider input clock cycle. Figure 51 shows the results of setting such a coarse offset between outputs.

CHANNEL

DIVIDER INPUT

DIVIDER 0

DIVIDER 1

DIVIDER 2

0 1 2 3 4 5 6 7 8 9 101112131415

CHANNEL DIV IDER OUT PUTS

SH = 0 PO = 0

SH = 0 PO = 1

SH = 0 PO = 2

Figure 51. Effect of Coarse Phase Offset (or Delay)

DIV = 4, DUT Y = 50%

1 × Tx

2 × Tx

Synchronizing the Outputs—SYNC Function

The AD9522 clock outputs can be synchronized to each other. Outputs can be individually excluded from synchronization. Synchronization consists of setting the nonexcluded outputs to a preset set of static conditions. These conditions include the divider ratio and phase offsets for a given channel divider. This allows the user to specify different divide ratios and phase offsets for each of the four channel dividers. Releasing the

SYNC

pin allows the outputs to continue clocking with the preset conditions applied.

Synchronization of the outputs is executed in the following ways:

• The

SYNC

pin is forced low and then released (manual sync).

• By setting and then resetting any one of the following three

bits: the soft SYNC bit (0x230[0]), the soft reset bit (0x000[5] [mirrored]), and the power-down distribution reference bit (0x230[1]).

• Synchronization of the outputs can be executed as part of

the chip power-up sequence.

Rev. 0 | Page 46 of 84

• The

• Whenever a VCO calibration is completed, an internal

The most common way to execute the SYNC function is to use the This requires a low going signal on the low and then released when synchronization is desired. The timing of the SYNC operation is shown in (using the VCO divider) and in (the VCO divider is not used). There is an uncertainty of up to one cycle of the clock at the input to the channel divider due to the asynchronous nature of the SYNC signal with respect to the clock edges inside the AD9522.

The pipeline delay from the of the synchronized output clocking is between 14 cycles and 15 cycles of clock at the channel divider input, plus one cycle of the VCO divider input (see ) or one cycle of the channel divider input (see ), depending on whether the VCO divider is used. Cycles are counted from the rising edge of the signal. In addition, there is an additional 1.2 ns (typical) delay from the SYNC signal to the internal synchronization logic, as well as the propagation delay of the output driver. The driver propagation delay is approximately 100 ps for the LVDS driver and approximately 1.5 ns for the CMOS driver.

Another common way to execute the SYNC function is by setting and resetting the soft SYNC bit at 0x230[0]. Both setting and resetting of the soft SYNC bit require an update all registers (0x232[0] = 1b) operation to take effect.

07220-071

A SYNC operation brings all outputs that have not been excluded (by the ignore SYNC bit) to a preset condition before allowing the outputs to begin clocking in synchronicity. The preset condition takes into account the settings in each of the channel’s start high bit and its phase offset. These settings govern both the static state of each output when the SYNC operation is happening and the state and relative phase of the outputs when they begin clocking again upon completion of the SYNC operation. A SYNC operation must take place in order for the phase offsets setting to take effect.

The AD9522 differential LVDS outputs are four groups of three, sharing a channel divider per triplet. In the case of CMOS, each LVDS differential pair can be configured as two single-ended CMOS outputs. The synchronization conditions apply to all of the drivers that belong to that channel divider.

Each channel (a divider and its outputs) can be excluded from any SYNC operation by setting the ignore SYNC bit of the channel. Channels that are set to ignore SYNC (excluded channels) do not set their outputs static during a SYNC operation, and their outputs are not synchronized with those of the included channels.

RESET

pin is forced low and then released (chip reset).

pin is forced low and then released (chip power-

down).

SYNC signal is automatically asserted at the beginning and released upon the completion of a VCO calibration.

SYNC

pin to perform a manual synchronization of the outputs.

SYNC

pin, which is held

Figure 52

Figure 53

SYNC

rising edge to the beginning

Figure 52

Figure 53

AD9522-1

CHANNEL DIVIDE

OUTPUT CLOCKING

INPUT TO VCO DIVIDER

INPUT TO CHANNEL DIVIDER

YNC PIN

OUTPUT OF

CHANNEL DIVIDER

OUTPUT CLOCKING

INPUT TO CLK

INPUT TO CHANNEL DIVIDE

CHANNEL DIVIDER O UTPUT STAT IC

123 456 78910

14 TO 15 CYCLES AT CHANNEL DIVIDER INPUT + 1 CYCLE AT VCO DIVIDER INPUT

Figure 52. SYNC Timing Pipeline Delay When the VCO Divider Is Used—CLK or VCO Is Input

CHANNEL DIVIDER O UTPUT STATIC

123456 78910

13 14

CHANNEL DIVIDE

OUTPUT CLOCKING

CHANNEL DIVIDE

OUTPUT CLOCKING

07220-073

SYNC PIN

OUTPUT OF

CHANNEL DIVIDER

14 TO 15 CYCLES AT CHANNEL DIVI DER INPUT + 1 CYCLE AT CLK I NPUT

Figure 53. SYNC Timing Pipeline Delay When the VCO Divider Is Not Used—CLK Input Only

LVDS Output Drivers

The AD9522 output drivers can be configured as either an LVDS differential output or as a pair of CMOS single-ended outputs. The LVDS outputs allow for selectable output current from ~1.75 mA to ~7 mA.

The LVDS output polarity can be set as noninverting or inverting, which allows for the adjustment of the relative polarity of outputs within an application without requiring a board layout change. Each LVDS output can be individually powered down to save power.

7220-074

.5m

OUT

.5m

07220-134

Figure 54. LVDS Output Simplified Equivalent Circuit with

3.5 mA Typical Current Source

Rev. 0 | Page 47 of 84

AD9522-1

CMOS Output Drivers

The user can also individually configure each LVDS output as a pair of CMOS outputs, which provides up to 24 CMOS outputs. When an output is configured as CMOS, CMOS Output A and CMOS Output B are automatically turned on. For a given differential pair, either CMOS Output A or Output B can be turned on or off independently. The user can also select the relative polarity of the CMOS outputs for any combination of inverting and noninverting (see Register 0x0F0 to Register 0x0FB).

The user can power down each CMOS output as needed to save power. The CMOS output power-down is individually controlled by the CMOS configuration bits (0x0F0[6:5] to 0x0FB[6:5]). The CMOS driver is in tristate when it is powered down.

OUT1/ OUT1

07220-035

Figure 55. CMOS Equivalent Output Circuit

RESET MODES

The AD9522 has a power-on reset (POR) and several other ways to apply a reset condition to the chip.

Power-On Reset

During chip power-up, a power-on reset pulse is issued when VS reaches ~2.6 V (<2.8 V) and restores the chip either to the setting stored in EEPROM (with the EEPROM pin = 1) or to the on-chip setting (with the EEPROM pin = 0). At power-on, the AD9522 also executes a SYNC operation, which brings the outputs into phase alignment according to the default settings. The output drivers are held in sync for the duration of the internally generated power-up sync timer (~70 ms). The outputs begin to toggle after this period.

Hardware Reset via the

RESET

, a hard reset (an asynchronous hard reset is executed by

briefly pulling

RESET

stored in EEPROM (the EEPROM pin = 1) or to the on-chip setting (the EEPROM pin = 0). A hard reset also executes a SYNC operation, which brings the outputs into phase alignment according to the default settings. When EEPROM is inactive (the EEPROM pin = 0), it takes ~2 µs for the outputs to begin toggling after

RESET

EEPROM pin = 1), it takes ~20 ms for the outputs to toggle after RESET

is brought high.

Soft Reset via the Serial Port

The serial port control register allows for a soft reset by setting Bit 2 and Bit 5 in Register 0x000. When Bit 5 and Bit 2 are set, the chip enters a soft reset mode and restores the chip either to the setting stored in EEPROM (the EEPROM pin = 1) or to the on-chip setting (the EEPROM pin = 0), except for Register 0x000.

RESET

low), restores the chip either to the setting

is issued. When EEPROM is active (the

Rev. 0 | Page 48 of 84

Except for the self-clearing bits, Bit 2 and Bit 5, Register 0x000 retains its previous value prior to reset. During the internal reset, the outputs hold static. These bits are self-clearing. However, the self-clearing operation does not complete until an additional serial port SCLK cycle, and the AD9522 is held in reset until that happens.

Soft Reset to Settings in EEPROM When EEPROM Pin = 0 via the Serial Port

The serial port control register allows the chip to be reset to settings in EEPROM when the EEPROM pin = 1 via 0xB02[1]. This bit is self-clearing. This bit does not have any effect when the EEPROM pin = 0. It takes ~20 ms for the outputs to begin toggling after the Soft_EEPROM register is cleared.

POWER-DOWN MODES

Chip Power-Down via PD

The AD9522 can be put into a power-down condition by pulling

pin low. Power-down turns off most of the functions and

the currents inside the AD9522. The chip remains in this power-down state until power-down mode, the AD9522 returns to the settings programmed in its registers prior to the power-down, unless the registers are changed by new programming while the

Powering down the chip shuts down the currents on the chip. Because this is not a complete power-down, it can be called sleep mode. The AD9522 contains special circuitry to prevent runt pulses on the outputs when the chip is entering or exiting sleep mode.

When the AD9522 is in a following state:

• The PLL is off (asynchronous power-down).

• The VCO is off.

• The CLK input buffer is off, but the CLK input dc bias

• In differential mode, the reference input buffer is off, but

• In singled-ended mode, the reference input buffer is off,

• All dividers are off.

• All CMOS outputs are tristated.

• All LVDS outputs are in power-down (high impedance)

• The serial control port is active, and the chip responds to

is brought back to logic high. When taken out of

power-down, the chip is in the

circuit is on.

the dc bias circuit is still on.

and the dc bias circuit is off.

mode.

commands.

pin is held low.

AD9522-1

PLL Power-Down

The PLL section of the AD9522 can be selectively powered down. There are two PLL power-down modes set by Register 0x010[1:0]: asynchronous and synchronous.

In asynchronous power-down mode, the device powers down as soon as the registers are updated. In synchronous power-down mode, the PLL power-down is gated by the charge pump to prevent unwanted frequency jumps. The device goes into powerdown on the occurrence of the next charge pump event after the registers are updated.

Distribution Power-Down

The distribution section can be powered down by writing 0x230[1] = 1b, which turns off the bias to the distribution section. If the LVDS power-down mode is in normal operation (0b), it is possible for a low impedance load on that LVDS output to draw significant current during this power-down. If the LVDS powerdown mode is set to 1b, the LVDS output is not protected from reverse bias and can be damaged under certain termination conditions.

Individual Clock Output Power-Down

Any of the clock distribution outputs can be put into powerdown mode by individually writing to the appropriate registers. The register map details the individual power-down settings for each output. These settings are found in Register 0x0F0[0] to Register 0x0FB[0].

Individual Clock Channel Power-Down

Any of the clock distribution channels can be powered down individually by writing to the appropriate registers. Powering down a clock channel is similar to powering down an individual driver, but it saves more power because the dividers are also powered down. Powering down a clock channel also automatically powers down the drivers connected to it. The register map details the individual power-down settings for each output channel. These settings are found in 0x192[2], 0x195[2], 0x198[2], and 0x19B[2].

Rev. 0 | Page 49 of 84

AD9522-1

SERIAL CONTROL PORT

The AD9522 serial control port is a flexible, synchronous serial communications port that allows an easy interface with many industry-standard microcontrollers and microprocessors. The AD9522 serial control port is compatible with most synchronous transfer formats, including Philips IC, Motorola® SPI®, and Intel® SSR protocols. The AD9522 IC implementation deviates from the classic IC specification on two specifications; these deviations are documented in Table 1 4 of this data sheet. The serial control port allows read/write access to all registers that configure the AD9522.

SPI/I²C PORT SELECTION

The AD9522 has two serial interfaces, SPI and IC. Users can select either SPI or IC depending on the states of the three logic level (high, open, low) input pins, SP1 and SP0. When both SP1 and SP0 are high, the SPI interface is active. Otherwise, IC is active with eight different IC slave address (seven bits wide) settings, see Tabl e 39. The four MSBs of the slave address are hardware coded as 1011, and the three LSBs are programmed by SP1 and SP0.

Table 39. Serial Port Mode Selection

SP1 SP0 Address

Low Low I²C, 1011000 Low Open I²C, 1011001 Low High I²C, 1011010 Open Low I²C, 1011011 Open Open I²C, 1011100 Open High I²C, 1011101 High Low I²C, 1011110 High Open I²C, 1011111 High High SPI

I²C SERIAL PORT OPERATION

The AD9522 IC port is based on the IC fast mode standard. The AD9522 supports both IC protocols: standard mode (100 kHz) and fast mode (400 kHz).

The AD9522 IC port has a 2-wire interface consisting of a serial data line (SDA) and a serial clock line (SCL). In an IC bus system, the AD9522 is connected to the serial bus (data bus SDA and clock bus SCL) as a slave device, meaning that no clock is generated by the AD9522. The AD9522 uses direct 16-bit (two bytes) memory addressing instead of traditional 8-bit (one byte) memory addressing.

I2C Bus Characteristics

Table 40. I2C Bus Definitions

Abbreviation Definition

S Start Sr Repeated start P A A W

Stop Acknowledge No acknowledge Write

R Read

One pulse on the SCL clock line is generated for each data bit transferred.

The data on the SDA line must not change during the high period of the clock. The state of the data line can change only when the clock on the SCL line is low.

SDA

SCL

DATA LINE

STABLE;

DATA VALID

Figure 56. Valid Bit Transfer

CHANGE OF DATA

ALLOWED

7220-160

A start condition is a transition from high to low on the SDA line while SCL is high. The start condition is always generated by the master to initialize the data transfer.

A stop condition is a transition from low to high on the SDA line while SCL is high. The stop condition is always generated by the master to end the data transfer.

SCL

START

CONDITION

Figure 57. Start and Stop Conditions

STOP

CONDITIO N

07220-161

A byte on the SDA line is always eight bits long. An acknowledge bit must follow every byte. Bytes are sent MSB first.

The acknowledge bit is the ninth bit attached to any 8-bit data byte. An acknowledge bit is always generated by the receiving device (receiver) to inform the transmitter that the byte has been received. It is done by pulling the SDA line low during the ninth clock pulse after each 8-bit data byte.

Rev. 0 | Page 50 of 84

AD9522-1

SDA

MSB

ACKNOWLEDGE FROM

SLAVE-RECEIV ER

ACKNOWLEDGE FROM

SLAVE-RECEIVER

SCL

1 2 8 9 1 2 83 TO 73 TO 7 9 10

Figure 58. Acknowledge Bit

MSB = 0

ACKNOWLEDGE FROM

SLAVE-RECEIV ER

1 2 8 9 1 2 83 TO 73 TO 7 9 10

Figure 59. Data Transfer Process (Master Write Mode, 2-Byte Transfer Used for Illustration)

MSB = 1

ACKNOWLEDGE FROM

MASTER-RECEIVER

1 2 8 9 1 2 83 TO 73 TO 7 9 10

Figure 60. Data Transfer Process (Master Read Mode, 2-Byte Transfer Used for Illustration)

The no acknowledge bit is the ninth bit attached to any 8-bit data byte. A no acknowledge bit is always generated by the receiving device (receiver) to inform the transmitter that the byte has not been received. It is done by leaving the SDA line high during the ninth clock pulse after each 8-bit data byte.

Data Transfer Process

The master initiates data transfer by asserting a start condition. This indicates that a data stream follows. All IC slave devices connected to the serial bus respond to the start condition.

The master then sends an 8-bit address byte over the SDA line,

consisting of a 7-bit slave address (MSB first) plus an R/

bit. This bit determines the direction of the data transfer, that is, whether data is written to or read from the slave device (0 = write, 1 = read).

The peripheral whose address corresponds to the transmitted address responds by sending an acknowledge bit. All other devices on the bus remain idle while the selected device waits for data to be read from or written to it. If the R/

bit is 0, the

master (transmitter) writes to the slave device (receiver). If the

bit is 1, the master (receiver) reads from the slave device

(transmitter).

The format for these commands is described in the Data Transfe r For mat section.

07220-162

ACKNOWLEDGE FROM

SLAVE-RECEI VER

07220-163

NO ACKNOWLEDGE

FROM

SLAVE-RECEIV ER

07220-164

Data is then sent over the serial bus in the format of nine clock pulses, one data byte (8-bit) from either master (write mode) or slave (read mode) followed by an acknowledge bit from the receiving device. The number of bytes that can be transmitted per transfer is unrestricted. In write mode, the first two data bytes immediately after the slave address byte are the internal memory (control registers) address bytes with the high address byte first. This addressing scheme gives a memory address up to 2

− 1 = 65,535. The data bytes after these two memory address bytes are written into the control registers. In read mode, the data bytes after the slave address byte are read from the control registers.

When all data bytes are read or written, stop conditions are established. In write mode, the master (transmitter) asserts a stop condition to end data transfer during the (10th) clock pulse following the acknowledge bit for the last data byte from the slave device (receiver). In read mode, the master device (receiver) receives the last data byte from the slave device (transmitter) but does not pull it low during the ninth clock pulse. This is known as a no acknowledge bit. By receiving the no acknowledge bit, the slave device knows that the data transfer is finished and releases the SDA line. The master then takes the data line low during the low period before the 10th clock pulse and high during the 10th clock pulse to assert a stop condition.

A repeated start (Sr) condition can be used in place of a stop condition. Furthermore, a start or stop condition can occur at any time, and partially transferred bytes are discarded.

Rev. 0 | Page 51 of 84

AD9522-1

Data Transfer Format

Send byte format—the send byte protocol is used to set up the register address for subsequent commands.

S Slave Address W A RAM Address High Byte A RAM Address Low Byte A P

Write byte format—the write byte protocol is used to write a register address to the RAM starting from the specified RAM address.

RAM Address

S Slave Address W A

High Byte A

Receive byte format—the receive byte protocol is used to read the data byte(s) from RAM starting from the current address.

S Slave Address R A RAM Data 0 A RAM Data 1 A RAM Data 2

Read byte format—the combined format of the send byte and the receive byte.

Slave

Address W A

RAM Address High Byte A

I²C Serial Port Timing

SDA

SET; DAT

RISE

SCL

FALL

LOW

RAM Address Low Byte A RAM Data 0 A RAM Data 1 A RAM Data 2 A P

RAM Address Low Byte A Sr

FALL

Slave Address R A

HLD; STR

RAM Data 0 A

SPIKE

RAM Data 1 A

RISE

IDLE

RAM Data 2

HLD; STR

S Sr P S

HLD; DAT

HIGH

SET; STR

Figure 61. I²C Serial Port Timing

Table 41. IC Timing Definitions

Parameter Description

I²C clock frequency

I2C

Bus idle time between stop and start conditions

IDLE

Hold time for repeated start condition

HLD; STR

Setup time for repeated start condition

SET; STR

Setup time for stop condition

SET; STP

Hold time for data

HLD; DAT

Setup time for data

SET; DAT

Duration of SCL clock low

LOW

Duration of SCL clock high

HIGH

SCL/SDA rise time

RISE

SCL/SDA fall time

FAL L

Voltage spike pulse width that must be suppressed by the input filter

SPIKE

SET; STP

07220-165

Rev. 0 | Page 52 of 84

AD9522-1

SPI SERIAL PORT OPERATION

Pin Descriptions

SCLK (serial clock) is the serial shift clock. This pin is an input. SCLK is used to synchronize serial control port reads and writes. Write data bits are registered on the rising edge of this clock, and read data bits are registered on the falling edge. This pin is internally pulled down by a 30 kΩ resistor to ground.

SDIO (serial data input/output) is a dual-purpose pin and acts either as an input only (unidirectional mode) or as an input/ output (bidirectional mode). The AD9522 defaults to the bidirectional I/O mode (0x000[7] = 0b).

SDO (serial data out) is used only in the unidirectional I/O mode (0x000[7] = 1b) as a separate output pin for reading back data.

(chip select bar) is an active low control that gates the read and write cycles. When impedance state. This pin is internally pulled up by a 30 kΩ

resistor to VS.

SPI Mode Operation

In SPI mode, single or multiple byte transfers are supported, as well as MSB first or LSB first transfer formats. The AD9522 serial control port can be configured for a single bidirectional I/O pin (SDIO only) or for two unidirectional I/O pins (SDIO/ SDO). By default, the AD9522 is in bidirectional mode. Short instruction mode (8-bit instructions) is not supported. Only long (16-bit) instruction mode is supported.

A write or a read operation to the AD9522 is initiated by pulling CS

low.

The

stalled high mode is supported in data transfers where three or fewer bytes of data (plus instruction data) are transferred (see ). In this mode, the Tabl e 42 high on any byte boundary, allowing time for the system controller to process the next byte. and can go high during either part (instruction or data) of the transfer.

During this period, the serial control port state machine enters a wait state until all data is sent. If the system controller decides to abort the transfer before all of the data is sent, the state machine must be reset by either completing the remaining transfers or by returning

fewer than eight SCLK cycles). Raising the boundary terminates the serial transfer and flushes the buffer.

is high, SDO and SDIO are in a high

SCLK/SCL

SDIO/SDA

SDO

Figure 62. Serial Control Port

AD9522

SERIAL

CONTROL

PORT

pin can temporarily return

07220-036

can go high on byte boundaries only

low for at least one complete SCLK cycle (but

pin on a nonbyte

Rev. 0 | Page 53 of 84

In the streaming mode (see Tab l e 42), any number of data bytes can be transferred in a continuous stream. The register address is automatically incremented or decremented (see the SPI MSB/LSB First Transfers section).

must be raised at the end

of the last byte to be transferred, thereby ending streaming mode.

Communication Cycle—Instruction Plus Data

There are two parts to a communication cycle with the AD9522. The first part writes a 16-bit instruction word into the AD9522, coincident with the first 16 SCLK rising edges. The instruction word provides the AD9522 serial control port with information regarding the data transfer, which is the second part of the communication cycle. The instruction word defines whether the upcoming data transfer is a read or a write, the number of bytes in the data transfer, and the starting register address for the first byte of the data transfer.

Write

If the instruction word is for a write operation, the second part is the transfer of data into the serial control port buffer of the AD9522. Data bits are registered on the rising edge of SCLK.

The length of the transfer (one, two, or three bytes, or streaming mode) is indicated by two bits (W1:W0) in the instruction byte. When the transfer is one, two, or three bytes, but not streaming, CS

can be raised after each sequence of eight bits to stall the bus (except after the last byte, where it ends the cycle). When the bus is stalled, the serial transfer resumes when

the

pin on a nonbyte boundary resets the serial control port.

is lowered. Raising

During a write, streaming mode does not skip over reserved or blank registers, and the user can write 0x00 to the reserved register addresses.

Because data is written into a serial control port buffer area, not directly into the actual control registers of the AD9522, an additional operation is needed to transfer the serial control port buffer contents to the actual control registers of the AD9522, thereby causing them to become active. The update registers operation consists of setting 0x232[0] = 1b (this bit is self-clearing). Any number of bytes of data can be changed before executing an update registers. The update registers simultaneously actuates all register changes that have been written to the buffer since any previous update.

Read

The AD9522 supports only the long instruction mode. If the instruction word is for a read operation, the next N × 8 SCLK cycles clock out the data from the address specified in the instruction word, where N is 1 to 3 as determined by W1:W0. If N = 4, the read operation is in streaming mode, continuing

until

is raised. Streaming mode does not skip over reserved or blank registers. The readback data is valid on the falling edge of SCLK.

AD9522-1

The default mode of the AD9522 serial control port is the bidirectional mode. In bidirectional mode, both the sent data and the readback data appear on the SDIO pin. It is also possible to set the AD9522 to unidirectional mode (0x000[7] = 1 and 0x000[0] = 1). In unidirectional mode, the readback data appears on the SDO pin.

A readback request reads the data that is in the serial control port buffer area or the data that is in the active registers (see Figure 63). Readback of the buffer or active registers is controlled by 0x004[0].

The AD9522 uses Register Address 0x000 to Register Address 0xB03.

SCLK/SCL

SDIO/SDA

SERIAL

SDO

CONTROL PORT

WRITE REGISTER 0x232 = 0x01 TO UPDATE REG ISTERS

Figure 63. Relationship Between Serial Control Port Buffer Registers and

Active Registers of the AD9522

UPDATE

REGISTERS

BUFFER REGI STERS

ACTIVE REGI STERS

07220-037

SPI INSTRUCTION WORD (16 BITS)

The MSB of the instruction word is R/ whether the instruction is a read or a write. The next two bits (W1:W0) indicate the length of the transfer in bytes. The final 13 bits are the address (A12:A0) at which to begin the read or write operation, see . Tabl e 44

For a write, the instruction word is followed by the number of bytes of data indicated by Bits[W1:W0], see Tab l e 42 .

Table 42. Byte Transfer Count

W0 Bytes to Transfer

0 0 1 0 1 2 1

0 3

1 1 Streaming mode

Bits[A12:A0] select the address within the register map that is written to or read from during the data transfer portion of the communications cycle. Only Bits[A9:A0] are needed to cover the range of the 0x232 registers used by the AD9522. Bits[A12:A10] must always be 0b. For multibyte transfers, this address is the starting byte address. In MSB first mode, subsequent bytes increment the address.

, which indicates

SPI MSB/LSB FIRST TRANSFERS

The AD9522 instruction word and byte data can be MSB first or LSB first. Any data written to 0x000 must be mirrored; the upper four bits ([7:4]) must mirror the lower four bits ([3:0]). This makes it irrelevant whether LSB first or MSB first is in effect. As an example of this mirroring, see the default setting for 0x000, which mirrors Bit 4 and Bit 3. This sets the long instruction mode, which is the default and the only mode supported.

The default for the AD9522 is MSB first.

When LSB first is set by 0x000[1] and 0x000[6], it takes effect immediately because it only affects the operation of the serial control port and does not require that an update be executed.

When MSB first mode is active, the instruction and data bytes must be written from MSB to LSB. Multibyte data transfers in MSB first format start with an instruction byte that includes the register address of the most significant data byte. Subsequent data bytes must follow in order from the high address to the low address. In MSB first mode, the serial control port internal address generator decrements for each data byte of the multibyte transfer cycle.

When LSB first is active, the instruction and data bytes must be written from LSB to MSB. Multibyte data transfers in LSB first format start with an instruction byte that includes the register address of the least significant data byte followed by multiple data bytes. In a multibyte transfer cycle, the internal byte address generator of the serial port increments for each byte.

The AD9522 serial control port register address decrements from the register address just written toward 0x000 for multibyte I/O operations if the MSB first mode is active (default). If the LSB first mode is active, the register address of the serial control port increments from the address just written toward 0x232 for multibyte I/O operations.

Streaming mode always terminates when it reaches 0x232. Note that unused addresses are not skipped during multibyte I/O operations.

Table 43. Streaming Mode (No Addresses Are Skipped)

Write Mode

LSB first Increment 0x230, 0x231, 0x232, stop MSB first Decrement 0x001, 0x000, 0x232, stop

Address Direction Stop Sequence

Rev. 0 | Page 54 of 84

AD9522-1

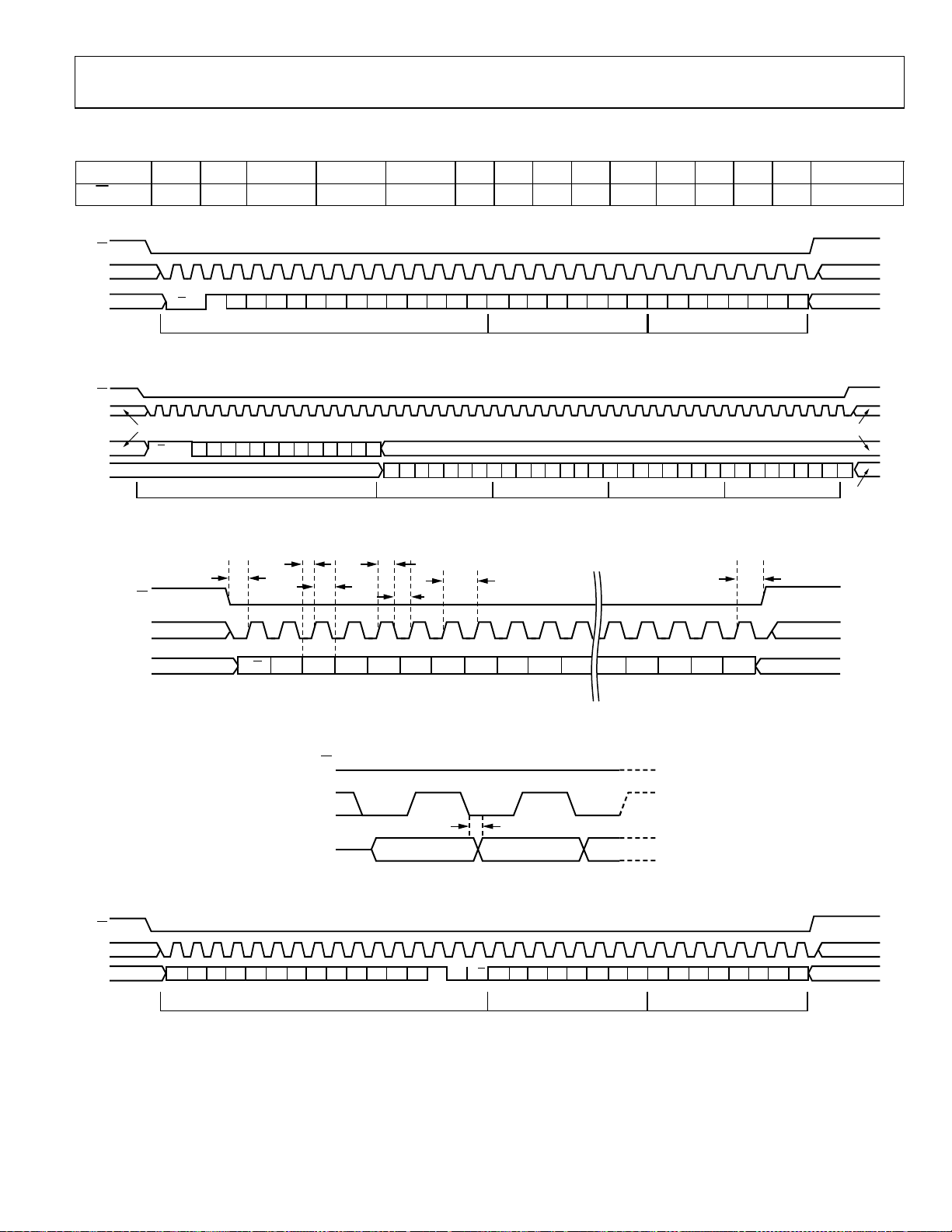

Table 44. Serial Control Port, 16-Bit Instruction Word, MSB First

MSB LSB I15 I14 I13 I12 I11 I10 I9 I8 I7 I6 I5 I4 I3 I2 I1 I0

R/W

SCLK

DON'T CARE

W1 W0 A12 = 0 A11 = 0 A10 = 0 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

DON'T CARE

SDIO A12W0W1R/W A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

16-BIT INST RUCTION HEADE R REGISTER (N) DAT A REGISTE R (N – 1) DATA

Figure 64. Serial Control Port Write—MSB First, 16-Bit Instruction, Two Bytes of Data

SCLK

DON'T CARE

SDIO

SDO

DON'T CARE

A12W0W1R/ W A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

REGISTE R (N) DATA16-BIT INSTRUCT ION HEADER REGI STER (N – 1) DATA REGIST ER (N – 2) DATA REGIST ER (N – 3) DATA

Figure 65. Serial Control Port Read—MSB First, 16-Bit Instruction, Four Bytes of Data

HIGH

CLK

DON'T CARE

SCLK

SDIO

DON'T CARE

R/W

LOW

W1W0A12A11A10A9A8A7A6A5D4D3D2D1D0

Figure 66. Serial Control Port Write—MSB First, 16-Bit Instruction, Timing Measurements

DON'T CARE

DON'T

CARE

07220-040

7220-038

07220-039

SCLK

SDIO

DON'T CARE

SCLK

SDIO

SDO

DATA BIT N – 1DAT A BIT N

07220-041

Figure 67. Timing Diagram for Serial Control Port Register Read

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A1 0 A11 A12 D1D0R/WW1W0 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

16-BIT INST RUCTION HEADE R REGISTER (N) DAT A REGISTER (N + 1) DATA

Figure 68. Serial Control Port Write—LSB First, 16-Bit Instruction, Two Bytes of Data

Rev. 0 | Page 55 of 84

DON'T CARE

7220-042

AD9522-1

CLK

SCLK

SDIO

HIGH

BIT N BIT N + 1

LOW

Figure 69. Serial Control Port Timing—Write

Table 45. Serial Control Port Timing

Parameter Description

tDS Setup time between data and rising edge of SCLK tDH Hold time between data and rising edge of SCLK t

Period of the clock

CLK

tS tC t

Minimum period that SCLK should be in a logic high state

HIGH

Minimum period that SCLK should be in a logic low state

LOW

SCLK to valid SDIO and SDO (see Figure 67)

Setup time between the CS falling edge and SCLK rising edge (start of communication cycle) Setup time between SCLK rising edge and the CS

rising edge (end of communication cycle)

7220-043

Rev. 0 | Page 56 of 84

AD9522-1

EEPROM OPERATIONS

The AD9522 contains an internal EEPROM (nonvolatile memory). The EEPROM can be programmed by users to create and store a user-defined register setting file when the power is off. This setting file can be used for power-up and chip reset as a default setting. The EEPROM size is 512 bytes.

During the data transfer process, the write and read registers via the serial port are generally not available except for one readback register, STATUS_EEPROM.

To determine the data transfer state through the serial port in SPI mode, users can read the value of STATUS_EEPROM (1 = in process and 0 = completed).

In IC mode, the user can address the AD9522 slave port with the external IC master (send an address byte to the AD9522). If the AD9522 responds with a no acknowledge bit, the data transfer process is not done. If the AD9522 responds with an acknowledge bit, the data transfer process is completed. The user can monitor the STATUS_EEPROM register or program the STATUS pin to monitor the status of the data transfer.

WRITING TO THE EEPROM

The EEPROM cannot be programmed directly through the serial port interface. To program the EEPROM and store a register setting file, do the following:

1. Program the AD9522 registers to the desired circuit state. If

the user wants the PLL to lock automatically after power-up, the VCO calibration now bit (0x018[0]) must be set to 1. This allows VCO calibration to start automatically after register loading. Note that a valid input reference signal must be present during VCO calibration.

2. Program the EEPROM buffer registers, if necessary (see

the Programming the EEPROM Buffer Segment section). This is only necessary if users want to use the EEPROM to control the default setting of some (but not all) of the AD9522 registers, or if they want to control the register setting update sequence during power-up or chip reset.

3. Set the enable EEPROM write bit (0xB02[0]) to 1 to enable

the EEPROM.

4. Set the REG2EEPROM bit (0xB03[0]) to 1.

5. Set the IO_UPDATE bit (0x232[0]) to 1, which starts the

process of writing data into the EEPROM to create the EEPROM setting file. This enables the AD9522 EEPROM controller to transfer the current register values, as well as the memory address and instruction bytes from the EEPROM buffer segment, into the EEPROM. After the write process is completed, the internal controller sets 0xB03[0] (REG2EEPROM) back to 0.

The readback register, STATUS_EEPROM (0xB00[0]), is used to indicate the data transfer status between the EEPROM and the control registers (0 = done/inactive; 1 = in process/active). At the beginning of the data transfer, STATUS_EEPROM is set to 1 by the EEPROM controller and cleared to 0 at the end of the data transfer. The user can access STATUS_EEPROM through the STATUS pin when the STATUS pin is programmed to monitor STATUS_EEPROM. Alternatively, the user can monitor the STATUS_EEPROM bit.

6. After the data transfer process is done (0xB00[0] = 0), set

the enable EEPROM write register (0xB02[0]) to 0 to disable writing to the EEPROM.

To verify that the data transfer has completed correctly, the user can verify that 0xB01[0] = 0. A value of 1 in this register indicates a data transfer error.

READING FROM THE EEPROM

The following reset-related events can start the process of restoring the settings stored in EEPROM to control registers.

When the EEPROM pin is set high, do any of the following:

• Power up the AD9522.

• Perform a hardware chip reset by pulling the

RESET

low and then releasing

• Set the self-clearing soft reset bit (0x000[5]) to 1.

When the EEPROM pin is set low, set the self-clearing Soft_EEPROM bit (0xB02[1]) to 1. The AD9522 then starts to read the EEPROM and loads the values into the AD9522.

If the EEPROM pin is low during reset or power-up, the EEPROM is not active, and the AD9522 default values are loaded instead.

When using the EEPROM to automatically load the AD9522 register values and lock the PLL, the VCO calibration now bit (0x018[0]) must be set to 1 when the register values are written to the EEPROM. This allows VCO calibration to start automatically after register loading. A valid input reference signal must be present during VCO calibration.

To verify that the data transfer has completed correctly, the user can verify that 0xB01[0] = 0. A value of 1 in this register indicates a data transfer error.

RESET

Rev. 0 | Page 57 of 84

AD9522-1

PROGRAMMING THE EEPROM BUFFER SEGMENT

The EEPROM buffer segment is a register space on the AD9522 that allows the user to specify which groups of registers are stored to the EEPROM during EEPROM programming. Normally, this segment does not need to be programmed by the user. Instead, the default power-up values for the EEPROM buffer segment allow the user to store all of the AD9522 register values from Register 0x000 to Register 0x231 to the EEPROM.

For example, if users want to load only the output driver settings from the EEPROM without disturbing the PLL register settings currently stored in the AD9522, they can alter the EEPROM buffer segment to include only the registers that apply to the output drivers and exclude the registers that apply to the PLL configuration.

There are two parts to the EEPROM buffer segment: register section definition groups and operational codes. Each register section definition group contains the starting address and number of bytes to be written to the EEPROM.

If the AD9522 register map were continuous from Address 0x000 to Address 0x232, only one register section definition group would consist of a starting address of 0x000 and a length of 563 bytes. However, this is not the case. The AD9522 register map is noncontiguous, and the EEPROM is only 512 bytes long. Therefore, the register section definition group tells the EEPROM controller how the AD9522 register map is segmented.

There are three operational codes: IO_UPDATE, end-of-data, and pseudo-end-of-data. It is important that the EEPROM buffer segment always have either an end-of-data or a pseudo-end-of-data operational code and that an IO_UPDATE operation code appear at least once before the end-of-data op code.

Register Section Definition Group

The register section definition group is used to define a continuous register section for the EEPROM profile. It consists of three bytes. The first byte defines how many continuous register bytes are in this group. If the user puts 0x000 in the first byte, it means there is only one byte in this group. If the user puts 0x001, it means there are two bytes in this group. The maximum number of registers in one group is 128.

The next two bytes are the low byte and high byte of the memory address (16-bit) of the first register in this group.

IO_UPDATE (Operational Code 0x80)

The EEPROM controller uses Operational Code 0x80 to generate an IO_UPDATE signal to update the active control register bank from the buffer register bank during the download process.

At a minimum, there should be at least one IO_UPDATE operational code after the end of the final register section definition group. This is needed so that at least one IO_UPDATE occurs after all of the AD9522 registers are loaded when the EEPROM is read. If this operational code is absent during a write to the EEPROM, the register values loaded from the EEPROM are not transferred to the active register space, and these values do not take effect after they are loaded from the EEPROM to the AD9522.

End-of-Data (Operational Code 0xFF)

The EEPROM controller uses Operational Code 0xFF to terminate the data transfer process between EEPROM and the control register during the upload and download process. The last item appearing in the EEPROM buffer segment should be either this operational code or the pseudo-end-of-data operational code.

Pseudo-End-of-Data (Operational Code 0xFE)

The AD9522 EEPROM buffer segment has 23 bytes that can contain up to seven register section definition groups. If users want to define more than seven register section definition groups, the pseudo-end-of-data operational code (0xFE) can be used. During the upload process, when the EEPROM controller receives the pseudo-end-of-data operational code, it halts the data transfer process, clears the REG2EEPROM bit, and enables the AD9522 serial port. Users can then program the EEPROM buffer segment again and reinitiate the data transfer process by setting the REG2EEPROM bit (0xB03[0]) to 1 and the IO_UPDATE bit (0x232[0]) to 1. The internal IC master then begins writing to the EEPROM starting from the EEPROM address held from the last writing.

This sequence enables more discrete instructions to be written to the EEPROM than would otherwise be possible due to the limited size of the EEPROM buffer segment. It also permits the user to write to the same register multiple times with a different value each time.

Rev. 0 | Page 58 of 84

AD9522-1

Table 46. Example of EEPROM Buffer Segment

Reg Addr (Hex) Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (LSB) Start EEPROM Buffer Segment

0xA00 0 Number of bytes [6:0] of the first group of registers 0xA01 Address [15:8] of the first group of registers 0xA02 Address [7:0] of the first group of registers 0xA03 0 Number of bytes [6:0] of the second group of registers 0xA04 Address [15:8] of the second group of registers 0xA05 Address [7:0] of the second group of registers 0xA06 0 Number of bytes [6:0] of the third group of registers 0xA07 Address [15:8] of the third group of registers 0xA08 Address [7:0] of the third group of registers 0xA09 IO_UPDATE operational code (0x80) 0xA0A End-of-data operational code (0xFF)

Rev. 0 | Page 59 of 84

AD9522-1

THERMAL PERFORMANCE

Table 47. Thermal Parameters for the 64-Lead LFCSP

Symbol Thermal Characteristic Using a JEDEC JESD51-7 Plus JEDEC JESD51-5 2S2P Test Board Value (°C/W)

θJA Junction-to-ambient thermal resistance, 0.0 m/sec airflow per JEDEC JESD51-2 (still air) 22.0 θ

Junction-to-ambient thermal resistance, 1.0 m/sec airflow per JEDEC JESD51-6 (moving air) 19.2

JMA

Junction-to-ambient thermal resistance, 2.0 m/sec airflow per JEDEC JESD51-6 (moving air) 17.2

JMA

ΨJB

Junction-to-board characterization parameter, 1.0 m/sec airflow per JEDEC JESD51-6 (moving air)

and JEDEC JESD51-8 θJC Junction-to-case thermal resistance (die-to-heat sink) per MIL-STD-883, Method 1012.1 1.3 ΨJT Junction-to-top-of-package characterization parameter, 0 m/sec airflow per JEDEC JESD51-2 (still air) 0.1

The AD9522 is specified for a case temperature (T that T

is not exceeded, an airflow source can be used.

CASE

). To ensure

CASE

Use the following equation to determine the junction temperature on the application PCB:

= T

+ (ΨJT × PD)

CASE

where:

is the junction temperature (°C).

is the case temperature (°C) measured by the user at the

CASE

top center of the package.

is the value from Tabl e 47 .

PD is the power dissipation (see the total power dissipation in

Tabl e 18 ).

Valu es o f θ design considerations. θ approximation of T

where T

Valu es o f θ

are provided for package comparison and PCB

can be used for a first-order

by the equation

= TA + (θJA × PD)

is the ambient temperature (°C).

are provided for package comparison and PCB

design considerations when an external heat sink is required.

Valu es o f Ψ

are provided for package comparison and PCB

design considerations.

11.6

Rev. 0 | Page 60 of 84

AD9522-1

REGISTER MAP

Register addresses that are not listed in Tab l e 48 are not used, and writing to those registers has no effect. Writing to register addresses marked unused should have 0x00 written to them, unless otherwise noted.

Table 48. Register Map Overview

Default Addr (Hex) Parameter Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (LSB)

Serial Port Configuration

000 Serial port config

(SPI mode)

Serial port config (I²C mode)

001 Unused N/A 002 Reserved (read-only) N/A 003 Reserved (read-only) N/A 004 Readback

control

EEPROM ID

005 EEPROM

customer

006 EEPROM customer version ID (MSB) 00

version ID

007

Unused 00 to 00F

PLL

010 PFD charge

pump 011 R counter 14-bit R counter, Bits[7:0] (LSB) 01 012 Unused 14-bit R counter, Bits[13:8] (MSB) 00 013 A counter Unused 6-bit A counter 00 014 B counter 13-bit B counter, Bits[7:0] (LSB) 03 015 Unused 13-bit B counter, Bits[12:8] (MSB) 00 016 PLL_CTRL_1 Set CP pin

017 PLL_CTRL_2 STATUS pin control Antibacklash pulse width 00 018 PLL_CTRL_3 Enable CMOS

019 PLL_CTRL_4 R, A, B counters

01A PLL_CTRL_5 Enable STATUS

01B PLL_CTRL_6 Enable VCO

01C PLL_CTRL_7 Disable

01D PLL_CTRL_8 Enable

SDO active LSB first/

PFD polarity Charge pump current Charge pump mode PLL power-down 7D

to VCP/2

reference input dc offset

SYNC

pin divider

frequency monitor

switchover deglitch

Status_EEPROM at STATUS pin

addr incr

Unused Soft reset

Reset R counter

Lock detect counter Digital

pin reset

Ref freq monitor threshold

Enable REF2

REFIN

( frequency monitor

Select REF2

Enable XTAL OSC

)

Soft reset (selfclearing)

(selfclearing)

Reset A and B counters

Enable REF1 (REFIN) frequency monitor

Use REF_SEL pin

Enable clock doubler

Unused Unused Soft reset

Unused Readback

EEPROM customer version ID (LSB) 00

Reset all counters

lock detect window

R path delay N path delay 00

Enable automatic reference switchover

Disable PLL status register

B counter bypass

Disable digital lock detect

Stay on REF2 Enable

Enable LD pin comparator

(selfclearing)

VCO calibration divider

LD pin control 00

REFMON pin control 00

REF2

Unused Enable

LSB first/ addr incr

Prescaler P 06

Enable REF1

external holdover

SDO active 00

Unused 00

active regs

VCO calibration now

Enable differential reference

Enable holdover

Value (Hex)

Rev. 0 | Page 61 of 84

AD9522-1

Default Addr (Hex) Parameter Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 0 (LSB)

01E PLL_CTRL_9 Unused External zero delay

01F PLL_Readback

(read-only)

Output Driver Control

0F0 OUT0 control OUT0 format OUT0 CMOS

0F1 OUT1 control OUT1 format OUT1 CMOS

0F2 OUT2 control OUT2 format OUT2 CMOS

0F3 OUT3 control OUT3 format OUT3 CMOS

0F4 OUT4 control OUT4 format OUT4 CMOS

0F5 OUT5 control OUT5 format OUT5 CMOS

0F6 OUT6 control OUT6 format OUT6 CMOS

0F7 OUT7 control OUT7 format OUT7 CMOS

0F8 OUT8 control OUT8 format OUT8 CMOS

0F9 OUT9 control OUT9 format OUT9 CMOS

0FA OUT10 control OUT10 format OUT10 CMOS

0FB OUT11 control OUT11 format OUT11 CMOS

0FC Enable output

on CSDLD

0FD Enable output

on CSDLD

0FE

Unused 00 to 18F

LVDS Channel Dividers

190 Divider 0 Divider 0 low cycles Divider 0 high cycles 77 191 Divider 0

192 Unused Channel 0

Unused VCO cal

CSDLD En OUT7

Unused Unused Unused Unused CSDLD En

bypass

finished

CSDLD En OUT6

Divider 0 ignore SYNC

Holdover active

configuration

CSDLD En OUT5

Divider 0 force high

feedback

channel divider select

REF2 selected

CSDLD En OUT4

Divider 0 start high

VCO freq > threshold

OUT0 polarity OUT0 LVDS

OUT1 polarity OUT1 LVDS

OUT2 polarity OUT2 LVDS

OUT3 polarity OUT3 LVDS

OUT4 polarity OUT4 LVDS

OUT5 polarity OUT5 LVDS

OUT6 polarity OUT6 LVDS

OUT7 polarity OUT7 LVDS

OUT8 polarity OUT8 LVDS

OUT9 polarity OUT9 LVDS

OUT10 polarity OUT10 LVDS

OUT11 polarity OUT11 LVDS

CSDLD En OUT3

OUT11

Bit 2 Bit 1

Enable external zero delay

REF2 freq > threshold

CSDLD En OUT2

CSDLD En OUT10

power-

down

Enable zero delay

REF1 freq > threshold

differential voltage

CSDLD En OUT1

CSDLD En OUT9

Divider 0

phase offset

Unused 00

Digital lock detect

OUT0 LVDS power-down

OUT1 LVDS power-down

OUT2 LVDS power-down

OUT3 LVDS power-down

OUT4 LVDS power-down

OUT5 LVDS power-down

OUT6 LVDS power-down

OUT7 LVDS power-down

OUT8 LVDS power-down

OUT9 LVDS power-down

OUT10 LVDS power-down

OUT11 LVDS power-down

CSDLD En OUT0

CSDLD En OUT8

Reserved Disable

Divider 0

DCC

Value (Hex)

N/A

Rev. 0 | Page 62 of 84

AD9522-1

Default Addr (Hex) Parameter Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 0 (LSB)

193 Divider 1 Divider 1 low cycles Divider 1 high cycles 33 194 Divider 1

195 Unused Channel 1

196 Divider 2 Divider 2 low cycles Divider 2 high cycles 11 197 Divider 2

198 Unused Channel 2

199 Divider 3 Divider 3 low cycles Divider 3 high cycles 00 19A Divider 3

19B Unused Channel 3

Unused 00

19C to 1DF

VCO Divider and CLK Input

1E0 VCO divider Unused VCO divider 00 1E1 Input CLKs Unused Power -

Unused 00

1E2 to 22A

System

230 Power-down

and SYNC

231 Unused 00

Update All Registers

232 IO_UPDATE Unused IO_UPDATE

233

Unused 00 to 9FF

EEPROM Buffer Segment

A00 EEPROM

Buffer Segment

bypass

0 EEPROM Buffer Segment Register 1 (default: number of bytes for Group 1) 00

0 EEPROM Buffer Segment Register 4 (default: number of bytes for Group 2) 02

Divider 1 ignore SYNC

Divider 2 ignore SYNC

Divider 3 ignore SYNC

EEPROM Buffer Segment Register 2 (default: Bits[15:8] of starting register address for Group 1) 00

EEPROM Buffer Segment Register 3 (default: Bits[7:0] of starting register address for Group 1) 00

EEPROM Buffer Segment Register 5 (default: Bits[15:8] of starting register address for Group 2) 00

Divider 1 force high

Divider 2 force high

Divider 3 force high

Unused Disable

Divider 1 start high

Divider 2 start high

Divider 3 start high

down clock input section

Power- down VCO clock interface

power-on SYNC

Bit 2 Bit 1

Divider 1

phase offset

power-

down

Divider 2

phase offset

power-

down

Divider 3

phase offset

powerdown

Powerdown VCO and CLK

Powerdown SYNC

Select VCO or CLK

Powerdown distribution reference

Reserved Disable

Divider 1

DCC

Reserved Disable

Divider 2

DCC

Reserved Disable

Divider 3 DCC

Bypass VCO divider

Soft SYNC

(self-clearing)

Value (Hex)

Rev. 0 | Page 63 of 84

AD9522-1

Default Addr (Hex) Parameter Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 0 (LSB)

A05 EEPROM

Buffer Segment Register 6

A06 EEPROM

Buffer Segment Register 7

A07 EEPROM

Buffer Segment Register 8

A08 EEPROM

Buffer Segment Register 9

A09 EEPROM

Buffer Segment Register 10

A0A EEPROM

Buffer Segment Register 11

A0B EEPROM

Buffer Segment Register 12

A0C EEPROM

Buffer Segment Register 13

A0D EEPROM

Buffer Segment Register 14

A0E EEPROM

Buffer Segment Register 15

A0F EEPROM

Buffer Segment Register 16

A10 EEPROM

Buffer Segment Register 17

A11 EEPROM

Buffer Segment Register 18

A12 EEPROM

Buffer Segment Register 19

A13 EEPROM

Buffer Segment Register 20

A14 EEPROM

Buffer Segment Register 21

A15 EEPROM

Buffer Segment Register 22

A16 EEPROM

Buffer Segment Register 23

A17

Unused 00 to AFF

EEPROM Buffer Segment Register 6 (default: Bits[7:0] of starting register address for Group 2) 04

0 EEPROM Buffer Segment Register 7 (default: number of bytes for Group 3) 0E

EEPROM Buffer Segment Register 8 (default: Bits[15:8] of starting register address for Group 3) 00

EEPROM Buffer Segment Register 9 (default: Bits[7:0] of starting register address for Group 3) 10

0 EEPROM Buffer Segment Register 10 (default: number of bytes for Group 4) 0E

EEPROM Buffer Segment Register 11 (default: Bits[15:8] of starting register address for Group 4) 00

EEPROM Buffer Segment Register 12 (default: Bits[7:0] of starting register address for Group 4) F0

0 EEPROM Buffer Segment Register 13 (default: number of bytes for Group 5) 0B

EEPROM Buffer Segment Register 14 (default: Bits[15:8] of starting register address for Group 5) 01

EEPROM Buffer Segment Register 15 (default: Bits[7:0] of starting register address for Group 5) 90

0 EEPROM Buffer Segment Register 16 (default: number of bytes for Group 6) 01

EEPROM Buffer Segment Register 17 (default: Bits[15:8] of starting register address for Group 6) 01

EEPROM Buffer Segment Register 18 (default: Bits[7:0] of starting register address for Group 6) E0

0 EEPROM Buffer Segment Register 19 (default: number of bytes for Group 7) 01

EEPROM Buffer Segment Register 20 (default: Bits[15:8] of starting register address for Group 7) 02

EEPROM Buffer Segment Register 21 (default: Bits[7:0] of starting register address for Group 7) 30

EEPROM Buffer Segment Register 22 (default: IO_UPDATE from EEPROM) 80

EEPROM Buffer Segment Register 23 (default: end of data) FF

Bit 2 Bit 1

Value (Hex)

Rev. 0 | Page 64 of 84

AD9522-1

Default Addr (Hex) Parameter Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 0 (LSB)

EEPROM Control

B00 EEPROM status

(read-only)

B01 EEPROM error

checking (read-only)

B02 EEPROM

Control 1

B03 EEPROM

Control 2

Unused STATUS_

Unused EEPROM

Unused Soft_EEPROM

Unused REG2EEPROM

Bit 2 Bit 1

(self-clearing)

EEPROM

data error

Enable EEPROM write

(self-clearing)

Value

(Hex)

Rev. 0 | Page 65 of 84

AD9522-1

REGISTER MAP DESCRIPTIONS

Tabl e 49 through Ta b le 5 9 provide a detailed description of each of the control register functions. The registers are listed by hexadecimal address. Reference to a specific bit or range of bits within a register is indicated by squared brackets. For example, [3] refers to Bit 3 and [5:2] refers to the range of bits from Bit 5 through Bit 2.

Table 49. SPI Mode Serial Port Configuration

Reg Addr (Hex) Bit(s) Name Description

000 [7] SDO active Selects unidirectional or bidirectional data transfer mode. [7] = 0; SDIO pin used for write and read; SDO is high impedance (default). [7] = 1; SDO used for read; SDIO used for write; unidirectional mode. 000 [6] LSB first/addr incr SPI MSB or LSB data orientation. (This register is ignored in I2C mode.) [6] = 0; data-oriented MSB first; addressing decrements (default). [6] = 1; data-oriented LSB first; addressing increments. 000 [5] Soft reset Soft reset.

000 [4] Unused 000 [3:0] Mirror[7:4]

[0] = [7] [1] = [6] [2] = [5] [3] = [4] 004 [0] Readback active registers Select register bank used for a readback. [0] = 0; read back buffer registers (default). [0] = 1; read back active registers.

Table 50. I

Reg Addr (Hex) Bit(s) Name Description

000 [7:6] Unused 000 [5] Soft reset Soft reset.

000 [4] Unused 000 [3:0] Mirror[7:4] Bits[3:0] should always mirror Bits[7:4]. Set bits as follows: [0] = [7] [1] = [6] [2] = [5] [3] = [4] 004 [0] Readback active registers Select register bank used for a readback. [0] = 0; read back buffer registers (default). [0] = 1; read back active registers.

C Mode Serial Port Configuration

[5] = 1 (self-clearing). Soft reset; restores default values to internal registers. This bit self-clears on the next SCLK cycle after the completion of writing to this register.

Bits[3:0] should always mirror Bits[7:4] so that it does not matter whether the part is in MSB or LSB first mode (see Register 0x000[6]). Set bits as follows:

[5] = 1 (self-clearing). Soft reset; restores default values to internal registers. This bit self-clears on the next SCL cycle after the completion of writing to this register.

Table 51. EEPROM ID

Reg Addr (Hex) Bit(s) Name Description

005 [7:0]

006 [7:0]

EEPROM customer version ID (LSB)

EEPROM customer version ID (MSB)

16-bit EEPROM ID[7:0]. This register, along with 0x006, allows the user to store a unique ID to identify which version of the AD9522 register settings is stored in the EEPROM. It does not affect AD9522 operation in any way (default: 0x00).

16-bit EEPROM ID[15:8]. This register, along with 0x005, allows the user to store a unique ID to identify which version of the AD9522 register settings is stored in the EEPROM. It does not affect AD9522 operation in any way (default: 0x00).

Rev. 0 | Page 66 of 84

AD9522-1

Table 52. PLL

Reg. Addr (Hex) Bit(s) Name Description

010 [7] PFD polarity

[7] = 0; positive (higher control voltage produces higher frequency) (default). [7] = 1; negative (higher control voltage produces lower frequency). 010 [6:4] CP current Charge pump current (with CPRSET = 5.1 kΩ).

0 0 0 0.6 0 0 1 1.2 0 1 0 1.8 0 1 1 2.4 1 0 0 3.0 1 0 1 3.6 1 1 0 4.2 1 1 1 4.8 (default) 010 [3:2] CP mode Charge pump operating mode.

0 0 High impedance state. 0 1 Force source current (pump up). 1 0 Force sink current (pump down). 1 1 Normal operation (default). 010 [1:0]

0 0 Normal operation; this mode must be selected to use the PLL. 0 1 Asynchronous power-down (default). 1 0 Unused. 1 1 Synchronous power-down. 011 [7:0]

012 [5:0]

013 [5:0] 6-bit A counter A counter (part of N divider). The N divider is also called the feedback divider (default: 0x00). 014 [7:0]

015 [4:0]

016 [7] [7] = 0; CP normal operation (default). [7] = 1; CP pin set to VCP/2. 016 [6] Reset R counter Reset R counter (R divider). [6] = 0; normal (default). [6] = 1; hold R counter in reset. 016 [5] [5] = 0; normal (default). [5] = 1; hold A and B counters in reset. 016 [4] [4] = 0; normal (default). [4] = 1; hold R, A, and B counters in reset.

PLL powerdown

14-bit R counter, Bits[7:0] (LSB)

14-bit R counter, Bits[13:8] (MSB)

13-bit B counter, Bits[7:0] (LSB)

13-bit B counter, Bits[12:8] (MSB)

Set CP pin to VCP/2

Reset A and B counters

Reset all counters

Sets the PFD polarity. Negative polarity is for use (if needed) with external VCO/VCXO only. The on-chip VCO requires positive polarity, [7] = 0.

[6] [5] [4] ICP (mA)

[3] [2] Charge Pump Mode

PLL operating mode.

[1] [0] Mode

Reference divider LSBs—lower eight bits. The reference divider (also called the R divider or R counter) is 14 bits long. The lower eight bits are in this register (default: 0x01).

Reference divider MSBs—upper six bits. The reference divider (also called the R divider or R counter) is 14 bits long. The upper six bits are in this register (default: 0x00).

B counter (part of N divider)—lower eight bits. The N divider is also called the feedback divider (default: 0x03).

B counter (part of N divider)—upper five bits. The N divider is also called the feedback divider (default: 0x00).

Sets the CP pin to one-half of the VCP supply voltage.

Reset A and B counters (part of N divider).

Reset R, A, and B counters.

Rev. 0 | Page 67 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

016 [3] [3] = 0; normal (default).

016 [2:0] Prescaler P Prescaler: DM = dual modulus and FD = fixed divide. The Prescaler P is part of the feedback divider.

0 0 0 FD Divide-by-1. 0 0 1 FD Divide-by-2. 0 1 0 DM Divide-by-2 and divide-by-3 when A ≠ 0; divide-by-2 when A = 0. 0 1 1 DM Divide-by-4 and divide-by-5 when A ≠ 0; divide-by-4 when A = 0. 1 0 0 DM Divide-by-8 and divide-by-9 when A ≠ 0; divide-by-8 when A = 0. 1 0 1 DM Divide-by-16 and divide-by-17 when A ≠ 0; divide-by-16 when A = 0. 1 1 0 DM Divide-by-32 and divide-by-33 when A ≠ 0; divide-by-32 when A = 0 (default). 1 1 1 FD Divide-by-3. 017 [7:2]

0 0 0 0 0 0 LVL Ground, dc (default). 0 0 0 0 0 1 DYN N divider output (after the delay). 0 0 0 0 1 0 DYN R divider output (after the delay). 0 0 0 0 1 1 DYN A divider output. 0 0 0 1 0 0 DYN Prescaler output. 0 0 0 1 0 1 DYN PFD up pulse. 0 0 0 1 1 0 DYN PFD down pulse. 0 X X X X X LVL Ground (dc); for all other cases of 0XXXXX not specified. The selections that follow are the same as for REFMON. 1 0 0 0 0 0 LVL Ground (dc). 1 0 0 0 0 1 DYN REF1 clock (differential reference when in differential mode). 1 0 0 0 1 0 DYN REF2 clock (not available in differential mode). 1 0 0 0 1 1 DYN

1 0 0 1 0 0 DYN

1 0 0 1 0 1 LVL

1 0 0 1 1 0 LVL

1 0 0 1 1 1 LVL Status of REF1 frequency (active high). 1 0 1 0 0 0 LVL Status of REF2 frequency (active high). 1 0 1 0 0 1 LVL (Status of REF1 frequency) AND (status of REF2 frequency). 1 0 1 0 1 0 LVL (DLD) AND (status of selected reference) AND (status of VCO). 1 0 1 0 1 1 LVL Status of VCO frequency (active high). 1 0 1 1 0 0 LVL Selected reference (low = REF1, high = REF2). 1 0 1 1 0 1 LVL DLD; active high. 1 0 1 1 1 0 LVL Holdover active (active high). 1 0 1 1 1 1 LVL LD pin comparator output (active high). 1 1 0 0 0 0 LVL VS (PLL power supply). 1 1 0 0 0 1 DYN

1 1 0 0 1 0 DYN 1 1 0 0 1 1 DYN

B counter bypass

STATUS pin control

B counter bypass. This is only valid when operating the prescaler in FD mode.

[3] = 1; B counter is set to divide-by-1. This allows the prescaler setting to determine the divide for the N divider.

[2] [1] [0] Mode Prescaler

Selects the signal that appears at the STATUS pin. 0x01D[7] must be 0 to reprogram the STATUS pin.

Level or Dynamic

[7] [6] [5] [4] [3] [2]

Signal Signal at STATUS Pin

Selected reference to PLL (differential reference when in differential mode).

Unselected reference to PLL (not available in differential mode).

Status of selected reference (status of differential reference); active high.

Status of unselected reference (not available in differential mode); active high.

REF1 clock REF2 clock Selected reference to PLL

differential mode).

(differential reference when in differential mode). (not available in differential mode).

(differential reference when in

Rev. 0 | Page 68 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

[7] [6] [5] [4] [3] [2]

1 1 0 1 0 0 DYN

1 1 0 1 0 1 LVL

1 1 0 1 1 0 LVL

1 1 0 1 1 1 LVL Status of REF1 frequency (active low). 1 1 1 0 0 0 LVL Status of REF2 frequency (active low). 1 1 1 0 0 1 LVL

1 1 1 0 1 0 LVL 1 1 1 0 1 1 LVL Status of VCO frequency (active low).

1 1 1 1 0 0 LVL Selected reference (low = REF2, high = REF1). 1 1 1 1 0 1 LVL DLD (active low).

1 1 1 1 1 0 LVL Holdover active (active low). 1 1 1 1 1 1 LVL LD pin comparator output (active low). 017 [1:0] 0 0 2.9 (default) 0 1 1.3 1 0 6.0 1 1 2.9 018 [7] [7] = 0; disable dc offset (default). [7] = 1; enable dc offset. 018 [6:5]

0 0 5 (default) 0 1 16 1 0 64 1 1 255 018 [4]

[4] = 0; high range (default). [4] = 1; low range. 018 [3] [3] = 0; normal lock detect operation (default). [3] = 1; disable lock detect. 018 [2:1]

0 0 2 0 1 4 1 0 8 1 1 16 (default)

Antibacklash pulse width

Enable CMOS reference input dc offset

Lock detect counter

Digital lock detect window

Disable digital lock detect

VCO calibration divider

[1] [0] Antibacklash Pulse Width (ns)

Enables dc offset in single-ended CMOS input mode to prevent chattering when ac-coupled and input is lost.

Required consecutive number of PFD cycles with edges inside lock detect window before the DLD indicates a locked condition.

[6] [5] PFD Cycles to Determine Lock

If the time difference of the rising edges at the inputs to the PFD are less than the lock detect window time, the digital lock detect flag is set. The flag remains set until the time difference is greater than the loss-of-lock threshold.

Digital lock detect operation.

Divider used to generate the VCO calibration clock from the PLL reference clock (see the VCO Calibration section for the recommended setting of the VCO calibration divider based on the PFD rate).

[2] [1] VCO Calibration Clock Divider

Level or Dynamic Signal Signal at STATUS Pin

Unselected reference to PLL differential mode).

Status of selected reference (status of differential reference); active low.

Status of unselected reference (not available in differential mode); active low.

(Status of REF1 frequency) AND (status of REF2 frequency) (DLD) AND (Status of selected reference) AND (status of VCO)

(not available when in

Rev. 0 | Page 69 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

018 [0]

019 [7:6] 0 0 0 1 Asynchronous reset. 1 0 Synchronous reset. 1 1 019 [5:3] R path delay R path delay, see Table 2 (default: 0x0). 019 [2:0] N path delay N path delay, see Table 2 (default: 0x0). 01A [7]

[7] = 0; divide-by-4 disabled on STATUS pin (default). [7] = 1; divide-by-4 enabled on STATUS pin. 01A [6]

[6] = 0; frequency valid if frequency is above 1.02 MHz (default). [6] = 1; frequency valid if frequency is above 8 kHz. 01A [5:0]

0 0 0 0 0 0 LVL Digital lock detect (high = lock; low = unlock, default). 0 0 0 0 0 1 DYN P-channel, open-drain lock detect (analog lock detect). 0 0 0 0 1 0 DYN N-channel, open-drain lock detect (analog lock detect). 0 0 0 0 1 1 HIZ Tristate (high-Z) LD pin. 0 0 0 1 0 0 CUR Current source lock detect (110 μA when DLD is true). 0 X X X X X LVL Ground (dc); for all other cases of 0XXXXX not specified. The selections that follow are the same as for REFMON. 1 0 0 0 0 0 LVL Ground (dc). 1 0 0 0 0 1 DYN REF1 clock (differential reference when in differential mode). 1 0 0 0 1 0 DYN REF2 clock (not available in differential mode). 1 0 0 0 1 1 DYN

1 0 0 1 0 0 DYN Unselected reference to PLL (not available in differential mode). 1 0 0 1 0 1 LVL

1 0 0 1 1 0 LVL

1 0 0 1 1 1 LVL Status of REF1 frequency (active high). 1 0 1 0 0 0 LVL Status of REF2 frequency (active high). 1 0 1 0 0 1 LVL (Status of REF1 frequency) AND (status of REF2 frequency). 1 0 1 0 1 0 LVL (DLD) AND (status of selected reference) AND (status of VCO). 1 0 1 0 1 1 LVL Status of VCO frequency (active high). 1 0 1 1 0 0 LVL Selected reference (low = REF1, high = REF2). 1 0 1 1 0 1 LVL DLD; active high. 1 0 1 1 1 0 LVL Holdover active (active high). 1 0 1 1 1 1 LVL Not available, do not use. 1 1 0 0 0 0 LVL VS (PLL supply). 1 1 0 0 0 1 DYN

VCO calibration now

R, A, B counters

pin reset

SYNC

Enable STATUS pin divider

Ref freq monitor threshold

LD pin control

Bit used to initiate the VCO calibration. This bit must be toggled from 0 to 1 in the active registers. The sequence to initiate a calibration follows: program to 0, followed by an IO_UPDATE bit (Register 0x232[0]); then program to 1, followed by another IO_UPDATE bit (Register 0x232[0]). This sequence gives complete control over when the VCO calibration occurs relative to the programming of other registers that can impact the calibration (default = 0). Note that the VCO divider (Register 0x1E0[2:0]) must not be static during VCO calibration.

[7] [6] Action

Do nothing on SYNC

Enables a divide-by-4 on the STATUS pin. This makes it easier to look at low duty-cycle signals out of the R and N dividers.

Sets the reference (REF1/REF2) frequency monitor’s detection threshold frequency. This does not affect the VCO frequency monitor’s detection threshold (see Table 1 7, REF1, REF2, and VCO frequency status monitor parameter).

Selects the signal that is connected to the LD pin.

[5] [4] [3] [2] [1] [0]

(default).

Level or Dynamic Signal

Rev. 0 | Page 70 of 84

Signal at LD Pin

Selected reference to PLL (differential reference when in differential mode).

Status of selected reference (status of differential reference); active high.

Status of unselected reference (not available in differential mode); active high.

REF1 clock

(differential reference when in differential mode).

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

[5] [4] [3] [2] [1] [0]

1 1 0 0 1 0 DYN 1 1 0 0 1 1 DYN

1 1 0 1 0 0 DYN

1 1 0 1 0 1 LVL

1 1 0 1 1 0 LVL

1 1 0 1 1 1 LVL Status of REF1 frequency (active low). 1 1 1 0 0 0 LVL Status of REF2 frequency (active low). 1 1 1 0 0 1 LVL 1 1 1 0 1 0 LVL

1 1 1 0 1 1 LVL Status of VCO frequency (active low). 1 1 1 1 0 0 LVL Selected reference (low = REF2, high = REF1). 1 1 1 1 0 1 LVL DLD; active low. 1 1 1 1 1 0 LVL Holdover active (active low). 1 1 1 1 1 1 LVL Not available, do not use. 01B [7] [7] = 0; disable the VCO frequency monitor (default). [7] = 1; enable the VCO frequency monitor. 01B [6]

01B [5]

[5] = 0; disable the REF1 (REFIN) frequency monitor (default). [5] = 1; enable the REF1 (REFIN) frequency monitor. 01B [4:0]

0 0 0 0 0 LVL Ground, dc (default). 0 0 0 0 1 DYN REF1 clock (differential reference when in differential mode). 0 0 0 1 0 DYN REF2 clock (not available in differential mode). 0 0 0 1 1 DYN

0 0 1 0 0 DYN Unselected reference to PLL (not available in differential mode). 0 0 1 0 1 LVL

0 0 1 1 0 LVL

0 0 1 1 1 LVL Status REF1 frequency (active high). 0 1 0 0 0 LVL Status REF2 frequency (active high). 0 1 0 0 1 LVL (Status REF1 frequency) AND (status REF2 frequency). 0 1 0 1 0 LVL (DLD) AND (status of selected reference) AND (status of VCO). 0 1 0 1 1 LVL Status of VCO frequency (active high). 0 1 1 0 0 LVL Selected reference (low = REF1, high = REF2). 0 1 1 0 1 LVL DLD; active low.

Enable VCO frequency monitor

Enable REF2

)

(REFIN frequency monitor

Enable REF1 (REFIN) frequency monitor

REFMON pin control

Enables or disables the VCO frequency monitor.

Enables or disables the REF2 frequency monitor. [6] = 0; disable the REF2 (REFIN [6] = 1; enable the REF2 (REFIN

REF1 (REFIN) frequency monitor enabled; this is for both REF1 (single-ended) and REFIN (differential) inputs (as selected by differential reference mode).

Selects the signal that is connected to the REFMON pin.

[4] [3] [2] [1] [0]

Level or Dynamic Signal Signal at LD Pin

REF2 clock Selected reference to PLL

differential mode). Unselected reference to PLL

mode). Status of selected reference (status of differential reference);

active low. Status of unselected reference (not available in differential

mode); active low.

(Status of REF1 frequency) AND (status of REF2 frequency) (DLD) AND (Status of selected reference) AND (status of VCO)

) frequency monitor (default).

) frequency monitor.

Level or Dynamic Signal Signal at REFMON Pin

Selected reference to PLL (differential reference when in differential mode).

Status of selected reference (status of differential reference); active high.

Status of unselected reference (not available in differential mode); active high.

Rev. 0 | Page 71 of 84

(not available in differential mode).

(differential reference when in

(not available when in differential

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

[4] [3] [2] [1] [0]

0 1 1 1 0 LVL Holdover active (active high). 0 1 1 1 1 LVL LD pin comparator output (active high). 1 0 0 0 0 LVL VS (PLL supply). 1 0 0 0 1 DYN 1 0 0 1 0 DYN

1 0 0 1 1 DYN

1 0 1 0 0 DYN 1 0 1 0 1 LVL

1 0 1 1 0 LVL

1 0 1 1 1 LVL Status of REF1 frequency (active low). 1 1 0 0 0 LVL Status of REF2 frequency (active low). 1 1 0 0 1 LVL

1 1 0 1 0 LVL 1 1 0 1 1 LVL Status of VCO frequency (active low). 1 1 1 0 0 LVL Selected reference (low = REF2, high = REF1). 1 1 1 0 1 LVL DLD; active low. 1 1 1 1 0 LVL Holdover active (active low). 1 1 1 1 1 LVL LD pin comparator output (active low). 01C [7] [7] = 0; enable the switchover deglitch circuit (default). [7] = 1; disable the switchover deglitch circuit. 01C [6] Select REF2 If Register 0x01C[5] = 0, selects the reference for PLL when in manual; register selected reference control. [6] = 0; select REF1 (default). [6] = 1; select REF2. 01C [5] [5] = 0; use Register 0x01C[6] (default). [5] = 1; use REF_SEL pin. 01C [4]

[4] = 0; manual reference switchover (default).

01C [3] Stay on REF2 Stays on REF2 after switchover.

01C [2] Enable REF2 This bit turns the REF2 power on. This bit is overridden when automatic reference switchover is enabled. [2] = 0; REF2 power off (default). [2] = 1; REF2 power on. 01C [1] Enable REF1 This bit turns the REF1 power on. This bit is overridden when automatic reference switchover is enabled. [1] = 0; REF1 power off (default). [1] = 1; REF1 power on. 01C [0]

[0] = 0; single-ended reference mode (default). [0] = 1; differential reference mode.

Disable switchover deglitch

Use REF_SEL pin

Enable automatic reference switchover

Enable differential reference

Disables or enables the switchover deglitch circuit.

If Register 0x01C[4] = 0 (manual), sets the method of PLL reference selection.

Automatic or manual reference switchover. Single-ended reference mode must be selected by Register 0x01C[0] = 0.

[4] = 1; automatic reference switchover. Setting this bit also powers on REF1 and REF2, and overrides the settings in Register 0x01C[2:1].

[3] = 0; return to REF1 automatically when REF1 status is good again (default). [3] = 1; stay on REF2 after switchover. Do not automatically return to REF1.

Selects the PLL reference mode, differential or single-ended. Register 0x01C[2:1] should be cleared when this bit is set.

Level or Dynamic Signal Signal at REFMON Pin

REF1 clock REF2 clock Selected reference to PLL

differential mode). Unselected reference to PLL

Status of selected reference (status of differential reference); active low.

Status of unselected reference (not available in differential mode); active low.

(Status of REF1 frequency) AND (status of REF2 frequency) (DLD) AND (status of selected reference) AND (status of VCO)

(differential reference when in differential mode). (not available in differential mode).

(differential reference when in

(not available when in differential mode).

Rev. 0 | Page 72 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

01D [7] [7] = 0; the STATUS pin is controlled by the 0x017[7:2] selection. [7] = 1; select the Status_EEPROM signal at STATUS pin. This bit overrides 0x017[7:2] (default). 01D [6] [6] = 0; crystal oscillator maintaining amplifier disabled (default). [6] = 1; crystal oscillator maintaining amplifier enabled. 01D [5] [5] = 0; doubler disabled (default). [5] = 1; doubler enabled. 01D [4] [4] = 0; PLL status register enabled (default). [4] = 1; PLL status register disabled. If this bit is set, 0x01F is not automatically updated. 01D [3]

[3] = 1; enable LD pin comparator (use LD pin voltage to determine if the PLL was previously locked). 01D [1] [1] = 0; automatic holdover mode, holdover controlled by automatic holdover circuit (default).

01D [0] [0] = 0; holdover disabled (default). [0] = 1; holdover enabled. 01E [4:3] 0 0 Select Channel Divider 0 (default). 0 1 Select Channel Divider 1. 1 0 Select Channel Divider 2. 1 1 Select Channel Divider 3 01E [2] [2] = 0; enables internal zero delay mode if 0x01E[1] = 1 (default). [2] = 1; enables external zero delay mode if 0x01E[1] = 1. 01E [1] [1] = 0; disables zero delay function (default). [1] = 1; enables zero delay function. 01F [6] [6] = 0; VCO calibration not finished. [6] = 1; VCO calibration finished. 01F [5]

[5] = 0; not in holdover. [5] = 1; holdover state active. 01F [4] [4] = 0; REF1 selected (or differential reference if in differential mode). [4] = 1; REF2 selected. 01F [3]

[3] = 0; VCO frequency is less than the threshold. [3] = 1; VCO frequency is greater than the threshold.

Enable Status_EEPROM at STATUS pin

Enable XTAL OSC

Enable clock doubler

Disable PLL status register

Enable LD pin comparator

Enable external holdover

Enable holdover

External zero delay feedback channel divider select

Enable external zero delay

Enable zero delay

VCO calibration finished (read-only)

Holdover active (read-only)

REF2 selected (read-only)

VCO frequency > threshold (read-only)

Enables the Status_EEPROM signal at the STATUS pin.

Enables the maintaining amplifier needed by a crystal oscillator at the PLL reference input.

Enable PLL reference input clock doubler.

Disables the PLL status register readback.

Enables the LD pin voltage comparator. This is used with the LD pin current source lock detect mode. When the AD9522 is in internal (automatic) holdover mode, this enables the use of the voltage on the LD pin to determine if the PLL was previously in a locked state (see Figure 47). Otherwise, this can be used with the REFMON and STATUS pins to monitor the voltage on the LD pin.

[3] = 0; disable LD pin comparator and ignore the LD pin voltage; internal/automatic holdover controller treats this pin as true (high, default).

Enables the external hold control through the SYNC

[1] = 1; external holdover mode, holdover controlled by SYNC Enables the internally controlled holdover function.

[4] [3] Selects Which Channel Divider to Use in the External Zero Delay Path

Selects which zero delay mode to use.

Enables zero delay function.

Readback register. Indicates the status of the VCO calibration.

Readback register. Indicates if the part is in the holdover state (see Figure 47). This is not the same as holdover enabled.

Readback register. Indicates which PLL reference is selected as the input to the PLL.

Readback register. Indicates if the VCO frequency is greater than the threshold (see Table 17, REF1, REF2, and VCO frequency status monitor parameter).

pin. (This disables the internal holdover mode.)

pin.

Rev. 0 | Page 73 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

01F [2]

[2] = 0; REF2 frequency is less than the threshold frequency. [2] = 1; REF2 frequency is greater than the threshold frequency. 01F [1]

[1] = 0; REF1 frequency is less than the threshold frequency. [1] = 1; REF1 frequency is greater than the threshold frequency. 01F [0] [0] = 0; PLL is not locked. [0] = 1; PLL is locked.

Table 53. Output Driver Control

Reg. Addr (Hex) Bit(s) Name Description

0F0 [7] OUT0 format Selects the output type for OUT0. [7] = 0; LVDS (default). [7] = 1; CMOS. 0F0 [6:5]

00 Tristate Tristate 01 On Tristate 10 Tristate On 11 (default) On On 0F0 [4:3] OUT0 polarity Sets the output polarity for OUT0.

0 (default) X 0 LVDS Noninverting Inverting 0 X 1 LVDS Inverting Noninverting 1 0 (default) 0 (default) CMOS Noninverting Noninverting 1 0 1 CMOS Inverting Inverting 1 1 0 CMOS Noninverting Inverting 1 1 1 CMOS Inverting Noninverting 0F0 [2:1]

0 0 1.75 (VOD = 175 mV for 100 Ω termination across differential pair) 0 (default) 1 (default) 3.5 (VOD = 350 mV for 100 Ω termination across differential pair) 1 0 5.25 (VOD = 525 mV for 100 Ω termination across differential pair) 1 1 7.0 (VOD = 700 mV for 100 Ω termination across differential pair) 0F0 [0] [0] = 0; normal operation (default). [0] = 1; power-down. Output driver is in a high impedance state. 0F1 [7:0] OUT1 control This register controls OUT1, and the bit assignments for this register are identical to Register 0x0F0. 0F2 [7:0] OUT2 control This register controls OUT2, and the bit assignments for this register are identical to Register 0x0F0. 0F3 [7:0] OUT3 control This register controls OUT3, and the bit assignments for this register are identical to Register 0x0F0. 0F4 [7:0] OUT4 control This register controls OUT4, and the bit assignments for this register are identical to Register 0x0F0. 0F5 [7:0] OUT5 control This register controls OUT5, and the bit assignments for this register are identical to Register 0x0F0.

REF2 frequency > threshold (read-only)

REF1 frequency > threshold (read-only)

Digital lock detect (read-only)

OUT0 CMOS configuration

OUT0 LVDS differential voltage

OUT0 LVDS power-down

Readback register. Indicates if the frequency of the signal at REF2 is greater than the threshold frequency set by Register 0x01A[6].

Readback register. Indicates if the frequency of the signal at REF1 is greater than the threshold frequency set by Register 0x01A[6].

Readback register. Digital lock detect.

Sets the CMOS output configuration for OUT0 when 0x0F0[7] = 1.

[6:5] OUT0A OUT0B

[7] [4] [3] Output Type OUT0A OUT0B

Sets the LVDS output differential voltage (VOD).

[2] [1] IOD (mA)

LVDS power- down.

Rev. 0 | Page 74 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

0F6 [7:0] OUT6 control This register controls OUT6, and the bit assignments for this register are identical to Register 0x0F0. 0F7 [7:0] OUT7 control This register controls OUT7, and the bit assignments for this register are identical to Register 0x0F0. 0F8 [7:0] OUT8 control This register controls OUT8, and the bit assignments for this register are identical to Register 0x0F0. 0F9 [7:0] OUT9 control This register controls OUT9, and the bit assignments for this register are identical to Register 0x0F0. 0FA [7:0] OUT10 control This register controls OUT10, and the bit assignments for this register are identical to Register 0x0F0. 0FB [7:0] OUT11 control This register controls OUT11, and the bit assignments for this register are identical to Register 0x0F0. 0FC [7] CSDLD En OUT7 OUT7 is enabled only if CSDLD is high.

0 0 Not affected by CSDLD signal (default). 1 0 Asynchronous power-down. 1 1

0FC [6] CSDLD En OUT6 OUT6 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [5] CSDLD En OUT5 OUT5 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [4] CSDLD En OUT4 OUT4 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [3] CSDLD En OUT3 OUT3 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [2] CSDLD En OUT2 OUT2 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [1] CSDLD En OUT1 OUT1 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FC [0] CSDLD En OUT0 OUT0 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FD [3]

0FD [2]

0FD [1] CSDLD En OUT9 OUT9 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7]. 0FD [0] CSDLD En OUT8 OUT8 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7].

CSDLD En OUT11

CSDLD En OUT10

[7] CSDLD Signal OUT7 Enable Status

Asynchronously enable OUT7 if not powered down by other settings. To use this feature, the user must use current source digital lock detect, and set the enable LD pin comparator bit (0x01D[3]).

OUT11 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7].

OUT10 is enabled only if CSDLD is high. Setting is identical to Register 0x0FC[7].

Table 54. LVDS Channel Dividers

Reg. Addr (Hex) Bit(s) Name Description

190 [7:4] Divider 0 low cycles

190 [3:0] Divider 0 high cycles

191 [7] Divider 0 bypass Bypasses and powers down the divider; routes input to divider output. [7] = 0; use divider (default). [7] = 1; bypass divider. 191 [6] Divider 0 ignore SYNC Ignore SYNC. [6] = 0; obey chip-level SYNC signal (default). [6] = 1; ignore chip-level SYNC signal. 191 [5] Divider 0 force high Forces divider output to high. This requires that ignore SYNC also be set. [5] = 0; divider output forced to low (default). [5] = 1; divider output forced to high. 191 [4] Divider 0 start high Selects clock output to start high or start low. [4] = 0; start low (default). [4] = 1; start high. 191 [3:0] Divider 0 phase offset Phase offset (default: 0x0).

Number of clock cycles (minus 1) of the divider input during which divider output stays low. A value of 0x7 means the divider is low for eight input clock cycles (default: 0x7).

Number of clock cycles (minus 1) of the divider input during which divider output stays high. A value of 0x7 means the divider is high for eight input clock cycles (default: 0x7).

Rev. 0 | Page 75 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

192 [2] Channel 0 power-down Channel 0 powers down. [2] = 0; normal operation (default).

192 [0] Disable Divider 0 DCC Duty-cycle correction function. [0] = 0; enable duty-cycle correction (default). [0] = 1; disable duty-cycle correction. 193 [7:4] Divider 1 low cycles

193 [3:0] Divider 1 high cycles

194 [7] Divider 1 bypass Bypasses and powers down the divider; routes input to divider output. [7] = 0; use divider (default). [7] = 1; bypass divider. 194 [6] Divider 1 ignore SYNC Ignore SYNC. [6] = 0; obey chip-level SYNC signal (default). [6] = 1; ignore chip-level SYNC signal. 194 [5] Divider 1 force high Forces divider output to high. This requires that ignore SYNC also be set. [5] = 0; divider output forced to low (default). [5] = 1; divider output forced to high. 194 [4] Divider 1 start high Selects clock output to start high or start low. [4] = 0; start low (default). [4] = 1; start high. 194 [3:0] Divider 1 phase offset Phase offset (default: 0x0). 195 [2] Channel 1 power-down Channel 1 powers down. [2] = 0; normal operation (default).

195 [0] Disable Divider 1 DCC Duty-cycle correction function. [0] = 0; enable duty-cycle correction (default). [0] = 1; disable duty-cycle correction. 196 [7:4] Divider 2 low cycles

196 [3:0] Divider 2 high cycles

197 [7] Divider 2 bypass Bypasses and powers down the divider; routes input to divider output. [7] = 0; use divider (default). [7] = 1; bypass divider. 197 [6] Divider 2 ignore SYNC Ignore SYNC. [6] = 0; obey chip-level SYNC signal (default). [6] = 1; ignore chip-level SYNC signal. 197 [5] Divider 2 force high Forces divider output to high. This requires that ignore SYNC also be set. [5] = 0; divider output forced to low (default). [5] = 1; divider output forced to high. 197 [4] Divider 2 start high Selects clock output to start high or start low. [4] = 0; start low (default). [4] = 1; start high. 197 [3:0] Divider 2 phase offset Phase offset (default: 0x0).

[2] = 1; powered down. (OUT0/OUT0 impedance power-down mode by setting this bit.)

Number of clock cycles (minus 1) of the divider input during which the divider output stays low. A value of 0x3 means the divider is low for four input clock cycles (default: 0x3).

Number of clock cycles (minus 1) of the divider input during which the divider output stays high. A value of 0x3 means the divider is high for four input clock cycles (default: 0x3).

[2] = 1; powered down. (OUT3/OUT3 impedance power-down mode by setting this bit.)

Number of clock cycles (minus 1) of the divider input during which the divider output stays low. A value of 0x1 means the divider is low for two input clock cycles (default: 0x1).

Number of clock cycles (minus 1) of the divider input during which the divider output stays high. A value of 0x1 means the divider is high for two input clock cycles (default: 0x1).

, OUT1/OUT1, and OUT2/OUT2 are put into the high

, OUT4/OUT4, and OUT5/OUT5 are put into the high

Rev. 0 | Page 76 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

198 [2] Channel 2 power-down Channel 2 powers down. [2] = 0; normal operation (default).

198 [0] Disable Divider 2 DCC Duty-cycle correction function. [0] = 0; enable duty-cycle correction (default). [0] = 1; disable duty-cycle correction. 199 [7:4] Divider 3 low cycles

199 [3:0] Divider 3 high cycles

19A [7] Divider 3 bypass Bypasses and powers down the divider; routes input to divider output. [7] = 0; use divider (default). [7] = 1; bypass divider. 19A [6] Divider 3 ignore SYNC Ignore SYNC. [6] = 0; obey chip-level SYNC signal (default). [6] = 1; ignore chip-level SYNC signal. 19A [5] Divider 3 force high Forces divider output to high. This requires that ignore SYNC also be set. [5] = 0; divider output forced to low (default). [5] = 1; divider output forced to high. 19A [4] Divider 3 start high Selects clock output to start high or start low. [4] = 0; start low (default). [4] = 1; start high. 19A [3:0] Divider 3 phase offset Phase offset (default: 0x0). 19B [2] Channel 3 power-down Channel 3 powers down. [2] = 0; normal operation (default).

19B [0] Disable Divider 3 DCC Duty-cycle correction function. [0] = 0; enable duty-cycle correction (default). [0] = 1; disable duty-cycle correction.

[2] = 1; powered down. (OUT6/OUT6 impedance power-down mode by setting this bit.)

Number of clock cycles (minus 1) of the divider input during which the divider output stays low. A value of 0x0 means the divider is low for one input clock cycle (default: 0x0).

Number of clock cycles (minus 1) of the divider input during which the divider output stays high. A value of 0x0 means the divider is high for one input clock cycle (default: 0x0).

[2] = 1; powered down. (OUT9/OUT9 impedance power-down mode by setting this bit.)

, OUT7/OUT7, and OUT8/OUT8 are put into the high

, OUT10/OUT10, and OUT11/OUT11 are put into the high

Table 55. VCO Divider and CLK Input

Reg. Addr (Hex) Bit(s) Name Description

1E0 [2:0] VCO divider 0 0 0 2 (default) 0 0 1 3 0 1 0 4 0 1 1 5 1 0 0 6 1 0 1 Output static 1 1 0 1 (bypass) 1 1 1 Output static 1E1 [4] Power-down clock input section Powers down the clock input section (including CLK buffer, VCO divider, and CLK tree). [4] = 0; normal operation (default). [4] = 1; power down.

[2] [1] [0] Divide

Rev. 0 | Page 77 of 84

AD9522-1

Reg. Addr (Hex) Bit(s) Name Description

1E1 [3] Power-down VCO clock interface Powers down the interface block between VCO and clock distribution. [3] = 0; normal operation (default). [3] = 1; power down. 1E1 [2] Power-down VCO and CLK Powers down both the CLK input and VCO. [2] = 0; normal operation (default). [2] = 1; power down. 1E1 [1] Select VCO or CLK Selects either the VCO or the CLK as the input to VCO divider. [1] = 0; select external CLK as input to VCO divider (default).

1E1 [0] Bypass VCO divider Bypasses or uses the VCO divider. [0] = 0; use VCO divider (default). [0] = 1; bypass VCO divider; cannot select VCO as input when this is selected.

Table 56. System

Reg. Addr (Hex)

Bit(s) Name Description

230 [3] Disable power-on SYNC Power-on SYNC mode. Used to disable the antiruntpulse circuitry. [3] = 0; enable the antiruntpulse circuitry (default). [3] = 1; disable the antiruntpulse circuitry. 230 [2] Power-down SYNC Powers down the SYNC function. [2] = 0; normal operation of the SYNC function (default). [2] = 1; power-down SYNC circuitry. 230 [1] Power-down distribution reference Powers down the reference for the distribution section. [1] = 0; normal operation of the reference for the distribution section (default). [1] = 1; powers down the reference for the distribution section. 230 [0] Soft SYNC

[1] = 1; select VCO as input to VCO divider; cannot bypass VCO divider when this is selected. This bit must be set to use the PLL with the internal VCO.

The soft SYNC bit works the same as the SYNC is reversed; that is, a high level forces selected channels into a predetermined static state, and a 1-to-0 transition triggers a SYNC.

[0] = 0; same as SYNC [0] = 1; same as SYNC

high. low.

pin, except that the polarity of the bit

Table 57. Update All Registers

Reg. Addr (Hex) Bit(s) Name Description

232 [0] IO_UPDATE

[0] = 1 (self-clearing); update all active registers to the contents of the buffer registers.

This bit must be set to 1 to transfer the contents of the buffer registers into the active registers. This happens on the next SCLK rising edge. This bit is self-clearing; that is, it does not have to be set back to 0.

Rev. 0 | Page 78 of 84

AD9522-1

Table 58. EEPROM Buffer Segment

Reg. Addr (Hex) Bit(s) Name Description

[7:0]

A00 to A16

Table 59. EEPROM Control

Reg. Addr (Hex)

B00 [0]

[0] = 0; data transfer is done. [0] = 1; data transfer is not done. B01 [0] [0] = 0; no error. Data is correct. [0] = 1; incorrect data detected. B02 [1] Soft_EEPROM

B02 [0] [0] = 0; EEPROM write protection is enabled. User cannot write to EEPROM (default). [0] = 1; EEPROM write protection is disabled. User can write to EEPROM. B03 [0] REG2EEPROM Transfers data from the buffer register to the EEPROM (self-clearing).

EEPROM Buffer Segment Register 1 to EEPROM Buffer Segment Register 23

Bit(s) Name Description

STATUS_EEPROM (read-only)

EEPROM data error (read-only)

Enable EEPROM write

The EEPROM buffer segment section stores the starting address and number of bytes that are to be stored and read back to and from the EEPROM. Because the AD9522 register space is noncontiguous, the EEPROM controller needs to know the starting address and number of bytes in the AD9522 register space to store and retrieve from the EEPROM. In addition, there are special instructions for the EEPROM controller, operational codes (that is, IO_UPDATE and end-of-data) that are also stored in the EEPROM buffer segment. The on-chip default setting of the EEPROM buffer segment registers is designed such that all registers are transferred to/from the EEPROM, and an IO_UPDATE is issued after transfer. See the Programming the EEPROM Buffer Segment section for more information.

This read-only register indicates the status of the data transferred between the EEPROM and the buffer register bank during the writing and reading of the EEPROM. This signal is also available at the STATUS pin when 0x01D[7] is set.

This read-only register indicates an error during the data transferred between the EEPROM and the buffer.

When the EEPROM pin is tied low, setting Soft_EEPROM resets the AD9522 using the settings saved in EEPROM.

[1] = 1; soft reset with EEPROM settings (self-clearing). This bit self-clears on the next serial port clock cycle after the completion of writing to this register.

Enables the user to write to the EEPROM.

[0] = 1; setting this bit initiates the data transfer from the buffer register to the EEPROM (writing process); it is reset by the I²C master after the data transfer is done.

Rev. 0 | Page 79 of 84

AD9522-1

APPLICATIONS INFORMATION

FREQUENCY PLANNING USING THE AD9522

The AD9522 is a highly flexible PLL. When choosing the PLL settings and version of the AD9522, the following guidelines should be kept in mind.

The AD9522 has four frequency dividers: the reference (or R) divider, the feedback (or N) divider, the VCO divider, and the channel divider. When trying to achieve a particularly difficult frequency divide ratio requiring a large amount of frequency division, some of the frequency division can be done by either the VCO divider or the channel divider, thus allowing a higher phase detector frequency and more flexibility in choosing the loop bandwidth.

Within the AD9522 family, lower VCO frequencies generally result in slightly lower jitter. The difference in integrated jitter (from 12 kHz to 20 MHz offset) for the same output frequency is usually less than 150 fs over the entire VCO frequency range (1.4 GHz to 2.95 GHz) of the AD9522 family. If the desired frequency plan can be achieved with a version of the AD9522 that has a lower VCO frequency, choosing the lower frequency part results in the lowest phase noise and the lowest jitter. However, choosing a higher VCO frequency can result in more flexibility in frequency planning.

Choosing a nominal charge pump current in the middle of the allowable range as a starting point allows the designer to increase or decrease the charge pump current, and thus allows the designer to fine-tune the PLL loop bandwidth in either direction.

ADIsimCLK is a powerful PLL modeling tool that can be downloaded from

www.analog.com and is a very accurate tool

for determining the optimal loop filter for a given application.

USING THE AD9522 OUTPUTS FOR ADC CLOCK APPLICATIONS

Any high speed ADC is extremely sensitive to the quality of the sampling clock of the AD9522. An ADC can be thought of as a sampling mixer, and any noise, distortion, or time jitter on the clock is combined with the desired signal at the analog-todigital output. Clock integrity requirements scale with the analog input frequency and resolution, with higher analog input frequency applications at ≥14-bit resolution being the most stringent. The theoretical SNR of an ADC is limited by the ADC resolution and the jitter on the sampling clock. Considering an ideal ADC of infinite resolution where the step size and quantization error can be ignored, the available SNR can be expressed approximately by

Figure 70 shows the required sampling clock jitter as a function of the analog frequency and effective number of bits (ENOB).

110

(MHz)

SNR = 20log

100

SNR (dB)

10 1k100

Figure 70. SNR and ENOB vs. Analog Input Frequency

2πf

AtJ

ENOB

See the AN-756 Application Note and the AN-501 Application Note at www.analog.com.

Many high performance ADCs feature differential clock inputs to simplify the task of providing the required low jitter clock on a noisy PCB. Distributing a single-ended clock on a noisy PCB can result in coupled noise on the sampling clock. Differential distribution has inherent common-mode rejection that can provide superior clock performance in a noisy environment. The differential LVDS outputs of the AD9522 enable clock solutions that maximize converter SNR performance.

The input requirements of the ADC (differential or singleended, logic level termination) should be considered when selecting the best clocking/converter solution. In some cases, the LVPECL outputs of the AD9522 may be desirable for clocking a converter instead of the LVDS outputs of the AD9522.

LVDS CLOCK DISTRIBUTION

The AD9522 provides clock outputs that are selectable as either CMOS or LVDS level outputs. LVDS is a differential output option that uses a current mode output stage. The nominal current is 3.5 mA, which yields 350 mV output swing across a 100 Ω resistor. An output current of 7 mA is also available in cases where a larger output swing is required. The LVDS output meets or exceeds all ANSI/TIA/EIA-644 specifications.

07220-044

SNR

⎛ ⎜

20log(dB)

⎜ ⎝

⎞

⎟ ⎟

⎠

where:

is the highest analog frequency being digitized.

is the rms jitter on the sampling clock.

Rev. 0 | Page 80 of 84

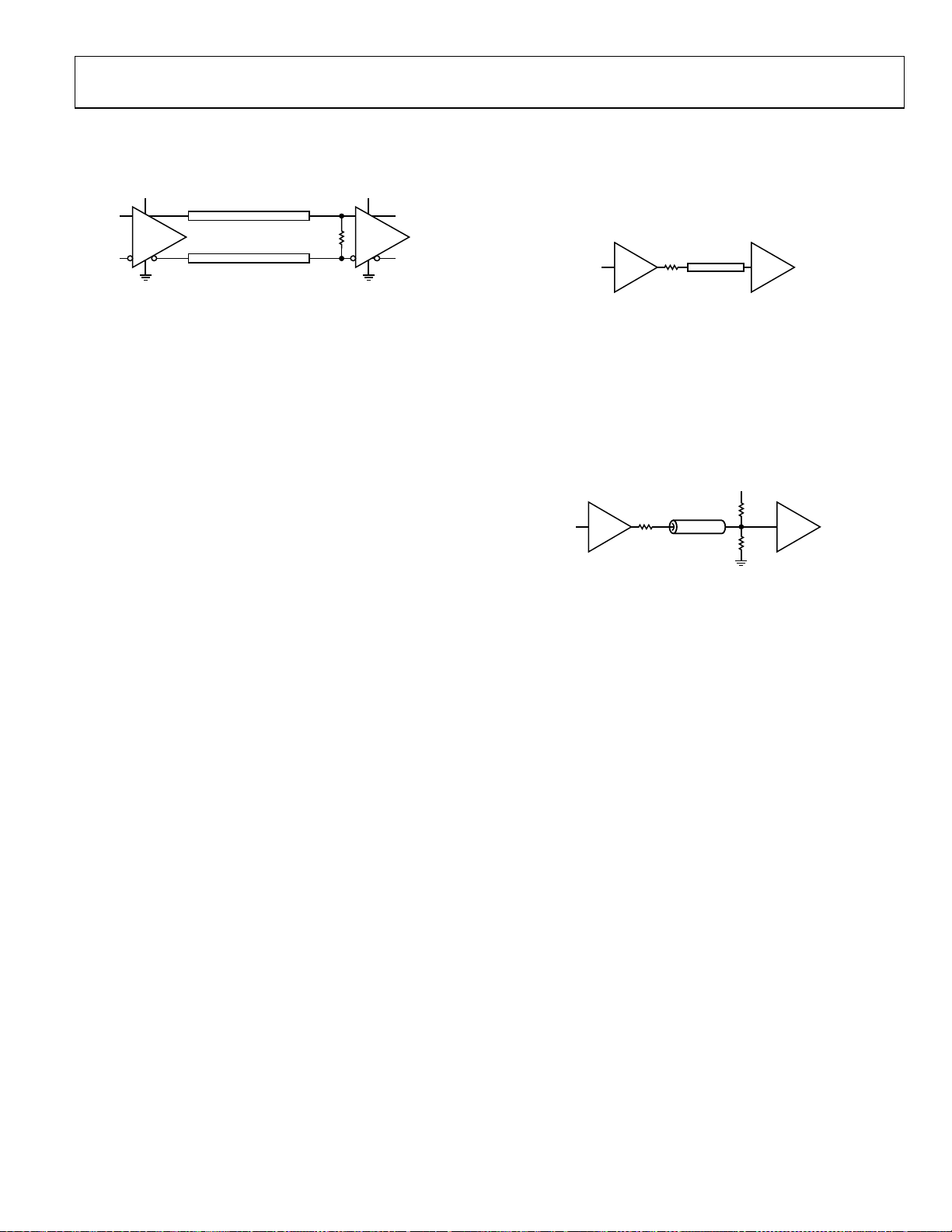

AD9522-1

Ω

A recommended termination circuit for the LVDS outputs is shown in Figure 71. If ac coupling is necessary, place decoupling capacitors either before or after the 100 Ω termination resistor.

LVDS

DIFFERENTIAL (COUPLES)

Figure 71. LVDS Output Termination

100Ω

LVDS

07220-047

See the AN-586 Application Note at www.analog.com for more information on LVDS.

CMOS CLOCK DISTRIBUTION

The output drivers of the AD9522 can be configured as CMOS drivers. When selected as a CMOS driver, each output becomes a pair of CMOS outputs, each of which can be individually turned on or off and set as inverting or noninverting. These outputs are 3.3 V CMOS compatible.

When single-ended CMOS clocking is used, some of the following guidelines apply.

Point-to-point connections should be designed such that each driver has only one receiver, if possible. Connecting outputs in this manner allows for simple termination schemes and minimizes ringing due to possible mismatched impedances on the output trace. Series termination at the source is generally required to provide transmission line matching and/or to reduce current transients at the driver.

The value of the resistor is dependent on the board design and timing requirements (typically 10 Ω to 100 Ω is used). CMOS outputs are also limited in terms of the capacitive load or trace length that they can drive. Typically, trace lengths less than 3 inches are recommended to preserve signal rise/fall times and signal integrity.

60.4

(1.0 INCH)

10Ω

CMOS CMOS

Figure 72. Series Termination of CMOS Output

MICROSTRIP

07220-076

Termination at the far end of the PCB trace is a second option. The CMOS outputs of the AD9522 do not supply enough current to provide a full voltage swing with a low impedance resistive, farend termination, as shown in Figure 73. The far-end termination network should match the PCB trace impedance and provide the desired switching point. The reduced signal swing may still meet receiver input requirements in some applications. This can be useful when driving long trace lengths on less critical nets.

10Ω

CMOS CMOS

Figure 73. CMOS Output with Far-End Termination

50Ω

100Ω

7220-077

Because of the limitations of single-ended CMOS clocking, consider using differential outputs when driving high speed signals over long traces. The AD9522 offers LVDS outputs that are better suited for driving long traces where the inherent noise immunity of differential signaling provides superior performance for clocking converters.

Rev. 0 | Page 81 of 84

AD9522-1

OUTLINE DIMENSIONS

0.60 MAX

EXPOSED PAD

(BOTTOM VIEW)

PIN 1

INDICATOR

6.35

6.20 SQ

6.05

PIN 1

INDICATOR

9.00

BSC SQ

TOP VIE W

8.75

BSC SQ

0.60

MAX

0.50

BSC

1.00

0.85

0.80

SEATING

PLANE

12° MAX

0.50

0.40

0.30

0.80 MAX

0.65 TYP

0.30

0.23

0.18

COMPLIANT TO JEDEC STANDARDS MO-220-VMMD-4

0.05 MAX

0.02 NOM

0.20 REF

7.50 REF

FOR PROPER CO NNECTION O F THE EXPOSED PAD, REFER TO THE PIN CONF IGURATIO N AND FUNCTION DESCRI PTIONS SECTION OF THIS DATA SHEET.

0.25 MIN

091707-C

Figure 74. 64-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

9 mm × 9 mm Body, Very Thin Quad

CP-64-4

Dimensions shown in millimeters

ORDERING GUIDE

Model Temperature Range Package Description Package Option

AD9522-1BCPZ1 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package (LFCSP_VQ) CP-64-4 AD9522-1BCPZ-REEL71 −40°C to +85°C 64-Lead Lead Frame Chip Scale Package (LFCSP_VQ) CP-64-4 AD9522-1/PCBZ1 Evaluation Board

Z = RoHS Compliant Part.

Rev. 0 | Page 82 of 84

AD9522-1

NOTES

Rev. 0 | Page 83 of 84

AD9522-1

NOTES

Rev. 0 | Page 84 of 84

ANALOG DEVICES AD9522-1 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

FUNCTIONAL BLOCK DIAGRAM

APPLICATIONS

GENERAL DESCRIPTION

TABLE OF CONTENTS

REVISION HISTORY

SPECIFICATIONS

POWER SUPPLY REQUIREMENTS

PLL CHARACTERISTICS

CLOCK INPUTS

CLOCK OUTPUTS

TIMING CHARACTERISTICS

Timing Diagrams

CLOCK OUTPUT ADDITIVE PHASE NOISE (DISTRIBUTION ONLY; VCO DIVIDER NOT USED)

CLOCK OUTPUT ABSOLUTE PHASE NOISE (INTERNAL VCO USED)

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK GENERATION USING INTERNAL VCO)

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK CLEANUP USING INTERNAL VCO)

CLOCK OUTPUT ABSOLUTE TIME JITTER (CLOCK GENERATION USING EXTERNAL VCXO)

CLOCK OUTPUT ADDITIVE TIME JITTER (VCO DIVIDER NOT USED)

CLOCK OUTPUT ADDITIVE TIME JITTER (VCO DIVIDER USED)

SERIAL CONTROL PORT—SPI MODE

SERIAL CONTROL PORT—I²C MODE

SERIAL PORT SETUP PINS: SP1, SP0

LD, STATUS, AND REFMON PINS

POWER DISSIPATION

ABSOLUTE MAXIMUM RATINGS

THERMAL RESISTANCE

ESD CAUTION

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

TYPICAL PERFORMANCE CHARACTERISTICS

TERMINOLOGY

DETAILED BLOCK DIAGRAM

THEORY OF OPERATION

OPERATIONAL CONFIGURATIONS

Mode 0: Internal VCO and Clock Distribution

Mode 1: Clock Distribution or External VCO < 1600 MHz

Mode 2: High Frequency Clock Distribution—CLK or External VCO > 1600 MHz

Phase-Locked Loop (PLL)

Configuration of the PLL

Phase Frequency Detector (PFD)

Charge Pump (CP)

On-Chip VCO

PLL External Loop Filter

PLL Reference Inputs

Reference Switchover

Reference Divider R

VCO/VCXO Feedback Divider N: P, A, B, R

Prescaler

A and B Counters

R and N Divider Delays

Digital Lock Detect (DLD)

Analog Lock Detect (ALD)

Current Source Digital Lock Detect (CSDLD)

Holdover

External/Manual Holdover Mode

Automatic/Internal Holdover Mode

Frequency Status Monitors

VCO Calibration

ZERO DELAY OPERATION

Internal Zero Delay Mode

External Zero Delay Mode

CLOCK DISTRIBUTION

Operation Modes

Clock Frequency Division

VCO Divider

Channel Dividers

Channel Frequency Division (0, 1, 2, and 3)

Duty Cycle and Duty-Cycle Correction

Phase Offset or Coarse Time Delay

Synchronizing the Outputs—SYNC Function

LVDS Output Drivers

CMOS Output Drivers

RESET MODES

Power-On Reset

Soft Reset via the Serial Port

Soft Reset to Settings in EEPROM When EEPROM Pin = 0 via the Serial Port
