1.6 GHz Clock Distribution IC,
Dividers, Delay Adjust, Three Outputs

FEATURES

1.6 GHz differential clock input 3 programmable dividers
Divide-by in range from1 to 32 Phase select for coarse delay adjust
2 independent 1.6 GHz LVPECL clock outputs
Additive broadband output jitter 225 fs rms
1 independent 800 MHz/250 MHz LVDS/CMOS clock output
Additive broadband output jitter 300 fs rms/290 fs rms
Time delays up to 10 ns Device configured with 4-level logic pins Space-saving, 32-lead LFCSP

APPLICATIONS

Low jitter, low phase noise clock distribution Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs High performance wireless transceivers High performance instrumentation Broadband infrastructure AT E

GENERAL DESCRIPTION

FUNCTIONAL BLOCK DIAGRAM

RSET VS GND
AD9514
/1. . . /32
CLK
CLKB
SYNCB
VREF S10 S9 S8 S7 S6 S5 S4 S3 S2 S1 S0
/1. . . /32
/1. . . /32
SETUP LOGIC
Figure 1.
Δ
t
AD9514
LVPECL
OUT0
OUT0B
LVPECL
OUT1
OUT1B
LVDS/CMOS
OUT2
OUT2B
05596-001
The AD9514 features a multi-output clock distribution IC in a design that emphasizes low jitter and phase noise to maximize data converter performance. Other applications with demanding phase noise and jitter requirements also benefit from this part.
There are three independent clock outputs. Two of the outputs are LVPECL, and the third output can be set to either LVDS or CMOS levels. The LVPECL outputs operate to 1.6 GHz, and the third output operates to 800 MHz in LVDS mode and to 250 MHz in CMOS mode.
Each output has a programmable divider that can be set to divide by a selected set of integers ranging from 1 to 32. The phase of one clock output relative to another clock output can be set by means of a divider phase select function that serves as a coarse timing adjustment.
The LVDS/CMOS output features a delay element with three selectable full-scale delay values (1.5 ns, 5 ns, and 10 ns), each with 16 steps of fine adjustment.
The AD9514 does not require an external controller for operation or setup. The device is programmed by means of 11 pins (S0 to S10) using 4-level logic. The programming pins are internally biased to ⅓ V ⅔ V
. VS (3.3 V) and GND (0 V) provide the other two logic levels.
S
. The VREF pin provides a level of
S
The AD9514 is ideally suited for data converter clocking applications where maximum converter performance is achieved by encode signals with subpicosecond jitter.
The AD9514 is available in a 32-lead LFCSP and operates from a single 3.3 V supply. The temperature range is −40°C to +85°C.
Rev. 0
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 www.analog.com Fax: 781.461.3113 © 2005 Analog Devices, Inc. All rights reserved.
Page 2
AD9514

TABLE OF CONTENTS

Features .............................................................................................. 1
Power-On SYNC .................................................................... 18
Applications....................................................................................... 1
Functional Block Diagram .............................................................. 1
General Description......................................................................... 1
Revision History ............................................................................... 2
Specifications..................................................................................... 3
Clock Input.................................................................................... 3
Clock Outputs............................................................................... 3
Timing Characteristics ................................................................ 4
Clock Output Phase Noise ..........................................................5
Clock Output Additive Time Jitter............................................. 8
SYNCB, VREF, and Setup Pins................................................. 10
Power ............................................................................................10
Timing Diagrams............................................................................ 11
Absolute Maximum Ratings.......................................................... 12
Thermal Characteristics ............................................................ 12
SYNCB .....................................................................................18
R
Resistor ................................................................................ 19
SET
VREF............................................................................................ 19
Setup Configuration................................................................... 19
Divider Phase Offset.................................................................. 22
Delay Block ................................................................................. 22
Outputs........................................................................................ 23
Power Supply............................................................................... 23
Exposed Metal Paddle ........................................................... 24
Power Management ................................................................... 24
Applications..................................................................................... 25
Using the AD9514 Outputs for ADC Clock Applications.... 25
LVPECL Clock Distribution ..................................................... 25
LVDS Clock Distribution.......................................................... 26
CMOS Clock Distribution ........................................................26
ESD Caution................................................................................ 12
Pin Configuration and Function Descriptions........................... 13
Te r mi n ol o g y .................................................................................... 14
Typical Performance Characteristics........................................... 15
Functional Description ..................................................................18
Overall.......................................................................................... 18
CLK, CLKB—Differential Clock Input ...................................18
Synchronization ..........................................................................18

REVISION HISTORY

7/05—Revision 0: Initial Version
Setup Pins (S0 to S10)................................................................ 26
Power and Grounding Considerations and Power Supply
Rejection...................................................................................... 26
Phase Noise and Jitter Measurement Setups........................... 27
Outline Dimensions .......................................................................28
Ordering Guide .......................................................................... 28
Rev. 0 | Page 2 of 28
Page 3
AD9514

SPECIFICATIONS

Typical (typ) is given for VS = 3.3 V ± 5%, TA = 25°C, R and maximum (max) values are given over full V
S

CLOCK INPUT

Table 1.
Parameter Min Typ Max Unit Test Conditions/Comments
CLOCK INPUT (CLK)
Input Frequency Input Sensitivity Input Common-Mode Voltage, V Input Common-Mode Range, V
1
1
CM
CMR
0 1.6 GHz 150 mV p-p
1.5 1.6 1.7 V Self-biased; enables ac coupling
1.3 1.8 V With 200 mV p-p signal applied; dc-coupled Input Sensitivity, Single-Ended 150 mV p-p CLK ac-coupled; CLKB ac-bypassed to RF ground Input Resistance 4.0 4.8 5.6 Self-biased Input Capacitance 2 pF
1
A slew rate of 1 V/ns is required to meet jitter, phase noise, and propagation delay specifications.

CLOCK OUTPUTS

Table 2.
Parameter Min Typ Max Unit Test Conditions/Comments
LVPECL CLOCK OUTPUTS Termination = 50 Ω to VS − 2 V
(OUT0, OUT1) Differential Output Frequency 0 1.6 GHz Output High Voltage (VOH) VS − 1.1 VS − 0.96 VS − 0.82 V Output Low Voltage (VOL) VS − 1.90 VS − 1.76 VS − 1.52 V Output Differential Voltage (VOD) 640 790 960 mV
LVDS CLOCK OUTPUT Termination = 100 Ω differential
(OUT2) Differential Output Frequency 0 800 MHz Differential Output Voltage (VOD) 250 350 450 mV Delta V
OD
Output Offset Voltage (VOS) 1.125 1.23 1.375 V Delta V
OS
Short-Circuit Current (ISA, ISB) 14 24 mA Output shorted to GND
CMOS CLOCK OUTPUT Single-ended measurements; termination open
(OUT2) Single-Ended Complementary output on (OUT2B) Output Frequency 0 250 MHz With 5 pF load Output Voltage High (VOH) VS − 0.1 V @ 1 mA load Output Voltage Low (VOL) 0.1 V @ 1 mA load
30 mV
25 mV
= 4.12 kΩ, LVPECL VOD = 790 mV, unless otherwise noted. Minimum (min)
SET
and TA (−40°C to +85°C) variation.
Rev. 0 | Page 3 of 28
Page 4
AD9514

TIMING CHARACTERISTICS

CLK input slew rate = 1 V/ns or greater.
Table 3.
Parameter Min Typ Max Unit Test Conditions/Comments
LVPECL Termination = 50 Ω to VS − 2 V
Output Rise Time, t Output Fall Time, t
PROPAGATION DELAY, t
RP
FP
, CLK-TO-LVPECL OUT
PECL
Divide = 1 355 480 635 ps Divide = 2 − 32 395 530 710 ps Variation with Temperature 0.5 ps/°C
OUTPUT SKEW, LVPECL
OUT0 to OUT1 on Same Part, t Both LVPECL Outputs Across Multiple Parts, t Same LVPECL Output Across Multiple Parts, t
SKP
1
2
SKP_AB
2
SKP_AB
LVDS Termination = 100 Ω differential, 3.5 mA
Output Rise Time, t Output Fall Time, t
PROPAGATION DELAY, t
RL
FL
, CLK-TO-LVDS OUT Optional delay off
LVDS
Divide = 1 1.00 1.25 1.55 ns Divide = 2 − 32 1.05 1.30 1.60 ns Variation with Temperature 0.9 ps/°C
OUTPUT SKEW, LVDS Optional delay off
LVDS Output Across Multiple Parts, t
SKV_AB
2
CMOS B outputs are inverted; termination = open
Output Rise Time, t Output Fall Time, t
PROPAGATION DELAY, t
RC
FC
, CLK-TO-CMOS OUT Optional delay off
CMOS
Divide = 1 1.10 1.45 1.75 ns Divide = 2 − 32 1.15 1.50 1.80 ns Variation with Temperature 1 ps/°C
OUTPUT SKEW, CMOS Optional delay off
CMOS Output Across Multiple Parts, t
SKC_AB
2
LVPECL-TO-LVDS OUT
Output Delay, t
SKV_C
LVPECL-TO-CMOS OUT
Output Delay, t
SKV_C
DELAY ADJUST (OUT2; LVDS and CMOS)
S0 = 1/3
Zero Scale Delay Time
3
Zero Scale Variation with Temperature 0.20 ps/°C
Full Scale Time Delay
3
Full Scale Variation with Temperature −0.38 ps/°C
S0 = 2/3
Zero Scale Delay Time
3
Zero Scale Variation with Temperature 0.31 ps/°C
Full Scale Time Delay
3
Full Scale Variation with Temperature −1.3 ps/°C
60 100 ps 20% to 80%, measured differentially 60 100 ps 80% to 20%, measured differentially
−50 0 +55 ps 125 ps 125 ps
200 350 ps 20% to 80%, measured differentially 210 350 ps 80% to 20%, measured differentially
230 ps
650 865 ps 20% to 80%; C 650 990 ps 80% to 20%; C
= 3 pF single-ended
LOAD
= 3 pF single-ended
LOAD
300 ps
560 790 950 ps
700 970 1150 ps
0.34 ns
1.7 ns
0.45 ns
5.9 ns
Rev. 0 | Page 4 of 28
Page 5
AD9514
Parameter Min Typ Max Unit Test Conditions/Comments
S0 = 1
Zero Scale Delay Time
Zero Scale Variation with Temperature 0.47 ps/°C
Full Scale Time Delay
Full Scale Variation with Temperature −5 ps/°C Linearity, DNL 0.2 LSB Linearity, INL 0.2 LSB
1
This is the difference between any two similar delay paths within a single device operating at the same voltage and temperature.
2
This is the difference between any two similar delay paths across multiple devices operating at the same voltage and temperature.
3
Incremental delay; does not include propagation delay.

CLOCK OUTPUT PHASE NOISE

CLK input slew rate = 1 V/ns or greater.
Table 4.
Parameter Min Typ Max Unit Test Conditions/Comments
CLK-TO-LVPECL ADDITIVE PHASE NOISE
CLK = 622.08 MHz, OUT = 622.08 MHz Divide = 1
@ 10 Hz Offset −125 dBc/Hz @ 100 Hz Offset −132 dBc/Hz @ 1 kHz Offset −140 dBc/Hz @ 10 kHz Offset −148 dBc/Hz @ 100 kHz Offset −153 dBc/Hz
>1 MHz Offset −154 dBc/Hz CLK = 622.08 MHz, OUT = 155.52 MHz Divide = 4
@ 10 Hz Offset −128 dBc/Hz
@ 100 Hz Offset −140 dBc/Hz
@ 1 kHz Offset −148 dBc/Hz
@ 10 kHz Offset −155 dBc/Hz
@ 100 kHz Offset −161 dBc/Hz
>1 MHz Offset −161 dBc/Hz CLK = 622.08 MHz, OUT = 38.88 MHz Divide = 16
@ 10 Hz Offset −135 dBc/Hz
@ 100 Hz Offset −145 dBc/Hz
@ 1 kHz Offset −158 dBc/Hz
@ 10 kHz Offset −165 dBc/Hz
@ 100 kHz Offset −165 dBc/Hz
>1 MHz Offset −166 dBc/Hz CLK = 491.52 MHz, OUT = 61.44 MHz Divide = 8
@ 10 Hz Offset −131 dBc/Hz
@ 100 Hz Offset −142 dBc/Hz
@ 1 kHz Offset −153 dBc/Hz
@ 10 kHz Offset −160 dBc/Hz
@ 100 kHz Offset −165 dBc/Hz
>1 MHz Offset −165 dBc/Hz
3
3
0.56 ns
11.4 ns
Rev. 0 | Page 5 of 28
Page 6
AD9514
Parameter Min Typ Max Unit Test Conditions/Comments
CLK = 491.52 MHz, OUT = 245.76 MHz Divide = 2
@ 10 Hz Offset −125 dBc/Hz @ 100 Hz Offset −132 dBc/Hz @ 1 kHz Offset −140 dBc/Hz @ 10 kHz Offset −151 dBc/Hz @ 100 kHz Offset −157 dBc/Hz
>1 MHz Offset −158 dBc/Hz CLK = 245.76 MHz, OUT = 61.44 MHz Divide = 4
@ 10 Hz Offset −138 dBc/Hz
@ 100 Hz Offset −144 dBc/Hz
@ 1 kHz Offset −154 dBc/Hz
@ 10 kHz Offset −163 dBc/Hz
@ 100 kHz Offset −164 dBc/Hz
>1 MHz Offset −165 dBc/Hz
CLK-TO-LVDS ADDITIVE PHASE NOISE
CLK = 622.08 MHz, OUT= 622.08 MHz Divide = 1
@ 10 Hz Offset −100 dBc/Hz
@ 100 Hz Offset −110 dBc/Hz
@ 1 kHz Offset −118 dBc/Hz
@ 10 kHz Offset −129 dBc/Hz
@ 100 kHz Offset −135 dBc/Hz
@ 1 MHz Offset −140 dBc/Hz
>10 MHz Offset −148 dBc/Hz CLK = 622.08 MHz, OUT = 155.52 MHz Divide = 4
@ 10 Hz Offset −112 dBc/Hz
@ 100 Hz Offset −122 dBc/Hz
@ 1 kHz Offset −132 dBc/Hz
@ 10 kHz Offset −142 dBc/Hz
@ 100 kHz Offset −148 dBc/Hz
@ 1 MHz Offset −152 dBc/Hz
>10 MHz Offset −155 dBc/Hz CLK = 491.52 MHz, OUT = 245.76 MHz Divide = 2
@ 10 Hz Offset −108 dBc/Hz
@ 100 Hz Offset −118 dBc/Hz
@ 1 kHz Offset −128 dBc/Hz
@ 10 kHz Offset −138 dBc/Hz
@ 100 kHz Offset −145 dBc/Hz
@ 1 MHz Offset −148 dBc/Hz
>10 MHz Offset −154 dBc/Hz
Rev. 0 | Page 6 of 28
Page 7
AD9514
Parameter Min Typ Max Unit Test Conditions/Comments
CLK = 491.52 MHz, OUT = 122.88 MHz Divide = 4
@ 10 Hz Offset −118 dBc/Hz @ 100 Hz Offset −129 dBc/Hz @ 1 kHz Offset −136 dBc/Hz @ 10 kHz Offset −147 dBc/Hz @ 100 kHz Offset −153 dBc/Hz @ 1 MHz Offset −156 dBc/Hz
>10 MHz Offset −158 dBc/Hz CLK = 245.76 MHz, OUT = 245.76 MHz Divide = 1
@ 10 Hz Offset −108 dBc/Hz
@ 100 Hz Offset −118 dBc/Hz
@ 1 kHz Offset −128 dBc/Hz
@ 10 kHz Offset −138 dBc/Hz
@ 100 kHz Offset −145 dBc/Hz
@ 1 MHz Offset −148 dBc/Hz
>10 MHz Offset −155 dBc/Hz CLK = 245.76 MHz, OUT = 122.88 MHz Divide = 2
@ 10 Hz Offset −118 dBc/Hz
@ 100 Hz Offset −127 dBc/Hz
@ 1 kHz Offset −137 dBc/Hz
@ 10 kHz Offset −147 dBc/Hz
@ 100 kHz Offset −154 dBc/Hz
@ 1 MHz Offset −156 dBc/Hz
>10 MHz Offset −158 dBc/Hz
CLK-TO-CMOS ADDITIVE PHASE NOISE
CLK = 245.76 MHz, OUT = 245.76 MHz Divide = 1
@ 10 Hz Offset −110 dBc/Hz
@ 100 Hz Offset −121 dBc/Hz
@ 1 kHz Offset −130 dBc/Hz
@ 10 kHz Offset −140 dBc/Hz
@ 100 kHz Offset −145 dBc/Hz
@ 1 MHz Offset −149 dBc/Hz
>10 MHz Offset −156 dBc/Hz CLK = 245.76 MHz, OUT = 61.44 MHz Divide = 4
@ 10 Hz Offset −125 dBc/Hz
@ 100 Hz Offset −132 dBc/Hz
@ 1 kHz Offset −143 dBc/Hz
@ 10 kHz Offset −152 dBc/Hz
@ 100 kHz Offset −158 dBc/Hz
@ 1 MHz Offset −160 dBc/Hz
>10 MHz Offset −162 dBc/Hz
Rev. 0 | Page 7 of 28
Page 8
AD9514
Parameter Min Typ Max Unit Test Conditions/Comments
CLK = 78.6432 MHz, OUT = 78.6432 MHz Divide = 1
@ 10 Hz Offset −122 dBc/Hz @ 100 Hz Offset −132 dBc/Hz @ 1 kHz Offset −140 dBc/Hz @ 10 kHz Offset −150 dBc/Hz @ 100 kHz Offset −155 dBc/Hz @ 1 MHz Offset −158 dBc/Hz
>10 MHz Offset −160 dBc/Hz CLK = 78.6432 MHz, OUT = 39.3216 MHz Divide = 2
@ 10 Hz Offset −128 dBc/Hz
@ 100 Hz Offset −136 dBc/Hz
@ 1 kHz Offset −146 dBc/Hz
@ 10 kHz Offset −155 dBc/Hz
@ 100 kHz Offset −161 dBc/Hz
>1 MHz Offset −162 dBc/Hz

CLOCK OUTPUT ADDITIVE TIME JITTER

Table 5.
Parameter Min Typ Max Unit Test Conditions/Comments
LVPECL OUTPUT ADDITIVE TIME JITTER
CLK = 622.08 MHz 40 fs rms BW = 12 kHz − 20 MHz
LVPECL (OUT0 and OUT1) = 622.08 MHz OUT2 off
Divide = 1 CLK = 622.08 MHz 55 fs rms BW = 12 kHz − 20 MHz
LVPECL (OUT0 and OUT1) = 155.52 MHz OUT2 off
Divide = 4 CLK = 400 MHz 215 fs rms Calculated from SNR of ADC method;
LVPECL (OUT0 and OUT1) = 100 MHz OUT2 off
Divide = 4 CLK = 400 MHz 215 fs rms Calculated from SNR of ADC method;
LVPECL (OUT0, OUT1) = 100 MHz Other LVPECL and OUT2 LVDS at same frequency
Divide = 4 CLK = 400 MHz 225 fs rms Calculated from SNR of ADC method;
LVPECL (OUT0 or OUT1) = 100 MHz
Divide = 4
Other LVPECL = 50 MHz Interferer
LVDS (OUT2) = 50 MHz Interferer CLK = 400 MHz 230 fs rms Calculated from SNR of ADC method;
LVPECL (OUT0 or OUT1) = 100 MHz
Divide = 4
Other LVPECL = 50 MHz Interferer
CMOS (OUT2) = 50 MHz Interferer
LVDS OUTPUT ADDITIVE TIME JITTER Delay off
CLK = 400 MHz 300 fs rms Calculated from SNR of ADC method;
LVDS (OUT2) = 100 MHz OUT0 at same frequency; OUT1 off
Divide = 4
Rev. 0 | Page 8 of 28
Page 9
AD9514
Parameter Min Typ Max Unit Test Conditions/Comments
CLK = 400 MHz 350 fs rms Calculated from SNR of ADC method
LVDS (OUT2) = 100 MHz Divide = 4 Both LVPECL = 50 MHz Interferer(s)
CMOS OUTPUT ADDITIVE TIME JITTER Delay off
CLK = 400 MHz 290 fs rms Calculated from SNR of ADC method
CMOS (OUT2) = 100 MHz OUT0 at same frequency; OUT1 off Divide = 4
CLK = 400 MHz 315 fs rms Calculated from SNR of ADC method
CMOS (OUT2) = 100 MHz Divide = 4 Both LVPECL = 50 MHz Interferer(s)
DELAY BLOCK ADDITIVE TIME JITTER
Delay FS = 1.5 ns Fine Adj. 00000 0.71 ps rms Delay FS = 1.5 ns Fine Adj. 11111 1.2 ps rms Delay FS = 5 ns Fine Adj. 00000 1.3 ps rms Delay FS = 5 ns Fine Adj. 11111 2.7 ps rms Delay FS = 10 ns Fine Adj. 00000 2.0 ps rms Delay FS = 10 ns Fine Adj. 11111 2.8 ps rms
1
This value is incremental. That is, it is in addition to the jitter of the LVDS or CMOS output without the delay. To estimate the total jitter, the LVDS or CMOS output jitter
should be added to this value using the root sum of the squares (RSS) method.
1
100 MHz output; incremental additive jitter
Rev. 0 | Page 9 of 28
Page 10
AD9514

SYNCB, VREF, AND SETUP PINS

Table 6.
Parameter Min Typ Max Unit Test Conditions/Comments
SYNCB
Logic High 2.7 V Logic Low 0.40 V Capacitance 2 pF
VREF
Output Voltage 0.62 V
S0 TO S10
Levels
0 0.1 V 1/3 0.2 V
S
2/3 0.55 V 1 0.9 V
S

POWER

Table 7.
Parameter Min Typ Max Unit Test Conditions/Comments
POWER-ON SYNCHRONIZATION
VS Transit Time from 2.2 V to 3.1 V
POWER DISSIPATION 295 405 550 mW
380 490 635 mW
410 525 680 mW All outputs on. 2 LVPECL, 1 CMOS (divide = 2); At 125 MHz out (5 pF load). POWER DELTA
Divider (Divide = 2 to Divide = 1) 15 30 45 mW For each divider. No clock. LVPECL Output 65 90 125 mW For each output. No clock. LVDS Output 20 50 85 mW No clock. CMOS Output (Static) 30 40 50 mW No clock. CMOS Output (@ 62.5 MHz) 80 110 140 mW Single-ended. At 62.5 MHz out with 5 pF load. CMOS Output (@ 125 MHz) 110 150 190 mW Single-ended. At 125 MHz out with 5 pF load. Delay Block 30 45 65 mW Off to 1.5 ns fs, delay word = 60; output clocking at 62.5 MHz.
1
This is the rise time of the VS supply that is required to ensure that a synchronization of the outputs occurs on power-up. The critical factor is the time it takes the VS to
transition the range from 2.2 V to 3 .1 V. If the rise time is too slow, the outputs will not be synchronized.
1
S
S
0.76 V
0.45 V
0.8 V
S
S
V Minimum − maximum from 0 mA to 1 mA load
S
V V
S
V
V
35 ms See Figure 24.
All outputs on. 2 LVPECL (divide = 2), 1 LVDS (divide = 2). No clock. Does not include power dissipated in external resistors.
All outputs on. 2 LVPECL (divide = 2), 1 CMOS (divide = 2); at 62.5 MHz out (5 pF load).
Rev. 0 | Page 10 of 28
Page 11
AD9514

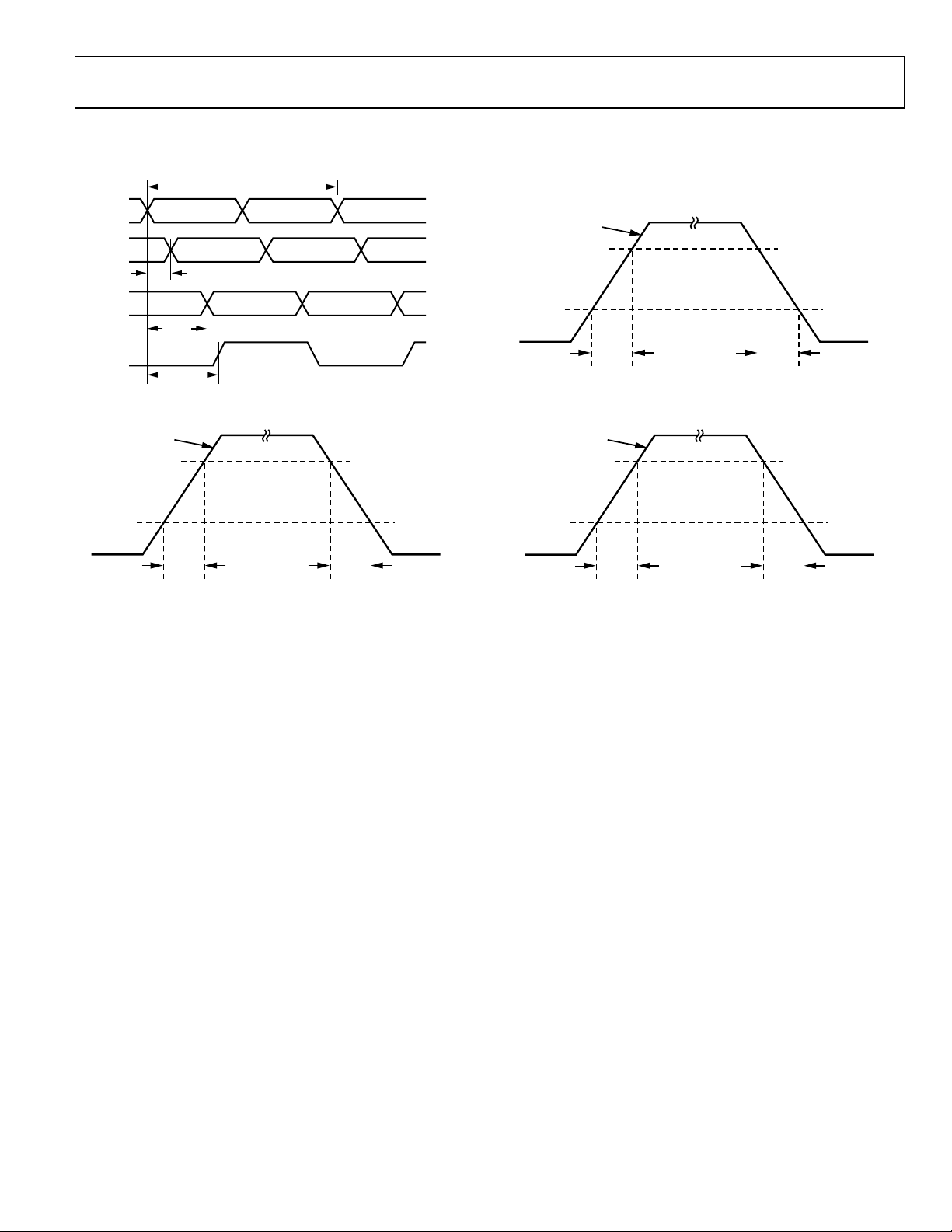

TIMING DIAGRAMS

LVDS
t
FL
05596-003
t
CLK
CLK
t
PECL
t
LVDS
t
CMOS
Figure 2. CLK/CLKB to Clock Output Timing, Divide = 1 Mode
05596-002
DIFFERENTIAL
80%
20%
t
RL
Figure 4. LVDS Timing, Differential
DIFFERENTIAL
20%
80%
LVPECL
t
RP
Figure 3. LVPECL Timing, Differential
SINGLE-ENDED
80%
CMOS
3pF LOAD
20%
t
FP
05596-099
t
RC
t
FC
05596-004
Figure 5. CMOS Timing, Single-Ended, 3 pF Load
Rev. 0 | Page 11 of 28
Page 12
AD9514

ABSOLUTE MAXIMUM RATINGS

Table 8.
With Respect
Parameter or Pin
to
Min Max Unit
VS GND −0.3 +3.6 V RSET GND −0.3 VS + 0.3 V CLK GND −0.3 VS + 0.3 V CLK CLKB −1.2 +1.2 V OUT0, OUT1, OUT2 GND −0.3 VS + 0.3 V FUNCTION GND −0.3 VS + 0.3 V STATUS GND −0.3 VS + 0.3 V Junction Temperature
1
150 °C Storage Temperature −65 +150 °C Lead Temperature (10 sec) 300 °C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.

THERMAL CHARACTERISTICS

2
Thermal Resistance
3
32-Lead LFCSP
θ
= 36.6°C/W
JA
1
See Thermal Characteristics for θ .
2
Thermal impedance measurements were taken on a 4-layer board in still air
in accordance with EIA/JESD51-7.
3
The external pad of this package must be soldered to adequate copper land
on board.
JA

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
Rev. 0 | Page 12 of 28
Page 13
AD9514
B

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

GND
RSET
31
32
1VS 2CLK 3CLKB 4VS
9
10
S8
S7
(Not to Scale)
5SYNCB 6VREF 7S10 8S9
Figure 6. 32-Lead LFCSP Pin Configuration
VS
VS
29
30
AD9514
TOP VIEW
11
12 S5
S6
OUT0
VS
OUT0
S0
28
13 S4
25
26
27
24 VS 23 OUT1 22 OUT1B 21 VS 20 VS 19 OUT2 18 OUT2B 17 VS
15
14
16
S3
S2
S1
05596-005
THE EXPOSED PADDLE
IS AN ELECTRICAL AND
THERMAL CONNECTION
25
24
(BOTTOM VIEW)
17
16
EXPOSED PAD
GND
32
1
8
9
05596-006
Figure 7. Exposed Paddle
Note that the exposed paddle on this package is an electrical connection as well as a thermal enhancement. For the device to function properly, the paddle must be soldered to a PCB land that functions as both a heat dissipation path as well as an electrical ground (analog).
Table 9. Pin Function Descriptions
Pin No. Mnemonic Description
1, 4 ,17, 20, 21,
VS Power Supply (3.3 V).
24, 26, 29, 30 2 CLK Clock Input. 3 CLKB Complementary Clock Input. 5 SYNCB Used to Synchronize Outputs; Do Not Let Float. 6 VREF Provides 2/3 VS for Use as One of the Four Logic Levels on S0 to S10. 7 to 16, 25 S10 to S0
Setup Select Pins. These are 4-state logic. The logic levels are V The VREF pin provides 2/3 V
. Each pin is internally biased to 1/3 VS so that a pin requiring
S
, GND, 1/3 VS, and 2/3 VS.
S
that logic level should be left no connection (NC). 18 OUT2B Complementary LVDS/Inverted CMOS Output. 19 OUT2 LVDS/CMOS Output. 22 OUT1B Complementary LVPECL Output. 23 OUT1 LVPECL Output. 27 OUT0B Complementary LVPECL Output. 28 OUT0 LVPECL Output. 31, Exposed Paddle GND Ground. The exposed paddle on the back of the chip is also GND. 32 RSET Current Sets Resistor to Ground. Nominal value = 4.12 kΩ.
Rev. 0 | Page 13 of 28
Page 14
AD9514

TERMINOLOGY

Phase Jitter and Phase Noise
An ideal sine wave can be thought of as having a continuous and even progression of phase with time from 0 to 360 degrees for each cycle. Actual signals, however, display a certain amount of variation from ideal phase progression over time. This phenomenon is called phase jitter. Although there are many causes that can contribute to phase jitter, one major component is due to random noise that is characterized statistically as being Gaussian (normal) in distribution.
This phase jitter leads to a spreading out of the energy of the sine wave in the frequency domain, producing a continuous power spectrum. This power spectrum is usually reported as a series of values whose units are dBc/Hz at a given offset in frequency from the sine wave (carrier). The value is a ratio (expressed in dB) of the power contained within a 1 Hz bandwidth with respect to the power at the carrier frequency. For each measurement, the offset from the carrier frequency is also given.
It is also meaningful to integrate the total power contained within some interval of offset frequencies (for example, 10 kHz to 10 MHz). This is called the integrated phase noise over that frequency offset interval and can be readily related to the time jitter due to the phase noise within that offset frequency interval.
Phase noise has a detrimental effect on the performance of ADCs, DACs, and RF mixers. It lowers the achievable dynamic range of the converters and mixers, although they are affected in somewhat different ways.
Time Jitter
Phase noise is a frequency domain phenomenon. In the time domain, the same effect is exhibited as time jitter. When observing a sine wave, the time of successive zero crossings is seen to vary. For a square wave, the time jitter is seen as a displacement of the edges from their ideal (regular) times of occurrence. In both cases, the variations in timing from the ideal are the time jitter. Since these variations are random in nature, the time jitter is specified in units of seconds root mean square (rms) or 1 sigma of the Gaussian distribution.
Time jitter that occurs on a sampling clock for a DAC or an ADC decreases the SNR and dynamic range of the converter. A sampling clock with the lowest possible jitter provides the highest performance from a given converter.
Additive Phase Noise
It is the amount of phase noise that is attributable to the device or subsystem being measured. The phase noise of any external oscillators or clock sources has been subtracted. This makes it possible to predict the degree to which the device affects the total system phase noise when used in conjunction with the various oscillators and clock sources, each of which contribute their own phase noise to the total. In many cases, the phase noise of one element dominates the system phase noise.
Additive Time Jitter
It is the amount of time jitter that is attributable to the device or subsystem being measured. The time jitter of any external oscillators or clock sources has been subtracted. This makes it possible to predict the degree to which the device will affect the total system time jitter when used in conjunction with the various oscillators and clock sources, each of which contribute their own time jitter to the total. In many cases, the time jitter of the external oscillators and clock sources dominates the system time jitter.
Rev. 0 | Page 14 of 28
Page 15
AD9514

TYPICAL PERFORMANCE CHARACTERISTICS

0.4
0.6
0.3
POWER (W)
0.2
0.1
2 LVPECL (DIV ON)
2 LVPECL (DIV = 1)
1 LVDS (DIV ON)
OUTPUT FREQUENCY (MHz)
Figure 8. Power vs. Frequency—LVPECL, LVDS
2 LVPECL (DIV ON) + 1 CMOS (DIV ON)
0.5
POWER (W)
0.4
2 LVPECL (DIV OFF) + 1 CMOS (DIV OFF)
05596-098
05596-098
16001200800400
0.3 OUTPUT FREQUENCY (MHz)
05596-096
120100804020060
Figure 10. Power vs. Frequency—LVPECL, CMOS
START 300kHz STOP 5GHz
Figure 9. CLK Smith Chart (Evaluation Board)
05596-097
Rev. 0 | Page 15 of 28
Page 16
AD9514
1.8
1.7
1.6
1.5
1.4
DIFFERENTIAL SWING (V p-p)
1.3
VERT 500mV/DIV HORIZ 200ps/DIV
Figure 11. LVPECL Differential Output @ 1600 MHz
VERT 100mV/DIV HORIZ 500ps/DIV
Figure 12. LVDS Differential Output @ 800 MHz
05596-095
1.2 100 16001100600
OUTPUT FREQUENCY (MHz)
05596-012
Figure 14. LVPECL Differential Peak-to-Peak Output Swing vs. Frequency
750
700
650
600
550
DIFFERENTIAL SWING (mV p-p)
05596-010
500
100 900700500300
OUTPUT FREQUENCY (MHz)
05596-013
Figure 15. LVDS Differential Peak-to-Peak Output Swing vs. Frequency
3.5 2pF
3.0
VERT 500mV/DIV HORIZ 1ns/DIV
Figure 13. CMOS Single-Ended Output @ 250 MHz with 10 pF Load
)
PK
OUTPUT (V
05596-011
Rev. 0 | Page 16 of 28
2.5
10pF
2.0
1.5
1.0
0.5
0
0 600500400300200100
OUTPUT FREQUENCY (MHz)
20pF
Figure 16. CMOS Single-Ended Output Swing vs. Frequency and Load
05596-014
Page 17
AD9514
–110
–110
–120
–130
–140
L(f) (dBc/Hz)
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 17. Additive Phase Noise—LVPECL Divide = 1, 245.76 MHz
–80
–90
–100
–110
–120
–130
L(f) (dBc/Hz)
–140
05596-015
–120
–130
–140
L(f) (dBc/Hz)
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 20. Additive Phase Noise—LVPECL Divide = 1, 622.08 MHz
–80
–90
–100
–110
–120
–130
L(f) (dBc/Hz)
–140
05596-018
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 18. Additive Phase Noise—LVDS Divide = 1, 245.76 MHz
–100
–110
–120
–130
–140
L(f) (dBc/Hz)
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 19. Additive Phase Noise—CMOS Divide = 1, 245.76 MHz
05596-016
05596-017
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 21. Additive Phase Noise—LVDS Divide = 2, 122.88 MHz
–100
–110
–120
–130
–140
L(f) (dBc/Hz)
–150
–160
–170
10 10M1M100k10k1k100
OFFSET (Hz)
Figure 22. Additive Phase Noise—CMOS Divide = 4, 61.44 MHz
05596-019
05596-020
Rev. 0 | Page 17 of 28
Page 18
AD9514
S

FUNCTIONAL DESCRIPTION

OVERALL

The AD9514 provides for the distribution of its input clock on up to three outputs simultaneously. OUT0 and OUT1 are LVPECL levels. OUT2 can be set to either LVDS or CMOS levels. Each output has its own divider that can be set for a divide ratio selected from a list of integer values from 1 (bypassed) to 32.
OUT2 includes an analog delay block that can be set to add an additional delay of 1.5 ns, 5 ns, or 10 ns full scale, each with 16 levels of fine adjustment.

CLK, CLKB—DIFFERENTIAL CLOCK INPUT

The CLK and CLKB pins are differential clock input pins. This input works up to 1600 MHz. The jitter performance is degraded by a slew rate below 1 V/ns. The input level should be between approximately 150 mV p-p to no more than 2 V p-p. Anything greater can result in turning on the protection diodes on the input pins.
Figure 23 for the CLK equivalent input circuit. This input
See is fully differential and self-biased. The signal should be ac­coupled using capacitors. If a single-ended input must be used, this can be accommodated by ac coupling to one side of the differential input only. The other side of the input should be bypassed to a quiet ac ground by a capacitor.
CLOCK INPUT
V
CLK
CLKB
S
2.5kΩ
5kΩ
5kΩ
2.5kΩ
Figure 23 Clock Input Equivalent Circuit
STAGE
05596-021

SYNCHRONIZATION

Power-On SYNC

A power-on sync (POS) is issued when the VS power supply is turned on to ensure that the outputs start in synchronization. The power-on sync works only if the V tions the region from 2.2 V to 3.1 V within 35 ms. The POS can occur up to 65 ms after V
crosses 2.2 V. Only outputs which are
S
not divide = 1 are synchronized.
power supply transi-
S
3.1V
2.2V
35ms
MAX
V
S
0V
CLK
CLOCK FREQUENCY
OUT
IS EXAMPLE ONLY
DIVIDE = 2 PHASE = 0
INTERNAL SYNC NODE
< 65ms
Figure 24. Power-On Sync Timing

SYNCB

If the setup configuration of the AD9514 is changed during operation, the outputs can become unsynchronized. The outputs can be re-synchronized to each other at any time. Synchronization occurs when the SYNCB pin is pulled low and released. The clock outputs (except where divide = 1) are forced into a fixed state (determined by the divide and phase settings) and held there in a static condition until the SYNCB pin is returned to high. Upon release of the SYNCB pin, after four cycles of the clock signal at CLK, all outputs continue clocking in synchronicity (except where divide = 1).
When divide = 1 for an output, that output is not affected by SYNCB.
3 CLK CYCLES 4 CLK CYCLES
CLK
EXAMPLE: DIVIDE 8
OUT
PHASE = 0
YNCB
Figure 25. SYNCB Timing with Clock Present
4 CLK CYCLES
CLK
DEPENDS ON PREVIOUS STATE
OUT
SYNCB
MIN 5ns
§§§
DEPENDS ON PREVIOUS STATE AND DIVIDE RATIO
§
Figure 26. SYNCB Timing with No Clock Present
The outputs of the AD9514 can be synchronized by using the SYNCB pin. Synchronization aligns the phases of the clock outputs, respecting any phase offset that has been set on a particular output’s divider.
SYNCB
3.3V
EXAMPLE DIVIDE RATIO PHASE = 0
EXAMPLE DIVIDE RATIO PHASE = 0
05596-094
05596-093
05596-092
05596-022
Figure 27. SYNCB Equivalent Input Circuit
Rev. 0 | Page 18 of 28
Page 19
AD9514
V
60kΩ
30kΩ
S
05596-023
Synchronization is initiated by pulling the SYNCB pin low for a minimum of 5 ns. The input clock does not have to be present at the time the command is issued. The synchronization occurs after four input clock cycles.
The synchronization applies to clock outputs:
that are not turned OFF
where the divider is not divide = 1 (divider bypassed)
SETUP PIN
S0 TO S10
Figure 28. Setup Pin (S0 to S10) Equivalent Circuit
An output with its divider set to divide = 1 (divider bypassed) is always synchronized with the input clock, with a propagation delay.
The SYNCB pin must be pulled up for normal operation. Do not let the SYNCB pin float.
R
RESISTOR
SET
The internal bias currents of the AD9514 are set by the
resistor. This resistor should be as close as possible to
R
SET
the value given as a condition in the (R
= 4.12 kΩ). This is a standard 1% resistor value and
SET
Specifications section
should be readily obtainable. The bias currents set by this resistor determine the logic levels and operating conditions of the internal blocks of the AD9514. The performance figures given in the value is used for R
Specifications section assume that this resistor
.
SET

VREF

The VREF pin provides a voltage level of ⅔ VS. This voltage is one of the four logic levels used by the setup pins (S0 to S10). These pins set the operation of the AD9514. The VREF pin provides sufficient drive capability to drive as many of the setup pins as necessary, up to all on a single part. The VREF pin should be used for no other purpose.

SETUP CONFIGURATION

The specific operation of the AD9514 is set by the logic levels applied to the setup pins (S0 to S10). These pins use four-state logic. The logic levels used are V ⅔ V
. The ⅓ VS level is provided by the internal self-biasing on
S
each of the setup pins (S0 to S10). This is the level seen by a setup pin that is left not connected (NC). The ⅔ V provided by the VREF pin. All setup pins requiring the ⅔ V level must be tied to the VREF pin.
and GND, plus ⅓ VS and
S
level is
S
S
The AD9514 operation is determined by the combination of logic levels present at the setup pins. The setup configurations for the AD9514 are shown in
Table 10 to Table 15. The four logic levels are referred to as 0, ⅓, ⅔, and 1. These numbers represent the fraction of the V levels. See the setup pins thresholds in
voltage that defines the logic
S
Table 6.
The meaning of some of the setup pins depends on the logic level set on other pins. For example, the effect of the S3 to S4 pair of pins depends on whether S0 = 0. If S0 = 0, the delay block for OUT2 is off, and the logic levels on S3 to S4 set the phase word of the OUT2 divider. However, if S0 ≠ 0, then the full-scale delay for OUT2 is set by the logic level on S0, and S3 to S4 sets the delay block fine adjust (fraction of full scale).
S1 and S2 together determine the logic level of each output or whether a channel is off. An output that is set to OFF is powered down, including the divider.
OUT0 and OUT1 are LVPECL. The LVPECL output differential voltage (V and 960 mV (limited to the available combinations, see
) can have three possible levels: 410 mV, 790 mV,
OD
Table 11 ).
OUT2 can be set to either LVDS or CMOS levels.
S5 and S6 effect depends on S2. If S2 = 0 (OUT2 is off), S5 and S6 set the OUT1 phase word. If S2 ≠ 0, S5 and S6 set the OUT2 divide ratio. If S2 = ⅔, then the value in S9 and S10 overrides the divide ratio for OUT2.
S7 and S8 depend on S2 and S0. If S2 ≠ 1, these pins set the OUT1 divide ratio. However, if S2 = 1 (OUT1 is off) and S0 ≠ 0, S7 and S8 set the phase word for OUT2.
S9 and S10 depend on S2. If S2 ≠ ⅔, these pins set the OUT0 divide ratio. If S2 = ⅔, they set the OUT2 divide ratio, overriding S5 and S6.
Rev. 0 | Page 19 of 28
Page 20
AD9514
Table 10. S0—OUT2 Delay
S0 Delay Full Scale
0 Off (Bypassed) 1/3 1.5 ns 2/3 5 ns 1 10 ns
Table 11. S1, S2—Output Select
OUT0
S1 S2
0 0 OFF 410 mV OFF 1/3 0 790 mV 790 mV OFF 2/3 0 410 mV 410 mV OFF 1 0 960 mV 960 mV OFF
0 1/3 790 mV 790 mV CMOS 1/3 1/3 410 mV 410 mV LVDS 2/3 1/3 410 mV 410 mV CMOS 1 1/3 790 mV 790 mV LVDS 0 2/3 OFF OFF OFF 1/3 2/3 OFF OFF LVDS 2/3 2/3 OFF OFF CMOS 1 2/3 OFF 790 mV OFF 0 1 410 mV OFF CMOS 1/3 1 790 mV OFF LVDS 2/3 1 410 mV OFF LVDS 1 1 790 mV OFF CMOS
LVP EC L
OUT1 LVP EC L
OUT2 LVDS/CMOS
Table 12. S3, S4—OUT2 Delay Fine Adjust or Phase
S0 ≠ 0 S0 = 0
S3 S4
0 0 0 0 1/3 0 1/16 1 2/3 0 1/8 2 1 0 3/16 3 0 1/3 1/4 4 1/3 1/3 5/16 5 2/3 1/3 3/8 6 1 1/3 7/16 7 0 2/3 1/2 8 1/3 2/3 9/16 9 2/3 2/3 5/8 10 1 2/3 11/16 11 0 1 3/4 12 1/3 1 13/16 13 2/3 1 7/8 14 1 1 15/16 15
OUT2 Delay Fine Adjust (Fraction of FS)
OUT2 Phase
Rev. 0 | Page 20 of 28
Page 21
AD9514
Table 13. S5, S6—OUT2 Divide or OUT1 Phase
S2 ≠ 0 S2 = 0
S5 S6
OUT2 Divide (Duty Cycle
1
)
OUT1 Phase
0 0 1 0 1/3 0 2 (50%) 1 2/3 0 3 (33%) 2 1 0 4 (50%) 3 0 1/3 5 (40%) 4 1/3 1/3 6 (50%) 5 2/3 1/3 8 (50%) 6 1 1/3 9 (44%) 7 0 2/3 10 (50%) 8 1/3 2/3 12 (50%) 9 2/3 2/3 15 (47%) 10 1 2/3 16 (50%) 11 0 1 18 (50%) 12 1/3 1 24 (50%) 13 2/3 1 30 (50%) 14 1 1 32 (50%) 15
1
Duty cycle is the clock signal high time divided by the total period.
Table 14. S7, S8—OUT1 Divide or OUT2 Phase
S2 ≠ 1 S2 = 1 and S0 ≠ 0
S7 S8
OUT1 Divide (Duty Cycle
1
)
OUT2 Phase
0 0 1 0 1/3 0 2 (50%) 1 2/3 0 3 (33%) 2 1 0 4 (50%) 3 0 1/3 5 (40%) 4 1/3 1/3 6 (50%) 5 2/3 1/3 8 (50%) 6 1 1/3 9 (44%) 7 0 2/3 10 (50%) 8 1/3 2/3 12 (50%) 9 2/3 2/3 15 (47%) 10 1 2/3 16 (50%) 11 0 1 18 (50%) 12 1/3 1 24 (50%) 13 2/3 1 30 (50%) 14 1 1 32 (50%) 15
1
Duty cycle is the clock signal high time divided by the total period.
Table 15. S9, S10—OUT0 Divide or OUT2 Divide
S2 ≠ 2/3 S2 = 2/3
S9 S10
OUT0 Divide (Duty Cycle
OUT2
1
)
Divide (Duty Cycle
0 0 1 7 (43%) 1/3 0 2 (50%) 11 (45%) 2/3 0 3 (33%) 13 (46%) 1 0 4 (50%) 14 (50%) 0 1/3 5 (40%) 17 (47%) 1/3 1/3 6 (50%) 19 (47%) 2/3 1/3 8 (50%) 20 (50%) 1 1/3 9 (44%) 21 (48%) 0 2/3 10 (50%) 22 (50%) 1/3 2/3 12 (50%) 23 (48%) 2/3 2/3 15 (47%) 25 (48%) 1 2/3 16 (50%) 26 (50%) 0 1 18 (50%) 27 (48%) 1/3 1 24 (50%) 28 (50%) 2/3 1 30 (50%) 29 (48%) 1 1 32 (50%) 31 (48%)
1
Duty cycle is the clock signal high time divided by the total period.
1
)
Rev. 0 | Page 21 of 28
Page 22
AD9514

DIVIDER PHASE OFFSET

The phase of OUT1 or OUT2 can be selected, depending on the divide ratio and output configuration chosen. This allows, for example, the relative phase of OUT0 and OUT1 to be set.
After a SYNC operation (see the phase offset word of each divider determines the number of input clock (CLK) cycles to wait before initiating a clock output edge. By giving each divider a different phase offset, output-to­output delays can be set in increments of the fast clock period, t
Figure 29 shows four cases, each with the divider set to divide = 4. By incrementing the phase offset from 0 to 3, the output is offset from the initial edge by a multiple of t
CLOCK INPUT
DIVIDER OUTPUT
DIV = 4
PHASE = 0
PHASE = 1
014123 5 96 7 8 10 1411 12 13
CLK
t
CLK
Synchronization section), the
CLK
.
CLK
5
.
The resolution of the phase offset is set by the fast clock period
) at CLK. The maximum unique phase offset is less than the
(t
CLK
divide ratio, up to a phase offset of 15.
Phase offsets can be related to degrees by calculating the phase step for a particular divide ratio:
Phase Step = 360°/Divide Ratio
Using some of the same examples:
Divide = 4
Phase Step = 360°/4 = 90°
Unique Phase Offsets in Degrees Are Phase = 0°, 90°,
180°, 270°
Divide = 9
Phase Step = 360°/9 = 40°
Unique Phase Offsets in Degrees Are Phase = 0°, 40°, 80°,
120°, 160°, 200°, 240°, 280°, 320°
PHASE = 2
PHASE = 3
t
CLK
2× t
3× t
CLK
Figure 29. Phase Offset—Divider Set for Divide = 4, Phase Set from 0 to 2
CLK
For example:
CLK = 491.52 MHz
= 1/491.52 = 2.0345 ns
t
CLK
For Divide = 4:
Phase Offset 0 = 0 ns
Phase Offset 1 = 2.0345 ns
Phase Offset 2 = 4.069 ns
Phase Offset 3 = 6.104 ns
The outputs can also be described as:
Phase Offset 0 = 0°
05596-024

DELAY BLOCK

OUT2 includes an analog delay element that gives variable time delays (ΔT) in the clock signal passing through that output.
CLOCK INPUT
OUT2 ONLY
÷N
SELECT
ΔT
FINE DELAY ADJUST
(16 STEPS)
FULL SCALE : 1.5ns, 5ns, 10ns
Figure 30. Analog Delay Block
The amount of delay that can be used is determined by the output frequency. The amount of delay is limited to less than one-half cycle of the clock period. For example, for a 10 MHz clock, the delay can extend to the full 10 ns maximum. However, for a 100 MHz clock, the maximum delay is less than 5 ns (or half of the period).
The AD9514 allows for the selection of three full-scale delays,
1.5 ns, 5 ns, and 10 ns, set by delay full scale (see of these full-scale delays can be scaled by 16 fine adjustment values, which are set by the delay word (see
LVDS
CMOS
MUX
Table 12 ).
OUTPUT DRIVER
Table 1 0). Each
05596-025
Phase Offset 1 = 90°
Phase Offset 2 = 180°
Phase Offset 3 = 270°
Setting the phase offset to Phase = 4 results in the same relative phase as Phase = 0° or 360°.
Rev. 0 | Page 22 of 28
The delay block adds some jitter to the output. This means that the delay function should be used primarily for clocking digital chips, such as FPGA, ASIC, DUC, and DDC, rather than for supplying a sample clock for data converters. The jitter is higher for longer full scales because the delay block uses a ramp and trip points to create the variable delay. A longer ramp means more noise has a chance of being introduced.
Page 23
AD9514
3
A
3
A
When the delay block is OFF (bypassed), it is also powered down.

OUTPUTS

The AD9514 offers three different output level choices: LVPECL, LVDS, and CMOS. OUT0/OUT0B and OUT1/ OUT1B are LVPECL differential outputs. There are three amounts of LVPECL differential voltage swing (V selected (410 mV, 790 mV, and 960 mV) within the choices available in
Table 11.
OUT2/OUT2B can be selected as either an LVDS differential output or a pair of CMOS single-ended outputs. If selected as CMOS, OUT2 is a noninverted, single-ended output, and OUT2B is an inverted, single-ended output.
3.3V
OUT
OUTB
) that can be
OD
POWER SUPPLY
The AD9514 requires a 3.3 V ± 5% power supply for VS. The tables in the expected from the AD9514 with the power supply voltage within this range. In no case should the absolute maximum range of −0.3 V to +3.6 V, with respect to GND, be exceeded on Pin VS.
Good engineering practice should be followed in the layout of power supply traces and the ground plane of the PCB. The power supply should be bypassed on the PCB with adequate capacitance (>10 μF). The AD9514 should be bypassed with adequate capacitors (0.1 μF) at all power pins as close as possible to the part. The layout of the AD9514 evaluation board (AD9514/PCB) is a good example.
Specifications section give the performance
GND
Figure 31. LVPECL Output Simplified Equivalent Circuit
.5m
OUT
OUTB
.5m
Figure 32. LVDS Output Simplified Equivalent Circuit
V
S
OUT2/ OUT2B
Figure 33. CMOS Equivalent Output Circuit
05596-026
05596-027
05596-028
Rev. 0 | Page 23 of 28
Page 24
AD9514

Exposed Metal Paddle

The exposed metal paddle on the AD9514 package is an electrical connection, as well as a thermal enhancement. For the device to function properly, the paddle must be properly attached to ground (GND).

POWER MANAGEMENT

In some cases the AD9514 can be configured to use less power by turning off functions that are not being used.
The power-saving options include the following:
The exposed paddle of the AD9514 package must be soldered down. The AD9514 must dissipate heat through its exposed
paddle. The PCB acts as a heat sink for the AD9514. The PCB attachment must provide a good thermal path to a larger heat dissipation area, such as a ground plane on the PCB. This requires a grid of vias from the top layer down to the ground plane (see
Figure 34). The AD9514 evaluation board (AD9514/PCB) provides a good example of how the part should be attached to the PCB.
VIAS TO GND PLANE
05596-035
Figure 34. PCB Land for Attaching Exposed Paddle
Any divider is powered down when set to divide = 1
(bypassed).
Adjustable delay block on OUT2 is powered down when in
off mode (S0 = 0).
In some cases, an unneeded output can be powered down
Table 11). This also powers down the divider for that
(see output.
Rev. 0 | Page 24 of 28
Page 25
AD9514

APPLICATIONS

USING THE AD9514 OUTPUTS FOR ADC CLOCK APPLICATIONS

Any high speed, analog-to-digital converter (ADC) is extremely sensitive to the quality of the sampling clock provided by the user. An ADC can be thought of as a sampling mixer, and any noise, distortion, or timing jitter on the clock is combined with the desired signal at the A/D output. Clock integrity require­ments scale with the analog input frequency and resolution, with higher analog input frequency applications at ≥14-bit resolution being the most stringent. The theoretical SNR of an ADC is limited by the ADC resolution and the jitter on the sampling clock. Considering an ideal ADC of infinite resolution where the step size and quantization error can be ignored, the available SNR can be expressed approximately by
1
Tf
J
A
18
SNR = 20log
T
=
J
100
200
f
S
400
f
S
1
p
s
2p
s
10p
s
f
S
2πf
1
ATJ
16
14
12
ENOB
10
8
6
05596-091
SNR
f
where
T
is the rms jitter on the sampling clock.
j
×=
log20
⎢ ⎢
is the highest analog frequency being digitized.
A
Figure 35 shows the required sampling clock jitter as a function of the analog frequency and effective number of bits (ENOB).
110
100
90
80
70
SNR (dB)
60
50
40
30
10 1k100
f
FULL-SCALE SINE WAVE ANALOG FREQUENCY (MHz)
A
Figure 35. ENOB and SNR vs. Analog Input Frequency
Many high performance ADCs feature differential clock inputs to simplify the task of providing the required low jitter clock on a noisy PCB. (Distributing a single-ended clock on a noisy PCB can result in coupled noise on the sample clock. Differential distribution has inherent common-mode rejection that can provide superior clock performance in a noisy environment.) The AD9514 features both LVPECL and LVDS outputs that provide differential clock outputs, which enable clock solutions that maximize converter SNR performance. The input requirements of the ADC (differential or single-ended, logic level, termination) should be considered when selecting the best clocking/converter solution.

LVPECL CLOCK DISTRIBUTION

The low voltage, positive emitter-coupled, logic (LVPECL) outputs of the AD9514 provide the lowest jitter clock signals available from the AD9514. The LVPECL outputs (because they are open emitter) require a dc termination to bias the output transistors. The simplified equivalent circuit in the LVPECL output stage.
In most applications, a standard LVPECL far-end termination is recommended, as shown in
Figure 36. The resistor network is designed to match the transmission line impedance (50 Ω) and the switching threshold (V
V
S
LVPECL
V
S
SINGLE-ENDED
(NOT COUPLED)
V
Figure 36. LVPECL Far-End Termination
0.1nF
S
50Ω
50Ω
= VS– 1.3V
T
− 1.3 V).
Figure 31 shows
V
S
127Ω127Ω
83Ω83Ω
V
S
LVPECL
V
S
05596-030
See Application Notes AN-756 and AN-501 at www.analog.com.
Rev. 0 | Page 25 of 28
LVPECL
200Ω 200Ω
100Ω DIFFERENTIAL
0.1nF
(COUPLED)
Figure 37. LVPECL with Parallel Transmission Line
100Ω
LVPECL
05596-031
Page 26
AD9514

LVDS CLOCK DISTRIBUTION

The AD9514 provides one clock output (OUT2) that is selectable as either CMOS or LVDS levels. Low voltage differential signaling OUT2. LVDS uses a current mode output stage. The current is
3.5 mA, which yields 350 mV output swing across a 100 Ω resistor. The LVDS output meets or exceeds all ANSI/TIA/EIA­644 specifications.
A recommended termination circuit for the LVDS outputs is shown in
Figure 38.
V
S
LVDS
(LVDS) is a differential output option for
DIFFERENTIAL (COUPLED)
100Ω
100Ω
V
S
LVDS
Termination at the far end of the PCB trace is a second option. The CMOS outputs of the AD9514 do not supply enough current to provide a full voltage swing with a low impedance resistive, far-end termination, as shown in
Figure 40. The far-end termination network should match the PCB trace impedance and provide the desired switching point. The reduced signal swing may still meet receiver input requirements in some applications. This can be useful when driving long trace lengths on less critical nets.
V
S
CMOS
10Ω
OUT2/OUT2B SELECTED AS CMOS
Figure 40. CMOS Output with Far-End Termination
50Ω
100Ω
100Ω
3pF
05596-034
05596-032
Figure 38. LVDS Output Termination
See Application Note AN-586 at www.analog.com for more information on LVDS.

CMOS CLOCK DISTRIBUTION

The AD9514 provides one output (OUT2) that is selectable as either CMOS or LVDS levels. When selected as CMOS, this output provides for driving devices requiring CMOS level logic at their clock inputs.
Whenever single-ended CMOS clocking is used, some of the following general guidelines should be used.
Point-to-point nets should be designed such that a driver has only one receiver on the net, if possible. This allows for simple termination schemes and minimizes ringing due to possible mismatched impedances on the net. Series termination at the source is generally required to provide transmission line matching and/or to reduce current transients at the driver. The value of the resistor is dependent on the board design and timing requirements (typically 10 Ω to 100 Ω is used). CMOS outputs are also limited in terms of the capacitive load or trace length that they can drive. Typically, trace lengths less than 3 inches are recommended to preserve signal rise/fall times and preserve signal integrity.
Because of the limitations of single-ended CMOS clocking, consider using differential outputs when driving high speed signals over long traces. The AD9514 offers both LVPECL and LVDS outputs that are better suited for driving long traces where the inherent noise immunity of differential signaling provides superior performance for clocking converters.

SETUP PINS (S0 TO S10)

The setup pins that require a logic level of ⅓ VS (internal self­bias) should be tied together and bypassed to ground via a capacitor.
The setup pins that require a logic level of ⅔ V
should be tied
S
together, along with the VREF pin, and bypassed to ground via a capacitor.

POWER AND GROUNDING CONSIDERATIONS AND POWER SUPPLY REJECTION

Many applications seek high speed and performance under less than ideal operating conditions. In these application circuits, the implementation and construction of the PCB is as important as the circuit design. Proper RF techniques must be used for device selection, placement, and routing, as well as power supply bypassing and grounding to ensure optimum performance.
60.4Ω
1.0 INCH
CMOS
Figure 39. Series Termination of CMOS Output
10Ω
MICROSTRIP
5pF
GND
05596-033
Rev. 0 | Page 26 of 28
Page 27
AD9514

PHASE NOISE AND JITTER MEASUREMENT SETUPS

WENZEL
OSCILLATOR
SPLITTER ZESC-2-11
WENZEL
OSCILLATOR
EVALUATION BOARD
4
5
1
9
D
A
TERM
1
T
U
O
1
K
L
C
BALUN
0°
EVALUATION BOARD
C
BALUN
U
O
5
1
9
D
A
O
1
K
L
U
O
TERM
1
B
T
4
TERM
1
T
U
TERM
B
1
T
ZFL1000VH2
AMP
+28dB
ZFL1000VH2
AMP
+28dB
ATTENUATOR
–12dB
ATTENUATOR
–7dB
VARIABLE DELAY
COLBY PDL30A
0.01ns STEP TO 10ns
SIG IN
REF IN
AGILENT E5500B
PHASE NOISE MEASUREMENT SYSTEM
05596-041
Figure 41. Additive Phase Noise Measurement Configuration
WENZEL
OSCILLATOR
ANALOG
ADC
SOURCE
PC
FFT
SNR
t
J_RMS
EVALUATION BOARD
D
A
1
K
L
C
BALUN
1
4
5
9
TERM
1
T
U
O
TERM
B
1
T
U
O
CLK
DATA CAPTURE CARD
Figure 42. Jitter Determination by Measuring SNR of ADC
2
A_RMS
SNR
20
⎤ ⎥
()
2
BWSND
()
⎥ ⎦
[]
2π
××
t
J_RMS
V
⎢ ⎢
10
=
where:
t
is the rms time jitter.
j_RMS
SNR is the signal-to-noise ratio. SND is the source noise density in nV/√Hz. BW is the SND filter bandwidth.
V
is the analog source voltage.
A
f
is the analog frequency.
A
The θ terms are the quantization, thermal, and DNL errors.
Rev. 0 | Page 27 of 28
FIFO
θθθ
++×
DNLTHERMALONQUANTIZATI
Vf
2
A_PKA
05596-042
222
Page 28
AD9514

OUTLINE DIMENSIONS

0.60 MAX
25
24
EXPOSED
PAD
(BOTTOM VIEW)
17
16
32
1
8
9
3.50 REF
PIN 1 INDICATOR
3.25
3.10 SQ
2.95
0.25 MIN
PIN 1
INDICATOR
1.00
0.85
0.80
12° MAX
SEATING PLANE
5.00
BSC SQ
TOP
VIEW
0.80 MAX
0.65 TYP
0.30
0.23
0.18
COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2
4.75
BSC SQ
0.20 REF
0.05 MAX
0.02 NOM
0.60 MAX
0.50
BSC
0.50
0.40
0.30
COPLANARITY
0.08
Figure 43. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
5 mm × 5 mm Body, Very Thin Quad (CP-32-2)
Dimensions shown in millimeters

ORDERING GUIDE

Model Temperature Range Package Description Package Option
AD9514BCPZ AD9514BCPZ-REEL7 AD9514/PCB Evaluation Board
1
Z = Pb-free part.
1
−40°C to +85°C 32-Lead Lead Frame Chip Scale Package (LFCSP_VQ) CP-32-2
1
−40°C to +85°C 32-Lead Lead Frame Chip Scale Package (LFCSP_VQ) CP-32-2
© 2005 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D05596–0–7/05(0)
Rev. 0 | Page 28 of 28
Loading...
