Analog Devices AD7492 Datasheet

1.25 MSPS, 16 mW Internal REF and CLK,

a

FEATURES
Specified for V
Throughput Rate of 1 MSPS—AD7492
Throughput Rate of 1.25 MSPS—AD7492-5
Low Power

4 mW Typ at 1 MSPS with 3 V Supplies
11 mW Typ at 1 MSPS with 5 V Supplies

Wide Input Bandwidth

70 dB Typ SNR at 100 kHz Input Frequency

2.5 V Internal Reference
On-Chip CLK Oscillator
Flexible Power/Throughput Rate Management
No Pipeline Delays
High-Speed Parallel Interface
Sleep Mode: 50
24-Lead SOIC and TSSOP Packages

GENERAL DESCRIPTION

The AD7492 and AD7492-5 are 12-bit high-speed, low power,
successive-approximation ADCs. The parts operate from a
single 2.7 V to 5.25 V power supply and feature throughput rates
up to 1.25 MSPS. They contain a low-noise, wide bandwidth
track/hold amplifier that can handle bandwidths up to 10 MHz.

The conversion process and data acquisition are controlled using
standard control inputs allowing easy interface to microproces­sors or DSPs. The input signal is sampled on the falling edge of
CONVST and conversion is also initiated at this point. The
BUSY goes high at the start of conversion and goes low 880 ns
(AD7492) or 680 ns (AD7492-5) later to indicate that the con­version is complete. There are no pipeline delays associated with
the part. The conversion result is accessed via standard CS and
RD signals over a high-speed parallel interface.

The AD7492 uses advanced design techniques to achieve very
low power dissipation at high throughput rates. With 5 V
supplies and 1.25 MSPS, the average current consumption
AD7492-5 is typically 2.75 mA. The part also offers flexible
power/throughput rate management.

It is also possible to operate the part in a full sleep mode and a
partial sleep mode, where the part wakes up to do a conversion
and automatically enters a sleep mode at the end of conversion.
The type of sleep mode is hardware selected by the PS/FS pin.
Using these sleep modes allows very low power dissipation num­bers at lower throughput rates.

The analog input range for the part is 0 to REF IN. The 2.5 V
reference is supplied internally and is available for external refer­encing. The conversion rate is determined by the internal clock.

of 2.7 V to 5.25 V

DD

nA Typ

12-Bit Parallel ADC

AD7492

FUNCTIONAL BLOCK DIAGRAM

AVDD

DVDD

REF OUT

2.5V
REF

BUF

VIN

CONVST

PRODUCT HIGHLIGHTS

T/H

AD7492

AGND DGND

12-BIT SAR

ADC

CONTROL

LOGIC

OSCILLATOR

1. High Throughput with Low Power Consumption
The AD7492-5 offers 1.25 MSPS throughput with 16 mW
power consumption.

2. Flexible Power/Throughput Rate Management
The conversion time is determined by an internal clock. The
part also features two sleep modes, partial and full, to maxi­mize power efficiency at lower throughput rates.

3. No Pipeline Delay
The part features a standard successive-approximation ADC
with accurate control of the sampling instant via a CONVST
input and once-off conversion control.

4. Flexible Digital Interface
The V

feature controls the voltage levels on the I/O

DRIVE

digital pins.

5. Fewer Peripheral Components
The AD7492 optimizes PCB space by using an internal
Reference and internal CLK.

CLOCK

VDRIVE

OUTPUT

DRIVERS

DB11

DB0

PS/FS

CS

RD

BUSY

REV. 0

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] World Wide Web Site: http://www.analog.com
Fax: [phone] © Analog Devices, Inc., 2001

AD7492

1

AD7492-5–SPECIFICATIONS

Parameter A Version

1

(VDD = 4.75 V to 5.25 V, TA = T

B Version

1

DYNAMIC PERFORMANCE fS = 1.25 MSPS

Signal to Noise + Distortion (SINAD) 69 69 dB typ f

68 68 dB min f

Signal-to-Noise Ratio (SNR) 70 70 dB typ fIN = 500 kHz Sine Wave

68 68 dB min fIN = 100 kHz Sine Wave

Total Harmonic Distortion (THD) –83 –83 dB typ fIN = 500 kHz Sine Wave

–87 –87 dB typ fIN = 100 kHz Sine Wave
–75 –75 dB max fIN = 100 kHz Sine Wave

Peak Harmonic or Spurious Noise (SFDR) –83 –83 dB typ fIN = 500 kHz Sine Wave

–90 –90 dB typ fIN = 100 kHz Sine Wave
–76 –76 dB max fIN = 100 kHz Sine Wave

Intermodulation Distortion (IMD)

Second Order Terms –82 –82 dB typ fIN = 500 kHz Sine Wave

–90 –90 dB typ fIN = 100 kHz Sine Wave

Third Order Terms –71 –71 dB typ fIN = 500 kHz Sine Wave

–88 –88 dB typ fIN = 100 kHz Sine Wave
Aperture Delay 5 5 ns typ
Aperture Jitter 15 15 ps typ
Full Power Bandwidth 10 10 MHz typ

DC ACCURACY fS = 1.25 MSPS

Resolution 12 12 Bits
Integral Nonlinearity ± 1.5 ± 1.25 LSB max
Differential Nonlinearity +1.5/–0.9 +1.5/–0.9 LSB max Guaranteed No Missed Codes to

Offset Error ± 9 ± 9 LSB max
Gain Error ± 2.5 ± 2.5 LSB max

ANALOG INPUT

Input Voltage Ranges 0 to 2.5 0 to 2.5 V
DC Leakage Current ± 1 ± 1 µA max
Input Capacitance 33 33 pF typ

REFERENCE OUTPUT

REF OUT Output Voltage Range 2.5 2.5 V ± 1.5% for Specified Performance

LOGIC INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I

IN

Input Capacitance, C

INL

IN

INH

2

2

3

V

× 0.7 V

DRIVE

V

× 0.3 V

DRIVE

× 0.7 V min VDD = 5 V ± 5%

DRIVE

× 0.3 V max VDD = 5 V ± 5%

DRIVE

± 1 ± 1 µA max Typically 10 nA, VIN = 0 V or V

10 10 pF max

LOGIC OUTPUTS

Output High Voltage, V
Output Low Voltage, V

OL

OH

V

– 0.2 V

DRIVE

– 0.2 V min I

DRIVE

0.4 0.4 V max I
Floating-State Leakage Current ± 10 ± 10 µA max
Floating-State Output Capacitance 10 10 pF max
Output Coding Straight (Natural) Binary Straight (Natural) Binary

CONVERSION RATE

Conversion Time 680 680 ns max
Track/Hold Acquisition Time 120 120 ns min
Throughput Rate 1.25 1.25 MSPS max Conversion Time + Acquisition Time

POWER REQUIREMENTS

V

DD

I

DD

4.75/5.25 4.75/5.25 V min/max

Normal Mode 3.3 3.3 mA max fS = 1.25 MSPS, Typ 2.75 mA
Quiescent Current 1.8 1.8 mA max
Partial Sleep Mode 250 250 µA max Static. Typ 190 µA
Full Sleep Mode 1 1 µA max Static. Typ 200 nA

Power Dissipation

4

Normal Mode 16.5 16.5 mW max
Partial Sleep Mode 1.25 1.25 mW max
Full Sleep Mode 5 5 µW max

NOTES

1

Temperature ranges as follows: A and B Versions: –40°C to +85°C.

2

V

and V

INH

3

Sample tested @ 25°C to ensure compliance.

4

See Power vs. Throughput Rate section.

Specifications subject to change without notice.

trigger levels are set by the V

INL

voltage. The logic interface circuitry is powered by V

DRIVE

DRIVE

–2–

to T

MIN

, unless otherwise noted.)

MAX

Unit Test Conditions/Comments

= 500 kHz Sine Wave

IN

= 100 kHz Sine Wave

IN

12 Bits (A and B Version)

= 200 µA

SOURCE

= 200 µA

SINK

Digital I/Ps = 0 V or DV

Digital I/Ps = 0 V or DV

.

DD.

DD

REV. 0

DD

AD7492

AD7492–SPECIFICATIONS

Parameter A Version

1

(VDD = 2.7 V to 5.25 V, TA = T

1

B Version

to T

MIN

1

, unless otherwise noted.)

MAX

Unit Test Conditions/Comments

DYNAMIC PERFORMANCE fS = 1 MSPS

Signal to Noise + Distortion (SINAD) 69 69 dB typ fIN = 500 kHz Sine Wave

68 68 dB min fIN = 100 kHz Sine Wave

Signal-to-Noise Ratio (SNR) 70 70 dB typ f

68 68 dB min f

Total Harmonic Distortion (THD) –85 –85 dB typ f

–87 –87 dB typ f

= 500 kHz Sine Wave

IN

= 100 kHz Sine Wave

IN

= 500 kHz Sine Wave

IN

= 100 kHz Sine Wave

IN

–75 –75 dB max fIN = 100 kHz Sine Wave

Peak Harmonic or Spurious Noise (SFDR) –86 –86 dB typ f

–90 –90 dB typ f

= 500 kHz Sine Wave

IN

= 100 kHz Sine Wave

IN

–76 –76 dB max fIN = 100 kHz Sine Wave

Intermodulation Distortion (IMD)

Second Order Terms –77 –77 dB typ f

–90 –90 dB typ f

= 500 kHz Sine Wave

IN

= 100 kHz Sine Wave

IN

Third Order Terms –69 –69 dB typ fIN = 500 kHz Sine Wave

–88 –88 dB typ fIN = 100 kHz Sine Wave
Aperture Delay 5 5 ns typ
Aperture Jitter 15 15 ps typ
Full Power Bandwidth 10 10 MHz typ

DC ACCURACY f

= 1 MSPS

S

Resolution 12 12 Bits
Integral Nonlinearity ± 1.5 LSB max

± 0.6 LSB typ VDD = 5 V
± 1 LSB max VDD = 3 V

Differential Nonlinearity +1.5/–0.9 +1.5/–0.9 LSB max Guaranteed No Missed Codes to

12 Bits (A and B Version)
Offset Error ± 9 ± 9 LSB max
Gain Error ± 2.5 ± 2.5 LSB max

ANALOG INPUT

Input Voltage Ranges 0 to 2.5 0 to 2.5 V
DC Leakage Current ± 1 ± 1 µA max
Input Capacitance 33 33 pF typ

REFERENCE OUTPUT

REF OUT Output Voltage Range 2.5 2.5 V ± 1.5% for Specified Performance

LOGIC INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I

IN

Input Capacitance, C

INL

IN

INH

2

2

3

V

× 0.7 V

DRIVE

V

× 0.3 V

DRIVE

× 0.7 V min VDD = 5 V ± 5%

DRIVE

× 0.3 V max VDD = 5 V ± 5%

DRIVE

± 1 ± 1 µA max Typically 10 nA, VIN = 0 V or V
10 10 pF max

LOGIC OUTPUTS

Output High Voltage, V
Output Low Voltage, V

OL

OH

V

– 0.2 V

DRIVE

– 0.2 V min I

DRIVE

0.4 0.4 V max I

SOURCE

= 200 µA

SINK

= 200 µA

Floating-State Leakage Current ± 10 ± 10 µA max
Floating-State Output Capacitance 10 10 pF max
Output Coding Straight (Natural) Binary Straight (Natural) Binary

CONVERSION RATE

Conversion Time 880 880 ns max
Track/Hold Acquisition Time 120 120 ns min
Throughput Rate 1 1 MSPS max Conversion Time + Acquisition Time

POWER REQUIREMENTS

V

DD

I

DD

2.7/5.25 2.7/5.25 V min/max
Digital I/Ps = 0 V or DV

DD.

Normal Mode 3 3 mA max fS = 1 MSPS, Typ 2.2 mA
Quiescent Current 1.8 1.8 mA max
Partial Sleep Mode 250 250 µA max Static. Typ 190 µA
Full Sleep Mode 1 1 µA max Static. Typ 200 nA

Power Dissipation

4

Digital I/Ps = 0 V or DV

DD

Normal Mode 15 15 mW max VDD = 5 V
Partial Sleep Mode 1.25 1.25 mW max VDD = 5 V
Full Sleep Mode 5 5 µW max VDD = 5 V

NOTES

1

Temperature ranges as follows: A and B Versions: –40°C to +85°C.

2

V

and V

INH

3

Sample tested @ 25°C to ensure compliance.

4

See Power vs. Throughput Rate section.

Specifications subject to change without notice.

trigger levels are set by the V

INL

voltage. The logic interface circuitry is powered by V

DRIVE

DRIVE

.

DD

REV. 0

–3–

AD7492

TIMING SPECIFICATIONS

1

(VDD = 2.7 V to 5.25 V, TA = T

MIN

to T

, unless otherwise noted.)

MAX

Limit at T

Parameter AD7492 AD7492-5

t

CONVERT

t

WAKEUP

880 680 ns max

3

20

MIN

, T

MAX

20

2

3

Unit Description

µs max Partial Sleep Wake-Up Time

500 500 µs max Full Sleep Wake-Up Time

t

1

t

2

t

3

4

t

4

t

5

4

t

6

5

t

7

t

8

t

9

t

10

NOTES

1

Sample tested at 25°C to ensure compliance. All input signals are specified with tr = tf = 5 ns (10% to 90% of VDD) and timed from a voltage level of 1.6 V. See
Figure 1.

2

The AD7492-5 is specified with VDD = 4.75 V to 5.25 V.

3

This is the time needed for the part to settle within 0.5 LSB of its stable value. Conversion can be initiated earlier than 20 µs, but we cannot guarantee that the part
will sample within 0.5 LSB of the true analog input value. Therefore we recommend that the user does not start conversion until after the specified time.

4

Measured with the load circuit of Figure 1 and defined as the time required for the output to cross 0.8 V or 2.0 V.

5

t7 is derived from the measured time taken by the data outputs to change 0.5 V when loaded with the circuit of Figure 1. The measured number is then extrapolated
back to remove the effects of charging or discharging the 50 pF capacitor. This means that the time, t
time of the part and is independent of the bus loading.

Specifications subject to change without notice.

10 10 ns min CONVST Pulsewidth
10 10 ns max CONVST to BUSY Delay, VDD = 5 V
40 N/A ns max CONVST to BUSY Delay, V

DD

= 3 V

0 0 ns max BUSY to CS Setup Time
0 0 ns max CS to RD Setup Time
20 20 ns min RD Pulsewidth
15 15 ns min Data Access Time after Falling Edge of RD
8 8 ns max Bus Relinquish Time after Rising Edge of RD
0 0 ns max CS to RD Hold Time
120 120 ns min Acquisition Time
100 100 ns min Quiet Time

, quoted in the timing characteristics is the true bus relinquish

7

TO OUTPUT

PIN

50pF

200␮A

C

L

200␮A

I

OL

1.6V

I

OH

Figure 1. Load Circuit for Digital Output Timing Specifications

–4–

REV. 0

AD7492

WARNING!

ESD SENSITIVE DEVICE

ABSOLUTE MAXIMUM RATINGS

1

(TA = 25°C unless otherwise noted)

AVDD to AGND/DGND . . . . . . . . . . . . . . . . . –0.3 V to +7 V

DV

to AGND/DGND . . . . . . . . . . . . . . . . . –0.3 V to +7 V

DD

V

to AGND/DGND . . . . . . . . . . . . . . . . –0.3 V to +7 V

DRIVE

to DVDD . . . . . . . . . . . . . . . . . . . . . . .–0.3 V to +0.3 V

AV

DD

V

to DVDD . . . . . . . . . . . . . . . . –0.3 V to DVDD + 0.3 V

DRIVE

AGND TO DGND . . . . . . . . . . . . . . . . . . . . –0.3 V to +0.3 V

Analog Input Voltage to AGND . . . –0.3 V to AVDD + 0.3 V
Digital Input Voltage to DGND . . . –0.3 V to DVDD + 0.3 V
Input Current to Any Pin Except Supplies

2

. . . . . . . ± 10 mA

Operating Temperature Range

Commercial (A and B Versions) . . . . . . . . –40°C to +85°C

Storage Temperature Range . . . . . . . . . . . –65°C to +150°C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . 150°C

SOIC, TSSOP Package Dissipation . . . . . . . . . . . . . . 450 mW

Thermal Impedance . . . . . . . . . . . . . . . 75°C/W (SOIC)

θ

JA

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115°C/W (TSSOP)

Thermal Impedance . . . . . . . . . . . . . . . 25°C/W (SOIC)

θ

JC

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35°C/W (TSSOP)

Lead Temperature, Soldering

Vapor Phase (60 secs) . . . . . . . . . . . . . . . . . . . . . . . 215°C

Infrared (15 secs) . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C

NOTES

1

Stresses above those listed under Absolute Maximum Ratings may cause perma-

nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those listed in the operational sections
of this specification is not implied. Exposure to absolute maximum rating condi­tions for extended periods may affect device reliability.

2

Transient currents of up to 100 mA will not cause SCR latch-up.

PIN CONFIGURATION

1

DB9 DB8

2

DB10 DB7

(MSB) DB11 DB6

REF OUT

CONVST

3

4

AV

DD

5

AD7492

6

V

IN

TOP VIEW

(Not to Scale)

7

AGND DB5

8

CS

9

RD

10

11

PS/FS

BUSY DB0 (LSB)

12

24

23

22

21

V

DRIVE

20

DV

19

DGND

18

DB4

17

16

DB3

15

DB2

14

DB1

13

DD

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD7492 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.

ORDERING GUIDE

Temperature Resolution Throughput Rate Package Package

Model Range (Bits) (MSPS) Description Option

AD7492AR –40°C to +85°C 12 1 SOIC R-24
AD7492ARU –40°C to +85°C 12 1 TSSOP RU-24
AD7492BR –40°C to +85°C 12 1 SOIC R-24
AD7492BRU –40°C to +85°C 12 1 TSSOP RU-24
AD7492AR-5 –40°C to +85°C 12 1.25 SOIC R-24
AD7492ARU-5 –40°C to +85°C 12 1.25 TSSOP RU-24
AD7492BR-5 –40°C to +85°C 12 1.25 SOIC R-24
AD7492BRU-5 –40°C to +85°C 12 1.25 TSSOP RU-24
EVAL-AD7492CB
EVAL-CONTROL BRD2

NOTES

1

R = SOIC; RU = TSSOP.

2

This can be used as a standalone evaluation board or in conjunction with the EVAL-CONTROL BRD2 for evaluation/demonstration purposes.

3

This board is a complete unit allowing a PC to control and communicate with all Analog Devices evaluation boards ending in the CB designators.

2

3

Evaluation Board
Controller Board

1

REV. 0

–5–

AD7492

PIN FUNCTION DESCRIPTION

Pin Mnemonic Function

1–3, DB9–DB11, Data Bit 0 to DB11. Parallel digital outputs that provide the conversion result for the part. These
13–18, DB0–DB5, are three-state outputs that are controlled by CS and RD. The output high voltage level for these
22–24 DB6–DB8 outputs is determined by the V

4AV

DD

Analog Supply Voltage, 2.7 V to 5.25 V. This is the only supply voltage for all analog circuitry on
the AD7492. The AV

and DV

DD

be more than 0.3 V apart, even on a transient basis. This supply should be decoupled to AGND.

5 REF OUT Reference Out. The output voltage from this pin is 2.5 V ±1%.
6V

IN

Analog Input. Single-ended analog input channel. The input range is 0 V to REFIN. The analog
input presents a high dc input impedance.

7 AGND Analog Ground. Ground reference point for all analog circuitry on the AD7492. All analog input

signals should be referred to this AGND voltage. The AGND and DGND voltages should
ideally be at the same potential and must not be more than 0.3 V apart, even on a transient basis.

8 CS Chip Select. Active low logic input used in conjunction with RD to access the conversion result.

The conversion result is placed on the data bus following the falling edge of both CS and RD.
CS and RD are both connected to the same AND gate on the input so the signals are inter­changeable. CS can be hardwired permanently low.

9 RD Read Input. Logic input used in conjunction with CS to access the conversion result. The con-

version result is placed on the data bus following the falling edge of both CS and RD. CS and

RD are both connected to the same AND gate on the input so the signals are interchangeable.
CS and RD can be hardwired permanently low, in which case the data bus is always active and

the result of the new conversion is clocked out slightly before to the BUSY line going low.

10 CONVST Conversion Start Input. Logic input used to initiate conversion. The input track/hold amplifier

goes from track mode to hold mode on the falling edge of CONVST and the conversion process
is initiated at this point. The conversion input can be as narrow as 10 ns. If the CONVST input
is kept low for the duration of conversion and is still low at the end of conversion, the part will
automatically enter a sleep mode. The type of sleep mode is determined by the PS/FS pin. If the
part enters a sleep mode, the next rising edge of CONVST wakes up the part. Wake-up time
depends on the type of sleep mode.

11 PS/FS Partial Sleep/Full Sleep Mode. This pin determines the type of sleep mode the part will enter if

the CONVST pin is kept low for the duration of the conversion and is still low at the end of
conversion. In partial sleep mode the internal reference circuit and oscillator circuit is not pow­ered down and draws 250 µA maximum. In full sleep mode all of the analog circuitry is
powered down and the current drawn is negligible. This pin is hardwired either high (DV
low (GND).

12 BUSY BUSY Output. Logic output indicating the status of the conversion process. The BUSY signal

goes high after the falling edge of CONVST and stays high for the duration of conversion. Once
conversion is complete and the conversion result is in the output register, the BUSY line returns
low. The track/hold returns to track mode just prior to the falling edge of BUSY and the acquisi­tion time for the part begins when BUSY goes low. If the CONVST input is still low when BUSY
goes low, the part automatically enters its sleep mode on the falling edge of BUSY.

19 DGND Digital Ground. This is the ground reference point for all digital circuitry on the AD7492. The

DGND and AGND voltages should ideally be at the same potential and must not be more than

0.3 V apart, even on a transient basis.

20 DV

DD

Digital Supply Voltage, 2.7 V to 5.25 V. This is the supply voltage for all digital circuitry on the
AD7492 apart from the output drivers and input circuitry. The DV
should ideally be at the same potential and must not be more than 0.3 V apart even on a tran­sient basis. This supply should be decoupled to DGND.

21 V

DRIVE

Supply Voltage for the Output Drivers and Digital Input circuitry, 2.7 V to 5.25 V. This voltage
determines the output high voltage for the data output pins and the trigger levels for the digital
inputs. It allows the AV

and DVDD to operate at 5 V (and maximize the dynamic performance

DD

of the ADC) while the digital input and output pins can interface to 3 V logic.

input.

DRIVE

voltages should ideally be at the same potential and must not

DD

DD

and AV

DD

voltages

DD

) or

–6–

REV. 0

AD7492

TERMINOLOGY
Integral Nonlinearity

This is the maximum deviation from a straight line passing
through the endpoints of the ADC transfer function. The end­points of the transfer function are zero scale, a point 1/2 LSB
below the first code transition, and full scale, a point 1/2 LSB
above the last code transition.

Differential Nonlinearity

This is the difference between the measured and the ideal 1 LSB
change between any two adjacent codes in the ADC.

Offset Error

This is the deviation of the first code transition (00 . . . 000) to
(00 . . . 001) from the ideal, i.e., AGND + 1 LSB.

Gain Error

The last transition should occur at the analog value 1 1/2 LSB
below the nominal full scale. The first transition is a 1/2 LSB
above the low end of the scale (zero in the case of AD7492).
The gain error is the deviation of the actual difference between
the first and last code transitions from the ideal difference between
the first and last code transitions with offset errors removed.

Track/Hold Acquisition Time

The track/hold amplifier returns into track mode after the end of
conversion. Track/Hold acquisition time is the time required for
the output of the track/hold amplifier to reach its final value,
within ± 0.5 LSB, after the end of conversion.

Signal to (Noise + Distortion) Ratio

This is the measured ratio of signal to (noise + distortion) at the
output of the A/D converter. The signal is the rms amplitude of
the fundamental. Noise is the sum of all nonfundamental signals
up to half the sampling frequency (f

/2), excluding dc. The ratio

S

is dependent on the number of quantization levels in the digiti­zation process; the more levels, the smaller the quantization noise.
The theoretical signal to (noise + distortion) ratio for an ideal
N-bit converter with a sine wave input is given by:

Signal to (Noise + Distortion) = (6.02 N + 1.76) dB

Thus for a 12-bit converter, this is 74 dB and for a 10-bit con­verter is 62 dB.

Total Harmonic Distortion

Total harmonic distortion (THD) is the ratio of the rms sum of
harmonics to the fundamental. For the AD7492 it is defined as:

Peak Harmonic or Spurious Noise

Peak harmonic or spurious noise is defined as the ratio of the
rms value of the next largest component in the ADC output
spectrum (up to f

/2 and excluding dc) to the rms value of the

S

fundamental. Normally, the value of this specification is deter­mined by the largest harmonic in the spectrum, but for ADCs
where the harmonics are buried in the noise floor, it will be a
noise peak.

Intermodulation Distortion

With inputs consisting of sine waves at two frequencies, fa and
fb, any active device with nonlinearities will create distortion
products at sum and difference frequencies of mfa ± nfb where
m, n = 0, 1, 2, 3, etc. Intermodulation distortion terms are
those for which neither m nor n is equal to zero. For example,
the second order terms include (fa + fb) and (fa – fb), while the
third order terms include (2fa + fb), (2fa – fb), (fa + 2fb) and
(fa – 2fb).

The AD7492 is tested using the CCIF standard where two
input frequencies near the top end of the input bandwidth are
used. In this case, the second order terms are usually distanced
in frequency from the original sine waves while the third order
terms are usually at a frequency close to the input frequencies.
As a result, the second and third order terms are specified sepa­rately. The calculation of the intermodulation distortion is as
per the THD specification where it is the ratio of the rms sum of
the individual distortion products to the rms amplitude of the
sum of the fundamentals expressed in dBs.

Aperture Delay

In a sample/hold, the time required after the hold command for
the switch to open fully is the aperture delay. The sample is, in
effect, delayed by this interval, and the hold command would
have to be advanced by this amount for precise timing.

Aperture Jitter

Aperture jitter is the range of variation in the aperture delay. In
other words, it is the uncertainty about when the sample is
taken. Jitter is the result of noise which modulates the phase of
the hold command. This specification establishes the ultimate
timing error, hence the maximum sampling frequency for a
given resolution. This error will increase as the input dV/dt
increases.

THD dB

( ) log

VVVVV

()

++++

=

20

223242526

V

1

2

where V1 is the rms amplitude of the fundamental and V2, V3,

V

, V5, and V6 are the rms amplitudes of the second through the

4

sixth harmonics.

REV. 0

–7–

AD7492

–Typical Performance Characteristics

71

70

69

68

67

66

65

SNR+D – dB

64

63

62

61

60

0

500 1000 1500 2000 2500

INPUT FREQUENCY – kHz

5V

3V

TPC 1. Typical SNR+D vs. Input Tone

95

90

85

80

75

70

THD – dB

65

60

55

50

100 200 350 1000 2000

INPUT FREQUENCY – kHz

500

TPC 2. Typical THD vs. Input Tone

0

–20

–40

–60

dB

–80

–100

–120

0 100000

200000 300000 400000 500000 600000

FREQUENCY – Hz

TPC 4. Typical SNR @ 500 kHz Input Tone

0

–0.5

5V

3V

–1.0

–1.5

dB

–2.0

–2.5

–3.0

–3.5

1 100000

10 100 1000

FREQUENCY – Hz

5V

10000

TPC 5. Typical Bandwidth

70.60

70.40

70.20

70.00

69.80

SNR – dB

69.60

69.40

69.20

69.00

2.50 3.50

–55ⴗC

3.00

TPC 3. Typical SNR vs. Supply

+125ⴗC

SUPPLY – Volts

–40ⴗC

4.00 4.50

+25ⴗC

+85ⴗC

5.00 5.50

0

VCC = 5V
100mV p-p SINEWAVE ON V

–20

f

= 1MHz, fIN = 100kHz

SAMPLE

–40

–60

PSSR – dB

–80

–100

–120

0

51610 20 26 31 36 41 46 51 57 61 67 72 77 82 889297

3 8 13 18 23 28 34 39

VCC RIPPLE FREQUENCY – kHz

495459

44

CC

64 697480 84 89 94

TPC 6. Typical Power Supply Rejection Ratio (PSRR)

–8–

100

REV. 0

AD7492

COMPARATOR

V

IN

CONTROL LOGIC

CAPACITIVE

DAC

AGND

2k⍀

SW2

SW1

A

B

COMPARATOR

V

IN

CONTROL LOGIC

CAPACITIVE

DAC

AGND

2k⍀

SW2

SW1AB

1

0.8

0.6

0.4

0.2

0

–0.2

–0.4

–0.6

–0.8

–1

0

512

CODE

4089

357830672556204515341023

TPC 7. Typical INL for 2.75 V @ 25°C

1

0.8

0.6

0.4

0.2

0

–0.2

–0.4

–0.6

–0.8

–1

0

512

CODE

4089

357830672556204515341023

TPC 8. Typical DNL for 2.75 V @ 25°C

CIRCUIT DESCRIPTION

CONVERTER OPERATION

The AD7492 is a 12-bit successive approximation analog-to­digital converter based around a capacitive DAC. The AD7492
can convert analog input signals in the range 0 V to V

. Figure 2

REF

shows a very simplified schematic of the ADC. The Control
Logic, SAR, and the Capacitive DAC are used to add and sub­tract fixed amounts of charge from the sampling capacitor to
bring the comparator back into a balanced condition.

COMPARATOR

CAPACITIVE

DAC

V

IN

REF

SWITCHES

SAR

V

Figure 3 shows the ADC during its acquisition phase. SW2 is
closed and SW1 is in Position A. The comparator is held in a
balanced condition and the sampling capacitor acquires the
signal on V

.

IN

Figure 3. ADC Acquisition Phase

Figure 4 shows the ADC during conversion. When conversion
starts, SW2 will open and SW1 will move to Position B, causing
the comparator to become unbalanced. The ADC then runs
through its successive approximation routine and brings the com­parator back into a balanced condition. When the comparator is
rebalanced, the conversion result is available in the SAR register.

Figure 4. ADC Conversion Phase

TYPICAL CONNECTION DIAGRAM

Figure 5 shows a typical connection diagram for the AD7492.
Conversion is initiated by a falling edge on CONVST. Once
CONVST goes low the BUSY signal goes high, and at the end
of conversion the falling edge of BUSY is used to activate an
Interrupt Service Routine. The CS and RD lines are then activated
in parallel to read the 12 data bits. The internal bandgap reference
voltage is 2.5 V, providing an analog input range of 0 V to 2.5 V,
making the AD7492 a unipolar A/D. A capacitor with a mini­mum capacitance of 100 nF is needed at the output of the REF
OUT pin as it stabilizes the internal reference value. It is recom­mended to perform a dummy conversion after power-up as the
first conversion result could be incorrect. This also ensures that
the part is in the correct mode of operation. The CONVST pin
should not be floating when power is applied as a rising edge on
CONVST might not wake up the part.

In Figure 5 the V
output voltage values being either 0 V or DV
applied to V

DRIVE

signals and the input logic signals. For example, if DV
supplied by a 5 V supply and V

pin is tied to DVDD, which results in logic

DRIVE

. The voltage

DD

controls the voltage value of the output logic

is

by a 3 V supply, the logic

DRIVE

DD

output voltage levels would be either 0 V or 3 V. This feature
allows the AD7492 to interface to 3 V parts while still enabling
the A/D to process signals at 5 V supply.

CONTROL

INPUTS

Figure 2. Simplified Block Diagram of AD7492

REV. 0

CONTROL LOGIC

OUTPUT DATA
12-BIT PARALLEL

–9–

AD7492

ANALOG

0V TO 2.5V

SUPPLY

2.7V–5.25V

␮C/␮P

2.5V

PARALLELED

INTERFACE

1nF

100nF

++

10␮F 0.1␮F 47␮F

AV

DRIVE

DD

DD

V

DV

AD7492

REF OUT

DB0–
DB9 (DB11)

CS
CONVST
RD

BUSY

V

PS/FS

IN

Figure 5. Typical Connection Diagram

ADC TRANSFER FUNCTION

The output coding of the AD7492 is straight binary. The designed
code transitions occur at successive integer LSB values (i.e.,
1 LSB, 2 LSB, etc.). The LSB size is = 2.5/4096 for the AD7492.
The ideal transfer characteristic for the AD7492 is shown in
Figure 6.

111...111

111...110

111...000

011...111

ADC CODE

000...010

000...001

000...000

0V 1/2LSB +V

1LSB = V

REF

ANALOG INPUT

REF

–1LSB

/4096

Figure 6. Transfer Characteristic for 12 Bits

AC ACQUISITION TIME

In ac applications it is recommended to always buffer analog
input signals. The source impedance of the drive circuitry must
be kept as low as possible to minimize the acquisition time of
the ADC. Large values of impedance at the V

pin of the

IN

ADC will cause the THD to degrade at high input frequencies.

Table I. Dynamic Performance Specifications

Typical Amplifier
Input SNR THD Current
Buffers 500 kHz 500 kHz Consumption

AD9631 69.5 80 17 mA
AD797 69.6 81.6 8.2 mA

DC Acquisition Time

The ADC starts a new acquisition phase at the end of a conver­sion and ends it on the falling edge of the CONVST signal. At
the end of conversion there is a settling time associated with the
sampling circuit. This settling time lasts 120 ns. The analog
signal on V

is also being acquired during this settling time;

IN

therefore, the minimum acquisition time needed is 120 ns.

Figure 7 shows the equivalent charging circuit for the sampling
capacitor when the ADC is in its acquisition phase. R3 represents
the source impedance of a buffer amplifier or resistive network,
R1 is an internal switch resistance, R2 is for bandwidth control,
and C1 is the sampling capacitor. C2 is back-plate capacitance
and switch parasitic capacitance.

During the acquisition phase the sampling capacitor must be
charged to within 0.5 LSB of its final value.

C2

8pF

C1

22pF

R2
636⍀

V

R3

IN

R1

125⍀

Figure 7. Equivalent Analog Input Circuit

ANALOG INPUT

Figure 8 shows the equivalent circuit of the analog input struc­ture of the AD7492. The two diodes, D1 and D2, provide ESD
protection for the analog inputs. The capacitor C3 is typically
about 4 pF and can be primarily attributed to pin capacitance.
The resistor R1 is an internal switch resistance. This resistor is
typically about 125 Ω. The capacitor C1 is the sampling capaci­tor while R2 is used for bandwidth control.

V

DD

V

IN

C3

4pF

D1

D2

R1

125⍀

8pF

C1

R2

22pF

636⍀

C2

Figure 8. Equivalent Analog Input Circuit

PARALLEL INTERFACE

The parallel interface of the AD7492 is 12 bits wide. The output
data buffers are activated when both CS and RD are logic low.
At this point the contents of the data register are placed onto the
data bus. Figure 9 shows the timing diagram for the parallel port.

Figure 10 shows the timing diagram for the parallel port when
CS and RD are tied permanently low. In this setup, once the
BUSY line goes from high to low, the conversion process is
completed. The data is available on the output bus slightly
before the falling edge of BUSY.

It is important to point out that the data bus cannot change
state while the A/D is doing a conversion as this would have a
detrimental effect on the conversion in progress. The data out
lines will go three-state again when either the RD or CS line
goes high. Thus the CS can be tied low permanently, leaving the
RD line to control conversion result access. Please reference the
V

section for output voltage levels.

DRIVE

OPERATING MODES

The AD7492 has two possible modes of operation depending on
the state of the CONVST pulse at the end of a conversion, Mode 1
and Mode 2.

Mode 1 (High-Speed Sampling)

In this mode of operation the CONVST pulse is brought high
before the end of conversion, i.e., before the BUSY goes low (see
Figure 10). If the CONVST pin is brought from high to low while
BUSY is high, the conversion is restarted. When operating in

–10–

REV. 0

CONVST

BUSY

RD

DBx

CONVST

BUSY

CS

AD7492

t

CONVERT

t

t

2

t

3

t

4

Figure 9. Parallel Port Timing

t

CONVERT

t

2

9

t

10

t

t

5

t

6

8

t

7

t

9

DBx

DATA N DATA N+1

Figure 10. Parallel Port Timing with CS and RD Tied Low

this mode a new conversion should not be initiated until 140 ns
after BUSY goes low. This acquisition time allows the track/hold
circuit to accurately acquire the input signal. As mentioned
earlier, a read should not be done during a conversion. This
mode facilitates the fastest throughput times for the AD7492.

M

ode 2 (Partial or Full Sleep Mode)

Figure 11 shows AD7492 in Mode 2 operation where the ADC
goes into either partial or full sleep mode after conversion. The
CONVST line is brought low to initiate a conversion and remains
low until after the end of conversion. If CONVST goes high and
low again while BUSY is high, the conversion is restarted. Once
the BUSY line goes from a high to a low, the CONVST line has its
status checked and, if low, the part enters a sleep mode. The
type of sleep mode the AD7492 enters depends on what ever
way the PS/FS pin is hardwired. If the PS/FS pin is tied high,
the AD7492 will enter partial sleep mode. If the PS/FS pin is
tied low, the AD7492 will enter full sleep mode.

The device wakes up again on the rising edge of the CONVST
signal. From partial sleep the AD7492 is capable of starting

conversions typically 1 µs after the rising edge of CONVST. The
CONVST line can go from a high to a low during the wake-up
time, but the conversion will still not be initiated until after 1 µs.
We recommend that conversion should not be initiated until at
least 20 µs of the wake-up time has elapsed. This will ensure that
the AD7492 has stabilized to within 0.5 LSB of the analog input
value. After 1 µs, the AD7492 will have only stabilized to within
approximately 3 LSB of the input value. From full sleep this wake­up time is typically 500 µs. In all cases the BUSY line will only go
high once CONVST goes low. Superior power performance can
be achieved in these modes of operation by waking up the
AD7492 only to carry out a conversion. The optimum power
performance is obtained when using full sleep mode as the ADC
comparator, Reference buffer and Reference circuit is powered
down. While in partial sleep mode, only the ADC comparator is
powered down and the reference buffer is put into a low power
mode. The 100 nF capacitor on the REF OUT pin is kept charged
up by the reference buffer in partial sleep mode while in full
sleep mode this capacitor slowly discharges. This explains why
the wake-up time is shorter in partial sleep mode. In both sleep
modes the clock oscillator circuit is powered down.

REV. 0

CONVST

BUSY

CS

RD

DBx

t

CONVERT

Figure 11. Mode 2 Operation

–11–

t

WAKEUP

AD7492

CONVST

BUSY

t

WAKEUP

880ns

9.5ms

500␮s

t

CONVERT

t

QUIESCENT

10ms

CONVST

BUSY

t

WAKEUP

880ns

979␮s

20␮s

t

CONVERT

t

QUIESCENT

1ms

V

DRIVE

The V
drivers and the digital input circuitry. It is a separate supply
from AV
for the digital input/output interface is that the user can vary the
output high voltage, V
V

INL,

AV

DD

powered from a 3 V supply. The ADC has better dynamic per­formance at 5 V than at 3 V, so operating the part at 5 V, while
still being able to interface to 3 V parts, pushes the AD7492 to
the top bracket of high performance 12-bit A/Ds. Of course, the
ADC can have its V
and be powered from a 3 V or 5 V supply. The trigger levels are
V

DRIVE

The pins that are powered from V
RD, CONVST, and BUSY.

PS/FS PIN

As previously mentioned, the PS/FS pin is used to control the
type of power-down mode that the AD7492 can enter into if
operated in Mode 2. This pin can be hardwired either high or
low, or even controlled by another device. It is important to
note that toggling the PS/FS pin while in power-down mode will
not switch the part between partial sleep and full sleep modes.
To switch from one sleep mode to another, the AD7492 will have
to be powered up and the polarity of the PS/FS pin changed. It
can then be powered down to the required sleep mode.

pin is used as the voltage supply to the digital output

DRIVE

and DVDD. The purpose of using a separate supply

DD

, and the logic input levels, V

OH

INH

and

from the VDD supply to the AD7492. For example, if

and DVDD are using a 5 V supply, the V

and DVDD pins connected together

DRIVE

× 0.7 and V

× 0.3 for the digital inputs.

DRIVE

are DB0–DB11, CS,

DRIVE

DRIVE

pin can be

CONVST

BUSY

t

CONVERT

880ns

2␮s

t

QUIESCENT

1.12␮s

Figure 12. Mode 1 Power Dissipation

Mode 2 (Full Sleep Mode)

Figure 13 shows the AD7492 conversion sequence in Mode 2,
Full Sleep mode, using a throughput rate of approximately
100 SPS. At 5 V supply the current consumption for the part
when converting is 3 mA, while the full sleep current is 1 µA
max. The power dissipated during this power-down is negligible
and thus not worth considering in the total power figure. During
the wake-up phase, the AD7492 will draw typically 1.8 mA. Over­all power dissipated is:

(880 ns/10 ms) × (5 × 3 mA) + (500 µs/10 ms) × (5 × 1.8 mA)

= 451.32 µW

POWER-UP

It is recommended that the user performs a dummy conversion
after power-up, as the first conversion result could be incorrect.
This also ensures that the parts is in the correct mode of opera­tion. The recommended power-up sequence is as follows:

1 > GND 4 > Digital Inputs
2 > V
3 > V

DD

DRIVE

5 > V

IN

Power vs. Throughput

The two modes of operation for the AD7492 will produce dif­ferent power versus throughput performances, Mode 1 and
Mode 2; see Operating Modes section of the data sheet for more
detailed descriptions of these modes. Mode 2 is the Sleep Mode
(Partial/Full) of the part and it achieves the optimum power
performance.

Mode 1

Figure 12 shows the AD7492 conversion sequence in Mode 1
using a throughput rate of 500 kSPS. At 5 V supply the current
consumption for the part when converting is 3 mA and the quies­cent current is 1.8 mA. The conversion time of 880 ns contributes

6.6 mW to the overall power dissipation in the following way:

(880 ns/2 µs) × (5 × 3 mA) = 6.6 mW

The contribution to the total power dissipated by the remaining

1.12 µs of the cycle is 5.04 mW.

(1.12 µs/2 µs) × (5 × 1.8 mA) = 5.04 mW

Thus the power dissipated during each cycle is:

6.6 mW + 5.04 mW = 11.64 mW

Figure 13. Full Sleep Power Dissipation

Mode 2 (Partial Sleep Mode)

Figure 14 shows the AD7492 conversion sequence in Mode 2,
Partial Sleep mode, using a throughput rate of 1 kSPS. At 5 V
supply the current consumption for the part when converting is
3 mA, while the partial sleep current is 250 µA max. During the
wake-up phase, the AD7492 will draw typically 1.8 mA. Power
dissipated during wake-up and conversion is :

(880 ns/1 ms) × (5 × 3 mA) + (20 µs/1 ms) × (5 × 1.8 mA) =

193.2 µW

Power dissipated during power-down is:

(979 µs/1 ms) × (5 × 250 µA) = 1.22 mW

Overall power dissipated is:

193.2 µW + 1.22 mW = 1.41 mW

Figure 14. Partial Sleep Power Dissipation

–12–

REV. 0

AD7492

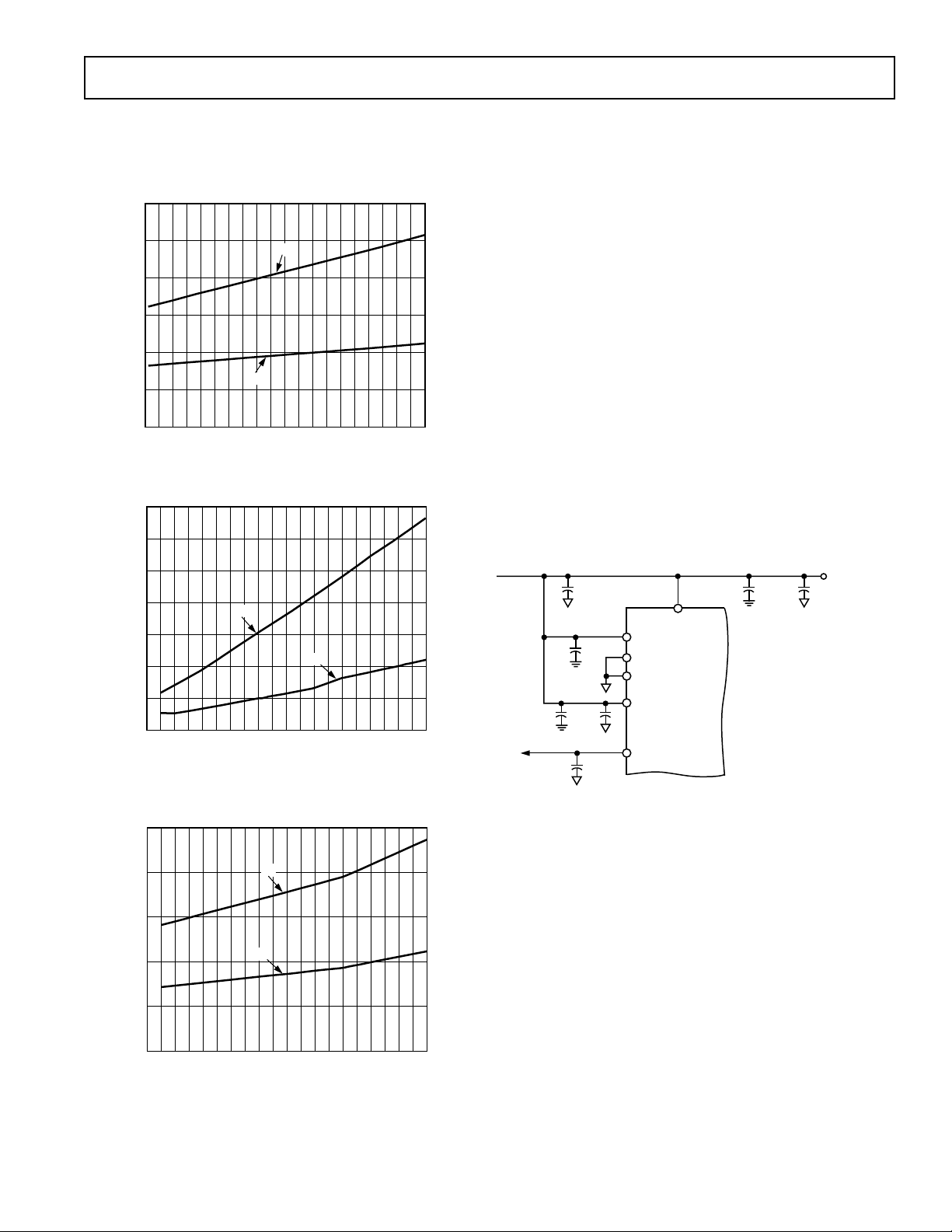

Figure 15 to Figure 17 show a typical graphical representation
of Power versus Throughput for the AD7492 when in (a) Mode
1 @ 5 V and 3 V, (b) Mode 2 in full sleep mode @ 5 V and 3 V
and (c) Mode 2 in partial sleep mode @ 5 V and 3 V.

12

10

8

6

POWER – mW

4

2

0

2001000

300

5V

3V

500 600

THROUGHPUT – kHz

700

800400

900 1000

Figure 15. Power vs. Throughput (Mode 1 @ 5 V and 3 V)

3.5

3.0

2.5

2.0

1.5

POWER – mW

1.0

0.5

0

20100

30

5V

50 60

THROUGHPUT – kHz

3V

90 100

8040

70

Figure 16. Power vs. Throughput (Mode 2 in Full Sleep
Mode @ 5 V and 3 V)

2.5

2.0

1.5

1.0

POWER – mW

0.5

0

20100

5V

3V

30

50 60

THROUGHPUT – kHz

8040

70

90 100

Figure 17. Power vs. Throughput (Mode 2 in Partial
Sleep Mode @ 5 V and 3 V)

GROUNDING AND LAYOUT

The analog and digital power supplies are independent and
separately pinned out to minimize coupling between analog and
digital sections within the device. To complement the excellent
noise performance of the AD7492 it is imperative that care be
given to the PCB layout. Figure 18 shows a recommended
connection diagram for the AD7492.

All of the AD7492 ground pins should be soldered directly to a
ground plane to minimize series inductance. The AV
and V

pins should be decoupled to both the analog and

DRIVE

, DVDD,

DD

digital ground planes. The REF OUT pin should be decoupled
to the analog ground plane with a minimum capacitor value of
100 nF. This capacitor helps to stabilize the internal reference
circuit. The large value capacitors will decouple low frequency
noise to analog ground, the small value capacitors will decouple
high frequency noise to digital ground. All digital circuitry power
pins should be decoupled to the digital ground plane. The use
of ground planes can physically separate sensitive analog com­ponents from the noisy digital system. The two ground planes
should be joined in only one place and should not overlap so as
to minimize capacitive coupling between them. If the AD7492
is in a system where multiple devices require AGND to DGND
connections, the connection should still be made at one point
only, a star ground point, that should be established as close as
possible to the AD7492.

ANALOG
SUPPLY

+

5V

2.5V

1nF

100nF

+

+

10␮F

1nF

10␮F

+

DV

DD

AGND

DGND

V

DRIVE

REF OUT

AV

0.1␮F47␮F

DD

AD7492

Figure 18. Typical Decoupling Circuit

Noise can be minimized by applying some simple rules to the
PCB layout: analog signals should be kept away from digital
signals; fast switching signals like clocks should be shielded with
digital ground to avoid radiating noise to other sections of the
board and clock signals should never be run near the analog
inputs; avoid running digital lines under the device as these will
couple noise onto the die; the power supply lines to the AD7492
should use as large a trace as possible to provide a low imped­ance path and reduce the effects of glitches on the power supply
line; avoid crossover of digital and analog signals and place
traces that are on opposite sides of the board at right angles
to each other.

Noise to the analog power line can be further reduced by use of
multiple decoupling capacitors as shown in Figure 18. Decou­pling capacitors should be placed directly at the power inlet to
the PCB and also as close as possible to the power pins of the
AD7492. The same decoupling method should be used on other
ICs on the PCB, with the capacitor leads as short as possible to
minimize lead inductance.

REV. 0

–13–

AD7492

POWER SUPPLIES

Separate power supplies for AV
if necessary, DV
The digital supply (DV
(AV

) by more than 0.3 V in normal operation.

DD

may share its power connection to AVDD.

DD

) must not exceed the analog supply

DD

DD

and DV

are desirable, but

DD

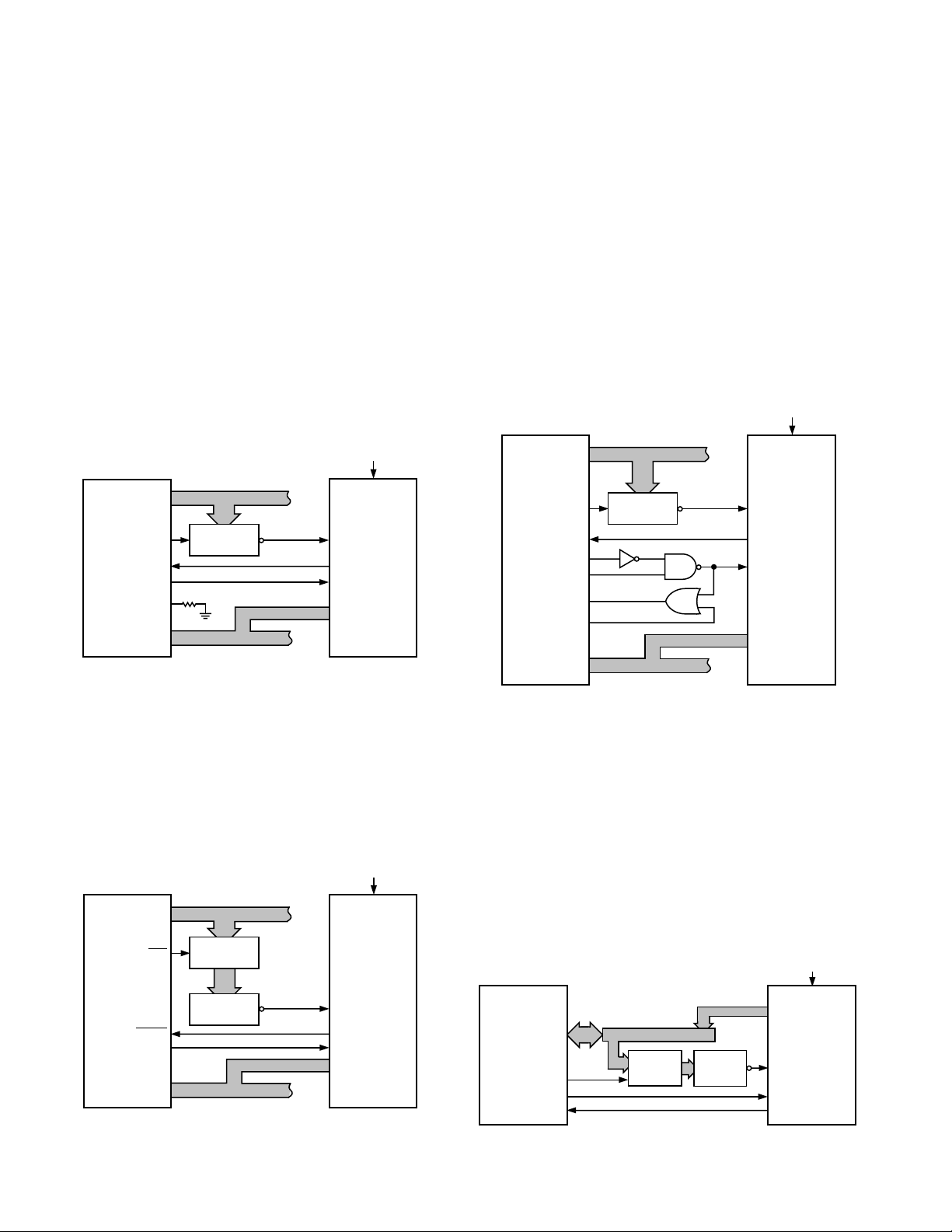

MICROPROCESSOR INTERFACING
AD7492 to ADSP-2185 Interface

Figure 19 shows a typical interface between the AD7492 and the
ADSP-2185. The ADSP-2185 processor can be used in one of two
memory modes, Full Memory Mode and Host Mode. The Mode
C pin determines in which mode the processor works. The inter­face in Figure 19 is set up to have the processor working in Full
Memory Mode, which allows full external addressing capabilities.

When the AD7492 has finished converting, the BUSY line
requests an interrupt through the IRQ2 pin. The IRQ2 interrupt
has to be set up in the interrupt control register as edge-sensitive.
The DMS (Data Memory Select) pin latches in the address of the
A/D into the address decoder. The read operation is thus started.

OPTIONAL

A0–A15

ADSP-2185*

DMS

IRQ2

MODE C

D0–D23

ADDRESS BUS

ADDRESS

DECODER

RD

100k⍀

DATA BUS

*ADDITIONAL PINS OMITTED FOR CLARITY

CONVST

AD7492

CS

BUSY

RD

DB0–DB9
(DB11)

AD7492 to TMS320C25 Interface

Figure 21 shows an interface between the AD7492 and the
TMS320C25. The CONVST signal can be applied from the
TMS320C25 or from an external source. The BUSY line inter­rupts the digital signal processor when conversion is completed.
The TMS320C25 does not have a separate RD output to drive
the AD7492 RD input directly. This has to be generated from
the processor STRB and R/W outputs with the addition of some
glue logic. The RD signal is OR-gated with the MSC signal to
provide the WAIT state required in the read cycle for correct
interface timing. The following instruction is used to read the
conversion from the AD7492:

IN D,ADC

where D is Data Memory address and the ADC is the AD7492
address. The read operation must not be attempted during
conversion.

OPTIONAL

A0–A15

TMS320C25*

STRB

READY

MSC

DMD0–DMD15

IS

R/W

ADDRESS BUS

ADDRESS
DECODER

DATA BUS

CONVST

AD7492

CS

BUSY

RD

DB0–DB9
(DB11)

Figure 19. Interfacing to the ADSP-2185

AD7492 to ADSP-21065L Interface

Figure 20 shows a typical interface between the AD7492 and the
ADSP-21065L SHARC

®

processor. This interface is an example

of one of three DMA handshake modes. The MSX control line
is actually three memory select lines. Internal ADDR
decoded into MS
The DMAR

, these lines are then asserted as chip selects.

3-0

(DMA Request 1) is used in this setup as the

1

25–24

are

interrupt to signal end of conversion. The rest of the interface is
standard handshaking operation.

OPTIONAL

ADDR0–ADDR

MS

ADSP-21065L*

DMAR

RD

D0–D31

*ADDITIONAL PINS OMITTED FOR CLARITY

23

X

1

ADDRESS BUS

ADDRESS

LATCH

ADDRESS
BUS

ADDRESS

DECODER

DATA BUS

CONVST

AD7492

CS

BUSY

RD

DB0–DB9
(DB11)

Figure 20. Interfacing to ADSP-21065L

SHARC is a registered trademark of Analog Devices, Inc.

–14–

*ADDITIONAL PINS OMITTED FOR CLARITY

Figure 21. Interfacing to the TMS320C25

AD7492 to PIC17C4x Interface

Figure 22 shows a typical parallel interface between the AD7492
and PIC17C42/43/44. The microcontroller sees the A/D as
another memory device with its own specific memory address on
the memory map. The CONVST signal can either be controlled
by the microcontroller or an external source. The BUSY signal
provides an interrupt request to the microcontroller when a con­version ends. The INT pin on the PIC17C42/43/44 must be
configured to be active on the negative edge. PORTC and PORTD
of the microcontroller are bidirectional and used to address the
AD7492 and also to read in the 12-bit data. The OE pin on the
PIC can be used to enable the output buffers on the AD7492 and
preform a read operation.

OPTIONAL

PIC17C4x*

AD0–AD15

ADDRESS

ALE

OE

INT

*ADDITIONAL PINS OMITTED FOR CLARITY

LATCH

ADDRESS

DECODER

CONVST

DB0–DB9
(DB11)

AD74792

CS

RD

BUSY

Figure 22. Interfacing to the PIC17C4x

REV. 0

AD7492

AD7492 to 80C186 Interface

Figure 23 shows the AD7492 interfaced to the 80C186 micropro­cessor. The 80C186 DMA controller provides two independent
high-speed DMA channels where data transfer can occur between
memory and I/O spaces. (The AD7492 occupies one of these I/O
spaces.) Each data transfer consumes two bus cycles, one cycle
to fetch data and the other to store data.

After the AD7492 has finished conversion, the BUSY line gen­erates a DMA request to Channel 1 (DRQ1). As a result of the
interrupt, the processor performs a DMA READ operation
which also resets the interrupt latch. Sufficient priority must
be assigned to the DMA channel to ensure that the DMA
request will be serviced before the completion of the next con­version. This configuration can be used with 6 MHz and 8 MHz
80C186 processors.

AD0–AD15

A16–A19

80C186*

ADDRESS/DATA BUS

ALE

DRQ1

RD

ADDRESS

LATCH

ADDRESS
BUS

ADDRESS
DECODER

RSQ

DATA BUS

*ADDITIONAL PINS OMITTED FOR CLARITY

Figure 23. Interfacing to 80C186

OPTIONAL

CONVST

AD7492

CS

BUSY

RD

DB0–DB9
(DB11)

REV. 0

–15–

AD7492

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

24-Lead SOIC

(R-24)

0.6141 (15.60)

0.5985 (15.20)

24 13

1

PIN 1

0.0118 (0.30)

0.0040 (0.10)

PIN 1

0.006 (0.15)

0.002 (0.05)

0.0500
(1.27)

BSC

0.311 (7.90)

0.303 (7.70)

24 13

0.0192 (0.49)

0.0138 (0.35)

24-Lead TSSOP

0.0433 (1.10)

0.2992 (7.60)

0.2914 (7.40)

12

0.1043 (2.65)

0.0926 (2.35)

SEATING
PLANE

(RU-24)

0.177 (4.50)

0.169 (4.30)

121

MAX

0.4193 (10.65)

0.3937 (10.00)

0.0125 (0.32)

0.0091 (0.23)

0.256 (6.50)

0.246 (6.25)

0.0291 (0.74)

0.0098 (0.25)

8ⴗ
0ⴗ

C01128–4.5–1/01 (rev. 0)

ⴛ 45ⴗ

0.0500 (1.27)

0.0157 (0.40)

SEATING

PLANE

0.0256 (0.65)
BSC

0.0118 (0.30)

0.0075 (0.19)

0.0079 (0.20)

0.0035 (0.090)

–16–

8ⴗ
0ⴗ

0.028 (0.70)

0.020 (0.50)

PRINTED IN U.S.A.

REV. 0
