PRELIMINARY TECHNICAL DA T A

3MSPS,

=

Preliminary Technical Data

FEATURES
Fast Throughput Rate: 3Msps

Wide Input Bandwidth: 50MHz
No Pipeline Delays with SAR ADC
Excellent DC Accuracy Performance
Two Parallel Interface Modes
Low Power:

90mW (Full-Power) and 5mW (NAP Mode)
Standby Mode: 1µA max
Single +5V Supply Operation
Internal +2.5V Reference
Full-Scale Overrange Mode (using 15th bit)
System Offset Removal via User Access Offset Register
Nominal 0 to +2.5V Input with Shifted Range Capability
Pin Compatible Upgrade of 12-Bit AD7482

GENERAL DESCRIPTION

The AD7484 is a 14-bit, high speed, low power, succes­sive-approximation ADC. The part features a parallel
interface with throughput rates up to 3Msps. The part
contains a low-noise, wide bandwidth track/hold amplifier
which can handle input frequencies in excess of 50MHz.

The conversion process is a proprietary algorithmic suc­cessive-approximation technique which results in no
pipeline delays. The input signal is sampled and a conver­sion is initiated on the falling edge of the CONVST
signal. The conversion process is controlled via an inter­nally trimmed oscillator. Interfacing is via standard
parallel signal lines making the part directly compatible
with microcontrollers and DSPs.

The AD7484 provides excellent ac and dc performance
specifications. Factory trimming ensures high dc accuracy
resulting in very low INL, offset and gain errors.

The part uses advanced design techniques to achieve very
low power dissipation at high throughput rates. Power
consumption in normal mode of operation is 90mW.
There are two power-saving modes: a NAP mode, which
keeps the reference circuitry alive for a quick power up
while consuming 5mW and a STANDBY mode which
reduces power consumption to a mere 5µW.

14-Bit SAR ADC

AD7484

FUNCTIONAL BLOCK DIAGRAM

AGND

C

BUF

BIASDVDD

14-Bit Error

Correcting SAR

VREF3

VIN

AV

DD

T/H

AD7484

MODE1
MODE2

CLIP
NAP

STBY

RESET

CONVST

V

DRIVE

LOGIC AND I/O

REGISTERS

CS

RD

WRITE

CONTROL

D0

D1

BUSY

The AD7484 features an on-board +2.5V reference but
the part can also accomodate an externally-provided
+2.5V reference source. The nominal analog input range
is 0 to +2.5V but an offset shift capability allows this
nominal range to be offset by +/-200mV. This allows the
user considerable flexibility in setting the bottom end
reference point of the signal range, a useful feature when
using single-supply op-amps.

The AD7484 also provides the user with an 8% overrange
capability via a 15th bit. Thus, if the analog input range
strays outside the nominal by up to 8%, the user can still
accurately resolve the signal by using the 15th bit.

The AD7484 is powered from a +4.75V to +5.25V sup­ply. The part also provides a V
user to set the voltage levels for the digital interface lines.
The range for this V

pin is from +2.7V to +5.25V.

DRIVE

The part is housed in a 48-pin LQFP package and is
specified over a -40°C to +85°C temperature range.

DGND

2.5 V

REFERENCE

D2

D3

D4

D5

D6

pin which allows the

DRIVE

VREF1
VREF2

D14
D13
D12
D11
D10
D9
D8
D7

REV. PrC 7/13/01

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] World Wide Web Site: http://www.analog.com
Fax: [phone] © Analog Devices, Inc., 2001

PRELIMINARY TECHNICAL DA T A

ⴗⴗ

(TA = 25

ⴗC, VDD = 4.75 V to 5.25 V, V

ⴗⴗ

f

AD7484–SPECIFICA TIONS

SAMPLE

= 3MSPS)

Parameter Specification Units Test Conditions/Comments

DYNAMIC PERFORMANCE F

Signal to Noise + Distortion (SINAD)
Signal to Noise Ratio (SNR)

2

Total Harmonic Distortion (THD)
Peak Harmonic or Spurious Noise (SFDR)
Intermodulation Distortion (IMD)

2

2

2

78 dB min
78 dB min

-90 dB max

2

TBD dB max

= 100kHz Sine Wave

IN

Second Order Terms TBD dB typ
Third Order Terms TBD dB typ
Aperture Delay 10 ns typ
Aperture Jitter 10 ps typ
Full Power Bandwidth 50 MHz typ @ 3 dB

TBD MHz typ @0.1 dB

DC ACCURACY

Resolution 14 Bits
Integral Nonlinearity

Differential Nonlinearity
Offset Error

Gain Error

2

2

2

2

TBD LSB max
±1 LSB typ
TBD LSB max Guaranteed No Missed Codes to 14 bits
±1 LSB typ
±1.5 LSB max
±1.5 LSB max

ANALOG INPUT

Input Voltage -200 mV min

+2.7 Volts max
DC Leakage Current TBD µA max
Input Capacitance 10 pF typ

REFERENCE INPUT/OUTPUT

V

Input Voltage +2.5 Volts ±1% for specified performance

REF

V

Input DC Leakage Current ±1 µA max

REF

Input Capacitance TBD pF max

V

REF

V

Output Voltage +2.5 V nom

REF

V

Error @ 25°C TBD mV max

REF

Error T

V

REF

V

Output Impedance TBD k⍀ typ

REF

MIN

to T

MAX

TBD mV max

LOGIC INPUTS

Input High Voltage, V
Input Low Voltage, V
Input Current, I
Input Capacitance, C

INL

IN

IN

INH

2

TBD V min

0.4 V max

TBD µA max

TBD pF max

LOGIC OUTPUTS

Output High Voltage, V
Output Low Voltage, V
Floating-State Leakage Current TBD µA max
Floating-State Output Capacitance

OH

OL

2,3

V

- 0.2 V min

DRIVE

0.4 V max

TBD pF max
Output Coding Straight (Natural) Binary

CONVERSION RATE

Conversion Time TBD ns max
Track/Hold Acquisition Time TBD ns max Sine Wave Input

TBD ns max Full-Scale Step Input
Throughput Rate 3 MSPS max

POWER REQUIREMENTS

V
V

DD
DRIVE

+ 5 Volts ±5%

+2.7 V min

+5.25 V max

Normal Mode (Static) TBD mA typ

I

DD

Normal Mode (Operational) 18 mA typ
NAP Mode 1 mA typ

Standby Mode 1 µA m ax

= 2.7 V to 5.25 V,

DRIVE

REV. PrC 7/13/01

–2–

PRELIMINARY TECHNICAL DA T A

Parameter Specification Units Test Conditions/Comments

POWER REQUIREMENTS

(continued)

Power Dissipation
Normal Mode (Operational) 90 mW max
NAP Mode 5 mW max
Standby Mode 5 µW max

NOTES

1

Temperature ranges as follows: –40°C to +85°C.

2

See Terminology

3

Sample tested @ +25°C to ensure compliance

Specifications subject to change without notice.

AD7484

TIMING CHARACTERISTICS

(VDD = 5 V ±5%, AGND = DGND = 0 V, V

1,2

All specifications T

MIN

to T

MAX

and valid for V

= Internal;

REF

DRIVE

= 2.7 V to 5.25 V unless otherwise noted)

Parameter Symbol Min Typ Max Units
Data Read

Acquisition Time t
Conversion Time t
Quiet Time before Conversion start t
Quiet Time during Conversion t

CONVST Pulse Width t
CONVST falling edge to BUSY falling edge t
CS falling edge to RD falling edge t

Bus Access Time t

CONVST falling edge to new Data valid t
BUSY rising edge to new Data valid t

Bus Relinquish Time t
RD rising edge to CS rising edge t

ACQ
CONV
QUIET
QUIET 2
1
2
3
4
5
6
7
8

TBD ns

TBD ns
TBD ns
TBD ns
TBD ns
TBD TBD ns
TBD ns

TBD ns

TBD ns

TBD ns

TBD ns

TBD ns

Data Write

WRITE Pulse Width t
Data Setup time t
Data Hold time t
CS falling edge to WRITE rising edge t
WRITE falling edge to CS rising edge t

9
10
11
12
13

TBD ns
TBD ns
TBD ns
TBD ns
TBD ns

REV. PrC 7/13/01

–3–

AD7484

WARNING!

ESD SENSITIVE DEVICE

PRELIMINARY TECHNICAL DA T A

ABSOLUTE MAXIMUM RATINGS

1

(TA = +25°C unless otherwise noted)

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to +7 V

V

to GND . . . . . . . . . . . . . . . . . . . . . . . .-0.3 V to +7 V

DRIVE

Analog Input Voltage to GND . . -0.3 V to AV
Digital Input Voltage to GND . . -0.3 V to DV

REF IN to GND . . . . . . . . . . . . . -0.3 V to AV

+ 0.3 V

DD

+ 0.3 V

DD

+ 0.3 V

DD

Input Current to Any Pin Except Supplies . . . . . . . ±10mA

Operating Temperature Range

Commercial . . . . . . . . . . . . . . . . . . . . . . –40°C to +85°C

Storage Temperature Range . . . . . . . –65°C to +150°C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . +150°C

48-Pin LQFP Package, Power Dissipation . . . . . . . .TBD

Thermal Impedance . . . . . . . . . . . . . . . . . . . . 50°C/W

␪

JA

Thermal Impedance . . . . . . . . . . . . . . . . . . . 10°C/W

␪

JC

Lead Temperature, Soldering

Vapor Phase (60 secs) . . . . . . . . . . . . . . . . . . . +215°C

Infared (15 secs) . . . . . . . . . . . . . . . . . . . . . . . +220°C

ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TBD

NOTES

1

Stresses above those listed under “Absolute Maximum Ratings” may cause permanent

damage to the device. This is a stress rating only and functional operation of the device
at these or any other conditions above those listed in the operational sections of this
specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.

AVDD

CBIAS

AGND
AGND
AVDD
AGND

VIN
VREF2
VREF1
VREF3

AGND
AGND

PIN CONFIGURATION

AGND

AGND

AVDD

CLIP

MODE1

MODE2

4847464544434241403938

PIN 1 IDENTIFIER

1

2

3

4

5

6

7

8

9

10

11

12

1314151617181920212223

AVDD

AGND

AD7484

TOP VIEW

(Not to Scale)

STBY

AGND

NAP

CS

RESET

CONVST

RD

WRITE

D14

BUSY

D13

D12

D11

37

24

D0D1D2

36

35

34

33

32

31

30

29

28

27

26

25

D10
D9
D8
D7
VDRIVE
DGND
DGND
DVDD
D6
D5
D4
D3

ORDERING GUIDE

Temperature Package

Model Range Description Option

AD7484BST -40°C to +85°C Low-profile Quad Flat Pack ST-48
EVAL-AD7484CB
EVAL-CONTROL BRD2

NOTES

1

This can be used as a stand-alone evaluation board or in conjunction with the EVAL-CONTROL BOARD for evaluation/demonstration purposes.

2

This board is a complete unit allowing a PC to control and communicate with all Analog Devices evaluation boards ending in the CB designators.

1

2

Evaluation Board
Controller Board

CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD7484 features proprietary ESD protection circuitry, permanent damage may occur on devices
subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are recommended
to avoid performance degradation or loss of functionality.

–4–

REV. PrC 7/13/01

PRELIMINARY TECHNICAL DA T A

AD7484

PIN FUNCTION DESCRIPTION

Pin
Mnemonic Description

AVDD Positive power supply for analog circuitry.
C

BIAS

AGND Power supply ground for analog circuitry.
VIN Analog input. Single-ended analog input channel.
VREF1 Reference Output. VREF1 connects to the output of the internal 2.5V reference. A 1µF capacitor must

VREF2 Reference Input. A 1µF capacitor must be placed between this pin and AGND. When using an external

VREF3 Reference decoupling pin. When using the internal reference, a 100nF must be connected from this pin

STBY Standby logic input. When this pin is logic high, the device will be placed in Standby mode. See Power

NAP Nap logic input. When this pin is logic high, the device will be placed in a very low power mode. See

DVDD Positive power supply for digital circuitry.
DGND Ground reference for digital circuitry.
V

DRIVE

CONVST Convert Start Logic Input. A conversion is initiated on the falling edge of CONVST signal. The input

RESET Reset Logic Input. A logic 0 on this pin resets the internal state machine and terminates a conversion

MODE2 Operating Mode Logic Input. See Table 3 for details.
MODE1 Operating Mode Logic Input. See Table 3 for details.
CLIP Logic input. A logic high on this pin enables output clipping. In this mode, any input voltage that is

CS Chip Select Logic Input. This pin is used in conjunction with RD to access the conversion result. The

RD Read Logic Input. Used in conjunction with CS to access the conversion result.
WRITE Write Logic Input. Used in conjunction with CS to write data to the Offset Register. When the desired

BUSY Busy Logic Output. This pin indicates the status of the conversion process. The BUSY signal goes low

D0 - D13 Data I/O Bits (D13 is MSB). These are tri-state pins that are controlled by CS, RD and WRITE.

D14 Data Output Bit for overranging. If the over range feature is not used, this pin should be pulled to

Decoupling pin for internal bias voltage. A 100nF capacitor should be placed between this pin and
AGND.

be placed between this pin and AGND.

voltage reference source, the reference voltage should be applied to this pin.

to AGND. When using an external reference source, this pin should be connected directly to AGND.

Saving Section for further details.

Power Saving Section for further details.

Logic Power Supply Input. The voltage supplied at this pin will determine at what voltage
the interface logic of the AD7484 will operate.

track/hold amplifier goes from track mode to hold mode and the conversion process commences.

that may be in progress. Holding this pin low keeps the part in a reset state.

greater than positive full scale or less than negative full scale will be clipped to all 1’s or all 0’s
respectively. Further details are given in the Offset / Overrange setion.

data bus is brought out of tri-state and the current contents of the output register driven onto the data
lines following the falling edge of both CS and RD. CS is also used in conjunction with WRITE to
perform a write to the Offset Register. CS can be hardwired permanently low.

offset word has been placed on the data bus, the WRITE line should be pulsed high. It is the falling
edge of this pulse which latches in the word into the Offset Register.

after the falling edge of CONVST and stays low for the duration of the conversion. In Parallel Mode 2,
the BUSY signal returns high when the conversion result has been clocked into the output register. In
Parallel Mode 1, the BUSY signal returns high as soon as the conversion has been completed but the
conversion result does not get clocked into the output register until the falling edge of the next
CONVST pulse.

The operating voltage level for these pins is determined by the V

DGND via a 100k⍀ resistor.

DRIVE

input.

REV. PrC 7/13/01

–5–

AD7484

PRELIMINARY TECHNICAL DA T A

TERMINOLOGY
Integral Nonlinearity

This is the maximum deviation from a straight line pass­ing through the endpoints of the ADC transfer function.
The endpoints of the transfer function are zero scale, a
point 1/2 LSB below the first code transition, and full
scale, a point 1/2 LSB above the last code transition.

Differential Nonlinearity

This is the difference between the measured and the ideal 1
LSB change between any two adjacent codes in the ADC.

Offset Error

This is the deviation of the first code transition (00 . . .

000) to (00 . . . 001) from the ideal, i.e AGND + 0.5
LSB

Gain Error

This is the deviation of the last code transition (111 . . .

110) to (111 . . . 111) from the ideal (i.e., V

REF

– 1.5

LSB) after the offset error has been adjusted out.

Track/Hold Acquisition Time

Track/Hold acquisition time is the time required for the
output of the track/hold amplifier to reach its final value,
within ±1/2 LSB, after the end of conversion (the point
at which the track/hold returns to track mode).

Signal to (Noise + Distortion) Ratio

This is the measured ratio of signal to (noise + distor­tion) at the output of the A/D converter. The signal is
the rms amplitude of the fundamental. Noise is the sum
of all nonfundamental signals up to half the sampling
frequency (f

/2), excluding dc. The ratio is dependent on

S

the number of quantization levels in the digitization
process; the more levels, the smaller the quantization
noise. The theoretical signal to (noise + distortion) ratio
for an ideal N-bit converter with a sine wave input is
given by:

Signal to (Noise + Distortion) = (6.02 N + 1.76) dB
Thus for a 14-bit converter, this is 86.04 dB.

Total Harmonic Distortion

Total harmonic distortion (THD) is the ratio of the rms
sum of harmonics to the fundamental. For the AD7484 it
is defined as:

2

2

2

2

V

V

V

+

THD (dB)=20 log

where V
V

3

is the rms amplitude of the fundamental and V2,

1

, V4, V5 and V6 are the rms amplitudes of the second

2

+

3

V

+

4

V

1

2

V

+

5

6

through the sixth harmonics.

Peak Harmonic or Spurious Noise

Peak harmonic or spurious noise is defined as the ratio of
the rms value of the next largest component in the ADC
output spectrum (up to f

/2 and excluding dc) to the rms

S

value of the fundamental. Normally, the value of this
specification is determined by the largest harmonic in the
spectrum, but for ADCs where the harmonics are buried
in the noise floor, it will be a noise peak.

Intermodulation Distortion

With inputs consisting of sine waves at two frequencies, fa
and fb, any active device with nonlinearities will create
distortion products at sum and difference frequencies of
mfa ± nfb where m, n = 0, 1, 2, 3, etc. Intermodulation
distortion terms are those for which neither m nor n are
equal to zero. For example, the second order terms in­clude (fa + fb) and (fa – fb), while the third order terms
include (2fa + fb), (2fa – fb), (fa + 2fb) and (fa – 2fb).

The AD7484 is tested using the CCIF standard where two
input frequencies near the top end of the input bandwidth
are used. In this case, the second order terms are usually
distanced in frequency from the original sine waves while
the third order terms are usually at a frequency close to
the input frequencies. As a result, the second and third
order terms are specified separately. The calculation of the
intermodulation distortion is as per the THD specification
where it is the ratio of the rms sum of the individual dis­tortion products to the rms amplitude of the sum of the
fundamentals expressed in dBs.

–6–

REV. PrC 7/13/01

PRELIMINARY TECHNICAL DA T A

AD7484

CIRCUIT DESCRIPTION
CONVERTER OPERATION

The AD7484 is a 14-bit error correcting successive ap­proximation analog-to-digital converter based around a
capacitive DAC. It provides the user with track/hold, refer­ence, A/D converter and versatile interface logic functions
on a single chip. The normal analog input signal range that
the AD7484 can convert is 0 to 2.5 Volts. By using the
offset and overrange features on the ADC, the AD7484 can
convert analog input signals from -200mV to +2.7V while
operating from a single +5V supply. The part requires a
+2.5V reference which can be provided from the part’s own
internal reference or an external reference source. Figure 1
shows a very simplified schematic of the ADC. The Control
Logic, SAR and the Capacitive DAC are used to add and
subtract fixed amounts of charge from the sampling capaci­tor to bring the comparator back to a balanced condition.

COMPARATOR

CAPACITIVE

DAC

V

V

REF

CONTROL

INPUTS

IN

SWITCHES

SAR

CONTROL LOGIC

OUTPUT DATA

14-BIT PARALLEL

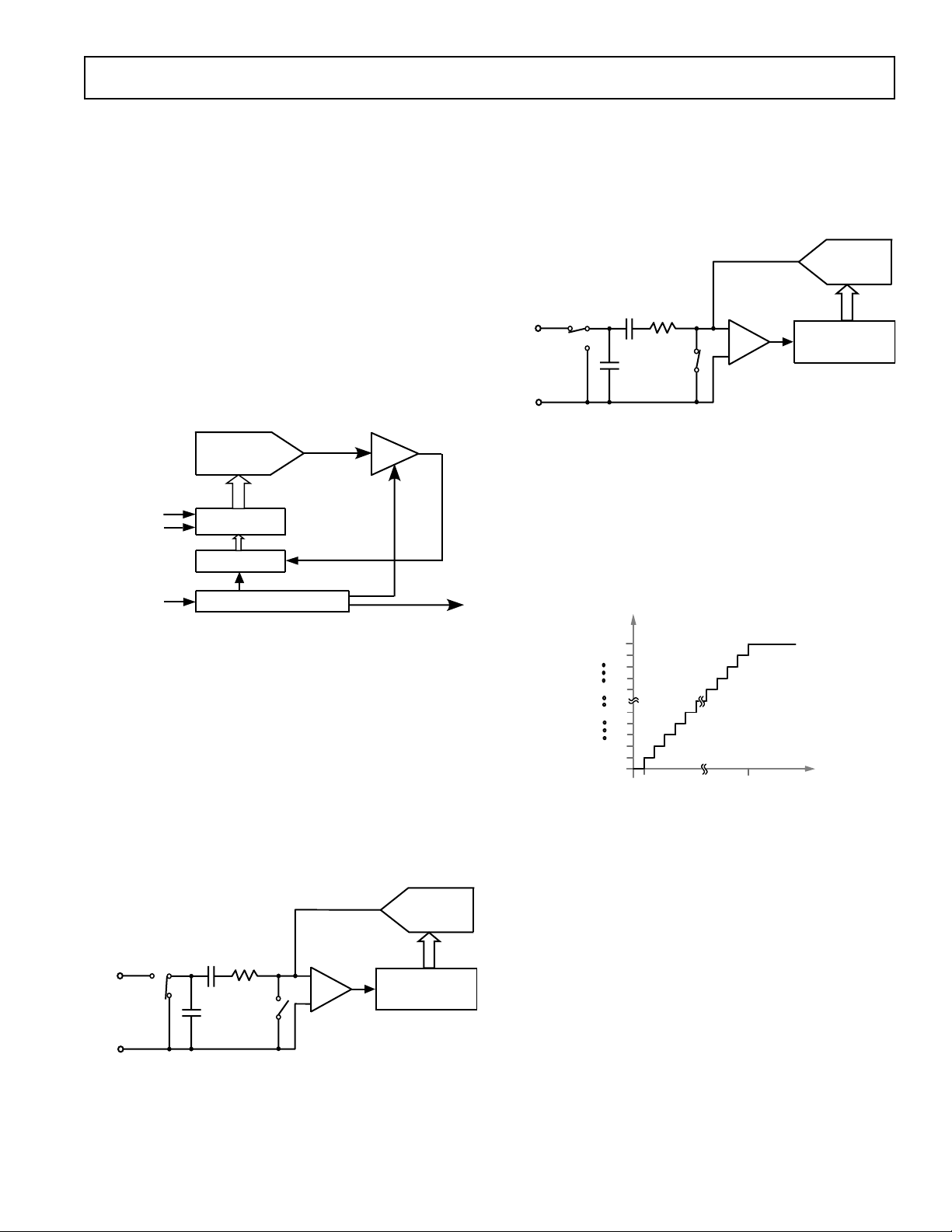

Figure 1. Simplified Block Diagram of AD7484

Conversion is initiated on the AD7484 by pulsing the
CONVST input. On the falling edge of CONVST, the
track/hold goes from track to hold mode and the conversion
sequence is started. Conversion time for the part is TBD
nS. Figure 2 shows the ADC during conversion. When
conversion starts, SW2 will open and SW1 will move to
position B causing the comparator to become unbalanced.
The ADC then runs through its successive approximation
routine and brings the comparator back into a balanced
condition. When the comparator is rebalanced, the conver­sion result is available in the SAR register.

At the end of conversion, the track/hold returns to track­ing mode and the acquisition time begins. The track/hold
acquisition time is TBD nS. Figure 3 shows the ADC
during its acquistition phase. SW2 is closed and SW1 is
in position A. The comparator is held in a balanced con­dition and the sampling capacitor acquires the signal on

.

V

IN

CAPACITIVE

DAC

V

AGND

A

IN

SW1

B

SW2

+

CONTROL LOGIC

-

COMPARATOR

Figure 3. ADC Acquisition Phase

ADC TRANSFER FUNCTION

The output coding of the AD7484 is straight binary. The
designed code transitions occur midway between successive
integer LSB values (i.e., 1/2 LSB, 3/2 LSBs, etc.). The
LSB size is V

/ 16384. The nominal transfer characteris-

REF

tic for the AD7484 in shown in figure 4 below. This
transfer characteristic may be shifted as detailed in the Off­set/Overrange section.

111...111

111...110

E
D

111...000

O
C

C

011...111

D
A

000...010

000...001

000...000

0.5LSB

0V

1LSB= V

ANALOG INPUT

/16384

REF

+V

-1.5LSB

REF

Figure 4. AD7484 Transfer Characteristic

V

AGND

A

IN

SW1

B

Figure 2. ADC Conversion Phase

REV. PrC 7/13/01

SW2

CAPACITIVE

DAC

+

CONTROL LOGIC

-

COMPARATOR

–7–

AD7484

PRELIMINARY TECHNICAL DA T A

POWER SAVING

The AD7484 uses advanced design techniques to achieve
very low power dissipation at high throughput rates. In addi­tion to this the AD7484 features two power saving modes,
Nap Mode and Standby Mode. These modes are selected by
bringing either the NAP or STBY pin to a logic high respec­tively.

When operating the AD7484 in normal, fully powered
mode, the current consumption is 18mA during conver­sion and the quiescent current is 5mA. Operating at a
throughput rate of 1MSPS, the conversion time of 300nS
contributes 27mW to the overall power dissipation.

(300nS / 1µS) x (5V x 18mA) = 27mW

For the remaining 700nS of the cycle, the AD7484 dissipates

17.5mW of power.

(700nS / 1µS) x (5V x 5mA) = 17.5mW

Thus the power dissipated during each cycle is:

27mW + 17.5mW = 44.5mW

Figure 5 below shows the AD7484 conversion sequence
operating in normal mode.

1 µS

300 nS 700 nS

Figure 5. Normal Mode Power Dissipation

In NAP mode, all the internal circuitry except for the
internal reference is powered down. In this mode, the
power dissipation of the AD7484 is reduced to 5mW.
When exiting NAP mode a minimum of 100nS must be
waited before initiating a conversion. This is necessary to
allow the internal circuitry to settle after power-up and for
the track/hold to properly acquire the analog input signal.

If the AD7484 is put into NAP mode after each conversion,
the average power dissipation will be reduced but the
throughput rate will be limited by the power-up time. Using
the AD7484 with a throughput rate of 1MSPS while placing
the part in NAP mode after each conversion would result in
average power dissipation as follows: The power-up and
conversion phase will contribute 36mW to the overall power
dissipation.

(400nS / 1µS) x (5V x 18mA) = 36mW

While in NAP mode for the rest of the cycle, the AD7484
dissipates only 3mW of power.

(600nS / 1µS) x (5V x 1mA) = 3mW

Thus the power dissipated during each cycle is:

36mW + 3mW = 39mW

Figure 6 shows the AD7484 conversion sequence if putting
the part into NAP mode after each conversion.

400nS

100nS

600nS

1 µS

Figure 6. NAP Mode Power Dissipation

Figures 7 and 8 show a typical graphical representation of
Power vs. Throughput for the AD7484 when in Normal and
Nap modes respectively.

60

55

50

45

40

35

POWER - mW

30

25

20

0 500 1000 1500 2000 2500 3000

THROUGHPUT - KSPS

Figure 7. Normal Mode - Power vs. Throughput

50
45
40
35
30
25
20

POWER - mW

15
10

5
0

0 250 500 750 1000 1250 1500 1750 2000

THROUGHPUT - KSPS

Figure 8. Nap Mode - Power vs. Throughput

In STANDBY mode, all the internal circuitry is powered
down and the power consumption of the AD7484 is re­duced to 5µW. The power-up time necessary before a
conversion can be initiated is longer because the internal
reference has been powered down. If using the internal
reference of the AD7484, the ADC must be brought out
of STANDBY mode 200µS before a conversion is initi­ated. Initiating a conversion before the required power-up
time has elapsed will result in incorrect conversion data.
If an external reference source is used and kept powered
up while the AD7484 is in STANDBY mode, the power­up time required will be reduced.

–8–

REV. PrC 7/13/01

PRELIMINARY TECHNICAL DA T A

OFFSET / OVERRANGE

The AD7484 provides a ±8% overrange capability as well as
a programmable Offset Register. The overrange capability is
achieved by the use of a 15th bit (D14) and the CLIP input.
If the CLIP input is at logic high and the contents of the
offset register are zero, then the AD7484 operates as a nor­mal 14-bit ADC. If the input voltage is greater than the
full-scale voltage, the data output from the ADC will be all
1’s. Similarly, if the input voltage is lower than the zero­scale voltage, the data output from the ADC will be all 0’s.
In this case D14 acts as an overrange indicator. It is set to a
1 if the analog input voltage is outside the nominal 0 to
+2.5V range.

If the Offset Register contains any value other than zero,
the contents of the register are added to the SAR result at
the end of conversion. This has the effect of shifting the
transfer function of the ADC as shown in Figure 9 and Fig­ure 10. However, it should be noted that with the CLIP
input set to logic high, the maximum and minimum codes
that the AD7484 will ouput will be 0x3FFF and 0x0000
respectively. Further details are given in Table 1 and Table

2.
Figure 9 shows the effect of writing a positive value to the

Offset Register. If, for example, the contents of the Offset
Register contained the value 1024, then the value of the ana­log input voltage for which the ADC would transition from
reading all 0’s to 000...001 (the bottom reference point)
would be:

0.5LSB - (1024 LSBs) = -156.326mV

The analog input voltage for which the ADC would read
full-scale (0x3FFF) in this example would be:

2.5V -1.5LSBs - (1024 LSBs) = 2.34352V

AD7484

111...111

111...110

E
D

111...000

O
C

C

011...111

D
A

000...010

000...001

000...000

Figure 10. Transfer Characteristic With NegativeOffset

Table 1 below shows the expected ADC result for a given
analog input voltage with different offset values and with
CLIP tied to logic high. The combined advantages of the
offset and overrange features of the AD7484 are shown
clearly in Table 2. It shows the same range of analog in­put and offset values as Table 1 but with the clipping
feature disabled.

OFFSET -512 0 +1024

VIN ADC DATA, D[0:13] D14

-200mV

-156.3mV
0V

+78.2mV

+2.3435V

+2.5V

+2.5779V

+2.7V

1LSB = V

0V

REF

0.5LSB

-OFFSET

ANALO GINPUT

/16384

+V

REF

-OFFSET

-1.5LSB

0001
0001
0 0 1024 0

0 512 1536 0
14847 15359 16383 0
15871 16383 16383 0
16383 16383 16383 1
16383 16383 16383 1

111...111

111...110

E
D

111...000

O
C

C

011...111

D
A

000...010

000...001

000...000

T
E
S
F
F
O

­B

S
L
5

.
0

0V

1LSB= V

REF

+V

-1.5LSB

REF

-OFFSET

ANALOG INPUT

/16384

Figure 9. Transfer Characteristic With Positive Offset

The effect of writing a negative value to the Offset Register is
shown in Figure 10. If a value of -512 was written to the
Offset Register, the bottom end reference point would now
occur at:

0.5LSB - (-512 LSBs)= +78.20mV

Following from this, the analog input voltage needed to
produce a full-scale (0x3FFF) result from the ADC would
now be:

2.5V - 1.5LSBs - (-512 LSBs) = 2.5779V

Table 1. Clipping Enabled (CLIP = 1)

OFF SET -512 0 +1024

VIN ADC DATA, D[0:14]

-200mV

-156.3m V
0V

+78. 2 mV

+2. 34 35V

+2.5V

+2. 57 79V

+2.7V

-1822 -1310 -286

-1536 -1024 0

-512 0 1024
0 512 1536

14847 15359 16383
15871 16383 17407
16383 16895 17919
17182 17694 18718

Table 2. Clipping Disabled (CLIP = 0)

Values from -1310 to +1310 may be written to the Offset
Register. These values correspond to an offset of ±200mV. A
write to the Offset Register is performed by writing a 15-bit
word to the part as detailed in the Interfacing sections. The
12 LSBs of the 15-bit word contain the offset value, the 3
MSBs must be set to zero. Failure to write zeros to the 3
MSBs may result in the incorrect operation of the device.

REV. PrC 7/13/01

–9–

7/13/01 5 PM

V

AD7484

PRELIMINARY TECHNICAL DA T A

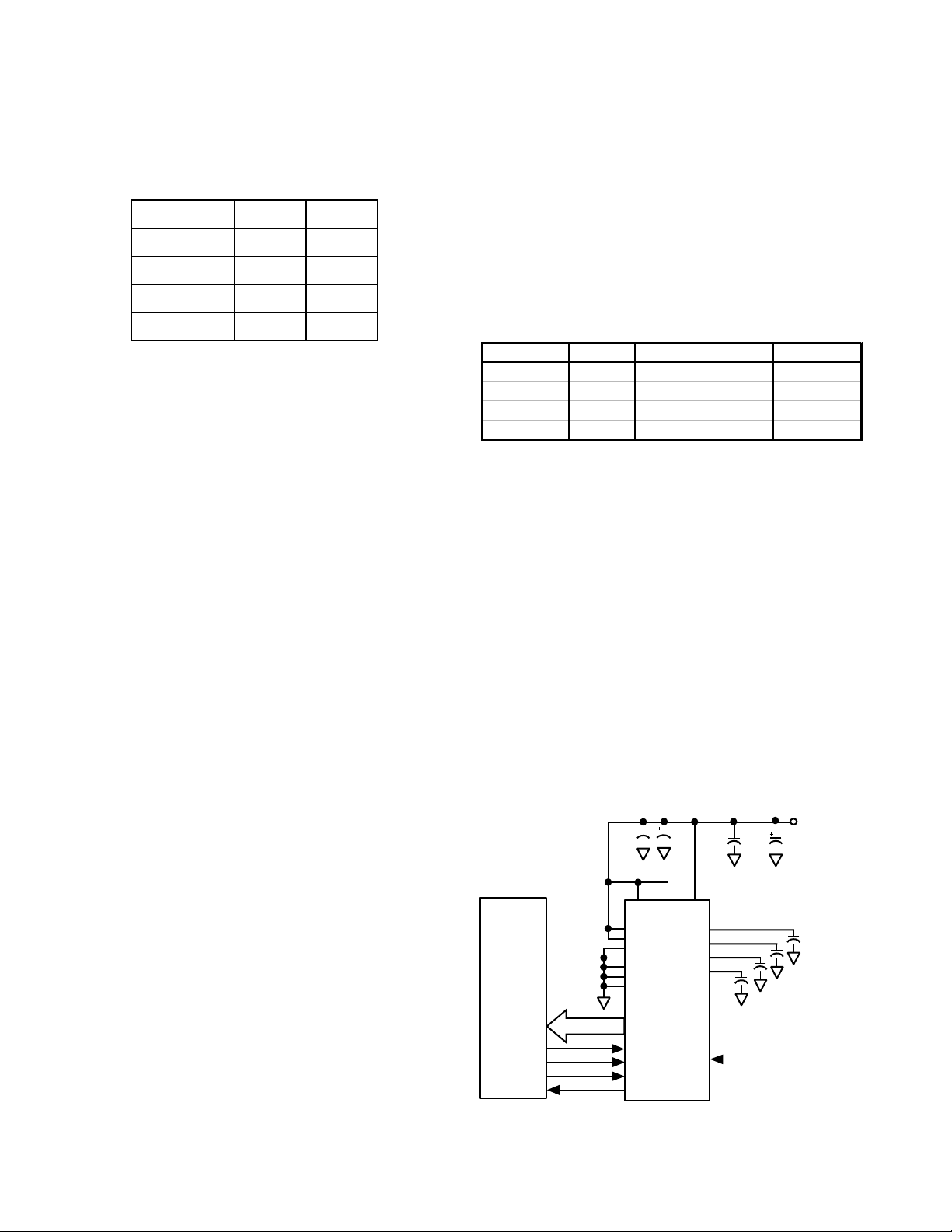

PARALLEL INTERFACE

The AD7484 features two parallel interfacing modes.
These modes are selected by the Mode pins as detailed in
Table 3.

2edoM1edoM

desUtoN00

1edoMlellaraP01

2edoMlellaraP10

desUtoN11

Table 3. AD7484 Operating Modes

In Parallel Mode 1, the data in the output register is up­dated and available for reading when BUSY returns high
at the end of a conversion. This mode should be used if
the conversion data is required immediately after the con­version has completed. An example where this may be of
use is if the AD7484 were operating at much lower
throughput rates in conjunction with Nap Mode (for
power-saving reasons) and the input signal being com­pared with set limits. If the limits were exceeded, the
ADC would then be woken up and commence sampling at
full speed. Figure 12 shows a timing diagram for the
AD7484 operating in Parallel Mode 1.

In Parallel Mode 2, the data in the output register is not
updated until the next falling edge of CONVST. This
mode could be used where a single sample delay is not
vital to the system operation. This may occur, for ex­ample, in a system where a large amount of samples are
taken at high speed before a Fast Fourier Transform is
performed for frequency analysis of the input signal. Fig­ure 13 shows a timing diagram for the AD7484 operating
in Parallel Mode 2.

Reading Data from the AD7484

Data is read from the part via a 15-bit parallel data bus
with the standard CS and RD signals. The CS and RD
signals are internally gated to enable the conversion result
onto the data bus. The data lines D0 to D14 leave their
high impedance state when both CS and RD are logic low.
Therefore, CS may be permanently tied logic low if re­quired and the RD signal used to access the conversion
result. Figures 12 and 13 show timing specifications
called t

QUIET

and t

. The quiet time, t

QUIET2

QUIET

, is the
amount of time that should be left after any data bus activ­ity before the next conversion is initiated. The second
quiet time, t

, is the period during a conversion where

QUIET2

activity on the data bus should be avoided. Reading a re­sult from the AD7484 while the latter half of the
conversion is in progress will result in the degradation of
performance by about TBD dB.

Writing to the AD7484

The AD7484 features a user accessible offset register.
This allows the bottom of the transfer function to be
shifted by ±200mV. This feature is explained in more
detail in the Offset / Overrange section.

To write to the offset register a 15-bit word is written to
the AD7484 with the 12 LSBs containing the offset value
in 2’s complement format. The 3 MSBs must be set to
zero. The offset value must be within the range -1310 to
+1310, corresponding to an offset from -200mV to
+200mV. The value written to the offset register is stored
and used until power is removed from the device. The
value stored may be updated at any time between conver­sions by another write to the device. Table 4 shows some
examples of offset register values and their effective offset
voltage. Figure 14 shows a timing diagram for writing to
the AD7484.

Cod e (Dec ) D 14-D1 2 D 11-D0 (2's Com p ) Offset (m V)

-1310 000 101011100010 -200

-512 000 111000000000 -78.12

+256 000 000100000000 + 39.06

+1310 000 010100011110 +200

Table 4. Offset Register Examples

Typical Connection

Figure 11 shows a typical connection diagram for the
AD7484 operating in Parallel Mode 1. Conversion is
initiated by a falling edge on CONVST. Once CONVST
goes low, the BUSY signal goes low and at the end of
conversion, the rising edge of BUSY is used to activate an
Interrupt Service Routine. The CS and RD lines are then
activated to read the 14 data bits (15 bits if using the
overrange feature).

In Figure 11 the V
in logic output levels being either 0 V or DV
age applied to V
output logic signals. For example, if DV
a 5 V supply and V

pin is tied to DVDD, which results

DRIVE

controls the voltage value of the

DRIVE

DRIVE

by a 3 V supply, the logic output

is supplied by

DD

. The volt-

DD

levels would be either 0 V or 3 V. This feature allows the
AD7484 to interface to 3 V devices while still enabling the
ADC to process signals at 5 V supply.

ANALOG

1nF

/

C

P

µ

µ

DV

DD

RESET

MODE1

MODE2

WRITE

CLIP

NAP

STBY

V

DRIVE

10µF

AV

V

BIAS

REF3

REF2

REF1

47µF

0.1µF

DD

0.1µF

0.47µF

0.47µF

SUPPLY

4.75V - 5.25

0.1µF

AD7484

PARALLEL

INTERFACE

D0-D14

CS

CONVST

RD

BUSY

V

I

N

0V to

+2.5V

Figure 11. AD7484 Typical Connection Diagram

–10–

REV. PrC 7/13/01

PRELIMINARY TECHNICAL DA T A

t

CONV

t

t

1

t

QUIET 2

QUIET

AD7484

t

2

t

3

t

4

t

ACQ

t

6

Figure 12. Parallel Mode 1 Read Cycle

t

CONV

t

t

1

t

2

t

QUIET 2

t

3

QUIET

t

ACQ

t

8

t

7

t

4

Data N Data N+1

t

5

Figure 13. Parallel Mode 2 Read Cycle

t

12

t

9

t

10

t

13

t

11

Figure 14. Parallel Mode Write Cycle

REV. PrC 7/13/01

–11–

AD7484

)
)

PRELIMINARY TECHNICAL DA T A

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

48-Pin LQFP Package (ST-48)

0.063 (1.60)

0.030 (0.75)

0.018 (0.45)

MAX

0.354 (9.00)B SC SQ

48

1

37

36

COPLANARITY

0.003 (0.08)

0.008 (0.2)

0.004 (0.09)

0
MIN

7
0

ⴗ

ⴗ
ⴗ

TOP VIEW

(PINS DOWN)

12

13

0.019 (0.5)
BSC

0.006(0.15)

0.002(0.05)

0.011 ( 0.27)

0.006 ( 0.17)

SEATING
PLANE

24

25

0.276
(7.00)

BSC

SQ

0.057( 1.45

0.053( 1.35

–12–

REV. PrC 7/13/01
