3 MSPS, 14-Bit SAR ADC

FEATURES

Fast throughput rate: 3 MSPS Wide input bandwidth: 40 MHz No pipeline delays with SAR ADC Excellent dc accuracy performance 2 parallel interface modes Low power: 90 mW (full power) and 2.5 mW (nap mode) Standby mode: 2 μA maximum Single 5 V supply operation Internal 2.5 V reference Full-scale overrange mode (using 15th bit) System offset removal via user access offset register Nominal 0 V to 2.5 V input with shifted range capability Pin compatible upgrade of 12-bit AD7482

GENERAL DESCRIPTION

The AD7484 is a 14-bit, high speed, low power, successive approximation ADC. The part features a parallel interface with throughput rates up to 3 MSPS. The part contains a low noise, wide bandwidth track-and-hold that can handle input frequencies in excess of 40 MHz.
The conversion process is a proprietary algorithmic successive approximation technique that results in no pipeline delays. The input signal is sampled, and a conversion is initiated on the falling edge of the by an internally trimmed oscillator. Interfacing is via standard parallel signal lines, making the part directly compatible with microcontrollers and DSPs.
The AD7484 provides excellent ac and dc performance specifica­tions. Factory trimming ensures high dc accuracy, resulting in very low INL, offset, and gain errors.
The part uses advanced design techniques to achieve very low power dissipation at high throughput rates. Power consumption in the normal mode of operation is 90 mW. There are two power saving modes: a nap mode, which keeps the reference circuitry
CONVST
signal. The conversion process is controlled
AD7484

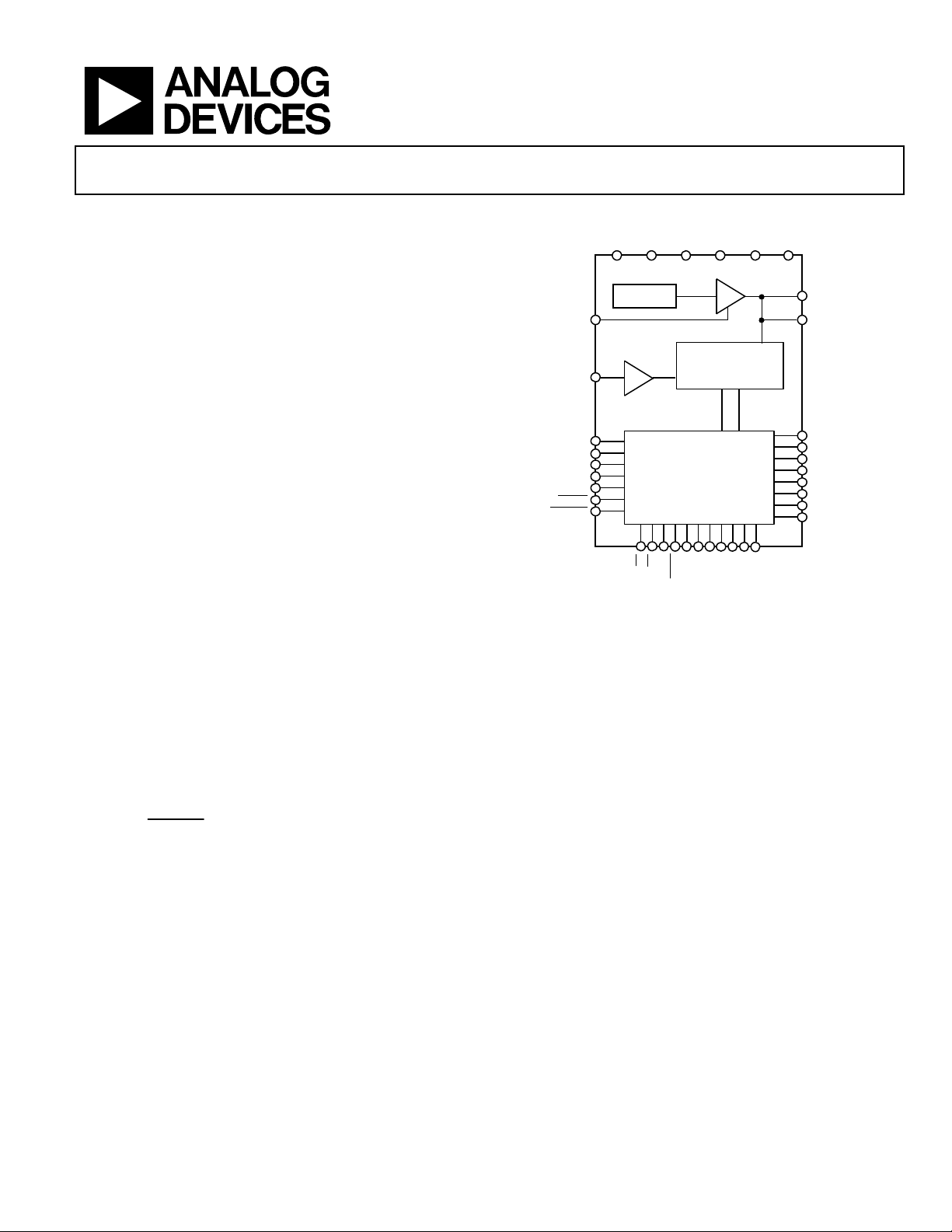

FUNCTIONAL BLOCK DIAGRAM

DD
REFERENCE
REFSEL
VIN
AD7484
MODE1 MODE2
CLIP
NAP
STBY
RESET
CONVST
alive for a quick power-up while consuming 2.5 mW, and a standby mode that reduces power consumption to a mere 10 μW.
The AD7484 features an on-board 2.5 V reference but can also accommodate an externally provided 2.5 V reference source. The nominal analog input range is 0 V to 2.5 V, but an offset shift capability allows this nominal range to be offset by ±200 mV. This allows the user considerable flexibility in setting the bottom end reference point of the signal range, a useful feature when using single-supply op amps.
The AD7484 also provides an 8% overrange capability via a 15th bit. Therefore, if the analog input range strays outside the nominal range by up to 8%, the user can still accurately resolve the signal by using the 15th bit.
The AD7484 is powered by a 4.75 V to 5.25 V supply. The part also provides a V
DRIVE
levels for the digital interface lines. The range for this V is 2.7 V to 5.25 V. The part is housed in a 48-lead LQFP package and is specified over a −40°C to +85°C temperature range.
C
AGND
2.5V
T/H
CONTROL
LOGIC AND I/O
REGISTERS
CS
RD
WRITE
BIASDVDD
BUF
14-BIT
ALGORITHMIC
SAR
D0
D1
D2
BUSY
Figure 1.
D3
DGND
DRIVE
REFOUT
REFIN
D14 D13 D12 D11 D10 D9 D8 D7
D4
D5
D6
pin that allows the user to set the voltage
DRIVE
02642-001
pin
