Complete, Dual, 12-/14-/16-Bit, Serial Input,

A

FEATURES

Complete, dual, 12-/14-/16-bit digital-to-analog converter (DAC)
Operates from single/dual supplies
Software programmable output range

+5 V, +10 V, +10.8 V, ±5 V, ±10 V, ±10.8 V
INL error: ±16 LSB maximum, DNL error: ±1 LSB maximum
Total unadjusted error (TUE): 0.1% FSR maximum
Settling time: 10 μs typical
Integrated reference: 5 ppm/°C maximum
Integrated reference buffers
Output control during power-up/brownout
Simultaneous updating via
Asynchronous

to zero scale or midscale

CLR
DSP-/microcontroller-compatible serial interface
24-lead TSSOP
Operating temperature range: −40°C to +85°C
iCMOS process technology

APPLICATIONS

Industrial automation
Closed-loop servo control, process control
Automotive test and measurement
Programmable logic controllers

GENERAL DESCRIPTION

The AD5722R/AD5732R/AD5752R are dual, 12-/14-/16-bit,
serial input, voltage output digital-to-analog converters. They
operate from single supply voltages of +4.5 V up to +16.5 V or
dual supply voltages from ±4.5 V up to ±16.5 V. Nominal full­scale output range is software selectable from +5 V, +10 V,

BIN/2sCOMP

LDAC

1

AV

AD5722R/AD5732R/AD5752R

DV

CC

CLR

SDIN
SCLK
SYNC

SDO

INPUTSHIFT

REGISTER

AND

CONTROL

LOGIC

FUNCTIONAL BLOCK DIAGRAM

V

DD

SS

n

REGISTER A

REGISTER B

Unipolar/Bipolar, Voltage Output DACs

AD5722R/AD5732R/AD5752R

+10.8 V, ±5 V, ±10 V, or ±10.8 V. Integrated output amplifiers,
reference buffers, and proprietary power-up/power-down
control circuitry are also provided.

The parts offer guaranteed monotonicity, integral nonlinearity
(INL) of ±16 LSB maximum, low noise, 10 μs maximum settling
time, and an on-chip +2.5 V reference.

The AD5722R/AD5732R/AD5752R use a serial interface that
operates at clock rates up to 30 MHz and are compatible with
DSP and microcontroller interface standards. Double buffering
allows the simultaneous updating of all DACs. The input coding
is user-selectable twos complement or offset binary for a bipolar

2sComp

V

A

OUT

B

V

OUT

), and

2.5V

REFERENCE

INPUT

INPUT

output (depending on the state of Pin BIN/
straight binary for a unipolar output. The asynchronous clear
function clears all DAC registers to a user-selectable zero-scale
or midscale output. The parts are available in a 24-lead TSSOP
and offer guaranteed specifications over the −40°C to +85°C
industrial temperature range.

Table 1. Pin Compatible Devices

Part Number Description

AD5722/AD5732/AD5752

AD5722R/AD5732R/AD5752R
without internal reference.

AD5724/AD5734/AD5754

Complete, quad, 12-/14-/16-bit,
serial input, unipolar/bipolar,
voltage output DACs.

AD5724R/AD5734R/AD5754R

AD5724/AD5734/AD5754 with
internal reference.

REFIN/REFOUT

REFERENCE

BUFFERS

DAC

REGIS TER A

DAC

REGIS TER B

n

DAC A

n

DAC B

AD5722: n = 12-BIT
AD5732: n = 14-BIT
AD5752: n = 16-BIT

1

For analog systems designers within industrial/instrumentation equipment OEMs who need high performance ICs at higher voltage levels, iCMOS® is a technology

platform that enables the development of analog ICs capable of 30 V and operating at ±15 V supplies while allowing dramatic reductions in power consumption and
package size, as well as increased ac and dc performance.

Rev. D

Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.

GND

Figure 1.

LDAC

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] ©2008–2011 Analog Devices, Inc. All rights reserved.

DAC_GND (2) SIG_GND (2)

06466-001

AD5722R/AD5732R/AD5752R

TABLE OF CONTENTS

Features.............................................................................................. 1

Applications....................................................................................... 1

General Description ......................................................................... 1

Functional Block Diagram .............................................................. 1

Revision History ............................................................................... 2

Specifications..................................................................................... 3

AC Performance Characteristics ................................................ 5

Timing Characteristics ................................................................ 6

Timing Diagrams.......................................................................... 7

Absolute Maximum Ratings............................................................ 9

ESD Caution.................................................................................. 9

Pin Configuration and Function Descriptions........................... 10

Typical Performance Characteristics ........................................... 11

Terminology .................................................................................... 18

Theory of Operation ...................................................................... 20

Architecture................................................................................. 20

Serial Interface ............................................................................ 20

Load DAC (

Asynchronous Clear (

Configuring the AD5722R/AD5732R/AD5752R ..................22

LDAC

)..................................................................... 22

CLR

)....................................................... 22

Transfer Function....................................................................... 22

Input Shift Register .................................................................... 26

DAC Register .............................................................................. 27

Output Range Select Register ................................................... 27

Control Register ......................................................................... 28

Power Control Register ............................................................. 28

Design Features............................................................................... 29

Analog Output Control............................................................. 29

Power-Down Mode.................................................................... 29

Overcurrent Protection ............................................................. 29

Thermal Shutdown .................................................................... 29

Internal Reference...................................................................... 29

Applications Information.............................................................. 30

+5 V/±5 V Operation ................................................................ 30

Layout Guidelines....................................................................... 30

Galvanically Isolated Interface ................................................. 30

Microprocessor Interfacing....................................................... 30

Outline Dimensions....................................................................... 31

Ordering Guide .......................................................................... 31

REVISION HISTORY

7/11—Rev. C to Rev. D

Changes to Table 4: t7, t8, t10 Limits......................................................6

3/11—Rev. B to Rev. C

Changes to Configuring the AD5722R/AD5732R/

AD5752R Section ........................................................................... 22

8/10—Rev. A to Rev. B

Changes to Table 28........................................................................ 28

4/10—Rev. 0 to Rev. A

Changes to Junction Temperature, T

Changes to Exposed Paddle Description, Table 6...................... 10

11/08—Revision 0: Initial Version

max Parameter, Table 5 .. 9

J

Rev. D | Page 2 of 32

AD5722R/AD5732R/AD5752R

SPECIFICATIONS

AVDD = 4.5 V1 to 16.5 V; AVSS = −4.5 V1 to −16.5 V, or AVSS = 0 V; GND = 0 V; REFIN= 2.5 V external; DVCC = 2.7 V to 5.5 V; R
C

= 200 pF; all specifications T

LOAD

MIN

to T

unless otherwise noted.

MAX

Table 2.

Parameter Min Typ Max Unit Test Conditions/Comments

ACCURACY Outputs unloaded

Resolution

AD5752R 16 Bits
AD5732R 14 Bits

AD5722R 12 Bits
Total Unadjusted Error (TUE) −0.1 +0.1 % FSR
Integral Nonlinearity (INL)2

AD5752R −16 +16 LSB

AD5732R −4 +4 LSB

AD5722R −1 +1 LSB
Differential Nonlinearity (DNL) −1 +1 LSB All models, guaranteed monotonic
Bipolar Zero Error −6 +6 mV

= 25 C, error at other temperatures

T

A

obtained using bipolar zero TC
Bipolar Zero TC3 ±4 ppm FSR/°C
Zero-Scale Error −6 +6 mV

= 25°C, error at other temperatures

T

A

obtained using zero-scale TC
Zero-Scale TC3 ±4 ppm FSR/°C
Offset Error −6 +6 mV

= 25°C, error at other temperatures

T

A

obtained using offset error TC
Offset Error TC3 ±4 ppm FSR/°C
Gain Error −0.025 +0.025 % FSR

±10 V range, T

= 25°C, error at other temperatures

A

obtained using gain TC
Gain Error3 −0.065 0 % FSR

+10 V and +5 V ranges, T

= 25°C, error at other

A

temperatures obtained using gain TC
Gain Error3 0 +0.08 % FSR

±5 V range, T

= 25°C, error at other temperatures

A

obtained using gain TC
Gain TC3 ±4 ppm FSR/°C
DC Crosstalk3 120 μV

REFERENCE INPUT/OUTPUT

Reference Input3

Reference Input Voltage 2.5 V ±1% for specified performance
DC Input Impedance 1 5 MΩ
Input Current −2 ±0.5 +2 μA
Reference Range +2 +3 V

Reference Output

Output Voltage +2.497 +2.501 V TA = 25°C
Reference TC3 −5 ±1.8 +5 ppm/°C 0°C to +85°C

−10 ±2.2 +10 ppm/°C −40°C to +85°C
Output Noise (0.1 Hz to 10 Hz)3 5 μV p-p
Noise Spectral Density3 75 nV/√Hz 10 kHz

OUTPUT CHARACTERISTICS3

Output Voltage Range −10.8 +10.8 V AVDD/AVSS = ±11.7 V min, REFIN = 2.5 V

−12 +12 V AVDD/AVSS = ±12.9 V min, REFIN = 3 V
Headroom 0.5 0.9 V
Output Voltage TC ±4 ppm FSR/°C
Short-Circuit Current 20 mA
Load 2 kΩ For specified performance
Capacitive Load Stability 4000 pF
DC Output Impedance 0.5 Ω

Rev. D | Page 3 of 32

LOAD

= 2 kΩ;

AD5722R/AD5732R/AD5752R

Parameter Min Typ Max Unit Test Conditions/Comments

DIGITAL INPUTS3 DV

Input High Voltage, VIH 2 V
Input Low Voltage, VIL 0.8 V
Input Current ±1 μA Per pin
Pin Capacitance 5 pF Per pin

DIGITAL OUTPUTS (SDO) 3

Output Low Voltage, VOL 0.4 V DVCC = 5 V ± 10%, sinking 200 μA
Output High Voltage, VOH DVCC − 1 V DV
Output Low Voltage, VOL 0.4 V DVCC = 2.7 V to 3.6 V, sinking 200 μA
Output High Voltage, VOH DVCC − 0.5 V DVCC = 2.7 V to 3.6 V, sourcing 200 μA
High Impedance Leakage Current ±1 μA
High Impedance Output

5 pF

Capacitance

POWER REQUIREMENTS

AVDD 4.5 16.5 V
AVSS −4.5 −16.5 V
DVCC 2.7 5.5 V
Power Supply Sensitivity3

∆V

/∆ΑVDD −65 dB

OUT

AIDD 3.25 mA/channel Outputs unloaded

2.4 mA/channel AVSS = 0 V, outputs unloaded
AISS 2.5 mA/channel Outputs unloaded
DICC 0.5 3 μA VIH = DVCC, VIL = GND
Power Dissipation 190 mW ±16.5 V operation, outputs unloaded
79 mW +16.5 V operation, AVSS = 0 V, outputs unloaded
Power-Down Currents

AIDD 40 μA
AISS 40 μA
DICC 300 nA

1

For specified performance, the headroom requirement is 0.9 V.

2

INL is the relative accuracy. It is measured from Code 512, Code 128, and Code 32 for the AD5752R, AD5732R, and AD5722R, respectively.

3

Guaranteed by characterization; not production tested.

= 2.7 V to 5.5 V, JEDEC compliant

CC

= 5 V ± 10%, sourcing 200 μA

CC

Rev. D | Page 4 of 32

AD5722R/AD5732R/AD5752R

AC PERFORMANCE CHARACTERISTICS

AVDD = 4.5 V1 to 16.5 V; AVSS = −4.5 V to −16.5 V, or AVSS = 0 V; GND = 0 V; REFIN = 2.5 V external; DVCC = 2.7 V to 5.5 V; R
C

= 200 pF; all specifications T

LOAD

MIN

to T

unless otherwise noted.

MAX

Table 3.

B Version
Parameter2 Min Typ Max Unit Test Conditions/Comments

DYNAMIC PERFORMANCE

Output Voltage Settling Time 10 12 μs 20 V step to ±0.03% FSR

7.5 8.5 μs 10 V step to ±0.03% FSR
5 μs 512 LSB step settling (16-bit resolution)

Slew Rate 3.5 V/μs
Digital-to-Analog Glitch Energy 13 nV-sec
Glitch Impulse Peak Amplitude 35 mV
Digital Crosstalk 10 nV-sec
DAC-to-DAC Crosstalk 10 nV-sec
Digital Feedthrough 0.6 nV-sec
Output Noise

0.1 Hz to 10 Hz Bandwidth 15 μV p-p 0x8000 DAC code
100 kHz Bandwidth 80 μV rms

Output Noise Spectral Density 320 nV/√Hz Measured at 10 kHz, 0x8000 DAC code

1

For specified performance, the headroom requirement is 0.9 V.

2

Guaranteed by design and characterization; not production tested.

LOAD

= 2 kΩ;

Rev. D | Page 5 of 32

AD5722R/AD5732R/AD5752R

TIMING CHARACTERISTICS

AVDD = 4.5 V to 16.5 V; AVSS = −4.5 V to −16.5 V, or AVSS = 0 V; GND = 0 V; REFIN = 2.5 V external; DVCC = 2.7 V to 5.5 V; R
C

= 200 pF; all specifications T

LOAD

MIN

to T

, unless otherwise noted.

MAX

LOAD

= 2 kΩ;

Table 4.

Parameter

1, 2, 3

Limit at t

, t

Unit Description

MIN

MAX

t1 33 ns min SCLK cycle time
t2 13 ns min SCLK high time
t3 13 ns min SCLK low time
t4 13 ns min
t5 13 ns min
t6 100 ns min

falling edge to SCLK falling edge setup time

SYNC
SCLK falling edge to SYNC
Minimum SYNC

high time (write mode)
t7 7 ns min Data setup time
t8 2 ns min Data hold time
t9 20 ns min
t10 130 ns min
t11 20 ns min

falling edge to SYNC falling edge

LDAC

rising edge to LDAC falling edge

SYNC

pulse width low

LDAC

t12 10 μs typ DAC output settling time
t13 20 ns min

t14 2.5 μs max

4

t

13 ns min

15

4

t

40 ns max SCLK rising edge to SDO valid (C

16

t17 200 ns min

1

Guaranteed by characterization; not production tested.

2

All input signals are specified with tR = tF = 5 ns (10% to 90% of DVCC) and timed from a voltage level of 1.2 V.

3

See Figure 2, Figure 3, and Figure 4.

4

Daisy-chain and readback mode.

5

C

= capacitive load on SDO output.

L SDO

pulse width low

CLR

pulse activation time

CLR

rising edge to SCLK rising edge

SYNC

Minimum SYNC

high time (readback/daisy-chain mode)

rising edge

L SDO

5

= 15 pF)

Rev. D | Page 6 of 32

AD5722R/AD5732R/AD5752R

TIMING DIAGRAMS

t

1

SCLK

SYNC

SDIN

LDAC

V

OUT

V

OUT

CLR

V

OUT

t

6

t

4

t

7

DB23

t

9

x

x

x

t

3

t

8

t

13

t

14

4221

t

2

t

5

DB0

t

t

10

11

t

12

t

12

06466-002

Figure 2. Serial Interface Timing Diagram

t

1

SCLK

SYNC

SDIN

SDO

LDAC

t

17

t

4

t

7

t

3

t

8

t

2

INPUT WO RD FOR DAC N – 1INPUT WO RD F OR DAC N

t

16

DB23

INPUT WO RD FOR DAC NUNDEFINED

8442

t

5

t

15

D0BD32BD0BD32B

DB0

t

10

t

11

06466-003

Figure 3. Daisy-Chain Timing Diagram

Rev. D | Page 7 of 32

AD5722R/AD5732R/AD5752R

SCLK

SYNC

1

24 24

t

1

17

SDIN

SDO

DB23 DB0 DB23 DB0

REGISTE R T O BE READ

DB23 DB0 DB23 DB0

UNDEFINED

NOP CONDITIONINPUT WORD SPECIFIES

SELECTED REGISTER DAT A

CLOCKED OUT

Figure 4. Readback Timing Diagram

06466-004

Rev. D | Page 8 of 32

AD5722R/AD5732R/AD5752R

ABSOLUTE MAXIMUM RATINGS

TA = 25°C unless otherwise noted. Transient currents of up to
100 mA do not cause SCR latch-up.

Table 5.

Parameter Rating

AVDD to GND −0.3 V to +17 V
AVSS to GND +0.3 V to −17 V
DVCC to GND −0.3 V to +7 V
Digital Inputs to GND

Digital Outputs to GND

REFIN/REFOUT to GND −0.3 V to +5 V
V

A or V

OUT

DAC_GND to GND −0.3 V to +0.3 V
SIG_GND to GND −0.3 V to +0.3 V
Operating Temperature Range, TA

Industrial −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Junction Temperature, TJ max 150°C
24-Lead TSSOP Package

θJA Thermal Impedance 42°C/W

θJC Thermal Impedance 9°C/W
Power Dissipation (TJ max − TA)/θJA
Lead Temperature JEDEC industry standard

Soldering J-STD-020
ESD (Human Body Model) 3.5 kV

B to GND AVSS to AVDD

OUT

−0.3 V to DV
7 V (whichever is less)

−0.3 V to DV
7 V (whichever is less)

+ 0.3 V or to

CC

+ 0.3 V or to

CC

Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.

ESD CAUTION

Rev. D | Page 9 of 32

AD5722R/AD5732R/AD5752R

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

1

AV

SS

2

NC

3

V

A

OUT

4

NC

5

NC

CLR

NC

AD5722R/
AD5732R/

6

AD5752R

7

TOP VIEW

8

(Not to Scale)

9
10
11
12

BIN/2sCOMP

SYNC

SCLK

SDIN

LDAC

NOTES

1. NC = NO CONNECT

2. IT IS RECOMMENDED THAT THE EXPOSED PAD BE
THERMALLY CONNECTED TO A COPPER PLANE
FOR ENHANCED THERMAL PERFORMANCE.

AV

24

DD

23

V

B

OUT

22

NC

21

SIG_GND
SIG_GND

20
19

DAC_GND

18

DAC_GND

17

REFIN/REFOUT

16

SDO

15

GND
DV

14

CC

NC

13

06466-005

Figure 5. Pin Configuration

Table 6. Pin Function Descriptions

Pin No. Mnemonic Description

1 AVSS

Negative Analog Supply. Voltage ranges from −4.5 V to −16.5 V. This pin can be connected to 0 V if output
ranges are unipolar.

2, 4, 6, 12,

NC Do not connect to these pins.

13, 22
3 V
5

A Analog Output Voltage of DAC A. The output amplifier is capable of directly driving a 2 kΩ, 4000 pF load.

OUT

BIN/2sCOMP

Determines the DAC coding for a bipolar output range. This pin should be hardwired to either DVCC or GND.

When hardwired to DV

, input coding is offset binary. When hardwired to GND, input coding is twos

CC

complement. (For unipolar output ranges, coding is always straight binary.)

7

Active Low Input. This is the frame synchronization signal for the serial interface. While SYNC is low, data is

SYNC

transferred on the falling edge of SCLK. Data is latched on the rising edge of SYNC.

8 SCLK

Serial Clock Input. Data is clocked into the shift register on the falling edge of SCLK. This operates at clock

speeds up to 30 MHz.
9 SDIN Serial Data Input. Data must be valid on the falling edge of SCLK.
10

Load DAC, Logic Input. This is used to update the DAC registers and, consequently, the analog output. When

LDAC

this pin is tied permanently low, the addressed DAC register is updated on the rising edge of SYNC. If LDAC is

held high during the write cycle, the DAC input register is updated, but the output update is held off until the

11

CLR

falling edge of LDAC

LDAC

. The LDAC pin should not be left unconnected.

Active Low Input. Asserting this pin sets the DAC registers to zero-scale code or midscale code (user selectable).

. In this mode, all analog outputs can be updated simultaneously on the falling edge of

14 DVCC Digital Supply. Voltage ranges from 2.7 V to 5.5 V.
15 GND Ground Reference.
16 SDO

Serial Data Output. Used to clock data from the serial register in daisy-chain or readback mode. Data is

clocked out on the rising edge of SCLK and is valid on the falling edge of SCLK.
17 REFIN/REFOUT

External Reference Voltage Input and Internal Reference Voltage Output. Reference input range is 2 V to 3 V.

REFIN = 2.5 V for specified performance. REFOUT = 2.5 V ± 2 mV.
18, 19 DAC_GND Ground Reference for the Four Digital-to-Analog Converters.
20, 21 SIG_GND Ground Reference for the Four Output Amplifiers.
23 V

B Analog Output Voltage of DAC B. The output amplifier is capable of directly driving a 2 kΩ, 4000 pF load.

OUT

24 AVDD Positive Analog Supply. Voltage ranges from 4.5 V to 16.5 V.
Exposed

Paddle

This exposed paddle should be connected to the potential of the AV

unconnected. It is recommended that the paddle be thermally connected to a copper plane for enhanced thermal

performance.

pin, or alternatively, it can be left electrically

SS

Rev. D | Page 10 of 32

AD5722R/AD5732R/AD5752R

TYPICAL PERFORMANCE CHARACTERISTICS

6

4

2

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ±10V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

0.6

0.4

0.2

0

–2

INL ERROR (LSB)

–4

–6

–8

0 10,000 20,000 30,000 40,000 50,000 60,000

CODE

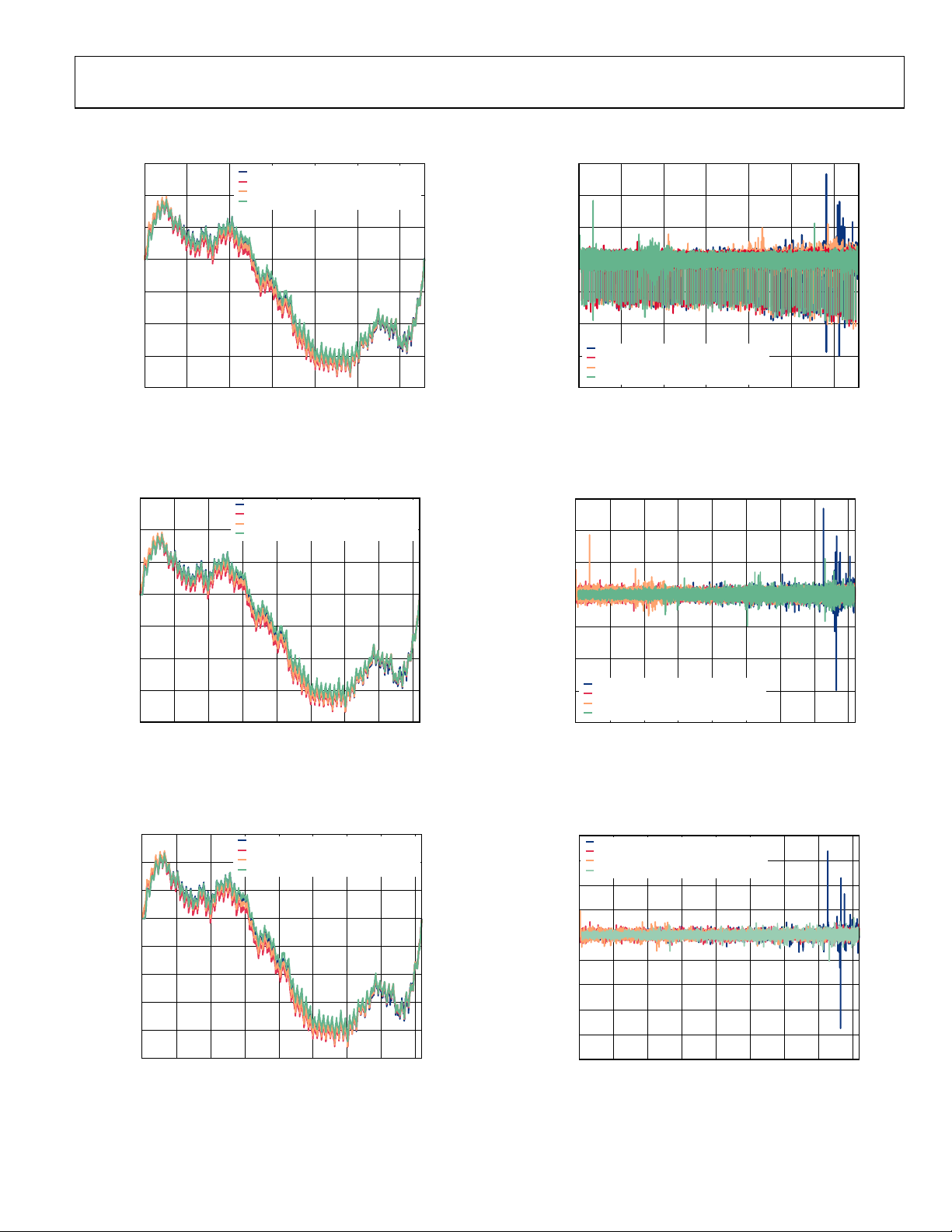

Figure 6. AD5752R Integral Nonlinearity Error vs. Code

1.5

1.0

0.5

0

–0.5

INL ERROR (LSB)

–1.0

–1.5

–2.0

0 2000 4000 6000 8000 10,000 12,000 14,000 16,000

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ±1 0V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

CODE

Figure 7. AD5732R Integral Nonlinearity Error vs. Code

0

–0.2

DNL ERROR (LSB)

–0.4

AVDD/AVSS = +12V/0V, RANGE = +10V

–0.6

AV

/AVSS = ±12V, RANGE = ±10 V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

–0.8

06466-013

DD

0 10,000 20,000 30,000 40,000 50,000 60,000

CODE

06466-016

Figure 9. AD5752R Differential Nonlinearity Error vs. Code

0.15

0.10

0.05

0

–0.05

DNL ERROR (LSB)

–0.10

–0.15

–0.20

6466-014

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ±1 0V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

0 2000 4000 6000 8000 10,000 12,000 14,000 16,000

CODE

06466-017

Figure 10. AD5732R Differential Nonlinearity Error vs. Code

0.3

0.2

0.1

0

–0.1

–0.2

INL ERROR (LSB)

–0.3

–0.4

–0.5

0 500 1000 1500 2000 2500 3000 3500 4000

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ±10 V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

CODE

Figure 8. AD5722R Integral Nonlinearity Error vs. Code

06466-015

Rev. D | Page 11 of 32

0.04
AVDD/AVSS = +12V/0V, RANGE = +10V

AV

/AVSS = ±12V, RANGE = ±10V

0.03

0.02

0.01

–0.01

–0.02

DNL ERROR (LSB)

–0.03

–0.04

–0.05

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

0

0 500 1000 1500 2000 2500 3000 3500 4000

CODE

Figure 11. AD5722R Differential Nonlinearity Error vs. Code

06466-018

AD5722R/AD5732R/AD5752R

8

6

4

2

0

–2

INL ERROR (LSB)

–4

–6

–8

–40 –20 0 20 40 60 80

TEMPERATURE (°C)

Figure 12. AD5752R Integral Nonlinearity Error vs. Temperature

0.1

0

–0.1

–0.2

–0.3

DNL ERROR (LSB)

–0.4

–0.5

–0.6

–40 –20 0 20 40 60 80

TEMPERATURE (°C)

Figure 13. AD5752R Differential Nonlinearity Error vs. Temperature

MAX INL ±10V
MAX INL ±5V
MIN INL ±10V
MIN INL ±5V
MAX INL + 10V
MIN INL +10V
MAX INL +5V
MIN INL +5V

MAX DNL ±10V
MAX DNL ±5V
MIN DNL ±10V
MIN DNL ±5V
MAX DNL +10V
MIN DNL +10V
MAX DNL +5V
MIN DNL +5V

1.0

0.8

0.6

0.4

0.2

0

–0.2

DNL ERROR (LSB)

–0.4

–0.6

–0.8

–1.0

11.5 12.512.0 13.5 14.013.0 14.5 15.0 15.5 16.0 16.5

6466-044

SUPPLY VOLTAGE (V)

BIPOLAR 10V M IN
UNIPOLAR 10V M I N
BIPOLAR 10V M A X
UNIPOLAR 10V M AX

06466-032

Figure 15. AD5752R Differential Nonlinearity Error vs. Supply Voltage

10

8

6

4

2

0

–2

INL ERROR (LSB)

–4

–6

–8

–10

5.5 8.56.5 7.5 10.5 11.59.5 12.513.514.515.516.5

06466-045

SUPPLY VOLTAGE (V)

BIPOLAR 5V M IN
UNIPOLAR 5V M IN
BIPOLAR 5V M AX
UNIPOLAR 5V M AX

06466-035

Figure 16. AD5752R Integral Nonlinearity Error vs. Supply Voltage

10

8

6

4

2

0

–2

INL ERROR (LSB)

–4

–6

–8

–10

11.5 12.512.0 13.5 14.013.0 14.5 15.0 15.5 16.0 16.5
SUPPLY VOLT AGE ( V)

BIPOLAR 10V MIN
UNIPOLAR 10V M IN
BIPOLAR 10V MAX
UNIPOLAR 10V M AX

Figure 14. AD5752R Integral Nonlinearity Error vs. Supply Voltage

6466-034

Rev. D | Page 12 of 32

1.0

0.8

0.6

0.4

0.2

0

–0.2

DNL ERROR (LSB)

–0.4

–0.6

–0.8

–1.0

5.5 8.56.5 7.5 10.5 11.59.5 12.5 13.5 14.5 15.5 16.5
SUPPLY VOLTAGE (V)

BIPOLAR 5V MIN
UNIPOLAR 5V MIN
BIPOLAR 5V MAX
UNIPOLAR 5V MA X

Figure 17. AD5752R Differential Nonlinearity Error vs. Supply Voltage

06466-033

AD5722R/AD5732R/AD5752R

0.02

0.01

0

–0.01

TUE (%)

–0.02

–0.03

–0.04

11.5 12.512.0 13.5 14.013.0 14.5 15.0 15.5 16.0 16.5
SUPPLY VOLTAGE (V)

BIPOLAR 10V M IN
UNIPOLAR 10V M IN
BIPOLAR 10V M AX
UNIPOLAR 10V M AX

Figure 18. AD5752R Total Unadjusted Error vs. Supply Voltage

06466-036

0.8

0.6

0.4

0.2

0

–0.2

–0.4

–0.6

BIPOLAR Z ERO-SCALE ERROR (mV)

–0.8

–1.0

–40 –20 0 20 40 60 80

±5V RANGE

±10V RANGE

TEMPERATURE (°C)

Figure 21. Bipolar Zero-Scale Error vs. Temperature

06466-047

0.04

0.03

0.02

0.01

0

–0.01

TUE (%)

–0.02

–0.03

–0.04

–0.05

5.5 8.56.5 7.5 10.5 11.59.5 12.5 13.5 14.5 15.5 16.5
SUPPLY VOLTAGE (V)

BIPOLAR 5V M IN
UNIPOLAR 5V M IN
BIPOLAR 5V M AX
UNIPOLAR 5V M AX

Figure 19. AD5752R Total Unadjusted Error vs. Supply Voltage

4

3

2

1

0

–1

ZERO-SCAL E E RROR (mV)

–2

–3

–40 –20 0 20 40 60 80

+10V

±10V

±5V

TEMPERATURE (°C)

Figure 20. Zero-Scale Error vs. Temperature

0.06
±5V

0.04

0.02

0

–0.02

GAIN E RROR (% F SR)

–0.04

–0.06

–40 –20 0 20 40 60 80

06466-037

±10V

+10V

TEMPERATURE (°C)

06466-048

Figure 22. Gain Error vs. Temperature

1000

900
800
700
600
500

(µA)

CC

400

DI

300
200
100

0

–100

0123456

06466-046

DV

CC

= 3V

V

LOGIC

DVCC = 5V

(V)

06466-043

Figure 23. Digital Current vs. Logic Input Voltage

Rev. D | Page 13 of 32

AD5722R/AD5732R/AD5752R

0.010
±5V RANGE, CODE = 0xFFFF

±10V RANGE, CODE = 0xFFFF
+10V RANGE, CO DE = 0xFFFF
+5V RANG E , CODE = 0 xFFFF

0.005
±5V RANGE, CODE = 0 x0000

±10V RANGE, CODE = 0x0000

0

12

10

8

–0.005

–0.010

OUTPUT VOLTAGE DELTA ( V)

–0.015

–0.020

–25 –20 –15 –10 –5 0 5 10 15 20 25

OUTPUT CURRENT ( mA)

Figure 24. Output Source and Sink Capability

15

10

5

0

–5

OUTPUT VO LTAGE (V)

–10

6

4

OUTPUT VOLTAGE (V)

2

0

–3–11357911

06466-040

TIME (µs)

06466-024

Figure 27. Full-Scale Settling Time, +10 V Range

6

5

4

3

2

OUTPUT VOLTAGE (V)

1

–15

–3–11357911

TIME (µs)

Figure 25. Full-Scale Settling Time, ±10 V Range

7

5

3

1

–1

–3

OUTPUT VOLTAGE (V)

–5

–7

–3–11357911

TIME (µs)

Figure 26. Full-Scale Settling Time, ±5 V Range

0

–3–11357911

06466-022

TIME (µs)

06466-025

Figure 28. Full-Scale Settling Time, +5 V Range

0.020

0.015

0.010

0.005

0

–0.005

OUTPUT VOLTAGE (V)

–0.010

–0.015

–1012345

06466-023

±10V RANGE, 0x7FFF TO 0x8000
±10V RANGE, 0x8000 TO 0x7FFF
±5V RANGE, 0x7FFF TO 0x8000
±5V RANGE, 0x8000 TO 0x7FFF
+10V RANGE, 0x7 FFF TO 0x8000
+10V RANGE, 0x8 000 TO 0x7FFF
+5V RANGE, 0x7FFF TO 0x8000
+5V RANGE, 0x8000 TO 0x7FF F

TIME (µs)

±
±
±
±

06466-039

Figure 29. Digital-to-Analog Glitch Energy

Rev. D | Page 14 of 32

AD5722R/AD5732R/AD5752R

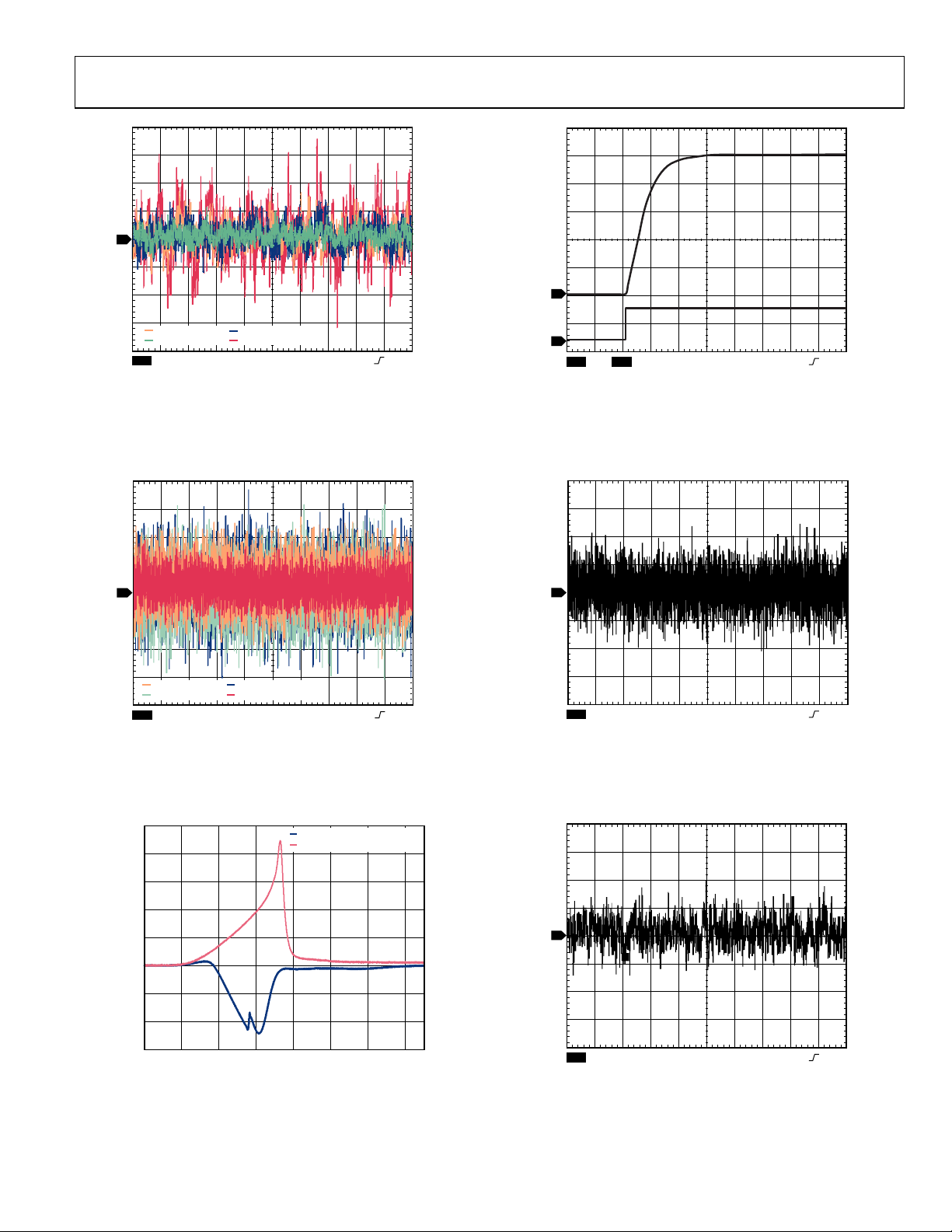

1

2

RANGE = ±5V
RANGE = +5V

CH1 5µV M 5s LINE 73.8V

RANGE = +10V
RANGE = ±10V

Figure 30. Peak-to-Peak Noise, 0.1 Hz to 10 Hz Bandwidth

1

RANGE = ±5V
RANGE = +5V

CH1 5µV M5s LINE 73.8V

RANGE = +10V
RANGE = ±10V

Figure 31. Peak-to-Peak Noise, 100 kHz Bandwidth

1

6466-026

CH1 5V CH2 500mV M 200µs CH1 2.9V

06466-028

Figure 33. REFOUT Turn-On Transient

1

06466-027

CH1 100mV M 5s LINE 1. 2V

06466-029

Figure 34. REFOUT Output Noise (100 kHz Bandwidth)

0.10

0.08

0.06

0.04

0.02

0

OUTPUT VOLTAGE ( V)

–0.02

–0.04

–0.06

–50–30–101030507090

AVDD/AVSS = ±16.5V
AV

TIME (µs)

= +16.5V, AVSS = 0V

DD

Figure 32. Output Glitch on Power-Up

06466-041

Rev. D | Page 15 of 32

1

CH1 10mV M 5s LINE 1.2V

Figure 35. REFOUT Output Noise (0.1 Hz to 10 Hz Bandwidth)

06466-030

AD5722R/AD5732R/AD5752R

3.0

2.9

2.8

2.7

2.6

2.5

VOLTAGE (V)

2.4

OUT

2.3

REF

2.2

2.1

2.0
–0.18 –0.13 –0.08 –0.03 0.02 0.07 0.12 0.17

LOAD CURRENT (mA)

Figure 36. REFOUT Voltage vs. Load Current

06466-031

1.0
AVDD/AVSS = +12V/0V, RANGE = +10V

AV

/AVSS = ±12V, RANGE = ± 10V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

0.5

–0.5

–1.0

TUE (LSB)

–1.5

–2.0

–2.5

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

0

0 500 1000 1500 2000 2500 3000 3500 4000

CODE

Figure 39. AD5722R Total Unadjusted Error vs. Code

06466-021

15

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ±1 0V

10

–5

–10

TUE (LSB)

–15

–20

–25

–30

–35

DD

AV

/AVSS = ±6.5V, RANGE = ± 5V

DD

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

5

0

0 1000 2000 3000 4000 5000 6000

CODE

Figure 37. AD5752R Total Unadjusted Error vs. Code

4

AVDD/AVSS = +12V/0V, RANGE = +10V
AV

/AVSS = ±12V, RANGE = ± 10V

DD

AV

/AVSS = ±6.5V, RANGE = ±5V

DD

2

AV

/AVSS = +6.5V/0V, RANGE = +5V

DD

0

–2

–4

TUE (LSB)

–6

–8

40

35

30

25

20

15

POPULATION (%)

10

5

0

1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0

06466-019

TEMPERATURE COEFFI CIENT (ppm/°C)

06466-049

Figure 40. Reference Output TC (−40°C to +85°C)

40

35

30

25

20

15

POPULATION (%)

10

5

–10

0 2000 4000 6000 8000 10,000 12,000 14,000 16,000

CODE

Figure 38. AD5732R Total Unadjusted Error vs. Code

6466-020

Rev. D | Page 16 of 32

0

1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
TEMPERATURE COEFFI CIENT (ppm/°C)

Figure 41. Reference Output TC (0°C to 85°C)

06466-052

AD5722R/AD5732R/AD5752R

2.50120
20 DEVICES SHOWN

2.50100

2.50120
20 DEVICES SHOWN

2.50100

2.50080

2.50060

2.50040

2.50020

REFERENCE OUT PUT VOLTAGE (V)

2.50000

2.49980
020–20–40 40 60 80

TEMPERATURE ( °C)

06466-051

2.50080

2.50060

2.50040

2.50020

REFERENCE OUT PUT VOLTAGE (V)

2.50000

2.49980
0 1020304050607080

TEMPERATURE ( °C)

Figure 42. Reference Output Voltage vs. Temperature (−40°C to+ 85°C) Figure 43. Reference Output Voltage vs. Temperature (0°C to 85°C)

06466-050

Rev. D | Page 17 of 32

AD5722R/AD5732R/AD5752R

TERMINOLOGY

Relative Accuracy or Integral Nonlinearity (INL)

For the DAC, relative accuracy, or integral nonlinearity, is a
measure of the maximum deviation in LSBs from a straight line
passing through the endpoints of the DAC transfer function. A
typical INL vs. code plot can be seen in Figure 6.

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between the measured
change and the ideal 1 LSB change between any two adjacent
codes. A specified differential nonlinearity of ±1 LSB maximum
ensures monotonicity. Therefore, the AD5722R/AD5732R/
AD5752R DACs are guaranteed monotonic by design. A typical
DNL vs. code plot can be seen in Figure 9.

Monotonicity

A DAC is monotonic if the output either increases or remains
constant for increasing digital input code. The AD5722R/
AD5732R/AD5752R are monotonic over the full operating
temperature range.

Bipolar Zero Error

Bipolar zero error is the deviation of the analog output from the
ideal half-scale output of 0 V when the DAC register is loaded
with 0x8000 (straight binary coding) or 0x0000 (twos complement
coding). A plot of bipolar zero error vs. temperature can be seen
in Figure 21.

Bipolar Zero Temperature Change (TC)

Bipolar zero TC is a measure of the change in the bipolar zero
error with a change in temperature. It is expressed in ppm FSR/°C.

Zero-Scale Error or Negative Full-Scale Error

Zero-scale error is the error in the DAC output voltage when
0x0000 (straight binary coding) or 0x8000 (twos complement
coding) is loaded to the DAC register. Ideally, the output voltage
should be negative full-scale − 1 LSB. A plot of zero-scale error
vs. temperature can be seen in Figure 20.

Zero-Scale TC

Zero-scale TC is a measure of the change in zero-scale error with a
change in temperature. Zero-scale TC is expressed in ppm FSR/°C.

Output Voltage Settling Time

Output voltage settling time is the amount of time required for
the output to settle to a specified level for a full-scale input change.
A plot of full-scale settling time can be seen in Figure 25.

Slew Rate

The slew rate of a device is a limitation in the rate of change of
the output voltage. The output slewing speed of a voltage output
DAC is usually limited by the slew rate of the amplifier used at
its output. Slew rate is measured from 10% to 90% of the output
signal and is given in V/μs.

Gain Error

Gain error is a measure of the span error of the DAC. It is the
deviation of the DAC transfer characteristic from the ideal slope
and is expressed in % FSR. A plot of gain error vs. temperature
can be seen in Figure 22.

Rev. D | Page 18 of 32

Gain TC

Gain TC is a measure of the change in gain error with changes
in temperature. Gain TC is expressed in ppm FSR/°C.

Tot a l U n ad ju s te d E rr o r ( TU E)

Total unadjusted error is a measure of the output error taking
all the various errors into account, namely, INL error, offset
error, gain error, and output drift over supplies, temperature,
and time. TUE is expressed in % FSR.

Power-On Glitch Energy

Power-on glitch energy is the impulse injected into the analog
output when the AD5722R/AD5732R/AD5752R power on. It is
normally specified as the area of the glitch in nV-sec (see Figure 32).

Digital-to-Analog Glitch Impulse

Digital-to-analog glitch impulse is the impulse injected into the
analog output when the input code in the DAC register changes
state but the output voltage remains constant. It is normally
specified as the area of the glitch in nV-sec and is measured
when the digital input code is changed by 1 LSB at the major
carry transition (0x7FFF to 0x8000). See Figure 29.

Glitch Impulse Peak Amplitude

Glitch impulse peak amplitude is the peak amplitude of the
impulse injected into the analog output when the input code in
the DAC register changes state. It is specified as the amplitude
of the glitch in mV and is measured when the digital input code
is changed by 1 LSB at the major carry transition (0x7FFF to
0x8000). See Figure 29.

Digital Feedthrough

Digital feedthrough is a measure of the impulse injected into
the analog output of the DAC from the digital inputs of the
DAC and is measured when the DAC output is not updated. It
is specified in nV-sec and measured with a full-scale code
change on the data bus.

Power Supply Sensitivity

Power supply sensitivity indicates how the output of the DAC is
affected by changes in the power supply voltage.

DC Crosstalk

DC crosstalk is the dc change in the output level of one DAC in
response to a change in the output of another DAC. It is measured
with a full-scale output change on one DAC while monitoring
another DAC. It is expressed in LSBs.

Digital Crosstalk

Digital crosstalk is a measure of the impulse injected into the
analog output of one DAC from the digital inputs of another
DAC and is measured when the DAC output is not updated. It
is specified in nV-sec and measured with a full-scale code
change on the data bus.

AD5722R/AD5732R/AD5752R

DAC-to-DAC C rosst a l k

DAC-to-DAC crosstalk is the glitch impulse transferred to the
output of one DAC due to a digital code change and a subsequent
output change of another DAC. This includes both digital and
analog crosstalk. It is measured by loading one of the DACs
with a full-scale code change (all 1s to all 0s, and vice versa)

LDAC

with
The energy of the glitch is expressed in nV-sec.

low and monitoring the output of another DAC.

Volt ag e Ref e re n ce T C

Voltage reference TC is a measure of the change in the refer
ence output voltage with a change in temperature. This value
is expressed in ppm/°C.

Rev. D | Page 19 of 32

AD5722R/AD5732R/AD5752R

x

T

THEORY OF OPERATION

The AD5722R/AD5732R/AD5752R are dual, 12-/14-/16-bit,
serial input, unipolar/bipolar, voltage output DACs. They
operate from unipolar supply voltages of +4.5 V to +16.5 V or
bipolar supply voltages of ±4.5 V to ±16.5 V. In addition, the
parts have software-selectable output ranges of +5 V, +10 V,
+10.8 V, ±5 V, ±10 V, and ±10.8 V. Data is written to the
AD5722R/AD5732R/AD5752R in a 24-bit word format via a
3-wire serial interface. The devices also offer an SDO pin to
facilitate daisy chaining or readback.

The AD5722R/AD5732R/AD5752R incorporate a power-on
reset circuit to ensure that the DAC registers power up loaded
with 0x0000. When powered on, the outputs are clamped to 0 V
via a low impedance path. The parts also feature on-chip
reference and reference buffers.

ARCHITECTURE

The DAC architecture consists of a string DAC followed by an
output amplifier. Figure 44 shows a block diagram of the DAC
architecture. The reference input is buffered before being
applied to the DAC.

REFIN

REF (+)

DAC REGISTER

Figure 44. DAC Architecture Block Diagram

The resistor string structure is shown in Figure 45. It is a string
of resistors, each of value R. The code loaded to the DAC register
determines the node on the string where the voltage is to be
tapped off and fed into the output amplifier. The voltage is
tapped off by closing one of the switches connecting the string
to the amplifier. Because it is a string of resistors, it is guaranteed
monotonic.

RESISTOR

STRING

REF (–)

GND

OUTPUT

RANGE CONTROL

V

OUT

CONFIGURABLE
OUTPUT
AMPLIFIER

06466-006

REFIN

R

R

06466-007

TO OUTPU
AMPLIFIER

R

R

R

Figure 45. Resistor String Structure

Output Amplifiers

The output amplifiers are capable of generating both unipolar
and bipolar output voltages. They are capable of driving a load
of 2 kΩ in parallel with 4000 pF to GND. The source and sink
capabilities of the output amplifiers can be seen in Figure 24.
The slew rate is 4.5 V/μs with a full-scale settling time of 10 μs.

Reference Buffers

The AD5722R/AD5732R/AD5752R can operate with either an
external or internal reference. The reference input has an input
range of 2 V to 3 V, with 2.5 V for specified performance. This
input voltage is then buffered before it is applied to the DAC cores.

SERIAL INTERFACE

The AD5722R/AD5732R/AD5752R are controlled over a
versatile 3-wire serial interface that operates at clock rates up to
30 MHz. It is compatible with SPI, QSPI™, MICROWIRE™, and
DSP standards.

Input Shift Register

The input shift register is 24 bits wide. Data is loaded into the
device MSB first as a 24-bit word under the control of a serial
clock input, SCLK. The input register consists of a read/write
bit, three register select bits, three DAC address bits, and 16 data
bits. The timing diagram for this operation is shown in Figure 2.

Rev. D | Page 20 of 32

AD5722R/AD5732R/AD5752R

*

Standalone Operation

The serial interface works with both a continuous and noncon­tinuous serial clock. A continuous SCLK source can be used

SYNC

only if

is held low for the correct number of clock cycles.
In gated clock mode, a burst clock containing the exact number
of clock cycles must be used, and

SYNC

must be taken high
after the final clock to latch the data. The first falling edge of
SYNC

starts the write cycle. Exactly 24 falling clock edges must
be applied to SCLK before
SYNC

is brought high before the 24th falling SCLK edge, the

SYNC

is brought high again. If

data written is invalid. If more than 24 falling SCLK edges are

SYNC

applied before

is brought high, the input data is also
invalid. The input register addressed is updated on the rising
edge of

SYNC

. For another serial transfer to take place,

SYNC
must be brought low again. After the end of the serial data
transfer, data is automatically transferred from the input shift

register to the addressed register.

When the data has been transferred into the chosen register of
the addressed DAC, all DAC registers and outputs can be

68HC11

MISO

LDAC

*

MOSI

SCK

PC7
PC6

low while

updated by taking

ADDITIONAL P INS OMIT TED FOR CLARITY.

Figure 46. Daisy Chaining the AD5722R/AD5732R/AD5752R

SYNC

SDIN
SCLK
SYNC
LDAC

SCLK
SYNC
LDAC

SCLK
SYNC
LDAC

is high.

AD5722R/
AD5732R/
AD5752R*

SDO

SDIN

AD5722R/
AD5732R/
AD5752R*

SDO

SDIN

AD5722R/
AD5732R/
AD5752R*

SDO

06466-008

Daisy-Chain Operation

For systems that contain several devices, the SDO pin can be
used to daisy-chain several devices together. Daisy-chain mode
can be useful in system diagnostics and in reducing the number
of serial interface lines. The first falling edge of

SYNC

starts the
write cycle. SCLK is continuously applied to the input shift
register when

SYNC

is low. If more than 24 clock pulses are
applied, the data ripples out of the shift register and appears on
the SDO line. This data is clocked out on the rising edge of
SCLK and is valid on the falling edge. By connecting the SDO
of the first device to the SDIN input of the next device in the
chain, a multidevice interface is constructed. Each device in the
system requires 24 clock pulses. Therefore, the total number of
clock cycles must equal 24 × N, where N is the total number of
AD5722R/AD5732R/AD5752R devices in the chain. When the
serial transfer to all devices is complete,

SYNC

is taken high.
This latches the input data in each device in the daisy chain and
prevents any further data from being clocked into the input shift
register. The serial clock can be a continuous or gated clock.

A continuous SCLK source can only be used if

SYNC

is held
low for the correct number of clock cycles. In gated clock mode,
a burst clock containing the exact number of clock cycles must
be used, and

SYNC

must be taken high after the final clock to

latch the data.

Readback Operation

Readback mode is invoked by setting the R/W bit = 1 in the write
operation to the serial input shift register. (If the SDO output is
disabled via the SDO disable bit in the control register, it is auto­matically enabled for the duration of the read operation, after
which it is disabled again). With R/

W

= 1, Bit A2 to Bit A0 in
association with Bit REG2 to Bit REG0 select the register to be
read. The remaining data bits in the write sequence are don’t
care bits. During the next SPI write, the data appearing on the
SDO output contains the data from the previously addressed
register. For a read of a single register, the NOP command can
be used in clocking out the data from the selected register on
SDO. The readback diagram in shows the readback

Figure 4
sequence. For example, to read back the DAC register of
Channel A, the following sequence should be implemented:

1. Write 0x800000 to the AD5722R/AD5732R/AD5752R

input register. This configures the part for read mode with
the DAC register of Channel A selected. Note that all the
data bits, DB15 to DB0, are don’t care bits.

2. Follow this with a second write, a NOP condition, 0x180000.

During this write, the data from the register is clocked out
on the SDO line.

Rev. D | Page 21 of 32

AD5722R/AD5732R/AD5752R

LOAD DAC (LDAC) CONFIGURING THE AD5722R/AD5732R/AD5752R

After data has been transferred into the input register of the
DACs, there are two ways to update the DAC registers and DAC
outputs. Depending on the status of both

SYNC

and

LDAC

, one
of two update modes is selected: individual DAC updating or
simultaneous updating of all DACs.

OUTPUT

AMPLIFIER

REFIN

LDAC

SCLK

SYNC

SDIN

Figure 47. Simplified Diagram of Input Loading Circuitry for One DAC

12-/14-/16-BIT

DAC

DAC

REGISTER

INPUT

REGISTER

INTERFACE

LOGIC

SDO

V

x

OUT

06466-009

Individual DAC Updating

In this mode,

LDAC

is held low while data is being clocked into
the input shift register. The addressed DAC output is updated
on the rising edge of

SYNC

.

Simultaneous Updating of All DACs

In this mode,

LDAC

is held high while data is being clocked
into the input shift register. All DAC outputs are asynchronously
updated by taking

LDAC

low after

The update now occurs on the falling edge of

SYNC

has been taken high.

LDAC

.

ASYNCHRONOUS CLEAR (CLR)

CLR

is an active low clear that allows the outputs to be cleared
to either zero-scale code or midscale code. The clear code value
is user selectable via the CLR select bit of the control register
(see the section). It is necessary to maintain Control Register
CLR

low for a minimum amount of time to complete the operation
(see ). When the Figure 2
remains at the cleared value until a new value is programmed. The
outputs cannot be updated with a new value while the
is low. A clear operation can also be performed via the clear

command in the control register.

CLR

signal is returned high, the output

CLR

pin

When the power supplies are applied to the AD5722R/AD5732R/
AD5752R, the power-on reset circuit ensures that all registers
default to 0. This places all channels and the internal reference
in power-down mode. The DV

should be brought high before

CC

any of the interface lines are powered. If this is not done the first
write to the device may be ignored. The first communication to
the AD5722R/AD5732R/AD5752R should be to set the required
output range on all channels (the default range is the 5 V unipolar
range) by writing to the output range select register. The user
should then write to the power control register to power on the
required channels and the internal reference, if required.

If an external reference source is being used, the internal
reference must remain in power-down mode. To program an
output value on a channel, that channel must first be powered
up; any writes to a channel while it is in power-down mode are
ignored. The AD5722R/AD5732R/AD5752R operate with a
wide power supply range. It is important that the power supply
applied to the parts provides adequate headroom to support the
chosen output ranges.

TRANSFER FUNCTION

Tabl e 8 to Ta bl e 16 show the relationships of the ideal input code
to output voltage for the AD5752R, AD5732R, and AD5722R,
respectively, for all output voltage ranges. For unipolar output
ranges, the data coding is straight binary. For bipolar output
ranges, the data coding is user selectable via the BIN/
pin and can be either offset binary or twos complement.

For a unipolar output range, the output voltage expression is
given by

D

⎡

OUT

REFIN

×=

GainVV

⎤

N

⎢

⎥

2

⎣

⎦

For a bipolar output range, the output voltage expression is given by

VGain

OUT

D

⎡

×=

GainVV

REFIN

⎤

N

⎢

⎥

⎣

⎦

×

−

REFIN

22

where:

D is the decimal equivalent of the code loaded to the DAC.
N is the bit resolution of the DAC.
V

is the reference voltage applied at the REFIN pin.

REFIN

Gain is an internal gain whose value depends on the output

range selected by the user, as shown in Tabl e 7 .

2sCOMP

Table 7.

Output Range (V) Gain Value

+5 2
+10 4
+10.8
±5
±10

4.32
4
8

±10.8 8.64

Rev. D | Page 22 of 32

AD5722R/AD5732R/AD5752R

Ideal Output Voltage to Input Code Relationship—AD5752R

Table 8. Bipolar Output, Offset Binary Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

1111 1111 1111 1111 +2 × REFIN × (32,767/32,768) +4 × REFIN × (32,767/32,768) +4.32 × REFIN × (32,767/32,768)
1111 1111 1111 1110 +2 × REFIN × (32,766/32,768) +4 × REFIN × (32,766/32,768) +4.32 × REFIN × (32,766/32,768)
… … … … … … …
1000 0000 0000 0001 +2 × REFIN × (1/32,768) +4 × REFIN × (1/32,768) +4.32 × REFIN × (1/32,768)
1000 0000 0000 0000 0 V 0 V 0 V
0111 1111 1111 1111 −2 × REFIN × (1/32,768) −4 × REFIN × (1/32,768) −4.32 × REFIN × (32,766/32,768)
… … … … … … …
0000 0000 0000 0001 −2 × REFIN × (32,766/32,768) −4 × REFIN × (32,766/32,768) −4.32 × REFIN × (32,766/32,768)
0000 0000 0000 0000 −2 × REFIN × (32,767/32,768 −4 × REFIN × (32,767/32,768) −4.32 × REFIN × (32,767/32,768)

Table 9. Bipolar Output, Twos Complement Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

0111 1111 1111 1111 +2 × REFIN × (32,767/32,768) +4 × REFIN × (32,767/32,768) +4.32 × REFIN × (32,767/32,768)
0111 1111 1111 1110 +2 × REFIN × (32,766/32,768) +4 × REFIN × (32,766/32,768) +4.32 × REFIN × (32,766/32,768)
… … … … … … …
0000 0000 0000 0001 +2 × REFIN × (1/32,768) +4 × REFIN × (1/32,768) +4.32 × REFIN × (1/32,768)
0000 0000 0000 0000 0 V 0 V 0 V
1111 1111 1111 1111 −2 × REFIN × (1/32,768) −4 × REFIN × (1/32,768) −4.32 × REFIN × (1/32,768)
… … … … … … …
1000 0000 0000 0001 −2 × REFIN × (32,766/32,768) −4 × REFIN × (32,766/32,768) −4.32 × REFIN × (32,766/32,768)
1000 0000 0000 0000 −2 × REFIN × (32,767/32,768) −4 × REFIN × (32,767/32,768) −4.32 × REFIN × (32,767/32,768)

Table 10. Unipolar Output, Straight Binary Coding

Digital Input Analog Output

MSB LSB +5 V Output Range +10 V Output Range +10.8 V Output Range

1111 1111 1111 1111 +2 × REFIN × (65,535/65,536) +4 × REFIN × (65,535/65,536) +4.32 × REFIN × (65,535/65,536)
1111 1111 1111 1110 +2 × REFIN × (65,534/65,536) +4 × REFIN × (65,534/65,536) +4.32 × REFIN × (65,534/65,536)
… … … … … … …
1000 0000 0000 0001 +2 × REFIN × (32,769/65,536) +4 × REFIN × (32,769/65,536) +4.32 × REFIN × (32,769/65,536)
1000 0000 0000 0000 +2 × REFIN × (32,768/65,536) +4 × REFIN × (32,768/65,536) +4.32 × REFIN × (32,768/65,536)
0111 1111 1111 1111 +2 × REFIN × (32,767/65,536) +4 × REFIN × (32,767/65,536) +4.32 × REFIN × (32,767/65,536)
… … … … … … …
0000 0000 0000 0001 +2 × REFIN × (1/65,536) +4 × REFIN × (1/65,536) +4.32 × REFIN × (1/65,536)
0000 0000 0000 0000 0 V 0 V 0 V

Rev. D | Page 23 of 32

AD5722R/AD5732R/AD5752R

Ideal Output Voltage to Input Code Relationship—AD5732R

Table 11. Bipolar Output, Offset Binary Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

11 1111 1111 1111 +2 × REFIN × (8191/8192) +4 × REFIN × (8191/8192) +4.32 × REFIN × (8191/8192)
11 1111 1111 1110 +2 × REFIN × (8190/8192) +4 × REFIN × (8190/8192) +4.32 × REFIN × (8190/8192)
… … … … … … …
10 0000 0000 0001 +2 × REFIN × (1/8192) +4 × REFIN × (1/8192) +4 × REFIN × (1/8192)
10 0000 0000 0000 0 V 0 V 0 V
01 1111 1111 1111 −2 × REFIN × (1/8192) −4 × REFIN × (1/8192) −4.32 × REFIN × (1/8192)
… … … … … … …
00 0000 0000 0001 −2 × REFIN × (8190/8192) −4 × REFIN × (8190/8192) −4.32 × REFIN × (8190/8192)
00 0000 0000 0000 −2 × REFIN × (8191/8191) −4 × REFIN × (8191/8192) −4.32 × REFIN × (8191/8192)

Table 12. Bipolar Output, Twos Complement Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

01 1111 1111 1111 +2 × REFIN × (8191/8192) +4 × REFIN × (8191/8192) +4.32 × REFIN × (8191/8192)
01 1111 1111 1110 +2 × REFIN × (8190/8192) +4 × REFIN × (8190/8192) +4.32 × REFIN × (8190/8192)
… … … … … … …
00 0000 0000 0001 +2 × REFIN × (1/8192) +4 × REFIN × (1/8192) +4 × REFIN × (1/8192)
00 0000 0000 0000 0 V 0 V 0 V
11 1111 1111 1111 −2 × REFIN × (1/8192) −4 × REFIN × (1/8192) −4.32 × REFIN × (1/8192)
… … … … … … …
10 0000 0000 0001 −2 × REFIN × (8190/8192) −4 × REFIN × (8190/8192) −4.32 × REFIN × (8190/8192)
10 0000 0000 0000 −2 × REFIN × (8191/8192) −4 × REFIN × (8191/8192) −4.32 × REFIN × (8191/8192)

Table 13. Unipolar Output, Straight Binary Coding

Digital Input Analog Output

MSB LSB +5 V Output Range +10 V Output Range +10.8 V Output Range

11 1111 1111 1111 +2 × REFIN × (16,383/16,384) +4 × REFIN × (16,383/16,384) +4.32 × REFIN × (16,383/16,384)
11 1111 1111 1110 +2 × REFIN × (16,382/16,384) +4 × REFIN × (16,382/16,384) +4.32 × REFIN × (16,382/16,384)
… … … … … … …
10 0000 0000 0001 +2 × REFIN × (8193/16,384) +4 × REFIN × (8193/16,384) +4.32 × REFIN × (8193/16,384)
10 0000 0000 0000 +2 × REFIN × (8192/16,384) +4 × REFIN × (8192/16,384) +4.32 × REFIN × (8192/16,384)
01 1111 1111 1111 +2 × REFIN × (8191/16,384) +4 × REFIN × (8191/16,384) +4.32 × REFIN × (8191/16,384)
… … … … … … …
00 0000 0000 0001 +2 × REFIN × (1/16,384) +4 × REFIN × (1/16,384) +4.32 × REFIN × (1/16,384)
00 0000 0000 0000 0 V 0 V 0 V

Rev. D | Page 24 of 32

AD5722R/AD5732R/AD5752R

Ideal Output Voltage to Input Code Relationship—AD5722R

Table 14. Bipolar Output, Offset Binary Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

1111 1111 1111 +2 × REFIN × (2047/2048) +4 × REFIN × (2047/2048) +4.32 × REFIN × (2047/2048)
1111 1111 1110 +2 × REFIN × (2046/2048) +4 × REFIN × (2046/2048) +4.32 × REFIN × (2046/2048)
… … … … … …
1000 0000 0001 +2 × REFIN × (1/2048) +4 × REFIN × (1/2048) +4 × REFIN × (1/2048)
1000 0000 0000 0 V 0 V 0 V
0111 1111 1111 −2 × REFIN × (1/2048) −4 × REFIN × (1/2048) −4.32 × REFIN × (1/2048)
… … … … … …
0000 0000 0001 −2 × REFIN × (2046/2048) −4 × REFIN × (2046/2048) −4.32 × REFIN × (2046/2048)
0000 0000 0000 −2 × REFIN × (2047/2047) −4 × REFIN × (2047/2048) −4.32 × REFIN × (2047/2048)

Table 15. Bipolar Output, Twos Complement Coding

Digital Input Analog Output

MSB LSB ±5 V Output Range ±10 V Output Range ±10.8 V Output Range

0111 1111 1111 +2 × REFIN × (2047/2048) +4 × REFIN × (2047/2048) +4.32 × REFIN × (2047/2048)
0111 1111 1110 +2 × REFIN × (2046/2048) +4 × REFIN × (2046/2048) +4.32 × REFIN × (2046/2048)
… … … … … …
0000 0000 0001 +2 × REFIN × (1/2048) +4 × REFIN × (1/2048) +4 × REFIN × (1/2048)
0000 0000 0000 0 V 0 V 0 V
1111 1111 1111 −2 × REFIN × (1/2048) −4 × REFIN × (1/2048) −4.32 × REFIN × (1/2048)
… … … … … …
1000 0000 0001 −2 × REFIN × (2046/2048) −4 × REFIN × (2046/2048) −4.32 × REFIN × (2046/2048)
1000 0000 0000 −2 × REFIN × (2047/2048) −4 × REFIN × (2047/2048) −4.32 × REFIN × (2047/2048)

Table 16. Unipolar Output, Straight Binary Coding

Digital Input Analog Output

MSB LSB +5 V Output Range +10 V Output Range +10.8 V Output Range

1111 1111 1111 +2 × REFIN × (4095/4096) +4 × REFIN × (4095/4096) +4.32 × REFIN × (4095/4096)
1111 1111 1110 +2 × REFIN × (4094/4096) +4 × REFIN × (4094/4096) +4.32 × REFIN × (4094/4096)
… … … … … …
1000 0000 0001 +2 × REFIN × (2049/4096) +4 × REFIN × (2049/4096) +4.32 × REFIN × (2049/4096)
1000 0000 0000 +2 × REFIN × (2048/4096) +4 × REFIN × (2048/4096) +4.32 × REFIN × (2048/4096)
0111 1111 1111 +2 × REFIN × (2047/4096) +4 × REFIN × (2047/4096) +4.32 × REFIN × (2047/4096)
… … … … … …
0000 0000 0001 +2 × REFIN × (1/4096) +4 × REFIN × (1/4096) 4.32 × REFIN × (1/4096)
0000 0000 0000 0 V 0 V 0 V

Rev. D | Page 25 of 32

AD5722R/AD5732R/AD5752R

INPUT SHIFT REGISTER

The input shift register is 24 bits wide and consists of a read/write bit (R/W); a reserved bit (ZERO), which must always be set to 0; three
register select bits (REG2, REG1, REG0); three DAC address bits (A2, A1, A0); and 16 data bits (data). The register data is clocked in MSB
first on the SDIN pin. shows the register format, while describes the function of each bit in the register. All registers are
read/write registers.

Table 17. AD5752R Input Register Format

MSB LSB
DB23 DB22 DB21 DB20 DB19 DB18 DB17 DB16 DB15 to DB0

R/W

Table 18. Input Register Bit Functions

Bit Mnemonic Description

R/W
REG2, REG1, REG0

0 0 0 DAC register
0 0 1 Output range select register
0 1 0 Power control register
0 1 1 Control register
A2, A1, A0 These DAC address bits are used to decode the DAC channels.

0 0 0 DAC A
0 1 0 DAC B
1 0 0 Both DACs
Data Data bits.

Tabl e 1 7 Tabl e 1 8

Zero REG2 REG1 REG0 A2 A1 A0 Data

Indicates a read from or a write to the addressed register.
Used in association with the address bits to determine if a write operation is to the DAC register, output range

select register, power control register, or control register.

REG2 REG1 REG0 Function

A2 A1 A0 Channel Address

Rev. D | Page 26 of 32

AD5722R/AD5732R/AD5752R

DAC REGISTER

The DAC register is addressed by setting the three REG bits to 000. The DAC address bits select the DAC channel where the data transfer
is to take place (see Tab l e 1 8 ). The data bits are in positions DB15 to DB0 for the AD5752R (see Tab l e 19 ), DB15 to DB2 for the AD5732R
(see Tabl e 2 0 ), and DB15 to DB4 for the AD5722R (see Tab le 2 1).

Table 19. Programming the AD5752R DAC Register

MSB LSB
R/W Zero REG2 REG1 REG0 A2 A1 A0 DB15 to DB0

0 0 0 0 0 DAC address 16-bit DAC data

Table 20. Programming the AD5732R DAC Register

MSB LSB

Zero REG2 REG1 REG0 A2 A1 A0 DB15 to DB2 DB1 DB0

R/

W

0 0 0 0 0 DAC address 14-bit DAC data X X

Table 21. Programming the AD5722R DAC Register

MSB LSB
R/W Zero REG2 REG1 REG0 A2 A1 A0 DB15 to DB4 DB3 DB2 DB1 DB0

0 0 0 0 0 DAC address 12-bit DAC data X X X X

OUTPUT RANGE SELECT REGISTER

The output range select register is addressed by setting the three REG bits to 001. The DAC address bits select the DAC channel, and the
range bits (R2, R1, R0) select the required output range (see Tab l e 22 and Table 2 3).

Table 22. Programming the Required Output Range

MSB LSB

R/

W

Zero REG2 REG1 REG0 A2 A1 A0 DB15 to DB3 DB2 DB1 DB0

0 0 0 0 1 DAC address Don’t care R2 R1 R0

Table 23. Output Range Options

R2 R1 R0 Output Range (V)

0 0 0 +5
0 0 1 +10
0 1 0 +10.8
0 1 1 ±5
1 0 0 ±10
1 0 1 ±10.8

Rev. D | Page 27 of 32

AD5722R/AD5732R/AD5752R

CONTROL REGISTER

The control register is addressed by setting the three REG bits to 011. The value written to the address and data bits determines the
control function selected. The control register options are shown in Ta bl e 24 and Ta bl e 25 .

Table 24. Programming the Control Register

MSB LSB
R/W Zero REG2 REG1 REG0 A2 A1 A0 DB15 to DB4 DB3 DB2 DB1 DB0

0 0 0 1 1 0 0 0 NOP, data = don’t care
0 0 0 1 1 0 0 1 Don’t care TSD enable Clamp enable CLR select SDO disable
0 0 0 1 1 1 0 0 Clear, data = don’t care
0 0 0 1 1 1 0 1 Load, data = don’t care

Table 25. Explanation of Control Register Options

Option Description

NOP No operation instruction used in readback operations.
Clear Addressing this function sets the DAC registers to the clear code and updates the outputs.
Load Addressing this function updates the DAC registers and, consequently, the DAC outputs.
SDO Disable Set by the user to disable the SDO output. Cleared by the user to enable the SDO output (default).
CLR Select See Table 26 for a description of the CLR select operation.
Clamp Enable

TSD Enable

Set by the user to enable the current limit clamp. The channel does not power down upon detection of an
overcurrent; the current is clamped at 20 mA (default).
Cleared by the user to disable the current-limit clamp. The channel powers down upon detection of an overcurrent.

Set by the user to enable the thermal shutdown feature. Cleared by the user to disable the thermal shutdown
feature (default).

Table 26. CLR Select Options

Output CLR Value
CLR Select Setting Unipolar Output Range Bipolar Output Range

0 0 V 0 V
1 Midscale Negative full scale

POWER CONTROL REGISTER

The power control register is addressed by setting the three REG bits to 010. This register allows the user to control and determine the power
and thermal status of the AD5722R/AD5732R/AD5752R. The power control register options are shown in Tabl e 27 and Ta bl e 28 .

Table 27. Programming the Power Control Register

MSB LSB

DB15
to

Zero REG2 REG1 REG0 A2 A1 A0

W

R/

0 0 0 1 0 0 0 0 X X OCB X OCA 0 TSD PU

Table 28. Power Control Register Functions

Option Description

PUA

DAC A power-up. When set, this bit places DAC A in normal operating mode. When cleared, this bit places DAC A in power-down
mode (default). After setting this bit to power DAC A, a power-up time of 10 μs is required. During this power-up time the DAC
register should not be loaded to the DAC output (see the Load DAC (LDAC
is cleared, DAC A powers down automatically on detection of an overcurrent, and PU

PUB

DAC B power-up. When set, this bit places DAC B in normal operating mode. When cleared, this bit places DAC B in power-down
mode (default). After setting this bit to power DAC B, a power-up time of 10 μs is required. During this power-up time the DAC
register should not be loaded to the DAC output (see the Load DAC (LDAC
is cleared, DAC B powers down automatically on detection of an overcurrent, and PUB is cleared to reflect this.

PU

Reference power-up. When set, this bit places the internal reference in normal operating mode. When cleared, this bit places the

REF

internal reference in power-down mode (default).
TSD Thermal shutdown alert. Read-only bit. In the event of an overtemperature situation, both DACs are powered down and this bit is set.
OCA DAC A overcurrent alert. Read-only bit. In the event of an overcurrent situation on DAC A, this bit is set.
OCB DAC B overcurrent alert. Read-only bit. In the event of an overcurrent situation on DAC B, this bit is set.

DB11 DB10 DB9 DB8 DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

X PUB X PUA

REF

) section). If the clamp enable bit of the control register

is cleared to reflect this.

A

) section). If the clamp enable bit of the control register

Rev. D | Page 28 of 32

AD5722R/AD5732R/AD5752R

DESIGN FEATURES

ANALOG OUTPUT CONTROL

In many industrial process control applications, it is vital that
the output voltage be controlled during power-up. When the
supply voltages change during power-up, the V

pins are

OUT

clamped to 0 V via a low impedance path (approximately 4 kΩ).
To prevent the output amplifiers from being shorted to 0 V
during this time, Transmission Gate G1 is also opened (see
Figure 48). These conditions are maintained until the power
supplies have stabilized and a valid word is written to a DAC
register. At this time, G2 opens and G1 closes.

VOLTAGE
MONITOR

AND

CONTROL

G1

G2

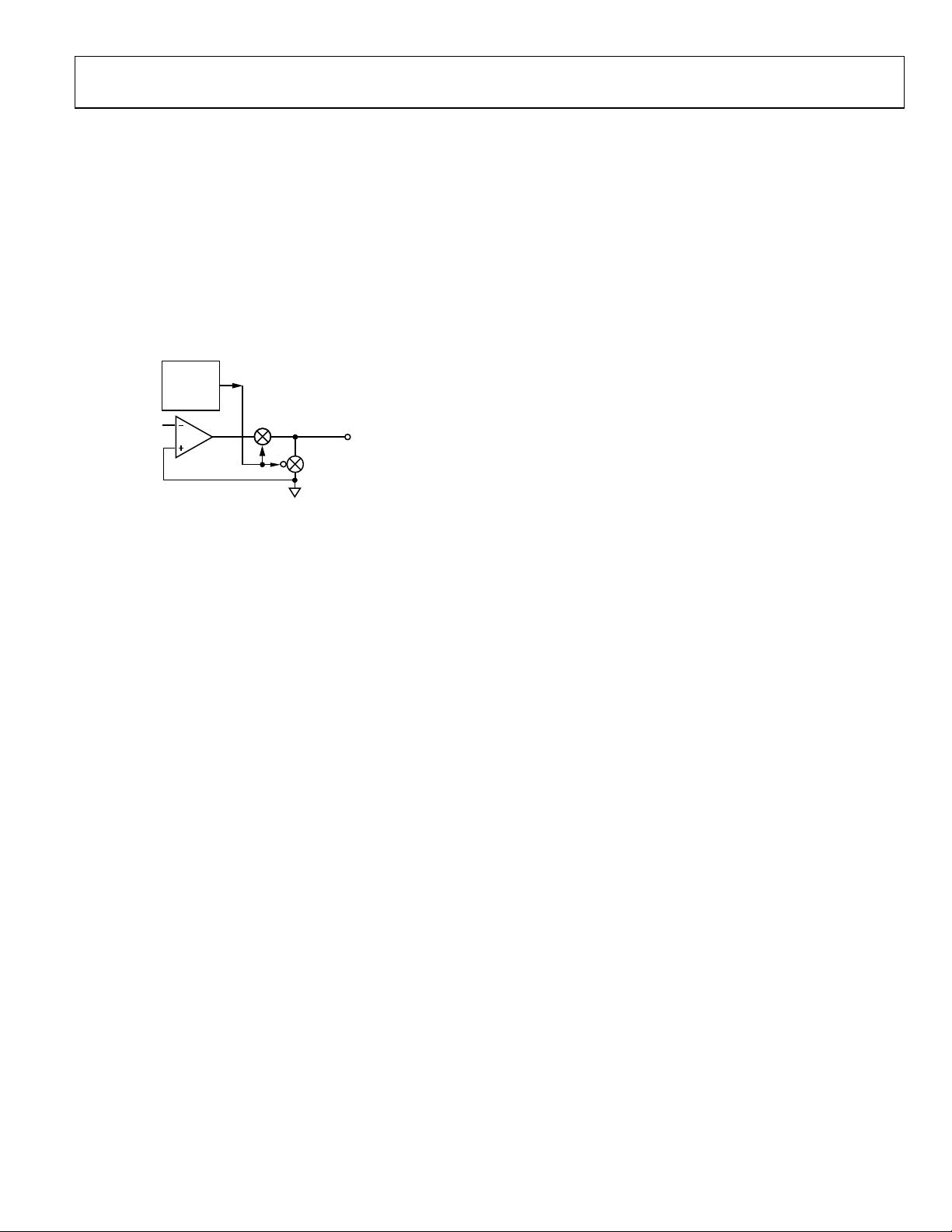

Figure 48. Analog Output Control Circuitry

V

A

OUT

6466-010

POWER-DOWN MODE

Each DAC channel of the AD5722R/AD5732R/AD5752R can
be individually powered down. By default, all channels are in
power-down mode. The power status is controlled by the power
control register (see Ta bl e 27 and Ta ble 28 for details). When a
channel is in power-down mode, its output pin is clamped to
ground through a resistance of approximately 4 kΩ, and the
output of the amplifier is disconnected from the output pin.

OVERCURRENT PROTECTION

Each DAC channel of the AD5722R/AD5732R/AD5752R
incorporates individual overcurrent protection. The user has
two options for the configuration of the overcurrent protection:
constant current clamp or automatic channel power-down. The
configuration of the overcurrent protection is selected via the
clamp enable bit in the control register.

Constant Current Clamp (Clamp Enable = 1)

If a short circuit occurs in this configuration, the current is
clamped at 20 mA. This event is signaled to the user by the
setting of the appropriate overcurrent (OC

) bit in the power

X

control register. Upon removal of the short-circuit fault, the

bit is cleared.

OC

X

Automatic Channel Power-Down (Clamp Enable = 0)

If a short circuit occurs in this configuration, the shorted
channel powers down, and its output is clamped to ground via a
resistance of approximately 4 kΩ. At this time, the output of the
amplifier is also disconnected from the output pin. The short­circuit event is signaled to the user via the overcurrent (OC
bits, and the power-up (PU

) bits indicate which channels have

X

)

X

powered down. After the fault is rectified, the channels can be
powered up again by setting the PU

bits.

X

THERMAL SHUTDOWN

The AD5722R/AD5732R/AD5752R incorporate a thermal
shutdown feature that automatically shuts down the device if
the core temperature exceeds approximately 150°C. The thermal
shutdown feature is disabled by default and can be enabled via
the TSD enable bit of the control register. In the event of a
thermal shutdown, the TSD bit of the power control register is set.

INTERNAL REFERENCE

The on-chip voltage reference is powered down by default. If an
external voltage reference source is to be used, the internal
reference must remain powered down at all times. If the
internal reference is to be used as the reference source, it must
be powered up via the PU
The internal reference voltage is accessible at the REFIN/REFOUT
pin for use as a reference source for other devices within the
system. If the internal reference is to be used external to the
AD5722R/AD5732R/AD5752R, it must first be buffered.

bit of the power control register.

REF

Rev. D | Page 29 of 32

AD5722R/AD5732R/AD5752R

A

APPLICATIONS INFORMATION

+5 V/±5 V OPERATION

When operating from a single +5 V supply or a dual ±5 V
supply, an output range of +5 V or ±5 V is not achievable
because sufficient headroom for the output amplifier is not
available. In this situation, a reduced reference voltage can be
used. For example, a 2 V reference voltage produces an output
range of +4 V or ±4 V, and the 1 V of headroom is more than
enough for full operation. A standard value voltage reference
of 2.048 V can be used to produce output ranges of +4.096 V
and ±4.096 V. Refer to the plots in the Typical Per f o r mance
Characteristics section for performance data at a range of
voltage reference values.

LAYOUT GUIDELINES

In any circuit where accuracy is important, careful considera­tion of the power supply and ground return layout helps to
ensure the rated performance. The printed circuit board on
which the AD5722R/AD5732R/AD5752R are mounted should
be designed so that the analog and digital sections are separated
and confined to certain areas of the board. If the AD5722R/
AD5732R/AD5752R are in a system where multiple devices
require an AGND-to-DGND connection, the connection should
be made at one point only. The star ground point should be
established as close as possible to the device.

The AD5722R/AD5732R/AD5752R should have ample supply
bypassing of a 10 μF capacitor in parallel with a 0.1 μF capacitor
on each supply located as close to the package as possible,
ideally right up against the device. The 10 μF capacitors are the
tantalum bead type. The 0.1 μF capacitor should have low
effective series resistance (ESR) and low effective series
inductance (ESI), such as the common ceramic types, which
provide a low impedance path to ground at high frequencies to
handle transient currents due to internal logic switching.

The power supply lines of the AD5722R/AD5732R/AD5752R
should use as large a trace as possible to provide low impedance
paths and reduce the effects of glitches on the power supply line.
Fast switching signals, such as clock signals, should be shielded
with digital ground to avoid radiating noise to other parts of the
board, and they should never be run near the reference inputs.
A ground line routed between the SDIN and SCLK lines helps
reduce crosstalk between these lines (this is not required on a
multilayer board that has a separate ground plane, but separating
the lines does help). It is essential to minimize noise on the
REFIN line because noise couples through to the DAC output.

Avoid crossover of digital and analog signals. Traces on opposite
sides of the board should run at right angles to each other. This
reduces the effects of feedthrough on the board. A microstrip
technique is by far the best method, but it is not always possible
with a double-sided board. In this technique, the component side
of the board is dedicated to a ground plane, and signal traces
are placed on the solder side.

GALVANICALLY ISOLATED INTERFACE

In many process control applications, it is necessary to provide
an isolation barrier between the controller and the unit being
controlled to protect and isolate the controlling circuitry from
any hazardous common-mode voltages that may occur. The

iCoupler® family of products from Analog Devices, Inc., provides

voltage isolation in excess of 2.5 kV. The serial loading structure
of the AD5722R/AD5732R/AD5752R makes them ideal for
isolated interfaces because the number of interface lines is kept
to a minimum. Figure 49 shows a 4-channel isolated interface to
the AD5722R/AD5732R/AD5752R using an ADuM1400. For
more information, visit http://www.analog.com/icouplers.

MICROCONTROLLER

V

SERIAL CLO CK OUT

SERIAL DATA O UT

SYNC OUT

CONTROL OUT

*ADDITIONAL P INS OMIT TED FOR CLARITY.

IA

V

IB

V

IC

V

ID

Figure 49. Isolated Interface

DuM1400*

ENCODE DECODE

ENCODE DECODE

ENCODE DECODE

ENCODE DECODE

V

OA

TO SCLK

V

OB

TO SDIN

V

OC

TO SYNC

V

OD

TO LDAC

MICROPROCESSOR INTERFACING

Microprocessor interfacing to the AD5722R/AD5732R/AD5752R
is via a serial bus that uses standard protocol compatible with
microcontrollers and DSP processors. The communications
channel is a 3-wire (minimum) interface consisting of a clock
signal, a data signal, and a synchronization signal. Each AD5722R/
AD5732R/AD5752R requires a 24-bit data-word with data valid
on the falling edge of SCLK.

For all interfaces, the DAC output update can be initiated
automatically when all the data is clocked in, or it can be

LDAC

performed under the control of
registers can be read using the readback function.

AD5722R/AD5732R/AD5752R to Blackfin® DSP Interface

Figure 50 shows how the AD5722R/AD5732R/AD5752R can be
interfaced to Analog Devices Blackfin DSP. The Blackfin has an
integrated SPI port that can be connected directly to the SPI pins
of the AD5722R/AD5732R/AD5752R and the programmable I/O
pins that can be used to set the state of a digital input, such as

LDAC

the

pin.

SPISELx

SCK

MOSI

ADSP-BF531

PF10

Figure 50. AD5722R/AD5732R/AD5752R-to-Blackfin Interface

. The contents of the

SYNC
SCLK

SDIN

AD5722R/
AD5732R/
AD5752R

LDAC

06466-012

06466-011

Rev. D | Page 30 of 32

AD5722R/AD5732R/AD5752R

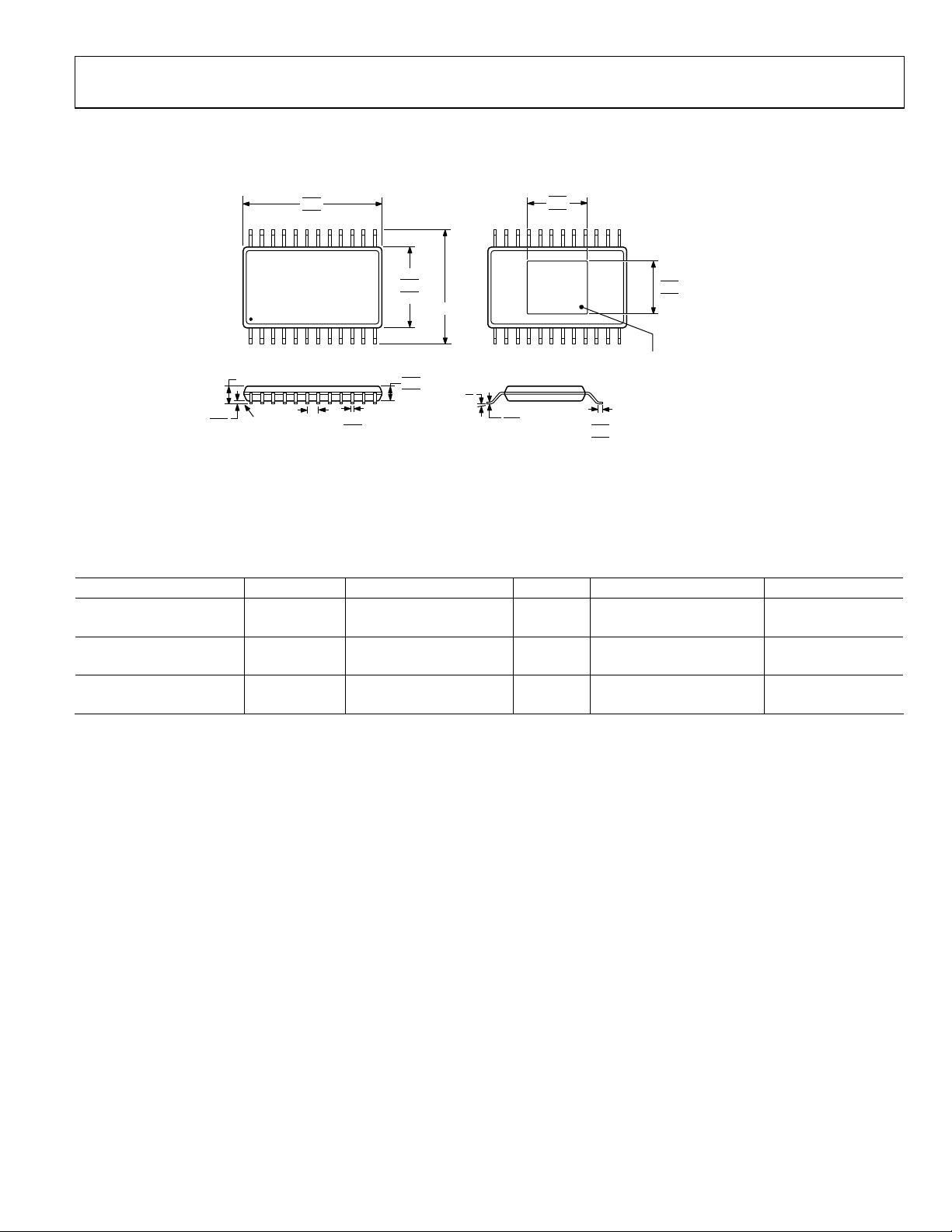

OUTLINE DIMENSIONS

7.90

7.80

7.70

5.02

5.00

4.95

24

1.20 MAX

0.15
SEATING

0.05

0.10 COPLANARITY

PLANE

TOP VIEW

0.65
BSC

13

4.50

4.40

4.30

6.40 BSC

1.05

1.00

0.80

COMPLIANT TO JEDEC STANDARDS MO-153-ADT

8°
0°

0.20

0.09

0.30

0.19

121

EXPOSED

PAD

(Pins Up)

BOTTOM VIEW

3.25

3.20

3.15

FOR PROPER CONNE CT I O N O F
THE EXPOSED PAD, REFER TO
THE PIN CONF IGURATIO N AND
FUNCTION DES CRIPTIONS
SECTION O F THIS DATA SHEET.

0.75

0.60

0.45

061708-A

Figure 51. 24-Lead Thin Shrink Small Outline Package, Exposed Pad [TSSOP_EP]

(RE-24)

Dimensions shown in millimeters

ORDERING GUIDE

Model1 Resolution Temperature Range INL Package Description Package Option

AD5722RBREZ 12 −40°C to 85°C ±1 LSB 24-Lead TSSOP_EP RE-24
AD5722RBREZ-REEL7 12 −40°C to 85°C ±1 LSB 24-Lead TSSOP_EP RE-24
AD5732RBREZ 14 −40°C to 85°C ±4 LSB 24-Lead TSSOP_EP RE-24
AD5732RBREZ-REEL7 14 −40°C to 85°C ±4 LSB 24-Lead TSSOP_EP RE-24
AD5752RBREZ 16 −40°C to 85°C ±16 LSB 24-Lead TSSOP_EP RE-24
AD5752RBREZ-REEL7 16 −40°C to 85°C ±16 LSB 24-Lead TSSOP_EP RE-24

1

Z = RoHS Compliant Part.

Rev. D | Page 31 of 32

AD5722R/AD5732R/AD5752R

NOTES

©2008–2011 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D06466-0-7/11(D)

Rev. D | Page 32 of 32
