ANALOG DEIVCES AD9211 Service Manual

10-Bit, 200 MSPS/250 MSPS/300 MSPS,

FEATURES

SNR = 60.1 dBFS @ fIN up to 70 MHz @ 300 MSPS ENOB of 9.7 @ f SFDR = −80 dBc @ f Excellent linearity

DNL = ±0.1 LSB typical

INL = ±0.2 LSB typical LVDS at 300 MSPS (ANSI-644 levels) 700 MHz full power analog bandwidth On-chip reference, no external decoupling required Integrated input buffer and track-and-hold Low power dissipation

437 mW @ 300 MSPS—LVDS SDR mode

410 mW @ 300 MSPS—LVDS DDR mode Programmable input voltage range

1.0 V to 1.5 V, 1.25 V nominal

1.8 V analog and digital supply operation Selectable output data format (offset binary, twos

complement, Gray code) Clock duty cycle stabilizer Integrated data capture clock

up to 70 MHz @ 300 MSPS (−1.0 dBFS)

IN

up to 70 MHz @ 300 MSPS (−1.0 dBFS)

IN

1.8 V Analog-to-Digital Converter AD9211

FUNCTIONAL BLOCK DIAGRAM

AGND AVDD (1.8V)

10 10

ADC 10-BIT CORE

SERIAL PORT

SCLK SDIO CSB

Figure 1.

AD9211

OUTPUT

STAGING

LVDS

DRVDD

DGND

D9 TO D0

OR+

OR–

DCO+

DCO–

VIN+

VIN–

CLK+

CLK–

PWDNRBIAS

REFERENCE

TRACK-AND-HOLD

CLOCK

MANAGEMENT

RESET

06041-001

APPLICATIONS

Wireless and wired broadband communications Cable reverse path Communications test equipment Radar and satellite subsystems Power amplifier linearization

GENERAL DESCRIPTION

The AD9211 is a 10-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates at up to a 300 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a track-and-hold (T/H) and voltage reference, are included on the chip to provide a complete signal conversion solution.

The ADC requires a 1.8 V analog voltage supply and a differential clock for full performance operation. The digital outputs are LVDS (ANSI-644) compatible and support either twos complement, offset binary format, or Gray code. A data clock output is available for proper output data timing.

Fabricated on an advanced CMOS process, the AD9211 is available in a 56-lead LFCSP, specified over the industrial temperature range (−40°C to +85°C).

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Anal og Devices for its use, nor for any infringements of patents or ot her rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners.

PRODUCT HIGHLIGHTS

1. High Performance—Maintains 60.1 dBFS SNR @

300 MSPS with a 70 MHz input.

2. Low Power—Consumes only 410 mW @ 300 MSPS.

3. Ease of Use—LVDS output data and output clock signal

allow interface to current FPGA technology. The on-chip reference and sample-and-hold provide flexibility in system design. Use of a single 1.8 V supply simplifies system power supply design.

4. Serial Port Control—Standard serial port interface

supports various product functions, such as data formatting, disabling the clock duty cycle stabilizer, powerdown, gain adjust, and output test pattern generation.

5. Pin-Compatible Family—12-bit pin-compatible family

offered as AD9230.

AD9211

REVISION HISTORY

5/07—Revision 0: Initial Version

Rev. 0 | Page 2 of 28

AD9211

SPECIFICATIONS

DC SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, T

Table 1.

Parameter

1

RESOLUTION 10 10 10 Bits ACCURACY

No Missing Codes Full Guaranteed Guaranteed Guaranteed Offset Error 25°C 4.3 4.6 4.4 mV Full −12 +12 −13 +13 −13 +13 mV Gain Error 25°C 1.0 1.3 1.1 % FS Full −2.2 +4.3 −2.2 +4.3 −2.2 +4.3 % FS Differential Nonlinearity (DNL) 25°C ±0.1 ±0.1 ±0.1 LSB Full −0.5 +0.5 −0.5 +0.5 −0.5 +0.5 LSB Integral Nonlinearity (INL) 25°C ±0.2 ±0.2 ±0.2 LSB Full −0.35 0.35 −0.45 0.45 −0.7 +0.7 LSB

TEMPERATURE DRIFT

Offset Error Full Gain Error Full 0.018 0.018 0.018 %/°C

ANALOG INPUTS (VIN+, VIN−)

Differential Input Voltage Range2Full 0.98 1.25 1.5 0.98 1.25 1.5 0.98 1.25 1.5 V p-p Input Common-Mode Voltage Full 1.4 1.4 1.4 V Input Resistance (Differential) Full 4.3 4.3 4.3 kΩ Input Capacitance 25°C 2 2 2 pF

POWER SUPPLY

AVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V DRVDD Full 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V Supply Currents

3

I

AVDD

3

I

/SDR Mode

DRVDD

3

I

/DDR Mode

DRVDD

Power Dissipation

SDR Mode DDR Mode

1

See the AN-835 application note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions and how these tests were completed.

2

The input range is programmable through the SPI, and the range specified reflects the nominal values of each setting. See the Memory Map section.

3

I

and I

AVDD

4

Single data rate mode; this is the default mode of the AD9211.

5

Double data rate mode; user-programmable feature. See the Memory Map section.

are measured with a −1 dBFS, 10.3 MHz sine input at rated sample rate.

DRVDD

4

5

3

4

5

= −40°C, T

MIN

= +85°C, fIN = −1.0 dBFS, full scale = 1.25 V, DCS enabled, unless otherwise noted.

MAX

AD9211-200 AD9211-250 AD9211-300

Temp Min Typ Max Min Typ Max Min Typ Max Unit

±8

±7

±6

μV/°C

Full 134 144 158 169 189 203 mA Full 51 54 53 55 54 57 mA Full 35 38 39 mA Full mW Full 333 356 380 403 437 468 mW Full 304 353 410 mW

Rev. 0 | Page 3 of 28

AD9211

AC SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, T

1

= −40°C, T

MIN

= +85°C, fIN = −1.0 dBFS, full scale = 1.25 V, DCS enabled, unless otherwise noted.

MAX

Table 2.

AD9211-200 AD9211-250 AD9211-300

Parameter2 Temp Min Typ Max Min Typ Max Min Typ Max Unit

SNR

fIN = 10 MHz 25°C 59.0 59.5 58.9 59.4 58.6 59.2 dB

Full 58.9 58.7 57.5 dB

fIN = 70 MHz 25°C 58.9 59.3 58.8 59.3 58.5 59.1 dB

Full 58.8 58.7 57.0 dB

fIN = 170 MHz 25°C 58.5 59.0 58.5 59.0 58.3 58.7 dB

Full 58.4 58.4 57.0 dB SINAD

fIN = 10 MHz 25°C 59.0 59.5 58.9 59.4 58.6 59.1 dB

Full 58.9 58.7 57.3 dB

fIN = 70 MHz 25°C 58.8 59.2 58.8 59.2 58.4 59.0 dB

Full 58.7 58.6 57.0 dB

fIN = 170 MHz 25°C 58.2 58.8 58.2 59.0 58.2 58.8 dB

Full 58.1 58.1 56.7 dB EFFECTIVE NUMBER OF BITS (ENOB)

fIN = 10 MHz 25°C 9.8 9.7 9.7 Bits

fIN = 70 MHz 25°C 9.7 9.7 9.7 Bits

fIN = 170 MHz 25°C 9.6 9.7 9.6 Bits WORST HARMONIC (Second or Third)

fIN = 10 MHz 25°C −85 −78 −86 −79 −80 −75 dBc

Full −78 −77 −70 dBc

fIN = 70 MHz 25°C −77 −75 −80 −76 −80 −74 dBc

Full −75 −74 −67 dBc

fIN = 170 MHz 25°C −77 −72 −79 −70 −80 −73 dBc

Full −72 −70 −67 dBc WORST OTHER

(SFDR Excluding Second and Third)

fIN = 10 MHz 25°C −86 −82 −82 −80 −82 −75 dBc

Full −82 −77 −70 dBc

fIN = 70 MHz 25°C −83 −81 −82 −79 −80 −75 dBc

Full −81 −77 −71 dBc

fIN = 170 MHz 25°C −81 −74 −79 −77 −80 −75 dBc

Full −74 −75 −70 dBc TWO-TONE IMD

140.2 MHz/141.3 MHz @ −7 dBFS 25°C −78 −87 −81 dBc

170.2 MHz/171.3 MHz @ −7 dBFS 25°C −86 −82 −82 dBc

ANALOG INPUT BANDWIDTH 25°C 700 700 700 MHz

1

All ac specifications tested by driving CLK+ and CLK− differentially.

2

See the AN-835 application note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions and how these tests were completed.

Rev. 0 | Page 4 of 28

AD9211

DIGITAL SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, T

Table 3.

AD9211-200 AD9211-250 AD9211-300 Parameter1 Temp Min Typ Max Min Typ Max Min Typ Max Unit

CLOCK INPUTS

Logic Compliance Full CMOS/LVDS/LVPECL CMOS/LVDS/LVPECL CMOS/LVDS/LVPECL Internal Common-Mode Bias Full 1.2 1.2 1.2 V Differential Input Voltage Full 0.2 6 0.2 6 0.2 6 V p-p Input Voltage Range Full

Input Common-Mode Range Full 1.1 AVDD 1.1 AVDD 1.1 AVDD V High Level Input Voltage (VIH) Full 1.2 3.6 1.2 3.6 1.2 3.6 V Low Level Input Voltage (VIL) Full 0 0.8 0 0.8 0 0.8 V High Level Input Current (IIH) Full −10 +10 −10 +10 −10 +10 μA Low Level Input Current (IIL) Full −10 +10 −10 +10 −10 +10 μA Input Resistance (Differential) Full 16 20 24 16 20 24 16 20 24 kΩ Input Capacitance Full 4 4 4 pF

LOGIC INPUTS

Logic 1 Voltage Full

Logic 0 Voltage Full

Logic 1 Input Current (SDIO) Full 0 0 0 μA Logic 0 Input Current (SDIO) Full −60 −60 −60 μA Logic 1 Input Current

(SCLK, PWDN, CSB, RESET)

Logic 0 Input Current

(SCLK, PWDN, CSB, RESET)

Input Capacitance 25°C 4 4 4 pF

LOGIC OUTPUTS2

VOD Differential Output Voltage Full 247 454 247 454 247 454 mV VOS Output Offset Voltage Full 1.125 1.375 1.125 1.375 1.125 1.375 V Output Coding Twos complement, Gray code, or offset binary (default)

1

See the AN-835 application note, Understanding High Speed ADC Testing and Evaluation, for a complete set of definitions and how these tests were completed.

2

LVDS R

TERMINATION

= 100 Ω.

= −40°C, T

MIN

AVDD −

0.3

0.8 × VDD

= +85°C, fIN = −1.0 dBFS, full scale = 1.25 V, DCS enabled, unless otherwise noted.

MAX

AVDD +

1.6

0.2 × AVDD

AVDD −

0.3

0.8 × VDD

AVDD +

1.6

0.2 × AVDD

AVDD −

0.3

0.8 ×

AVDD +

1.6

V

VDD

0.2 × AVDD

V

Full 55 55 50 μA

Full 0 0 0 μA

Rev. 0 | Page 5 of 28

AD9211

SWITCHING SPECIFICATIONS

AVDD = 1.8 V, DRVDD = 1.8 V, T

Table 4.

AD9211-200 AD9211-250 AD921-300 Parameter (Conditions) Temp Min Typ Max Min Typ Max Min Typ Max Unit

Maximum Conversion Rate Full 200 Minimum Conversion Rate Full CLK+ Pulse Width High (tCH) Full 2.25 2.5 1.8 2.0 1.5 1.7 ns CLK+ Pulse Width Low (tCL) Full 2.25 2.5 1.8 2.0 1.5 1.7 ns Output (LVDS − SDR Mode)

1

Data Propagation Delay (tPD) Full 3.0 3.0 3.0 ns

Rise Time (tR) (20% to 80%) 25°C 0.2 0.2 0.2 ns

Fall Time (tF) (20% to 80%) 25°C 0.2 0.2 0.2 ns

DCO Propagation Delay (t

Data to DCO Skew (t

CPD

) Full −0.3 +0.1 +0.5 −0.3 +0.1 +0.5 −0.3 +0.1 +0.5 ns

SKEW

Latency Full 7 7 7 Cycles Output (LVDS − DDR Mode)

2

Data Propagation Delay (tPD) Full 3.8 3.8 3.8 ns

Rise Time (tR) (20% to 80%) 25°C 0.2 0.2 0.2 ns

Fall Time (tF) (20% to 80%) 25°C 0.2 0.2 0.2 ns

DCO Propagation Delay (t

Data to DCO Skew (t

CPD

) Full −0.5 +0.1 +0.3 −0.5 +0.1 +0.3 −0.5 +0.1 +0.3 ns

SKEW

Latency Full 7 7 7 Cycles Aperture Uncertainty (Jitter, tJ) 25°C 0.2 0.2 ps rms

1

See Figure 2.

2

See Figure 3.

= −40°C, T

MIN

= +85°C, fIN = −1.0 dBFS, full scale = 1.25 V, DCS enabled, unless otherwise noted.

MAX

40

250

300 40

40 MSPS

MSPS

) Full 3.9 3.9 3.9 ns

Rev. 0 | Page 6 of 28

AD9211

TIMING DIAGRAMS

VIN

N – 1

t

A

N

N + 3

N + 4

N + 5

CLK+

CLK–

DCO+

DCO–

Dx+

Dx–

VIN

CLK+

CLK–

DCO+

DCO–

D0/D5+

D0/D5–

t

CH

N – 1

t

CL

CPD

N + 1

1/f

S

t

SKEW

t

PD

N – 7 N – 6 N – 5 N – 4 N – 3

N + 2

06041-002

Figure 2. Single Data Rate Mode

t

A

N

N + 3

N + 1

t

CH

CL

t

CPD

1/

f

S

t

SKEW

t

PD

D5

N – 8D0N – 7D5N – 7D0N – 6D5N – 6D0N – 5D5N – 5D0N – 4D5N – 4D0N – 3

N + 2

N + 4

N + 5

D4/D9+

D4/D9–

D9

N – 8D4N – 7D9N – 7D4N – 6D9N – 6D4N – 5D9N – 5D4N – 4D9N – 4D4N – 3

5 MSBs

5 LSBs

06041-003

Figure 3. Double Data Rate Mode

Rev. 0 | Page 7 of 28

AD9211

ABSOLUTE MAXIMUM RATINGS

Table 5.

Parameter Rating

ELECTRICAL

AVDD to AGND −0.3 V to +2.0 V

DRVDD to DRGND −0.3 V to +2.0 V

AGND to DRGND −0.3 V to +0.3 V

AVDD to DRVDD −2.0 V to +2.0 V

D0+/D0− through D9+/D9−

to DRGND DCO to DRGND −0.3 V to DRVDD + 0.3 V OR to DGND −0.3 V to DRVDD + 0.3 V CLK+ to AGND −0.3 V to +3.9 V CLK− to AGND −0.3 V to +3.9 V VIN+ to AGND −0.3 V to AVDD + 0.2 V VIN− to AGND −0.3 V to AVDD + 0.2 V SDIO/DCS to DGND −0.3 V to DRVDD + 0.3 V PWDN to AGND −0.3 V to +3.9 V CSB to AGND −0.3 V to +3.9 V SCLK/DFS to AGND −0.3 V to +3.9 V

ENVIRONMENTAL

Storage Temperature Range −65°C to +125°C Operating Temperature Range −40°C to +85°C Lead Temperature

(Soldering 10 sec) Junction Temperature 150°C

−0.3 V to DRVDD + 0.3 V

300°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

THERMAL RESISTANCE

The exposed paddle must be soldered to the ground plane for the LFCSP package. Soldering the exposed paddle to the customer board increases the reliability of the solder joints, maximizing the thermal capability of the package.

Table 6.

Package Type θJA θ

56-Lead LFCSP (CP-56-2) 30.4 2.9 °C/W

Unit

JC

Typical θJA and θJC are specified for a 4-layer board in still air. Airflow increases heat dissipation, effectively reducing θ

JA

. In addition, metal in direct contact with the package leads from metal traces, and through holes, ground, and power planes reduces the θ

.

JA

ESD CAUTION

Rev. 0 | Page 8 of 28

AD9211

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

(LSB)

NC D

DNC

DCO+

DCO–

D0+

D0– (LSB)

54

53

56

55

DRGND

52

51

50

49

48

AVDD

DRVDD

AVDD

CLK+

44

43

47

46

45 CLK–

1D1– 2D1+ 3D2– 4D2+ 5D3– 6D3+ 7DRVDD 8DRG ND

9D4– 10D4+ 11D5– 12D5+ 13D6– 14D6+

DNC = DO NOT CONNE CT

Figure 4. AD9211 Single Data Rate Mode Pin Configuration

PIN 1 INDICAT OR

AD9211

TOP VIEW

(Not to Scale)

PIN 0 (EXPO SED PADDLE) = AGND

21

17

16

18

19

15

D7–

D7+

20

D8–

D8+

OR–

(MSB) D9+

(MSB) D9–

26

25

24

23

22

OR+

DRVDD

DRGND

SDIO/DCS

SCLK/DFS

42 AVDD 41 AVDD 40 CML 39 AVDD 38 AVDD 37 AVDD 36 VIN– 35 VIN+ 34 AVDD 33 AVDD 32 AVDD 31 RBIAS 30 AVDD 29 PWDN

28

27

CSB

RESET

06041-004

Table 7. Single Data Rate Mode Pin Function Descriptions

Pin No. Mnemonic Description

30, 32 to 34, 37 to 39,

AVDD 1.8 V Analog Supply.

41 to 43, 46 7, 24, 47 DRVDD 1.8 V Digital Output Supply. 0 AGND 8, 23, 48 DRGND

1

Analog Ground.

Digital Output Ground. 35 VIN+ Analog Input—True. 36 VIN− Analog Input—Complement. 40 CML

Common-Mode Output Pin. Enabled through the SPI, this pin provides a reference for the

optimized internal bias voltage for VIN+/VIN−. 44 CLK+ Clock Input—True. 45 CLK− Clock Input—Complement. 31 RBIAS Set Pin for Chip Bias Current. (Place 1% 10 kΩ resistor terminated to ground.) Nominally 0.5 V. 28 RESET CMOS-Compatible Chip Reset (Active Low). 25 SDIO/DCS

Serial Port Interface (SPI) Data Input/Output (Serial Port Mode); Duty Cycle Stabilizer Select

(External Pin Mode). 26 SCLK/DFS Serial Port Interface Clock (Serial Port Mode); Data Format Select Pin (External Pin Mode). 27 CSB Serial Port Chip Select (Active Low). 29 PWDN Chip Power-Down. 49 DCO− Data Clock Output—Complement. 50 DCO+ Data Clock Output—True. 51 to 54 DNC Do Not Connect. 55 D0− D0 Complement Output Bit (LSB). 56 D0+ D0 True Output Bit (LSB). 1 D1− D1 Complement Output Bit. 2 D1+ D1 True Output Bit. 3 D2− D2 Complement Output Bit. 4 D2+ D2 True Output Bit. 5 D3− D3 Complement Output Bit. 6 D3+ D3 True Output Bit. 9 D4− D4 Complement Output Bit. 10 D4+ D4 True Output Bit.

Rev. 0 | Page 9 of 28

AD9211

Pin No. Mnemonic Description

11 D5− D5 Complement Output Bit. 12 D5+ D5 True Output Bit. 13 D6− D6 Complement Output Bit. 14 D6+ D6 True Output Bit. 15 D7− D7 Complement Output Bit. 16 D7+ D7 True Output Bit. 17 D8− D8 Complement Output Bit. 18 D8+ D8 True Output Bit. 19 D9− D9 Complement Output Bit (MSB). 20 D9+ D9 True Output Bit (MSB). 21 OR− Overrange Complement Output Bit. 22 OR+ Overrange True Output Bit.

1

AGND and DRGND should be tied to a common quiet ground plane.

Rev. 0 | Page 10 of 28

AD9211

LK–

AVDD

C

AVDD

DRVDD

DRGND

DCO–

49

22

DNC/(OR+)

CLK+

44

43

45

46

47

48

42 AVDD 41 AVDD 40 CML 39 AVDD 38 AVDD 37 AVDD 36 VIN– 35 VIN+ 34 AVDD 33 AVDD 32 AVDD 31 RBIAS 30 AVDD 29 PWDN

23

24

25

28

26

27

CSB

RESET

DRVDD

DRGND

SDIO/DCS

SCLK/DFS

06041-005

1D2/ D7– 2D2/ D7+ 3D3/ D8– 4D3/ D8+ 5(MSB) D4/D9– 6(MSB) D4/D9+ 7DRVDD 8DRGND

9OR– 10OR+ 11DNC 12DNC 13DNC 14DNC

DNC = DO NOT CO NNECT

D1/D6–

D1/D6+

55

56

PIN 1 INDICATOR

CO+ D

DNC

D0/D5– (LSB)

D0/D5+ (LSB)

52

53

54

50

51

AD9211

TOP VIEW

(Not to Scale)

PIN 0 (EXPOSED PADDLE) = AGND

21

17

16

19

20

18

15

DNC

/(OR–)

DNC

Figure 5. AD9211 Double Data Rate Pin Configuration

Table 8. Double Data Rate Mode Pin Function Descriptions

Pin No. Mnemonic Description

30, 32 to 34, 37 to 39,

AVDD 1.8 V Analog Supply.

41 to 43, 46 7, 24, 47 DRVDD 1.8 V Digital Output Supply. 0 AGND 8, 23, 48 DRGND

1

Analog Ground.

1

Digital Output Ground. 35 VIN+ Analog Input—True. 36 VIN− Analog Input—Complement. 40 CML

Common-Mode Output Pin. Enabled through the SPI, this pin provides a reference for the

optimized internal bias voltage for VIN+/VIN−. 44 CLK+ Clock Input—True. 45 CLK− Clock Input—Complement. 31 RBIAS Set Pin for Chip Bias Current. (Place 1% 10 kΩ resistor terminated to ground.) Nominally 0.5 V. 28 RESET CMOS-Compatible Chip Reset (Active Low). 25 SDIO/DCS

Serial Port Interface (SPI) Data Input/Output (Serial Port Mode); Duty Cycle Stabilizer Select

(External Pin Mode). 26 SCLK/DFS Serial Port Interface Clock (Serial Port Mode); Data Format Select Pin (External Pin Mode). 27 CSB Serial Port Chip Select (Active Low). 29 PWDN Chip Power-Down. 49 DCO− Data Clock Output—Complement. 50 DCO+ Data Clock Output—True. 53 D0/D5− D1/D7 Complement Output Bit (LSB). 54 D0/D5+ D1/D7 True Output Bit (LSB). 55 D1/D6− D2/D8 Complement Output Bit. 56 D1/D6+ D2/D8 True Output Bit. 1 D2/D7− D3/D9 Complement Output Bit. 2 D2/D7+ D3/D9 True Output Bit. 3 D3/D8− D4/D10 Complement Output Bit. 4 D3/D8+ D4/D10 True Output Bit. 5 D4/D9− D5/D11 Complement Output Bit (MSB). 6 D4/D9+ D5/D11 True Output Bit (MSB).

Rev. 0 | Page 11 of 28

AD9211

Pin No. Mnemonic Description

9 OR− D6 Complement Output Bit. (This pin is disabled if Pin 21 is reconfigured through the SPI to be OR−.) 10 OR+ D6 True Output Bit. (This pin is disabled if Pin 22 is reconfigured through the SPI to be OR+.) 11 to 20, 51, 52 DNC Do Not Connect. 21 DNC/(OR−)

22 DNC/(OR+)

1

AGND and DRGND should be tied to a common quiet ground plane.

Do Not Connect. (This pin can be reconfigured as the Overrange Complement Output Bit through the serial port register.)

Do Not Connect. (This pin can be reconfigured as the Overrange True Output Bit through the serial port register.)

Rev. 0 | Page 12 of 28

AD9211

TYPICAL PERFORMANCE CHARACTERISTICS

AVDD = 1.8 V, DRVDD = 1.8 V, rated sample rate, DCS enabled, TA = 25°C, 1.25 V p-p differential input, AIN = −1 dBFS, unless otherwise noted.

0

–20

–40

–60

(dBFS)

–80

–100

–120

01

25 50 75

FREQUENCY (MHz)

200MSPS

10.3MHz @ –1.0d BFS SNR: 59.5dB ENOB: 9.8BITS SFDR: 85dBc

06041-012

00

Figure 6. AD9211-200 64k Point Single-Tone FFT; 200 MSPS, 10.3 MHz

95

90

85

80

75

70

SNR AND SFDR (dB)

65

60

55

0180

20 40 60 80 100 120 140 160

SFDR

SNR (dB)

FREQUENCY (MHz)

Figure 9. AD9211-200 Single-Tone SNR/SFDR vs. Input Frequency (f

1.25 V p-p Full Scale; 200 MSPS

) with

IN

06041-016

0

200MSPS

70.3MHz @ –1.0d BFS SNR: 59.3dB

–20

ENOB: 9.7BITS SFDR: –77dBc

–40

–60

(dBFS)

–80

–100

–120

01

25 50 75

FREQUENCY (MHz)

06041-013

00

Figure 7. AD9211-200 64k Point Single-Tone FFT; 200 MSPS, 70.3 MHz

0

–20

–40

–60

(dBFS)

–80

–100

–120

01

25 50 75

FREQUENCY (MHz)

200MSPS

170.3MHz @ –1.0d BFS SNR: 59.0dB ENOB: 9.6BITS SFDR: 77dBc

06041-014

00

90

80

70

60

50

40

30

SNR AND SFDR (dB)

20

10

0

–90 0

Figure 10. AD9211-200 SNR/SFDR vs. Input Amplitude; 170.3 MHz

0.25

0.20

0.15

0.10

0.05

0

DBL (LSB)

–0.05

–0.10

–0.15

–0.20

–0.25

01024

Figure 8. AD9211-200 64k Point Single-Tone FFT; 200 MSPS, 170.3 MHz

SFDR (dBFS)

SNR (dBFS)

SFDR (dB)

–80 –70 –60 –50 –40 –30 –20 –10

AMPLITUDE (dBFS)

256 512 768

OUTPUT CODE

SNR (dB)

Figure 11. AD9211-200 INL; 200 MSPS

06041-017

06041-018

Rev. 0 | Page 13 of 28

AD9211

0.5

0.4

0.3

0.2

0.1

0

DBL (LSB)

–0.1

–0.2

–0.3

–0.4

–0.5

01

256 512 768

OUTPUT CODE

Figure 12. AD9211-200 DNL; 200 MSPS

0

–20

–40

–60

(dBFS)

–80

–100

–120

0 125.00

31.25 62.50 93.75

FREQUENCY (M Hz)

250MSPS

10.3MHz @ –1.0d BFS SNR: 59.4dB ENOB: 9.7BI TS SFDR: 86dBc

Figure 13. AD9211-250 64k Point Single-Tone FFT; 250 MSPS, 10.3 MHz

0

250MSPS

170.3MHz @ –1.0d BFS SNR: 59.0dB

–20

ENOB: 9.7BI TS SFDR: –79dBc

–40

–60

(dBFS)

–80

–100

06041-021

024

–120

0 125.00

31.25 62.50 93.75

FREQUENCY (M Hz)

Figure 15. AD9211-250 64k Point Single-Tone FFT; 250 MSPS, 170.3 MHz

95

90

85

80

75

70

SNR AND SFDR (dB)

65

60

06041-023

55

01

20 40 60 80 100 120 140 160

SNR (dB)

FREQUENCY (MHz)

Figure 16. AD9211-250 Single-Tone SNR/SFDR vs. Input Frequency (f

1.25 V p-p Full Scale; 250 MSPS

SFDR

06041-025

06041-027

80

) with

IN

0

250MSPS

70.3MHz @ –1.0d BFS SNR: 59.2dB

–20

ENOB: 9.7BI TS SFDR: 80dBc

–40

–60

(dBFS)

–80

–100

–120

0 125.00

31.25 62.50 93.75

FREQUENCY (M Hz)

06041-024

Figure 14. AD9211-250 64k Point Single-Tone FFT; 250 MSPS, 70.3 MHz

Figure 17. AD9211-250 SNR/SFDR vs. Input Amplitude; 250 MSPS, 170.3 MHz

Rev. 0 | Page 14 of 28

100

90

80

70

60

50

40

SNR AND SFDR (dB)

30

20

10

0

–90 0

SFDR (dBFS)

SNR (dBFS)

SFDR (dB)

–80 –70 –60 –50 –40 –30 –20 –10

AMPLITUDE (dBFS)

SNR (dB)

06041-028

AD9211

0.25

0.20

0.15

0.10

0.05

0

DBL (LSB)

–0.05

–0.10

–0.15

–0.20

–0.25

01

256 512 768

OUTPUT CODE

06041-029

024

Figure 18. AD9211-250 INL; 250 MSPS

0

300MSPS

70.3MHz @ –1.0dBFS SNR: 59.1dB

–20

ENOB: 9.7BITS SFDR: 80dBc

–40

–60

(dBFS)

–80

–100

–120

0150

25 50 75 100 125

FREQUENCY (MHz)

06041-035

Figure 21. AD9211-300 64k Point Single-Tone FFT; 300 MSPS, 70.3 MHz

0.5

0.4

0.3

0.2

0.1

0

DBL (LSB)

–0.1

–0.2

–0.3

–0.4

–0.5

01

256 512 768

OUTPUT CODE

06041-032

024

Figure 19. AD9211-250 DNL; 250 MSPS

0

–20

–40

–60

(dBFS)

–80

–100

–120

01

25 50 75 100 125

FREQUENCY (MHz)

Figure 20. AD9211-300 64k Point Single-Tone FFT; 300 MSPS, 10.3 MHz

300MSPS

10.3MHz @ –1.0d BFS SNR: 59.2dB ENOB: 9.7BITS SFDR: 80dBc

06041-034

50

Figure 23. AD9211-300 Single-Tone SNR/SFDR vs. Input Frequency (f

0

300MSPS

170.3MHz @ –1.0d BFS SNR: 58.7dB

–20

ENOB: 9.7BITS SFDR: 80dBc

–40

–60

(dBFS)

–80

–100

–120

0150

Figure 22. AD9211-300 64k Point Single-Tone FFT; 300 MSPS, 170.3 MHz

95

90

85

80

75

70

SNR AND SFDR (dB)

65

60

55

0180

25 50 75 100 125

FREQUENCY (MHz)

SFDR

SNR (dB)

20 40 60 80 100 120 140 160

FREQUENCY (MHz)

1.25 V p-p Full Scale; 300 MSPS

) with

IN

06041-036

06041-038

Rev. 0 | Page 15 of 28

AD9211

90

80

70

60

SNR (dBFS)

50

40

30

SNR AND SFDR (dB)

20

10

0 –90 0

–80 –70 –60 –50 –40 –30 –20 –10

SFDR (dBFS)

SFDR (dB)

AMPLITUDE (dBFS)

SNR (dB)

06041-039

Figure 24. AD9211-300 SNR/SFDR vs. Input Amplitude; 300 MSPS, 170.3 MHz

0.25

0.20

0.15

0.10

0.05

0

DBL (LSB)

–0.05

–0.10

–0.15

–0.20

–0.25

01

256 512 768

OUTPUT CODE

06041-040

024

Figure 25. AD9211-300 INL; 300 MSPS

0.25

0.20

0.15

0.10

0.05

0

DBL (LSB)

–0.05

–0.10

–0.15

–0.20

–0.25

01

256 512 768

OUTPUT CODE

06041-043

024

Figure 27. AD9211-300 DNL; 300 MSPS

100

90

80

70

60

50

SFDR (dB)

40

30

20

10

0

–80 0

SFDR (dBFS)

SFDR (dBc)

–70 –60 –50 –40 –30 –20 –10

AMPLITUDE (dBFS)

06041-044

Figure 28. AD9211-300 Two-Tone SFDR vs. Input Amplitude; 300 MSPS,

170.1 MHz, 171.1 MHz

0

–20

–40

–60

(dBFS)

–80

–100

–120

0

20 40 60 80 100 120 140

FREQUENCY (MHz)

Figure 26. AD9211-300 64k Point, Two-Tone FFT; 300 MSPS,

170.1 MHz, 171.1 MHz

06041-041

Rev. 0 | Page 16 of 28

0

245.76MSPS

190.1MHz

–20

–40

–60

(dBFS)

–80

–100

–120

0 122.88

30.72 61.44 92.16

FREQUENCY (M Hz)

Figure 29. AD9211-300 64k Point FFT; Three W-CDMA Carriers,

IF = 190.1 MHz, 245.6 MSPS

06041-045

AD9211

85

80

75

70

65

SNR/SFDR (dB)

60

55

50

1.01.11.21.31.41.51.61.71.

SFDR (dBc)

SNR (dB)

VCM (V)

Figure 30. SNR/SFDR vs. Common-Mode Voltage;

06041-046

8

2.5

2.0

1.5

1.0

GAIN (%FS)

0.5

–0.5

0

–60 120100806040200–20–40

TEMPERATURE ( °C)

Figure 31. Gain vs. Temperature

06041-050

300 MSPS, 70.3 MHz @ −1 dBFS

6.0

5.5

5.0

4.5

4.0

OFFSET (mV)

3.5

3.0

2.5

2.0 –40 –30 –20 –10 0 908070605040302010

TEMPERATURE ( °C)

06041-051

Figure 32. Offset vs. Temperature

Rev. 0 | Page 17 of 28

AD9211

C

A

EQUIVALENT CIRCUITS

CLK+

10kΩ 10kΩ

Figure 33. Clock Inputs

AVDD

VIN+

AVDD

VIN–

Figure 34. Analog Inputs (V

AVDD

1.2V

2kΩ

BUF

= ~1.4 V)

CML

AVDD

V

CML

~1.4V

CLK–

06041-007

VDD

26kΩ

SB

06041-006

1kΩ

06041-064

Figure 36. Equivalent CSB Input Circuit

DRVDD

V+

DATAOUT–

V–

DATAOUT+

V+

06041-009

Figure 37. LVDS Outputs (Dx+, Dx−, OR+, OR−, DCO+, DCO−)

SCLK/DFS

RESET

PWDN

30kΩ

1kΩ

06041-008

Figure 35. Equivalent SCLK/DFS, RESET, PWDN Input Circuit

Rev. 0 | Page 18 of 28

DRVDD

SDIO/DCS

1kΩ

Figure 38. Equivalent SDIO/DCS Input Circuit

06041-065

AD9211

p

V

A

THEORY OF OPERATION

The AD9211 architecture consists of a front-end sample and hold amplifier (SHA) followed by a pipelined switched capacitor ADC. The quantized outputs from each stage are combined into a final 10-bit result in the digital correction logic. The pipelined architecture permits the first stage to operate on a new input sample, while the remaining stages operate on preceding samples. Sampling occurs on the rising edge of the clock.

Each stage of the pipeline, excluding the last, consists of a low resolution flash ADC connected to a switched capacitor DAC and interstage residue amplifier (MDAC). The residue amplifier magnifies the difference between the reconstructed DAC output and the flash input for the next stage in the pipeline. One bit of redundancy is used in each stage to facilitate digital correction of flash errors. The last stage simply consists of a flash ADC.

The input stage contains a differential SHA that can be ac- or dc-coupled in differential or single-ended mode. The outputstaging block aligns the data, carries out the error correction, and passes the data to the output buffers. The output buffers are powered from a separate supply, allowing adjustment of the output voltage swing. During power-down, the output buffers go into a high impedance state.

ANALOG INPUT AND VOLTAGE REFERENCE

The analog input to the AD9211 is a differential buffer. For best dynamic performance, the source impedances driving VIN+ and VIN− should be matched such that common-mode settling errors are symmetrical. The analog input is optimized to provide superior wideband performance and requires that the analog inputs be driven differentially. SNR and SINAD performance degrades significantly if the analog input is driven with a singleended signal.

A wideband transformer, such as Mini-Circuits® ADT1-1WT, can provide the differential analog inputs for applications that require a single-ended-to-differential conversion. Both analog inputs are self-biased by an on-chip resistor divider to a nominal 1.3 V.

An internal differential voltage reference creates positive and negative reference voltages that define the 1.25 V p-p fixed span of the ADC core. This internal voltage reference can be adjusted by means of SPI control. See the the SPI

section for more details.

Differential Input Configurations

Optimum performance is achieved while driving the AD9211 in a differential input configuration. For baseband applications, the

AD8138 differential driver provides excellent performance

and a flexible interface to the ADC. The output common-mode

AD9211 Configuration Using

voltage of the

AD8138 is easily set to AVDD/2 + 0.5 V, and the driver can be configured in a Sallen-Key filter topology to provide band limiting of the input signal.

49.9Ω1V p-p

499Ω

0.1µF

523Ω

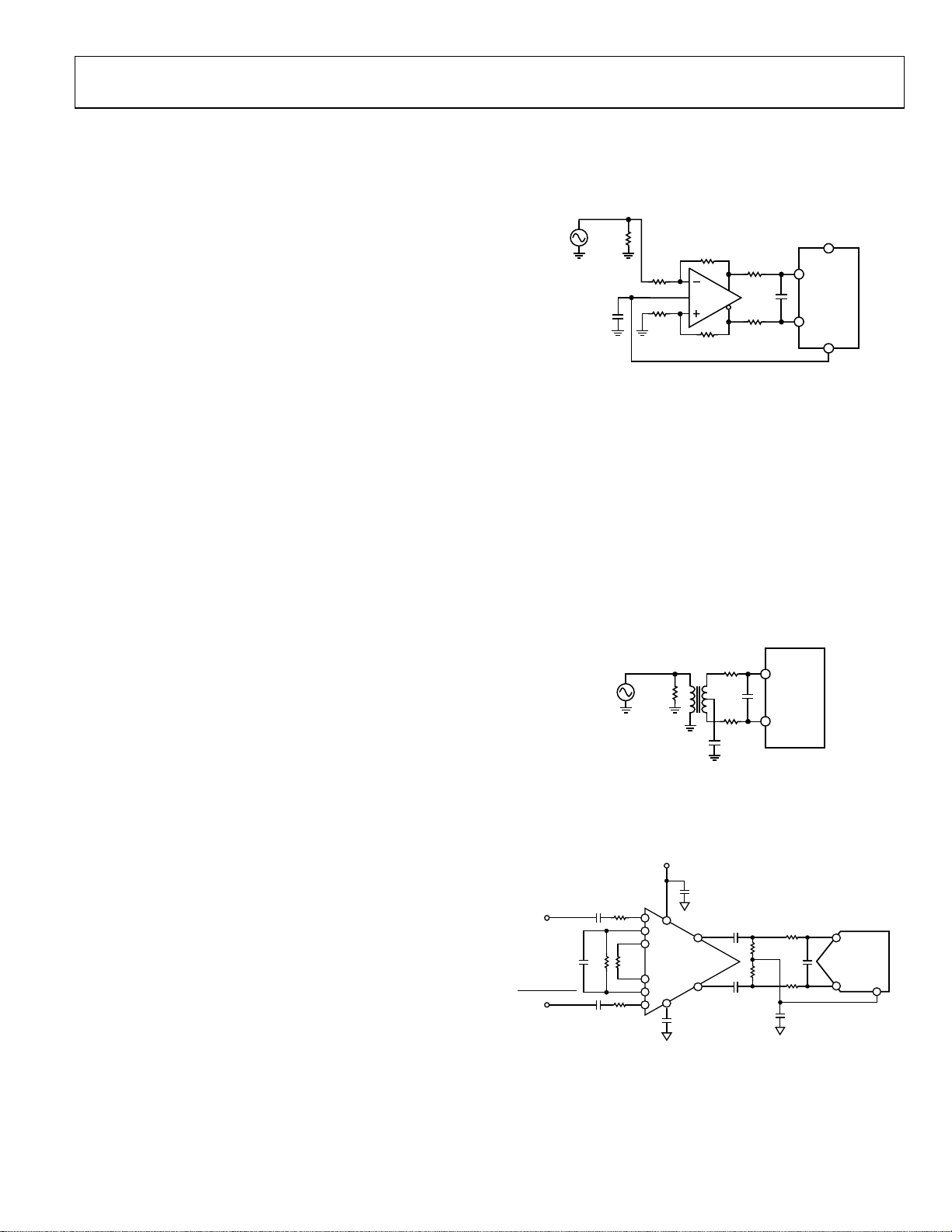

Figure 39. Differential Input Configuration Using the

499Ω

AD8138

499Ω

33Ω

20pF

AVDD

VIN+

AD9211

VIN–

CML

AD8138

6041-055

At input frequencies in the second Nyquist zone and above, the performance of most amplifiers may not be adequate to achieve the true performance of the AD9211. This is especially true in IF undersampling applications where frequencies in the 70 MHz to 100 MHz range are being sampled. For these applications, differential transformer coupling is the recommended input configuration. The signal characteristics must be considered when selecting a transformer. Most RF transformers saturate at frequencies below a few MHz, and excessive signal power can also cause core saturation, which leads to distortion.

In any configuration, the value of the shunt capacitor, C, is dependent on the input frequency and may need to be reduced or removed.

15Ω

50Ω1.25V p-

0.1µF

2pF

15Ω

Figure 40. Differential Transformer—Coupled Configuration

VIN+

AD9211

VIN–

6041-056

As an alternative to using a transformer-coupled input at frequencies in the second Nyquist zone, the driver can be used (see

0.1µF

NALOG INP UT

C

DRDRG

NALOG INP UT

0.1µF

Figure 41. Differential Input Configuration Using the AD8352

0Ω

16

0Ω

Figure 41).

CC

8, 13

1

2

AD8352

3

4

5

14

0.1µF

11

10

0.1µF

AD8352 differential

200Ω

R

C

R

0.1µF

VIN+

AD9211

VIN–

CML

06041-066

Rev. 0 | Page 19 of 28

AD9211

*

A

CLOCK INPUT CONSIDERATIONS

For optimum performance, the AD9211 sample clock inputs (CLK+ and CLK−) should be clocked with a differential signal. This signal is typically ac-coupled into the CLK+ pin and CLK− pin via a transformer or capacitors. These pins are biased internally and require no additional bias.

Figure 42 shows one preferred method for clocking the AD9211. The low jitter clock source is converted from single-ended to differential using an RF transformer. The back-to-back Schottky diodes across the secondary transformer limit clock excursions into the AD9211 to approximately 0.8 V p-p differential. This helps prevent the large voltage swings of the clock from feeding through to other portions of the AD9211 and preserves the fast rise and fall times of the signal, which are critical to low jitter performance.

In some applications, it is acceptable to drive the sample clock inputs with a single-ended CMOS signal. In such applications, CLK+ should be directly driven from a CMOS gate, and the CLK− pin should be bypassed to ground with a 0.1 F capacitor in parallel with a 39 kΩ resistor (see

Figure 45). Although the CLK+ input circuit supply is AVDD (1.8 V), this input is designed to withstand input voltages up to 3.3 V, making the selection of the drive logic voltage very flexible.

D9510/AD9511/

AD9512/AD9513/

CLOCK

INPUT

0.1µF

50Ω*

0.1µF

AD9514/AD9515

CLK

CMOS DRIVER

CLK

0.1µF

OPTIONAL

100Ω

39kΩ

0.1µF

CLK+

ADC

AD9211

CLK–

MINI-CIRCUITS

CLOCK

INPUT

50Ω

ADT1–1WT, 1:1Z

100Ω

XFMR

0.1µF

0.1µF0.1µF

0.1µF

SCHOTT KY

DIODES:

HSM2812

CLK+

ADC

AD9211

CLK–

06041-059

Figure 42. Transformer-Coupled Differential Clock

If a low jitter clock is available, another option is to ac couple a differential PECL signal to the sample clock input pins, as shown in

Figure 43. The AD9510/AD9511/AD9512/AD9513/

AD9514/AD9515 family of clock drivers offers excellent jitter

performance.

AD9510/AD9511/ AD9512/AD9513/ AD9514/AD9515

CLOCK

INPUT

CLOCK

INPUT

50Ω* 50Ω*

50Ω RESISTORS ARE OPTIONAL.

0.1µF

CLK

PECL DRIVER

CLK

0.1µF

CLK+

100Ω

0.1µF

240Ω240Ω

ADC

AD9211

CLK–

Figure 43. Differential PECL Sample Clock

AD9510/AD9511/ AD9512/AD9513/ AD9514/AD9515

CLOCK

INPUT

CLOCK

INPUT

50Ω*

50Ω RESISTORS ARE OPTIONAL.

0.1µF

50Ω*

CLK

LVDS DRIVE R

CLK

Figure 44. Differential LVDS Sample Clock

0.1µF

100Ω

0.1µF

CLK+

ADC

AD9211

CLK–

*50Ω RESISTOR IS OPTIONAL.

06041-068

Figure 45. Single-Ended 1.8 V CMOS Sample Clock

D9510/AD9511/

AD9512/AD9513/

CLOCK

INPUT

*50Ω RESISTOR IS OPTIONAL.

0.1µF

50Ω*

0.1µF

AD9514/AD9515

CLK

CMOS DRIVER

CLK

OPTIONAL

100Ω

0.1µF

CLK+

ADC

AD9211

CLK–

06041-069

Figure 46. Single-Ended 3.3 V CMOS Sample Clock

Clock Duty Cycle Considerations

Typical high speed ADCs use both clock edges to generate a variety of internal timing signals. As a result, these ADCs may be sensitive to clock duty cycle. Commonly, a 5% tolerance is required on the clock duty cycle to maintain dynamic performance characteristics. The AD9211 contains a duty cycle stabilizer (DCS)

06041-060

that retimes the nonsampling edge, providing an internal clock signal with a nominal 50% duty cycle. This allows a wide range of clock input duty cycles without affecting the performance of the AD9211. When the DCS is on, noise and distortion performance are nearly flat for a wide range of duty cycles. However, some applications may require the DCS function to be off. If so, keep in mind that the dynamic range performance can be affected when operated in this mode. See the Using the SPI

section for more details on using this feature.

AD9211 Configuration

The duty cycle stabilizer uses a delay-locked loop (DLL) to create the nonsampling edge. As a result, any changes to the

06041-067

sampling frequency require approximately eight clock cycles to allow the DLL to acquire and lock to the new rate.

Rev. 0 | Page 20 of 28

AD9211

Clock Jitter Considerations

High speed, high resolution ADCs are sensitive to the quality of the clock input. The degradation in SNR at a given input frequency (f

) due only to aperture jitter (tJ) can be calculated by

A

SNR Degradation = 20 × log

[½ × π × fA × tJ]

10

In this equation, the rms aperture jitter represents the root mean square of all jitter sources, including the clock input, analog input signal, and ADC aperture jitter specifications. IF undersampling applications are particularly sensitive to jitter (see

Figure 47).

The clock input should be treated as an analog signal in cases where aperture jitter may affect the dynamic range of the AD9211. Power supplies for clock drivers should be separated from the ADC output driver supplies to avoid modulating the clock signal with digital noise. Low jitter, crystal-controlled oscillators make the best clock sources. If the clock is generated from another type of source (by gating, dividing, or other methods), it should be retimed by the original clock at the last step.

Refer to the

AN-501 application note and the AN-756

application note for more in-depth information about jitter performance as it relates to ADCs (visit

130

RMS CLOCK JIT TER REQUIREMENT

120

110

100

90

80

SNR (dB)

70

10 BITS

60

8 BITS

50

40

30

1 10 100 1000

Figure 47. Ideal SNR vs. Input Frequency and Jitter

ANALOG INP UT FREQUENCY (MHz)

0.125ps

0.25ps

0.5ps

1.0ps

2.0ps

www.analog.com).

16 BITS

14 BITS

12 BITS

06041-061

POWER DISSIPATION AND POWER-DOWN MODE

The power dissipated by the AD9211 is proportional to its sample rate. The digital power dissipation does not vary much because it is determined primarily by the DRVDD supply and bias current of the LVDS output drivers.

By asserting PWDN (Pin 29) high, the AD9211 is placed in standby mode or full power-down mode, as determined by the contents of Serial Port Register 08. Reasserting the PWDN pin low returns the AD9211 to its normal operational mode.

An additional standby mode is supported by means of varying the clock input. When the clock rate falls below 20 MHz, the AD9211 assumes a standby state. In this case, the biasing network and internal reference remain on, but digital circuitry is powered down. Upon reactivating the clock, the AD9211 resumes normal operation after allowing for the pipeline latency.

DIGITAL OUTPUTS

Digital Outputs and Timing

The AD9211 differential outputs conform to the ANSI-644 LVDS standard on default power-up. This can be changed to a low power, reduced signal option similar to the IEEE 1596.3 standard using the SPI. This LVDS standard can further reduce the overall power dissipation of the device, which reduces the power by ~39 mW. See the information. The LVDS driver current is derived on-chip and sets the output current at each output equal to a nominal

3.5 mA. A 100 Ω differential termination resistor placed at the LVDS receiver inputs results in a nominal 350 mV swing at the receiver.

The AD9211 LVDS outputs facilitate interfacing with LVDS receivers in custom ASICs and FPGAs that have LVDS capability for superior switching performance in noisy environments. Single point-to-point net topologies are recommended with a 100 Ω termination resistor placed as close to the receiver as possible. No far-end receiver termination and poor differential trace routing may result in timing errors. It is recommended that the trace length is no longer than 24 inches and that the differential output traces are kept close together and at equal lengths.

An example of the LVDS output using the ANSI standard (default) data eye and a time interval error (TIE) jitter histogram with trace lengths less than 24 inches on regular FR-4 material is shown in

Figure 48. Figure 49 shows an example of when the trace lengths exceed 24 inches on regular FR-4 material. Notice that the TIE jitter histogram reflects the decrease of the data eye opening as the edge deviates from the ideal position. It is up to the user to determine if the waveforms meet the timing budget of the design when the trace lengths exceed 24 inches.

500

400

300

200

100

0

–100

–200

–300

EYE DIAGRAM: VOLT AGE (mV)

–400

–500

–3–2–10123

TIME (ns)

Figure 48. Data Eye for LVDS Outputs in ANSI Mode with Trace Lengths Less

than 24 Inches on Standard FR-4, AD9211-250

Memory Map section for more

14

12

10

8

6

4

TIE JITTER HISTOGRAM (Hits)

2

0

–40 –20 0 20 40

TIME (ps)

06041-070

Rev. 0 | Page 21 of 28

AD9211

O

600

400

200

0

–200

EYE DIAGRAM: VOLTAGE (mV)

–400

–600

–3–2–10123

Figure 49. Data Eye for LVDS Outputs in ANSI Mode with Trace Lengths

TIME (ns)

Greater than 24 Inches on Standard FR-4, AD9211-250

12

10

8

6

4

TIE JIT TER HIST OGRAM (Hi ts)

2

0 –100 0 100

TIME (ps)

06041-071

The format of the output data is offset binary by default. An example of the output coding format can be found in

Tabl e 12 . If it is desired to change the output data format to twos complement, see the

AD9211 Configuration Using the SPI section.

An output clock signal is provided to assist in capturing data from the AD9211. The DCO is used to clock the output data and is equal to the sampling clock (CLK) rate. In single data rate mode (SDR), data is clocked out of the AD9211 and must be captured on the rising edge of the DCO. In double data rate mode (DDR), data is clocked out of the AD9211 and must be captured on the rising and falling edges of the DCO. See the timing diagrams shown in

Figure 2 and Figure 3 for more

information.

Output Data Rate and Pinout Configuration

The output data of the AD9211 can be configured to drive 10 pairs of LVDS outputs at the same rate as the input clock signal (single data rate, or SDR, mode), or five pairs of LVDS outputs at 2× the rate of the input clock signal (double data rate, or DDR, mode). SDR is the default mode; the device may be reconfigured for DDR by setting Bit 3 in Register 14 (see

Tabl e 13 ).

Out-of-Range (OR)

An out-of-range condition exists when the analog input voltage is beyond the input range of the ADC. OR is a digital output that is updated along with the data output corresponding to the particular sampled input voltage. Thus, OR has the same pipeline latency as the digital data. OR is low when the analog input voltage is within the analog input range and high when the analog input voltage exceeds the input range, as shown in Figure 50. OR remains high until the analog input returns to within the input range and another conversion is completed. By logically ANDing OR with the MSB and its complement, overrange high or underrange low conditions can be detected.

R DATA OUT PUTS

1

1111

0

1111

0

1111

0

0000

0

0000

1

0000

Figure 50. OR Relation to Input Voltage and Output Data

1111 1111 1111

0000 0000 0000

1111 1111 1110

0001 0000 0000

OR

–FS + 1/2 L SB

–FS – 1/2 LSB

+FS – 1 LSB

+FS–FS

+FS – 1/2 L SB

06041-062

TIMING

The AD9211 provides latched data outputs with a pipeline delay of seven clock cycles. Data outputs are available one propagation delay (t

) after the rising edge of the clock signal.

PD

The length of the output data lines and loads placed on them should be minimized to reduce transients within the AD9211. These transients can degrade the converter’s dynamic performance. The AD9211 also provides data clock output (DCO) intended for capturing the data in an external register. The data outputs are valid on the rising edge of DCO.

The lowest typical conversion rate of the AD9211 is 40 MSPS. At clock rates below 1 MSPS, the AD9211 assumes the standby mode.

RBIAS

The AD9211 requires the user to place a 10 k resistor between the RBIAS pin and ground. This resister should have a 1% tolerance and is used to set the master current reference of the ADC core.

AD9211 CONFIGURATION USING THE SPI

The AD9211 SPI allows the user to configure the converter for specific functions or operations through a structured register space inside the ADC. This gives the user added flexibility to customize device operation depending on the application. Addresses are accessed (programmed or readback) serially in one-byte words. Each byte may be further divided down into fields, which are documented in the

There are three pins that define the serial port interface or SPI to this particular ADC. They are the SPI SCLK/DFS, SPI SDIO/DCS, and CSB pins. The SCLK/DFS (serial clock) is used to synchronize the read and write data presented the ADC. The SDIO/DCS (serial data input/output) is a dual-purpose pin that allows data to be sent and read from the internal ADC memory map registers. The CSB is an active low control that enables or disables the read and write cycles (see

Memory Map section.

Tabl e 9).

Rev. 0 | Page 22 of 28

AD9211

Table 9. Serial Port Pins

Mnemonic Function

SCLK

SCLK (Serial Clock) is the serial shift clock in. SCLK is used to synchronize serial interface reads and writes.

SDIO

SDIO (Serial Data Input/Output) is a dual-purpose pin. The typical role for this pin is an input and output depending on the instruction being sent and the relative position in the timing frame.

CSB

CSB (Chip Select Bar) is an active low control that gates the read and write cycles.

RESET

Master Device Reset. When asserted, device assumes default settings. Active low.

The falling edge of the CSB, in conjunction with the rising edge of the SCLK, determines the start of the framing. An example of the serial timing and its definitions can be found in and

Tabl e 11 .

Figure 51

During an instruction phase, a 16-bit instruction is transmitted. Data then follows the instruction phase and is determined by the W0 and W1 bits, which is 1 or more bytes of data. All data is composed of 8-bit words. The first bit of each individual byte of serial data indicates whether this is a read or write command. This allows the serial data input/output (SDIO) pin to change direction from an input to an output.

Data may be sent in MSB or in LSB first mode. MSB first is default on power-up and can be changed by changing the configuration register. For more information about this feature and others, see the

CSB

AN-877, Interfacing to High Speed ADCs via SPI.

t

DS

t

S

t

DH

t

HI

t

CLK

t

LO

HARDWARE INTERFACE

The pins described in Ta b l e 9 comprise the physical interface between the user’s programming device and the serial port of the AD9211. All serial pins are inputs with an open-drain configuration and should be tied to an external pull-up or pulldown resistor (suggested value of 10 kΩ).

This interface is flexible enough to be controlled by either PROMS or PIC mirocontrollers as well. This provides the user with an alternate method to program the ADC other than a SPI controller.

If the user chooses not to use the SPI interface, some pins serve a dual function and are associated with a specific function when strapped externally to AVDD or ground during device power on. The

Configuration Without the SPI section describes the

strappable functions supported on the AD9230.

CONFIGURATION WITHOUT THE SPI

In applications that do not interface to the SPI control registers, the SPI SDIO/DCS and SPI SCLK/DFS pins can alternately serve as standalone CMOS-compatible control pins. When the device is powered up, it is assumed that the user intends to use the pins as static control lines for the duty cycle stabilizer. In this mode, the SPI CSB chip select should be connected to ground, which disables the serial port interface.

Table 10. Mode Selection

External

Mnemonic

Voltage

AVDD Duty cycle stabilizer enabled SPI SDIO/DCS AGND Duty cycle stabilizer disabled AVDD Twos complement enabled SPI SCLK/DFS AGND Offset binary enabled

Configuration

t

H

SCLK

SDIO

DON’T CARE

R/W W1 W0 A12 A11 A10 A9 A8 A7

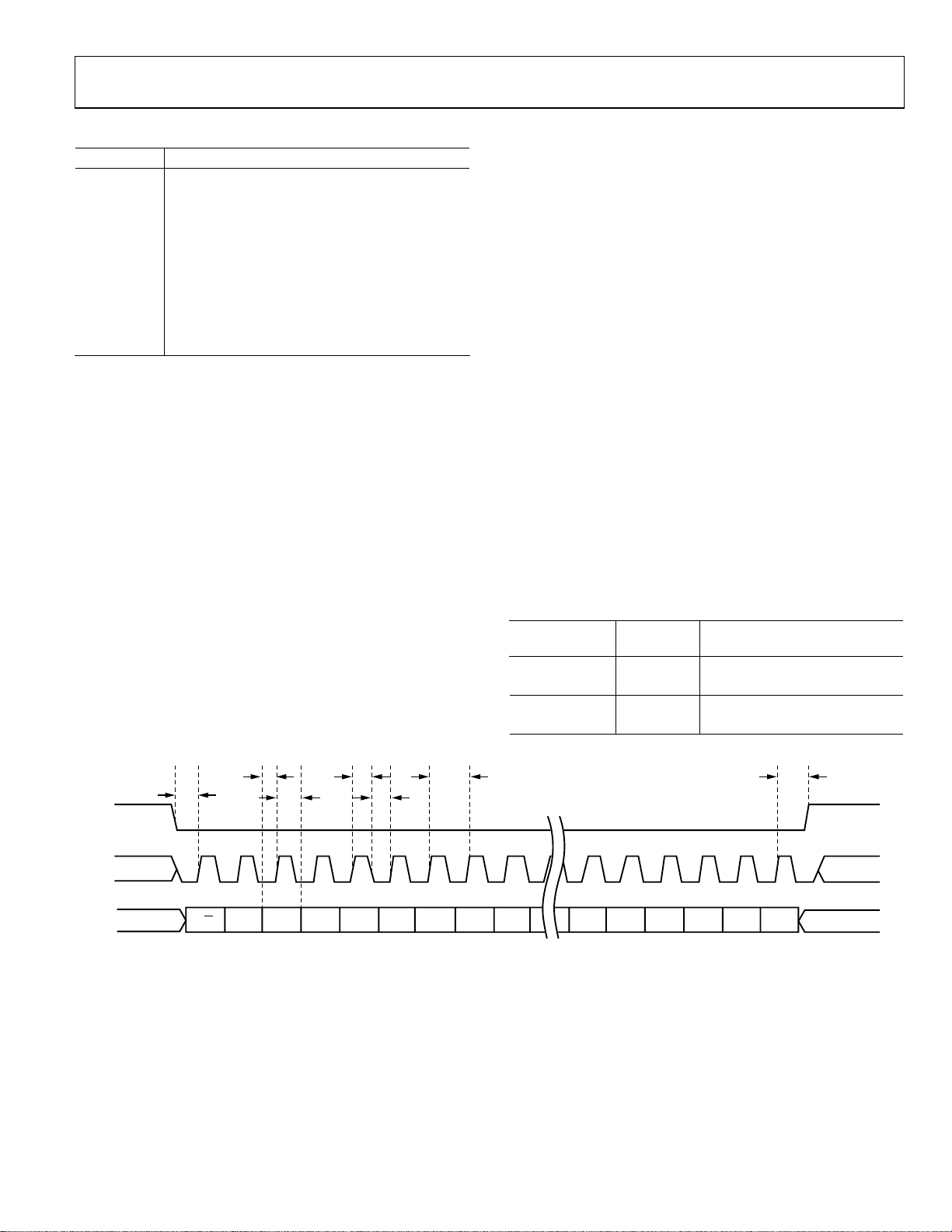

Figure 51. Serial Port Interface Timing Diagram

Rev. 0 | Page 23 of 28

D5 D4 D 3 D2 D1 D0

DON’T CAR E

DON’T CAREDON’T CARE

6041-063

AD9211

Table 11. Serial Timing Definitions

Parameter Timing (minimum, ns) Description

tDS 5 Setup time between the data and the rising edge of SCLK tDH 2 Hold time between the data and the rising edge of SCLK t

40 Period of the clock

CLK

tS 5 Setup time between CSB and SCLK tH 2 Hold time between CSB and SCLK tHI 16 Minimum period that SCLK should be in a logic high state tLO 16 Minimum period that SCLK should be in a logic low state t

1

EN_SDIO

t

5

DIS_SDIO

Table 12. Output Data Format

Input (V) Condition (V)

VIN+ − VIN− < 0.62 0000 0000 00 0000 0000 00 0000 0000 00 1 VIN+ − VIN− = 0.62 0000 0000 00 0000 0000 00 0000 0000 00 0 VIN+ − VIN− = 0 0000 0000 00 0000 0000 00 0000 0000 00 0 VIN+ − VIN− = 0.62 1111 1111 11 1111 1111 11 0000 0000 00 0 VIN+ − VIN− > 0.62 + 0.5 LSB 1111 1111 11 1111 1111 11 0000 0000 00 1

Minimum time for the SDIO pin to switch from an input to an output relative to the SCLK falling edge (not shown in

Figure 51)

Minimum time for the SDIO pin to switch from an output to an input relative to the SCLK rising edge (not shown in

Offset Binary Output Mode D11 to D0

Figure 51)

Twos Complement Mode D11 to D0

Gray Code Mode (SPI Accessible)

D11 to D0

OR

Rev. 0 | Page 24 of 28

AD9211

MEMORY MAP

READING THE MEMORY MAP TABLE

Each row in the memory map table has eight address locations. The memory map is roughly divided into three sections: chip configuration register map (Address 0x00 to Address 0x02), transfer register map (Address 0xFF), and program register map (Address 0x08 to Address 0x2A).

The Addr. (Hex) column of the memory map indicates the register address in hexadecimal, and the Default Value (Hex) column shows the default hexadecimal value that is already written into the register. The Bit 7 (MSB) column is the start of the default hexadecimal value given. For example, Hexadecimal Address 0x09, clock, has a hexadecimal default value of 0x01. This means Bit 7 = 0, Bit 6 = 0, Bit 5 = 0, Bit 4 = 0, Bit 3 = 0, Bit 2 = 0, Bit 1 = 0, and Bit 0 = 1, or 0000 0001 in binary. The default value enables the duty cycle stabilizer. Overwriting this default so that Bit 0 = 0 disables the duty cycle stabilizer. For more information on this and other functions, consult the application note, Interfacing to High Speed ADCs via SPI.

Table 13. Memory Map Register

Addr. (Hex)

Chip Configuration Registers

00 chip_port_config 0 LSB

01 chip_id 8-bit chip ID, Bits[7:0]

02 chip_grade 0 0 0 Speed grade:

Transfer Register

FF device_update 0 0 0 0 0 0 0 SW

Parameter Name

Bit 7 (MSB)

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

first

Soft reset

AN-877

1 1 Soft

AD9211 = 0x06

00 = 300 MSPS 01 = 250 MSPS 10 = 200 MSPS

RESERVED LOCATIONS

Undefined memory locations should not be written to other than their default values suggested in this data sheet. Addresses that have values marked as 0 should be considered reserved and have a 0 written into their registers during power-up.

DEFAULT VALUES

Coming out of reset, critical registers are preloaded with default values. These values are indicated in

Tabl e 13 . Other registers do not have default values and retain the previous value when exiting reset.

LOGIC LEVELS

An explanation of various registers follows: “Bit is set” is synonymous with “bit is set to Logic 1” or “writing Logic 1 for the bit.” Similarly, “clear a bit” is synonymous with “bit is set to Logic 0” or “writing Logic 0 for the bit.”

Default Bit 0 (LSB)

LSB first 0 0x18 The nibbles

reset

X X X Read-

transfer

Value

(Hex)

Read-

only

0x00 Synchronously

Default Notes/ Comments

should be mirrored by the user so that LSB or MSB first mode registers correctly, regardless of shift mode.

Default is unique chip ID, different for each device. This is a readonly register.

Child ID used to differentiate graded devices.

transfers data from the master shift register to the slave.

Rev. 0 | Page 25 of 28

AD9211

Default Addr. (Hex)

ADC Functions

08 modes 0 0 PWDN:

09 clock 0 0 0 0 0 0 0 Duty

OD test_io Reset

OF ain_config 0 0 0 0 0 Analog

14 output_mode 0 0 Output

15 output_adjust 0 0 LVDS

16 output_phase Output

Parameter Name

Bit 7 (MSB)

clock polarity 1 = inverted 0 = normal (default)

Bit 0

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

0 0 Internal power-down mode: 0 = full (default) 1 =

standby

Reset PN23 gen: 1 = on 0 = off (default)

0 0 0 0x03

PN9 gen:

1 = on

0 = off

(default)

enable:

0 =

enable

(default)

1 =

disable

(Format determined by output_mode)

DDR: 1 = enabled 0 = disabled (default)

course adjust: 0 =

3.5 mA (default) 1 =

2.0 mA

000 = normal (power-up,

default)

001 = full power-down

010 = standby

011 = normal (power-up) Note: External PWDN pin

overrides this setting.

Output test mode:

0000 = off (default)

0001 = midscale short

0010 = +FS short

0011 = −FS short

0100 = checker board output

0101 = PN 23 sequence

0110 = PN 9

0111 = one/zero word toggle

1000 = unused 1001 = unused 1010 = unused 1011 = unused 1100 = unused

CML input disable:

1 = on 0 = off (default)

Output invert: 1 = on 0 = off (default)

enable:

1 = on

0 = off

(default)

Data format select:

00 = offset binary

LVDS fine adjust:

001 = 3.50 mA 010 = 3.25 mA 011 = 3.00 mA 100 = 2.75 mA 101 = 2.50 mA 110 = 2.25 mA 111 = 2.00 mA

(LSB)

cycle stabilizer: 0 = disabled 1 = enabled (default)

0 0x00

(default)

01 = twos

complement

10 = Gray code

Value (Hex)

0x00 Determines

0x01

0x00 When set, the

0x00 0

Default Notes/ Comments

various generic modes of chip operation.

test data is placed on the output pins in place of normal data.

Rev. 0 | Page 26 of 28

AD9211

Default Addr. (Hex)

17 flex_output_delay Output

18 flex_vref Input voltage range setting:

2A ovr_config OR

Parameter Name

Bit 7 (MSB)

delay enable: 0 = enable 1 = disable

Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

Output clock delay:

00000 = 0.1 ns 00001 = 0.2 ns 00010 = 0.3 ns

… 11101 = 3.0 ns 11110 = 3.1 ns 11111 = 3.2 ns

10000 = 0.98 V 10001 = 1.00 V 10010 = 1.02 V 10011 = 1.04 V

…

11111 = 1.23 V 00000 = 1.25 V 00001 = 1.27 V

…

01110 = 1.48 V 01111 = 1.50 V

position

(DDR

mode

only):

0 = Pin 9,

Pin 10

1 =

Pin 21,

Pin 22

Bit 0 (LSB)

OR

enable:

1 = on

(default)

0 = off

Value (Hex)

Default Notes/ Comments

0

00000001

Rev. 0 | Page 27 of 28

AD9211

0

OUTLINE DIMENSIONS

0.30

0.23

0.18

PIN 1

56

INDICATOR

1

BSC SQ

PIN 1 INDICATOR

8.00

0.60 MAX

43

42

0.60 MAX

4.45

4.30 SQ

4.15

14

15

0.30 MIN

112805-0

1.00 .85 .80

SEATING

PLANE

12° MAX

TOP

VIEW

0.80 MAX

0.65 TYP

0.50 BSC

COMPLIANT TO JEDEC STANDARDS MO-220-VL LD-2

7.75

BSC SQ

0.20 REF

0.50

0.40

0.30

0.05 MAX

0.02 NOM COPLANARIT Y

0.08

29

28

EXPOSED

PAD

(BOTTOM VIEW)

6.50 REF

Figure 52. 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

8 mm × 8 mm Body, Very Thin Quad

(CP-56-2)

Dimensions shown in millimeters

ORDERING GUIDE

Model Temperature Range Package Description Package Option

AD9211BCPZ-200 AD9211BCPZ-250 AD9211BCPZ-300 AD9211-200EBZ AD9211-250EBZ AD9211-300EBZ

1

Z = RoHS Compliant Part.

1

−40°C to +85°C 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-56-2

−40°C to +85°C 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ] CP-56-2 LVDS Evaluation Board with AD9211BCPZ-200 LVDS Evaluation Board with AD9211BCPZ-250 LVDS Evaluation Board with AD9211BCPZ-300

Rev. 0 | Page 28 of 28

ANALOG DEIVCES AD9211 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

FUNCTIONAL BLOCK DIAGRAM

APPLICATIONS

GENERAL DESCRIPTION

PRODUCT HIGHLIGHTS

TABLE OF CONTENTS

REVISION HISTORY

SPECIFICATIONS

DC SPECIFICATIONS

AC SPECIFICATIONS

DIGITAL SPECIFICATIONS

SWITCHING SPECIFICATIONS

TIMING DIAGRAMS

ABSOLUTE MAXIMUM RATINGS

THERMAL RESISTANCE

ESD CAUTION

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

TYPICAL PERFORMANCE CHARACTERISTICS

EQUIVALENT CIRCUITS

THEORY OF OPERATION

ANALOG INPUT AND VOLTAGE REFERENCE

Differential Input Configurations

CLOCK INPUT CONSIDERATIONS

Clock Duty Cycle Considerations

Clock Jitter Considerations

POWER DISSIPATION AND POWER-DOWN MODE

DIGITAL OUTPUTS

Digital Outputs and Timing

Output Data Rate and Pinout Configuration

Out-of-Range (OR)

TIMING

RBIAS

AD9211 CONFIGURATION USING THE SPI

HARDWARE INTERFACE

CONFIGURATION WITHOUT THE SPI

MEMORY MAP

READING THE MEMORY MAP TABLE

RESERVED LOCATIONS

DEFAULT VALUES

LOGIC LEVELS

OUTLINE DIMENSIONS

ORDERING GUIDE
