AMX SDX-514M-DX Datasheet

DATA SHEET

GENERAL

Dimensions (HWD)

1 11/16" (42.16 mm) x 10" (253.8) x 7" (177.8 mm)

Weight

3.5 lbs (1.6 kg)

Regulatory Compliance

RoHS
FCC Class A
CE
UL-Listed
CSA Approved
IEC60950
UL94-V0 Flammability Rating

Mounting Options

Compatible with the following V Style mounting
options:

Solecis® 5x1 4K Multi-Format Digital Switcher

TM

with DXLink

SDX-514M-DX (FG1010-355)

Overview
The Solecis SDX is a family of small digital AV switchers. The 5x1 4K Multi-Format
Solecis is a 4K and Ultra High Definition (UHD) capable solution that provides five
user connection points and includes simplified local control which routes the
selected signal to both a DXLink and HDMI output. This provides a low cost solution
that combines a DXLink Transmitter and digital switcher into a single small form
factor device that is commonly used at a table.

COMMON APPLICATIONS

Solecis Digital Switchers are ideal for use in huddle spaces or small classrooms to provide simple switching for
multiple sources. In larger rooms with multiple work spaces, a Solecis at each table or desk allows users to share
content with the work group or the entire room. In even larger integrated environments Solecis digital switchers
can provide easy to use source point switching and distance transmission over DXLink to an Enova DVX or DGX for
hub-style building or campus-wide distribution.

FEATURES

 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
 Multiple Video, Audio and Ethernet Connections – All the connections you need at the conference table

including audio, video, control and network access

 Switch Inputs Without the Need for a Central Controller – Provides low cost solution for huddle spaces

and classrooms

 Works with HydraPort Single Button or Keypad Modules – Provides an elegant installation in a table or

lectern

 Built-in Support for AxLink Keypads – Forwards keypad commands to a central controller over Ethernet

eliminating the need for a separate AxLink cable run

SPECIFICATIONS

Output

© 2016 AMX. All rights reserved.

• AVB-VSTYLE-SURFACE-MNT, V Style Module Surface
Mount (FG1010-722)

• NMX-VRK, V Style Rack Mounting Shelf (FG3201-60)

• AVB-VSTYLE-POLE-MNT, V Style Module Pole Mount

(FG1010-723)

Compatible Enova DGX / DVX and DXLink Products

• Enova DGX 800/1600/3200/6400 Digital Media

Switchers with DGX-I-DXL-4K DGX DXLink Twisted Pair
4K Input Board installed

• DX-RX-4K, DXLink 4K HDMI Receiver Module as a
point-to-point solution

NOTE: For passage of 4K signal content, 4K products
must be used. Solecis 4K Digital Switchers are also
compatible with DXLink Twisted Pair (non-4K)
equipment and Enova DVX-3255HD, DVX-3155HD,
DVX-3256HD, DVX-3156HD, DVX-2255HD and 2155HD
All-In-One Presentation Switchers. Conditions may
apply, please reference hardware reference manuals
or contact technical support for details

Optional Accessories

• AVB-VSTYLE-SURFACE-MNT, V Style Module Surface
Mount (FG1010-722)

• NMX-VRK, V Style Rack Mounting Shelf (FG3201-60)

• AVB-VSTYLE-POLE-MNT, V Style Module Pole Mount

(FG1010-723)

• MET-6N, Metreau 6-Button Keypad with Navigation

• White, MET-6N-WH (FG5794-01-WH)

• Black, MET-6N-BL (FG5794-01-BL)

• MET-7, Metreau 7-Button Keypad

• White, MET-7-WH (FG5794-03-WH)

• Black, MET-7-BL (FG5794-03-BL)

• SP-08-AX-US, 8-Button KeyPad (US) with AxLinx

• White, SP-08-AX-US-WH (FG1311-08-SW)

• Black, SP-08-AX-US-BL (FG1311-08-SB)

• Brushed Aluminum, SP-08-AX-US-BA (FG1311­ 08-SA)

• SP-08-AX-UK, 8-Button KeyPad (UK) with AxLink

• White, SP-08-AX-UK-WH (FG1311-08-KW)

• Black, SP-08-AX-UK-BL (FG1311-08-KB)

• Brushed Aluminum, SP-08-AX-UK-BA
(FG1311-08-KA)

• SP-08-AX-EU, 8-Button KeyPad (Europe) with AxLink

• White, SP-08-AX-EU-WH (FG1311-08-EW)

• Black, SP-08-AX-EU-BL (FG1311-08-EB)

• HydraPort with:

• HPX-U400-MET-6N, Metreau 6-Button Keypad

Kit with Carrier (FG554-11-BL-K)

• HPX-U400-MET-7 Metreau 7-Button Keypad Kit

with Carrier (FG554-13-BL-K)

• HPX-U400-R-MET-6N Metreau 6-Button

Keypad Ramp Mount Kit (FG564-11-BL)

• HPX-U400-R-MET-7 Metreau 7-Button Keypad

Ramp Mount Kit (FG564-13-BL)

• CBL-HDMI-FL, HDMI High Speed Flat Cable (FG10-

2180-16)

• CBL-DP-FL, DisplayPort High Speed Flat Cable (FG10-

2181-16)

• CBL-ETH-FL, Ethernet Flat Cable (FG10-2182-16)

SDX-514M-DX | 2

• CBL-RGB+A-FL, RGB with Audio Flat Cable (FG10-

2183-16)

• CC-USB, USB Programming Cable (FG10-5965)

• HPA-MYT-TX, MyTurn™ Source Selector Button

(FG554-21)

• HPA-MYT-RX, MyTurn™ Source Selector Receiver

(FG554-23)

SIGNAL TRANSPORT – DXLink

Connector

(1) RJ-45

Supported Signal Styles

Digital video, audio, Ethernet, bi-directional control
and power

Transport Layer Throughput (Max)

10.2 Gbps

Twisted Pair Cable Type

Shielded Cat6, Cat6A and Cat7

DXLink twisted pair cable runs for DXLink equipment
shall only be run within a common building where a
common building is defined as: the walls of the
structure(s) are physically connected and the
structure(s) share a single ground reference

For more details and helpful cabling information,
reference the white paper titled Cabling for Success
with DXLink, or contact your AMX representative

Twisted Pair Cable Length

Up to 70 m with 4K video
Up to 328 ft (100 m) with 1080p video

HDCP Support

Yes

ACTIVE POWER REQUIREMENTS

Voltage, AC (Typical)

110-240VAC, 47-63 Hz

Power Consumption (Max)

48 W

Power Connector

IEC Power Cord Connector 100-240 VAC 47-63 Hz

DXLink Power

Supplies power to a DXLink Twisted Pair RX, when
used in point-to-point applications

POWER SUPPLY

Internal, Included

Yes

ENVIRONMENTAL

Temperature (Operating)

32° to 104° F (0° to 40° C)

Temperature (Storage)

-22° to 158° F (-30° to 70° C)

Humidity (Operating)

5% to 85% RH (non-condensing)

Humidity (Storage)

0% to 90% RH (non-condensing)

USB (HID) KEYBOARD & MOUSE

USB (HID)

(1) USB Type B Connector (“TO HOST”); connect a
Solecis SDX-510M-DX Digital Switcher with DXLink to a
PC and emulate keyboard and mouse commands from
a DXLink Receiver

FRONT CONNECTORS

ID Pushbutton

(1) ID Pushbutton, can be used to assign the unit’s
Device ID, switch between Static and Dynamic IP

SDX-514M-DX | 3

addressing modes, and reset the unit to factory
defaults

AxLink Keypad Control

(1) 4-pin, 3.5 mm Screw Terminal Connector

Ethernet LAN OUT Port

(3) RJ-45

HDMI Output

(1) HDMI Type A Female Connector

DXLink Output

(1) RJ-45

USB Host Port

(1) USB Type B Connector “TO HOST”

USB Device Port

(1) USB Type A Connector, reserved for future use

BACK CONNECTORS

Advanced Configuration Interface

(1) USB Mini-B Connector

HDMI Inputs

(3) HDMI Type A Female Connectors

VGA Inputs

(2) HD-15 Connectors

Single External Button/LED Control Connector

(1) 3-pin 3.5mm Screw Terminal Connector

Dual External Button/LED Control Connector

(2) 5-pin 3.5mm Screw Terminal Connector

Analog Stereo Inputs

(2) 1/8" mini-Stereo Jack

AC Power Connection

IEC Power Cord Connector

ETHERNET

Ethernet Connections

(3) RJ-45, 10/100 Port provides TCP/IP communication.
This is an Auto MDI/MDI-X enabled port, which allows
you to use either straight-through or crossover
Ethernet cables. The Ethernet Port LEDs show
communication activity, connection status, speeds,
and mode information

Ethernet Link/Act Indicator

(1) Link/Activity LED (green) blinks when receiving
Ethernet data packets, one on Ethernet RJ-45
connector and one on the front panel

Ethernet Speed Indicator

(1) Speed LED (yellow) lights On when the connection
speed is 100 Mbps Ethernet connection and turns OFF
when the speed is 10 Mbps

CONTROLS & INDICATORS

AxLink Keypad Port

(1), 4-pin 3.5 mm captive-wire connector, provides
data and power to up to 2 external AxLink Keypads

AxLink Indicator

(1) AxLink Keypad LED (green) indicates the state of
the AxLink Keypad port

LINK/ACT Indicator

(1) LED (green), lights when the Ethernet cable is
connected and an active link is established. This LED
also blinks when receiving Ethernet data packets

Status Indicator

(1) LED (green), indicates boot and connection status

Power Indicator

(1) Power LED (green) indicates the unit is powered on

ID Pushbutton

(1) ID Pushbutton, can be used to assign the unit’s

Device ID, switch between Static and Dynamic IP
addressing modes, and reset the unit to factory
defaults

INTEGRATED SWITCHER

Video Switching

5x1 (dual) audio/video switching, any of 5 inputs can
be routed to the HDMI and DXLink output
simultaneously

Video Inputs

(2) HD-15; supports RGBHV
(3) HDMI; supports HDMI/HDCP

Video Outputs

(1) HDMI; supports HDMI/HDCP

SDX-514M-DX | 4

(1) DXLink; supports digital video, audio, Ethernet, bi­directional control and power

HDCP Support

Yes

HDMI

Compatible Formats

HDMI, HDCP , DVI

Input Signal Type Support

HDMI
DVI-D (Single Link With Cable Adapter)
DisplayPort ++ (Input Only, With HDMI Cable Adapter)

Input Connectors

(3) HDMI Type A Female

Output Signal Type Support

HDMI, HDCP, DVI

Input Re-clocking (CDR)

Yes

Deep Color Support

Yes

Color Space Support

RGB 4:4:4
YCbCr 4:4:4 and 4:2:2
(Input signal support for YCbCr 4:4:4 and 4:2:2, output
color-space is converted to RGB 4:4:4)

3D Format Support

HDMI Primary Formats

Frame Packing 1080p up to 24Hz
Frame Packing 720p up to 50/60Hz
Frame Packing 1080i up to 50/60Hz
Top-Bottom 1080p up to 24Hz
Top-Bottom 720p up to 50/60Hz
Side-by-Side Half 1080p up to 50/60Hz

Side-by-Side Half 720p up to 50/60Hz
3D supported when the HDMI DXLink RX Scaler is in
Bypass mode and format is 1080p60 or less

4K Resolution Support

• 3840 x 2160p @ 24/25/30 Hz

• 4096 x 2160p @ 24/25/30 Hz

• 3840 x 2160p @ 60 Hz, 4:2:0*

• 4096 x 2160p @ 60 Hz, 4:2:0*

* Supported by DX-RX-4K when in Bypass Scaling mode

NOTE: See full list of supported formats in “DXLink

Twisted Pair 4K Transmitters and Receivers Hardware
Reference Manual”.

Audio Format Support

Dolby TrueHD, Dolby Digital, DTS-HD Master Audio,

DTS, 2 CH through 8 CH L-PCM Dolby Digital and DTS

support up to 48kHz, 5.1 channels

Audio Resolution

16 bit to 24 bit

Audio Sample Rate

32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz

HDCP Support

Yes

Supports AMX HDCP InstaGate Pro Technology

When used with an AMX Digital Media Switcher the

key support is up to 16 sinks per output, independent

of source device

When used as a single point-to-point solution the key

support is defined by the source device

ANALOG VIDEO

Compatible Formats

RGBHV

Input Connector

HD-15

Resolution Support

up to 1920x1200@60 Hz Reduce Blanking

Auto-Adjust Input

Supported

Digital Processing

24-bit, 165 MHz

SDX-514M-DX | 5

STEREO AUDIO

Input Signal Types

Stereo Analog

Input Connectors

2 - 1/8" Mini-Stereo Jack

Analog Input Level (Max)

+2 dBu, unbalanced

Analog to Digital Conversion

48 kHz Sample Rate, 24-bit

Analog to Digital Reference Level

+2.5 dBu = 0 dBfs

SDX-514M-DX | 6

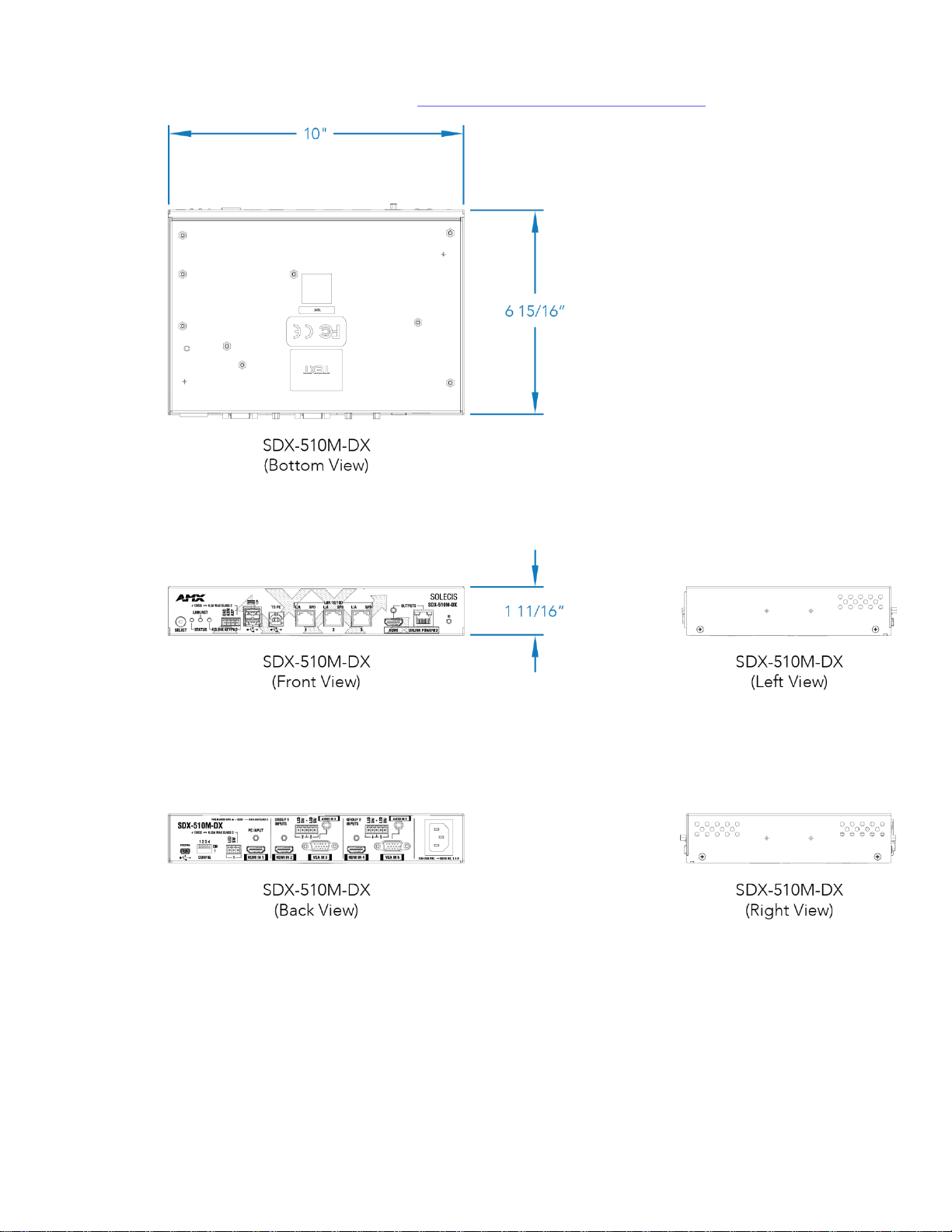

For a detailed pictorial drawing please visit: http://www.amx.com/products/SDX-514M-DX.asp

About AMX by HARMAN
Founded in 1982 and acquired by HARMAN in 2014, AMX® is dedicated to providing AV solutions for an IT World. AMX solves the complexity of
managing technology with reliable, consistent and scalable systems comprising control, video switching and distribution, digital signage and technology
management. AMX systems are deployed worldwide in conference rooms, classrooms, network operation/command centers, homes, hotels,
entertainment venues and broadcast facilities, among others. AMX is part of the HARMAN Professional Group, the only total audio, video, lighting, and
control vendor in the professional AV market. HARMAN designs, manufactures and markets premier audio, video, infotainment and integrated control
solutions for the automotive, consumer and professional markets. Revised 11.18.16. ©2016 Harman. All rights reserved. Specifications subject to
change.

www.amx.com | +1.469.624.7400 |800.222.0193

SDX-514M-DX | 7
