AMX RE-DM6 User Manual
Operation/Reference Guide
RADIA Eclipse
Dimmer Modules
RE-DM4 (120V, 240V)
RE-DM6 (120V, 240V)
RADIA Lighting Solutions
Last Updated: 6/15/2007
AMX Limited Warranty and Disclaimer
All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is
obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each
box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments
received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible
for products returned without a valid RMA number.
Warranty Repair Policy
• AMX will repair any defect due to material or workmanship issues during the applicable warranty period at no cost to the AMX
Authorized Partner., provided that the AMX Authorized Partner is responsible for in-bound freight and AMX is responsible for
out-bound ground freight expenses.
• The AMX Authorized Partner must contact AMX Technical Support to validate the failure before pursuing this service.
• AMX will complete the repair and ship the product within five (5) business days after receipt of the product by AMX. The AMX
Authorized Partner will be notified if repair cannot be completed within five (5) business days.
• Products repaired will carry a ninety (90) day warranty or the balance of the remaining warranty, whichever is greater.
• Products that are returned and exhibit signs of damage or unauthorized use will be processed under the Non-Warranty Repair
Policy.
• AMX will continue to provide Warranty Repair Services for products discontinued or replaced by a Product Discontinuance
Notice.
Non-Warranty Repair Policy
• Products that do not qualify to be repaired under the Warranty Repair Policy due to age of the product or Condition of the product may be repaired utilizing this service.
• The AMX Authorized Partner must contact AMX Technical Support to validate the failure before pursuing this service.
• Non-warranty repair is a billable service.
• Products repaired under this policy will carry a ninety (90) day warranty on material and labor.
• AMX will notify the AMX Authorized Partner with the cost of repair, if cost is greater than the Standard Repair Fee, within five (5)
days of receipt.
• The AMX Authorized Partner must provide a Purchase Order or credit card number within five (5) days of notification, or the
product will be returned to the AMX Authorized Partner.
• The AMX Authorized Partner will be responsible for in-bound and out-bound freight expenses.
• Products will be repaired within ten (10) business days after AMX Authorized Partner approval is obtained.
• Non-repairable products will be returned to the AMX Authorized Partner with an explanation.
• See AMX Non-Warranty Repair Price List for minimum and Standard Repair Fees and policies.
Table of Contents
Table of Contents
Radia Eclipse RE-DM4 Dimmer Module ..............................................................1
Overview .................................................................................................................. 1
Specifications............................................................................................................ 2
Suggested Loads ...................................................................................................... 3
Caution: Pre-Installation Notes ................................................................................. 3
RE-DM4 4-pin module connector (male) ................................................................... 3
Line-In Connections................................................................................................... 4
Lighting Application Drawings.................................................................................. 4
Radia Eclipse RE-DM6 Dimmer Module ..............................................................6
Overview .................................................................................................................. 6
Specifications............................................................................................................ 7
Suggested Installation Loads .................................................................................... 8
Caution: Pre-Installation Notes ................................................................................. 8
Line-In Connections................................................................................................... 8
Lighting Application Drawings.................................................................................. 9
AMX Lighting Systems .....................................................................................11
Overview ................................................................................................................ 11
Features.................................................................................................................. 11
Applications............................................................................................................ 11
AMX Lighting Control Equipment........................................................................... 12
Installation ........................................................................................................15
Space Requirements ............................................................................................... 15
Wiring Considerations ............................................................................................ 15
Preparing/connecting captive wires .............................................................................. 15
AXLink wiring between multiple devices ...................................................................... 15
Power considerations.............................................................................................. 15
AXLink connections ....................................................................................................... 15
Conduit ................................................................................................................... 16
Enclosure Dimensions ............................................................................................. 17
RDA-ENC2, -ENC4, and -ENC6 enclosure and dimensions............................................ 17
RDA-ENC6B and RDA-ENC12B enclosures and dimensions .......................................... 17
Mounting AMX Lighting Enclosures........................................................................ 18
High-Voltage Connections ...................................................................................... 18
Connecting high-voltage, single-phase input power and loads..................................... 19
RDA-ENC6B 120 VAC single phase line input ............................................................... 20
RDA-ENC6B 120/240 VAC line input (single phase)...................................................... 20
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
i
Table of Contents
Connecting high-voltage input power and loads........................................................... 21
RDA-ENC6B 120/208 VAC line input (three phase)....................................................... 21
RDA-ENC6B three phase line input connector reference .............................................. 22
RDC-PFC power distribution and line input references ................................................. 23
Installing RDM Modules into an Enclosure .................................................................... 24
Low-Voltage Connections ....................................................................................... 25

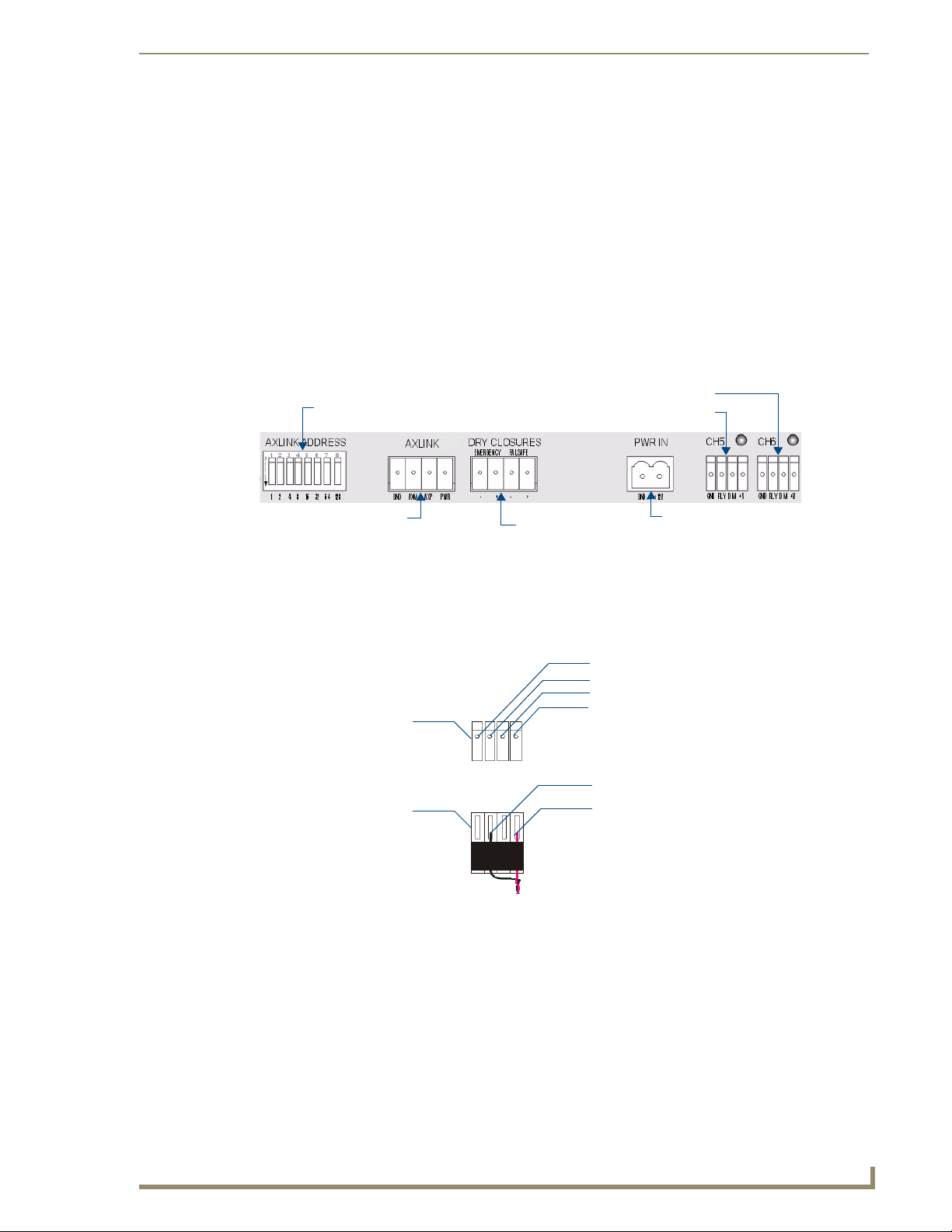

Module connections ...................................................................................................... 25
Green status LED indicator............................................................................................ 26
Red status LED indicators (RE-DM4 only) ...................................................................... 26
Configuring and connecting multiple controllers .......................................................... 26
Configuring and connecting AXLink .............................................................................. 27
External power ....................................................................................................... 28
Dry Closures............................................................................................................ 29
Connecting dry closures ................................................................................................ 29
Failsafe Input ................................................................................................................. 29
Emergency Input ........................................................................................................... 29
Default Settings ...................................................................................................... 29
Radia Lighting System Configuration Pages .....................................................31
Overview ................................................................................................................ 31
Lighting System Link............................................................................................... 31
Main Lighting System Page..................................................................................... 32
Device Configuration Page ..................................................................................... 33
AMX Lighting Programming .............................................................................37
Introduction ............................................................................................................ 37
Software ................................................................................................................. 37
Presets: Defined vs. Undefined Levels.................................................................... 38
Preset Status ................................................................................................................. 38
Lighting Systems Overview..................................................................................... 40
Programming Commands ....................................................................................... 40
Setup commands ........................................................................................................... 40
Recording commands .................................................................................................... 40
Status commands .......................................................................................................... 40
Operation commands .................................................................................................... 40
Control Curves and Low End Settings .................................................................... 41
Appendix A: AMX Lighting Curves ...................................................................43
Overview ................................................................................................................ 43
Curve Configuration................................................................................................ 46
Curves..................................................................................................................... 46
Standard Dimming Curve (1) ......................................................................................... 47
ii
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Table of Contents
Economical Dimming Curve (2) ..................................................................................... 50
0-10VDC Curve (3) ........................................................................................................ 51
0-12VDC Curve (4) ........................................................................................................ 53
Lutron FDB Curve (5)..................................................................................................... 54
Advance Mark VII Curve (6) ........................................................................................... 56
12% Roll Off (7)............................................................................................................. 58
19% Roll Off (8)............................................................................................................. 60
33% Roll Off (9)............................................................................................................. 62
S-Curve #1 (A) ............................................................................................................... 64
Log-Curve #1 (B) ........................................................................................................... 66
Log-Curve #2 (C) ........................................................................................................... 67
S-Curve #2 (D) ............................................................................................................... 68
10% Off Curve (N)......................................................................................................... 70

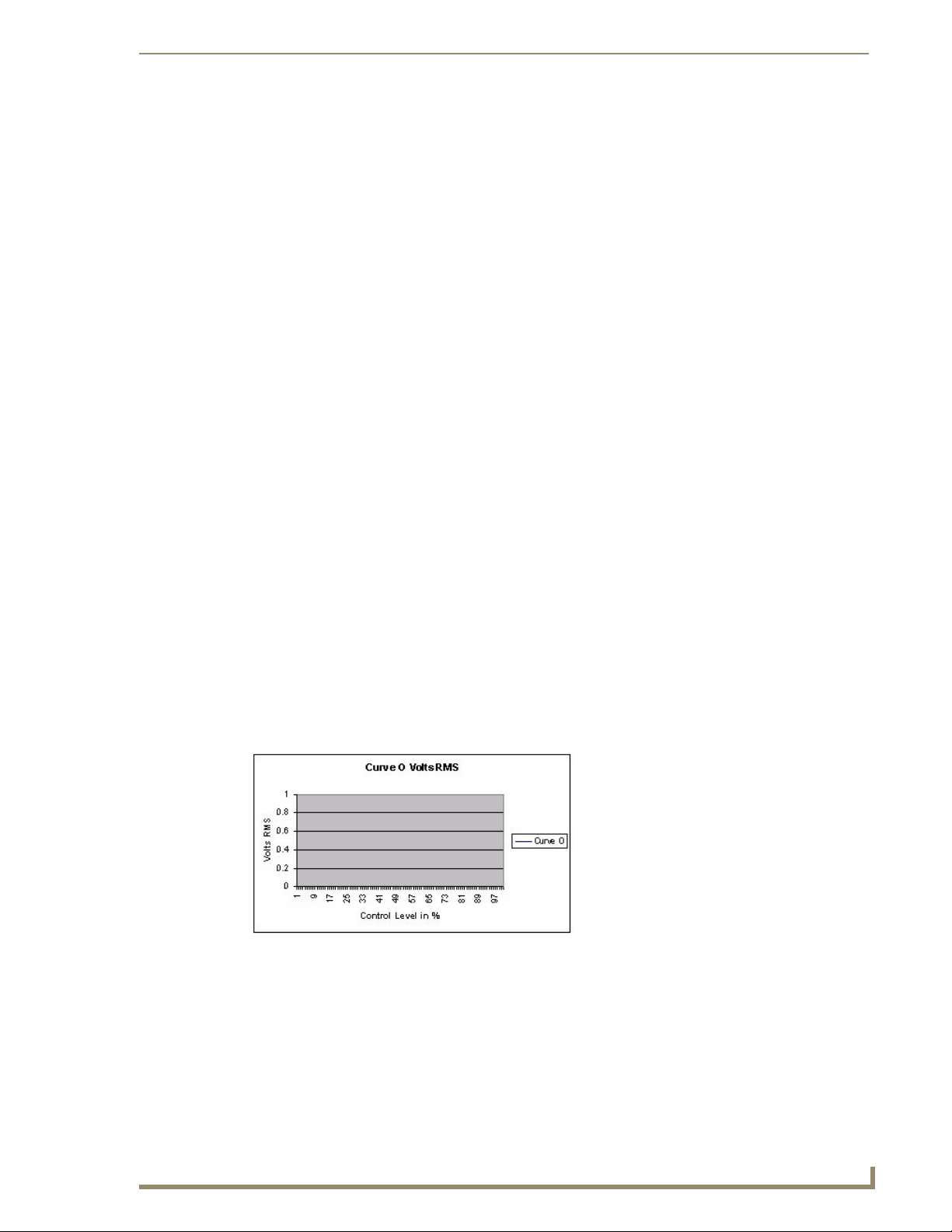

Always OFF Curve (O) ................................................................................................... 71
Always ON Curve (F) ..................................................................................................... 72
Appendix B: Radia Lighting Programming .......................................................76
Levels...................................................................................................................... 76
Default Settings ...................................................................................................... 76
Default Low-end............................................................................................................ 76
Default Ramp Time........................................................................................................ 76
Initial Level Status Reporting .................................................................................. 76
Channels ................................................................................................................. 77
SEND_STRINGs....................................................................................................... 78
Ramp Dimmers Up ........................................................................................................ 79
Ramp Dimmers Down.................................................................................................... 80
Stop Ramping Dimmer .................................................................................................. 80
Ramp active preset up .................................................................................................. 81
Ramp Active Preset Down............................................................................................. 81
Stop Ramping Preset .................................................................................................... 81
Recall Preset.................................................................................................................. 82
Record Preset................................................................................................................ 82
Level Status................................................................................................................... 82
Set curve ....................................................................................................................... 83
Curve Status.................................................................................................................. 83
Set Low End .................................................................................................................. 83
Low End Status ............................................................................................................. 84
Dimmer Status............................................................................................................... 84
Reboot .......................................................................................................................... 84
Set Default Level Time .................................................................................................. 85
Set default preset time ................................................................................................. 85
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
iii
Table of Contents
Set Default Ramp Time.................................................................................................. 85
Ramp To Level............................................................................................................... 86
Undefine Dimmer .......................................................................................................... 86
Phase Query .................................................................................................................. 87
Version Query ............................................................................................................... 87
Factory Default.............................................................................................................. 87
SEND_COMMANDs ................................................................................................ 88
Ramp preset up (NEW).................................................................................................. 88
Ramp Preset Down (NEW)............................................................................................. 89
Stop Ramping Preset (NEW).......................................................................................... 89
Recall Preset.................................................................................................................. 89
Record Preset................................................................................................................ 89
Set Curve....................................................................................................................... 90
Curve Status (NEW) ....................................................................................................... 90
Set Low End (NEW) ....................................................................................................... 90
Low End Status (NEW)................................................................................................... 90
Reboot (NEW) ............................................................................................................... 91
Set Default Level Time .................................................................................................. 91
Set Default Preset Time ................................................................................................ 91
Set Default Ramp Time.................................................................................................. 91
Ramp to Level ............................................................................................................... 92
Undefine Dimmer (NEW) ............................................................................................... 92
Phase Query (NEW) ....................................................................................................... 92
Appendix C: Troubleshooting ...........................................................................93
Software Issues ....................................................................................................... 93
Using PASS mode.......................................................................................................... 93
Testing AMX Lighting features...................................................................................... 94
Hardware Issues...................................................................................................... 95
Troubleshooting hardware ............................................................................................ 95
iv
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Radia Eclipse RE-DM4 Dimmer Module
Radia Eclipse RE-DM4 Dimmer Module
Overview
The RE-DM4 RADIA Eclipse 4-Channel Integrated Dimmer Module (120 VAC: FG706-01; 240 VAC:
FG706-02) controls up to six circuits with four 1200-watt onboard dimmers and two satellite connectors
for RDM series dimmer or switch modules. The RE-DM4 is designed for use with the RDA series of
enclosures in an AMX Lighting™ modular digital dimming system. The RE-DM4 is controlled by
AXLink or by dry (contact) closures.
Mounting
points
Power
Devices
High
Voltage
Connections
Load out
Class 1 wiring
Class 2 wiring
AXLink
Address
DIP Switch
Mounting
points
AXlink Connector
FIG. 1 RE-DM4 4-channel Integrated Dimmer Module
Dry Closures
Jumper
Line In
Neutral
Chokes
4-Pin Connectors
to RDM series
Modules
External +12V
Aux Power
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
1
Radia Eclipse RE-DM4 Dimmer Module
Specifications
RE-DM4 Specifications
Dimensions (HW) 5.75" x 10.0" (146.50 mm x 254.00 mm)
Line Input • 120, 240 VAC, single phase, 2W+G, 50/60 Hz, 2400 W, one feed
Output • 1200 W max. per channel @120, 240 VAC
Wire rating Use only copper wires rated at 75°C (167°F) min.
Torque terminals To 20 in-lbs (2.3 N/M)
Maximum wire size 10 AWG (4 mm²)
Wire stripping length 0.5" (13 mm)
AXLink Port 4-pin 3.5mm black captive wire connector. AXLink communication
Aux Power 2-pin 3.5mm green captive wire connector. This is a 12VDC power
Dry Contacts • Emergency fire alarm relay connection - Closed relay activates
BTU/hr 300 single feed (2400 W); 600 dual feed (4800 W)
Idle current draw 75 mA @ 120 VAC, 50 mA @ 240 VAC, 100 mA VDC
RDM control current 2 at 200 mA @ 12 VDC with no additional power supply
Certifications • FCC
Operating Temp Range • 0° to 40°C (32° to 104°F)
Included Accessories • 2 4-pin 3.5mm captive wire connector (41-5047)
Required Enclosures • RDA-ENC2 (FG606-10)
• 120, 120/240, 240 VAC, single phase, 3W+G, 50/60 Hz, 4800 W,
dual feed
• 2400 W max. total, all four channels on with single 2400 W feed
• 4800 W max. total, all four channels on with dual 2400 W feeds
• Line input #1 goes to dimmer 1 and 3; line input #2 goes to dimmer
2 and 4
• All electrical ratings are for continuous duty
signaling with 12VDC power in.
input that supplies additional power to the Radia PCB and connected
Radia modules.
preset 126. Other control is locked out until relay opens. Supports
daisy chaining of up to 20 dimmers for this connection, with a
maximum current requirement of 200mA when daisy-chained.
• Failsafe connection - Works with a toggle switch - opening the
switch triggers preset 128, closing the switch triggers preset 127.
Supports daisy chaining of up to 20 dimmers for this connection
with a maximum current requirement of 200mA when daisychained.
•CE
• IEC-60950 Safety
• UL North America
• 4 #8-32x1/2” F-point mounting screws
• RDA-ENC4 (FG606-11)
• RDA-ENC6/6B (FG606-12/13/15)
• RDA-ENC12B (FG606-14/16)
2
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Radia Eclipse RE-DM4 Dimmer Module
Suggested Loads
Dimmed Switched
Incandescent Motors
Neon, cold-cathode Fans
Caution: Pre-Installation Notes
This unit should be installed only by qualified electrical personnel, and in compliance
with all national electrical codes, local codes and ordinances.To prevent possible
personal injury or death, disconnect power to the enclosure at the breaker box
before attempting to work with any AMX Lighting modules.
All Class 1 and 2 wiring must be connected to their dedicated terminals.
Class 1 wiring should be connected through the top of the enclosure, and Class 2 wiring
through the bottom.
Load conductors must be same size as line conductors, regardless of
connected load.
Disconnect power while installing or connecting the unit.
Keep top and bottom air vents clear at all times, and maintain 12” (30.48 cm) clearance around
the top and bottom.
Test loads for shorts before connecting.
Class 2 wiring must be rated 300V or higher.
For indoor use only.
AC lighting loads only.
This module may require extra power from the AXLink connection or an external power
supply connected to the control card.
RE-DM4 4-pin module connector (male)
The 4-pin male module connector for the RE-DM4 is illustrated in FIG. 2.
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12 V)
FIG. 2 4-pin Male Module Connector for the RE-DM4
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
3
Radia Eclipse RE-DM4 Dimmer Module
Line-In Connections
Using two feeds for Line 1 and Line 2 provides two 2400 W inputs.
With a jumper, Line 1 and Line 2 provides a single 2400 W input.
FIG. 3 Line-In Connections for the RE-DM4
Lighting Application Drawings
The RE-DM4 has two preferred lighting application methods, as shown in FIG. 4 and FIG. 5
Dual 2400 W Inputs without jumper
Single 2400 W Input with jumper
FIG. 4 Lighting Application for the RE-DM4, Example A
4
Example A
Single input
120 or 240 VAC 1
Single-phase, four load
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Ø
FIG. 5 Lighting Application for the RE-DM4, Example B
Please refer to the AMX Lighting Programming section on page 37 for more
information.
Radia Eclipse RE-DM4 Dimmer Module
Example B
Dual Input
120, 120/240, or 240 VAC 1
Single-phase, four load
Ø
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
5
Radia Eclipse RE-DM6 Dimmer Module
Radia Eclipse RE-DM6 Dimmer Module
Overview
The RE-DM6 6-Channel Integrated Dimmer Module (120V: FG706-03; 240V: FG706-04) controls up
to six circuits with six 1200-watt onboard dimmers (FIG. 6).
The RE-DM6 is designed for use with the RDA series of enclosures, in an AMX Lighting™ modular
digital dimming system. The RE-DM6 is controlled by AXLink or by dry (contact) closures.
Mounting points
Power Devices
Jumper
High
Volta ge
Connections
Load Out
Line In
Neutral
Chokes
Class 1 wiring
Class 2 wiring
AXLink Address
DIP Switch
Mounting points
AXLink Connector
FIG. 6 RE-DM6 6-channel Integrated Dimmer Module
Dry Closures
External +12 V
Aux Power
6
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Radia Eclipse RE-DM6 Dimmer Module
Specifications
RE-DM6 Specifications
Dimensions (HW) 5.75" x 10.0" (146.05 mm x 254.00 mm)
Weight 4.5 lbs (2.04 kg)
Line input • 120, 240 VAC, single phase, 2W+G, 50/60 Hz, 2400 W, one feed
• 120, 120/240, 240 VAC, single phase, 3W+G, 50/60 Hz, 4800 W, dual
feed
Output • 1200 W max. per channel @120, 240 VAC
• 2400 W max. total, all 6 channels on with single 2400 W feed
• 4800 W max. total, all 6 channels on with dual 2400 W feeds
• Line input #1 goes to dimmer 1, 3, and 5; line input #2 goes to dimmer 2,
4 and 6
• All electrical ratings are for continuous duty
Wire rating Use only copper wires rated at 75°C (167°F) min.
Torque terminals To 20 in-lbs (2.3 N/M)
Maximum wire size 10 AWG (4 mm²)
Wire stripping length 0.5" (13 mm)
AXLink Port 4-pin 3.5mm green captive wire connector - AXLink
communication signaling with 12VDC power in.
Aux Power 2-pin 3.5mm green captive wire connector. This is a 12VDC power input
Dry Contacts • Emergency fire alarm relay connection - Closed relay activates preset
BTU/hr 300 single feed (2400 W); 600 dual feed (4800 W)
Idle current draw 75 mA @ 120 VAC, 50 mA @ 240 VAC, 100 mA VDC
Certifications • FCC
Operating Temp Range 0° to 40°C (32° to 104°F)
Included Accessories • 2 4-pin captive 3.5mm wire connectors (41-5047)
Required Enclosures: • RDA-ENC2 (FG606-10)
that supplies additional power to the Radia PCB and connected Radia
modules.
126. Other control is locked out until relay opens. Supports daisy
chaining of up to 20 dimmers for this connection, with a maximum
current requirement of 200mA when daisy-chained.
• Failsafe connection - Works with a toggle switch - opening the switch
triggers preset 128, closing the switch triggers preset 127. Supports
daisy chaining of up to 20 dimmers for this connection with a maximum
current requirement of 200mA when daisy-chained.
•CE
• IEC-60950 Safety
• UL North America
• 4 #8-32x1/2” F-point mounting screws
• RDA-ENC4 (FG606-11)
• RDA-ENC6/6B (FG606-12/13/15)
• RDA-ENC12B (FG606-14/16)
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
7
Radia Eclipse RE-DM6 Dimmer Module
Suggested Installation Loads
Dimmed Switched
Incandescent Motors
Neon, cold-cathode Fans
Caution: Pre-Installation Notes
This unit should be installed only by qualified electrical personnel, and in compliance
with all national electrical codes, local codes and ordinances. To prevent possible
personal injury or death, disconnect power to the enclosure at the breaker box
before attempting to work with any AMX Lighting modules.
All Class 1 and 2 wiring must be connected to their dedicated terminals.
Class 1 wiring should be connected through the top of the enclosure, and Class 2 wiring
through the bottom.
Load conductors must be same size as line conductors, regardless of connected load.
Disconnect power while installing or connecting the unit.
Keep top and bottom air vents clear at all times, and maintain 12” (30.48 cm) clearance around
the top and bottom.
Test loads for shorts before connecting.
Class 2 wiring must be rated 300V or higher.
For indoor use only.
AC lighting loads only.
To prevent possible personal injury or death, disconnect power to the enclosure at
the breaker box before attempting to install any AMX Lighting modules.
Line-In Connections
Using two feeds for Line 1 and Line 2 provides two 2400 W inputs.
Jumping Line 1 and Line 2 provides a single 2400 W input (FIG. 7)
Dual 2400 W Inputs without jumper
Single 2400 W Input with jumper
FIG. 7 Line-In Connections for the RE-DM6
8
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Radia Eclipse RE-DM6 Dimmer Module
Lighting Application Drawings
The RE-DM6 has two preferred lighting application methods, as shown in FIG. 8 and FIG. 9.
Example A
Single Input
120 or 240 VAC 1
Single-phase, six load
FIG. 8 Lighting Application for the RE-DM6, Method A
Ø
Example B
Dual Input
120, 120/240 VAC
Single-phase, six load
FIG. 9 Lighting Application for the RE-DM6, Method B
Please refer to the AMX Lighting Programming section on page 37 for more
information.
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
9
Radia Eclipse RE-DM6 Dimmer Module
10
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
AMX Lighting Systems
Overview
The AMX Radia Lighting Control SystemTM employs a dual-platform programming architecture that
supports the NetLinx programming language. The AMX Lighting product line is modular by design, and
includes a wide variety of integrated dimmer control modules, dimmer modules, and switch/relay
modules. This product line also includes circuit cards that can control dimming and switching of
incandescent, fluorescent, and neon (cold-cathode) bulbs; high- and low-voltage equipment; loads
(motors); and electronic and magnetic ballasts.
These cards and controllers can be housed in any of our five enclosures to ensure complete compliance
with any spacing/application requirements. Once the lighting control requirements are defined, you can
choose from the extensive group of lighting controllers, modules, and accessories, install them into the
best-suited enclosures, and create the perfect lighting control system for your customers.
Features
The AMX Lighting Control System features include:
Control of up to 1,500 dimmers or 255 6-channel devices (approximate) with a AMX NetLinx
Control System complete with dimmer-level feedback
Support for 128 lighting scene presets
Recall of up to 3 of 128 presets with two contact closures: emergency and failsafe
Modular and scalable lighting system configurations of one to 1,500 dimmers
Control via AXlink
UL and C-UL listed modules for United States and Canadian compliance
AMX Lighting Systems
Applications
You can use the AMX Lighting Control System for commercial, corporate, and residential applications.
The NetLinx control architecture can address virtually any number of lighting zones. Entire residential
or commercial lighting systems may be manually controlled or fully automated. AMX Lighting systems
may also be integrated into existing NetLinx/Axcess presentation/control systems. Residential
applications can be divided into inter-linked lighting zones using central and local control
configurations.
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
11
AMX Lighting Systems
AMX Lighting Control Equipment
The following table lists all of the AMX Lighting Control System equipment currently available. Refer
to the installation sheets for these enclosures, control modules, and dimmer modules for detailed wiring
drawings, application notes, and specifications.
AMX Lighting Control Equipment
AMX Lighting enclosures
RDA-ENC2 2-module enclosure for single-phase dimmer modules
RDA-ENC4 4-module enclosure for dimmer modules
RDA-ENC6 6-module enclosure for single-phase dimmer modules
RDA-ENC6B 6-module, 6-breaker (20 A each) enclosure for multi-phase wiring for one RDC-PDC module
(two or three phase configuration)
RDA-ENC12B 6-module, 12-breaker (20 A each) enclosure that supports multi-phase wiring for two RDC-
PDC modules
Control cards
RDC-DC 6-channel, single-phase control card (120 or 240 VAC)
RDC-PDC 6-channel, three-phase dimmer control card (120 or 240 VAC)
Integrated dimmer control modules
RE-DM4 4-channel integrated dimmer control module (120 or 240 VAC)
RE-DM6 6-channel integrated dimmer control module (120 or 240 VAC)
Dimmer modules
RDA-CKM Dual Choke module (350 µS)
RDA-PSM Power supply module
RDM-2DC Dual VDR module (2400 W x 2, 0-12 VDC)
RDM-2FDB Dual FDB Module, 1920 W (x2)
RDM-2INC Dual incandescent dimming module (2400 W x 2)
RDM-2SWM Dual switch module (2400 W)
RDM-2ZC Dual zero cross module (2400 W)
RDM-3FDB Triple FDB module (2400 W x 3)
RDM-3EM Heavy Duty Energy Management Relay Module, 20A (x3)
RDM-6EM Heavy Duty Energy Management Relay Module, 20A (x6)
RDM-3SWM Triple switch module (20 A x 3)
RDM-DC DC Module, 1920 W, 0-12 VDC
RDM-2DC Dual DC dimmer module, 1920 W, 0-12 VDC (x2)
RDM-3DC Triple DC dimmer module, 1920 W, 0-12 VDC (x3)
RDM-FDB FDB Module, 1920 W
RDM-HDC Heavy-Duty DC Module, 2400 W, 0-12 VDC
RDM-HFDB Heavy duty FDB module (20 A)
RDM-INC Incandescent dimming module (2400 W)
RDM-INC50 Incandescent dimming module (6000 W)
RDM-MDM Multimode dimming module (2400 W/20 A)
RDM-SWM Switch module (2400 W)
RDM-ZC Zero-cross module (2400 W)
RDM-ZC50 Zero-cross module (6000 W)
Dimmer Accessories
RDA-PSM 12 VDC 2.5A Power Supply Module
RDA-CKM Dual Choke Module
12
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
AMX Lighting Control Equipment (Cont.)
RDA-DIV Radia Module Divider
RDA-EFP Radia Enclosure Filler Plate
AMX Lighting Systems
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
13
AMX Lighting Systems
14
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Installation
Space Requirements
AMX Lighting control installations require very little space. Space for enclosures is the main concern.
All enclosures are mounted flush on a vertical surface, and must have a minimum clearance of 12"
(304.8 mm) above and below to allow for air circulation. Physical dimensions for each enclosure are
described in the Enclosure Dimensions section on page 17.
Wiring Considerations
The following information relates to wiring considerations for a AMX Lighting system.
Disconnect power to the device at the breaker box until the wiring is complete.
Preparing/connecting captive wires
1.
Strip 0.25 inch of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the wiring diagrams and
connector types described in this section.
Installation
Do not tighten the screws excessively. Doing so may strip the threads and damage
the connector.
AXLink wiring between multiple devices
FIG. 10 shows AXLink wiring between AXLink devices.
AXP
AXM
DEV.#2
PWR
P+
M-
GND
DEV.#1
PWR
P+
M-
GND
FIG. 10 Multiple AXLink wiring connections
Disconnect the main power to the AMX Lighting controller at the breaker box if rewiring the
AXLink cables.
AXP
AXM
DEV.#3
PWR
P+
M-
GND
AXP
AXM
Power considerations
The following information relates to wiring considerations for an AMX Lighting system.
AXLink connections
In order to establish an AXLink connection for programming, the controller must be connected to a
power source and be powered on. The AMX Lighting system will allow programming after power has
been applied. Once power has been applied and the AMX Lighting controller has established an AXLink
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
15
Installation
connection, the 12VDC supply to the processor will allow program changes if the 120VAC supply is cut
off.
Conduit
Conduit runs depend on the enclosures you use and their AMX Lighting modules. All enclosures have
conduit knockouts on the top for high-voltage connections, and knockouts on the bottom for low-voltage
connections.
All conduit knockouts allow for 1/2, 3/4, and 1-inch (12.7 mm, 19.0 mm, and 25.4 mm) conduits as
shown in FIG. 11. You should also consider these recommendations prior to installing enclosures:
Install separate conduit for lighting loads. The recommended knockout for loads is located on
the top center of the enclosure.
Install separate conduit for the 120 VAC wiring to the line input terminal block. The
recommended knockouts for incoming power feeds are located on the top-left and top-right
sides of the AMX Lighting enclosure.
Install separate conduit for low-voltage signals for dry closures and AXLink connections. The
recommended knockout for these control connections is located on the bottom of the enclosure.
Additional knockouts are on the bottom-left and bottom-right sides of the enclosures for alternate lowvoltage connections.
C
A
B
A
LEFT SIDE FRONT RIGHT SIDE
FIG. 11 Knockout locations (RDA-ENC2 used as example)
TOP
C
Knockout
D
E G
Knockout
Knockout
Knockout
A
F
BOTTOM
Knockout
D
E
Knockout
All knockouts
are for 1/2" (1.26 cm),
3/4" (1.90 cm), and
1" (2.54 cm)
conduit
A
A = 3.94" (100.0 mm)
B = 6.03" (153.1 mm)
C = 3.00" (76.2 mm)
D = 1.00" (25.4 mm)
E = 9.75" (24.76 cm)
F = 6.00" (15.24 cm)
G = 11.90" (30.22 cm)
Install the control modules according to local and National Electrical Code (NEC) regulations.
16
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Enclosure Dimensions
RDA-ENC2, -ENC4, and -ENC6 enclosure and dimensions
FIG. 12 shows the dimensions for the RDA-ENC2, RDA-ENC4, and RDA-ENC6 enclosures.
Installation
RDA-ENC2
6.0"
(152.4 mm)
RDA-ENC4
12.0"
(304.8 mm)
To p V i ew
Internal
View
Bottom
View
RDA-ENC6
18.0"
(457.2 mm)
(19.05 mm)
6.0"
(152.4 mm)
(for all enclosures)
FIG. 12 RDA-ENC2, RDA-ENC4, and RDA-ENC6 enclosure dimensions
RDA-ENC6B and RDA-ENC12B enclosures and dimensions
FIG. 13 shows the dimensions for the RDA-ENC6B and RDA-ENC12B enclosures.
TOP VIEW
SIDE VIEW
0.75"
(19.05 mm)
6.0"
(152.4 mm)
Note:
LINE INPUTS: 140 A MAX PER ENCLOSURE
Use 75° C copper conductors only.
Torque terminals to 44 in-lbs.
0.75"
Side View
12.0"
(304.8 mm)
24.0"
RDA-ENC6B
(61.0 mm)
18.0"
(457.2 mm)
BOTTOM VIEW
FIG. 13 RDA-ENC6B and ENC12B enclosures and dimensions
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
24.0"
(61.0 mm)
RDA-ENC12B
Top, side, and bottom
views are the same for
both enclosures.
Not included
with enclosures
17
Installation
Mounting AMX Lighting Enclosures
AMX Lighting enclosures must be mounted on a vertical surface with a minimum of 12" (304.8 mm)
clearance above and below the enclosure. FIG. 14 shows the centerline reference points and dimensions.
The clearance above and below the enclosure is necessary for proper ventilation and
heat dissipation.
1. Remove the front cover by removing the screws at the bottom of the enclosure; two tabs suspend the
cover from the top.
2. Position the enclosure on the wall so that it is level, with the high-voltage terminals of the unit at the
top.
3. Mark the four mounting holes according to the dimensions shown in FIG. 14.
4. Install screws at the marks. The maximum screw size is #12.
5. Hang the enclosure on the four screws and then tighten the screws.
Refer to the Dimmer Enclosures with Breakers installation guide for more
information.
Configuration for
right and left
mounting brackets
for all Radia
enclosures.
Maximum mounting
screw size: #12
FIG. 14 Center-line reference points and dimensions
Top slot
Bottom slot
A to B
B to C
Distance: A to B:
RDA-ENC2 - 5.25" (133.3 mm)
RDA-ENC4 - 10.0" (254.0 mm)
RDA-ENC6 - 16.0" (406.4 mm)
RDA-ENC6B - 16.0" (406.4 mm)
RDA-ENC12B - 16.0" (406.4 mm)
Distance: B to C:
RDA-ENC2 - 11.0" (279.4 mm)
RDA-ENC4 - 11.0" (279.4 mm)
RDA-ENC6 - 11.0" (279.4 mm)
RDA-ENC6B - 22.88" (581.2 mm)
RDA-ENC12B - 22.88" (581.2 mm)
High-Voltage Connections
FIG. 15 shows an example of a high-voltage connection for an RE-DM4 controller. Each AMX Lighting
module has its high-voltage connectors marked on its circuit board. Line, load, and neutrals are also
clearly marked.
Load
Line in
Load
Neutral
18
FIG. 15 High-voltage connections for an RE-DM4
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Installation
All high-voltage connections must comply with Class 1 wiring codes.
Connecting high-voltage, single-phase input power and loads
Follow these steps to wire high-voltage (120 VAC and 240 VAC), single-phase power connections
(FIG. 16) to any of the AMX Lighting modules.
Ground (green) Ground (green)
Hot (black)
FIG. 16 RE-DM4 and RE-DM6 (as examples only) high-voltage, single-phase power connections for line input (hot),
neutral, and ground.
Neutral (white) Hot (black)
to Enclosure
ground terminal
Neutral (white)
1. Connect the green ground wire(s) to the copper ground lug on the enclosure. Ensure the ground wire
is properly connected to earth ground.
2. Connect the white neutral wire(s) to a terminal on the enclosure's neutral terminal block. Each
terminal on the block can accept two 10 AWG wires.
3. Provide a separate neutral wire for each dimmed zone.
4. Connect the black line input from the electrical devices to the module's line terminal. The line input
terminal accepts a 10 AWG copper conductor.
5. Connect load lines from the electrical devices to the Load terminals. Load 1 applies to dimmer 1,
Load 2 applies to dimmer 2, and so on.
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
19
Installation
RDA-ENC6B 120 VAC single phase line input
FIG. 17 shows a 120 VAC single-phase (2 W + G) wiring diagram for the RDA-ENC6B line input
terminal block.
12a2b3
FIG. 17 RDA-ENC6B 120 VAC single-phase (2 W + G) wiring diagram
RDA-ENC6B 120/240 VAC line input (single phase)
FIG. 18 shows a 120/240 VAC single-phase (3 W + G) wiring diagram for the RDA-ENC6B line input
terminal block.
20
12a2b3
FIG. 18 RDA-ENC6B 120/240 VAC single-phase (3 W + G) wiring diagram
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Installation
C
Connecting high-voltage input power and loads
Follow these steps to wire high-voltage (120 VAC and 240 VAC) power connections (FIG. 19) to any of
the AMX Lighting modules
onnect to neutral block
RDA-ENC6B
line input terminal
12a2b3
These
connections
are factory-
wired
FIG. 19 High-voltage, three-phase input power
1. Connect the green ground wire(s) to the copper ground lug on the enclosure. Ensure the ground wire
is properly connected to earth ground.
2. Connect the white neutral wire(s) to one of the terminals on the enclosure's neutral terminal block.
3. Provide a separate neutral wire for each controlled zone.
4. Connect the black line input from the electrical panel to the enclosure's line terminal. The line input
terminal accepts a 0 AWG copper conductor.
5. Connect load lines from the electrical devices to the Load terminals. Load 1 applies to dimmer 1,
Load 2 applies to dimmer 2, and so on.
RDA-ENC6B 120/208 VAC line input (three phase)
FIG. 20 shows a 120/208 VAC three-phase (4 W + G) wiring diagram for the RDA-ENC6B line input
terminal block.
12a2b3
FIG. 20 RDA-ENC6B 120/208 VAC three-phase (4 W + G) wiring diagram
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
21
Installation
While it is possible to wire the enclosure with 3-phase Y, please remember a single
RE-DM4 or RE-DM6 will only support one Y-phase.
RDA-ENC6B three phase line input connector reference
FIG. 21 shows a sample RDA-ENC6 three phase (4 W + G) line input connector and dimmer references.
12a2b3
Line input 1 feeds dimmers 1 and 4
Line input 2a feeds dimmer 5
Line input 2b feeds dimmer 2
Line input 3 feeds dimmers 3 and 6
FIG. 21 RDA-ENC6B three-phase (4 W + G) line input connector and dimmer references
22
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
RDC-PFC power distribution and line input references
FIG. 22 shows the power distribution and line input references for the RDC-PFC line inputs.
Installation
RDC-PFC
Line input 1 feeds dimmers 1 and 4
Line input 2a feeds dimmer 5
Line input 2b feeds dimmer 2
Line input 3 feeds dimmers 3 and 6
FIG. 22 RDC-PFC power distribution and line input reference references
While it is possible to wire the enclosure with 3-phase Y, please remember a single
RE-DM4 or RE-DM6 will only support one Y-phase.
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
23
Installation
Installing RDM Modules into an Enclosure
Installing any of the RDM modules is an easy task. The individual modules are shipped with the four
mounting screws enclosed.
To prevent possible personal injury or death, disconnect power to the enclosure at
the breaker box before attempting to install any AMX Lighting modules.
FIG. 23 illustrates the inside of an RDA-ENC6 enclosure and the mounting slots. The modules are
positioned in the appropriate slot and secured using the supplied screws.
Neutral terminal block
Ground terminal block
Mounting screw
holes for modules
(4 per slot)
Module mounting slots
FIG. 23 Enclosure module mounting slots and mounting screw holes
The RE-DM4 and RE-DM6 take up 2 Radia enclosure slots each, so an RDA-ENC6
can hold only three RE-DM4/RE-DM6 devices.
24
The RDA-ENC2 enclosure contains a ground-terminating lug. The RDA-ENC4, RDA-ENC6, RDAENC6B, and RDA-ENC12B enclosures contain a neutral terminating block and a ground-terminating
lug.
RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
