AMX RDC-PDC User Manual

Installation Sheet

RDC-PDC Control Card, Dual or Three Phase

(120 or 240 VAC)

The RDC-PDC Control Card module controls up to six dimmable channels with six satellite connectors (for RDM series dimmer or switching modules). The RDC-PDC is controlled by AXlink, PROlink, or by dry contact closures. The RDC-PDC is designed for use with Radia enclosures, in a modular digital dimming system. The module's 120 and 240 VAC ratings are CE, UL, and C-UL approved.

Mounting points

Line inputs (factory wired)

AXlink DIP switch

PROlink DIP switch

Dry closure contacts

FIG. 1 RDC-PDC control card

Reset button

Memory Protect jumper

AXlink connector

LED indicators

PROlink connector

Control ports

RDC-PDC UL and C-UL Ratings:

Control Input:

• AXlink

• PROlink

• Eight dry closures

Control Output:

• Six control ports

• Max. total control current at 300 mA

Power Inputs:

• Line 1 (channel 1 and 4)

• Line 2 A (channel 5)

• Line 2B (channel 2)

• Line 3 (channel 3 and 6)

• Neutral

Specifications:

• Dimensions (HW): 10.0" x 2.75" (254.0 mm x 69.85 mm)

• 12 VDC power (optional)

• Torque terminals to 20 in-lbs. (2.3 N/M)

• Max. wire size: 10 AWG

• Wire stripping length: 0.28" (7 mm)

• Weight: 1.5 lbs. (0.68 kg)

• Power consumption: 50 mA @ 120 VAC 25 mA @ 240 VAC

Button/Jumper Information:

• RESET button: By pressing the RESET button, located on the RDCPDC circuit board, it is possible to restart the processor without having to power-down the unit or disconnect AXlink or PROlink. RESET does not affect saved presets or curve settings.

• MEMORY PROTECT on/off jumper: The MEMORY PROTECT jumper is set to Off by default. To protect saved curve settings and presets from accidental recording, put the jumper in the On position.

Caution: Pre-Installation Notes

• All Class 1 wiring must be connected to proper terminals.

• All control wiring must be connected to proper terminals.

• Disconnect power while installing or connecting the unit.

• Keep the top and bottom air vents clear at all times.

• Test loads for shorts before connecting.

• Use low-voltage wires with a 300 volt rating or greater.

• Use field-installed copper conductors.

• All electrical ratings are for continuous duty.

• For indoor use only.

• AC lighting loads only.

Connecting RDM Series to the AMX Lighting Master

Pin 4 (GND) Pin 3 (RLY)

Pin 2 (DIM) Pin 1 (+12 V)

RDC-PDC 4-pin module connector

4-pin plug from a RDM series module

Note: The 4-pin plugs from the module connector to the 4-pin connector on the master (black plug cover facing up).

FIG. 2 Connecting RDM series

Connecting AXlink

Connect the 4-pin captive-wire AXlink connector from the RDC-PDC to the Central Controller for AXlink control of the dimming system.

PWR

RDC-PDC

FIG. 3 AXlink wiring

AXP AXM GND

(optional)

PWR AXP

AXM GND

Central Controller

Connecting PROlink:

Connect the orange 4-pin captive-wire PROlink connector from the RDCPDC to a PRO-DP8 PROlink wall panel.

PRO-DP8 Pack 1 Pack 2

+12

PR+ PR-

GND

FIG. 4 PROlink wiring

+12

PR+ PR-

GND

Connecting Dry Closures

Use the 8 (+ common) dry closures with a WPD8 eight-button wall panel.

FIG. 5 Dry closures connection

COM

Each contact (1 - 8) is preprogrammed with a default preset.

Refer to the AMX Lighting Control System instruction manual for details on dry closure default presets and recording new presets.

Each contact closure connection (1 - 8) is pre-programmed with a default preset. The table below shows the default presets for each contact closure.

Dry Closure Default Presets

Contact Closure Default Function

1 Channel 1 at 100% in 1 second

2 Channel 2 at 100% in 1 second

3 Channel 3 at 100% in 1 second

4 Channel 4 at 100% in 1 second

Lighting Application Drawings

Dry Closure Default Presets (Cont.)

5 Channel 5 at 100% in 1 second

6 Channel 6 at 100% in 1 second

7 Pack on (channels 1-6)

8 Pack off (channels 1-6

All other channels are undefined.

Setting AXlink and PROlink Address Numbers:

AXlink Address PROlink Address

Set the AXlink address number (1-255) for the RDC-DC. This number must match the device number in your Axcess program.

FIG. 6 Setting AXlink and PROlink address numbers.

Use the PROlink DIP switch to set the PROlink address number for the RDC-DC (1-10).

Pin 8 on the PROlink DIP switch is a test switch that turns all circuits on to full.

Te s t

FIG. 7 Method A

Method A

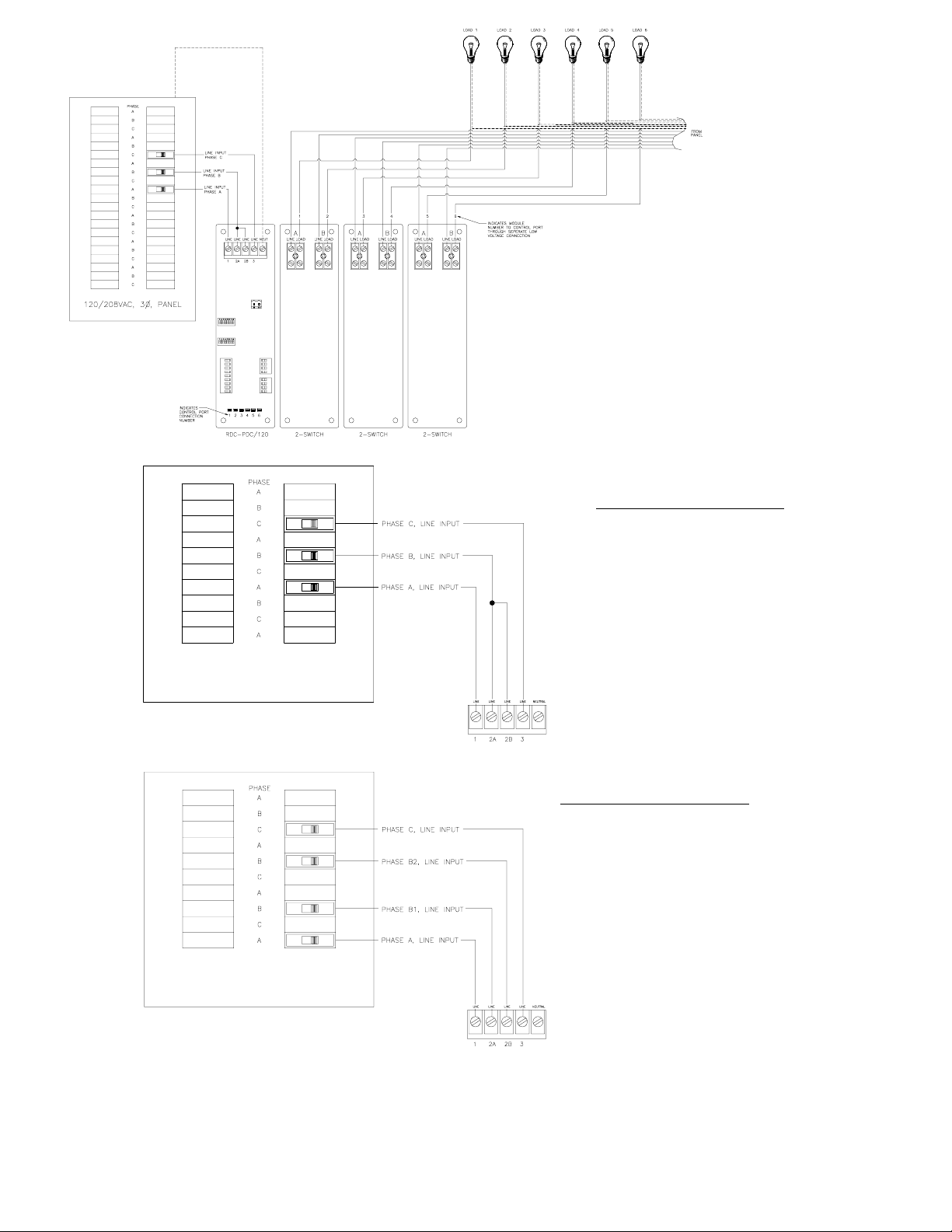

RDC-PDC/120, 3 Phase 6 dimmers, 0 switches

2 RDC-PDC Control Card, Dual or Three Phase

FIG. 8 Method B

Method C

Three phase, 120/208 VAC, 4 wire + G

Method B

RDC-PDC/120 3-phase, 6 switches

THREE PHASE, 120/208 VAC, 4W + G

PHASE A - Controls Dimmers 1 and 4 PHASE B - Controls Dimmers 2 and 5 PHASE C - Controls Dimmers 3 and 6

FIG. 9 Method C

THREE PHASE, 120/208 VAC, 5W + G

PHASE A - Controls Dimmers 1 and 4 PHASE B1 - Controls Dimmer 5 PHASE B2 - Controls Dimmer 2 PHASE C - Controls Dimmers 3 and 6

Method D

Three phase, 120/208 VAC 5 wire +G

FIG. 10 Method D

RDC-PDC Control Card, Dual or Three Phase 3
