AMX NXT-1200V User Manual

Download

Operation/Reference Guide

NXD/T-1200V

12" Modero® Video

Wall/Flush Mount Touch Panel

(Composite/S-Video Support)

Touch Panels

Last Revised: 3/30/2011

AMX Limited Warranty and Disclaimer

This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which include AMX Dealers, Distributors, VIP’s or other AMX authorized entity.

AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components are warranted for a period of one (1) year.

• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.

• AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combinations of dimmers, lamps and ballasts or transformers.

• AMX software is warranted for a period of ninety (90) days.

• Batteries and incandescent lamps are not covered under the warranty.

• AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.

All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number.

AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Authorized Partner for a third party.

This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earthquake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts, sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRANTIES, PRICES, AND POLICIES WITHOUT NOTICE.

AMX Software License and Warranty Agreement

• LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists of generally available programming and development software, product documentation, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement. AMX Dealer, Distributor, VIP or other AMX authorized entity shall not, and shall not permit any other person to, disclose, display, loan, publish, transfer (whether by sale, assignment, exchange, gift, operation of law or otherwise), license, sublicense, copy, or otherwise disseminate the AMX Software. Licensee may not reverse engineer, decompile, or disassemble the AMX Software.

• ACKNOWLEDGEMENT. You hereby acknowledge that you are an authorized AMX dealer, distributor, VIP or other AMX authorized entity in good standing and have the right to enter into and be bound by the terms of this Agreement.

• INTELLECTUAL PROPERTY. The AMX Software is owned by AMX and is protected by United States copyright laws, patent laws, international treaty provisions, and/or state of Texas trade secret laws. Licensee may make copies of the AMX Software solely for backup or archival purposes. Licensee may not copy the written materials accompanying the AMX Software.

• TERMINATION. AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON UPON WRITTEN NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or destroy all originals and copies of the AMX Software to AMX and certify in writing that all originals and copies have been returned or destroyed.

• PRE-RELEASE CODE. Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRERELEASE CODE and such code may not be at the level of performance, compatibility and functionality of the GA code. The PRE-RELEASE CODE may not operate correctly and may be substantially modified prior to final release or certain features may not be generally released. AMX is not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS PROVIDED "AS IS" WITH NO WARRANTIES.

• LIMITED WARRANTY. AMX warrants that the AMX Software (other than pre-release code) will perform substantially in accordance with the accompanying written materials for a period of ninety (90) days from the date of receipt. AMX DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE AMX SOFTWARE. THIS LIMITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX SOFTWARE, including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.

• LICENSEE REMEDIES. AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX in accordance with AMX's current return policy. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication. Any replacement AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. Outside the United States, these remedies may not available. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE, EVEN IF AMX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO LICENSEE.

• U.S. GOVERNMENT RESTRICTED RIGHTS. The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.

• SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL. The United States Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site may be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other country to which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially Designated Nationals or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or exporting of any software or technical data from this site to any jurisdiction prohibited by the United States Export Laws.

This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of the State of Texas, and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concerning this Agreement, or to contact AMX for any reason, please write: AMX License and Warranty Department, 3000 Research Drive, Richardson, TX 75082.

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed an operated with a minimum distance of 20 centimeters between the radia tor and your body.

Table of Contents

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Table of Contents

Introduction ........................................................................................................1

Modero Video Touch Panels (1200V-Series) ............................................................. 1

Product Specifications (NXD-1200V and NXT-1200V) .............................................. 2

1200V-Series Modero Connectors ............................................................................ 4

Cleaning the Touch Overlay ............................................................................................ 4

Connecting and Using Input Devices ........................................................................ 4

Touch Panel Accessories .....................................................................................5

Overview .................................................................................................................. 5

NXA-AVB/ETHERNET Breakout Box (FG2254-10) .................................................... 5

Product Specifications .................................................................................................... 5

Installing the NXA-AVB/ETHERNET ................................................................................ 6

Wiring the NXA-AVB/ETHERNET connectors and cables ................................................ 7

Wiring the NXA-AVB/ETHERNET for Unbalanced Audio................................................. 8

Wiring the NXA-AVB/ETHERNET for Balanced Audio..................................................... 8

Modero Table Top Cable (CA2250-50) ..................................................................... 9

Product Specifications .................................................................................................... 9

Wiring information for the Modero Table Top cable..................................................... 10

Installing CAT5 Suppression Ferrites............................................................................. 12

NXA-CFTP Compact Flash (FG2116-2x) .................................................................. 13

NXA-PCI80211G Wireless Card (FG2255-04).......................................................... 13

Product Specifications ............................................................................................... 14

Installation and Upgrade of the Internal NXT Components .................................... 15

Step 1: Remove the existing NXT Outer Housing ......................................................... 15

Step 2: Install the 802.11g mini-PCI Wireless Card ....................................................... 16

Step 3: Install the Compact Flash Memory Card upgrade............................................. 17

Step 4: Close and Resecure the NXT Panel Enclosure................................................... 19

Installation and Upgrade of the Internal NXD Components ................................... 19

Step 1: Remove the existing NXD Outer Housing ........................................................ 19

Step 2: Install the new 802.11g mini-PCI Wireless card (NXD)...................................... 20

Step 3: Install the new Compact Flash Memory card (NXD).......................................... 20

Step 4: Close and Resecure the NXD Panel Enclosure .................................................. 21

NXT-BP Power Pack (FG2255-10) ........................................................................... 21

Product Specifications................................................................................................... 21

NXA-BASE/B Battery Base Kit (FG2255K) .............................................................. 22

Product Specifications .................................................................................................. 22

Checking the NXT-BP battery charge............................................................................ 22

Installing the NXA-BASE/B to an NXT Modero Panel.................................................... 23

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Table of Contents

Installing an NXT-BP into the NXA-BASE/B................................................................... 24

Charging the NXT-BP batteries with the NXA-BASE/B ................................................. 25

NXT-CHG Battery Charger Kit (FG2255-50K) ......................................................... 26

Product Specifications .................................................................................................. 26

Powering the NXT-CHG ................................................................................................ 26

Reading NXT-CHG LED Indicator .................................................................................. 27

Charging the NXT-BP batteries using the NXT-CHG ..................................................... 27

Recalibrating the batteries ............................................................................................ 27

Installation Procedures: NXD-1200V Panels .....................................................29

Overview ................................................................................................................ 29

Unpacking the Panel ............................................................................................... 29

Installing the Internal Components ......................................................................... 29

Upgrading to the MB-TP12 VESA Mounting Kit ..................................................... 29

Removing the Original Modero Back Box ..................................................................... 29

Installing the MP-TP12 Back Box ................................................................................... 30

Cable Installation for the MP-TP12 Back Box ................................................................ 31

Finalizing the installation............................................................................................... 31

Pre-wall Installation of the Conduit Box.................................................................. 33

Installation of the NXD Touch Panel ....................................................................... 34

Installing the NXD panel within a Conduit Box ............................................................. 34

Installing the NXD into drywall using Expansion Clips .................................................. 36

Installing the NXD into a Flat Surface using #4 screws ................................................. 38

Installing an NXD into an (optional) Rack Mount Kit (NXA-RK12) ................................. 40

Wiring Guidelines for the 1200V Panels ................................................................. 41

Preparing captive wires................................................................................................. 41

Wiring a power connection ........................................................................................... 41

Audio/Video Port: Connections and Wiring ............................................................ 42

Ethernet/RJ-45 Port: Connections and Wiring ........................................................ 42

Panel Calibration ..............................................................................................45

Overview ................................................................................................................ 45

Calibrating the Modero Panel................................................................................. 45

Testing your Calibration ................................................................................................ 46

Configuring Communication .............................................................................47

Overview ................................................................................................................ 47

Modero Setup and System Connection .................................................................. 47

Configuring and Using USB with a Virtual Master .................................................. 49

Step 1: Setting up the Panel and PC for USB Communication ...................................... 49

Step 2: Confirming the Installation of the USB Driver on the PC .................................. 49

Step 3: Confirm and View the current AMX USB device connections ........................... 51

Table of Contents

iii

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Step 4: Using a USB to Configure a Virtual Master (using NetLinx Studio) ................... 52

Step 5: Confirm and View the current AMX USB device connections ........................... 53

Wireless Settings Page - Wireless Access Overview ............................................... 54

IP Routing...................................................................................................................... 54

Hot Swapping ............................................................................................................... 54

Configuring a Wireless Connection......................................................................... 55

Step 1: Configuring the Panel’s Wireless IP Settings .............................................. 55

Wireless communication using a DHCP Address ........................................................... 55

Wireless communication using a Static IP Address........................................................ 56

Step 2: Configuring the Card’s Wireless Security Settings ..................................... 57

Configuring the Modero’s wireless card for unsecured access to a WAP200G ............. 57

Configuring the Modero’s wireless card for secured access to a WAP200G................. 58

Configuring multiple wireless Moderos to communicate to a target WAP200G........... 61

Configuring a Wired Ethernet Connection.............................................................. 61

Step 1: Configuring the Panel’s Wired IP Settings.................................................. 61

IP Settings section - Configuring a DHCP Address over Ethernet................................. 61

IP Settings section - Configuring a Static IP Address over Ethernet ............................. 62

Step 2: Choosing a Master Connection Mode Setting............................................ 63

Step 3: Configuring the Ethernet Connection Type................................................ 63

Master Connection - Virtual Master communication over Ethernet............................... 64

Master Connection section - NetLinx Master Ethernet IP Address - URL Mode............ 66

Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode......... 66

Master Connection section - NetLinx Master Ethernet IP Address - Auto Mode .......... 67

Using G4 Web Control to Interact with a G4 Panel ................................................ 68

Using your NetLinx Master to control the G4 panel ............................................... 69

Upgrading Modero Firmware ........................................................................... 73

Upgrading the Modero Firmware via the USB port ................................................ 73

Step 1: Configure the panel for a USB Connection Type .............................................. 73

Step 2: Prepare NetLinx Studio for communication via the USB port ........................... 74

Step 3: Confirm and Upgrade the firmware via the USB port ....................................... 75

Upgrading the Modero Firmware via an IP Address............................................... 76

Step 1: Prepare the Master for communication via an IP .............................................. 76

Step 2: Prepare the panel for communication via an IP ................................................ 78

Step 3: Verify and Upgrade the panel firmware via an IP ............................................. 78

Upgrading Accessory Devices via the USB ............................................................. 80

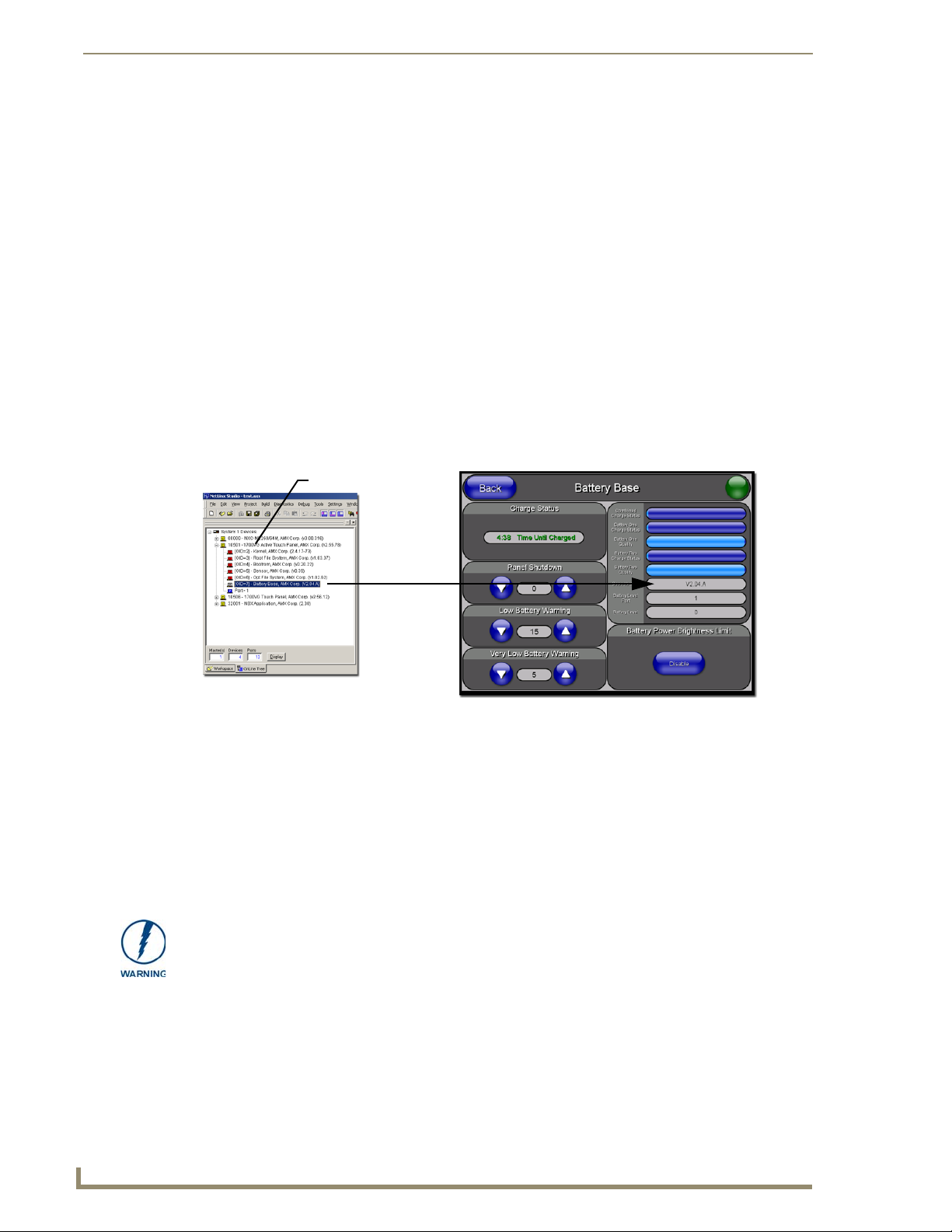

Step 1: Prepare the NXA-BASE/B for firmware transfer via USB .................................. 80

Step 2: Upgrade the NXA-BASE/B firmware via USB.................................................... 81

Upgrading Accessory Devices via an IP Address .................................................... 82

Step 1: Prepare the NXA-BASE/B for firmware transfer via an IP ................................. 82

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Table of Contents

Step 2: Upgrade the NXA-BASE/B firmware via an IP................................................... 83

Firmware Pages and Descriptions ....................................................................85

Overview ................................................................................................................ 85

Setup Navigation Buttons....................................................................................... 85

Setup Page ............................................................................................................. 86

Project Information Page............................................................................................... 87

Panel Information Page ................................................................................................. 88

Time & Date Setup Page ............................................................................................... 89

Volume Page ................................................................................................................. 90

Supported sampling rates for WAV............................................................................... 91

Protected Setup Page ................................................................................................... 91

Video Adjustment Slide-Out Option Bar ....................................................................... 91

Video Adjustment - Video Adjustment Page ................................................................. 92

Battery Base Page ......................................................................................................... 93

Protected Setup Navigation Buttons ...................................................................... 95

Protected Setup Page............................................................................................. 96

G4 Web Control Page ................................................................................................... 98

Sensor Setup Page ........................................................................................................ 99

Using the Automated Brightness Control feature (DIM Mode) ................................... 101

Password Setup Page.................................................................................................. 102

Calibration Page.......................................................................................................... 102

Wireless Settings Page ................................................................................................ 103

System Settings Page.................................................................................................. 107

Programming ..................................................................................................109

Overview .............................................................................................................. 109

Button Assignments ............................................................................................. 109

Page Commands ................................................................................................... 109

@APG...................................................................................................................................... 109

@CPG...................................................................................................................................... 109

@DPG...................................................................................................................................... 110

@PDR ...................................................................................................................................... 110

@PHE ...................................................................................................................................... 110

@PHP ...................................................................................................................................... 110

@PHT ...................................................................................................................................... 110

@PPA ...................................................................................................................................... 111

@PPF....................................................................................................................................... 111

@PPG ...................................................................................................................................... 111

@PPK ...................................................................................................................................... 111

@PPM...................................................................................................................................... 112

@PPN ...................................................................................................................................... 112

@PPT....................................................................................................................................... 112

@PPX ...................................................................................................................................... 112

@PSE....................................................................................................................................... 112

Table of Contents

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

@PSP ....................................................................................................................................... 113

@PST ....................................................................................................................................... 113

PAGE....................................................................................................................................... 113

PPOF ....................................................................................................................................... 113

Programming Numbers......................................................................................... 114

RGB Triplets And Names For Basic 88 Colors ............................................................ 114

PPOG....................................................................................................................................... 114

PPON ...................................................................................................................................... 114

Font Styles and ID Numbers ....................................................................................... 116

Border styles ............................................................................................................... 116

"^" Button Commands ......................................................................................... 118

^ANI........................................................................................................................................ 118

^APF ....................................................................................................................................... 118

^BAT ....................................................................................................................................... 119

^BAU....................................................................................................................................... 119

^BCB ....................................................................................................................................... 119

^BCF ....................................................................................................................................... 120

^BCT ....................................................................................................................................... 120

^BDO ...................................................................................................................................... 120

^BFB........................................................................................................................................ 121

^BIM........................................................................................................................................ 121

^BLN ....................................................................................................................................... 121

^BMC ...................................................................................................................................... 122

^BMF....................................................................................................................................... 123

^BMI........................................................................................................................................ 124

^BML....................................................................................................................................... 124

^BMP ...................................................................................................................................... 125

^BNC....................................................................................................................................... 125

^BNN ...................................................................................................................................... 125

^BNT ....................................................................................................................................... 125

^BOP....................................................................................................................................... 125

^BOR....................................................................................................................................... 126

^BOS....................................................................................................................................... 126

^BPP........................................................................................................................................ 126

^BRD ....................................................................................................................................... 127

^BSF........................................................................................................................................ 127

^BSM....................................................................................................................................... 127

^BSO....................................................................................................................................... 127

^BVL........................................................................................................................................ 127

^BVN....................................................................................................................................... 128

^BVP ....................................................................................................................................... 128

^BVT ....................................................................................................................................... 128

^BWW ..................................................................................................................................... 128

^CPF........................................................................................................................................ 128

^DPF ....................................................................................................................................... 129

^ENA....................................................................................................................................... 129

^FON ...................................................................................................................................... 129

^GDI........................................................................................................................................ 129

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Table of Contents

^GIV........................................................................................................................................ 130

^GLH ...................................................................................................................................... 130

^GLL ....................................................................................................................................... 130

^GRD ...................................................................................................................................... 130

^GRU ...................................................................................................................................... 130

^GSC ...................................................................................................................................... 131

^GSN ...................................................................................................................................... 131

^ICO ....................................................................................................................................... 131

^JSB........................................................................................................................................ 132

^JSI......................................................................................................................................... 132

^JST........................................................................................................................................ 133

^MBT ...................................................................................................................................... 133

^MDC ..................................................................................................................................... 133

^SHO ...................................................................................................................................... 133

^SKT ....................................................................................................................................... 134

^TEC ....................................................................................................................................... 134

^TEF ....................................................................................................................................... 134

^TXT ....................................................................................................................................... 134

Text Effect Names ................................................................................................ 135

^UNI ....................................................................................................................................... 135

Button Query Commands ..................................................................................... 136

?BCB ....................................................................................................................................... 137

?BCF ....................................................................................................................................... 137

?BCT ....................................................................................................................................... 138

?BMP ...................................................................................................................................... 138

?BOP....................................................................................................................................... 139

?BRD ....................................................................................................................................... 139

?BWW ..................................................................................................................................... 140

?FON ...................................................................................................................................... 140

?ICO........................................................................................................................................ 141

?JSB ........................................................................................................................................ 141

?JSI ......................................................................................................................................... 142

?JST ........................................................................................................................................ 142

?TEC........................................................................................................................................ 143

?TEF........................................................................................................................................ 143

Panel Runtime Operations .................................................................................... 144

ABEEP..................................................................................................................................... 144

ADBEEP .................................................................................................................................. 144

@AKB ...................................................................................................................................... 144

?TXT........................................................................................................................................ 144

AKEYB .................................................................................................................................... 145

AKEYP..................................................................................................................................... 145

AKEYR..................................................................................................................................... 145

@AKP ...................................................................................................................................... 145

@AKR ...................................................................................................................................... 145

BEEP ....................................................................................................................................... 145

BRIT ........................................................................................................................................ 146

@BRT....................................................................................................................................... 146

DBEEP..................................................................................................................................... 146

Table of Contents

vii

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

@EKP ....................................................................................................................................... 146

PKEYP ..................................................................................................................................... 146

@PKP ....................................................................................................................................... 146

SETUP...................................................................................................................................... 147

SHUTDOWN............................................................................................................................ 147

SLEEP ...................................................................................................................................... 147

@SOU ...................................................................................................................................... 147

@TKP ....................................................................................................................................... 147

TPAGEON ............................................................................................................................... 147

TPAGEOFF .............................................................................................................................. 147

Input Commands................................................................................................... 148

^CAL ....................................................................................................................................... 148

^KPS........................................................................................................................................ 148

@VKB....................................................................................................................................... 148

WAKE ...................................................................................................................................... 148

^SLT ........................................................................................................................................ 149

^VKS ....................................................................................................................................... 149

Embedded Codes ................................................................................................. 150

Panel Setup Commands ........................................................................................ 151

^MUT ...................................................................................................................................... 151

@PWD ..................................................................................................................................... 151

^PWD...................................................................................................................................... 151

@RPP ....................................................................................................................................... 151

^VOL ....................................................................................................................................... 151

Dynamic Image Commands................................................................................... 152

^BBR ....................................................................................................................................... 152

^RAF ....................................................................................................................................... 152

^RFR........................................................................................................................................ 152

^RAF, ^RMF - Embedded Codes ................................................................................ 153

^RMF....................................................................................................................................... 153

^RSR........................................................................................................................................ 153

Escape Sequences ....................................................................................................... 154

$DV ......................................................................................................................................... 154

$SY .......................................................................................................................................... 154

$IP ........................................................................................................................................... 154

$HN......................................................................................................................................... 154

$MC......................................................................................................................................... 154

$ID........................................................................................................................................... 154

$PX.......................................................................................................................................... 154

$PY.......................................................................................................................................... 154

$ST .......................................................................................................................................... 154

$AC ......................................................................................................................................... 154

$AP.......................................................................................................................................... 154

$CC ......................................................................................................................................... 154

$CP.......................................................................................................................................... 154

$LC .......................................................................................................................................... 154

$LP .......................................................................................................................................... 154

$BX.......................................................................................................................................... 154

viii

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Table of Contents

$BY ......................................................................................................................................... 154

$BN......................................................................................................................................... 154

Appendix ........................................................................................................155

Text Formatting Codes for Bargraphs/Joysticks................................................... 155

Text Area Input Masking....................................................................................... 156

Input Mask Character Types ........................................................................................ 156

Input Mask Ranges ...................................................................................................... 157

Input Mask Next Field Characters ............................................................................... 157

Input mask operations................................................................................................. 157

Input mask literals ....................................................................................................... 157

Input mask output examples ....................................................................................... 158

URL Resources ...................................................................................................... 158

Special Escape Sequences ........................................................................................... 159

Troubleshooting .............................................................................................161

Overview .............................................................................................................. 161

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Introduction

NXD-1200V (front view)

NXT-1200V (front view)

AMX has taken a great leap forward with the release of their new 1200V-Series of Modero touch panels. These panels offer the ability to display Composite video, 802.11g communication, and USB support for extended input devices, and panel programming via a mini-USB port. The new G4 graphics and Video technology is supported by the release of the latest TPDesign4 Touch Panel Design Program. These video-capable panels support several video formats: NTSC, SECAM, and PAL (Color Active (CA) panels don’t support video).

Each 1200V-Series panels have been pre-installed with 2 antennas which can be later used to configure each panel type for wireless communication (via an optional NXA-80211G wireless mini-PCI card).

Modero Video Touch Panels (1200V-Series)

The new and enhanced line of 12" Modero Touch Panel (NXT/NXD-1200V) represent the next step in videocapable panels and departs from the previously popular CA version. In addition to Composite/S-Video support (does not support Component RGB signals), the new 1200V panels feature dual USB connectivity for mouse and keyboard, and antennas, the use of a mini-USB port for panel programming and a complete departure from the use of an ICSNet connector for communication. These panels include a built-in microphone, left/right speakers, audio/headphone connector, and an included audio/video breakout box.

Table Top models use AMX’s exclusive SmoothTilt angle.

Each panel is sold only as part of a 1200V Kit which includes both a panel and an NXA-AVB/ETHERNET Audio/Video Breakout Box (FG2254-10). This box facilitates the installation and distribution of video, data, and audio to Modero touch panels located up to 200 feet (60.96 m) from the breakout box. These panels are ideally suited for displaying full motion video and audio with overlay graphics for applications with demanding visual requirements. The following is a listing of the currently available 1200V panels:

1200-V Modero Video Touch Panels

NXD-1200V (FG2251-60K)

NXT-1200V (FG2250-60K)

Introduction

technology for effortless adjustment of the viewing

12" Modero Video WallMount Touch Panel Kit (includes both an NXD panel and an NXA-AVB/ETHERNET A/V Breakout Box).

12" Modero Video Table Top Touch Panel Kit (includes both an NXD panel and an NXA-AVB/ETHERNET A/V Breakout Box).

FIG. 1

Sample 1200V Video Touch Panels (front views)

Introduction

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Product Specifications (NXD-1200V and NXT-1200V)

The following table outlines the specifications for 1200V-Series of 12" Modero panels.

1200V Specifications

Dimensions (HWD): • NXD-1200V (with faceplate): 12.38" x 12.59" x 3.25"

(31.43 cm x 31.97 cm x 8.25 cm)

• NXT-1200V (Fully raised): 10.91" x 12.34" x 12.50" (27.70 cm x 31.33 cm x 31.75 cm)

• NXT-1200V (Fully lowered): 6.77" x 12.34" x 12.50" (17.20 cm x 31.33 cm x 31.75 cm)

• CB-TP12 (conduit/wallbox): 11.52" x 11.60" x 3.50" (29.27 cm x 29.47 cm x 8.89 cm)

• MB-TP12 (VESA mounting box): 12.37" x 12.58" x 3.52" (31.42 cm x 31.95 cm x 8.94 cm)

Power: • Constant current draw: 2.1 A @ 12 VDC (stand-alone)

• Startup current draw: 3.2 A @ 12 VDC (stand-alone)

Minimum power supply required:

Memory: 256 MB on-board memory Compactflash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment).

Weight: 10.80 lbs (4.90 kg) LCD Parameters: • Aspect Ratio: 4:3

Active Screen Area: 9.68” x 7.26” (24.60cm x 18.45cm) Viewing Angles: Vertical: + 80° (up from center) and - 80° (down from center) Supported Audio

Sample Rates: Certifications: FCC Part 15 Class B, CE, and EN 60950 Front Panel

Components:

Rear Panel Components:

PSN4.4 Power Supply (FG423-45)

- using accessories can increase the power draw requirements.

Note: AMX may increase Compactflash size at any time in response to market availability.

• Brightness (luminance): 250 cd/m2

• Channel transparency: 8-bit Alpha channel transparency

• Contrast ratio: 300:1

• Display area (HW): 183.10 mm x 247.40 mm

• Display colors: 256K (18-bit color depth)

• Dot/Pixel pitch: 0.297 mm

• Screen resolution (HV): 800 x 600 pixels

• Video formats: NTSC, P AL, and SECAM (shown within variable-size video windows)

48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, 11025Hz, and 8000Hz.

• Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness

• Motion Sensor (PIR): Proximity Infrared Detector to wake the panel when panel is approached

• Front Setup Access Button: Pushbutton (grey) used to either put the panel into a "sleep" or "wake" state

• Microphone: Used for intercom applications

• Speakers: Stereo output with a frequency response of 450 Hz - 7 KHz

• Audio/Video Connector: RJ-45 connector for communication of differential audio/ video signals

• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication

• PWR Connector: 2-pin 3.5 mm mini-Phoenix connector

• Stereo Output Connector: Stereo output through a 3.5mm mini-jack

• USB Connector: Two Type A USB ports

• Mini-USB Connector: 5-pin Mini-USB connector

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

1200V Specifications (Cont.)

Operating /Storage Environments:

Included Accessories:

Other AMX Equipment:

• Operating Temperature: 10° C (50° F) to 40° C (104° F)

• Operating Humidity: 20% to 85% RH

• Storage Temperature: -20° C (-4° F) to 60° C (140° F)

• Storage Humidity: 5% to 85% RH

• Installation Kit for 12" and 17" NXD panels (KA2251-01):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- One CAT5 Suppression Ferrites (04-0014)

- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)

• Installation Kit for 12" NXT panels (KA2251-03):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- Two CAT5 Suppression Ferrites (04-0014)

• Modero Table Top Cable (CA2250-50)

- provided with all NXT Table Top panels.

• NXA-AVB/ETHERNET Breakout Box (FG2254-10)

• CB-TP12 Conduit/Wallbox (FG031-10)

• CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)

• Kensington Lock Bracket (FG2259-10) (optional only with NXTs)

• MB-TP12 Universal VESA Mounting Box for NXD panels (FG031-50):

- Black metallic VESA back box (62-0031-50)

- Black plastic cover (with grommet opening) (60-0031-50)

- Strain relief grommet (45-0004-03)

- Four Phillips pan-head screws (#8-32 x 0.50 Black) (80-0146-02)

- Twelve Under-cut Phillips-head screws (#6-32 x 0.500 Black) (80-0139)

• NXA-BASE/B (FG2255)

• NXA-PCI80211G Wireless Card (FG2255-04)

• NXA-RK12 Rackmount kit for 12" Wall Mount panels (FG2904-50)

• NXT-BP (FG2250-10)

• NXT-CHG (FG2250-50)

• PSN4.4 Power Supply (12 VDC) (FG423-45)

• PSN6.5 Power Supply (12 VDC) (FG423-41)

• Upgrade Compactflash (pre-programmed with firmware): NXA-CFTP4G, 4GB Compactflash Upgrade (FG2116-08)

Introduction

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

ETHERNETAUDIO/VIDEO

PWR

12VDC

PROGRAM

Audio-Video from

NXT-1200V - connectors located

on rear panel of the base

NXD-1200V - connectors located

on left side panel

NXA-AVB/ETHERNET

(CAT5)

Stereo

Ethernet

Power

Keyboard/Mouse

USB connectors (2)

Mini-USB

(Program Port)

(CAT5)

Output

1200V-Series Modero Connectors

FIG. 2 shows the connectors on the 1200V Modero Video panels. The Audio/Video RJ-45 connector provides differential audio/video signals between the touch panel and the NXA-AVB/ETHERNET. This connector routes Composite video, Stereo (left/right) audio, and microphone audio.

FIG. 2 Connector layout on sample 1200V Video Touch Panels

Cleaning the Touch Overlay

You should clean the touch screen overlay after each day’s use. Always use clean cotton cloths and a spray bottle containing water.

Connecting and Using Input Devices

The 1200V panel can have up to two USB-capable input devices connected for use on its different firmware and TPD4 panel pages. These input devices can consist of a keyboard or mouse.

USB-connected input devices are not detected and recognized by the panel until power is cycled to the unit.

A mini-USB connection is only detected after it is installed onto an active panel. Connection to a previously powered panel, allows the PC to detect the panel and assign an appropriate USB driver.

1. Insert the input device USB connectors into the appropriate USB connector on the panel.

2. Press the on-screen Reboot button from the Protected Setup page to save any changes and restart the

panel.

3. After the panel splash-screen disappears:

If a USB mouse has been connected, a mouse cursor appears on the panel screen and its location

corresponds to the mouse cursor position sent by the external USB mouse.

If a USB keyboard has been connected, only on-screen keyboards and keypads will reflect any

external keystrokes sent from the external USB keyboard.

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Touch Panel Accessories

Powe r In

(front)

Ethernet (to panel)

Audio/Video

Power (to panel)

S-Video Chroma

Composite/

Mic Out

Audio

Ethernet In

S-Video

Luma

(rear)

(to panel)

Overview

The following section outlines and describes both the included accessories and other AMX equipment available for these touch panels.

NXA-AVB/ETHERNET Breakout Box (FG2254-10)

The NXA-AVB/ETHERNET Breakout Box (FIG. 3) is included as part of the 1200V Kit configuration (panel and box) but can be purchased as a separate accessory. This box facilitates the installation and distribution of

video, data, and audio to Modero touch panels located up to 200 feet (60.96 m) from the AVB box. This unit accepts either Composite or S-Video from standard video devices.

This breakout box can be mounted on either a horizontal flat surface or in an equipment rack (by using an optional AC-RK Rack Kit).

Touch Panel Accessories

FIG. 3 NXA-AVB/ETHERNET Breakout Box (front and rear views)

Product Specifications

NXA-AVB/ETHERNET Specifications

Dimensions (HWD): • 1.50" x 5.55" x 4.88" (3.81 cm x 14.10 cm x 12.40 cm)

Power Consumption: • 50mA (with audio/video input)

Certifications: • FCC Part 15 Class B, CE, and EN 60950 Features: • Accepts either Composite or S-Video (video-capable panels only)

Availability: • This unit is included with CV5, CV7, CV10, and 1200V-Series Kit

Front Components: • 2-pin 3.5 mm Phoenix connector for power to the touch panel

• Width when attached to mounting ears: 6.65" (16.89 cm)

• 23mA (with no audio/video)

• Routed through NXA-AVB/Ethernet using a 12 VDC-compliant power supply

• Provides audio distribution to the non-video touch panels over a CAT5 cable (up to 200 ft.)

• Provides video/audio distribution to the video-capable touch panels over CAT5 cable up to 200 ft. (60.9 m)

configurations

• Green LED provides an indication of power status

• RJ-45 connector provides Ethernet signals to the touch panel

• RJ-45 connector provides differential audio and video signals to the touch panel (panel type dependant)

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

NXD/T Video-capable

Ethernet In

12 VDC power

(RJ-45)

Video In

(BNC)

Mic Out

(4-pin captive-wire)

Audio In

(6-pin captive-wire)

NXA-AVB/ETHERNET

Power

supplied via

NXA-AVB box

Audio/Video (CAT5)

Line Level out (to amplifier or VOL card)

Touch Panels

Direct

Connect

Breakout Box

Ethernet

(rear)

(front)

(CAT5)

supply

Indirect

Connect

12 VDC power

supply

Direct

connect

NXD/T Non-video capable

Ethernet (CAT5)

Touch Panels

12 VDC power

Audio (CAT5) between the NXA-AVB/ETHERNET Breakout Box

supply

NXA-AVB/ETHERNET Specifications (Cont.)

Rear Components: • 6-pin 3.5 mm Phoenix connector for in-bound (left/right channel) audio

Included Accessories: • Two 2-pin Phoenix connectors (41-5025)

Other AMX Equipment: • AC-RK Accessory RackMount Kit (FG515)

Installing the NXA-AVB/ETHERNET

A 12 VDC-compliant power supply can indirectly provide power to a Modero panel by routing power through the NXA-AVB/ETHERNET Breakout Box. FIG. 4 shows a sample wiring configuration using both an indirect or direct power connection for a video-capable Modero panel.

• 4-pin 3.5 mm Phoenix connector for out-bound (from microphone) audio

• BNC connector (female) for Composite or Chroma (for video-capable panels only)

• BNC connector (female) for luminance (for video-capable panels only)

• RJ-45 connector for Ethernet input from the control system

• 2-pin 3.5 mm Phoenix connector for in-bound power

• 4-pin Phoenix connector (41-5047)

• 6-pin Phoenix connector (41-5063)

• Rack Mount Kit (KA2250-40) with mounting bracket (62-2254-02)

• Modero Table Top Cable (CA2250-50)

Sample wiring configuration on video-capable panels using this breakout box

FIG. 4

A 12 VDC-compliant power supply can also directly provide power through the unit to a target Modero panel. FIG. 5 shows a sample wiring configuration for a non-video capable Modero panel.

FIG. 5 Sample wiring configuration using CA Modero panels

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

NXA-AVB/ETHERNET

Breakout Box

Ethernet

(RJ-45)

Audio In - Left Channel

(6-pin captive wire)

Audio In - Right Channel

(6-pin captive wire)

GND In (-) In (+)

GND In (-)

In (+)

GND(-) Out (-)

Out (+)

Microphone Out

(4-pin captive wire)

12 VDC power

Ethernet Out

(CAT5)

Audio/Video

(CAT5)

Power to touch panel

F R O N T

R E A R

supply

Comp/Y (BNC)

C (BNC)

The breakout box unit can be mounted on either a horizontal flat surface or into an equipment rack (by removing the front screws and attaching it to an optional AC-RK). The power supply being used on the NXA-AVB/ETHERNET is dependant on the power requirements of the target touch panel.

Use a standard CAT5 Ethernet cable to provide both communication and 10/100 network connectivity between the panel, NXA-AVB/ETHERNET, NetLinx Master, and the network.

Wiring the NXA-AVB/ETHERNET connectors and cables

The inputs and outputs on the breakout box are separated into front and rear connectors. The rear connectors are used to input external signals. The front connectors are used to communicate signals between the NXAAVB/ETHERNET and a target Modero panel. FIG. 6 provides a layout of the wiring connection both into and from the breakout box.

FIG. 6 NXA-AVB/ETHERNET Breakout Box connector wiring diagram

The rear-panel wiring connections are described below (from left to right):

• AUDIO IN: 6-pin mini-Phoenix connector, divided into left and right audio channels. Each channel is divided into GND, IN+, and IN- terminal cable connectors (2 sets of 3 for each channel).

An example of this cable is to strip the ends of 2 RCA audio cables and insert them into their respective locations on the Audio In port.

Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal can be connected to this input.

• MIC OUT: 4-pin mini-Phoenix connector, divided into GND, OUT-, and OUT+ terminal connectors.

An example of this cable is to strip the terminal ends of a 3.5mm mini-jack and insert them into their respective locations on the Mic Out port. This signal can be fed as a Line Level In to either an amplifier or an AMX VOL card.

Either a balanced (+, -, and GND) or unbalanced (+ and GND) audio signal

• Video In BNCs: Feeds either Composite/S-Video Luma or S-Video Chroma signals into the

• ETHERNET: RJ-45 connector routes data to the G4 touch panel through the front Ethernet

can be connected to this output.

NXA-AVB/ETHERNET. This feed is then redirected out to a Modero panel through the front Audio/Video CAT5 port.

port. These connections use a standard CAT5 Ethernet cable to provide communication between the target touch panel, breakout box, and NetLinx Master.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Unbalanced IN

GND

IN-

IN+

GND

IN-

IN+

Left Channel

Right Channel

(Jumper IN- to GND)

Unbalanced OUT

GND

OUT-

OUT+

Microphone

Unbalanced IN (Jumper IN- to GND)

AUDIO IN

MIC OUT

• PWR: 2-pin mini-Phoenix connector that connects to a 12 VDC-compliant power supply. This port can be used to provide power to a Modero panel by sending it through the NXA-AVB/ETHERNET (rear power connector through to the front power connector).

Wiring the NXA-AVB/ETHERNET for Unbalanced Audio

Most domestic audio equipment has unbalanced audio inputs and outputs. This means that the audio output (left, right, or mono) appears on a single wire, and is referenced to "0 V" or "Ground". Typical connectors used are RCA "phono" connectors, DIN plugs/sockets, and 0.25" (6.3mm) or 3.5mm jack plugs/sockets.

Unbalanced audio is adequate for most domestic environments and for line-level signals in a typical broadcast studio. Problems may occur if the signals are carried over long distances, especially if the source and destination have separate main supplies. Use the following wiring drawing (FIG. 7) to configure an unbalanced audio connection.

FIG. 7

When using unbalanced audio for the AUDIO IN connector (FIG. 7), the "-" and the "GND" terminals should be connected together and then connected to the GND of the unbalance audio signal. When connecting to an unbalanced audio input from the MIC OUT connector (FIG. 7), wire the "+" terminal to the signal input, and the "GND" terminal to the signal ground.

Wiring the NXA-AVB/ETHERNET for Balanced Audio

Professional audio equipment will often use balanced audio inputs and outputs, usually on 3-pin "XLR" connectors. A balanced audio signal consists of a pair of wires carrying the audio signal in anti-phase with each other (if one wire carries a positive voltage, the other carries an equal and opposite negative voltage).

The advantage of balanced audio over unbalanced audio is its ability to reject external interference added as the signal is carried over the wire. The receiving equipment takes the voltage difference between the two wires as the input signal. Interference will usually get added to both wires equally, and so gets cancelled by the receiving equipment.

The 3 wires used in a typical XLR lead are often referred to as Ground, Live (Hot) and Return (Cold). "Live" and "Return" carry the "in-phase" and "out-of-phase" versions of the audio respectively. The pins of the XLR plug/socket are as follows:

When connecting the MIC OUT connector to a balanced audio input (FIG. 8), use all three audio terminals (+,

-, and GND), then connect the "+" terminal to the "live" signal, the "-" terminal to the "return" signal, and the "GND" terminal to the ground signal.

Wiring the rear AUDIO IN and MIC OUT for use with Unbalanced Audio

• X = Ground

• L = Live (Hot)

• R = Return (Cold)

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Balanced OUT

GND

OUT-

OUT+

Ground signal

Return signal

Line signal

FIG. 8 Wiring the rear MIC OUT connector for use with Balanced Audio

Modero Table Top Cable (CA2250-50)

The Modero Table Top Touch Panels come with a standard 10' (3.048 m) Modero cable (CA2250-50) that supports Ethernet, Audio/Video, and Power connections. The cable comes terminated with two RJ45 connectors (Ethernet and Audio/Video) and a single 2-pin mini-Phoenix connector for power.

FIG. 9 10 Foot Modero Table Top Cable

Product Specifications

Modero Table Top Cable Specifications

Dimensions (HWD): • Length: 10 feet (3.048 m) Connectors: • Ethernet RJ-45 connector (White) routes Ethernet signals between the touch

Included Accessories: • Modero Table Top Cable (CA2250-50) Other AMX Equipment: Note: All 1200V, VG-Series, and CV10 Table Top panels routing an

panel and the NXA-AVB/ETHERNET Breakout Box.

• Audio/Video RJ-45 connector (Black) routes differential audio/video signals between the touch panel and the box.

• 2-pin 3.5 mm mini-Phoenix power connector to route power from the external breakout box to the target panel.

Audio/Video signal from a breakout box must use the appropriate number of CAT5 Suppression Ferrites which are included as part of installation kits accompanying your particular Modero panel.

Each of the following Installation Kits come with the appropriate number of CAT5 Suppression Ferrites.

These ferrites must be installed onto their appropriate locations.

• Installation Kit for 12" and 17" NXD panels (KA2251-01):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- One CAT5 Suppression Ferrite (04-0014)

- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)

• Installation Kit for 15" NXD panels (KA2251-02):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- Two CAT5 Suppression Ferrites (04-0014)

- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)

• Installation Kit for 12" NXT panels (KA2251-03):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- Two CAT5 Suppression Ferrites (04-0014)

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Red

6 inches

3 inches

To Touch Panel To Breakout Box

Connector 3 - used for Power

Connector 1 - used for Audio/Video (Black)

Connector 2 - used for Ethernet (White)

Modero Table Top Cable Specifications (Cont.)

Other AMX Equipment (Cont.):

Wiring information for the Modero Table Top cable

If your installation requires custom cable configurations, you can purchase bulk (non-terminated) cable from Liberty Wire and Cable under the nomenclature "AMX Table Top Cable - Modero" (phone#: (800) 530 8998 or +1-719-388-7518). When building a custom Table Top cable, please refer to the table below to calculate the maximum length of the cable for your particular installation/setup.

Maximum Table Top Cable Lengths for Modero Panels

Panel Sizes: 7" Panel 10" Panel 12" Panel 15" Panel 17" Panel Setup I: Using a panel without a battery base*: Maximum cable length 150’ (45.72 m) 150’ (45.72 m) 49’ (14.94 m) 39’ (11.89 m) 10’ (3.05 m) Setup II: Using a panel with a battery base*: Maximum cable length 56’ (17.07 m) 56’ (17.07 m) 25’ (7.62 m) 15’ (4.57 m) 10’ (3.05 m) * The total Modero cable run from the 13.5 V power source.

• Installation Kit for 15" and 17" NXT panels (KA2251-04):

- 2-pin mini-Phoenix connector (41-5025)

- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)

- One CAT5 Suppression Ferrite (04-0014)

• Installation Kit for 10" NXT panels (KA2259-01):

- 2-pin 3.5 mm mini-Phoenix connector (41-5025)

- One CAT5 Table Top Suppression Ferrite (04-0014)

- One cylindrical CAT5 USB Mouse Suppression Ferrite (04-0018-SA)

* The total Modero cable run from the 13.5 V power source (12 VDC-compliant power supply). FIG. 10 shows the top and cross-section views of the Table Top cable.

FIG. 10

Modero Table Top cable (top and cross-section views)

The following table provides the wiring information (color coding) for each of the three available cable connectors on each side of the Modero Table Top Cable.

Modero Table Top Cable Wiring Table

Wire Connector 1 Connector 2 Connector 3

1 White/Orange White/Orange Red 2 Orange/White Orange/White Black 3 White/Green White/Green 4 Blue/White Blue/White 5 White/Blue White/Blue 6 Green/White Green/White 7 White/Brown White/Brown 8 Brown/White Brown/White -

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Element #1

Binder

Element #2

Jacket

Connector #1 & 2

Connector #3

ELEMENT #1:

CONDUCTOR: INSULATION: COLOR CODE:

P2: WHITE/ORANGE, ORANGE P3: WHITE/GREEN, GREEN

PAIR:

(TWISTED AT VARIED LAYS TO MINI M IZE CROSS TALK)

ELEMENT #2:

CONDUCTOR:

INSULATION: COLOR CODE:

CABLE: BINDER:

FINAL ASSEMBLY:

AXIS TO MINIMIZE DIAMETER BINDER: JACKET: COLOR: DIAMETER:

P4: WHITE/BROWN, BROWN

DRAIN WIRE: SHIELD:

DESCRIPTION:

TWO 4/PAIR 24 AWG STRANDED TINNED COPPER,

POLYETHYLENE INSULATION, ELEMENT #2: 1/PAIR 18 AWG

STRANDED TNNED COPPER, PVC INSULATION AND FOIL

SHIELDED OVERALL PAPER BINDER AND FLEX-PVC JACKET.

9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1:

2 X 4/PAIRS: 24 AWG STRANDED COPPER

24 AWG 7/32 TINNED COPPER; OD .024" NOMINAL

.0075" WALL POLYETHYLENE; OD .039" NOMINAL

P1: WHITE/BLUE, BLUE

2 CONDUCTORS TWINNED LEFT HAND LAY

4/P CABLED LEFT HAND LAY (BLUE BINDER, ORANGE BINDER)

PAPER TAPE

1 PAIR: 18 AWG SHIELDED

18 AWG 16/30 TINNED COPPER; OD .046" NOMINAL

.010" WALL PVC; OD .066" NOMINAL

BLACK, RED

#22 7/30 TINNED COPPER

ALUM/POLYESTER TAPE (FOIL SIDE IN)

TWO ELEMENT #1 & ELEMENT #2 CABLED ON COMMON

CLOTH TAPE 25% OVERLAP

.045" WALL FLEXIBLE PVC,

BLACK MATT

.375 INCHES NOMINAL

NONEMARKING:

The following figures provide a cross-section view (FIG. 11) and a description (FIG. 12) of the Modero Table Top Cable:

FIG. 11 Table Top Cable - cross-section view

FIG. 12 Table Top Cable - Specification Elements

Each bundle of 4 twisted pairs includes a colored tape indicator for identification.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Release the latch to

open the plastic

enclosure.

Insert the CAT5 cable and close

the enclosure.

Push down on the

enclosure until it

snaps closed.

6 inches

To Touch

Connector 3 - used for Power

Connector 1 - used for Audio/Video (Black) Connector 2 - used for Ethernet (White)

Panel

Ferrite

Installing CAT5 Suppression Ferrites

Before connecting the RJ-45 cables to the panel, install the necessary number of CAT5 Suppression Ferrites (FIG. 13) to their appropriate locations. These ferrites come as part of the Installation Kits mentioned in the Specification table. No tools are required for this installation.

FIG. 13 Installing the CAT5 Suppression Ferrites

All 1200V-Series, VG-Series, and Ta ble Top CV10 panels require the installation of an appropriate number of CAT5 Suppression Ferrites when they use an RJ-45 cable to feed an A/V signal from the breakout box.

1. The CAT5 Suppression Ferrite is housed within a plastic enclosure (shown in FIG. 12) with a latch

2. Grasp the Black RJ-45 Audio/Video cable being connected to the panel. This end of the cable is longer

3. Insert the panel-end of the Black RJ-45 Audio/Video cable into the groove along the inside of the

release on one side. Pull to release the latch and open the enclosure.

than the opposing end which connects to the breakout box (6 inches vs 3 inches). Refer to FIG. 14 for more detailed information.

enclosure.

The CAT5 Suppression Ferrites MUST be installed onto the cable connected to the Modero’s Audio/Video RJ-45 connector (just behind the connector).

4. Snap the enclosure shut with the cable inside, and you’re done.

5. Repeat this process again only when installing an additional CAT5 Suppression Ferrite (model specific).

FIG. 14 Ferrite connector location on Audio/Video RJ-45 cable

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

This device complies with Part 15 of the FCC rules. Subject to the following two conditions:

1. This device must not cause harmful interference and

2. This device must accept all interference, including interference that interferes with the operation of this device.

Modifications not expressly approved by the manufacturer will void the user’s authority to operate the equipment.

WARNING: This device has been evaluated and found to be compliant with the FCC Rules for RF Exposure when the device is operated at a minimum separation distance from the user and nearby persons. Operation of this device at closer distances should be avoided.

FCC Statement:

Certifications: FCCID: CWU-WN2301A, CE, EN 60950, EN 300 328,

and RSS 210

NXA-CFTP Compact Flash (FG2116-2x)

Every Modero panel is shipped with two factory default modules: an EXM Memory Module and a Compact Flash card. These panels are shipped with a 256 memory module which is not upgradeable.

The default 128 MB Compact Flash card is factory programmed with specific panel firmware and is the only upgradeable memory component. This component can be ordered from AMX in several different upgrade sizes (as listed in the following table):

Optional Compact Flash Memory Upgrades

Compact Flash:

NXA-CFTP256M - 256 MB Compact Flash card (FG2116-23) NXA-CFTP512M - 512 MB Compact Flash card (FG2116-24) NXA-CFTP1G - 1 GB Compact Flash card (FG2116-25)

Upgrading the internal components involves opening the panel enclosure/outer housing to access the internal circuit board, removing the existing part, and replacing them with the upgrade components, as described in the following sections.

It is recommended that any upgrade of internal equipment be done simultaneously in order to reduce the risk of damage to internal components.

NXA-PCI80211G Wireless Card (FG2255-04)

The 1200V-Series and VG-Series Modero touch panels can connect to an internal NXA-PCI80211G compatible mini-PCI Wireless Card connected to two antennas (57-2250-10). All 1200-V and VG-Series panels come factory installed only with the two antennas used for later connection to the optional wireless card which is field-installable.

FIG. 15 NXA-PCI80211G mini-PCI Wireless Card

The NXA-PCI80211G card functions using a 2.4GHz bandwidth with a maximum data transfer rate of 54Mbps. This card is compatible with IEEE 802.11 standards such as: 802.11b and 802.11g.

The NXA-80211G allows the end-user to take advantage of larger bandwidth to utilize features such as: wireless intercom, Motion JPEG, networked video, and standard wireless Ethernet communication to both a NetLinx controller and networked computers. Please follow your particular Wireless Access Point’s instruction manual for the correct procedures to setup either a secured or unsecured connection.

FIG. 16

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Product Specifications

NXA-PCI80211G Specifications

Dimensions (HWD): • 0.02" x 2.13" x 4.66" (5.0 mm x 54.0 mm x 118.4 mm) Weight: • 1.05 oz (30g) Description: • Direct Sequence Spread Spectrum (DSSS)/CCK 802.11g Wireless mini-PCI

Features: • Contains integrated power amplifier (PA) and low-noise amplifier (LNA)

Antenna Type: • Dual antenna connector Availability: • All 1200V-Series and VG-Series NXT Table Top panels come factory

Bus Interface: • mini-PCI card, TypeIIIB Certifications: • FCCID: CWU-WN2301A, CE, EN 60950, EN 300 328, and RSS 210and

Frequency Range: • Using 802.11b & g communication:

Media Access Technique: • CSMA/CA with ACK Modulation: • Orthogonal Frequency Division Multiplexing (OFDM) / Complementary Code

Network Architecture: • Ad-hoc mode (Peer-to-Peer)

Network Standard: • IEEE Compliant

Operating Channels: • Using 802.11b & g communication:

Operating Environment: • Temperature: 0°C ~ 55°C (32°F to 131°F) (operating) and

Operating Voltage: • 3.3V +

card with detachable antennas.

• Diversity Antenna Connectors automatically select the best available signal

• Enhanced transmit and receive chains

• Field-installable

• Increased sensitivity and multipath tolerance

• Operates from 2.300-2.500 GHz

• Operate at ISM frequency bands (2.4GHz) with 54Mbps data rate

• Pre-configured to communicate with current AMX Wireless Access Points

• Support for IEEE 802.11b and 802.11g

• Wired Equivalent Privacy (WEP) 64-bit and 128-bit data encryption

configured for wireless communication. These NXT panels are all factory

installed with both the NXA-80211G wireless mini-PCI and 2 antennas.

• Optional to the following NXD panels:

- NXD-1200V

- NXD-1200VG

- NXD-1500VG

- NXD-1700VG

FCCID (CWU-WN2301A)

- 2.412 ~ 2.462 GHz - North America

- 2.412 ~ 2.484 GHz - Japan

- 2.412 ~ 2.472 GHz - Europe ETSI

- 2.457 ~ 2.462 GHz - Spain

- 2.457 ~ 2.472 GHz - France

Keying (CCK)

• Infrastructure mode

• 802.11b and 802.11g

- 11: (Ch 1 - 11) - North America

- 14: (Ch 1 - 14) - Japan

- 13: (Ch 1 - 13) - Europe ETSI

- 2: (Ch 10 - 11) - Spain

- 4: (Ch 10 - 13) - France

-20°C ~ 70°C (-4°F to 158°F) (storage)

• Humidity: (non-condensing) 5% ~ 90% RH (operating) and (non-condensing) 5% ~ 95% RH (storage)

5% I/O supply voltage

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

NXA-PCI80211G Specifications (Cont.)

Power Consumption: • @ 802.11b communication:

Radio Data Rate: • 802.11g compliant: 1, 2, 5.5, 11 (DSSS/CCK); 6, 9, 12, 18, 24, 36, 48, and 54

Receiver Sensitivity: • Using 802.11b communication:

Security: • 64-bit and 128-bit WEP Availability: • All 1200V-Series and VG-Series NXT Table T op panels can be field upgraded

- RX: 300 mA

- TX: 64 mA

- Sleep: 12mA

• @ 802.11g communication:

- RX: 330 mA

- TX: 575 mA

- Sleep: 12mA

(OFDM) Mbps data rates

1 Mbps: -86 dBm (max) 2 Mbps: -84 dBm (max)

5.5 Mbps: -83 dBm (max) 11 Mbps: -80 dBm (max)

• Using 802.11g communication: 1 Mbps: -86 dBm (max) 2 Mbps: -84 dBm (max)

5.5 Mbps: -83 dBm (max) 11 Mbps: -80 dBm (max)

for wireless communication using the optional NXA-PCI80211G mini-PCI card.

• Optional to the following NXD panels:

- NXD-1200V

- NXD-1200VG

- NXD-1500VG

- NXD-1700VG

Installation and Upgrade of the Internal NXT Components

Upgrading the components within the Table Top panel involves removing the outer housing (with speaker plate), removing and/or installing an existing component, and then placing the outer housing back onto the NXT panel, as described in the following sections.

Do not use Ethernet cables containing mounting boots. These boots could make removal of the Ethernet connectors (from the panel) difficult and cumbersome.

Step 1: Remove the existing NXT Outer Housing

Carefully detach all connectors from the rear of the touch panel and then gently place the touch panel LCD facedown onto a soft cloth to expose the under-side of the base (FIG. 17). This step helps prevent scratching of the LCD.

2. Tilt the base forward so that both the bottom surface and Housing Screws are easily accessible and then

carefully remove the four plastic adhesive feet.

Reference the location of the four plastic adhesive "feet". Once the outer housing is placed back onto the panel, these "feet" must be placed back in their original locations so they can fit into their provided openings on a Battery Base.

3. While holding the outer housing and base plate at a 45° (to prevent it from sliding), use a grounded

Phillips-head screwdriver to remove the eight Housing Screws.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Unscrew these

eight Housing

Screws to remove

the circuit board

housing

DO NOT

REMOVE

these screws

They secure

the speakers

to the main

board

Base plate

Outer housing

45°

Hinge Brackets (2)

I/O connector

Compact Flash card

Outer Housing

plate

Eight Housing

Screws

NXA-PCI80211G

wireless card

location

FIG. 17 Location of the attachment screws underneath an NXT panel base

4. Rotate the panel back over (while gripping the entire unit with outer housing) and rest the base on a flat

5. Gently tilt the LCD backward to a 45° angle.

6. In a single motion, carefully pull the outer housing up and then out (away from the LCD panel) to expose

7. Unscrew the Stereo Output nut from the Stereo Output jack.

8. Firmly grab the existing connector plate and slide it up and away from the base.

Step 2: Install the 802.11g mini-PCI Wireless Card

2. Locate the mini-PCI card connector on the main board (FIG. 18 and FIG. 19).

surface.

the internal circuit board.

Discharge any static electricity from your body by touching a grounded metal object.

FIG. 18 Location of the NXA-PCI80211G wireless card on the NXT board

3. Carefully remove the gold-tipped terminal ends of the antenna from their factory default connectors on

the main board. The antenna is secured at this location to restrict its movement prior to connection to a wireless card.

4. Firmly grasp the NXA-PCI80211G mini-PCI card (from the edges) and insert the pins (at a 25° angle)

into the opening on the connector (FIG. 20).

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Connection point between the braces and the mini-PCI card

Antennas connectors

FIG. 19 Location of the mini-PCI card connector on main board

5. While maintaining the 25° angle alignment on the new module, push it in firmly until the contact pins are

completely inside the connector and the card "snaps" into place (FIG. 20).

6. Push the card downward (to the main board) until the side braces snap atop the NXA-PCI80211G and

hold it in place.

FIG. 20 Installation of the mini-PCI card connector on main board

7. Locate the terminal ends of the antennas and apply downward pressure to "snap" them onto their gold-

tipped counterparts on the mini-PCI card (FIG. 20). Carefully push down on each connector to verify it is securely joined to the card.

It is recommended that any upgrade of internal equipment be done simultaneously in order to reduce the risk of damage to internal components.

Step 3: Install the Compact Flash Memory Card upgrade

Discharge any static electricity from your body by touching a grounded metal object and then locate the

existing Compact Flash card (factory-shipped with 128 MB) on the main board (FIG. 21 for Table Top panels and FIG. 24 for Wall Mount panels).

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

I/O connector

Compact Flash card

Outer Housing

plate

Eight Housing

Screws

NXA-PCI80211G

wireless card

Card removal grooves

Insert with arrow

facing towards the pins

On-board Compact Flash connector (with pins)

Connector opening

FIG. 21 Location of the Compact Flash card and I/O plate on NXT

2. Insert the tip of a grounded flat-head screwdriver into one of the card removal grooves (located on either

side of the existing card), and gently pry the card out of the slot (FIG. 22). Repeat this process on the opposite card removal groove. This alternating action causes the card to "wiggle" away from the on-board connector pins.

FIG. 22 Removing/installing a Compact Flash Memory card

3. Grip the old card by its sides and then carefully pull it out of the slot.

4. Remove the new CF memory card from it’s anti-static bag.

5. Grip the sides of the new CF memory card and firmly insert it into the slot opening (with the arrow facing

towards the pins) until the contact pins are completely inside the flash card and it is then securely attached to the pin sockets.

6. To complete the upgrade process, close and resecure the panel enclosure using the procedures in the

following step.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Any new internal card upgrade is detected by the panel only after power is cycled.

Step 4: Close and Resecure the NXT Panel Enclosure

Obtain the I/O connector plate and slide it back into position (FIG. 21).

2. Resecure the Stereo Output nut back onto the new Stereo Output jack onto the I/O plate.

3. With the components securely installed, tilt the LCD back to a 45° and gently slide-on the outer housing

(towards the LCD) until the it is aligned over the installation holes and the tilt bracket prevents any further forward movement (FIG. 17).

4. Gently press down on the housing (toward the base) until it is securely positioned over the circuit board

and covers base.

Use caution when re-installing the outer housing. Improper re-installation can cause damage to the internal speakers.

5. While holding the outer housing and base plate in place, turn the panel back over until the LCD lies

facedown on a soft cloth and the under-side of the base is exposed.

6. Insert and secure the eight Housing Screws (using a grounded Phillips-head screwdriver) into their

respective locations (FIG. 17).

7. Replace any adhesive plastic "feet" that might have been removed during the removal process of the outer

housing. These "feet" must be placed back onto their original locations so they can fit into their provided openings on the Battery Base.

8. Grasp both the LCD and housing and then rotate the entire unit back onto a flat surface.

9. Insert all connectors and apply power.

Installation and Upgrade of the Internal NXD Components

Upgrading the components within a WallMount panel involves removing the rear plastic outer housing (back box), removing and/or installing an existing component, and then placing the back box back onto the NXD panel, as described in the following sections.

Step 1: Remove the existing NXD Outer Housing

Carefully detach all connectors from the side of the touch panel and remove the front magnetic faceplate from the NXD unit by firmly gripping the faceplate and pulling outwards, while applying a small amount of pressure to remove it from the main unit.

2. Place the LCD facedown onto a soft cloth to expose the under-side of the unit (FIG. 23). This step helps

prevent scratching of the LCD.

3. Unscrew the Stereo Output nut from the Stereo Output jack.

4. Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws

and slide the I/O connector plate away from the back box housing.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Unscrew these four Housing Screws

DO NOT

these

DO NOT REMOVE

REMOVE

panel

securing

screws

these panel securing screws

to remove the back box. These make direct contact with the black outer housing.

Outer Housing

Compact Flash card

I/O connector plate

NXA-PCI80211G

wireless card

location

Four Pan-head

Housing

Screws

FIG. 23 Location of the securing screws on an NXD panel

DO NOT REMOVE THE PANEL SECURING SCREWS. These screws secure the LCD to the metallic casing.

5. Unscrew the four pan-head Housing Screws from the rear of the NXD unit (FIG. 23) and gently remove

the outer housing. These four screws secure the back box to the internal panel casing.

Step 2: Install the new 802.11g mini-PCI Wireless card (NXD)

Complete the procedures outline within Step 2: Install the 802.11g mini-PCI Wireless Card section on

page 16 and then continue with the following step.

Step 3: Install the new Compact Flash Memory card (NXD)

Complete the procedures outline within Step 3: Install the Compact Flash Memory Card upgrade section on page 17 and then continue with the following step.

FIG. 24 Location of the Compact Flash card and I/O plate on NXD

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Step 4: Close and Resecure the NXD Panel Enclosure

With the components securely installed, gently place the outer housing back onto the metallic panel casing (with the connector opening on the right-side of the panel) and align the four pan-head Housing Screw holes along the edges of the outer housing.

Use care not to bend or damage any antenna connections while replacing the outer housing.

2. Insert and secure the four pan-head Housing Screws into the pre-drilled holes along the edges of the NXD

unit by using a grounded Phillips-head screwdriver.

3. Reinstall the I/O connector plate by aligning all connectors to their respective locations.

4. Secure the I/O connector plate using a grounded Phillips-head screwdriver and then twist the Stereo

Output nut back into the Stereo Output jack.

NXT-BP Power Pack (FG2255-10)

The NXT-BP Power Pack (FIG. 25) is a rechargeable Lithium-Ion "smart" battery used to provide power to the NXT Modero panel through the NXA-BASE/B Battery Base. This battery incorporates an on-board battery life indicator. The NXT-BP battery can be charged through either the base (when connected to the Modero panel) or through an optional NXT-CHG Modero Power Station.

Extra NXT-BP Power Packs can be purchased separately as an optional accessory.

FIG. 25 NXT-BP Power Pack

Product Specifications

NXT-BP Specifications

Dimensions (HWD): • 0.69" x 3.50" x 5.81" (1.75 cm x 8.89 cm x 14.76 cm) Power (Voltage): • 11.1 Volts (nominal) Weight: • Single NXT-BP Power Pack: 1.0 lbs (0.45 kg) Features: • Battery Usage: 4 to 8 hours (time is usage dependant)

• Charge Capacity: 6300mAh

Operating / Storage Environment:

• Operating Temperature: 0° C (32° F) to 40° C (104° F)

• Operating Humidity: 20% - 85% RH

• Storage/Discharge Temperature: -20° C (-4° F) to 60° C (140° F)

• Storage Humidity: 5% - 85% RH

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

NXA-BASE/B NXT-BP

Battery Base

Battery Pack

Panel Interface

Connector

NXA-BASE/B Battery Base Kit (FG2255K)

The NXA-BASE/B Battery Base is a Modero accessory that allows the Modero Table Top touch panels (NXT) to function off the collective charge of two internally connected NXT-BP batteries (FG2255-10). The base provides both power and battery information to the panel via the panel interface connector (FIG. 26). The NXT-BP batteries can be charged through either the base (only when connected to the NXT touch panel) or through an optional NXT-CHG Modero Power Station.

FIG. 26 NXA-BASE/B and NXT-BP combo

This base also comes as part of a NXA-BASE/B Kit that contains one (1) battery base and two batteries. The accompanying batteries can be charged through either the base or optional NXT-CHG Battery Charger (FG2250-50). Refer to the Installing the NXA-BASE/B to an NXT Modero Panel section on page 23 for more detailed installation and usage instructions.

Product Specifications

NXA-BASE/B Specifications

Dimensions (HWD): • 1.13" x 8.63" x 11.81" (2.86 cm x 21.91 cm x 30.00 cm) Power Requirements: • 2.7 A @ 12 VDC (max power draw while charging) Weight: • Base unit: 1.25 lbs (0.567 kg)

Features: • Charge time for two depleted batteries ~ 5 - 8 hours (when NXT panel is in

Operating / Storage Environment:

Other AMX Equipment: • NXT-CHG Kit (FG2250-50K):

• Base and 2 batteries: 3.23 lbs (1.47 kg)

Sleep mode)

• Must be connected to the Modero unit utilizing a 12 VDC-compliant power supply

• Operating Temperature: 0° C (32° F) to 40° C (104° F)

• Operating Humidity: 20% - 85% RH

• Storage Temperature: -20° C (-4° F) to 60° C (140° F)

• Storage Humidity: 5% - 85% RH

Charger (FG2250-50) and 2 NXT-BP batteries (FG2255-10)

• NXT-BP battery pack (FG2255-10)

• NXT-CHG battery charger (FG2250-50)

It is recommended to fully charge the batteries before their initial use.

Checking the NXT-BP battery charge

Press the Battery Life Indicator button (FIG. 27) once to illuminate the Battery Life LEDs and display the

percent charge remaining on the battery (this indication lasts a few seconds).

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Battery Life Indicator button

Battery Life (Charge) Display

Panel Interface

Battery Compartment pulls outwards

connector (female)

Alignment

pegs

Captive fasteners (secure base to panel)

FIG. 27 NXT-BP (showing Battery Life Indicator button and charge)

2. Repeat the above step for each NXT-BP battery.

3. Charge the NXT-BP battery by either inserting it into the battery base or from within the optional NXT-

CHG charger (which can sequentially charge up to two batteries).

If the 25% LED is blinking, this indicates there is less than 5% of a charge remaining on the battery.

Installing the NXA-BASE/B to an NXT Modero Panel

The battery base must be installed onto the NXT panel without any NXT-BP batteries.

1. Power Off the panel before attempting to use the NXA-BASE/B.

2. Place the empty battery base onto a flat/level surface.

3. Verify the alignment of the Panel Interface connectors between the panel (male connector) and base

(female connector) (FIG. 28).

FIG. 28 NXA-BASE/B showing Panel Interface and connector locations

4. Carefully place the Modero panel over the base alignment pegs (FIG. 28 and FIG. 29).

The battery base cannot be "hot-swapped". A panel receiving power through a connected 12 VDC-compliant power supply cannot have a battery base installed onto the bottom of the panel while powered. POWER OFF the panel before installing the NXA-BASE/B. "Hot swapping" could damage the base and cause it not to be recognized by the panel.

5. Gently apply downward pressure until the panel is securely mounted to the battery base (FIG. 29).

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Panel Interface connector

Alignment

pegs

Interface connector

Captive fasteners

(male)

Top view

Bottom view

(female)

FIG. 29 NXA-BASE/B shown aligning with NXT panel

6. Firmly grip both the panel (from the side) and battery base (from below) together.

7. Gently place the touch panel LCD facedown onto a soft cloth (this prevents scratching of the LCD while

the battery base is being secured).

8. Locate the captive fasteners on the underside of the battery base by angling the base combo slightly

forwards.

9. Secure each captive fastener head using a grounded flat-head screwdriver until the NXA-BASE/B is

securely attached to the underside of the NXT Modero touch panel.

10. Firmly grip the panel LCD/base combo and gently rotate the unit back onto the base.

Installing an NXT-BP into the NXA-BASE/B

The battery base does not directly connect to a power supply, but rather receives its power directly from the Modero panel, through the Panel Interface connector.

Remove any connectors from the rear of the Modero NXT panel before continuing with the installation of the batteries. Power can only be supplied after the batteries have been installed.

1. With the panel mounted on the battery base, open the battery compartment (FIG. 30) by pulling the

handle outwards. This compartment houses two NXT-BP batteries.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Battery

Compartment

NXT-BP Battery #2

Battery Connectors

Battery Connector Port

Interface connector

FRONT

NXT-BP Battery #1

Battery #2 slot

FIG. 30 Battery installation procedure

2. Install the NXT-BP battery. label-side down.

3. Align the battery connectors with the corresponding battery connector port (located inside the battery

compartment), as shown in FIG. 30.

4. Insert the NXT-BP battery until the connectors securely fit into the battery connector port.

5. Repeat steps 2 through 4 for the other battery.

6. Apply a small amount of pressure to close the battery compartment until the compartment latches.

After a few seconds, the panel will turn On and the AMX logo will appear (indicating the panel is

receiving power.

Charging the NXT-BP batteries with the NXA-BASE/B

Follow the procedures from the previous sub-section to attach the NXT touch panel to the

NXA-BASE/B.

2. Insert each battery into the battery compartment shown in FIG. 30.

3. Insert a 2-pin connector from a power supply to the rear PWR connector on the NXT Modero panel.

The charge status bargraph indicators, on the Battery Base page, indicate when the batteries are fully charged.

The NXA-BASE/B will only charge batteries when the NXT panel is in Sleep mode.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

NXT-CHG Modero Power Station (charger)

NXT-BP Modero Power Pack (battery)

Battery Life indicator

NXT-CHG Battery Charger Kit (FG2255-50K)

The NXT-CHG Kit includes one charger and two batteries. The optional NXT-CHG Modero Power Station (FIG. 31) is a two-slot, stand-alone battery charger that can be used to recharge up to two NXT-BP batteries. The batteries are charged in the order they are inserted into the charger. The NXT-CHG Slot 1 has the feature of being able to completely discharge and recharge (recalibrate) a battery.

FIG. 31 NXT-CHG Kit (consists of one NXT-CHG charger and two NXT-BP batteries)

Product Specifications

NXT-BP and NXT-CHG Specifications

Dimensions (HWD): • 1.13" x 8.63" x 11.81" (2.86 cm x 21.91 cm x 30.00 cm) Power Requirements: • NXT-BP Battery Voltage - 11.1 Volts

Weight: • 0.57 lbs (0.26 kg) Features: • Charge time for two depleted batteries: ~ 5 hours

Other AMX Equipment: • NXT-CHG Kit (FG2250-50K):

• NXT-CHG: 90 - 264 VAC, 47-63 Hz, Single Phase (using the included 24 VDC power supply)

• Charge Rate: 2.5 A @ 12 VDC

• 2-Bays: Sequential charging

• LED: One LED indicator in front of each bay which conveys the status of that bay. Refer to the Reading NXT-CHG LED Indicator section for more information.

• Recalibration pushbutton (located between the bays): Initiates recalibration sequence in the left bay only.

• Recalibration Time: less than 9 hours

- 1 charger and 2 NXT-BP batteries

• NXT-BP battery pack (FG2255-10) (additional)

The batteries are charged in the order they are inserted into the NXT-CHG. SLOT 1 of the NXT-CHG has the ability to completely discharge and recharge (recalibrate) a battery.

Recalibration improves the reporting accuracy of the battery charge back to the Modero panel.

Powering the NXT-CHG

The NXT-CHG Smart Battery Charger uses an included power supply to charge inserted batteries.

1. Connect the rear of the NXT-CHG to the power adapter.

2. Connect the power adapter to the provided power cord (with plug).

3. Provide power to the unit by connecting the power cord (with plug) into a power outlet that meets the

requirements outlined in the Specifications section for the NXT-CHG.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Slot 1

LED

Slot 2 LED

Recalibrate Pushbutton

Slot 1

Slot 2

(recalibration)

Reading NXT-CHG LED Indicator

FIG. 32 shows the components on the NXT-CHG Smart Battery Charger.

FIG. 32 Component locations on the NXT-CHG

There is one LED indicator on the front of each battery slot that indicates the status of that slot. The blink patterns for these LEDs are described in the following table:

• Off: No battery detected.

• Green Flashing: Fast charging.

• Green Solid: Fully charged.

• Yellow Flashing: Recalibration in process.

• Yellow/Green: Recalibration complete.

• Yellow Solid: Standby (waiting for other battery to charge).

• Red Flash: Error (problem with either the battery connection to the internal slot, or with the battery itself).

Charging the NXT-BP batteries using the NXT-CHG

Review the Checking the NXT-BP battery charge section on page 22 to confirm the percentage of charge

remaining on the batteries.

2. Provide power to the charger (as outlined in the Powering the NXT-CHG section on page 26).

3. Align the battery connector with the corresponding charge slot within each of the two NXT-CHG slots.

4. Firmly insert the battery into the desired slot until the battery is both securely located within the slot and

there is activity from the corresponding Slot LED. Refer to the Reading NXT-CHG LED Indicator section on page 27 section for LED information.

Recalibrating the batteries

The recalibration process increases the accuracy of the battery charge level. Recalibration of the batteries is only done upon request from the Modero on-screen Battery Base page. Refer to the Battery Base Page section on page 93 for more detailed Battery Base page information.

Recalibration can only be done with Slot 1 on the NXT-CHG.

1. Place the selected battery securely into Slot 1 (left slot) until there is activity on the Slot 1 LED.

2. Push the Recalibration pushbutton (located between the two slots) to initiate recalibration in the left bay

only.

Touch Panel Accessories

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Installation Procedures: NXD-1200V Panels

Overview

NXT panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an NXABASE/B battery base) configuration. NXD panels are installed into either a pre-wall surface (using a CB-TP12 conduit/wallbox) or a solid surface (using either solid surface or drywall screws).

It is recommended that if you are planning on upgrading your panel components (flash card and wireless), you do so before beginning any panel installations.

Unpacking the Panel

1. Inspect and confirm the contents of the shipment box to verify that you have all specified parts. Refer to

the Specifications table (page 2) for more information about included accessories and other AMX equipment.

2. Carefully remove the panel from the shipping box.

3. Carefully peel the protective plastic cover from the LCD.

If the protective plastic LCD cover is not removed, the panel may not respond properly to touch points on the LCD or allow proper screen calibration.

Installing the Internal Components

Installation of the internal components such as the upgraded Compact Flash memory and NXA-PCI80211G Wireless card are described in detail within the following sections:

Step 2: Install the 802.11g mini-PCI Wireless Card section on page 16. Step 3: Install the Compact Flash Memory Card upgrade section on page 17.

Upgrading to the MB-TP12 VESA Mounting Kit

Upgrading the existing back box with the new VESA Mounting Kit on the 12" (FG031-50) panel requires 3 main processes:

Removing the pre-existing back box and installing the new VESA back box. Threading cables through the strain relief grommet opening in the rear plastic cover. Finalizing the installation of the NXD (with VESA back box and cables) into the plastic cover,

securing both components, and finalizing the strain relief grommet installation.

Only overall dimensions and FG product numbers are different. The new MB-TP Universal VESA Mounting Box uses a standard VESA installation pattern of 75 mm between holes. VESA mounts that conform to this pattern can be used on the MB-TP Housing.

Removing the Original Modero Back Box

Detach all connectors from the side of the touch panel.

2. Remove the magnetic faceplate from the NXD unit by gripping the faceplate and pulling outwards while

applying a small amount of pressure to remove it from the main unit.

3. Place the LCD face-down on a soft cloth to expose the back of the panel and prevent scratching of the

LCD.

4. Unscrew the Stereo Output nut from the Stereo Output jack.

5. Remove the I/O connector plate by using a grounded Phillips-head screwdriver to remove the two screws

and slide the I/O connector plate away from the back box housing.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Unscrew these four Housing Screws

DO NOT

these

DO NOT REMOVE

REMOVE

panel

securing

screws

these panel securing screws

to remove the back box. These make direct contact with the black outer housing.

6. Remove the four pan-head Housing Screws from the rear of the NXD unit (FIG. 33). These screws secure

the back box to the internal panel casing.

FIG. 33 Location of the attachment screws on the NXD back box

DO NOT REMOVE THE FOUR P ANEL SECURING SCREWS. These screws secure the LCD to the metallic casing underneath.

7. Lift the back box housing to separate it from the internal panel casing.

Installing the MP-TP12 Back Box

Unscrew the four pan-head Housing screws (#8-32) from the MP-TP12 rear plastic cover.

2. Gently place the MP-TP12 back box over the internal panel casing (with the cable routing hole on the

right-side of the panel).

3. Re-install and secure the four pan-head Housing Screws into their pre-drilled holes along the edges of the

MB-TP12 back box (FIG. 34) and secure them using a grounded Phillips-head screwdriver.

4. Place the I/O connector plate back over the connector opening and align the connector locations.

5. Re-secure the I/O connector plate (using a grounded Phillips-head screwdriver) and re-secure the Stereo

Output nut on the Stereo Output jack.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Four (#8-32) screws

Internal panel casing

MB-TP12 back box

Twelve

Rear plastic cover

Connector

Four (pan-head) Housing Screws

Securing

Strain relief grommet (Clip facing up) Rim of the strain relief grommet should lie flush against enclosure

Opening

hole locations

(3 on each side)

securing

DO NOT REMOVE

screws

#6-32

FIG. 34 Location of the attachment screws on the NXD back box and VESA housing

Cable Installation for the MP-TP12 Back Box

Connect the cable connectors (RJ-45, Ethernet, and any other audio/video wiring) to their respective

locations along the side of the touch panel.

2. Thread the incoming cables through the strain relief grommet opening on the rear plastic cover (FIG. 34).

Finalizing the installation

Gently place the rear plastic cover over the NXD panel (with LCD and MB-TP12 back box).

2. Insert the protruding cables, coming out from the opening on the rear plastic cover, into the open strain

relief grommet.

3. Allow some slack/length on these cables as a service loop. This service loop provides enough cable

length so you can later remove the NXD (with connected cables) from the rear plastic cover.

VERIFY THE LENGTH AND LOCATION OF THE INSERTED CABLES. ONCE THE STRAIN RELIEF GROMMET IS CLOSED, IT IS DIFFICULT TO RE-OPEN.

4. Carefully apply pressure to close the strain relief grommet over the desired cable location.

Verify the Strain Relief Grommet is securely closed over the cables and the clip is facing the correct direction (upwards). The process of securing the strain relief grommet may require the use of pliers. Also verify the length and location of the inserted cables. Once the strain relief grommet is closed, it is difficult to re-open.

5. Firmly push the Strain Relief Grommet into the opening (toward the inside) until the rim is securely flush

against the back of the rear plastic cover (FIG. 34).

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

2.61[66MM]

.80[20MM]

3.55[90MM]

2.52[64MM]

6. Securely grasp both sides of the NXD panel (with LCD, MB-TP12 back box, and attached cables), rotate

the entire unit over, and lie it on a flat level surface.

7. Note the available mounting contact surface area on the rear plastic cover of the MB-TP12 (FIG. 35).

This area represents the space available for use with a VESA connector plate.

FIG. 35 MB-TP12 Mounting contact surface area

8. Insert and secure the twelve #6-32 securing screws into their pre-drilled holes along the edges of the NXD

unit (FIG. 34). This step secures the NXD unit to the rim of the rear plastic cover.

9. Align a VESA mount connector (purchased separately) to the four #8-32 screw holes on the back of the

rear plastic cover (FIG. 34).

10. Insert the four provided #8-32 screws through the VESA mount’s four holes and then into the

pre-drilled holes on the rear plastic cover.

When installing a VESA mount to the rear plastic cover, use only the AMX provided #8-32 screws.

11. Secure these four #8-32 screws to the rear plastic cover by using a grounded Phillips-head screwdriver.

This step secures the VESA mount to the rear of the panel.

Refer to your particular VESA mount manufacturer’s installation procedures for further surface mounting procedures.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Rear plastic cover (rear view)

Rim of the strain relief grommet should lie flush against enclosure

CLIP FACING UP

VESA mount connection location

(USE ONLY AMX PROVIDED #8-32 screws)

FIG. 36 Installation of grommet into the rear plastic enclosure

Pre-wall Installation of the Conduit Box

Wall Mount panels (NXDs) are contained within a metallic outer housing (back box). This back box is not removed when installing the NXD into a conduit box (CB-TP12). The back box is only removed to either gain

access for the replacement of the Memory/Compact Flash or upgrade the unit with an MB-TP Universal VESA Mounting Kit.

INSTALLER: LEAVE A GAP BETWEEN THE STUD AND CONDUIT BOX TO ACCOMMODA TE THE DRYWALL SHEETROCK. This gap allows the installation of

the drywall/sheetrock after the conduit box has been installed.

The CB-TP12 conduit wallbox is an optional metallic box that is secured onto stud beams prior to the installation of a solid surface. Installation procedures and configurations can vary. This section describes the installation procedures for the most common installation scenario.

1. Fasten the CB-TP12 to a stud through the stud fastening holes, located on the inside of the conduit box

(FIG. 37), by using either nails or screws.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Drywall/

Stud

Knockouts should be located on the left-side of the

CB-TP Conduit Wallbox

conduit box, alongside the connectors

Stud fastening holes

Use the four #4-40 Mounting Screws to secure the NXD to the conduit box at these

sheetrock

Mounting tabs for NXD panel should be flush with the outside of the sheetrock

locations

FIG. 37 Screw locations for conduit box attachment in a pre-wall installation

2. Remove any necessary wiring knockouts from the (optional) conduit box (C in FIG. 37) where the

necessary cables are threaded through for connection to the touch panel.

3. Thread the incoming RJ-45, Ethernet, and any other audio/video wiring through the knockouts. Refer to

the Wiring Guidelines for the 1200V Panels section on page 41 for pinout descriptions. Leave enough slack in the wiring to accommodate any re-positioning of the panel.

4. Install the drywall/sheetrock before inserting the main NXD unit into the CB-TP12.

Installation of the NXD Touch Panel

The NXD panel can be installed either directly into the (optional) CB-TP12 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws. The following sections describe mounting the touch panel directly into a pre-wall installed conduit box, a solid surface or drywall, and optional NXA-RK Rack Mount Kit.

Installing the NXD panel within a Conduit Box

The conduit box must be mounted prior to continuing this section. Refer to the procedures in the

Pre-wall Installation of the Conduit Box section on page 33 for detailed pre-wall installation instructions. Verify that all necessary cables have been threaded through the knockouts on the conduit box and the connections have been tested prior to installation of the NXD panel.

1. Remove the magnetic faceplate/bezel (A in FIG. 38) from the main NXD unit (B in FIG. 38) by gripping

the faceplate and pulling with gentle outward force.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

B - Main NXD unit consists of

C - Optional CB-TP

Install the four #4-40

screws into the places

indicated

Stud

the touch panel and backbox housing

conduit/wallbox

Cable

knockouts

Installed flush against the finished wall

Do not use these

tabs to mount

the conduit /wallbox

These are ONLY used to

secure the main unit to the CB

SURFACE

surface

A - Faceplate

(bezel)

Mounting Tab

FIG. 38 Wall Mount panel installation configuration for pre-existing conduit/wallbox in a pre-wall construction

2. Verify the incoming RJ-45, Ethernet, USB, and any other audio/video cables have been properly threaded

through the wiring knockouts (from their terminal locations) on the conduit box.

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

3. Connect all data and power wiring connectors to their corresponding locations along the side of the (un-

powered) NXD touch panel.

Verify the terminal end of the power cable is not connected to a power supply before plugging in the

2-pin power connector.

The USB connectors can be from either a USB extension cable, or a wireless USB RF transmitter.

4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying

power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation.

5. Disconnect the terminal end of the power cable from the connected power supply.

Don’t disconnect the connectors from the touch panel. The unit must be installed with the attached connectors before being inserted into the conduit box.

6. Carefully slide the main unit (B in FIG. 38) into the conduit box, so the Mounting Tabs lie flush against

the conduit box (C in FIG. 38).

7. Insert and secure the four securing #4-40 Mounting Screws into their corresponding holes located along

the sides of the NXD (FIG. 37 and FIG. 38).

8. Place the magnetic faceplate (A in FIG. 38) back onto the main NXD unit (B in FIG. 38).

Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

FRONT BEZEL

CUTOUT

9. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective

locations (outside the conduit box) on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.

10. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.

Installing the NXD into drywall using Expansion Clips

Expansion clips are mounted through the four oval holes located at the top and bottom of the panel. As the screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a "grip" on the wall by either pressing onto the wall or by securing the drywall between the housing and the drywall clip.

The most important thing to remember when mounting the NXD is that the outer frame (Mounting Tabs) must be installed flush against the mounting surface.

1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.

2. Cut out the surface for the 12-inch Wall Mount using the dimensions shown in FIG. 39. Be sure to cut out

the four notches along the top and bottom areas to accommodate the four drywall expansion clips (provided).

FIG. 39 NXD-1200V 12-inch Wall Mount panel dimensions using expansion clips

3. Remove the magnetic faceplate/bezel (A in FIG. 40) from the main NXD unit (B in FIG. 40) by gripping

the faceplate and pulling with gentle outward force.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

B - Main NXD unit consists of

Install the four drywall

clip sets (included)

into these holes

the touch panel and housing

4 notches are required if the unit is installed in drywall using the four (4) provided drywall expansion

A - Faceplate

(bezel)

clips

Mounting Tab

FIG. 40 Wall Mount panel (NXD) installation configuration for drywall surfaces

4. Thread the incoming RJ-45, Ethernet, USB, and any other audio/video wiring (from their terminal

locations) through the cutout opening. Refer to the Wiring Guidelines for the 1200V Panels section on page 41 for pinout descriptions. Leave enough slack in the wiring to accommodate any re-positioning of the panel.

5. Connect all data and power wiring connectors to their corresponding locations along the side of the (un-

powered) NXD touch panel.

Verify the terminal end of the power cable is not connected to a power supply before plugging in the

2-pin power connector.

The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.

6. Test the incoming wiring by attaching the panel connections to their terminal locations and applying

power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation.

7. Disconnect the terminal end of the power cable from the connected power supply.

Don’t disconnect the connectors from the touch panel. The unit must be installed with the attached connectors before being inserted into the drywall.

8. Insert the four sets of drywall screws and expansion clips into the four oval notch locations along the top/

bottom edges of the main unit (FIG. 40).

9. Carefully insert the main unit (with expansion clips) into the cutout until the Mounting Tabs on the NXD

unit lie flush against the wall (FIG. 40).

10. Tighten the drywall clip sets (screws and clips) until the Mounting Tabs are securely fastened and flush

against the wall.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

FRONT BEZEL

SECURE UNIT WITH #4 SCREWS.

SURFACE (PODIUM, DESK, ETC.).

WHEN MOUNTING UNIT TO A SOLID

THESE 4 HOLES ARE ONLY REQUIRED

CUTOUT

The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation.

11. Place the magnetic faceplate (A in FIG. 40) back onto the main NXD unit (B in FIG. 40).

Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.

12. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective

locations on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.

13. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.

Installing the NXD into a Flat Surface using #4 screws

Mounting screws (#4, not included) are secured through circular holes located at the left and right sides of the NXD panel. The most important thing to remember when mounting the NXD is that the outer frame

(Mounting Tabs) must be installed flush against the mounting surface.

It is recommended that you cutout the surface slightly smaller than what is outlined in the

installation drawings so that you can make any necessary cutout adjustments.

1. Prepare the area by removing any screws or nails from the surface before beginning the cutout process.

2. Cut out the surface for the 12-inch Wall Mount using the dimensions shown in FIG. 41.

FIG. 41 NXD-1200V Wall Mount panel dimensions using #4 mounting screws

3. Remove the magnetic faceplate/bezel (A in FIG. 42) from the main NXD unit (B in FIG. 42) by gripping

the faceplate and pulling with gentle outward force.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

B - Main NXD unit consists of

Install the four (#4)

mounting screws

into the holes

(screws not included)

Flat surface (can include a

the touch panel and housing

wall, podium, or other flat surface)

A - Faceplate

(bezel)

Attachment is done

along the edges of

the cutout

FIG. 42 Wall Mount panel installation configuration for flat/solid surfaces

4. Thread the incoming RJ-45, Ethernet, USB, and any other audio/video wiring (from their terminal

locations) through the cutout opening. Refer to the Wiring Guidelines for the 1200V Panels section on page 41 for pinout descriptions.

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

5. Connect all data and power wiring to their corresponding locations along the side of the

(un-powered) NXD touch panel.

Verify the terminal end of the power cable is not connected to power supply before plugging in the

2-pin power connector.

The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.

6. Test the incoming wiring by connecting the panel connections to their terminal locations and applying

power. Verify the panel is receiving power and functioning properly before finalizing the installation.

7. Disconnect the terminal end of the power cable from the power supply.

Don’t disconnect the connectors from the touch panel. The unit must be installed with the necessary connectors before being inserted into the solid surface.

8. Carefully slide the main unit into the cutout until the Mounting Tabs of the NXD unit lie flush against the

wall.

9. Insert and secure the four #4 screws into their corresponding holes located along the sides of the NXD

(using a grounded Phillips-head screwdriver) until the unit is secure and flush against the wall.

10. Place the magnetic faceplate (A in FIG. 42) back onto the main NXD unit (B in FIG. 42).

Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.

11. Reconnect the terminal RJ-45, Ethernet, USB, and any optional audio/video wiring to their respective

locations on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Faceplate

Rack mount frame (NXA-RK12)

12. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.

Installing an NXD into an (optional) Rack Mount Kit (NXA-RK12)

Remove the magnetic faceplate/bezel from the main NXD unit by gripping the faceplate and pulling with gentle outward force.

2. Thread the incoming RJ-45, Ethernet, USB, and any optional audio/video wiring through the opening in

the equipment rack (from their terminal locations). Refer to the Wiring Guidelines for the 1200V Panels section on page 41 for pinout descriptions. Leave enough slack to accommodate any re-

positioning of the panel.

3. Connect all data and power wiring connectors to their corresponding locations along the side of the (un-

powered) NXD touch panel.

Verify the terminal end of the power cable is not connected to a power supply before plugging in the

2-pin power connector.

The USB connectors can be from a either a USB extension cable, or a wireless USB RF transmitter.

4. Test the incoming wiring by connecting the panel connections to their terminal locations and applying

power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation.

5. Disconnect the terminal end of the power cable from the connected power supply.

Don’t disconnect the connectors from the touch panel. The unit must be installed with the necessary connectors before being inserted into the equipment rack.

6. Insert the main 12-inch Modero unit into an NXA-RK12 (FIG. 43).

FIG. 43 NXD-1200V 12 inch Wall Mount panel installed into an NXA-RK12 Rack Mount Kit

7. Secure the panel to the NXA-RK frame by first inserting and then tightening the four #4-40 screws

(provided). Line up the four mounting holes and use a grounded Phillips-head screwdriver to tighten the screws in a clockwise direction.

8. Insert the NXA-RK (with connected NXD unit) into the equipment rack, making sure to align the screw

holes along the sides on the NXA-RK with the holes in the equipment rack.

9. Use a grounded Phillips-head screwdriver to secure the NXA-RK (with connected NXD unit) to the

equipment rack using #10-32 screws (not included).

10. Place the magnet faceplate back onto the main NXD unit by gripping the faceplate and placing it on the

housing with gentle force. Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

PWR +

GND -

To the Touch Panel

Power Supply

11. Reconnect the terminal RJ-45, Ethernet, and any optional audio/video wiring to their respective locations

on either the NXA-AVB/ETHERNET Breakout Box, Ethernet port, or NetLinx Master.

12. Reconnect the terminal power connector on the 12 VDC-compliant power supply and apply power.

Wiring Guidelines for the 1200V Panels

These panels require the use of a 12 VDC-compliant power supply to provide power to the panel via the 2-pin

3.5 mm mini-Phoenix PWR connector. Use the previously referenced power requirements information to determine the power draw.

The incoming PWR and GND wires from the power supply must be connected to the corresponding locations within the PWR connector.

These units should only have one source of incoming power. Using more than one source of power to the touch panel can result in damage to the internal components and a possible burn out. Apply power to the panels only after installation is complete.

Preparing captive wires

You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.

Never pre-tin wires for compression-type connections.

1. Strip 0.25 inch (6.35 mm) of insulation off all wires.

2. Insert each wire into the appropriate opening on the connector (according to the wiring diagrams and

connector types described in this section).

3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively; doing so

may strip the threads and damage the connector.

Wiring a power connection

To use the 2-pin 3.5 mm mini-Phoenix connector with a 12 VDC-compliant power supply, the incoming PWR and GND wires from the external source must be connected to their corresponding locations on the connector (FIG. 44).

FIG. 44 NetLinx power connector wiring diagram

1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm mini-Phoenix cable.

Match the wiring locations of the +/- on both the power supply and the terminal connector.

2. Tighten the clamp to secure the two wires. Do not tighten the screws excessively; doing so may strip the

threads and damage the connector.

3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the power supply.

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

TIA 568B

1 2 3 4 5 6 7 8

RJ-45 connector - pin configurations

(female) (male)

ETHERNET

10/100

A L

A - Activity LED (yellow)

lights when receiving or

transmitting Ethernet

data packets

L - Link LED (green) lights when the Ethernet cables are connected and terminated correctly.

12 3 45 6 78

Audio/Video Port: Connections and Wiring

The following table shows the signal and pinout/pairing information used on the RJ-45 Audio and Video connections.

Audio/Video RJ-45 Pinout Information

Pin Wire Color Function Polarity

1 Orange/White Right Audio In + 2 Orange Right Audio In 3 Green/White Video In 4 Blue Mic Out 5 White/Blue Mic Out + 6 Green Video In + 7 White/Brown Left Audio In + 8 Brown Left Audio In -

Refer to the Installing CAT5 Suppression Ferrites section on page 12 for detailed information on how to install the necessary number of CAT5 Suppression Ferrites on the Black A/V RJ-45 cable connected to the panel.

Ethernet/RJ-45 Port: Connections and Wiring

FIG. 45 describes the blink activity for the Ethernet 10/100 Base-T RJ-45 connector and cable. The Ethernet cable is connected to the side of the Wall Mount panels

FIG. 45

The following table lists the pinouts, signals, and pairing associated with the Ethernet connector.

Layout of Ethernet LEDs

Ethernet RJ-45 Pinouts and Signals

Pin Signals Connections Pairing Color

1 TX + 1 --------- 1 1 --------- 2 Orange-White 2 TX - 2 --------- 2 Orange 3 RX + 3 --------- 3 3 --------- 6 Green-White 4 no connection 4 --------- 4 Blue 5 no connection 5 --------- 5 Blue-White 6 RX - 6 --------- 6 Green 7 no connection 7 --------- 7 Brown-White 8 no connection 8 --------- 8 Brown

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

FIG. 46 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.

FIG. 46 RJ-45 wiring diagram

Installation Procedures: NXD-1200V Panels

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Panel Calibration

AMX Splash Screen

(appears during power-up)

Initial Panel Page (AMX Logo Page)

Front Setup

Access button (grey)

- 3 second press/hold:

Accesses the Setup page

- 6 second press/hold:

Accesses the Calibration page

Single press puts the panel to sleep

Overview

This section outlines the steps for calibrating the touch panel. It is recommended that you calibrate the panel before its initial use and after completing a firmware download.

Modero panels are factory setup with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page (FIG. 47).

Panel Calibration

FIG. 47 AMX splash screen and initial Panel Page

Calibrating the Modero Panel

1. Press and hold the grey Front Setup Access button (FIG. 48) for 6 seconds (passing-over the Setup page)

to access the Calibration setup page (FIG. 49). The panel should first be calibrated properly.

FIG. 48 Location of grey Front Setup Access button

Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 49).

Panel Calibration

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

The request to touch the crosshairs is the first on-screen message

Calibration successful is the second on-screen message that appears

On-screen crosshairs used for calibration of the touch device

after the calibration process is completed

On-screen crosshairs is used to verify a proper calibration of the panel

FIG. 49 Touch Panel Calibration Screens

2. After the "Calibration Successful.." message appears, press anywhere on the screen to continue and

return to the Setup page.

If the calibration was improperly set and you cannot return to the Calibration page (through the panel’s firmware); you can access this firmware page via

G4 WebControl where you can navigate to the Protected Setup page and press the Calibrate button through your VNC window. This action causes the panel to go to the Calibration page seen above, where you can physically recalibrate the actual touch panel again using the above procedures.

Testing your Calibration

Press and hold down the on-screen Calibration button for 6 seconds to enter the Calibration Test page (FIG. 50).

FIG. 50 Calibration Test page

2. Press anywhere on this page to confirm the on-screen crosshairs match your touch points.

3. If the crosshairs do not appear directly below your LCD touch points, press the Back button and

recalibrate the panel using the above steps.

4. Exit this Calibration Test page by pressing the Back button to return to the Protected Setup page.

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Configuring Communication

Battery Base button doesn’t appear

until NXT is connected to a BASE/B

Connection Status Red Connection Status icon -

Green Connection Status icon -

indicates no connection to a Master

indicates communication to a Master

Yellow Connection Status icon -

indicates an unreliable network connection

Overview

Communication between the Modero panel and the Master is done using either USB or ETHERNET (DHCP or Static IP). Ethernet communication can be achieved through either a direct connection (Ethernet) or

through the use of the optional NXA-PCI80211G wireless interface card.

USB input devices must be plugged into the rear or side USB connectors before the G4 panel is powered-up. The panel will not detect a USB connection of this type until after the unit cycles power.

Before commencing, verify you are using the latest NetLinx Master and Modero panel firmware. Verify you are using the latest versions of AMX’s NetLinx Studio and TPDesign4 programs.

Modero Setup and System Connection

1. Press the grey Front Setup Access button for 3 seconds to open the Setup page (FIG. 51).

Configuring Communication

FIG. 51 Setup page

2. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup

page and display an on-screen keypad.

3. Enter 1988 into the Keypad’s password field and press Done when finished.

Clearing Password #5, from the initial Password Setup page, removes the need for you to enter the default password before accessing the Protected Setup page.

4. Press the red Device Number field to open the Device Number keypad (FIG. 52).

5. Enter a Device Number value for the panel into the Device Number Keypad.

The default is 10001 and the range is from 1 - 32000.

When using multiple panels within a NetLinx System, remember to assign unique Device Number values to each panel so that all assigned panels appear in the System listing for the target Master.

6. Press Done to close the keypad, assign the number, and return to the Protected Setup page.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

MAC Address

NetLinx Master’s connection

Modero

connection

information

from panel is

factory set to a

unique address

information

FIG. 52 Protected Setup page

7. Press the on-screen Reboot button to restart the panel and incorporate any changes.

Before continuing, open NetLinx Studio 2.x. This program assists in developing a System Number, Master IP/URL, and Master Port number. Refer to your NetLinx Master’s instruction manuals for more information.

8. Obtain the System Number and Master IP Address from NetLinx Studio. This information must be

specific for the system used with the configured Modero panel.

9. Press the grey Front Setup Access button for 3 seconds to open the Setup page.

10. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup

page.

11. Press the System Settings button (located on the Protected Setup page) to open the System Settings page

(FIG. 53) and begin configuring the communication settings on the panel to match those of the target Master.

FIG. 53 System Settings page

There are 2 possible Master Connection Types available: USB or Ethernet. A USB connection type is a direct connection from the panel’s mini-USB port to a corresponding USB port on the PC (acting as a Virtual Master). An Ethernet connection type involves indirect communication from the panel to a Master via an Ethernet connection to the network.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

It is recommended that firmware KIT files only be transferred over a direct connection and only when the panel is connected to a power supply. If battery power or wireless connection fails during a firmware upgrade, the panel flash file system may become corrupted.

The mini-USB connector MUST be plugged into an already active panel before the PC can recognize the connection and assign an appropriate USB driver. This driver is part of the latest TPDesign4 software application installation.

Configuring and Using USB with a Virtual Master

NetLinx Studio can be setup to run a Virtual Master where the PC acts as the Master by supplying its own IP Address for communication to the panel. The PC is first equipped with the USB driver, the panel is then configured for USB communication, and then Studio is configured to act as the Master.

For a personal computer to establish a connection to a Modero panel via USB, the target computer must have the appropriate AMX USB driver installed. This installation is bundled into the latest TPDesign4 software setup process or can be downloaded independently from the main Application Files page on www.amx.com.

Step 1: Setting up the Panel and PC for USB Communication

If you do not currently have the latest version of TPDesign4, navigate to www.amx.com > Tech Center > Downloadable Files > Application Files > NetLinx Design Tools section of the website and locate the AMX USB Driver executable (AMX USBLAN Setup exe).

2. Download this executable file to a known location on your computer.

3. Launch the file by double-clicking on it and follow the on-screen prompts to complete your installation.

Note that even if you have loaded the latest AMX Studio or TPD4 software, you will still need to download and install this file if you are working with either the 1200V-Series or VG-Series of panels.

4. Choose the default language, agree to the Licensing information, and choose the location for the file

installations (C:\Program Files\AMX\USBLAN).

5. From within the Choose Components dialog, select the features you wish to install. The Driver option is

selected by default and is the only item required.

6. Click the Install button to continue with the installation.

7. Once the application begins the installation of the corresponding USB driver files, it may encounter cases

where previous versions of these files already exist. This can occur if you have previously installed released versions of NetLinx Studio and TPDesign4.

If you are prompted to replace the AXBLAN.INF file, select YES. If you are prompted to replace the Checked driver file, select NO. If you are prompted to replace the AXBLAN.SYS and AXFILT.SYS files, select Ye s.

8. Continue the setup process by following these OS-related processes:

For machines running Windows 2000 simply click the Next button when the installation is

complete. Creating a restore point is not an available option in 2000.

For Windows XP machines the setup program asks if you would like to create a restore point. It is

always a good idea to create restore points prior to installing new software. Click the Next button when done.

9. At the end of the installation, press the Finish button.

Step 2: Confirming the Installation of the USB Driver on the PC

The first time each AMX touch panel is connected to the PC it is detected as a new hardware device and the USBLAN driver becomes associated with it (panel specific). Each time thereafter the panel is "recognized" as a unique USBLAN device and the association to the driver is done in the background. When the panel is detected for the first time some user intervention is required during the association between panel and driver.

1. After the installation of the USB driver has been completed, confirm the proper installation of the large

Type-A USB connector to the PC's USB port, and restart your machine.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

No connection is established until the Virtual Master becomes active within Studio

Red Connection Status icon -

Green Connection Status icon -

indicates no connection to a Master

indicates communication to a Master

indicates an unreliable network

Yellow Connection Status icon -

connection

If the panel is already powered, continue with steps 3. The panel MUST be powered and configured for USB communication before connecting the mini-USB connector to the panel’s Program Port.

2. Connect the terminal end of the 12 VDC-compliant power supply cable to the power connector on the

rear/side of the touch panel and then apply power.

3. After the panel powers-up, press and hold the grey Front Setup Access button (for 3 seconds) to continue

with the setup process and proceed to the Setup page.

4. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page

(FIG. 54).

FIG. 54 System Settings page - using a USB Connection Type

5. Toggle the blue Type field (from the Master Connection section) until the choice cycles to USB. Refer to

the System Settings Page section on page 107 for more information about the fields on this page.

ALL fields are then greyed-out and read-only, but still display any previous network information.

6. Press the Back button on the touch panel to return to the Protected Setup page.

7. Press the on-screen Reboot button to both save any changes and restart the panel. Remember that the

panel’s connection type must be set to USB prior to rebooting the panel and prior to inserting the USB connector.

8. ONLY AFTER the unit displays the first panel page, THEN insert the mini-USB connector into the

Program Port on the panel. It may take a minute for the panel to detect the new connection and send a signal to the PC (indicated by a green System Connection icon). If this is your first time installing the USB driver, a USB driver installation popup window (FIG. 55) then appears on the screen.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

FIG. 55 USB driver installation popup window

This window notifies you that the panel has been detected by the PC as a USB-compliant device

and the PC is installing an appropriate USB driver to establish a proper communication to the panel.

The driver does not contain a Microsoft

digital signature and Windows® then informs you of such.

9. Click Ye s when told that a digital signature was not found. This action accepts the installation of the new

USB driver. The panel is now configured to communicate directly with the PC.

This process completes the association between driver and device.

Each time the same touch panel is connected to the computer the driver is automatically loaded (using a unique name - example USB LAN LINK #1, #2). Each time a different touch panel is connected to the computer, the previous procedures will need to be repeated.

The previous version of the AMX USBLAN driver showed a USB connection icon in the system

tray when a panel was connected. The new version of the driver does not show an icon in the System Tray.

A Virtual NetLinx Master (VNM) is used when the target panel is not connected to a physical NetLinx Master. In this situation, the PC takes on the functions of a Master via a Virtual NetLinx Master. This connection is made by either using the PC’s

Ethernet Address (via TCP/IP using a known PC’s IP Address as the Master) or using a direct mini-USB connection to communicate directly to the panel.

10. Navigate back to the System Settings page.

Step 3: Confirm and View the current AMX USB device connections

Navigate to Start > Settings > Control Panel > and double-click the System icon to launch the System

Properties dialog.

2. Select the Hardware tab and click on the Device Manager button to launch the Device Manager dialog.

Within the Device Manager dialog, the AMX USBLAN device appears under Network Adapters

(FIG. 56) and has a unique name such as AMX USB LAN LINK #2. The number changes depending on which recognized panel is currently connected.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

USB connected touch panel (showing the recognized panel)

FIG. 56 Device Manager dialog showing USB device

To remove the USB driver association from a previously connected touch panel, you must navigate back to the Device Manager, right-click on the panel’s USB driver (example AMX USB LAN LINK #2) and select Uninstall from the context menu and then OK.

Step 4: Using a USB to Configure a Virtual Master (using NetLinx Studio)

Once the system completes the removal of the device, the Device Manager window will refresh,

and the device will no longer appear.

The next time this device is connected to the computer it will appear as a new hardware device and

will need to be associated again with the driver (refer to Step 2: Confirming the Installation of the USB Driver on the PC section on page 49.

When configuring your panel to communicate via USB with a Virtual Master (on your PC), ONLY the USB connection option must be selected within the Type field. Since this is a direct connection, the PC’s IP Address is not needed.

Before beginning:

1. Verify the panel has been configured to communicate via USB within the System Settings page and that

the USB driver has been properly configured. Refer to the previous section for more information.

2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc > NetLinx

Studio 2 > NetLinx Studio 2).

3. Select Settings > Master Communication Settings, from the Main menu to open the Master

Communication Settings dialog (FIG. 57).

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

(not needed as this is a direct

USB connection)

IP Address of computer

FIG. 57 Assigning Communication Settings for a Virtual Master

4. Click the Communications Settings button to open the Communications Settings dialog.

5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate that you are

working as a NetLinx Master.

6. Click on the Virtual Master radio box (from the Transport Connection Option section) to indicate you

are wanting to configure the PC to communicate directly with a panel. Everything else such as the Authentication is greyed-out because you are not going through the Master’s UI.

7. Click the Edit Settings button (on the Communications Settings dialog) to open the Virtual NetLinx

Master Settings dialog (FIG. 57).

8. From within this dialog enter the System number (default is 1).

9. Click OK three times to close the open dialogs, save your settings, and return to the main NetLinx Studio

application.

10. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System.

The default System value is one.

11. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list.

The panel will not appear as a device below the virtual system number (in the Online Tree tab) until both the system number used in step 7 for the VNM is entered into the Master Connection section of the System Settings page and the panel is restarted.

The Connection status turns green after a few seconds to indicate an active USB connection to the

PC (Virtual Master). No Lock icon is displayed because this USB connection is not secured (requiring a username/password).

If a few minutes have gone by and the System Settings icon still does not turn green, repeat the

USB connection and Virtual Master setup procedures (outlined in this section). Refreshing the System sends out a request to the panel to respond and completes the communication (turning the System Connection icon green).

Step 5: Confirm and View the current AMX USB device connections

Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC. This method of communication is used to transfer firmware KIT files and TPD4 touch panel files.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

A mini-USB connection is only detected after it is installed onto an active panel. Connection to a previously powered panel which then reboots, allows the PC to detect the panel and assign an appropriate USB driver.

1. Verify this direct USB connection (Type-A on the panel to mini-USB on the panel) is configured properly

using the steps outlined in the previous two sections.

2. With the panel already configured for USB communication and the Virtual Master setup within NetLinx

Studio, its now time to verify the panel is ready to receive files.

3. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System.

The default System value is one.

4. Right-click on the System entry (A in FIG. 58) and select Refresh System. This causes a refresh of all

project systems, establishes a new connection to the Virtual Master, and populates the System list with devices on your particular system.

FIG. 58 Using USB for Virtual Master communication

Wireless Settings Page - Wireless Access Overview

IP Routing

The behavior of the wireless routing is largely dependent on the wired network interface. Although the panel can be connected to two networks simultaneously it may only have one gateway. If the wired network was successfully set up and a gateway was obtained; then the default route for all network traffic will be via the wired network. In the event that the wired network was not configured, then the default route for all network traffic will be via the wireless network. The wired network connection always takes priority.

As an example: Imagine a panel connected to two networks A & B. A is the wired network and B is the wireless network. If the Master controller is on either of these networks then it will be reached. However if the Master controller is on a different network, C, then determining which network interface (wired or wireless) that will be used is dependent on the gateway.

Hot Swapping

Hot swapping is not an issue on these panels as the card is installed within the unit and cannot be removed without first removing the housing.

In the case of DHCP, there must be a DHCP server accessible before the fields are populated.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

If the SSID (Network Name) and WEP fields have not previously been configured, the Wireless Settings page will not work until the panel is rebooted.

Ethernet Communication from the panel can be direct (using an Ethernet cable) or indirect (through the NXAPCI80211G AMX Wireless Card (FG2255-04) communicating to a Wireless Access Point (WAP) such as the NXA-WAP200G). In determining the Ethernet method of communication, the panel will always default first to the direct Ethernet communication. If no direct connection is detected, the panel will first check to see if there is an installed wireless interface card and then communicate to the WAP using the Wireless Settings assigned within the Wireless Settings page. The WAP communication parameters must match those of the pre-installed wireless interface card installed within the panel.

Wireless Access Points are the cornerstone of any wireless network. A Wireless Access Point acts

as a bridge between a wired and wireless network. It aggregates the traffic from all the wireless clients and forwards it down the network to the switch or router. One Wireless Access Point may be all you need. However, you could need more Wireless Access Points depending on either how large your installation is, how it is laid out, and how it is constructed.

Wireless Equivalent Privacy (WEP) Security is a method by which WLANs protect wireless data

streams. A data stream encrypted with WEP can still be intercepted or eavesdropped upon, but the encryption makes the data unintelligible to the interloper. The strength of WEP is measured by the length of the key used to encrypt the data. The longer the key, the harder it is to crack.

802.11b implementations provided 40-bit and 104-bit WEP keys. This is known respectively as 64bit and 128-bit WEP encryption. 64-bit is generally not regarded as adequate security protection. Both key lengths are supported by the Modero product line. Whichever level of WEP you use, it's crucial to use identical settings (CASE SENSITIVE)--the key length, and the key itself-- on all devices. Only devices with common WEP settings will be able to communicate. Similarly, if one device has WEP enabled and another doesn't, they won't be able to talk to each other.

Although the calculations required to encrypt data with WEP can impact the performance of your wireless network, it's generally seen only when running benchmarks, and not large enough to be noticeable in the course of normal network usage.

Configuring a Wireless Connection

When working with a wireless card, the first step is to configure wireless communication parameters within the Wireless Settings page. This page only configures the card to communicate to a target WAP (such as the NXA-WAP200G), it is still necessary to tell the panel which Master it should be communicating with. This "pointing to a Master" is done via the System Settings page where you configure the IP Address, System Number and Username/Password information assigned to the target Master.

Step 1: Configuring the Panel’s Wireless IP Settings

The first step to successfully setting up your wireless card is to configure the IP Settings section of the Wireless Settings page. The section configures the communication parameters from the Modero panel to the web.

Wireless communication using a DHCP Address

Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup page and display an on-screen keypad.

2. Enter 1988 into the Keypad’s password field and press Done when finished.

3. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.

Wireless communication is set within the IP Settings section of this page (FIG. 59).

4. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to DHCP.

This action causes all fields in the IP Settings section (other than Host Name) to be greyed-out.

DHCP will register the unique MAC Address (factory assigned) on the panel and once the communication setup process is complete, assign IP Address, Subnet Mask, and Gateway values from the DHCP Server.

5. Press the optional Host Name field to open a Keyboard and enter the Host Name information.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Modero

connection

IP info.

FIG. 59 Wireless Settings page (IP Settings section)

6. Press Done after you are finished assigning the alpha-numeric string of the host name.

7. Do not alter any of these remaining greyed-out fields in the IP Settings section. Once the panel is

rebooted, these values are obtained by the unit and displayed in the DNS fields after power-up.

This information can be found in either the Workspace - System name > Define Device section of your code (that defines the properties for your panel), or in the Device Addressing/Network Addresses section of the Tools > NetLinx Diagnostics dialog.

8. Setup the security and communication parameters between the wireless card and the target WAP by

configuring the Wireless Settings section on this page. Refer to Step 2: Configuring the Card’s Wireless Security Settings section on page 57 for detailed procedures to setup either a secure or insecure

connection.

Wireless communication using a Static IP Address

Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup page and display an on-screen keypad.

2. Enter 1988 into the Keypad’s password field and press Done when finished.

3. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.

Wireless communication is set within the IP Settings section of this page (FIG. 59).

Check with your System Administrator for a pre-reserved Static IP Address assigned to the panel. This address must be obtained before Static assignment of the panel continues.

4. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to Static.

The IP Address, Subnet Mask, and Gateway fields then become user-editable (red).

5. Press the IP Address field to open a Keyboard and enter the Static IP Address (provided by your System

Administrator).

6. Press Done after you are finished entering the IP information.

7. Repeat the same process for the Subnet Mask and Gateway fields.

8. Press the optional Host Name field to open the Keyboard and enter the Host Name information.

9. Press Done after you are finished assigning the alpha-numeric string of the host name.

10. Press the Primary DNS field to open a Keyboard, enter the Primary DNS Address (provided by your

System Administrator) and press Done when compete. Repeat this process for the Secondary DNS field.

11. Press the Domain field to open a Keyboard, enter the resolvable domain Address (this is provided by your

System Administrator and equates to a unique Internet name for the panel), and press Done when complete.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Mini-PCI settings

12. Setup the security and communication parameters between the wireless card and the target WAP by

configuring the Wireless Settings section on this page. Refer to the following section for detailed procedures to setup either a secure or insecure connection.

Step 2: Configuring the Card’s Wireless Security Settings

The second step to successfully setting up your wireless card is to configure the Wireless Settings section of the Wireless Settings page. The section configures both the communication and security parameters from the internal wireless card to the WAP. The procedures outlined within the following sections use an NXA-

WAP200G and the target WAP.

Once you have completed setting up the wireless card parameters, you must then navigate to the System Settings page and configure the communication parameters for the target Master. Until those parameters are configured, your Connection Status icon will remain red (indicating that there is no current connection to a Master).

Configuring the Modero’s wireless card for unsecured access to a WAP200G

Power-down the Modero unit and follow the wireless card installation procedures outlined in Step 2: Install the 802.11g mini-PCI Wireless Card section on page 16.

2. Power-up the panel (this allows it to detect the card).

3. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup

page and display an on-screen keypad.

4. Enter 1988 into the Keypad’s password field and press Done when finished.

5. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.

6. From within the Wireless Settings section of the Wireless Settings page, touch the Network Name (SSID)

field (FIG. 60).

FIG. 60 Wireless Settings page (showing default values)

7. From the Service Set Identifier keyboard, enter the SSID name used by your target Wireless Access Point

(case sensitive).

The card should be given the SSID used by the target WAP. If this field is left blank, the unit will

attempt to connect to the first available WAP. By default, all WAP200Gs use AMX as their assigned SSID value.

One of the most common problems associated with connection to a WAP arise because the SSID

was not entered properly. You must maintain the same case when entering the SSID information. ABC is not the same as Abc.

8. Toggle the Authentication field to an Open System (default).

Open System Authentication allows any device to join the network if the panel’s SSID matches

the WAP’s SSID.

9. Toggle the Encryption field until it reads Clear Text (default).

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

The remaining Wireless Settings fields are then greyed-out and become read-only. All NXA-WAP200Gs are factory-shipped as an unsecured WAP with no WEP encryption. The WAP200G initial Status page will display the status of both the WEP and WPA (both disabled).

10. Verify the fields in the IP Settings section have been properly configured. Refer to Step 1: Configuring the

Panel’s Wireless IP Settings section on page 55 for detailed information.

11. Press the Back button to navigate to the Protected Setup page and press the on-screen Reboot button to

both save any changes and restart the panel. Remember that you will need to navigate to the System Settings page and configure the connection to a target Master.

12. After the panel restarts, return to the Wireless Settings page to verify the Link Quality and Signal

Strength:

The signal strength field should provide some descri ptive text regarding the strength of the connection to a Wireless Access Point. If there is no signal or no IP Address displayed; configuration of your network could be required.

Refer to the NXA-WAP200G Instruction Manual for more detailed setup and configuration procedures.

Configuring the Modero’s wireless card for secured access to a WAP200G

After logging into the WAP200G, the default Status page appears within the web browser. These read-only values are "pulled" from some of the other user-configurable Configuration Utility pages. By default, wireless Modero panels are configured for unsecured communication to a Wireless Access Point. To properly setup both the WAP200G and panel for secure communication, you must first prepare the Modero panel and then use the information provided to fill out the fields within the WAP’s browser-based Basic Wireless Configuration page.

Since the code key generator on Modero panels use the same key generation formula, all panels will generate identical keys for the same Passphrase. The generators used on WAPs will not produce the same key as the Modero generator even if you use the same Passphrase. This is why we recommend creating the Current Key FIRST on the Modero and then entering that information into the appropriate WAP200G fields.

1. Power-down the Modero unit and follow the wireless card installation procedures outlined in Step 2:

Install the 802.11g mini-PCI Wireless Card section on page 16.

2. Power-up the panel (this allows it to detect the card).

3. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup

page and display an on-screen keypad.

4. Enter 1988 into the Keypad’s password field and press Done when finished.

5. Press the Wireless Settings button (located on the lower-left) to open the Wireless Settings page.

6. Locate the Wireless Settings section of the Wireless Settings page (FIG. 61).

The bargraphs have been replaced with descriptions: None, Poor, Fair, Good, Very Good, and

Excellent (FIG. 60).

When configuring touch panels for wireless communication, verify that no Ethernet connector is

installed within the panel before the unit is power cycled.

Configuring Communication

NXD/T-1200V 12" Modero® Video Wall/Flush Mount Touch Panel

Mini-PCI wireless card communication settings (for use with a target WAP)

SSID field

Changes on this page take effect after using the BACK button to return to the previous page

FIG. 61 Wireless Settings page (Wireless Settings section)

You must first take the SSID name, Current Key string value, and panel MAC Address information and then later enter it into the appropriate WAP dialog fields in order to "sync-up" the secure connection. These values must be identically reproduced on the target WAP.
