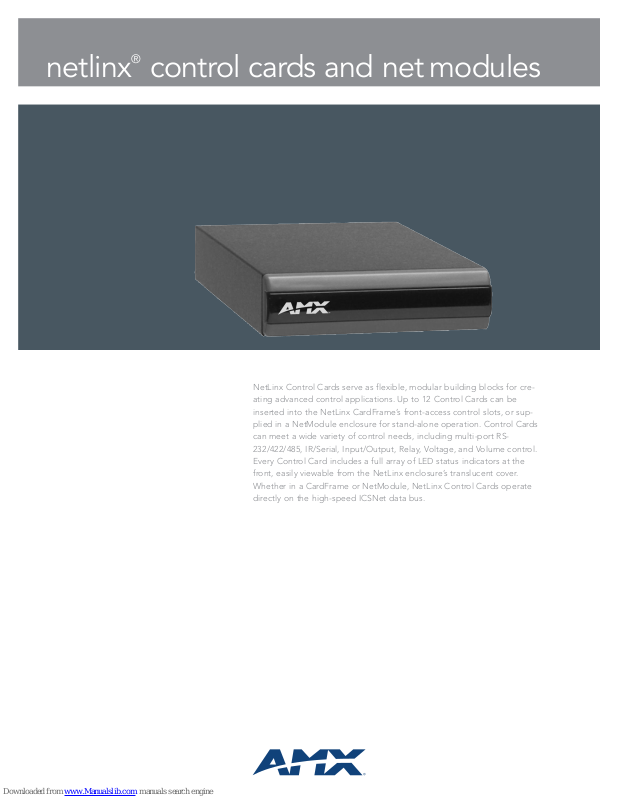

AMX NXM-COM2, NXC-COM2, NXC-VAI4, NXC-IRS4, NXC-REL10 Specifications
...
netlinx®control cards and net modules
NetLinx Control Cards serve as flexible, modular building blocks for creating advanced control applications. Up to 12 Control Cards can be
inserted into the NetLinx CardFrame’s front-access control slots, or supplied in a NetModule enclosure for stand-alone operation. Control Cards
can meet a wide variety of control needs, including multi-port RS232/422/485, IR/Serial, Input/Output, Relay, Voltage, and Volume control.
Every Control Card includes a full array of LED status indicators at the
front, easily viewable from the NetLinx enclosure’s translucent cover.
Whether in a CardFrame or NetModule, NetLinx Control Cards operate
directly on the high-speed ICSNet data bus.
netlinx®control cards and net modules
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
DUAL COM PORTS, RS-232/422/485
•Provides 2 RS-232/422/485
data control ports and front-panel
feedback
OPERATION
DATA 1-2
2 RS-232/422/485 control ports, supports
XON/XOFF, CTS/RTS, 300–115,200 baud
STATUS
2 LEDs for each channel Red LED for data TX,
RTS Yellow LED for data RX, CTS Green ICSP
status LED
WIRING
3.5mm captive-screw terminals
MODELS
NXC-COM2 Dual COM Port Card
NXM-COM2 Dual COM Port NetModule
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
ANALOG VOLTAGE, 4 ANALOG I/O CHANNELS
•Provides 4 analog Input/Output
channels and front-panel LED
feedback
•Drives internal voltage or accepts
external Input/Output DC voltages
OPERATION
INPUTS 1-4
0 to +12 VDC, ref. to power supply GND
OUTPUTS
1-4: -12 to +12 VDC, 60ma ref. to power
supply GND
FEEDBACK
4 Red LEDs for channel Out, 4 Yellow LEDs for
channel In Green ICSP status LED
JUMPERS
Select output type: Single- ended bipolar and
external reference
RESOLUTION
10-bit A/D, 1024 steps
WIRING
3.5mm captive-screw terminals
MODELS
NXC-VAI4 Analog I/O 4 Card
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
4-PORT IR/S, 4 IR PORTS AND 4 I/0 PORTS
•Provides 4 IR/Serial control ports and
front-panel status feedback
• Includes 4 inputs for sensed IR
power control
OPERATION
IR 1-4
4 IR/IR Serial control ports 20 KHz-1.14 MHz
INPUT 1-4
4 I/O ports for closure or 0–5 VDC
sensing, 200 mA
POWER
+12 VDC power for sensors
STATUS 1-10
2 LEDs for each channel, Red LED for IR
transmission, Yellow LED for input status,
Green ICSP status LED
WIRING
3.5mm captive-screw terminals
MODELS
NXC-IRS4 4-Port IR/S Card
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
GND 1
RXD 2
TXD 3
CTS1 4
RTS1 5
TX1+ 6
TX1- 7
RX1+ 8
RX1- 9
+12 VDC 10
GND 11
RXD2 12
TXD2 13
CTS2 14
RTS2 15
TX2+ 16
TX2- 17
RX2+ 18
RX2- 19
+12 VDC 20
CH 1 TX (red)
CH 1 RX (yellow)
CH 2 TX (red)
CH 2 RX (yellow)
Ground 1
Output 1 2
Ground 3
Output 2 4
Ground 5
Output 3 6
Ground 7
Output 4 8
Ground 9
Input 1 10
Ground 11
Input 2 12
Ground 13
Input 3 14
Ground 15
Input 4 16
Ground 17
Extnl Ref Output 18
Ground 19
Extnl Ref Input 20
CH 1 Out (red)
CH 1 Input (yello
CH 2 Out (red)
CH 2 Input (yello
CH 3 Out (red)
CH 3 Input (yello
CH 4 Out (red)
CH 4 Input (yello
RELAY 10, 10 RELAYS
• Provides 10 isolated relays and frontpanel LED feedback
OPERATION
RELAY 1-10
10 relays, 750 mA, 28 VAC/24 VDC
normally open
STATUS 1-10
1 LED for each relay, Red LED shows on status,
Green ICSP status LED
WIRING
3.5mm captive-screw terminals
MODELS
NXC-REL10 Relay 10 Card
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
VOLUME, 4 AUDIO CHANNELS
• Provides 4 channels of audio attenuation
• 100 db of volume coontrol
OPERATION
• Inputs: 1-4, balanced or unbalanced audio
• Outputs: 1-4, balanced audio
• Status: 3 LEDs for each channel
Yellow LED for raise volume
Yellow LED for lower volume
Red LED for muting volume
• Wiring: 3.5 mm captive-screw terminals
MODELS
• NXC-VOL4 Volume Card
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
INPUT 10, 10 INPUT/OUTPUT CHANNELS
•Provides 10 Input/Output control channels
and front-panel feedback
• Acts as logic-level switch or input, senses
high and low voltage states in voltage
mode
OPERATION
I/O
10 I/O channels
STATUS
1 LED for each channel, Yellow LED for on
status, Green ICSP status LED
WIRING
3.5mm captive-screw terminals
MODELS
NXC-I/O10 Input 10 Card
HOUSING
• NXF NetLinx CardFrame
• NXS-NMS NetModule Shell
CH1 Ground 1
CH1 IR Data 2
CH1 Ground 3
CH1 IR Data 4
CH1 Ground 5
CH1 IR Data 6
CH4 Ground 7
CH4 IR Data 8
Ground 9
Input 1 10
Input 2 11
Input 3 12
Input 4 13
+12 VDC 14
15
16
17
18
19
20
CH 1 IR Out (red)
CH 1 Input (yellow)
CH 2 IR Out (red)
CH 2 Input (yellow)
CH 3 IR Out (red)
CH 3 Input (yellow)
CH 4 IR Out (red)
CH 4 Input (yellow)
Relay 1A 1
Relay 1A 2
Relay 2A 3
Relay 2B 4
Relay 3A 5
Relay 3B 6
Relay 4A 7
Relay 4B 8
Relay 5A 9
Relay 5B 10
Relay 6A 11
Relay 6B 12
Relay 7A 13
Relay 7B 14
Relay 8A 15
Relay 8B 16
Relay 9A 17
Relay 9B 18
Relay 10A 19
Relay 10B 20
Relay 1 (red)
Relay 2 (red)
Relay 3 (red)
Relay 4 (red)
Relay 5 (red)
Relay 6 (red)
Relay 7 (red)
Relay 8 (red)
Relay 9 (red)
Relay 10 (red)
Audio ground 1
CH1 Input+ 2
CH1 Input- 3
CH1 Output+ 4
CH1 Output- 5
Audio ground 6
CH2 Input+ 7
CH2 Input- 8
CH2 Output+ 9
CH2 Output- 10
Audio ground 11
CH3 Input+ 12
CH3 Input- 13
CH3 Output+ 14
CH3 Output- 15
Audio ground 16
CH4 Input+ 17
CH4 Input- 18
CH4 Output+ 19
CH4 Output- 20
CH1 Raise (yellow)
CH1 Lower (yellow)
CH1 Mute (red)
CH2 Raise (yellow)
CH2 Lower (yellow)
CH2 Mute (red)
CH3 Raise (yellow)
CH3 Lower (yellow)
CH3 Mute (red)
CH4 Raise (yellow)
CH4 Lower (yellow)
CH4 Mute (red)
CH1 Common 1
CH1 Input 2
CH2 Common 3
CH2 Input 4
CH3 Common 5
CH3 Input 6
CH4 Common 7
CH4 Input 8
CH5 Common 9
CH5 Input 10
CH6 Common 11
CH6 Input 12
CH7 Common 13
CH7 Input 14
CH8 Common 15
CH8 Input 16
CH9 Common 17
CH9 Input 18
CH10 Common 19
CH10 Input 20
CH 1 (yellow)
CH 2 (yellow)
CH 3 (yellow)
CH 4 (yellow)
CH 5 (yellow)
CH 6 (yellow)
CH 7 (yellow)
CH 8 (yellow)
CH 9 (yellow)
CH10 (yellow)
