AMX NXC-ME260 User Manual

Download

instruction manual

NXC-ME260

NetLinx Master-Ethernet Card/Module

NetLinx Central Controllers and Cards

AMX Limited Warranty and Disclaimer

AMX Corporation warrants its products to be free of defects in material and workmanship under normal use for three

(3) years from the date of purchase from AMX Corporation, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components that are warranted for a period of one (1) year.

• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.

• AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX Lighting products are under warranty. AMX Corporation does guarantee the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality cannot be guaranteed due to the random combinations of dimmers, lamps and ballasts or transformers.

• Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year.

• AMX Software is warranted for a period of ninety (90) days.

• Batteries and incandescent lamps are not covered under the warranty.

This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer.

All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is

obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box.

The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received

not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products

returned without a valid RMA number.

AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform.

This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not

liable for any claim made by a third party or by an AMX Dealer for a third party.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort

claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of

liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX

Corporation or an authorized representative of AMX Corporation has been advised of the possibility of any such

damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or

exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of

the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may

also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full

determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX CORPORATION MAKES NO

OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX CORPORATION

EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY

IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS

LIMITED WARRANTY.

This product includes the GoAhead Web Server.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)

(http://www.openssl.org/)

Table of Contents

Product Information .................................................................................................1

Front and rear panel components ............................................................................................ 1

Specifications .................................................................................................................... 2

Rear panel LEDs: ICSNet/ICSHub........................................................................................... 3

Rear panel LEDs: Ethernet ..................................................................................................... 3

Installation and Wiring .............................................................................................5

Setting the Program Port DIP Switch ................................................................................ 5

Baud rate settings .................................................................................................................... 5

Program Run Disable (PRD) mode .......................................................................................... 5

Setting the Program Port DIP switch........................................................................................ 6

Modes and Front Panel LED Blink Patterns...................................................................... 7

Wiring Guidelines .............................................................................................................. 7

Preparing captive wires ............................................................................................................ 7

Wiring length guidelines ........................................................................................................... 8

Wiring a 2-pin power connection.............................................................................................. 8

Using the 4-pin mini-Phoenix connector for data and power ................................................... 8

Using the 4-pin mini-Phoenix connector for data with external power ..................................... 9

Program Port Connections and Wiring.............................................................................. 9

RS232 Program port (front panel).......................................................................................... 10

5-Pin Program port (rear panel) ............................................................................................. 10

ICSNet RJ-45 Connections/Wiring .................................................................................. 10

ICSHub RJ-45 Connections/Wiring ................................................................................. 11

ICSHub IN port....................................................................................................................... 11

ICSHub OUT port................................................................................................................... 12

Ethernet 10/100 Base-T RJ-45 Connections/Wiring ....................................................... 12

Ethernet ports used by the ME260......................................................................................... 13

SPE Port Connection/Wiring ........................................................................................... 13

SPE cable pinout information................................................................................................. 14

NXC-ME260 Installation and Mounting Procedures........................................................ 15

Mounting the ME260 into an NXS-NMS................................................................................. 15

Mounting the NXS-NMS Into an Equipment Rack ................................................................. 15

Mounting the NXC-ME260 in an NXF CardFrame or NXI ...................................................... 16

Replacing the Lithium Batteries....................................................................................... 17

NXC-ME260 NetLinx Master-Ethernet Card/Module

Table of Contents

Communication and Firmware Update .................................................................19

Communicating with the Master via the Program Port.................................................... 19

Verifying the current version of NetLinx Master firmware ...................................................... 20

Setting the System Value................................................................................................ 21

Working with multiple NetLinx Masters .................................................................................. 22

Changing the system value on the Modero panel.................................................................. 22

Changing the Device Address on a Netlinx Device......................................................... 23

Changing the device address on the Modero panel............................................................... 24

Recommended NetLinx Device numbers............................................................................... 24

Resetting the Factory Default System and Device Values.............................................. 25

Obtaining the Master’s IP Address (using DHCP) .......................................................... 25

Assigning a Static IP to the NetLinx Master .................................................................... 27

Communicating with the NetLinx Master via an IP.......................................................... 28

Installing New NetLinx Master Firmware via an IP.......................................................... 29

NetLinx Security and Web Server .........................................................................33

NetLinx Security web browser and feature support ............................................................... 33

New Master Firmware Security Features........................................................................ 34

NetLinx Security Terms................................................................................................... 34

Accessing the NetLinx Master via an IP Address ........................................................... 35

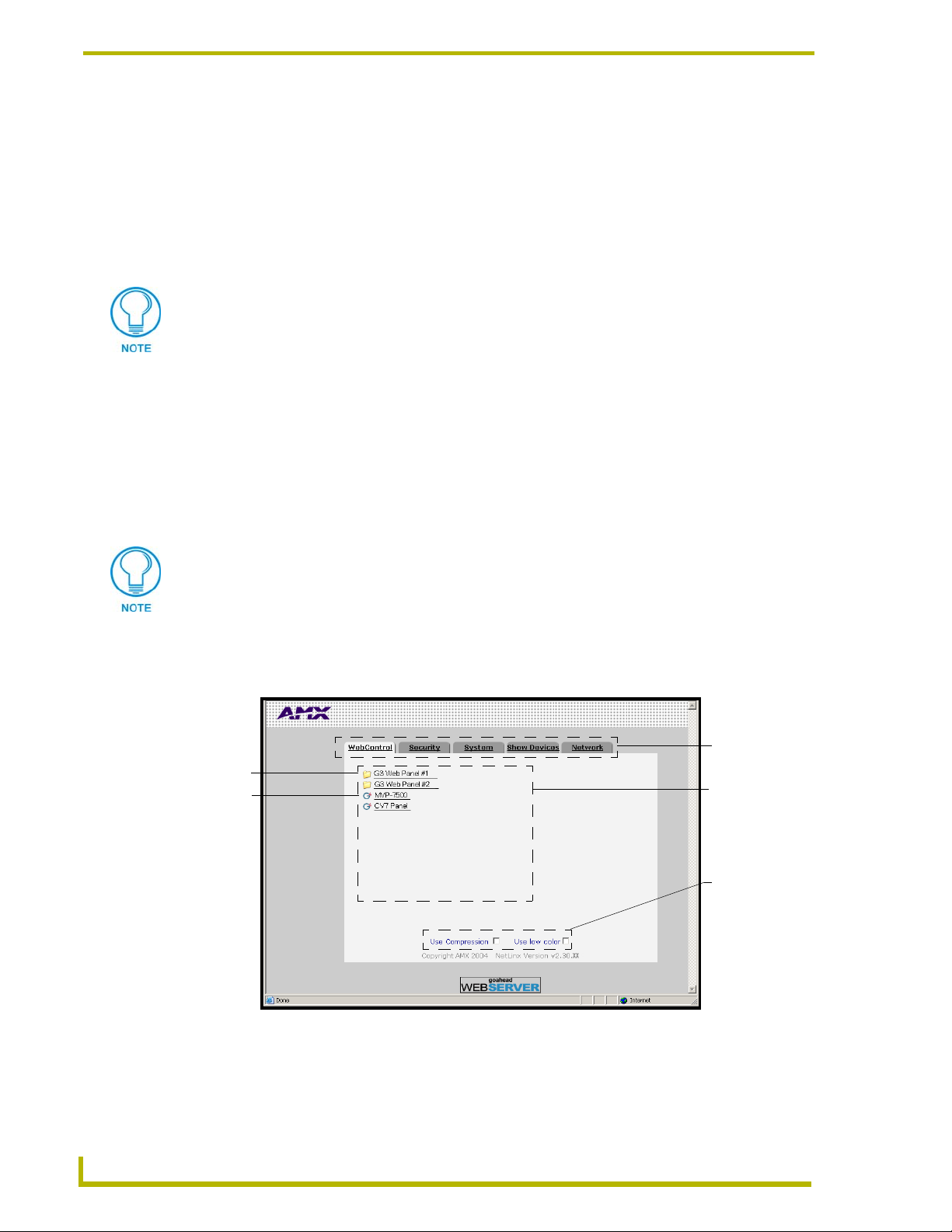

WebControl Tab .............................................................................................................. 35

Default Security Configuration ........................................................................................ 36

Security Tab .................................................................................................................... 37

Security tab - Enable Security page....................................................................................... 38

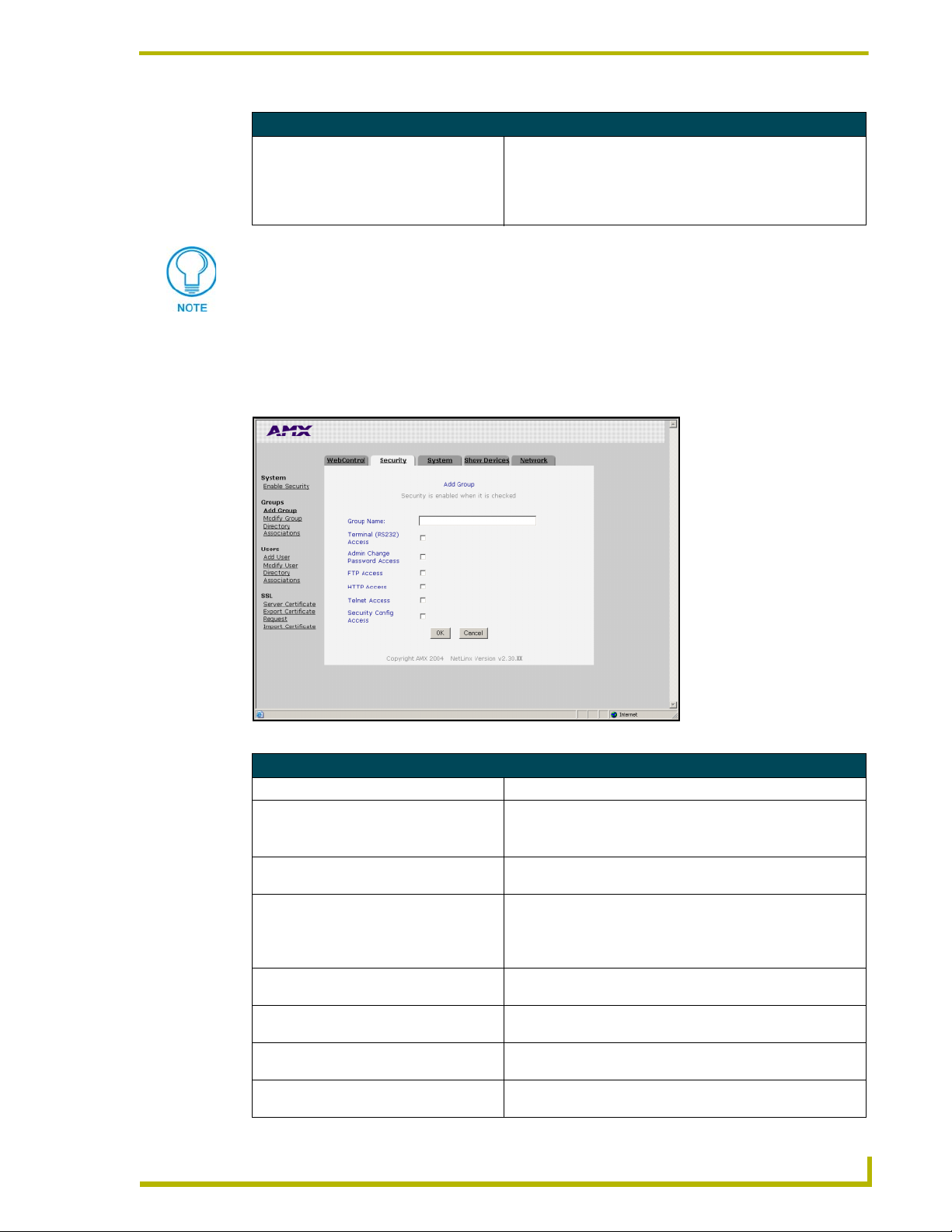

Security tab - Add Group page............................................................................................... 39

Security tab - Modify Group page .......................................................................................... 40

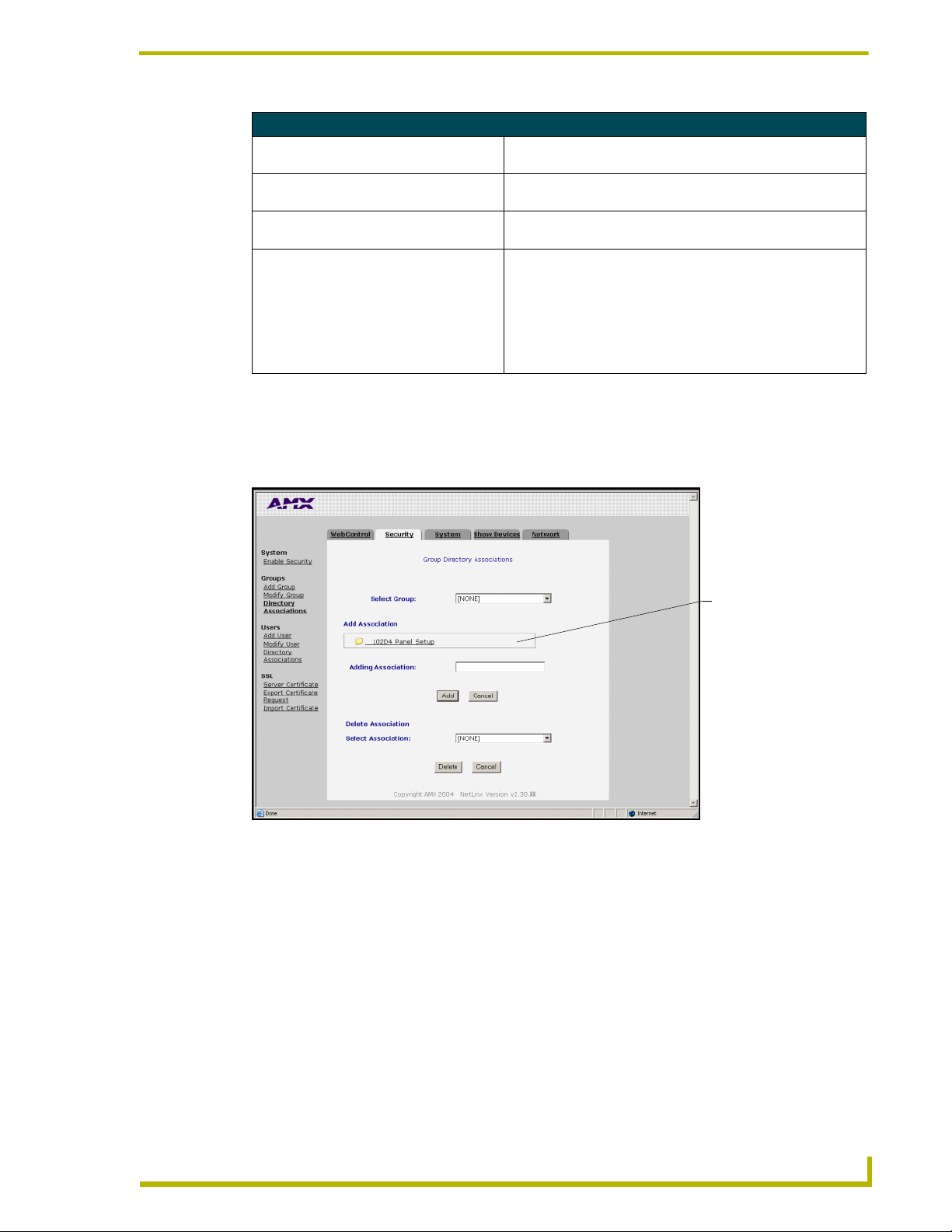

Security tab - Group Directory Associations page ................................................................. 41

Security tab - Add User page ................................................................................................. 43

Security tab - Modify User page............................................................................................. 44

Security tab - User Directory Associations page.................................................................... 45

Security tab - SSL Server Certificate page ............................................................................ 47

Security tab - Export Certificate Request page ...................................................................... 49

Security tab - Import Certificate page..................................................................................... 49

System Tab ..................................................................................................................... 50

Show Devices Tab .......................................................................................................... 50

Network Tab.................................................................................................................... 50

NXC-ME260 NetLinx Master-Ethernet Card/Module

Table of Contents

Master Security Setup Procedures.................................................................................. 51

Setting the system security options for a NetLinx Master (Security Options Menu) .............. 51

Adding a Group and assigning their access rights................................................................. 52

Modifying an existing Group’s access rights .......................................................................... 53

Showing a list of authorized Groups ...................................................................................... 54

Deleting an existing Group..................................................................................................... 54

Adding a Group directory association .................................................................................... 55

Confirming the new directory association .............................................................................. 56

Deleting a directory association ............................................................................................. 56

Adding a User and configuring their access rights ................................................................. 57

Modifying an existing User’s access rights ............................................................................ 58

Showing a list of authorized Users......................................................................................... 59

Deleting a User ...................................................................................................................... 59

Adding a User directory association....................................................................................... 60

Confirming the new directory association .............................................................................. 61

Deleting a directory association ............................................................................................. 61

SSL Certificate Procedures ............................................................................................. 61

Self-Generating a SSL Server Certificate Request ................................................................ 62

Creating a Request for a SSL Server Certificate ................................................................... 63

Importing a CA certificate to the Master over a secure SSL connection................................ 64

Display SSL Server Certificate Information............................................................................ 65

Regenerating an SSL Server Certificate Request.................................................................. 65

Common Steps for Requesting a Certificate from a CA.................................................. 66

Accessing an SSL-Enabled Master via an IP Address.................................................... 68

Using your NetLinx Master to control the G4 panel ............................................................... 70

Using your NetLinx Master to control the G3 panel ............................................................... 71

What to do when a Certificate Expires ............................................................................ 72

NetLinx Security with a Terminal Connection .....................................................73

NetLinx Security Features ............................................................................................... 73

Initial Setup via a Terminal Connection........................................................................... 73

Establishing a Terminal connection ....................................................................................... 73

Accessing the Security configuration options.................................................................. 74

Option 1 - Set system security options for NetLinx Master (Security Options Menu) ............ 75

Option 2 - Display system security options for NetLinx Master .............................................. 76

Option 3 - Add user ................................................................................................................ 76

Option 4 - Edit User................................................................................................................ 77

Option 5 - Delete user ............................................................................................................ 79

Option 6 - Show the list of authorized users .......................................................................... 79

Option 7 - Add Group ............................................................................................................. 79

Option 8 - Edit Group ............................................................................................................. 82

NXC-ME260 NetLinx Master-Ethernet Card/Module

iii

Table of Contents

Option 9 - Delete Group ......................................................................................................... 82

Option 10 - Show List of Authorized Groups.......................................................................... 83

Option 11 - Set Telnet Timeout in seconds............................................................................ 83

Option 12 - Display Telnet Timeout in seconds ..................................................................... 83

Option 13 - Make changes permanent by saving to flash ...................................................... 83

Main Security Menu ........................................................................................................ 84

Default Security Configuration ........................................................................................ 85

Help menu.............................................................................................................................. 86

Logging Into a Session.................................................................................................... 87

Logout ............................................................................................................................. 88

Help Security.......................................................................................................................... 88

Setup Security........................................................................................................................ 88

Programming ..........................................................................................................89

Program Port Commands ............................................................................................... 89

ESC Pass Codes ............................................................................................................ 97

Notes on Specific Telnet/Terminal Clients ...................................................................... 98

Windows client programs ....................................................................................................... 98

Linux Telnet client .................................................................................................................. 98

NXC-ME260 NetLinx Master-Ethernet Card/Module

Product Information

The NXC-ME260 (FG2010-60) is a Master-Ethernet Card for use within NetLinx systems. This

card provides a 10/100 Base-T Ethernet connection and an RJ-11 SPE (Server Port Expander)

connector for use with an AXB-SPE (Server Port Expander). The NXC-ME260 is the only Master

card you will need, as it incorporates the functionality of all previous NetLinx Master Cards

(NXC-M, NXC-ME, and NXC-MPE).

Beyond replacing the previous set of NetLinx Master Cards, the NXC-ME260 represents a

high-performance NetLinx Master Controller. With double the Flash memory (16 MB) and a more

powerful processor (Coldfire

The NXC-ME260 can be loaded in the Master card slot of an NXF NetLinx Cardframe, in an NXI

Integrated Controller, or within an NXS-MHS Master/Hub Module.

Front and rear panel components

FIG. 1 shows the front and rear panel components of the NXC-ME260.

Input LED (yellow)

Output LED (red)

Status LED (green)

5407), the ME260 is faster than previous NetLinx Masters.

Product Information

Front

Rear

Ethernet 10/100

connector

NXC-ME260

Master-Ethernet

12VDC

PWR

12 VDC

power connector

GND

AXM

AXlink

PROGRAM

SPEED

AXP

PWR

ETHERNET

10/100

CTS

RTS

PROGRAM

STATUS INPUTOUTPUT

Program port (RS232)

Ethernet 10/100 LEDs

GND

ICSNet

Program port connector (grey)

AXLink connector

AXLink status LED (green)

Expansion Out connector

ICSNet connectors/LEDs

ICSHub IN/OUT connectors/LEDs

OUT

ICSHub

FIG. 1 Front and rear panel components (NXC-ME260 card shown installed within an NXS-MHS)

NXC-ME260 NetLinx Master-Ethernet Card/Module

Product Information

Specifications

NXC-ME260 Specifications

Dimensions (HWD):

NXC Card 1.38" x 5.43" x 9.25" (35.1 mm x 138.0 mm x 235.0 mm)

NXS Module 1.64" x 5.55" x 9.28" (41.7 mm x 141.0 mm x 236.0 mm)

Weight: NXC-ME260 only: 0.55 lbs (0.25 kg)

NXC-ME260 with NXS-NMS module: 1.95 lbs (0.88 kg)

Power Consumption: 750 mA @ 12 VDC

Memory: Compact Flash: 32 MB standard (upgradeable)

Volatile: 16 MB

Non-volatile: 1 MB

Microprocessor: Coldfire

Enclosure: Metal with black matte finish.

Front Faceplate: Plastic grey with translucent viewing window.

Front Panel Components:

Program port DB9 (male) connector supports RS-232 communications to your PC for system

programming and diagnostics. You set the por t's communication speed with the Baud Rate DIP switch. See the Setting the Program Port DIP Switch section on page 5 for details.

Note: There are Program ports located on the front and rear panels of the Master card for easy access. Because these ports share the same circuitry, you should never use both at the same time; doing so will result in communication and/or programming errors.

Status LED Green LED lights to indicate that the system is programmed and

communicating properly.

Output LED Red LED lights when the Master transmits data, sets channels On and Off,

sends data strings, etc.

Input LED Yellow LED lights when the Master receives data from button pushes, strings,

commands, channel levels, etc.

Front Panel LEDs blink patterns

Program Port DIP Switch 8-position DIP switch located behind the front panel for setting the baud rate for

Rear Panel Components:

PWR connector 2-pin (male) green captive-wire connector for 12 VDC power supply.

EXPANSION OUT port RJ11 connector connects to an AXB-SPE Server Port Expander.

Ethernet 10/100 port RJ-45 Ethernet 10/100 connector. The Ethernet port automatically negotiates

Ethernet 10/100 LEDs LEDs that show communication activity, connections, speeds, and mode

These LEDs also display special blink patterns when a mode is activated. See the Modes and Front Panel LED Blink Patterns section on page 7 for details.

the Program port.

• Available baud rate settings are 9600, 38,400 (default), 57,600 and 115,200

the connection speed (10 Mbps or 100 Mbps) and whether to use half duplex or full duplex mode.

information:

• A-activity - Yellow LED blinks when receiving Ethernet data packets.

• L-link - Green LED lights when the Ethernet cables are connected and

• SPEED - Green LED lights when transmitting data at 100 Mbps, and is Off

• FD-full duplex - Green LED lights when running in full duplex mode, and is Off

5407 (32-bit)

(bps). Refer to the Setting the Program Port DIP Switch section on page 5 for details.

terminated correctly.

when transmitting at 10 Mbps.

when running half duplex mode.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Product Information

NXC-ME260 Specifications (Cont.)

Rear Panel Components (Cont:)

AXlink connector 4-pin (male) black captive-wire connector provides data and power to external

control devices.

• Power rating = 6 A max; actual load depends on connected power supply.

Axlink Status LED Green LED lights to show AXlink and expansion port data activity.

Program port 5-pin (male) grey connector for system programming and diagnostics. There is

a Program port located on the front and rear of the Master Cards for easy access. Because these ports share the same circuitry, you should never use both ports at the same time. Doing so will result in communication and/or programming errors.

ICSNet connectors Two RJ-45 connectors that provide power (500 mA) and data to external

ICSNet devices.

ICSNet LEDs Green LEDs that light when receiving data on that port.

ICSHub In/Out connectors Two RJ-45 connectors that provide data to other Hubs connected to the

ICSHub IN/OUT LEDs Yellow LEDs that light when receiving data on that port.

Included Accessories: • Connector Bag containing:

Optional Accessories: • AC-RK Accessory Rack Kit (FG515)

Master.

- One Green 2-pin 3.5 mm mini-Phoenix connector (female) (41-5025)

- One Black 4-pin 3.5 mm mini-Phoenix connector (female) (41-5047)

- One Grey 5-pin 3.5 mm mini-Phoenix connector (female) (41-5053)

- One back panel (51-2010-61)

• PSN2.8: Power Supply (FG423-17) with 3.5 mm mini-Phoenix connector

• PSN4.4: Power Supply (FG423-45) with 3.5 mm mini-Phoenix connector

• PSN6.5: Power Supply (FG423-41) with 3.5 mm mini-Phoenix connector

Rear panel LEDs: ICSNet/ICSHub

ICSNet LED (green)

lights to indicate data

input activity on this port

ICSNet

FIG. 2 Layouts of the ICSNet and ICSHub LEDs

Rear panel LEDs: Ethernet

A - Activity LED (yellow)

lights when receiving

Ethernet data packets

SPEED LED (green)

lights when transmitting data at

100 Mbps, and is Off when

transmitting at 10 Mbps

FIG. 3 Layout of Ethernet LEDs

ICSHub

ETHERNET

10/100

SPEED

ICSHub IN LED (yellow)

OUT

lights to indicate data input activity on this port

ICSHub OUT LED (yellow) lights to indicate data input activity on this port

L - Link LED (green) lights when the Ethernet cables are connected and terminated correctly

FD - Full Duplex LED (green) lights when running in full duplex mode, and is Off when running in half duplex mode

NXC-ME260 NetLinx Master-Ethernet Card/Module

Product Information

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

This section contains information about configuring the Program port, cable configurations,

connector pinouts, and NXC-ME260 installation procedures.

Setting the Program Port DIP Switch

Prior to installing the NXC-ME260, configure the Program port’s communication speed by setting

the baud rate DIP switch (SW1) to the appropriate setting. The Program port’s DIP switch is

located to one side of the Master’s RS232 Program port.

Baud rate settings

The Program port DIP switch is located on the Master card’s circuit board. Use this DIP switch to

set the baud rate used by the Program port for communication. Before programming the Master,

make sure the baud rate you set matches the communication set on either your PC’s COM port or

through your NetLinx Studio 2.1. By default, the baud rate is set to 38,400 (bps).

Baud Rate Settings

Baud Rate Position 5 Position 6 Position 7 Position 8

9600 bps OFF ON OFF ON

Installation and Wiring

38,400 bps (default) OFF ON ON ON

57,600 bps ON OFF OFF OFF

115,200 bps ON ON ON ON

Note the orientation of the DIP Switch and the ON position label.

DIP Switch positions 2,3, and 4 must remain in the OFF position at all times.

Program Run Disable (PRD) mode

You can also use the Program Port DIP switch to set the Master card to Program Run Disable

(PRD) mode according to the settings listed in the table below.

PRD Mode Settings

PRD Mode Position 1

Normal mode (default) OFF

PRD Mode ON

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

PRD mode prevents the NetLinx program stored in the Master from running when you power up

the NXC-ME260. PRD mode should only be used when you suspect the resident NetLinx program

is causing inadvertent communication and/or control problems. If necessary, place the Master in

PRD mode and use the NetLinx Studio 2.1 program to resolve the communication and/or control

problems with the resident NetLinx program. Then, download the new NetLinx program and try

again.

Think of the PRD Mode (On) equating to a PC’s SAFE Mode setting. This mode allows a user to continue powering a unit, update the firmware, and download a new program while circumventing any problems with a currently downloaded program. Power must be cycled to the unit after activating/deactivating this mode on the rear Program Port DIP switch #1.

Setting the Program Port DIP switch

It is recommended that the baud rate DIP switch be set prior to any installation of the NXC-ME260

card.

1. Locate the red baud rate DIP switch (FIG. 4).

2. Set DIP switch positions according to the information listed in the Baud Rate Settings and

PRD Mode Settings tables above.

3. Follow the procedures outlined in the NXC-ME260 Installation and Mounting

Procedures section on page 15.

If the card has already been installed:

1. Disconnect the power supply from the 2-pin PWR (green) connector on the Master Card.

2. Unsecure the NXC-ME260 by unscrewing the two faceplate securing screws (on both sides of

the faceplate) using a Phillips-head screwdriver (FIG. 4).

3. Carefully slide-out the card and locate the red baud rate DIP switch (FIG. 4).

4. Set the DIP switch positions according to the information listed in the Baud Rate Settings and

PRD Mode Settings tables (page 5).

5. Place the Master card back into its’ housing and resecure the two faceplate securing screws.

6. Reconnect the 12 VDC power supply to the 2-pin PWR connector and apply power.

Faceplate

securing

screws (2)

Faceplate

Baud rate DIP switch for the Program port (red)

FIG. 4 Component locations on the NXC-ME260

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Modes and Front Panel LED Blink Patterns

The following table lists the modes for the ME260 and blink patterns displayed on the front panel

LEDs for each mode. These patterns are not evident until after the unit is powered.

Modes and LED Blink Patterns

LEDs and Blink Patterns

STATUS

Mode Description

OS Start Starting the operating system (OS). On On On

Boot Master is booting. On Off On

Contacting DHCP server

Unknown DHCP server

Downloading Boot firmware

No program running There is no program loaded, or the

Normal Master is functioning normally. 1 blink per second Indicates

Master is contacting a DHCP server for IP configuration information.

Master could not find the DHCP server. Fast Blink Off Off

Downloading Boot firmware to the Master Card's on-board flash memory.

Do not cycle power during this process!

program is disabled.

(green)

On Off Fast Blink

Fast Blink Fast Blink Fast Blink

On Normal Normal

OUTPUT

(red)

activity

INPUT

(yellow)

Indicates

activity

Wiring Guidelines

The Master card requires 12 VDC power from either a PSN2.8, PSN4.4, or a PSN6.5 NetLinx

Power Supply to operate properly. The NXC-ME260 connects to the power supply via a 2-pin

3.5 mm mini-Phoenix connector located on the faceplate.

This unit should only have one source of incoming power. Using more than one source of power to the Master card can result in damage to the internal components and a possible burn out.

Apply power to the card only after installation is complete.

Preparing captive wires

You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.

Never pre-tin wires for compression-type connections.

1. Strip 0.25 inch (6.35 mm) of insulation off all wires.

2. Insert each wire into the appropriate opening on the connector (according to the wiring

diagrams and connector types described in this section).

3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively;

doing so may strip the threads and damage the connector.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Wiring length guidelines

The Master requires a 12 VDC power from a PSN to operate properly. The unit should only have

one source of incoming power.

Using more than one source of power to the Master can result in damage to the internal components and a possible burn out.

An auxiliary 12 VDC power supply can provide power to the Master. Refer to the following table

for wiring length information:

Wiring Length Guidelines @ 750 mA

Wire Size Maximum wiring length

18 AWG 156.49 feet (46.69 meters)

20 AWG 99.01 feet (30.18 meters)

22 AWG 61.73 feet (18.81 meters)

24 AWG 38.91 feet (11.86 meters)

Wiring a 2-pin power connection

To use the NetLinx 2-pin 3.5 mm mini-Phoenix power supply jack for power transfer from the PSN

power supply to the rear of the NXC-ME260, the incoming PWR and GND cables from the PSN

must be connected to its corresponding location on the 2-pin 3.5 mm mini-Phoenix connector

(FIG. 5).

PWR +

GND -

To the ME260

FIG. 5 2-pin mini-Phoenix connector wiring diagram (direct power)

NetLinx Power Supply

Using the 4-pin mini-Phoenix connector for data and power

Connect the 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector to an external Netlinx

device, as shown in FIG. 6.

To the ME260

AXlinx/PWR connector

Top view

GND -

AXP/TX

PWR +

AXM/RX

To the external NetLinx device

Top view

GND -

AXP/TX

AXM/RX

PWR +

FIG. 6 4-pin mini-Phoenix connector wiring diagram (direct data and power)

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Using the 4-pin mini-Phoenix connector for data with external power

To use the NetLinx 4-pin 3.5 mm mini-Phoenix (female) captive-wire connector for data

communication and power transfer; the incoming PWR and GND cable from the PSN must be

connected to the AXlink cable connector going to the NXC-ME260. FIG. 7 shows the wiring

diagram. Always use a local power supply to power the Master card.

To the ME260

AXlinx/PWR connector

PWR (+)

GND (-)

Top view

GND -

AXM/RX

AXP/TX

FIG. 7 4-pin mini-Phoenix connector wiring diagram (using external power source)

Local +12 VDC

power supply (coming from the PSN power supply)

To the external NetLinx device

Top view

GND -

AXP/TX

AXM/RX

When connecting an external power supply, do not connect the wire from the PWR terminal (coming from the external device) to the PWR terminal on the Phoenix connector attached to the NXC-ME260. Make sure to connect only the AXM, AXP, and GND wires to the Master’s Phoenix connector when using an external PSN power supply.

Make sure to connect only the GND wire on the AXlink/PWR connector when using a separate

12 VDC power supply. Do not connect the PWR wire to the AXlink connector’s PWR (+) opening.

Program Port Connections and Wiring

The NXC-ME260 is equipped with two Program ports. One is located on the front panel and the

other is on the rear for easy access. The port on the front panel is an RS232 (male) connector and

the rear port is a grey 5-pin (male) connector.

Use a Programming cable to connect the Program port to your PC's COM port to communicate with

the Master card. Then, you can download NetLinx programs to the Master card using the NetLinx

Studio 2.1 software program. Refer to the NetLinx Studio instruction manual for programming

instructions.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

RS232 Program port (front panel)

The following table shows the front panel RS232 (DB9) Program Port connector (male), pinouts,

and signals.

RS232 Program Port, Pinouts, and Signals

Program Port Connector Pin Signal

5-Pin Program port (rear panel)

The table below lists the pinouts and signals for the grey rear panel 5-pin 3.5 mm mini-Phoenix

Program port connector.

2RX

3TX

5 4

3 2 1

Male

9 8

7 6

5GND

7RTS

8CTS

5-Pin Program Port Pinouts and Signals

Pin Signal

1GND

2RX

3TX

4CTS

5RTS

ICSNet RJ-45 Connections/Wiring

The following table shows the pinouts, signals, and pairing information to use for ICSNet RJ-45

connections. The ICSNet connections provide power and data to ICSNet devices. Each port

provides up to 500 mA of current.

ICSNet RJ-45 Signals

Pin Signal-Master Signal-Device

1 TX + RX +

2 TX - RX -

3N/A N/A

4GND GND

5N/A N/A

6N/A N/A

7 RX + TX +

8 RX - TX -

NXC-ME260 NetLinx Master-Ethernet Card/Module

RJ-45 Pinout Information (EIA/TIA 568 B)

Pin Wire Color Polarity Function

1 Orange/White + Transmit

2 Orange - Transmit

3 Green/White - Mic

4 Blue - Ground

5 White/Blue + 12 VDC

6 Green + Mic

7 White/Brown + Receive

8 Brown - Receive

Installation and Wiring

TIA 568B

1 2 3 4 5 6 7 8

(female) (male)

RJ-45 connector - pin configurations

1 2 3 4 5 6 7 8

Unlike the ICSNet ports, the ICSHub connections require a specific polarity. The IN/OUT configuration, on the Hub ports, was implemented to use the same cables as ICSNet, but these ports need TX and RX crossed. You must connect an OUT to an IN, or an IN to an OUT port. This is done simply to keep the polarity straight. The Hub bus is still a bus. All Hub connections are bi-directional.

ICSHub RJ-45 Connections/Wiring

The two ICSHub RJ-45 connectors on the rear of the Master card provide data to other Hubs

connected to a downstream system. Hubs allow you to connect multiple NetLinx Hubs together in a

daisy-chain configuration. Connect the

NetLinx Hub.

 Use CAT5 cables for all ICSHub connections.

OUT port to the IN port on the second or downstream

 Do not connect the last hub in a daisy-chain configuration into the first Hub.

ICSHub IN port

The following table describes the pinout and signal information for the ICSHub IN port.

ICSHub IN Pinouts and Signals

Pin Signal Color

1 TX - orange-white

2 TX + orange

3 ------ ------

4 ------ ------

5 ------ ------

6 ------ ------

7RX - brown-white

8RX + brown

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

ICSHub OUT port

The following table describes the pinout and signal information for the ICSHub OUT port.

ICSHub OUT Pinouts and Signals

Pin Signal Color

Ethernet 10/100 Base-T RJ-45 Connections/Wiring

The following table lists the pinouts and signals associated to the Ethernet connector. FIG. 8

describes the RJ-45 pinouts, signals, and pairing for the Ethernet 10/100 Base-T RJ-45 connector

and cable.

1 RX + orange-white

2 RX - orange

3 ------ ------

4 ------ ------

5 ------ ------

6 ------ ------

7 TX + brown-white

8TX - brown

Ethernet RJ-45 Pinouts and Signals

Pin Signals Connections Pairing Color

1 TX + 1 --------- 1 1 --------- 2 orange-white

2 TX - 2 --------- 2 orange

3 RX + 3 --------- 3 3 --------- 6 green-white

4 no connection 4 --------- 4 blue

5 no connection 5 --------- 5 4 --------- 5 blue-white

6 RX - 6 --------- 6 green

7 no connection 7 --------- 7 7 --------- 8 brown-white

8 no connection 8 --------- 8 brown

FIG. 8 diagrams the RJ-45 cable and connectors.

RJ-45 Plug

FIG. 8 RJ-45 wiring diagram

RJ-45 Plug

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Ethernet ports used by the ME260

Ethernet Ports Used by the ME260

Port type Description Standard Port #

ICSP Peer-to-peer protocol used for both Master-to-Master and Master-to-device

communications.

For maximum flexibility, the Master can be configured to utilize a different port than 1319, or disable ICSP over Ethernet completely from either Telnet or the Program Port located on the rear of the Master itself.

ICMP When using version 1.XX of NetLinx Studio, you must be able to PING a

Master in order to be able to connect to it over a network.

• Note: NetLinx Studio version 2.0 or higher allows a user the ability to

turn Off this requirement by de-selecting the "Automatically Ping the Master Controller to ensure availability" feature from within the TCP/IP Setting dialog (default condition is On).

Telnet The NetLinx telnet server provides a mechanism to configure and

diagnose a NetLinx system.

For maximum flexibility, the Master can be configured to utilize a different port than 23, or disable Telnet completely from either Telnet or the Program Port located on the rear of the Master itself. Once disabled, the only way to enable Telnet again is from the Master’s Program port.

HTTP The Master has a built-in web server that complies with the HTTP 1.0

specification and supports all of the required features of HTTP v1.1.

FTP The NXC-ME260 has a built-in FTP server that conforms to RFC959. 21/20 (TCP)

Internet Inside The Internet Inside feature the Master uses, by default, is port 10500 for

the XML based communication protocol. This port is connected to by the client web browser’s JVM when Internet Inside control pages are retrieved from the on-board Master’s web server.

For maximum flexibility, the on-board Master can be configured to utilize a different port than 10500 or to disable Internet Inside completely.

1319 (UDP/TCP)

ICMP

23 (TCP)

80 (TCP)

10500 (TCP)

SPE Port Connection/Wiring

Use an RJ-11 cable to connect the NXC-ME260 to an AXB-SPE Slave Port Expander.

The

EXPANSION OUT port on the rear panel of the NXC-ME260 connects to the EXPANSION IN

port on the rear panel of the AXB-SPE (FIG. 9).

EXPANSION IN port (RJ-11)

FIG. 9 AXB-SPE (rear panel)

You can daisy chain multiple AXB-SPE's by connecting the

AXB-SPE to the

EXPANSION IN port on the secondary, as shown in FIG. 10. The connecting RJ-11

cable should not exceed 6" in length. Repeat this process to connect up to nine AXB-SPE's.

EXPANSION OUT on the primary

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

EXPANSION OUT connector on rear of NXC-ME260

NXC-ME260

Master-Ethernet

12VDC

PWR

EXPANSION

ETHERNET

10/100

SPEED

AXP

PWR

GND

AXM

RTS

CTS

GND

AXlink

PROGRAM

ICSNet

OUT

ICSHub

1st AXB-SPE (rear panel)

IN OUT

RJ-11 cable (6" max)

EXPANSION

2nd AXB-SPE (rear panel)

OUT

FIG. 10 Daisy chaining two or more AXB-SPE's off of an NXC-ME260

SPE cable pinout information

The following table gives pinout information for the RJ-11 SPE connector. AMX supplies a 6"

RJ-11 cable with the AXB-SPE. The

EXPANSION connectors (on the AXB-SPE) use

pins 2, 3, 4 and 5. Pin 2 is Ground; the others are all pin-to-pin connections.

SPE Connector Pinouts and Signals

Pin Signal

1 no connect

2GND

3TX

4 TX enable

5RX

6 no connect

Do not use a standard phone extension cable; it will not work with the AXB-SPE.

FIG. 11 diagrams the RJ-11 cable and connectors.

RJ-11 Plug

FIG. 11 RJ-11 wiring diagram

RJ-11

Plug

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

NXC-ME260 Installation and Mounting Procedures

Mounting the ME260 into an NXS-NMS

1. Confirm the contents of the shipment box to verify that you have all specified parts. Refer to

the NXC-ME260 Specifications section on page 2 for more information about included and

optional accessories.

2. Carefully remove the NXS-NMS Master/Hub Module from the shipping box.

3. Pull-away the magnetic faceplate from the front of the NXS-NMS. This exposes the front

panel LEDs and Program port opening (FIG. 12).

4. Carefully remove the NXC-ME260 from its anti-static bag and place it aside.

5. Grasp the NXC-ME260 by the faceplate and direct the Program port (on the front of the card)

into the opening on the rear of the NXS-NMS (FIG. 12).

6. Slide the Master card along the lowest pair of internal guide slots within the NXS-NMS.

Program

port

NXS-NMS

magnetic faceplate

FIG. 12 Component locations on both NXC-ME260 and NXS-NMS

Master/Hub Module

NXC-ME260 faceplate

NXC-ME260 Master card

7. Secure the NXC-ME260 faceplate to the NXS-NMS by using a Phillips-head screwdriver to

turn the two faceplate securing screws in a clockwise direction.

8. Connect the 12 VDC power supply to the 2-pin PWR connector and apply power.

Mounting the NXS-NMS Into an Equipment Rack

To install the Master/Hub Module into an optional AC-RK equipment rack:

1. Remove the front panel from the Module to expose the mounting holes.

2. Mount the module on the AC-RK bracket.

3. Place the AC-RK bracket (with the module) in the equipment rack and secure the bracket to the

rack.

4. Replace the front panel to the Module, and reattach the plastic faceplate (if necessary).

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Mounting the NXC-ME260 in an NXF CardFrame or NXI

The NXC-ME260 can be installed in a NetLinx CardFrame (NXF) or NetLinx Integrated

Controller (NXI). In both cases, the card mounts in a horizontal position, through the Master card

slot on the rear panel of the enclosure.

FIG. 13 shows the Master Card slot on the NXF CardFrame.

FIG. 13 Master card slot on rear panel of the NXF CardFrame

FIG. 14 shows the Master card slot on the NXI Integrated Controller.

Master card slot on NXF CardFrame (rear panel)

Master Card slot on NXI (rear panel)

FIG. 14 Master card slot on rear panel of the NXI Integrated Controller

To install a Master card into either an NXF CardFrame or NXI Integrated Controller:

1. Discharge the static electricity from your body by touching a grounded object.

2. Unplug all the connectors from the Controller or Module.

3. Unscrew the two screws that hold the front faceplate plate on the Master card and remove the

front plate.

4. Align the edges of the card with the guide slots inside the Master card slot on the NXF or NXI.

5. Slide the card about halfway into the slot.

6. Inside the Master card slot on the NXF or NXI, find the 6-pin control cable connector.

7. Plug the connector from the NXF or NXI into the 6-pin terminal on the Master card. This

connector is keyed to ensure correct orientation.

8. Once the control cable is connected, gently slide the card all the way in until you feel the rear

edge of the card lightly snap into place.

9. Re-apply power and other connections as necessary.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

Replacing the Lithium Batteries

The NXC-ME260 is equipped with two lithium batteries (FG57-0013) that have a life of

approximately 2.5 years to protect their memory. When DC power is on, the batteries (FIG. 15) are

not used. When replacing the batteries, remove one at a time to avoid losing the program in

memory.

Battery (CR2032 type - 20mm coin cell)

socket

FIG. 15 Lithium battery and socket

1. Discharge the static electricity from your body by touching a grounded metal object.

2. Unplug all the connectors from the Controller or Module.

 NetLinx Integrated Controller (NXI): Remove the rear panel from the NXI. Then,

disconnect the NXI control cable and remove the Master card.

 NetLinx Module (NXS-xxx): Remove the rear panel from the Module, and remove the

Master card.

3. Locate the two batteries behind the Program port on the NXC-ME260 circuit board.

4. Carefully slide one battery out of its socket and insert the new battery.

5. Plug the 2-pin PWR (green) connector to reapply power. Wait approximately 1 minute. Then,

remove the PWR connector again.

6. Carefully slide the other battery out of its socket and insert the new battery.

7. Replace the Master card (re-connect the NXI control cable to the Master card if replacing in an

NXI).

8. Replace and resecure the rear faceplate using the mounting screws and reconnect all

communication connectors.

9. Reconnect the 12 VDC power supply to the respective PWR connector and apply power.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Installation and Wiring

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

This section outlines the steps necessary to setup a NetLinx Master for communication and then

update the on-board firmware.

Verify that the NetLinx Master firmware is build 139. Later versions of firmware can not be used on this ME260 Master.

Before beginning:

1. Setup and configure your NXC-ME260. Refer to the Installation and Wiring section on page 5

for setup procedures.

2. Verify that you have the latest NetLinx Studio installed on your PC.

3. If necessary, download the latest Studio software from www.amx.com > Tech Center >

Downloadable Files > Application Files > NetLinx Studio 2.1. This program is used to setup

a System number, obtain/assign the IP/URL for the connected NetLinx Master, and transfer

firmware KIT files to the Master.

4. Verify that an Ethernet/ICSNet cable is connected from the rear of the unit to its’ respective

connector on the Ethernet Hub (for IP/ICSNet communication).

5. Connect an RS-232 programming cable from the front of the NetLinx Master to the rear

connector (COM port) on the PC being used for programming (for DB9 communication).

6. Verify that the NetLinx Master is receiving power and is turned On.

If you have previously setup communication with your Master via an IP Address, continue with the firmware update procedures outlined in the Communicating with the NetLinx Master via an IP section on page 28.

Communicating with the Master via the Program Port

1. Launch NetLinx Studio 2.1 (default location is Start >Programs > AMX Control Disc >

NetLinx Studio > NetLinx Studio 2.1).

2. Select Settings > Master Communication Settings, from the Main menu, to open the Master

Communication Settings dialog (FIG. 16).

3. Click the Communications Settings button to open the Communications Settings dialog

(FIG. 16).

4. Click the NetLinx Master radio button (from the Platform Selection section) to indicate that

you are working with a NetLinx Master (such as the NXC-ME260 or NI-Series of Integrated

Controllers).

5. Click the Serial radio button (from the Transport Connection Option section) to indicate you

are connecting to the Master via a (Serial) COM port.

6. Click the Edit Settings button to open the Serial Settings dialog (FIG. 16).

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

FIG. 16 Assigning Communication Settings and Baud Rates

7. Set the COM port parameters for the selected COM port being used for communication to the

NetLinx Master. Default parameters are: COM1, 38400, 8 Data Bits, No Parity, 1 Stop Bit,

and No Flow Control.

8. Click OK three times to close the open dialogs and save your settings.

If the connection fails to establish: Select a different COM port, press the Retry button to reconnect using the same communication parameters, or press the Change button to alter your communication parameters and repeat steps 2 thru 8.

Verifying the current version of NetLinx Master firmware

1. Click on the OnLine Tree tab in the Workspace window to view the devices on the System.

The default System value is one (1).

2. Right-click on the Empty Device Tree entry and select Refresh System to establish a new

connection to the System’s Master and refresh the list with online system devices. The

communication method is highlighted in green on the bottom of the NetLinx Studio window.

The current firmware version of the Master is displayed to the right of the device.

3. After the Communication Verification dialog window verifies active communication between

the PC and the Master, verify the NetLinx Master appears in the OnLine Tree tab of the

Workspace window (FIG. 17).

4. If the firmware version is not build 139 (v2_XX_139) for the NXC-ME260, follow the

procedures outlined in the following sections to assign System/Device values, setup an IP

Address, and then transfer the new firmware KIT file to the Master.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

Showing the current version of the NetLinx Studio

FIG. 17 Initial NetLinx Workspace window (showing the OnLine Tree tab)

Setting the System Value

1. Access/open the Device Addressing dialog (FIG. 18) by either one of these two methods:

 Right-click on any System item listed in the OnLine Tree tab of the Workspace and

select Device Addressing (from the pop-up list).

 Select Diagnostics > Device Addressing from the Main menu.

System Address (default for initial

system is 1)

Check-Off to

verify change

FIG. 18 Device Addressing tab (changing the system value)

This tab represents the only way to change the System Number associated to the active Master.

2. Select the Change System selection box, from the System to Change section.

3. Enter both the current and new system address values (this example uses 2).

4. Click the Change Device/System Number button. This configures the Master to accept the

new value and incorporate the information. The system information (in the OnLine Tree tab of

the Workspace window) refreshes and then displays the new information.

5. Click Done to close the Device Addressing dialog and return to the main program.

6. Select Tools > Reboot the Master Controller to access the Reboot the Master dialog, then

click Continue to reboot the Master and incorporate any changes. Allow 20 - 30 seconds for

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

the Master to reboot. The STATUS and OUTPUT LEDs should begin to alternately blink

during the incorporation. Wait until the STATUS LED is the only LED to blink.

7. Right-click the associated System number and select Refresh System to establish a new

connection to the specified Master and refresh the System list with devices on that system.

8. Use Ctrl+S to save your existing NetLinx Project with the new changes.

If the NetLinx device does not appear within the OnLine Tree tab of the Workspace window of NetLinx Studio, make sure that the NetLinx Master System Number (from within the Device Addressing tab) is correctly assigned. If there is a problem, use a

system value of zero (0) on the NetLinx device.

The Master is default set to DEVICE 0. Connected NetLinx device addresses can

only be changed through the Protected Setup page. The new address is reflected within the OnLine Tree tab of the Workspace window only after the devices are rebooted and the system is refreshed.

Working with multiple NetLinx Masters

When using more than one Master, each unit must be assigned to a separate System value.

A Master’s System value can be changed but its’ device Address must always be set to zero

(00000). The Device Addressing dialog will not allow you to alter the NetLinx Master address

value.

Example: Using NetLinx Studio 2.1 to work with an NXC-ME260 and NI-4000:

 The NXC-ME260 could be assigned to System 1 (with a value of 00000).

 The NI-4000 could be assigned to System 2 (with a value of 00000).

Changing the system value on the Modero panel

The system value on a Modero touch panel can not be changed from the Device Addressing dialog.

1. Press and hold the grey Front Setup Access button (below the LCD) for 3 seconds to access the

Setup page.

2. Press the Protected Setup button to access the Protected Setup page.

3. Use the on-screen keyboard to enter the default password of 1988.

4. Press the System Connection button.

5. Press the blue System field on the right of the page to open the Master System Number keypad.

6. Enter the new System value (associated with the Master connected to the panel).

7. Press Back to save your changes and return to the Protected Setup page.

8. Press the on-screen Reboot button to reboot the panel.

9. Right-click the associated System number (from the OnLine Tree tab of the Workspace

window) and select Refresh System to establish a new connection to the specified Master and

refresh the System list with devices on that system.

10. Use Ctrl+S to save your existing NetLinx Project with the new changes.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

If the Master does not appear in the Workspace window, check to make sure that the Master’s System Number (from within the Device Addressing tab) is correctly assigned. If there is a problem, use a system value of zero (0) on the Master.

Changing the Device Address on a Netlinx Device

1. Access the Device Addressing dialog (FIG. 19) by either one of these two methods:

 Right-click on any system device listed in the OnLine Tree tab of the Workspace and

select Device Addressing (from the pop-up list).

 Select Diagnostics > Device Addressing from the Main menu.

Device Address

(original device

value)

Check-Off to

verify change

FIG. 19 Device Addressing dialog (changing the device value)

This dialog represents the only way to change the device value of a selected NetLinx device (such as a Modero panel).

2. Select the Change Device checkbox, from the Device to Change section.

3. Enter both the Current and New Device address values for the target NetLinx device.

4. Click the Change Device/System Number button. This configures the specified Master to

accept the new value for the NetLinx device and incorporate the information (the system

information in the Workspace window refreshes and then displays the new information).

5. Click Done to close the Device Addressing dialog.

6. Select Tools > Reboot the Master Controller to access the Reboot the Master dialog, then

click Continue to reboot the Master and incorporate any changes. Allow 20 - 30 seconds for

the Master to reboot. The STATUS and OUTPUT LEDs should begin to alternately blink

during the incorporation. Wait until the STATUS LED is the only LED to blink.

7. Right-click the associated System number (from the OnLine Tree tab of the Workspace

window) and select Refresh System to establish a new connection to the specified Master and

refresh the System list with devices on that system.

8. Use Ctrl+S to save your existing NetLinx Project with the new changes.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

If the Master does not appear in the Workspace window, make sure that the Master’s System Number (from within the Device Addressing tab) is correctly assigned. If

there is a problem, use a system value of zero (0) on the Master.

Changing the device address on the Modero panel

The device address on a Modero touch panel can not be changed from the Device Addressing

dialog. The correct procedure to change a device address is:

1. Press and hold the grey Front Setup Access button (below the LCD on most panels) for 3

seconds to access the Setup page.

2. Press the Protected Setup button to access the Protected Setup page.

3. Use the on-screen keyboard to enter the default password of 1988.

4. Press the blue Device Number field (this opens a Device Number keypad).

5. Enter the new Device Address value.

6. Click the Done button to close the Device Addressing dialog.

7. Press the on-screen Reboot button to reboot the panel.

8. Right-click the associated System number (from the OnLine Tree tab of the Workspace

window) and select Refresh System to establish a new connection to the specified Master and

refresh the System list with devices on that system.

Recommended NetLinx Device numbers

• 1 - 255 • Axcess Devices use Axcess standards

• 301 - 3072 • NetLinx CardFrames start at frame number 25 - (frame# * 12) + Card #

• 5001 - 5999 • ICSNet NetLinx devices: NXI, NXM-COM2, NXM-IRS4, etc.

• 6001 - 6999 • ICSNet Landmark devices: PLH-VS8, PLH-AS16, PLB-AS16

• 7001 - 7999 • InConcert Devices

• 8001 - 8999 • PCLink Device: PCLink devices are PC programs

• 10000 - 31999 • ICSNet Panels: DMS, IMS, and future panels

• 33001 - 36863 • Virtual devices: these start at 33001

• 32001 - 32767 • Dynamic devices: the actual range used by Master

• 32768 - 36863 • Virtual devices: the actual range used by Master

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

Resetting the Factory Default System and Device Values

1. Access the Device Addressing dialog (FIG. 19 on page 23) by either one of these two methods:

 Right-click on any system device listed in the Workspace and select Device Addressing.

 Select Diagnostics > Device Addressing from the Main menu.

2. Click the Set Device/System to Factory Default button. This resets both the system value and

device addresses (for definable devices) to their factory default settings. The system

information (in the OnLine Tree tab of the Workspace window) refreshes and then displays

the new information.

By setting the system to its default value (#1), Modero panels that were set to connect to the Master on another System value will not appear in the OnLine Tree tab of the Workspace window. For example: A Modero touch panel was previously set to System #2. The system is then reset to its default setting of System #1 and then refreshed from within the Workspace window. The panel will not reappear until the system is changed (from within the System Connection page on the Modero) to match the new value and both the Master and panel are rebooted.

3. Click Done to close the Device Addressing dialog.

4. Select Tools > Reboot the Master Controller to access the Reboot the Master dialog, then

click Continue to reboot the Master and incorporate any changes. Allow 20 - 30 seconds for

the Master to reboot.

5. Right-click the associated System number (from the OnLine Tree tab of the Workspace

window) and select Refresh Whole Network to refresh of all project systems, establish a new

connection to all Masters, and refresh the System list with devices on that system.

6. Use Ctrl+S to save your existing NetLinx Project with the new changes.

Obtaining the Master’s IP Address (using DHCP)

Verify there is an active Ethernet connection attached to the rear of the Master before beginning these procedures.

1. Select Diagnostics > Network Addresses from the Main menu to access the Network

Addresses dialog.

2. Ver i f y t h e System number corresponds to the value previously assigned in the Device

Addressing tab and verify that zero (0) is entered into the Device field.

The system value must correspond to the Device Address entered in the Device Addressing dialog. Refer to the Setting the System Value section on page 21 for more detailed instructions on setting a system value.

3. Ver i f y t h a t NetLinx appears in the Host Name field.

4. Click the Use DHCP radio button from the IP Address section (FIG. 20).

5. Click the Get IP Information button to read the IP Address obtained by the Master from the

DHCP Server and configure the unit for DHCP usage.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

System Address

reflects the value

set in the Device

Addressing tab

Used to display the

IP Address

given to the Master

from the DHCP Server

FIG. 20 Network Addresses dialog (showing Get IP)

DO NOT enter ANY IP information at this time, this step only gets the System Master to recognize that it should begin using an obtained DHCP Address.

6. Note the obtained IP Address.This information is later entered into the Master

Communication Settings dialog and used by NetLinx Studio 2.1 (or higher) to communicate

to the Master via an IP. This address is reserved by the DHCP server and then given to the

Master.

If the IP Address field is empty, give the Master a few minutes to negotiate a DHCP Address with the DHCP Server, and try again. The DHCP Server can take anywhere from a few seconds to a few minutes to provide the Master with an IP Address.

7. Click the Set IP Information button to retain the IP Address on the Master. A popup window

then appears to notify you that Setting the IP information was successful and it is

recommended that the Master be rebooted.

8. Click OK to accept the new changes.

9. Click the Reboot Master button and select Ye s to close the Network Address dialog. This

process closes the Network Addresses dialog and directs you to the Reboot the Master

Controller dialog.

10. Click Continue (from the Reboot Controller dialog) and wait for the System Master to reboot

and retain the newly obtained DHCP Address. The STATUS and OUTPUT LEDs should begin

to alternately blink during the incorporation. Wait until the STATUS LED is the only LED to

blink.

If Studio can not establish communication with the Master, wait a few seconds and click the Retry button.

11. Use Ctrl+S to save your existing NetLinx Project with the new changes.

12. Right-click associated System number and select Refresh System. This establishes a new

connection to the specified System and populates the list with devices on that system.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

Assigning a Static IP to the NetLinx Master

1. Select Diagnostics > Network Addresses from the Main menu.

2. Ver i f y t h e System number corresponds to the value previously assigned in the Device

Addressing tab for the specific System Master.

3. Verify that zero (0) is entered into the Device field.

The system value must correspond to the Device Address previously entered in the Device Addressing tab. Refer to the Setting the System Value section on page 21 for more detailed instructions on setting a system value.

4. Ver i f y t h a t NetLinx appears in the Host Name field.

5. Click the Specify IP Address radio button from the IP Address section (FIG. 21).

System Address

reflects the value

set in the Device

Addressing tab

Used to assign an

IP Address

FIG. 21 Network Addresses dialog (showing Set IP)

6. Enter the IP Address, Subnet Mask, and Gateway information into their respective fields.

7. Click the Set IP Information button to retain a known IP Address (obtained from the System

Administrator) on the specified System Master.

8. Click OK to accept the new changes.

9. Click the Reboot Master button and select Ye s to close the Network Address dialog. This

process closes the Network Addresses dialog and directs you to the Reboot the Master

Controller dialog.

10. Click Continue (from the Reboot controller dialog) and wait for the System Master to reboot

and incorporate the newly obtained DHCP Address. The STATUS and OUTPUT LEDs should

begin to alternately blink during the incorporation. Wait until the STATUS LED is the only

LED to blink.

11. Right-click associated System number and select Refresh System. This establishes a new

connection to the specified System and populates the list with devices on that system.

Verify that these IP values are also entered into the related fields within either the IP Settings section of the System Connection page (on the touch panel) or within the Address field on the web browser.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

Communicating with the NetLinx Master via an IP

Whether the Master’s IP Address was Set (Set IP Info) or obtained (Get IP Info), use the

information from the Network Addresses dialog to establish a new communication method to the

Ethernet connected Master.

1. Launch NetLinx Studio 2.1 (default location is Start > Programs > AMX Control Disc >

NetLinx Studio > NetLinx Studio 2.1).

2. Obtain the IP Address of the Master from your System Administrator, if you do not have an IP

Address:

 Follow the steps outlined in either the Obtaining the Master’s IP Address (using

DHCP) section on page 25 or Assigning a Static IP to the NetLinx Master section on

page 27.

3. Select Settings > Master Communication Settings, from the Main menu to open the Master

Communication Settings dialog (FIG. 22).

FIG. 22 Assigning Communication Settings and TCP/IP Settings

4. Click the Communications Settings button to open the Communications Settings dialog.

5. Click on the NetLinx Master radio button (from the Platform Selection section) to indicate

that you are working with a NetLinx Master (such as the NXC-ME260 or NI-Series of

Integrated Controllers).

6. Click on the TCP/IP radio button (from the Transport Connection Option section) to indicate

you are connecting to the Master through an IP Address.

7. Click the Edit Settings button (on the Communications Settings dialog) to open the TCP/IP

Settings dialog (FIG. 22).

8. Enter the IP Address into the TCP/IP Address field. This information is obtained from either

your System Administrator or from the Obtaining the Master’s IP Address (using

DHCP) section on page 25.

9. Click OK three times to close the open dialogs and save your settings.

If you are currently connected to the assigned Master, a popup asks whether you would want to temporarily stop communication to the Master and apply the new settings.

10. Click Ye s to interrupt the current communication from the Master and apply the new settings.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

11. Select Tools > Reboot the Master Controller to access the Reboot the Master dialog, then

click Continue to reboot the Master and incorporate any changes. Allow 20 - 30 seconds for

the Master to reboot. The STATUS and OUTPUT LEDs should begin to alternately blink

during the incorporation. Wait until the STATUS LED is the only LED to blink.

12. Click the OnLine Tree tab in the Workspace window to view the devices on the System. The

default System value is one (1).

13. Right-click the Empty Device Tree/System entry and select Refresh System to establish a new

connection to the System’s Master and refresh the list with online system devices. The

communication method is then highlighted in green on the bottom of the NetLinx Studio

window.

If the connection fails to establish, a Connection Failed dialog appears. Try selecting a different IP Address if communication fails. Press the Retry button to reconnect using the same communication parameters. Press the Change button to alter your communication parameters and repeat steps 2 thru 10.

14. Once the particular System Master is configured for communication via an IP Address, remove

the RS232 connector from the Program port on the NetLinx Master.

Installing New NetLinx Master Firmware via an IP

1. Click the OnLine Tree tab in the Workspace window to view the devices on the System. The

default System value is one (1).

2. Right-click on the Empty Device Tree/System entry and select Refresh System to establish a

new connection to the System’s Master and refresh the list with online system devices.

3. After the Communication Verification dialog window verifies active communication between

the PC and the Master, verify the NetLinx Master appears in the OnLine Tree tab of the

Workspace window (FIG. 23).

Showing the current version of the NetLinx Studio

FIG. 23 Initial NetLinx Workspace window (showing the OnLine Tree tab)

The current firmware version of the Master is displayed to the right of the device.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

4. If the firmware version is not build 139 (v2_XX_139) for the NXC-ME260; locate the latest

firmware file from www.amx.com > Tec h Ce n te r > Downloadable Files > Firmware Files >

NetLinx Masters.

5. Verify you have downloaded the latest Master firmware (KIT) file to a known location.

6. Select Tools > Firmware Transfers > Send to NetLinx Device from the Main menu to open

the Send to NetLinx Device dialog (FIG. 24). Verify the target’s System number matches the

value listed within the active System folder in the OnLine Tree tab of the Workspace.

Selected Firmware file

FIG. 24 Select to NetLinx Device dialog (showing Master firmware update via IP)

Description field for selected KIT file

System Number

must match the System value listed in the Studio Workspace window

7. Select the Master’s KIT file from the Files section (FIG. 24).

Firmware download status

The KIT file for the ME260 begins with 2010_kit (the KIT file for the NI-Series of Master controllers begins with 2105_NI Master).

8. Enter the System number associated with the target Master (listed in the OnLine Tree tab of the

Workspace window). The Device and Port fields are greyed-out.

9. Click the Reboot Device checkbox to reboot the Master after the firmware update process is

complete.

10. Click Send to begin the transfer. The file transfer progress is indicated on the bottom-right of

the dialog (FIG. 24).

Only upon the initial installation of the new build 139 KIT file to a Master there will be a failure of the last component to successfully download. This is part of the initial update procedure and will not occur during uploads of later firmware.

11. After the last components fails to install, click Close and reboot the Master by selecting

Tools > Reboot the Master Controller > Continue to begin the process.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

12. Repeat steps 8 - 11 again (the last component will successfully be installed).

13. Click Close once the download process is complete.

The OUTPUT and INPUT LEDs alternately blink to indicate the Master is incorporating the new firmware. Allow the Master 20 - 30 seconds to reboot and incorporate the new firmware.

14. Right-click on the System entry and select Refresh System. This establishes a new connection

to the System and populates the list with devices on your system.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Communication and Firmware Update

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security and Web Server

NetLinx ME260 Masters (installed with firmware build 139 incorporate new built-in security and

SSL certificate verification capabilities. By using both SSL certificate verification and secured

HTTP access, this new NetLinx firmware provides users with a more convenient web-based

method of securing both the Master and the incoming and outgoing information.

Terminal setup and security configuration is still valid and supported in the new build of NetLinx

Master firmware. New Terminal security features include the use of two new commands:

security enable and ssl security disable.

SSL (Secure Sockets Layer) is a protocol that works by encrypting data that is transferred over the

SSL connection. URLs that require an SSL connection begin with https: instead of http: in the

browser’s Address field. These security capabilities are configured to function via a web session

within your browser.

After the installation of build 139 to your Master, Telnet security configuration access is disabled. This new build migrates the NetLinx Master security setup from a TELNET environment to a web-based application.

NetLinx Security and Web Server

ssl

The new NetLinx Web Server used to power the Master security and SSL certificate features on

AMX Masters, not only provides user name/password security for the target Master, but also a new

level of secure encryption through the use of a unique server certificate.

The first layer of security for the Master is an on-screen HTTP user name and password field that

prompts a user to provide correct security information before gaining access to a target Master. The

second layer of protection is an SSL Certificate (specifically identifying the target Master) that can

either be requested or self-generated. This certificate is then installed onto the target Master and

added to the trusted site certificate listing within the computer’s Internet browser.

NetLinx Security web browser and feature support

The following table describes the web browsers (associated to each operating system)

recommended for use with the new NetLinx Security features on the NXC-ME260.

Supported Browser and Feature Compatibility

OS Platform Recommended Browser NetLinx Security

Feature support

Windows

MAC

Linux

Internet Explorer®

6.0 or higher

Safari

- (see note below)

Mozilla

Yes Yes

Yes Yes No

Yes

- (see note below)

G3 Web Panel Control support

Sun Java must be installed

G4 Web Panel Control support

Yes

When using Safari on a MAC machine, certificates must be externally requested from the Server Certificate’s page. Self-generated certificates do not allow access back to the target Master and will display an invalid certificate message.

NetLinx Integrated Controllers

NetLinx Security and Web Server

When using Mozilla on a Linux machine, the Group Rights column checkboxes (from within the Modify User page) can become greyed-out but are actually present.

New Master Firmware Security Features

 Master Security

 Telnet Security

 Terminal (RS232 Program port) security

 HTTP (Web Server) Security

 FTP Security

 SSL Certificate Encryption and Identification Technology

Installation of this new SSL functionality onto your Master will cause security setup via Telnet to be disabled. Although Telnet security configuration access can

no longer be used with the Master, a Terminal connection (using HyperTerminal) can still be established using the Master’s RS232 Program port. Refer to the NetLinx Security with a Terminal Connection section on page 73 for detailed Terminal security setup procedures.

The migration from a Telnet session to the use of an HTTP web browser allows a user to fully

utilize the latest SSL encryption features available within the newest release of NetLinx Master

firmware.

NetLinx Security Terms

The following table lists those commonly used NetLinx Security terms:

NetLinx Security Terms

User A user is a single potential client of the NetLinx Master.

Administrator An administrator has privileges to modify existing NetLinx Master access

groups, users, and their rights. The administrator can also assign NetLinx communication access rights for different users or groups (ex: Telnet and HTTP access) and configure the SSL server certificate.

Group A group is a logical collection of users. Note that any properties possessed by

User name A user name is a valid character string (4 - 20 alpha-numeric characters)

Group name A group name is a valid character string (4 - 20 alpha-numeric characters)

Password A password is a valid character string (4 - 20 alpha-numeric characters) to

Access Rights Each of the NetLinx Master features has security procedures defined for them.

groups (ex: access rights, directory associations, etc.) are inherited by all of the members of the group.

defining the user. This string is case sensitive. Each user name must be unique.

defining the group. This string is case sensitive. Each group name must be unique.

supplement the user name in defining the potential client. This string is also case sensitive.

The access right for a particular feature determines if the user or group will have access to the feature.

NetLinx Integrated Controllers

NetLinx Security and Web Server

NetLinx Security Terms (Cont.)

Directory Associations A Directory Association is a path that defines the directories or files a

particular user or group can access via the Web Server on the NetLinx Master. This character string can range from 1 to 128 alpha-numeric characters. This string is case sensitive. This is the path to the file or directory you want to grant access.

Accessing the NetLinx Master via an IP Address

Refer to the Installing New NetLinx Master Firmware via an IP section on page 29 for more

detailed information on how to download the latest firmware (build 139) from www.amx.com.

This firmware build enables SSL security and disables the ability to alter the Master security

properties via a TELNET session.

Although Telnet security configuration access can no longer be used with the Master, a Terminal connection (using HyperTerminal) can still be established using the Master’s RS232 Program port.

Once the Master’s IP Address has been set through NetLinx Studio (version 2.1 or higher):

1. Launch your web browser.

2. Enter the IP Address of the target Master (ex: 198.198.99.99) into the web browser’s Address

field.

3. Press the Enter key on your keyboard to begin the communication process between the target

Master and your PC.

4. Click OK to accept the AMX SSL certificate (if SSL is enabled).

5. The first tab displayed within your open browser window is WebControl.

WebControl Tab

This tab (FIG. 25) displays links to both G3 web panel pages downloaded to the target Master and

G4 panels running the latest G4 Web Control feature. G3 can’t be controlled with firmware

greater than 139. The ME260 cannot use firmware greater then 139.

Application tabs

G3 panel

G4 panel

Compatible devices field

Communication compression options

FIG. 25 WebControl Tab (populated with panels)

NetLinx Integrated Controllers

NetLinx Security and Web Server

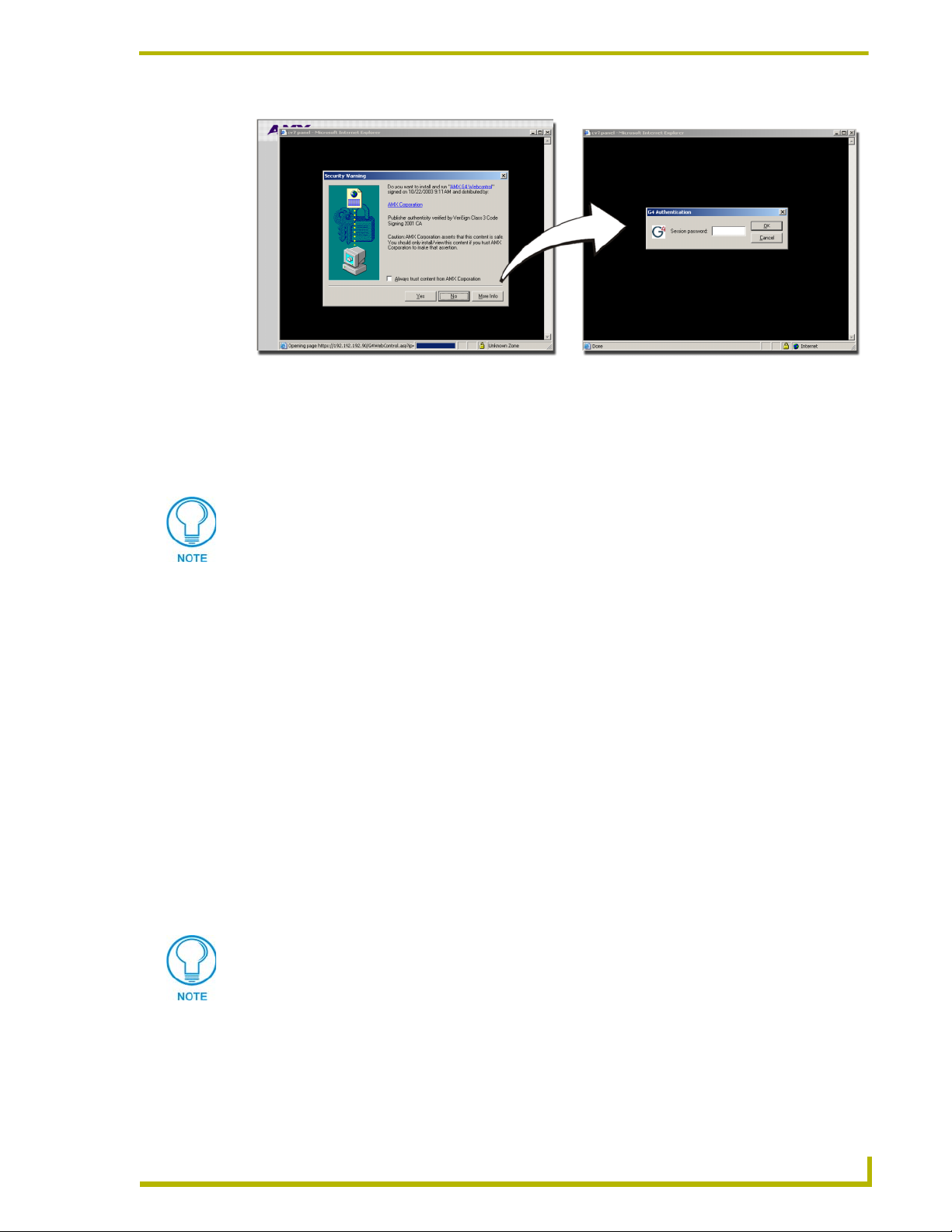

G3 panel pages accessed through the WebControl tab are virtual pages created by a user in TPDesign3 and then downloaded to the target Master. Interaction with these pages are not reflected on an actual G3 panel unless you use specific programming commands that link these virtual pages with their real G3 panel counterparts.

The following table lists the WebControl tab features that an administrator or other authorized user

can select from:

WebControl Tab Features

Feature Description

Compatible Devices Field This area displays:

Communication Compression Options Allows you to choose from among two compression options:

• Links to G3 user designed web panels (containing an index.htm page) that are installed on the NetLinx Master.

• G4 icons (with associated links) if a G4 panel running Web Control is communicating with the target Master.

• These compression settings are most useful when working over a bandwidth-restricted network or over the Internet.

• Use Compression allows the user to specify that the transmitted data packets be compressed. This speeds up the visual responses from the panel by minimizing the size of the information relayed through the web and onto the PC screen.

• Use Low Color allows the user to specify the number of colors used to display the image from the panel be reduced. By reducing the numbers of colors used to display the panel page on the PC, the size of the information is reduced, and the response delay is decreased.

Default Security Configuration

By default, the NetLinx Master will create the following accounts, access rights, directory

associations, and security options:

Default Security Configuration

Account 1 Account 2 Group 1

User name: administrator User name: NetLinx Group: administrator

Password: password Password: password Rights: All

Group: administrator Group: none Directory Association: /*

Rights: All Rights: FTP Access

Directory Association: /* Directory Association: none

Security Options: FTP Security - Enabled

Admin Change Password Security - Enabled

All other options - Disabled

SSL security is disabled by default. If the user/group is given FTP access rights by the administrator, all directories can become accessible (read/write/modify).

 The administrator user account cannot be deleted or modified with the exception of its

password. Only a user with "Change Admin Password Access" rights can change the

administrator password.

NetLinx Integrated Controllers

NetLinx Security and Web Server

 The NetLinx user account is created to be compatible with previous NetLinx Master

firmware versions. This account is initially created by default and can later be deleted or

modified.

 The administrator group account cannot be deleted or modified.

 The FTP Security and Admin Change Password Security are always enabled and cannot

be disabled.

Internet Explorer is used for the purposes of these instructions. Refer to the Table , “Supported Browser and Feature Compatibility,” on page 33 for browser and OS compatibility information.

Security Tab

NetLinx system security allows you to define access rights for users or groups.

The Enable/Disable Security features (FIG. 26) are only displayed after the left Enable

Security link is selected.

Security tab features

NetLinx Master security options

SSL encryption (enable/disable) option

FIG. 26 Security Tab - Enable/Disable Security

The following table lists the NetLinx System Security Enable or Disable options that an

administrator or other authorized user can grant or deny access to:

Security Tab Features

Feature Description

System section Provides an authorized user with the ability to alter the current

security options assigned to the target Master.

Groups section Provides an authorized user with the ability to alter group

properties such as creating a group, modifying an existing groups’ rights, and define the files/directories accessible by a particular group.

• Any properties possessed by a group (access rights/directory associations, etc.) are inherited by all members of that group.

Users section Provides an authorized user with the ability to alter user

properties such as creating a user, modifying an existing users’ communication rights, and defining the files/directories accessible by a particular user.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security Tab Features (Cont.)

SSL Certificate section Allows an authorized user to select the method for SSL certificate

Security tab - Enable Security page

It is recommended that enabling the Master Security option be done after the groups, users, and passwords have been setup. If not, when the user accesses the Master from within another session, the default administrator user names and password are used for access.

The Enable Security link toggles the appearance of the NetLinx Master security options.

Security System Features

Feature Description

Master Security Configuration This option allows an authorized user the ability to grant/deny

Terminal (RS232) Security This selection enables or disables Terminal Security (through the

HTTP Access This selection enables or disables Web Server access. If Security

Telnet Access This selection enables or disables Telnet Security. If Telnet

Security Config Access This selection enables or disables the ability of a group to alter

SSL Enable This option allows an administrator the ability to enable or disable

generation and implementation on the target Master.

• A certificate can be self generated, requested, or regenerated.

• Once a certificate has been installed onto a target Master, that certificate remains there until it is either replaced or regenerated.

access to the security configuration commands of the on-board Master. Only those users with security access rights granted will have access to the security configuration commands.

• These are global options that enable or disable the rights given to both users and groups.

• Ex: If you would want to disable Telnet Security for all users, you would access this tab and uncheck the Telnet Access option to disable Telnet security for the entire Master.

RS232 Program port). If Terminal Security is enabled, a user must have sufficient access rights to login to a Terminal session.

is enabled, a user must have sufficient access rights to browse to the NetLinx Master with a Web Browser.

• Enabling this field prompts the user (upon their return) to submit a valid user name and password.

Security is enabled, a user must have sufficient access rights to login to a Telnet session.

the Security Configuration settings. If Security Configuration Security is enabled, a user/group must have sufficient access rights to access the Main Security Menu.

the SSL feature on the Master.

• This field will not be enabled until after the initial self-generated certificate has been installed onto the Master. This configures the Master for secure communication. This security is necessary before installing any encrypted CA server certificates.

• If the self-generated SSL certificate has been installed on the Master, the user is prompted with a Security Alert popup that informs them of possible conflicts between the Master’s certificate and those registered through the web browser as valid and secure. Refer to the Accessing an SSL-Enabled Master via an IP Address section on page 68 for more information.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security System Features (Cont.)

OK/Cancel • Press OK to accept any changes made within this tab and

incorporate the information into the target Master.

•Press Cancel to void any changes made within this tab, exits without making changes to the target Master, and blanks-out the Security tab.

You must first enable the Master Security selection and then click OK before altering any settings. Click OK again after making alterations to any of these features (such as Terminal, HTTP, and Telnet access) and save these changes to the target Master.

Security tab - Add Group page

The Groups > Add Group link allows an authorized user to add a group account (FIG. 27) and

then assign that group’s current Master access rights.

FIG. 27 Security Tab - Add Group

Add Group Entries

Feature Description

Group Name A valid character string defining the name of the group

Terminal (RS232) Access This selection enables or disables Terminal (RS232 Program

Admin Change Password Access This selection enables or disables the group’s right to change the

FTP Access This selection enables or disables FTP Access for the target

HTTP Access This selection enables or disables Web Server access for the

Telnet Access This selection enables or disables Telnet Security access for the

Security Config Access This selection enables or disables the ability of a group to alter

NetLinx Integrated Controllers

(4 - 20 alpha-numeric characters).

• The string is case sensitive and must be unique.

port) Security Access for the target group.

administrator’s user passwords.

Note: Once the Administrator’s password has been changed, the default password can no longer be used to gain access.

group.

target group.

the Security Configuration settings.

NetLinx Security and Web Server

Add Group Entries (Cont.)

OK/Cancel • Press OK to accept any changes made within this tab and

A User represents a single potential client of the NetLinx Master, while a Group represents a logical collection of users. Any properties possessed by groups (example: access rights, directory associations, etc.) are inherited by all the members of the group.

Security tab - Modify Group page

The Groups > Modify Group link allows an authorized user to select from a listing of available

groups (FIG. 28) and then modify the access rights for the selected group.

incorporate the information into the target Master.

• Press Cancel to void any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab.

FIG. 28 Security Tab - Modify Group

Modify Group Entries

Feature Description

Select New Group Provides a drop-down listing of the available groups.

• Initially, administrator is listed as a default group. Thereafter, the last group accessed is then always shown.

• As more groups are added through the Add Group section of the Security tab; those groups appear within the drop-down selection.

• The checkbox for each access right is populated when a new group is selected.

Terminal (RS232) Access This selection enables or disables Terminal Security Access

(through the RS232 Program port) for the selected group.

Admin Change Password Access This selection enables or disables the group’s right to change the

administrator’s user passwords.

Note: Once the Administrator’s password has been changed, the default password can no longer be used to gain access.

FTP Access This selection enables or disables FTP Access for the selected

group.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Modify Group Entries (Cont.)

HTTP Access This selection enables or disables Web Server access for the

selected group.

Telnet Access This selection enables or disables Telnet Security for the selected

group.

Security Config Access This selection enables or disables the ability of a group to alter

the Security Configuration settings.

OK/Cancel/Delete • Press OK to accept any changes made within this tab and

incorporate the information into the target Master.

•Press Cancel to void any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab.

•Press Delete to remove the selected group from the list of authorized groups on the Master.

Security tab - Group Directory Associations page

The Groups > Directory Associations link allows an authorized user to view current directory

associations assigned to the selected group, add paths for new directory associations, and delete any

previously configured directory associations (FIG. 29).

Directories pathnames present on the target Master

FIG. 29 Security Tab - Group Directory Associations

A Directory Association is a path that defines the directories and files a particular user or group can

access via the Web Server on the NetLinx Master. This character string can range from 1 to 128

alpha-numeric characters. This string is case sensitive. This is the path to the file or directory to

which you want to grant access.

A single '/' is sufficient to grant access to all files and directories in the user directory and

subdirectory. The '/*' wildcard can also be added to enable access to all files. All entries should start

with a '/'.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Here are some examples of valid entries:

Valid Directory Association Entries

Path Description

/ Enables access to the all files within the user’s main directory and

/* Enables access to the all files within the user’s main directory and

/user1 If user1 is a file in the user directory, only the file is granted

/user1/ user1 is a subdirectory of the user directory. All files in the

/Room1/iWebControlPages/* /Room1/iWebControlPages is a subdirectory and all files and

By default, all accounts that enable HTTP Access are given a '/*' Directory Association if no other

Directory Association has been assigned to the account.

Group Directory Association Entries

Feature Description

Select New Group Provides a drop-down listing of the available groups.

Add Association This field displays all existing directories currently on the target

Adding Association This field is used to specify the path for the file or directory

Delete/Select Association This drop-down listing displays any current directory associations

subdirectories.

access. If user1 is a subdirectory of the user directory, all files in the user1 and its sub-directories are granted access.

user1 and its sub-directories are granted access.

its subdirectories are granted access.

• Initially, administrator is listed as a default group. Thereafter, the last group accessed is then always shown.

• As more groups are added through the Add Group section of the Security tab; those groups appear within the drop-down selection.

• The checkbox alongside each access right is populated when a new group is selected.

Master.

• These folders can consist of G3 HTML project folders, data file folders, etc.

• These folders are located beneath the User directory on the Master.

granted for access and then assigned to the selected group.

• Clicking on a folder within the Add Association area populates the Adding Association association field with the folder’s path.

• The directory path can also manually be entered.

• Press Add to accept the new path and assign it to the selected group.

• Press Cancel to void any path changes.

assigned to the group and prompts you to select the association you want to delete.

• Press Delete to remove the currently selected directory association and save those changes to the group profile.

• Press Cancel to void any association changes.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security tab - Add User page

The Users > Add User link allows an authorized user to add a user account (FIG. 30) and then

assign that user’s current access rights.

FIG. 30 Security Tab - Add User

Add User Entries

Feature Description

User ID (user name) A valid character string defining the name of the user

(4 - 20 alpha-numeric characters). The string is case sensitive and must be unique.

Group Provides a drop-down listing of the available groups.

• Any properties possessed by groups (ex: access rights, directory associations, etc.) are inherited by users assigned to a particular group.

Terminal (RS232) Access This selection enables or disables Terminal Security Access

Admin Change Password Access This selection enables or disables the user’s right to change the

FTP Access This selection enables or disables FTP Access for the target user.

HTTP Access This selection enables or disables Web Server access for the

Telnet Access This selection enables or disables Telnet Security access for the

Security Config Access This selection enables or disables the ability of a user to alter the

Password/Confirm Enter a password for the new user.

OK/Cancel • Press OK to accept any changes made within this tab and

(through the RS232 Program port) for the target user.

administrator’s user passwords.

Note: Once the Administrator’s password has been changed, the default password can no longer be used to gain access.

target user.

Security Configuration settings.

• A user password is a valid character string (4 - 20 alpha-numeric characters) that is used to supplement the user name/ID in defining the potential client. The string is case sensitive and must be unique.

incorporate the information into the target Master.

•Press Cancel to void any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security tab - Modify User page

The Users > Modify User link allows an authorized user to select from a listing of available users

(FIG. 31) and then modify the Master’s access rights for the selected user.

FIG. 31 Security Tab - Modify User

Group Rights are greyed-out and are read-only from within Modify User.

The Group Rights column will appear greyed-out when viewed within the Mozilla browser on a Linux machine.

Modify User Entries

Feature Description

Select User Provides a drop-down selection listing of the available users.

• Initially, administrator and NetLinx are listed as a default users. The administrator has ALL available group and User access rights. The NetLinx user has only FTP user rights and no pre-assigned group rights. Thereafter, the last user accessed is then always shown.

• As more users are added through the Add User section of the Security tab; those users appear within the drop-down selection (along with checkmarks alongside their selected user access rights).

Select New Group Provides a drop-down selection listing of the available groups.

• As more groups are added through the Add Group section of the Security tab; those groups appear within the drop-down selection (along with their directory associations).

• Any properties possessed by groups (ex: access rights, directory associations, etc.) are inherited by users assigned to a particular group.

Terminal (RS232) Access This selection enables or disables Terminal access (through the

RS232 Program port) for the selected user.

Admin Change Password Access This selection enables or disables the user’s right to change the

administrator’s user passwords.

Note: Once the administrator’s password has been changed, the default password can no longer be used to gain access.

FTP Access This selection enables or disables FTP Access for the selected

HTTP Access This selection enables or disables Web Server access for the

user.

selected user.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Modify User Entries (Cont.)

Telnet Access This selection enables or disables Telnet access for the selected

user.

Security Config Access This selection enables or disables the ability of a user to alter the

Security Configuration settings.

Password/Confirm Enter a new password assigned to the selected user.

• A user password is a valid character string (4 - 20 alpha-numeric characters). The string is case sensitive and

must be unique.

• If this field is left blank the current password is left unchanged.

• If a new alpha-numeric string is entered, it becomes incorporated as the new password after pressing the OK button.

OK/Cancel/Delete • Press OK to accept any changes made within this tab and

incorporate the information into the target Master.

•Press Cancel to void any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab.

•Press Delete to remove the selected user from the list of authorized users on the Master.

Security tab - User Directory Associations page

The Users > Directory Associations link allows an authorized user to view current directory

associations assigned to the selected user, add paths for new directory associations, and delete any

previously configured directory associations (FIG. 32).

Directory pathnames present on the target Master

FIG. 32 Security Tab - Group Directory Associations

A Directory Association is a path that defines the directories and/or files a particular user or group

can access via the Web Server on the NetLinx Master. This character string can range from 1 to 128

alpha-numeric characters. This string is case sensitive. This is the path to the file or directory to

which you want to grant access.

NetLinx Integrated Controllers

NetLinx Security and Web Server

A single '/' is sufficient to grant access to all files and directories in the user directory and it's

subdirectory. The '/*' wildcard can also be added to enable access to all files. All entries should start

with a '/'. Here are some examples of valid entries:

Valid Directory Association Entries

Path Description

/ Enables access to the user directory and all files and

/* Enables access to the user directory and all files and

/user1 If user1 is a file in the user directory, only the file is granted

/user1/ user1 is a subdirectory of the user directory. All files in the

/Room1/iWebControlPages/* /Room1/iWebControlPages is a subdirectory and all files and

By default, all accounts that enable HTTP Access are given a '/*' Directory Association if no other

Directory Association has been assigned to the account.

subdirectories in that user directory.

access. If user1 is a subdirectory of the user directory, all files in the user1 and its sub-directories are granted access.

user1 and its sub-directories are granted access.

its subdirectories are granted access.

User Directory Association Entries

Feature Description

Select User Provides a drop-down listing of the available users.

• Initially, administrator and NetLinx are listed as default users. Thereafter, the last user accessed is then always shown.

• As more users are added through the Add Group section of the Security tab; those users appear within the drop-down selection.

• The checkbox alongside each access right is populated when a new user is selected.

Add Association This field displays all existing directories currently on the target

Adding Association This field is used to specify the path for the file or directory

Delete/Select Association This drop-down listing displays any current directory associations

Master.

• These folders can consist of G3 HTML project folders, data file folders, etc.

• These folders are located beneath the User directory on the Master.

granted for access and then assigned to the selected user.

• Clicking on a folder within the Add Association area populates the Adding Association association field with the folder’s path.

• Another field option is to manually enter the directory path.

• Press Add to accept the new path and assign it to the selected user.

• Press Cancel to void any path changes.

assigned to the user and prompts you to select the association you want to delete.

• Press Delete to remove the currently selected directory association and save those changes to the user profile.

• Press Cancel to void any path changes, disables the security configuration session, and returns you to a blank Security tab.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security tab - SSL Server Certificate page

A certificate is a cryptographically signed object that associates a public key and an identity.

Certificates also include other information in extensions such as permissions and comments.

A "CA" is short for Certification Authority and is an internal entity or trusted third party that issues,

signs, revokes, and manages these digital certificates.

Before initially enabling the SSL feature on the Master, a self-generated certificate must first be installed. This initial installation allows users to then later install the different types of certificates (requested, self-generated, or regenerated).

The SSL > Server Certificate link (FIG. 33) allows an authorized user to display an installed

certificate, create a certificate request, self-generate, and regenerate SSL Server Certificates.

FIG. 33 Security Tab - Server Certificate

Server Certificate Entries

Feature Description

Bit Length Provides a drop-down selection with three available public key

lengths: 512, 1024, and 2048.

• Longer key lengths result in increased certificate processing times.

• A longer key length results in more secure certificates.

Common Name The Common Name of the certificate MUST be the URL Domain

Name used.

• Example: If the address used is www.amxuser.com, that must be the Common name and format used.

• The Common Name can not be an IP Address.

• If the server is internal, the Netbios name must be used.

• For every website using SSL that has a distinct DNS name, there must be a certificate installed. Each website (external or Internet) for SSL MUST also have a distinct IP Address.

Organization Name Name of your business or organization. This is an alpha-numeric

Organizational Unit Name of the department using the certificate. This is an

string (1 - 50 characters in length).

alpha-numeric string (1 - 50 characters in length).

NetLinx Integrated Controllers

NetLinx Security and Web Server

Server Certificate Entries (Cont.)

City/Location Name of the city where the certificate is used. This is an

State/Province Name of the state or province where the certificate is used. This

Country Name Provides a drop-down selection with a listing of currently

Action Provides a drop-down selection with a listing of available

OK/Cancel/Delete • Press OK to accept any changes made within this tab and

alpha-numeric string (1 - 50 characters in length).

is an alpha-numeric string (1 - 50 characters in length).

selectable countries.

certificate options:

• Display Certificate - Populates the Server Certificate fields with the information from the certificate currently installed on the Master. This action is used only to display the information

contained in the certificate on the target Master.

• Create Request - Takes the information entered into the previous fields and formats the certificate so it can be exported to the external Certificate Authority (CA) for later receipt of an SSL Certificate. This action is used to request a certificate

from an external source.

• Self Generate Certificate - Takes the information entered into the previous fields and generates its own SSL Certificate.

This action is used when no previous certificate has been installed on the target Master, or a self-signed certificate is desired.

• Regenerate Certificate - Takes the information entered into the previous fields and regenerates an SSL Certificate. This action changes the Master Key.

This method of certificate generation is used to modify or recreate a previously existing certificate already on the Master.

incorporate the information into the target Master.

• Press Cancel to void any changes made within this tab, disable the security configuration session, void any changes made to the Master, and return you to the empty Security tab.

If a certificate has been purchased from an external CA and then installed onto a specific Master, DO NOT regenerate the certificate or alter its properties (ex: bit length, city, etc.). If the purchased certificate is regenerated, it becomes invalid.

A certificate consists of two different Keys:

 Master Key is generated by the Master and is incorporated into the text string sent to the

CA during a certificate request. It is unique to a particular request made on a specific

Master.

 Public Key is part of the text string that is returned from the CA as part of an approved

SSL Server Certificate. This public key is based off the submitted Master key from the

original request.

 Regenerating a previously requested and installed certificate invalidates that

certificate because the Master Key has been changed.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Security tab - Export Certificate Request page

The SSL > Export Certificate Request link opens an Export Certificate Request field (FIG. 34)

where an authorized user can copy the raw text from a generated Certificate request into their

clipboard and then send it to the CA.

FIG. 34 Security Tab - Export Certificate Request field

Security tab - Import Certificate page

The SSL > Import Certificate link opens an Import Certificate field (FIG. 35) where an authorized

user can paste the raw text from a CA issued Certificate.

FIG. 35 Security Tab - Import Certificate field

A CA server certificate can only be imported to a target Master only after both a self-generated certificate has been created and the SSL Enable feature has been selected on the Master. These actions configure the Master the secure communication necessary during the importing of the CA certificate.

NetLinx Integrated Controllers

NetLinx Security and Web Server

System Tab

Displays the firmware version and log information for the NetLinx Master (FIG. 36).

FIG. 36 System Tab

Show Devices Tab

Displays the device values and firmware versions of devices connected to the current NetLinx

Master System (FIG. 37).

FIG. 37 Show Devices tab

Network Tab

Provides a list of the DNS and URL associated with the NetLinx Master.

 The DNS List identifies the Domain Name servers that translates domain names for the

Master into IP Addresses.

 The URL List identifies all URL entries within the Master’s URL list.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Master Security Setup Procedures

Setting the system security options for a NetLinx Master (Security Options Menu)

1. Enter the URL/IP Address of the target Master into the Address/URL field within the web

browser. Refer to the Accessing the NetLinx Master via an IP Address section on page 35 for

more detailed instructions on using your web browser to access your Master.

2. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security Tab section on page 37 for more detailed

descriptions on the security configuration options.

3. Click the Enable Security link (on the left of the browser window) to populate the Security tab

with NetLinx Master security options (FIG. 38) that can individually be enabled or disabled.

FIG. 38 Security tab - showing NetLinx Master security options

By default, Master Security and SSL Enable are disabled (unchecked), including the Master Security subcomponents: Terminal Access, HTTP Access, Telnet Access, and Security Configuration Access.

4. Click on the checkbox next to Master Security to enable the security on the target Master.

Placing a check in this field allows you to alter the security properties for the remaining Master

Security options (Terminal/HTTP/Telnet/Security Configuration). Refer to the Security tab -

Enable Security page section on page 38 for more detailed field descriptions.

Each selection simply toggles the security setting from enabled to disabled. Click OK after making any changes to these features so that those alterations are then saved to the target Master.

5. Before enabling the SSL security, a user must first develop and then install a self-generated

Certificate onto the Master. Refer to the Self-Generating a SSL Server Certificate

Request section on page 62.

This initial installation allows users to then later install the different types of certificates (requested, self-generated, or regenerated).

NetLinx Integrated Controllers

NetLinx Security and Web Server

6. Click on the checkbox next to SSL Enable to enable the use of SSL encryption and server

certificate usage. Activating this feature requires the creation of a server certificate. Refer to

the SSL Certificate Procedures section on page 61 for instructions on creating and requesting a

server certificate for the target Master.

Before initially enabling the SSL feature on the Master, a self-generated certificate should first be installed. This initial certificate, along with the enabling of the SSL security feature (from the Enable Security page), allows users to create a secure connection to the Master so an encrypted CA server certificate can then be safely imported.

7. Click OK to accept and save the changes made on this tab to the Master. Clicking Cancel

voids any changes made within this tab, disables the security configuration session, voids any

changes made to the Master, and returns you to the empty Security tab.

If a SSL certificate has been previously placed on the target Master, after clicking OK, a server certificate security alert might appear to inform you of any issues with the existing certificate. Click Yes to accept the certificate conditions and continue accessing the target Master.

8. Successful incorporation of the changes to the Master’s security configurations results in an

on-screen message "System Security successfully configured. SSL has been turned on".

A Group represents a logical collection of individual users. Any properties possessed by a group (ex: access rights, directory associations, etc.) are inherited by all members of that group.

The "administrator" group account cannot be deleted or modified.

Adding a Group and assigning their access rights

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - Add Group page section on page 39

for more detailed descriptions on the security configuration options.

2. Click the Add Group link to populate the Security tab with the fields necessary for

configuring a new group and assigning its associated access rights (FIG. 39).

FIG. 39 Security tab - showing the Add Group fields

3. Enter a unique alpha-numeric string (consisting of 4 - 20 characters) into the Group Name

field. This string provides a unique name for the desired group. The word administrator

cannot be used for a new group name since it already exists by default.

NetLinx Integrated Controllers

NetLinx Security and Web Server

4. Click on the checkbox next to the requested access rights desired for the selected group.

Placing a check in these fields activates the access rights (Terminal/Admin Change/FTP/

HTTP/Telnet/Security Configuration). Refer to the Security tab - Add Group page section on

page 39 for more detailed field descriptions.

5. Click OK to accept and save the changes made on this tab to the Master. Clicking Cancel

voids any changes made within this tab, disables the security configuration session, voids any

changes made to the Master, and returns you to the empty Security tab.

6. Successful addition of the new group results in an on-screen message "Group ‘XXX’ added".

Any security changes made to the Master from within the web browser are instantly reflected within a Terminal session without the need to reboot. Security changes made to the Master from within a Terminal window are not reflected within the web browser until the Master is rebooted and the web browser connection is refreshed.

Modifying an existing Group’s access rights

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - Modify Group page section on

page 40 for more detailed descriptions on the security configuration options.

2. Click the Modify Group link (on the left of the browser window) to populate the Security tab

with the access rights fields associated with the selected group. (FIG. 40).

FIG. 40 Security tab - showing the Modify Group access rights fields

3. Click the down arrow from the Select New Group field to open a drop-down listing of

authorized groups. Initially, administrator is listed as the last accessed group. As more groups

are added through the Add Group section of the Security tab; those groups appear within the

drop-down selection (along with checkmarks alongside their pre-configured access rights).

 After a group is selected, the access rights, previously assigned to that group, are

selected/enabled with a checkmark next the corresponding field (Terminal/Admin

Change/FTP/HTTP/Telnet/Security Configuration). Refer to the Security tab - Modify

Group page section on page 40 for more detailed field descriptions.

4. Enable (check) or disable (uncheck) the checkbox associated to the desired access right.

Alterations made within this window modify any previously access rights that were assigned to

the selected group when it was created.

NetLinx Integrated Controllers

NetLinx Security and Web Server

5. Click OK to accept and save the changes made on this tab to the Master.

Clicking Delete removes the selected group from the list of authorized groups on the Master. Clicking Cancel voids any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab.

6. Successful modification of the new group results in an on-screen message "Group ‘XXX’

modified".

Each selection simply toggles the security setting from enabled to disabled.

Showing a list of authorized Groups

1. Click on the Security tab (FIG. 40).

2. Click the Modify Group link (on the left of the browser window) to populate the Security tab

with the access rights fields associated with a selected group.

3. Click the down arrow from the Select New Group field to open a drop-down listing of

authorized groups on the target Master.

Deleting an existing Group

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window.

2. Click the Modify Group link.

3. Click the down arrow from the Select New Group field to open a drop-down listing of available

groups.

4. Select a group from the drop-down listing.

5. Click Delete to remove the selected group from the list of authorized groups on the Master.

6. Successful deletion of the group results in an on-screen message "Group ‘XXX’ deleted".

NetLinx Integrated Controllers

NetLinx Security and Web Server

Adding a Group directory association

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - Group Directory Associations

page section on page 41 for more detailed descriptions on the security configuration options.

2. Click the Directory Associations link (on the left of the browser window) to populate the

Security tab with the directory associations assigned to the selected group (FIG. 41).

Directory pathnames present on the target Master

FIG. 41 Security tab - showing the Group Directory Associations fields

3. Click the down arrow from the Select Group field to open a drop-down listing of authorized

groups. Initially, administrator is listed as a default group.

 The Add Association field displays the current directory folders that currently reside

within the target Master. These can consist of G3 HTML project folders, data file folders,

etc.

4. Enter a new directory association path into the Adding Association field. This character string

can range from 1 - 128 alpha-numeric characters. This string is case sensitive. This information

is the path to the file or directory to which you want to grant access. A single '/' is sufficient to

grant access to all files and directories in the user directory and it's subdirectory. The '/*'

wildcard can also be added to enable access to all files. All entries should start with a '/'. Here

are some examples of valid entries:

Valid Directory Association Entries

Path Description

/ Enables access to the user directory and all files and

/* Enables access to the user directory and all files and

/user1 If user1 is a file in the user directory, only the file is granted

/user1/ user1 is a subdirectory of the user directory. All files in the

/Room1/iWebControlPages/* /Room1/iWebControlPages is a subdirectory and all files and

subdirectories in that user directory.

access. If user1 is a subdirectory of the user directory, all files in the user1 and its sub-directories are granted access.

user1 and its sub-directories are granted access.

its subdirectories are granted access.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Not only can an administrator provide group access to a file or folder on the Master, but also to an Application tab displayed within the web browser (such as Show Devices or Network).

 To add an association to an Application tab, enter the association location

(ex: /showdevices.asp) into the Adding Association field.

5. Click Add to add the new directory path to the group and save it to the Master.

6. Successful modification of the new path results in an on-screen message, for example:

"Directory Assocation ‘/XXX’ added for group "XXX".

7. Click the down arrow from the Select Association field to open a drop-down listing of the

associations for the selected group and confirm the added association appears in the list.

Confirming the new directory association

1. Click on the Security tab.

2. Click the Directory Associations link.

3. From the Delete Association section of the Group Directory Associations window, click the

down arrow from the Select Association field to open a list of associations and confirm the new

directory association has been assigned to the group.

Deleting a directory association

1. Click on the Security tab.

2. Click the Directory Associations link.

3. From the Delete Association section of the Group Directory Associations window, click the

down arrow from the Select Association field to open a list of associations.

4. Select a directory association from the drop-down list.

5. Click Delete to remove the selected directory path from the group properties and save the

change to the Master.

6. Successful deletion of the path results in an on-screen message, for example: "Directory

Assocation ‘/XX’ deleted for group "XXX".

A User represents a single potential client of the NetLinx Master. Any properties possessed by a group (ex: access rights, directory associations, etc.) are inherited by all users who are assigned to that group.

The "administrator" user account cannot be deleted or modified.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Adding a User and configuring their access rights

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - Add User page section on page 43

for more detailed descriptions on the security configuration options.

2. Click the Add User link (on the left of the browser window) to populate the Security tab with

the fields necessary for configuring a new user and assigning its associated access rights

(FIG. 42).

FIG. 42 Security tab - showing the Add User fields

3. Enter a unique alpha-numeric string (consisting of 4 - 20 characters) into the User ID field.

This string provides a unique name for the desired user. The user names administrator and

NetLinx cannot be used since they already exist.

4. Click the down arrow from the Group field to open a drop-down listing of authorized groups.

5. Click on the checkbox next to the requested access rights desired for the selected user. Placing

a check in these fields activates the access rights (Terminal/Admin Password Change/FTP/

HTTP/Telnet/Security Configuration). Refer to the Security tab - Add User page section on

page 43 for more detailed field descriptions.

The NetLinx account can be deleted from either the Modify Group or User pages. The administrator account can not be deleted from either Modify pages and can not have it’s directory associations modified.

6. Enter the same password for the new user into both the Pas sw ord and Confirm fields.

 A user password is a valid character string (4 - 20 alpha-numeric characters) that is used

to supplement the user name/ID in defining the potential client. The string is case

sensitive and must be unique.

7. Click OK to accept and save the changes made on this tab to the Master. Pressing Cancel voids

any changes made within this tab, disables the security configuration session, voids any

changes made to the Master, and returns you to the empty Security tab.

8. Successful addition of the new group results in an on-screen message "User ‘XXXX’ was

successfully added".

NetLinx Integrated Controllers

NetLinx Security and Web Server

Each selection simply toggles the security setting from enabled to disabled.

Modifying an existing User’s access rights

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - Modify User page section on

page 44 for more detailed descriptions on the security configuration options.

2. Click the Modify User link (on the left of the browser window) to populate the Security tab

with the access rights fields associated with the selected group. (FIG. 43).

Group Rights are greyed-out and are read-only from within Modify User.

FIG. 43 Security tab - showing the Modify User Configurations fields

3. Click the down arrow from the Select User field to open a drop-down listing of authorized

users. Initially, administrator and NetLinx are listed as default users. As more users are added

through the Add User section of the Security tab; those users appear within the drop-down

selection (along with checkmarks alongside their pre-configured access rights).

 After a user is selected, the access rights, previously assigned to that user during creation,

are selected/enabled with a checkmark next the corresponding field (Terminal/Admin

Change/FTP/HTTP/Telnet/Security Configuration). Refer to the Security tab - Modify

User page section on page 44 for more detailed field descriptions.

4. Click the down arrow from the Select New Group field to open a drop-down listing of

authorized groups and assign the user to that group. Initially, administrator is listed as a

default group. As more groups are added through the Add Group section of the Security tab;

those groups appear within the drop-down selection (along with checkmarks alongside their

pre-configured access rights).

Any previously configured user access rights are populated in the left checkbox column. A previously created group’s access rights are populated in the right checkbox column. Any properties possessed by a group (ex: access rights, directory associations, etc.) are inherited by all users who are assigned to that group.

5. Enable (check) or disable (uncheck) the checkboxes associated to the desired user access

rights. Alterations made within this window modify any previously access rights that were

assigned to the selected user when it was created.

NetLinx Integrated Controllers

NetLinx Security and Web Server

6. Enter the same password for the user into both the Password and Confirm fields, if you want to

change the password. Leaving this field blank retains the current or previous password.

 A user password is a valid character string (4 - 20 alpha-numeric characters) that is used

to supplement the user name/ID in defining the potential client. The string is case

sensitive and must be unique.

7. Click OK to accept and save the changes made on this tab to the Master.

Clicking Cancel voids any changes made within this tab, disables the security configuration session, voids any changes made to the Master, and returns you to the empty Security tab. Clicking Delete removes the selected user from the list of authorized users on the Master.

8. Successful modification of the new user results in an on-screen message "User ‘XXX’

modified".

Each selection simply toggles the security setting from enabled to disabled.

Showing a list of authorized Users

1. Click on the Security tab.

2. Click the Modify User link (on the left of the browser window) to populate the Security tab

with the access rights fields associated with the selected user.

3. Click the down arrow from the Select User field to open a drop-down listing of authorized

users on the target Master.

Deleting a User

1. Click on the Security tab (FIG. 43 on page 58). By default this tab is blank until a security

option is selected from the left of the browser window.

2. Click the Modify User link (on the left of the browser window) to populate the Security tab

with the access rights fields associated with the selected user.

3. Click the down arrow from the Select User field to open a drop-down listing of authorized

users on the target Master.

4. Select a user from the drop-down listing.

5. Click Delete to remove the selected user from the list of authorized users on the Master.

6. Successful deletion of the user results in an on-screen message "User ‘XXX’ deleted".

NetLinx Integrated Controllers

NetLinx Security and Web Server

Adding a User directory association

1. Click on the Security tab. By default this tab is blank until a security option is selected from

the left of the browser window. Refer to the Security tab - User Directory Associations

page section on page 45 for more detailed descriptions on the security configuration options.

2. Click the Directory Associations link (on the left of the browser window) to populate the

Security tab with the directory associations assigned to the selected user (FIG. 44).

Directory pathnames present on the target Master

FIG. 44 Security tab - showing the User Directory Associations fields

3. Click the down arrow from the Select User field to open a drop-down listing of authorized

users. Initially, administrator and NetLinx are listed as default users.

 The Add Association field displays the current directory folders that currently reside

within the target Master. These can consist of G3 HTML project folders, data file folders,

etc.

4. Enter a new directory association path into the Adding Association field. This character string

can range from 1 - 128 alpha-numeric characters. This string is case sensitive. This information

is the path to the file or directory to which you want to grant access. A single '/' is sufficient to

grant access to all files and directories in the user directory and it's subdirectory. The '/*'

wildcard can also be added to enable access to all files. All entries should start with a '/'.

Not only can an administrator provide user access to a file or folder on the Master, but also to an Application tab displayed within the web browser (such as Show Devices or Network).

 To add an association to an Application tab, enter the association location

(ex: /showdevices.asp) into the Adding Association field.

5. Click Add to incorporate the new directory path to the user and save it to the Master.

6. Successful modification of the new path results in an on-screen message, for example:

"Directory Assocation ‘/XXX’ added for user "XXX".

7. Click the down arrow from the Select Association field to open a drop-down listing of the

associations for the selected group and confirm the added association appears in the list.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Confirming the new directory association

1. Click on the Security tab.

2. Click the Directory Associations link.

3. From the Delete Association section of the User Directory Associations window, click the

down arrow from the Select Association field to open a list of associations and confirm the new

directory association has been assigned to the user.

Deleting a directory association

1. Click on the Security tab.

2. Click the Directory Associations link.

3. From the Delete Association section of the User Directory Associations window, click the

down arrow from the Select Association field to open a list of associations.

4. Select a directory association from the drop-down list.

5. Click Delete to remove the selected directory path from the user properties and save the change

to the Master.

6. Successful deletion of the path results in an on-screen message, for example: "Directory

Assocation ‘/XXX’ deleted for user "XXX".

SSL Certificate Procedures

Initially, a NetLinx Master is not equipped with any installed certificates. In order to prepare a

Master for later use with CA (officially issued) server certificates, it is necessary to:

 First create a self-generated certificate which is automatically installed onto the

Master.

 Secondly, enable the SSL feature from the Enable Security page. Enabling SSL security

after the certificate has been self-generated insures that the target Master is utilizing a

secure connection during the process of importing a CA server certificate over the web.

A self-generated certificate has lower security than an external CA generated certificate.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Self-Generating a SSL Server Certificate Request

1. Click on the Security tab (FIG. 45). Refer to the Security tab - SSL Server Certificate

page section on page 47 for more detailed descriptions on the security configuration options.

2. Click the Server Certificate link (on the left of the browser window) to display the Security

tab with the fields necessary for developing a new certificate.

FIG. 45 Security tab - showing the Server Certificate creation fields

3. Click the down arrow from the Bit length field to open a drop-down listing of available public

key lengths.

 The three available public key lengths are: 512, 1024, and 2048. Higher selected key

lengths result is increased certificate processing times. A larger the key length results in

more secure certificates.

4. Enter the Domain Name.

 Example: If the address being used is www.amxuser.com, that must be the Common

name and format used in the Common Name field. This string provides a unique name for

the desired user.

 This domain name does not need to be resolvable URL Address when

self-generating a certificate.

5. Enter the name of the business or organization into the Organization Name field. This is an

alpha-numeric string (1 - 50 characters in length).

6. Enter the name of the department using the certificate into the Organizational Unit field. This

is an alpha-numeric string (1 - 50 characters in length).

7. Enter the name of the city where the certificate will reside into the City/Location field. This is

an alpha-numeric string (1 - 50 characters in length).

8. Enter the name of the state or province where the certificate will reside into the State/Province

field. This is an alpha-numeric string (1 - 50 characters in length).

The city/province name must be fully spelled out.

9. Click the down arrow from the Country Name field to open a drop-down listing of listing of

currently selectable countries.

10. Click the down arrow from the Action field to open a drop-down listing of available certificate

generation options.

NetLinx Integrated Controllers

NetLinx Security and Web Server

11. Choose Self Generate Certificate from the drop-down list. When this request is submitted, the

certificate is generated and installed into the Master in one step.

12. Click OK to save the new encrypted certificate information to the Master or click Cancel to

void any changes made within this tab and exit without making changes to the target Master.

ONLY use the Regenerate certificate option when you have Self Generated your own certificate. DO NOT regenerate an external CA-generated certificate.

13. Click the Security tab > Enable Security link to return to the Enable Security page.

14. Place a checkmark into the SSL Enable selection box to enable the SSL security feature on the

target Master. Activating this option creates a secure connection to and from the target

Master. It is recommended that a secure connection to the target Master be used when

importing a CA server certificate.

Creating a Request for a SSL Server Certificate

1. Click on the Security tab. Refer to the Security tab - SSL Server Certificate page section on

page 47 for more detailed descriptions on the security configuration options.

2. Click the Server Certificate link (on the left of the browser window) to display the Security

tab with the fields necessary for generating a new certificate.

3. Click the down arrow from the Bit length field to open a drop-down listing of available public

key lengths.

 The three available public key lengths are: 512, 1024, and 2048. Higher selected key

lengths result in increased certificate processing times. A longer key length results in

more secure certificates.

4. Enter the used Domain Name.

 Example: If the address being used is www.amxuser.com, that must be the Common

name and format used in the Common Name field. This string provides a unique name for

the desired user.

 This domain name must be associated to a resolvable URL Address when creating a

request for a purchased certificate. The address does not need to be resolvable when

obtaining a free certificate.

5. Enter the name of the business or organization into the Organization Name field. This is an

alpha-numeric string (1 - 50 characters in length).

6. Enter the name of the department using the certificate into the Organizational Unit field. This

is an alpha-numeric string (1 - 50 characters in length).

7. Enter the name of the city where the certificate will reside into the City/Location field. This is

an alpha-numeric string (1 - 50 characters in length).

8. Enter the name of the state or province where the certificate will reside into the State/Province

field. This is an alpha-numeric string (1 - 50 characters in length).

The state/province name must be fully spelled out.

9. Click the down arrow from the Country Name field to open a drop-down listing of listing of

currently selectable countries.

NetLinx Integrated Controllers

NetLinx Security and Web Server

10. Click the down arrow from the Action field to open a drop-down listing of available certificate

generation options.

11. Choose Create Request from the drop-down list.

12. Click OK to accept the information entered into the above fields and generate a certificate file.

Refer to the Security tab - Export Certificate Request page section on page 49.

 This refreshed the Server Certificate page and if the certificate request was successful,

displays a "Certified request generated" message.

13. Click the Export Certificate Request link (on the left of the browser window) to display the

certificate text file.

14. Place your cursor within the certificate text field.

15. Press the Ctrl + A keys simultaneously on your keyboard (this selects all the text within the

field).

YOU MUST COPY ALL OF THE TEXT within this field, including the -----BEGIN CERTIFICATE REQUEST----- and the -----END CERTIFICATE REQUEST-----.

Without this text included in the CA submission, you will not receive a CA-approved certificate.

16. Press the Ctrl + C keys simultaneously on your keyboard (this takes the blue selected text

within the field and copies it to your temporary memory/clipboard).

17. Paste this text into your e-mail document and then send that information to a CA with its

accompanying certificate application.

When a certificate request is generated, you are creating a private key on the Master.

YOU CAN NOT REQUEST ANOTHER CERTIFICATE UNTIL THE PREVIOUS REQUEST HAS BEEN FULFILLED. Doing so will void any information received from

the previously requested certificate and it will be nonfunctional if you try to use it.

18. Once you have received the returned CA certificate, follow the procedures outlined in the

following section to import the returned certificate, over a secure connection, to the target

Master.

Importing a CA certificate to the Master over a secure SSL connection

Before importing a CA server certificate, you must:

 First, have a self-generated certificate installed onto your target Master.

 Secondly, enable the SSL security feature from the Enable Security page, to establish a

secure connection to the Master prior to importing the encrypted CA certificate. Refer to

the Security tab - Enable Security page section on page 38 for more information about

enabling SSL security.

1. Take the returned certificate (signed by the CA and encrypted with new information which

makes it different from the text string that was previously sent) and copy it into your clipboard.

Refer to the Security tab - Import Certificate page section on page 49.

2. Click the Import Certificate link to open the empty Import Certificate window.

3. Place your cursor within the empty window and paste the raw text data (in its entirety) into the

field.

NetLinx Integrated Controllers

NetLinx Security and Web Server

4. Click OK to enter the new encrypted certificate information and save it to the Master or click

Cancel to void any changes made within this tab and exit without making changes to the target

Master.

Once a certificate has been purchased from an external CA and then installed onto a specific Master, DO NOT regenerate the certificate or alter its properties (example: bit length, city, etc.).If the purchased certificate is regenerated, it becomes invalid.

A certificate consists of two different Keys:

 Master Key is generated by the Master and is incorporated into the text string sent to the

CA during a certificate request. It is specific to a particular request made on a specific

Master.

 Public Key is part of the text string that is returned from the CA as part of an approved

SSL Server Certificate. This public key is based off the submitted Master key from the

original request.

 Regenerating a previously requested and installed certificate, invalidates the

previously purchased certificate because the Master Key has been changed.

5. Use the Display Certificate option to confirm that the new certificate was imported properly to

the target Master.

Display SSL Server Certificate Information

1. Click on the Security tab (FIG. 45 on page 62). Refer to the Security tab - SSL Server

Certificate page section on page 47 for more detailed descriptions on the security

configuration options.

2. Click the Server Certificate link (on the left of the browser window) to populate the Security

tab.

By default, the Display Certificate Action is selected and these fields are populated with information from an installed certificate. If the Master does not have a previously installed certificate, these fields are blank.

3. Click the down arrow from the Action field to open a drop-down listing of available certificate

generation options.

4. Choose Display Certificate from the drop-down list.

5. Click OK to accept the action and populate the fields with the certificate information.

Regenerating an SSL Server Certificate Request

1. Click on the Security tab. Refer to the Security tab - SSL Server Certificate page section on

page 47 for more detailed descriptions on the security configuration options.

2. Click the Server Certificate link (on the left of the browser window) to display the Security

tab with the fields necessary for developing a new certificate.

NetLinx Integrated Controllers

NetLinx Security and Web Server

This method of certificate generation is used to modify or recreate a previously existing certificate already on the Master. By default, if a certificate is already present on the target Master, the Display Certificate Action is selected and these fields are populated with information. EX: if the company has moved from Dallas to Houston, all of the information is reentered exactly except for the City.

3. Enter any new or changed information into its respective field.

4. Click the down arrow from the Action field to open a drop-down listing of available certificate

generation options.

5. Choose Regenerate Certificate from the drop-down list.

When this request is submitted, the certificate is generated and installed into the Master in one step.

6. Click OK to save the newly modified certificate information to the Master or click Cancel to

void any changes made within this tab and exit without making changes to the target Master.

7. Before exiting the Master and beginning another session:

 verify that all users have been assigned the correct rights, and are using the correct

passwords.

 In the Enable Security window of the Security tab, verify that the Master Security and

HTTP Access are enabled. Enabling HTTP Access will prompt users to enter

pre-configured user names and passwords.

Common Steps for Requesting a Certificate from a CA

A certificate is a cryptographically signed object that associates a public key and an identity.

Certificates also include other information in extensions such as permissions and comments.

A "CA" is short for Certification Authority and is an internal entity or trusted third party that issues,

signs, revokes, and manages these digital certificates.

1. Navigate to the Web Server Certificate HTML page on your CA’s website.

 A Web Server certificate allows you to authenticate through a Web browser via SSL.

In order to successfully verify other certificates it is also necessary to import the CA key

into the Web Server. Refer to the Creating a Request for a SSL Server Certificate section

on page 63.

 This is done as part of the process of receiving your Web Server certificate.

 Only a user with administrator privileges can request a server certificate.

2. Enter in the company information, such as: name, e-mail, address, state, and country.

3. Agree to any licensing agreements and continue to the next part of the registration process.

NetLinx Integrated Controllers

NetLinx Security and Web Server

4. Enter the name of the server being used (this is the Master).

 The server name is the name as it shows up in the URL of the Master you are securing

with this server certificate. For example, if the URL of the Master will be

https://www.myNetLinxMaster.com/, then enter the server name as

www.myNetLinx Master.com.

5. Send the CA the text created by your certificate request through the Master. Refer to

the Creating a Request for a SSL Server Certificate section on page 63 for the procedures

necessary to generate the certificate text file.

6. Place your cursor within the certificate text field of the Export Certificate window of the

Security tab.

7. Press the Ctrl + A keys simultaneously on your keyboard (this selects all the text within the

field).

YOU MUST COPY ALL OF THE TEXT within this field, including the -----BEGIN CERTIFICATE REQUEST----- and the -----END CERTIFICATE REQUEST-----.

Without this text included in the CA submission, you will not receive CA approved certificate.

8. Press the Ctrl + C keys simultaneously on your keyboard (this takes the blue selected text

within the field and copies it to your temporary memory/clipboard).

9. Paste this text into the Submit Request field on the CA’s Retrieve Certificate web page.

10. Choose to view the certificate response in raw DER format.

11. Note the Authorization Code and Reference Number (for use in the e-mail submission of the

request).

12. Submit the request.

13. Paste this certificate text field (copied from steps 7 & 8 above) into your e-mail document and

then send that information to a CA with its accompanying certificate application.

14. Complete the certificate installation procedures outlined in the Creating a Request for a SSL

Server Certificate section on page 63.

NetLinx Integrated Controllers

NetLinx Security and Web Server

Accessing an SSL-Enabled Master via an IP Address

1. Enter the IP Address of the target Master (example: 198.198.99.99) into the web browser

Address field.

2. Press the Enter key on your keyboard to begin the communication process between the target

Master and your computer.

3. The user is then presented with a Security Alert popup window and Certificate information

(FIG. 46).

FIG. 46 Security Alert and Certificate popups

The above alert will only appear if an SSL Server Certificate has been installed on the target Master, the SSL Enable options has been enabled, from within the Enable Security window of the Security tab, and there is a problem with the site’s certificate.

Problems with the certificate can result from:

 A self generated and self-signed certificate that hasn’t been approved by a CA.

 The self-generated certificate is not part of that computer’s web browser list of trusted

sites. This changes after the certificate is installed into the user’s browser list of trusted

sites.

 The date period given to the certificate has expired. CA-approved certificates typically

come with a 2 year window of validity. Self generate certificates come defaulted with a

30 year window of validity (see FIG. 46).

 The name on the security certificate site information doesn’t match the domain name of

the target Master.

4. Click the View Certificate button on the Security Alert popup to view more detailed

information about the certificate. A secondary Certificate popup window is then displayed.

5. Review the information presented within the certificate and if you trust that both the site and

certificate information are correct, click the Install Certificate button to begin installing the

certificate into computer’s web browser list of trusted sites.

NetLinx Integrated Controllers

NetLinx Security and Web Server

6. The user is then presented with a Certificate Import Wizard that begins the process of adding

the certificate (FIG. 47).

FIG. 47 Certificate Import Wizard

7. Click Next to proceed with the certificate store process.

FIG. 48 Certificate Import Wizard- storing the certificate

8. Click Next to automatically use the default certificate store settings and locations (FIG. 48).

9. Click Finish button to finalize the certificate installation process.

10. Click Ye s , from the next popup window to "...ADD the following certificate to the Root

Store?". After a successful importing of the certificate into Internet Explorer’s list of trusted

sites, another popup window appears to inform you of the success.

11. Click OK from the Import was successful popup window.

12. To close the still open Certificate popup window click OK.

13. To close the still open Security Alert popup window, click Yes .

14. From the Network Password window, click the down arrow from the user name field to select a

user name.

15. Enter a valid password into the password field.

16. Click the save password check mark field if you want to have your web browser remember this

password during consecutive login sessions.

17. Click OK to access the target Master.

NetLinx Integrated Controllers

NetLinx Security and Web Server

18. The first tab displayed within your open browser window is WebControl.

Using your NetLinx Master to control the G4 panel

Refer to the specific panel instruction manual for detailed information on configuring and enabling

WebControl.

Once the Master’s IP Address has been set through NetLinx Studio (version 2.1 or higher):

1. Launch your web browser.

In order to fully utilize the SSL encryption, your web browser should incorporate the an encryption feature. This encryption level is displayed as a Cipher strength.

2. Enter the IP Address of the target NetLinx Master (example: 198.198.99.99) into your web

browser’s Address field.

3. Enter a valid user name and password into the fields within the Enter Network Password

dialog.

4. Click OK to enter the information and proceed to the Master’s WebControl tab.

5. Press the Enter key on your keyboard to begin the communication process between the target

Master and your PC.

If a Security Alert window appears on your computer screen, refer to the specific NetLinx Master Instruction Manual for detailed information regarding this popup window. These steps are based on a Master with proper security and SSL encryption enabled.

6. This tab (FIG. 25) displays links to both G3 web panel pages downloaded to the target Master

and G4 panels running the latest G4 Web Control feature. G3 can’t be controlled with

firmware greater than 139. The ME260 cannot use firmware greater then 139.

Application tabs

G3 panel

G4 panel

Compatible devices field

Communication compression options

FIG. 49 WebControl Tab (populated with panels)

7. Click on the G4 panel name link associated with the target panel. A secondary web browser

window appears on the screen (FIG. 50).

NetLinx Integrated Controllers

NetLinx Security and Web Server

FIG. 50 WebControl VNC installation and Password entry screens

8. Click Ye s from the Security Alert popup window to agree to the installation of the G4

WebControl application on your computer. This application contains the necessary Active X

and VNC client applications necessary to properly view and control the panel pages from your

computer.

The G4 WebControl application is sent by the panel to the computer that is used for communication. Once the application is installed, this popup will no longer appear. This popup will only appear if you are connecting to the target panel using a different computer.

9. If a WebControl password was setup on the G4 WebControl page, a G4 Authentication Session

password dialog box appears on the screen within the secondary browser window.

10. Enter the WebControl session password into the Session password field (FIG. 50).

11. Click OK to send the password to the panel and begin the session.

The secondary window then becomes populated with the same G4 page being displayed on the

target G4 panel. A small circle appears on the G4 panel page and corresponds to the location of the

mouse cursor. A left-mouse click on the computer-displayed panel page equates to an actual touch

on the target G4 panel page.

Using your NetLinx Master to control the G3 panel

Refer to the specific panel instruction manual for detailed information on configuring and enabling

WebControl. Before being able to access a G3 panel (with SSL enabled) through the WebControl

tab, you must first download the Java Virtual Machine software from Sun Micro Systems

to install

a Sun Java applet on your computer. G3 can’t be controlled with firmware greater than 139.

The ME260 cannot use firmware greater then 139.

You must install the Sun Java Web Start application. Using the default Microsoft® Java applet (when SSL is enabled) can cause some G3 panels not to open or be viewed properly.

Once the Master’s IP Address has been set through NetLinx Studio (version 2.1 or higher):

1. Navigate to the Java Web Start Application from http://java.sun.com/products.

NetLinx Integrated Controllers

NetLinx Security and Web Server

2. Click on the Download Java Web Start > Download Java Web Start 1.4.2 link to begin the

download of the application to your hard drive and follow the installation procedures

recommended by the application.

3. Restart your computer and launch your browser.

4. Repeat steps 1 - 5 from the previous section to launch the WebControl tab associated with your

Master.

5. Click on the G3 panel name link associated with the target panel.

6. A secondary web browser window appears on the screen to notify you that the computer is

Loading the Java Virtual Machine.

What to do when a Certificate Expires

Self-generated certificates have a duration period of approximately 30 years. Most externally

requested CA certificates are generally valid for a period of approximately 1 - 5 years.

The only way to avoid a CA certificate becoming invalid due to a time expiration is to request

a new certificate from your current CA.

Refer to the Creating a Request for a SSL Server Certificate section on page 63 for more

information on how to request an externally generated certificate.

NetLinx Integrated Controllers

NetLinx Security with a Terminal Connection

NetLinx ME260 Masters (build 139) have built-in security capabilities. It will require a valid user

name and password to access the NetLinx System’s Telnet, HTTP and FTP servers.

The security capabilities are configured and applied via a Telnet connection or the NetLinx

Master’s RS-232 terminal interface (the RS232 Program port).

Always use the RS232 Program port when entering potentially sensitive security information. The Telnet server interface exposes this security information to the network in clear text format, which could be intercepted by an unauthorized network client. By using the RS232 Program port, there is security during the configuration of the database due to the physical proximity of the user to the system.

NetLinx Security Features

NetLinx security allows you to define access rights for users or groups.

A "User" represents a single potential client of the NetLinx Master, while a "Group" represents a logical collection of users. Any properties possessed by groups (i.e., access rights, directory associations, etc.) are inherited by all the members of the group.

The following table lists the NetLinx features that the administrator (or other 'qualified' user) may

grant or deny access to.

NetLinx Security Features

NetLinx Master Security Configuration The user has access to the security configuration commands of the

Master. Only those users with security configuration access rights granted will have access to the security configuration commands.

Telnet Security The user has access to the Telnet server functionality. All basic

commands are available to the user.

Terminal (RS232 Program port) Security

HTTP (web server) Security The user has access to the HTTP server functionality. Directory

FTP Security The user has access to the FTP server functionality. Only the

The user has access to the Terminal (RS232 Program port) server functionality. All basic commands are available to the user.

associations assign specific directories/files to a particular user.

administrator account has access to the root directory; all other 'qualified' clients are restricted to the /user/ directory and its 'tree'.

Initial Setup via a Terminal Connection

Security administration and configuration is done via a Terminal communication through the

RS232 Program port on the NetLinx Master.

Establishing a Terminal connection

1. Launch the HyperTerminal application from its’ default location (Start > Programs >

Accessories > Communications).

2. Apply power to the NetLinx Master and allow it to boot up.

3. Connect the PC COM (RS232) port to the RS232 Program port on the NetLinx Master. Note

the baud rate settings for the Master.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

4. Enter any text into the Name field of the HyperTerminal Connection Description dialog

window and click OK when done.

5. From the Connect Using field, click the down-arrow and select the COM port being used for

communication by the target Master.

6. Click OK when done.

7. From the Bits per second field, click the down-arrow and select the baud rate being used by the

target Master.

 Configure the remaining communication parameters as follows: Data Bits:8, Parity:None,

Stop bits:1, and Flow control: None (default is Hardware).

 Click OK to complete the communication parameters and open a new Terminal window.

8. Type echo on to view the characters while entering commands.

Accessing the Security configuration options

1. In the Terminal session, type help security to view the available security commands. Here is a

listing of the security help:

---- These commands apply to the Security Manager and Database ----

logout Logout and close secure session

setup security Access the security setup menus

2. Type setup security to access the Main Security Menu, shown below:

>setup security

--- These commands apply to the Security Manager and Database ----

1) Set system security options for NetLinx Master

2) Display system security options for NetLinx Master

3) Add user

4) Edit user

5) Delete user

6) Show the list of authorized users

7) Add group

8) Edit group

9) Delete group

10) Show list of authorized groups

11) Set Telnet Timeout in seconds

12) Display Telnet Timeout in seconds

13) Make changes permanent by saving to flash

Or <ENTER> to return to previous menu

Security Setup ->

3. The Main Security Menu shows a list of choices and a prompt. To select one of the listed

choices, simply enter the number of the choice (1-13) at the prompt and press

<ENTER>.

4. Each option in the Main Security Menu displays a sub-menu specific to that option.

The following sub-section describe using each of the Main Security Menu options.

For a detailed description of each option in the Main Security Menu, refer to Main Security

Menu on page 84.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Option 1 - Set system security options for NetLinx Master (Security Options Menu)

Type 1 and

<ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu) to

display the Security Options Menu.

The Security Options Menu sets the "global" options for the NetLinx Master. It is accessed by the

Set Security system options of the Main Security Menu. This first thing that will happen is you will

be asked one of two questions. If NetLinx Master security is enabled, you will see the following:

NetLinx Master security is Enabled

Do you want to keep NetLinx Master security enabled? (y or n):

If you answer y for yes, security will remain enabled and you will be taken to the



Security Options Menu.

 If you answer n for no, all security settings (except FTP security) will be disabled and

you will be taken back to the Main Security Menu.

If NetLinx Master security is not enabled, you will see the following:

NetLinx Master security is Disabled

Do you want to enable security for the NetLinx Master? (y or n):

If you answer y for yes, security will be enabled and you will be taken to the Security



Options Menu.

 If you answer n for no, all security settings (except FTP security) will remain disabled

and you will be taken back to the Main Security Menu.

The Security Options Menu is displayed as follows:

Select to change current security option

1) Terminal (RS232) Security.................. Enabled

2) HTTP Security.............................. Enabled

3) Telnet Security............................ Enabled

4) Security Configuration Security............ Enabled

Or <ENTER> to return to previous menu

Security Options ->

The selection listed will display what the current settings. To change an option, select the number

listed next to the option.

For example, if selection

2) is selected, HTTP Security will be disabled. The menu will then be

displayed again as follows:

Select to change current security option

1) Terminal (RS232) Security.................. Enabled

2) HTTP Security.............................. Disabled

3) Telnet Security............................ Enabled

4) Security Configuration Security............ Enabled

Or <ENTER> to return to previous menu

Security Options ->

Each selection simply toggles the security setting selected. Press <ENTER> to exit the menu and

return to the Main Security Menu.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Changes made to the target Master from within the Terminal window are not reflected within the web browser, until the Master is rebooted and the web browser connection is refreshed. Any changes made to the Master, from within the web browser are instantly reflected within the Terminal session without the need to reboot.

The items in the Security Options Menu are described below:

Security Options Menu

Command Description

1) Terminal (RS232) Security (Enabled/Disabled)

2) HTTP Security (Enabled/Disabled)

3) Telnet Security (Enabled/Disabled)

4) Security Configuration Security (Enabled/Disabled)

This selection enables/disables Terminal (RS232 Program port) Security. If Terminal Security is enabled, a user must have sufficient access rights to login to a Terminal session.

This selection enables/disables HTTP (Web Server) Security. If HTTP Security is enabled, a user must have sufficient access rights to browse to the NetLinx Master with a Web Browser.

This selection enables/disables Telnet Security. If Telnet Security is enabled, a user must have sufficient access rights to login to a Telnet session.

This selection enables/disables Security Configuration Security. If Security Configuration Security is enabled, a user must have sufficient access rights to access the Main Security Menu.

Option 2 - Display system security options for NetLinx Master

Type

2 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu) to

display the current security options, and their current state (

Master Security.....................Disabled

Terminal............................Disabled

HTTP................................Disabled

Telnet..............................Disabled

Security/Configuration..............Disabled

Press <ENTER> key to continue

Enabled/Disabled). For example:

Option 3 - Add user

1. Type 3 and

<ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to create a new user account. A sample session response is:

The following users are currently enrolled:

administrator

Fred

Betty

Enter user name:

2. At the Enter user name prompt, enter a new user name (for example "Bilbo"). A user

name is a valid character string (4 - 20 alpha-numeric characters) defining the user. This string

is case sensitive. Each user name must be unique.

3. Press

the new user.

<ENTER> to enter the new user name. The session then prompts you for a password for

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

4. Enter a password for the new user. A password is a valid character string (4 - 20 alpha-numeric

characters) to supplement the user name in defining the potential client. This string is also case

sensitive.

5. The session then prompts you to verify the new password. Enter the password again, and press

<ENTER>.

6. Assuming the password was verified, the session then displays the Edit User menu (see below).

Option 4 - Edit User

1. Type

4 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to edit an existing user account. A sample session response is:

Select from the following list of enrolled users:

1) administrator

2) Fred

3) Betty

4) Bilbo

Select User:

2. Select the user account (1-X) that you want to edit, and press <ENTER> to display the Edit

User Menu (described below).

Any changes made via the Edit User menu will affect the selected user account.

Edit User Menu

The Edit User Menu is accessed whenever you enter the Add user, or Edit user selections from the

Main Security Menu. The Edit User Menu is displayed as follows:

Please select from the following options:

1) Change User Password

2) Change Inherits From Group

3) Add Directory Association

4) Delete Directory Association

5) List Directory Associations

6) Change Access Rights

7) Display User Record Contents

Or <ENTER> to return to previous menu

Edit User ->

Each selection (1-7) accesses the named option. Press <ENTER> by itself to exit the menu and

return to the Main Security Menu.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

The Edit User Menu options are described in the following table:

Edit User Menu

Command Description

1) Change User Password This selection prompts you to enter the new password (twice) for the

2) Change Inherits From Group This selection will display the current group the user is assigned to

3) Add Directory Association This selection will display any current Directory Associations

4) Delete Directory Association This selection will display any current Directory Associations

5) List Directory Associations This selection will display any current Directory Associations

6) Change Access Rights This selection will display access the Access Rights Menu for the

7) Display User Record Contents This selection will display the group the user is assigned to and the

user. Once the new password is entered, the user must use the new password from that point forward.

(if any). It will then display a list of current groups and prompts you to select the new group.

assigned to the user, and then will prompt you for a path for the new Directory Association. Refer to Directory Associations on page 35 for details.

assigned to the user, and then will prompt you to select the Directory Association you want to delete.

assigned to the user.

user, which allows you to set the rights assigned to the user.

current Access Rights assigned to the user.

Access Rights Menu

The Access Rights Menu is accessed whenever you select Change Access Rights from the Edit

User Menu, or Change Access Rights from the Edit Group Menu. The Access Rights Menu is

displayed as follows:

Select to change current access right

1) Terminal (RS232) Access................. Disabled

2) Admin Change Password Access............ Disabled

3) FTP Access.............................. Disabled

4) HTTP Access............................. Enabled

5) Telnet Access........................... Enabled

6) Security Configuration Access........... Enabled

Or <ENTER> to return to previous menu

Set Rights ->

The selection listed will display the current access rights. Each selection simply toggles the access

right selected. Press

<ENTER> to exit the menu and return to the previous menu.

The Access Rights Menu is described in the following table:

NXC-ME260 NetLinx Master-Ethernet Card/Module

Access Rights Menu

Command Description

1) Terminal (RS232) Access (Enable/Disable)

2) Admin Change Password Access (Enable/Disable)

3) FTP Access (Enable/Disable)

4) HTTP Access (Enable/Disable)

5) Telnet Access (Enable/Disable)

6) Security Configuration Access (Enable/Disable)

Enables/disables Terminal (RS232 Program port) Access. The account has sufficient access rights to login to a Terminal session if this option is enabled.

Enables/disables Administrator Change Password Access. The account has sufficient access rights to change the administrator password if this option is enabled.

Enables/disables FTP Access. The account has sufficient access rights to access the NetLinx Master's FTP Server if this option is enabled.

This selection enables/disables HTTP (Web Server) Access. The account has sufficient access rights to browse to the NetLinx Master with a Web Browser if this option is enabled.

This selection enables/disables Telnet Access. The account has sufficient access rights to login to a Telnet session if this option is enabled.

This selection enables/disables Security Configuration Access. The account has sufficient access rights to access the Main Security Menu if this option is enabled.

Option 5 - Delete user

NetLinx Security with a Terminal Connection

1. Type

5 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to delete an existing user account. A sample session response is:

Select from the following list of enrolled users:

1) Fred

2) Betty

3) Bilbo

Select User ->

2. Select the user to delete and press <ENTER> to delete the user account, and return to the

Security Setup menu.

Option 6 - Show the list of authorized users

1. Type 6 and

<ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to view a list of currently enrolled users.

2. Press

<ENTER> to return to the Security Setup menu.

Option 7 - Add Group

1. Type 7 and

<ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to add a group account. A sample session response is:

The following groups are currently enrolled:

administrator

Enter name of new group:

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

2. Enter a name for the group. A group name is a valid character string (4 - 20 alpha-numeric

characters) defining the group. This string is case sensitive, and each group name must be

unique.

3. Press

<ENTER> to display the following Edit Group menu:

Edit Group Menu

Please select from the following options:

1) Add directory association

2) Delete directory association

3) List directory associations

4) Change Access rights

5) Display Access Rights

Or <ENTER> to return to previous menu.

Edit Group ->

Edit Group Menu: Add directory association

1. At the Edit Group prompt, type 1 to add a new directory association. A sample session

response is:

There are currently no directories associated with this account

New directory:

A Directory Association is a path that defines the directories and/or files that a particular user

or group can access via the HTTP (Web) Server on the NetLinx Master. This character string

can range from 1 to 128 alpha-numeric characters. This string is case sensitive. This is the path

to the file or directory you want to grant access. Access is limited to the user (i.e. doc:user)

directory of the master. All subdirectories of the user directory can be granted access.

A single '/' is sufficient to grant access to all files and directories in the user directory and it's

sub-directory. The '*' wildcard can also be added to enable access to all files. All entries should

start with a '/'. Here are some examples of valid entries:

Path Notes

/ Enables access to the user directory and all files and

/* Enables access to the user directory and all files and

/user1 If user1 is a file in the user directory, only the file is granted

/user1/ user1 is a subdirectory of the user directory. All files in the

/Room1/iWebControlPages/* /Room1/iWebControlPages is a subdirectory and all files

/results.txt results.txt is a file in the user directory and access is

subdirectories in the user directory.

access. If user1 is a subdirectory of the user directory, all files in the user1 and its sub-directories are granted access.

user1 and its sub-directories are granted access.

and its subdirectories are granted access.

granted to that file.

By default, all accounts that enable HTTP Access are given a '/*' Directory Association if no

other Directory Association has been assigned to the account.

When you are prompted to enter the path for a Directory Association, the NetLinx Master will

attempt to validate the path. If the directory or file is not valid (i.e. it does not exist at the time

you entered the path), the NetLinx Master will ask you whether you were intending to grant

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

access to a file or directory. From the answer, it will enter the appropriate Directory

Association. The NetLinx Master will not create the path if it is not valid. That must be done

via another means, most commonly by using an FTP client and connecting to the FTP server

on the NetLinx Master.

Edit Group menu: Delete directory association

1. At the Edit Group prompt, type 2 to delete an existing directory association. A sample session

response is:

Select a directory association from the following:

1) /directory1/*

2) /directory2/*

Select Directory ->

2. Select the directory association to be deleted, and press <ENTER> to delete the directory

association, and return to the Edit Group menu.

Edit Group menu: List directory associations

1. At the Edit Group prompt, type 3 to list all existing directory associations. A sample session

response is:

The following directory associations are enrolled:

/directory1/*

/directory2/*

Press <ENTER> key to continue

2. Press <ENTER> to return to the Edit Group menu.

Edit Group menu: Change Access Rights

1. At the Edit Group prompt, type 4 to change the current access rights for the selected group

account. A sample session response is:

Select to change current access right:

1) Terminal (RS232) Access...................Disabled

2) Admin Change Password Access..............Disabled

3) FTP Access................................Disabled

4) HTTP Acccess..............................Disabled

5) Telnet Access.............................Disabled

6) Security Configuration Access.............Disabled

or <ENTER> to return to previous menu

Set Rights ->

2. Each selection simply toggles the security setting selected. <ENTER> is entered by itself to

exit the menu and return to the Main Security Menu.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Edit Group menu: Display Access Rights

1. At the Edit Group prompt, type 5 to view the current access rights for the selected group

account. A sample session response is:

Terminal (RS232)...................Disabled

Admin Password Change..............Disabled

FTP................................Disabled

HTTP...............................Disabled

Telnet.............................Disabled

Security Configuration.............Disabled

Press <ENTER> key to continue

2. Press <ENTER> to return to the Edit Group menu.

Option 8 - Edit Group

1. Type 8 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to edit an existing group account. A sample session response is:

Select from the following list:

1) administrator

2) Group 1

3) Group 2

Select group ->

2. Select a group from the list of currently enrolled groups and press <ENTER> to open the Edit

Group Menu. This is the same Edit Group Menu that was access via the Add Group option:

1) Add directory association

2) Delete directory association

3) List directory associations

4) Change Access rights

5) Display Access Rights

This menu is described on the previous pages (see Edit Group Menu on page 80).

Option 9 - Delete Group

1. Type 9 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security Menu)

to delete an existing group account. A sample session response is:

Select from the following list:

1) Group 1

2) Group 2

Select group ->

2. Select the group account to be deleted, and press <ENTER> to delete the group and return to

the Security Setup menu.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Option 10 - Show List of Authorized Groups

1. Type 10 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security

Menu) to display a list of all authorized group accounts. A sample session response is:

The following groups are currently enrolled:

administrator

Group 1

Press <ENTER> key to continue

2. Press <ENTER> to return to the Security Setup Menu.

Option 11 - Set Telnet Timeout in seconds

This feature is disabled after the installation of firmware build 130 or higher onto your target

Master.

1. Type 11 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security

Menu) to set the Telnet Timeout value, in seconds. A sample session response is:

Specify Telnet Timeout in seconds:

2. Enter the number of seconds before you want The Telnet session to timeout, and press

<ENTER> to return to the Security Setup Menu.

Option 12 - Display Telnet Timeout in seconds

This feature is disabled after the installation of firmware build 130 or higher onto your target

Master.

1. Type 12 and <ENTER> at the Security Setup prompt (at the bottom of the Main Security

Menu) to view the current Telnet Timeout value (in seconds). A sample session response is:

Telnet Timeout is 10 seconds.

2. Press <ENTER> to return to the Security Setup Menu.

Option 13 - Make changes permanent by saving to flash

When changes are made to the security settings of the master, they are initially only changed in

RAM and are not automatically saved permanently into flash. This selection saved the current

security settings into flash. Also, if you attempt to exit the Main Security Menu and the security

settings have changed but not made permanent, you will be prompted to save the settings at that

time.

Type 13 and <ENTER> at the Security Setup prompt to (permanently) save all changes to flash.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Main Security Menu

The Main Security menu is described below:

Main Security Menu

Command Description

1) Set system security options for NetLinx Master

2) Display system security options for NetLinx Master

3) Add user This selection will prompt you for a user name and

4) Edit user This selection will prompt you select a user. Once you

5) Delete user This selection will prompt you select a user to delete.

6) Show the list of authorized users This selection displays a list of users.

7) Add group This selection will prompt you for a group name fro a

8) Edit group This selection will prompt you select a group. Once you

9) Delete group This selection will prompt you select a group to delete. A

10) Show list of authorized groups This selection displays a list of groups.

11) Set Telnet Timeout in seconds This selection allows you to set the time a telnet session

12) Display Telnet Timeout in seconds This selection allows you to display the time a telnet

13) Make changes permanent by saving to flash

This selection will bring up the Security Options Menu that allows you to change the security options for the NetLinx Master (refer to the Security Options Menu section on page 76 for details). These are "global" options that enable rights given to users and groups. For instance, if you want to disable Telnet security for all users, you would simply go to this menu and disable Telnet security for the entire master. This would allow any user, whether they have the rights to Telnet or not. These options can be thought of as options to turn on security for different features of the NetLinx Master.

This selection will display the current security options for the NetLinx Master.

password for a user you would like to create. After the user is added, you will be taken to the Edit User Menu to setup the new users rights (see the Edit User Menu section on page 78 for details).

have selected the user you want to edit, it will take you to the Edit User Menu so you can edit the user's rights (see the Edit User Menu section on page 78 for details).

group you would like to create. After the group is added, you will be taken to the Edit Group Menu to setup the new users right (see the Edit Group Menu section on page 80 for details).

have selected the group you want to edit, it will take you to the Edit Group Menu so you can edit the group's rights (see the Edit Group Menu section on page 80 for details).

group can only be deleted if there are no users assigned to that group.

waits for a user to login. When a Telnet client connects to the NetLinx Master, it is prompted for a user name. If the client does not enter a users name for the length of time set in this selection, the session will be closed by the NetLinx Master.

session waits for a user to login.

When changes are made to the security settings of the master, they are initially only changed in RAM and are not automatically saved permanently into flash. This selection saved the current security settings into flash. Also, if you attempt to exit the Main Security Menu and the security settings have changed but not made permanent, you will be prompted to save the settings at that time.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Main Security Menu (Cont.)

Command Description

14) Reset Database If a user has been given "administrator rights", this

15) Display Database If a user has been given "administrator rights", this

additional menu option is displayed. This selection will reset the security database to its Default Security Configuration settings, erasing all users and groups that were added. This is a permanent change and you will be asked to verify this before the database is reset.

additional menu option is displayed. This selection will display the current security settings to the terminal (excluding user passwords).

Default Security Configuration

By default, the NetLinx Master will create the following accounts, access rights, directory

associations, and security options.

Account 1: User Name: administrator

Password: password

Group: administrator

Rights: All

Directory Association: /*

Account 2: User Name: NetLinx

Password: password

Group: none

Rights: FTP Access

Directory Association: none

Group 1: Group: administrator

Rights: All

Directory Association: /*

Security Options: FTP Security Enabled

Admin Change Password Security Enabled

All other options disabled

The administrator user account cannot be deleted or modified with the exception of its



password. Only a user with "Change Admin Password Access" rights can change the

administrator password.

 The NetLinx user account is created to be compatible with previous NetLinx Master

firmware versions.

 The administrator group account cannot be deleted or modified.

 The FTP Security and Admin Change Password Security are always enabled and cannot

be disabled.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Help menu

Type help at the prompt in the Telnet session to display the following help topics:

Help Menu Options

Command Description

----- Help ----- <D:P:S> (Extended diag messages are OFF)

? or Help Displays this list.

DATE Displays the current date.

DEVICE HOLDOFF ON|OFF Sets the master to holdoff devices (i.e. does not allow them to report

DEVICE STATUS <D:P:S> Provides information about the specified device.

DNS LIST <D:P:S> Displays the DNS configuration of a device.

DISK FREE Displays the amount of free space on the disk.

GET DEVICE HOLDOFF Displays the state of the device holdoff setting in the master

GET IP <D:P:S> Displays the IP configuration of a device.

HELP SECURITY Displays security related commands.

IP STATUS Provides information about NetLinx IP Connections.

MEM Shows size of the largest block of available memory.

MSG ON|OFF Enables/Disables extended diagnostic messages.

OFF [D:P:S or NAME,CHAN] Turns off the specified channel.

ON [D:P:S or NAME,CHAN] Turns on the specified channel.

PASS [D:P:S or NAME] Puts the Session in pass mode to the specified device.

PING [ADDRESS] Pings an address (IP or URL).

PROGRAM INFO Displays a list of program modules loaded.

PULSE [D:P:S or NAME,CHAN] Pulses the specified channel.

REBOOT <D:P:S> Reboots the device.

RELEASE DHCP Releases the current DHCP lease.

ROUTE MODE DIRECT|NORMAL Set the Master-Master route mode.

SEND_COMMAND D:P:S or NAME,COMMAND

SEND_STRING D:P:S or NAME,STRING

SET DATE Set the current date.

<D:P:S>: Device:Port:System. If omitted, assumes master.

ONLINE) until the NetLinx program has completed executing the DEFINE_START section.

If set to ON, any messages to devices in DEFINE_START will be lost, however, this prevents incoming messages being lost in the master upon startup. When DEVICE_HOLDOFF is ON, you must use ONLINE events to trigger device startup SEND_COMMANDs.

By default, DEVICE HOLDOFF is OFF to maintain compatibility with Axcess systems where f devices are initialized in DEFINE_START.

• Mode is exited by ++ ESC ESC.

• Display Format is set by ++ ESC n

If n is A, format = ASCII

If n is D, format = Decimal

If n is H, format = Hex

Specify -a option for reverse lookup.

Sends the specified command to the device.The Command uses NetLinx string syntax.

• Ex: send_command 1:1:1,"'This is a test',13,10"

• Ex: send_command RS232_1,"'This is a test',13,10"

Sends the specified string to the device.

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

Help Menu Options (Cont.)

Command Description

SET DNS <D:P:S> Setup the DNS configuration of a device.

SET ICSP PORT Sets the IP port listened to for ICSP connections.

SET ICSP TCP TIMEOUT Sets the timeout period for ICSP and i!-WebControl TCP connections.

SET IP <D:P:S> Setup the IP configuration of a device.

SET TELNET PORT Sets the IP port listened to for telnet connections.

SET THRESHOLD Sets the master's internal message thresholds.

SET TIME Set the current time.

SET URL <D:P:S> Setup the initiated connection list URLs of a device.

SHOW COMBINE Displays a list of devices, levels, and channels that are currently com-

bined.

SHOW DEVICE <D:P:S> Displays a list of devices connected and attributes.

SHOW LOG <START> Display the message log. <start> specifies message to begin the

SHOW NOTIFY Display the Notify Device List (Master-Master).

SHOW REMOTE Displays the Remote Device List (Master-Master).

SHOW ROUTE Displays the Master's routing information.

SHOW SYSTEM <S> Displays a list of devices in a system.

TCP LIST Displays a list of active TCP connections.

TIME Display the current time.

URL LIST <D:P:S> Display the initiated connection list URLs of a device.

SSL SECURITY ENABLE:DISABLED

display. 'all' will display all messages.

Enables or Disables the Web Server SSL security.

Logging Into a Session

Until Telnet security is enabled, a session will begin with a welcome banner.

The welcome banner is not displayed for Terminal sessions.

When Terminal security is enabled, the user will be prompted for a user name and password before

they will be allowed to access any commands available from Telnet. No welcome banner will be

displayed until a valid login is made. When the session is started, the user will see a login prompt as

seen below:

The user (Login) name is case sensitive. The user name must be entered with the exact combination

of upper and lower letters as was assigned to them by the security administrator. The user name

must be at least 4 characters long and no more than 20 characters. Any combination of letters,

numbers, or other characters may be used.

The user would enter their user name and then would be prompted for a password:

Password:

NXC-ME260 NetLinx Master-Ethernet Card/Module

NetLinx Security with a Terminal Connection

The password is case sensitive. The password must be entered with the exact combination of upper

and lower letters as was assigned to them by the security administrator. The password must be at

least 4 characters long and no more than 20 characters. Any combination of letters, numbers, or

other characters may be used.

After the password is entered, if the password is correct you will see a welcome banner as shown

below:

Password: *****

If the password is incorrect, the following will be displayed:

Password: *****

After a delay, another login prompt will be displayed to allow the user to try again. If after 5

prompts, the login is not done correctly the following will be displayed and the connection closed:

If a user opens a connection but does not enter a user name or password (i.e. they just sit at a login

prompt), the connection will be closed after 1 minute.

Logout

The logout command will log the user out of the current secure telnet session. For a Terminal

session, the user will be logged out and to access Terminal commands again the user will first have

to login.

Help Security

The help security command will display the security menu as shown previously.

Setup Security

The security command displays a series of menus that allow the security administrator to create and

edit users, create and edit groups, and setup directory associations for the Web Server. A user must

be given rights to access this command. Any user that does not have rights to Security

Configuration will see the following message when trying to access the setup security command:

>setup security

You are not authorized to access security commands

If a user is authorized, or if Security Configuration security is not enabled, the Main Security Menu

will be displayed.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Programming

The NetLinx programming language allows numbers in the range 0-32,767. Device 0 refers to the

Master Card; numbers greater than 32,767 are reserved for internal use only.

The NetLinx programming language requires a Device:Port:System (D:P:S) syntax where Axcess

expects only a device number. The NetLinx D:P:S triplet variable is expressed as:

DEVICE:PORT:SYSTEM

where:

• Device: 16-bit integer representing the device number (0-32,767).

• Port: 16-bit integer representing the port number (in the range 1 through the number of

• System: 16-bit integer representing the system number (0 = this system).

Program Port Commands

The Program port commands listed in the Program Port Commands table below can be sent directly

to the Master Card using a terminal program (i.e. Telnet). In order for Telnet to be effective, you

must initiate a session with the master. Be sure that your PC's COM port and terminal program's

communication settings match those in the following table.

Programming

0 = the local Master.

ports on the NetLinx Master or device).

PC COM Port Communication Settings

Baud 38400 (default)

Parity none

Data Bits 8

Stop Bits 1

Flow Control none

In your terminal program, type "

Help" or a "?" <Enter> to display the Program port commands

listed below.

Program Port Commands

Command Description

ECHO OFF

ECHO ON

DATE

Disables terminal character's echo (display) function.

Enables terminal character's echo (display) function.

Displays the current date and day of the week.

Example:

>DATE 10/31/2001 Wed

NXC-ME260 NetLinx Master-Ethernet Card/Module

Programming

Program Port Commands (Cont.)

Command Description

SET DATE

TIME

SET TIME

DEVICE STATUS <D:P:S>

DNS LIST <D:P:S>

Prompts you to enter the new date for the Master Card.

When the date is set on the Master Card, the new date will be reflected on all devices in the system that have clocks (i.e. touch panels). By the same token, if you set the date on any system device, the new date will be reflected on the system’s Master, and on all connected devices.

This will not update clocks on devices connected to another Master (in Master-to-Master systems).

Example:

>SET DATE Enter Date: (mm/dd//yyyy) ->

Displays the current time on the Master Card.

Example:

>TIME 13:42:04

Prompts you to enter the new time for the Master Card.

When the time is set on the Master Card, the new time will be reflected on all devices in the system that have clocks (i.e. touch panels). By the same token, if you set the time on any system device, the new time will be reflected on the system’s Master, and on all connected devices.

This will not update clocks on devices connected to another Master (in Master-to-Master systems).

Example:

>SET TIME Enter Date: (hh:mm:ss) ->

Displays a list of all active (on) channels for the specified D:P:S. Enter DEVICE STATUS without the D:P:S variable, the Master Card displays ports, channels, and version information.

Displays status of the specified Master.

Example (on a local Master):

>DEVICE STATUS [0:1:0] Device 0 AMX Corp.,Master,v2.10.75 contains 1 Ports. Port 1 - Channels:256 Levels:8 MaxStringLen=64 Types=8 bit MaxCommandLen=64 Types=8 bit The following input channels are on:None The following output channels are on:None The following feedback channels are on:None Level 1=0 Supported data types=UByte,UInt Level 2=0 Supported data types=UByte,UInt Level 3=0 Supported data types=UByte,UInt Level 4=0 Supported data types=UByte,UInt Level 5=0 Supported data types=UByte,UInt Level 6=0 Supported data types=UByte,UInt Level 7=0 Supported data types=UByte,UInt Level 8=0 Supported data types=UByte,UInt

Displays:

• Domain suffix·

• Configured DNS IP Information

Example:

>DNS LIST [0:1:0] Domain suffix:amx.com The following DNS IPs are configured Entry 1-192.168.20.5 Entry 2-12.18.110.8 Entry 3-12.18.110.7

NXC-ME260 NetLinx Master-Ethernet Card/Module

Program Port Commands (Cont.)

Command Description

DISK FREE

GET IP <D:P:S>

MEM

MSG ON or MSG OFF

OFF <D:P:S, channel>

ON <D:P:S, channel>

Displays the total bytes of free space available on the Master Card's compact Flash memory.

Example:

>DISK FREE The disk has 2441216 bytes of free space.

Displays the Master Card's D:P:S, Host Name, Type (DHCP or Static), IP Address, Subnet Mask, Gateway IP, and MAC Address.

Example:

>GET IP [0:1:50] IP Settings for 0:1:50 HostName MLK_INSTRUCTOR

Type DHCP IP Address 192.168.21.101 Subnet Mask 255.255.255.0 Gateway IP 192.168.21.2 MAC Address 00:60:9f:90:0d:39

Displays the largest free block of Master Card memory.

Example:

>MEM The largest free block of memory is 11442776 bytes.

MSG On sets the terminal program to display all messages generated by the Master Card. MSG OFF disables the display.

Example:

> MSG ON Extended diagnositic information messages turned on. > MSG OFF Extended diagnositic information messages turned off.

Turns off a channel on a device. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system, or the name of the device that is defined in the DEFINE_DEVICE section of the program.

Syntax:

OFF[name,channel]

-or-

OFF[D:P:S,channel]

Example:

>OFF[5001:7:4] Sending Off[5001:7:4]

Turns on a channel on a device. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system; or the name of the device that is defined in the DEFINE_DEVICE section of the program.

Syntax:

ON[name,channel]

ON[D:P:S,channel]

Example:

>ON[5001:7:4] Sending On[5001:7:4]

Programming

NXC-ME260 NetLinx Master-Ethernet Card/Module

Programming

Program Port Commands (Cont.)

Command Description

PASS <D:P:S>

PING <IP ADDRESS>

PROGRAM INFO

PULSE <D:P:S, channel>

REBOOT <D:P:S>

RELEASE DHCP

Sets up a pass through mode to a device. In pass through mode, any string received by the device is displayed on the screen, and anything typed is sent as a string to the device. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system, or the name of the device that is defined in the DEFINE_DEVICE section of the program.

Example:

>pass[5001:7:4] Entering pass mode.

To exit pass mode, type + + esc esc.

Tests network connectivity to and confirms the presence of another networked device. The syntax is just like the PING application in Windows or Linux.

Example:

>ping 192.168.21.209

192.168.21.209 is alive.

Displays the name of the NetLinx program residing in the Master Card.

Example:

>PROGRAM INFO

-- Program Name Info

-- Module Count = 1 1 Name is i!-PCLinkPowerPointTest

-- File Names = 2 1 = C:\Program Files\AMX Applications\i!-PCLinkPowerPoint 2 = C:\Program Files\Common Files\AMXShare\AXIs\NetLinx.axi 2 = Name is MDLPP

-- File Names = 2 1 C:\AppDev\i!-PCLink-PowerPoint\i!-PCLinkPowerPointMod.axs 2 C:\Program files\Common Files\AMXShare\AXIs\NetLinx.axi

Pulses a channel on a device on and off. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system; or the name of the device that is defined in the DEFINE_DEVICE section of the program.

Example:

>PULSE[50001:8:50,1] Sending Pulse[50001:8:50,1]

Reboots the Master Card or specified device.

Example:

>REBOOT [0:1:0] Rebooting...

Releases the DHCP setting for the Master Card.

Example:

>RELEASE DHCP The Master must be rebooted to acquire a new DHCP lease.

NXC-ME260 NetLinx Master-Ethernet Card/Module

Program Port Commands (Cont.)

Command Description

ROUTE MODE DIRECT|NORMAL

SEND_COMMAND <D:P:S>

SEND_STRING <D:P:S>

SET DNS <D:P:S>

SET IP <D:P:S>

Sets the Master-to-Master route mode:

• Normal mode - allows a Master to communicate with any Master accessible via the routing tables (shown with the SHOW ROUTE command). This includes a directly-connected Master (route metric =1) and indirectly connected masters (route metric greater than 1, but less than 16).

• Direct mode - allows communication only with masters that are directly connected (route metric = 1). Indirectly connected masters cannot be communicated within this mode.

Examples:

>ROUTE MODE DIRECT Route Mode "Direct" Set >ROUTE MODE NORMAL Route Mode "Normal" Set

Sends a command to a device. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system; or the name of the device that is defined in the DEFINE_DEVICE section of the NetLinx Program. The data of the string is entered with NetLinx string syntax.

Sends a string to a device. The device can be on any system the Master you are connected to can reach. You can specify the device number, port, and system; or the name of the device defined in the DEFINE_DEVICE section of the NetLinx Program. The data of the string is entered with NetLinx string syntax.

Prompts you to enter a Domain Name, DNS IP #1, DNS IP #2, and DNS IP #3. Then, enter Y (yes) to approve/store the information in the Master Card. Entering N (no) cancels the operation.

Example:

>SET DNS [0:1:0]

-- Enter New Values or just hit Enter to keep current settings --

Enter Domain Suffix: amx.com Enter DNS Entry 1 : 192.168.20.5 Enter DNS Entry 2 : 12.18.110.8 Enter DNS Entry 3 : 12.18.110.7

You have entered: Domain Name: amx.com DNS Entry 1: 192.168.20.5 DNS Entry 2: 12.18.110.8 DNS Entry 3: 12.18.110.7

Is this correct? Type Y or N and Enter -> Y Settings written. Device must be rebooted to enable new settings

Prompts you to enter a Host Name, Type (DHCP or Fixed), IP Address, Subnet Mask, and Gateway IP Address. Enter Y (yes) to approve/store the information in the Master Card. Entering N (no) cancels the operation.

Example:

>SET IP [0:1:0]

--- Enter New Values or just hit Enter to keep current settings ---

Enter Host Name: MLK_INSTRUCTOR Enter IP type. Type D for DHCP or S for Static IP and then Enter: DHCP Enter Gateway IP: 192.168.21.2

You have entered: Host Name MLK_INSTRUCTOR Type DHCP Gateway IP 192.168.21.2 Is this correct? Type Y or N and Enter -> y Settings written. Device must be rebooted to enable new settings.

Programming

NXC-ME260 NetLinx Master-Ethernet Card/Module

Programming

Program Port Commands (Cont.)

Command Description

SET URL <D:P:S>

SHOW COMBINE

SHOW DEVICE <D:P:S>

Prompts you to enter the URL address and port number of another Master or device (that will be added to the URL list). Then, enter Y (yes) to approve/store the new addresses in the Master Card. Entering N (no) cancels the operation.

Example:

>SET URL [0:1:0]

No URLs in the URL connection list

Type A and Enter to Add a URL or Enter to exit. -> a

Enter URL -> 192.168.21.200 Enter Port or hit Enter to accept default (1319) -> Enter Type (Enter for permanent or T for temporary) -> URL Added successfully.

Displays a list of any combined devices.

Example:

> SHOW COMBINE Combines

------- Combined Device([33096:1:1],[96:1:1]) Combined Level([33096:1:1,1],[128:1:1,1],[10128:1:1,1]) Combined Device([33128:1:1],[128:1:1],[10128:1:1])

Displays a list of all devices present on the bus.

Example:

>SHOW DEVICE [0:1:0]

Local devices for system #50 (This System)

-----------------------------------------------------------------------

Device (ID)Model (ID)Mfg FWID Version

00000 (00256)Master (00001)AMX Corp. 00256 v2.10.75

(PID=0:OID=0) Serial='2010-12090',0,0,0,0,0,0

Physical Address=NeuronID 000239712501

(00256)vxWorks Image (00001) 00257 v2.00.77

(PID=0:OID=1) Serial=N/A

(00256)BootROM (00001) 00258 v2.00.76

(PID=0:OID=2) Serial=N/A

(00256)AXLink I/F uContr(00001) 00270 v1.02

(PID=0:OID=3) Serial=0000000000000000

00096 (00192)VOLUME 3 CONTROL BO(00001)AMX Corp. 00000 v2.10

(PID=0:OID=0) Serial=0000000000000000

Physical Address=Axlink

00128 (00188)COLOR LCD TOUCH PAN(00001)AMX Corp. 32778 v5.01d

(PID=0:OID=0) Serial=0000000000000000

Physical Address=Axlink

05001 (00257)NXI Download (00001)AMX Corp. 00260 v1.00.20

(PID=0:OID=0) Serial=0,0,0,0,0,0,0,0,0,0,0,0,

Physical Address=NeuronID 000189145801

(00257)NXI/NXI-1000 Boot(00001) 00261 v1.00.00

(PID=0:OID=1) Serial=0,0,0,0,0,0,0,0,0,0,0,0,

10002 (00003)PHAST PLK-IMS (00001)Phast Corp. 00003 v3.12

(PID=0:OID=0) Serial=0000000000000000

Physical Address=NeuronID 0100417BD800

NXC-ME260 NetLinx Master-Ethernet Card/Module

AMX NXC-ME260 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Information

Front and rear panel components

Specifications

Rear panel LEDs: ICSNet/ICSHub

Rear panel LEDs: Ethernet

Installation and Wiring

Setting the Program Port DIP Switch

Baud rate settings

Program Run Disable (PRD) mode

Setting the Program Port DIP switch

Modes and Front Panel LED Blink Patterns

Wiring Guidelines

Preparing captive wires

Wiring length guidelines

Wiring a 2-pin power connection
