AMX nxc User Manual

Download

Operation/Reference Guide

NetLinx® Cardframe,

Control Cards,

and NetModules

NXC, NXF, and NXM Series

Central Controllers

Last Revised: 10/24/2013

AMX Limited Warranty and Disclaimer

This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which include AMX Dealers, Distributors, VIP’s or other AMX authorized entity.

AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components are warranted for a period of one (1) year.

• Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.

• AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combinations of dimmers, lamps and ballasts or transformers.

• AMX software is warranted for a period of ninety (90) days.

• Batteries and incandescent lamps are not covered under the warranty.

• AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.

All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number.

AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Authorized Partner for a third party.

This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earthquake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts, sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRANTIES, PRICES, AND POLICIES WITHOUT NOTICE.

Table of Contents

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Table of Contents

NXF CardFrame and NetModules ......................................................................1

Overview .................................................................................................................. 1

NXF CardFrame ........................................................................................................ 1

NXF Cardframe Specifications ................................................................................. 1

Mounting Master/Hub Cards in an NXF CardFrame........................................................ 2

Setting the CardFrame's starting address ....................................................................... 2

Device:Port:System (D:P:S).............................................................................................. 3

NXS-NMS NetModules ............................................................................................. 3

NXS-NMS NetModules specifications.............................................................................. 3

Mounting modules into an equipment rack..................................................................... 4

Installing Control Cards into an NXF CardFrame............................................................. 4

Preparing/connecting captive wires ................................................................................ 4

Using the ID button......................................................................................................... 4

NXC-COM2 Dual COM Port Control Card ..........................................................5

Specifications............................................................................................................ 5

Pinouts and Wiring Configuration ............................................................................ 6

NXC-COM2 Channel Assignment.............................................................................. 6

NXC-COM2 Programming Information ..................................................................... 6

NXC-COM2 Send_Commands ......................................................................................... 6

B9MOFF................................................................................................................................... 6

B9MON .................................................................................................................................... 6

CHARD ..................................................................................................................................... 7

CHARDM.................................................................................................................................. 7

CTSPSH .................................................................................................................................... 7

CTSPSH OFF............................................................................................................................. 7

GET BAUD................................................................................................................................ 7

HSOFF...................................................................................................................................... 7

HSON ....................................................................................................................................... 8

RXCLR ...................................................................................................................................... 8

RXOFF...................................................................................................................................... 8

RXON ....................................................................................................................................... 8

SET BAUD ................................................................................................................................ 8

NXC-COM2 Send_String Escape Sequences ................................................................... 9

27,17,<time> ........................................................................................................................... 9

TSET BAUD .............................................................................................................................. 9

TXCLR ...................................................................................................................................... 9

XOFF........................................................................................................................................ 9

XON ......................................................................................................................................... 9

27,18,0 ................................................................................................................................... 10

27,18,1 ................................................................................................................................... 10

27,19,<time> ......................................................................................................................... 10

27,20,0 ................................................................................................................................... 10

27,20,1 ................................................................................................................................... 10

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Table of Contents

NXC-I/O10 Input/Output Control Card ............................................................11

Specifications.......................................................................................................... 11

Pinouts, Signals, and I/O Mode Functions .............................................................. 12

NXC-I/O10 Channel Assignments ........................................................................... 12

Setting the Switch/Voltage Mode Jumpers ............................................................ 12

Setting the Voltage Clamp Jumper (+12V or Open)............................................... 13

NXC-IRS4 4-Port IR/S Control Card ..................................................................15

Specifications.......................................................................................................... 15

Pinouts, Signals, and Functions .............................................................................. 16

NXC-IRS4 Channel Assignments ............................................................................. 16

Programming Information....................................................................................... 16

CAROFF ................................................................................................................................. 16

CARON................................................................................................................................... 16

CH .......................................................................................................................................... 17

CP........................................................................................................................................... 17

CTOF...................................................................................................................................... 17

CTON ..................................................................................................................................... 17

GET MODE............................................................................................................................. 18

IROFF ..................................................................................................................................... 18

POD ....................................................................................................................................... 18

POF ........................................................................................................................................ 18

PON ....................................................................................................................................... 18

PTOF ...................................................................................................................................... 19

PTON ..................................................................................................................................... 19

SET INPUT LINK ..................................................................................................................... 19

SET IO LINK............................................................................................................................ 19

SET MODE ............................................................................................................................. 20

SP........................................................................................................................................... 20

XCH........................................................................................................................................ 20

XCHM..................................................................................................................................... 20

NXC-REL10 Relay Control Card ........................................................................23

Specifications.......................................................................................................... 23

Pinouts and Functions............................................................................................. 23

NXC-REL10 Channel Assignments .......................................................................... 23

NXC-REL10 Connections/Wiring ............................................................................. 24

NXC-VAI4 Analog Voltage Control Card ..........................................................25

Specifications.......................................................................................................... 25

Pinouts and Functions............................................................................................. 26

Channel Assignments.............................................................................................. 26

NXC-VAI4 Output Level Assignments..................................................................... 28

NXC-VAI4 Input Level Assignments ........................................................................ 29

Programming Information....................................................................................... 29

AD MODE .............................................................................................................................. 29

DEFAULT................................................................................................................................ 29

Table of Contents

iii

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

DEFAULT ALL......................................................................................................................... 29

GAS........................................................................................................................................ 29

GD.......................................................................................................................................... 30

GL........................................................................................................................................... 30

GS .......................................................................................................................................... 30

LEVOFF .................................................................................................................................. 30

LEVON ................................................................................................................................... 30

PC........................................................................................................................................... 31

PE........................................................................................................................................... 31

PL ........................................................................................................................................... 31

PN .......................................................................................................................................... 32

PR........................................................................................................................................... 32

PU .......................................................................................................................................... 32

PX........................................................................................................................................... 33

PZ........................................................................................................................................... 33

NXC-VOL4 Volume Control Card ......................................................................35

Specifications.......................................................................................................... 35

Pinouts, Signals, and Functions............................................................................... 36

NXC-VOL4 Connections/Wiring .............................................................................. 36

NXC-VOL4 Channel Assignments............................................................................ 37

NXC-VOL4 Levels.................................................................................................... 37

CREATE_LEVEL.............................................................................................................. 37

SEND_LEVEL ................................................................................................................. 38

Programming Information....................................................................................... 38

PL ........................................................................................................................................... 38

PR........................................................................................................................................... 38

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Table of Contents

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXF CardFrame and NetModules

123456789101112

15 16

19 20

17 18

13 14

10 11

5 6 7 8 9

2 3 4

5 6 7 8 9

1 2 3 4

5 6 7 8 9

2 3 4

5 6 7 8 9

1 2 3 4

5 6 7 8 9

2 3 4

5 6 7 8 9

1 2 3 4

5 6 7 8 9

2 3 4

5 6 7 8 9

1 2 3 4

5 6 7 8 9

2 3 4

5 6 7 8 9

1 2 3 4

5 6 7 8 9

2 3 4

NXF

CARDFRAME

CARDFRAME NUMBER

12VDC

CARDFRAME

PWR

front

rear

2-pin 12V power connector

Cardframe number DIP Switch

Control Card slots 1-12

Master/Hub Card slot

Overview

NetLinx Control Cards can be installed in the NetLinx® (NXF) CardFrame, the NI-4000, or in modules for stand-alone operation. The NXF CardFrame accommodates a NetLinx Master (or Hub) card, up to twelve NetLinx Control cards, and provides a back plane to distribute power and data to/from the cards. The NXF CardFrame provides terminals on the rear panel for connection to the control cards and a system power supply. A DIP switch on the rear panel sets the CardFrame's base device number. The NetLinx Control Cards covered in this document are:

• NXC-COM2 Dual COM Port Control Card

• NXC-I/O10 Input/Output Control Card

• NXC-IRS4 4-Port IR/S Control Card

• NXC-REL10 Relay Control Card

• NXC-VAI4 Analog Voltage Control Card

• NXC-VOL4 Volume Control Card

NXF CardFrame

FIG. 1 shows the front and rear panel components of the NXF CardFrame.

NXF CardFrame and NetModules

NXF CardFrame

FIG. 1

NXF Cardframe Specifications

Power Requirement 12 VDC; varies with installed Control Cards. Dimensions (HWD) 3.5" x 17.0" x 9.6" (8.89 cm x 43.18 cm x 24.38 cm) Weight 9.1 lbs (4.1 kg)

Front Panel Components:

Master/Hub Card slot Houses the Master or Hub Card. Refer to the NetLinx Master Cards and Modules or

Control Card slots 12 card slots for the NetLinx Control Cards that control devices connected to the

NetLinx Hub Cards and Modules instruction manuals for detailed information.

CardFrame.

NXF CardFrame and NetModules

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXF Cardframe Specifications (Cont.)

Rear Panel Components:

Card slots Twelve 20-pin black (male) connectors and mating 3.5 mm captive-screw terminals

Control Card connectors (1-12) 20-pin black (male) connectors that connect the Control Cards and external

+12 VDC PWR 2-pin green (male) connector for connecting a 12 VDC power supply. The CardFrame

CardFrame Number DIP switch Sets the starting address for the Control Cards in the CardFrame. The 8-position DIP

Front faceplate Plastic gray faceplate with translucent viewing window. Enclosure Metal with black matte finish.

Mounting Master/Hub Cards in an NXF CardFrame

NetLinx Master and Hub Cards can be installed in the NXF CardFrame. The card mounts in a horizontal position, through the master card slot on the rear panel of the NXF enclosure. To install a Master or Hub Card in an NXF:

1. Discharge the static electricity from your body by touching a grounded metal object.

2. Unplug all the connectors from the NXF.

3. Remove the two screws holding the front plate on the Master Card, and remove the front plate.

4. Align the edges of the card with the guide slots inside the Master Card slot on the NXF.

5. Slide the card about halfway into the slot.

6. Inside the Master Card slot on the NXF, locate the 6-pin control cable connector.

7. Plug the connector from the NXF into the 6-pin terminal on the Master Card. This connector is keyed to ensure

correct orientation.

8. Once the control cable is connected, gently slide the card all the way in until you feel the rear edge of the card

lightly snap into place.

9. Re-apply power and other connections as necessary.

Setting the CardFrame's starting address

The 8-position CardFrame Number DIP switch, located on the rear of the CardFrame (FIG. 1 on page 1), sets the starting address (the device number in the D:P:S specification) for the Control Cards installed in the CardFrame. The address range is 12-3060. The formula for setting the starting address is:

(DIP switch address x 12) + Card slot Number (1-12) = Card address

For example:

For DIP switch setting, 00010101: (0 + 0 + 0 + 0 + 96 + 0 + 384 + 1536) + SLOT #

(ex:1) = 2017.

A card in slot number 7 would be device address 2023.

1. Set the CardFrame Number DIP switch based on the information listed in the table below.

supplied with Control Cards.

equipment to the CardFrame.

can be powered via the Master Card (default) or by an external power supply connected to the CardFrame's PWR connector. If a power supply is connected to the PWR connector, the CardFrame power automatically switches to the connected power supply. In that case, the Control Cards and CardFrame are independently powered. A simple rule to follow is that if the CardFrame contains eight or more Control Cards, use two 12 VDC power supplies.

switch address range is 1-3072.

Position 12345678 Value 12 24 48 96 192 384 768 1536

2. Cycle power for approximately 5 seconds, so the system can read the new device number settings.

Factory default DIP switch value = 0 (zero) (All DIP switches are in the OFF position).

NXF CardFrame and NetModules

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXM-NMS

1720 1819 1516 1314 1012 11 896745

NetModule

ICSNet PWR

12VDC

NetModule

ID Button

Parallel 12 VDC 2-pin power supply connectors

Control Card slot

Control Card connector

ICSNet RJ-45 connectors

(20-pin)

front

rear

Device:Port:System (D:P:S)

A device is any hardware component that can be connected to an AXlink or ICSNet bus. Each device must be assigned a unique number to locate that device on the bus. The NetLinx programming language allows numbers in the range 032,767. Device 0 refers to the local Master; numbers greater than 32,767 are reserved.

NetLinx requires a Device:Port:System (D:P:S) specification. This D:P:S triplet can be expressed as a series of constants, variables separated by colons, or a DEV structure. For example:

STRUCTURE DEV { INTEGER Number // Device number INTEGER Port // Port on device INTEGER System // System the device belongs to }

The D:P:S notation is used to explicitly represent a device number, port and system. For example, 128:1:0 represents the first port on device 128 on this system. If the system and Port specifications are omitted, (e.g. 128), system 0 (indicating this system) and port 1 (the first port) is assumed. Here's the syntax:

NUMBER:PORT:SYSTEM

where:

NUMBER: 16-bit integer represents the device number PORT: 16-bit integer represents the port number (in the range 1 through the number of ports

SYSTEM: 16-bit integer represents the system number (0 = this system)

on the Controller or device)

NXS-NMS NetModules

The NXS-NMS NetModules (FG2009-10) accommodate one NetLinx Control Card, and connect to the NetLinx bus via

ICSNet connections. The NetModules offer a simple and economical way to integrate additional functionality to control systems. FIG. 2 shows a NetModule shell and its main components.

FIG. 2

NXS-NMS NetLinx NetModule shell

NXS-NMS NetModules specifications

The table below lists the NXS-NMS specifications.

NXS-NMS NetModules Specifications

Dimensions (HWD) 1.50" x 5.55" x 9.25" (3.81 cm x 14.10 cm x 23.50 cm) ID button Generates an event from the NetModule to allow you to assign new Device and

System numbers, using ID mode in the NetLinx Studio software program (seeUsing the ID button section on page 4 for details).

Control connector 20-pin black (male) connector that connects the NetModule to external devices.

These connectors are keyed to insure proper installation.

NXF CardFrame and NetModules

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXS-NMS NetModules Specifications (Cont.)

ICSNet RJ-45 connectors Receives power and data from a NetLinx Master/Hub ICSNet Port.

12 VDC power supply connectors Two parallel male 2-pin (green) parallel connectors for 12 VDC power. Enclosure Metal with black matte finish Included Accessories NetLinx faceplate Optional accessories AC-RK Accessory Rack Kit (holds up to three NetModules)

Mounting modules into an equipment rack

To install the modules in an equipment rack using the optional AC-RK kit:

1. Remove the front faceplate from the module to expose the mounting holes.

2. Mount the module on the AC-RK bracket.

3. Place the AC-RK bracket (with the module) in the equipment rack and secure the bracket to the rack.

4. Replace the front faceplate on the module, and attach the translucent plastic cover to the faceplate (if necessary).

Installing Control Cards into an NXF CardFrame

Remove the magnetic front faceplate/viewing window from the CardFrame.

2. Align the edge of the Control Card with a slot in the CardFrame. Slide the card into the CardFrame and press until

you feel the Card seat in the backplane connector.

3. Put the magnetic faceplate back on the CardFrame. Secure with mounting screws (if necessary).

Preparing/connecting captive wires

Strip 0.25 inch of wire insulation off all wires.

2. Insert each wire into the appropriate opening on the connector according to the wiring diagrams and connector

types described in this section.

3. Tighten the screws to secure the wires in the connector. Do not tighten the screws excessively; doing so may strip

the threads and damage the connector.

Using the ID button

The ID Button on the rear panel of the NetModules (see FIG. 2) is used in conjunction with the NetLinx Studio software program to allow you to assign new Device and System numbers for the Module.

1. Using NetLinx Studio, place the system in Identity (ID) Mode. ID Mode means the entire system is put on hold

while it waits for an event from any NetLinx device in the named system (for example, pushing the ID button on a Module). The device generating the first event is the identified device.

2. Press the ID Mode button to generate an event from the Module and allow you to assign new Device and System

numbers in NetLinx Studio.

An ICSNet port on a NetLinx Master or Hub supplies up to 500 mA at 12 V for module power.

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

ICSNET Status LED

LED 1

LED 4

NXC-COM2 Dual COM Port Control Card

The NXC-COM2 Dual COM Port Control Card (FG2022) provides two RS-232, RS-422, or RS-485 control ports and

LED feedback for remote sources connected to the NetLinx CardFrame, NI-4000 or NetModule. FIG. 3 shows the COM2 card.

FIG. 3 NXC-COM2 Dual COM Port Control card

Specifications

NXC-COM2 Specifications

Power Requirements: 140 mA @ 12 VDC Operation: Data 1-2: Two RS-232/422/485 control ports, supports XON/XOFF, CTS/RTS,

300-230,400 baud

Status LEDs (2 per channel): • Red LED shows TX (transmit) data activity

• Yellow LED shows RX (receive) data activity

- LED 1: CH1 TX (red)

- LED 2: CH1 RX (yellow)

- LED 3: CH2 TX (red)

- LED 4: CH2 RX (yellow)

• Green ICSP status LED (located on the board):

- On = card is not in communication with the Master.

- Blinks (1-second intervals) during normal operation. Connections/wiring: Two 10-pin 3.5 mm captive-screw terminals DEVICE_ID: $0107

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Pinouts and Wiring Configuration

NXC-COM2 Pinouts NXC-COM2 Wiring Configuration

Pin Signal Function RS-232 RS-422 RS-485

1 GND Signal ground X X 2 RXD1 Receive data X 3 TXD1 Transmit data X 4 CTS1 Clear to send X 5 RTS1 Request to send X 6 TX1+ Transmit data X X (strap to pin 8) 7 TX1- Transmit data X X (strap to pin 9) 8 RX1+ Receive data X X (strap to pin 6) 9 RX1- Receive data X X (strap to pin 7) 10 +12 VDC Power Optional Optional 11 GND Signal ground X X 12 RXD2 Receive data X 13 TXD2 Transmit data X 14 CTS2 Clear to send X 15 RTS2 Request to send X 16 TX2+ Transmit data X X (strap to pin 18) 17 TX2- Transmit data X X (strap to pin 19) 18 RX2+ Receive data X X (strap to pin 16) 19 RX2- Receive data X X (strap to pin 17) 20 +12 VDC Power Optional Optional

NXC-COM2 Channel Assignment

Channel Description

255 CTS push channel - reflects the state of the CTS input if a 'CTSPSH' command was sent to the device.

NXC-COM2 Programming Information

NXC-COM2 Send_Commands

Command Description

B9MOFF Disable 9-bit in 232/422/455 mode. This command works in conjunction with the B9MON command.

Syntax:

SEND_COMMAND <DEV>,"'B9MOFF'"

Example:

SEND_COMMAND SOMEDEVICE_1,"'B9MOFF'"

Sets the port settings on SOMEDEVICE to match the port's configuration settings.

B9MON Enable 9-bit in 232/422/455 mode. This command works in conjunction with the B9MOFF command.

Syntax:

SEND_COMMAND <DEV>,"'B9MON'"

Example:

SEND_COMMAND SOMEDEVICE_1,"'B9MON'"

Resets the SOMEDEVICE port's communication parameters to nine data bits and one stop bit.

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-COM2 Send_Commands (Cont.)

Command Description

CHARD Set the delay time between all transmitted characters to the value specified (in 100 microsecond

increments). Syntax:

SEND_COMMAND <DEV>,"'CHARD-<time>'"

Variable:

time: 0 - 255. Measured in 100 microsecond increments.

Example:

SEND_COMMAND RS232_1,"'CHARD10'"

Sets a 1-millisecond delay between all transmitted characters.

CHARDM Set the delay time between all transmitted characters to the value specified (in 1 millisecond increments).

Syntax:

SEND_COMMAND <DEV>,"'CHARDM-<time>'"

Variable:

time: 0 - 255. Measured in 1 millisecond increments.

Example:

SEND_COMMAND RS232_1,"'CHARDM10'"

Sets a 10-millisecond delay between all transmitted characters.

CTSPSH Enable Pushes, Releases, and status information to be reported via channel 255 using the CTS

hardware handshake input. If Clear To Send (CTS) is high, the channel is On. Syntax:

SEND_COMMAND <DEV>,"'CTSPSH'"

Example:

SEND_COMMAND RS232_1,"'CTSPSH'"

Sets the RS232_1 port to detect changes on the CTS input.

CTSPSH OFF Disable Pushes, Releases, and Status information to be reported via channel 255. If Clear To Send

GET BAUD Get the RS-232/422/485 port’s current communication parameters. Device sends the response out the

HSOFF Disable hardware handshaking (default).

(CTS) is high, the channel is on.

Syntax:

SEND_COMMAND <DEV>,"'CTSPSH OFF'"

Example:

SEND_COMMAND RS232_1,"'CTSPSH OFF'"

Turns off CTSPSH for the specified device. Disables the RS232_1 port to detect changes on the CTS input.

Master program port. Syntax:

SEND_COMMAND <DEV>,"'GET BAUD'"

Example:

SEND_COMMAND RS232_1,"'GET BAUD'"

Device responds with:

Syntax:

SEND_COMMAND <DEV>,"'HSOFF'"

Example:

SEND_COMMAND RS232_1,"'HSOFF'"

Disables hardware handshaking on the RS232_1 device.

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-COM2 Send_Commands (Cont.)

Command Description

HSON Enable RTS (ready-to-send) and CTS (clear-to-send) hardware handshaking.

Syntax:

SEND_COMMAND <DEV>,"'HSON'"

Example:

SEND_COMMAND RS232_1,"'HSON'"

Enables hardware handshaking on the RS232_1 device.

RXCLR Clear all characters in the receive buffer waiting to be sent to the Master.

Syntax:

SEND_COMMAND <DEV>,"'RXCLR'"

Example:

SEND_COMMAND RS232_1,"'RXCLR'"

Clears all characters in the receive buffer waiting to be sent to the Master.

RXOFF Disable the transmission of incoming received characters to the Master (default).

Syntax:

SEND_COMMAND <DEV>,"'RXOFF'"

Example:

SEND_COMMAND RS232_1,"'RXOFF'"

Disable the transmission of incoming received characters to the Master (default).

RXON Enables sending incoming received characters to the Master. This command is automatically sent by the

Master when a 'CREATE_BUFFER' program instruction is executed. Syntax:

SEND_COMMAND <DEV>,"'RXON'"

Example:

SEND_COMMAND RS232_1,"'RXON'"

Start transmitting received characters to the Master (default).

SET BAUD Set the RS-232/422/485 port's communication parameters.

Syntax:

SEND_COMMAND <DEV>,"'SET BAUD <baud>,<parity>,<data>,<stop> [485 <Enable|Disable>]'"

Variables:

Baud: baud rates are: 230400, 115200, 76800, 57600, 38400, 19200, 9600, 4800, 2400, 1200, 600, 300, 150.

Parity: N (none), O (odd), E (even), M (mark), S (space) Data: 7 or 8 data bits Stop: 1 or 2 stop bits 485 Disable: Disables RS-485 mode and enables RS-232/422 485 Enable: Enables RS-485 mode and disables RS-234/422

Note: The only valid 9 bit combination is (baud),N,9,1.

Example:

SEND_COMMAND SOMEDEVICE_1,"'SET BAUD 115200,N,8,1, 485 ENABLE'"

Sets the SOMEDEVICE port's communication parameters to 115,200 baud, no parity, 8 data bits, 1 stop bit, and enables RS-485 mode.

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-COM2 Send_Commands (Cont.)

Command Description

TSET BAUD Temporarily set the RS-232/422/485 port's communication parameters for a device. Works the same as

SET BAUD, except that the changes are not permanent, and the previous values will be restored if the power is cycled on the device.

Syntax:

SEND_COMMAND <DEV>,"'TSET BAUD <baud>,<parity>,<data>,<stop> [485 <Enable | Disable >]'"

Variables:

Baud: baud rates are: 230400, 115200, 76800, 57600, 38400, 19200, 9600, 4800, 2400, 1200, 600, 300, 150.

Example:

SEND_COMMAND RS232_1,"'TSET BAUD 115200,N,8,1 485 ENABLE'"

Sets the RS232_1 port's communication parameters to 115,200 baud, no parity, 8 data bits, 1 stop bit, and enables RS-485 mode.

TXCLR Stop and clear all characters waiting in the transmit out buffer and stops transmission.

Syntax:

SEND_COMMAND <DEV>,"'TXCLR'"

Example:

SEND_COMMAND RS232_1,"'TXCLR'"

Clears and stops all characters waiting in the RS232_1 device's transmit buffer.

XOFF Disable software handshaking (default).

Syntax:

SEND_COMMAND <DEV>,"'XOFF'"

Example:

SEND_COMMAND RS232_1,"'XOFF'"

Disables software handshaking on the RS232_1 device.

XON Enable software handshaking.

Syntax:

SEND_COMMAND <DEV>,"'XON'"

Example:

SEND_COMMAND RS232_1,"'XON'"

Enables software handshaking on the RS232_1 device.

NXC-COM2 Send_String Escape Sequences

Command Description

27,17,<time> Send a break character for a specified duration to a specific device.

Syntax:

SEND_STRING <DEV>,"27,17,<time>"

Variable:

time = 1 - 255. Measured in 100 microsecond increments.

Example:

SEND_STRING RS232_1,"27,17,10"

Sends a break character of 1 millisecond to the RS232_1 device.

NXC-COM2 Dual COM Port Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-COM2 Send_String Escape Sequences (Cont.)

Command Description

27,18,0 Clear the ninth data bit by setting it to 0 on all character tran smissions. Used in conjunction with the

'B9MON' command. Syntax:

SEND_STRING <DEV>,"27,18,0"

Example:

SEND_STRING RS232_1,"27,18,0"

Sets the RS232_1 device's ninth data bit to 0 on all character transmissions.

27,18,1 Set the ninth data bit to 1 for all subsequent characters to be transmitted. Used in conjunction with the

'B9MON' command. Syntax:

SEND_STRING <DEV>,"27,18,1"

Example:

SEND_STRING RS232_1,"27,18,1"

Sets the RS232_1 device's ninth data bit to 1 on all character transmissions.

27,19,<time> Insert a time delay before transmitting the next character.Syntax:

SEND_STRING <DEV>,"27,19,<time>"

Variable:

time = 1 - 255. Measured in 1 millisecond increments.

Example:

SEND_STRING RS232_1,"27,19,10"

Inserts a 10 millisecond delay before transmitting characters to the RS232_1 device.

27,20,0 Set the RTS hardware handshake's output to high (> 3V).

Syntax:

SEND_STRING <DEV>,"27,20,0"

Example:

SEND_STRING RS232_1,"27,20,0"

Sets the RTS hardware handshake's output to high on the RS232_1 device.

27,20,1 Set the RTS hardware handshake's output to low/inactive (< 3V).

Syntax:

SEND_STRING <DEV>,"27,20,1"

Example:

SEND_STRING RS232_1,"27,20,1"

Sets the RTS hardware handshake's output to low on the RS232_1 device.

NXC-I/O10 Input/Output Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

SW/VO Jumpers (J1 - J5)

V-Clamp +12V/Open Jumper (J31)

SW/VO Jumpers (J16 - J30)

NXC-I/O10 Input/Output Control Card

The NXC-I/O10 Input/Output Control Card (FG2021) provides 10 Input/Output channels and LED feedback. It acts as a

logic-level input and responds to switch closures or voltage level (high/ low) changes. The Switch (SW) and Voltage (VO) modes are set with on-board jumpers. FIG. 4 shows the I/O10 card.

The I/Os on this card are not dry closure; they are electronic switches that float at 5V when Off. Therefore, they should not be expected to work in situations that require true dry contact (or dry closure).

The I/Os do work with AMX PC1, PC2, UPC20 and UPC20+.

FIG. 4 NXC-I/O10 Control card

Specifications

NXC-I/O10 Specifications

Power Requirements 180 mA @ 12 VDC Operation I/O 1-10: ten Input/Output channels Status LEDs (1 per channel Yellow LEDs light to show ON status activity Modes:

Switch Senses switch or relay contact closures or provides a logic-level output. Voltage Senses high- and low-voltage states.

Voltage clamp settings:

12 V mode (default) Clamps any voltage connected to I/O ports 1-10 to 12 V. VO mode Use for connections that will draw more than 12 V.

Connections/wiring Two 10-pin 3.5 mm captive-screw terminals

NXC-I/O10 Input/Output Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Pinouts, Signals, and I/O Mode Functions

NXC-I/O10 Pinouts, Signals, and I/O Mode Functions

Pin Signal SW mode Functions VO mode functions

1 Common Signal ground Common #1 2 I/O #1 Input #1 Input #1 3 Common Signal ground Common #2 4 I/O #2 Input #2 Input #2 5 Common Signal ground Common #3 6 I/O #3 Input #3 Input #3 7 Common Signal ground Common #4 8 I/O #4 Input #4 Input #4 9 Common Signal ground Common #5 10 I/O #5 Input #5 Input #5 11 Common Signal ground Common #6 12 I/O #6 Input #6 Input #6 13 Common Signal ground Common #7 14 I/O #7 Input #7 Input #7 15 Common Signal ground Common #8 16 I/O #8 Input #8 Input #8 17 Common Signal ground Common #9 18 I/O #9 Input #9 Input #9 19 Common Signal ground Common #10 20 I/O #10 Input #10 Input #10

NXC-I/O10 Channel Assignments

NXC-I/O Channel Assignment

Channel Description

1-10 Represent I/O channels 1-10

Setting the Switch/Voltage Mode Jumpers

The NXC-I/O10 responds to switch closures or voltage-level (high/low) changes. Compatible I/O devices include the Power Control Sensor (PCS), tape transports and limit switches. The inputs are set for SW mode (closure) or VO mode as described below.

SW (switch) Mode setting (default)

(Jumper pins 2 and 3)

VO (voltage) Mode setting

(Jumper pins 1 and 2)

Senses switch or relay contact closures or provides a logic-level output. The 3-pin jumpers for each input should be set to SW before wiring inputs to the Card. An "On" condition is triggered by contact closures or a logic low of 0 to 1.5 VDC.

An "Off" condition is triggered by a logic high of 2.5 to 5 VDC; set the associated I/O to switch mode. When used for an output, each I/O port acts as a switch to ground (GND), and is rated at 200 mA @ 12 VDC.

Senses high- and low-voltage states commonly from AC or DC signals. This mode provides opto-isolation. The 3-pin jumpers for each input should be set to VO (voltage mode) before wiring inputs to the Card.

An "On" condition is triggered by DC levels from 2.5 to 28 VDC (+ or

-), or AC levels from 2.5 to 24 VAC. An "Off" condition is triggered by DC levels from 0 to 1.5 VDC (+ or -) or AC levels from 0 to 1.5 VAC.

NXC-I/O10 Input/Output Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

In switch mode, the A terminals are connected to the NetLinx Controller's ground. Sources that require isolation from the Controller's ground should use voltage mode, and provide switched DC power for sensing as required.

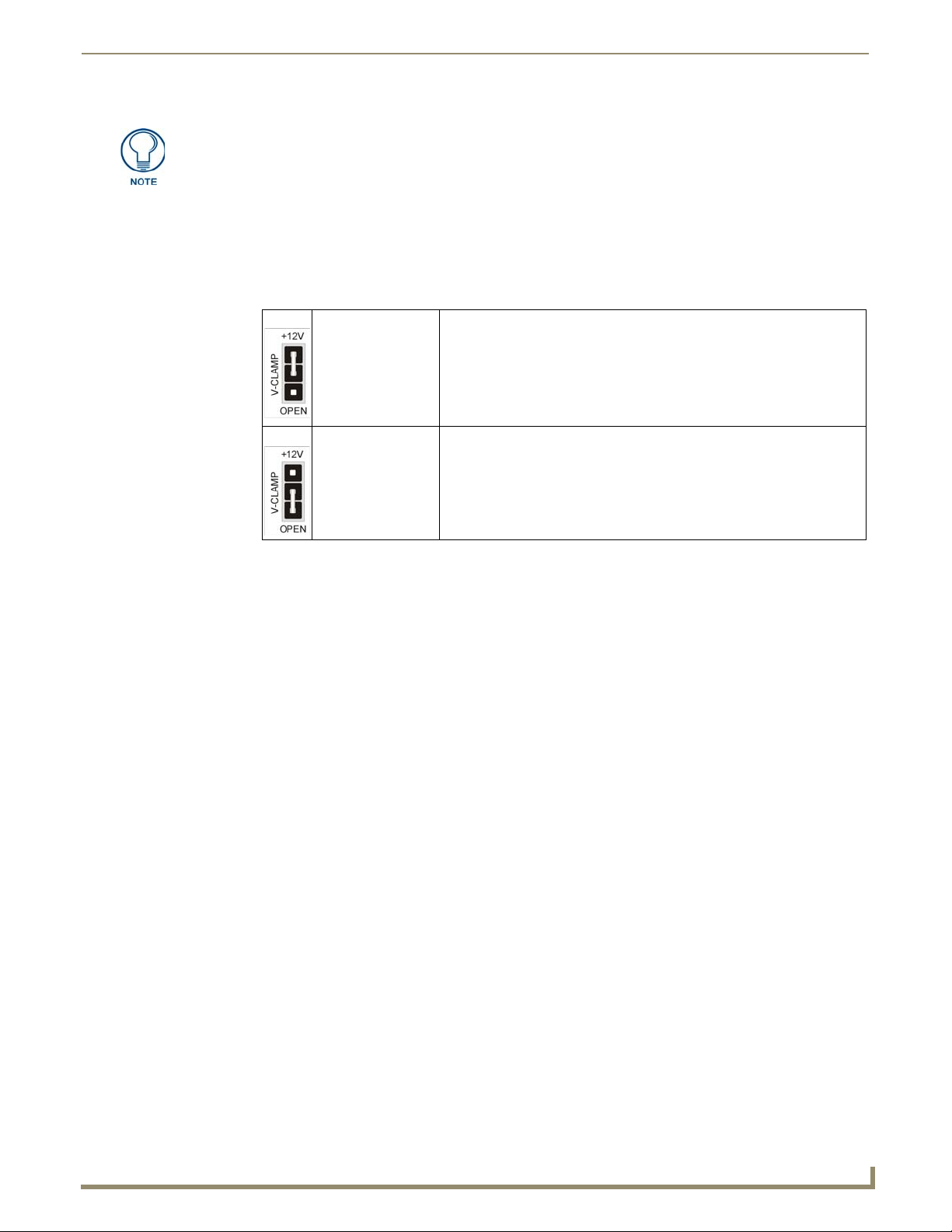

Setting the Voltage Clamp Jumper (+12V or Open)

Set the V- Clamp jumper (J31) to +12 V (default) to clamp any voltage connected to I/O ports 1-10 to 12 V.

Set to Open for connections that will draw more than 12 V.

Remember, the +12 V and OPEN settings are only enabled when the I/O ports are set to SW mode. The V-Clamp jumper settings are described below:

+12 V mode setting (default)

Open mode setting When this jumper is set to Open, and an I/O port is used as an output, the

Use the default setting for all loads that require less than 12 V.

I/O port is rated at 85 mA @ 28 VDC.

When this jumper is Open, it is the technician's responsibility to clamp the external source relay anytime the voltage exceeds 12 V. The source relay should always be clamped if the voltage exceeds 12 V. Contact the relay manufacturer to determine the size of the diode in the source relay.

NXC-I/O10 Input/Output Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 4-Port IR/S Control Card

The NXC-IRS4 4-Port IR/S Control Card (FG2023) provides four IR/Serial input control ports with LED status

feedback.

Each port in the NXC-IRS4 stores programmed commands for IR- or serial-controlled devices. FIG. 5 shows the IRS4 card.

FIG. 5 NXC-IRS4 4-Port IR/Serial Control card

Specifications

NXC-IRS4 4-Port IR/S Control Card

NXC-IRS4 Specifications

Power Requirements 110 mA @ 12 VDC Power +12 VDC power for sensors Operation:

IR 1-4 4 IR/Serial control ports

Input 1-4 4 input ports for closure or 0-5 VDC sensing, 200 mA Memory 32K of IR memory shared between four ports. IR Frequency range Support of high-frequency carriers up to 1.14 MHz. Status LEDs:

(2 LEDs per channel) LEDs light to indicate

ON status

Connections/wiring • Two 2-pin 3.5 mm captive-screw terminals

Red LED shows IR transmission activity/Yellow LED shows input status activity:

LED 1: Channel 1 Input (yellow) LED 2: Channel 1 IR Out (red) LED 3: Channel 2 Input (yellow) LED 4: Channel 2 IR Out (red) LED 5: Channel 3 Input (yellow) LED 6: Channel 3 IR Out (red) LED 7: Channel 4 Input (yellow) LED 8: Channel 4 IR Out (red)

• Two CC-NIRC IR Emitters

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Pinouts, Signals, and Functions

NXC-IRS4 Pinouts, Signals, and Functions

Pin Signal Function Pin Signal Function

1 GND Signal ground 10 Input #1 Logic input 2 Output #1 IR data 11 Input #2 Logic input 3 GND Signal ground 12 Input #3 Logic input 4 Output #2 IR data 13 Input #4 Logic input 5 GND Signal ground 14 Power +12 VDC 6 Output #3 IR data 15 ----------------- no connection 7 GND Signal ground 16 ------ ----------- no connection 8 Output #4 IR data 17 ----------------- no connection 9 GND Signal ground 18 ------ ----------- no connection

NXC-IRS4 Channel Assignments

The NXC-IRS4 channel settings listed in the following table set the IR output channels. The NXC-IRS4 can process up to two IR or serial device channel setting commands simultaneously.

NXC-IRS4 Channel Assignments

Channel Description

1-255 Generate the IR or serial command assigned to that channel. 1-199 Provide intelligent feedback; if a channel with no IR command turned On, the card will turn that channel

Ports 1-4 Generate PUSH and RELEASE statements corresponding to the state of inputs 1 - 4. A contact closure to

19 ----------------- no connection 20 ----------------- no connection

Off.

GND is reported as a PUSH.

• The PUSH and RELEASE channel is 255.

• Channel reporting status is 255.

• Channel 255 changes are disabled after receipt of the ’PON’ command.

Programming Information

The following NetLinx Send_Commands control the NXC-IRS4 Control Card.

NXC-IRS4 Send_Commands

Command Description

CAROFF Disable the IR carrier signal until a 'CARON' command is received.

Syntax:

SEND_COMMAND <DEV>,"'CAROFF'"

Example:

SEND_COMMAND IR_1,"'CAROFF'"

Stops transmitting IR carrier signals to the IR_1 port.

CARON Enable the IR carrier signals (default).

Syntax:

SEND_COMMAND <DEV>,"'CARON'"

Example:

SEND_COMMAND IR_1,"'CARON'"

Starts transmitting IR carrier signals to the IR_1 port.

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 Send_Commands (Cont.)

Command Description

CH Send IR pulses for the selected a channel. All channels below 100 are transmitted as two digits. If the

IR code for ENTER (function #21) is loaded, an Enter will follow the number. If the channel is greater than or equal to (>=) 100, then IR function 127 or 20 (whichever exists) is generated for the one hundred digit. Uses 'CTON' and 'CTOF' times for pulse times.

Syntax:

SEND_COMMAND <DEV>,"'CH',<Number>"

Variable:

channel number = 0 - 199.

Example:

SEND_COMMAND IR_1,"'CH',18"

The NXC-IRS4 performs the following:

• Transmits IR signals for 1 (IR code 11). The transmit time is set with the CTON command.

• Waits until the time set with the CTOF command elapses.

• Transmits IR signals for 8 (IR code 18).

• Waits for the time set with the CTOF command elapses. If the IR code for Enter (IR code 21) is programmed, the IRS4 performs the following steps.

• Transmits IR signals for Enter (IR code 21).

Waits for the time set with the CTOF command elapses.

CP Halt and Clear all active or buffered IR commands, and then send a single IR pulse. You can set the

Pulse and Wait times with the 'CTON' and 'CTOF' commands. Syntax:

SEND_COMMAND <DEV>,"'CP',<code>"

Variable:

code = IR port's channel value 0 - 252 (253 - 255 reserved).

Example:

SEND_COMMAND IR_1,"'CP',2"

Clears the active/buffered commands and pulses IR_1 port's channel 2.

CTOF Set the duration of the Off time (no signal) between IR pulses for channel and IR function

transmissions. Off time settings are stored in non-volatile memory. This command set s the delay time between pulses generated by the 'CH' or 'XCH' send commands in tenths of seconds.

Syntax:

SEND_COMMAND <DEV>,"'CTOF',<time>"

Variable:

time = 0 - 255. Given in 1/10ths of a second. Default is 5 (0.5 seconds).

Example:

SEND_COMMAND IR_1,"'CTOF',10"

Sets the Off time between each IR pulse to 1 second.

CTON Set the total time of IR pulses transmitted and is stored in non-volatile memory. This command sets

the pulse length for each pulse generated by the 'CH' or 'XCH' send commands in tenths of seconds. Syntax:

SEND_COMMAND <DEV>,"'CTON',<time>"

Variable:

time = 0 - 255. Given in 1/10ths of a second. Default is 5 (0.5 seconds).

Example:

SEND_COMMAND IR_1,"'CTON',20"

Sets the IR pulse duration to 2 seconds.

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 Send_Commands (Cont.)

Command Description

GET MODE Poll the IR/Serial port's configuration parameters and report the active mode settings to the device

IROFF Halt and Clear all active or buffered IR commands being output on the designated port.

POD Disable previously active 'PON' (power on) or 'POF' (power off) command settings. Channel 255

POF Turn OFF a device connected to an IR port based on the status of the corresponding I/O Link input. If

PON Turn ON a device connected to an IR port based on the status of the corresponding I/O Link input. If

requesting the information. The port responds with: <port #> <mode>,<carrier>,<io link channel>. Syntax:

SEND_COMMAND <DEV>,"'GET MODE'"

Example:

SEND_COMMAND IR_1,"'GET MODE"

The system could respond with:

PORT 4 IR,CARRIER,IO LINK 0

Syntax:

SEND_COMMAND <DEV>,"'IROFF'"

Example:

SEND_COMMAND IR_1,"'IROFF"

Immediately halts and clears all IR output signals on the IR_1 port.

changes are enabled. This command is used in conjunction with the I/O Link command. Syntax:

SEND_COMMAND <DEV>,"'POD'"

Example:

SEND_COMMAND IR_1,"'POD"

Disables the 'PON' and 'POF' command settings on the IR_1 device.

at any time the IR sensor input reads that the device is ON (such as if someone turned it on manually at the front panel), IR function 28 (if available) or IR function 9 is automatically generated in an attempt to turn the device back OFF. If three attempts fail, the IR port will continue executing commands in the buffer.

If there are no commands in the buffer, the IR port will continue executing commands in the buffer and trying to turn the device OFF until a 'PON' or 'POD' command is received. If the IR port fails to turn the device OFF, a PUSH and RELEASE is made on channel 254 to indicate a power failure error. You can only use the 'PON' and 'POF' commands when an IR device has a linked I/O channel. Channel 255 changes are disabled after receipt of this command. You can only use the PON and POF commands when an IR device has a linked I/O channel.

Syntax:

SEND_COMMAND <DEV>,"'POF'"

Example:

SEND_COMMAND IR_1,"'POF'"

Sends power down IR commands 28 (if present) or 9 to the IR_1 device.

at any time the IR sensor input reads that the device is OFF (such as if one turned it off manually at the front panel), IR function 27 (if available) or IR function 9 is automatically generated in an attempt to turn the device back ON. If three attempts fail, the IR port will continue executing commands in the buffer and trying to turn the device On.

If there are no commands in the buffer, the IR port will continue trying to turn the device ON until a 'POF' or 'POD' command is received. If the IR port fails to turn the device ON, a PUSH and RELEASE is made on channel 254 to indicate a power failure error. You can only use the 'PON' and 'POF' commands when an IR device has a linked I/O channel. Channel 255 changes are disabled after receipt of this command.

Syntax:

SEND_COMMAND <DEV>,"'PON'"

Example:

SEND_COMMAND IR_1,"'PON'"

Sends power up IR commands 27 or 9 to the IR_1 port.

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 Send_Commands (Cont.)

PTOF Set the time duration between power pulses in .10-second increments.

This time increment is stored in permanent memory. This command also sets the delay between pulses generated by the 'PON' or 'POF' send commands in tenths of seconds. It also sets the delay required after a power ON command before a new IR function can be generated. This gives the device time to power up and get ready for future IR commands. It also sets the delay required after a power ON command before a new IR function can be generated. This gives the device time to power up and get ready for future IR commands.

Syntax:

SEND_COMMAND <DEV>,"'PTOF',<time>"

Variable:

time = 0 - 255. Given in 1/10ths of a second. Default is 15 (1.5 seconds).

Example:

SEND_COMMAND IR_1,"'PTOF',15"

Sets the time between power pulses to 1.5 seconds for the IR_1 device.

PTON Set the time duration between power pulses in .1 0-second increments.

This time increment is stored in permanent memory. This command also sets the pulse length for each pulse generated by the 'PON' or 'POF' send commands in tenths of seconds.

Syntax:

SEND_COMMAND <DEV>,"'PTON',<time>"

Variable:

time = 0 - 255. Given in 1/10ths of a second. Default is 5 (0.5 seconds).

Example:

SEND_COMMAND IR_1,"'PTON',15"

Sets the duration of the power pulse to 1.5 seconds for the IR_1 device.

SET INPUT LINK Sets an IR device to link to an input channel for use with 'PON' and 'POF' commands. The input

channel is used for power sensing (via a PCS). A channel of zero disables the link. Syntax:

SEND_COMMAND <DEV>,"'SET INPUT LINK <channel>'"

Variable:

channel = 1 - 4. Setting the channel to 0 disables the link.

Example:

SEND_COMMAND IR_1,"'SET INPUT LINK 1'"

Sets the IR_1 port link to I/O channel 1. The IR port uses the specified input as power status for processing PON and POF commands.

SET IO LINK Link an IR or Serial port to a selected I/O channel for use with the 'DE', 'POD', 'PON', and 'POF'

commands. The I/O status is automatically reported on channel 255 on the IR port. The I/O channel is used for power sensing (via a PCS or VSS). A channel of zero disables the I/O link.

Syntax:

SEND_COMMAND <DEV>,"'SET IO LINK <I/O number>'"

Variable:

I/O number = 1 - 4. Setting the I/O channel to 0 disables the I/O link.

Example:

SEND_COMMAND IR_1,"'SET INPUT LINK 1'"

Sets the IR_1 port link to I/O channel 1. The IR port uses the specified input as power status for processing PON and POF commands.

Note: This command is included for older programs only. The Input port is not an I/O. No output functions are available.’SET IO LINK’ applies the same configuration as the ’SET INPUT LINK’ command.

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 Send_Commands (Cont.)

Command Description

SET MODE Set the IR/Serial ports for IR or Serial-controlled devices connected to a CardFrame or NetModule.

SP Generate a single IR pulse. You can use the 'CTON' to set pulse lengths and the 'CTOF' for time off

XCH Transmit the selected channel IR codes in the format/pattern set by the 'XCHM' send command.

XCHM Changes the IR output pattern for the 'XCH' send command.

Syntax:

SEND_COMMAND <DEV>, 'SET MODE <mode>'"

Variable:

mode = IR or SERIAL.

Example:

SEND_COMMAND IR_1,"'SET MODE IR'"

Sets the IR_1 port to IR mode for IR control.

between pulses. Syntax:

SEND_COMMAND <DEV>,"'SP',<code>"

Variable:

code = IR code value 1 - 252 (253-255 reserved).

Example:

SEND_COMMAND IR_1, "'SP',25"

Pulses IR code 25 on IR_1 device.

Syntax:

SEND_COMMAND <DEV>,"'XCH <channel>'"

Variable:

channel = 0 - 999.

Example:

For detailed usage examples, refer to the 'XCHM' command.

Syntax:

SEND_COMMAND <DEV>,"'XCHM-<extended channel mode>'"

Variable:

extended channel mode = 0 - 4.

Example:

SEND_COMMAND IR_1,"'XCHM-3'"

Sets the IR_1 device's extended channel command to mode 3. Mode 0 Example (default): [x][x]<x><enter>

SEND_COMMAND IR_1,"'XCH-3'"

Transmits the IR code as 3-enter.

SEND_COMMAND IR_1,"'XCH-34'"

Transmits the IR code as 3-4-enter.

SEND_COMMAND IR_1,"'XCH-343'"

Transmits the IR code as 3-4-3-enter.

Mode 1 Example: <x> <x> <x> <enter>

SEND_COMMAND IR_1,"'XCH-3'"

Transmits the IR code as 0-0-3-enter.

SEND_COMMAND IR_1,"'XCH-34'"

Transmits the IR code as 0-3-4-enter.

SEND_COMMAND IR_1,"'XCH-343'"

Transmits the IR code as 3-4-3-enter.

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-IRS4 Send_Commands (Cont.)

Command Description

XCHM (Cont.) Mode 2 Example: <x> <x> <x>

SEND_COMMAND IR_1,"'XCH-3'"

Transmits the IR code as 0-0-3.

SEND_COMMAND IR_1,"'XCH-34'"

Transmits the IR code as 0-3-4.

SEND_COMMAND IR_1,"'XCH-343'"

Transmits the IR code as 3-4-3.

Mode 3 Example: [[100][100]…] <x> <x>

SEND_COMMAND IR_1,"'XCH-3'"

Transmits the IR code as 0-3.

SEND_COMMAND IR_1,"'XCH-34'"

Transmits the IR code as 3-4.

SEND_COMMAND IR_1,"'XCH-343'"

Transmits the IR code as 100-100-100-4-3.

Mode 4: Mode 4 sends the same sequences as the 'CH' command. Only use Mode 4 with channels 0 - 199.

NXC-IRS4 4-Port IR/S Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-REL10 Relay Control Card

NO and NC 3-pin jumpers J6 - J10

NO and NC 3-pin jumpers J1 - J5

The NXC-REL10 Relay Control Card (FG2020) provides ten relays that support devices that employ simple momentary

or latching contact-closure control, with LED feedback. FIG. 6 shows the REL-10 card:

FIG. 6 NXC-REL10 Relay 10 Control card

NXC-REL10 Relay Control Card

Specifications

NXC-REL10 Specifications

Power Requirements: 260 mA @ 12 VDC Operation: Relay 1-10: ten relays, 1A @ , 24 VAC / 28 VDC LEDs: Ten red LEDs light to show ON status activity for each relay Wiring: • Two 10-pin 3.5 mm captive-screw terminals

• Commoning strip (metal)

Pinouts and Functions

NXC-REL10 Pinouts and Functions

Pin Function Pin Function

1 Relay 1A 11 Relay 6A 2 Relay 1B 12 Relay 6B 3 Relay 2A 13 Relay 7A 4 Relay 2B 14 Relay 7B 5 Relay 3A 15 Relay 8A 6 Relay 3B 16 Relay 8B 7 Relay 4A 17 Relay 9A 8 Relay 4B 18 Relay 9B 9 Relay 5A 19 Relay 10A 10 Relay 5B 20 Relay 1 0B

NXC-REL10 Channel Assignments

Channels 1-10 represent relays 1-10.

NXC-REL10 Relay Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-REL10 Connections/Wiring

The NXC-REL10 Control Card has 10 relays that are independently controlled and electrically isolated.

The relay contacts are rated for a maximum of 1 A @ 0-24 VAC or 0-28 VDC (resistive).

Jumpers located on the Card allow you to select Normally Open (NO) or Normally Closed (NC) contact settings:

NO (Normally open Jumper pins 1 and 2 (default).

NC (Normally closed) Jumper pins 2 and 3.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Analog Voltage Control Card

The NXC-VAI4 Analog Voltage Control Card (FG2025) provides four independent analog-to-digital inputs and four

independent digital-to-analog outputs, which are controllable over the ICSP network.

Each port can be configured for a variety of DC input and output signals.

The NXC-VAI4 incorporates the functionality of the AXC-VAI2 and AXC-VRG AXlink cards. FIG. 7 shows the VAI4 card:

FIG. 7 NXC-VAI4 Analog Voltage Control card

Specifications

NXC-VAI4 Specifications

Power Requirements 330 mA @ 12 VDC Inputs Four high-impedance analog DC inputs. Outputs Four analog DC outputs (user-configurable). D/A, A/D conversion A/D and D/A converters for analog sampling and control. 8 or 10-bit; user-selectable via

Available input voltages 0 V to +12 V Available output voltages:

-12 V to +12 V The output voltage may be software-configured for any min. and max. levels between -

External reference A user supplied external reference voltage can be used to set the maximum voltage

External reference input: (EREF - one for each output)

Internal reference output: (IREF)

the ADMODE SEND_COMMAND (see theProgramming Information section on page 29 for details)

12 and +12 VDC.

• Maximum output current = 60 mA per output.

• Over-voltage protection to +28 VDC.

range for the D/A outputs. The full analog output range is scaled to fit the maximum range set by the external reference.

Output voltage may be set to any level between 0-12 VDC, referenced to the external reference voltage input and NXC-VAI4 power supply GND.

• Maximum external reference input voltage = +12 VDC.

• Over-voltage protection to +28 VDC.

• +5 V reference output, maximum current = 60 mA.

• This output is intended to drive a ground-referenced load.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Specifications (Cont.)

I/O Status LEDs 1-8: (two LEDs per channel)

Note: LEDs light to indicate ON status.

Wiring Captive-wire connectors.

Pinouts and Functions

NXC-VAI4 Pinouts, Signals, and Functions

Pin Function Pin Function

1 Output #1 (GND) 9 Input #1 (GND) 2 Output #1 10 Input #1 3 Output #2 (GND) 11 Input #2 (GND) 4 Output #2 12 Input #2 5 Output #3 (GND) 13 Input #3 (GND) 6 Output #3 14 Input #3 7 Output #4 (GND) 15 Input #4 (GND) 8 Output #4 16 Input #4

• 4 yellow LED's (one per channel) light to indicate input signal changes reported to the Master.

• 4 red LED's (one per channel) light to indicate output signal changes.

LED 1: Output #1 (red) LED 2: Input #1 (yellow) LED 3: Output #2 (red) LED 4: Input #2 (yellow) LED 5: Output #3 (red) LED 6: Input #3 (yellow) LED 7: Output #4 (red) LED 8: Input #4 (yellow)

The card is shipped in "factory-default" mode (i.e. the levels have not been configured for each channel). The Output (red) LEDs blink in sequence to indicate that the powerup or limit levels have not been set. The Output LED for each channel will continue to blink until the channel has been calibrated.

17 +5 V Reference output (GND) 18 +5 V Reference output 19 External Reference input (GND) 20 External Reference input

Channel Assignments

The channel ON/OFF assignments for the NXC-VAI4 are described in the following table.

Off = 50% voltage, and all channel assignments are mutually exclusive.

NXC-VAI4 Channel Assignments

Channel State Function

1 ON While channel 1 is ON, the voltage on Output 1 will ramp up at the "CURRENT OUTPUT 1

RAMP UP TIME" rate. The voltage ramp stops if the maximum is reached.

OFF Stops voltage ramping on Output 1 at current value.

2 ON While channel 2 is ON, the voltage on Output 2 will ramp up at the "CURRENT OUTPUT 2

RAMP UP TIME" rate. The voltage ramp stops if the maximum is reached.

OFF Stops voltage ramping on Output 2 at current value.

3 ON While channel 3 is ON, the voltage on Output 3 will ramp up at the "CURRENT OUTPUT 3

RAMP UP TIME" rate. The voltage ramp stops if the maximum is reached.

OFF Stops voltage ramping on Output 3 at current value.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Channel Assignments (Cont.)

Channel State Function

4 ON While channel 4 is ON, the voltage on Output 4 will ramp up at the "CURRENT OUTPUT 4

RAMP UP TIME" rate. The voltage ramp stops if the maximum is reached.

OFF Stops voltage ramping on Output 4 at current value.

5 ON While channel 5 is ON, the voltage on Output 1 will ramp down at the "CURRENT OUTPUT 1

RAMP DOWN TIME" rate. The voltage ramp stops if the minimum is reached.

OFF Stops voltage ramping on Output 1 at current value.

6 ON While channel 6 is ON, the voltage on Output 2 will ramp down at the "CURRENT OUTPUT 2

OFF Stops voltage ramping on Output 2 at current value.

7 ON While channel 7 is ON, the voltage on Output 3 will ramp down at the "CURRENT OUTPUT 3

OFF Stops voltage ramping on Output 3 at current value.

8 ON While channel 8 is ON, the voltage on Output 4 will ramp down at the "CURRENT OUTPUT 4

OFF Stops voltage ramping on Output 4 at current value.

9 ON Reserved [do not use]

OFF Reserved [do not use]

10 ON While channel 10 is ON, the voltage on Output 1 is set to 100%

OFF Sets Output 1 voltage to 50%.

11 ON While channel 11 is ON, the voltage on Output 2 is set to 100%

OFF Sets Output 2 voltage to 50%.

12 ON While channel 12 is ON, the voltage on Output 3 is set to 100%

OFF Sets Output 3 voltage to 50%.

13 ON While channel 13 is ON, the voltage on Output 4 is set to 100%

OFF Sets Output 4 voltage to 50%.

14 ON While channel 14 is ON, the voltage on Output 1 is set to 0%

OFF Sets Output 1 voltage to 50%.

15 ON While channel 15 is ON, the voltage on Output 2 is set to 0%

OFF Sets Output 2 voltage to 50%.

16 ON While channel 16 is ON, the voltage on Output 3 is set to 0%

OFF Sets Output 3 voltage to 50%.

17 ON While channel 17 is ON, the voltage on Output 4 is set to 0%

OFF Sets Output 4 voltage to 50%.

18 ON While channel 18 is ON, the voltage on Output 1 is set to 75%

OFF Sets Output 1 voltage to 50%.

19 ON While channel 19 is ON, the voltage on Output 2 is set to 75%

OFF Sets Output 2 voltage to 50%.

20 ON While channel 20 is ON, the voltage on Output 3 is set to 75%

OFF Sets Output 3 voltage to 50%.

21 ON While channel 21 is ON, the voltage on Output 4 is set to 75%

OFF Sets Output 4 voltage to 50%.

22 ON While channel 22 is ON, the voltage on Output 1 is set to 25%

OFF Sets Output 1 voltage to 50%.

RAMP DOWN TIME" rate. The voltage ramp stops if the minimum is reached.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Channel Assignments (Cont.)

Channel State Function

23 ON While channel 23 is ON, the voltage on Output 2 is set to 25%

OFF Sets Output 2 voltage to 50%.

24 ON While channel 24 is ON, the voltage on Output 3 is set to 25%

OFF Sets Output 3 voltage to 50%.

25 ON While channel 25 is ON, the voltage on Output 4 is set to 25%

OFF Sets Output 4 voltage to 50%.

NXC-VAI4 Output Level Assignments

Level Description

1 8 bit field; sets voltage on Output 1 to the value commanded.

The range is 0-255. Conflicts with channels 1, 5, 10, 14, 18, 22.

2 8 bit field; sets voltage on Output 2 to the value commanded.

The range is 0-255. Conflicts with channels 2, 6, 11, 15, 19, 23.

3 8 bit field; sets voltage on Output 3 to the value commanded.

The range is 0-255. Conflicts with channels 3, 7, 12, 16, 20, 24.

4 8 bit field; sets voltage on Output 4 to the value commanded.

The range is 0-255. Conflicts with channels 4, 8, 13, 17, 21, 25.

5 8/16 bit field; commands that Output 1 be set to "CURRENT OUTPUT 1 SPEED" of the appropriate polarity until

the voltage read at Input 1 is within "INPUT 1 MAXIMUM DEVIATION" of this value. Conflicts with channels 1, 5, 10, 14, 18, 22.

6 8/16 bit field; commands that Output 2 be set to "CURRENT OUTPUT 2 SPEED" of the appropriate polarity until

the voltage read at Input 2 is within "INPUT 2 MAXIMUM DEVIATION" of this value. Conflicts with channels 2, 6, 11, 15, 19, 23.

7 8/16 bit field, commands that Output 3 be set to "CURRENT OUTPUT 3 SPEED" of the appropriate polarity until

the voltage read at Input 3 is within "INPUT 3 MAXIMUM DEVIATION" of this value. Conflicts with channels 3, 7, 12, 16, 20, 24.

8 8/16 bit field, commands that Output 4 be set to "CURRENT OUTPUT 4 SPEED" of the appropriate polarity until

the voltage read at Input 4 is within "INPUT 4 MAXIMUM DEVIATION" of this value. Conflicts with channels 4, 8, 13, 17, 21, 25.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Input Level Assignments

Level Description

1 8 bit field, returns the current output voltage code for Output 1 (range= 0 to 255). 2 8 bit field, returns the current output voltage code for Output 2 (range= 0 to 255). 3 8 bit field, returns the current output voltage code for Output 3 (range= 0 to 255). 4 8 bit field, returns the current output voltage code for Output 4 (range= 0 to 255). 5 8/16 bit field, returns the current input voltage for Input 1 (range= 0 to 255 or 0-65535, depending on the

ADMODE setting. See the AD MODE Send Command for details).

6 8/16 bit field, returns the current input voltage for Input 2 (range= 0 to 255 or 0-65535, depending on the

ADMODE setting. See the AD MODE Send Command for details).

7 8/16 bit field, returns the current input voltage for Input 3 (range= 0 to 255 or 0-65535, depending on the

ADMODE setting. See the AD MODE Send Command for details).

8 8/16 bit field, returns the current input voltage for Input 4 (range= 0 to 255 or 0-65535, depending on the

ADMODE setting. See the AD MODE Send Command for details).

Programming Information

These NetLinx Send_Commands control the NXC-VAI4:

NXC-VAI4 Send_Commands

Command Description

AD MODE Sets the format for data reporting to either 8 or 10 significant bits (16 bit format with 10 significant bits).

DEFAULT Sets all card settings (except for calibration) back to original factory settings.

DEFAULT ALL Sets all card settings back to original factory settings.

GAS Sets the slowdown distance and slowdown speed. When these variables have been set, and a GL

Even though the output is specified in the command, the format change really applies to the corresponding input. Input level changes and commanded positions are in this format. The reporting of the output levels is unaffected. The default format is 8 bits.

Syntax:

SEND_COMMAND <DEV>,'AD MODE <OUTPUT> 8|10'

Variable:

OUTPUT: Any Output ('1', '2, '3', 4')

Examples:

SEND_COMMAND <DEV>,'AD MODE 2 8'

Sets the reporting format for Input 2 to 8 bits. (0-255)

SEND_COMMAND <DEV>,'AD MODE 1 10'

Sets the input reporting format for Input 1 to 10 significant bits (0 - 65535)

Syntax:

SEND_COMMAND <DEV>,'DEFAULT'

Syntax:

SEND_COMMAND <DEV>,'DEFAULT ALL'

command is in progress, the speed output on Output <x> will be reduced to that specified when the position as read on Output <x+4> is within the distance specified away from the target position.

Syntax:

SEND_COMMAND <DEV>,'G<OUTPUT>A<DISTANCE>S<SPEED>'

Variables:

OUTPUT: Any Output '1', '2', '3', or '4' DISTANCE: 0-127 SPEED: 0-127

Example:

SEND_COMMAND <DEV>,'G1A127S127'

Sets Output 1 slowdown distance to 127 (max) at full speed.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Send_Commands (Cont.)

Command Description

GD Sets the maximum allowable deviation of final servo position when executing the GL command. The

level of the specified input or output will only be reported when a change greater than this deviation occurs. Deviation 0 is most accurate, but can have some oscillation, so the default is 2, i.e. the position as read at corresponding input I/O <x+4> can be within +/-2 from the specified position.

Syntax:

Variables:

Example:

Sets I/O 1 servo output to 10.

GL This command puts the card in servo (positional) control mode. The range of the position is 0-255 (if AD

MODE is set to '8'), or 0-65535 (if AD MODE is set to '10'). See AD MODE earlier in this section for details.Position 0 is the low end of the potentiometer (lowest voltage); position 255 (or 65535) is the high end of the potentiometer (highest voltage) with 128 (or 32768) as the middle of the range.

Syntax:

Variables:

Example (Assuming the current position is 0):

Sets Output 1 to "CURRENT OUTPUT 1 SPEED" (positive) and waits until Input 1 reads within "OUTPUT 1 MAXIMUM DEVIATION" of 255 and then resets the output to zero speed. The speed output may have a more complex profile than as set by the "GAS" command.

GS Sets the speed variable to be used for future positional (GL) commands. The change of speed takes

place immediately even if a positional change operation is currently in progress. The voltage output for speed 0 (i.e. when no motion is desired) is at the mid-point between the Min and Max output voltages. The positive speed 127 is the max and negative speed 127 is the min. Other speeds are scaled proportionately.

Syntax:

Variable:

Example:

Sets Output 1 servo speed to 64 (50%).

LEVOFF The NXC-VAI4 will not transmit any level value messages after the receipt of this command until the

receipt of the LEVON command. Syntax:

LEVON The NXC-VAI4 will not transmit any level value messages until after the receipt of this command. This

command is sent automatically when the CREATE_LEVEL command is executed. Syntax:

SEND_COMMAND <DEV>,'G<I/O>D<DEVIATION>'

I/O: Any input or output ('1', '2', '3', '4', '5', '6', '7'. '8') DEVIATION: Number between 0 and 127 (default = 2)

SEND_COMMAND <DEV>,'G1D10'

SEND_COMMAND <DEV>,'G<OUTPUT>L<POSITION>'

I/O: Any Output ('1', '2, '3', 4') POSITION: Number between 0-255 or 0-65535 (depends on AD MODE)

SEND_COMMAND <DEV>,'G1L255'

SEND_COMMAND <DEV>,'G<OUTPUT>S<SPEED>'

I/O: Any Output ('1', '2, '3', 4') SPEED: A fixed output value in the range of 0 (slowest)-127 (fastest - default)

SEND_COMMAND <DEV>,'G1S64'

SEND_COMMAND <DEV>,'LEVOFF'

SEND_COMMAND <DEV>,'LEVON'

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Send_Commands (Cont.)

Command Description

PC Sets the shape of the Output <x> voltage ramps.

Syntax:

SEND_COMMAND <DEV>,'P<OUTPUT>C<CURVE>'

Variables:

OUTPUT: Any Output ('1', '2', '3', or '4') CURVE: 'N' - Normal linear 'L' - Logarithmic 'I' - Inverted logarithmic

Example:

SEND_COMMAND <DEV>,'P1CL'

Sets "CURRENT OUTPUT 1 RAMP CURVE" to logarithmic.

PE Selects which voltage reference (if any) is to be used for scaling of the output voltage. The specified

PL Ramps the specified output from its current level value to the specified level value or specified

output will then remain proportional to the specified input. Syntax:

SEND_COMMAND <DEV>,'P<OUTPUT>E<REFERENCE SELECTION> B|U'

Variables:

OUTPUT: any Output ('1', '2', '3', or '4') Reference selection: ’N’ - Normal/None: Uses no reference scaling. ’E’ - External: Use the External Reference input to scale the output. ’I’ - Input: Use the corresponding <x+4> input as the reference for the

output. B|U: Bipolar or Unipolar (has no meaning for reference selection 'N') Unipolar mode sets the voltage range to between 0V and +reference voltage. Bipolar mode sets the output voltage range to between -reference voltage and +reference voltage.

Examples:

SEND_COMMAND <DEV>,'P1EN'

Sets Output 1 to use no reference (MIN/MAX limits are used instead.).

SEND_COMMAND <DEV>,'P3EEU'

Sets Output 3 to use the External Reference input for scaling. The output voltages will range from 0 to the external reference voltage.

SEND_COMMAND <DEV>,'P3EIB'

Sets Output 3 to use Input 7 for scaling. The output voltages will range from -input reading to +input reading.

percentage of maximum at the rate specified by "CURRENT OUTPUT <x> RAMP UP TIME" or optionally in the specified amount of time.

Syntax:

SEND_COMMAND <DEV>,'P<OUTPUT>L<LEVEL VALUE> [T<TIME>]'

Variables:

OUTPUT: Any Output ('1', '2', '3', or '4') LEVEL VALUE: 0 - 255 or 0 - 100% (where 0 is low voltage) TIME (optional): 0 - 255 in 0.1 second increments

Examples:

SEND_COMMAND <DEV>,'P1L50%'

Ramps Output 1 from its current value to 50% (mid voltage level) at the "CURRENT OUTPUT 1 RAMP RATE".

SEND_COMMAND <DEV>,'P2L255T30'

Ramps Output 2 to maximum voltage level in 3 seconds.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Send_Commands (Cont.)

Command Description

PN Sets the value of either the minimum output voltage allowed for an output, or the minimum position

voltage expected for an input. Voltage settings are rounded to the nearest D/A or A/D code. Voltage settings for Outputs are absolute levels and are unaffected by any software scaling functions. Negative voltages are not valid for Input 3.

Syntax:

Variables:

Examples:

Sets the minimum output level for Output 1 to 5.023V.

Sets the minimum output level for Output 1 to -5.023V.

Sets the minimum of the expected input range for Input 7 to 5.023V.

PR Sets the CURRENT OUTPUT <x> RAMP UP TIME and/or CURRENT OUTPUT <x> RAMP DOWN

TIME of the specified Output where TIME is the time to ramp the full range. It can be set to ramp both down to up and up to down or just down to up or just up to down.

Syntax:

Variables:

Examples:

PU Sets the level to which this Output is set immediately after power-up and before any Output is

commanded. Syntax:

Variables:

Example:

SEND_COMMAND <DEV>,'P<I/O>N<LEVEL VALUE>'

I/O: Any input or output ('1','2','3','4','5','6','7','8') LEVEL VALUE: -12.000V to +12.000V

SEND_COMMAND <DEV>,'P1N5.023V'

SEND_COMMAND <DEV>,'P1N-5.023V'

SEND_COMMAND <DEV>,'P7N5.023V'

SEND_COMMAND <DEV>,'P<OUTPUT>R<TIME>[U|D]'

OUTPUT: Any Output '1', '2', '3', or '4' TIME: 0 - 255 in 0.1 second increments U/D: Ramp Up (U) or Down (D)

SEND_COMMAND <DEV>,'P1R25'

Sets CURRENT OUTPUT 1 RAMP UP TIME" and "CURRENT OUTPUT 1 RAMP DOWN TIME" to

2.5 seconds each for full range travel.

SEND_COMMAND <DEV>,'P2R75U'

Sets CURRENT OUTPUT 2 RAMP UP TIME to 7.5 seconds for full range travel, CURRENT OUTPUT 2 RAMP DOWN TIME remains unchanged.

SEND_COMMAND <DEV>,'P2R50D'

Sets "CURRENT OUTPUT 2 RAMP DOWN TIME" to 5 seconds for full range travel; "CURRENT OUTPUT 2 RAMP UP TIME" remains unchanged.

SEND_COMMAND <DEV>,'P<OUTPUT>U<LEVEL VALUE>'

OUTPUT: Any Output ('1', '2', '3', or '4') LEVEL VALUE: 0-255

SEND_COMMAND <DEV>,'P1U127'

Sets the power up output level for Output 1 to 127.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VAI4 Send_Commands (Cont.)

Command Description

PX Sets the value of "I/O <x> MAXIMUM" which is either the maximum output voltage allowed for an

Output, or the maximum position voltage expected for an Input.Voltage settings are rounded to the nearest D/A or A/D code. Voltage settings are absolute levels and are unaffected by any scaling functions. Negative voltages are not valid for Inputs.

Syntax:

SEND_COMMAND <DEV>,'P<I/O>X<LEVEL VALUE>'

Variables:

I/O: Any input or output ('1', '2', '3', '4', '5', '6', '7', '8') LEVEL VALUE: 12.000V to +12.000V

Examples:

SEND_COMMAND <DEV>,'P1X5.023V'

Sets the maximum output level for Output 1 to 5.023V.

SEND_COMMAND <DEV>,'P7X5.023V'

Sets the maximum of the expected input range for Input 7 to 5.023V.

PZ Sets one of the two "set point" variables "I/O <x> SET POINT H|L" (high or low). These variables are

used to calculate calibration parameters for I/O <x> (input or output). Receiving this command with no voltage specified returns the specified set point to the default value.

Syntax:

SEND_COMMAND <DEV>,'P<I/O>Z<VOLTAGE>H|L'

Variables:

I/O: Any input or output ('1', '2', '3', '4', '5', '6', '7', '8' plus '0' for EREF) VOLTAGE: The current actual/measured voltage at the I/O.

Examples:

SEND_COMMAND <DEV>,'P1Z0.5VL'

Creates a low-end calibration point associating the current D/A code with 0.5 volts.

SEND_COMMAND <DEV>,'P1Z11.5VH'

Creates a high-end calibration point associating the current D/A code with 11.5 volts.

SEND_COMMAND <DEV>,'P0Z0.1VL'

Creates a low-end calibration point associating the current EREF A/D code with 0.1 volts.

SEND_COMMAND <DEV>,'P1ZL'

Returns the Output 1 lower set point to its default.

NXC-VAI4 Analog Voltage Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VOL4 Volume Control Card

I/O Jumpers (CH1-CH4)

The NXC-VOL4 Volume Control Card (FG2024) provides four discrete volume control channels with LED feedback.

The volume control channels can be programmed for mono or stereo operation, and balanced or unbalanced audio connections. It supports programmable audio levels, audio mute, variable ramp speeds and preset levels.

Use the on-board jumpers to set the gain/attenuation (Unity, Pro level (+4dBu) to Consumer level (-10dBu) conversion, or Consumer level to Pro level on each channel). FIG. 8 shows the VOL4 card.

NXC-VOL4 Volume Control Card

FIG. 8 NXC-VOL4 Volume Control card

Specifications

NXC-VOL4 Specifications

Power Requirements 197 mA @ 12 VDC Volume 1-4 Four volume channels Status 1-4

(3 LEDs per channel)

Gain jumpers 1-4 • Unity - Maximum Input Level: +10dBm

Connections/wiring Two 10-pin 3.5 mm captive-screw terminals Audio Specifications • Frequency response of 15 Hz - 25 KHz·

• Yellow LED shows level-up/down activity

• Red LED shows mute mode LED 1: Channel 1 RAISE (yellow) LED 2: Channel 1 LOWER (yellow) LED 3: Channel 1 MUTE (red) LED 4: Channel 2 RAISE (yellow) LED 5: Channel 2 LOWER (yellow) LED 6: Channel 2 MUTE (red) LED 7: Channel 3 RAISE (yellow) LED 8: Channel 3 LOWER (yellow) LED 9: Channel 3 MUTE (red) LED 10: Channel 4 RAISE (yellow) LED 11: Channel 4 LOWER (yellow) LED 12: Channel 4 MUTE (red)

• Pro level to Consumer level conversion (attenuation of +4dBu IN to -10dBu OUT) Maximum Input Level: +10dBm

• Consumer level to Pro level conversion (gain of -10dBu IN to +4dBu OUT) Maximum Input Level: +6dBm

• THD less than .005% at nominal output level·

• S/N ratio greater than 100 dB (IHF A)·

• Crosstalk less than 80 dB·

• Logarithmic attenuation range of 95 dB

NXC-VOL4 Volume Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

Pinouts, Signals, and Functions

NXC-VOL4 Pinouts, Signals, and Functions

Pin Signal Balanced Function Unbalanced Function Channel 1

1 GND Audio GND Audio GND 2 Input 1+ Audio IN Audio IN 3 Input 1- Audio IN Audio GND 4 Output 1+ Audio OUT Audio OUT 5 Output 1- Audio OUT no connection

Channel 2

6 GND Audio GND Audio GND 7 Input 2+ Audio IN Audio IN 8 Input 2- Audio IN Audio GND 9 Output 2+ Audio OUT Audio OUT 10 Output 2- Audio OUT no connection

Channel 3

11 GND Audio GND Audio GND 12 Input 3+ Audio IN Audio IN 13 Input 3- Audio IN Audio GND 14 Output 3+ Audio OUT Audio OUT 15 Output 3- Audio OUT no connection

Channel 4

16 GND Audio GND Audio GND 17 Input 4+ Audio IN Audio IN 18 Input 4- Audio IN Audio GND 19 Output 4+ Audio OUT Audio OUT 20 Output 4- Audio OUT no connection

NXC-VOL4 Connections/Wiring

The NXC-VOL4 card contains four audio volume control channels.

Each line-level channel is isolated from system ground and can be configured for balanced or unbalanced line operation. It supports programmable audio levels, audio mute, variable ramp speeds, and preset levels.

Each audio channel's input to output gain ratio is adjustable via the on-board jumpers shown in FIG. 8 on page 35.

Audio Channel Gain Ratio Jumper Settings

Unity jumper not installed

Gain -10 dB Input level/+4 dB Output level setting on pins 1 and 2

Attenuate +4 dB Input level/-10 dB Output level setting on pins 3 and 4

NXC-VOL4 Volume Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

NXC-VOL4 Channel Assignments

The NXC- VOL4 channel assignments are listed in the following table. This card has 2 ports with 2 audio "channels" in each port. The two audio "channels", which can be used as right and left, should not be confused with the channel assignments, which are sent to and from the card.

NXC-VOL4 Channel Assignments (per port)

Port 1 Channel:

1 1 While channel is on, ramps the volume on audio channels 1 and 2 up (increase). 2 2 While channel is on, ramps the volume on audio channels 1 and 2 down (decrease). 3 3 While channel is on, the volume on audio channels 1 and 2 are muted (lowest volume); when

4 4 While channel is on, ramps the volume on audio channel 1 up (increase). 5 5 While channel is on, ramps the volume on audio channel 1 down (decrease). 6 6 While channel is on, the volume on audio channel 1 is muted (lowest volume); when channel is

7 7 While channel is on, ramps the volume for audio channel 2 up (increase). 8 8 While channel is on, ramps the volume for audio channel 2 down (decrease). 9 9 While channel is on, volume for audio channel 2 is muted (lowest volume); when channel is off,

Port 2 Channel:

Description

channel is off, the volume levels are restored to their previous levels.

off, the volume level is restored.

the volume level is restored.

Ramping a volume channel while the mute channel is on will not automatically turn off the mute channel but the ramping will still occur; the volume change will be noticed when the mute channel is turned off. For setting ramp rates and presets, refer to theProgramming Information section on page 38.

NXC-VOL4 Levels

Volume (audio) channels 1 and 2 use levels 1 and 2 respectively. For reading current volume levels and displaying bargraphs seeCREATE_LEVEL andSEND_LEVEL. The two levels associated with each port of the NXC-VOL4 Control Card are listed in the table below:

NXC-VOL4 Levels

Port 1 Port 2

Level Description Level Description

1 Output #1 1 Output #3 2 Output #2 2 Output #4

CREATE_LEVEL

This keyword creates an association between a specified level of a device and a variable that will contain the value of the level.

This can only appear in the DEFINE_START section of the program.

CREATE_LEVEL DEV, Level, Value

Parameters:

DEV: The device from which to read the level.

Level: The level of the device to read.

Value: Variable in which to store the level value.

DevLev: A DEVLEV structure.

Value: Variable in which to store the level value CREATE_LEVEL DevLev, Value.

During execution of the program, NetLinx continuously updates the variable to match the level that it represents.

NXC-VOL4 Volume Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

SEND_LEVEL

This keyword sends a value to a specific level on a NetLinx device/port.

The syntax follows any one of the four following examples:

SEND_LEVEL DEV, Level, Value SEND_LEVEL DEV[ ], Level, Value SEND_LEVEL DEVLEV, Value SEND_LEVEL DEVLEV[ ], Value

Parameters:

DEV: Device containing the specified level

Level: Number of the level to receive the new value

Value: New level value

DEV[ ]: Device array (each device contains the specified level)

DEVLEV: Device-level to receive the new value

DL[ ]: Device-level array (each will receive the new value)

Programming Information

These NetLinx Send_Commands control the NXC-VOL4.

NXC-VOL4 Send_Commands

Command Description

PL Ramps specified (audio) channel(s) from current level to a specified preset level or percentage at the

PR Sets the ramp rate of the specified channel(s) where Time is the time to ramp the full range both down to

current rate or optionally in a specified amount of time. Syntax:

SEND_COMMAND <DEV>,'P<Output Channel>L<Level>[T<Time>]'

Variables:

Output Channel: Target audio channel number (0-2). Output channel 0 means both channels 1 and 2. Level: Target level (0-255 or 0-100%). Level 0 is lowest volume (same as mute) and 255 (or 100%) is

maximum volume. Time: Specifies the amount of time (in .10-second increments) that it takes to ramp the specified audio

channel to the specified level.

Example:

SEND_COMMAND MYDEVICE,'P0L50%'

Ramps both audio channels on MYDEVICE to 50% volume at the current ramp rate.

up and up to down or optionally just down to up or just up to down. If Time is set to 50, it takes 5 seconds to ramp through the full range of 0 to 255 (0-100%). It would take 2.5 seconds to ramp through half of the range and so on.

Syntax:

SEND_COMMAND <DEV>,'P<Output Channel>R<Time>[U|D]'

Variables:

• Output Channel: Target channel number (0-2). Output channel 0 means both channels 1 and 2.

• Time: Specifies the amount of time (in .10-second increments) that it would take to ramp the full range of 0-100% (down to up and up to down or optionally just down to up or just up to down).

• U|D: Ramps the specified channel(s) from down to up (U) or from up to down (D).

Example:

SEND_COMMAND MYDEVICE,'P0R50''

Sets ramp rate of audio channels 1 and 2 to five seconds full range from down to up and up to down.

NXC-VOL4 Volume Control Card

NetLinx Cardframe, Control Cards, and NetModules - Operation Reference Guide

It’s Your World - Take Control™

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com

10/13

AMX nxc User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

NXF CardFrame and NetModules

Overview

NXF CardFrame

NXF Cardframe Specifications

Mounting Master/Hub Cards in an NXF CardFrame

Setting the CardFrame's starting address

Device:Port:System (D:P:S)

NXS-NMS NetModules

NXS-NMS NetModules specifications

Mounting modules into an equipment rack

Installing Control Cards into an NXF CardFrame

Preparing/connecting captive wires

Using the ID button

NXC-COM2 Dual COM Port Control Card

Specifications

Pinouts and Wiring Configuration

NXC-COM2 Channel Assignment

NXC-COM2 Programming Information

NXC-COM2 Send_Commands

B9MOFF Disable 9-bit in 232/422/455 mode. This command works in conjunction with the B9MON command.

B9MON Enable 9-bit in 232/422/455 mode. This command works in conjunction with the B9MOFF command.

CHARD Set the delay time between all transmitted characters to the value specified (in 100 microsecond

CHARDM Set the delay time between all transmitted characters to the value specified (in 1 millisecond increments).

CTSPSH Enable Pushes, Releases, and status information to be reported via channel 255 using the CTS

CTSPSH OFF Disable Pushes, Releases, and Status information to be reported via channel 255. If Clear To Send

GET BAUD Get the RS-232/422/485 port’s current communication parameters. Device sends the response out the

HSOFF Disable hardware handshaking (default).

HSON Enable RTS (ready-to-send) and CTS (clear-to-send) hardware handshaking.

RXCLR Clear all characters in the receive buffer waiting to be sent to the Master.

RXOFF Disable the transmission of incoming received characters to the Master (default).

RXON Enables sending incoming received characters to the Master. This command is automatically sent by the

SET BAUD Set the RS-232/422/485 port's communication parameters.

TSET BAUD Temporarily set the RS-232/422/485 port's communication parameters for a device. Works the same as

TXCLR Stop and clear all characters waiting in the transmit out buffer and stops transmission.

XOFF Disable software handshaking (default).

NXC-COM2 Send_String Escape Sequences

27,17,<time> Send a break character for a specified duration to a specific device.

27,18,0 Clear the ninth data bit by setting it to 0 on all character tran smissions. Used in conjunction with the

27,18,1 Set the ninth data bit to 1 for all subsequent characters to be transmitted. Used in conjunction with the

27,19,<time> Insert a time delay before transmitting the next character.Syntax:

27,20,0 Set the RTS hardware handshake's output to high (> 3V).

27,20,1 Set the RTS hardware handshake's output to low/inactive (< 3V).

NXC-I/O10 Input/Output Control Card

Specifications

Pinouts, Signals, and I/O Mode Functions

NXC-I/O10 Channel Assignments

Setting the Switch/Voltage Mode Jumpers

Setting the Voltage Clamp Jumper (+12V or Open)

NXC-IRS4 4-Port IR/S Control Card

Specifications

Pinouts, Signals, and Functions

NXC-IRS4 Channel Assignments

Programming Information

CAROFF Disable the IR carrier signal until a 'CARON' command is received.

CARON Enable the IR carrier signals (default).

CTOF Set the duration of the Off time (no signal) between IR pulses for channel and IR function

CTON Set the total time of IR pulses transmitted and is stored in non-volatile memory. This command sets

GET MODE Poll the IR/Serial port's configuration parameters and report the active mode settings to the device

IROFF Halt and Clear all active or buffered IR commands being output on the designated port.

PTOF Set the time duration between power pulses in .10-second increments.

PTON Set the time duration between power pulses in .1 0-second increments.

SET INPUT LINK Sets an IR device to link to an input channel for use with 'PON' and 'POF' commands. The input

SET IO LINK Link an IR or Serial port to a selected I/O channel for use with the 'DE', 'POD', 'PON', and 'POF'

SET MODE Set the IR/Serial ports for IR or Serial-controlled devices connected to a CardFrame or NetModule.

XCHM Changes the IR output pattern for the 'XCH' send command.

NXC-REL10 Relay Control Card

Specifications

Pinouts and Functions

NXC-REL10 Channel Assignments

NXC-REL10 Connections/Wiring

NXC-VAI4 Analog Voltage Control Card

Specifications

Pinouts and Functions

Channel Assignments

NXC-VAI4 Output Level Assignments

NXC-VAI4 Input Level Assignments
