Product Information
The AXB-TM5 Television Manager is a microprocessor-based television controller. The
AXB-TM5 can be configured as a peripheral on the AXlink. As part of an Axcess Control System,
provides media source selection and management via remote control. The AXB-TM5 acts as a local
AXlink bus controller and as a receiver for an AMX wireless control panel.
Front Panel
FIG. 1 shows the AXB-TM5 front and rear views.
Product Information
Response LED
Device DIP
switch
AXlink LED
AXlink
DEVICE
ON
AXlink
AXP
AXM
GND
PWR
RESPONSE IN
TV
WIRED
IRE
GND
GND
SER
IR
INPUT / OUTPUT
4
12V
I/O
2I/O
3
I/O
GND
I/O 1
TV
IR
POWEROUT
TO
IRX-SG
12V
GND
AUX
IN
AXlink connector
IR emitter connector
Input/Output connector
FIG. 1 AXB-TM5 front and rear views
Specifications
The following table details the specifications for the AXB-TM5.
Specifications
Dimensions (HWD) 1.50" x 5.09" x 5.27" (3.81 cm x 12.93 cm x 13.39 cm)
Enclosure High impact black matte plastic
Power Consumption 200 mA @ 12 VDC
Weight 11.0 oz. (312.0 g)
IR Sensor
IR In LED
IR Out LED
TV Power LED
IRX-SM
connector
AXB-TM5 Television Manager
1
Product Information
Specifications (Cont.)
Front Panel Components
AXlink LED AXlink LED (green and blinks to indicate AXlink communication activity and
power:
• Full-Off indicates no power is being received or the controller is not
• functioning properly.
• One blink per second indicates power is active and AXlink communication is
• functioning.
• Full-On indicates there is no AXlink control or activity, but power is on.
Device DIP switch An eight-position DIP switch used to set the AXlink device number for the
AXB-TM5.
Response LED (big red) It can be programmed for flash, full On, and Off modes for control
system responses to local input signals. Refer to the Programming section on
page 9 for programming information.
IR sensor It receives incoming IR signals from a wireless transmitter. Internal high- and
IR In LED (Red) Flashes when the AXB-TM5 receives an IR signal from a wireless transmitter.
IR Out LED (Red) Flashes when the AXB-TM5 IR port sends an IR command to the television
TV Power LED (Red) Lights when the CC-XPS External Frequency Television Scan Sensor detects
Rear Panel Components
AXlink connector Receives power and information via the AXlink bus and AXlink system
IR Emitter connector TV sensor connector to detect horizontal scan frequencies from 15 - 65kHz.
Input/Output connector Four TTL input/output ports.
IRX-SM connector Allows for up to eight (parallel) IRX-SM connections.
Optional Accessories • AXB-TM5 control box unit
low-frequency (455 kHz or 38 kHz) IR sensors for AMX IR panels.
receiver.
power on a television or monitor as the horizontal scanning frequency from the
television receiver.
controller.
• CC-XPS scanning frequency sensor with cable
• CC-IRC
• 12 VDC power supply
IR emitter with cable
2
AXB-TM5 Television Manager
Connection and Wiring
Device DIP Switch
The eight-position Device DIP switch, shown in FIG. 2, sets the AXlink device number. Every
device on the bus must have a unique device code. An eight-position DIP switch is used to set the
device number for the AXB-TM5. The device number must match the number assigned in the
Axcess software program. The AXlink device number range is 1-255 and is sent according to the
Device DIP switch positions and their values.
After setting the AXlink device number, remove and reconnect the AXlink connector
on the AXB-TM5 to store the new number into memory.
As an example, FIG. 2 is set to 85 (1 + 4 + 16 + 64 = 85), which is the factory default setting.
Connection and Wiring
FIG. 2 Device Code DIP switch setting example
The following table describes the Device Code DIP switch settings and its corresponding DIP
switch arrangements.
Device DIP switch settings
Position 12345678
Value 1248163264128
The device number takes effect only on power-up. If you later change the device
number, remove and reconnect the AXlink connector. This enters the new device
number into memory.
AMX standard device numbers are assigned as follows:
! Cards are 1 through 25.
! Boxes are 96 through 127.
! Panels are 128 through 255.
AXB-TM5 Television Manager
3
Connection and Wiring
Wiring the Rear Panel
Preparing/connecting captive wires
You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.
Never pre-tin wires for compression-type connections.
Do not connect power to the AXB-TM5 until the wiring is complete. If you are using
power from AXlink, disconnect the wiring from the control system before wiring the
AXB-TM5. If you are using an optional 12 VDC power supply, apply power to the
AXB-TM5 only after installation is complete.
1. Strip 0.25 inch of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the wiring
3. Do not tighten the screws excessively; doing so may strip the threads and damage the
Wiring Guidelines
The AXB-TM5 requires 12 VDC power to operate properly. The power can be supplied by the
AMX system's AXlink cable or with an optional 12 VDC power supply. The maximum wiring
distance between the control system and AXB-TM5 is determined by power consumption, supplied
voltage, and the wire gauge used for the cable. The following table lists wire sizes and the
maximum lengths allowable between the AXB-TM5 and the control system. The maximum wiring
lengths are based on a minimum of 13.5 volts available at the control system's power supply.
diagrams and connector types described in this section.
connector.
Wiring Guidelines @ 200 mA
Wire size Maximum wiring length
18 AWG 586.55 feet (178.78 meters)
20 AWG 371.29 feet (113.17 meters)
22 AWG 231.48 feet (70.56 meters)
24 AWG 145.91 feet (44.47 meters)
If the AXB-TM5 is installed farther away from the control system than recommended in the above
table, connect an external 12 VDC power supply to the two-pin PWR connector on the rear panel.
Using the AXlink connector for data and power
To use the AXlink 4-pin connector for data communication and for power supply, the incoming
PWR and GND cable from the control system must be connected to the AXlink cable connector
going to the control system as sown in the AXlink wiring diagram (FIG. 3).
PWR +
AXP/TX
AXM/RX
GND -
To the AXB-TM5
FIG. 3 AXlink connector wiring diagram
To the Control system
PWR +
AXP/TX
AXM/RX
GND -
4
AXB-TM5 Television Manager
Connection and Wiring
CC-IRC emitter wiring connections

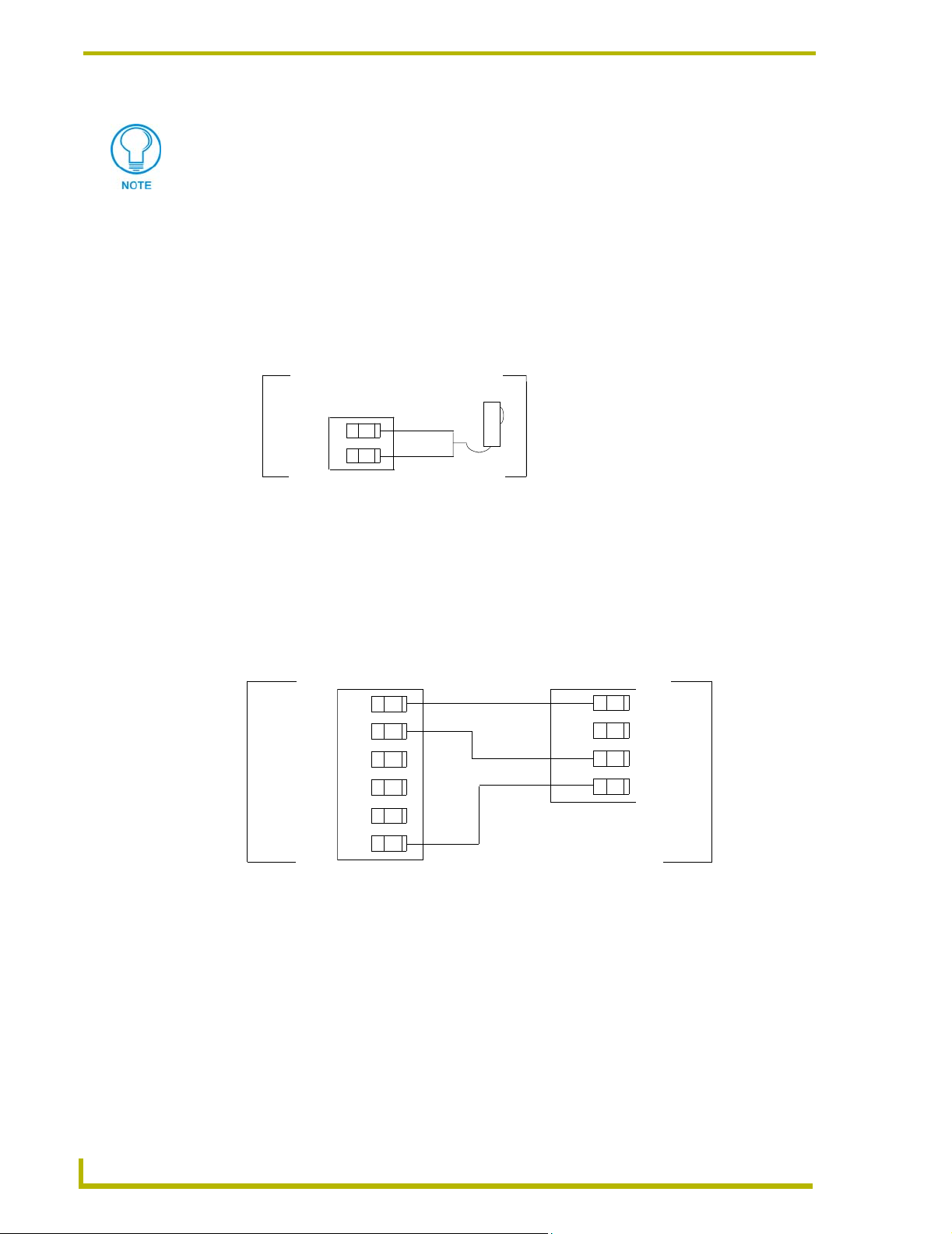

FIG. 4 shows how to connect a CC-IRC IR Emitter to the IR Emitter connector on the AXB-TM5.
CC-IRC
To emitter
connector
FIG. 4 CC-IRC Emitter wiring connections
GND
SIG
Television
IR emitter to device installation
The following steps describe the installation of the IR emitter to the television IR window.

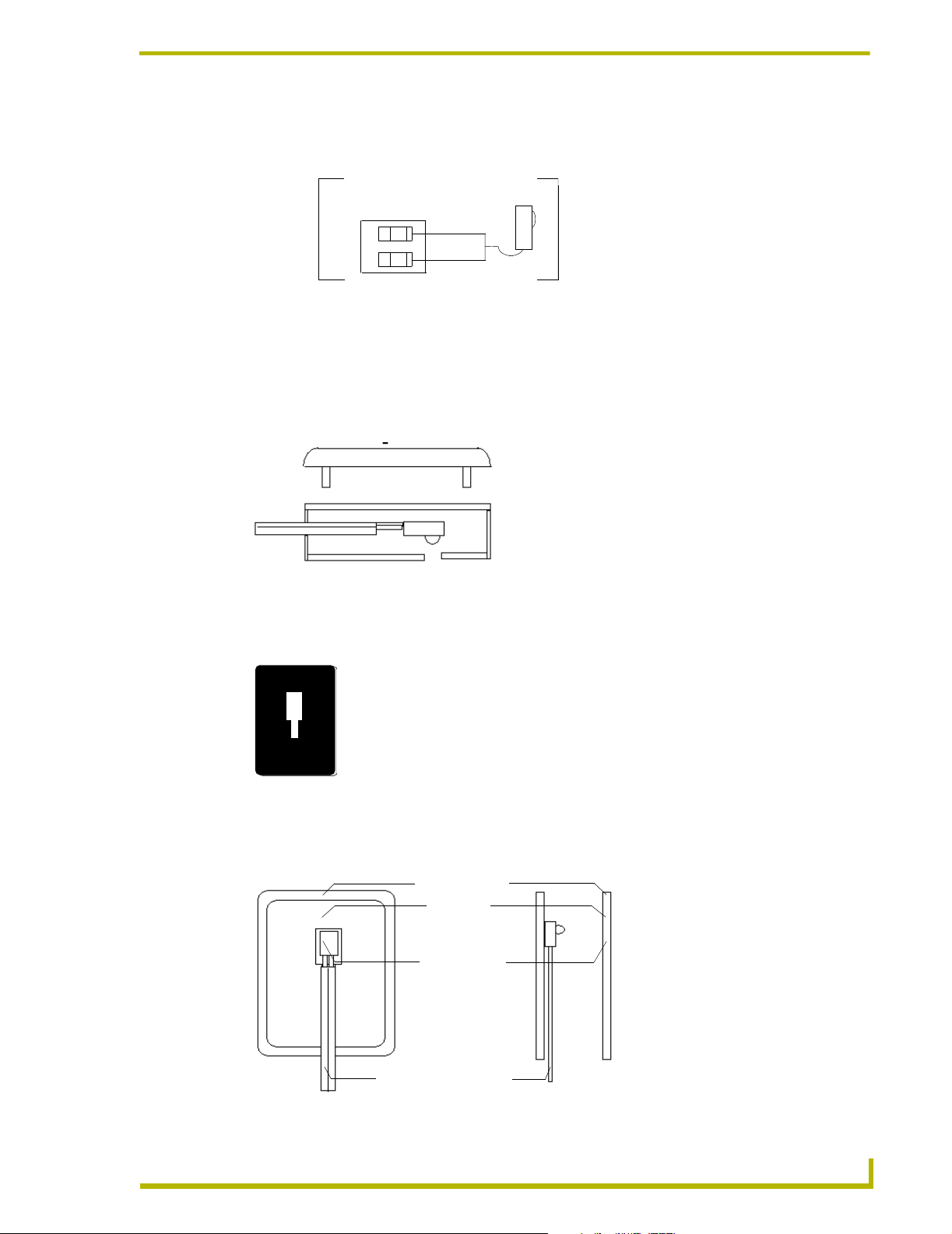

1. Using a sharp edged tool (knife blade, razor knife, etc.), separate the factory-installed shell as
shown in FIG. 5.
FIG. 5 Removing factory-installed shell
2. Test-fit the IR shield (FIG. 6) to the television's IR window. If necessary, use scissors and trim
the shield to fit.
FIG. 6 IR shield
3. Remove the adhesive back covering from the IR shield and place the IR emitter diode into the
mirrored recessed area (FIG. 7) of the shield.
FIG. 7 IR emitter diode installed
AXB-TM5 Television Manager
IR input window
IR shield
IR emitter code
CC-IRC cable assembly
5
Connection and Wiring
For additional information concerning the IR emitter, refer to the IR Sensors and
Receivers instruction manual.
4. Attach the IR shield, with IR emitter diode, to the television IR window, ensuring that the IR
5. Press firmly to activate the pressure-sensitive adhesive of the IR shield.
TV sensor connections
FIG. 8 shows how to connect the CC-XPS to the TV sensor connector to detect horizontal scan
frequencies up to 65 kHz.
emitter diode is properly positioned in the television input IR window.
CC-IRC
TV sensor
connector
FIG. 8 TV sensor wiring connections
GND
SENSOR
Te le v is i on
PCS connections
The optional AMX Power Current Sensor (PCS) provides power sensing for equipment that does
not generate horizontal scan frequencies. Connect the optional PCS as shown in FIG. 9 for
automated power control using Send_Commands
the AXB-TM5 either from terminal mode or from within an Axcess program. If
then the PCS state is received as
GND
I/O 1
Input/
Output
12 VDC PWR
I/O 2
I/O 3
I/O 4
[TM-Device, 251] for I/O 1.
PON and POF. A PIN command must be sent to
PIN is not used,
GND
STANDBY
ON
PWR
PCS
FIG. 9 PCS connections
AXlink data and 12 VDC power supply connections
Connect the control system's AXlink connector to the AXlink connector and an external 12 VDC
power supply on the rear panel of the AXB-TM5 as shown in FIG. 10.
6
AXB-TM5 Television Manager
PWR
GND
Connection and Wiring
12 VDC power
supply
PWR
AXP
AXM
GND
FIG. 10 AXlink 12 VDC power supply wiring example
PWR
AXP
AXM
GND
If you are using power from AXlink, disconnect the wiring from the Axcess Control
System before wiring the AXB-TM5.
Use a 12 VDC power supply when the distance between the control system and AXB-TM5 exceeds
the limits described in the Wiring Guidelines section on page 4. Make sure to connect only the
GND wire on the AXlink connector when using a 12 VDC power supply. Do not connect the PWR
wire to the AXlink connector's PWR (+) terminal.
IRX-SM connections
Connect one or more (eight maximum in parallel) optional IRX-SM sensors to the AXB-TM5 as
shown in FIG. 11. You can also use TX-series wired control panels.
GND
OUT
AUX OU T
+12 VDC
IRX-SM #2
To IRX-SG
FIG. 11 IRX-SM connections
This configuration is for 40 kHz operation only.
AXB-TM5 Television Manager
GND
AUX
PWR
GND
IN
OUT
AUX OU T
+12 VDC
IRX-SM #1
7
Connection and Wiring
8
AXB-TM5 Television Manager
Programming
You can program the AXB-TM5 to perform a wide variety of operations using Axcess
Send_Commands. This section describes channel settings, IR functions, and system
Send_Commands. Refer to the AXCESS Programming Guide for additional programming
information.
Channel Setting Commands
The AXB-TM5 use the channel setting commands listed in the following table.
AXB-TM5 Channel Settings
Channel Function
1 Generates IR/Serial functions 1, else Off
2 - 127 Channels the generate IR code for the corresponding functions
128 - 247 Push and release channels for received IR code
248 A push on this channel indicates a power failure error
249 Response LED blinks when channels 249 and 250 are On
250 Response LED lights when channel is On
251 I/O is On (switch to GND) when channel is On
252 I/O 2 is On (switch to GND) when channel is On
253 I/O 3 is On (switch to GND) when channel is On
254 I/O 4 is On (switch to GND) when channel is On
255 Channel is On if the TV Power Sensor detects a horizontal scan frequency
Programming
Turning a channel (IR/Serial function) on while another one is currently on will
automatically turn the current one off first. Contact closure inputs on I/O 1 through I/O
4 will also generate PUSHes and RELEASEs on channels 251 through 254,
respectively.
Device Assignment
The device assignment must be the same as the device number set on the Device DIP switches
(FIG. 2 on page 3).
AXB-TM5 Television Manager
9
Programming
System Send_Commands
System Send_Commands are stored in the Axcess Control System and direct the AXB-TM5 to
perform various operations.
System Send_Commands
Command Description
'CARON' Turns the IR carrier On (default).
Example:
SEND_COMMAND AXBTMX,'CARON'
'CAROFF' Turns the IR carrier Off.
Example:
SEND_COMMAND AXBTMX,'CAROFF'
'CH',<TV Channel> Generates IR digit pulses to select a television channel number.
Channels 1-99 pulse as two digits.
Syntax:
"'CH',<TV Channel>"
Var iabl es:
TV Channel = 0 through 199
Channels 100 and greater, the one-hundredth digit pulses as 127. If
IR function 21 (enter) exists, it follows the IR digit pulses. ’CTON’ sets
the pulse length for each digit and ’CTOF’ sets the time between each
digit or any after-pulse.
Example:
SEND_COMMAND AXBTMX,"'CH',25"
Sets the television connected to channel 25 on the AXB-TM5.
'CTOF',<Time> Sets the single IR pulses off time between channel digits and IR
functions.
Syntax:
"'CTOF',<Time>"
Var iabl es:
Time = 0 through 255 in tenths of a second
Time is stored in permanent memory. System default is 5 (.5 second).
This is the time between digits, or pulses, that are associated with an
SP command.
Example:
SEND_COMMAND AXBTMX,"'CTOF',10"
Sets the off-time pulse time (delay) to 1 second for the AXB-TM5.
'?CTOF' Sends the current off-time pulse string ’CTOF,<Time>’ to the Control
system. The <Time> value is returned in .10 second increments.
Example:
SEND_COMMAND AXBTMX,'?CTOF'
Sends the current off-time pulse string from the AXB-TM5 to the
Control system in the ’CTOF <Time>’ format.
10
AXB-TM5 Television Manager
Programming
System Send_Commands (Cont.)
Command Description
'CTON',<Time> Sends the current on-time pulse string CTON,<Time> to the control
'?CTON' Sends the current off-time pulse string ’CTOF,<Time>’ to the Control
'DC',<IR in>,<IR out> Sets a direct connection so the ’IR out’ (IR function) data transmits
'DE',<Time> Set the delay time in .10 second increments for the television power
system.
Syntax:
"'CTON',<Time>"
Var iables :
Time = 0 through 255 in tenths of a second
Time is stored in permanent memory. System default is 5 (.5 second).
Example:
SEND_COMMAND AXBTMX,"'CTON',20"
Sets the pulse length to 2 seconds on the AXB-TM5.
system. The <Time> value is returned in .10 second increments.
Example:
SEND_COMMAND AXBTMX,'?CTON'
Sends the current on-time pulse string from the AXB-TM5 to the
control system in the ’CTON <Time>’ format.
while the ’IR in’ code is received.
Syntax:
"'DC',<IR in>,<IR out>"
Var iables :
IR in = custom IR functions assigned to hand-held IR transmitting
device
IR out = IR functions
The PUSH and RELEASE for the ’IR in’ code is not sent to the
AXC-EM. The maximum number of direct connections is 16.
Example:
SEND_COMMAND AXBTMX,"'DC',145,24"
Connects IR-in 145 to IR-out 24 and increases the volume level on the
equipment connected to the AXB-TM5.
sensor (CC-XPS or PCS) to stabilize before sensing for a status
change.
Syntax:
"'DE',<Time>"
Var iables :
Time = 0 through 255
System default time is 10 (1 second).
Example:
SEND_COMMAND AXBTMX,"'DE',10"
Sets the delay time to 1 second for the CC-XPS or PCS connected to
the AXB-TM5.
AXB-TM5 Television Manager
11
Programming
System Send_Commands (Cont.)
Command Description
'?DE' Sends the current television power sensor (CC-XPS) delay time string
’DE,<Time>’ to the AXC-EM. Set the <Time> value in .10 second
increments.
Example:
SEND_COMMAND AXBTMX,'?DE'
The AXB-TM5 sends the current television power sensor delay time to
the control system in the ’DE <Time>’ format.
'DK' Deletes all direct connections set with the ’DC’ command.
Example:
SEND_COMMAND AXBTMX,'DK'
'PIF' Disables the ’PIN’ command.
Example:
SEND_COMMAND AXBTMX,'PIF'
'PIN' Turns on function that will OR together I/O 1 and frequency sensor to
determine actual TV status. I/O 2 will follow ’PON’ and ’POF’
commands. The status of this function is stored in permanent memory
until changed.
Example:
SEND_COMMAND AXBTMX,'PIN'
'POD' Disables the current ’PON’ (power On) or ’POF’ (power Off) command
settings. Channel 255 changes are enabled.
Example:
SEND_COMMAND AXBTMX,'POD'
'POF' Sends IR function 28 (if available) to turn device power off. After three
attempts, if the CC-XPS (power sensor) still detects a power-on status, the television controller starts processing stored buffer commands. Then, if another IR function 28 fails to turn the television's
power off, the television controller sends a ’PUSH’ and ’RELEASE’ to
channel 248 and generates a power failure error. If the device is
turned on manually, this command turns television power off unless
the television controller receives a ’PON’ (power On) or ’POD’ (disable
’POF’) command.
Example:
SEND_COMMAND AXBTMX,'POF'
'PON' Sends IR function 27 (if available) to turn device power on. After three
attempts, if the power sensor (CC-XPS) still detects a power-off status, the television controller starts processing stored buffer commands. Then, if another IR function 27 fails to turn the television's
power on, the television controller sends a ’PUSH’ and ’RELEASE’ to
channel 248 and generates a power failure error. If the device is
turned off manually, this command turns television power on unless
the television controller receives a 'POF' (power Off) or 'POD' (disable
'PON' command) command.
Example:
SEND_COMMAND AXBTMX,'PON'
12
AXB-TM5 Television Manager
Programming
System Send_Commands (Cont.)
Command Description
'PTOF',<Time> Sets the IR power-off pulse time after a power-on pulse in increments
'?PTOF' Sends the current IR power pulse off time string ’PTOF, <Time>’ to the
'PTON',<Time> Sets the IR power pulse on time in increments of .10 seconds. Time is
'?PTON' Sends the current IR power pulse on time string ’PTON, <Time>’ to
of .10 seconds.
Syntax:
"'PTOF',<Time>"
Var iables :
Time = 0 through 255
Time is stored in permanent memory. System default is 15 (1.5
seconds).
Example:
SEND_COMMAND AXBTMX,"'PTOF',15"
Sets the power-off pulse time after a power-on pulse to 1.5 seconds
for the AXB-TM5.
control system. Set the <Time> value in .10 second increments.
Example:
SEND_COMMAND AXBTMX,'?PTOF'
Sends the current IR power pulse off time from the AXB-TM5 to the
control system in the ’PTOF <Time>’ format.
stored in permanent memory.
Syntax:
"'PTON',<Time>"
Var iables :
Time = 0 through 255
System default is 5 (.5 second). ’PTON’ sets the pulse length for all
power pulses, regardless if the pulse is due to a ’PON’ or ’POF’
command.
Example:
SEND_COMMAND AXBTMX,"'PTON',20"
Sets the IR power pulse on time (delay) to 2 seconds for the
AXB-TM5.
the control system. Set the <Time> value in .10 second increments.
Example:
SEND_COMMAND AXBTMX,'?PTON'
Sends the current IR power pulse on time from the AXB-TM5 to the
control system in the ’PTON <Time>’ format.
The PTOF time affects how quickly the AXB-TM5 evaluates the power state of a TV. If
a TV toggles between on and off when changing the power state, then the ’PTOF’
time should be extended. ’PTOF’ sets the time in-between each power pulse when
the AXB-TM5 is attempting to change the TV's power state (regardless if pulse if On
or Off).
AXB-TM5 Television Manager
13
Programming
System Send_Commands (Cont.)
Command Description
'RO',<offset> Sets the offset value subtracted from the IR function before sending
the code to the AXC-EM.
Syntax:
"'RO',<offset>"
Var iables :
Offset = 0 through 255
Example:
SEND_COMMAND AXBTMX,"'RO',5"
Subtracts 5 from the incoming IR code number and sends the
appropriate IR function from the AXB-TM5 to the control system.
'SP',<IR out>' Generates a single <IR out> function pulse.
Syntax:
"'SP',<IR out>'"
Var iables :
IR out = 1 through 127.
The ’CTON’ sets pulse length and ’CTOF’ sets time between pulses.
Example:
SEND_COMMAND AXBTMX,"'SP',25"
Pulses IR code 25 which decreases the volume level on the
equipment connected to the AXB-TM5.
XCH <Channel> Transmit the IR code in the format set with the XCHM mode
command.
Syntax:
SEND_COMMAND <DEV>,'XCH <Channel>'
Var iable:
<Channel> = 0 through 999
14
AXB-TM5 Television Manager
System Send_Commands (Cont.)
Command Description
XCHM
Changes the IR output pattern for the
XCH command.
Syntax:
SEND_COMMAND <DEV>,'XCH-<Mode>'
Var iable:
Mode = 0-3
Example:
SEND_COMMAND AXBTMX,'XCH 3'
Sets the device's extended channel command to mode 3.
Mode 0 Example (default): [x] [x] <x> <enter>
SEND_COMMAND IR_1, 'XCH 3'
Transmits the IR code as 3-enter.
SEND_COMMAND IR_1, 'XCH 34'
Transmits the IR code as 3-4-enter.
SEND_COMMAND IR_1, 'XCH 343'
Transmits the IR code as 3-4-3-enter.
Mode 1 Example: <x> <x> <x> <enter>
SEND_COMMAND IR_1, 'XCH 3'
Transmits the IR code as 0-0-3-enter.
SEND_COMMAND IR_1, 'XCH 34'
Transmits the IR code as 0-3-4-enter.
SEND_COMMAND IR_1, 'XCH 343'
Transmits the IR code as 3-4-3-enter.
Mode 2 Example: <x> <x> <x>
SEND_COMMAND IR_1, 'XCH 3'
Transmits the IR code as 0-0-3.
SEND_COMMAND IR_1, 'XCH 34'
Transmits the IR code as 0-3-4.
SEND_COMMAND IR_1, 'XCH 343'
Transmits the IR code as 3-4-3.
Mode 3 Example: [[100][100]…] <x> <x>
SEND_COMMAND IR_1, 'XCH 3'
Transmits the IR code as 0-3.
SEND_COMMAND IR_1, 'XCH 34'
Transmits the IR code as 3-4.
SEND_COMMAND IR_1, 'XCH 343'
Transmits the IR code as 100-100-100-4-3.
Programming
AXB-TM5 Television Manager
15
AMX reserves the right to alter specifications without notice at any time.
2002 AMX Corporation. All rights reserved. AMX, the AMX logo, the building icon, the home icon, and the light bulb icon are all trademarks of AMX Corporation.
©
brussels • dallas • los angeles • mexico city • philadelphia • shanghai • singapore • tampa • toronto* • york
3000 research drive, richardson, TX 75082 USA • 469.624.8000 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993
032-004-1023 6/02
AMX reserves the right to alter specifications without notice at any time. *In Canada doing business as Panja Inc.
Loading...
