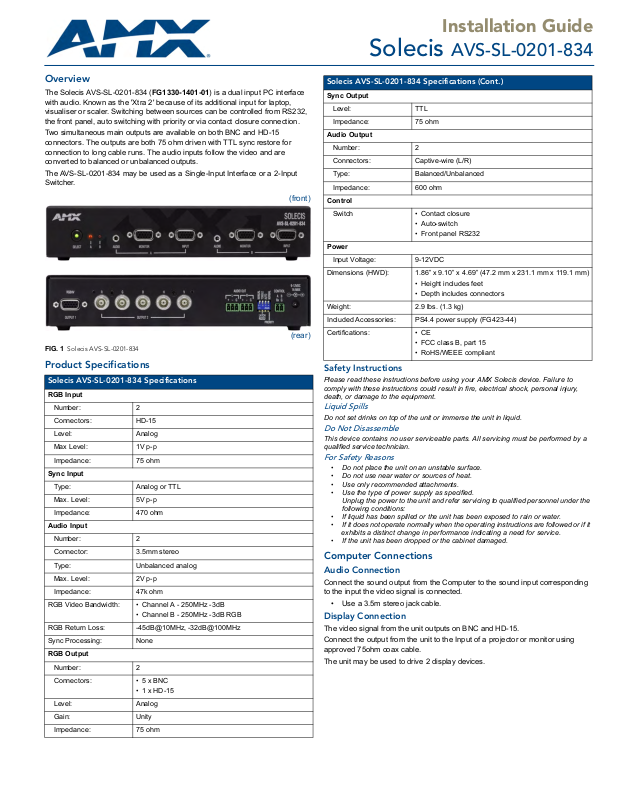

AMX AVS-SL-0201-834 User Manual

Installation Guide

Solecis AVS-SL-0201-834

Overview

The Solecis AVS-SL-0201-834 (FG1330-1401-01) is a dual input PC interface
with audio. Known as the 'Xtra 2' because of its additional input for laptop,
visualiser or scaler. Switching between sources can be controlled from RS232,
the front panel, auto switching with priority or via contact closure connection.

Two simultaneous main outputs are available on both BNC and HD-15
connectors. The outputs are both 75 ohm driven with TTL sync restore for
connection to long cable runs. The audio inputs follow the video and are
converted to balanced or unbalanced outputs.

The AVS-SL-0201-834 may be used as a Single-Input Interface or a 2-Input
Switcher.

(front)

(rear)

FIG. 1 Solecis AVS-SL-0201-834

Product Specifications

Solecis AVS-SL-0201-834 Specifications

RGB Input

Number: 2

Connectors: HD-15

Level: Analog

Max Level: 1V p-p

Impedance: 75 ohm

Sync Input

Type: Analog or TTL

Max. Level: 5V p-p

Impedance: 470 ohm

Audio Input

Number: 2

Connector: 3.5mm stereo

Type: Unbalanced analog

Max. Level: 2V p-p

Impedance: 47k ohm

RGB Video Bandwidth: • Channel A - 250MHz -3dB

• Channel B - 250MHz -3dB RGB

RGB Return Loss: -45dB@10MHz, -32dB@100MHz

Sync Processing: None

RGB Output

Number: 2

Connectors: • 5 x BNC

• 1 x HD-15

Level: Analog

Gain: Unity

Impedance: 75 ohm

Solecis AVS-SL-0201-834 Specifications (Cont.)

Sync Output

Level: TTL

Impedance: 75 ohm

Audio Output

Number: 2

Connectors: Captive-wire (L/R)

Type: Balanced/Unbalanced

Impedance: 600 ohm

Control

Switch • Contact closure

• Auto-switch

• Front panel RS232

Power

Input Voltage: 9-12VDC

Dimensions (HWD): 1.86” x 9.10” x 4.69” (47.2 mm x 231.1 mm x 119.1 mm)

Weight: 2.9 lbs. (1.3 kg)

Included Accessories: PS4.4 power supply (FG423-44)

Certifications: • CE

• Height includes feet

• Depth includes connectors

• FCC class B, part 15

• RoHS/WEEE compliant

Safety Instructions

Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.

Liquid Spills

Do not set drinks on top of the unit or immerse the unit in liquid.

Do Not Disassemble

This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.

For Safety Reasons

• Do not place the unit on an unstable surface.

• Do not use near water or sources of heat.

• Use only recommended attachments.

• Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:

• If liquid has been spilled or the unit has been exposed to rain or water.

• If it does not operate normally when the operating instructions are followed or if it

exhibits a distinct change in performance indicating a need for service.

• If the unit has been dropped or the cabinet damaged.

Computer Connections

Audio Connection

Connect the sound output from the Computer to the sound input corresponding
to the input the video signal is connected.

• Use a 3.5m stereo jack cable.

Display Connection

The video signal from the unit outputs on BNC and HD-15.

Connect the output from the unit to the Input of a projector or monitor using
approved 75ohm coax cable.

The unit may be used to drive 2 display devices.

Video Pin Connections

FIG. 2 provides the pin layout for the RGBHV HD-15 connectors:

12345

678910

1112131415

FIG. 2 RGBHV HD-15 connector

The pin configuration for the HD-15 (video) connector are as follows:

1 - RED 9 - n/c
2 - GREEN 10 - SYNC GROUND
3 - BLUE 11 - n/c
4 - n/c 12 - n/c
5 - n/c 13 - H SYNC
6 - RED GROUND 14 - V SYNC
7 - GREEN GROUND 15 - n/c
8 - BLUE GROUND

Switching On Equipment

Connect the unit to a Mains power source and turn on at the Mains. Either the
Input A or Input B button will illuminate to indicate the unit has powered up.

Setting Up the Mode of Operation

Rear Panel DIP Switches

Control 1 2 3 4 Notes

Manual Switch

Auto Switch - Normal

Auto Switch - Priority

Contact Closure - Momentary

Contact Closure ­Latching

RS232

⇓⇑⇑ ⇑
⇑⇓ ⇑ ⇓ ⇑
⇑⇓ ⇑ ⇓ ⇓
⇑⇓ ⇑ ⇑⇓ ⇑⇓

⇔ ⇓ ⇔⇔

⇔ ⇓ ⇔⇔

Front Panel Operation

Last Detected Input

Input B Priority

Bell Button Toggle

Logic State Closed Input A

Serial Control

⇑-switch up, ⇓ -switch down, ⇔ -function disabled, ⇑⇓ -switch up or down

Switch Functions

• 1 - Manual Switch Off / On

• 2 - Remote Control Off / On

• 3 - Auto Switch Off / On

• 4 - Auto Switch Normal / Priority

Manual Switch - Front Panel Operation

1. Power up switcher.

2. The Green LED A will light to indicate power present and A Input is
switched.

3. Set Dip switches as shown in the Rear Panel DIP Switches table.

4. Press INPUT SELECT button to change between Input sources.

Contact Closure

Toggle Switch

Set Dip switches as shown in the Rear Panel DIP Switches table.

• A momentary switch can be wired across connections A and B on the rear
panel.

• Manual and auto switch can also be enabled or disabled in this Toggle
mode of operation.

Latching

Set Dip switches as shown in the Rear Panel DIP Switches table.

• With control pins A and B open the unit will switch to Input B.

• When control pins are closed the unit will switch to Input A.

Note: When Dip switch 2 is set to Latch or RS232 all other functions will be
disabled.

RS232 Mode

1. Power unit down.

2. Set Dip switches as shown in the Rear Panel DIP Switches table.

3. Connect RS232 cable to Control pins as follows:

• TX - Pin A (RX)

• GND - Pin B (GND).

4. Power up unit.

Set System Protocol as follows

• Baud - 9600

• Data - 8 Bits

• Stop - 1 Bit

Switch Commands

Note: Numbers are shown in HEX.

Input A

Byte 1 Byte 2 Byte3

FE 00 0A

Input B

Byte 1 Byte 2 Byte3

FE 00 0B

Note: When an RS232 cable is connected to the Control socket all other
functions will be disabled.

Auto Switch - Normal

Set Dip switches as shown in the Rear Panel DIP Switches table.

Auto-Switching

The unit scans the VERTICAL sync inputs of input A and B. If any signal
sources are active the unit will switch to the last detected input.

To switch between two active sources either disconnect the source and
reconnect or use the laptop video toggle mode to turn the Video output off then
on again (usually by holding the FN key with a Function key).

To operate in auto switch mode with manual override switch Manual dip down
to the On position.

Auto Switch - Priority

1. Set Dip switches as shown in the Rear Panel DIP Switches table.

2. When a signal is applied to Input A the unit will automatically switch to A.

3. When the signal is removed from Input A the unit will switch to Input B.

4. To operate in auto switch mode with manual override switch Manual dip
down to the On position.
