PRODUCT AND ACCESSORY CATALOG
Division of Ohio Medical
suction and oxygen therapy
Page 2
TABLE OF CONTENTS
VACUUM REGULATORS
VACUUM REGULATORS 3
VACUUM REGULATOR FEATURES 4
AVAILABLE MODELS 5
COLOR OPTIONS 6
ACCESSORIES AND PART CONFIGURATOR 7
DIGITAL AND ANALOG MODELS 8
FLOWMETERS
INTEGRATED FLOWMETER AND PART CONFIGURATOR 10
THORPE AND DIAL FLOWMETERS AND PART CONFIGURATOR 11
GAS REGULATORS
COMPACT STYLE GAS REGULATOR AND PART CONFIGURATOR 14
CLICK STYLE GAS REGULATOR AND PART CONFIGURATOR 15
HOSES
BULK AND SPIRAL HOSES 16
HOSE ASSEMBLIES AND PART CONFIGURATOR 17
ADAPTERS AND COUPLERS
OHMEDA ADAPTERS AND COUPLERS 18
CHEMETRON ADAPTERS AND COUPLERS 20
MISCELLANEOUS ADAPTERS AND COUPLERS 22
FITTINGS
PURITAN BENNETT, SCHRADER, OXEQUIP AND NPT FITTINGS 22
DISS FITTINGS 23
BLOCK ASSEMBLIES
BLOCK ASSEMBLIES 24
INTERNATIONAL
INTERNATIONAL FITTINGS AND MISCELLANEOUS 25
HOMECARE
HOMECARE PRODUCTS 26
WEBSITE
WWW.AMVEX.COM 27
For other marketing material you can visit our website:
www.amvex.com
2
For more information call 1.866.GO.AMVEX
Page 3
VACUUM REGULATORS
PATENTED
DIGITAL
• Patented Digital Display Technology
• No Moving Parts provides longer product life
• No Calibration required
• Accuracy: +/- 1% of Full Scale
• Large numbers indicate Exact Suction Level
• Easy to read from up to 30 feet away
• Color coded bars represent Low, Medium and High ranges
• Durable and Flexible Polymer plastic casing, available in a
variety of colors

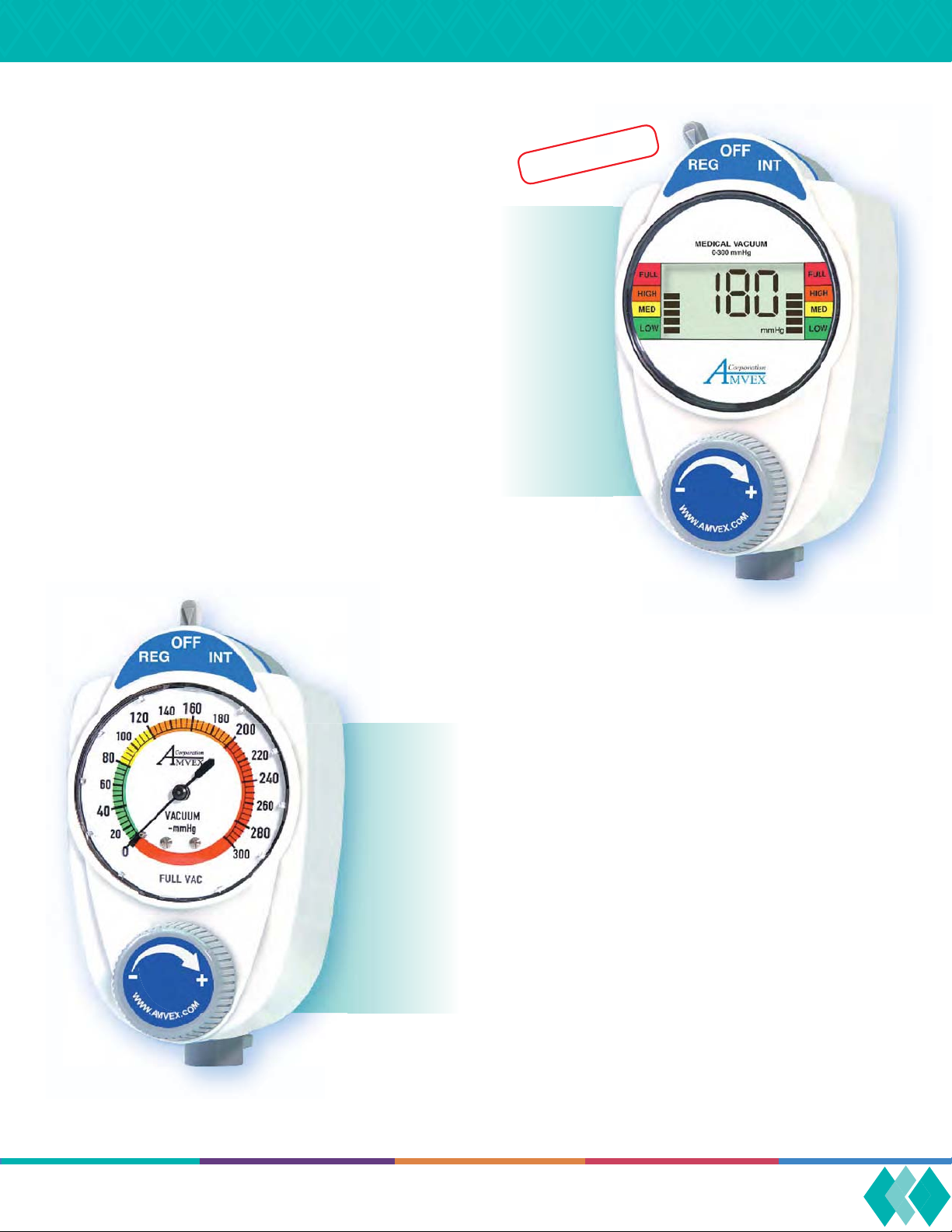

VR-CIU2-F2D
ANALOG
• Analog Gauge designed for Clarity (large white background)
• Glow in the Dark and 0-200mmHg Gauge available
• Accuracy: +/- 3% of Full Scale
• Durable and Flexible Polymer plastic casing, available in a
variety of colors
VR-CIU2-F2A
www.amvex.com
3
Page 4
VACUUM REGULATOR FEATURES

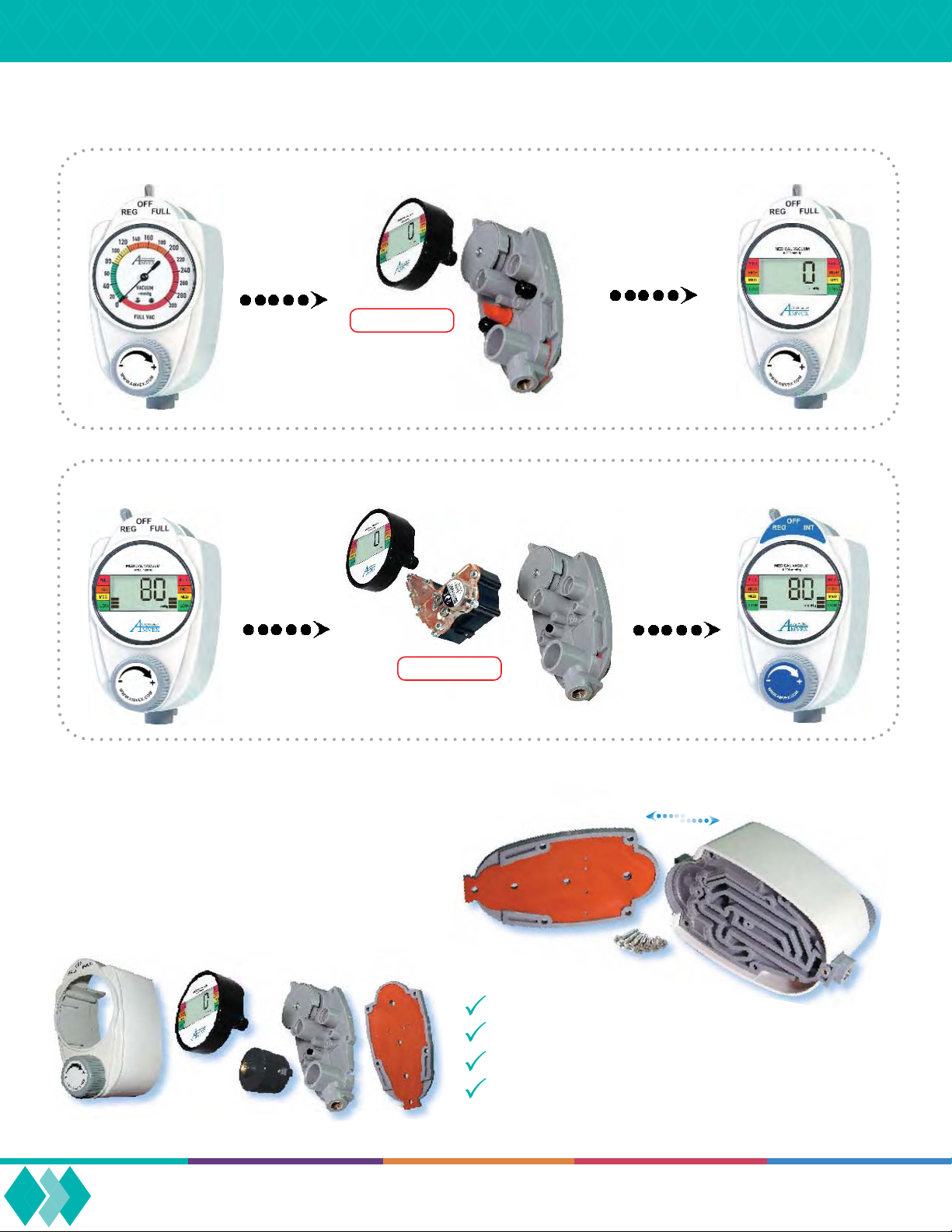

UPGRADEABILITY
ANALOG TO DIGITAL
PATENTED
DIGITAL GAUGE
VR-DG-300MM
CONTINUOUS TO CONTINUOUS/INTERMITTENT
PATENTED
INTERMITTENT MODULE
SERVICEABILITY
Continuous Model has only 5 components
Intermittent Model has only 6 components
VR-INT-KIT
Easy to service
Easy to clean
Reverse fl ush with a cold sterilant
Remove the back plate to access back channels
4
For more information call 1.866.GO.AMVEX
Page 5
AVAILABLE MODELS

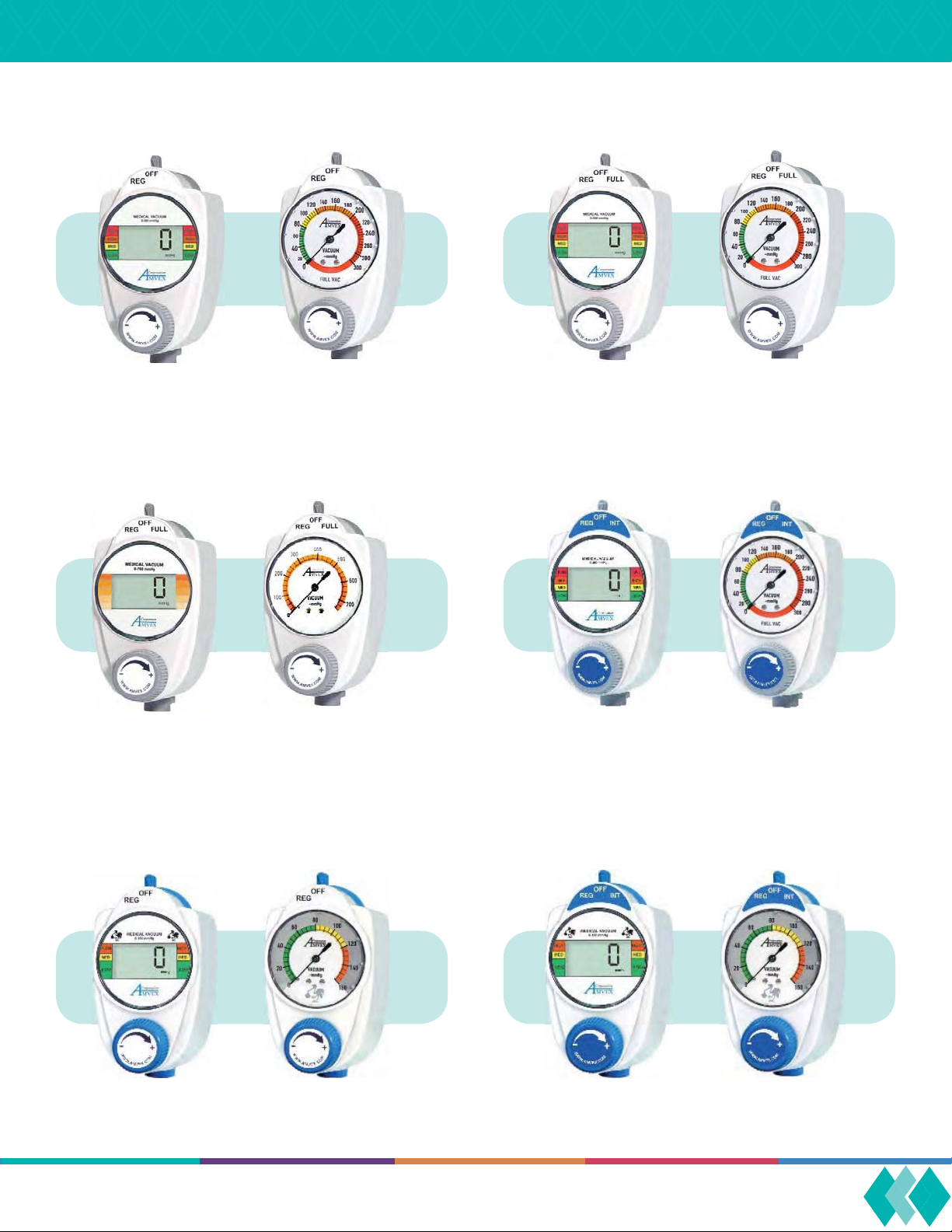

CONTINUOUS 3 MODECONTINUOUS 2 MODE
VR-C2U2-F2D VR-C2U2-F2A
VR-C3U2-F2D VR-C3U2-F2A
CONTINUOUS HIGH VAC CONTINUOUS / INTERMITTENT
VR-CHU2-F2D
PEDIATRIC AND NEONATAL
VR-CHU2-F2A VR-CIU2-F2D VR-CIU2-F2A
PEDIATRIC AND NEONATAL
2 MODE
PEDIATRIC: VR-P2U2-F2D
NEONATAL: VR-N2U2-F2D
PEDIATRIC: VR-P2U2-F2A
NEONATAL: VR-N2U2-F2A
CONTINUOUS / INTERMITTENT
PEDIATRIC: VR-PIU2-F2D
NEONATAL: VR-NIU2-F2D
PEDIATRIC: VR-PIU2-F2A
NEONATAL: VR-NIU2-F2A
www.amvex.com
5
Page 6
COLOR OPTIONS
Burgundy (U)
Pink (N)
Red (R)
Sand (S)
Orange (O)
Light Orange (H)
Yellow (Y)
Butter (T)
Green (G)
Mint (M)
Customizing Example:
Sage (A)
Grey (E)
VR-CIU2-F2DY
Blue (B)
Baby Blue (Z)
By adding any of the above suffi xes to the part
number, you can order your choice of color
(White is standard if not otherwise specifi ed)
Purple (P)
Lavender (L)
6
For more information call 1.866.GO.AMVEX
Page 7
GAUGES
STANDARD PEDIATRIC/NEONATAL SURGICAL SPECIALT Y
VACUUM REGULATOR ACCESSORIES
DIGITAL 300mmHg
VR-DG-300MM
ANALOG 300mmHg
VR-AG-300MM

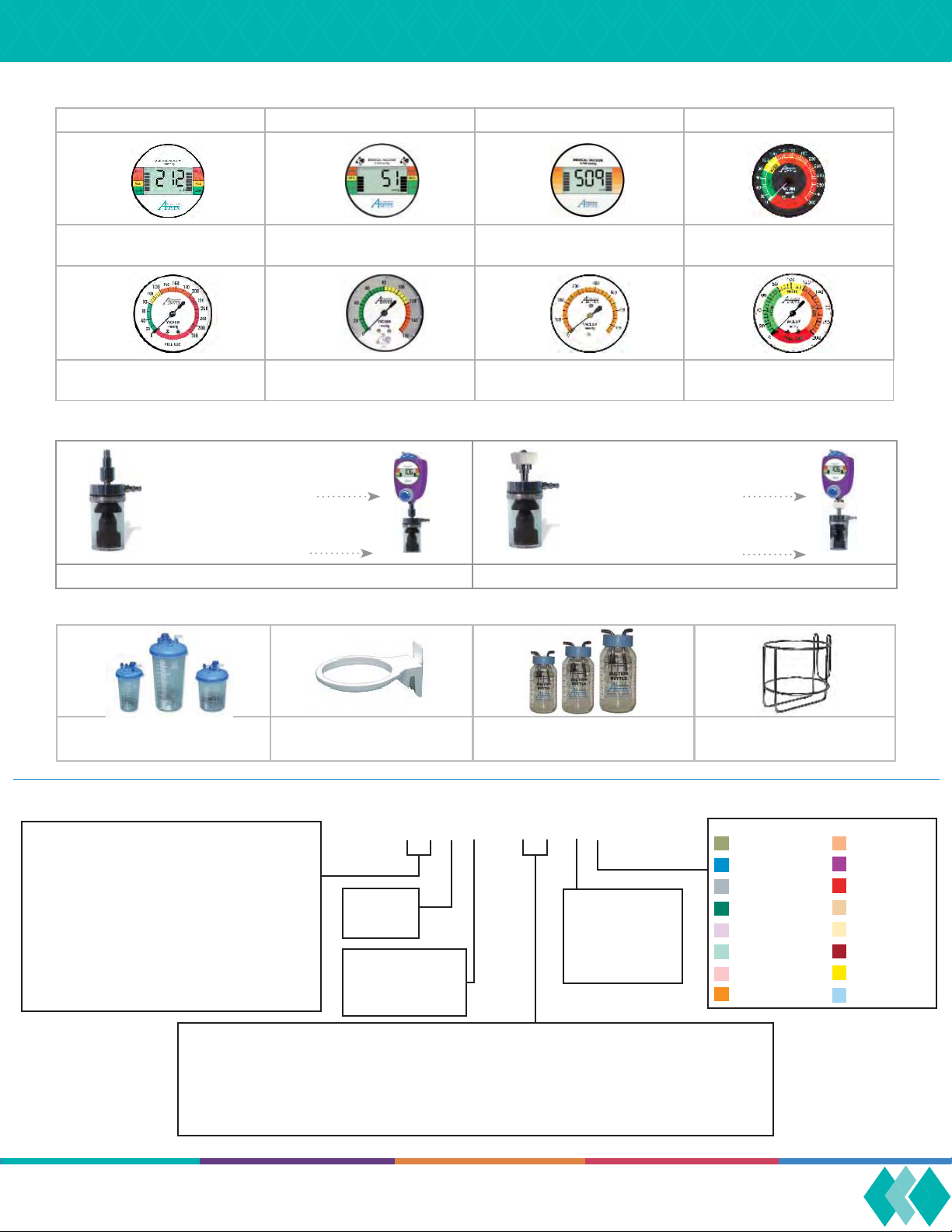

VACUUM TRAPS
ORDERING EXAMPLE:
VR-CIU2-F2DP
VR-TRAP
VR-TRAP (Compatible F2 Fitting) VR-TRAP-DH (Compatible DISS Fitting)
CANISTERS
DIGITAL 160mmHg/100 mmHg
VR-DG-160MM/VR-DG-100MM
ANALOG 160mmHg / 100mmHg
VR-AG-160MM / VR-AG-100MM
+
DIGITAL 760mmHg
VR-DG-760MM
ANALOG 760mmHg
VR-AG-760MM
ORDERING EXAMPLE:
VR-CIUD-F2DP
GLOW IN THE DARK
VR-AG-300MM-NLF
ANALOG 200mmHg
VR-AG-200MM
+
VR-TRAP-DH
DISPOSABLE CANISTER
1200 CC, 2000 CC & 3000 CC
CANISTER HOLDER
1200 CC, 2000 CC & 3000
VACUUM REGULATOR CONFIGURATOR:
Vacuum Regulator Type:
Continuous/Intermittent 0-300 Gauge:
Continuous 2 Mode (Off/Reg) 0-300 Gauge:
Continuous 3 Mode (Off/Reg/Full) 0-300 Gauge:
Continuous High 3 Mode 0-760 Gauge:
Intermittent 2 Mode (Off/Int) 0-300 Gauge:
Pediatric Intermittent 3 Mode 0-160 Gauge:
Pediatric Continuous 2 Mode 0-160 Gauge:
Pediatric Intermittent 2 Mode 0-160 Gauge:
Neonatal Intermittent 3 Mode 0-100 Gauge:
Neonatal Continuous 2 Mode 0-100 Gauge:
Neonatal Intermittent 2 Mode 0-100 Gauge:
Wall Connection:
Australian Handtight:
Bubble Barb:
British Male:
Chemetron Male:
DISS Handtight:
DISS Male:
CI
C2
C3
CH
I2
PI
P2
PP
NI
N2
NN
VR-XXYY - XX YZ
Color Code:
USA: U
ISO: I
Patient Connection:
1/8” FNPT:
DISS Male:
Tubing Nipple:
AH
DISS Nut:
BB
Elbow with Barb:
BM
1/8” FNPT:
CM
1/4” FNPT:
DH
French Male:
DM
German Male:
2
D
T
DN
EB
F2
F4
FM
GM
REUSEABLE CANISTER
1/8, 1/4, 1/2, 1G
Display:
Analog (mmHg):
Digital (mmHg):
Digital (mBar):
Digital (inHg):
Digital (kPa):
Japanese Male:
1/8” MNPT:
1/4” MNPT:
Medstar Male:
NIST Female:
JM
M2
M4
MM
NF
METAL CANISTER HOLDER
1/4G, 1/8G, 1/2, 1G
Face Colors:
A
D
M
I
K
Ohmeda Male:
Puritan Bennett Male:
Shrader Male:
Oxequip Male:
AGA Male:
Sage:
Blue:
Grey:
Green:
Lavender:
Lt. Orange:
Mint:
Pink:
OM
PM
SM
XM
ZM
A
B
E
G
L
H
M
N
Orange:
Purple:
Red:
Sand:
Butter:
Burgundy:
Yell ow :
Baby Blue:
O
P
R
S
T
U
Y
Z
www.amvex.com
7
Page 8

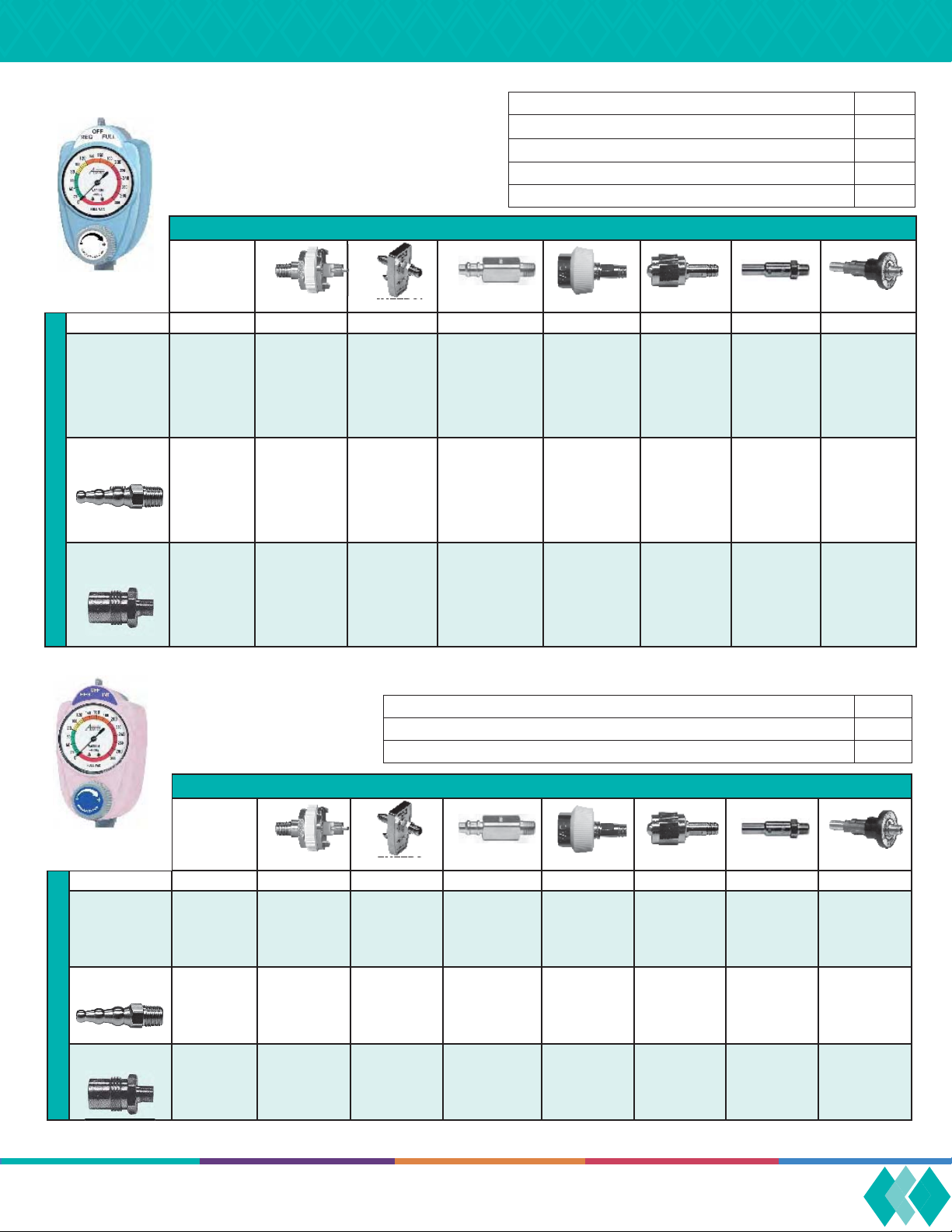

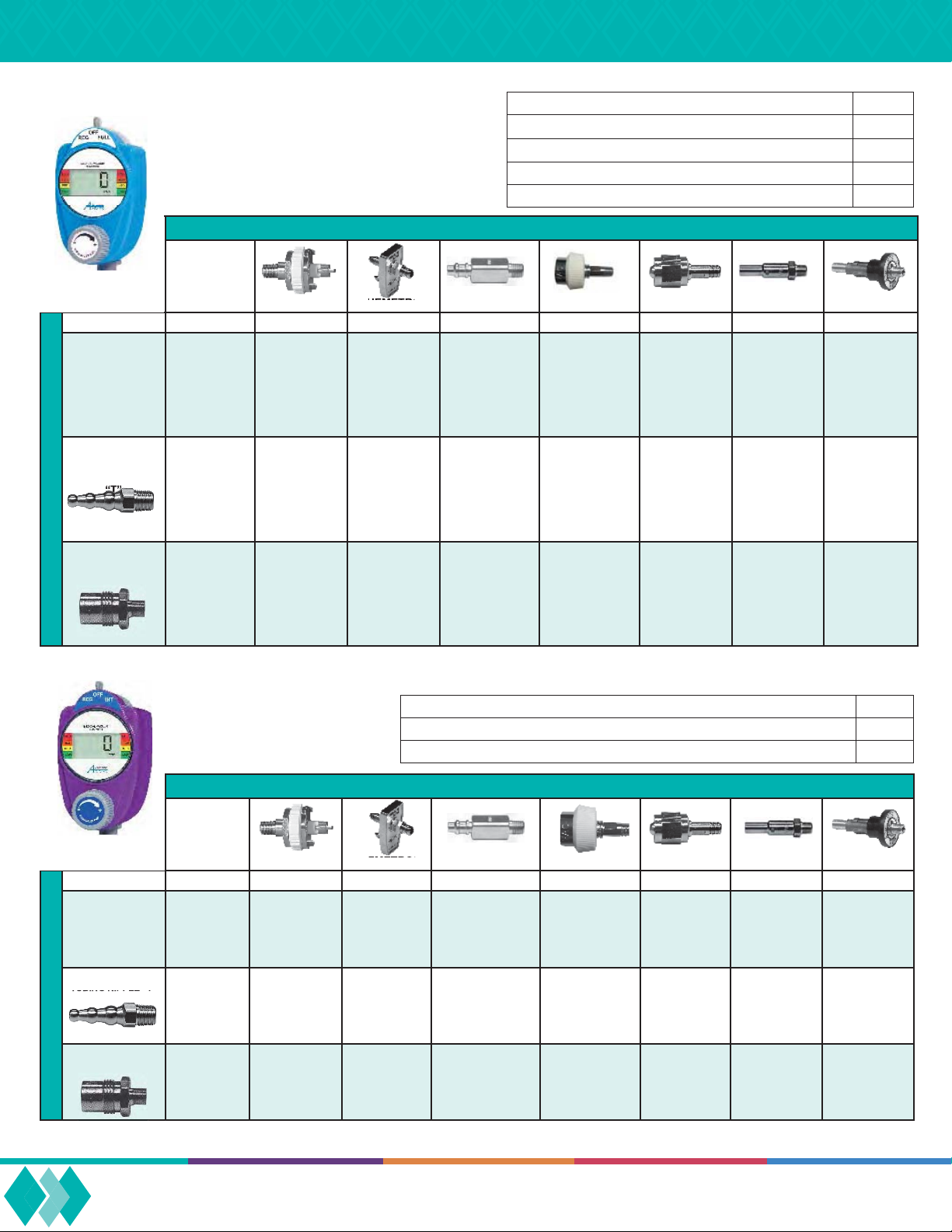

DIGITAL MODELS
CONTINUOUS MODELS
CONTINUOUS 2 MODE (0-300mmHg) C2
CONTINUOUS 3 MODE (0-300mmHg) C3
CONTINUOUS HIGH VAC (0-760mmHg) CH
PEDIATRIC CONTINUOUS 2 MODE (0-160mmHg) P2
NEONATAL CONTINUOUS 2 MODE (0-100mmHg) N2
INLET - TO WALL
VR-C3U2-F2DB
NO FITTING
“F2” “OM” “CM” “PM” “DH” “DN” “XM” “MM”
VR-C2U2-F2D
NO FITTING “2”
TUBING NIPPLE
“T”
OUTLET - TO PATIENT
DISS “D”
For ISO replace the “U” with “I”.
VR-C3U2-F2D
VR-CHU2-F2D
VR-P2U2-F2D
VR-N2U2-F2D
VR-C2UT-F2D
VR-C3UT-F2D
VR-CHUT-F2D
VR-P2UT-F2D
VR-N2UT-F2D
VR-C2UD-F2D
VR-C3UD-F2D
VR-CHUD-F2D
VR-P2UD-F2D
VR-N2UD-F2D
OHMEDA CHEMETRON PURITAN BENNETT DISS HANDTIGHT DISS NUT OXEQUIP MEDSTAR
VR-C2U2-OMD
VR-C3U2-OMD
VR-CHU2-OMD
VR-P2U2-OMD
VR-N2U2-OMD
VR-C2UT-OMD
VR-C3UT-OMD
VR-CHUT-OMD
VR-P2UT-OMD
VR-N2UT-OMD
VR-C2UD-OMD
VR-C3UD-OMD
VR-CHUD-OMD
VR-P2UD-OMD
VR-N2UD-OMD
VR-C2U2-CMD
VR-C3U2-CMD
VR-CHU2-CMD
VR-P2U2-CMD
VR-N2U2-CMD
VR-C2UT-CMD
VR-C3UT-CMD
VR-CHUT-CMD
VR-P2UT-CMD
VR-N2UT-CMD
VR-C2UD-CMD
VR-C3UD-CMD
VR-CHUD-CMD
VR-P2UD-CMD
VR-N2UD-CMD
VR-C2U2-PMD
VR-C3U2-PMD
VR-CHU2-PMD
VR-P2U2-PMD
VR-N2U2-PMD
VR-C2UT-PMD
VR-C3UT-PMD
VR-CHUT-PMD
VR-P2UT-PMD
VR-N2UT-PMD
VR-C2UD-PMD
VR-C3UD-PMD
VR-CHUD-PMD
VR-P2UD-PMD
VR-N2UD-PMD
VR-C2U2-DHD
VR-C3U2-DHD
VR-CHU2-DHD
VR-P2U2-DHD
VR-N2U2-DHD
VR-C2UT-DHD
VR-C3UT-DHD
VR-CHUT-DHD
VR-P2UT-DHD
VR-N2UT-DHD
VR-C2UD-DHD
VR-C3UD-DHD
VR-CHUD-DHD
VR-P2UD-DHD
VR-N2UD-DHD
VR-C2U2-DND
VR-C3U2-DND
VR-CHU2-DND
VR-P2U2-DND
VR-N2U2-DND
VR-C2UT-DND
VR-C3UT-DND
VR-CHUT-DND
VR-P2UT-DND
VR-N2UT-DND
VR-C2UD-DND
VR-C3UD-DND
VR-CHUD-DND
VR-P2UD-DND
VR-N2UD-DND
VR-C2U2-XMD
VR-C3U2-XMD
VR-CHU2-XMD
VR-P2U2-XMD
VR-N2U2-XMD
VR-C2UT-XMD
VR-C3UT-XMD
VR-CHUT-XMD
VR-P2UT-XMD
VR-N2UT-XMD
VR-C2UD-XMD
VR-C3UD-XMD
VR-CHUD-XMD
VR-P2UD-XMD
VR-N2UD-XMD
VR-C2U2-MMD
VR-C3U2-MMD
VR-CHU2-MMD
VR-P2U2-MMD
VR-N2U2-MMD
VR-C2UT-MMD
VR-C3UT-MMD
VR-CHUT-MMD
VR-P2UT-MMD
VR-N2UT-MMD
VR-C2UD-MMD
VR-C3UD-MMD
VR-CHUD-MMD
VR-P2UD-MMD
VR-N2UD-MMD
CONTINUOUS/INTERMITTENT MODELS
CONTINUOUS INTERMITTENT COMBO (0-300mmHg) CI
PEDIATRIC CONTINUOUS INTERMITTENT COMBO (0-160mmHg) PI
NEONATAL CONTINUOUS INTERMITTENT COMBO (0-100mmHg) NI
NO FITTING
VR-CIU2-F2DP
NO FITTING “2”
TUBING NIPPLE “T”
DISS “D”
OUTLET - TO PATIENT
For ISO replace the “U” with “I”.
8
For more information call 1.866.GO.AMVEX
VR-CIU2-F2D
VR-PIU2-F2D
VR-NIU2-F2D
VR-CIUT-F2D
VR-PIUT-F2D
VR-NIUT-F2D
VR-CIUD-F2D
VR-PIUD-F2D
VR-NIUD-F2D
INLET - TO WALL
OHMEDA CHEMETRON PURITAN BENNETT DISS HANDTIGHT DISS NUT OXEQUIP MEDSTAR
“F2” “OM” “CM” “PM” “DH” “DN” “XM” “MM”
VR-CIU2-OMD
VR-PIU2-OMD
VR-NIU2-OMD
VR-CIUT-OMD
VR-PIUT-OMD
VR-NIUT-OMD
VR-CIUD-OMD
VR-PIUD-OMD
VR-NIUD-OMD
VR-CIU2-CMD
VR-PIU2-CMD
VR-NIU2-CMD
VR-CIUT-CMD
VR-PIUT-CMD
VR-NIUT-CMD
VR-CIUD-CMD
VR-PIUD-CMD
VR-NIUD-CMD
VR-CIU2-PMD
VR-PIU2-PMD
VR-NIU2-PMD
VR-CIUT-PMD
VR-PIUT-PMD
VR-NIUT-PMD
VR-CIUD-PMD
VR-PIUD-PMD
VR-NIUD-PMD
VR-CIU2-DHD
VR-PIU2-DHD
VR-NIU2-DHD
VR-CIUT-DHD
VR-PIUT-DHD
VR-NIUT-DHD
VR-CIUD-DHD
VR-PIUD-DHD
VR-NIUD-DHD
VR-CIU2-DND
VR-PIU2-DND
VR-NIU2-DND
VR-CIUT-DND
VR-PIUT-DND
VR-NIUT-DND
VR-CIUD-DND
VR-PIUD-DND
VR-NIUD-DND
VR-CIU2-XMD
VR-PIU2-XMD
VR-NIU2-XMD
VR-CIUT-XMD
VR-PIUT-XMD
VR-NIUT-XMD
VR-CIUD-XMD
VR-PIUD-XMD
VR-NIUD-XMD
VR-CIU2-MMD
VR-PIU2-MMD
VR-NIU2-MMD
VR-CIUT-MMD
VR-PIUT-MMD
VR-NIUT-MMD
VR-CIUD-MMD
VR-PIUD-MMD
VR-NIUD-MMD
Page 9
ANALOG MODELS
CONTINUOUS MODELS
CONTINUOUS 2 MODE (0-300mmHg) C2
CONTINUOUS 3 MODE (0-300mmHg) C3
CONTINUOUS HIGH VAC (0-760mmHg) CH
PEDIATRIC CONTINUOUS 2 MODE (0-160mmHg) P2
NEONATAL CONTINUOUS 2 MODE (0-100mmHg) N2
INLET - TO WALL
VR-C3U2-F2AZ
NO FITTING
“F2” “OM” “CM” “PM” “DH” “DN” “XM” “MM”
VR-C2U2-F2A
NO FITTING “2”
TUBING NIPPLE
“T”
OUTLET - TO PATIENT
DISS “D”
For ISO replace the “U” with “I”.
VR-C3U2-F2A
VR-CHU2-F2A
VR-P2U2-F2A
VR-N2U2-F2A
VR-C2UT-F2A
VR-C3UT-F2A
VR-CHUT-F2A
VR-P2UT-F2A
VR-N2UT-F2A
VR-C2UD-F2A
VR-C3UD-F2A
VR-CHUD-F2A
VR-P2UD-F2A
VR-N2UD-F2A
OHMEDA CHEMETRON PURITAN BENNETT DISS HANDTIGHT DISS NUT OXEQUIP MEDSTAR
VR-C2U2-OMA
VR-C3U2-OMA
VR-CHU2-OMA
VR-P2U2-OMA
VR-N2U2-OMA
VR-C2UT-OMA
VR-C3UT-OMA
VR-CHUT-OMA
VR-P2UT-OMA
VR-N2UT-OMA
VR-C2UD-OMA
VR-C3UD-OMA
VR-CHUD-OMA
VR-P2UD-OMA
VR-N2UD-OMA
VR-C2U2-CMA
VR-C3U2-CMA
VR-CHU2-CMA
VR-P2U2-CMA
VR-N2U2-CMA
VR-C2UT-CMA
VR-C3UT-CMA
VR-CHUT-CMA
VR-P2UT-CMA
VR-N2UT-CMA
VR-C2UD-CMA
VR-C3UD-CMA
VR-CHUD-CMA
VR-P2UD-CMA
VR-N2UD-CMA
VR-C2U2-PMA
VR-C3U2-PMA
VR-CHU2-PMA
VR-P2U2-PMA
VR-N2U2-PMA
VR-C2UT-PMA
VR-C3UT-PMA
VR-CHUT-PMA
VR-P2UT-PMA
VR-N2UT-PMA
VR-C2UD-PMA
VR-C3UD-PMA
VR-CHUD-PMA
VR-P2UD-PMA
VR-N2UD-PMA
VR-C2U2-DHA
VR-C3U2-DHA
VR-CHU2-DHA
VR-P2U2-DHA
VR-N2U2-DHA
VR-C2UT-DHA
VR-C3UT-DHA
VR-CHUT-DHA
VR-P2UT-DHA
VR-N2UT-DHA
VR-C2UD-DHA
VR-C3UD-DHA
VR-CHUD-DHA
VR-P2UD-DHA
VR-N2UD-DHA
VR-C2U2-DNA
VR-C3U2-DNA
VR-CHU2-DNA
VR-P2U2-DNA
VR-N2U2-DNA
VR-C2UT-DNA
VR-C3UT-DNA
VR-CHUT-DNA
VR-P2UT-DNA
VR-N2UT-DNA
VR-C2UD-DNA
VR-C3UD-DNA
VR-CHUD-DNA
VR-P2UD-DNA
VR-N2UD-DNA
VR-C2U2-XMA
VR-C3U2-XMA
VR-CHU2-XMA
VR-P2U2-XMA
VR-N2U2-XMA
VR-C2UT-XMA
VR-C3UT-XMA
VR-CHUT-XMA
VR-P2UT-XMA
VR-N2UT-XMA
VR-C2UD-XMA
VR-C3UD-XMA
VR-CHUD-XMA
VR-P2UD-XMA
VR-N2UD-XMA
VR-C2U2-MMA
VR-C3U2-MMA
VR-CHU2-MMA
VR-P2U2-MMA
VR-N2U2-MMA
VR-C2UT-MMA
VR-C3UT-MMA
VR-CHUT-MMA
VR-P2UT-MMA
VR-N2UT-MMA
VR-C2UD-MMA
VR-C3UD-MMA
VR-CHUD-MMA
VR-P2UD-MMA
VR-N2UD-MMA
CONTINUOUS/INTERMITTENT MODELS
CONTINUOUS INTERMITTENT COMBO (0-300mmHg) CI
PEDIATRIC CONTINUOUS INTERMITTENT COMBO (0-160mmHg) PI
NEONATAL CONTINUOUS INTERMITTENT COMBO (0-100mmHg) NI
NO FITTING
VR-CIU2-F2AL
“F2” “OM” “CM” “PM” “DH” “DN” “XM” “MM”
NO FITTING “2”
TUBING NIPPLE “T”
DISS “D”
OUTLET - TO PATIENT
For ISO replace the “U” with “I”.
VR-CIU2-F2A
VR-PIU2-F2A
VR-NIU2-F2A
VR-CIUT-F2A
VR-PIUT-F2A
VR-NIUT-F2A
VR-CIUD-F2A
VR-PIUD-F2A
VR-NIUD-F2A
INLET - TO WALL
OHMEDA CHEMETRON PURITAN BENNETT DISS HANDTIGHT DISS NUT OXEQUIP MEDSTAR
VR-CIU2-OMA
VR-PIU2-OMA
VR-NIU2-OMA
VR-CIUT-OMA
VR-PIUT-OMA
VR-NIUT-OMA
VR-CIUD-OMA
VR-PIUD-OMA
VR-NIUD-OMA
VR-CIU2-CMA
VR-PIU2-CMA
VR-NIU2-CMA
VR-CIUT-CMA
VR-PIUT-CMA
VR-NIUT-CMA
VR-CIUD-CMA
VR-PIUD-CMA
VR-NIUD-CMA
VR-CIU2-PMA
VR-PIU2-PMA
VR-NIU2-PMA
VR-CIUT-PMA
VR-PIUT-PMA
VR-NIUT-PMA
VR-CIUD-PMA
VR-PIUD-PMA
VR-NIUD-PMA
VR-CIU2-DHA
VR-PIU2-DHA
VR-NIU2-DHA
VR-CIUT-DHA
VR-PIUT-DHA
VR-NIUT-DHA
VR-CIUD-DHA
VR-PIUD-DHA
VR-NIUD-DHA
VR-CIU2-DNA
VR-PIU2-DNA
VR-NIU2-DNA
VR-CIUT-DNA
VR-PIUT-DNA
VR-NIUT-DNA
VR-CIUD-DNA
VR-PIUD-DNA
VR-NIUD-DNA
VR-CIU2-XMA
VR-PIU2-XMA
VR-NIU2-XMA
VR-CIUT-XMA
VR-PIUT-XMA
VR-NIUT-XMA
VR-CIUD-XMA
VR-PIUD-XMA
VR-NIUD-XMA
VR-CIU2-MMA
VR-PIU2-MMA
VR-NIU2-MMA
VR-CIUT-MMA
VR-PIUT-MMA
VR-NIUT-MMA
VR-CIUD-MMA
VR-PIUD-MMA
VR-NIUD-MMA
www.amvex.com
9
Page 10

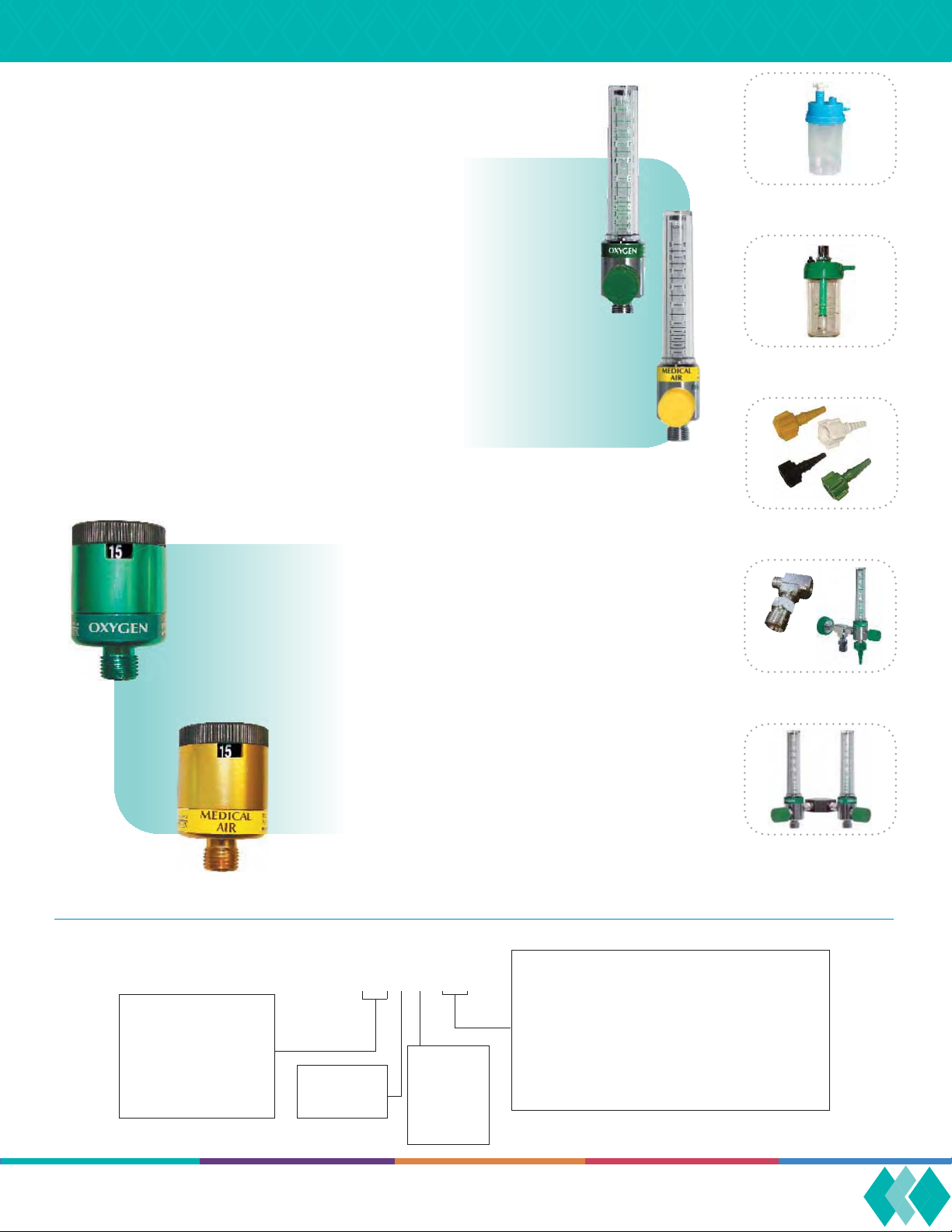

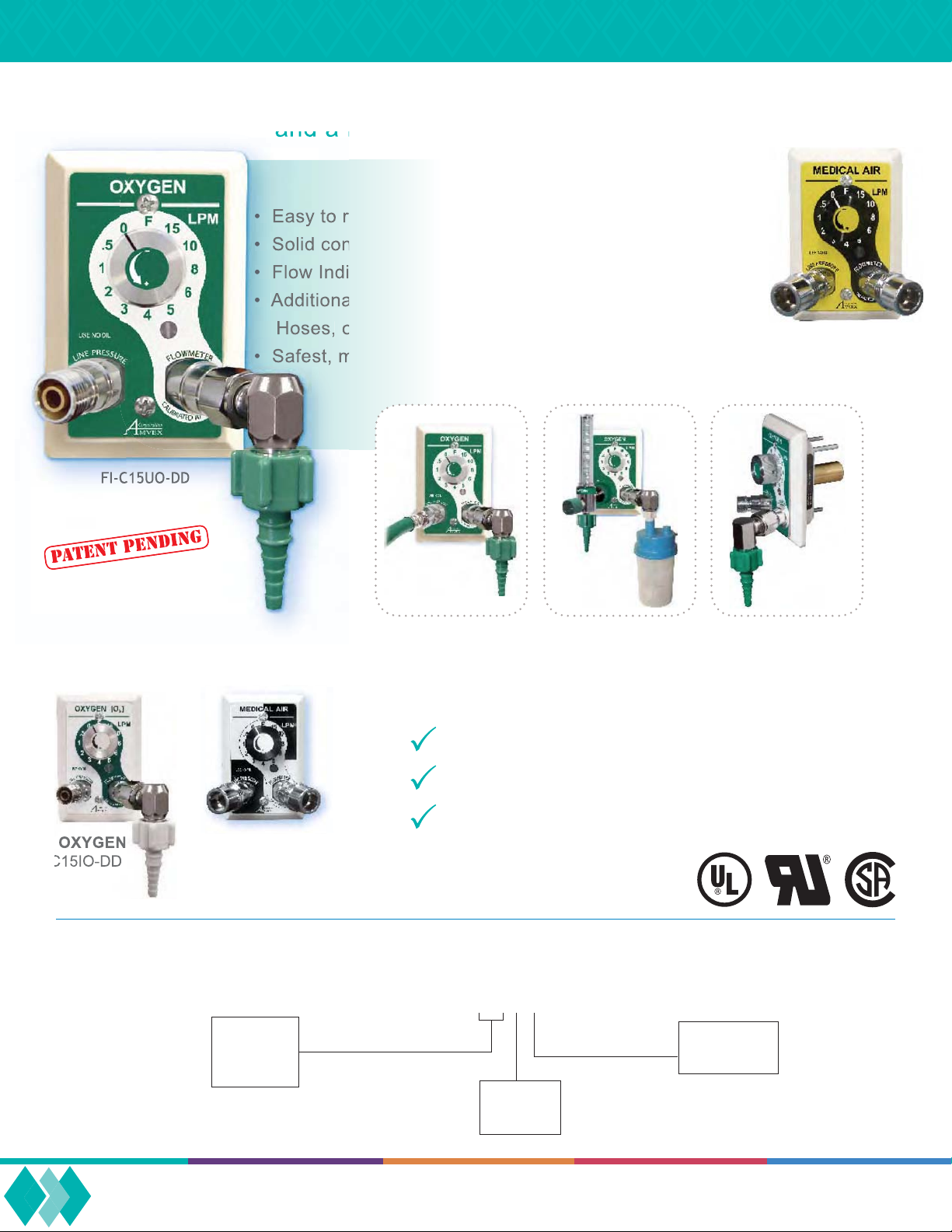

INTEGRATED FLOWMETER
The Amvex Integrated Flowmeter outlet combines a Dial Flowmeter
and a Medical Gas Outlet into a single compact design.
• Easy to read and determine fl ow levels
• Solid construction and streamlined design
• Flow Indicator ball indicates that fl ow is being delivered
• Additional outlet can be used for Specialty Flowmeters,
FI-C15UO-DD
PATENT PENDING
AVAILABLE IN ISO COLORS
Hoses, or a connection for Ventilators
FI-C15UA-DD
• Safest, most convenient way to dispense Oxygen & Medical Air
RETRO-FIT CAPABILITIESENDLESS OPTIONS
Always there when you need it
2 outlets in 1
ISO OXYGEN
FI-C15IO-DD
MEDICAL AIR
FI-C15IA-DD
INTEGRATED FLOWMETER CONFIGURATOR:
Flow Range:
8 LPM: 08
15 LPM: 15
25 LPM: 25
10
For more information call 1.866.GO.AMVEX
No more lost, broken or chained fl owmeters
Minimizes cross contamination
FI-CXXYZ-DD
Gas:
Oxygen: O
Medical Air: A
Color Code:
USA: U
ISO: I
Page 11
THORPE STYLE
• The smallest and lightest chromed brass bodied
fl owmeter in the industry
• Oxygen available in 15, 8, 3.5, 1 LPM and 200 CCM
FLOWMETER
DISPOSABLE HUMIDIFIER
FM-HUMID-D
• Available in Oxygen, Medical Air, Heliox, CO
and N2O
2
• Color coded inner tube and labelling
• Easy to service
• No strip “D” shape knob
• Includes an inlet fi lter and inlet extension
• Back pressure compensated so fl ow accuracy is not affected
by restrictions
DIAL STYLE
• Available in Oxygen and Medical Air
• Oxygen is available in 25, 15, 8 and 4 LPM,
Medical Air in 25 and 15 LPM
• Smallest and lightest in the industry
1
/
32
FM-15UO-F2-D
• Smallest increment is
• Color coded labelling for specifi c gas
FM-15UO-F2
REUSABLE HUMIDIFIER
FM-HUMID-R
FM-15UA-F2
SWIVELS
FM-SWIVEL
POWER TAKE OFF
ADD “PT” to the end of part #
• Encased in an anodized aluminum housing
• Easy to read window
• For Dial Style Flowmeters, add “-D” to the
end of the part number.
FM-15UA-F2-D
DIAL FLOWMETER CONFIGURATOR:
FM-XXYY-XX
Flowmeter Type:
Litres per minute (LPM)
15 LPM: 15
8 LPM: 08
3.5 LPM: 03
1 LPM: 01
200 CCM: 200
Color Code:
USA: U
ISO: I
Gas:
Oxygen: O
Med Air: A
Heliox: H
CO2: C
N2O: 2
Y-BLOCK FLOWMETER
YB-FM-15UO-F2
Connection:
Ohmeda: OH
Chemetron: CH
1/8” FNPT: F2
1/4” FNPT: F4
1/8” MNPT: M2
1/4” MNPT: M4
DISS Male: DM
DISS Handtight: DH
DISS Hex Nut: DN
NOTE: For Power Take-off, add “PT” to the end of the part number
For Dial style add “-D” to the end of the part number
Schrader Male: SH
Oxequip Male: XQ
Medstar Male: MS
British Male: BM
French Male: FM
German Male: GM
Australian Male: AM
Japanese Male: JM
Puritan Male: PB
www.amvex.com
11
Page 12

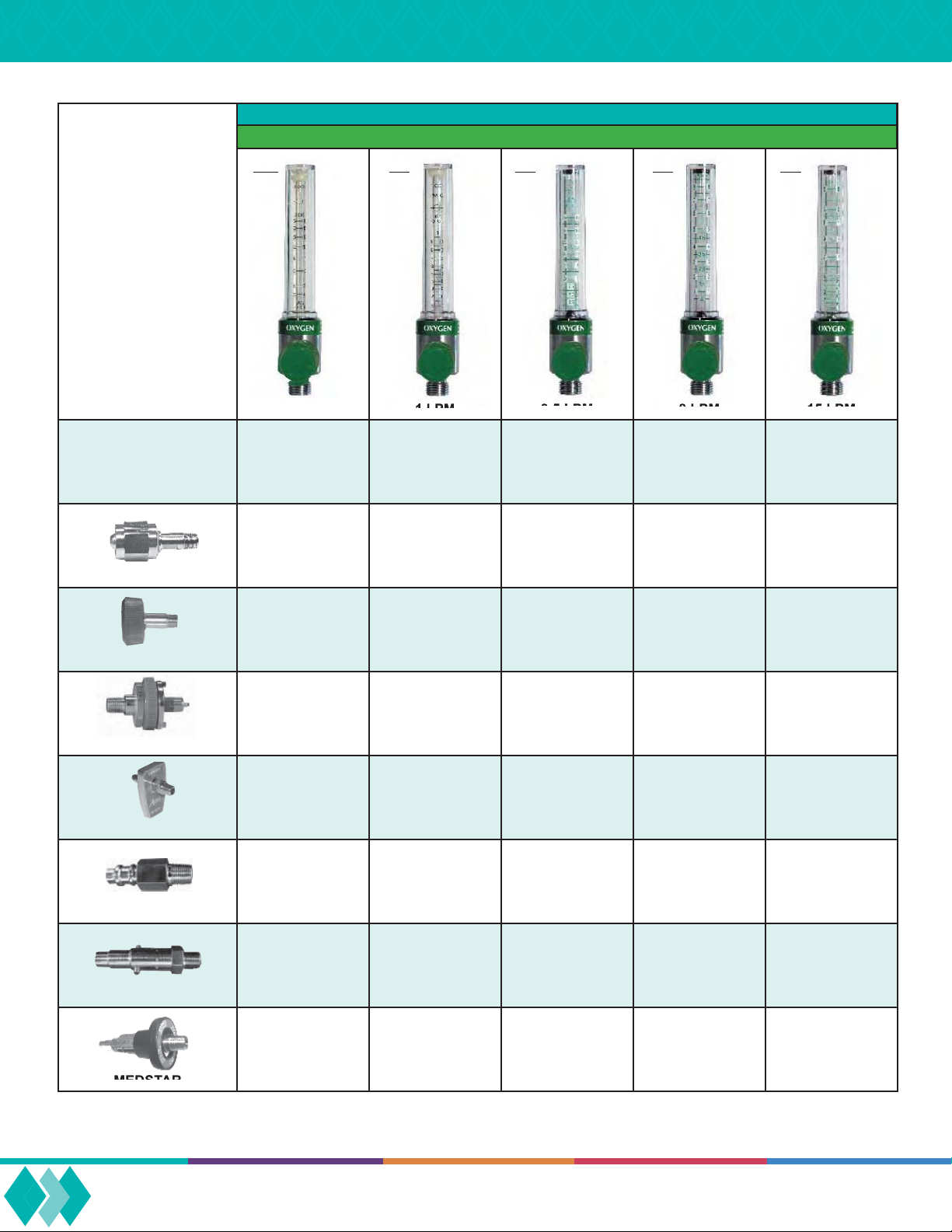

FLOWMETERS
FLOWMETERS
OXYGEN
Please contact us for
information on our MRI
options.
Visit our website at
www.amvex.com
for fl owmeter
confi gurations.
CCM:
200
175
150
125
100
75
50
25
LPM:
1
.9
.8
.7
.6
.5
.4
.3
.2
.1
LPM:
3.5
3.25
3.0
2.75
2.5
2.25
2.0
1.75
1.5
1.25
1.0
.75
.5
.25
.125
LPM:
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
.5
LPM:
15
14
13
12
11
10
9
8
7
6
5
4.5
4
3.5
3
2.5
2
1.5
1
.5
200 CC 1 LPM 3.5 LPM 8 LPM 15 LPM
1/8” NPT FEMALE FM-200UO-F2 FM-01UO-F2 FM-03UO-F2 FM-08UO-F2 FM-15UO-F2
FM-200UO-DN FM-01UO-DN FM-03UO-DN FM-08UO-DN FM-15UO-DN
DISS NUT & NIPPLE
FM-200UO-DH FM-01UO-DH FM-03UO-DH FM-08UO-DH FM-15UO-DH
DISS HANDTIGHT
FM-200UO-OH FM-01UO-OH FM-03UO-OH FM-08UO-OH FM-15UO-OH
OHMEDA
FM-200UO-CH FM-01UO-CH FM-03UO-CH FM-08UO-CH FM-15UO-CH
CHEMETRON
FM-200UO-PB FM-01UO-PB FM-03UO-PB FM-08UO-PB FM-15UO-PB
PURITAN BENNETT
FM-200UO-XQ FM-01UO-XQ FM-03UO-XQ FM-08UO-XQ FM-15UO-XQ
OXEQUIP
FM-200UO-MS FM-01UO-MS FM-03UO-MS FM-08UO-MS FM-15UO-MS
MEDSTAR
For ISO colors replace the “U” with “I”. For Power Take-Off add ‘PT’ to the end of the part number.
Please contact us for other fl owmeter confi gurations.
12
For more information call 1.866.GO.AMVEX
Page 13

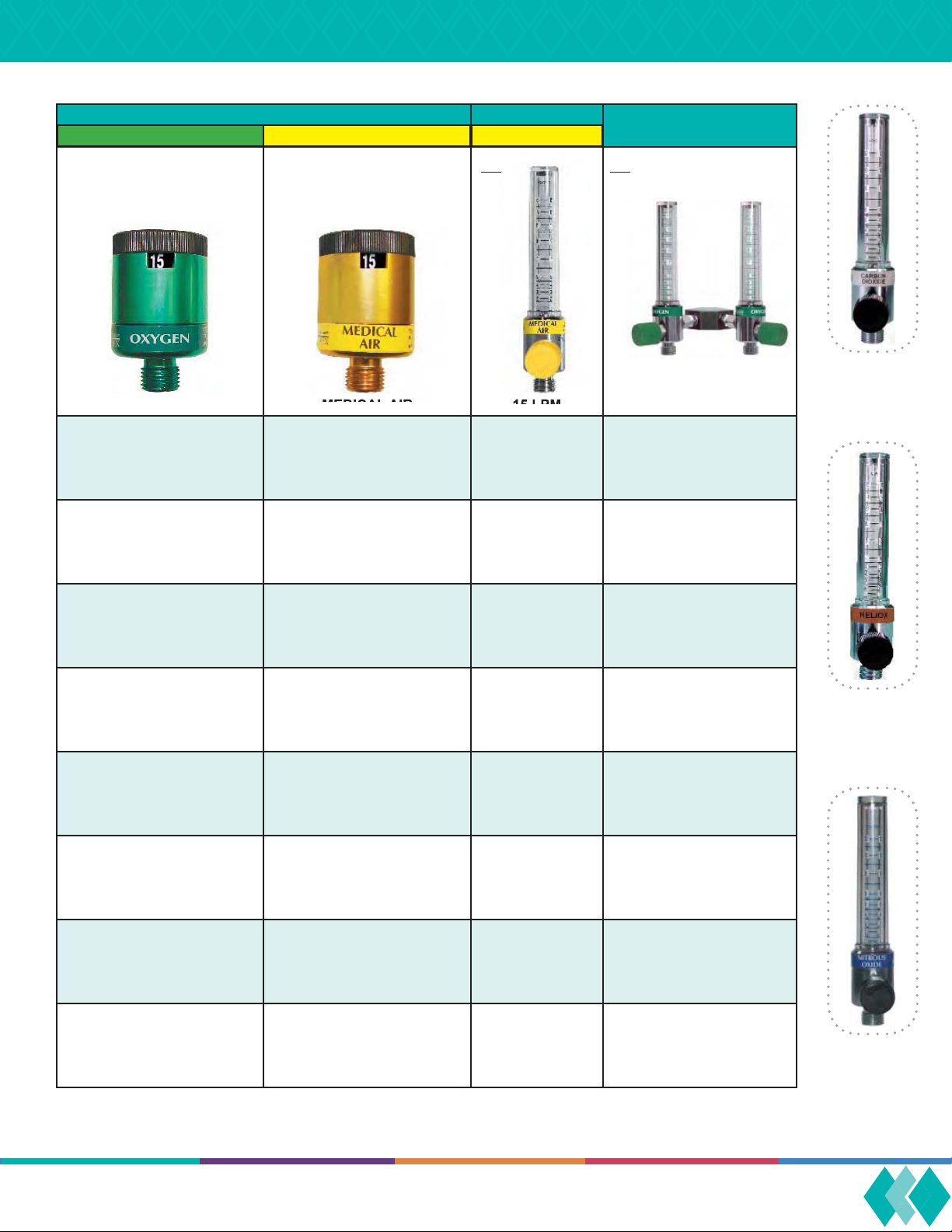

FLOWMETERS
DIAL FLOWMETERS FLOWMETERS
OXYGEN MEDICAL AIR MEDICAL AIR
25 LPM: .5, 1, 2, 3, 4, 5, 6, 8, 10, 15, 25
15 LPM: .5, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15
8 LPM: .5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8,
4 LPM: .03, .06, .12, .25, .5, .75, 1, 1.5, 2, 3, 4
OXYGEN MEDICAL AIR 15 LPM 15 LPM
FM-04UO-F2-D
FM-08UO-F2-D
FM-15UO-F2-D
FM-25UO-F2-D
FM-04UO-DN-D
FM-08UO-DN-D
FM-15UO-DN-D
FM-25UO-DN-D
25 LPM: .5, 1, 2, 3, 4, 5, 6, 8, 10, 15, 25
15 LPM: .5, 1, 2, 3, 4, 5, 6, 8, 10, 12, 15
FM-15UA-F2-D
FM-25UA-F2-D
FM-15UA-DN-D
FM-25UA-DN-D
LPM:
15
14
13
12
11
10
9
8
7
6
5
4.5
4
3.5
3
2.5
2
1.5
1
.5
FM-15UA-F2
FM-15UA-DN
Y BLOCK ASSEMBLY
LPM:
15
14
13
12
11
10
9
8
7
6
5
4.5
4
3.5
3
2.5
2
1.5
1
.5
YB-FM-15UO-F2
YB-FM-15UA-F2
YB-FM-15UO-DN
YB-FM-15UA-DN
CO2
FLOWMETER
FM-12UC-F2
FM-04UO-DH-D
FM-08UO-DH-D
FM-15UO-DH-D
FM-15UA-DH-D
FM-25UA-DH-D
FM-15UA-DH
YB-FM-15UO-DH
YB-FM-15UA-DH
FM-25UO-DH-D
FM-04UO-OH-D
FM-08UO-OH-D
FM-15UO-OH-D
FM-15UA-OH-D
FM-25UA-OH-D
FM-15UA-OH
YB-FM-15UO-OH
YB-FM-15UA-OH
FM-25UO-OH-D
FM-04UO-CH-D
FM-08UO-CH-D
FM-15UO-CH-D
FM-15UA-CH-D
FM-25UA-CH-D
FM-15UA-CH
YB-FM-15UO-CH
YB-FM-15UA-CH
FM-25UO-CH-D
FM-04UO-PB-D
FM-08UO-PB-D
FM-15UO-PB-D
FM-15UA-PB-D
FM-25UA-PB-D
FM-15UA-PB
YB-FM-15UO-PB
YB-FM-15UA-PB
FM-25UO-PB-D
FM-04UO-XQ-D
FM-08UO-XQ-D
FM-15UO-XQ-D
FM-15UA-XQ-D
FM-25UA-XQ-D
FM-15UA-XQ
YB-FM-15UO-XQ
YB-FM-15UA-XQ
FM-25UO-XQ-D
FM-04UO-MS-D
FM-08UO-MS-D
FM-15UO-MS-D
FM-15UA-MS-D
FM-25UA-MS-D
FM-15UA-MS
YB-FM-15UO-MS
YB-FM-15UA-MS
FM-25UO-MS-D
For ISO colors replace the “U” with “I”. For Power Take-Off (excluding Dial style) add “PT” to the end of the
part number. To add a Power Take-Off to a Dial Flowmeter add “PT” before the “-D” Please contact us for other
fl owmeter confi gurations.
HELIOX
FLOWMETER
FM-16UH-F2
N20
FLOWMETER
FM-12U2-F2
www.amvex.com
13
Page 14

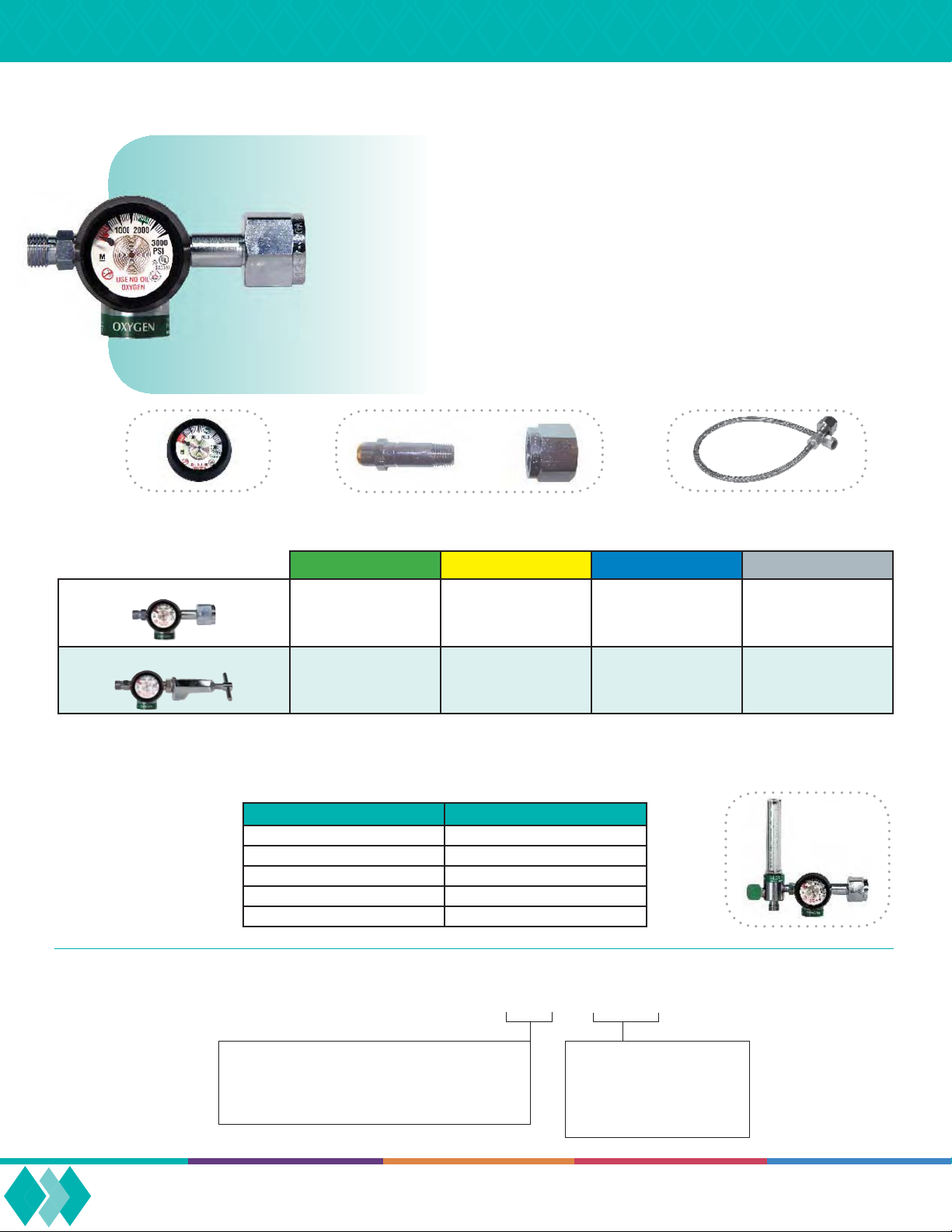

GAS REGULATORS
COMPACT STYLE
• Available with a CGA Nut and Nipple or CGA Yoke Style
GR-540
GAUGES
OR-REG-GAUGE-O
CGA 540 NUT & NIPPLE
CGA 870 YOKE STYLE
• Available in Oxygen, Air, N2O, and CO
2
• Machined brass and available in USA and ISO colors
• Available with standard Thorpe Style fl owmeter options
HIGH PRESSURE CGA NUT AND NIPPLE
CGA-O-NIP CGA-O-NUT
OXYGEN AIR N20 CO
GR-540 GR-346 GR-326 GR-320
GR-870 GR-950 GR-910 GR-940
PIG TAILS
PT-XX-F4F4
2
FLOWMETER OPTIONS:
To add a Flowmeter to a Gas Regulator include the following:
FLOWMETER TYPE ADD PART NUMBER
200 CCM FM200
1 LPM FM01
3.5 LPM FM03
8 LPM FM08
15 LPM FM15
COMPACT GAS REGULATOR CONFIGURATOR:
GR-XXX-(YYYY)
Gas and Connection Type:
Oxy Nut & Nipple: 540 N20 Nut & Nipple: 326
Oxy Yoke Style: 870 N20 Yoke Style: 910
Air Nut & Nipple: 346 C02 Nut & Nipple: 320
Air Yoke Style: 950 C0
Yoke Style: 940
2
CUSTOMIZING EXAMPLE:
GR-540-FM15
Optional Flowmeter:
15 LPM Flowmeter: FM15
8 LPM Flowmeter: FM08
3.5 LPM Flowmeter: FM03
1 LPM Flowmeter: FM01
200 CCM Flowmeter: FM200
14
For more information call 1.866.GO.AMVEX
Page 15

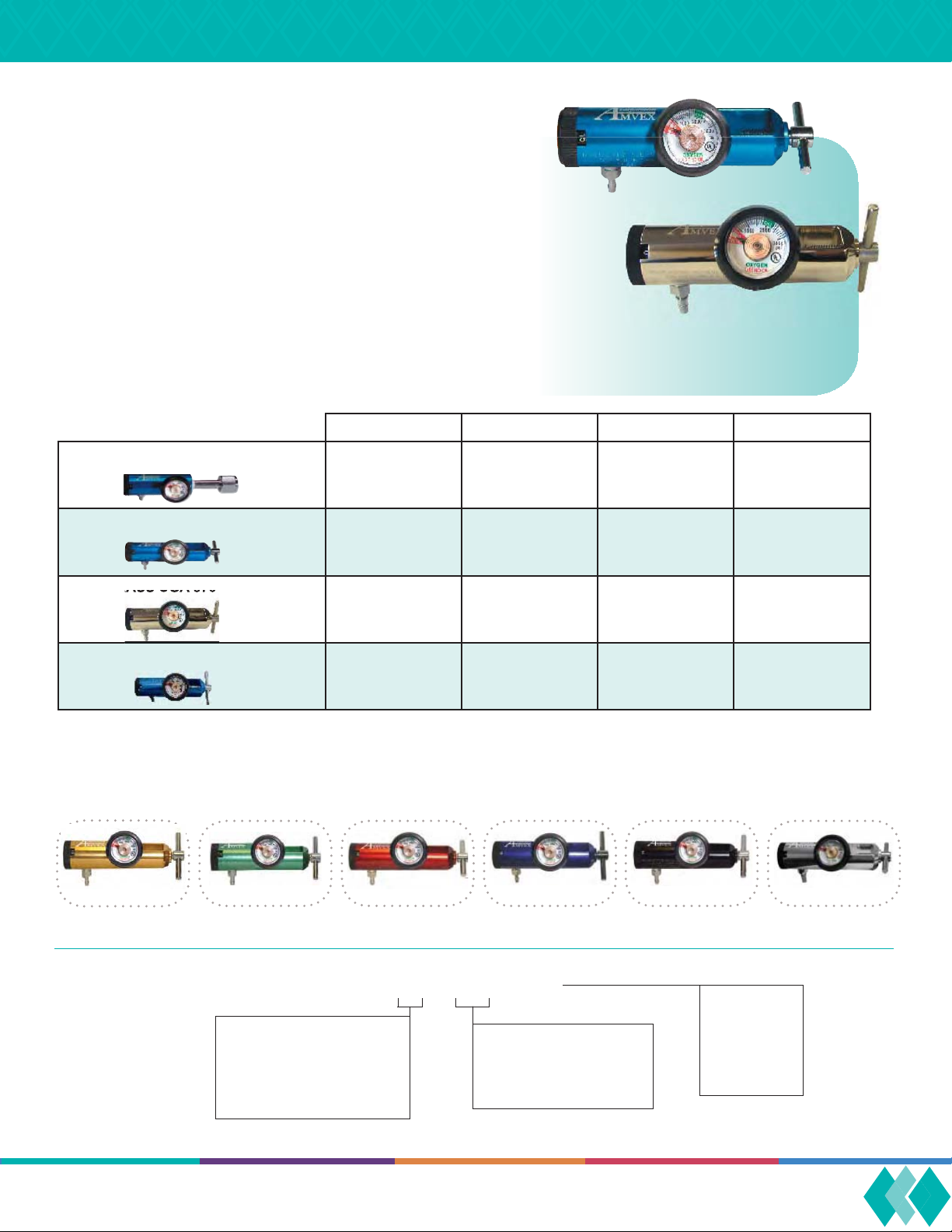

CLICK STYLE
GAS REGULATORS
• Amvex click style is available in 50 PSI Preset
GR4-870
• Available with a CGA Nut and Nipple or CGA Yoke Style
• Nut and Nipple and Yoke style are available in Oxygen only
• Available in a variety of colors (blue is standard)
• Aluminum body with brass core to ensure safety
GRB4-870
(solid brass body is also available)
• Built in Flowmeter available in 0-4 LPM, 0-8 LM, 0-15 LPM, and 0-25 LPM increments
0-4 LPM CLICK 0-8 LPM CLICK 0-15 LPM CLICK 0-25 LPM CLICK
CGA 540 NUT & NIPPLE
GR4-540 GR8-540 GR15-540 GR25-540
CGA 870 YOKE STYLE
GR4-870 GR8-870 GR15-870 GR25-870
ALL BRASS CGA 870 YOKE STYLE
GRB4-870 GRB8-870 GRB15-870 GRB25 -870
MINI CGA 870 YOKE STYLE
GRM4-870 GRM8-870 GRM15-870 GRM25-870
Click style regulators come standard with tubing nipple. For DISS Male add”DM” to the end of the part number.
Please contact us for information on our MRI options.
COLOR OPTIONS:
By adding any of the below suffi xes to the part number, you can order your choice of color.
Gold (Y )
NOTE: Color options are for Aluminum style only
Green (G)
Red (R)
Purple (P)
CLICK STYLE GAS REGULATOR CONFIGURATOR:
GRXX-YYY-(Z)
Gas Regulator Type:
Flow Range (litres per minute)
4 LPM: 04
8 LPM: 08
15 LPM: 15
25 LPM: 25
NOTE: For mini option please add “M” after GR and before “Gas Regulator Type”.
For power take off port add “PT”, for two power take offs add “PT2” at the end of the part number.
Connection Type:
CGA YOKE: 870
CGA NUT & NIPPLE: 540
BULL NOSE OXY: BNO
BULL NOSE AIR: BNA
Black (K)
Optional Colors:
Purple: P
Green: G
Gold: Y
Red: R
Black: B
Silver: S
* Blue is standard
Silver (S)
www.amvex.com
15
Page 16

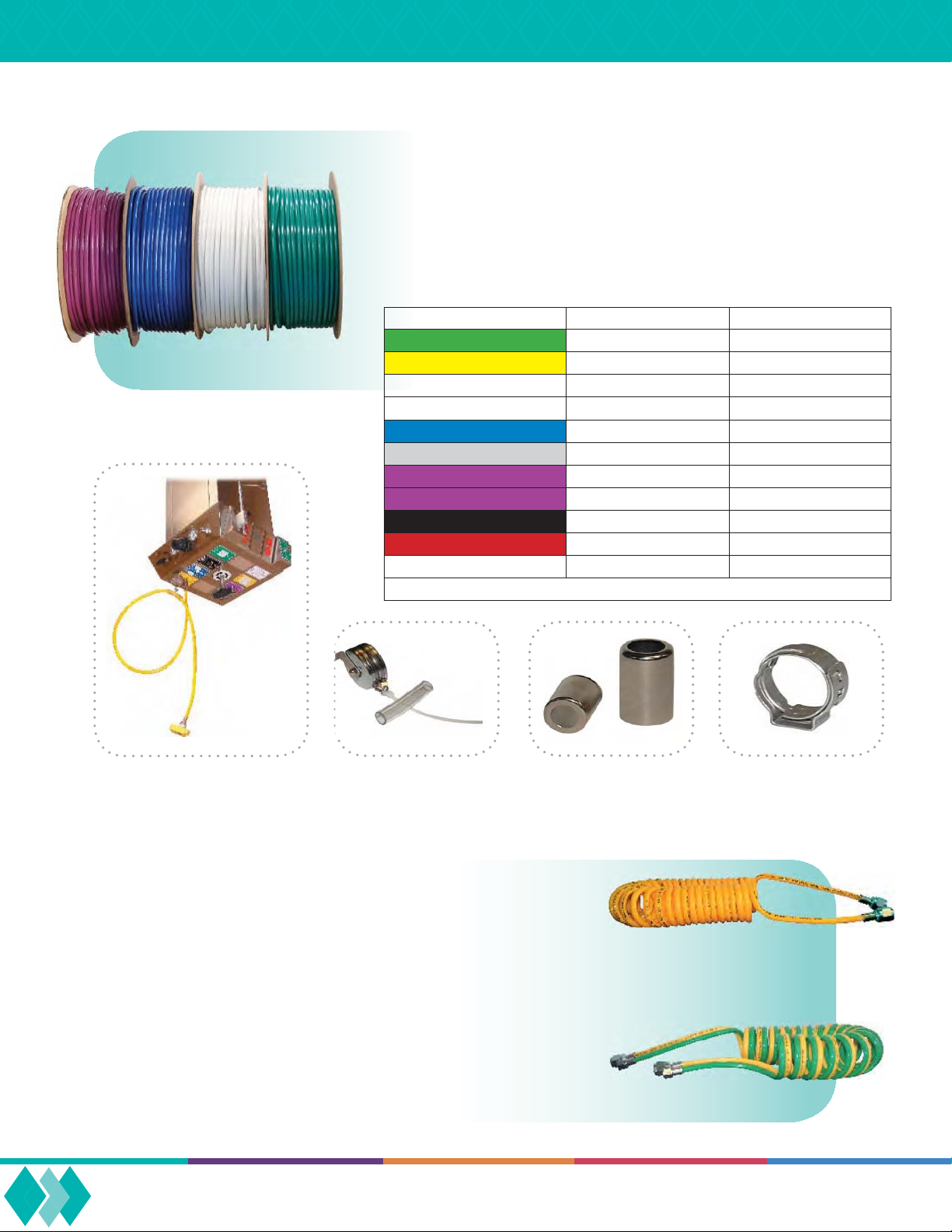

HOSES
BULK HOSE
• Available in custom lengths and confi gurations
• Available in a variety of gases
• Available in USA and ISO colors
GAS CONDUCTIVE NON-CONDUCTIVE
OXYGEN
MEDICAL AIR
VACUUM 1/4”
VACUUM 5/16”
N2O
CO
2
WAGD 1/4”
WAGD 5/16”
NITROGEN
INSTRUMENT AIR
GENERAL PURPOSE
For ISO options, please replace “U” with “I”.
HS-01U-OC4 HS-01U-ON4
HS-01U-AC4 HS-01U-AN4
HS-01U-VC4 HS-01U-VN4
HS-01U-VC5 N/A
HS-01U-2C4 HS-01U-2N4
HS-01U-CC4 N/A
HS-01U-WC4 N/A
N/A HS-01U-WN5
HS-01U-NC4 HS-01U-NN4
HS-01U-IC4 N/A
NA HS-01U-GN4
16
DROP HOSE
HOSE RETRACTOR
HS-RET-HD
SPIRAL HOSE
• Single, double, triple, and quadruple hoses available
• Spiral hoses are available in a variety of gases
• 3 ft coiled hose expands to 10 ft working length
• Standard working lengths: 10 ft, 15 ft and 20
For more information call 1.866.GO.AMVEX
FERRULE FOR 1/4” HOSE/
FERRULE FOR 5/16” HOSE
HS-FER-75 / HS-FER-VAC
SINGLE SPIRAL HOSE ASSEMBLY
DOUBLE SPIRAL HOSE ASSEMBLY
HOSE CLAMP
FOR 1/4” HOSE
HS-CLAMP
Page 17

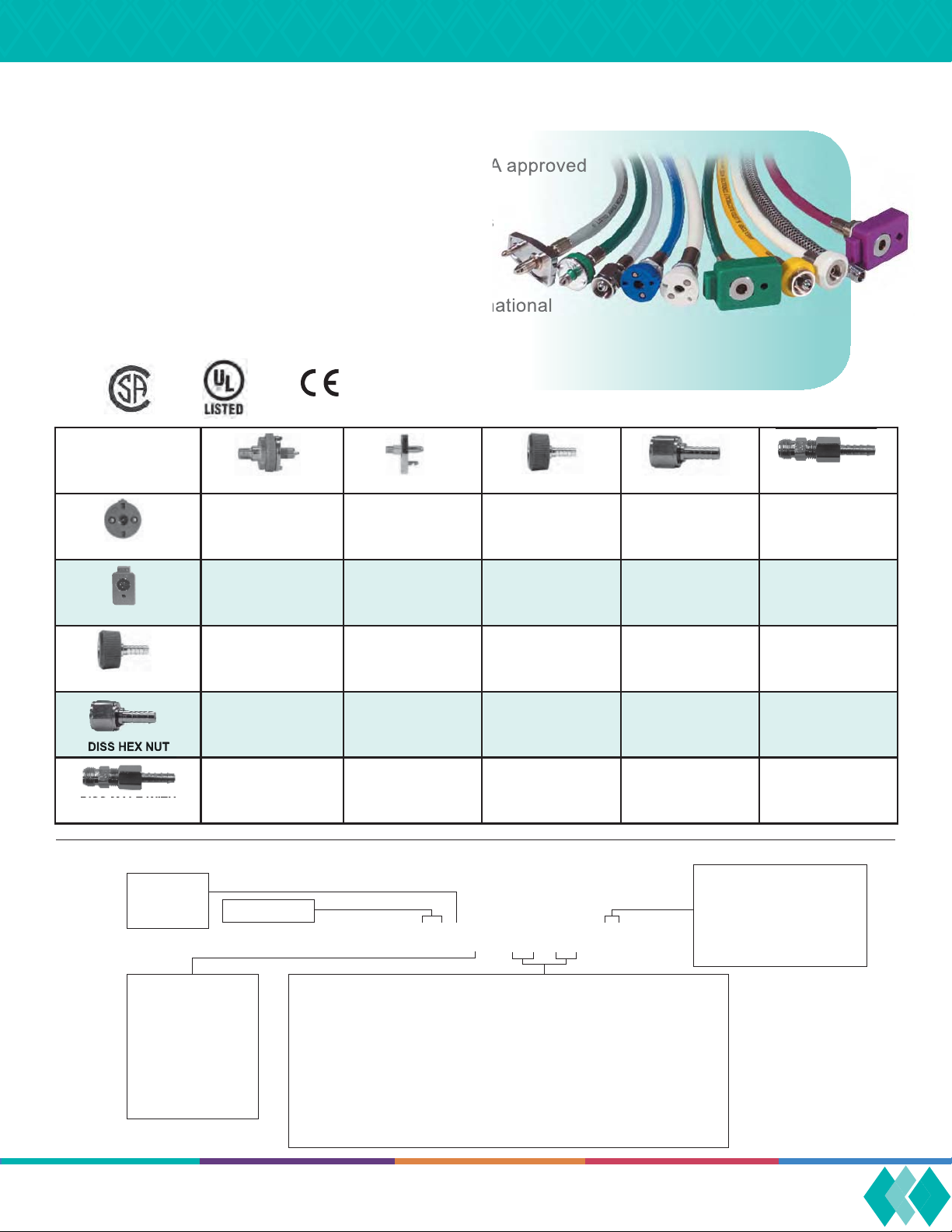

HOSE ASSEMBLIES
• The only offi cial UL listed, CE marked and CSA approved
medical hose assemblies in the industry
• Available in custom lengths and confi gurations
• Available in a variety of gases
• Available in USA and ISO colors
• Hose assemblies are also available with international
fi ttings (NIST, BS, etc.)
Please contact us
for information on
our MRI options.
OHMEDA ADAPTER CHEMETRON ADAPTER DISS HANDTIGHT DISS HEX NUT
HOSES
DISS MALE WITH
DEMAND CHECK
HS-XXYZ-OFOMC4 HS-XXYZ-OFCMC4 HS-XXYZ-DHOFC4 HS-XXYZ-DFOFC4 HS-XXYZ-OFDCC4
OHMEDA COUPLER
HS-XXYZ-CFOMC4 HS-XXYZ-CFCMC4 HS-XXYZ-DHCFC4 HS-XXYZ-DFCFC4 HS-XXYZ-CFDCC4
CHEMETRON COUPLER
HS-XXYZ-DHOMC4 HS-XXYZ-DHCMC4 HS-XXYZ-DHDHC4 HS-XXYZ-DHDFC4 HS-XXYZ-DHDCC4
DISS HANDTIGHT
HS-XXYZ-DFOMC4 HS-XXYZ-DFCMC4 HS-XXYZ-DHDFC4 HS-XXYZ-DFDFC4 HS-XXYZ-DFDCC4
DISS HEX NUT
DISS MALE WITH
DEMAND CHECK
HS-XXYZ-DCOMC4 HS-XXYZ-DCCMC4 HS-XXYZ-DHDCC4 HS-XXYZ-DFDCC4 HS-XXYZ-DCDCC4
HOSE CONFIGURATOR:
Color Code:
USA: U
ISO: I
Length in feet
HS-XXYZ-XXYYXX
Hose Type:
Conductive 1/4”: C4
Conductive 5/16”: C5
Non-Conductive 1/4”: N4
Non-Conductive 5/16”: N5
General Purpose: G4
Gas Type:
Oxygen: O
Medical Air: A
Medical Vacuum: V
N2O: 2
Nitrogen: N
WAGD: W
CO2: C
Instrument Air: I
Inlet Connections:
DISS Hex Nut:
DISS Handtight:
DISS Male with Demand Check:
DISS Male with no Demand Check:
1/4” MNPT:
1/8” MNPT:
1/4” FNPT:
1/8” FNPT:
Ohmeda Female:
Ohmeda Male:
Outlet Connections:
Chemetron Female: CF
DF
Chemetron Male: CM
DH
Schrader Female: SF
DC
Schrader Male: SM
DM
Puritan Female: PF
M4
Puritan Male: PM
M2
Oxequip Male: XM
F4
Medstar Male: MM
F2
Medstar Female: MF
OF
Blank: XX
OM
www.amvex.com
17
Page 18

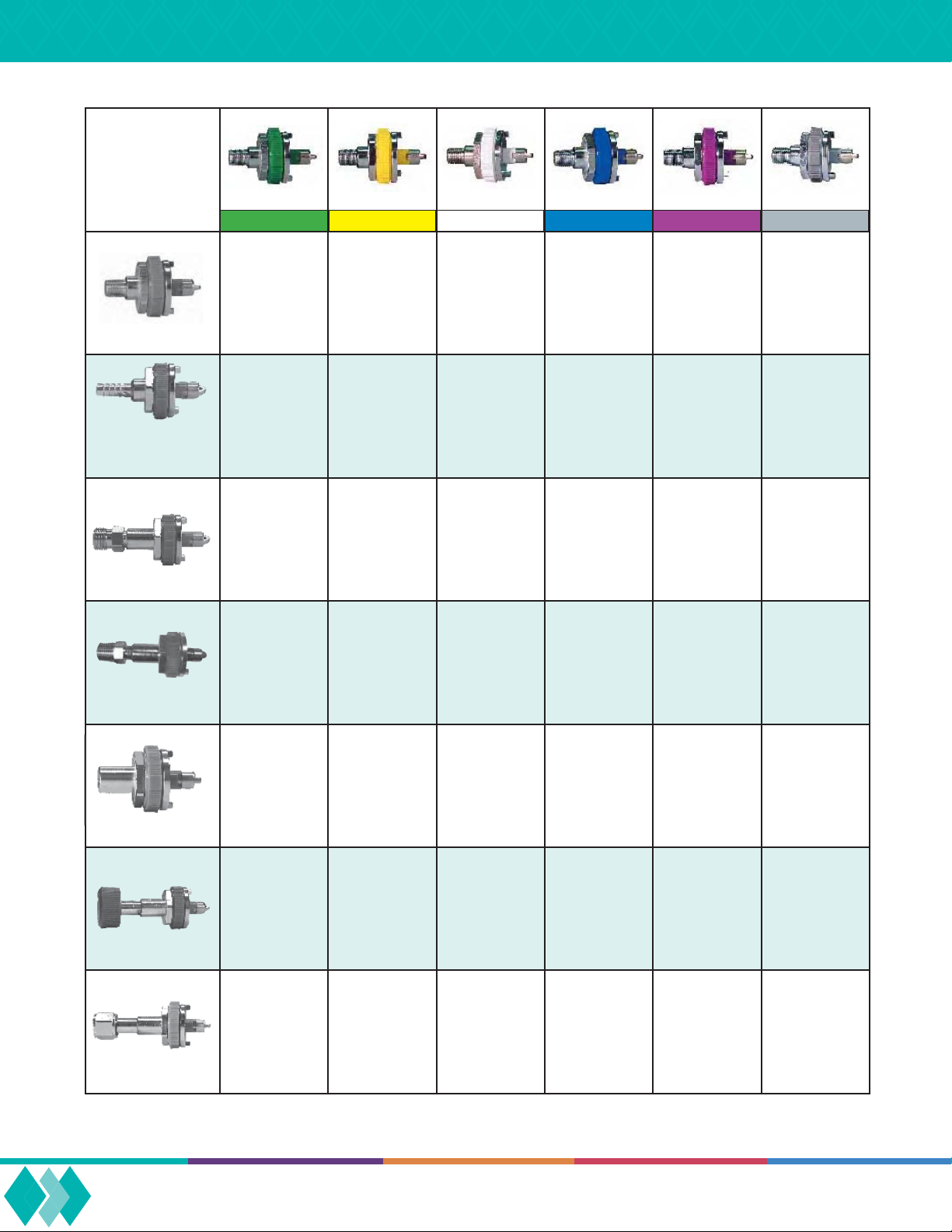

OHMEDA ADAPTERS
Please contact us
for information on
our MRI options.
1/8” NPT MALE
1/4” HOSE BARB
5/16” HOSE BARB
DISS MALE
OXYGEN
AD-OHUO-M2 AD-OHUA-M2 AD-OHUV-M2 AD-OHU2-M2 AD-OHUW-M2 AD-OHUC-M2
AD-OHUO-HB4 AD-OHUA-HB4
AD-OHUO-DM AD-OHUA-DM AD-OHUV-DM AD-OHU2-DM AD-OHUW-DM AD-OHUC-DM
AD-OHUO-M4 AD-OHUA-M4 AD-OHUV-M4 AD-OHU2-M4 AD-OHUW-M4 AD-OHUC-M4
MEDICAL AIR
VACUUM N2O
AD-OHUV-HB4
AD-OHUV-HB5
AD-OHU2-HB4
WAGD
AD-OHUW-HB4
AD-OHUW-HB5
CO
2
AD-OHUC-HB4
1/4” NPT MALE
AD-OHUO-F2 AD-OHUA-F2 AD-OHUV-F2 AD-OHU2-F2 AD-OHUW-F2 AD-OHUC-F2
1/8” NPT FEMALE
AD-OHUO-DH AD-OHUA-DH AD-OHUV-DH AD-OHU2-DH AD-OHUW-DH AD-OHUC-DH
DISS HANDTIGHT
AD-OHUO-DN AD-OHUA-DN AD-OHUV-DN AD-OHU2-DN AD-OHUW-DN AD-OHUC-DN
DISS NUT &
NIPPLE
For ISO colors, replace the “U” with “I”.
18
For more information call 1.866.GO.AMVEX
Page 19
Please contact us
for information on
our MRI options.

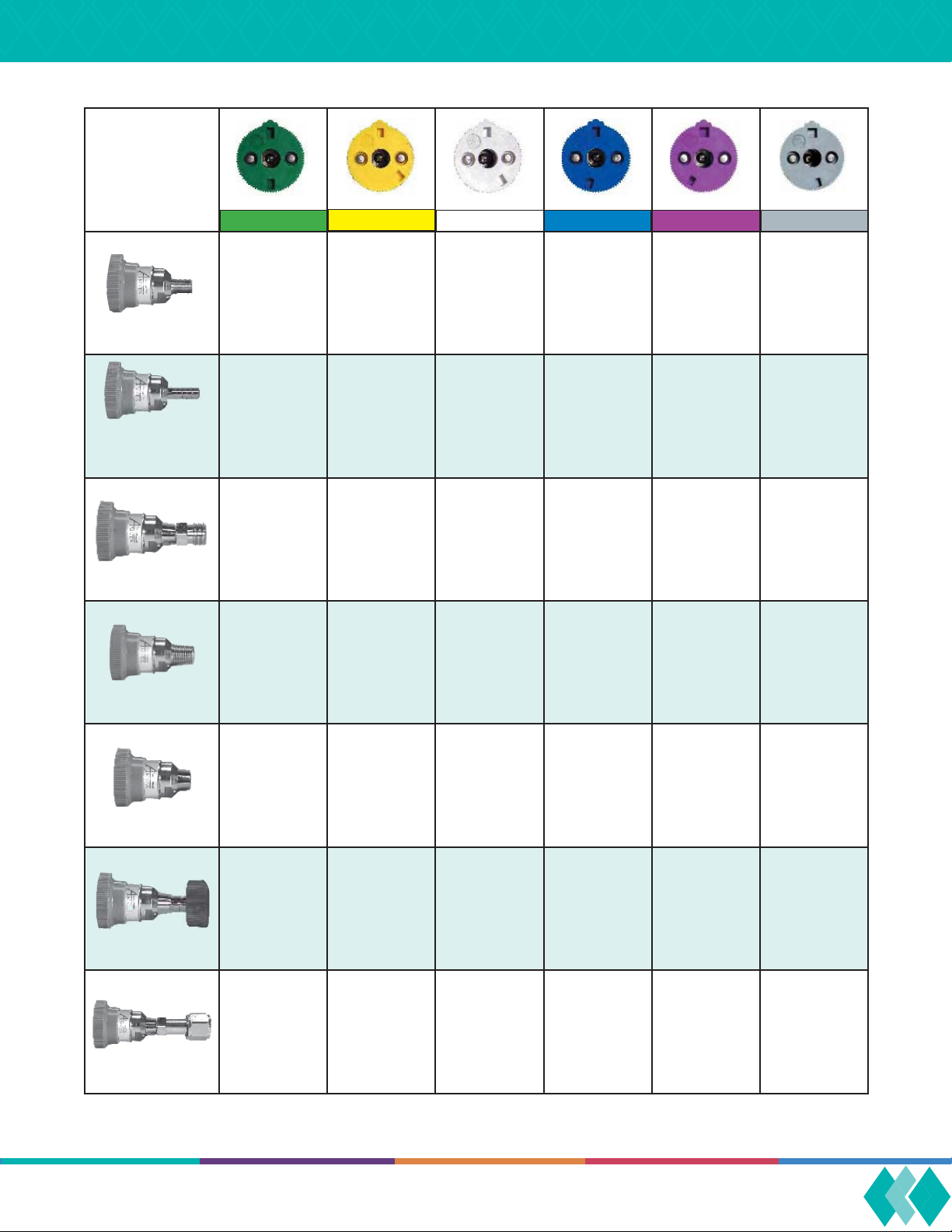

OHMEDA COUPLERS
1/8” NPT MALE
1/4” HOSE BARB
5/16” HOSE BARB
DISS MALE
OXYGEN
CO-OHUO-M2 CO-OHUA-M2 CO-OHUV-M2 CO-OHU2-M2 CO-OHUW-M2 CO-OHUC-M2
CO-OHUO-HB4 CO-OHUA-HB4
CO-OHUO-DM CO-OHUA-DM CO-OHUV-DM CO-OHU2-DM CO-OHUW-DM CO-OHUC-DM
CO-OHUO-M4 CO-OHUA-M4 CO-OHUV-M4 CO-OHU2-M4 CO-OHUW-M4 CO-OHUC-M4
MEDICAL AIR
VACUUM N2O
CO-OHUV-HB4
CO-OHUV-HB5
CO-OHU2-HB4
WAGD
CO-OHUW-HB4
CO-OHUW-HB5
CO
2
CO-OHUC-HB4
1/4” NPT MALE
CO-OHUO-F2 CO-OHUA-F2 CO-OHUV-F2 CO-OHU2-F2 CO-OHUW-F2 CO-OHUC-F2
1/8” NPT FEMALE
CO-OHUO-DH CO-OHUA-DH CO-OHUV-DH CO-OHU2-DH CO-OHUW-DH CO-OHUC-DH
DISS HANDTIGHT
CO-OHUO-DN CO-OHUA-DN CO-OHUV-DN CO-OHU2-DN CO-OHUW-DN CO-OHUC-DN
DISS NUT &
NIPPLE
For ISO colors, replace the “U” with “I”.
www.amvex.com
19
Page 20

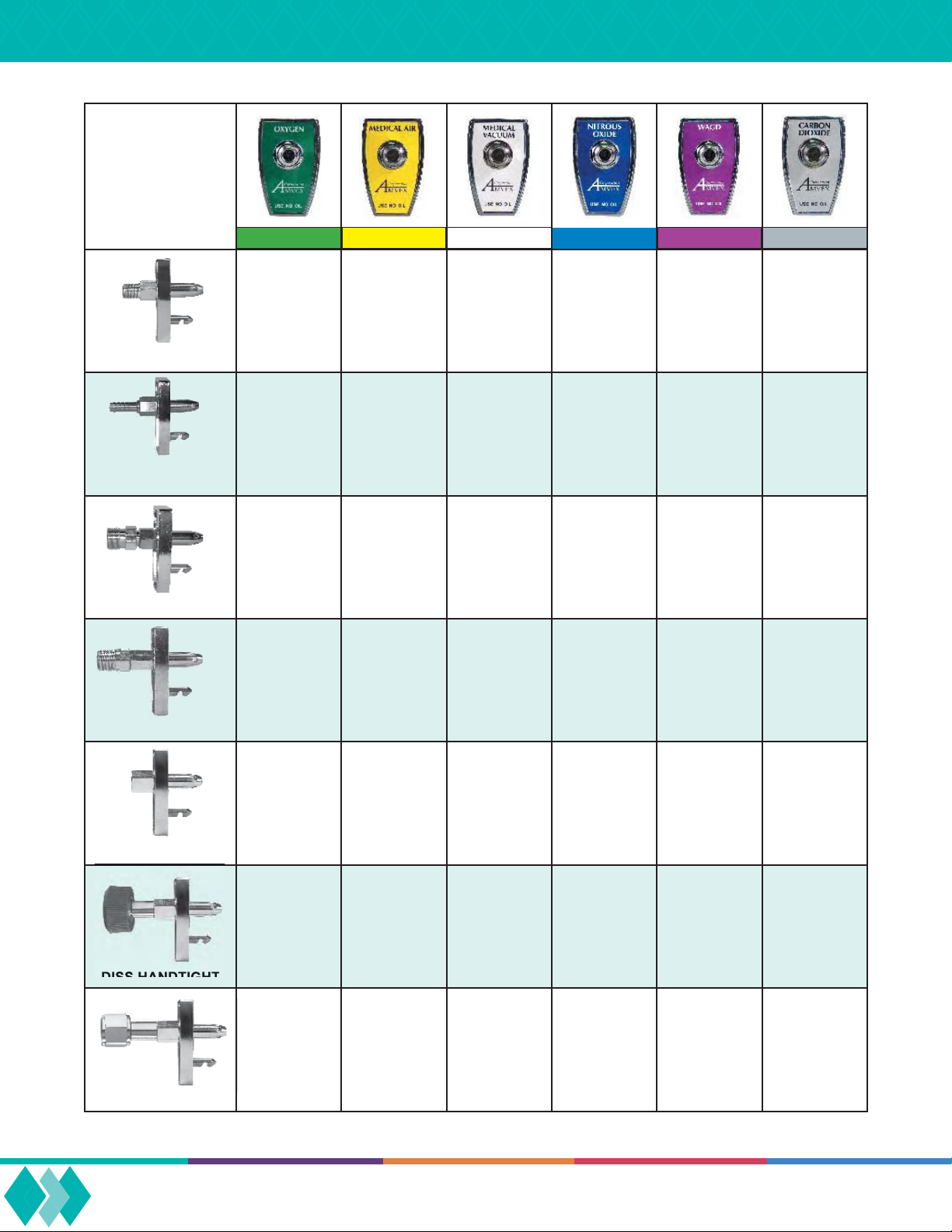

CHEMETRON ADAPTERS
Please contact us for
information on our
MRI options.
1/8” NPT MALE
1/4” HOSE BARB
5/16” HOSE BARB
DISS MALE
OXYGEN
AD-CHUO-M2 AD-CHUA-M2 AD-CHUV-M2 AD-CHU2-M2 AD-CHUW-M2 AD-CHUC-M2
AD-CHUO-HB4 AD-CHUA-HB4
AD-CHUO-DM AD-CHUA-DM AD-CHUV-DM AD-CHU2-DM AD-CHUW-DM AD-CHUC-DM
AD-CHUO-M4 AD-CHUA-M4 AD-CHUV-M4 AD-CHU2-M4 AD-CHUW-M4 AD-CHUC-M4
MEDICAL AIR
VACUUM N2O
AD-CHUV-HB4
AD-CHUV-HB5
AD-CHU2-HB4
WAGD
AD-CHUW-HB4
AD-CHUW-HB5
CO
2
AD-CHUC-HB4
1/4” NPT MALE
AD-CHUO-F2 AD-CHUA-F2 AD-CHUV-F2 AD-CHU2-F2 AD-CHUW-F2 AD-CHUC-F2
1/8” NPT FEMALE
AD-CHUO-DH AD-CHUA-DH AD-CHUV-DH AD-CHU2-DH AD-CHUW-DH AD-CHUC-DH
DISS HANDTIGHT
AD-CHUO-DN AD-CHUA-DN AD-CHUV-DN AD-CHU2-DN AD-CHUW-DN AD-CHUC-DN
DISS NUT & NIPPLE
For ISO colors, replace the “U” with “I”.
20
For more information call 1.866.GO.AMVEX
Page 21
Please contact us for
information on our
MRI options.

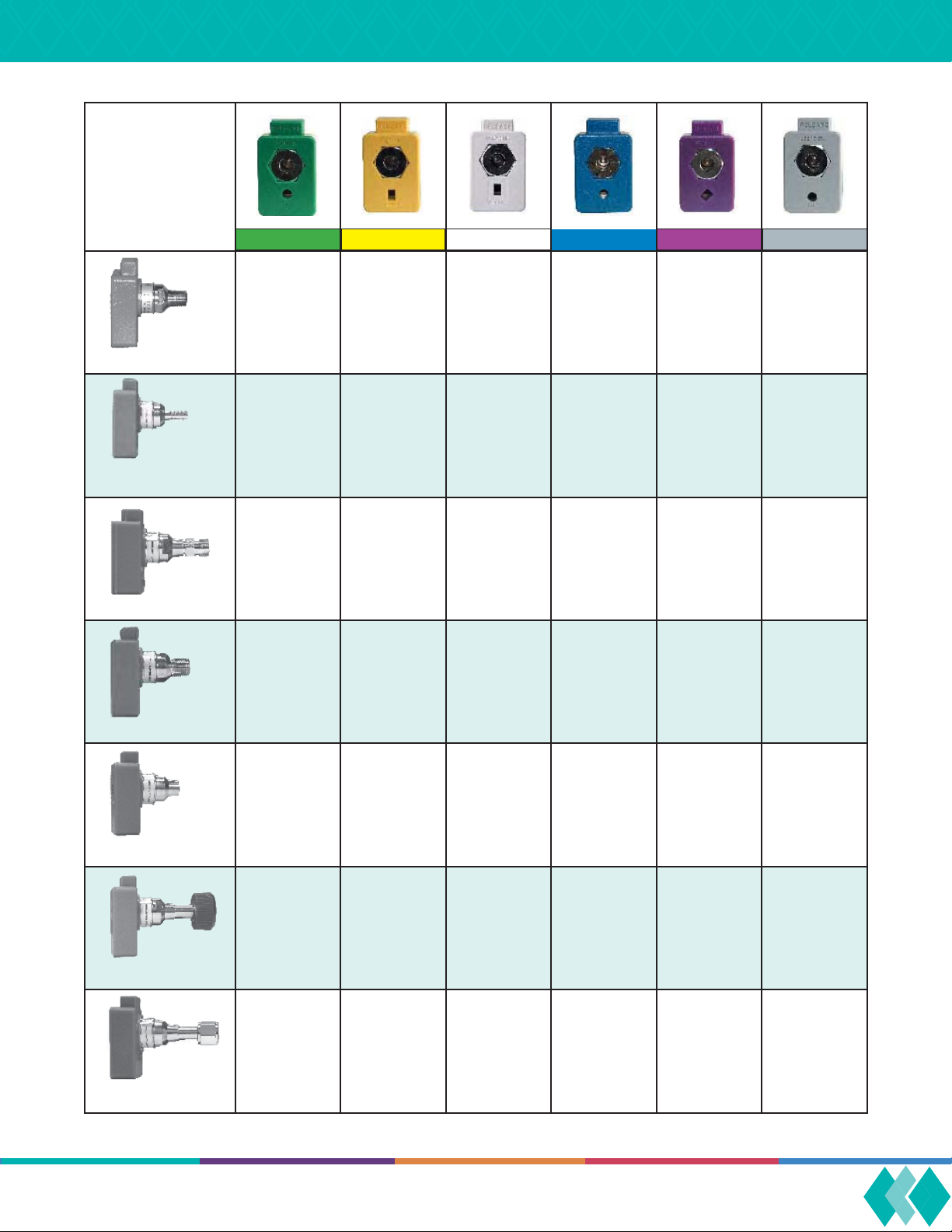

CHEMETRON COUPLERS
1/8” NPT MALE
1/4” HOSE BARB
5/16” HOSE BARB
DISS MALE
OXYGEN
CO-CHUO-M2 CO-CHUA-M2 CO-CHUV-M2 CO-CHU2-M2 CO-CHUW-M2 CO-CHUC-M2
CO-CHUO-HB4 CO-CHUA-HB4
CO-CHUO-DM CO-CHUA-DM CO-CHUV-DM CO-CHU2-DM CO-CHUW-DM CO-CHUC-DM
CO-CHUO-M4 CO-CHUA-M4 CO-CHUV-M4 CO-CHU2-M4 CO-CHUW-M4 CO-CHUC-M4
MEDICAL AIR
VACUUM
CO-CHUV-HB4
CO-CHUV-HB5
N2O
CO-CHU2-HB4
WAGD
CO-CHUW-HB4
CO-CHUW-HB5
CO
2
CO-CHUC-HB4
1/4” NPT MALE
CO-CHUO-F2 CO-CHUA-F2 CO-CHUV-F2 CO-CHU2-F2 CO-CHUW-F2 CO-CHUC-F2
1/8” NPT FEMALE
CO-CHUO-DH CO-CHUA-DH CO-CHUV-DH CO-CHU2-DH CO-CHUW-DH CO-CHUC-DH
DISS HANDTIGHT
CO-CHUO-DN CO-CHUA-DN CO-CHUV-DN CO-CHU2-DN CO-CHUW-DN CO-CHUC-DN
DISS NUT & NIPPLE
For ISO colors, replace the “U” with “I”.
www.amvex.com
21
Page 22

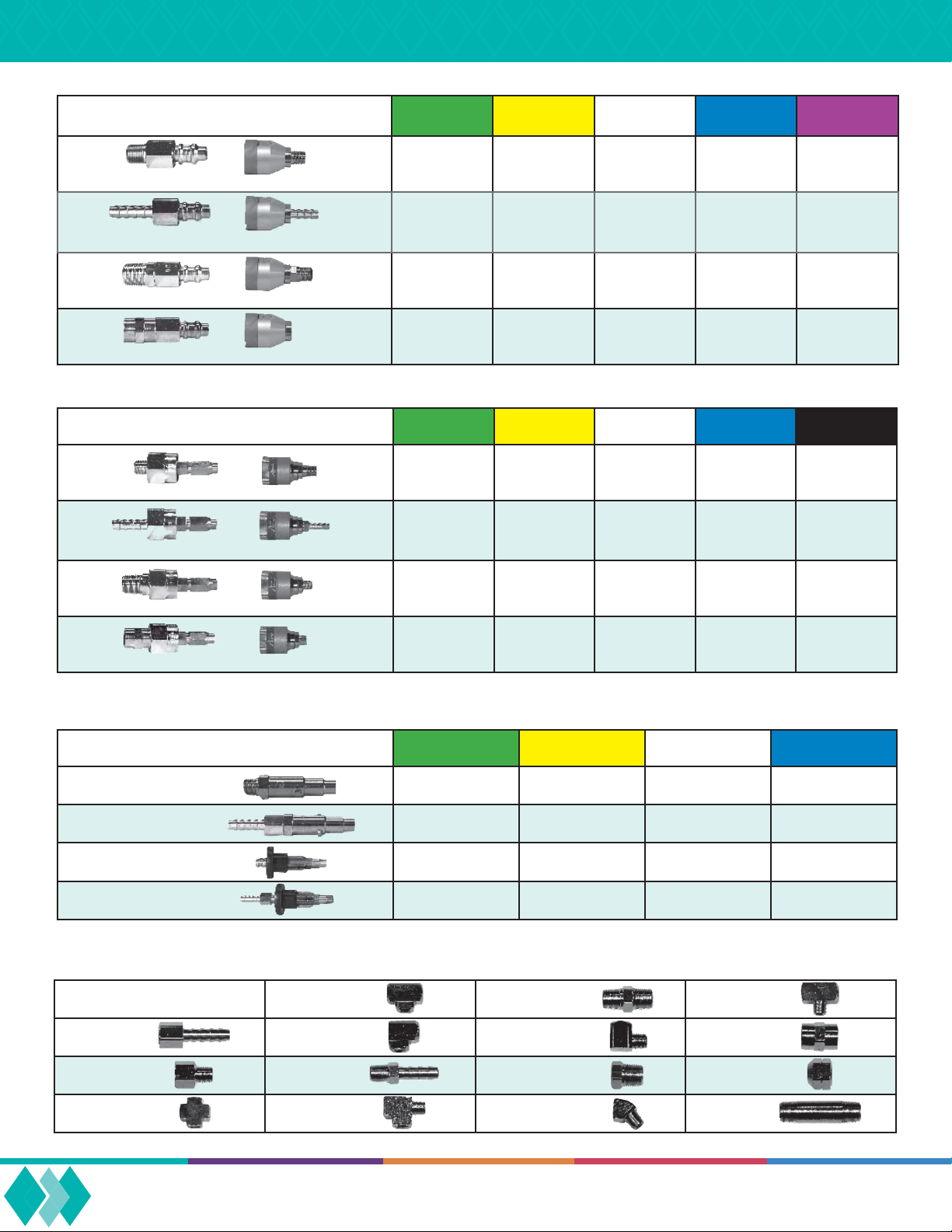

ADAPTERS & COUPLERS
PURITAN BENNETT ADAPTERS & COUPLERS
Please contact us for information
on our MRI options.
OXYGEN AIR VACUUM N2O WAGD
AD-PBUO-M2
1/8” NPT MALE
1/4” HOSE BARB AND 5/16” HOSE BARB
1/4” NPT MALE
1/8” NPT FEMALE
CO-PBUO-M2
AD-PBUO-HB4
CO-PBUO-HB4
AD-PBUO-M4
CO-PBUO-M4
AD-PBUO-F2
CO-PBUO-F2
SCHRADER ADAPTERS & COUPLERS
Please contact us for information
on our MRI options.
1/8” NPT MALE
1/4” HOSE BARB AND 5/16” HOSE BARB
1/4” NPT MALE
OXYGEN AIR VACUUM N2O NITROGEN
AD-SHUO-M2
CO-SHUO-M2
AD-SHUO-HB4
CO-SHUO-HB4
AD-SHUO-M4
CO-SHUO-M4
AD-PBUA-M2
CO-PBUA-M2
AD-PBUA-HB4
CO-PBUA-HB4
AD-PBUA-M4
CO-PBUA-M4
AD-PBUA-F2
CO-PBUA-F2
AD-SHUA-M2
CO-SHUA-M2
AD-SHUA-HB4
CO-SHUA-HB4
AD-SHUA-M4
CO-SHUA-M4
AD-PBUV-M2
CO-PBUV-M2
AD-PBUV-HB4
AD-PBUV-HB5
CO-PBUV-HB4
CO-PBUV-HB5
AD-PBUV-M4
CO-PBUV-M4
AD-PBUV-F2
CO-PBUV-F2
AD-SHUV-M2
CO-SHUV-M2
AD-SHUV-HB4
AD-SHUV-HB5
CO-SHUV-HB4
CO-SHUV-HB5
AD-SHUV-M4
CO-SHUV-M4
AD-PBU2-M2
CO-PBU2-M2
AD-PBU2-HB4
CO-PBU2-HB4
AD-PBU2-M4
CO-PBU2-M4
AD-PBU2-F2
CO-PBU2-F2
AD-SHU2-M2
CO-SHU2-M2
AD-SHU2-HB4
CO-SHU2-HB4
AD-SHU2-M4
CO-SHU2-M4
AD-PBUW-M2
CO-PBUW-M2
AD-PBUW-HB4
AD-PBUW-HB5
CO-PBUW-HB4
CO-PBUW-HB5
AD-PBUW-M4
CO-PBUW-M4
AD-PBUW-F2
CO-PBUW-F2
AD-SHUN-M2
CO-SHUN-M2
AD-SHUN-HB4
CO-SHUN-HB4
AD-SHUN-M4
CO-SHUN-M4
1/8” NPT FEMALE
AD-SHUO-F2
CO-SHUO-F2
AD-SHUA-F2
CO-SHUA-F2
AD-SHUV-F2
CO-SHUV-F2
AD-SHU2-F2
CO-SHU2-F2
AD-SHUN-F2
CO-SHUN-F2
For ISO colors, replace the “U” with “I”. For swivel options on the adapter, add “S” to the end of the part number.
OXEQUIP & MEDSTAR ADAPTERS
Please contact us for information
on our MRI options.
1/8” NPT MALE OXEQUIP AD-XQUO-M2 AD-XQUA-M2 AD-XQUV-M2 AD-XQU2-M2
1/4” HOSE BARB OXEQUIP
5/16” HOSE BARB OXEQUIP
1/8” NPT MALE MEDSTAR AD-MSUO-M2 AD-MSUA-M2 AD-MSUV-M2 AD-MSU2-M2
1/4” HOSE BARB MEDSTAR
5/16” HOSE BARB MEDSTAR
For ISO colors, replace the “U” with “I”. Please contact us for additional options on our Medstar couplers.
OXYGEN AIR VACUUM N2O
AD-XQUO-HB4 AD-XQUA-HB4
AD-MSUO-HB4 AD-MSUA-HB4
AD-XQUV-HB4
AD-XQUV-HB5
AD-MSUV-HB4
AD-MSUV-HB5
AD-XQU2-HB4
AD-MSU2-HB4
NPT FITTINGS
Brass fi ttings available FEMALE TEE HEX NIPPLE PIPE TEE
HOSE BARB
FEMALE
CONNECTOR
FEMALE
CROSS
90 DEGREE
ELBOW
HOSE BARB
MALE
STREET TEE
90 DEGREE
STREET ELBOW
COUPLER
PLUG CAP
45 DEGREE
STREET ELBOW
PIPE NIPPLE
22
For more information call 1.866.GO.AMVEX
Page 23
Please contact us
for information
on our MRI
options.
1/8” NPT MALE

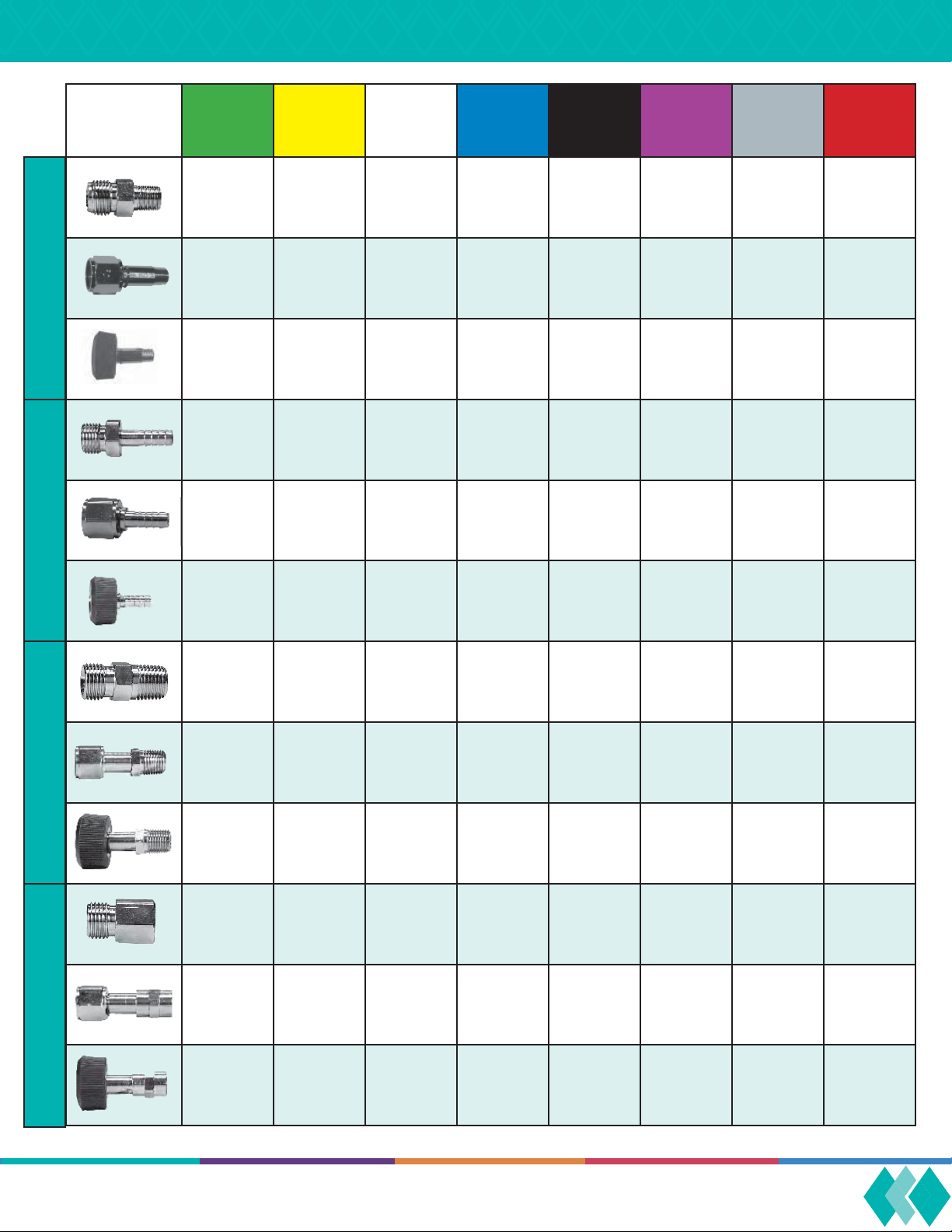

DISS FITTINGS
OXYGEN AIR VACUUM N2O NITROGEN WAGD
BA-O-M2 BA-A-M2 BA-V-M2 BA-2-M2 BA-N-M2 BA-W-M2 BA-C-M2 BA-I-M2
DA-15O-M2-DN DA-15A-M2-DN DA-15V-M2-DN DA-152-M2-DN DA-15N-M2-DN DA-15W-M2-DN DA-15C-M2-DN DA-15I-M2-DN
DA-15UO-M2-DH DA-15UA-M2-DH DA-15UV-M2-DH DA-15U2-M2-DH DA-15UN-M2-DH DA-15UW-M2-DH DA-15UC-M2-DH DA-15UI-M2-DH
CO
2
INSTRUMENT
AIR
1/4” HOSE BARB
5/16” HOSE BARB
1/4” NPT MALE
BA-O-HB4 BA-A-HB4
DA-HB4-O-DN DA-HB4-A-DN
DA-HB4-UO-DH DA-HB4-UA-DH
BA-O-M4
DA-15O-M4-DN DA-15A-M4-DN DA-15V-M4-DN DA-152-M4-DN DA-15N-M4-DN DA-15W-M4-DN DA-15C-M4-DN DA-15I-M4-DN
DA-15UO-M4-DH DA-15UA-M4-DH DA-15UV-M4-DH DA-15U2-M4-DH DA-15UN-M4-DH DA-15UW-M4-DH DA-15UC-M4-DH DA-15UI-M4-DH
BA-A-M4 BA-V-M4 BA-2-M4 BA-N-M4 BA-W-M4 BA-C-M4 BA-I-M4
BA-V-HB4
BA-V-HB5
DA-HB4-V-DN
DA-HB5-V-DN
DA-HB4-UV-DH
DA-HB5-UV-DH
BA-2-HB4 BA-N-HB4
DA-HB4-2-DN DA-HB4-N-DN
DA-HB4-U2-DH DA-HB4-UN-DH
BA-W-HB4
BA-W-HB5
DA-HB4-W-DN
DA-HB5-W-DN
DA-HB4-UW-DH
DA-HB5-UW-DH
BA-C-HB4
DA-HB4-C-DN
DA-HB4-UC-DH
BA-I-HB4
DA-HB4-I-DN
DA-HB4-UI-DH
BA-O-F2 BA-A-F2 BA-V-F2 BA-2-F2 BA-N-F2 BA-W-F2 BA-C-F2 BA-I-F2
DA-15O-F2-DN DA-15A-F2-DN DA-15V-F2-DN DA-152-F2-DN DA-15N-F2-DN DA-15W-F2-DN DA-15C-F2-DN DA-15I-F2-DN
1/8” NPT FEMALE
DA-15UO-F2-DH DA-15UA-F2-DH DA-15UV-F2-DH DA-15U2-F2-DH DA-15UN-F2-DH DA-15UW-F2-DH DA-15UC-F2-DH DA-15UI-F2-DH
For Demand Check options add ‘DC’ to the end of the part number. For ISO colors replace the “U” with “I”.
www.amvex.com
23
Page 24

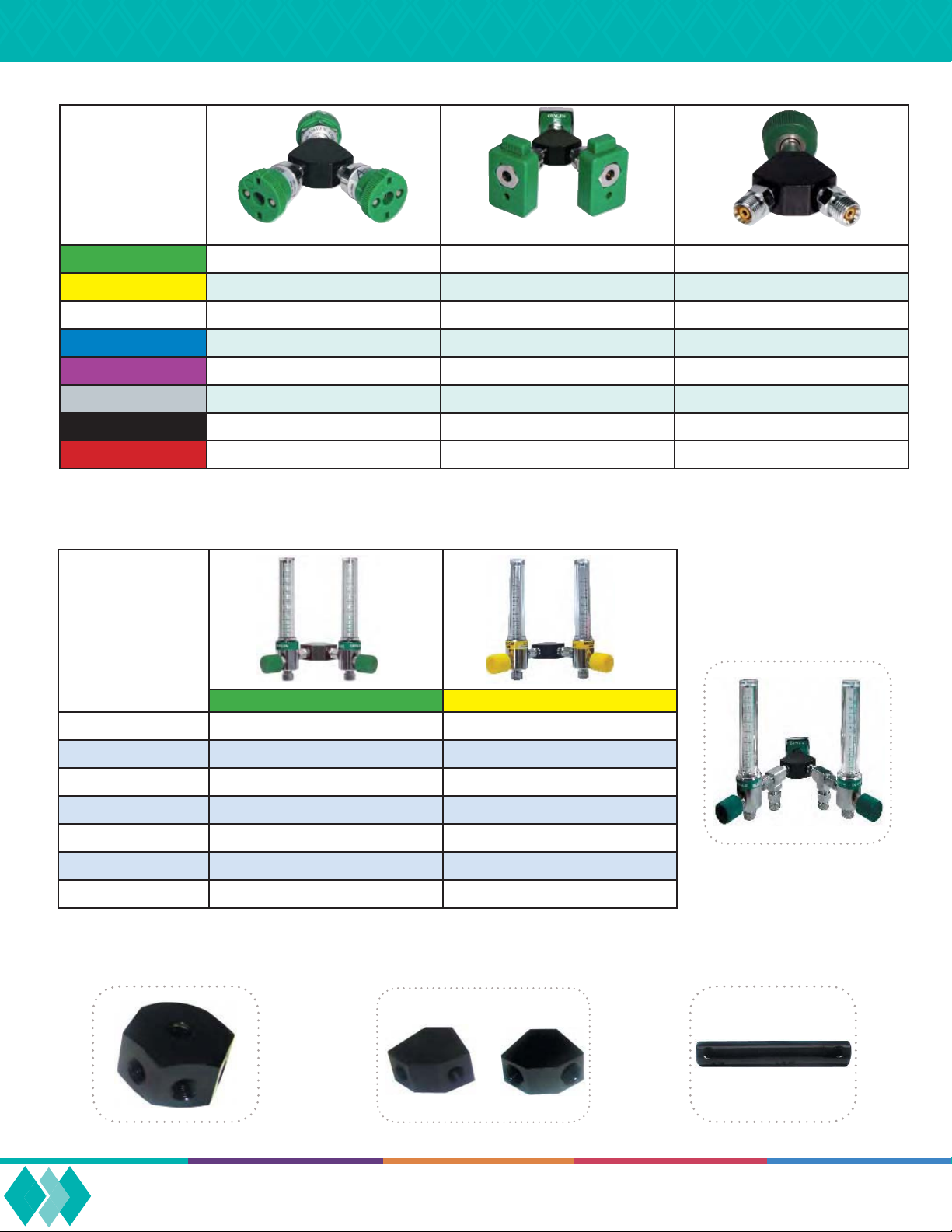

BLOCK ASSEMBLIES
COUPLER ASSEMBLIES
Please contact us
for information on
our MRI options.
OHMEDA CHEMETRON DISS
OXYGEN
YB-CO-OHUO-OH YB-CO-CHUO-CH YB-DM-DCUO-DH
MEDICAL AIR
VACUUM
N2O
WAGD
CO
2
NITROGEN
INSTRUMENT AIR
The above block assemblies come standard with 1/8” FNPT all around. If 1/4” FNPT blocks are required, please add “4” after “YB”, “TB”,
“QB” to any of the above part numbers. For ISO colors replace the “U” with “I”. Please contact us for information on our MRI options.
YB-CO-OHUA-OH YB-CO-CHUA-CH YB-DM-DCUA-DH
YB-CO-OHUV-OH YB-CO-CHUV-CH YB-DM-DCUV-DH
YB-CO-OHU2-OH YB-CO-CHU2-CH YB-DM-DCU2-DH
YB-CO-OHUW-OH YB-CO-CHUW-CH YB-DM-DCUW-DH
YB-CO-OHUC-OH YB-CO-CHUC-CH YB-DM-DCUC-DH
N/A N/A YB-DM-DCUN-DH
N/A N/A YB-DM-DCUI-DH
FLOWMETER ASSEMBLIES
Please contact us for
information on our
MRI options.
PURITAN BENNETT
OXYGEN MEDICAL AIR
YB-FM-15UO-PB YB-FM-15UA-PB
Customizing Example:
24
SCHRADER
OXEQUIP
MEDSTAR
OHMEDA
CHEMETRON
DISS HANDTIGHT
For Power Take-off add “PT”. For customized combinations please contact your Amvex
representative.
QB-F4
YB-FM-15UO-SH YB-FM-15UA-SH
YB-FM-15UO-XQ YB-FM-15UA-XQ
YB-FM-15UO-MS YB-FM-15UA-MS
YB-FM-15UO-OH YB-FM-15UA-OH
YB-FM-15UO-CH YB-FM-15UA-CH
YB-FM-15UO-DH YB-FM-15UA-DH
YB-F2 and YB-F4 TB-F2
For more information call 1.866.GO.AMVEX
YB-FM-15UO-CHPT
T-BLOCKY-BLOCKQUAD BLOCK
Page 25

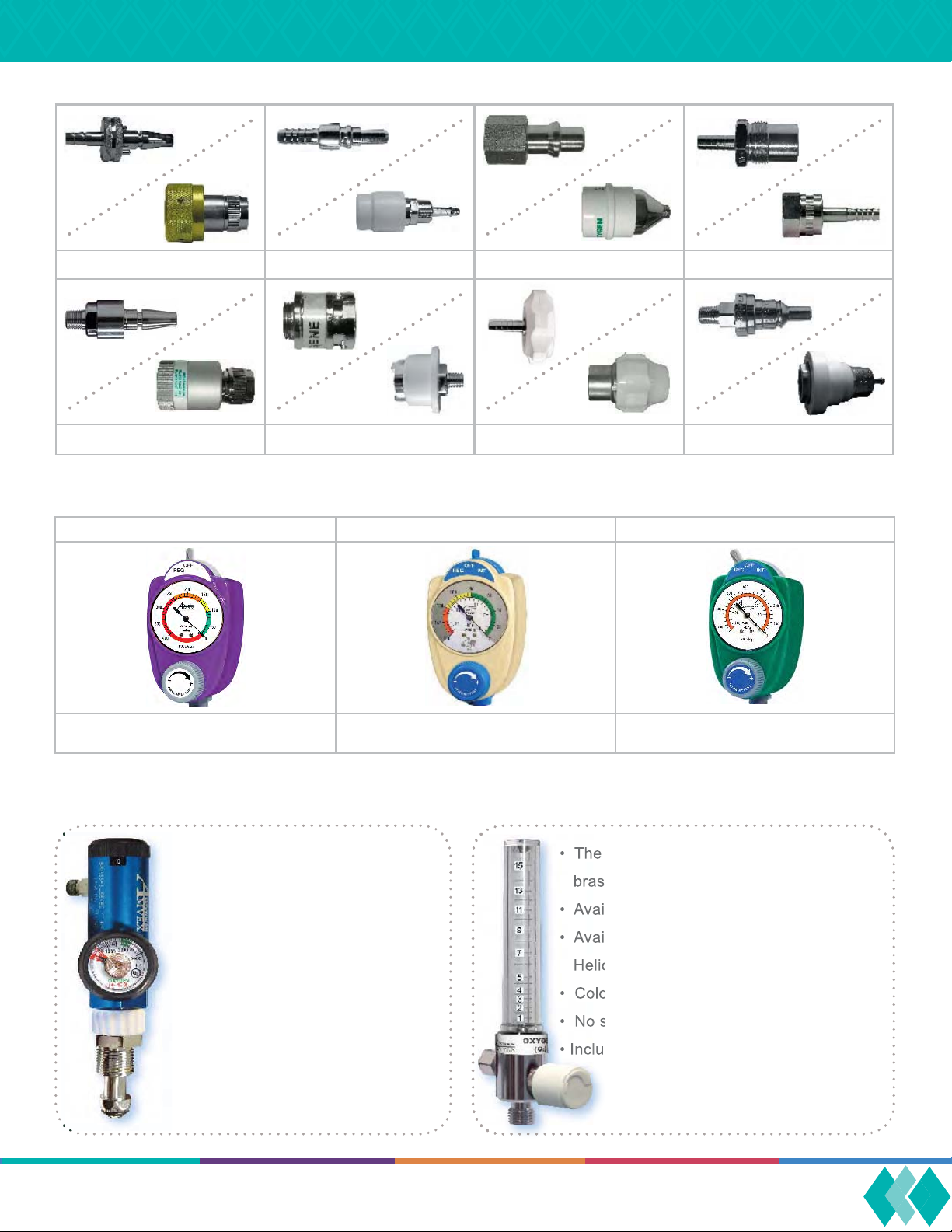

INTERNATIONAL FITTINGS
INTERNATIONAL
JAPANESE/KOREAN SCANDANAVIAN/AGA GERMAN/DIN
BRITISH PROBE/BOC FRENCH/AFNOR AUSTRALIAN/SIS
The above fi ttings are available in all gases. Please contact us for information on our MRI options.
INTERNATIONAL COUNTER CLOCKWISE GAUGES
ANALOG
PEDIATRIC / NEONATAL ANALOG
BRITISH N.I.S.T
ITALIAN/UNIFOR
HIGH ANALOG
ANALOG 300mmHg
VR-AG-300MM
ANALOG 160mmHg / 100mmHg
VR-AG-160MM / VR-AG-100MM
CLICK STYLE GAS REGULATOR
• Available in Oxygen and Air
• Aluminum body with brass core
to ensure safety
• Built in Flowmeter available in
0-4 LPM, 0-8 LPM, 0-15 LPM and
0-25 LPM
• Available in a variety of colors
(blue is standard)
• Power take-off option port available
ANALOG 760mmHg
VR-AG-760MM
THORPE STYLE FLOWMETER
• The smallest and lightest chromed
brass bodied fl owmeter in the industry
• Available in 15, 8, 3.5, 1 LPM and 200 CCM
• Available in Oxygen, Medical Air,
Heliox, CO2 and N20
• Color coded inner tube and labelling
• No strip “D” shape knob
• Includes an inlet fi lter and inlet extension
• Available in 50 or 60 PSI
www.amvex.com
25
Page 26

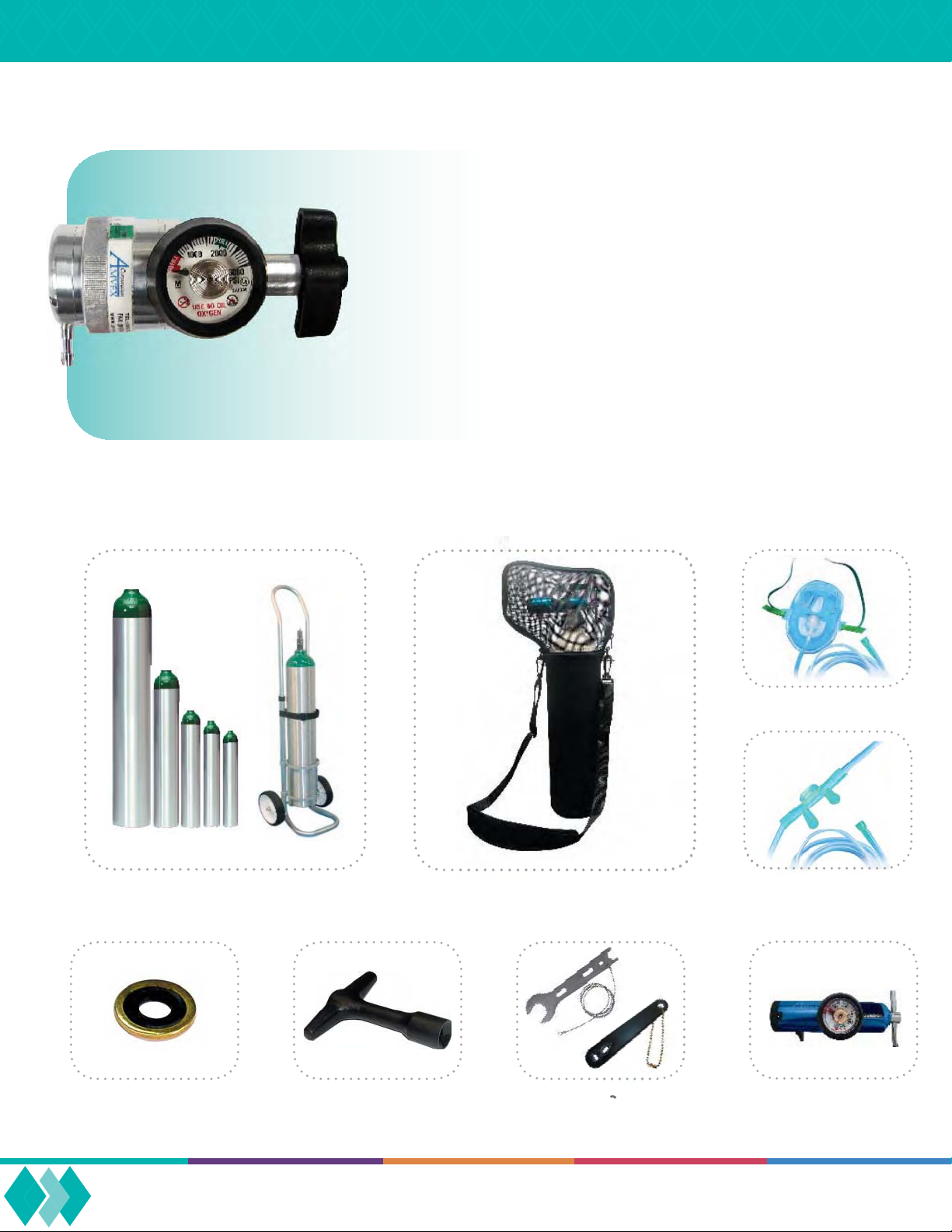

HOMECARE PRODUCTS
OXYGEN CONSERVER
• Single Lumen Pneumatic model
• Quick return on investment
• Promotes a more precise dynamic fl ow
• Quick patient recovery times
• Battery not required
• UL approved contents pressure gauge
• Conserving mode offers six different fl ow settings
SINGLE: GR-OC1P-870
• Continuous fl ow runs at 2 LPM
FDA approval pending
OXYGEN CYLINDERS AND MISCELLANEOUS
• No special cannulas required
• Automatically adjusts to patient’s natural breathing cycle
OXYGEN MASK AND TUBING
HW-001201
26
OXYGEN CYLINDERS
SIZES A-E
WASHERS
GR-WASH-B
For more information call 1.866.GO.AMVEX
ERGO CART
GR-ECART-D
T-HANDLE
HW-WRENCH-T
NEOPRENE BAG
B (M6), C ( M9) AND D
WRENCHES
HW-WRENCH/HW-WRENCH P
NASAL CANNULA AND TUBING
HW-001320
MINI GAS REGULATOR
GRM15-870
Page 27
www.amvex.com
Updated frequently and designed for ease of navigation
the Amvex website is a refl ection of our customers and their needs.
PRODUCT VIDEO
View a live product demonstration
of our Vacuum Regulator.
QUOTING BASKET
Use our quoting basket for quick and easy
information.Request a quote, product or marketing
material.
PART CONFIGURATOR
Allows you to tailor our products to your specifi c
needs. Various fi ttings and color options are available.
LITERATURE
Easily download product
specifi cation sheets and manuals.
www.amvex.com
27
Page 28
Ohio Medical Corporation
Parts and Service Guide
Suction & Oxygen Therapy
Vacuum Regulators, Flowmeters,
Fittings and Adapters
Troubleshooting of medical vacuum
and air systems
Pipeline equipment and accessories
Planning and Design Guide
medical vacuum and air systems,
pipeline equipment
Central air & vacuum systems
For laboratories
TRUSTED BRANDS OF OHIO MEDICAL
Division of Ohio Medical Division of Ohio Medical Division of Ohio Medical
DEC 2007
Loading...
