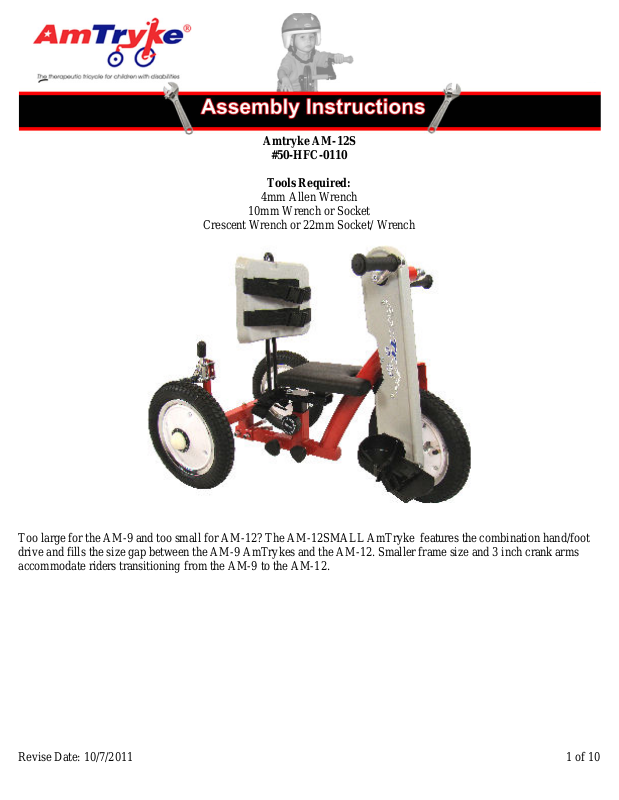

Page 1
Amtryke AM-12S
#50-HFC-0110
Tools Required:
4mm Allen Wrench
10mm Wrench or Socket
Crescent Wrench or 22mm Socket/ Wrench
Too large for the AM-9 and too small for AM-12? The AM-12SMALL AmTryke features the combination hand/foot
drive and fills the size gap between the AM-9 AmTrykes and the AM-12. Smaller frame size and 3 inch crank arms
accommodate riders transitioning from the AM-9 to the AM-12.
Revise Date: 10/7/2011 1 of 10
Page 2

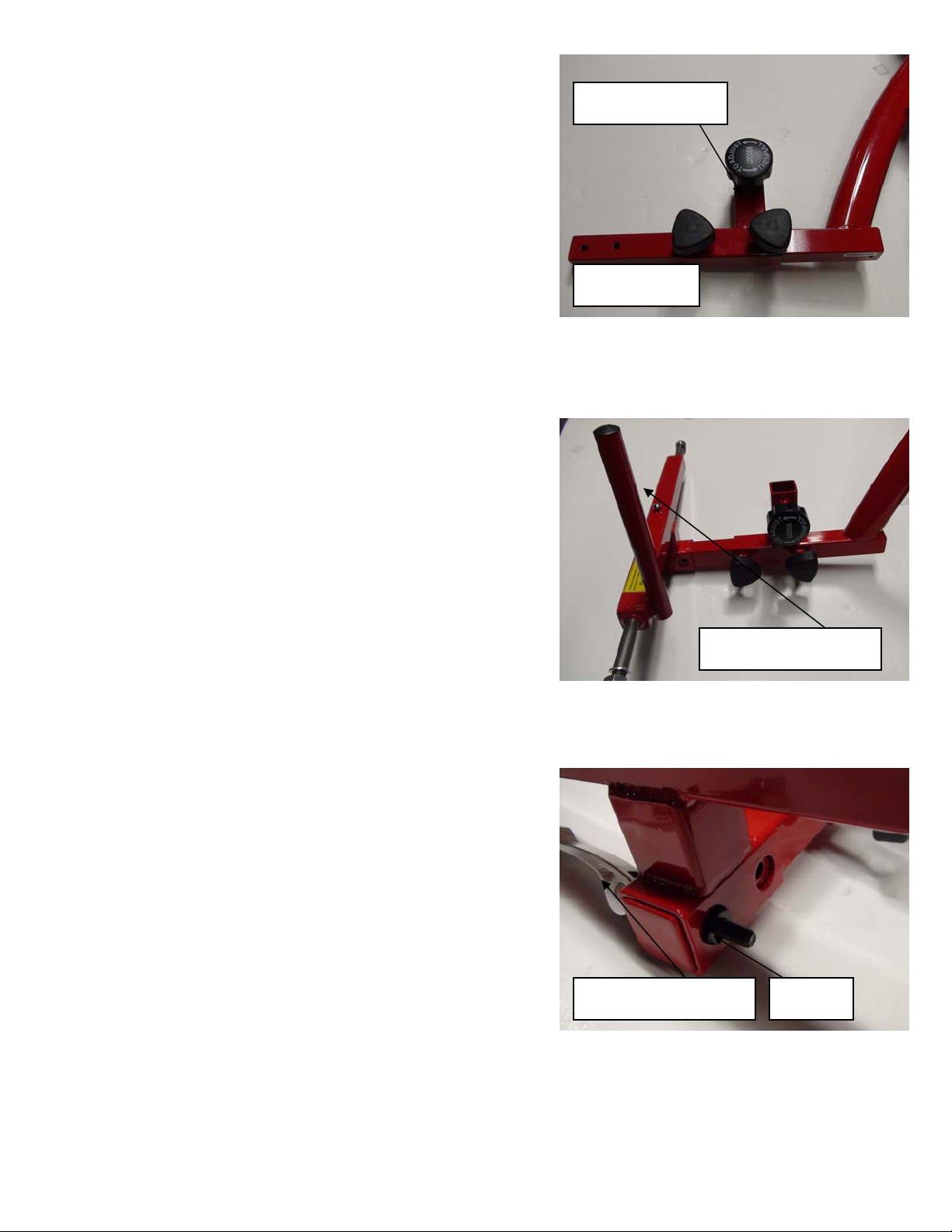

1) Install seat post tube over main frame by sliding it over.
2) Slide rear deck frame over main frame, loading lock rod should be on right side.
3) Align two holes in rear deck with main frame and insert cam lock lever through.
4) Insert spacer over threaded portion so that it recesses into hole in rear deck.
5) Install thumb nut by turning clockwise, lightly tighten and then pull cam lock lever back to secure.
Seat post tube
Main Frame
Loading Lock Rod
Cam Lock Lever Spacer
Revise Date: 10/7/2011 2 of 10
Page 3

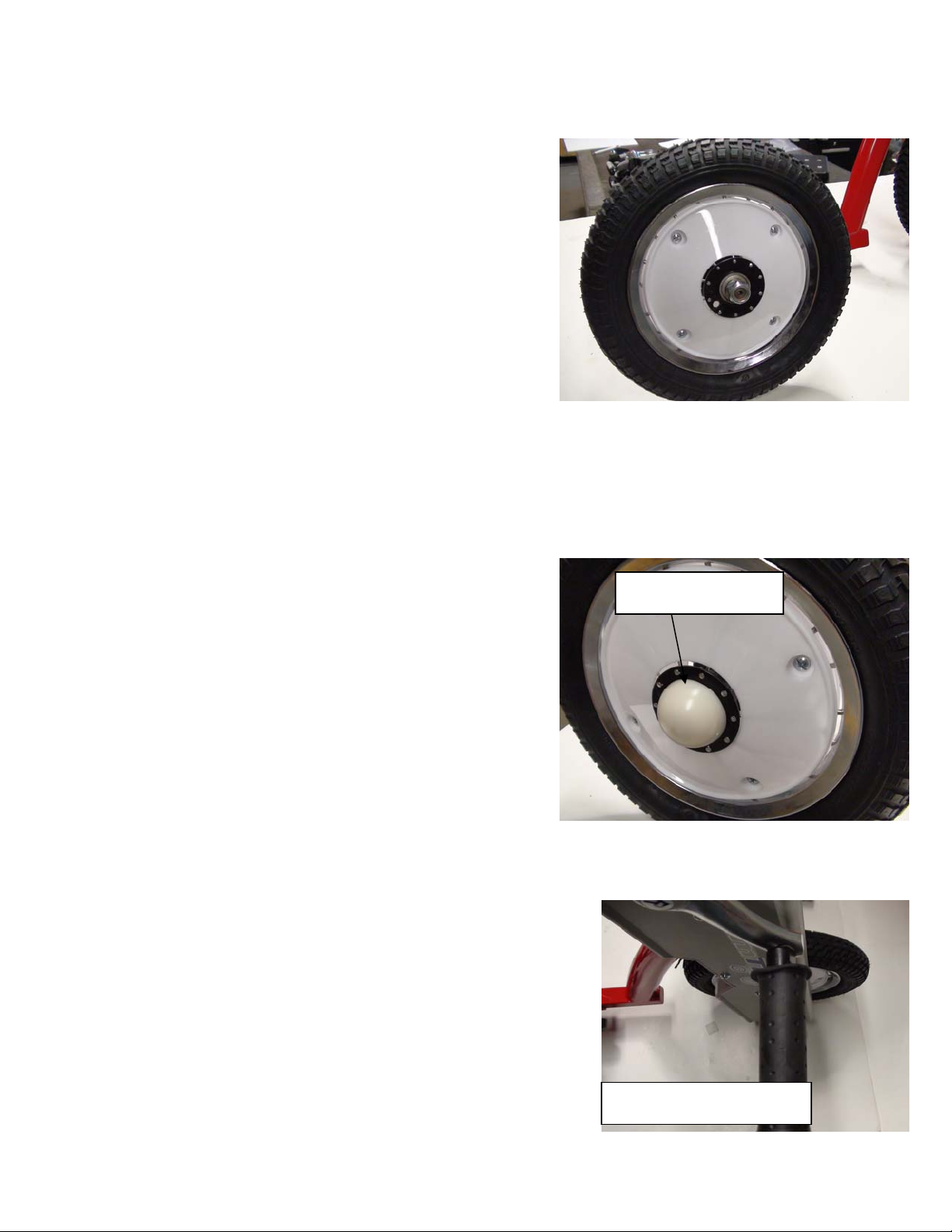

6)Remove 22mm nut and washer from each axle end, slide rear tire over with valve stem on the inside.
7) Slide one washer over each axle and then install 22mm nut by using crescent wrench or 22mm socket/wrench, snug
nut down.
8) Press white nut cover onto rear axle nut and then use rubber hammer or wooden block to tap in place.
9) Install handgrips, located on the end of each threaded portion it is stamped “L” or “R” for left or right. The right side
of the AM-12S has the chain guard while the left does not. Turn the right clockwise to thread it in and the left counter
clockwise to thread it in. Use the large end of the wrench provided to tighten.
White Nut Cover
Right Side Shown Here
Revise Date: 10/7/2011 3 of 10
Page 4

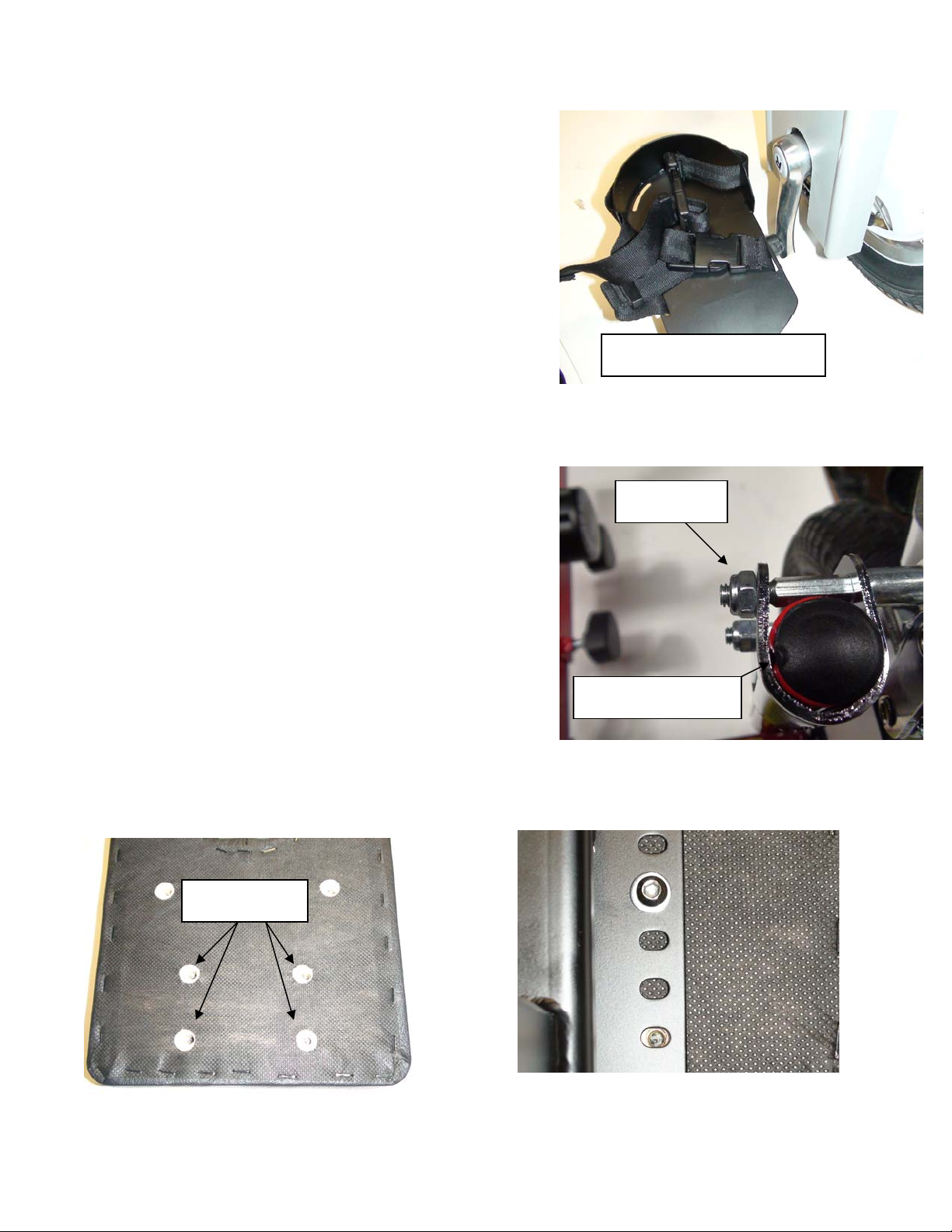

10) Install pedals, please refer to step 9 when installing pedals.
11) Slide loading lock brake over loading lock tube, loading brake should be flush with black plastic cap located at the
top of loading lock tube. Use 10mm wrench or socket to tighten two nuts until secure.
12) Turn padded seat over to expose the underside, place seat post on top of seat and align holes in seat post up with
holes in seat. Use 4mm Allen Wrench to tighten screws.
Holes in seat
Right Side Shown Here
10mm nuts
Black Plastic Cap
Revise Date: 10/7/2011 4 of 10
Page 5

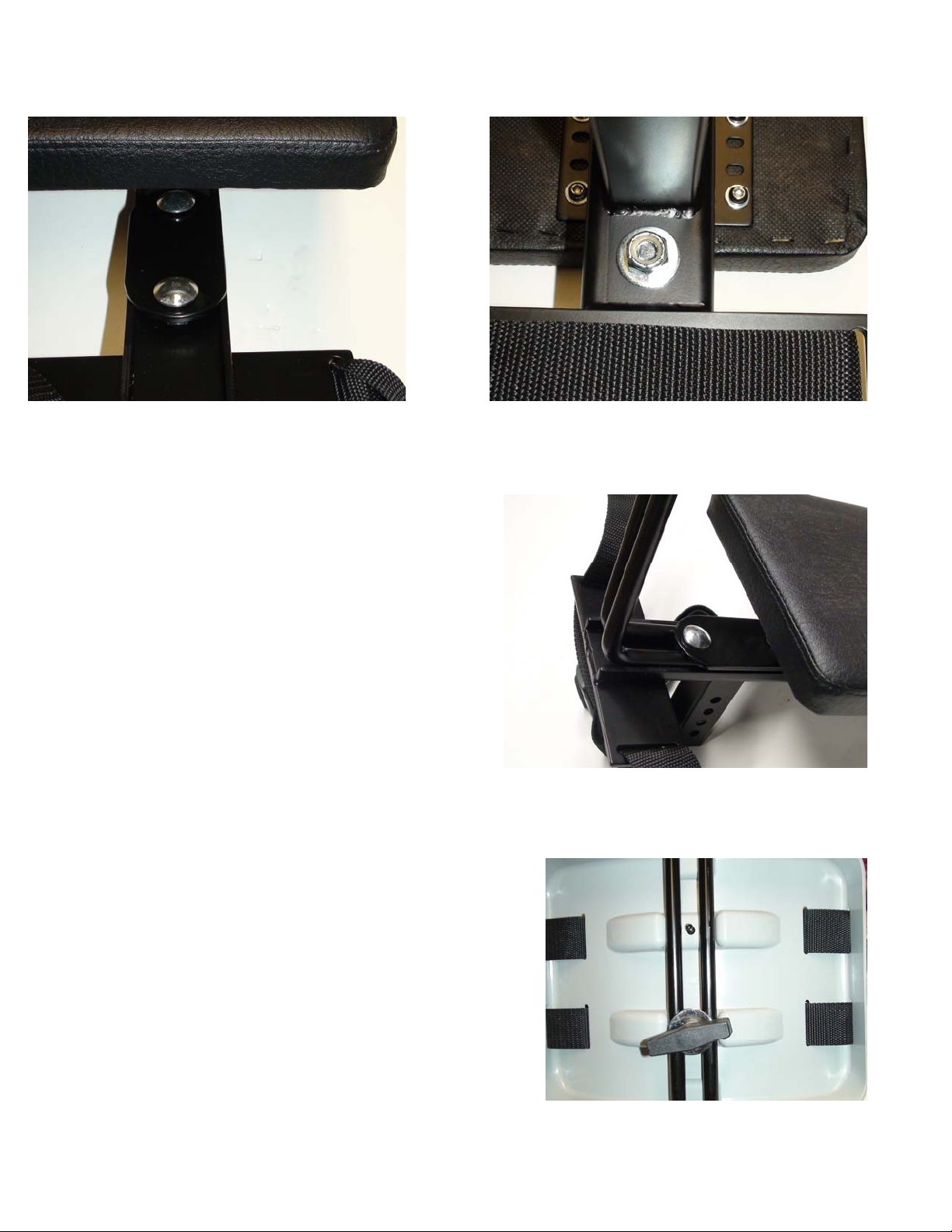

13) Install black retainer plate to seat post, use large end of wrench provided to tighten.
14) Slide back support rode in between black retainer plate and seat post. Use small end of wrench provided to tighten.
Do not completely tighten until rider has been fitted on tryke.
15) Remove two knobs and two washers from back of curved plastic seat back. Slide curved plastic seat back down
over back support rod. Install both washers and plastic knobs and tighten.
Revise Date: 10/7/2011 5 of 10
Page 6

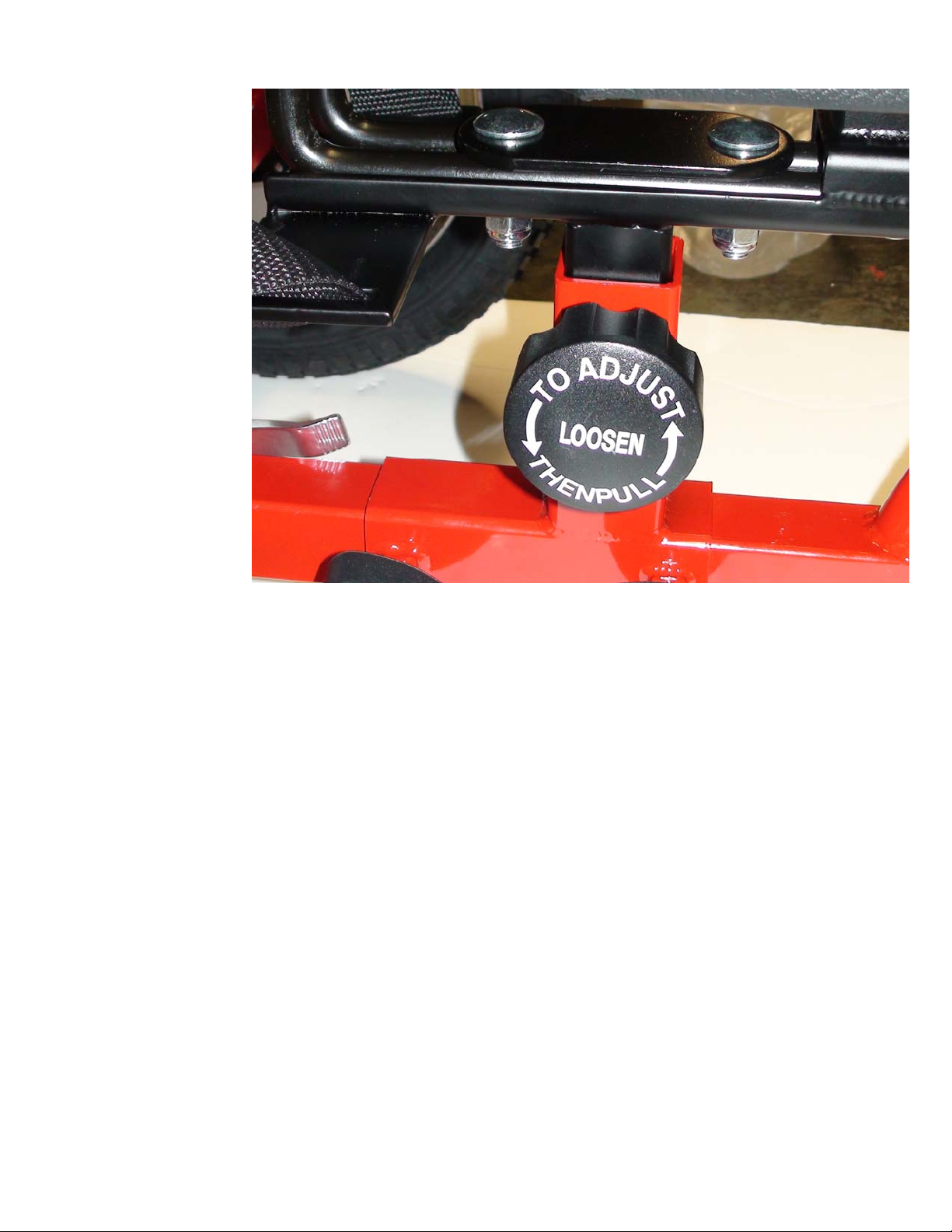

16) Insert seat assembly into seat post tube, pull out on seat post knob to adjust height and then release and tighten.
Revise Date: 10/7/2011 6 of 10
Page 7

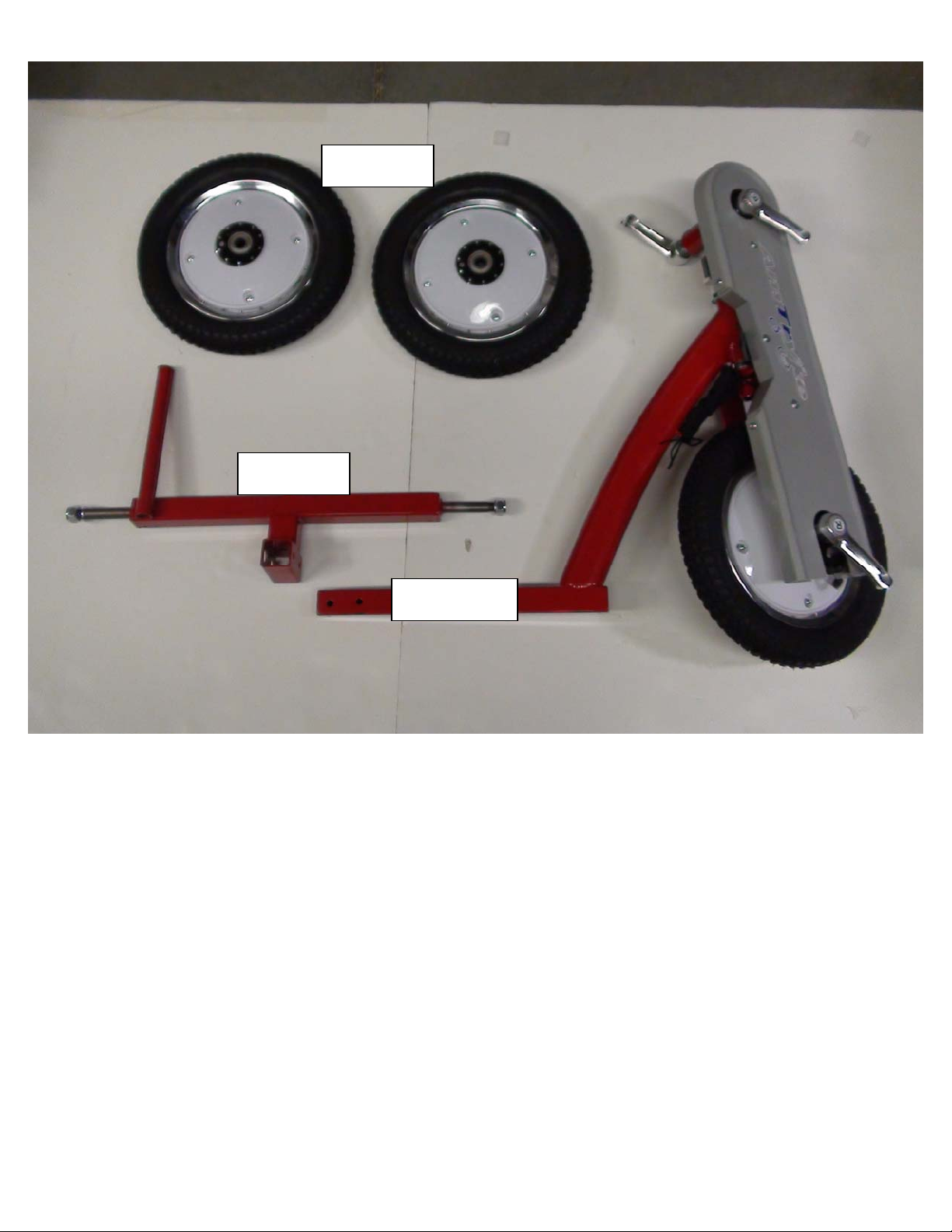

Rear Deck
PARTS LAYOUT
Rear Tires
Main Frame
Revise Date: 10/7/2011 7 of 10
Page 8

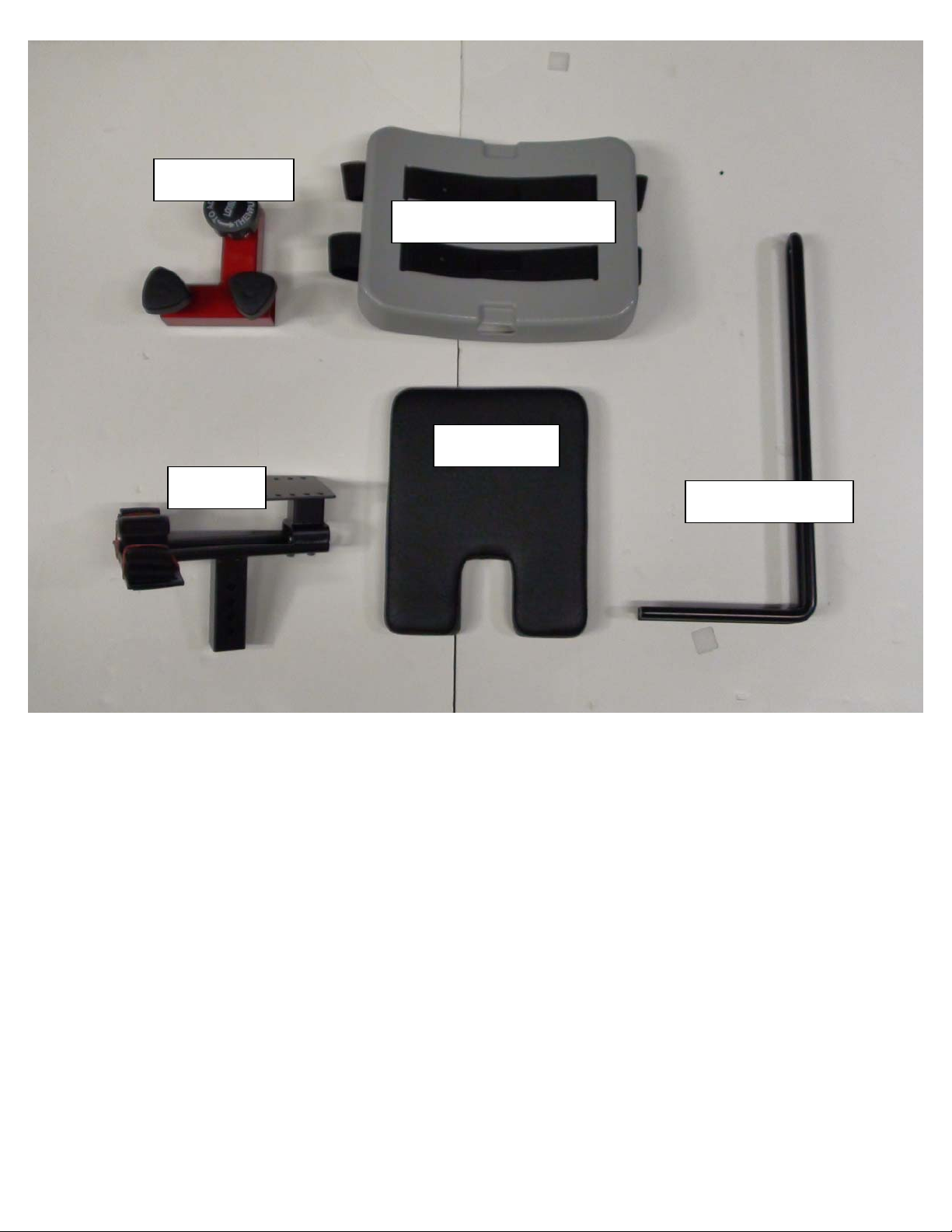

Seat Post Tube
Curved Plastic Seat back
Padded Seat
Seat Post
Back Support Rod
Revise Date: 10/7/2011 8 of 10
Page 9

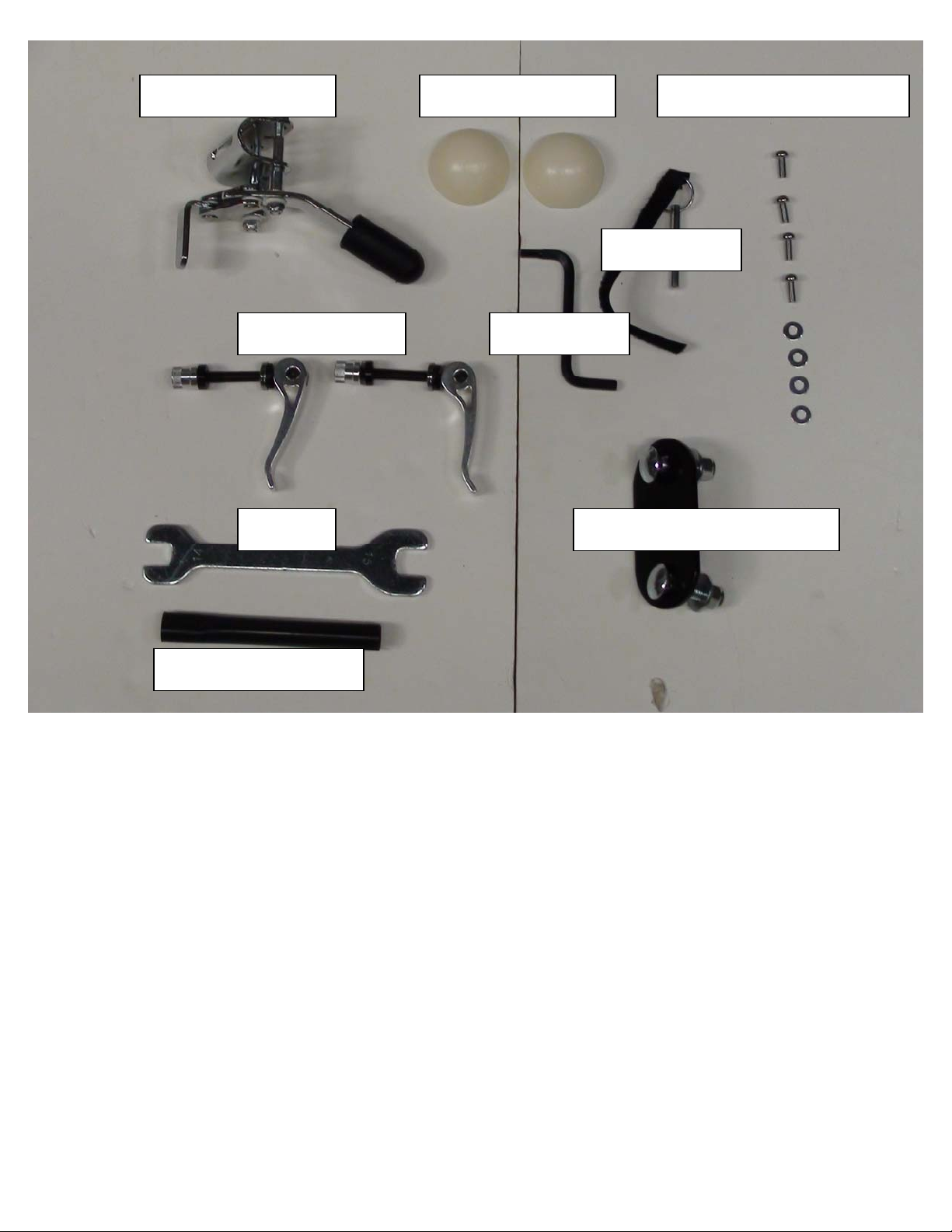

Loading Lock Brake Rear wheel nut covers
Cam Lock Levers
Wrench
Allen Wrench
Black Retaining Plate and Bolts
4mm Seat Bolts and washers
Steering Pin
Cam lock lever wrench
Revise Date: 10/7/2011 9 of 10
Page 10

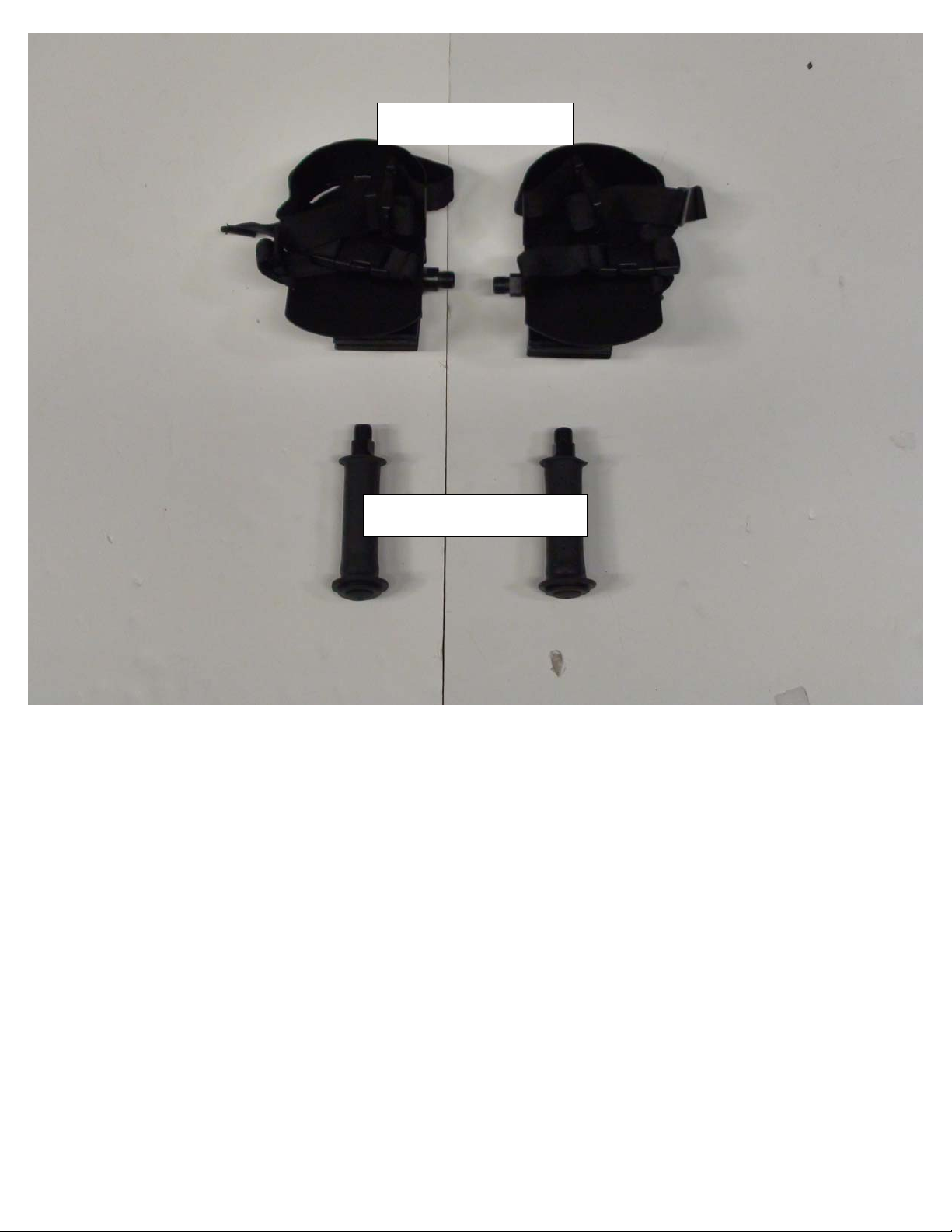

Right and Left Pedals
Right and Left Hand Grips
Revise Date: 10/7/2011 10 of 10
