USER MANUAL
802.11n, 2.4G 1T1R Wireless LAN USB Module
WN4631R
MediaTek MT7601U
Version 1.1
* This document contains confidential proprietary information and is property of LTC. The contents of
this document should not be disclosed to unauthorized persons without the written consent of LTC
Page 1/7
CONTENT
PRODUCT FEATURES .................................................................................................................... 3
PRODUCT SPECIFICATIONS ........................................................................................................ 4
MAIN CHIPSET ....................................................................................................................................... 4
FUNCTIONAL SPECIFICATIONS ............................................................................................................... 4
FCC STATEMENT: ........................................................................................................................... 6
Page 2/7
PRODUCT FEATURES
Operate at ISM frequency Band (2.4GHz)
IEEE Standards Support, 802.11b, 802.11g and 802.11n
Fully comply with USB 2.0 high speed mode
Enterprise level security supporting: WPA, WPA2, WPS, WAPI
One-stream IEEE 802.11n support for 20MHz and 40MHz bandwidth channels
provides PHY layer rates up to 150Mbps
Support Wi-Fi Direct
RoHS compliance
Low Halogen compliance
Page 3/7
Wi-Fi Function
Standard
IEEE802.11b; IEEE 802.11g; IEEE 802.11n
Bus Interface
USB2.0
Data Rate
802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n:
MCS 0 to 7 for HT20MHz
MCS 0 to 7 for HT40MHz
Media Access Control
CSMA/CA with ACK
Modulation Techniques
802.11b:
CCK, DQPSK, DBPSK
802.11g:
64QAM, 16QAM, QPSK, BPSK
802.11n:
64QAM, 16QAM, QPSK, BPSK
Network Architecture
Ad-hoc mode (Peer-to-Peer)
Infrastructure mode
Operation Channel
2.4GHz
11: (Ch. 1-11) – United States
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Frequency Range
802.11bg
2.412 ~ 2.4835 GHz
Transmit Output Power –
1x1
(Tolerance: ±1.5dBm)
802.11b:
16 dBm@11Mbps
802.11g:
14 dBm@54Mbps
802.11n:
20MHz:
14 dBm@MCS7
40MHz:
12 dBm@MCS7
Receiver Sensitivity
802.11b:
-84 dBm@11Mbps
802.11g:
-71 dBm@54Mbps
802.11n:
20MHz
-70 dBm@MCS7
40MHz
-67 dBm@MCS7
PRODUCT SPECIFICATIONS
MAIN CHIPSET
MAC/ Baseband/ RF: MediaTek MT7601U
FUNCTIONAL SPECIFICATIONS
Page 4/7
Security
WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X,
IEEE 802.11i
Operating Voltage
3.3V ± 5% I/O supply voltage
OS Supported
Microsoft Windows Win7/Win8; Linux based
Power Consumption
TX Mode:
802.11b 11Mbps : 285 mA
802.11g 54Mbps : 205mA
802.11n HT20 MCS7: 200mA
802.11n HT40 MCS7 : 185mA
RX Mode:
148 mA
Idle Mode:
130 mA
Antenna Type
Metal Antenna
Page 5/7
FCC Statement:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "Contains TX
FCC ID: MDZ-WN4631R
The OEM integrator is still responsible for the FCC compliance requirement of the end
product, which integrates this module.
Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment
authorizations (e.g. Verification, Doc) of the host device to be addressed by the
integrator/manufacturer.

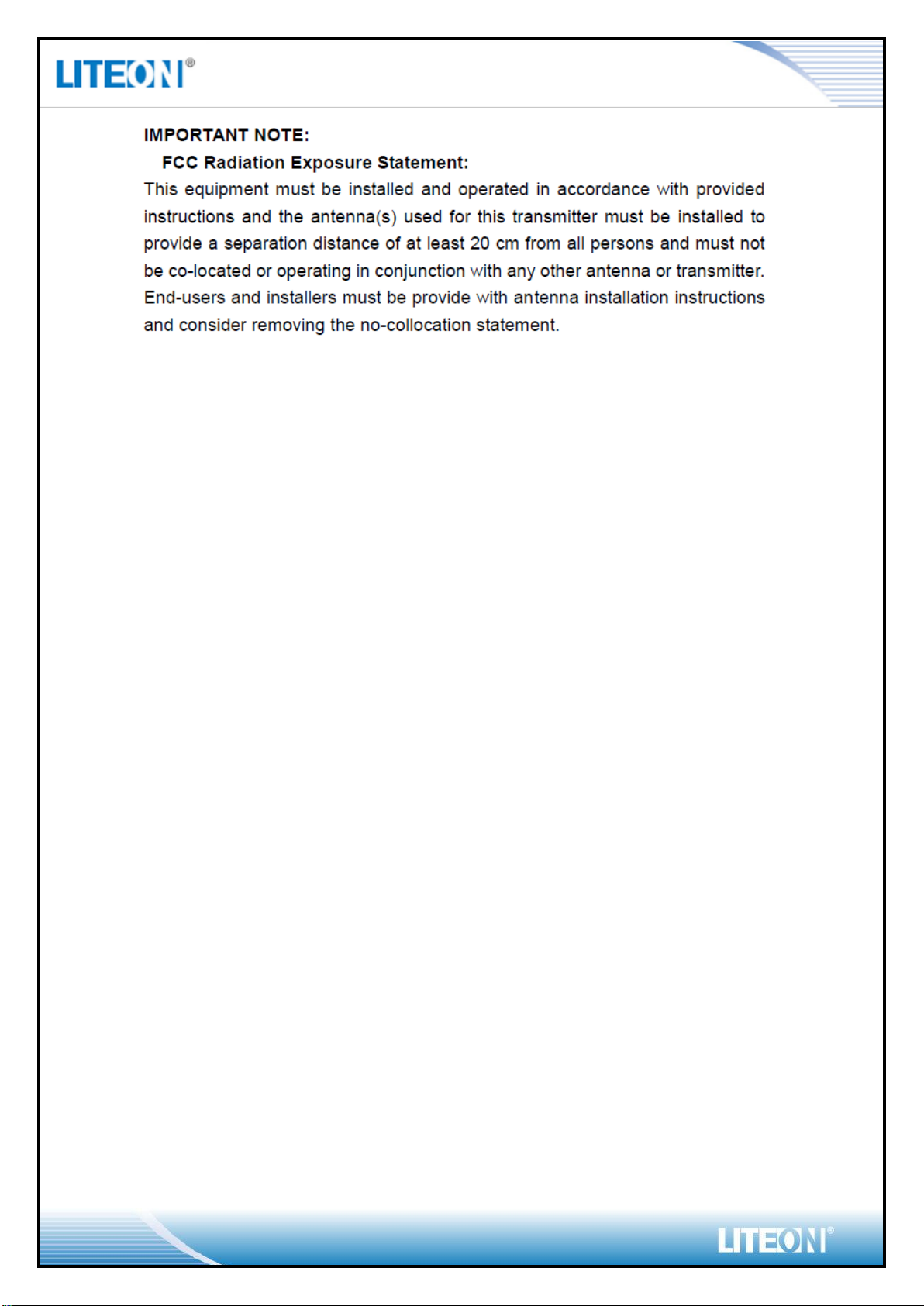

Page 6/7
