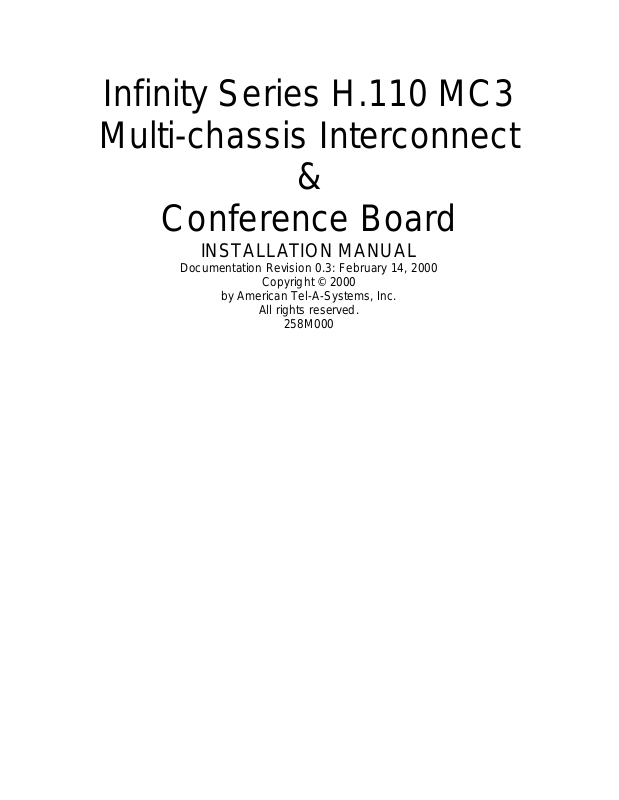

Page 1
Infinity Series H.110 MC3
Multi-chassis Interconnect
&
Conference Board
I N STALLATI ON MANUAL
Docu m entat ion Revision 0.3: Februar y 14, 2000
Copy r ight © 2000
by American Tel-A-Systems, Inc.
All rights reserved.
258M000
Page 2
Quick S t art • 2- 1 •
The H. 110 M C3/Conf er ence Board
2.0 Quick Start
This section describes the first steps you should perform to determine if your
Inf inity S er ies H.110 MC3 Mu lti-Chassis Interconnec t & Conference Board is
communicating correctly with your
quick chec k without connecting any c ables. The exact pr oc edure wil l vary
depending on which operating system you are running. For each operating
systems, drivers are requ ired t o interface to the boards. The drivers supplied by
Amtelco have tests built into them to verify communications with the boards.
These drivers al s o c om e s upplied wit h utilit y programs that all ow the developer to
test communications with the board. Please c onsul t th e approp r iate
documentation for the driver and op erating system you are usin g.
Quick S t art P rocedure
1. With the chassis power off, insert the board into a slot.
2. Tu r n on the com puter.
3. If the Amtelco driver is not already installed, inst all it now, following the
ins tructions suppl ied with th e driver.
4. Most Amt elco d r iv er s will displ ay a lis t of boards that are installed (see the
doc umentation for the particular d river that you are using). If the H.110
MC3/Conference b oar d is list ed, sk ip to step 6.
5. If the board is not lis ted, ther e m ay be a probl em with th e boar d not being
seated correc tly in the backp lane. Th er e m ay also b e a pr oblem with a m em or y
or in terrup t conflict. Power down the chassis and check that the boar d is properly
seated
Compac
tPCI system. You can perform this
Quick S t art • 2- 2 •
The H. 110 M C3/Conf er ence Board
in the connec tor and r epeat steps 1-4. If this does n ot remed y the probl em , t r y
removing any other computer telephony board s in the system. If you r PC is
unable to fi nd the board, cons ult the nu mb er at the end of th is s ec tion.
6. Run the pr ogram “xdsutil” su pplied with th e dr iver. S end the message “IN” to
the H.110 MC3/C onference b oar d. Th e boar d should r es pond with the mess age
“IA”.
7. Send the mes s age “VC” to t he boar d. Verify that th e Rec eive Message r eads:
VCxxxxvvvvH03
version).
8. If the Communications screen shows th e correct command responses, your
H.110 MC3/Conference Board is communic ating with the PC. You m ay now
power down th e computer and att ac h the neces s ar y c ables ( s ee s ec tion 3. 4)
For technic al assistance, call Amtel c o at 1-608-8 38- 4194 ext.168.
(where
xxxxvvvv
is a variable indicating th e firmware
Page 3
Installation • 3-1 •
The H. 110 M C3/Conf er ence Board
3.0 I nstall at ion
This s ec tion d es c r ibes how to install your In finity Ser ies H.110 MC3 Mu ltiChas s is Interconnec t and Conf er ence Board into your computer and how to set
the switches, jumpers, and connectors. B efore you b egin the installat ion
pr oc edur e, be sure to test the b oar d as described in sect ion 2.0 (Quick St ar t).
Figure 2:
3.1 PCI Conf iguration
As Infinity S er ies board s c onform to t he PCI standard s, there are n o s witches to
set to configure the H.110 MC3/C onference Board's m em or y address, I/O
addresses, or interrupt. The host processor’s bios will automatically configure the
board at boot time to avoid confl icts with other boards in the system.
Installation • 3-2 •
The H. 110 M C3/Conf er ence Board
3.2 Ju mpers & Head ers
The f ollowing is a complete list of all jum pers for th e H.110 MC3/Conference
Board:
JW1-1
jumper selects wh ether the downloaded firmwar e or the f ac tory default firmwar e
is u s ed. When this jump er is ins talled, the factory default firmwar e is execut ed
whenever the board is reset. When the ju mper is not installed, the Downloaded
firm war e will be execut ed aft er a r es et if it is p r es ent. If no downloaded firmwar e
is p r es ent, the factory default firmware is executed after res et.
Location of Jumpers Headers, and Connec tors
Firm war e S elect. If firm war e has b een downloaded to the board, this
JW1-2
the EAROM, one for the board pr oc es s or and one for the DSP . If JW1-2 is
ins talled and downloaded DS P firm ware is pr es ent, the factory DS P firmware is
executed after r es et. Otherwis e, th e downloaded firmw ar e is executed if pres ent.
See JW 1- 1
JW1-3
JW1-4
JW3
jumpers installed.
DSP F ir m war e S elect. Two separate firmware p r ograms ar e incl uded in
Undefined, reserved for future use.
Undefined, reserved for future use..
This jumper is used for factory testing and should not have
Page 4
P3
Diagnostic port. Never in s tall jumper s here.
P4
This header is used for pr ogramming internal logic and shoul d
never be jumpered.
Installation • 3-3 •
The H. 110 M C3/Conf er ence Board
3.3 Co nnecto rs: P5, P 6 and J1
P5
Ring 0 RCV, Ring 1 XMT. This is one of t he two fib er optic transceivers f or
the MC3 bus. In a normal counter rotating ring connection, the fibers from this
transceiver are connected to
keyed to insure proper insertion.
P6
Ring 1 RCV, Ring 0 XMT. This is one of t he two fib er optic transceivers f or
the MC3 bus. In a normal counter rotating ring connection, the fibers from this
transceiver are connected to
connector is keyed to insure p rop er insertion.
J1
Analog port. This port can be used to connect a music source or other device
analog por t f or m usic on hold. The c onnector is a s tandard 1/8” headphone jac k .
The music source should be at standard line level s .
P6
in th e next chassis in the r ing. This connector is
P5
in th e previous ch as sis in th e ring. This
J1A
Anal og input . Th is head er is connect ed in parall el with J1. It will conn ec t
with the audio output of a PC CD-ROM d r ive.
3.4 I nstall at ion
To install t he H.110 MC3/Conference Board in your system:
1. F ollow the quick check procedur es des c r ibed in s ec tion 2.0 to verif y the
oper ation of the board.
2. If the quick check is successful, turn off the chassis power and remove the
boar d from the chassis.
3. In s tall any necessar y board jum pers. See sec tion 3. 2 for jump er
configurations.
Installation • 3-4 •
The H. 110 M C3/Conf er ence Board
4. In s er t the b oar d into th e ch as s is . Seat it pr operl y in a sl ot in the chass is and
secure it with the front panel handles.
5. Connect the fiber optic cab les to P5 and P 6. See sect ion 6.4 for detail s on the
various ring configurations.
6. If the analog port is to be used, connec t t he music s ource or other compatibl e
device.
7. Power up the computer .
Page 5
3.5 Ho t S wappin g a Board
The In finit y S er ies H.110 MC3/Conferencing Board can be “h ot swapped,” that is
it can be removed from a functioning system without turning th e power off or
interrupting applications. However, to be able to do this, the host processor must
be equipped with suit able hot swap dr ivers as well as a hot swap m anager wh ich
will aler t applications when a board has been ins er ted or removed from the
system so that resources can be p roperly managed. It is beyond the scope of this
man ual to describe the operation of eit her the hot swap dr iver or hot swap
manager.
Each H.110 boar d is equ ipped with a switch linked to th e lower ej ec tor tab and a
blue LED. Th is combination is used to c oor dinate th e ac tions of an operator with
the system software. When inserting a board, the board is push ed in part of the
way until the blue LED is illuminated. The insertion may then be completed.
When the connection process is c om plete, the LE D will go out. To r em ov e a
boar d, the l ower ejector handle is depressed until it is in the unlatched position.
When the blue LED comes on, the board may be removed from the system.
Installation • 3-5 •
The H. 110 M C3/Conf er ence Board
To in st al l the board in a system under p ower:
1. In s er t the b oar d with th e ejector tabs spread apart unt il partially eng aged.
2. W ait until the blue LED is illum inated.
3. Finish inserting the board by pushing the ejector tabs towards each other. The
LED should then go out.
To remo v e the f r ont board from a system under power :
1. Depress t he lower ej ec tor tab until it is in the unlat c hed position.
2. W ait until the blue LED is illum inated.
3. F inish removin g the board by sp r eading the ejector tabs apar t until the board is
ejected.
Installation • 3-6 •
The H. 110 M C3/Conf er ence Board
Figure 3:
and Top and Bottom Ejector Handles
Front Panel with Stat us and Hot Sw ap LEDs, MC3 F iber Con nector s ,
