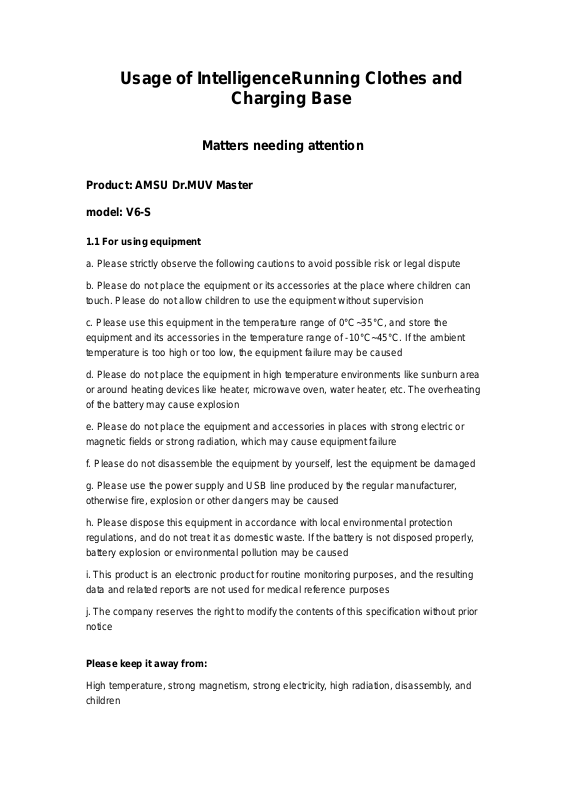

Page 1
Usage of IntelligenceRunning Clothes and
Charging Base
Matters needing attention
Product: AMSU Dr.MUV Master
model: V6-S
1.1 For using equipment
a. Please strictly observe the following cautions to avoid possible risk or legal dispute
b. Please do not place the equipment or its accessories at the place where children can
touch. Please do not allow children to use the equipment without supervision
c. Please use this equipment in the temperature range of 0°C~35°C, and store the
equipment and its accessories in the temperature range of -10°C~45°C. If the ambient
temperature is too high or too low, the equipment failure may be caused
d. Please do not place the equipment in high temperature environments like sunburn area
or around heating devices like heater, microwave oven, water heater, etc. The overheating
of the battery may cause explosion
e. Please do not place the equipment and accessories in places with strong electric or
magnetic fields or strong radiation, which may cause equipment failure
f. Please do not disassemble the equipment by yourself, lest the equipment be damaged
g. Please use the power supply and USB line produced by the regular manufacturer,
otherwise fire, explosion or other dangers may be caused
h. Please dispose this equipment in accordance with local environmental protection
regulations, and do not treat it as domestic waste. If the battery is not disposed properly,
battery explosion or environmental pollution may be caused
i. This product is an electronic product for routine monitoring purposes, and the resulting
data and related reports are not used for medical reference purposes
j. The company reserves the right to modify the contents of this specification without prior
notice
Please keep it away from:
High temperature, strong magnetism, strong electricity, high radiation, disassembly, and
children
Page 2
Appearance description
2.1 Clothes appearance description
This product is an electronic equipment used to monitor the heart rate and other body
movement data at resting or exercise state.
Outside:Clothes, Main device, Main device base
Inside:Base back, flexible electrode
2.2 Main device appearance description
Touch switch, heart rate indicator / abnormallead indicator, Bluetooth status indicator, low
charge indicator, charge indicator
2.3 Main device indicator description
2.3.1 Bluetooth status indicator
a. Blue flicker-indicates that the Bluetooth of the equipment is unconnected
b. Other states-indicator lights on or in red / green / blue circular flashing-- indicate that the
Main device Bluetooth is connected
2.3.2 Heart rate indicator / abnormal lead indicator
When the Bluetooth of the equipment is connected, the indicator is in following status:
a. Red / green / blue circular flashing-indicates that the abnormal lead, that is the
electrode of the Main device is not in full contact with the base or the flexible electrode is
not fully in contact with the skin
b. Blue light-indicates that your heart rate is low and you are in aerobic state
c. Green light-indicates that your heart rate is high and you are in anaerobic state
d. Red light-indicates that your heart rate is too high and your heart is overloaded and it is
not recommended that you continue to exercise in this state
2.3.3 Low charge indicator
Red flicker - 3 timesevery 5 second-- indicates that the battery level is less than 20%. It is
recommended to recharge the Main device as soon as possible to avoid the loss of motion
data
Page 3
2.3.4 Charge indication
The charge indicator will have the following two states during the charging process:
a. Red light-charging
b. Green light-full of electricity
Usage
3.1 Software downloading
a. iOS users can go to App Store to search "listen and run" for downloading
b. Android users can go to the application market to search "listen and run" for
downloading.
Scan a QR code for download link
3.2 Clothes wearing
When wearing clothes, please make sure the clothes are in smooth contact with your
body and avoid wrinkling at the electrode so as to fully collect electrocardiogram (ECG)
signals on the body surface.In order to achieve the best collection effect, it is
recommended to wetthe silver electrode inside the clothebefore use-- please do not use
acid, alkaline liquid or other drinks as far as possible, so as not to affect the service life of
the electrode.
3.3 Main device installation
As shown in the figure, push the Main device through the guide rail into the chest
base.The "click" sound indicates that the installation is complete.
Collar direction
Indicator light
Slide up and down
3.4 Startup / shutdown
Touch the Main device switch area for 5 s until the indicator lights up, indicating that the
equipment is started.
Page 4
Touch the switch area for 5 s until the indicator lights flicker quickly and then go out,
indicating that the shutdown is complete.
3.5 Equipment connection
3.5.1 Connection mode
After entering the APP home page, click the icon in the upper right corner to search and
connect the equipment.
3.5.2 Matters needing attention
a. Please make sure that the Bluetooth of your phone is turned on
b. Please make sure the equipment is fully powered when connecting for the first time. If
the equipment is automatically shut down, please try again after charging the equipment
c. When connecting, please make sure the equipment is as close to the phone as possible
3.6 Main device removal
As shown in the figure, the Main device can be removed from the base by holding the
base with your hand and pushing the Main device up with the other hand.
3.7 Charging
3.7.1 Charging process
The charging base can be used as a mobile power supply to provide two or more times
temporary charging for the Main device.When using, push the Main device into the guide
rail in the direction shown and fasten it, and then press the key on the base or insert the
USB power supply to charge the Main device.When the charge is not full, the charge
indicator is red.
3.7.2 Charging complete
When the Main device charge is full, the charge indicator will appear green.
3.7.3 Description to charging base indicator light
When the USB power supply is inserted into the charging base, if the Main device is
installed to the base, the Main device will be charged first, while if the Main device is not
installed to the base, the base battery will be charged firstly.The charge base button is the
status indicator light, and the charge status indicatorsare as follows:
Red flicker:Charging the base battery
Green light:The base battery is full
Charging / charging complete
Page 5
When pressing the base button or plugging into the USB power supply, the base indicator
will indicate the state of the power supply, and then start charging the Main device. The
base status indicators are as follows:
Green light:More than 90% electricity
Blue light: 60%~90%electricity
Red light:30%~60%electricity
Red flicker:less than 30%electricity
3.8 Washing
a. Please remove the Main device from the clothes and keep it in good custody before
washing the clothes
b. Please use the washing machine to wash it gently, avoid rough hand washing, strong
washing or kneading mode of washing machine, so as not to damage the circuit
c. Please use common detergents to wash it. Chemicals such as strong acid, alkali or
bleach can damage the clothes and internal circuits
d. Please wash the clothesin less than 40°C water. High water temperature may damage
the inside electrode of the clothes.
e. There are hard objects in the clothes. Please wash it separately from other clothes to
avoid damaging other clothes.
f. Do not dry clean
This equipment is an electronic product whoseMain device machine supports IP66 class
dustproof and waterproof, but it is not a special product for underwater operation.Please
do not immerse or use it in swimming, diving, shower and other similar scenarios.
Specification parameter
4.1 Main device
Model V6-S
Weight 6 g
Size 30 * 27 * 8.3 mm
Endurance 6 h
Bluetooth 4.0 / BLE
System environment iOS 9 and above
Android 4.3 and above
Page 6
4.2 Charging base
Model AMSU-C-V6-S
Shell material polycarbonate
Weight 8g
Size 38 * 28 * 19 mm
Input DC 5 V—2 A
Output DC 5 V—50 mA
Interface Micro USB
FCC Statement
Changes or modifications not expressly approved by the party responsiblefor compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for aClass B digital
device, pursuant to Part 15 of the FCC Rules. These limitsare designed to provide
reasonable protection against harmful interferencein a residential installation. This
equipment generates uses and can radiateradio frequency energy and, if not installed and
used in accordance with the
instructions, may cause harmful interference to radio communications.However, there is
no guarantee that interference will not occur in aparticular installation. If this equipment
does cause harmful interference toradio or television reception, which can be determined
by turning theequipment off and on, the user is encouraged to try to correct
theinterference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that towhich the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject tothe following
two conditions (1)this device may not cause harmfulinterference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
