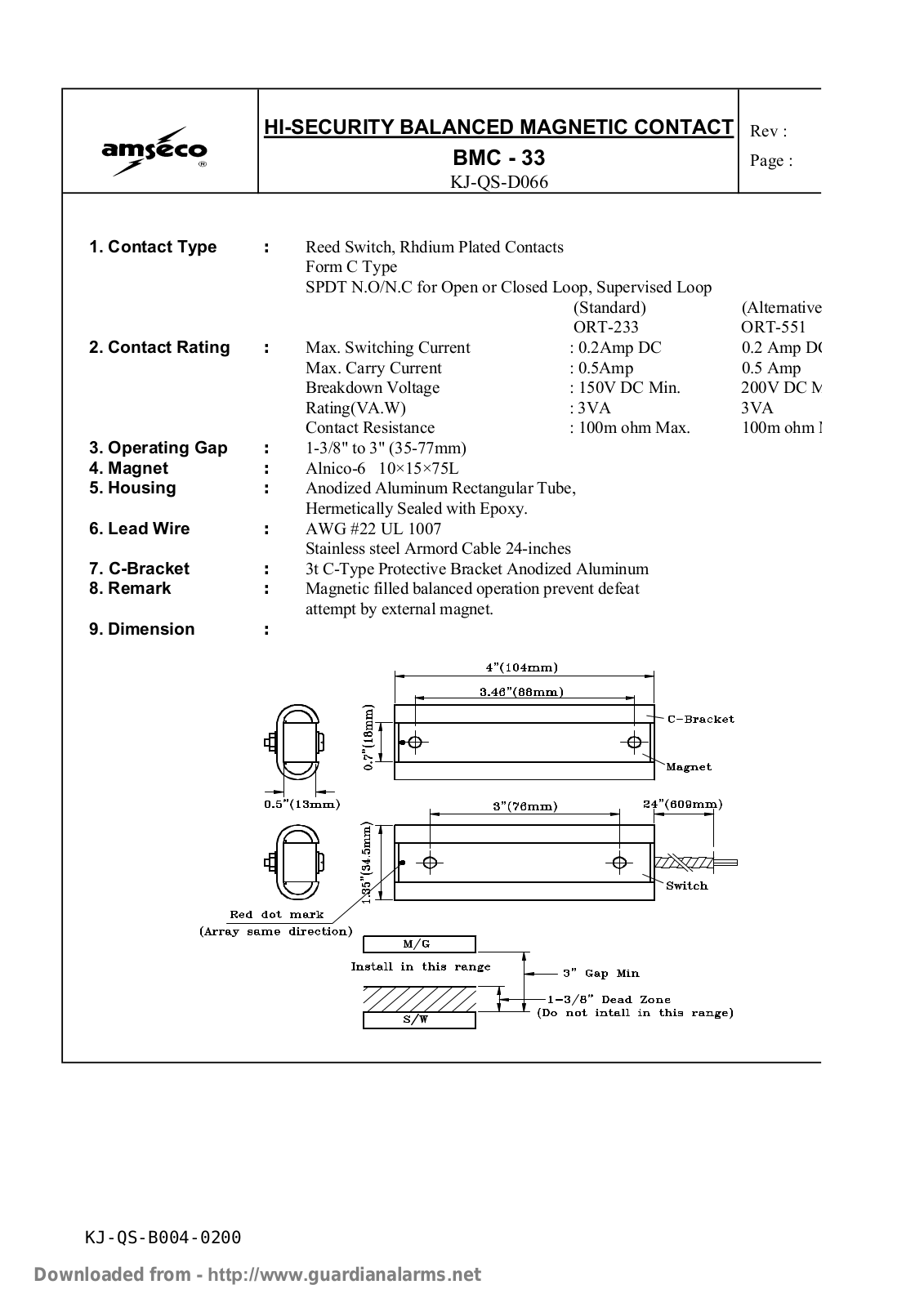

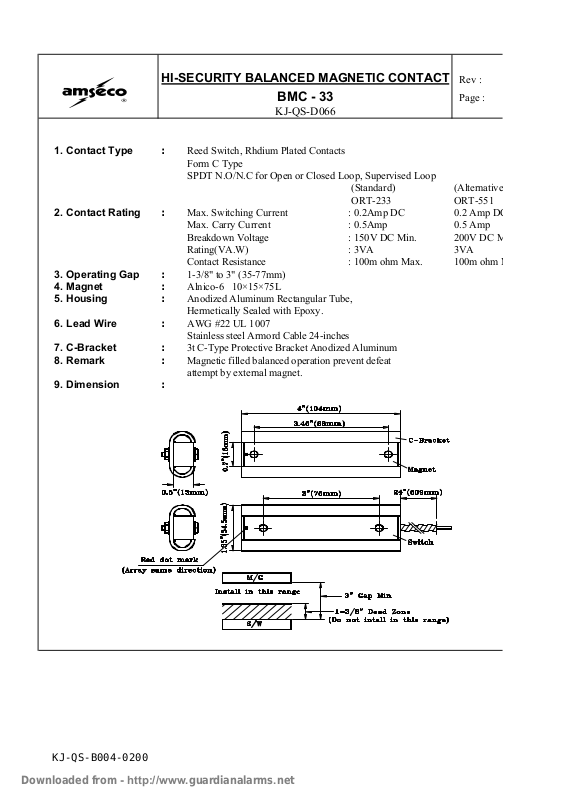

HI-SECURITY BALANCED MAGNETIC CONTACT
Rev :
BMC - 33
Page :
KJ-QS-D066
1. Contact Type : Reed Switch, Rhdium Plated Contacts
Form C Type
SPDT N.O/N.C for Open or Closed Loop, Supervised Loop
(Standard) (Alternativ
ORT-233 ORT-551
2. Contact Rating : Max. Switching Current : 0.2Amp DC 0.2 Amp D
Max. Carry Current : 0.5Amp 0.5 Amp
Breakdown Voltage : 150V DC Min. 200V DC
Rating(VA.W) : 3VA 3VA
Contact Resistance : 100m ohm Max. 100m ohm
3. Operating Gap : 1-3/8" to 3" (35-77mm)
4. Magnet : Alnico-6 10×15×75L
5. Housing : Anodized Aluminum Rectangular Tube,
Hermetically Sealed with Epoxy.
6. Lead Wire : AWG #22 UL 1007
Stainless steel Armord Cable 24-inches
7. C-Bracket : 3t C-Type Protective Bracket Anodized Aluminum
8. Remark : Magnetic filled balanced operation prevent defeat
attempt by external magnet.
9. Dimension :
KJ-QS-B004-0200
