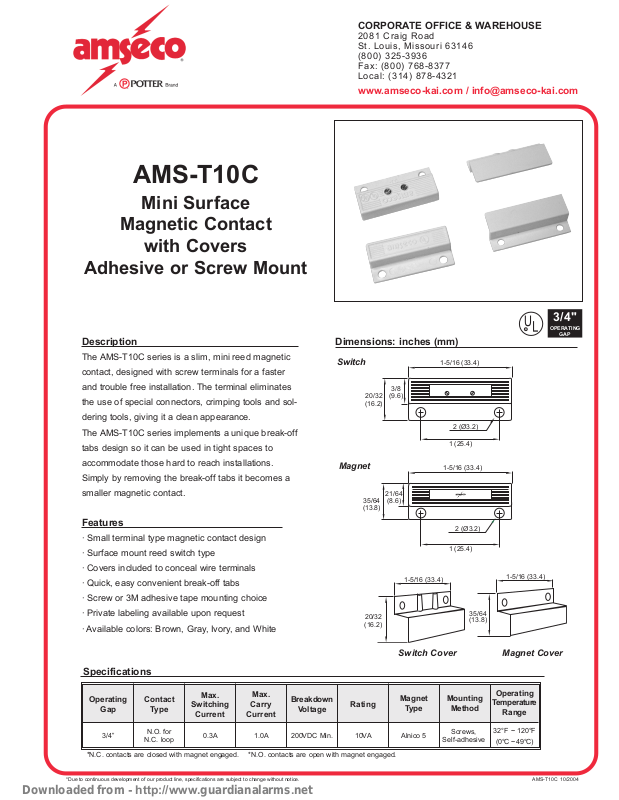

AMS-T10C
Mini Surface
Magnetic Contact
with Covers
Adhesive or Screw Mount
AMS-T10C 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Description
The AMS-T10C series is a slim, mini reed magnetic
contact, designed with screw terminals for a faster
and trouble free installation. The terminal eliminates
the use of special connectors, crimping tools and sol-
dering tools, giving it a clean appearance.
The AMS-T10C series implements a unique break-off
tabs design so it can be used in tight spaces to
accommodate those hard to reach installations.
Simply by removing the break-off tabs it becomes a
smaller magnetic contact.
Features
· Small terminal type magnetic contact design
· Surface mount reed switch type
· Covers included to conceal wire terminals
· Quick, easy convenient break-off tabs
· Screw or 3M adhesive tape mounting choice
· Private labeling available upon request
· Available colors: Brown, Gray, Ivory, and White
Dimensions: inches (mm)
Specifications
3/4”
N.O. for
N.C. loop
0.3A 1.0A 200VDC Min. 10VA Alnico 5
Screws,
Self-adhesive
32°F ~ 120°F
(0°C ~ 49°C)
Operating
Gap
Contact
Type
Max.
Switching
Current
Max.
Carry
Current
Breakdown
Voltage
Rating
Magnet
Type
Mounting
Method
Operating
Temperature
Range
*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.
OPERATING
GAP
3/4"
Switch
Magnet
Switch Cover
Magnet Cover
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
20/32
(16.2)
35/64
(13.8)
20/32
(16.2)
3/8
(9.6)
21/64
(8.6)
1-5/16 (33.4)
1-5/16 (33.4)
1 (25.4)
1-5/16 (33.4)
1 (25.4)
2 (Ø3.2)
2 (Ø3.2)
35/64
(13.8)
1-5/16 (33.4)
