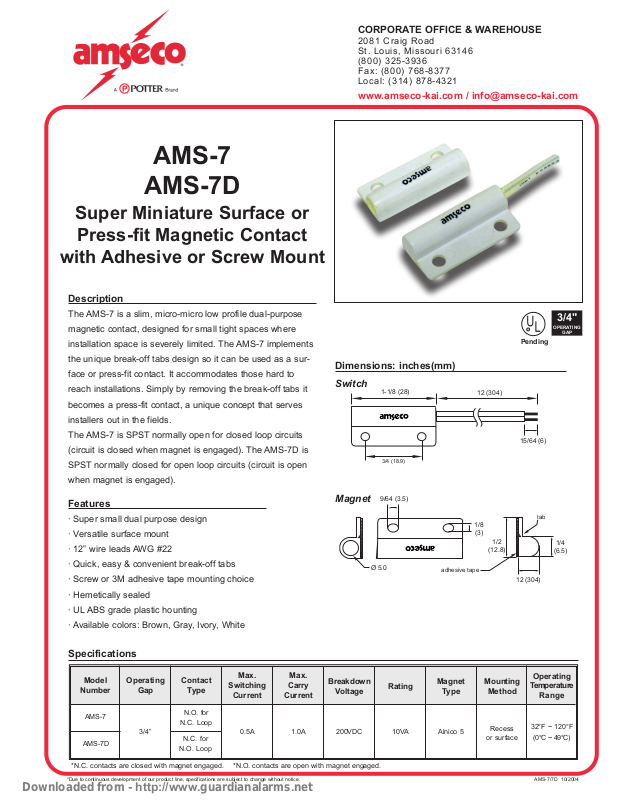

Amseco AMS 7D User Guide

AMS-7

AMS-7D

Super Miniature Surface or

Press-fit Magnetic Contact

with Adhesive or Screw Mount

AMS-7/7D 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.

Description

The AMS-7 is a slim, micro-micro low profile dual-purpose

magnetic contact, designed for small tight spaces where

installation space is severely limited. The AMS-7 implements

the unique break-off tabs design so it can be used as a sur-

face or press-fit contact. It accommodates those hard to

reach installations. Simply by removing the break-off tabs it

becomes a press-fit contact, a unique concept that serves

installers out in the fields.

The AMS-7 is SPST normally open for closed loop circuits

(circuit is closed when magnet is engaged). The AMS-7D is

SPST normally closed for open loop circuits (circuit is open

when magnet is engaged).

Features

· Super small dual purpose design

· Versatile surface mount

· 12” wire leads AWG #22

· Quick, easy & convenient break-off tabs

· Screw or 3M adhesive tape mounting choice

· Hemetically sealed

· UL ABS grade plastic hounting

· Available colors: Brown, Gray, Ivory, White

Dimensions: inches(mm)

Specifications

Model

Number

AMS-7

3/4”

N.O. for

N.C. Loop

0.5A 1.0A 200VDC 10VA Alnico 5

Recess

or surface

32°F ~ 120°F

(0°C ~ 49°C)

Operating

Gap

Contact

Type

Max.

Switching

Current

Max.

Carry

Current

Breakdown

Voltage

Rating

Magnet

Type

Mounting

Method

Operating

Temperature

Range

OPERATING

GAP

3/4"

Pending

*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.

Switch

Magnet

AMS-7D

N.C. for

N.O. Loop

CORPORATE OFFICE & WAREHOUSE

2081 Craig Road
St. Louis, Missouri 63146
[phone]
Fax: [phone]
Local: [phone]

www.amseco-kai.com / [e-mail]

1-1/8 (28)

3/4 (18.9)

12 (304)

15/64 (6)

Downloaded from - http://www.guardianalarms.net

9/64 (3.5)

Ø 5.0

adhesive tape

1/8
(3)

1/2

(12.8)

tab

12 (304)

1/4

(6.5)
