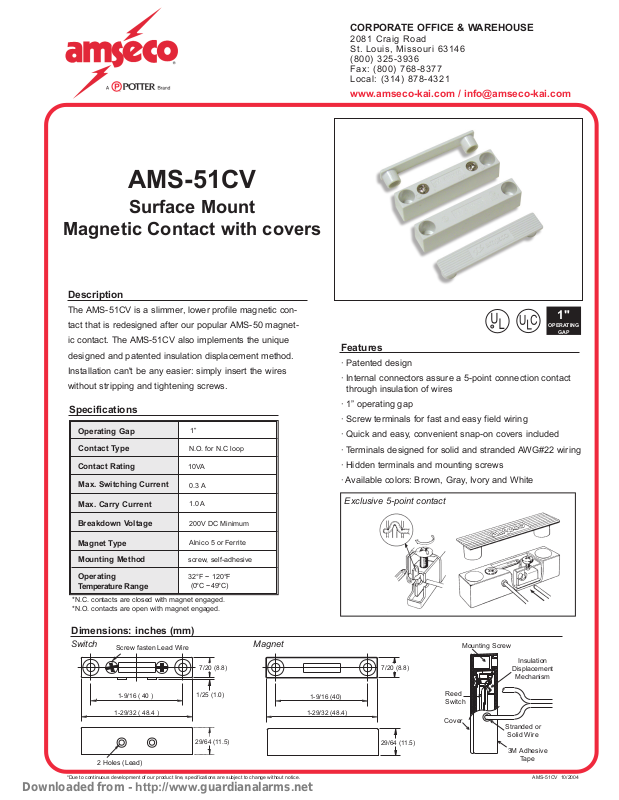

AMS-51CV
Surface Mount
Magnetic Contact with covers
AMS-51CV 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Description
The AMS-51CV is a slimmer, lower profile magnetic con-
tact that is redesigned after our popular AMS-50 magnet-
ic contact. The AMS-51CV also implements the unique
designed and patented insulation displacement method.
Installation can't be any easier: simply insert the wires
without stripping and tightening screws.
Dimensions: inches (mm)
Specifications
*N.C. contacts are closed with magnet engaged.
*N.O. contacts are open with magnet engaged.
Features
· Patented design
· Internal connectors assure a 5-point connection contact
through insulation of wires
· 1” operating gap
· Screw terminals for fast and easy field wiring
· Quick and easy, convenient snap-on covers included
· Terminals designed for solid and stranded AWG#22 wiring
· Hidden terminals and mounting screws
· Available colors: Brown, Gray, Ivory and White
1”
N.O. for N.C loop
Alnico 5 or Ferrite
32°F ~ 120°F
(0°C ~ 49°C)
Operating Gap
Contact Type
Magnet Type
Operating
Temperature Range
1.0 A
Max. Carry Current
0.3 A
Max. Switching Current
200V DC Minimum
Breakdown Voltage
10VA
Contact Rating
Switch
Magnet
Mounting Method
screw, self-adhesive
Exclusive 5-point contact
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
1"
OPERATING
GAP
Screw fasten Lead Wire
1-9/16 ( 40 )
1-29/32 ( 48.4 )
2 Holes (Lead)
7/20 (8.8)
1/25 (1.0)
29/64 (11.5)
Downloaded from - http://www.guardianalarms.net
1-9/16 (40)
1-29/32 (48.4)
7/20 (8.8)
29/64 (11.5)
Mounting Screw
Reed
Switch
Cover
Insulation
Displacement
Mechanism
Stranded or
Solid Wire
3M Adhesive
Ta pe
