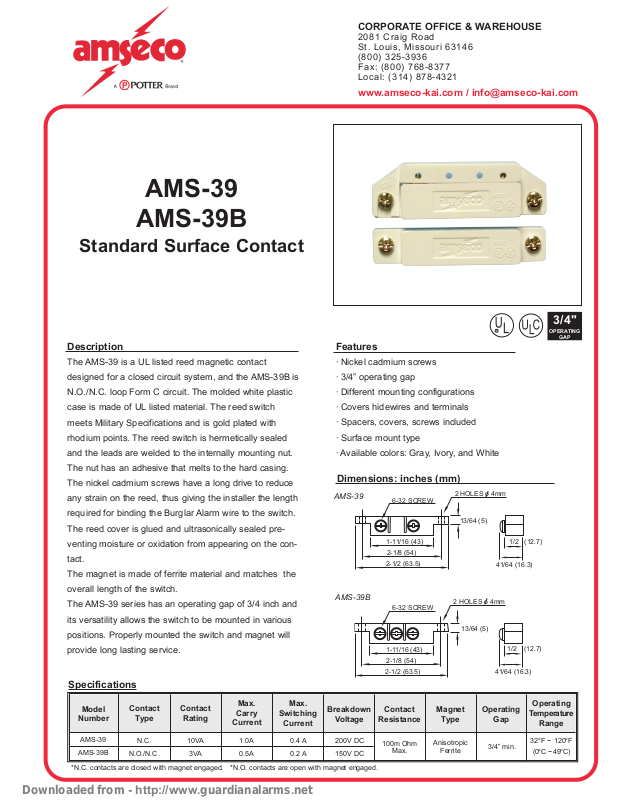

AMS-39
AMS-39B
Standard Surface Contact
Description
The AMS-39 is a UL listed reed magnetic contact
designed for a closed circuit system, and the AMS-39B is
N.O./N.C. loop Form C circuit. The molded white plastic
case is made of UL listed material. The reed switch
meets Military Specifications and is gold plated with
rhodium points. The reed switch is hermetically sealed
and the leads are welded to the internally mounting nut.
The nut has an adhesive that melts to the hard casing.
The nickel cadmium screws have a long drive to reduce
any strain on the reed, thus giving the installer the length
required for binding the Burglar Alarm wire to the switch.
The reed cover is glued and ultrasonically sealed pre-
venting moisture or oxidation from appearing on the con-
tact.
The magnet is made of ferrite material and matches the
overall length of the switch.
The AMS-39 series has an operating gap of 3/4 inch and
its versatility allows the switch to be mounted in various
positions. Properly mounted the switch and magnet will
provide long lasting service.
Specifications
*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.
3/4” min.
N.C.
N.O./N.C.
1.0A
0.5A
200V DC
150V DC
10VA
3VA
Anisotropic
Ferrite
32°F ~ 120°F
(0°C ~ 49°C)
Operating
Gap
Contact
Type
Max.
Carry
Current
Contact
Rating
Magnet
Type
Operating
Temperature
Range
Features
· Nickel cadmium screws
· 3/4” operating gap
· Different mounting configurations
· Covers hidewires and terminals
· Spacers, covers, screws included
· Surface mount type
· Available colors: Gray, Ivory, and White
OPERATING
GAP
3/4"
Dimensions: inches (mm)
100m Ohm
Max.
Contact
Resistance
AMS-39
AMS-39B
Model
Number
Breakdown
Voltage
0.4 A
0.2 A
Max.
Switching
Current
AMS-39
AMS-39B
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
6-32 SCREW
1-11/16 (43)
2-1/8 (54)
2-1/2 (63.5)
6-32 SCREW
1-11/16 (43)
2-1/8 (54)
2-1/2 (63.5)
2 HOLES o 4mm
13/64 (5)
2 HOLES o 4mm
13/64 (5)
1/2 (12.7)
41/64 (16.3)
1/2 (12.7)
41/64 (16.3)
Downloaded from - http://www.guardianalarms.net
AMS-37
Industrial Magnetic Contact
Description
The AMS-37 is a UL listed reed switch. The construc-
tion is basically the same as our AMS-39 including all
materials and hardware. It is made in gray only and is
designed for closed circuit systems. The reed switch
itself is 2 inches long and meets all specifications. The
magnet is made of ALNICO 6 and is approximately 3
inches long. The AMS-37 reed magnetic switch is
designed for rugged use and can be installed on any
opening with care. The mounting holes in the case
have been designed so that the head of the screws
become recessed, making a neater installation.
Dimensions: inches (mm)
Specifications
250V DC
Min.
N.C.
2.0 A
10VA
2” Min.
Screws
32°F ~ 120°F
(0°C ~ 49°C)
Breakdown
Voltage
Contact
Type
Max.
Carry
Current
Contact
Rating
Operating
Gap
Mounting
Method
Operating
Temperature
Range
*N/C contacts are closed with magnet engaged. *N/O contacts are open with magnet engaged.
Features
· 2” minimum operating gap
· AMS-37L: PVC jacket, AWG#22 lead wire
· Alnico 5 magnet
· Designed for closed circuit systems
· Available colors: Gray
AMS39-AMS37 11/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Top View
Side View
0.5 A
AMS-37
AMS-37B
AMS-37L
AMS-37L48
Model
Number
Contact
Terminal
Terminal,Form C
24” Leads
48” Leads
Max.
Switching
Current
AMS-37L
AMS-37L
2"
OPERATING
GAP
2 - o 4mm
3-15/32 (88)
3-29/32 (99)
33/64 (13)
33/64 (13)
