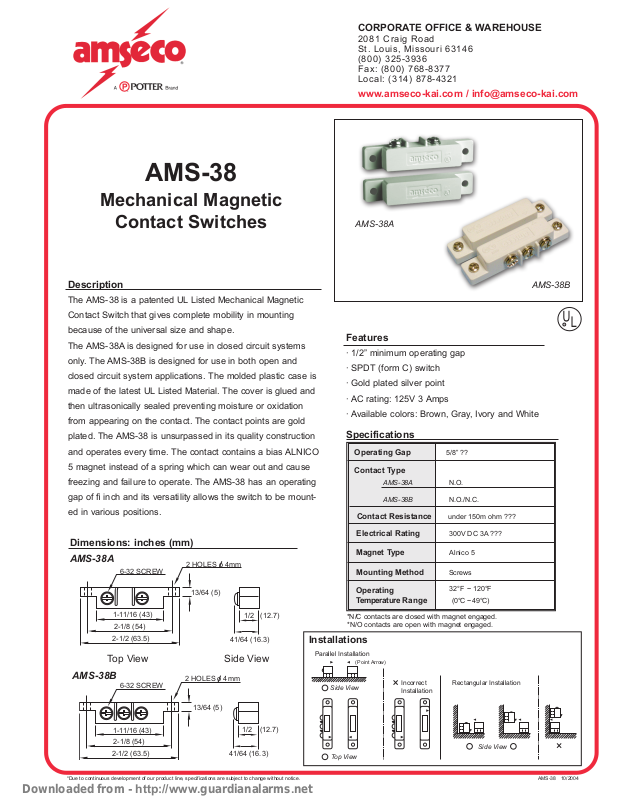

AMS-38
Mechanical Magnetic
Contact Switches
AMS-38 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Description
The AMS-38 is a patented UL Listed Mechanical Magnetic
Contact Switch that gives complete mobility in mounting
because of the universal size and shape.
The AMS-38A is designed for use in closed circuit systems
only. The AMS-38B is designed for use in both open and
closed circuit system applications. The molded plastic case is
made of the latest UL Listed Material. The cover is glued and
then ultrasonically sealed preventing moisture or oxidation
from appearing on the contact. The contact points are gold
plated. The AMS-38 is unsurpassed in its quality construction
and operates every time. The contact contains a bias ALNICO
5 magnet instead of a spring which can wear out and cause
freezing and failure to operate. The AMS-38 has an operating
gap of fi inch and its versatility allows the switch to be mount-
ed in various positions.
Dimensions: inches (mm)
Specifications
5/8” ??
N.O.
N.O./N.C.
Alnico 5
32°F ~ 120°F
(0°C ~ 49°C)
Operating Gap
Contact Type
Magnet Type
Operating
Temperature Range
Top View
Side View
AMS-38B
AMS-38A
Features
· 1/2” minimum operating gap
· SPDT (form C) switch
· Gold plated silver point
· AC rating: 125V 3 Amps
· Available colors: Brown, Gray, Ivory and White
Installations
AMS-38A
AMS-38B
300V DC 3A ???
Electrical Rating
under 150m ohm ???
Contact Resistance
Screws
Mounting Method
*N/C contacts are closed with magnet engaged.
*N/O contacts are open with magnet engaged.
AMS-38A
AMS-38B
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
6-32 SCREW
1-11/16 (43)
2-1/8 (54)
2-1/2 (63.5)
6-32 SCREW
1-11/16 (43)
2-1/8 (54)
2-1/2 (63.5)
2 HOLES o 4mm
13/64 (5)
1/2 (12.7)
41/64 (16.3)
2 HOLES o 4mm
13/64 (5)
1/2 (12.7)
41/64 (16.3)
Downloaded from - http://www.guardianalarms.net
Parallel Installation
(Point Arrow)
Side View
Top View
Incorrect
Installation
Rectangular Installation
Side View
