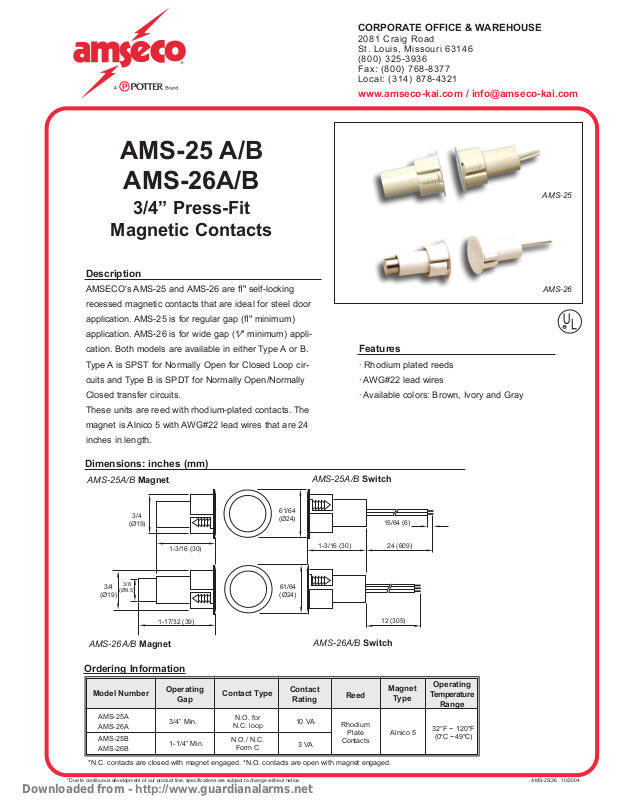

Amseco AMS-26A User Guide

AMS-25 A/B

AMS-26A/B

3/4” Press-Fit

Magnetic Contacts

AMS-25/26 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.

Description

AMSECO's AMS-25 and AMS-26 are fl" self-locking

recessed magnetic contacts that are ideal for steel door

application. AMS-25 is for regular gap (fl" minimum)

application. AMS-26 is for wide gap (1⁄" minimum) appli-

cation. Both models are available in either Type A or B.

Type A is SPST for Normally Open for Closed Loop cir-

cuits and Type B is SPDT for Normally Open/Normally

Closed transfer circuits.

These units are reed with rhodium-plated contacts. The

magnet is Alnico 5 with AWG#22 lead wires that are 24

inches in length.

Dimensions: inches (mm)

Features

· Rhodium plated reeds

· AWG#22 lead wires

· Available colors: Brown, Ivory and Gray

AMS-25

AMS-26

AMS-25A/B Magnet

AMS-26A/B Magnet

AMS-25A/B Switch

AMS-26A/B Switch

*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.

Model Number

AMS-25A
AMS-26A

Magnet

Type

Reed

Operating

Temperature

Range

32°F ~ 120°F

(0°C ~ 49°C)

Alnico 5

Rhodium

Plate

Contacts

Ordering Information

Operating

Gap

3/4” Min.

1-1/4” Min.

10 VA

3 VA

Contact

Rating

Contact Type

N.O. for

N.C. loop

N.O./ N.C.

Form C

AMS-25B
AMS-26B

CORPORATE OFFICE & WAREHOUSE

2081 Craig Road
St. Louis, Missouri 63146
[phone]
Fax: [phone]
Local: [phone]

www.amseco-kai.com / [e-mail]

61/64
(Ø24)

61/64

(Ø24)

3/4

(Ø19)

3/8

(Ø9.5)

3/4

(Ø19)

1-3/16 (30)

1-17/32 (39)

Downloaded from - http://www.guardianalarms.net

15/64 (6)

1-3/16 (30) 24 (609)

12 (305)
