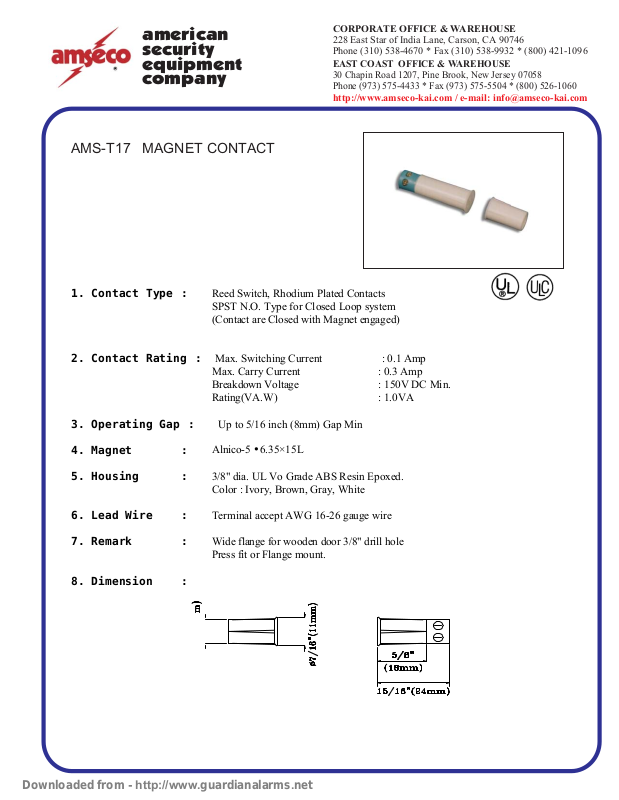

AMS-T17 MAGNET CONTACT
1. Contact Type : Reed Switch, Rhodium Plated Contacts
SPST N.O. Type for Closed Loop system
(Contact are Closed with Magnet engaged)
2. Contact Rating
3. Operating Gap : Up to 5/16 inch (8mm) Gap Min
4. Magnet :
5. Housing : 3/8" dia. UL Vo Grade ABS Resin Epoxed.
6. Lead Wire : Terminal accept AWG 16-26 gauge wire
7. Remark : Wide flange for wooden door 3/8" drill hole
8. Dimension :
: Max. Switching Current : 0.1 Amp
Max. Carry Current : 0.3 Amp
Breakdown Voltage : 150V DC Min.
Rating(VA.W) : 1.0VA
Alnico-5 •6.35×15L
Color : Ivory, Brown, Gray, White
Press fit or Flange mount.
