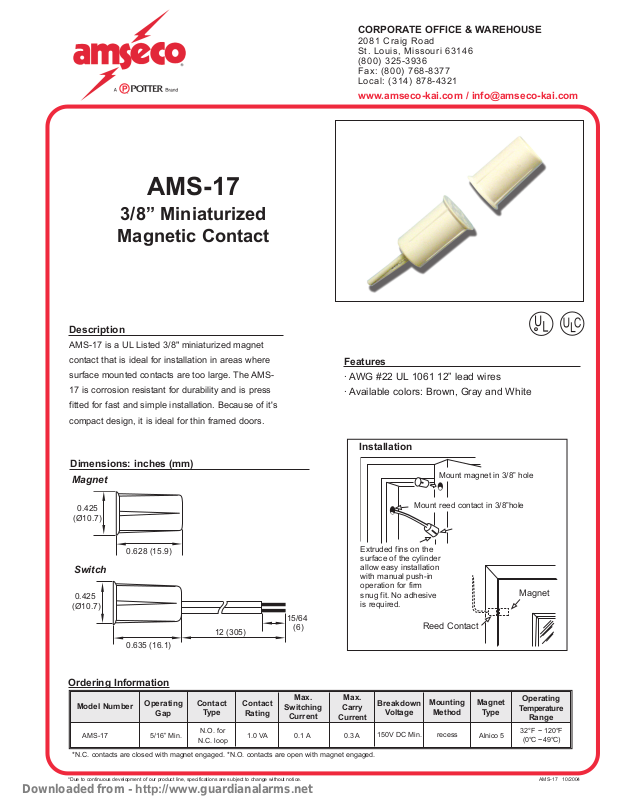

AMS-17
3/8” Miniaturized
Magnetic Contact
AMS-17 10/2004*Due to continuous development of our product line, specifications are subject to change without notice.
Description
AMS-17 is a UL Listed 3/8" miniaturized magnet
contact that is ideal for installation in areas where
surface mounted contacts are too large. The AMS-
17 is corrosion resistant for durability and is press
fitted for fast and simple installation. Because of it's
compact design, it is ideal for thin framed doors.
Dimensions: inches (mm)
Magnet
Switch
Features
· AWG #22 UL 1061 12” lead wires
· Available colors: Brown, Gray and White
Installation
Mount magnet in 3/8” hole
Mount reed contact in 3/8”hole
Magnet
Reed Contact
Extruded fins on the
surface of the cylinder
allow easy installation
with manual push-in
operation for firm
snug fit. No adhesive
is required.
*N.C. contacts are closed with magnet engaged. *N.O. contacts are open with magnet engaged.
Model Number
AMS-17
Max.
Switching
Current
Magnet
Type
Mounting
Method
Breakdown
Voltage
Operating
Temperature
Range
32°F ~ 120°F
(0°C ~ 49°C)
0.1 A
Alnico 5
recess
Ordering Information
Operating
Gap
5/16” Min.
1.0 VA
Contact
Rating
Contact
Type
N.O. for
N.C. loop
Max.
Carry
Current
0.3 A
150V DC Min.
CORPORATE OFFICE & WAREHOUSE
2081 Craig Road
St. Louis, Missouri 63146
(800) 325-3936
Fax: (800) 768-8377
Local: (314) 878-4321
www.amseco-kai.com / info@amseco-kai.com
0.425
(Ø10.7)
0.628 (15.9)
0.425
(Ø10.7)
12 (305)
0.635 (16.1)
15/64
(6)
